Malfunctions and Troubleshooting
8
1
Fig. 115

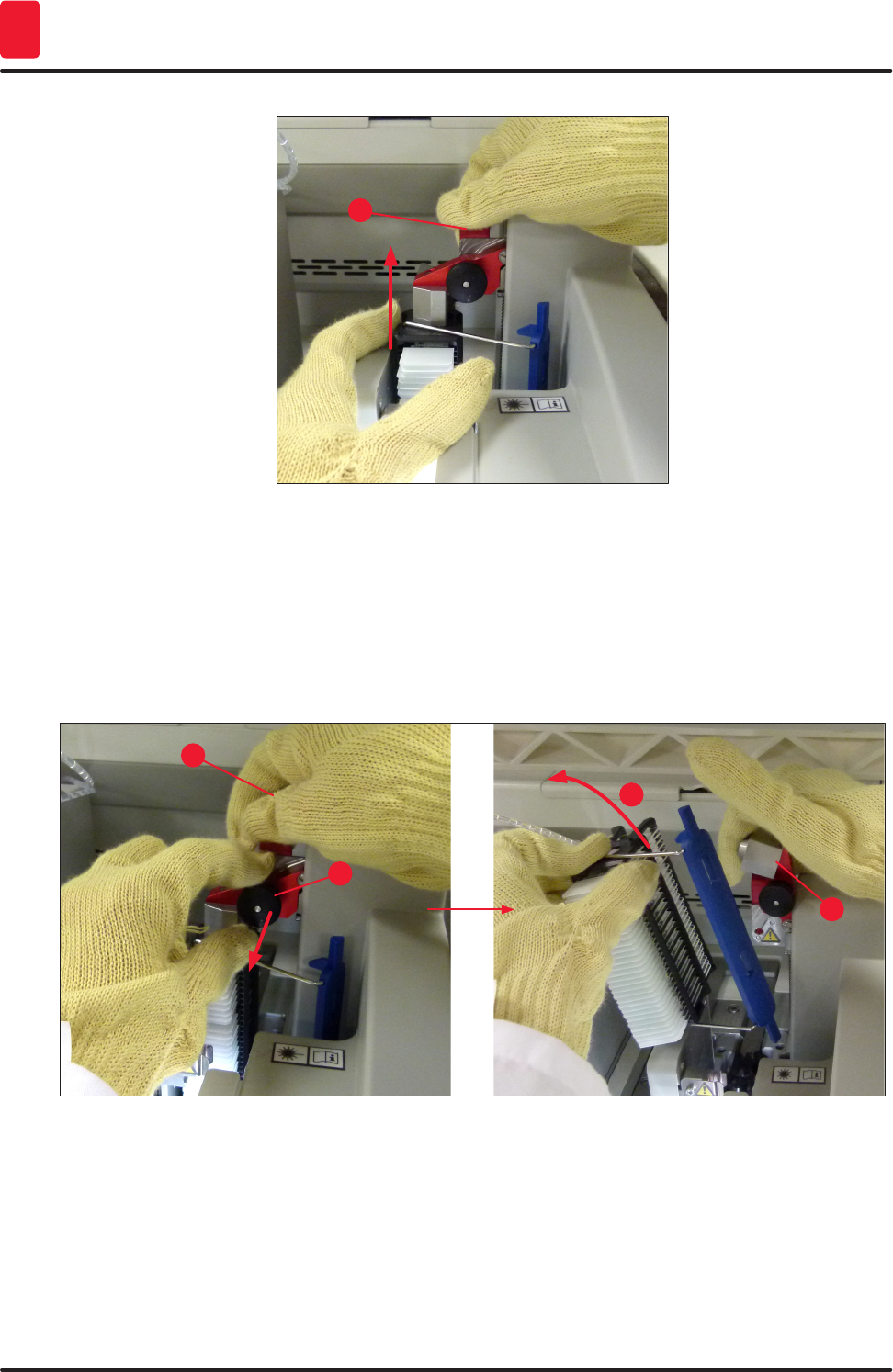

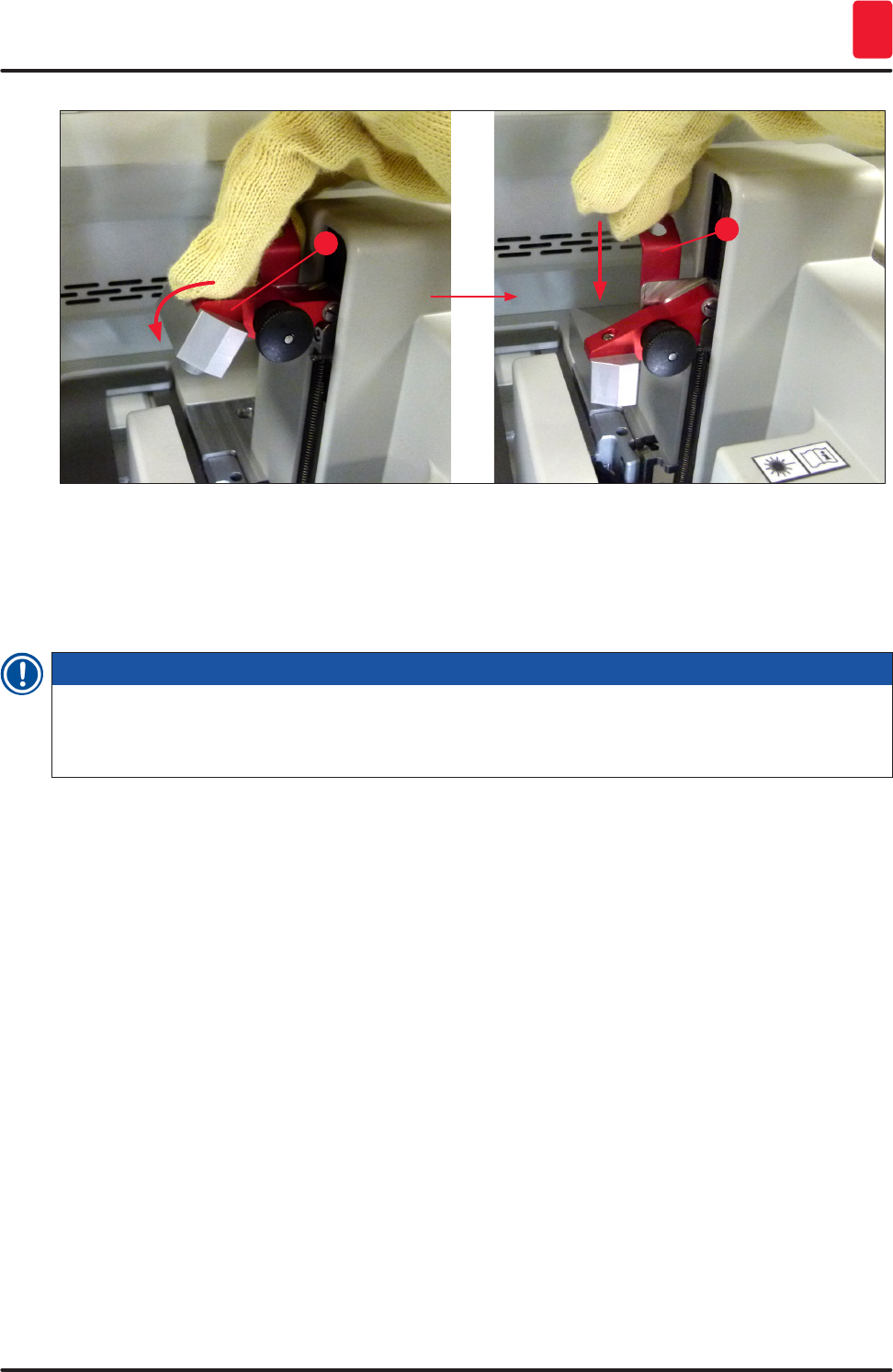

11. Hold the elevator with one hand (→ Fig. 116-1), loosen the locking mechanism (→ Fig. 116-2)
at the elevator and fold it back (→ Fig. 116-3).
12. Continue to hold the elevator with one hand and remove the rack from the elevator with the
other hand (→ Fig. 116-4). Make sure that no slides slip out of the rack.
13. Now release the elevator and take the removed rack out of the instrument.
1
2
3
4
Fig. 116

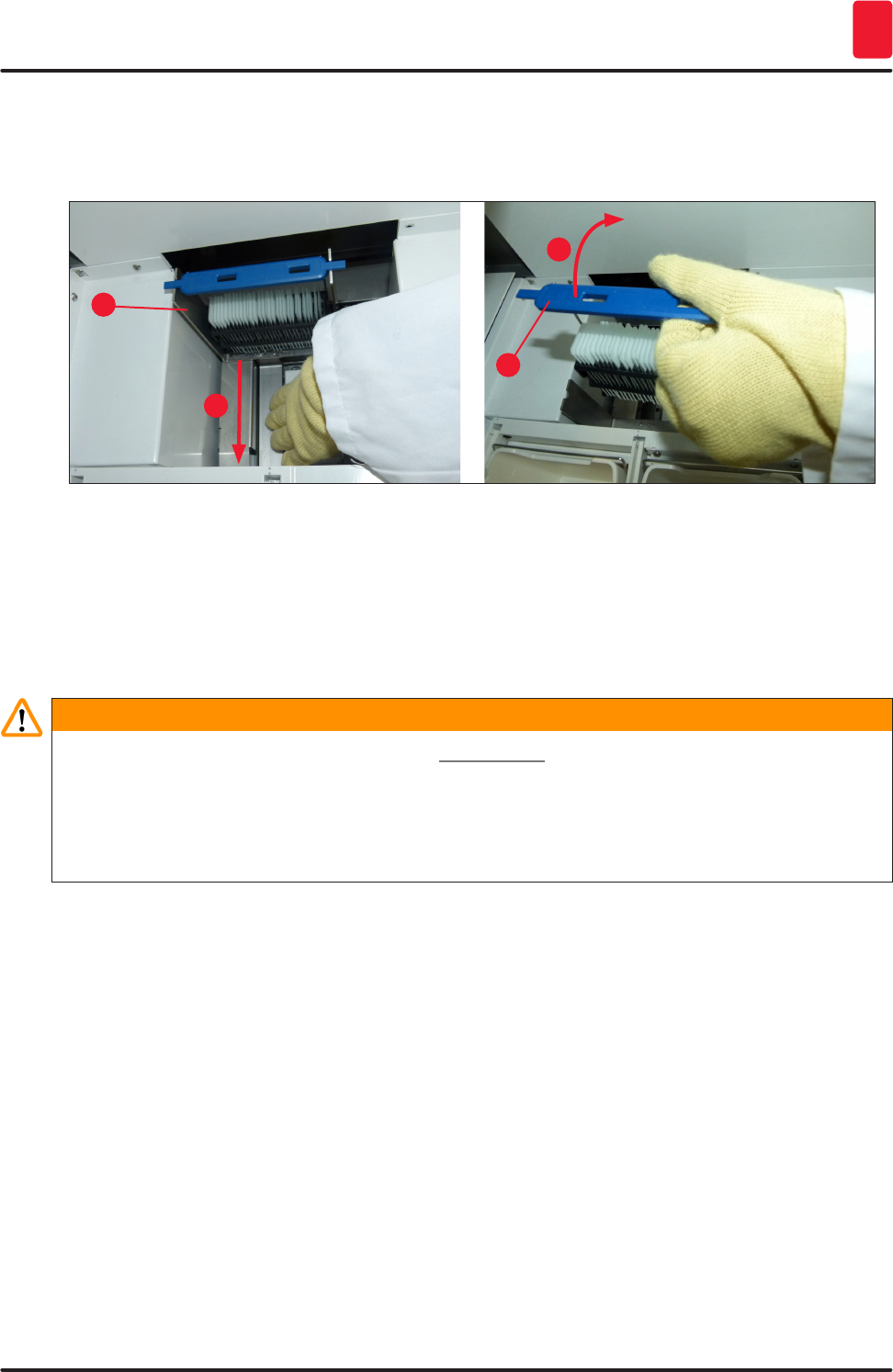

14. Close the locking mechanism of the elevator again (→ Fig. 117-1) and push the elevator a few
centimeters downward (→ Fig. 117-2).
149
HistoCore SPECTRA CV
Malfunctions and Troubleshooting 8
12
Fig. 117
15. Remove the needle from the parking location and insert it into the holder of the coverslip line.
Make sure that the needle is positioned correctly.
16. Close the hood.
Note
• After initializing the instrument again, the coverslip line can be used for processing again.
• If the coverslip line continues to be defective, notify Leica Service. Do not continue to use the
defective coverslip line in the meantime.
8.3.3 Removing the rack from the lower area of the left elevator
1. Moving the unload drawer into removal position (rescue position)
2. Reach to the left elevator with your left hand through the unload drawer (or through the load
drawer after the vessels have been removed).
3. Press the rack downwards and out of the elevator (hold the holder from below using your little
finger) and push it toward the back.
4. The rack can also be removed upwards using the coverslip line and the elevator. To do so,
please note the action as described in step 2.
150 Version 1.2, Revision A
Malfunctions and Troubleshooting
8
8.3.4 Removing the rack from the oven or from behind the oven
Warning
• Danger of explosion! Easily flammable reagents in the oven
• There is a potential for respiratory tract irritation through evaporating flammable reagents.
• Caution! Hot surfaces! The oven door and the interior of the oven are hot. Avoid contact if
possible to prevent burns.
1. Open access to the oven (→ Fig. 118-1).
2. Open the oven door (→ Fig. 118-2) fully upwards (→ Fig. 118-3), the magnet holds the oven
door in place (→ Fig. 118-4).
3. If the rack is not attached to the gripper (→ Fig. 118-5), the rack can be removed from the oven
(→ Fig. 118-6).
Warning
It is possible that the mounting medium is not yet sufficiently dried. Because of this, remove the rack
only with great caution to prevent sliding of the coverglasses on the slides.
4. Store the rack safely outside the instrument.
5. Detach the oven door from the magnet carefully (→ Fig. 118-7) and close it (→ Fig. 118-8).
Warning
Close the oven door carefully to prevent crushing your hand.
Note
You must feel the oven door click into place in the lock.
6. Finally, close the access to the oven (→ Fig. 118-1).
151
HistoCore SPECTRA CV
Malfunctions and Troubleshooting 8
1
6
2
73
84
5
Fig. 118

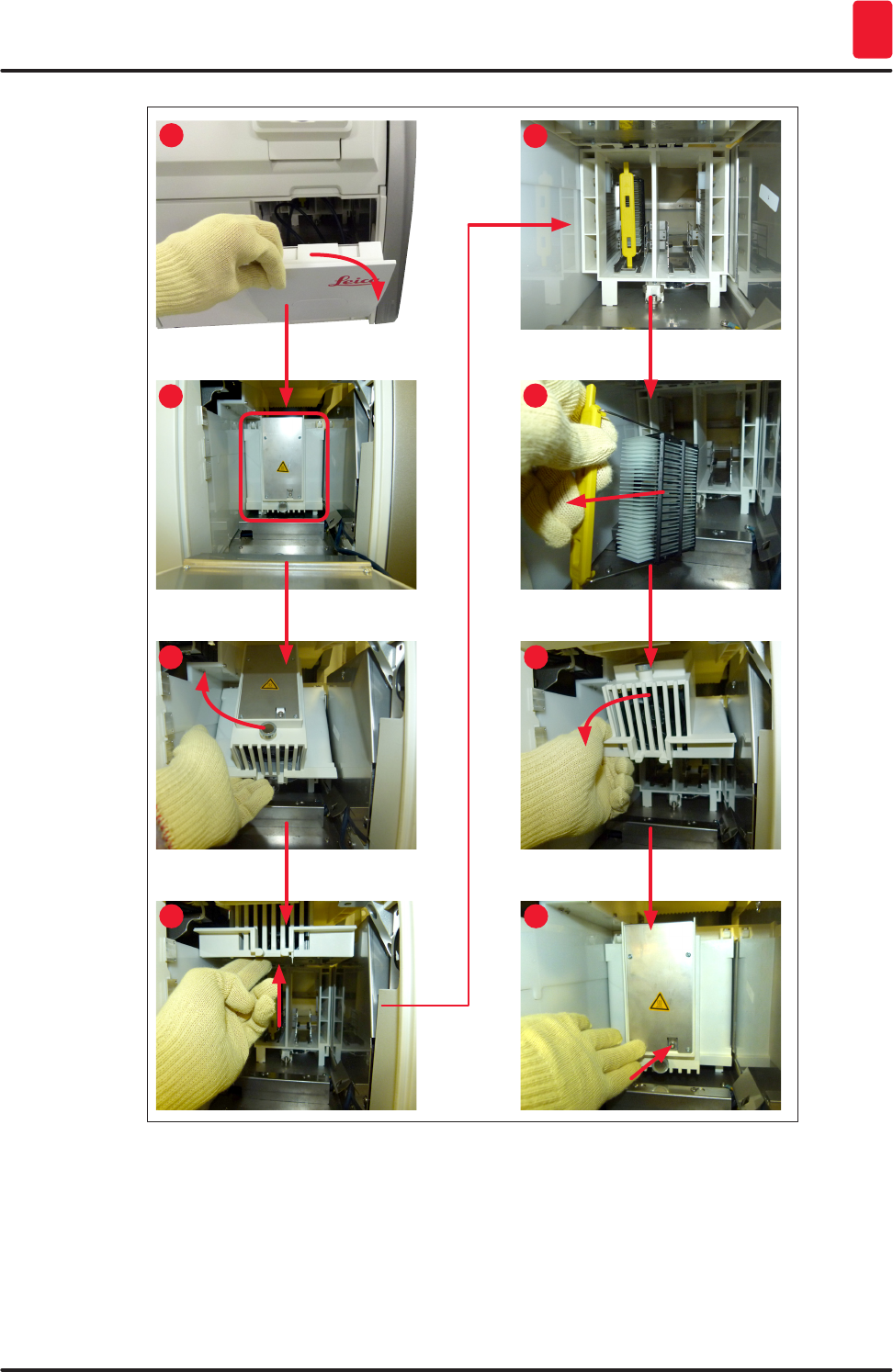

8.3.5 Removal of the rack from the rotator
1. Moving the unload drawer into removal position (rescue position).
2. Insert your hand carefully into the instrument and remove the rack (→ Fig. 119-1) from the
rotator (→ Fig. 119-2).
152 Version 1.2, Revision A
Malfunctions and Troubleshooting
8
1
2
Fig. 119
8.3.6 Removal of the rack from the gripper above the rotator
1. Moving the unload drawer into removal position (rescue position).
2. Insert your hand carefully into the instrument and remove the rack from the gripper arm. To do
so, grasp the handle and pull it forward, along with the rack, toward the load drawer.
8.3.7 Removal of a rack from the transfer station of the HistoCore SPECTRA ST
LIf a malfunction occurs in workstation mode while the transfer device of the
HistoCore SPECTRA ST transfers a rack to the HistoCore SPECTRA CV using the transfer station,
the user must check where the rack is located.

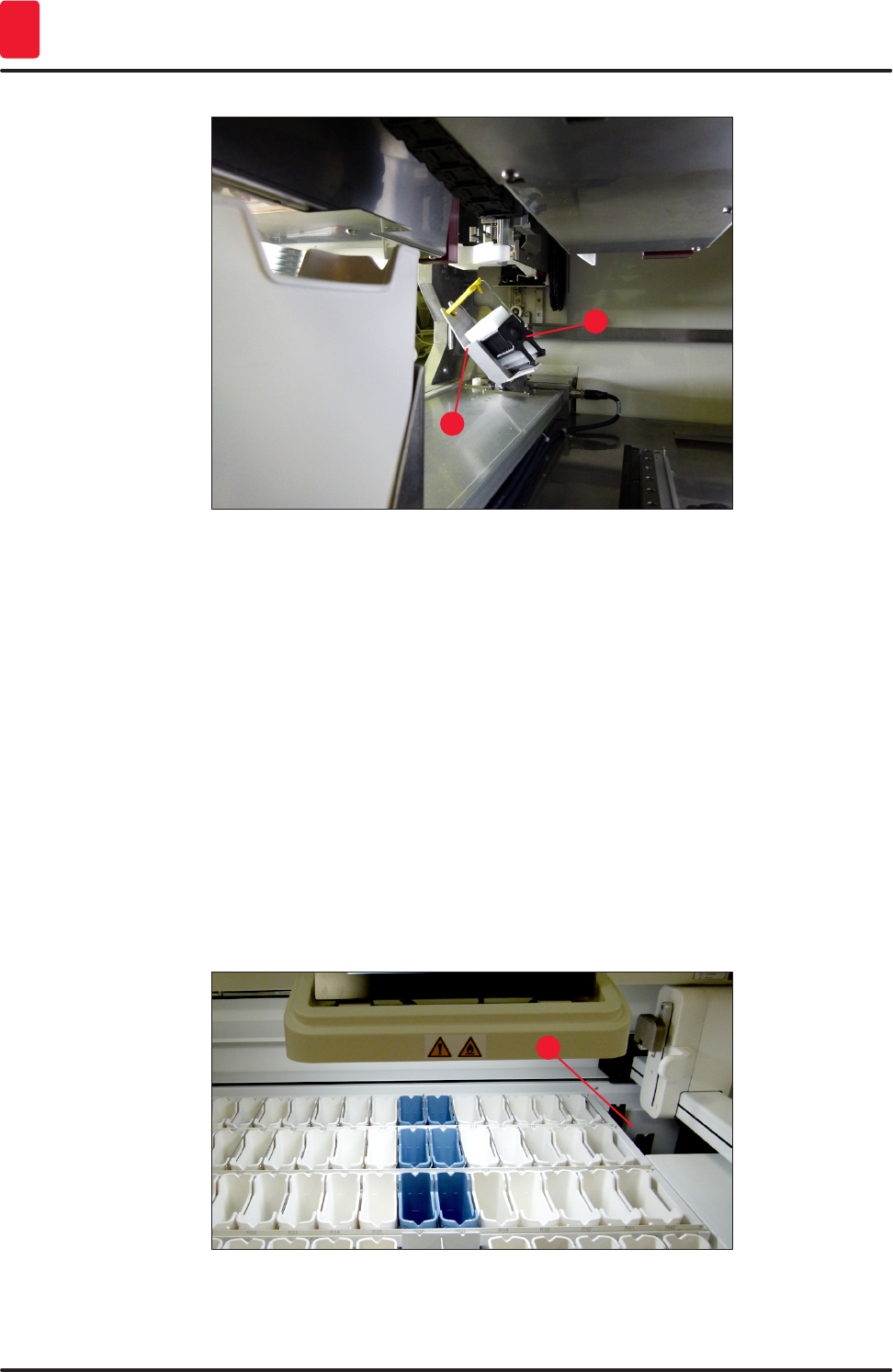

1. Open the hood of the HistoCore SPECTRA ST.
2. Check whether the rack is still visible from the transfer station (→ Fig. 120-1).
1
Fig. 120
153
HistoCore SPECTRA CV
Malfunctions and Troubleshooting 8
3. If this is the case, push the sledge (→ Fig. 121-1) for the transfer station back into the
HistoCore SPECTRA ST manually (→ Fig. 121-2) and remove the rack (→ Fig. 121-3) from the
holder (→ Fig. 121-4).
1
2
3
4
Fig. 121
4. Following this, remove the rack from the instrument and store it safely.
5. After the instrument fault has been corrected, insert the rack in the load drawer of the
HistoCore SPECTRA CV to start processing.
8.4 Replacing main fuses
Warning
The instrument should be shut down using the Main Switch and disconnected from the power supply
in the case of a instrument failure. The main fuses can then be inspected.
A suitable flat-head screwdriver must be used to prevent damage to the fuse holders.
Beware of defective fuses! Potential risk of injury due to broken glass! Wear suitable protective
clothing (safety goggles, cut-resistant gloves (→ P. 19 – 3.1 Standard delivery – packing list)).

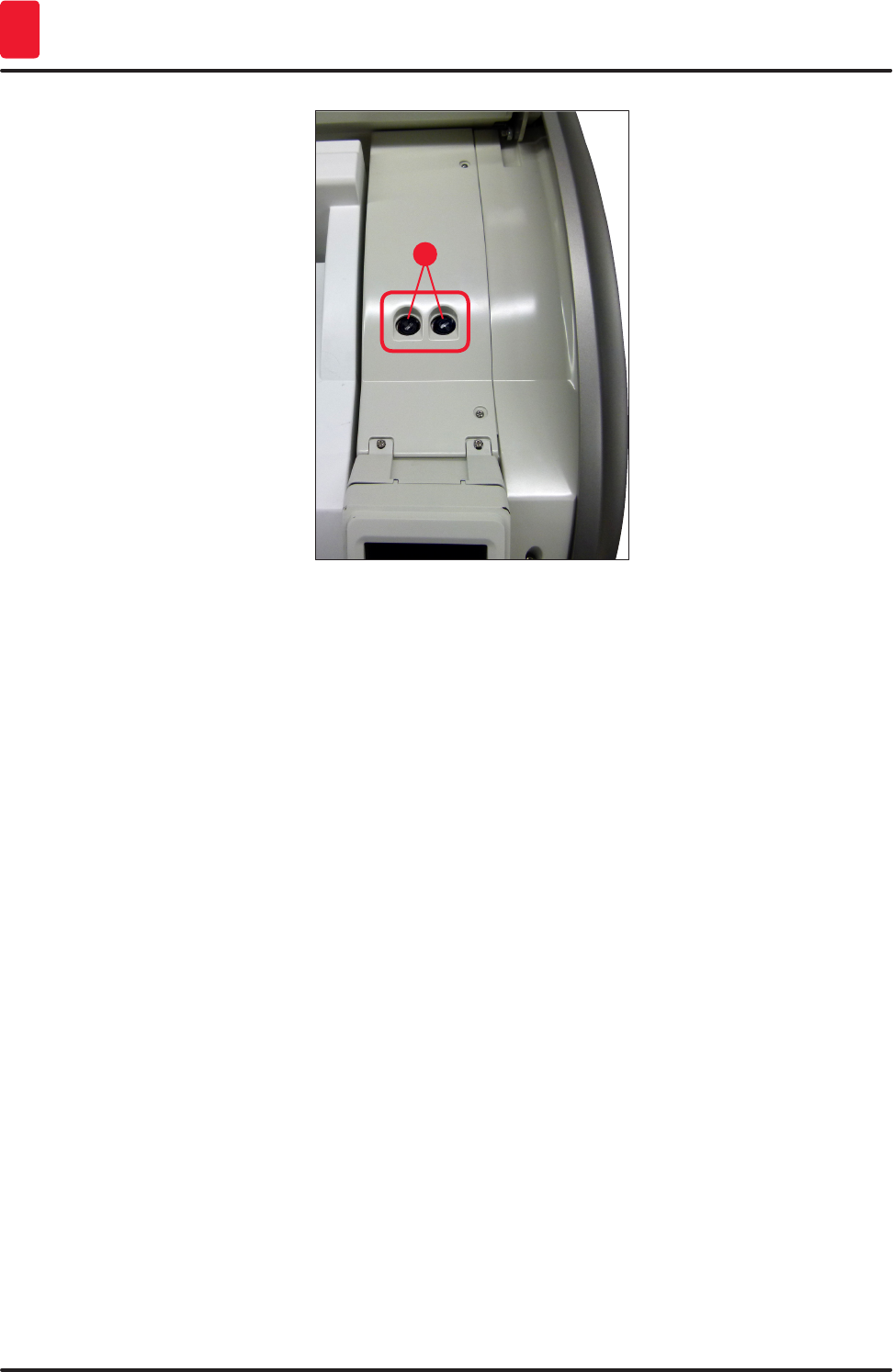

1. To do so, open the hood and unscrew the two fuse holders (→ Fig. 122-1) on the top of the
right cover with a flat-head screwdriver
2. Check the fuse being used for damage.
154 Version 1.2, Revision A
Malfunctions and Troubleshooting
8
1
Fig. 122
3. Remove the defective fuse from the holder and replace it with a new fuse.
4. Installation occurs in the reverse sequence of operations.
155
HistoCore SPECTRA CV
Optional Accessories and Consumables 9
9. Optional Accessories and Consumables
9.1 Optional accessories
Designation Order No.
Rack for 30 slides* (3 pcs. per package) 14 0512 52473
Handle for rack for 30 slides* (yellow, 3 pcs. per package) 14 0512 52476
Handle for rack for 30 slides* (light blue, 3 pcs. per package) 14 0512 52477
Handle for rack for 30 slides* (dark blue, 3 pcs. per package) 14 0512 52478
Handle for rack for 30 slides* (pink, 3 pcs. per package) 14 0512 52479
Handle for rack for 30 slides* (red, 3 pcs. per package) 14 0512 52480
Handle for rack for 30 slides* (green, 3 pcs. per package) 14 0512 52481
Handle for rack for 30 slides* (black, 3 pcs. per package) 14 0512 52482
Handle for rack for 30 slides* (gray, 3 pcs. per package) 14 0512 52483
Handle for rack for 30 slides* (white, 3 pcs. per package) 14 0512 52484
Reagent vessel, assembly, each consisting of 1 pc.: 14 0512 47086
Reagent vessel 14 0512 47081
Reagent vessel cover 14 0512 47085
Reagent vessel handle 14 0512 47084
Label cover S 14 0512 53748
Label cover, blank 14 0512 47323
Waste tray 14 0514 49461
Solvent container kit (2 pcs.) 14 0514 54195
Prime bottle, assembly, consisting of: 14 0514 53931
Lab bottle, 150 ml 14 0514 56202
Screw cap 14 0478 39993
Prime bottle insert 14 0514 57251
28x3 mm O-ring 14 0253 39635
Cleaning bottle 14 0514 57248
Suction cup 14 3000 00403
Rack storage rails for the unload drawer 14 0514 55967
Active carbon filter set, consisting of: 14 0512 53772
Active carbon filter 14 0512 47131
Exhaust air hose set, consisting of: 14 0514 54815
Exhaust air hose, 2 m 14 0422 31974
Hose clamp 14 0422 31973
Cut-resistant gloves, size M, 1 pair 14 0340 29011
156 Version 1.2, Revision A
Optional Accessories and Consumables
9
Designation Order No.
Tool kit HistoCore SPECTRA CV, consisting of: 14 0514 54189
Screwdriver, 5.5x150 14 0170 10702
Leica brush 14 0183 30751
T16A fuse 14 6000 04696
Fig. 123

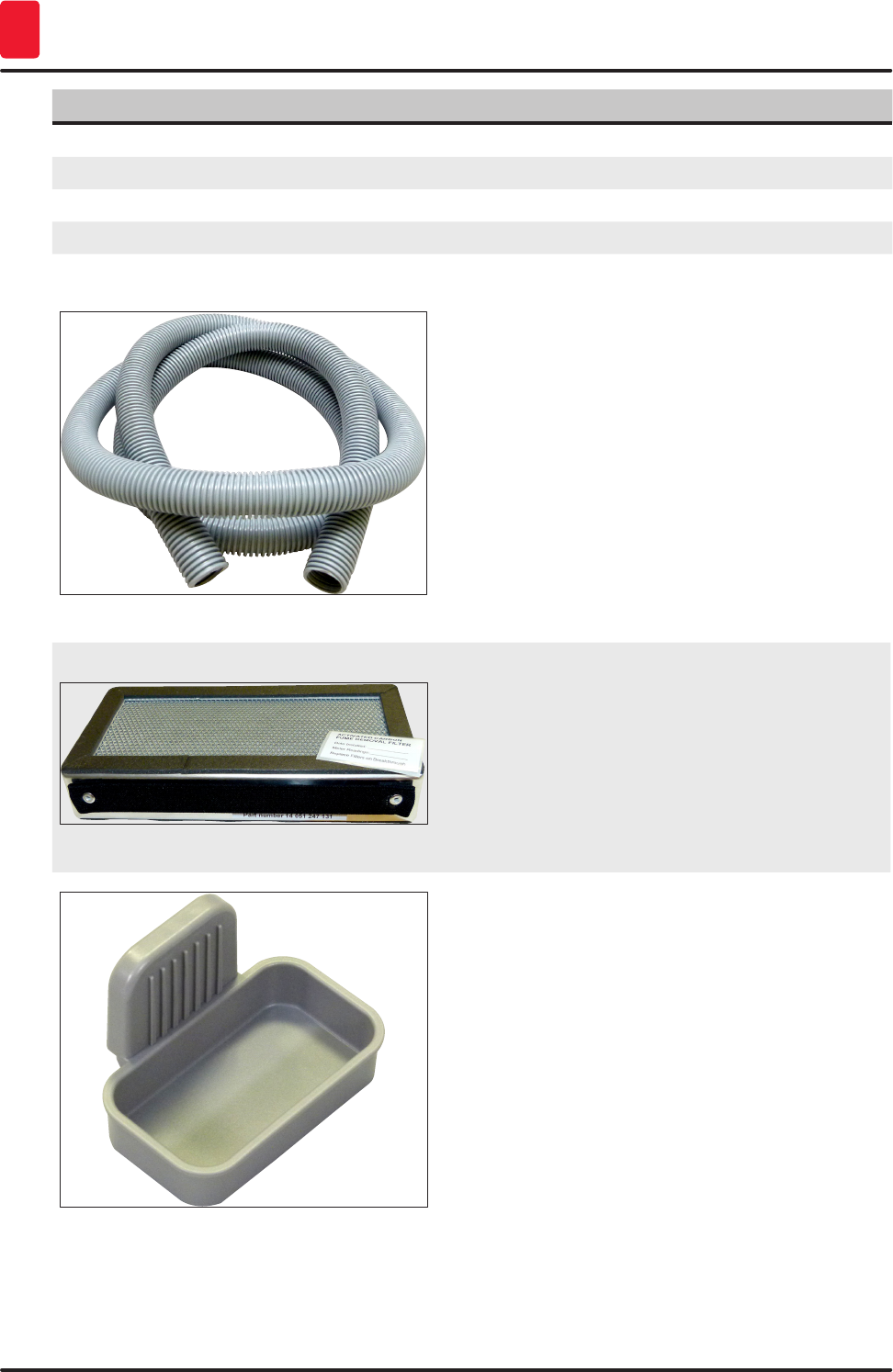

Exhaust hose
1 set, consisting of the following:
• Exhaust hose of length: 2 m
• Hose clamp
Order No.: 14 0422 31974
Fig. 124
Active carbon filter
1 set, consisting of 2 pcs.
Order No.: 14 0512 53772
Fig. 125
Waste tray
Order No.: 14 0514 49461
157
HistoCore SPECTRA CV
Optional Accessories and Consumables 9

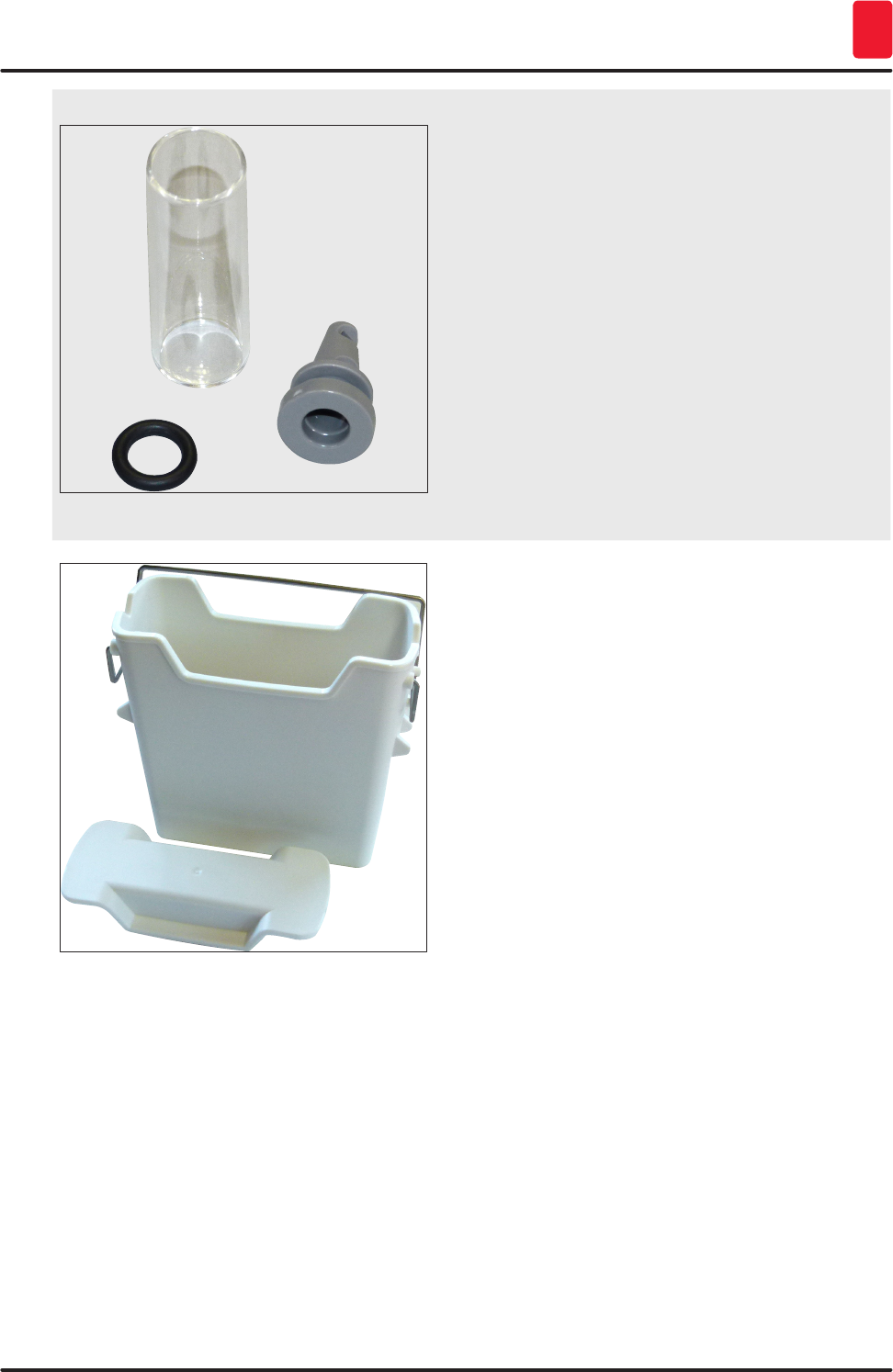

Fig. 126
Needle cleaning container
1 kit, consisting of 2 pcs.
Order No.: 14 0514 54195
Fig. 127
Reagent vessel
Assembly, incl. reagent vessel cover
Order No.: 14 0512 47086
158 Version 1.2, Revision A
Optional Accessories and Consumables
9

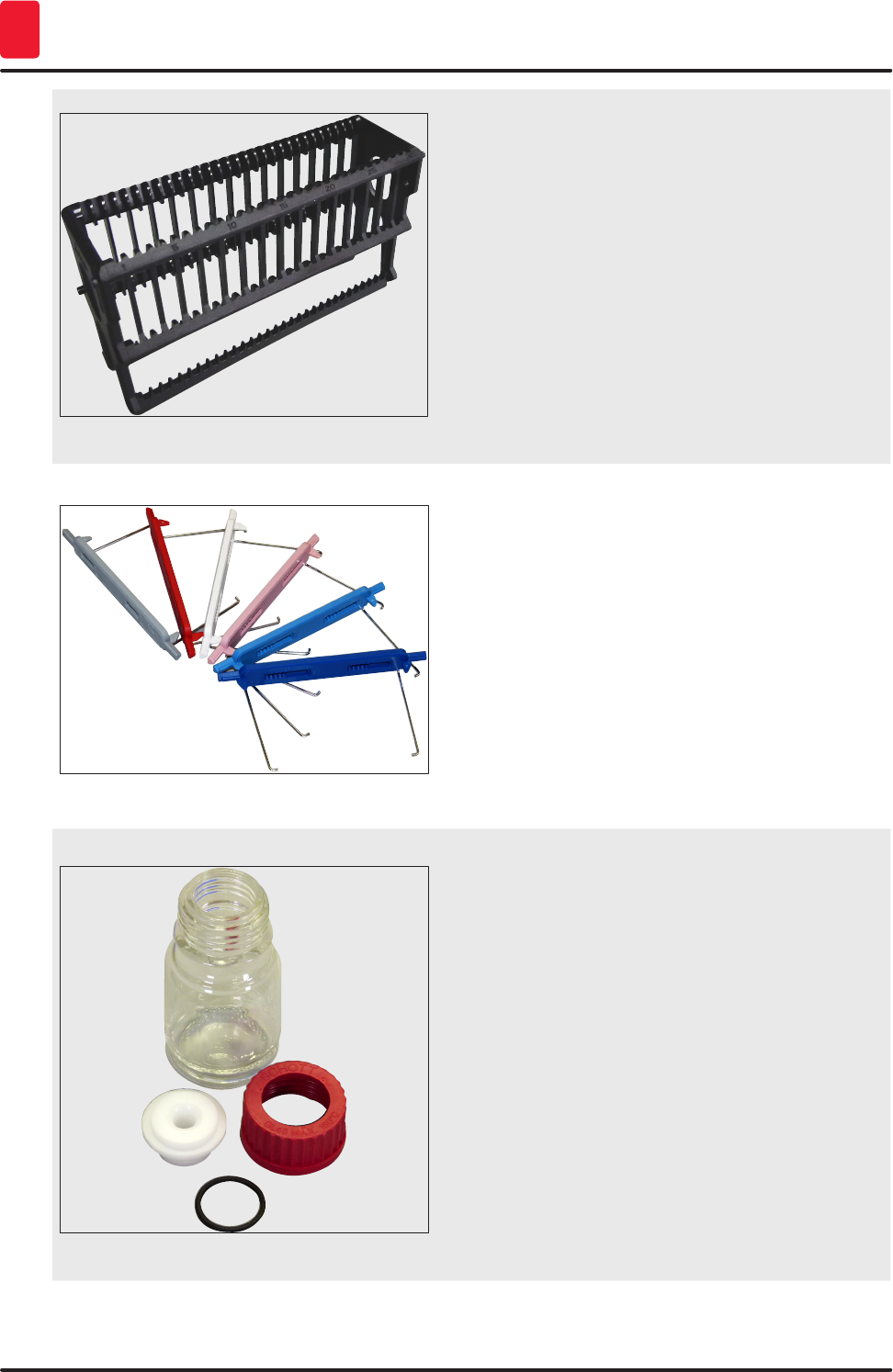

Fig. 128
Racks
30 specimen slides (3 pcs. per package)
Order No.: 14 0512 52473
Fig. 129
Handle for racks
30 specimen slides (3 pcs. per package)
Color Order No.:
• yellow 14 0512 52476
• light blue 14 0512 52477
• dark blue 14 0512 52478
• pink 14 0512 52479
• red 14 0512 52480
• light green 14 0512 52481
• black 14 0512 52482
• gray 14 0512 52483
• white 14 0512 52484
Fig. 130
Prime bottle
Assembly, consisting of:
• Lab bottle, 150 ml
• Screw cap
• Prime bottle insert
• 28x3 mm O-ring
Order No.: 14 0514 53931
