Exhibit 122a
APPLICANT: MOTOROLA
Cellular Networks
FCC ID: IHET5GX1
FRU Manual Exhibit
UBS CDMA XMI Transceiver at 800MHz
FCC Filing – UBS CDMA XMI Transceiver at 800MHz (cover page)
1X UBS Macro BTS FRU
68P09283A64 -3 SEP 2007
FOA
© 2007 Motorola, Inc. All Rights R eserv ed
Accuracy
While reasonable efforts have been made to assure the accuracy of this document, Motorola, Inc. assumes no
liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained
herein. Motorola, Inc. reserves the right to make changes to any products described herein to improve reliability ,
function, or design, and reserves the right to revise this document and to make changes from time to time in content
hereof with no obligation to notify any person of revisions or changes. Motorola, Inc. does not assume any liability
arising out of the application or use of any product, software, or circuit described herein; neither does it convey
license under its patent rights or the rights of others. It is possible that this publication may contain references to, or
information about Motorola products (machines and programs), programming, or services that are not announced
in your country . Such references or information must not be construed to mean that Motorola intends to announce
such Motorola products, programming, or services in your country .
Copyrights
This document, Motorola products, and 3rd P arty Software products described in this document may include
or describe copyrighted Motorola and other 3rd P arty supplied computer programs stored in semiconductor
memories or other media. Laws in the United States and other countries preserve for Motorola, its licensors, and
other 3rd P arty supplied software certain exclusive rights for copyrighted material, including the exclusive right
to copy , reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly ,
any copyrighted material of Motorola, its licensors, or the 3rd P arty software supplied material contained in the
Motorola products described in this document may not be copied, reproduced, reverse engineered, distributed,
merged or modified in any manner without the express written permission of Motorola. Furthermore, the purchase
of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any
license under the copyrights, patents or patent applications of Motorola or other 3rd P arty supplied software,
except for the normal non-exclusive, royalty free license to use that arises by operation of law in the sale of a
product.
A list of 3rd P arty supplied software copyrights are contained in the Supplemental information section of this
document.
Restrictions
Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law . No part
of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language or computer language, in any form or by any means, without prior written permission
of Motorola, Inc.
License Agreements
The software described in this document is the property of Motorola, Inc and its licensors. It is furnished by express
license agreement only and may be used only in accordance with the terms of such an agreement.
High Risk Materials
Components, units, or 3rd P arty products used in the product described herein are NOT fault-tolerant and are NOT
designed, manufactured, or intended for use as on-line control equipment in the following hazardous environments
requiring fail-safe controls: the operation of Nuclear F acilities, Aircraft Navigation or Aircraft Communication
Systems, Air Traffic Control, Life Support, or W eapons Systems (High Risk Activities). Motorola and its supplier(s)
specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities.
T rademarks
Motorola and the Stylized M Logo are registered in the US P atent & Trademark Office. All other product or service
names are the property of their respective owners.
The CE mark confirms Motorola, Inc. statement of compliance with EU directives applicable to this product. Copies
of the Declaration of Compliance and installation information in accordance with the requirements of EN50385 can
be obtained from the local Motorola representative or by contacting the Customer Network Resolution Center
(CNRC). The 24 hour telephone numbers are listed at h t t p s : / / m y n e t w o r k s u p p o r t . m o t o r o l a . c o m . Select Customer
Network Resolution Center contact information. Alternatively if you do not have access to CNRC or the
internet, contact the Local Motorola Office.
FOA SEP 2007
T a b l e
o f
C o n t e n t s
Contents
■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
■
■
1X UBS Macro BTS FRU
Revision history ......................................... 2
Version information ..................................... 2
Resolution of Service Requests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Incorporation of Change Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
General information ....................................... 3
Purpose ........................................... 3
Cross references ....................................... 3
Text conventions ....................................... 4
Contacting Motorola ....................................... 5
24–hour support ....................................... 5
Questions and comments .................................. 5
Errors ............................................ 5
Security advice .......................................... 6
W arnings, cautions, and notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
W arnings ........................................... 7
Cautions ........................................... 7
Notes ............................................ 7
Safety .............................................. 8
General safety ........................................ 8
Electromagnetic energy ................................... 8
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
In EU countries ....................................... 9
In non -EU countries ..................................... 9

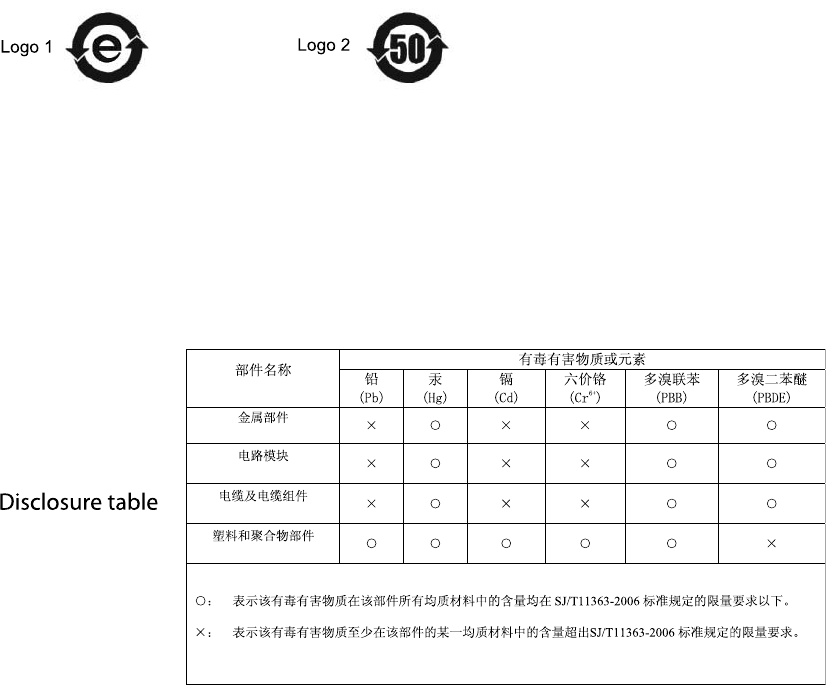

CMM labeling and disclosure table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Motorola document set ..................................... 11
Ordering documents and CD -ROMs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Document banner definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Data encryption ....................................... 11
Third P arty Computer Software and Trademarks . . . . . . . . . . . . . . . . . . . . . . . . 12
Computer Software ..................................... 12
Trademarks ......................................... 12
FCC Requirements ........................................ 13
Content ........................................... 13
FCC Part 15 Requirements .................................. 13
Chapter 1: Overview
Information Overview ...................................... 1 - 2
Organization of manual ................................... 1 - 2
How to use this manual ................................... 1 - 5
Required manuals ...................................... 1 - 5
FRU locations ........................................ 1 - 5
68P09283A64 -3 i
SEP 2007 FOA
Contents
Recommended tools ..................................... 1 - 6
Abbreviations and Acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 6
UBS Macro BTS FRU Replacement Preview . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 10
Passive and DC operation .................................. 1 - 10
FRU backup ......................................... 1 - 10
Service affecting FRUs .................................... 1 - 10
Shutdown and restore signaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 10
T esting/reoptimization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 10
FRU replacement conditions and sequence . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 11
UBS Macro BTS Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 15
Introduction ......................................... 1 - 15

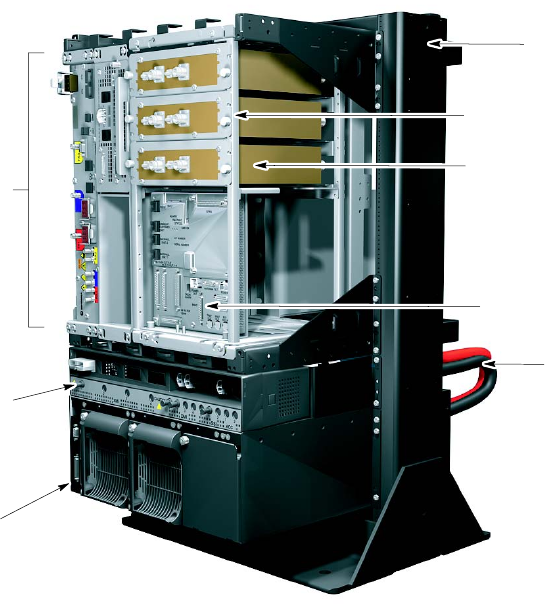

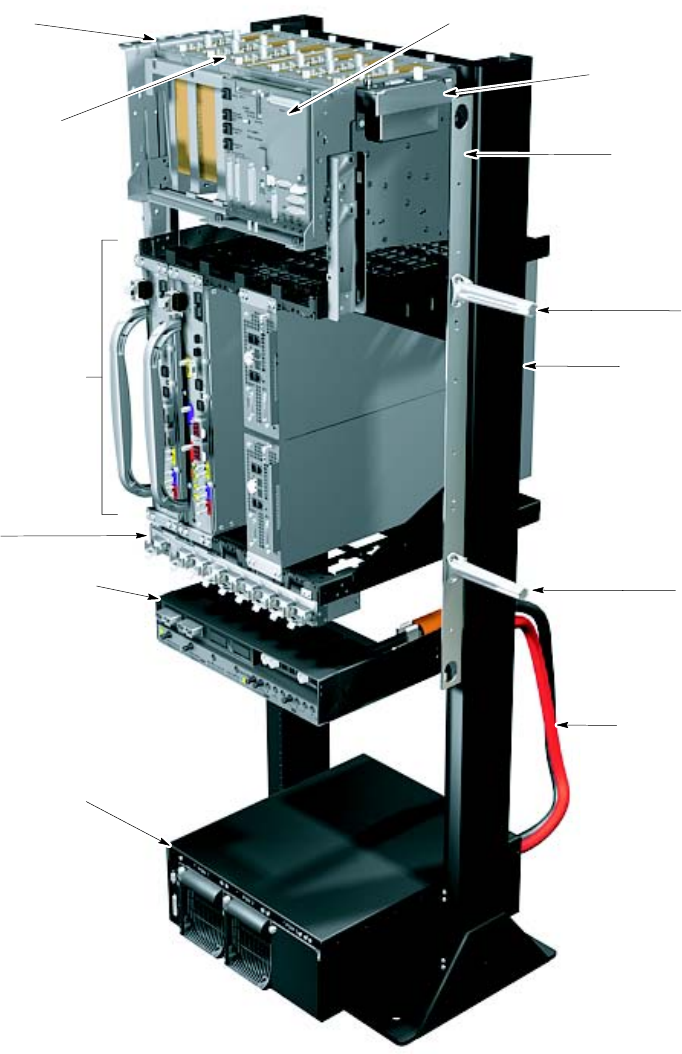

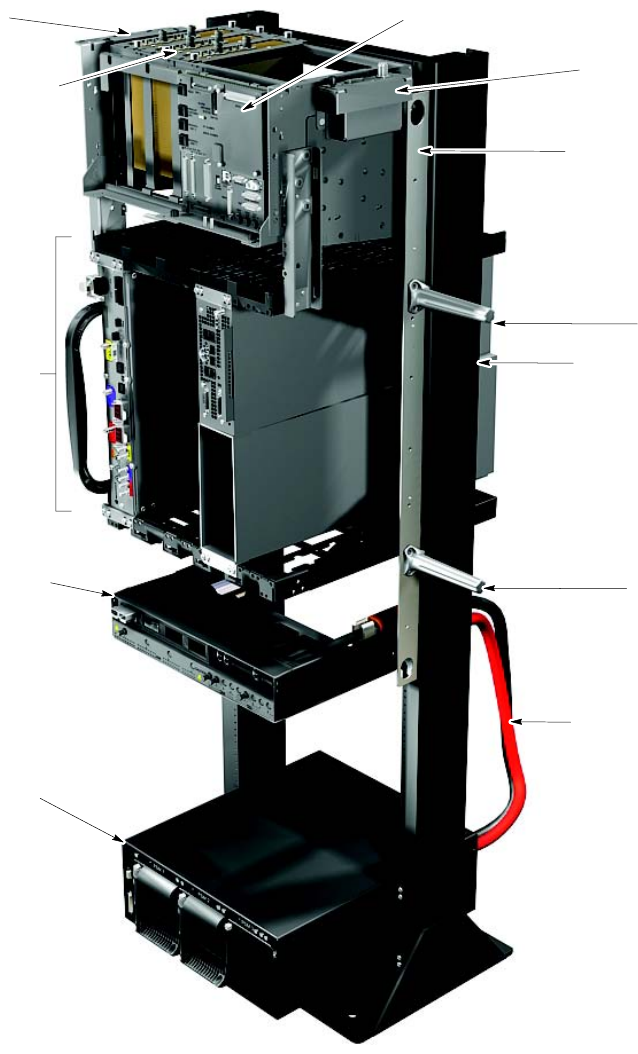

UBS Macro BTS Frame Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 15
UBS Macro BTS Frame Standard Equipment . . . . . . . . . . . . . . . . . . . . . . . . 1 - 16
UBS Macro BTS Frame Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 21
UBS Macro BTS Frame Optional External Equipment . . . . . . . . . . . . . . . . . . . . 1 - 23
UBS Macro BTS FRU List .................................. 1 - 23
UBS Macro BTS Equipment Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 26
Low and mid capacity UBS Macro BTS Frames . . . . . . . . . . . . . . . . . . . . . . . 1 - 26
External GPS (E -GPS) Equipment Identification . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 31

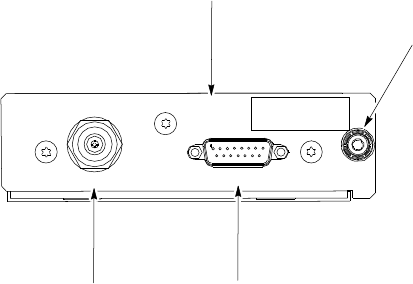

E -GPS I/O Details ...................................... 1 - 31
Integrated Duplexer RX Filter (IDRF) Equipment Identification . . . . . . . . . . . . . . . . . 1 - 32

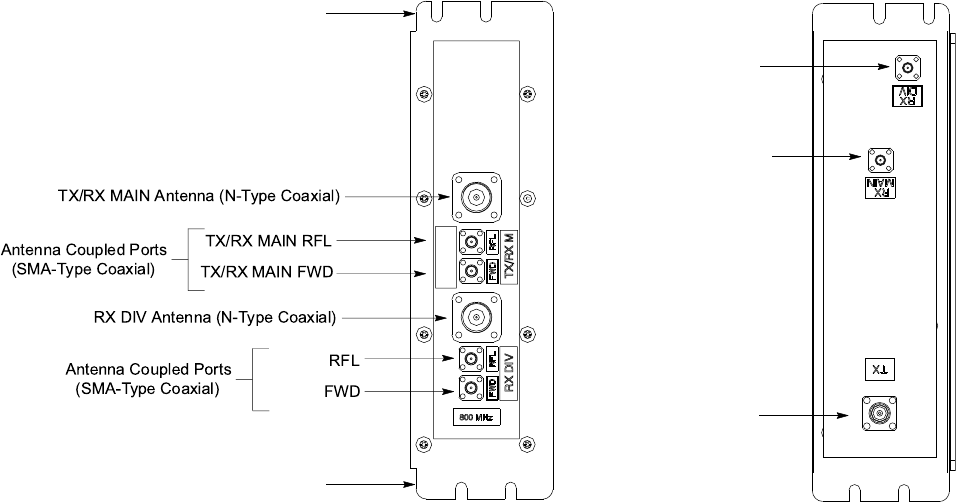

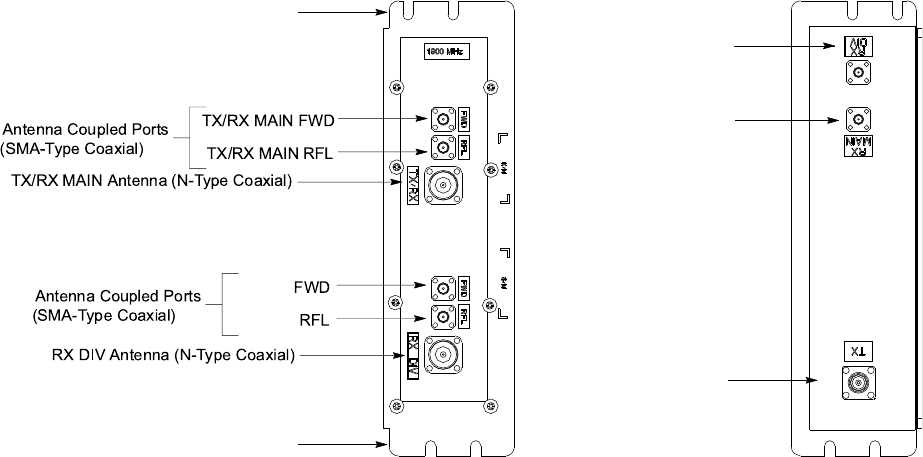

IDRF I/O Details ....................................... 1 - 32
Site Span I/O (S SI) Module Equipment Identification . . . . . . . . . . . . . . . . . . . . . . 1 - 34

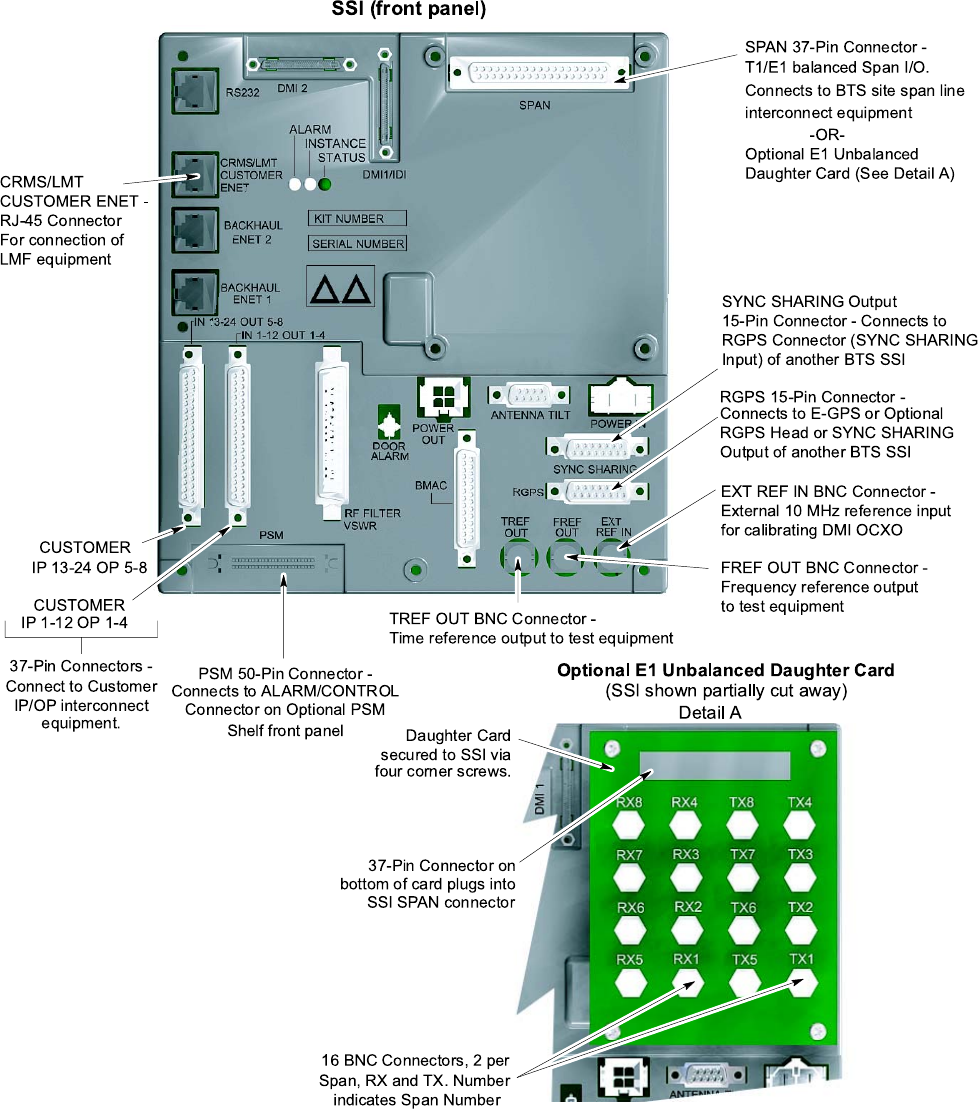

SSI I/O Details ........................................ 1 - 34
Transceiver Module Internal (XMI) Equipment Identification . . . . . . . . . . . . . . . . . . 1 - 37

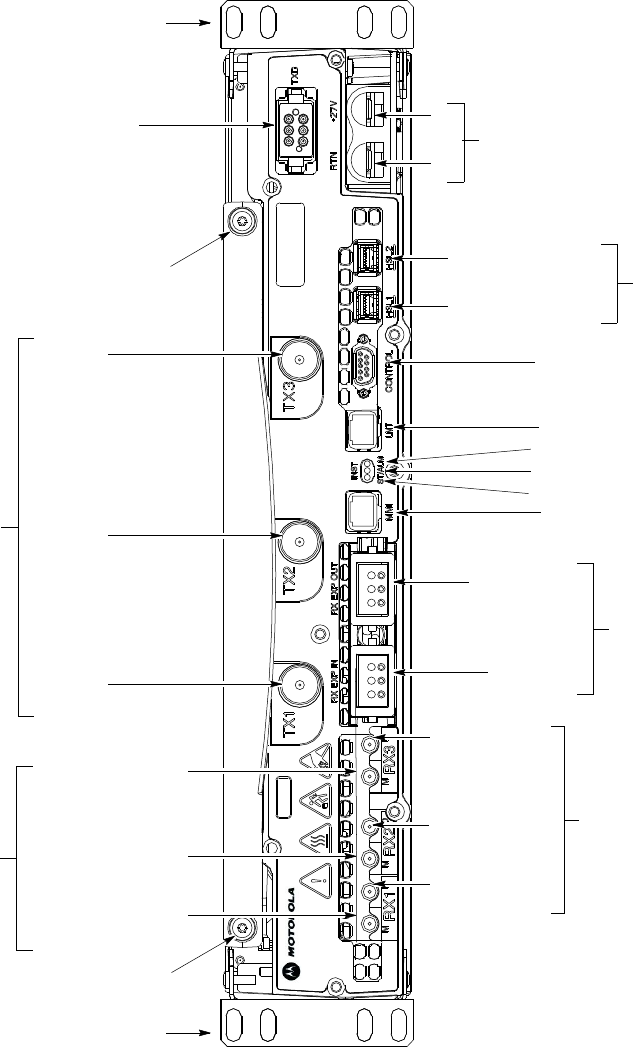

XMI I/O Details ....................................... 1 - 37
Digital Module Internal (DMI) Equipment Identification . . . . . . . . . . . . . . . . . . . . . 1 - 40
DMI I/O Panel ........................................ 1 - 40
P ower Distribution Unit (PDU) Equipment Identification . . . . . . . . . . . . . . . . . . . . . 1 - 42
PDU I/O Panels ........................................ 1 - 42
RX Splitter Equipment Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 44
RX Splitter I/O Panel ..................................... 1 - 44
P ower Supply Module (PSM) Shelf Equipment Identification . . . . . . . . . . . . . . . . . . 1 - 45

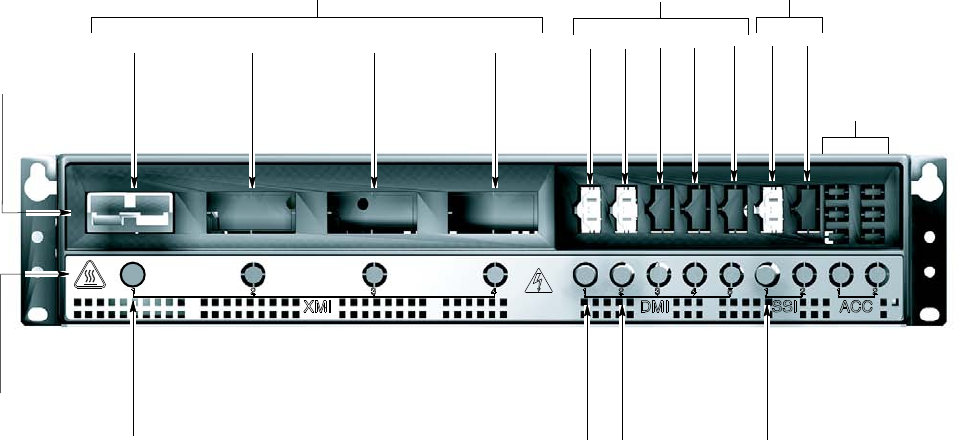

PSM I/O Panels ....................................... 1 - 45
Optional RGPS Head Equipment Identification . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 49

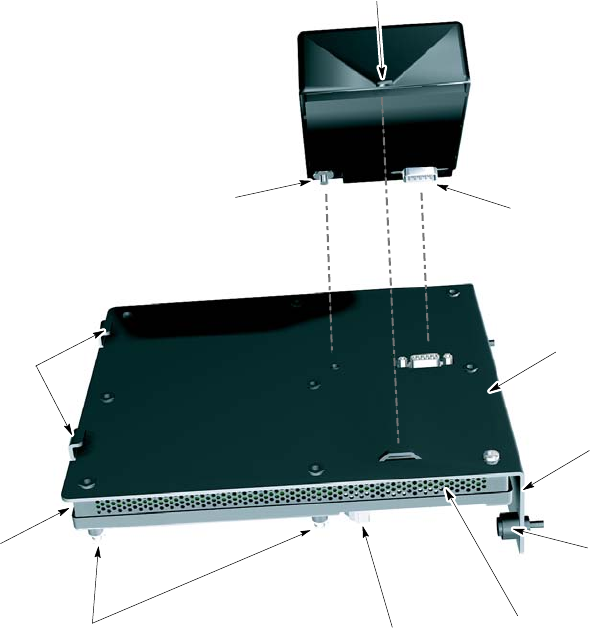

RGPS Head Mounting Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 49
RGPS Head Details ..................................... 1 - 50
Chapter 2: Reference Procedures Performed At BTS Site
Reference Procedures P erformed at BTS Site . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 2
Introduction ......................................... 2 - 2
Frame P ower Down & P ower -Up Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 3
P owering Down the Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 3
Power -up the Frame ..................................... 2 - 3
Chapter 3: Reference Procedures Performed At OMCR
Reference procedures performed at OMCR . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 2
Introduction ......................................... 3 - 2
Accessing OMCR CLI window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 3
Accessing OMCR CLI window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 3
P acket BTS shutdown procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 4
Shutdown site signaling functions for a packet BTS . . . . . . . . . . . . . . . . . . . . . 3 - 4
P acket BTS start -up procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 10
Restore site signaling operations for a packet BTS . . . . . . . . . . . . . . . . . . . . . . 3 - 10
ii 68P09283A64 -3
FOA SEP 2007
1X UBS Macro B T S FRU Contents
Chapter 4: E -GPS (External -GPS) Replacement Procedures
E -GPS (External -GPS) ...................................... 4 - 2
E -GPS Description ...................................... 4 - 2
System Impact/Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 2
Required Items ....................................... 4 - 3
Prerequisite ......................................... 4 - 4
E -GPS Replacement Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 4
Optimization Required .................................... 4 - 5
Chapter 5: IDRF Replacement Procedure
IDRF (Integrated Duplexer RX Filter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 2
IDRF Description ...................................... 5 - 2
System Impact/Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 2
Required Items ....................................... 5 - 3
Prerequisite ......................................... 5 - 4
IDRF Replacement Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 4
Optimization Required .................................... 5 - 5
Chapter 6: SSI Replacement Procedures
S SI (Site Span I/O) Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 2
SSI Description ....................................... 6 - 2
System impact/considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 3
SSI LEDs ........................................... 6 - 4
Required items ........................................ 6 - 5
Prerequisite ......................................... 6 - 6
S SI replacement procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 6
Optimization Required .................................... 6 - 8
Unbalanced E1 Daughter Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 9
Unbalanced E1 Daughter Card Description . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 9
System impact/considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 9
Required items ........................................ 6 - 10
Prerequisite ......................................... 6 - 10
E1 daughter card replacement procedure . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 11
QHSO (Quartz High Stability Oscillator) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 13
QHSO Description ...................................... 6 - 13
System impact/considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 13
Required items ........................................ 6 - 14
Prerequisites ......................................... 6 - 14
QHSO replacement procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 15
Optimization required .................................... 6 - 16
Chapter 7: XMI Replacement Procedures
XMI (Transceiver Module Internal) Module . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 2
XMI Description ....................................... 7 - 2
System Impact/Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 7
Required items ........................................ 7 - 8
XMI I/O P anel Connectors/P orts & LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 9
XMI “HOT" W arning Label Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 12
Prerequisites ......................................... 7 - 13
XMI Replacement Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 14
XMI Fan Tray Assembly ..................................... 7 - 22
XMI F an Tray Assembly Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 22
System Impact/Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 22
XMI Fan Tray Diagrams ................................... 7 - 23
68P09283A64 -3 iii
SEP 2007 FOA
Contents
Required Items ....................................... 7 - 26
Prerequisites ......................................... 7 - 26
XMI F an Tray Assembly Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 27
Chapter 8: DMI Replacement Procedures
DMI Replacement Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 2
Introduction ......................................... 8 - 2
DMI (Digital Module Internal) Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 3
DMI Description ....................................... 8 - 3
System impact/considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 5
Required items ........................................ 8 - 5
DMI I/O P anel Connectors/P orts & LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 7
Prerequisites ......................................... 8 - 9
Reference Diagrams ..................................... 8 - 12
DMI Replacement Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 14
Optimization Recommended . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 17
Dismantling the failed DMI assembly in the Field . . . . . . . . . . . . . . . . . . . . . . 8 - 18
Modem Boards .......................................... 8 - 20
1X Modem Board Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 20
System impact/considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 21
Required items ........................................ 8 - 22
Prerequisites ......................................... 8 - 22
Modem Board Replacement Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 23
Reference Diagrams ..................................... 8 - 27
Optimization Recommended . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 29
Chapter 9: PDU Replacement Procedures
P ower Distribution Unit (PDU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 2
PDU Description ....................................... 9 - 2
System impact/considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 3
Required items ........................................ 9 - 3
Prerequisites ......................................... 9 - 4
PDU replacement procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 4
Breaker Module Assembly (BMA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 7
BMA Description ....................................... 9 - 7
System impact/considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 7
Required items ........................................ 9 - 8
Prerequisites ......................................... 9 - 9
BMA replacement procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 9
Reference diagrams ..................................... 9 - 11
Chapter 10: PSM Shelf Replacement Procedures
–48 V DC P ower Supply Module (PSM) Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 2
–48 V DC PSM Shelf Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 2
System impact/considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 3
Required items ........................................ 10 - 4
Prerequisites ......................................... 10 - 4
–48 V DC PSM shelf replacement procedure . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 5
220 V AC P ower Supply Module (PSM) Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 8
220 V AC PSM Shelf Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 8
System impact/considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 10
Required items ........................................ 10 - 11
Prerequisites ......................................... 10 - 11
220 V AC PSM shelf replacement procedure . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 12
P ower Supply Modules (PSMs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 16
iv 68P09283A64 -3
FOA SEP 2007
Contents
PSM Descriptions ...................................... 10 - 16
System impact/considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 18
PSM Front and Rear P anel Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 19
Required items ........................................ 10 - 23
Prerequisites ......................................... 10 - 24
PSM replacement procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 24
Chapter 11: RX Splitter Replacement Procedure
RX Splitter ............................................ 11 - 2
RX Splitter Description ................................... 11 - 2
System impact/considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 - 2
Required Items ....................................... 11 - 3
Prerequisite ......................................... 11 - 4
RX Splitter Replacement Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 - 4
Optimization Required .................................... 11 - 5
Chapter 12: RGPS Head Replacement Procedure
RGPS (Remote GPS) Head .................................... 12 - 2
RGPS Head Description ................................... 12 - 2
Motorola RGPS Heads .................................... 12 - 2
System Impact/Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 3
Required Items ....................................... 12 - 3
Prerequisite ......................................... 12 - 4
RGPS head Replacement Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 4
Optimization Required .................................... 12 - 7
68P09283A64 -3 v
SEP 2007 FOA
Contents
vi 68P09283A64 -3
FOA SEP 2007
L i s t
o f
F i g u r e s
List of Figures
■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
■
■
Figure 1 -1: UBS Macro BTS low -tier/low -capacity frame (1000 mm rack) . . . . . . . . . . . . 1 - 27
Figure 1 -2: Low capacity UBS Macro BTS starter frame (1800 mm rack) . . . . . . . . . . . . 1 - 28
Figure 1 -3: UBS Macro BTS mid -capacity frame (1800 mm rack) . . . . . . . . . . . . . . . . 1 - 30
Figure 1 -4: E -GPS I/O Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 31
Figure 1 -5: 800 MHz IDRF I/O Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 32
Figure 1 -6: 1.9 GHz IDRF I/O Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 33
Figure 1 -7: S SI front panel details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 35
Figure 1 -8: S SI rear panel details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 36
Figure 1 -9: 800 MHz XMI Module Front P anel I/O Detail . . . . . . . . . . . . . . . . . . . . 1 - 38
Figure 1 -10: 1.9 GHz XMI Module Front P anel I/O Detail . . . . . . . . . . . . . . . . . . . . 1 - 39
Figure 1 -11: DMI Module Front P anel Detail . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 41
Figure 1 -12: PDU front panel detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 42
Figure 1 -13: PDU rear panel detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 43
Figure 1 -14: RX splitter front panel detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 44
Figure 1 -15: –48 V DC and 220 V AC PSM shelves front panel detail . . . . . . . . . . . . . . 1 - 46
Figure 1 -16: –48 V DC PSM shelf rear panel detail . . . . . . . . . . . . . . . . . . . . . . . 1 - 47
Figure 1 -17: 220 V AC PSM shelf rear panel detail . . . . . . . . . . . . . . . . . . . . . . . 1 - 48
Figure 1 -18: RGPS Head Mounting Details . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 50
Figure 1 -19: RGPS Head Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 51
Figure 7 -1: XMI “HOT” W arning Label Details . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 12
Figure 7 -2: T wo P eople Properly Removing/Installing an XMI (removable XMI handle
attached) ............................................. 7 - 17
Figure 7 -3: T wo P eople Properly Carrying an XMI (removable XMI handle attached) . . . . . . 7 - 18
Figure 7 -4: XMI F an Tray Assembly (Removal & Installation) . . . . . . . . . . . . . . . . . . 7 - 24
Figure 7 -5: XMI F an Tray Assembly (External & Internal V iews) . . . . . . . . . . . . . . . . . 7 - 25
Figure 8 -1: Removing and installing Modem 1 . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 13
Figure 8 -2: Removing and installing Modem 2 . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 14
Figure 8 -3: Removing and installing Modem 1 . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 28
Figure 8 -4: Removing and installing Modem 2 . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 29
Figure 9 -1: PDU Front P anel Removal/Installation Detail . . . . . . . . . . . . . . . . . . . . 9 - 12
Figure 9 -2: PDU Front P anel (cover removed) . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 12
Figure 10 -1: –48 V DC PSM Front & Rear Details . . . . . . . . . . . . . . . . . . . . . . . . 10 - 20
Figure 10 -2: 220 V AC PSM Front & Rear Details . . . . . . . . . . . . . . . . . . . . . . . . 10 - 22
68P09283A64 -3 vii
SEP 2007 FOA
List of Figures
viii 68P09283A64 -3
FOA SEP 2007
L i s t
o f
T a b l e s
List of Tables■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
■
■
T able 1: Manual version history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
T able 1 -1: Abbreviations and Acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 6
T able 1 -2: FRU replacement conditions and sequence . . . . . . . . . . . . . . . . . . . . . . 1 - 11
T able 1 -3: UBS Macro BTS FRUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 24
T able 4 -1: FRU Replacement Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 3
T able 4 -2: Item Number Replacement List . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 4
T able 5 -1: IDRF Replacement Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 3
T able 5 -2: Item Number Replacement List . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 4
T able 6 -1: S SI Replacement Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 4
T able 6 -2: S SI LEDs States and Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 4
T able 6 -3: Item Number Replacement List . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 6
T able 6 -4: E1 Daughter Card Replacement Conditions . . . . . . . . . . . . . . . . . . . . . . 6 - 9
T able 6 -5: Item Number Replacement List . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 10
T able 6 -6: FRU replacement conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 14
T able 6 -7: Item number replacement list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 14
T able 7 -1: FRU Replacement Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 8
T able 7 -2: XMI LEDs States and Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 11
T able 7 -3: Item Number Replacement List . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 14
T able 7 -4: FRU Replacement Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 23
T able 7 -5: Item Number Replacement List . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 27
T able 8 -1: DMI Replacement Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 5
T able 8 -2: DMI LEDs States and Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 8
T able 8 -3: Item Number Replacement List . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 9
T able 8 -4: Modem Board Replacement Conditions . . . . . . . . . . . . . . . . . . . . . . . . 8 - 21
T able 8 -5: Item Number Replacement List . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 23
T able 9 -1: PDU Replacement Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 3
T able 9 -2: Item number replacement list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 4
T able 9 -3: PDU Replacement Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 8
T able 9 -4: Item number replacement list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 9
T able 10 -1: –48 V DC PSM Shelf Replacement Conditions . . . . . . . . . . . . . . . . . . . . 10 - 4
T able 10 -2: Item number replacement list . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 5
T able 10 -3: 220 V AC PSM Shelf Replacement Conditions . . . . . . . . . . . . . . . . . . . . 10 - 10
T able 10 -4: Item number replacement list . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 12
T able 10 -5: FRU replacement conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 18
T able 10 -6: Item number replacement list . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 24
T able 11 -1: FRU Replacement Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 - 3
T able 11 -2: Item Number Replacement List . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 - 4
T able 12 -1: FRU Replacement Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 3
T able 12 -2: Item Number Replacement List . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 4
68P09283A64 -3 ix
SEP 2007 FOA
List of T ables
x 68P09283A64 -3
FOA SEP 2007
A b o u t
T h i s
M a n u a l
1X UBS Macro BTS FRU■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
■
■
What is covered in this manual?
The 1X Motorola Universal Base Station (UBS) Macro BTS FRU - Software Release 2.20.0.x
- manual provides information to disassemble and/or replace the various cards, modules and
components of the UBS Macro CDMA Base Transceiver Subsystem (BTS) configured as a "1X
P acket BTS" with packet backhaul. Low and mid capacity configurations of single band 800
MHz and 1.9 GHz frames are covered.
68P09283A64 -3 1
SEP 2007 FOA
R evision history
Revision history■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
The following shows the issue status of this manual since it was first released.
Version information
Table 1 Manual v ersion history
Manual
issue
Date of issue
Remarks
1 AUG 2007
DRAFT ; for SME review
2 SEP 2007
PRELIMINAR Y ; Added issue 1 review comments and
Breaker Module Assembly (BMA) replacement section.
F or SME review and Deployment.
3 SEP 2007
FOA (First Office Application)
Resolution of Service Requests
The following Service Requests are resolved in this document:
Service Request CMBP Number
Remarks
NA NA NA
Incorporation of Change Notices
The following Change Notices (CN) are incorporated in this document:
CN Date CN Number
T itle
NA NA NA
2 68P09283A64 -3
FOA SEP 2007
Gener al information
General information
■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
Purpose
Motorola cellular communications documents are intended to instruct and assist personnel in
the operation, installation and maintenance of the Motorola cellular infrastructure equipment
and ancillary devices. It is recommended that all personnel engaged in such activities be
properly trained by Motorola.
Motorola disclaims all liability whatsoever , implied or express, for any risk of damage, loss or
reduction in system performance arising directly or indirectly out of the failure of the customer ,
or anyone acting on the customer’s behalf , to abide by the instructions, system parameters,
or recommendations made in this document.
These documents are not intended to replace the system and equipment training offered by
Motorola. They can be used to supplement and enhance the knowledge gained through such
training.
If this document was obtained when attending a Motorola training course, it will
not be updated or amended by Motorola. It is intended for TRAINING P URPOSES
ONL Y . If it was supplied under normal operational circumstances, to support a major
software release, then corrections are supplied automatically by Motorola and posted
on the Motorola customer website.
Cross references
References made to external publications are shown in italics. Other cross references,
emphasized in blue text in electronic versions, are active links to the references.
This document is divided into numbered chapters that are divided into sections. Sections are
not numbered, but are individually named at the top of each page, and are listed in the table of
contents.
68P09283A64 -3 3
SEP 2007 FOA
Gener al information
Text conventions
The following conventions are used in the Motorola cellular infrastructure documents to
represent keyboard input text, screen output text, and special key sequences.
Input
Characters typed in at the keyboard are shown like this.
Items of interest within a command appear like this.
Output
Messages, prompts, file listings, directories, utilities, and environmental
variables that appear on the screen are shown like this.
Items of interest within a screen display appear like this.
Special key sequences
Special key sequences are represented as follows:
CTRL-c or CTRL+C
Press the Ctrl and Ckeys at the same time.
CTRL-SHIFT-c or
CTRL+SHIFT+C
Press the Ctrl ,Shift , and Ckeys at the same time.
ALT-f or ALT+F
Press the Alt and Fkeys at the same time.
ALT+SHIFT+F11
Press the Alt ,Shift and F11 keys at the same time.
¦Press the pipe symbol key .
RETURN or ENTER
Press the Return or Enter key .
4 68P09283A64 -3
FOA SEP 2007
Contacting Motorola
Contacting Motorola■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
Motorola appreciates feedback from the users of our documents.
24–hour support
If you have problems regarding the operation of your equipment, contact the Customer Network
Resolution Center (CNRC) for immediate assistance. The 24–hour telephone numbers are listed
at https://mynetworksupport.motorola.com . Select Customer Network Resolution Center
contact information . Alternatively if you do not have access to CNRC or the internet, contact
the Local Motorola Office.
Questions and comments
Send questions and comments regarding user documentation to the email address:
mydocs@motorola.com .
Errors
T o report a documentation error , call the CNRC (Customer Network Resolution Center) and
provide the following information to enable CNRC to open an SR (Service Request):
•The document type
•The document title, part number , and revision character
•The page number with the error
•A detailed description of the error and if possible the proposed solution
68P09283A64 -3 5
SEP 2007 FOA
Securit y advice
Security advice■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
Motorola systems and equipment provide security parameters that can be configured by the
operator based on their particular operating environment. Motorola recommends setting and
using these parameters following industry recognized security practices. Security aspects
to be considered are protecting the confidentiality , integrity , and availability of information
and assets. Assets include the ability to communicate, information about the nature of the
communications, and information about the parties involved.
In certain instances, Motorola makes specific recommendations regarding security practices.
The implementation of these recommendations and final responsibility for the security of the
system lies with the operator of the system.
Contact the Customer Network Resolution Center (CNRC) for assistance. The 24–hour
telephone numbers are listed at https://mynetworksupport.motorola.com . Select Customer
Network Resolution Center contact information , from the menu located to the left of the
Login box. Alternatively if you do not have access to CNRC or the internet, contact the Local
Motorola Office.
6 68P09283A64 -3
FOA SEP 2007
W arnings, cautions, and notes
Warnings, cautions, and notes■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
The following describes how warnings and cautions are used in this document and in all
documents of this Motorola document set.
Warnings
W arnings precede instructions that contain potentially hazardous situations. W arnings are
used to alert the reader to possible hazards that could cause loss of life or physical injury . A
warning has the following format:
W arning text and consequence for not following the instructions in the w arning.
Cautions
Cautions precede instructions and are used when there is a possibility of damage to systems,
software, or individual items of equipment within a system. However , this damage presents
no danger to personnel. A caution has the following format:
Caution text and consequence for not following the instructions in the caution.
Notes
A note means that there is a possibility of an undesirable situation or provides additional
information to help the reader understand a topic or concept. A note has the following format:
Note text.
68P09283A64 -3 7
SEP 2007 FOA
Safet y
Safety
■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
General safety
The following general safety guidelines apply to Motorola equipment:
•The power jack and mating plug of the power cable must meet International
Electrotechnical Commission (IEC) safety standards.
Refer to
Grounding Guideline for Cellular R adio Installations – 68P81150E62
.
•P ower down or unplug the equipment before servicing.
•Using non -Motorola parts for repair could damage the equipment or void warranty .
Contact Motorola W arranty and Repair for service and repair instructions.
•P ortions of Motorola equipment may be damaged from exposure to electrostatic discharge.
Use precautions to prevent damage.
Electromagnetic energy
Relevant standards (USA and EC) applicable when working with RF equipment are:
•
ANSI IEEE C95.1 -1991, IEEE Standard for Safety Levels with Respect to Human Exposure
to R adio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.
•Council recommendation of 12 July 1999 on the limitation of exposure of the general
public to electromagnetic fields (0 Hz to 300 GHz) (1999/519/EC) and respective national
regulations.
•
Directive 2004/40/EC of the European P arliament and of the Council of 29 April 200
4 on
the minimum health and safety requirements regarding the exposure of workers to the
risks arising from physical agents (electromagnetic fields) (18th individual Directive within
the meaning of Article 16(1) of Directive 89/391/EEC).
8 68P09283A64 -3
FOA SEP 2007
Caring for the en vironment
Caring for the environment■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
The following information describes national or regional requirements for the disposal of
Motorola supplied equipment and for the approved disposal of surplus packaging.
Contact the Customer Network Resolution Center (CNRC) for assistance. The 24–hour
telephone numbers are listed at https://mynetworksupport.motorola.com . Select Customer
Network Resolution Center contact information . Alternatively if you do not have access
to CNRC or the internet, contact the Local Motorola Office.
In EU countries
The following information is provided to enable regulatory compliance with the European Union
(EU) directives identified and any amendments made to these directives when using Motorola
equipment in EU countries.
Disposal of Motorola equipment
European Union (EU) Directive 2002/96/EC W aste Electrical and Electronic Equipment (WEEE)
Do not dispose of Motorola equipment in landfill sites. In the EU , Motorola in conjunction
with a recycling partner ensures that equipment is collected and recycled according to the
requirements of EU environmental law .
Disposal of surplus packaging
European P arliament and Council Directive 94/62/EC P ackaging and P ackaging W aste
Do not dispose of surplus packaging in landfill sites. In the EU , it is the individual recipient’s
responsibility to ensure that packaging materials are collected and recycled according to the
requirements of EU environmental law .
In non -EU countries
In non -EU countries, dispose of Motorola equipment and all surplus packaging in accordance
with national and regional regulations.
68P09283A64 -3 9
SEP 2007 FOA
CMM labeling and disclosure table
CMM labeling and disclosure table■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
The P eople’s Republic of China require that our products comply with China Management
Methods (CMM) environmental regulations. (China Management Methods refers to the
regulation
Management Methods for Controlling P ollution by Electronic Information Products
).
T wo items are used to demonstrate compliance; the label and the disclosure table.
The label is placed in a customer visible position on the product.
•Logo 1 means the product contains no substances in excess of the maximum concentration
value for materials identified in the China Management Methods regulation.
•Logo 2 means that the product may contain substances in excess of the maximum
concentration value for materials identified in the China Management Methods regulation,
and has an Environmental Friendly Use P eriod (EFUP) in years, fifty years in the example
shown.
Logo 1 Logo 2
The Environmental Friendly Use P eriod (EFUP) is the period (in years) during which the T oxic
and Hazardous Substances (T&HS) contained in the Electronic Information Product (EIP)
will not leak or mutate causing environmental pollution, or bodily injury from the use of the
EIP . The EFUP indicated by the Logo 2 label applies to a product and all its parts. Certain
field -replaceable parts, such as battery modules, can have a different EFUP and are marked
separately .
The Disclosure table is intended only to communicate compliance with China requirements.
It is not intended to communicate compliance with EU RoHS or any other environmental
requirements.
10 68P09283A64 -3
FOA SEP 2007
Motorola document set
Motorola document set■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
The Motorola document sets provide the information to operate, install, and maintain the
Motorola equipment.
Ordering documents and CD -ROMs
W ith internet access available, to view , download, or order documents (original or revised), visit
the Motorola Lifecycles Customer web page at https://mynetworksupport.motorola.com , or
contact your Motorola account representative.
W ithout internet access available, order hard copy documents or CD -ROMs with your Motorola
Local Office or Representative.
If Motorola changes the content of a document after the original printing date, Motorola
publishes a new version with the same part number but a different revision character .
Document banner denitions
A banner (oversized text on the bottom of the page, for example, PRELIMINARY — UNDER
DEVELOPMENT ) indicates that some information contained in the document is not yet approved
for general customer use.
Data encryption
In order to avoid electronic eavesdropping, data passing between certain elements in the
network is encrypted. In order to comply with the export and import requirements of particular
countries, this encryption occurs at different levels as individually standardized, or may not be
present at all in some parts of the network in which it is normally implemented. The document
set, of which this document is a part, covers encryption as if fully implemented. Because the
rules differ in individual countries, limitations on the encryption included in the particular
software being delivered, are covered in the Release Notes that accompany the individual
software release.
68P09283A64 -3 11
SEP 2007 FOA
Third P art y Computer Softw are and T r ademarks
Third Party Computer Software and Trademarks■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
Computer Software
The Motorola and 3rd P arty supplied Software (SW) products described in this instruction
manual may include copyrighted Motorola and other 3rd P arty supplied computer programs
stored in semiconductor memories or other media. Laws in the United States and other
countries preserve for Motorola and other 3rd P arty supplied SW certain exclusive rights for
copyrighted computer programs, including the exclusive right to copy or reproduce in any
form the copyrighted computer program. Accordingly , any copyrighted Motorola or other
3rd P arty supplied SW computer programs contained in the Motorola products described in
this instruction manual may not be copied (reverse engineered) or reproduced in any manner
without the express written permission of Motorola or the 3rd P arty SW supplier . Furthermore,
the purchase of Motorola products shall not be deemed to grant either directly or by implication,
estoppel, or otherwise, any license under the copyrights, patents or patent applications of
Motorola or other 3rd P arty supplied SW , except for the normal non -exclusive, royalty free
license to use that arises by operation of law in the sale of a product.
V endor Copyright
Apache Software F oundation Copyright 2002-2003 All Rights Reserved
Artesyn
Copyright 2002-2003 All Rights Reserved
CMU *
Copyright 2002-2003 All Rights Reserved
Freeware T ools / Utilities * Copyright 2002-2003 All Rights Reserved
P erformance T echnologies Copyright 2002-2003 All Rights Reserved
T elelogic Copyright 2002-2003 All Rights Reserved
QNX *
Copyright 2002-2003 All Rights Reserved
*= Freeware
Trademarks
Java™ T echnology and/or J2ME™ : Java and all other Java -based marks are trademarks or
registered trademarks of Sun Microsystems, Inc. in the U .S . and other countries.
UNIX® : UNIX is a registered trademark of The Open Group in the United States and other
countries.
12 68P09283A64 -3
FOA SEP 2007
FCC R equirements
FCC Requirements
■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
Content
This section presents F ederal Communication Commissions (FCC) Rules P art 15 requirements
and compliance information for the USB CDMA XMI Transceiver at 1.9 GHz.
FCC Part 15 Requirements
Part 15.19a(3) - Information to User
This device complies with P art 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that
may cause undesired operation
Part 15.21 - Information to User
Changes or modifications that change the FCC type approved configuration of the
equipment could void the user’s authority to operate the equipment.
68P09283A64 -3 13
SEP 2007 FOA
FCC R equirements
15.105(b) - Information to User
This equipment has been tested and found to comply with the limits for a Class B
digital device, under P art 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However , there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment OFF and ON , the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the equipment and receiver .
•Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
14 68P09283A64 -3
FOA SEP 2007
C h a p t e r
1
Overview
■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
■
■
68P09283A64 -3 1 -1
SEP 2007 FOA
Information Ov erview Chapter 1: Ov erview
Information Overview■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
•Before replacing components that are not covered in this manual, contact
Motorola Customer Network Resolution Center for special instructions that
may be involved.
•Many figures in this manual show typical equipment. The actual equipment
appearance may vary slightly .
Organization of manual
This manual is divided into the following main parts:
1 -2 68P09283A64 -3
FOA SEP 2007
1X UBS Macro B T S FRU Information Ov erview
•Chapter 1: Overview , covers:
Information Overview
UBS Macro BTS FRU Replacement Preview
UBS Macro BTS Product Overview
UBS Macro BTS Equipment Identification
External GPS (E -GPS) Module Equipment Identification
Integrated Duplexer RX Filter (IDRF) Equipment Identification
Site Span I/O (S SI) Module Equipment Identification
Transceiver Module Internal (XMI) Equipment Identification
Digital Module Internal (DMI) Equipment Identification
P ower Distribution Unit (PDU) Equipment Identification
RX Splitter Equipment Identification
P ower Supply Module (PSM) Shelf Equipment Identification
Optional RGPS Head Equipment Identification
•Chapter 2: Reference Procedures P erformed at BTS Site, covers:
Frame P ower Down & P ower -Up Procedures
•Chapter 3: Reference Procedures P erformed at OMCR, covers:
Accessing OMCR CLI W indow
Shut Down Site Signaling Functions for a P acket BTS
Restore Site Signaling Operations for a P acket BTS
•Chapters 4 through 12 covers:
Motorola Universal Base Station (UBS) Macro BTS FRU Procedures (see next
paragraph section)
BTS FRU procedures
The BTS FRU procedures are grouped by major functional areas within the Motorola Universal
Base Station (UBS) Macro BTS equipment and presented in the following individual chapters:
•Chapter 4: E -GPS Replacement Procedure
•Chapter 5: IDRF Replacement Procedure
68P09283A64 -3 1 -3
FOA SEP 2007
Information Ov erview Chapter 1: Ov erview
•Chapter 6: S SI Replacement Procedures
S SI (Site Span I/O) Module
Unbalanced E1 Daughter Card
QHSO (Quartz High Stability Oscillator)
•Chapter 7: XMI Replacement Procedures
XMI (Transceiver Module Internal) Module
XMI F an Tray Assembly
•Chapter 8: DMI Replacement Procedures
DMI (Digital Module Internal) Assembly
Modem Boards
•Chapter 9: PDU Replacement Procedures
P ower Distribution Unit (PDU)
Breaker Module Assembly (BMA)
•Chapter 10: PSM Shelf Replacement Procedures
–48 V DC P ower Supply Module (PSM) Shelf
220 V AC P ower Supply Module (PSM) Shelf
P ower Supply Modules (PSMs)
•Chapter 11: RX Splitter Replacement Procedure
•Chapter 12: RGPS Head Replacement Procedure
Each BTS FRU procedure section contains the following information:
•Description - contains general information about the FRU operation, usage and location in
the frame/shelf and so on.
•System impact/considerations - describes how the replacement procedure impacts the
system with respect to downtime and so on. It lists specific concerns associated with the
replacement of the FRU .
•Required items - lists items that are required to perform the FRU procedure including
reference documents (manuals), tools, torque requirements, and replacement unit.
•Prerequisite - highlights actions needed before and after the FRU replacement including:
coordinating the replacement procedure with the OMCR operator and so on.
•Replacement procedure - provides detailed procedural steps to remove the failed FRU
and install the replacement FRU including: site preparation, equipment disassembly and
reassembly , equipment and site operation restoration and so on. When necessary , the
procedural steps reference specific procedures to be performed by the OMCR operator .
1 -4 68P09283A64 -3
FOA SEP 2007
1X UBS Macro B T S FRU Information Ov erview
How to use this manual
All FRU replacement procedures require interaction and two -way communications between the
technician at the BTS site and the operator at the OMCR. Each of these individuals will need a
copy of this manual.
First determine the FRU to be replaced.
Next, the BTS technician at the site starts performing the replacement procedure for the
specific FRU . This procedure will direct the technician when to notify the operator at the OMCR
as to what action(s) to take. Often the OMCR operator action is to perform a specific procedure
contained in the FRU procedure chapter . When necessary , the specific FRU procedure will
direct the operator to notify the BTS technician that certain events have been completed and
what action(s) to take.
Depending on the specific FRU being replaced, the replacement procedure will be terminated by
either the BTS technician or the OMCR operator . Usually it is terminated by the OMCR operator
clearing old alarms and verifying that there are no new related alarms.
Required manuals
The following manuals are referenced in this manual and may be used for additional information
regarding replacement procedures.
•
1X UBS Macro BTS Hardware Installation
(68P09283A62) manual.
•
1X UBS Macro BTS Optimization/A TP
(68P09283A63) manual.
•
System Commands Reference
(68P09282A57) manual.
FRU locations
T o aid in physically identifying FRUs and locating the major functional areas of the equipment as
well as a specific FRU location, refer to the illustrations in the following sections of this chapter:
•UBS Macro BTS Equipment Identification
•External GPS (E -GPS) Equipment Identification
•Integrated Duplexer RX Filter (IDRF) Equipment Identification
•Site Span I/O (S SI) Module Equipment Identification
•Transceiver Module Internal (XMI) Equipment Identification
•Digital Module Internal (DMI) Equipment Identification
•P ower Distribution Unit (PDU) Equipment Identification
•RX Splitter Equipment Identification
•P ower Supply Module (PSM) Shelf Equipment Identification
•Optional RGPS Head Equipment Identification
68P09283A64 -3 1 -5
FOA SEP 2007
Information Ov erview Chapter 1: Ov erview
Recommended tools
Each BTS FRU procedure specifies the recommended tools that are required during the
procedure. These tools along with some other useful tools are included in the following overall
tool list:
•T orque driver , capable of 2.3 N -m (20 in -lbs) to 5.6 N -m (50 in -lbs) torque
•T25 TORX bit with 12 -in Extension
•T20 TORX bit
•T10 TORX bit
•19 mm open -end wrench (for N -type connectors)
•Flat blade screwdriver
•Side cutters
•Tie wraps
•Masking tape and marking pen (for making temporary cable markers)
•Removable XMI handle with two M5 screws
•SMA break over wrench - 1.02 N -M (9 in -lb)
•3/8 inch ratchet
•3/8 inch drive to 1/4 inch hex adapter
•19 mm socket
•10 mm socket
•9/16 in socket
Abbreviations and Acronyms
T able 1 -1 identifies the equipment related abbreviations and acronyms used in this manual.
Table 1 -1 Abbreviations and Acron yms
Acronym
Denition
1X
One of two bandwidths currently defined in the IS -2000 CDMA
specification, which extends the capability of the IS -95A and B
specifications. 1X bandwidth provides wireless packet voice and data
transmission capability at up to 144 Kbps.
A Ampere or Amp
AC
Alternating Current
ACC
Accessory
Continued
1 -6 68P09283A64 -3
FOA SEP 2007
1X UBS Macro B T S FRU Information Ov erview
Table 1 -1 Abbreviations and Acron yms (Continued)
Acronym
Denition
AN
Aggregation Node
A TP
Acceptance T est Plan
A WG American W ire Gauge
BMA
Breaker Module Assembly
BSI
Baseband Switch Interface
BS S Base Station System
BS SAN
Base Station System (BS S) Access Network. The BS SAN consists of a
R adio Access Network (RAN) and an AN . It may also include a Digital
Access and Cross-connect System to support split backhaul and a Selector
Distribution Unit (SDU).
BTS
Base Transceiver Station or Base Transceiver Subsystem
CB
Circuit Breaker
CBSC
Centralized Base Station Controller
CCW
Counter Clockwise
CDMA
Code Division Multiple Access
CE
Channel Element
CW
Clockwise
DC Direct Current
DIV
Diversity
DMI
Digital Module Internal
DMM
Digital Multi-Meter
E -GPS
External-GPS
ESD
Electro-Static Discharge
EV -DO
CDMA 1X Evolution - Data Only
FER Frame Erasure R ate
FRU
Field Replaceable Unit
FWD
F orward
GND
Ground
GPS
Global P ositioning System
HSO
High Stability Oscillator
IDI
Interworking DMI Interconnect
IDRF
Integrated Duplexer RX Filter
I/O Input/Output
IP
Internet Protocol
IP/OP
Customer Alarm Input/Output
Continued
68P09283A64 -3 1 -7
FOA SEP 2007
Information Ov erview Chapter 1: Ov erview
Table 1 -1 Abbreviations and Acron yms (Continued)
Acronym
Denition
IS
Interim Standard
LAN
Local Area Network
LMF
Local Maintenance F acility
LMT
Local Maintenance T erminal
MGB
Master Ground Bar
MMI
Man Machine Interface
MMII
Mobility Manager II
MSC
Mobile Switching Center
MSN
Mobile Switching Network
MSO
Motorola Standard Oscillator or Medium Stability Oscillator
OMC-IP
Operations Maintenance Center - Internet Protocol
OMC-R
Operations Maintenance Center - R adio
P A
P ower Amplifier
PBH
P acket Backhaul: IP -based backhaul between the BTS and the network.
The UBS Macro BTS is configured for packet backhaul operation.
PC P ower Connector
PDU
P ower Distribution Unit
PPS or 1PPS
1 pulse per second
PSM
P ower Supply Module
PSTN
Public Switched T elephone Network
QHSO
Quartz High Stability Oscillator
RAN
R adio Access Network
RF
R adio Frequency
RFL
Reflected
RGD
Remote GPS Distribution
RGPS
Remote Global P ositioning System
RS SI
Receive Signal Strength Indicator
RU
R ack Unit
RX
Receive or Receiver
SDU
Selection and Distribution Unit
SPROC Site Processor
S SI
Site Span I/O or Site/Span Interface
TCH
Traffic Channel
TX
Transmit or Transmitter
Continued
1 -8 68P09283A64 -3
FOA SEP 2007
1X UBS Macro B T S FRU Information Ov erview
Table 1 -1 Abbreviations and Acron yms (Continued)
Acronym
Denition
UBS
Motorola Universal Base Station
UNO
Universal Network Operations
V
V olt
VP U
V ocoder Processing Unit
W W att
XMI
Transceiver Module Internal
68P09283A64 -3 1 -9
FOA SEP 2007
UBS Macro B T S FRU R eplacement Preview Chapter 1: Ov erview
UBS Macro BTS FRU Replacement Preview■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
Passive and DC operation
Some FRUs are passive and do not have a DC input power source. Some FRUs are hot
swappable and can be removed/replaced with DC input power applied. Some FRUs require
shutdown of DC input power before FRU removal/replacement.
FRU backup
Some FRUs have a backup with fully -automatic switchover upon removal/replacement of the
primary .
Service affecting FRUs
FRUs that are service affecting require shutting down signaling to the entire BTS site before the
failed FRU can be removed/replaced.
Shutdown and restore signaling
The site shutdown and restore signaling procedure is performed by the OMC operator when
replacing certain FRUs.
Site shutdown signaling consists of the following sequence:
•Setup and turn ON Global Service Redirect Message to redirect all subscriber traffic
away from the site
•Disable or lock BTS
Site restore signaling consists of the following sequence:
•Enable or unlock BTS
•Reset and turn OFF Global Service Redirect Message
Testing/reoptimization
Some FRUs must be tested and if needed calibrated. Calibration requires that the BTS
site be shutdown/out -of -service or as an alternative In -Service Calibration procedure can be
used. The In -Service Calibration procedure does not require site outage. In some cases,
testing/reoptimization must be performed as part of the FRU replacement procedure. In other
cases, testing/reoptimization can be performed at the next maintenance window .
1 -10 68P09283A64 -3
FOA SEP 2007
1X UBS Macro B T S FRU UBS Macro B T S FRU R eplacement Preview
FRU replacement conditions and sequence
T able 1 -2 lists each FRU and the conditions and sequence of events required for replacement.
Table 1 -2 FRU replacement conditions and sequence
FRU Location Replacement conditions and sequence
E -GPS
(External-GPS)
UBS Macro frame The UBS Macro BTS will use one of the following backup
sources instead of the E -GPS:
•DMI controller board MSO which can maintain system
timing synchronization for up to 8 hours.
•Optional Quartz High Stability Oscillator (QHSO) which
can maintain system timing synchronization for up to
24 hours.
FRU is hot swappable .
•Replace FRU
IDRF
(Integrated
Duplexer RX
Filter)
UBS Macro frame FRU is passive; handles TX path, and RX path for both main
and diversity antennas for a particular sector .
1. Lock XMI
2. Replace IDRF
3. Unlock XMI
4. A t next maintenance window; TX P ath Calibration Audit
test affected sector TX path. RS SI test affected sector
RX paths
S SI (Site Span
I/O) Module
UBS Macro frame
1. Shut down signaling to Site and then DC input power
to S SI
2. Replace FRU
3. Apply DC input power to S SI
4. Restore signaling to Site
Unbalanced E1
Daughter Card
S SI front panel
FRU is passive.
1. Shut down signaling to Site
2. Replace FRU
3. Restore signaling to Site
QHSO (Quartz
High Stability
Oscillator)
S SI rear panel FRU is hot swappable and is a system timing
synchronization backup for the RGPS head.
1. Replace FRU
Continued
68P09283A64 -3 1 -11
FOA SEP 2007
UBS Macro B T S FRU R eplacement Preview Chapter 1: Ov erview
Table 1 -2 FRU replacement conditions and sequence (Continued)
FRU Location Replacement conditions and sequence
XMI
(Transceiver
Module
Internal)
Module
UBS Macro frame FRU is non-redundant.
1. Lock XMI
2. Shutdown DC input power to XMI
3. Replace XMI
4. Apply DC input power to XMI
5. Unlock XMI
6. Shut down signaling to Site (for calibration/audit) or
set up optional In-Service Calibration procedure
7. TX P ath Calibration Audit test all TX paths. RS SI test
all RX paths
8. Restore signaling to Site if In-Service Calibration
procedure was not used
XMI F an Tray
Assembly
UBS Macro frame, XMI
rear panel
See XMI Module above.
DMI (Digital
Module
Internal)
Assembly
UBS Macro frame
The DMI assembly is the FRU that can be used to
replace a DMI with an internal DMI component
failure (including controller board, modem board,
fan, or front panel failure).
1. Display BTS EID information to determine model
numbers of the failed DMI and its modem board(s).
2. F or a BTS with one DMI, Shut down signaling to Site .
F or a BTS with more than one DMI:
Status failed DMI to determine if Site Master or
not
If Site Master , Reset DMI and then Lock DMI
If not Site Master , Lock DMI
3. Shutdown DC input power to DMI
4. Replace DMI
5. Apply DC input power to DMI
Continued
1 -12 68P09283A64 -3
FOA SEP 2007
1X UBS Macro B T S FRU UBS Macro B T S FRU R eplacement Preview
Table 1 -2 FRU replacement conditions and sequence (Continued)
FRU Location Replacement conditions and sequence
6. F or a BTS with one DMI, Restore signaling to Site .
F or a BTS with more than one DMI, Unlock DMI
CDMA 1X
Modem Board
- OR -
CDMA EV -DO
Modem Board
Inside DMI FRU is non-redundant.
1. Display BTS EID information to determine model
numbers of the failed DMI and its modem board(s).
2. F or a BTS with one DMI, Shut down signaling to Site .
F or a BTS with more than one DMI:
Status affected DMI to determine if Site Master
or not
If Site Master , Reset DMI and then Lock DMI
If not Site Master , Lock DMI
3. Shutdown DC input power to DMI
4. Remove affected DMI assembly from UBS Macro BTS
frame
5. Replace Modem Board
6. Install affected DMI assembly into UBS Macro BTS
frame
7. Apply DC input power to DMI
8. F or a BTS with one DMI, Restore signaling to Site .
F or a BTS with more than one DMI, Unlock DMI
RX Splitter UBS Macro frame FRU is passive; handles EXP (expansion) RX main & diversity
antenna paths.
•Lock XMIs
•Replace FRU
•Unlock XMIs
•RS SI test affected RX paths at next maintenance
window; reoptimize as required
PDU (P ower
Distribution
Unit)
UBS Macro frame
1. Shut down signaling to Site and then power down the
frame
2. Replace FRU
3. P ower up the frame
4. Restore signaling to Site
Continued
68P09283A64 -3 1 -13
FOA SEP 2007
UBS Macro B T S FRU R eplacement Preview Chapter 1: Ov erview
Table 1 -2 FRU replacement conditions and sequence (Continued)
FRU Location Replacement conditions and sequence
Breaker Module
Assembly (BMA)
UBS Macro frame inside
of PDU
1. Shut down signaling to Site and then power down the
frame
2. Replace FRU
3. P ower up the frame
4. Restore signaling to Site
–48 V DC PSM
(P ower Supply
Module) Shelf
UBS Macro frame
1. Shut down signaling to Site and then power down the
frame
2. Replace FRU
3. P ower up the frame
4. Restore signaling to Site
220 V AC PSM
(P ower Supply
Module) Shelf
UBS Macro frame
1. Shut down signaling to Site and then power down the
frame
2. Replace FRU
3. P ower up the frame
4. Restore signaling to Site
–48 V DC or
220 V AC PSM
(P ower Supply
Module)
PSM shelf FRU is hot swappable and redundant .
1. Replace FRU
Optional RGPS
(Remote GPS)
Head
P ole/mast mounted
outdoors
The UBS Macro frame BTS uses one of the following backup
sources instead of the RGPS head:
•Internal Motorola Standard Oscillator (MSO) which
can maintain system timing synchronization for up to
8 hours.
•Optional Quartz High Stability Oscillator (QHSO) which
can maintain system timing synchronization for up to
24 hours.
FRU is hot swappable .
1. Replace FRU
1 -14 68P09283A64 -3
FOA SEP 2007
1X UBS Macro B T S FRU UBS Macro B T S Product Ov erview
UBS Macro BTS Product Overview■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
The R20 Motorola Universal Base Station (UBS) Macro BTS supports single band
800 MHz or 1.9 GHz RF band, up to two XMIs, up to two DMIs and one S SI. UBS
Macro BTS frame configurations with up to four XMIs and up to five DMIs will be
available in the future.
Introduction
The Motorola Universal Base Station (UBS) Macro BTS conforms to the TIA/EIA/IS -97E and
CDMA2000 for the CDMA Base Station performance specifications. It is a packet BTS that
operates in the 800 MHz or 1.9 GHz RF band.
The packet BTS has a packet backhaul network interface that can handle voice and data.
A packet BTS is equipped with IP -packet routing functionality . The packet BTS connects to
the Access Network (AN) using span lines. This configuration provides the packet backhaul
between the packet BTS and the AN .
UBS Macro BTS Frame Overview
The Motorola Universal Base Station (UBS) Macro BTS along with other external equipment
forms a 1X BTS that is part of the Motorola R adio Access Network (RAN).
The UBS Macro BTS is the interface between the Access Node (AN) in the RAN and the
Subscriber Units (SUs) that are operating in the UBS Macro BTS RF coverage area.
Control and bearer traffic data, in IP -packets, is exchanged between the UBS Macro BTS and the
AN . This IP -packet backhaul interconnection is through T1/E1 span lines or high -speed Ethernet.
Control and bearer traffic data is exchanged between the UBS Macro BTS and the SUs. This
interconnection is by means of the CDMA2000 1X air interface.
The UBS Macro BTS air interface supports the following:
•Omni or 3–sector antenna configurations
•Single RF band operation only; 800 MHz or 1.9 GHz RF band
•Up to 120 W of total TX RF power output and up to 30 W TX RF power output per carrier in
omni; 20W per sector -carrier in 3 sector
•Dual path, Main and Diversity , RX antennas
The UBS Macro BTS equipment is mounted in a 19–inch rack to form the UBS Macro BTS frame.
68P09283A64 -3 1 -15
FOA SEP 2007
UBS Macro B T S Product Ov erview Chapter 1: Ov erview
UBS Macro BTS frames are configured for either +27 V DC operation, –48 V DC operation, or
220 V AC operation.
UBS Macro BTS frames are also configured for low , mid, or high capacity . Capacity is determined
by the quantity of sector carriers and traffic channels supported by the frame. The quantity of
sector carriers is a function of the quantity of XMIs. The quantity of traffic channels is a function
of the quantity of modems. Because the modems are inside the DMI, the quantity of DMIs is a
capacity factor . The capacity of a UBS Macro BTS frame is essentially based on the following:
•low capacity - one XMI and up to two DMIs
•mid capacity - two XMIs and two DMIs
•high capacity - more than two XMIs (four XMIs maximum) and more than two DMIs (five
DMIs maximum)
Currently , only low and mid capacity frames are available/supported.
High capacity UBS Macro BTS frames will be available in the future.
The currently available UBS Macro BTS frames are shown in Figure 1 -1 UBS Macro BTS
low -tier/low -capacity frame (1000 mm rack) on page 1 - 27 ,Figure 1 -2 Low capacity UBS Macro
BTS starter frame (1800 mm rack) on page 1 - 28 and Figure 1 -3 UBS Macro BTS mid -capacity
frame (1800 mm rack) on page 1 - 30 .
UBS Macro BTS Frame Standard Equipment
All UBS Macro BTS frames, regardless of capacity , are equipped with at least one of each
of the following:
•IDRF (Integrated Duplexer RX Filter)
•S SI (Site Span I/O) module
•XMI (Transceiver Module Internal) module
•DMI (Digital Module Internal) module
•PDU (P ower Distribution Unit)
The following sections briefly describe the UBS Macro BTS frame standard equipment.
1 -16 68P09283A64 -3
FOA SEP 2007
1X UBS Macro B T S FRU UBS Macro B T S Product Ov erview
IDRF (Integrated Duplexer RX Filter)
The IDRF is available in either the 800 MHz or 1.9 GHz RF band.
The IDRF includes:
•TX/RX bandpass filters
•Bi -directional TX and RX antenna path couplers.
The IDRF is a passive device requiring no DC input operating power .
The IDRF allows the sector TX and main RX RF carrier signals to share the same antenna. It
also allows connection for a sector diversity RX RF antenna. The bi -directional antenna couplers
provide forward and reflected signal port connections for antenna signal sampling and signal
injection. The coupled ports are typically used for connection to test equipment.
The UBS Macro BTS frame is typically equipped with one IDRF per sector . Figure 1 -1 UBS
Macro BTS low -tier/low -capacity frame (1000 mm rack) on page 1 - 27 ,Figure 1 -2 Low capacity
UBS Macro BTS starter frame (1800 mm rack) on page 1 - 28 and Figure 1 -3 UBS Macro BTS
mid -capacity frame (1800 mm rack) on page 1 - 30 show the location of the IDRFs within the
UBS Macro frame.
Figure 1 -5 800 MHz IDRF I/O Details on page 1 - 32 and Figure 1 -6 1.9 GHz IDRF I/O Details on
page 1 - 33 show the locations of IDRF RF I/O port connectors.
68P09283A64 -3 1 -17
FOA SEP 2007
UBS Macro B T S Product Ov erview Chapter 1: Ov erview
SSI (Site Span I/O) module
The S SI provides the interfaces between the UBS Macro BTS frame and the following external
interfaces:
•IP -backhaul spans
The S SI directly supports up to 8 spans of packet backhaul through either balanced T1 or
E1 span lines. S SI can also be equipped with an optional unbalanced E1 daughter card that
transforms the S SI balanced E1 span line connections to 75 -ohm coaxial cable connections.
•IP -backhaul via Ethernet/OTI (Open Transport Interface)
•E -GPS module or RGPS head connects to the S SI RGPS connector . This connector may
also be used for the Sync Sharing Input connection from the SYNC SHARING connector of
another UBS Macro BTS frame S SI.
•Sync Sharing Output is present at the S SI SYNC SHARING connector . This connector
may be used for connection to the RGPS connector of another UBS Macro BTS frame
S SI. Chaining the SYNC SHARING connector of one UBS Macro BTS frame to the RGPS
connector of another UBS Macro BTS frame and so on provides sharing the GPS sync
signal between BTSs.
•Customer inputs/outputs; up to 24 customer defined inputs and up to 8 customer defined
outputs
•LMT (Local Maintenance T erminal); like the LMF (Local Maintenance F acility)
The S SI provides interfaces for the following UBS Macro BTS frame equipment:
•S SI DC power input – connects to the (PDU) P ower Distribution Unit.
•S SI -to -DMI interface – connects the S SI to up to two DMIs.
•HSO interface (on rear of S SI) – connects to the optional QHSO module.
1 -18 68P09283A64 -3
FOA SEP 2007
1X UBS Macro B T S FRU UBS Macro B T S Product Ov erview
XMI (Transceiver Module Internal) module
The UBS Macro XMIs are available in either the 800 MHz or 1.9 GHz RF band. The XMI
requires +27 V DC input operating power .
The XMI provides both the baseband transceiver and linear power amplifier functionality for the
BTS . This functionality is integrated within a single module. The XMI supports either a three
sector antenna configuration or an Omni (single sector) antenna configuration.
The XMI receiver is capable of supporting four carriers in the three -sector configuration and
eight carriers in the Omni configuration. On the forward link side, XMI can support up to
eight carriers in the three -sector configuration.
The XMI supports P A trunking, which enables dynamic TX RF power sharing among all
sector -carriers. An advantage of P A trunking is that power can be distributed among
sector -carriers with different loads. The built -in redundancy of trunking is also an advantage. If
one of the XMIs internal power amplifiers fails, all sector -carriers served by that XMI can still
operate at reduced power on the remaining power amplifiers. The XMI will generate a system
alarm to alert the operator of the failure condition, but will stay in service.
The XMI provides main and diversity receivers for three sectors. The UBS Macro BTS frame
supports soft -fail redundancy at the receiver level. If either the main and diversity receive path
fails, the XMI continues to operate with one receive path, but at reduced performance instead of
taking the entire XMI out -of -service.
68P09283A64 -3 1 -19
FOA SEP 2007
UBS Macro B T S Product Ov erview Chapter 1: Ov erview
DMI (Digital Module Internal) module
The DMI contains two main components: a controller board and at least one modem board (i.e.,
1X CDMA or EV -DO). The controller board provides interfaces for up to two modem boards (i.e.,
1X CDMA, EV -DO , or a combination of both). A DMI can be upgraded with a second modem
board depending upon the configuration required at the BTS .
In the forward direction (BTS to Mobile), the DMI terminates the backhaul control and bearer
connections from the S SI, processes the bearer and control data then routes the baseband
data to the XMI for conversion/RF modulation and transmission over the air interface to the
subscriber .
In the reverse direction (Mobile to BTS), the XMI receives the subscriber transmission over
the air interface. The XMI demodulates the received RF signal and converts it to baseband
data. The received baseband data is routed to the DMI for processing and generation to the
associated control and bearer data for transmission to the network via the S SI.
External interfaces on the DMI include the following:
•+27 V DC (nominal) power input
•T wo S SI interfaces
•T wo XMI interfaces
The controller board provides all of the DMI external interfaces as well as interfaces for two
modem boards. The controller is made up of the following functions: Site Processor (SPROC),
Synchronization, Interworking (protocol termination), DMI baseband processing, XMI interfaces
and S SI interface.
The DMI controller board also contains an Oven Controlled Crystal Oscillator (OCX O) that
is synchronized to the BTS system timing established/sourced by the E -GPS or Remote GPS
(RGPS) head. The OCX O also provides the MSO function. In the event that the GPS system
timing signal (i.e., E -GPS or RGPS or sync -sharing) is lost, the DMI controller can select the
MSO as a backup synchronization source for maintaining BTS system timing for up to 8 hours
PDU (Power Distribution Unit)
The PDU is the central power distribution point for the UBS Macro BTS frame. It contains input
power feeds that connect to the +27 V DC power output of one of the following:
•Optional –48 V DC PSM (P ower Supply Module) shelf
•Optional 220 V AC PSM shelf
•Customer supplied external +27 V DC power source
The PDU houses circuit breakers/power connectors for +27 V DC power distribution to each of
the following UBS Macro BTS frame subsystems:
•XMIs
•DMIs
•S SIs
•Accessories
The PDU also contains bulk capacitance to stabilize the internal bus voltage to facilitate
subsystem hot -swap and absorb surge energy .
1 -20 68P09283A64 -3
FOA SEP 2007
1X UBS Macro B T S FRU UBS Macro B T S Product Ov erview
UBS Macro BTS Frame Optional Equipment
The UBS Macro BTS frame may be equipped with following optional equipment:
•E -GPS (External GPS) module
•–48 V DC PSM (P ower Supply Module) shelf with PSMs
•220 V AC PSM (P ower Supply Module) shelf with PSMs
•QHSO (Quartz High Stability Oscillator) module
•Unbalanced E1 daughter card
•Modem boards
The following sections briefly describe the UBS Macro BTS frame optional equipment.
E -GPS (External GPS) module
The optional E -GPS contains a GPS Receiver (GPSR) that requires connection to an external GPS
RF antenna signal. The E -GPS output timing signal is routed to the DMI controller via the S SI.
The E -GPS is the primary source for BTS system timing.
The optional Remote GPS (RGPS) head may be used instead of the E -GPS .
The E -GPS is considered to be local with respect to the UBS Macro BTS frame, while the RGPS
head is remotely located with respect to the UBS Macro BTS frame.
–48 V DC PSM (Power Supply Module) shelf with PSMs
The –48 V DC PSM shelf is optional. It is used to convert –48 V DC input power to +27V DC
output operating power for distribution to the UBS Macro BTS frame electronics.
The –48 V DC PSM shelf is located at the bottom of the UBS Macro BTS frame. Figure 1 -1 UBS
Macro BTS low -tier/low -capacity frame (1000 mm rack) on page 1 - 27 ,Figure 1 -2 Low capacity
UBS Macro BTS starter frame (1800 mm rack) on page 1 - 28 and Figure 1 -3 UBS Macro BTS
mid -capacity frame (1800 mm rack) on page 1 - 30 show the location of the –48 V DC PSM shelf
within the UBS Macro BTS frame.
The plug -in PSMs provide DC -DC conversion and +27V DC power output capabilities.
Up to three PSMs can be housed in the PSM shelf . A minimum of two PSMs are equipped for
redundancy . An empty PSM 3 slot is covered with a filler panel.
68P09283A64 -3 1 -21
FOA SEP 2007
UBS Macro B T S Product Ov erview Chapter 1: Ov erview
220 V AC PSM (Power Supply Module) shelf with PSMs
The 220 V AC PSM shelf is optional. It is used to convert 220 V AC input power to +27V DC
output operating power for distribution to the UBS Macro BTS frame electronics.
The 220 V AC PSM shelf is located at the bottom of the UBS Macro BTS frame. Figure 1 -1 UBS
Macro BTS low -tier/low -capacity frame (1000 mm rack) on page 1 - 27 ,Figure 1 -2 Low capacity
UBS Macro BTS starter frame (1800 mm rack) on page 1 - 28 and Figure 1 -3 UBS Macro BTS
mid -capacity frame (1800 mm rack) on page 1 - 30 show the location of the 220 V AC PSM shelf
within the UBS Macro BTS frame.
The plug -in PSMs provide AC -DC conversion and +27V DC power output capabilities.
Up to three PSMs can be housed in the PSM shelf . A minimum of two PSMs are equipped for
redundancy . An empty PSM 3 slot is covered with a filler panel.
QHSO (Quartz High Stability Oscillator) module
The QHSO is an upgraded backup synchronization source for maintaining BTS system timing
established/sourced by the E -GPS or Remote GPS (RGPS) head. QHSO backup is used instead of
the internal DMI controller MSO . The QHSO can maintain BTS system timing for up to 24 hours,
as compared to 8 hours provided by the MSO .
The QHSO contains a high stability quartz crystal oscillator .
The optional QHSO is mounted on the S SI rear panel. It plugs directly into the S SI rear panel
HSO connector .
Unbalanced E1 daughter card
The optional E1 daughter card is located on the front panel of the S SI.
F or E1 daughter card location and connector identification, refer to Figure 1 -7 S SI front panel
details on page 1 - 35 .
The E1 daughter card has a 37 -pin connector on the bottom of the card. This connector plugs
into the SP AN 37 -pin connector on the front panel of the S SI.
The E1 daughter card is secured to the S SI front panel via four corner screws.
The E1 daughter card is passive and does not require DC operating power . The circuitry on
the E1 daughter card transforms 75–Ohm unbalanced span line I/O to 100–Ohm balanced
S SI span line I/O .
The E1 daughter card supports up to eight span lines. It has 16 BNC connectors, 2 per span;
RX and TX.
1 -22 68P09283A64 -3
FOA SEP 2007
1X UBS Macro B T S FRU UBS Macro B T S Product Ov erview
Modem boards
The modem board provides digital modulation/demodulation of the overhead channels and
traffic channels that are carried on the TX/RX RF carriers. The UBS Macro modem boards
are high density and have at least 256 channel elements that can be allocated to support the
desired quantity of overhead and traffic channels.
There are two types of UBS Macro modem boards available. These are as follows:
•1X CDMA modem board
•EV -DO modem board
The modem boards are located inside the DMI. A DMI can be equipped with up to two modem
boards maximum. These modem boards can be either 1X CDMA modem, EV -DO modem, or
one of each.
UBS Macro BTS Frame Optional External Equipment
The RGPS (Remote GPS) head is optional external equipment for the UBS Macro BTS frame.
The following section briefly describes the RGPS head.
RGPS (Remote GPS) head
The optional RGPS head contains a GPS antenna GPS Receiver (GPSR) and built -in GPS RF
antenna. The RGPS head output timing signal is routed to the DMI controller via the S SI.
The RGPS head is the primary source for BTS system timing.
UBS Macro BTS FRU List
Before replacing components that are not covered in this manual, contact Motorola
Customer Network Resolution Center for special instructions that may be involved.
Each BTS FRU procedure specifies the required FRU(s) along with its model/part number .
T able 1 -3 lists all the supported UBS Macro BTS FRUs.
68P09283A64 -3 1 -23
FOA SEP 2007
UBS Macro B T S Product Ov erview Chapter 1: Ov erview
Table 1 -3 UBS Macro B T S FRUs
FRU item Motorola Model/P art number
(unless specified otherwise)
E -GPS ST TG4052
IDRF , China Full Band 800 MHz
STFN4009
IDRF , India Full Band 800 MHz
STFN4010
IDRF , US Full Band 800 MHz
STFN4015
IDRF , US A-band 800 MHz
STFN4016
IDRF , US B -band 800 MHz
STFN4017
IDRF , 1.9 GHz STFG4055
S SI STLN6390
Unbalanced E1 Daughter Card
STLN6327
QHSO SGLA4017
XMI, 800 MHz; with removable handle attached
SGTF4194
XMI, 1.9 GHz; with removable handle attached
STWG4000
XMI F an Tray Assembly; with five 27 V DC fans
STLN6404
All models of DMI assemblies include: DMI chassis with controller board, fans
and front panel.
DMI assembly with one 1X CDMA modem board
STLN6681
DMI assembly with one EV -DO modem board
STLN6682
DMI assembly with two 1X CDMA modem boards
STLN6683
DMI assembly with one 1X CDMA modem board and
one EV -DO modem board
STLN6684
DMI assembly with two EV -DO modem boards
STLN6679
DMI assembly without modem boards
STLN6325
CDMA 1X Modem Board
SGLN6336
EV -DO Modem Board
SGLN6494
RX Splitter , wide band (800 MHz through 2.1 GHz
RF bands)
STRG4029
PDU
STPN4038
90A BMA for XMIs
STLN4093
20A BMA for DMIs and S SIs
STLN6472
Continued
1 -24 68P09283A64 -3
FOA SEP 2007
1X UBS Macro B T S FRU UBS Macro B T S Product Ov erview
Table 1 -3 UBS Macro B T S FRUs (Continued)
FRU item Motorola Model/P art number
(unless specified otherwise)
10A BMA for ACCs
STLN6475
–48 V DC PSM Shelf; without PSMs
STHN4089
220 V AC PSM Shelf; without PSMs
STHN4092
–48 V DC PSM STPN4037
220 V AC PSM STPN4036
Optional RGPS Head
STLN6594
68P09283A64 -3 1 -25
FOA SEP 2007
UBS Macro B T S Equipment Identication Chapter 1: Ov erview
UBS Macro BTS Equipment Identication■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
Low and mid capacity UBS Macro BTS Frames
All Motorola Universal Base Station (UBS) Macro BTS frames are configured for either 800
MHz or 1.9 GHz RF band operation.
F or software release 2.20.0.x, only low and mid capacity UBS Macro BTS frames are available.
There are two versions low capacity UBS Macro BTS frames:
•UBS Macro BTS frame/short rack (see Figure 1 -1 )
•UBS Macro BTS starter frame/tall rack (see Figure 1 -2 )
The starter frame/tall rack can be easily expanded with equipment in the future to become a
mid or high capacity frame.
The frame/short rack cannot be easily expanded. Equipment expansion of this frame/short
rack would require equipment disassembly and then reassembly similar to that of the starter
frame in a taller rack. Typically the frame/short rack equipment configuration is used because
there is no plan for frame expansion.
1 -26 68P09283A64 -3
FOA SEP 2007
1X UBS Macro B T S FRU UBS Macro B T S Equipment Identication
Figure 1 -1 UBS Macro B T S low -tier/low -capacit y fr ame (1000 mm r ack)
ti-cdma-05993.eps
IDRF (Integrated Duplexer and
RX Filter) Shelf
SSI (Site Span I/O); SSI 1
XMI (Transceiver Module Internal) Shelf
- One XMI; XMI 1 (800 MHz or 1.9 GHz
See Notes 2, 3)
- Up to 2 DMIs (Digital Module Internal)
just right of XMI 1
- DMI 1, top; optional DMI 2 or empty
housing, bottom
- IDRF (Integrated Duplexer and RX Filter)
Shelf; in right side of XMI shelf
PDU (+27 V DC Power Distribution Unit)
- One: +27 V DC XMI Power Connector
(PC) and 90A Circuit Breaker (CB)
- Up to 2: +27 V DC DMI PCs and 20A CBs
- One: +27 V DC SSI PC and 20A CB
- No +27 V DC Accessory PCs and CBs
PSM (Power Supply Module) Shelf #1
(See Notes 4,5,6)
- Up to 2 PSMs
- Empty PSM slot with filler panel
- PSM 1 through 3 (left-to-right)
NOTES:
1. Interconnect cabling not shown for clarity.
2. 800 MHz equipment shown; 1.9 GHz similar.
3. 800 MHz XMI is 86 mm wide. 1.9 GHz XMI is 106.3 mm wide.
4. PSM shelf is optional and used instead of +27 V DC power Input.
5. PSM shelf is either -48 V DC or AC.
6. Only -48 V DC PSMs can be used in -48 V DC PSM shelf. Only AC PSMs can be used in AC PSM shelf.
PSM Shelf #1
+27 V DC Power
Cabling
Equipment
Mounting Rack
IDRF (800 MHz or 1.9 GHz
See Note 2)
- Up to 3 IDRFs; one per sector
- IDRF sector 1 through sector 3
(top-to-bottom)
- Antenna RF I/O, front
- BTS RF I/O, rear
68P09283A64 -3 1 -27
FOA SEP 2007
UBS Macro B T S Equipment Identication Chapter 1: Ov erview
Figure 1 -2 Low capacit y UBS Macro B T S starter fr ame (1800 mm r ack)
ti-cdma-05994.eps
IDRF (Integrated Duplexer and RX Filter) Shelf
- Up to 3 IDRFs (800 MHz or 1.9 GHz
See Note 2); one per sector
- IDRF sector 1 through sector 3 (left-to-right)
- Antenna RF I/O, top
- BTS RF I/O, bottom
SSI (Site Span I/O)
- One SSI; SSI 1
RX Antenna Sharing Bracket
E-GPS Module
XMI (Transceiver Module Internal) Shelf
- One XMI; XMI 1 (800 MHz or 1.9 GHz
See Notes 2, 3) XMI shelf slot 1
- Up to 2 DMIs (Digital Module Internal)
XMI shelf slot 4
- DMI 1, top; optional DMI 2 or empty
housing, bottom
PDU (+27 VDC Power Distribution Unit)
See Note 8
- One: +27 VDC XMI Power Connector
(PC) and 90A Circuit Breaker (CB)
- Up to 2: +27 VDC DMI PCs and 20A CBs
- One: +27 VDC SSI PC and 20A CB
- No +27 VDC Accessory PCs and CBs
PSM (Power Supply Module) Shelf #1
(See Notes 4,5,6)
- Up to 3 PSMs
- Empty PSM slot with filler panel
- PSM 1 through 3 (left-to-right)
NOTES:
1. Interconnect cabling not shown for clarity.
2. 800 MHz equipment shown; 1.9 GHz similar.
3. 800 MHz XMI is 86 mm wide. 1.9 GHz XMI is 106.3 mm wide.
4. PSM shelf is optional and used instead of+27 VDC power Input.
5. PSM shelf is either -48 VDC or AC.
6. Only -48 VDC PSMs can be used in -48 VDC PSM shelf. Only AC PSMS can be used in AC PSM shelf.
7. Carrier strips are removable.
8. PDU may be moved down 6 rack units to ease future expansion.
PSM Shelf #1
+27 VDC Power
Cabling
Handle
Equipment
Mounting Rack
Handle
Carrier Strip with
Removable Lifting
Handles (one strip
on each side of rack)
See Note 7
1 -28 68P09283A64 -3
FOA SEP 2007
1X UBS Macro B T S FRU UBS Macro B T S Equipment Identication
A typical mid capacity frame is shown in Figure 1 -3 .
The mid capacity frame is essentially a starter frame/tall rack that is already expanded to mid
capacity . The mid capacity frame can be expanded with equipment in the future to become a
high capacity frame.
68P09283A64 -3 1 -29
FOA SEP 2007
UBS Macro B T S Equipment Identication Chapter 1: Ov erview
Figure 1 -3 UBS Macro B T S mid -capacit y fr ame (1800 mm r ack)
ti-cdma-05995.eps
IDRF (Integrated Duplexer and RX Filter) Shelf
- Up to 6 IDRFs (800 MHz or 1.9 GHz
See Note 2); two sets of IDRFs,
each set with one IDRF per sector
- IDRF sector 1 through sector 3 (left-to-right)
- Antenna RF I/O, top
- BTS RF I/O, bottom
SSI (Site Span I/O)
- One SSI; SSI 1
XMI (Transceiver Module Internal) Shelf
- Two XMIs (800 MHz or 1.9 GHz
See Notes 2, 3); XMI 1, XMI 2 in
XMI shelf slots 1, 2
- Two DMIs (Digital Module Internal)
XMI shelf slot 4
- DMI 1, top; DMI 2, bottom
PDU (+27 VDC Power Distribution Unit)
See Note 8
- One: +27 VDC XMI Power Connector
(PC) and 90A Circuit Breaker (CB)
- Up to 2: +27 VDC DMI PCs and 20A CBs
- One: +27 VDC SSI PC and 20A CB
- No +27 VDC Accessory PCs and CBs
PSM (Power Supply Module) Shelf #1
(See Notes 4,5,6)
- Up to 3 PSMs
- Empty PSM slot with filler panel
- PSM 1 through 3 (left-to-right)
NOTES:
1. Interconnect cabling not shown for clarity.
2. 800 MHz equipment shown; 1.9 GHz similar.
3. 800 MHz XMI is 86 mm wide. 1.9 GHz XMI is 106.3 mm wide.
4. PSM shelf is optional and used instead of+27 VDC power Input.
5. PSM shelf is either -48 VDC or AC.
6. Only -48 VDC PSMs can be used in -48 VDC PSM shelf. Only AC PSMS can be used in AC PSM shelf.
7. Carrier strips are removable.
8. PDU may be moved down 6 rack units to ease future expansion.
PSM Shelf #1
+27 VDC Power
Cabling
Handle
Equipment
Mounting Rack
Handle
Carrier Strip with
Removable Lifting
Handles (one strip
on each side of rack)
See Note 7
RX Splitter
RX Antenna Sharing Bracket
E-GPS Module
1 -30 68P09283A64 -3
FOA SEP 2007
1X UBS Macro B T S FRU External GPS (E -GPS) Equipment Identication
External GPS (E -GPS) Equipment Identication■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
E -GPS I/O Details
The UBS Macro BTS frame is equipped with an E -GPS module. The E -GPS module contains a
GPS receiver (GPSR).
The E -GPS module connects to an external GPS RF antenna. It also connects to the S SI. The S SI
and its associated DMI cabling routes the E -GPS module GPSR output signals to the controller
board inside of the DMI. .
The E -GPS module operates from DC input power provided by the S SI connection.
See Figure 1 -4 for E -GPS module I/O connectors location and details.
Figure 1 -4 E -GPS I/O Details
ti-cdma-06499.eps
GPS-ANT SSI-GPS
Thumbscrew
E-GPS
Module
15-pin D-type
Connector to
RGPS Connector
on SSI
Coaxial Cable
Connector (N-type)
to External GPS
RF Antenna
68P09283A64 -3 1 -31
FOA SEP 2007
Integr ated Duplex er RX Filter (IDRF) Equipment Identication Chapter 1: Ov erview
Integrated Duplexer RX Filter (IDRF) Equipment
Identication
■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
IDRF I/O Details
The UBS Macro BTS antenna I/O equipment consists of the IDRF (Integrated Duplexer and RX
Filter) with dual directional couplers for each antenna port.
The UBS Macro BTS frame is equipped with one IDRF per sector antenna.
The IDRFs are passive devices and therefore do not require DC input power for operation.
The BTS Antennas connect to the front of the IDRF while the BTS frame equipment connects to
the rear of the IDRF .
RF test equipment can be connected to the directional couplers located on the front of the IDRF .
These ports allow RF signal monitoring of the antenna paths as well as RF signal injection into
the BTS equipment antenna paths.
See the applicable Figure 1 -5 or Figure 1 -6 for IDRF I/O connectors location and details.
Figure 1 -5 800 MHz IDRF I/O Details
TOP VIEW BOTTOM VIEW
RX DIV to XMI
(QMA-Type Coaxial)
TX from XMI
(Sector TX RF)
(QN-Type Coaxial)
RX MAIN to XMI
(QMA-Type Coaxial)
ti-cdma-06010.eps
TX/RX MAIN Antenna (N-T ype Coaxial)
Antenna Coupled Ports
(SMA-Type Coaxial)
TX/RX MAIN RFL
TX/RX MAIN FWD
Antenna Coupled Ports
(SMA-Type Coaxial)
RX DIV
RFL
RX DIV
FWD
RX DIV Antenna (N-T ype Coaxial)
(Sector RX RF)
(Sector RX RF)
TX/RX M
RX DIV
FWD CPLR
LABEL
Mounting Tab
Mounting Tab
NOTE:
1. Connector locations may vary
depending on the IDRF supplier.
1 -32 68P09283A64 -3
FOA SEP 2007
1X UBS Macro B T S FRU Integr ated Duplex er RX Filter (IDRF) Equipment Identication
Figure 1 -6 1.9 GHz IDRF I/O Details
TOP VIEW BOTTOM VIEW
RX DIV to XMI
(QMA-Type Coaxial)
TX from XMI
(Sector TX RF)
(QN-Type Coaxial)
RX MAIN to XMI
(QMA-Type Coaxial)
ti-cdma-06009.eps
TX/RX MAIN Antenna (N-T ype Coaxial)
Antenna Coupled Ports
(SMA-Type Coaxial)
RX DIV
RFL
RX DIV
FWD
Antenna Coupled Ports
(SMA-Type Coaxial) TX/RX MAIN RFL
TX/RX MAIN FWD
RX DIV Antenna (N-T ype Coaxial)
Mounting Tab
(Sector RX RF)
(Sector RX RF)
Mounting Tab
NOTE:
1. Connector locations may vary
depending on the IDRF supplier.
68P09283A64 -3 1 -33
FOA SEP 2007
Site Span I/O (S SI) Module Equipment Identication Chapter 1: Ov erview
Site Span I/O (SSI) Module Equipment Identication■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
SSI I/O Details
See Figure 1 -7 for S SI front panel I/O connectors location and details.
1 -34 68P09283A64 -3
FOA SEP 2007
1X UBS Macro B T S FRU Site Span I/O (S SI) Module Equipment Identication
Figure 1 -7 S SI front panel details
SSI (front pane l)
CUST OMER
IP 13-24 OP 5-8
CUST OMER
IP 1-12 OP 1-4
37-Pin Connectors -
Connect to Customer
IP/OP interconnect
equipment.
PSM 50-Pin Connector -
Connects to ALARM/CONTROL
Connector on Optional PSM
Shelf front panel
RGPS 15-Pin Connector -
Connects to E-GPS or Optional
RGPS Head or SYNC SHARING
Output of another BTS SSI
SP AN 37-P in Connector -
T1/E1 balanced Span I/O.
Connects to BTS site span line
interconnect equipment
-OR-
Optional E1 Unbalanced
Daughter Card (See Detail A)
Detail A
Optional E1 Unbalanced Daughter Card
(SSI sh own partially cut away)
Dau ghter Card
sec ured to SSI via
four corner scre ws.
37-Pin C onnector on
bottom o f card plugs into
SSI SP AN connector
16 BNC Conn ectors , 2 per
Span , RX an d TX. Number
indicates S pan Number
ti-cdma-05698.eps
TREF OUT BNC Connector -
Time reference o utput to test equipment
FREF OUT BNC Connector -
Frequenc y refere nce output
to test equipmen t
EXT REF IN BNC Connector -
External 10 MH z reference input
for calibrating DM I OCXO
CRMS/LMT
CUST OMER EN ET -
RJ-45 Connector
For connection o f
LMF equipment
SYNC SHARING Output
15-Pin Connector - Connects to
RGPS Connector (SYNC SHARING
Input) of another BTS SSI
68P09283A64 -3 1 -35
FOA SEP 2007
Site Span I/O (S SI) Module Equipment Identication Chapter 1: Ov erview
See Figure 1 -8 for S SI rear panel I/O connector location and details.
Figure 1 -8 S SI rear panel details
ti-cdma-05911.eps
QHSO
(Optional )
SSI (rear panel)
SSI Mounting Bracket
SPAN Connector End
Optional E1 Daughter
Card Mounting POWER IN
Connector
SSI
Module
Mounting Hooks
Captive Thumbscrew
(one of two; second on
other end of flange)
Right Anle
Mounting Flange
Captive Thumbscrew
Mounting Tab
9-pin Connector
1 -36 68P09283A64 -3
FOA SEP 2007
1X UBS Macro B T S FRU T r ansceiv er Module Internal (XMI) Equipment Identication
Transceiver Module Internal (XMI) Equipment
Identication
■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
XMI I/O Details
Figure 1 -9 shows I/O connectors on the front panel of the UBS Macro BTS 800 MHz XMI.
Figure 1 -10 shows I/O connectors on the front panel of the UBS Macro BTS 1.9 GHz XMI. The
top -to -bottom positioning of the XMI shown in the figures is the same as when it is installed in
the rack. These figures show connector/port locations, connector types and brief cabling details.
68P09283A64 -3 1 -37
FOA SEP 2007
T r ansceiv er Module Internal (XMI) Equipment Identication Chapter 1: Ov erview
Figure 1 -9 800 MHz XMI Module Front P anel I/O Detail
800 MHz
ti-cdma-06385.eps
Mounting Tab
RX EXP IN
RX EXP OUT
TOP
MMI (RJ45) Note 2
(+)
(-)
+27V DC Input Power
From PDU
HSL2; to/from DMI-2
(HSSDC2 Type)
HSL1; to/from DMI-1
RX DIV
RX 1; from
Sector 1 IDRF
RX 2; from
Sector 2 IDRF
RX 3; from
Sector 3 IDRF
RX MAIN
RX 1; from Sector
1 IDRF
RX 2; from Sector
2 IDRF
RX 3; from Sector
3 IDRF
TX-3; to
Sector 3 IDRF
TX-2; to
Sector 2 IDRF
TX-1; to
Sector 1 IDRF
Handle Mounting
Screw Hole
TX RF Outputs
(QN-type coaxial)
Mounting Tab
BOTTOM
NOTES:
1. Equipment shown is typical. Actual equipment
appearance may vary slightly.
2. LMT and MMI ports are used by Motorola for testing
or debugging purposes. These ports may be used by
customers for maintenance purposes. Carefully follow
written procedures when using these ports in the field.
Failure to do so could result in an inoperable FRU.
Handle Mounting
Screw Hole
TXD (ganged MCX-type)
To/From TX Combiner; Future Use
(For proper XMI TX RF Outputs operation,
the TXD port must be terminated with
TXD Attenuator, Motorola part number
5888774T01, if XMI is not cabled to
TX Combiner)
(QMA-Type Coaxial)
Always used on XMI 1;
Never used on XMI 2
(QMA-Type Coaxial)
Always used on XMI 2;
Only used on XMI 1 if
XMI 2 is not equipped
RX Expansion Ports
(ganged mini-coaxial)
To/From RX Splitter or
RX Cross-Connect Cable
CONTROL( 9-pin D-type)
To/From TX Combiner; Future Use
ALM (Alarm) LED
STA (Status) LED
INST (Instance) LED
LMT (RJ45) Note 2
1 -38 68P09283A64 -3
FOA SEP 2007
1X UBS Macro B T S FRU T r ansceiv er Module Internal (XMI) Equipment Identication
Figure 1 -10 1.9 GHz XMI Module Front P anel I/O Detail
1.9 GHz
ti-cdma-06109.eps
Mounting Tab
RX EXP IN
RX EXP OUT
TOP
MMI (RJ45) Note 2
CONTROL
LMT (RJ45) Note 2
(+)
(-)
+27V DC Input Power
From PDU
HSL2; to/from DMI-2
(HSSDC2 Type)
HSL1; to/from DMI-1
RX DIV
RX 1; from
Sector 1 IDRF
RX 2; from
Sector 2 IDRF
RX 3; from
Sector 3 IDRF
RX MAIN
RX 1; from Sector
1 IDRF
RX 2; from Sector
2 IDRF
RX 3; from Sector
3 IDRF
TX-3; to
Sector 3 IDRF
TX-2; to
Sector 2 IDRF
TX-1; to
Sector 1 IDRF
Handle Mounting
Screw Hole
Handle Mounting
Screw Hole
TX RF Outputs
(QN-type coaxial)
Mounting Tab
BOTTOM
ALM (Alarm) LED
STA (Status) LED
INST (Instance) LED
(QMA-Type Coaxial)
Always used on XMI 1;
Never used on XMI 2
(QMA-Type Coaxial)
Always used on XMI 2;
Only used on XMI 1 if
XMI 2 is not equipped
RX Expansion Ports
(ganged mini-coaxial)
To/From RX Splitter or
RX Cross-Connect Cable
Not Used
NOTES:
1. Equipment shown is typical. Actual equipment
appearance may vary slightly.
2. LMT and MMI ports are used by Motorola for testing
or debugging purposes. These ports may be used by
customers for maintenance purposes. Carefully follow
written procedures when using these ports in the field.
Failure to do so could result in an inoperable FRU.
68P09283A64 -3 1 -39
FOA SEP 2007
Digital Module Internal (DMI) Equipment Identication Chapter 1: Ov erview
Digital Module Internal (DMI) Equipment Identication■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
DMI I/O Panel
Figure 1 -11 shows I/O connectors on the front panel of the UBS Macro BTS DMI. The
top -to -bottom positioning of the DMI shown in the figure is the same as when it is installed in
the rack. This figure shows connector/port locations, connector types and brief cabling details.
1 -40 68P09283A64 -3
FOA SEP 2007
1X UBS Macro B T S FRU Digital Module Internal (DMI) Equipment Identication
Figure 1 -11 DMI Module Front P anel Detail
LMT
IDI/SSI1
SSI2
TEST XMI1/BSI XMI2 RS232-2
RS232-1
+27VDC
INST
ST ALM
ti-cdma-05912.eps
Mounting Tab
TOP Retaining Fastener
(Retains DMI Chassis
to DMI Cage)
MMI Serial Debug
Ports (RJ45)
Note 2
+27 V DC Input
Power From PDU
(mini-Molex)
Ethernet 10/100 BaseT
Debug Ports (RJ45)
Note 2
LMT
TEST
Serial Backhaul;
Traffic & Control Data
(VHDCI Typel)
To/From SSI-1
To/From SSI-2
(Future Use)
Mounting Tab
NOTES:
1. Equipment shown is typical. The actual equipment appearance may vary slightly.
2. The debug ports are intended to be used primarily for testing or debugging purposes by Motorola.
These ports may be used in the field for maintenance purposes by customers. Carefully follow written
procedures when using these ports in the field. Failure to do so could result in an inoperable FRU.
BOTTOM
Handle
To/From XMI-2
To/From XMI-1
LEDs
ST (Status)
ALM (Alarm)
INST (Instance)
1.2288 Gbps high-speed
serial data links (SFP Type).
Carries XMI baseband I & Q
data as well as control data
RS232-2
RS232-1
68P09283A64 -3 1 -41
FOA SEP 2007
P ower Distribution Unit (PDU) Equipment Identication Chapter 1: Ov erview
Power Distribution Unit (PDU) Equipment Identication■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
■
PDU I/O Panels
Figure 1 -12 shows I/O connectors on the front panel of the UBS Macro BTS PDU . This figure
shows connector and circuit breaker locations and usage details.
Figure 1 -13 shows I/O cable and connectors on the rear panel of the UBS Macro BTS PDU . This
figure shows cable/connector locations and brief cabling details.
Figure 1 -12 PDU front panel detail
ti-cdma-05913.eps
HAZARD OF
ELECTRIC SHOCK
WITH PANEL REMOVED
LIVE TERMINALS
CAUTION 20 20 20
90
+27 V DC
Power Output
Connector Row
NOTES:
1. Equipment shown is typical. The actual equipment appearance may vary slightly.
2. The power output connector and associated circuit breaker are an intergral unit.
The power output connector is always positioned directly above the associated circuit breaker.
3. Usually only power output connectors and circuit breakers are populated when the associated XMI, DMI, SSI or ACC
is equipped. The actual equipage is customer dependent.
Cicuit
Breaker
Row 90 A
11 2
32 45
20 A 20 A 20 A
XMI SSI
Accessories
1 2
DMI
3 4
1 -42 68P09283A64 -3
FOA SEP 2007
1X UBS Macro B T S FRU P ower Distribution Unit (PDU) Equipment Identication
Figure 1 -13 PDU rear panel detail
ti-cdma-05914.eps
CAUTION
CAUTION
CAUTION
1st Power Feed
+27 V DC Input
Power Connector
1st Power Feed
+27 V DC Input
Filter Capacitor
Location of Optional
2nd Power Feed
+27 V DC Input
Power Connector
NOTES:
1. Equipment shown is typical. The actual equipment appearance may vary slightly.
2. The optional 2nd power feed input connector is populated when more than 2 XMIs are equipped.
_
0 VDC
+
27 VD
C
HAZARD OF ELECTRICAL SHOCK WITH COVERS REMOVED
68P09283A64 -3 1 -43
