Opticon Sensors Europe PHL7200-BW Portable Data Terminal User Manual 6 rev
Opticon Sensors Europe BV Portable Data Terminal 6 rev
Contents
User manual 6 rev
OPTICON
User's manual
PHL-7000 series
3
-
20
Note: If the device to which the PDT is bonding does not appear in the list,
ensure it is turned on, in discoverable mode, and within range (30 feet / 10
meters) of the PDT.
Icon Description
Unknown device icon
Device is not defined
Locked icon Device is locked and can not be bonded to.
Not locked icon Device is not locked and can be bonded to.
Bluetooth device icon
Bluetooth device
Bonded device icon Bonded Bluetooth device
Mobile device icon Device is a mobile device
Phone icon Device is a phone.
Printer icon Device is a printer
Network icon Device is a network.
Linked icon Device is linked.
Table 3-18 Bluetooth Icons
OPTICON
User's manual
PHL-7000 series
3
-
21
3.2.3 Certificates
Certificates are used by some applications for establishing trust and for secure
communications.
Certificates are signed and issued by certificate authorities and are valid for a prescribed
period of time. Windows CE manages multiple certificate stores.
ICON ITEM & FUNCTION
• “Store” Tab ( Figure 3-31) :
ü In the Stores tab, select the certificate store you wish to
view or modify from the drop-down list (Figure 3-32).
ü The “Trusted Authorities “store lists the top-level
certificates for authorities you trust.( Figure 3-33 , Figure
3-34)
ü The “My Certificates “store contains your personal
certificates, which you use to identify yourself.
ü Intermediate certificate authorities that help establish a
chain of trust are stored in the “Other Authorities” store.
• “Store” Tab :
ü To add a certificate or associated private key to the
selected store, select “Import” (Figure 3-35).
ü To view more details of the selected certificate, such as the
expanded name or expiration date, choose “View”.
ü To delete the selected certificate from the store, choose
“Remove”.
Table 3-19 Certificates
OPTICON
User's manual
PHL-7000 series
3
-
22

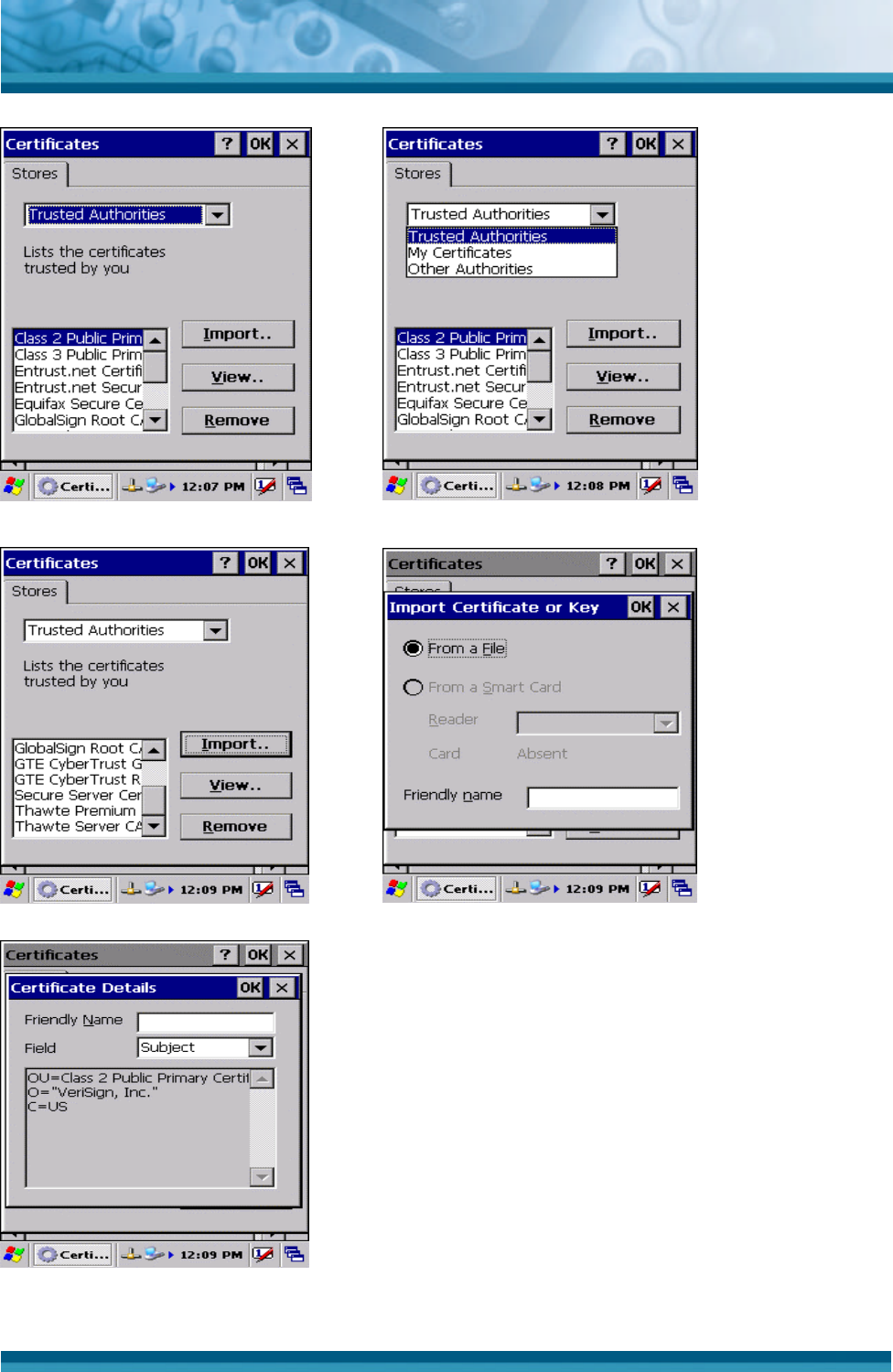

Figure 3-31 Certificates Figure 3-32 Certificates
Figure 3-33 Certificates Figure 3-34 Certificates
Figure 3-35 Certificates
OPTICON
User's manual
PHL-7000 series
3
-
23
3.2.4 Control Center
The Control Center includes four Property buttons. These are property buttons for PDT
device information, display brightness, system Backup Restore and Fn-Key Settings.
Figure 3-36 Control Center
3.2.4.1 Information
ICON ITEM & FUNCTION
• “Information” Tab :
ü Provide Software version, MAC address, Bluetooth ID,
Serial No. and Configuration No.
Table 3-20 Information
OPTICON
User's manual
PHL-7000 series
3
-
24

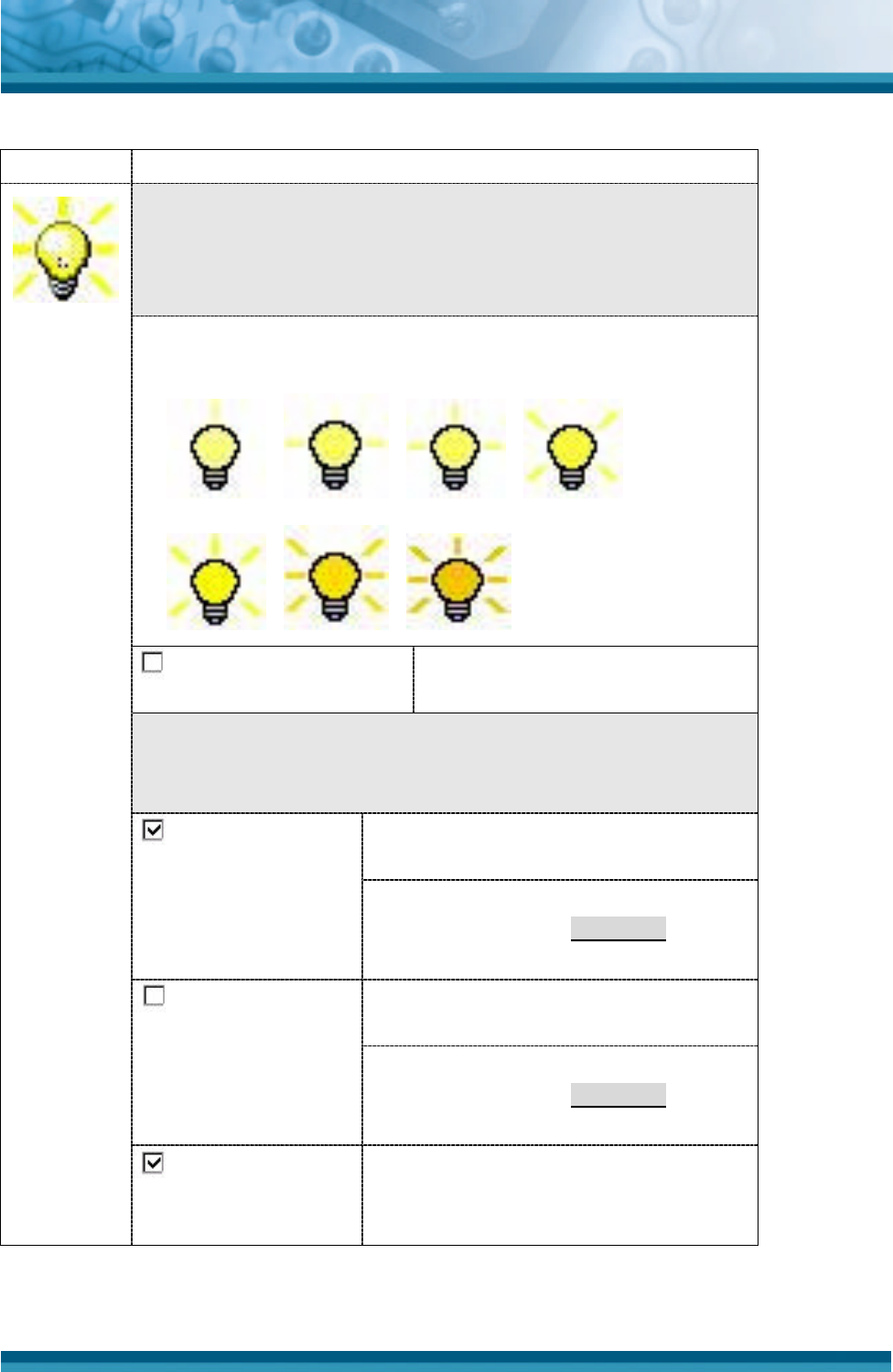

3.2.4.2 Brightness
ICON ITEM & FUNCTION
LCD Brightness
Tune the LCD brightness by tapping right-arrow & left-arrow.
Can also tune the LCD brightness by pressing right-direction
key or left-direction key of keypad.
Amounts 7 steps: Every step have corresponding picture of
self.
1. 2. 3. 4.
5. 6. 7.
Enable Keypad
Brightness
Open keypad brightness or not.
Backlight Timeout
Save battery life by automatically turning off t
he backlight when
not used.
The table must disable when its item is
not marked.
Battery Power,
turn off backlight after
The table has 15 seconds, 30
seconds, 1 minute, 2 minutes and 5
minutes.
The table must disa
ble when its item is
not marked.
AC Power, turn
off backlight after
The table has 15 seconds, 30
seconds, 1 minute, 2 minutes and 5
minutes.
Dim backlight
after 20 seconds of
idleness.
Save battery life functionally of
idleness mode, open it or not.
Table 3-21 Brightness
OPTICON
User's manual
PHL-7000 series
3
-
25

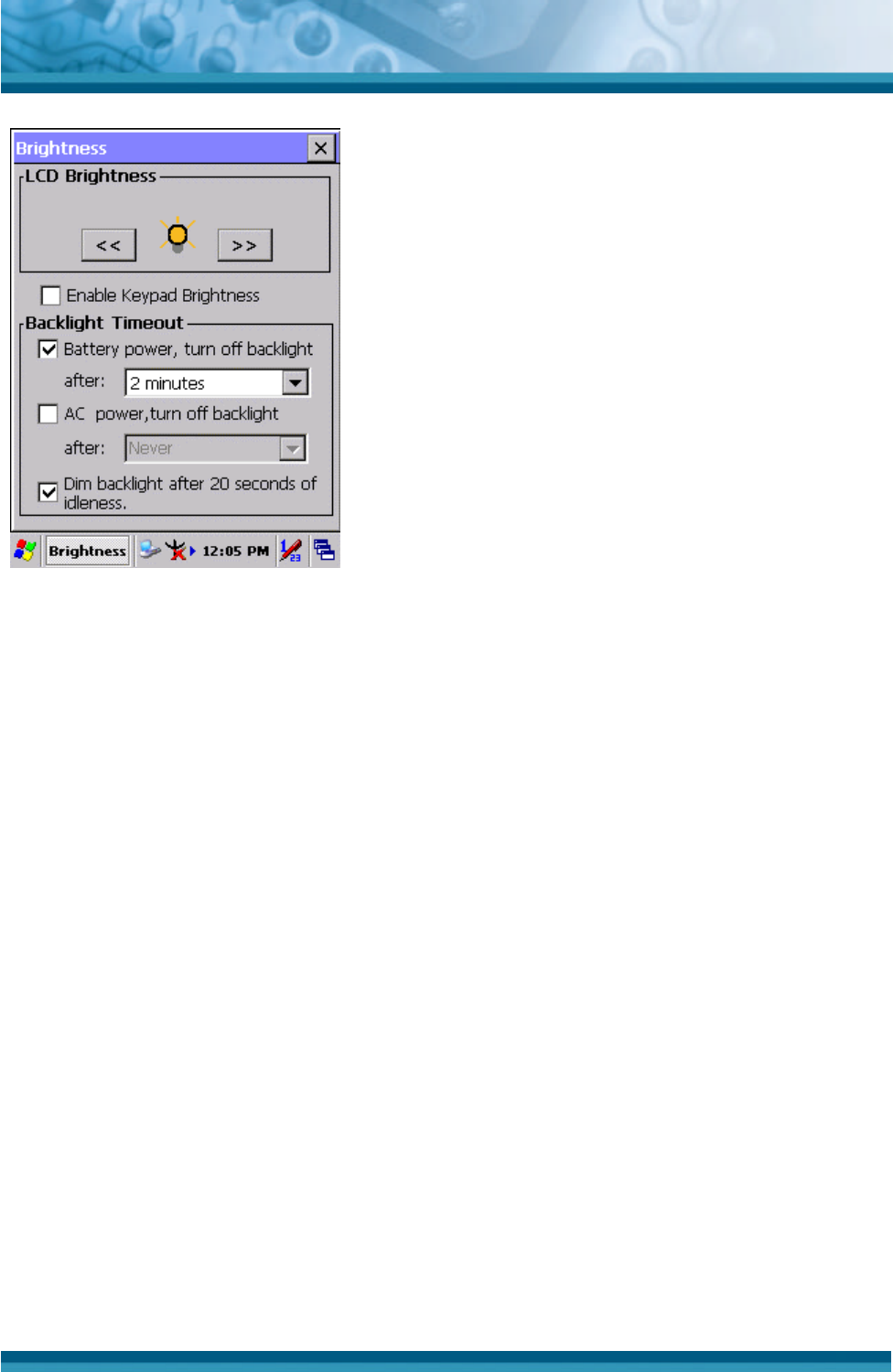

Figure 3-37 Brightness
OPTICON
User's manual
PHL-7000 series
3
-
26

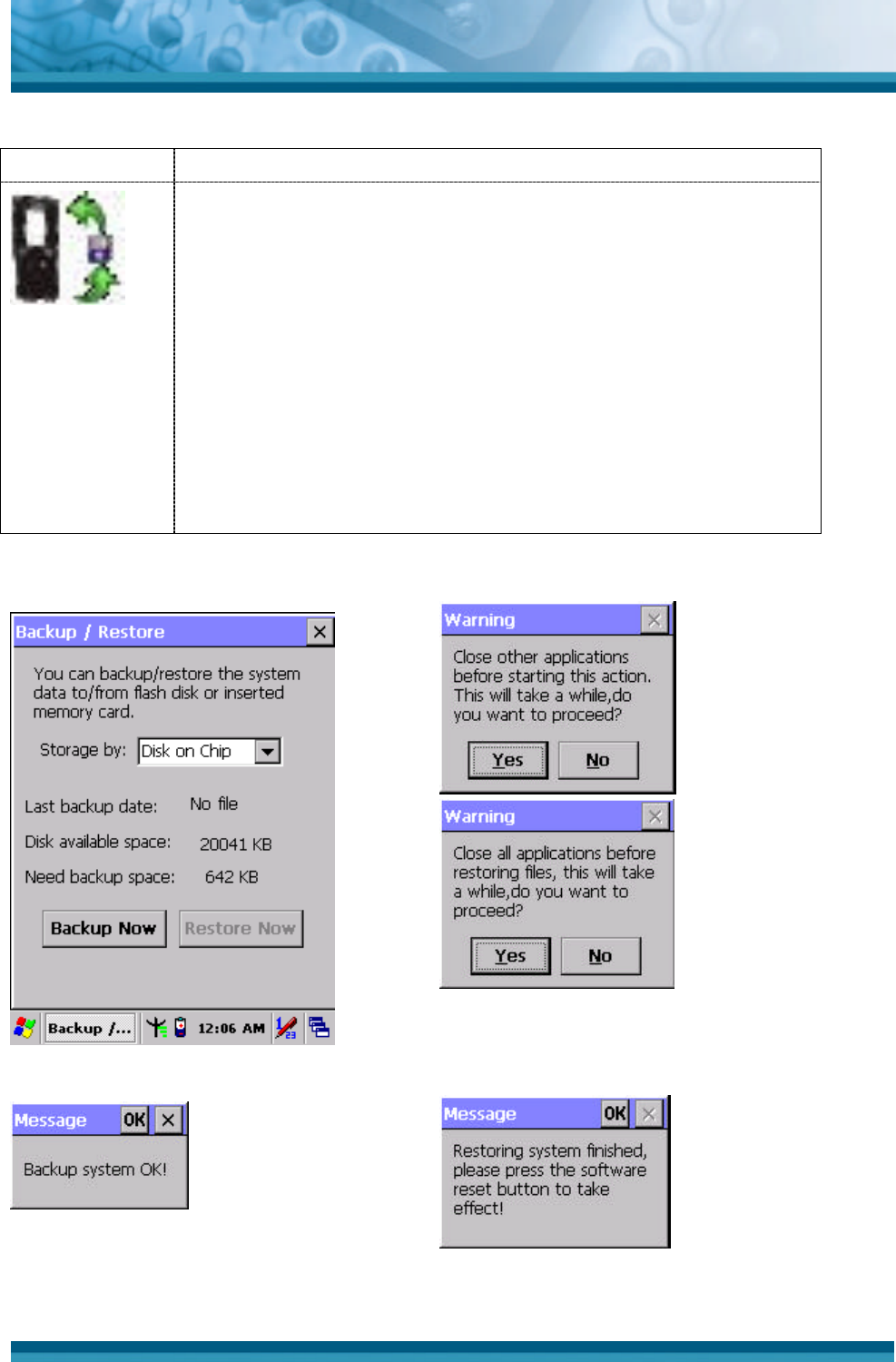

3.2.4.3 Backup Restore
ICON ITEM & FUNCTION
1. You can backup/restore the system to/from flash disk or
inserted memory card. (A. Disk on Chip, B. CF Card, C. SD
Card, Figure 3-38)
2. When you launch this application, it must check backup file
in Disk On Chip first. And if you select other storage, it will
check again.
3. If a previous backup file is found, its date appears behind
“Last backup date:”; if not, the “Restore Now” button is
disabled.
4. When you press the Backup/Restore Button, a warning
dialog will pop up. ( Figure 3-39)
5. When system backup/restoring is finished, a message dialog
will pop up. (A. Backup: Figure 3-40, B. Restore: Figure
3-41)
Table 3-22 Backup Restore
Figure 3-38 Backup Restore Figure 3-39 Backup & Restore Start
Figure 3-40 Backup OK Figure 3-41 Restore OK
