Samsung Electronics Co SCHI300 Dual-Band Analog/PCS Phone (AMPS/CDMA) User Manual

Samsung Electronics Co Ltd Dual-Band Analog/PCS Phone (AMPS/CDMA) Users Manual

Users Manual Part 6

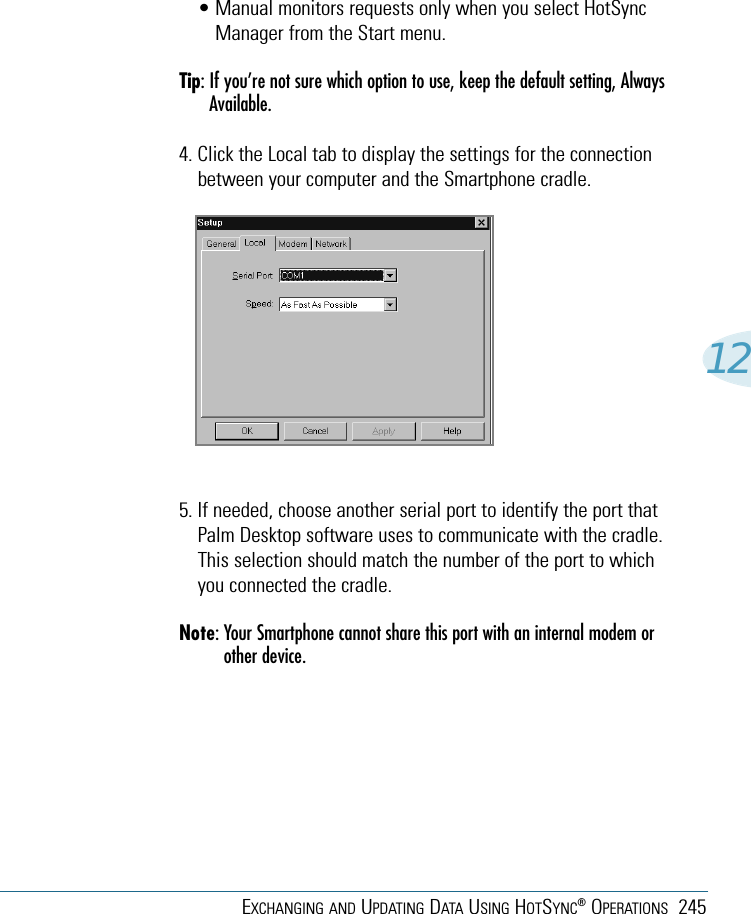

EXCHANGING AND UPDATING DATA USING HOTSYNC®OPERATIONS 24512• Manual monitors requests only when you select HotSyncManager from the Start menu.Tip: If you’re not sure which option to use, keep the default setting, AlwaysAvailable.4. Click the Local tab to display the settings for the connectionbetween your computer and the Smartphone cradle.5. If needed, choose another serial port to identify the port thatPalm Desktop software uses to communicate with the cradle.This selection should match the number of the port to whichyou connected the cradle. Note: Your Smartphone cannot share this port with an internal modem orother device.

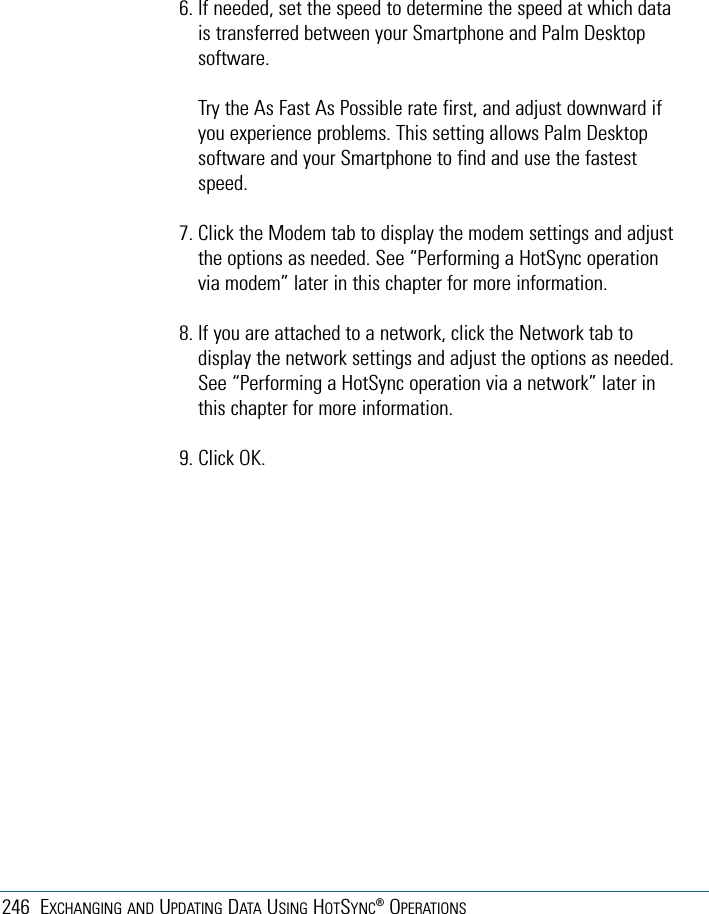

246 EXCHANGING AND UPDATING DATA USING HOTSYNC®OPERATIONS6. If needed, set the speed to determine the speed at which datais transferred between your Smartphone and Palm Desktopsoftware. Try the As Fast As Possible rate first, and adjust downward ifyou experience problems. This setting allows Palm Desktopsoftware and your Smartphone to find and use the fastestspeed.7. Click the Modem tab to display the modem settings and adjustthe options as needed. See “Performing a HotSync operationvia modem” later in this chapter for more information.8. If you are attached to a network, click the Network tab todisplay the network settings and adjust the options as needed.See “Performing a HotSync operation via a network” later inthis chapter for more information.9. Click OK.

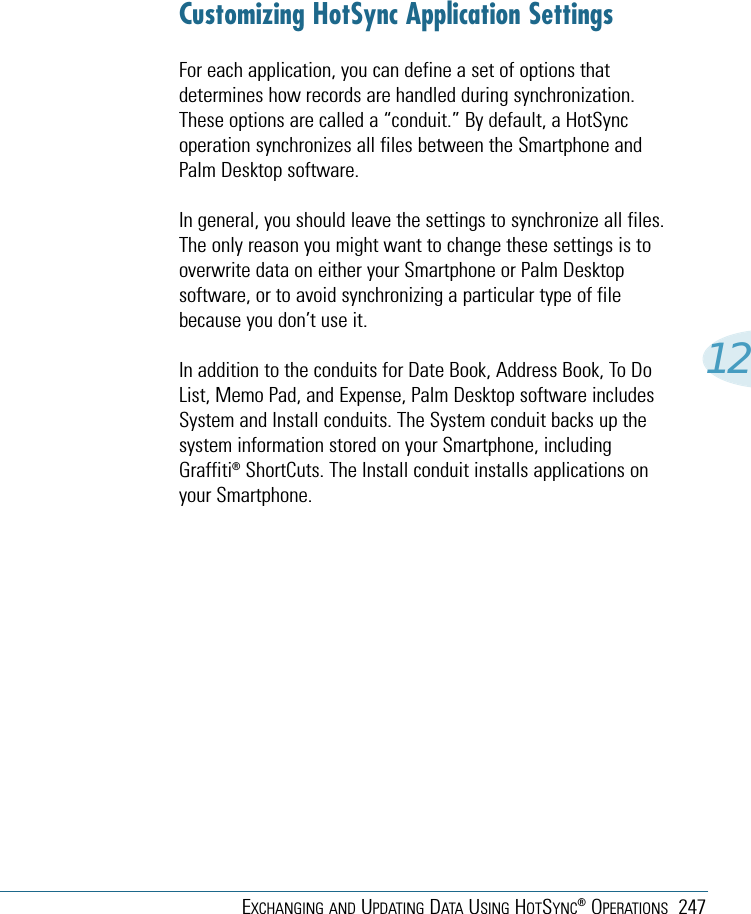

EXCHANGING AND UPDATING DATA USING HOTSYNC®OPERATIONS 24712Customizing HotSync Application SettingsFor each application, you can define a set of options thatdetermines how records are handled during synchronization.These options are called a “conduit.” By default, a HotSyncoperation synchronizes all files between the Smartphone andPalm Desktop software. In general, you should leave the settings to synchronize all files.The only reason you might want to change these settings is tooverwrite data on either your Smartphone or Palm Desktopsoftware, or to avoid synchronizing a particular type of filebecause you don’t use it.In addition to the conduits for Date Book, Address Book, To DoList, Memo Pad, and Expense, Palm Desktop software includesSystem and Install conduits. The System conduit backs up thesystem information stored on your Smartphone, includingGraffiti®ShortCuts. The Install conduit installs applications onyour Smartphone.

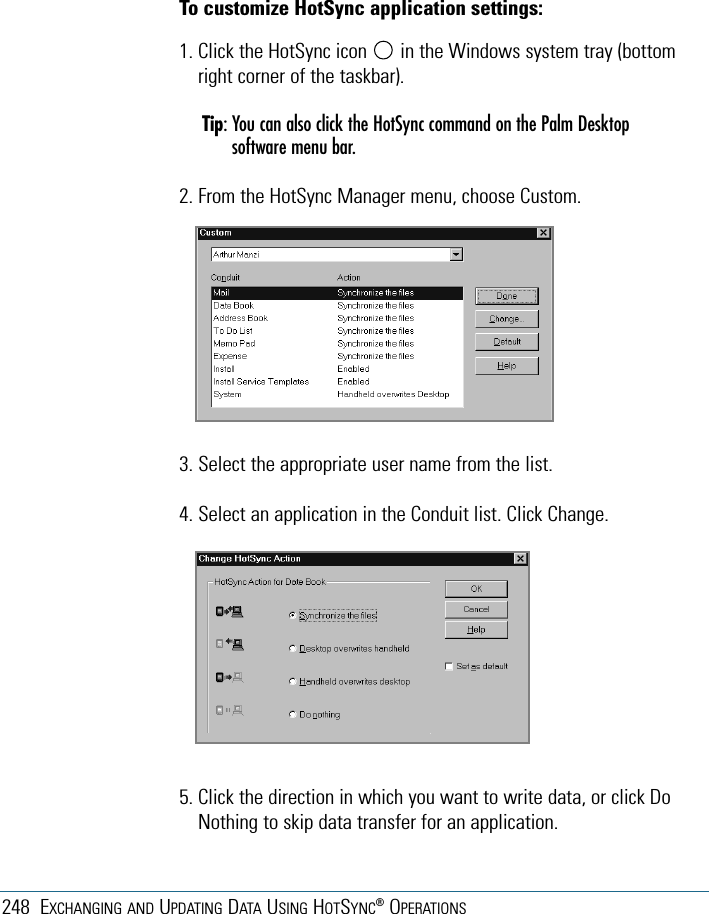

248 EXCHANGING AND UPDATING DATA USING HOTSYNC®OPERATIONS3. Select the appropriate user name from the list.4. Select an application in the Conduit list. Click Change.5. Click the direction in which you want to write data, or click DoNothing to skip data transfer for an application.To customize HotSync application settings:1. Click the HotSync icon in the Windows system tray (bottomright corner of the taskbar).Tip: You can also click the HotSync command on the Palm Desktopsoftware menu bar.2. From the HotSync Manager menu, choose Custom.

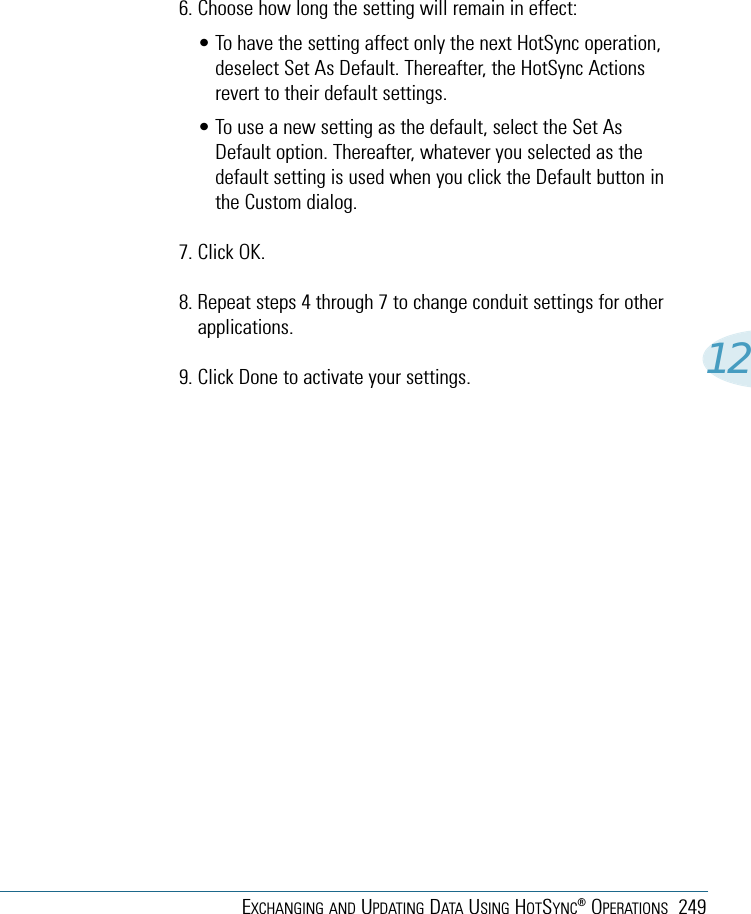

EXCHANGING AND UPDATING DATA USING HOTSYNC®OPERATIONS 249126. Choose how long the setting will remain in effect:• To have the setting affect only the next HotSync operation,deselect Set As Default. Thereafter, the HotSync Actionsrevert to their default settings. • To use a new setting as the default, select the Set AsDefault option. Thereafter, whatever you selected as thedefault setting is used when you click the Default button inthe Custom dialog.7. Click OK.8. Repeat steps 4 through 7 to change conduit settings for otherapplications.9. Click Done to activate your settings.

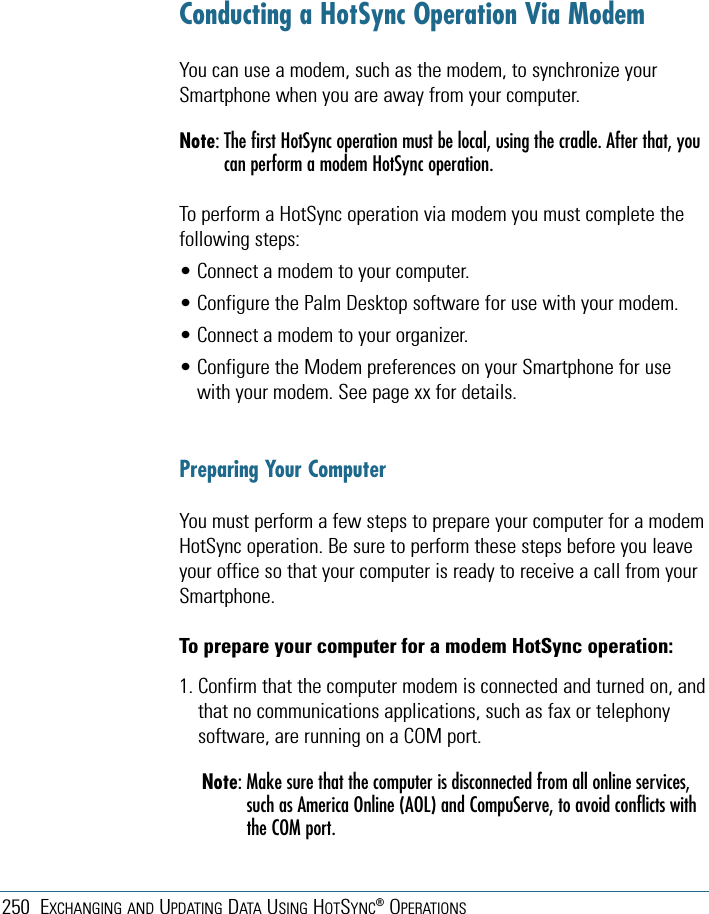

250 EXCHANGING AND UPDATING DATA USING HOTSYNC®OPERATIONSConducting a HotSync Operation Via ModemYou can use a modem, such as the modem, to synchronize yourSmartphone when you are away from your computer.Note: The first HotSync operation must be local, using the cradle. After that, youcan perform a modem HotSync operation.To perform a HotSync operation via modem you must complete thefollowing steps:• Connect a modem to your computer.• Configure the Palm Desktop software for use with your modem.• Connect a modem to your organizer.• Configure the Modem preferences on your Smartphone for usewith your modem. See page xx for details.Preparing Your ComputerYou must perform a few steps to prepare your computer for a modemHotSync operation. Be sure to perform these steps before you leaveyour office so that your computer is ready to receive a call from yourSmartphone. To prepare your computer for a modem HotSync operation:1. Confirm that the computer modem is connected and turned on, andthat no communications applications, such as fax or telephonysoftware, are running on a COM port.Note: Make sure that the computer is disconnected from all online services,such as America Online (AOL) and CompuServe, to avoid conflicts withthe COM port.

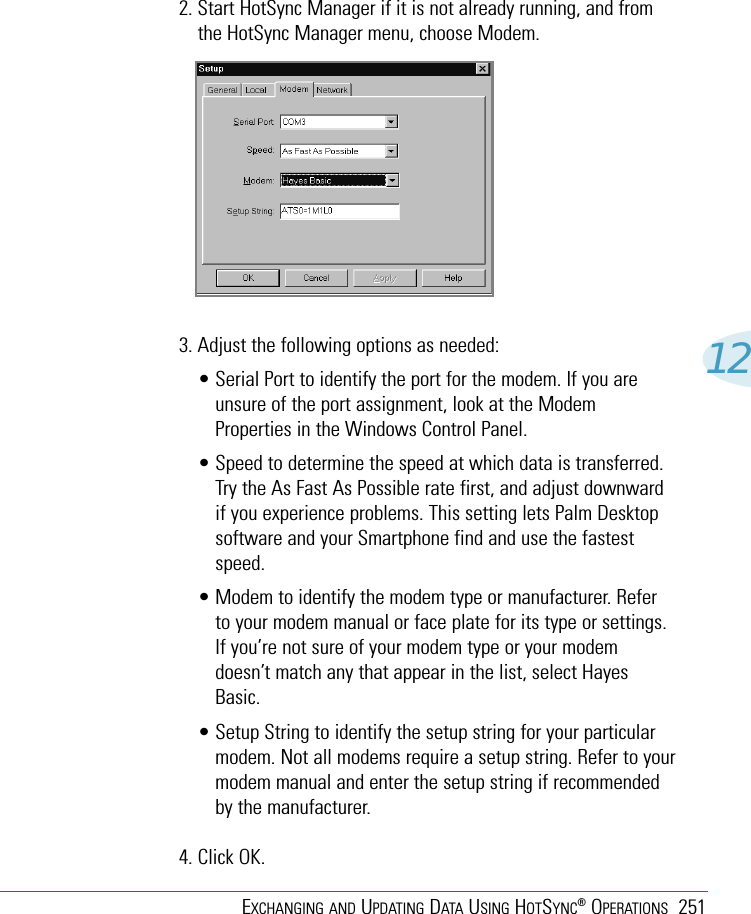

EXCHANGING AND UPDATING DATA USING HOTSYNC®OPERATIONS 251122. Start HotSync Manager if it is not already running, and fromthe HotSync Manager menu, choose Modem.3. Adjust the following options as needed: • Serial Port to identify the port for the modem. If you areunsure of the port assignment, look at the ModemProperties in the Windows Control Panel.• Speed to determine the speed at which data is transferred.Try the As Fast As Possible rate first, and adjust downwardif you experience problems. This setting lets Palm Desktopsoftware and your Smartphone find and use the fastestspeed.• Modem to identify the modem type or manufacturer. Referto your modem manual or face plate for its type or settings.If you’re not sure of your modem type or your modemdoesn’t match any that appear in the list, select HayesBasic.• Setup String to identify the setup string for your particularmodem. Not all modems require a setup string. Refer to yourmodem manual and enter the setup string if recommendedby the manufacturer.4. Click OK.

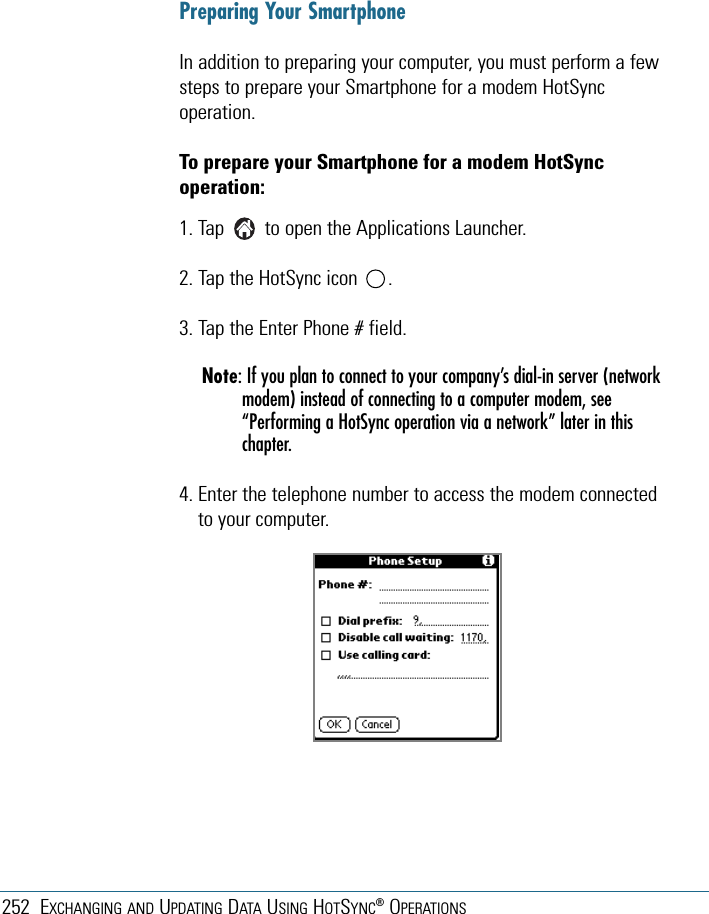

252 EXCHANGING AND UPDATING DATA USING HOTSYNC®OPERATIONSPreparing Your SmartphoneIn addition to preparing your computer, you must perform a fewsteps to prepare your Smartphone for a modem HotSyncoperation. To prepare your Smartphone for a modem HotSyncoperation:1. Tap to open the Applications Launcher. 2. Tap the HotSync icon . 3. Tap the Enter Phone # field.Note: If you plan to connect to your company’s dial-in server (networkmodem) instead of connecting to a computer modem, see“Performing a HotSync operation via a network” later in thischapter.4. Enter the telephone number to access the modem connectedto your computer.

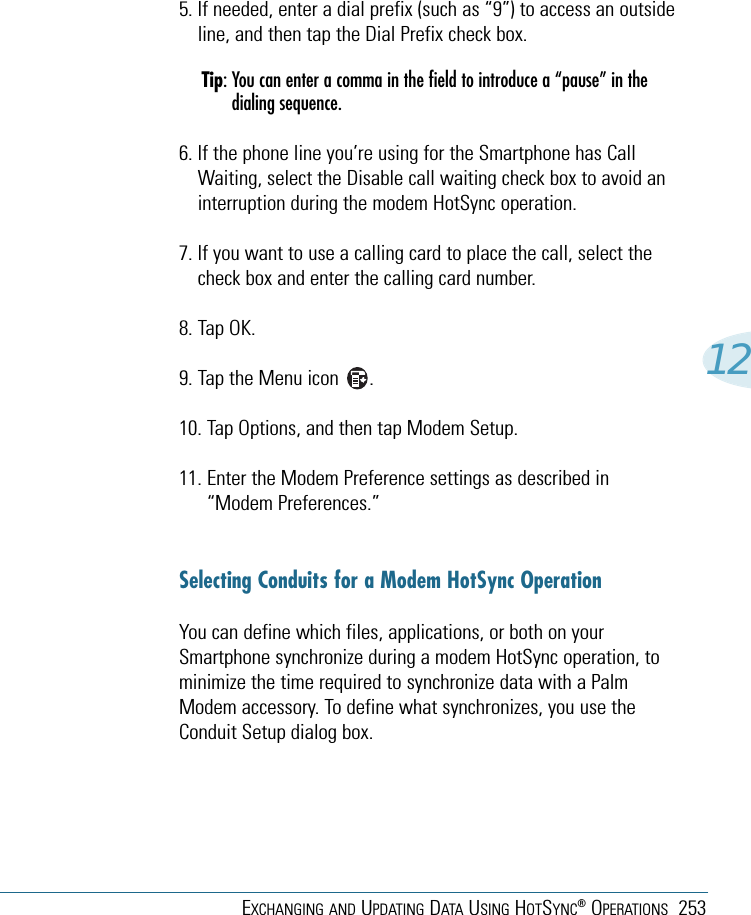

EXCHANGING AND UPDATING DATA USING HOTSYNC®OPERATIONS 253125. If needed, enter a dial prefix (such as “9”) to access an outsideline, and then tap the Dial Prefix check box.Tip: You can enter a comma in the field to introduce a “pause” in thedialing sequence. 6. If the phone line you’re using for the Smartphone has CallWaiting, select the Disable call waiting check box to avoid aninterruption during the modem HotSync operation. 7. If you want to use a calling card to place the call, select thecheck box and enter the calling card number. 8. Tap OK.9. Tap the Menu icon . 10. Tap Options, and then tap Modem Setup.11. Enter the Modem Preference settings as described in“Modem Preferences.”Selecting Conduits for a Modem HotSync OperationYou can define which files, applications, or both on yourSmartphone synchronize during a modem HotSync operation, tominimize the time required to synchronize data with a PalmModem accessory. To define what synchronizes, you use theConduit Setup dialog box.

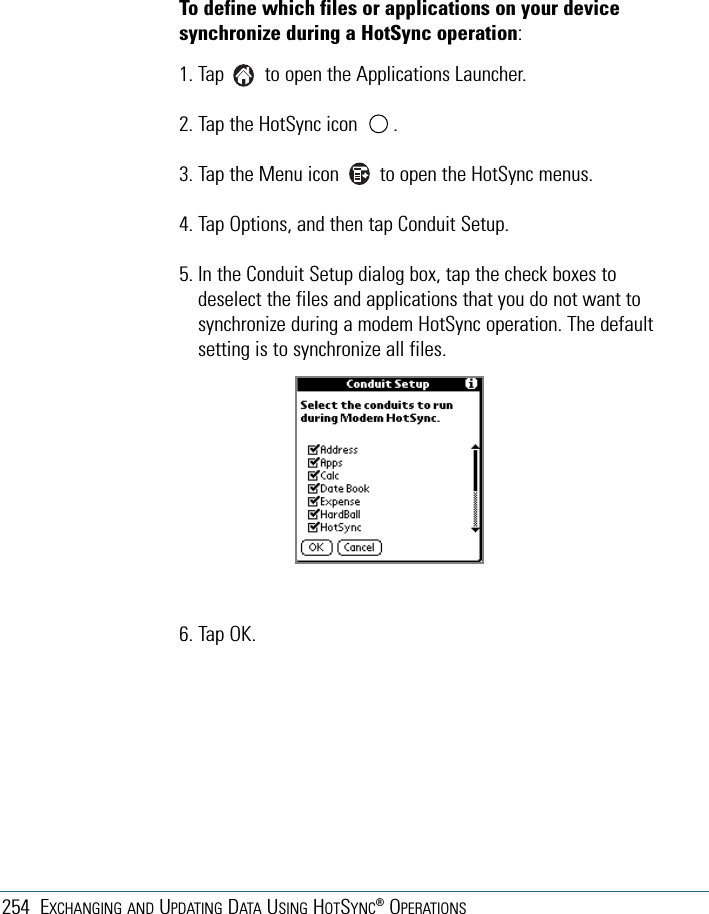

254 EXCHANGING AND UPDATING DATA USING HOTSYNC®OPERATIONSTo define which files or applications on your devicesynchronize during a HotSync operation:1. Tap to open the Applications Launcher. 2. Tap the HotSync icon . 3. Tap the Menu icon to open the HotSync menus. 4. Tap Options, and then tap Conduit Setup.5. In the Conduit Setup dialog box, tap the check boxes todeselect the files and applications that you do not want tosynchronize during a modem HotSync operation. The defaultsetting is to synchronize all files. 6. Tap OK.

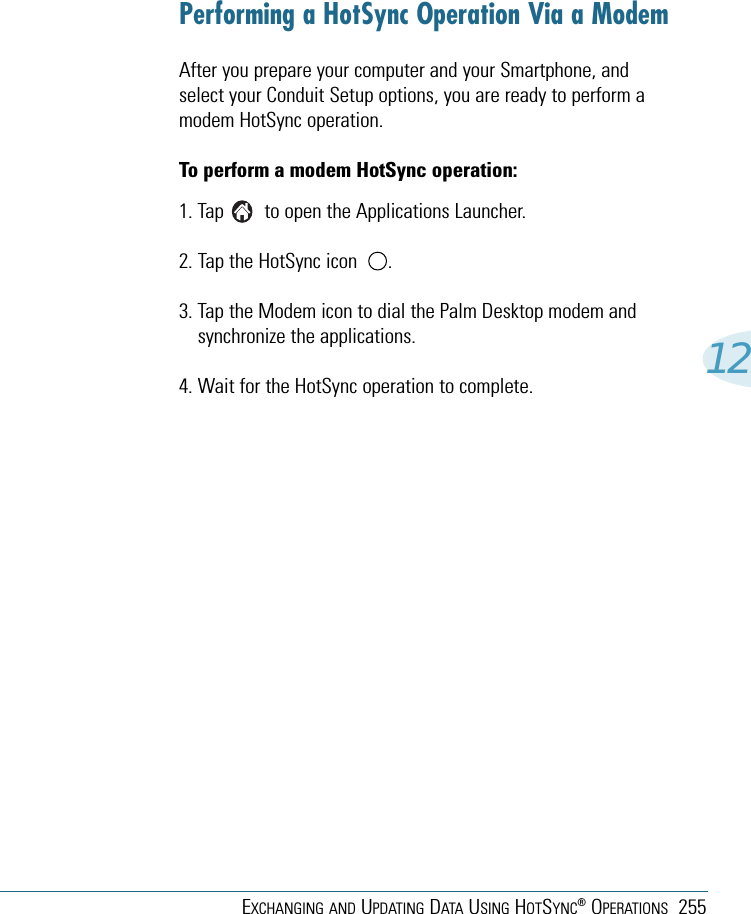

EXCHANGING AND UPDATING DATA USING HOTSYNC®OPERATIONS 25512Performing a HotSync Operation Via a ModemAfter you prepare your computer and your Smartphone, andselect your Conduit Setup options, you are ready to perform amodem HotSync operation.To perform a modem HotSync operation:1. Tap to open the Applications Launcher. 2. Tap the HotSync icon . 3. Tap the Modem icon to dial the Palm Desktop modem andsynchronize the applications.4. Wait for the HotSync operation to complete.

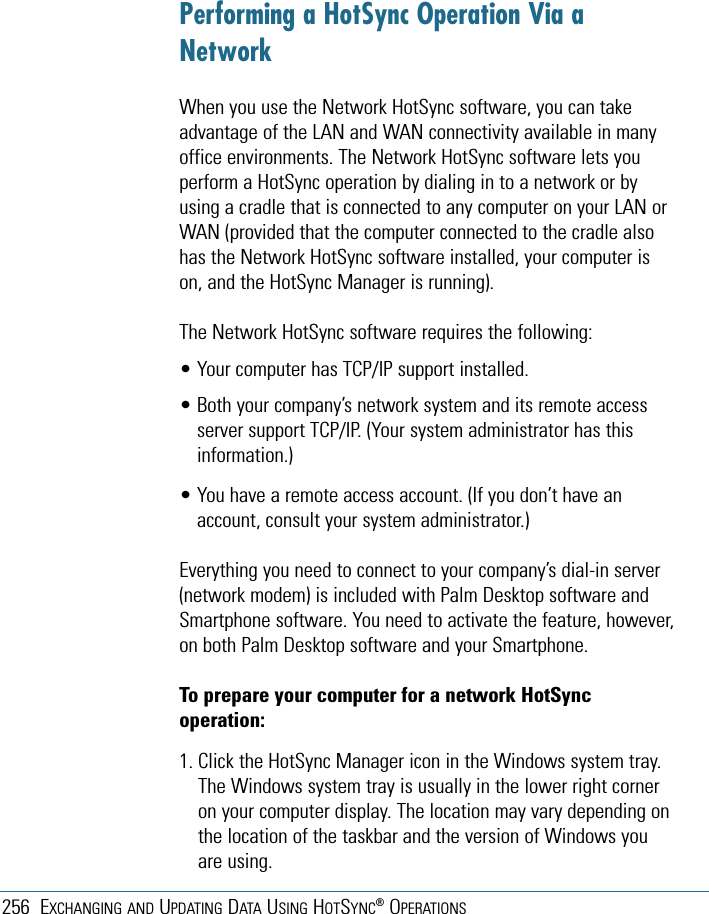

256 EXCHANGING AND UPDATING DATA USING HOTSYNC®OPERATIONSPerforming a HotSync Operation Via aNetworkWhen you use the Network HotSync software, you can takeadvantage of the LAN and WAN connectivity available in manyoffice environments. The Network HotSync software lets youperform a HotSync operation by dialing in to a network or byusing a cradle that is connected to any computer on your LAN orWAN (provided that the computer connected to the cradle alsohas the Network HotSync software installed, your computer ison, and the HotSync Manager is running).The Network HotSync software requires the following:• Your computer has TCP/IP support installed.• Both your company’s network system and its remote accessserver support TCP/IP. (Your system administrator has thisinformation.)• You have a remote access account. (If you don’t have anaccount, consult your system administrator.)Everything you need to connect to your company’s dial-in server(network modem) is included with Palm Desktop software andSmartphone software. You need to activate the feature, however,on both Palm Desktop software and your Smartphone.To prepare your computer for a network HotSyncoperation:1. Click the HotSync Manager icon in the Windows system tray.The Windows system tray is usually in the lower right corneron your computer display. The location may vary depending onthe location of the taskbar and the version of Windows youare using.

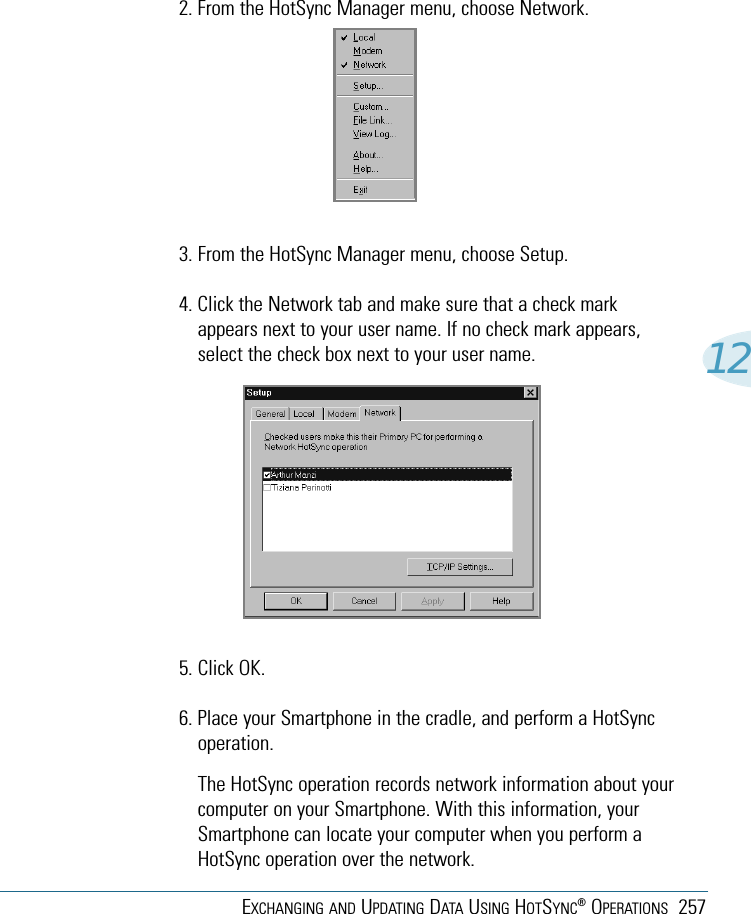

EXCHANGING AND UPDATING DATA USING HOTSYNC®OPERATIONS 257122. From the HotSync Manager menu, choose Network.3. From the HotSync Manager menu, choose Setup.4. Click the Network tab and make sure that a check markappears next to your user name. If no check mark appears,select the check box next to your user name.5. Click OK.6. Place your Smartphone in the cradle, and perform a HotSyncoperation.The HotSync operation records network information about yourcomputer on your Smartphone. With this information, yourSmartphone can locate your computer when you perform aHotSync operation over the network.

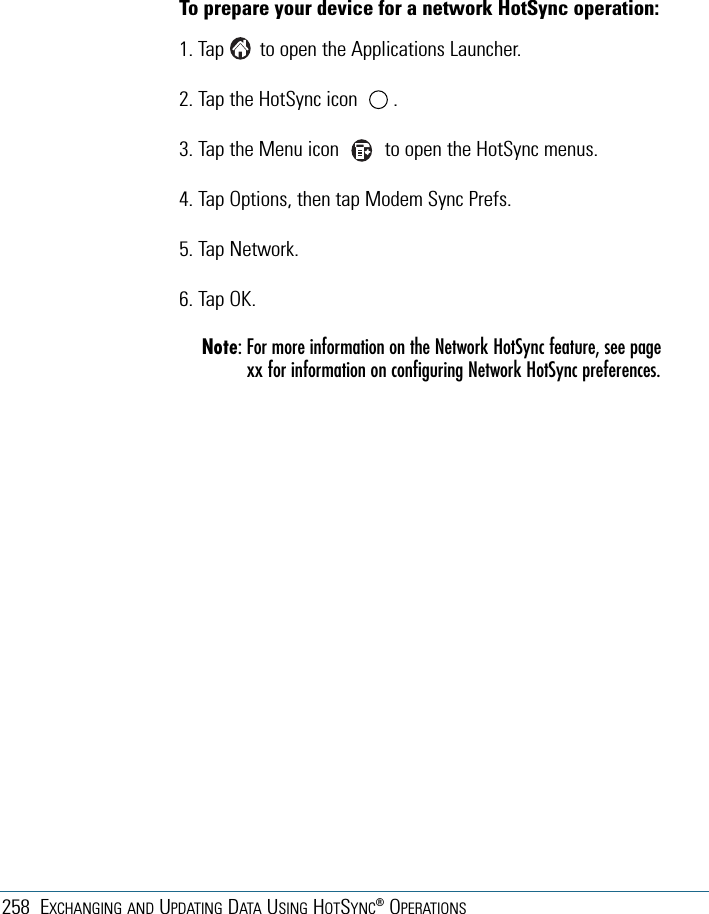

258 EXCHANGING AND UPDATING DATA USING HOTSYNC®OPERATIONSTo prepare your device for a network HotSync operation:1. Tap to open the Applications Launcher. 2. Tap the HotSync icon .3. Tap the Menu icon to open the HotSync menus. 4. Tap Options, then tap Modem Sync Prefs.5. Tap Network.6. Tap OK.Note: For more information on the Network HotSync feature, see pagexx for information on configuring Network HotSync preferences.

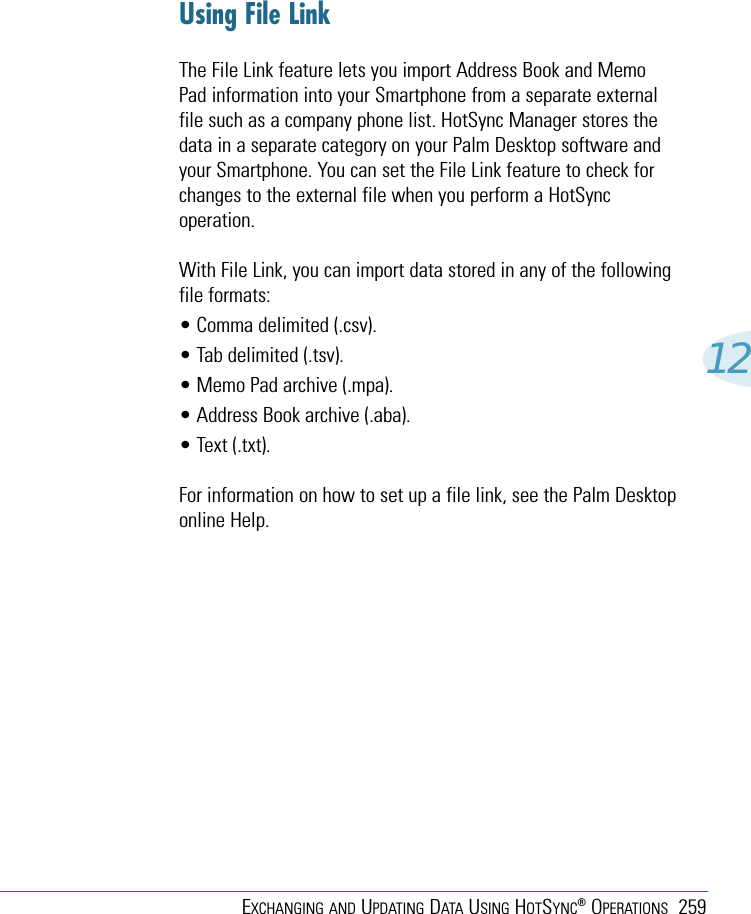

EXCHANGING AND UPDATING DATA USING HOTSYNC®OPERATIONS 25912Using File LinkThe File Link feature lets you import Address Book and MemoPad information into your Smartphone from a separate externalfile such as a company phone list. HotSync Manager stores thedata in a separate category on your Palm Desktop software andyour Smartphone. You can set the File Link feature to check forchanges to the external file when you perform a HotSyncoperation. With File Link, you can import data stored in any of the followingfile formats:• Comma delimited (.csv).• Tab delimited (.tsv).• Memo Pad archive (.mpa).• Address Book archive (.aba).• Text (.txt).For information on how to set up a file link, see the Palm Desktoponline Help.

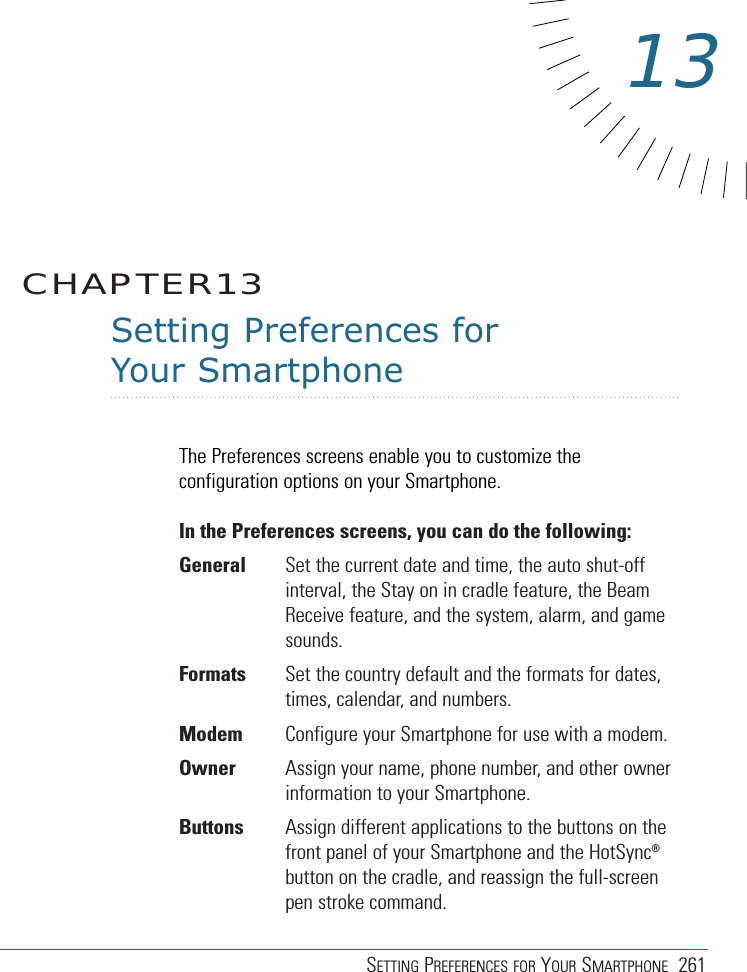

SETTING PREFERENCES FOR YOUR SMARTPHONE 261Setting Preferences for Your SmartphoneThe Preferences screens enable you to customize theconfiguration options on your Smartphone.In the Preferences screens, you can do the following:General Set the current date and time, the auto shut-offinterval, the Stay on in cradle feature, the BeamReceive feature, and the system, alarm, and gamesounds.Formats Set the country default and the formats for dates,times, calendar, and numbers.Modem Configure your Smartphone for use with a modem.Owner Assign your name, phone number, and other ownerinformation to your Smartphone.Buttons Assign different applications to the buttons on thefront panel of your Smartphone and the HotSync®button on the cradle, and reassign the full-screenpen stroke command.CHAPTER1313

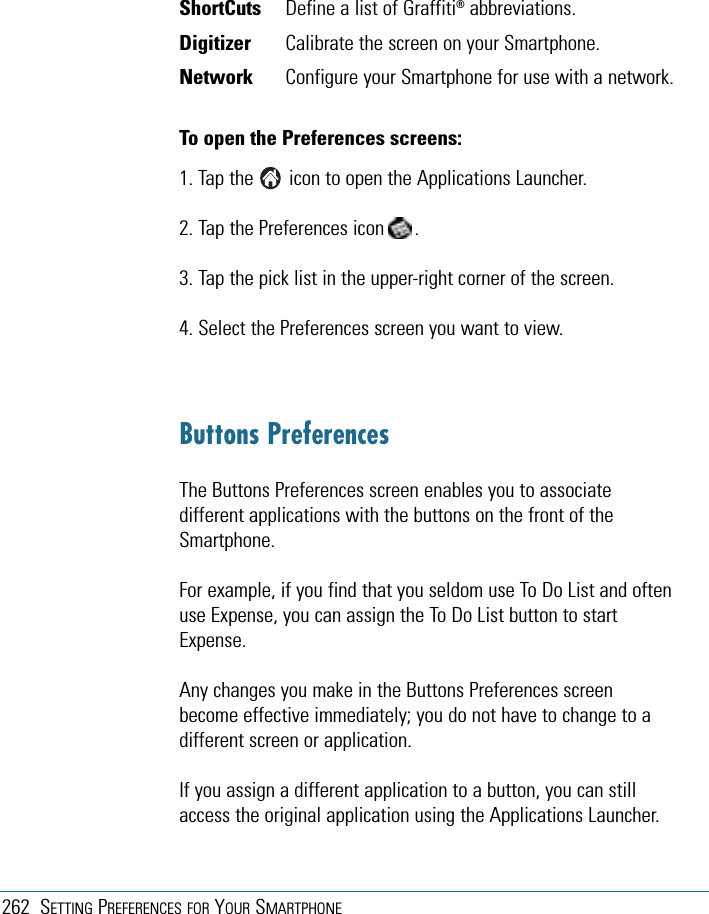

262 SETTING PREFERENCES FOR YOUR SMARTPHONEShortCuts Define a list of Graffiti®abbreviations.Digitizer Calibrate the screen on your Smartphone.Network Configure your Smartphone for use with a network.To open the Preferences screens:1. Tap the icon to open the Applications Launcher.2. Tap the Preferences icon .3. Tap the pick list in the upper-right corner of the screen.4. Select the Preferences screen you want to view.Buttons PreferencesThe Buttons Preferences screen enables you to associatedifferent applications with the buttons on the front of theSmartphone.For example, if you find that you seldom use To Do List and oftenuse Expense, you can assign the To Do List button to startExpense.Any changes you make in the Buttons Preferences screenbecome effective immediately; you do not have to change to adifferent screen or application.If you assign a different application to a button, you can stillaccess the original application using the Applications Launcher.

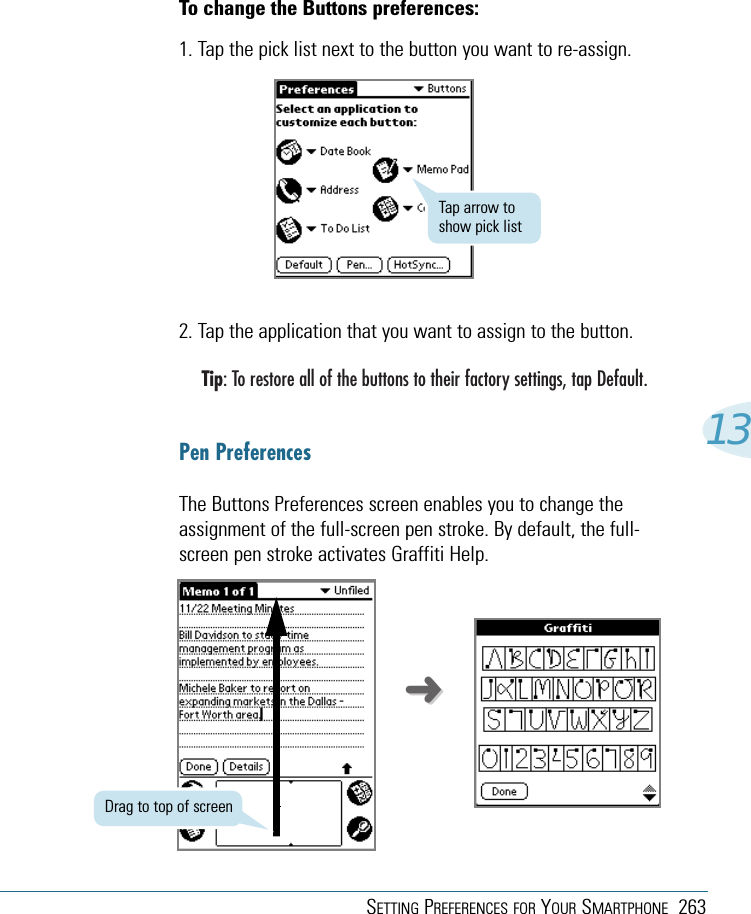

SETTING PREFERENCES FOR YOUR SMARTPHONE 26313To change the Buttons preferences:1. Tap the pick list next to the button you want to re-assign.2. Tap the application that you want to assign to the button.Tip: To restore all of the buttons to their factory settings, tap Default.Pen PreferencesThe Buttons Preferences screen enables you to change theassignment of the full-screen pen stroke. By default, the full-screen pen stroke activates Graffiti Help.Tap arrow toshow pick listDrag to top of screen➜➜

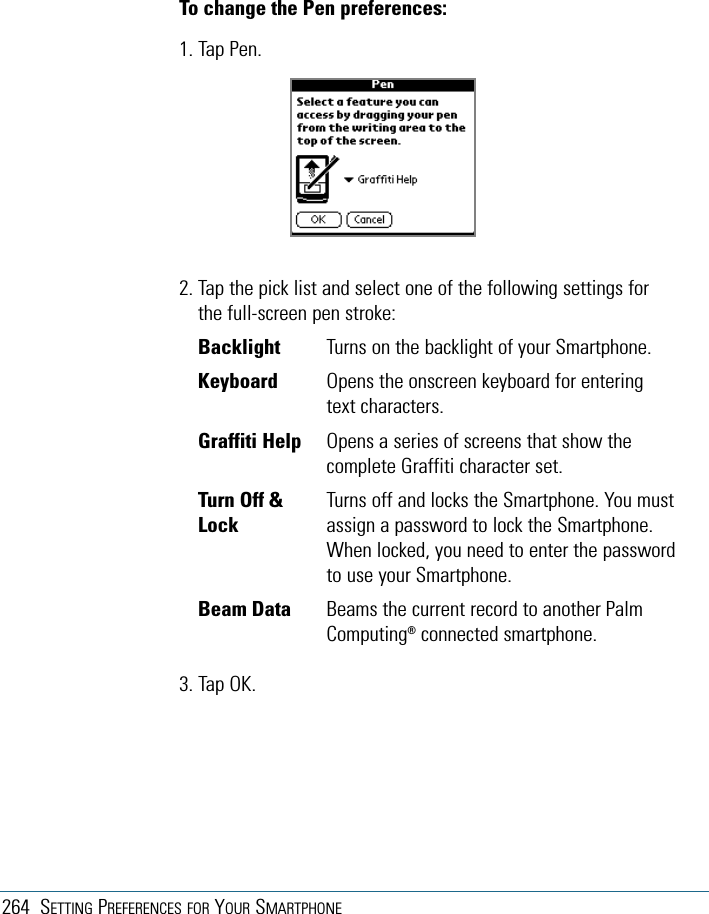

264 SETTING PREFERENCES FOR YOUR SMARTPHONETo change the Pen preferences:1. Tap Pen.2. Tap the pick list and select one of the following settings forthe full-screen pen stroke:Backlight Turns on the backlight of your Smartphone.Keyboard Opens the onscreen keyboard for enteringtext characters.Graffiti Help Opens a series of screens that show thecomplete Graffiti character set.Turn Off & Turns off and locks the Smartphone. You must Lock assign a password to lock the Smartphone.When locked, you need to enter the passwordto use your Smartphone.Beam Data Beams the current record to another PalmComputing®connected smartphone.3. Tap OK.

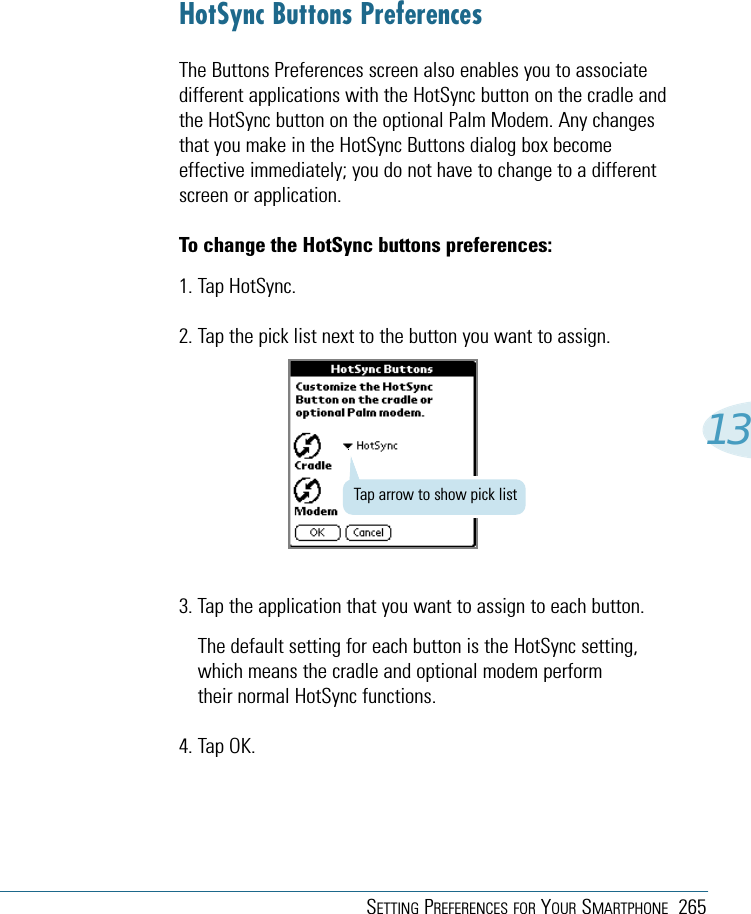

SETTING PREFERENCES FOR YOUR SMARTPHONE 26513HotSync Buttons PreferencesThe Buttons Preferences screen also enables you to associatedifferent applications with the HotSync button on the cradle andthe HotSync button on the optional Palm Modem. Any changesthat you make in the HotSync Buttons dialog box becomeeffective immediately; you do not have to change to a differentscreen or application.To change the HotSync buttons preferences:1. Tap HotSync.2. Tap the pick list next to the button you want to assign.3. Tap the application that you want to assign to each button.The default setting for each button is the HotSync setting,which means the cradle and optional modem performtheir normal HotSync functions.4. Tap OK.Tap arrow to show pick list

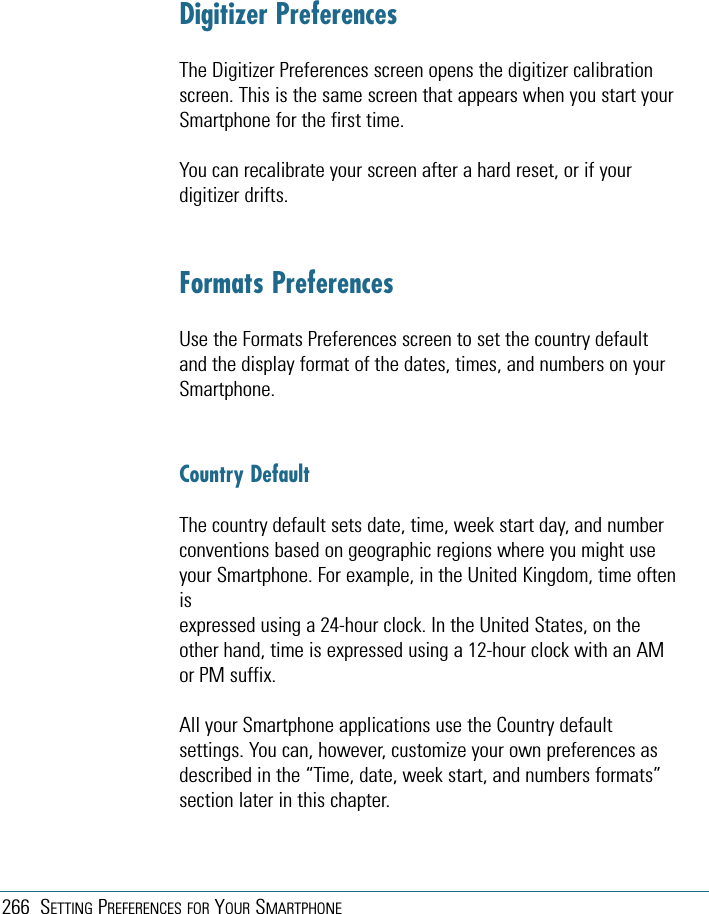

266 SETTING PREFERENCES FOR YOUR SMARTPHONEDigitizer PreferencesThe Digitizer Preferences screen opens the digitizer calibrationscreen. This is the same screen that appears when you start yourSmartphone for the first time.You can recalibrate your screen after a hard reset, or if yourdigitizer drifts.Formats PreferencesUse the Formats Preferences screen to set the country defaultand the display format of the dates, times, and numbers on yourSmartphone.Country DefaultThe country default sets date, time, week start day, and numberconventions based on geographic regions where you might useyour Smartphone. For example, in the United Kingdom, time oftenisexpressed using a 24-hour clock. In the United States, on theother hand, time is expressed using a 12-hour clock with an AMor PM suffix.All your Smartphone applications use the Country defaultsettings. You can, however, customize your own preferences asdescribed in the “Time, date, week start, and numbers formats”section later in this chapter.

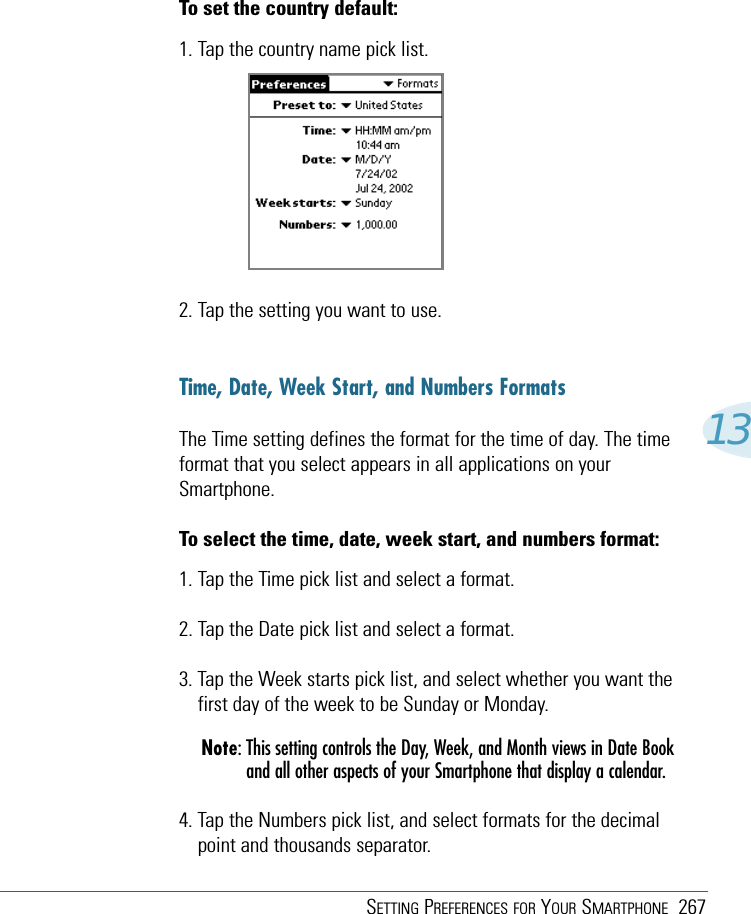

SETTING PREFERENCES FOR YOUR SMARTPHONE 26713To set the country default:1. Tap the country name pick list.2. Tap the setting you want to use.Time, Date, Week Start, and Numbers FormatsThe Time setting defines the format for the time of day. The timeformat that you select appears in all applications on yourSmartphone.To select the time, date, week start, and numbers format:1. Tap the Time pick list and select a format.2. Tap the Date pick list and select a format.3. Tap the Week starts pick list, and select whether you want thefirst day of the week to be Sunday or Monday.Note: This setting controls the Day, Week, and Month views in Date Bookand all other aspects of your Smartphone that display a calendar.4. Tap the Numbers pick list, and select formats for the decimalpoint and thousands separator.

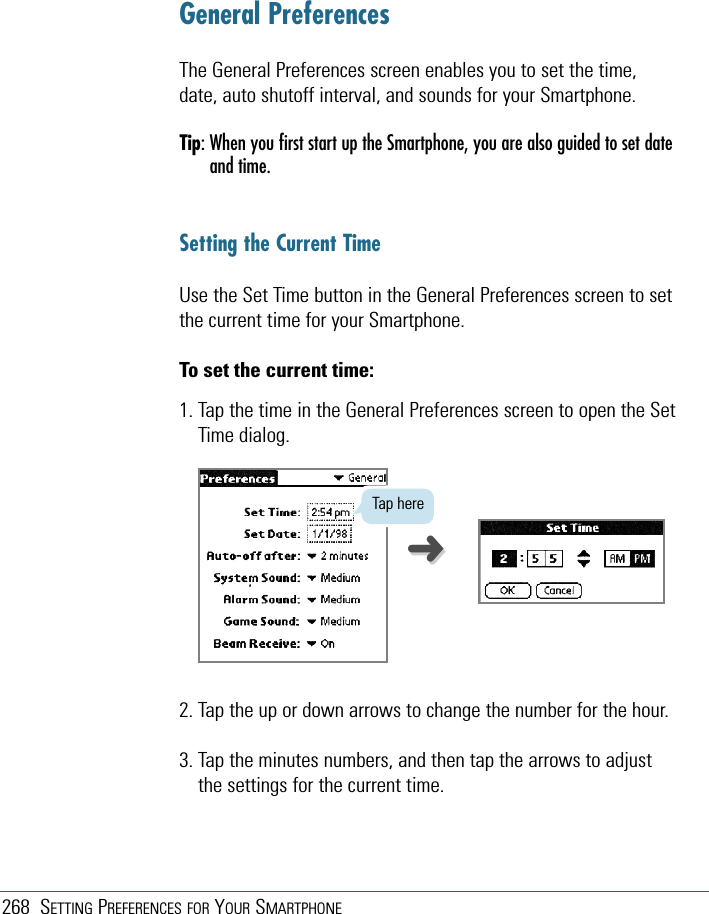

268 SETTING PREFERENCES FOR YOUR SMARTPHONEGeneral PreferencesThe General Preferences screen enables you to set the time,date, auto shutoff interval, and sounds for your Smartphone.Tip: When you first start up the Smartphone, you are also guided to set dateand time.Setting the Current TimeUse the Set Time button in the General Preferences screen to setthe current time for your Smartphone.To set the current time:1. Tap the time in the General Preferences screen to open the SetTime dialog.2. Tap the up or down arrows to change the number for the hour.3. Tap the minutes numbers, and then tap the arrows to adjustthe settings for the current time.Tap here➜➜

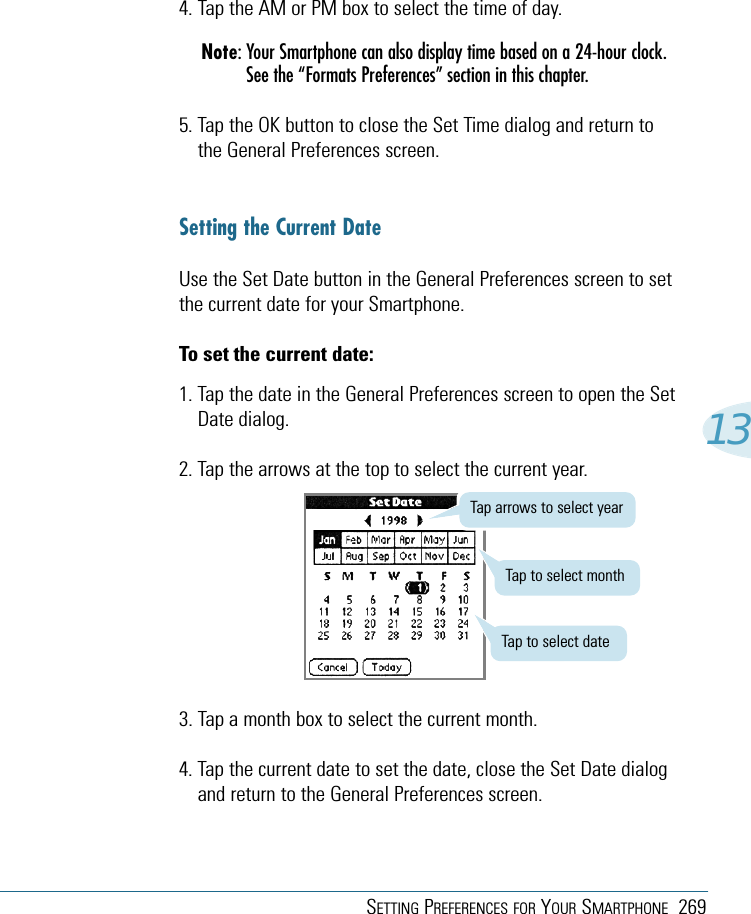

SETTING PREFERENCES FOR YOUR SMARTPHONE 269134. Tap the AM or PM box to select the time of day.Note: Your Smartphone can also display time based on a 24-hour clock.See the “Formats Preferences” section in this chapter.5. Tap the OK button to close the Set Time dialog and return tothe General Preferences screen.Setting the Current DateUse the Set Date button in the General Preferences screen to setthe current date for your Smartphone.To set the current date:1. Tap the date in the General Preferences screen to open the SetDate dialog.2. Tap the arrows at the top to select the current year.3. Tap a month box to select the current month.4. Tap the current date to set the date, close the Set Date dialogand return to the General Preferences screen.Tap arrows to select yearTap to select monthTap to select date

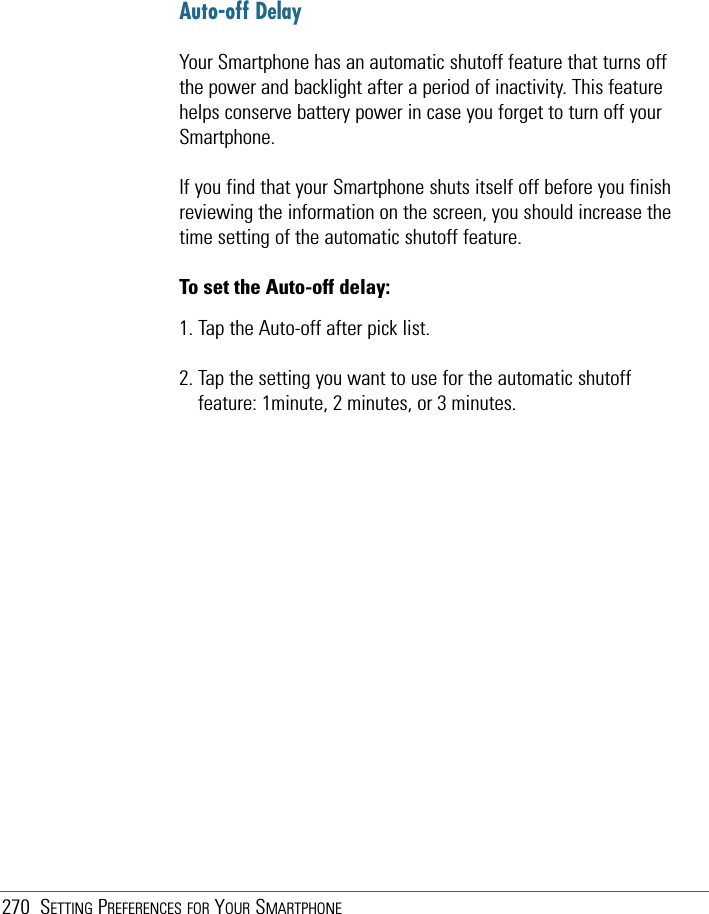

270 SETTING PREFERENCES FOR YOUR SMARTPHONEAuto-off DelayYour Smartphone has an automatic shutoff feature that turns offthe power and backlight after a period of inactivity. This featurehelps conserve battery power in case you forget to turn off yourSmartphone.If you find that your Smartphone shuts itself off before you finishreviewing the information on the screen, you should increase thetime setting of the automatic shutoff feature.To set the Auto-off delay:1. Tap the Auto-off after pick list.2. Tap the setting you want to use for the automatic shutofffeature: 1minute, 2 minutes, or 3 minutes.

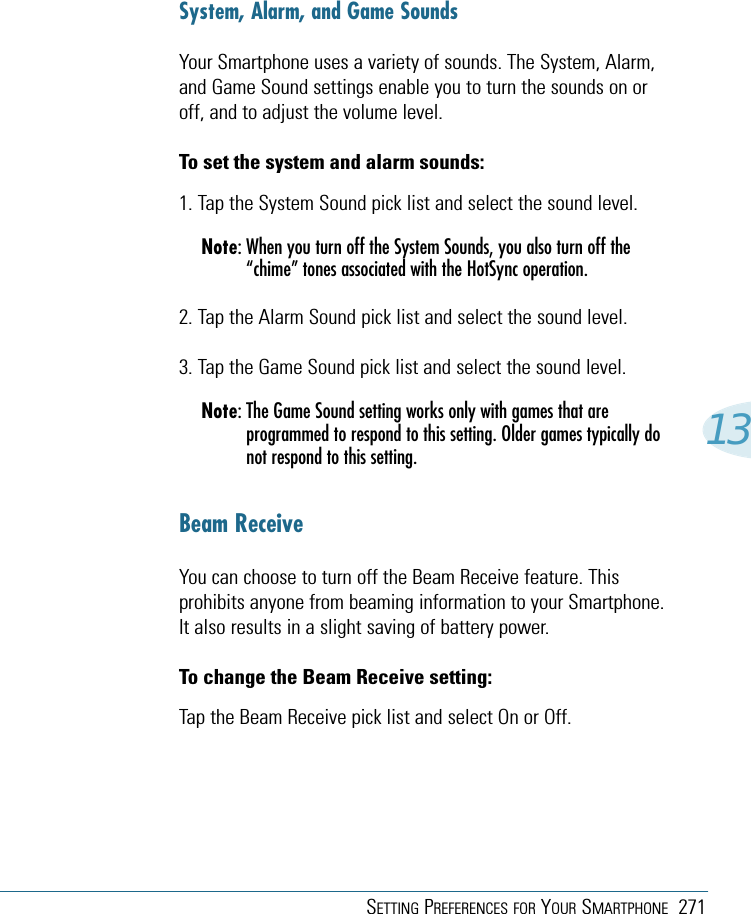

SETTING PREFERENCES FOR YOUR SMARTPHONE 27113System, Alarm, and Game SoundsYour Smartphone uses a variety of sounds. The System, Alarm,and Game Sound settings enable you to turn the sounds on oroff, and to adjust the volume level.To set the system and alarm sounds:1. Tap the System Sound pick list and select the sound level.Note: When you turn off the System Sounds, you also turn off the“chime” tones associated with the HotSync operation.2. Tap the Alarm Sound pick list and select the sound level.3. Tap the Game Sound pick list and select the sound level.Note: The Game Sound setting works only with games that areprogrammed to respond to this setting. Older games typically donot respond to this setting.Beam ReceiveYou can choose to turn off the Beam Receive feature. Thisprohibits anyone from beaming information to your Smartphone.It also results in a slight saving of battery power.To change the Beam Receive setting:Tap the Beam Receive pick list and select On or Off.

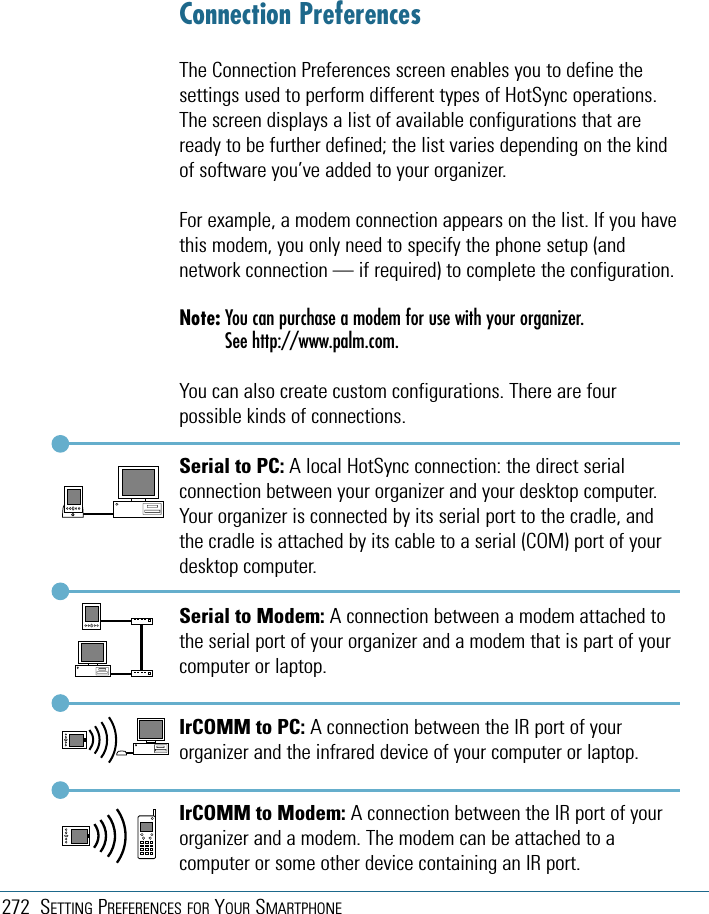

272 SETTING PREFERENCES FOR YOUR SMARTPHONEConnection PreferencesThe Connection Preferences screen enables you to define thesettings used to perform different types of HotSync operations.The screen displays a list of available configurations that areready to be further defined; the list varies depending on the kindof software you’ve added to your organizer.For example, a modem connection appears on the list. If you havethis modem, you only need to specify the phone setup (andnetwork connection — if required) to complete the configuration.Note: You can purchase a modem for use with your organizer. See http://www.palm.com.You can also create custom configurations. There are fourpossible kinds of connections.Serial to PC: A local HotSync connection: the direct serialconnection between your organizer and your desktop computer.Your organizer is connected by its serial port to the cradle, andthe cradle is attached by its cable to a serial (COM) port of yourdesktop computer.Serial to Modem: A connection between a modem attached tothe serial port of your organizer and a modem that is part of yourcomputer or laptop.IrCOMM to PC: A connection between the IR port of yourorganizer and the infrared device of your computer or laptop.IrCOMM to Modem: A connection between the IR port of yourorganizer and a modem. The modem can be attached to acomputer or some other device containing an IR port.

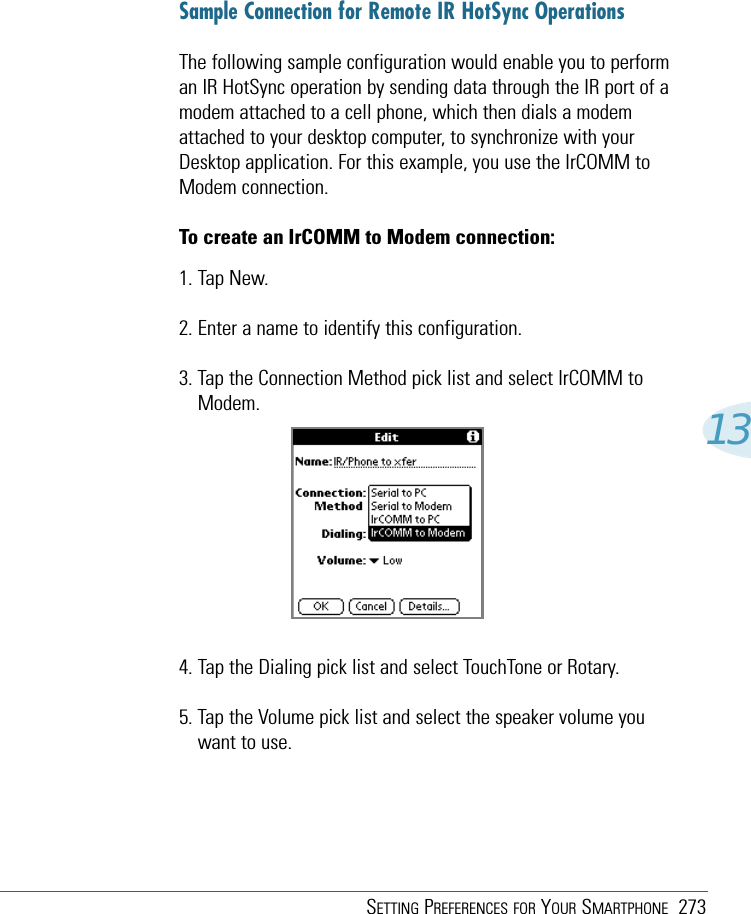

SETTING PREFERENCES FOR YOUR SMARTPHONE 27313Sample Connection for Remote IR HotSync OperationsThe following sample configuration would enable you to performan IR HotSync operation by sending data through the IR port of amodem attached to a cell phone, which then dials a modemattached to your desktop computer, to synchronize with yourDesktop application. For this example, you use the IrCOMM toModem connection.To create an IrCOMM to Modem connection:1. Tap New.2. Enter a name to identify this configuration.3. Tap the Connection Method pick list and select IrCOMM toModem.4. Tap the Dialing pick list and select TouchTone or Rotary.5. Tap the Volume pick list and select the speaker volume youwant to use.

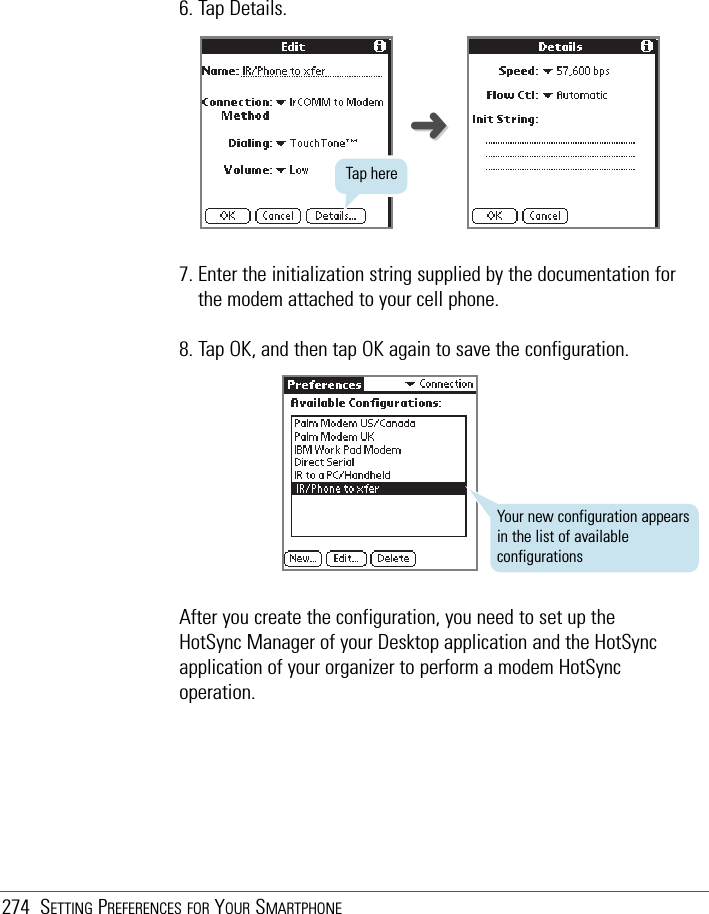

274 SETTING PREFERENCES FOR YOUR SMARTPHONE6. Tap Details.7. Enter the initialization string supplied by the documentation forthe modem attached to your cell phone.8. Tap OK, and then tap OK again to save the configuration.After you create the configuration, you need to set up theHotSync Manager of your Desktop application and the HotSyncapplication of your organizer to perform a modem HotSyncoperation.➜➜Your new configuration appearsin the list of availableconfigurationsTap here

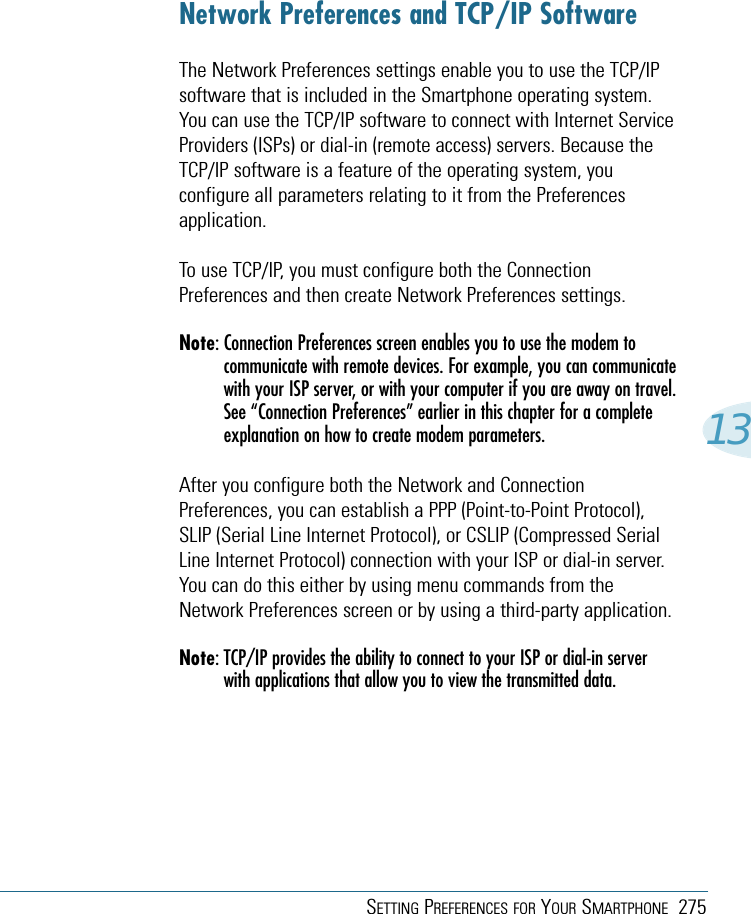

SETTING PREFERENCES FOR YOUR SMARTPHONE 27513Network Preferences and TCP/IP SoftwareThe Network Preferences settings enable you to use the TCP/IPsoftware that is included in the Smartphone operating system.You can use the TCP/IP software to connect with Internet ServiceProviders (ISPs) or dial-in (remote access) servers. Because theTCP/IP software is a feature of the operating system, youconfigure all parameters relating to it from the Preferencesapplication. To use TCP/IP, you must configure both the ConnectionPreferences and then create Network Preferences settings.Note: Connection Preferences screen enables you to use the modem tocommunicate with remote devices. For example, you can communicatewith your ISP server, or with your computer if you are away on travel.See “Connection Preferences” earlier in this chapter for a completeexplanation on how to create modem parameters.After you configure both the Network and ConnectionPreferences, you can establish a PPP (Point-to-Point Protocol),SLIP (Serial Line Internet Protocol), or CSLIP (Compressed SerialLine Internet Protocol) connection with your ISP or dial-in server.You can do this either by using menu commands from theNetwork Preferences screen or by using a third-party application.Note: TCP/IP provides the ability to connect to your ISP or dial-in serverwith applications that allow you to view the transmitted data.

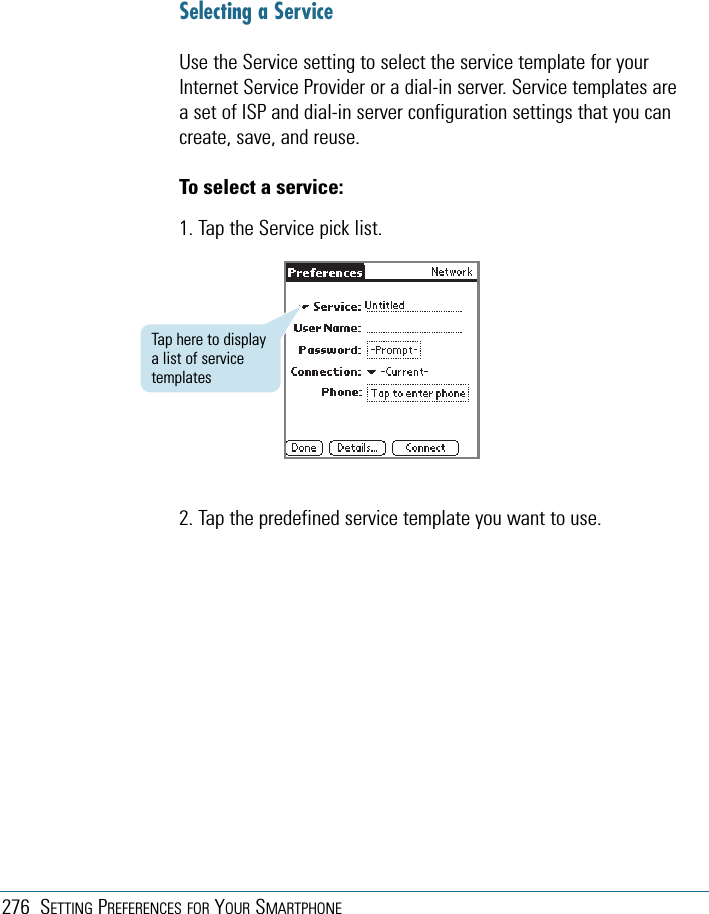

276 SETTING PREFERENCES FOR YOUR SMARTPHONESelecting a ServiceUse the Service setting to select the service template for yourInternet Service Provider or a dial-in server. Service templates area set of ISP and dial-in server configuration settings that you cancreate, save, and reuse.To select a service:1. Tap the Service pick list.2. Tap the predefined service template you want to use.Tap here to displaya list of servicetemplates

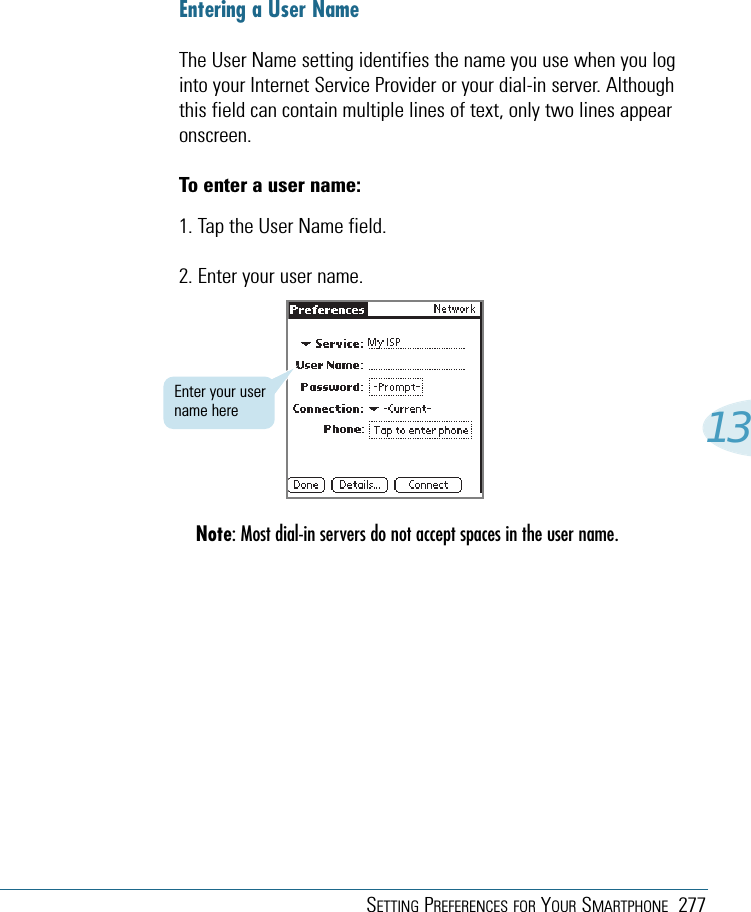

SETTING PREFERENCES FOR YOUR SMARTPHONE 27713Entering a User NameThe User Name setting identifies the name you use when you loginto your Internet Service Provider or your dial-in server. Althoughthis field can contain multiple lines of text, only two lines appearonscreen.To enter a user name:1. Tap the User Name field.2. Enter your user name.Note: Most dial-in servers do not accept spaces in the user name.Enter your username here

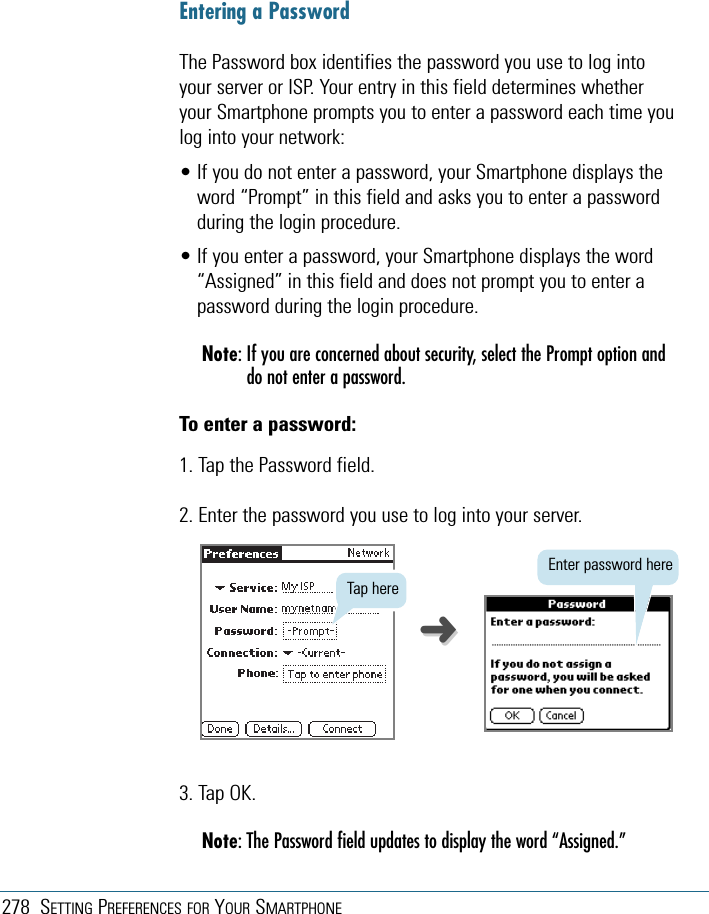

278 SETTING PREFERENCES FOR YOUR SMARTPHONEEntering a PasswordThe Password box identifies the password you use to log intoyour server or ISP. Your entry in this field determines whetheryour Smartphone prompts you to enter a password each time youlog into your network:• If you do not enter a password, your Smartphone displays theword “Prompt” in this field and asks you to enter a passwordduring the login procedure.• If you enter a password, your Smartphone displays the word“Assigned” in this field and does not prompt you to enter apassword during the login procedure.Note: If you are concerned about security, select the Prompt option anddo not enter a password.To enter a password:1. Tap the Password field.2. Enter the password you use to log into your server.3. Tap OK.Note: The Password field updates to display the word “Assigned.”Tap hereEnter password here➜➜

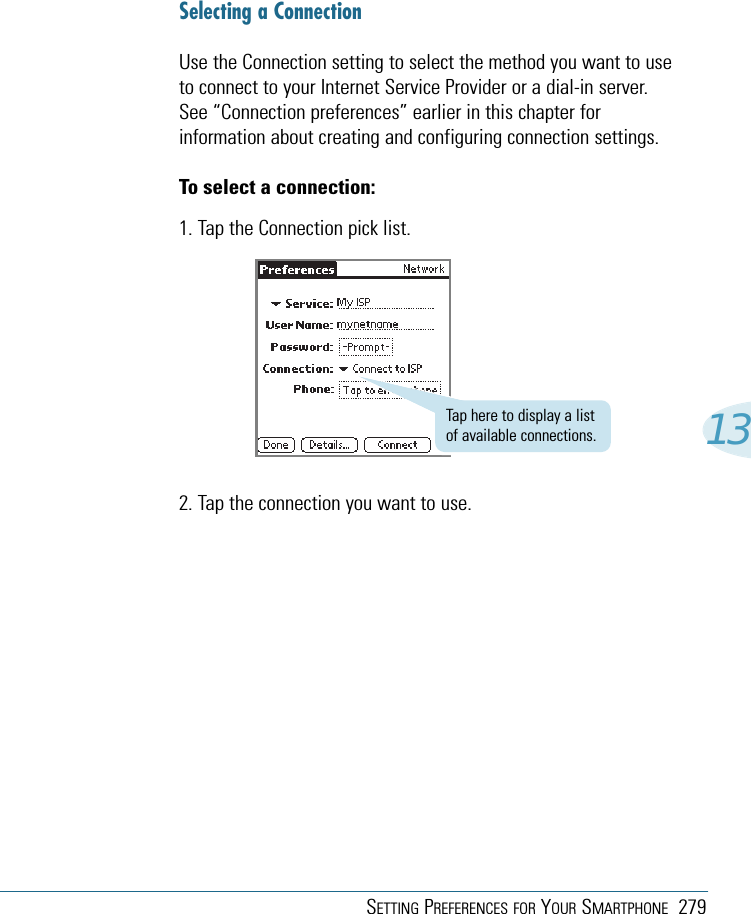

SETTING PREFERENCES FOR YOUR SMARTPHONE 27913Selecting a ConnectionUse the Connection setting to select the method you want to useto connect to your Internet Service Provider or a dial-in server.See “Connection preferences” earlier in this chapter forinformation about creating and configuring connection settings.To select a connection:1. Tap the Connection pick list.2. Tap the connection you want to use.Tap here to display a listof available connections.

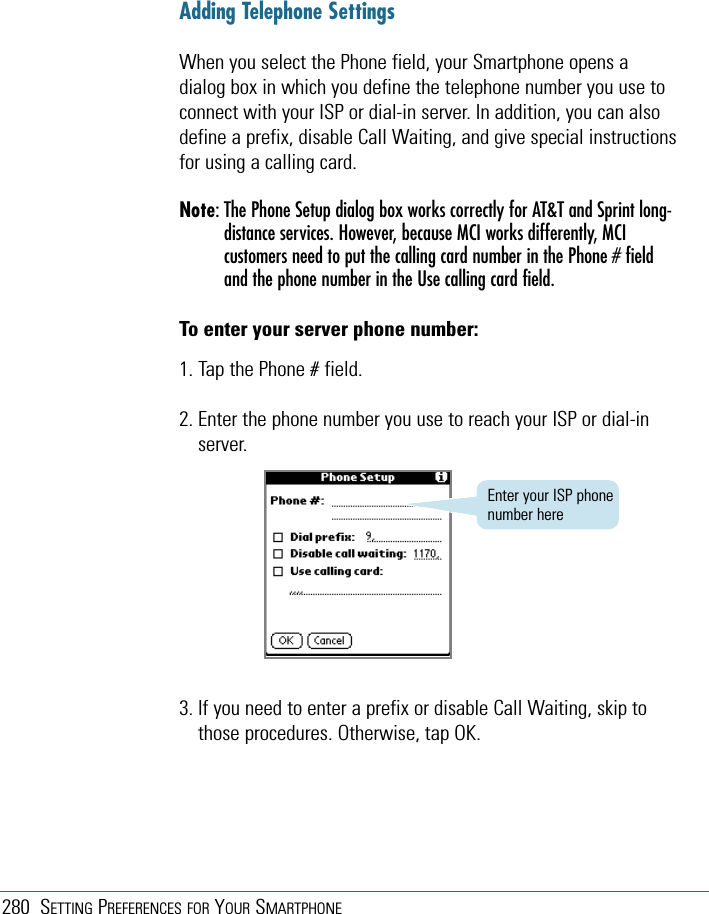

280 SETTING PREFERENCES FOR YOUR SMARTPHONE3. If you need to enter a prefix or disable Call Waiting, skip tothose procedures. Otherwise, tap OK.Enter your ISP phonenumber hereAdding Telephone SettingsWhen you select the Phone field, your Smartphone opens adialog box in which you define the telephone number you use toconnect with your ISP or dial-in server. In addition, you can alsodefine a prefix, disable Call Waiting, and give special instructionsfor using a calling card.Note: The Phone Setup dialog box works correctly for AT&T and Sprint long-distance services. However, because MCI works differently, MCIcustomers need to put the calling card number in the Phone # fieldand the phone number in the Use calling card field.To enter your server phone number:1. Tap the Phone # field.2. Enter the phone number you use to reach your ISP or dial-inserver.

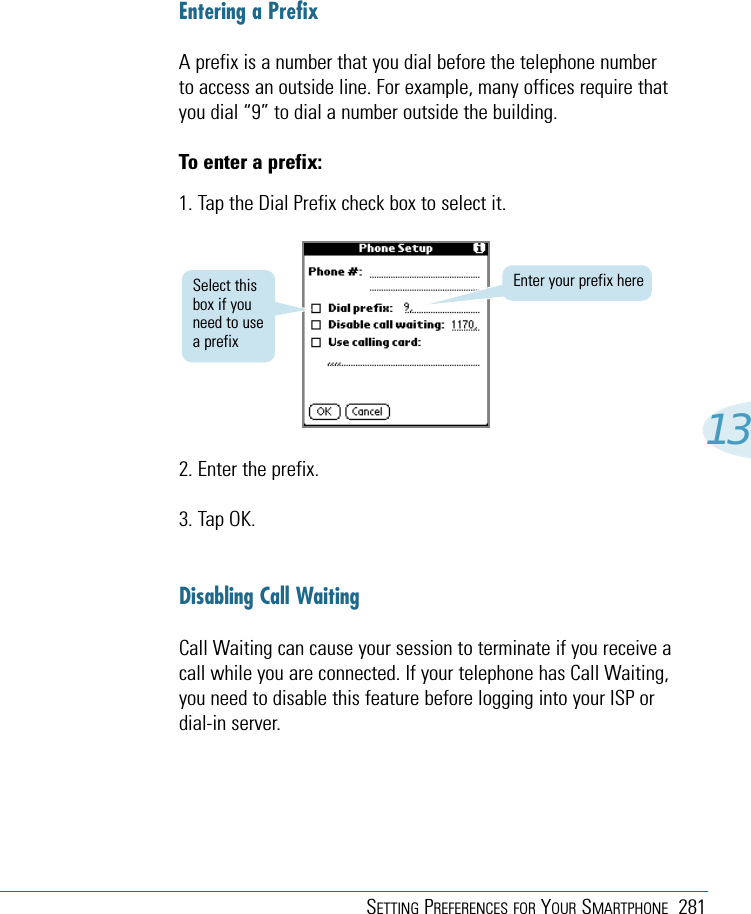

SETTING PREFERENCES FOR YOUR SMARTPHONE 28113Entering a PrefixA prefix is a number that you dial before the telephone numberto access an outside line. For example, many offices require thatyou dial “9” to dial a number outside the building.To enter a prefix:1. Tap the Dial Prefix check box to select it.Enter your prefix hereSelect thisbox if youneed to usea prefix2. Enter the prefix.3. Tap OK.Disabling Call WaitingCall Waiting can cause your session to terminate if you receive acall while you are connected. If your telephone has Call Waiting,you need to disable this feature before logging into your ISP ordial-in server.

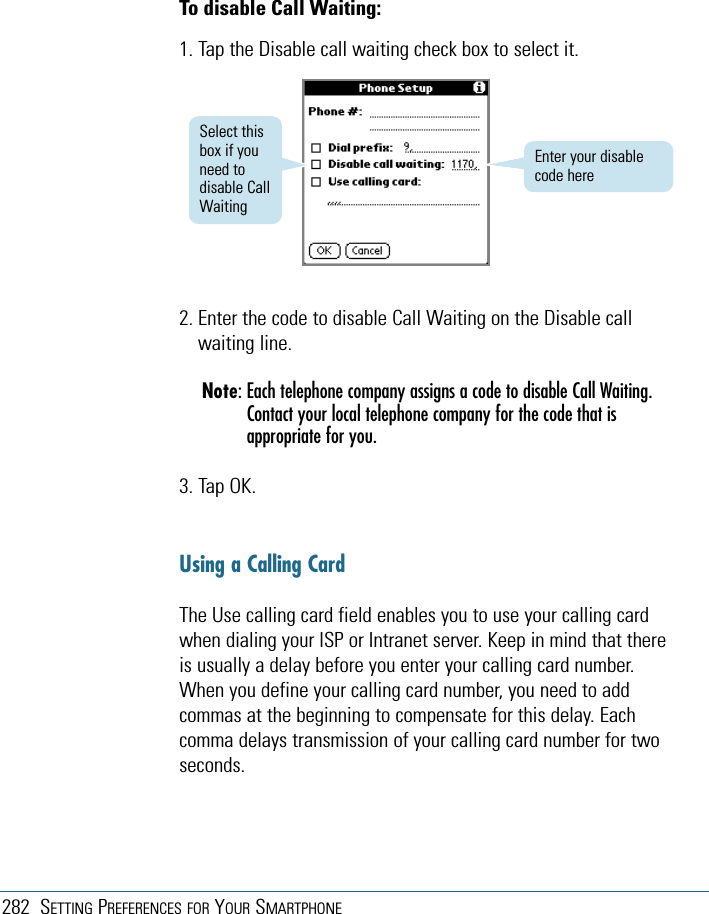

282 SETTING PREFERENCES FOR YOUR SMARTPHONETo disable Call Waiting:1. Tap the Disable call waiting check box to select it.2. Enter the code to disable Call Waiting on the Disable callwaiting line.Note: Each telephone company assigns a code to disable Call Waiting.Contact your local telephone company for the code that isappropriate for you.3. Tap OK.Using a Calling CardThe Use calling card field enables you to use your calling cardwhen dialing your ISP or Intranet server. Keep in mind that thereis usually a delay before you enter your calling card number.When you define your calling card number, you need to addcommas at the beginning to compensate for this delay. Eachcomma delays transmission of your calling card number for twoseconds.Enter your disablecode hereSelect thisbox if youneed todisable CallWaiting

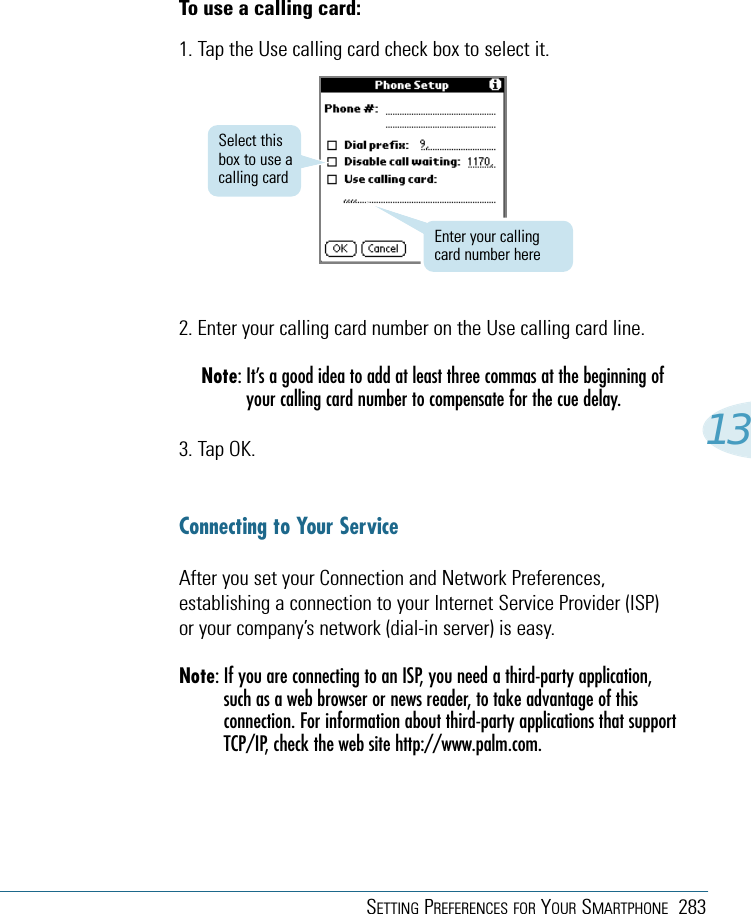

SETTING PREFERENCES FOR YOUR SMARTPHONE 28313To use a calling card:1. Tap the Use calling card check box to select it.2. Enter your calling card number on the Use calling card line.Note: It’s a good idea to add at least three commas at the beginning ofyour calling card number to compensate for the cue delay.3. Tap OK.Connecting to Your ServiceAfter you set your Connection and Network Preferences,establishing a connection to your Internet Service Provider (ISP)or your company’s network (dial-in server) is easy.Note: If you are connecting to an ISP, you need a third-party application,such as a web browser or news reader, to take advantage of thisconnection. For information about third-party applications that supportTCP/IP, check the web site http://www.palm.com.Enter your callingcard number hereSelect thisbox to use acalling card

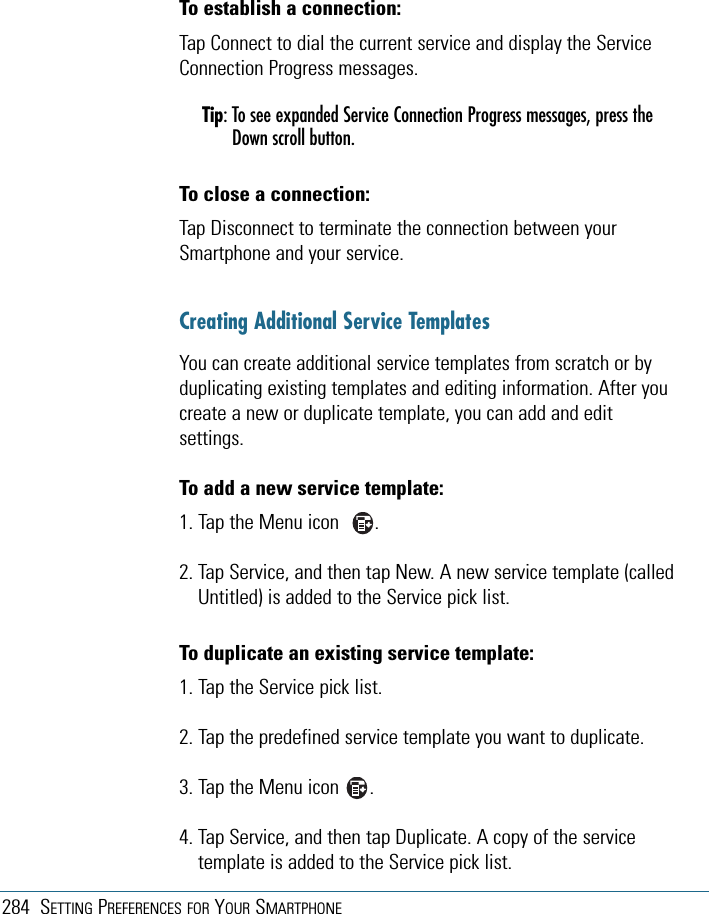

284 SETTING PREFERENCES FOR YOUR SMARTPHONETo establish a connection:Tap Connect to dial the current service and display the ServiceConnection Progress messages.Tip: To see expanded Service Connection Progress messages, press theDown scroll button.To close a connection:Tap Disconnect to terminate the connection between yourSmartphone and your service.Creating Additional Service TemplatesYou can create additional service templates from scratch or byduplicating existing templates and editing information. After youcreate a new or duplicate template, you can add and editsettings.To add a new service template:1. Tap the Menu icon .2. Tap Service, and then tap New. A new service template (calledUntitled) is added to the Service pick list.To duplicate an existing service template:1. Tap the Service pick list.2. Tap the predefined service template you want to duplicate.3. Tap the Menu icon .4. Tap Service, and then tap Duplicate. A copy of the servicetemplate is added to the Service pick list.

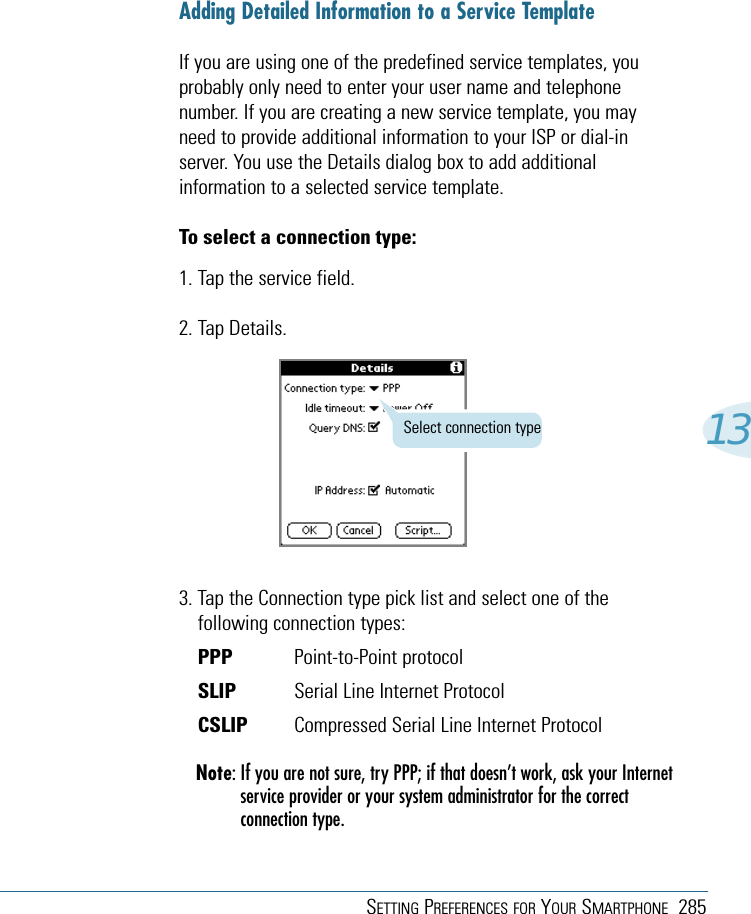

SETTING PREFERENCES FOR YOUR SMARTPHONE 28513Adding Detailed Information to a Service TemplateIf you are using one of the predefined service templates, youprobably only need to enter your user name and telephonenumber. If you are creating a new service template, you mayneed to provide additional information to your ISP or dial-inserver. You use the Details dialog box to add additionalinformation to a selected service template.To select a connection type:1. Tap the service field.2. Tap Details.3. Tap the Connection type pick list and select one of thefollowing connection types:PPP Point-to-Point protocolSLIP Serial Line Internet ProtocolCSLIP Compressed Serial Line Internet ProtocolNote: If you are not sure, try PPP; if that doesn’t work, ask your Internetservice provider or your system administrator for the correctconnection type.Select connection type

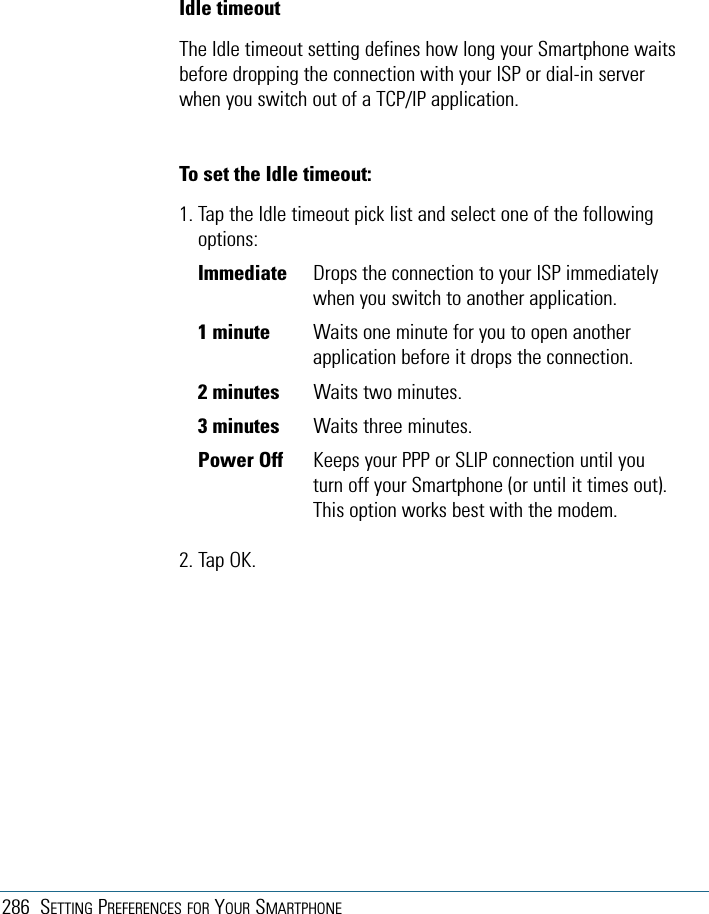

286 SETTING PREFERENCES FOR YOUR SMARTPHONEIdle timeoutThe Idle timeout setting defines how long your Smartphone waitsbefore dropping the connection with your ISP or dial-in serverwhen you switch out of a TCP/IP application.To set the Idle timeout:1. Tap the Idle timeout pick list and select one of the followingoptions:Immediate Drops the connection to your ISP immediatelywhen you switch to another application.1 minute Waits one minute for you to open anotherapplication before it drops the connection.2 minutes Waits two minutes.3 minutes Waits three minutes.Power Off Keeps your PPP or SLIP connection until youturn off your Smartphone (or until it times out).This option works best with the modem.2. Tap OK.

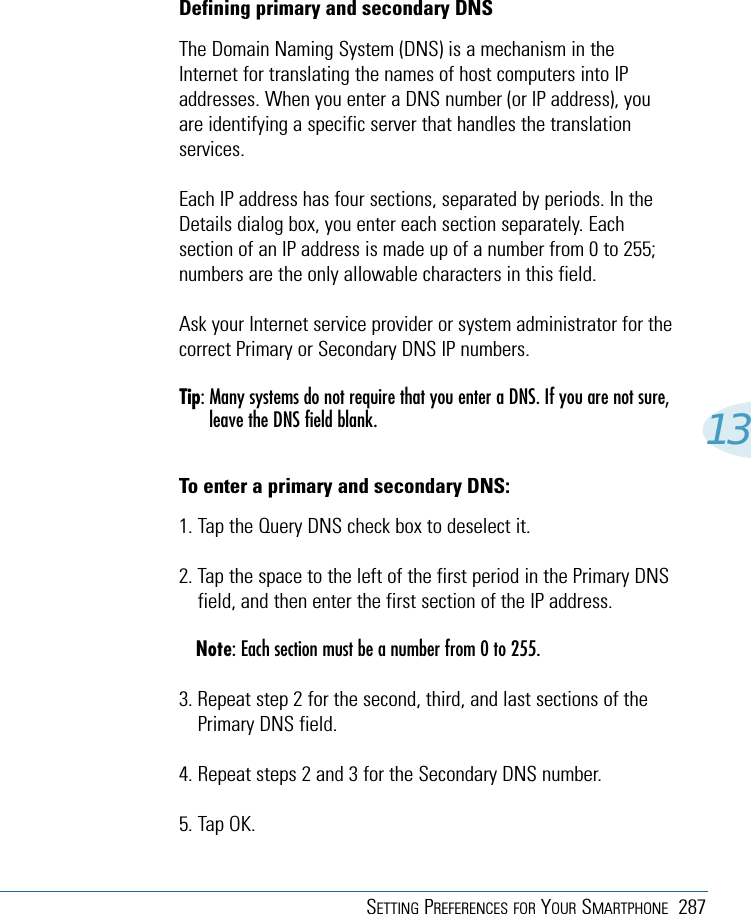

SETTING PREFERENCES FOR YOUR SMARTPHONE 28713Defining primary and secondary DNSThe Domain Naming System (DNS) is a mechanism in theInternet for translating the names of host computers into IPaddresses. When you enter a DNS number (or IP address), youare identifying a specific server that handles the translationservices.Each IP address has four sections, separated by periods. In theDetails dialog box, you enter each section separately. Eachsection of an IP address is made up of a number from 0 to 255;numbers are the only allowable characters in this field.Ask your Internet service provider or system administrator for thecorrect Primary or Secondary DNS IP numbers.Tip: Many systems do not require that you enter a DNS. If you are not sure,leave the DNS field blank.To enter a primary and secondary DNS:1. Tap the Query DNS check box to deselect it.2. Tap the space to the left of the first period in the Primary DNSfield, and then enter the first section of the IP address.Note: Each section must be a number from 0 to 255.3. Repeat step 2 for the second, third, and last sections of thePrimary DNS field.4. Repeat steps 2 and 3 for the Secondary DNS number.5. Tap OK.

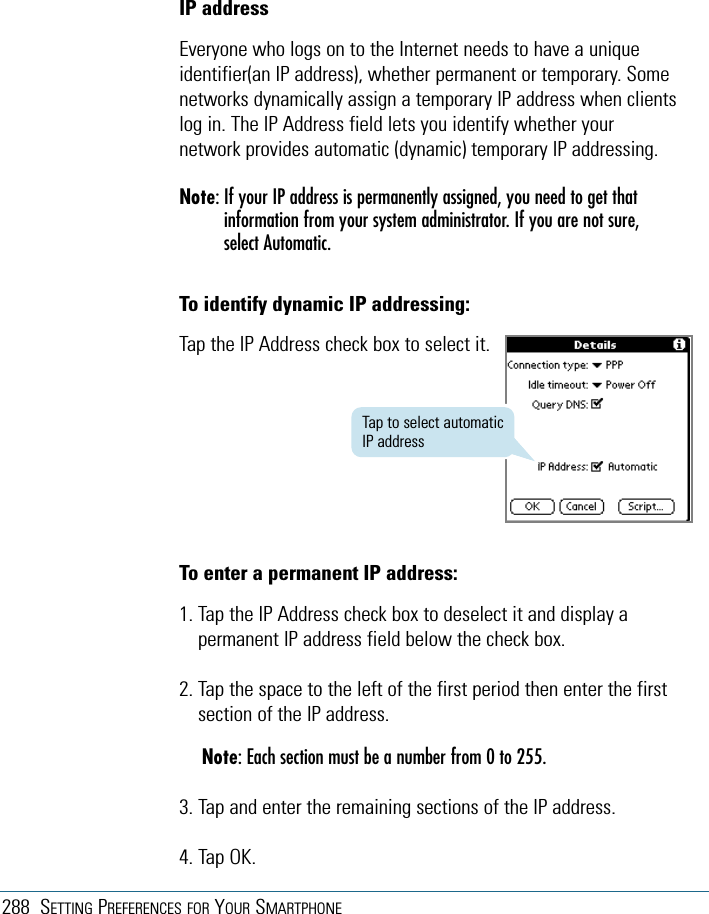

288 SETTING PREFERENCES FOR YOUR SMARTPHONETo enter a permanent IP address:1. Tap the IP Address check box to deselect it and display apermanent IP address field below the check box.2. Tap the space to the left of the first period then enter the firstsection of the IP address.Note: Each section must be a number from 0 to 255.3. Tap and enter the remaining sections of the IP address.4. Tap OK.IP addressEveryone who logs on to the Internet needs to have a uniqueidentifier(an IP address), whether permanent or temporary. Somenetworks dynamically assign a temporary IP address when clientslog in. The IP Address field lets you identify whether yournetwork provides automatic (dynamic) temporary IP addressing.Note: If your IP address is permanently assigned, you need to get thatinformation from your system administrator. If you are not sure,select Automatic.To identify dynamic IP addressing:Tap the IP Address check box to select it.Tap to select automaticIP address

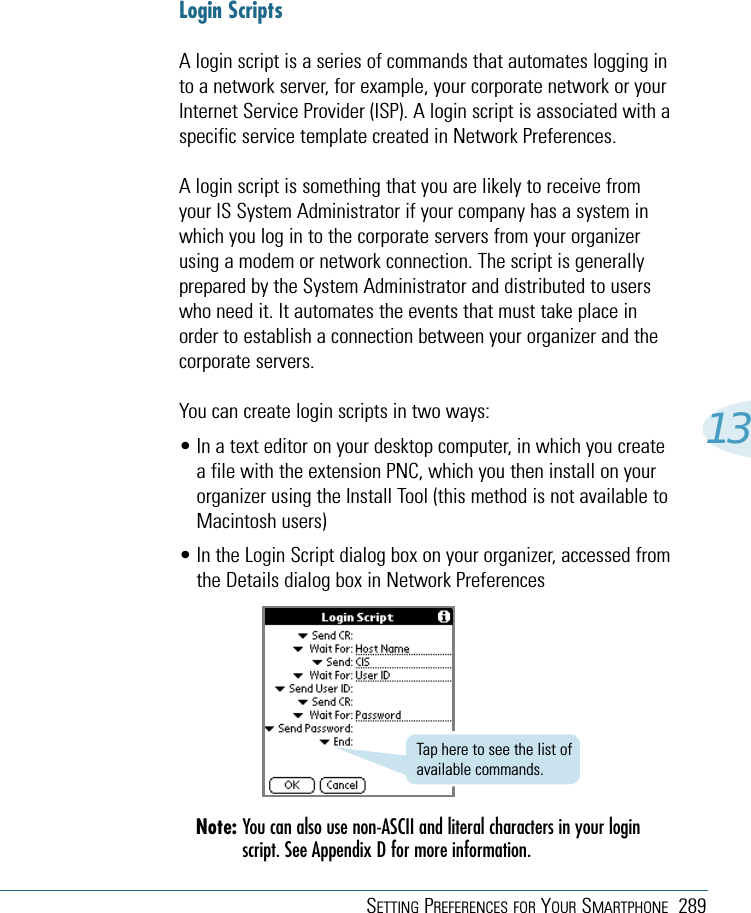

SETTING PREFERENCES FOR YOUR SMARTPHONE 28913Login ScriptsA login script is a series of commands that automates logging into a network server, for example, your corporate network or yourInternet Service Provider (ISP). A login script is associated with aspecific service template created in Network Preferences.A login script is something that you are likely to receive fromyour IS System Administrator if your company has a system inwhich you log in to the corporate servers from your organizerusing a modem or network connection. The script is generallyprepared by the System Administrator and distributed to userswho need it. It automates the events that must take place inorder to establish a connection between your organizer and thecorporate servers.You can create login scripts in two ways:• In a text editor on your desktop computer, in which you createa file with the extension PNC, which you then install on yourorganizer using the Install Tool (this method is not available toMacintosh users)• In the Login Script dialog box on your organizer, accessed fromthe Details dialog box in Network PreferencesNote: You can also use non-ASCII and literal characters in your loginscript. See Appendix D for more information.Tap here to see the list ofavailable commands.

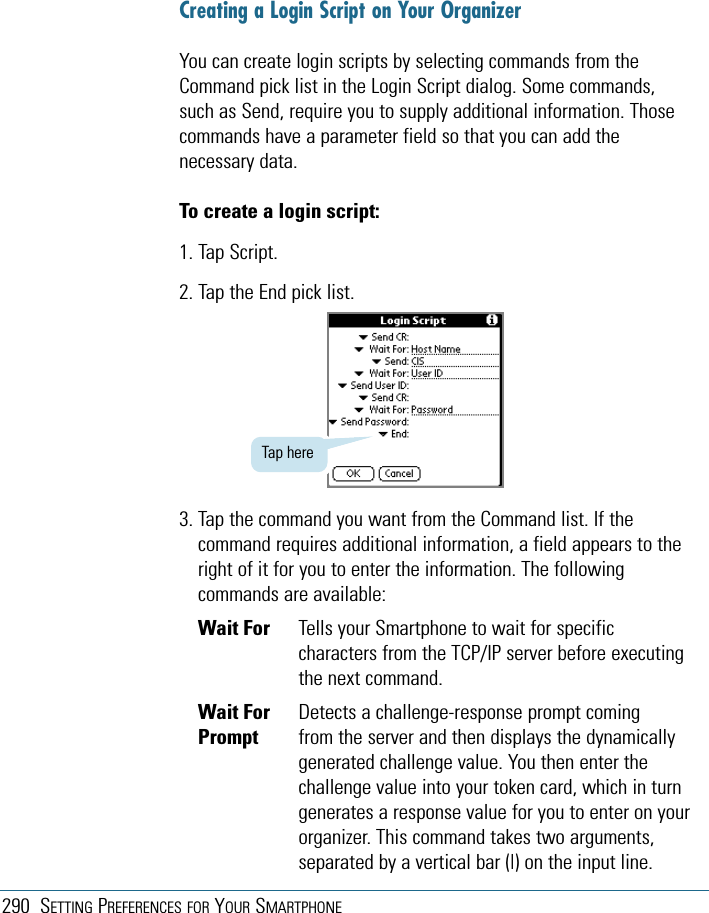

290 SETTING PREFERENCES FOR YOUR SMARTPHONECreating a Login Script on Your OrganizerYou can create login scripts by selecting commands from theCommand pick list in the Login Script dialog. Some commands,such as Send, require you to supply additional information. Thosecommands have a parameter field so that you can add thenecessary data.To create a login script:1. Tap Script.2. Tap the End pick list.3. Tap the command you want from the Command list. If thecommand requires additional information, a field appears to theright of it for you to enter the information. The followingcommands are available:Wait For Tells your Smartphone to wait for specificcharacters from the TCP/IP server before executingthe next command.Wait For Detects a challenge-response prompt comingPrompt from the server and then displays the dynamicallygenerated challenge value. You then enter thechallenge value into your token card, which in turngenerates a response value for you to enter on yourorganizer. This command takes two arguments,separated by a vertical bar (|) on the input line.Tap here

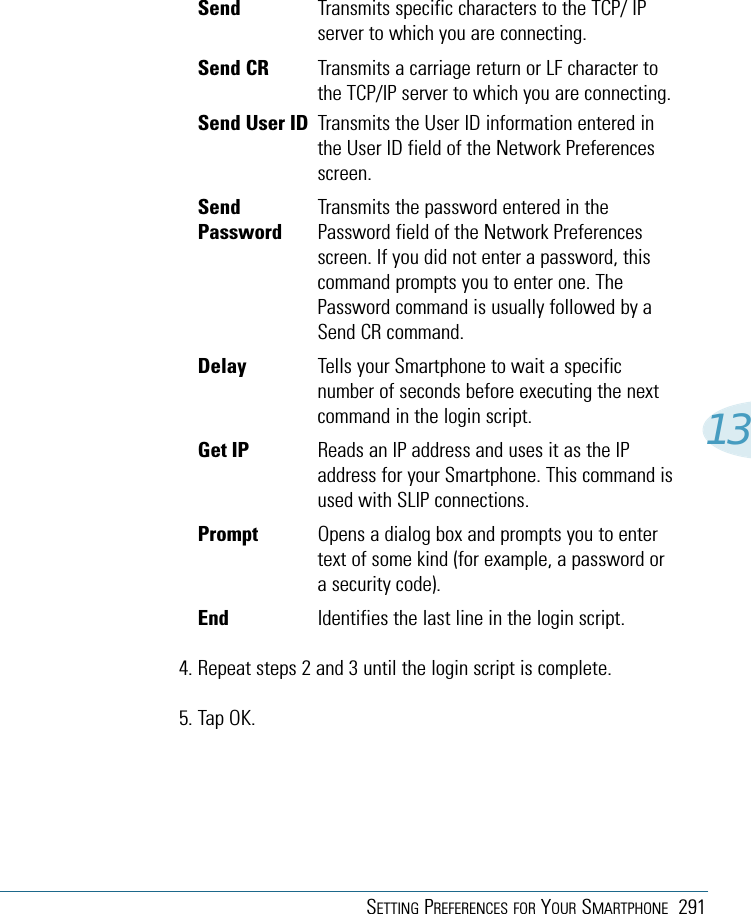

SETTING PREFERENCES FOR YOUR SMARTPHONE 29113Send Transmits specific characters to the TCP/ IPserver to which you are connecting.Send CR Transmits a carriage return or LF character tothe TCP/IP server to which you are connecting.Send User ID Transmits the User ID information entered inthe User ID field of the Network Preferencesscreen.Send Transmits the password entered in the Password Password field of the Network Preferencesscreen. If you did not enter a password, thiscommand prompts you to enter one. ThePassword command is usually followed by aSend CR command.Delay Tells your Smartphone to wait a specificnumber of seconds before executing the nextcommand in the login script.Get IP Reads an IP address and uses it as the IPaddress for your Smartphone. This command isused with SLIP connections.Prompt Opens a dialog box and prompts you to entertext of some kind (for example, a password ora security code). End Identifies the last line in the login script.4. Repeat steps 2 and 3 until the login script is complete.5. Tap OK.

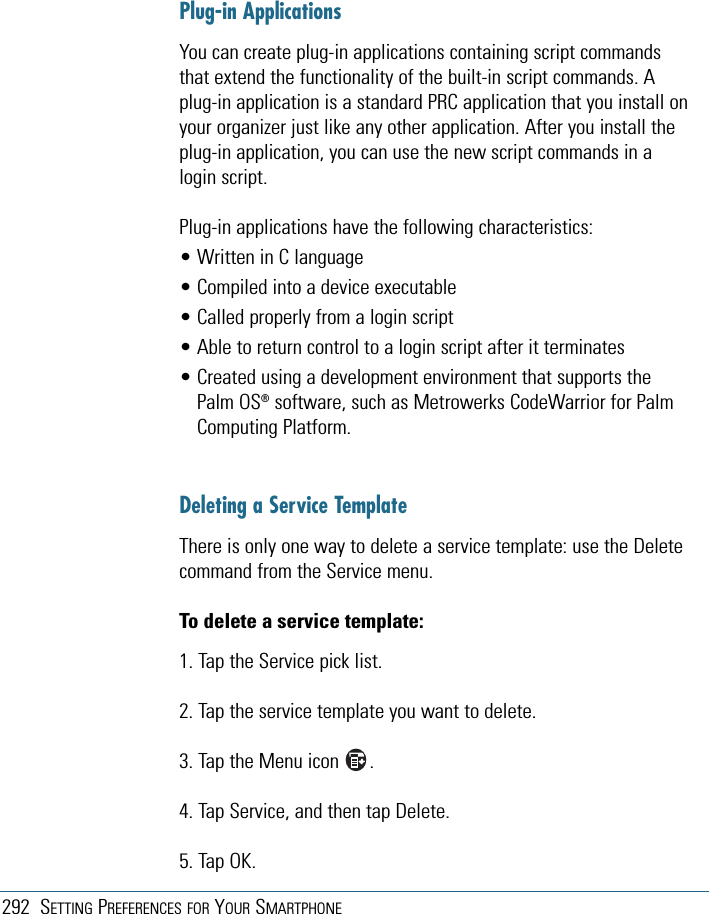

292 SETTING PREFERENCES FOR YOUR SMARTPHONEPlug-in ApplicationsYou can create plug-in applications containing script commandsthat extend the functionality of the built-in script commands. Aplug-in application is a standard PRC application that you install onyour organizer just like any other application. After you install theplug-in application, you can use the new script commands in alogin script. Plug-in applications have the following characteristics:• Written in C language• Compiled into a device executable• Called properly from a login script• Able to return control to a login script after it terminates• Created using a development environment that supports thePalm OS®software, such as Metrowerks CodeWarrior for PalmComputing Platform.Deleting a Service TemplateThere is only one way to delete a service template: use the Deletecommand from the Service menu.To delete a service template:1. Tap the Service pick list.2. Tap the service template you want to delete.3. Tap the Menu icon .4. Tap Service, and then tap Delete.5. Tap OK.

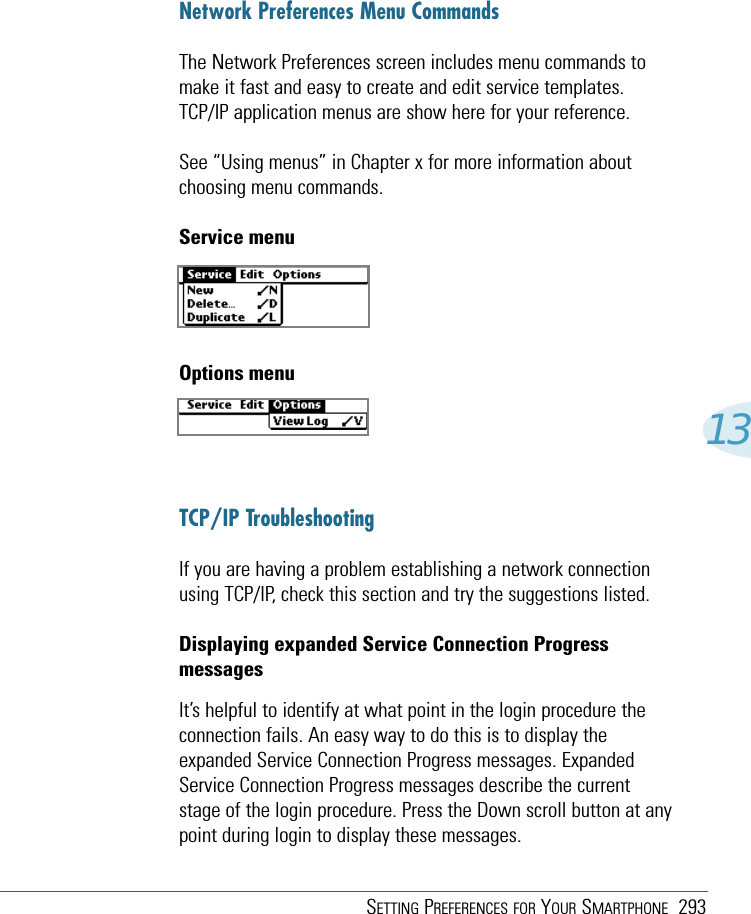

SETTING PREFERENCES FOR YOUR SMARTPHONE 29313Network Preferences Menu CommandsThe Network Preferences screen includes menu commands tomake it fast and easy to create and edit service templates.TCP/IP application menus are show here for your reference.See “Using menus” in Chapter x for more information aboutchoosing menu commands.Service menuOptions menuTCP/IP TroubleshootingIf you are having a problem establishing a network connectionusing TCP/IP, check this section and try the suggestions listed.Displaying expanded Service Connection ProgressmessagesIt’s helpful to identify at what point in the login procedure theconnection fails. An easy way to do this is to display theexpanded Service Connection Progress messages. ExpandedService Connection Progress messages describe the currentstage of the login procedure. Press the Down scroll button at anypoint during login to display these messages.

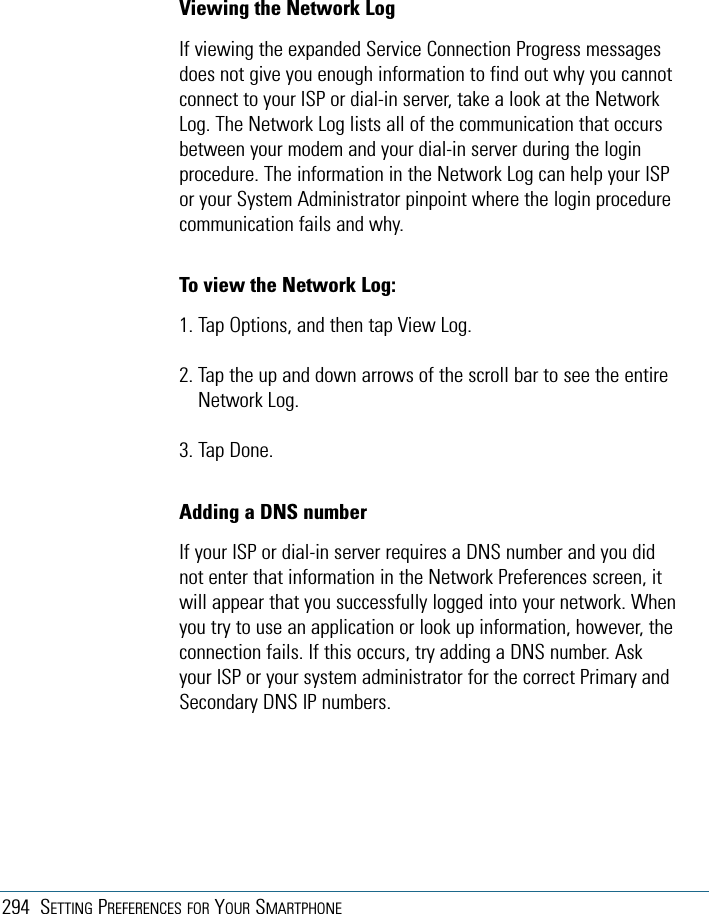

294 SETTING PREFERENCES FOR YOUR SMARTPHONEViewing the Network LogIf viewing the expanded Service Connection Progress messagesdoes not give you enough information to find out why you cannotconnect to your ISP or dial-in server, take a look at the NetworkLog. The Network Log lists all of the communication that occursbetween your modem and your dial-in server during the loginprocedure. The information in the Network Log can help your ISPor your System Administrator pinpoint where the login procedurecommunication fails and why.To view the Network Log:1. Tap Options, and then tap View Log.2. Tap the up and down arrows of the scroll bar to see the entireNetwork Log.3. Tap Done.Adding a DNS numberIf your ISP or dial-in server requires a DNS number and you didnot enter that information in the Network Preferences screen, itwill appear that you successfully logged into your network. Whenyou try to use an application or look up information, however, theconnection fails. If this occurs, try adding a DNS number. Askyour ISP or your system administrator for the correct Primary andSecondary DNS IP numbers.

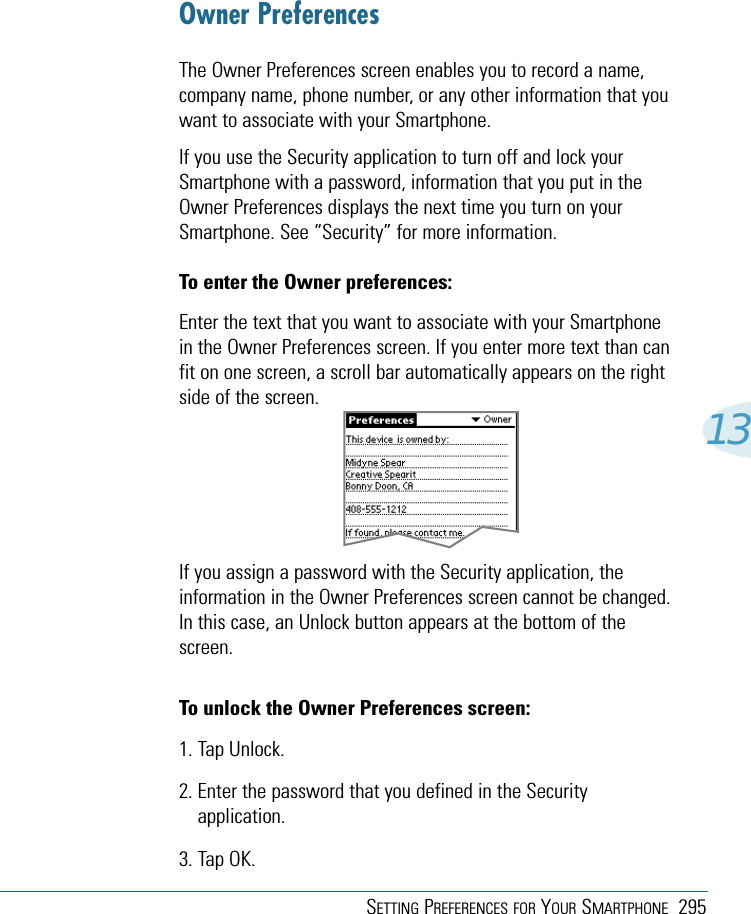

SETTING PREFERENCES FOR YOUR SMARTPHONE 29513Owner PreferencesThe Owner Preferences screen enables you to record a name,company name, phone number, or any other information that youwant to associate with your Smartphone.If you use the Security application to turn off and lock yourSmartphone with a password, information that you put in theOwner Preferences displays the next time you turn on yourSmartphone. See “Security” for more information.To enter the Owner preferences:Enter the text that you want to associate with your Smartphonein the Owner Preferences screen. If you enter more text than canfit on one screen, a scroll bar automatically appears on the rightside of the screen.If you assign a password with the Security application, theinformation in the Owner Preferences screen cannot be changed.In this case, an Unlock button appears at the bottom of thescreen.To unlock the Owner Preferences screen:1. Tap Unlock.2. Enter the password that you defined in the Securityapplication.3. Tap OK.
