4. Special Features

For the model with a touch screen, select (Job Status) > on the touch

screen.

Some menus may not appear on the display depending on options or

models. If so, it is not applicable to your machine.

•Active Job: All of the print jobs waiting to be printed are listed in the active

job queue in the order you sent them to the printer. You can delete a job

from the queue before printing, or promote a job to print sooner.

•Secured Job: You can print or delete a secured job. Shows the list of secured

jobs the user has set in the printer driver. You need to enter the user name

and password set in the printer driver.

•Stored Job: You can print or delete a stored job.

•Filing Policy: You can choose the file policy for generating file name before

you proceed with the job through optional memory. If the optional memory

already has the same name when you entered a new file name, you can

rename or overwrite it. (For M402xNX, select (Setup) > System > File

Policy on the touch screen)

5. Useful Management

Tools

This chapter introduces management tools provided to help you make full use of your machine.

• Accessing management tools 232

• Easy Capture Manager 233

• Samsung AnyWeb Print 234

• Easy Eco Driver 235

• Using SyncThru™ Web Service 236

• Using Samsung Easy Printer Manager 240

• Using Samsung Printer Status 243

• Using Samsung Printer Experience 245

• Using the Linux Unified Driver Configurator 251

232

5. Useful Management Tools

Accessing management tools

Samsung provides a variety of management tools for Samsung printers.

1Make sure that the machine is connected to your computer and powered on.

2 From the Start menu, select Programs or All Programs.

• For Windows 8, from the Charms, select Search > Apps.

3 Find Samsung Printers.

4 Under Samsung Printers, you can see installed management tools.

5 Click the management tool you want to use.

• After installing the driver, for some management tools, you can access them directly from the Start menu > Programs or All Programs.

• For Windows 8, after installing the driver, for some management tools, you can access them directly from the Start screen by clicking on the corresponding tile.

233

5. Useful Management Tools

Easy Capture Manager

• This feature may not be available depending on model or optional goods (see "Software" on page 9).

• Available for Windows OS users only (see "Software" on page 9).

Capture your screen and launch Easy Capture Manager by simply pressing the Print Screen key. Now you can easily print your captured screen as captured or edited.

234

5. Useful Management Tools

Samsung AnyWeb Print

• This feature may not be available depending on model or optional goods (see "Software" on page 9).

• Available for Windows and Mac OS users only (see "Software" on page 9).

This tool helps you screen-capture, preview, scrap, and print Windows Internet Explorer pages more easily, than when you use an ordinary program.

Download the software from the Samsung website then unpack and install it: (http://www.samsung.com > find your product > Support or Downloads).

235

5. Useful Management Tools

Easy Eco Driver

• This feature may not be available depending on model or optional goods (see "Software" on page 9).

• Available for Windows OS users only (see "Software" on page 9).

With the Easy Eco Driver, you can apply Eco features to save paper and toner before printing. To use this application, Printer Properties > Basic tab > Start Easy Eco

Driver before printing job checkbox should be checked.

If you did not check Start Easy Eco Driver before printing job checkbox in the printer properties but want to use Easy Eco Driver, select Eco Printing Preview in

the Favorites tab each time you print.

Easy Eco Driver also allows you to do simple editing such as removing images and texts and more. You can save frequently used settings as a preset.

How to use:

1 Open a document to print.

2 Print the document.

A preview window appears.

3 Select the options you want to apply to the document.

You can see the preview of the applied features.

4 Click Print.

236

5. Useful Management Tools

Using SyncThru™ Web Service

• Internet Explorer 6.0 or higher is the minimum requirement for

SyncThru™ Web Service.

•SyncThru™ Web Service explanation in this user’s guide may differ from

your machine depending on its options or models.

• Network model only (see "Software" on page 9).

Accessing SyncThru™ Web Service

1Access a web browser, such as Internet Explorer, from Windows.

Enter the machine IP address of your printer (http://xxx.xxx.xxx.xxx) in

the address field and press the Enter key or click Go.

2 Your machine’s embedded website opens.

Logging into SyncThru™ Web Service

Before configuring options in SyncThru™ Web Service, you need to log-in as an

administrator. You can still use SyncThru™ Web Service without logging in but

you won’t have access to Settings tab and Security tab.

1Click Login on the upper right of the SyncThru™ Web Service website.

2 Type in the ID and Password then click Login. Type in the below default

ID and password. We recommend you to change the default password

for security reasons.

•ID: admin

•Password: sec00000

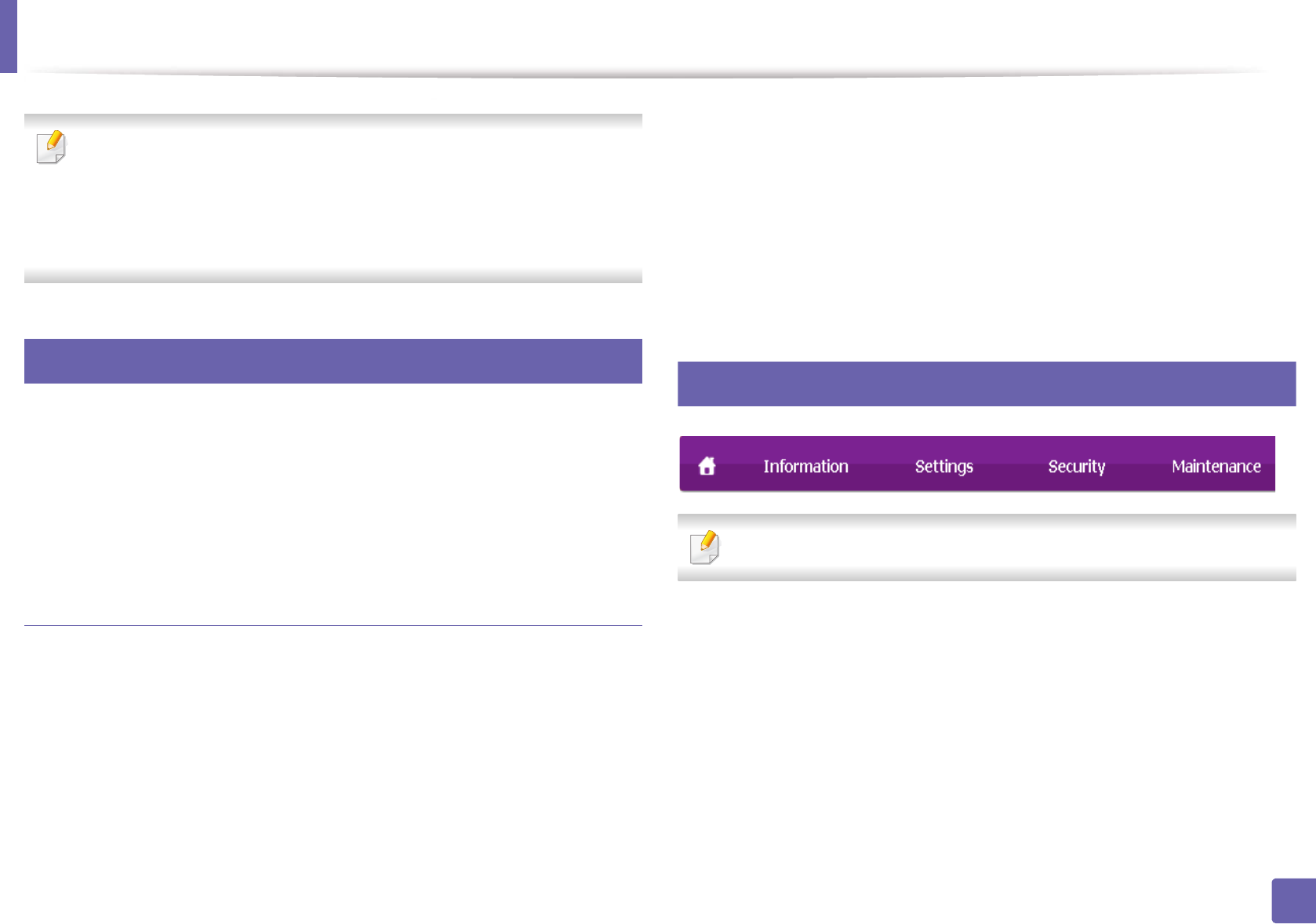

SyncThru™ Web Service overview

Some tabs may not appear depending on your model.

Using SyncThru™ Web Service

237

5. Useful Management Tools

Information tab

This tab gives you general information about your machine. You can check

things, such as remaining amount of toner. You can also print reports, such as an

error report.

•Active Alerts: Shows the alerts that have occurred in the machine and their

severity.

•Supplies: Shows how many pages are printed and amount of toner left in

the cartridge.

•Usage Counters: Shows the usage count by print types: simplex and

duplex.

•Current Settings: Shows the machine’s and network’s information.

•Print information: Prints reports such as system related reports, e-mail

address, and font reports.

Settings tab

This tab allows you to set configurations provided by your machine and

network. You need to log-in as an administrator to view this tab.

•Machine Settings tab: Sets options provided by your machine.

•Network Settings tab: Shows options for the network environment. Sets

options such as TCP/IP and network protocols.

Security tab

This tab allows you to set system and network security information. You need to

log-in as an administrator to view this tab.

•System Security: Sets the system administrator’s information and also

enables or disables machine features.

•Network Security: Sets settings for HTTPs, IPSec, IPv4/IPv6 filtering, 802.1x,

and Authentication servers.

•User Access Control: Classifies users into several groups according to each

user’s role. Each user’s authorization, authentication and accounting will be

controlled by the group’s role definition.

Maintenance tab

This tab allows you to maintain your machine by upgrading firmware and

setting contact information for sending emails. You can also connect to

Samsung website or download drivers by selecting the Link menu.

•Firmware Upgrade: Upgrade your machine’s firmware.

•Contact Information: Shows the contact information.

•Link: Shows links to useful sites where you can download or check

information.

•License Management: License management provides settings for or

settings of installed applications and application license.

Using SyncThru™ Web Service

238

5. Useful Management Tools

•Cloning: You can import or export (transfer) various settings (machine

setting, network information, address book, etc.) between devices that have

the Cloning feature in SyncThru™ Web Service.

E-mail notification setup

You can receive emails about your machine’s status by setting this option. By

setting information such as IP address, host name, e-mail address and SMTP

server information, the machine status (toner cartridge shortage or machine

error) will be sent to a certain person's e-mail automatically. This option may be

used more frequently by a machine administrator.

Some menus may not appear in the display depending on options or

models. If so, it is not applicable to your machine.

1Start a web browser, such as Internet Explorer, from Windows.

Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address field

and press the Enter key or click Go.

2 Your machine’s embedded website opens.

3 From the Settings tab, select Machine Settings > E-mail Notification.

If you have not configured outgoing server environment, go to Settings >

Network Settings > Outgoing Mail Server(SMTP) to configure network

environment before setting e-mail notification.

4 Select Enable check box to use the E-mail Notification.

5 Click Add button to add e-mail notification user.

Set the recipient name and e-mail address(es) with notification items

you want to receive an alert for.

6 Click Apply.

If the firewall is activated, the e-mail may not be sent successfully. In that

case, contact the a network administrator.

Setting the system administrator’s information

This setting is necessary for using the e-mail notification option.

Some menus may not appear in the display depending on options or

models. If so, it is not applicable to your machine.

Using SyncThru™ Web Service

239

5. Useful Management Tools

1Start a web browser, such as Internet Explorer, from Windows.

Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address field

and press the Enter key or click Go.

2 Your machine’s embedded website opens.

3 From the Security tab, select System Security > System Administrator

4 Enter the name of the administrator, phone number, location, and email

address.

5 Click Apply.

240

5. Useful Management Tools

Using Samsung Easy Printer Manager

• This feature may not be available depending on model or optional goods

(see "Software" on page 9).

• Available for Windows and Mac OS users only (see "Software" on page 9).

• For Windows, Internet Explorer 6.0 or higher is the minimum

requirement for Samsung Easy Printer Manager.

Samsung Easy Printer Manager is an application that combines Samsung

machine settings into one location. Samsung Easy Printer Manager combines

device settings as well as printing environments, settings/actions and

launching. All of these features provide a gateway to conveniently use your

Samsung machine. Samsung Easy Printer Manager provides two different user

interfaces for the user to choose from: the basic user interface and the advanced

user interface. Switching between the two interfaces is easy: just click a button.

Understanding Samsung Easy Printer Manager

To open the program:

For Windows,

Select Start > Programs or All Programs > Samsung Printers > Samsung

Easy Printer Manager > Samsung Easy Printer Manager.

For Mac,

Open the Applications folder > Samsung folder > Samsung Easy Printer

Manager.

The Samsung Easy Printer Manager interface is comprised of various basic

sections as described in the table that follows:

The screenshot may differ depending on the operating system you are

using.

Printer list The Printer List displays printers installed on your computer

and network printers added by network discovery (Windows

only).

Using Samsung Easy Printer Manager

241

5. Useful Management Tools

Select the Help menu from the window and click on any option you want to

know about.

Advanced settings user interface overview

The advanced user interface is intended to be used by the person responsible

for managing the network and machines.

Printer

information

This area gives you general information about your

machine. You can check information, such as the machine’s

model name, IP address (or Port name), and machine status.

You can view the online User’s Guide.

Troubleshooting button: This button opens the

Troubleshooting Guide when an error occurs. You

can directly open the necessary section in the user’s

guide.

Application

information

Includes links for changing to the advanced

settings(switching UI), refresh, preference setting, summary,

help, and about.

The button is used to change the user interface

to the advanced settings user interface (see

"Advanced settings user interface overview" on

page 241).

Quick links Displays Quick links to machine specific functions. This

section also includes links to applications in the advanced

settings.

If you connect your machine to a network, the

SyncThru™ Web Service icon is enabled.

Contents area Displays information about the selected machine,

remaining toner level, and paper. The information will vary

based on the machine selected. Some machines do not have

this feature.

6Order supplies Click on the Order button from the supply ordering window.

You can order replacement toner cartridge(s) from online.

Using Samsung Easy Printer Manager

242

5. Useful Management Tools

Some menus may not appear in the display depending on options or

models. If so, it is not applicable to your machine.

Device Settings

You can configure various machine settings such as machine setup, paper,

layout, emulation, network, and print information.

Alert Settings (Windows only)

This menu includes settings related to error alerting.

•Printer Alert: Provides settings related to when alerts will be received.

•Email Alert: Provides options relating to receiving alerts via email.

•Alert History: Provides a history of device and toner related alerts.

Job Accounting

Provides querying of quota information of the specified job accounting user.

This quota information can be created and applied to devices by job accounting

software such as SyncThru™ or CounThru™ admin software.

243

5. Useful Management Tools

Using Samsung Printer Status

The Samsung Printer Status is a program that monitors and informs you of the

machine status.

• The Samsung Printer Status window and its contents shown in this user’s

guide may differ depending on the machine or operating system in use.

• Check the operating system(s) that are compatible with your machine

(see "Specifications" on page 111).

• Available for Windows OS users only (see "Software" on page 9).

Samsung Printer Status overview

If an error occurs while operating, you can check the error from the Samsung

Printer Status. Samsung Printer Status is installed automatically when you install

the machine software.

You can also launch Samsung Printer Status manually. Go to the Printing

Preferences, click the Basic tab > Printer Status button.

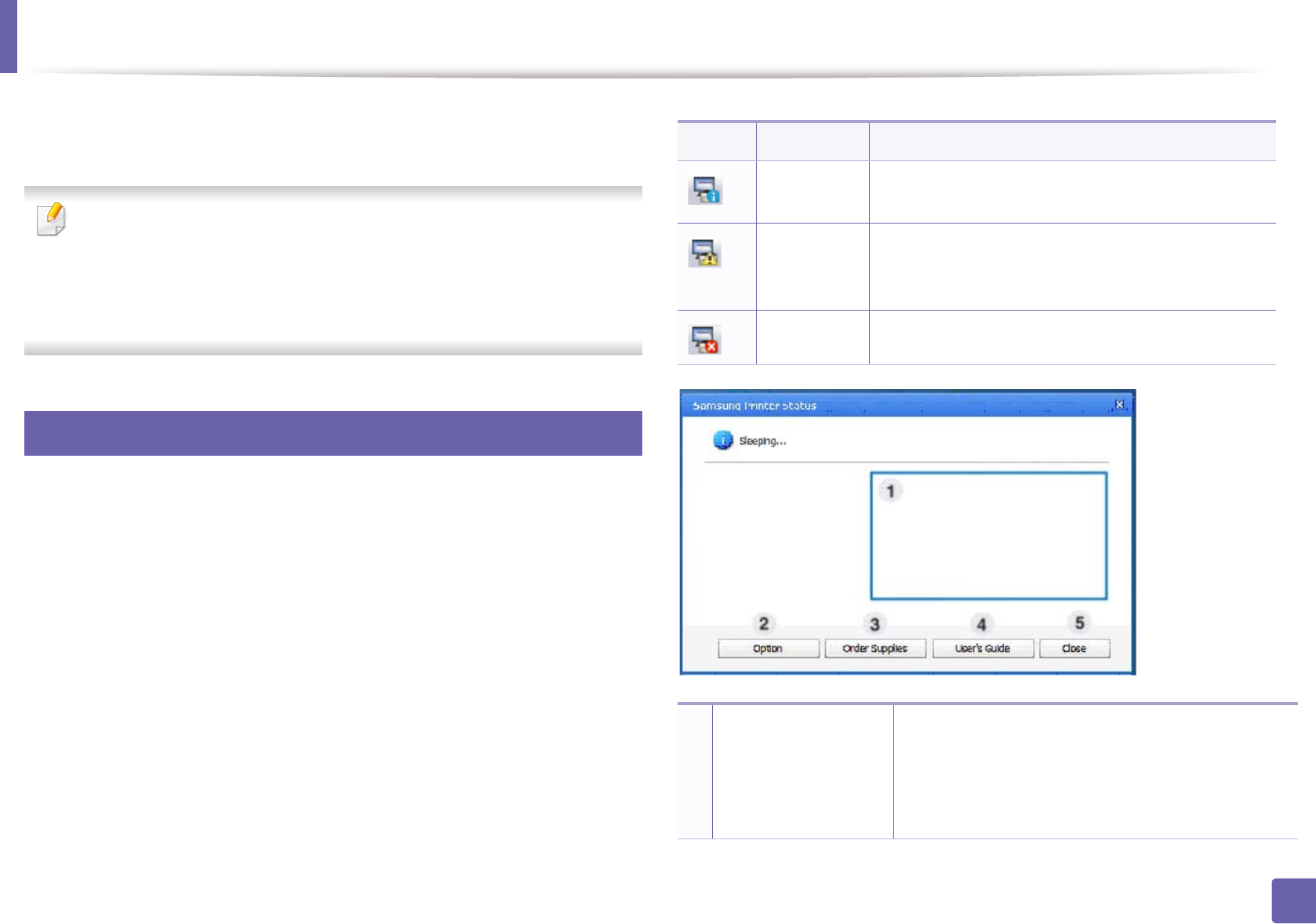

These icons appear on the Windows task bar:

Icon Mean Description

Normal The machine is in ready mode and experiencing no

errors or warnings.

Warning The machine is in a state where an error might occur

in the future. For example, it might be in toner low

status, which may lead to toner empty status.

Error The machine has at least one error.

Toner Level You can view the level of toner remaining in each

toner cartridge. The machine and the number of

toner cartridge(s) shown in the above window may

differ depending on the machine in use. Some

machines do not have this feature.

Using Samsung Printer Status

244

5. Useful Management Tools

2Option You can set printing job alert related settings.

3Order Supplies You can order replacement toner cartridge(s) from

online.

User’s Guide You can view the online User’s Guide.

This button opens the Troubleshooting

Guide when an error occurs. You can directly

open the troubleshooting section in the

user’s guide.

5Close Close the window.

245

5. Useful Management Tools

Using Samsung Printer Experience

Samsung Printer Experience is a Samsung application that combines

Samsung machine settings and machine management into one location. You

can set device settings, order supplies, open troubleshooting guides, visit

Samsung’s web site, and check connected machine information. This

application will be automatically downloaded from the Windows Store if the

machine is connected to a computer with an Internet connection.

Understanding the Samsung Printer Experience

To open the application,

From the Start screen, select the Samsung Printer Experience ()

tile.

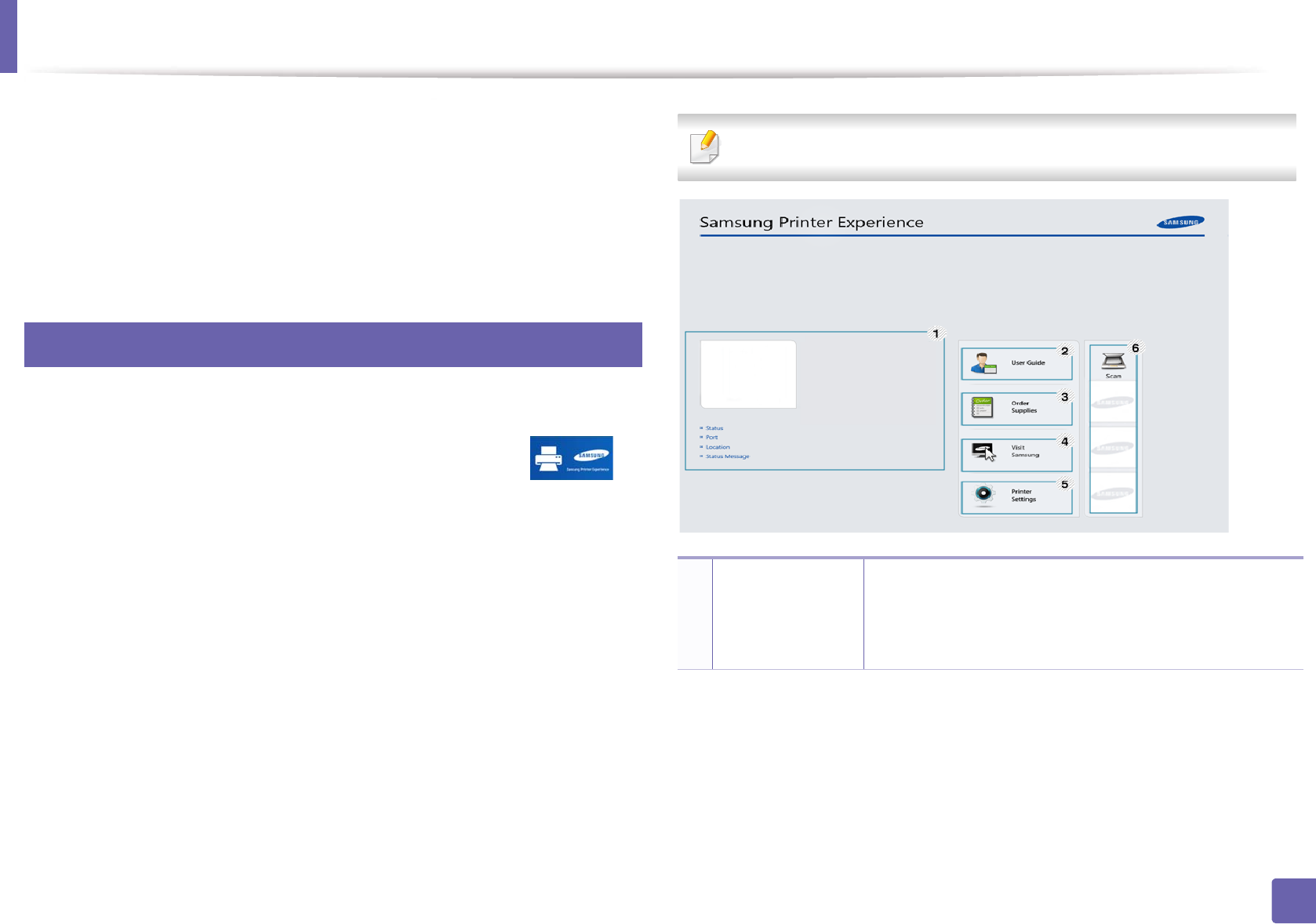

The Samsung Printer Experience interface comprises various useful features as

described in the following table:

The screenshot may differ depending on the model you are using.

Printer

Information

This area gives you general information about your

machine. You can check information, such as the

machine’s status, location, IP address, and remaining

toner level.

Using Samsung Printer Experience

246

5. Useful Management Tools

Adding/Deleting Printers

If you do not have any printer added to the Samsung Printer Experience, or if

you want to add/delete a printer, follow the instructions below.

You can only add/delete network connected printers.

Adding a printer

1From the Charms, select Settings.

Or, right-click the Samsung Printer Experience page and select

Settings.

2 Select Add Printer

3 Select the printer you want to add.

You can see the added printer.

If you see mark, you can also click mark to add printers.

2User Guide You can view the online User’s Guide. You need to be

connected to the Internet to use this feature.

This button opens the Troubleshooting Guide

when an error occurs. You can directly open the

troubleshooting section in the user’s guide.

Order

Supplies

Click on this button to order replacement toner

cartridges online. You need to be connected to the

Internet to use this feature.

4Visit Samsung Links to Samsung printer website. You need to be

connected to the Internet to use this feature.

Printer Settings You can configure various machine settings such as

machine setup, paper, layout, emulation, networking,

and print information through SyncThru™ Web Service.

Your machine needs to be connected to a network. This

button will be disabled if your machine is connected via

USB cable.

Device List &

Latest Scanned


The scan list displays devices that supports Samsung

Printer Experience. Under the device, you can see the

latest scanned images. Your machine needs to be

connected to a network to scan from here.

This section is for the users with multi-functional printers.

Using Samsung Printer Experience

247

5. Useful Management Tools

Deleting a printer

1From the Charms, select Settings.

Or, right-click the Samsung Printer Experience page and select

Settings.

2 Select Remove Printer

3 Select the printer you want to delete.

4 Click Yes.

You can see that the deleted printer is removed from the screen.

Printing from Windows 8

This section explains common printing tasks from the Start screen.

Basic printing

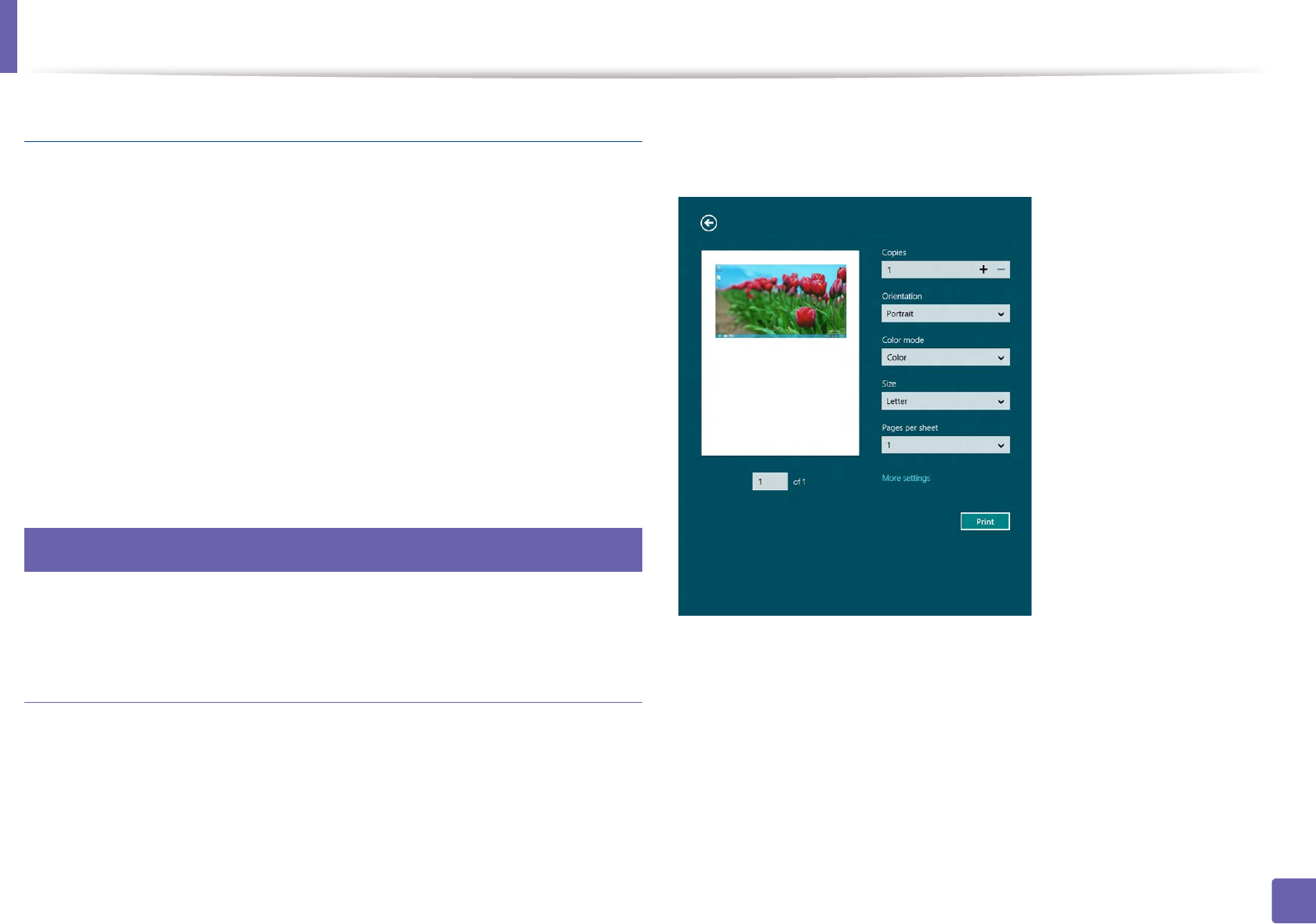

1Open the document to print.

2 From the Charms, select Devices.

3 Select your printer from the list

4 Select the printer settings, such as the number of copies and orientation.

5 Click the Print button to start the print job.

Using Samsung Printer Experience

248

5. Useful Management Tools

Cancelling a print job

If the printing job is waiting in the print queue or print spooler, cancel the job as

follows:

• You can access this window by simply double-clicking the machine icon

( ) in the Windows task bar.

• You can also cancel the current job by pressing (Stop/Clear) button on

the control panel.

Opening more settings

The screen may appear somewhat different depending on the model or

options.

You can set up more printing parameters.

1Open the document you want to print.

2 From the Charms, select Devices.

3 Select your printer from the list

4 Click More settings.

Basic tab

Basic

This option allows you to choose the basic printing settings such as copies,

orientation, and document type.

Eco settings

This option allows you to choose multiple pages per side to save media.

Using Samsung Printer Experience

249

5. Useful Management Tools

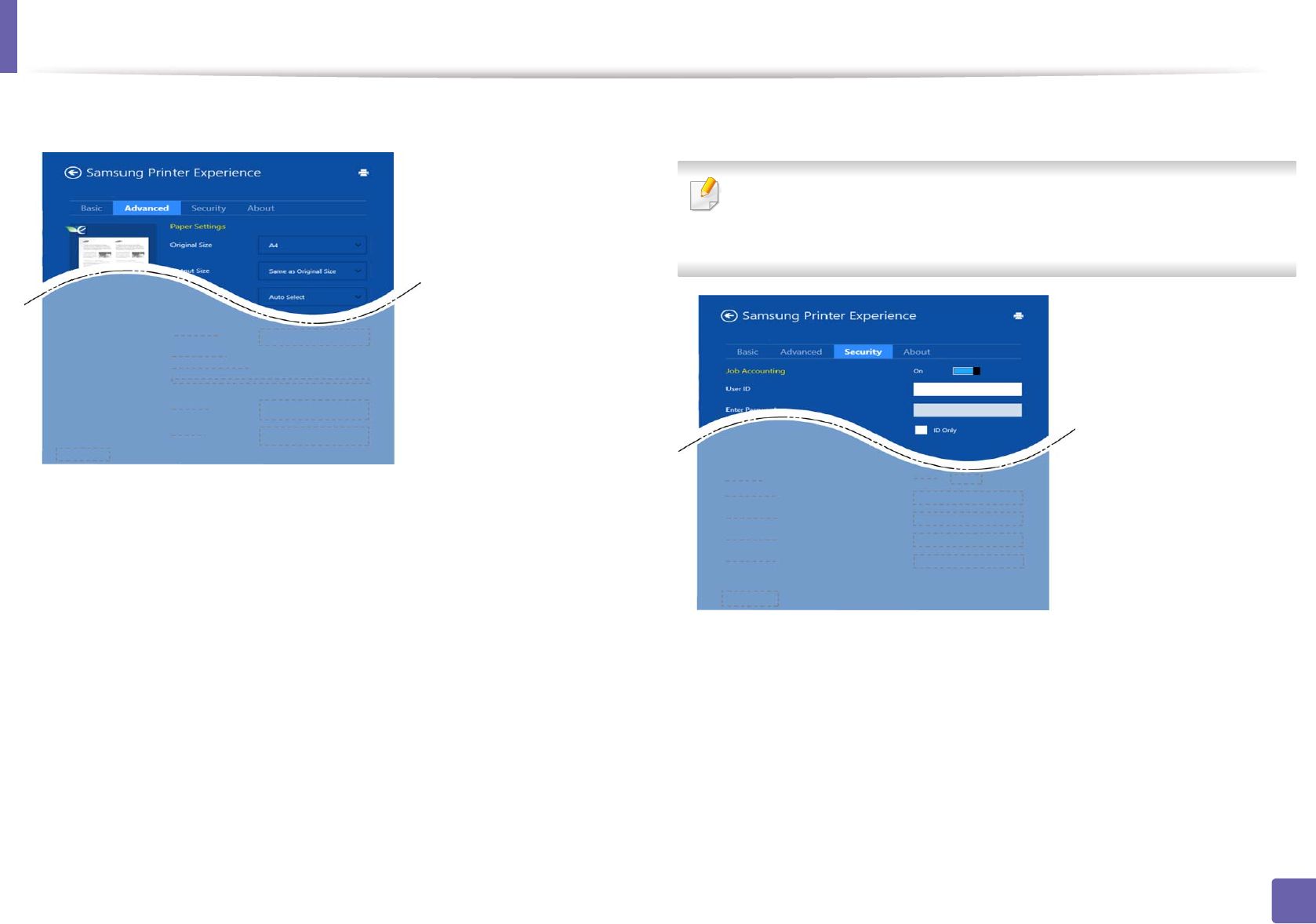

Advanced tab

Paper settings

This option allows you to set the basic paper handling specifications.

Layout settings

This option allows you to set the various ways to layout your documents.

Security tab

Some features may not be available depending on the model or options. If

this tab is not shown or disabled, it means that this features are not

supported.

Job Accounting

This option allows you to print with the given permission.

Confidential Printing

This option is used for printing confidential documents. You need to enter a

password to print using it.

Using Samsung Printer Experience

250

5. Useful Management Tools

Scanning from Windows 8

This section is for the users with multi-functional printers.

Scanning with your machine lets you turn pictures and text into digital files that

can be stored on your computer.

Scanning from Samsung Printer Experience

The most frequently used printing menus are displayed for quick scanning.

1Place a single document face down on the document glass, or load the

documents face up into the document feeder.

2 Click the Samsung Printer Experience tile on the Start screen.

3 Click Scan ().

4 Set up the scanning parameters such as image type, document size, and

resolution.

5 Click Prescan ( )to check the image.

6 Adjust the prescanned image with scanning operation functions such as

rotate and mirror.

7 Click Scan ( )and save the image.

• When you place the originals in the ADF (or DADF), Prescan ( ) is

not available.

• You can skip step 5, if the Prescan option is selected.

251

5. Useful Management Tools

Using the Linux Unified Driver Configurator

The Unified Driver Configurator is a tool primarily intended for configuring

machine devices. You need to install Unified Linux Driver to use Unified Driver

Configurator (see "Installation for Linux" on page 136).

After the driver is installed on your Linux system, the Unified Driver Configurator

icon will automatically be created on your desktop.

Opening Unified Driver Configurator

1Double-click the Unified Driver Configurator on the desktop.

You can also click the Startup Menu icon and select Samsung Unified

Driver > Unified Driver Configurator.

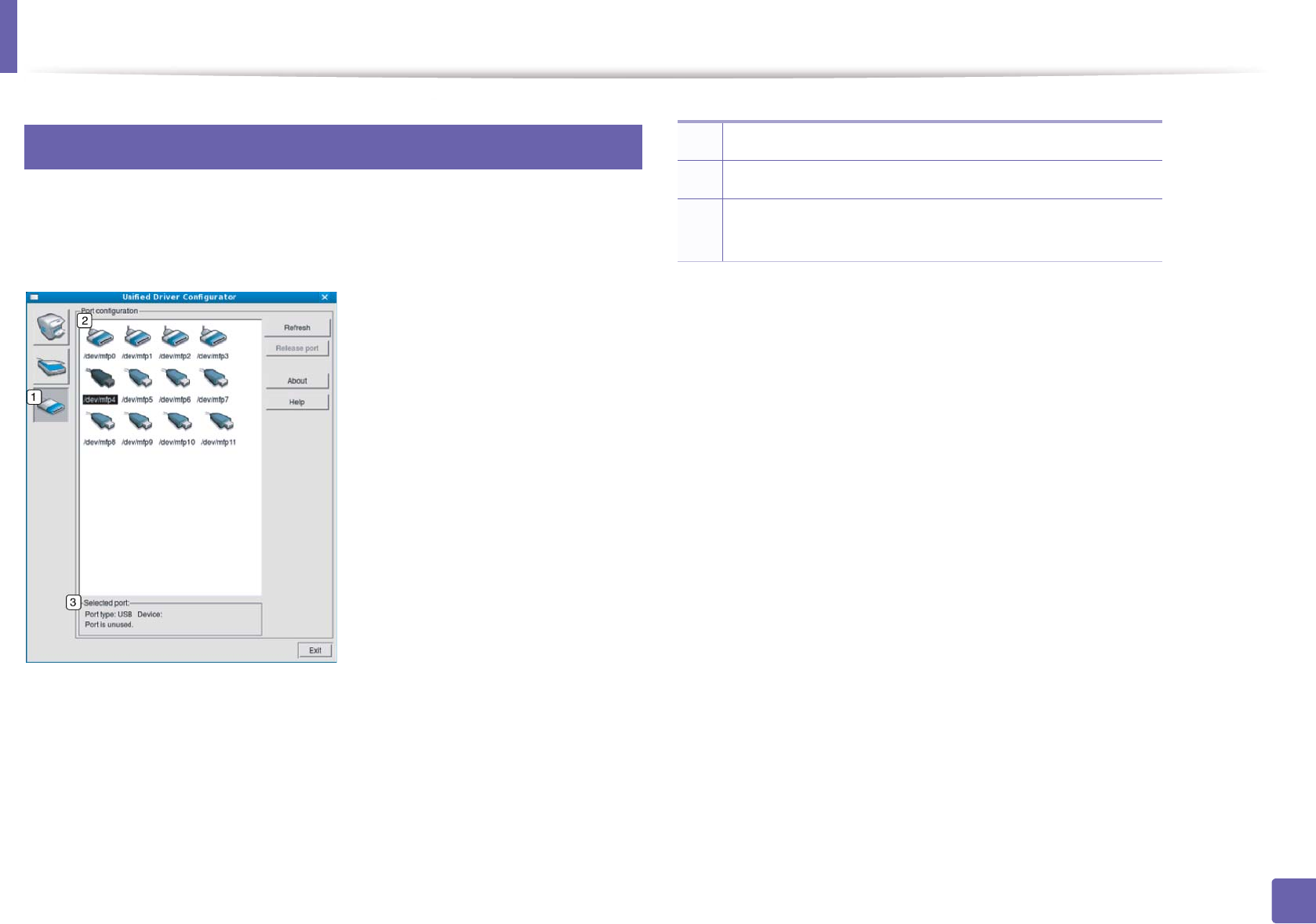

2 Click each button on the left to switch to the corresponding

configuration window.

1Printer Configuration

2Port Configuration

Using the Linux Unified Driver Configurator

252

5. Useful Management Tools

To use the on screen help, the Help or button from the window.

3 After changing the configurations, click Exit to close the Unified Driver

Configurator.

Printers configuration

Printers configuration has the two tabs: Printers and Classes.

Printers tab

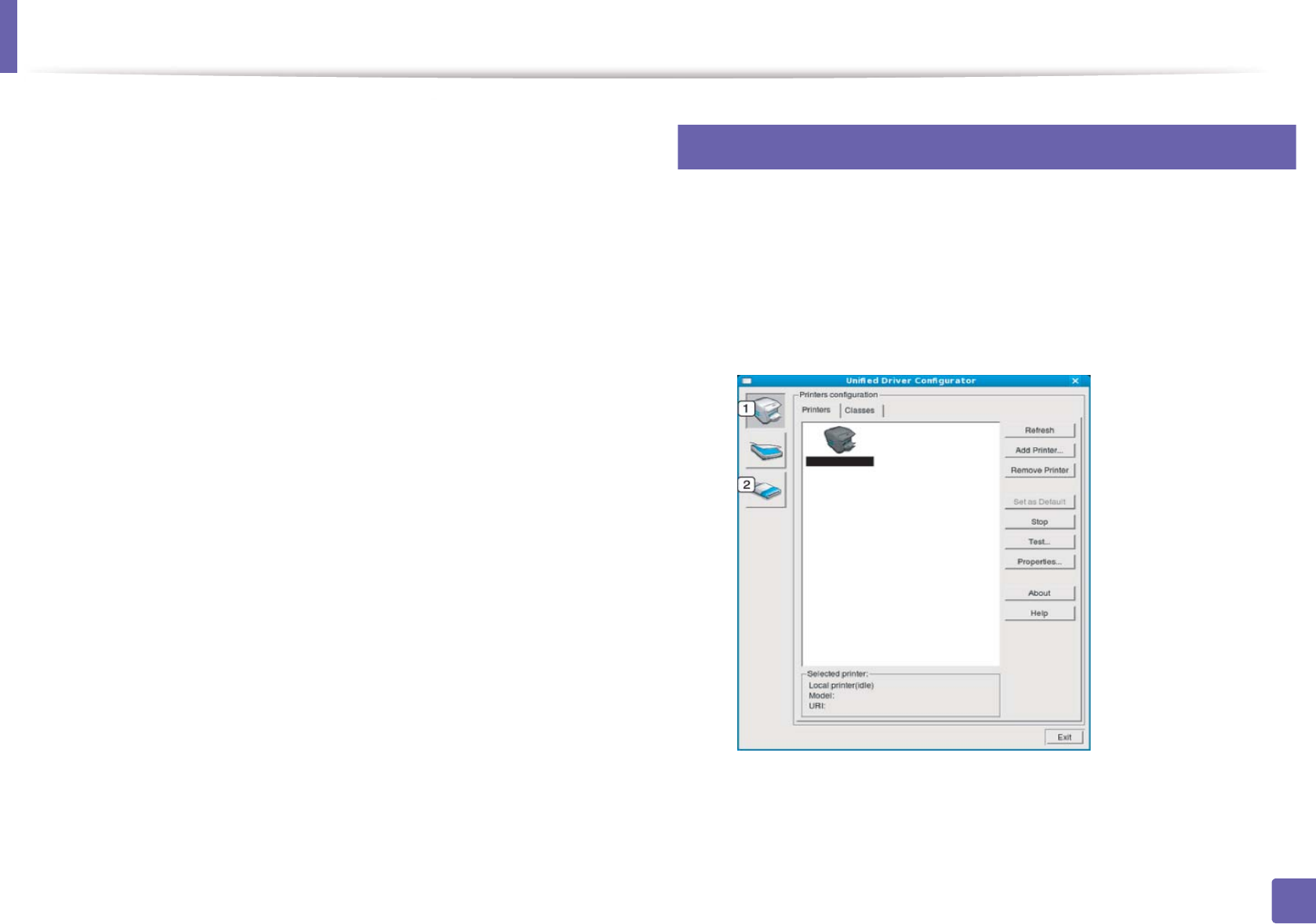

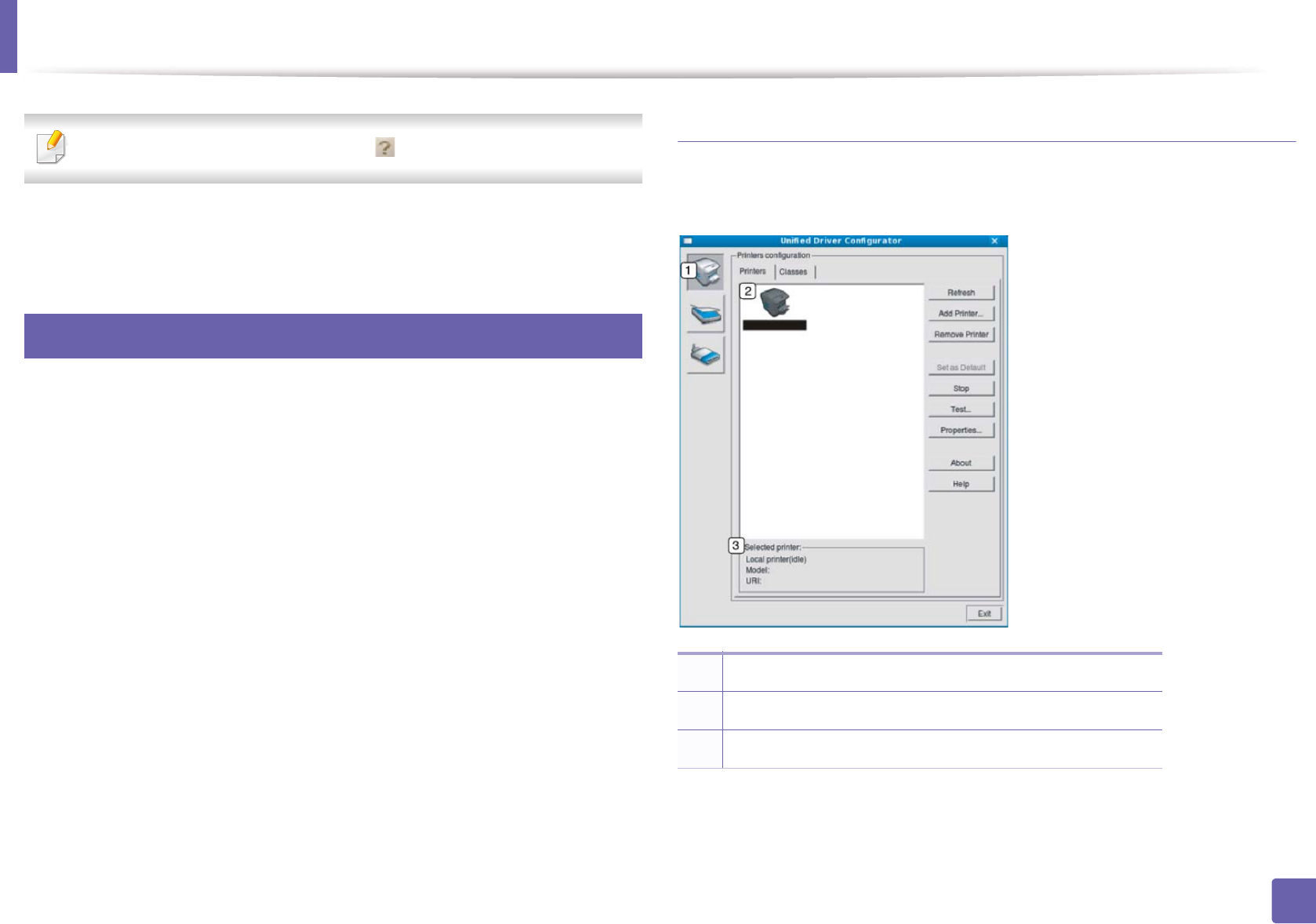

View the current system’s printer configuration by clicking on the machine icon

button on the left side of the Unified Driver Configurator window.

1Switches to Printers configuration.

2Shows all of the installed machines.

3Shows the status, model name, and URI of your machine.

Using the Linux Unified Driver Configurator

253

5. Useful Management Tools

The printer control buttons are, as follows:

•Refresh: Renews the available machines list.

•Add Printer: Allows you to add a new machines.

•Remove Printer: Removes the selected machine.

•Set as Default: Sets the current selected machine as a default machine.

•Stop/Start: Stops/starts the machine.

•Test: Allows you to print a test page to ensure the machine is working

properly.

•Properties: Allows you to view and change the printer’s properties.

Classes tab

The Classes tab shows a list of available machine classes.

•Refresh: Renews the classes list.

•Add Class: Allows you to add a new machine class.

•Remove Class: Removes the selected machine class.

1Shows all of the machine classes.

2Shows the status of the class and the number of machines

in the class.

Using the Linux Unified Driver Configurator

254

5. Useful Management Tools

Ports configuration

In this window, you can view the list of available ports, check the status of each

port and release a port that is stalled in a busy state when its owner has

terminated the job for any reason.

•Refresh: Renews the available ports list.

•Release port: Releases the selected port.

1Switches to Ports configuration.

2Shows all of the available ports.

3Shows the port type, device connected to the port, and

status.

6. Troubleshooting

This chapter gives helpful information for what to do if you encounter an error.

• Paper feeding problems 256

• Power and cable connecting problems 257

• Printing problems 258

• Printing quality problems 262

• Operating system problems 270

For errors that occur during the wireless software installation and settings, refer to the

troubleshotting section in the wireless setting chapter (see "Troubleshooting for wireless

network" on page 178).

256

6. Troubleshooting

Paper feeding problems

Condition Suggested solutions

Paper jams during printing. Clear the paper jam.

Paper sticks together. • Check the maximum paper capacity of the tray.

• Make sure that you are using the correct type of paper.

• Remove paper from the tray and flex or fan the paper.

• Humid conditions may cause some paper to stick together.

Multiple sheets of paper do not feed. Different types of paper may be stacked in the tray. Load paper of only one type, size, and weight.

Paper does not feed into the machine. • Remove any obstructions from inside the machine.

• Paper has not been loaded correctly. Remove paper from the tray and reload it correctly.

• There is too much paper in the tray. Remove excess paper from the tray.

• The paper is too thick. Use only paper that meets the specifications required by the machine.

The paper keeps jamming. • There is too much paper in the tray. Remove excess paper from the tray. If you are printing on special materials, use the

manual feeding in tray.

• An incorrect type of paper is being used. Use only paper that meets the specifications required by the machine.

• There may be debris inside the machine. Open the front cover and remove any debris.

Envelopes skew or fail to feed correctly. Ensure that the paper guides are against both sides of the envelopes.

257

6. Troubleshooting

Power and cable connecting problems

Click this link to open an animation about solving power problems.

Condition Suggested solutions

The machine is not receiving power,

or the connection cable between the

computer and the machine is not

connected properly.

• Connect the machine to the electricity supply first. If the machine has a (Power) button on the control, press it.

• Disconnect the machine’s cable and reconnect it.

258

6. Troubleshooting

Printing problems

Condition Possible cause Suggested solutions

The machine does not

print.

The machine is not receiving power. Connect the machine to the electricity supply first. If the machine has a (Power)

button on the control, press it.

The machine is not selected as the default

machine.

Select your machine as your default machine in Windows.

Check the machine for the following:

• The cover is not closed. Close the cover.

• Paper is jammed. Clear the paper jam (see "Clearing paper jams" on page 90).

• No paper is loaded. Load paper (see "Loading paper in the tray" on page 40).

• The toner cartridge is not installed. Install the toner cartridge (see "Replacing the toner cartridge" on page 70).

• Make sure the protect cover and sheets are removed from the toner cartridge (see "Replacing the toner cartridge" on page 70).

If a system error occurs, contact your service representative.

The connection cable between the computer and

the machine is not connected properly.

Disconnect the machine cable and reconnect it (see "Rear view" on page 22).

The connection cable between the computer and

the machine is defective.

If possible, attach the cable to another computer that is working properly and print a job.

You can also try using a different machine cable.

The port setting is incorrect. Check the Windows printer settings to make sure that the print job is sent to the correct

port. If the computer has more than one port, make sure that the machine is attached to

the correct one.

Printing problems

259

6. Troubleshooting

The machine does not

print.

The machine may be configured incorrectly. Check the Printing Preferences to ensure that all of the print settings are correct.

The printer driver may be incorrectly installed. Uninstall and reinstall the machine’s driver.

The machine is malfunctioning. Check the display message on the control panel to see if the machine is indicating a

system error. Contact a service representative.

The document size is so big that the hard disk

space of the computer is insufficient to access the

print job.

Get more hard disk space and print the document again.

The output tray is full. Once the paper is removed from the output tray, the machine resumes printing.

The machine selects print

materials from the wrong

paper source.

The paper option that was selected in the

Printing Preferences may be incorrect.

For many software applications, the paper source selection is found under the Paper tab

within the Printing Preferences (see "Opening printing preferences" on page 51).

Select the correct paper source. See the printer driver help screen (see "Using help" on

page 52).

A print job is extremely

slow.

The job may be very complex. Reduce the complexity of the page or try adjusting the print quality settings.

Half the page is blank. The page orientation setting may be incorrect. Change the page orientation in your application (see "Opening printing preferences" on

page 51). See the printer driver help screen (see "Using help" on page 52).

The paper size and the paper size settings do not

match.

Ensure that the paper size in the printer driver settings matches the paper in the tray.

Or, ensure that the paper size in the printer driver settings matches the paper selection

in the software application settings you use (see "Opening printing preferences" on

page 51).

The machine prints, but

the text is wrong,

garbled, or incomplete.

The machine cable is loose or defective. Disconnect the machine cable and reconnect. Try a print job that you have already

printed successfully. If possible, attach the cable and the machine to another computer

that you know works and try a print job. Finally, try a new machine cable.

Condition Possible cause Suggested solutions

Printing problems

260

6. Troubleshooting

The wrong printer driver was selected. Check the application’s printer selection menu to ensure that your machine is selected.

The software application is malfunctioning. Try printing a job from another application.

The operating system is malfunctioning. Exit Windows and reboot the computer. Turn the machine off and back on again.

Pages print, but they are

blank.

The toner cartridge is defective or out of toner. Redistribute the toner, if necessary.

If necessary, replace the toner cartridge.

• See "Redistributing toner" on page 68.

• See "Replacing the toner cartridge" on page 70.

The file may have blank pages. Check the file to ensure that it does not contain blank pages.

Some parts, such as the controller or the board,

may be defective.

Contact a service representative.

The machine does not

print PDF files correctly.

Some parts of graphics,

text, or illustrations are

missing.

Incompatibility between the PDF file and the

Acrobat products.

Printing the PDF file as an image may enable the file to print. Turn on Print As Image

from the Acrobat printing options.

It will take longer to print when you print a PDF file as an image.

The print quality of

photos is not good.

Images are not clear.

The resolution of the photo is very low. Reduce the photo size. If you increase the photo size in the software application, the

resolution will be reduced.

Before printing, the

machine emits vapor near

the output tray.

Using damp/wet paper can cause vapor [white

smoke] during printing.

This is not a problem. Just keep printing. If you are bothered by the smoke [vapor], then

replace the paper with fresh paper from an unopened ream.

Condition Possible cause Suggested solutions

Printing problems

261

6. Troubleshooting

The machine does not

print custom-sized paper,

such as billing paper.

Paper size and paper size setting do not match. Set the correct paper size in the Custom in Paper tab in Printing Preferences (see

"Opening printing preferences" on page 51).

The printed billing paper

is curled.

The paper type setting does not match. Change the printer option and try again. Go to Printing Preferences, click Paper tab,

and set type to Thin (see "Opening printing preferences" on page 51).

Condition Possible cause Suggested solutions

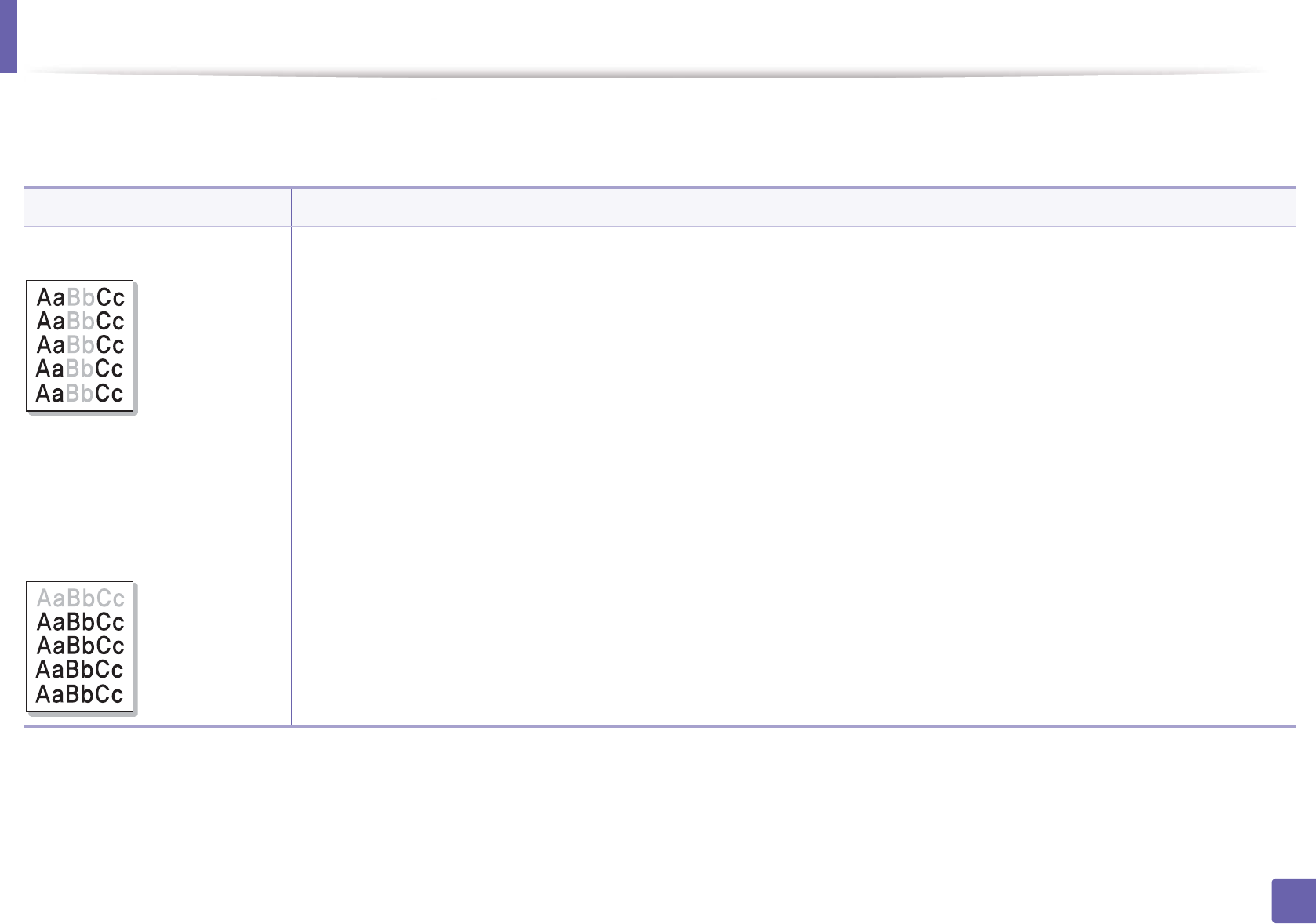

262

6. Troubleshooting

Printing quality problems

If the inside of the machine is dirty or paper has been loaded improperly, there

might be a reduction in print quality. See the table below to clear the problem.

Condition Suggested solutions

Light or faded print • If a vertical white streak or faded area appears on the page, the toner supply is low. Install a new toner cartridge (see "Replacing the

toner cartridge" on page 70).

• The paper may not meet paper specifications; for example, the paper may be too moist or rough.

• If the entire page is light, the print resolution setting is too low or the toner save mode is on. Adjust the print resolution and turn

the toner save mode off. See the help screen of the printer driver.

• A combination of faded or smeared defects may indicate that the toner cartridge needs cleaning. Clean the inside of your machine

(see "Cleaning the machine" on page 82).

• The surface of the LSU part inside the machine may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page

82). If these steps do not correct the problem, contact a service representative.

The top half of the paper is

printed lighter than the rest of

the paper

The toner might not adhere properly to this type of paper.

• Change the printer option and try again. Go to Printing Preferences, click the Paper tab, and set the paper type to Recycled (see

"Opening printing preferences" on page 51).

Printing quality problems

263

6. Troubleshooting

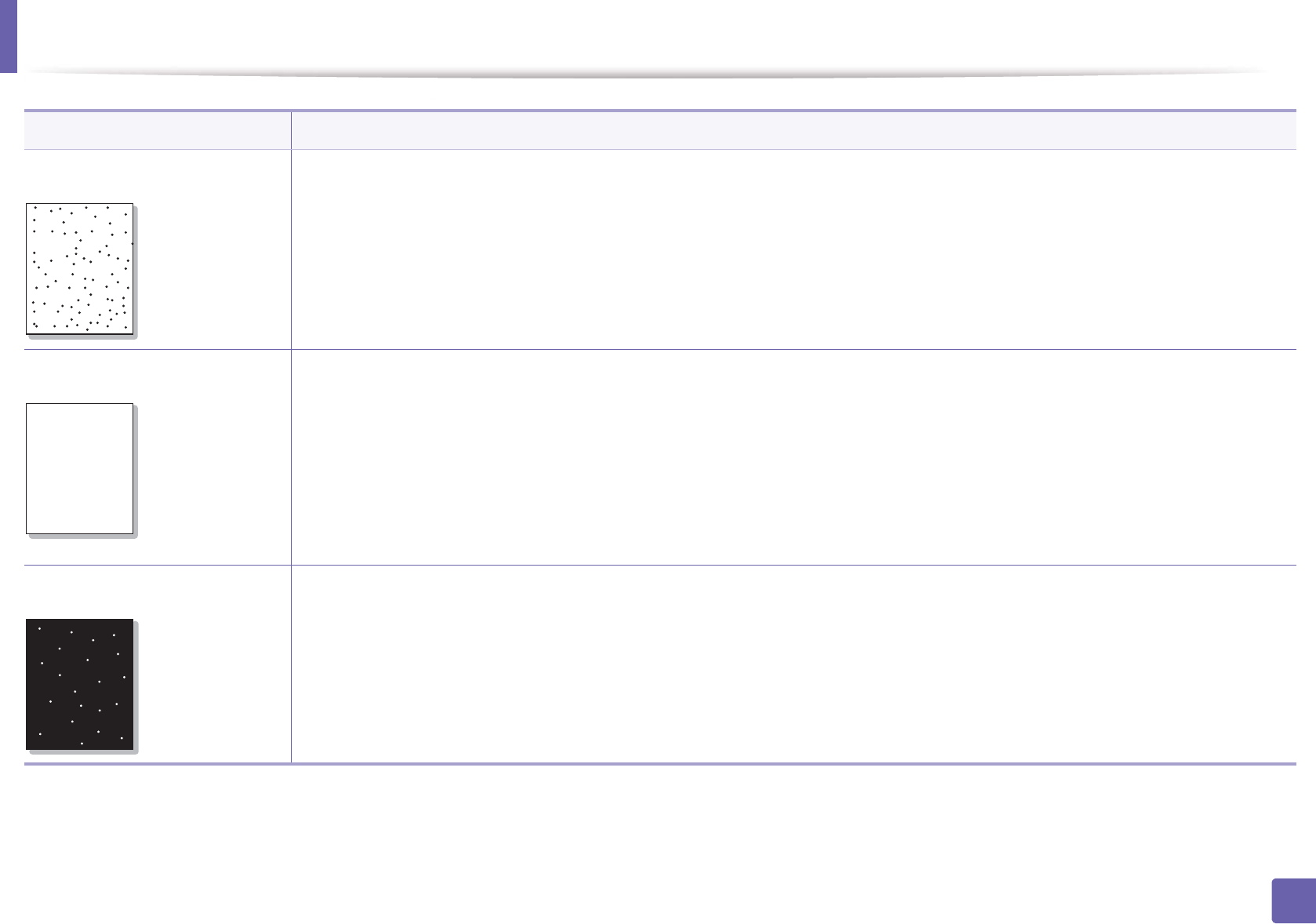

Toner specks • The paper may not meet specifications; for example, the paper may be too moist or rough.

• The transfer roller may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page 82).

• The paper path may need cleaning. Contact a service representative (see "Cleaning the machine" on page 82).

Dropouts If faded areas, generally rounded, occur randomly on the page:

• A single sheet of paper may be defective. Try reprinting the job.

• The moisture content of the paper is uneven or the paper has moist spots on its surface. Try a different brand of paper.

• The paper lot is bad. The manufacturing processes can cause some areas to reject toner. Try a different kind or brand of paper.

• Change the printer option and try again. Go to Printing Preferences, click the Paper tab, and set type to Thick (see "Opening

printing preferences" on page 51).

If these steps do not correct the problem, contact a service representative.

White Spots If white spots appear on the page:

• The paper is too rough and a lot of dirt from paper falls to the inner components within the machine, so the transfer roller may be

dirty. Clean the inside of your machine (see "Cleaning the machine" on page 82).

• The paper path may need cleaning. Clean the inside of your machine (see "Cleaning the machine" on page 82).

If these steps do not correct the problem, contact a service representative.

Condition Suggested solutions

AaBbCc

AaBbC

Printing quality problems

264

6. Troubleshooting

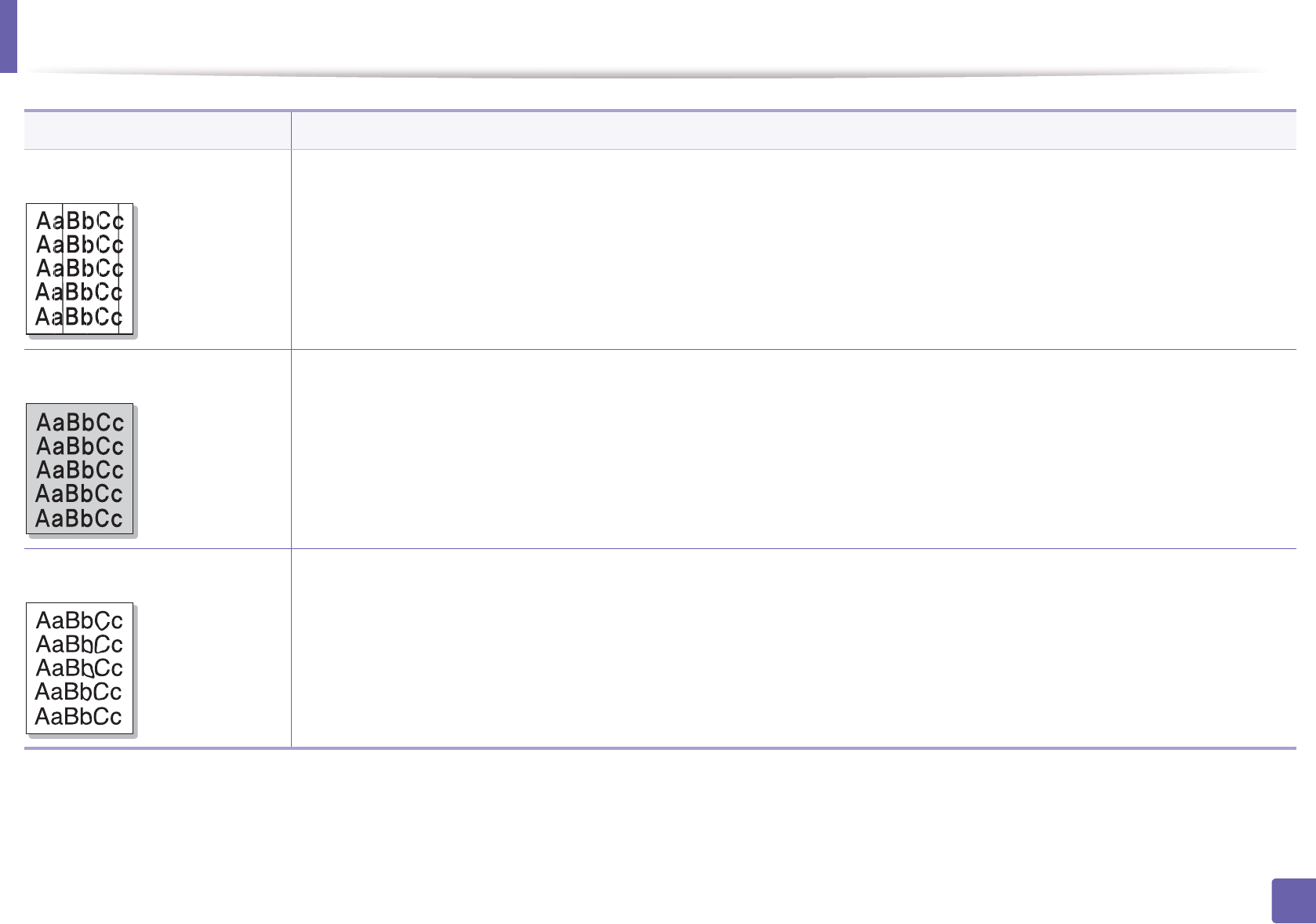

Vertical lines If black vertical streaks appear on the page:

• The surface (drum part) of the cartridge inside the machine has probably been scratched. Remove the cartridge and install a new

one (see "Replacing the toner cartridge" on page 70, "Replacing the imaging unit" on page 73).

If white vertical streaks appear on the page:

• The surface of the LSU part inside the machine may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page

82). If these steps do not correct the problem, contact a service representative.

Black or color background If the amount of background shading becomes unacceptable:

• Change to a lighter weight paper.

• Check the environmental conditions: very dry conditions or a high level of humidity (higher than 80% RH) can increase the amount

of background shading.

• Remove the old toner cartridge and install a new one (see "Replacing the toner cartridge" on page 70).

• Thoroughly redistribute the toner (see "Redistributing toner" on page 68).

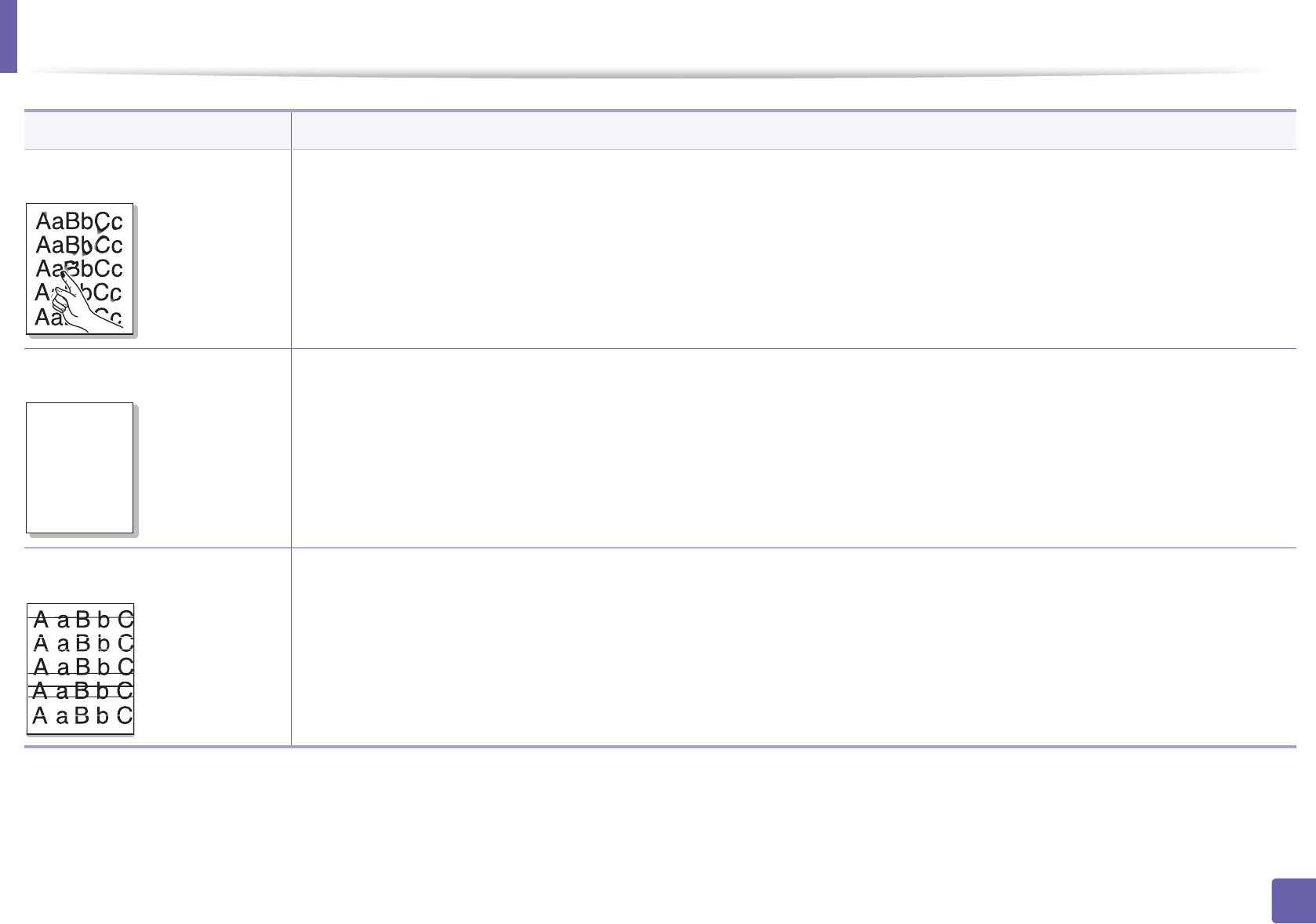

Toner smear • Clean the inside of the machine (see "Cleaning the machine" on page 82).

• Check the paper type and quality.

• Remove the toner cartridge and install a new one (see "Replacing the toner cartridge" on page 70).

Condition Suggested solutions

Printing quality problems

265

6. Troubleshooting

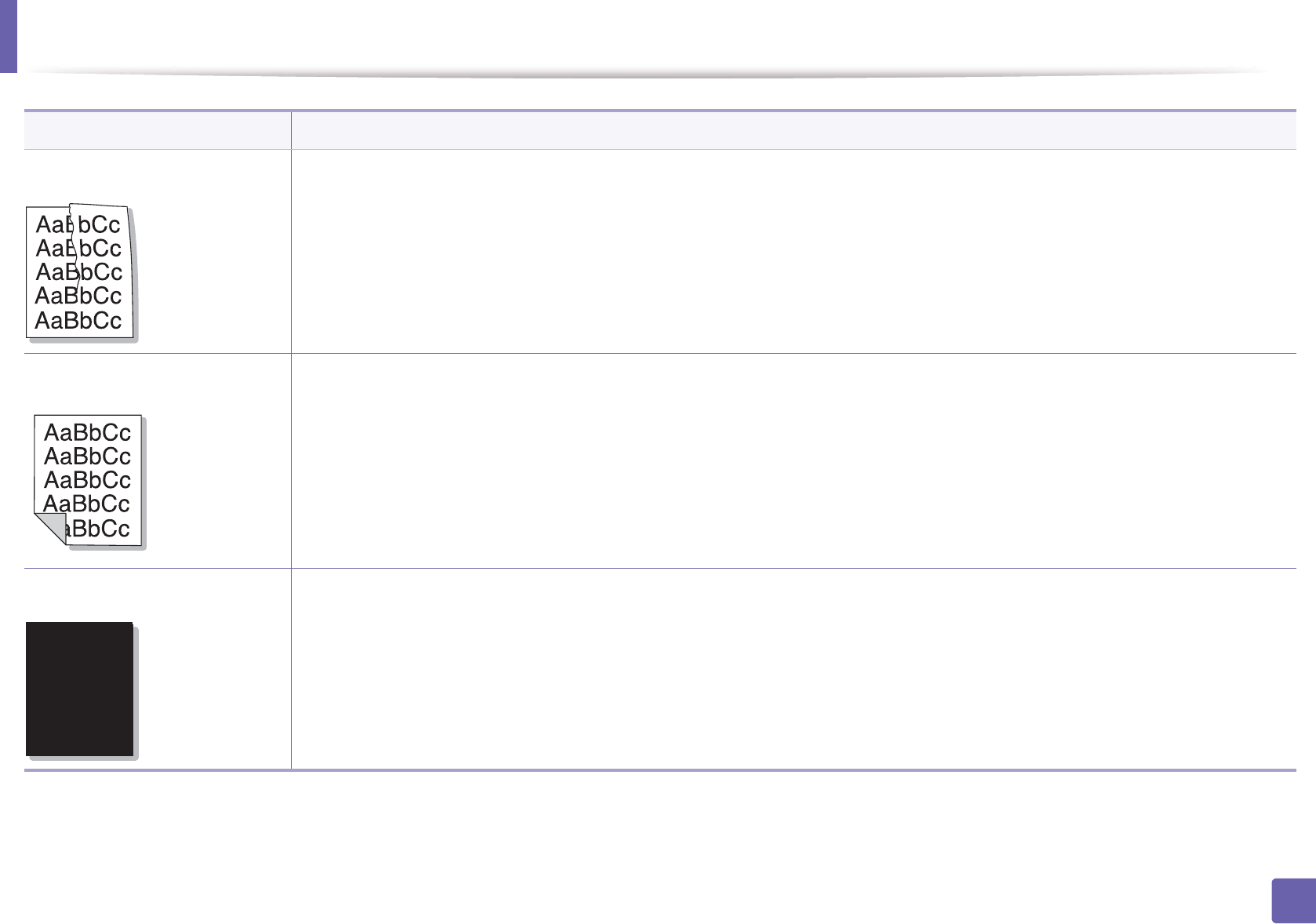

Vertical repetitive defects If marks repeatedly appear on the printed side of the page at even intervals:

• The toner cartridge may be damaged. If you still have the same problem, remove the toner cartridge and, install a new one (see

"Replacing the toner cartridge" on page 70).

• Parts of the machine may have toner on them. If the defects occur on the back of the page, the problem will likely correct itself after

a few more pages.

• The fusing assembly may be damaged. Contact a service representative.

Background scatter Background scatter results from bits of toner randomly distributed on the printed page.

• The paper may be too damp. Try printing with a different batch of paper. Do not open packages of paper until necessary so that

the paper does not absorb too much moisture.

• If background scatter occurs on an envelope, change the printing layout to avoid printing over areas that have overlapping seams

on the reverse side. Printing on seams can cause problems.

Or select Thick from the Printing Preferences window (see "Opening printing preferences" on page 51).

• If background scatter covers the entire surface area of a printed page, adjust the print resolution through your software application

or in Printing Preferences (see "Opening printing preferences" on page 51). Ensure the correct paper type is selected. For example:

If Thicker Paper is selected, but Plain Paper actually used, an overcharging can occur causing this copy quality problem.

• If you are using a new toner cartridge, redistribute the toner first (see "Redistributing toner" on page 68).

Toner particles are around bold

characters or pictures

The toner might not adhere properly to this type of paper.

• Change the printer option and try again. Go to Printing Preferences, click the Paper tab, and set the paper type to Recycled (see

"Opening printing preferences" on page 51).

• Ensure the correct paper type is selected. For example: If Thicker Paper is selected, but Plain Paper actually used, an overcharging

can occur causing this copy quality problem.

Condition Suggested solutions

Printing quality problems

266

6. Troubleshooting

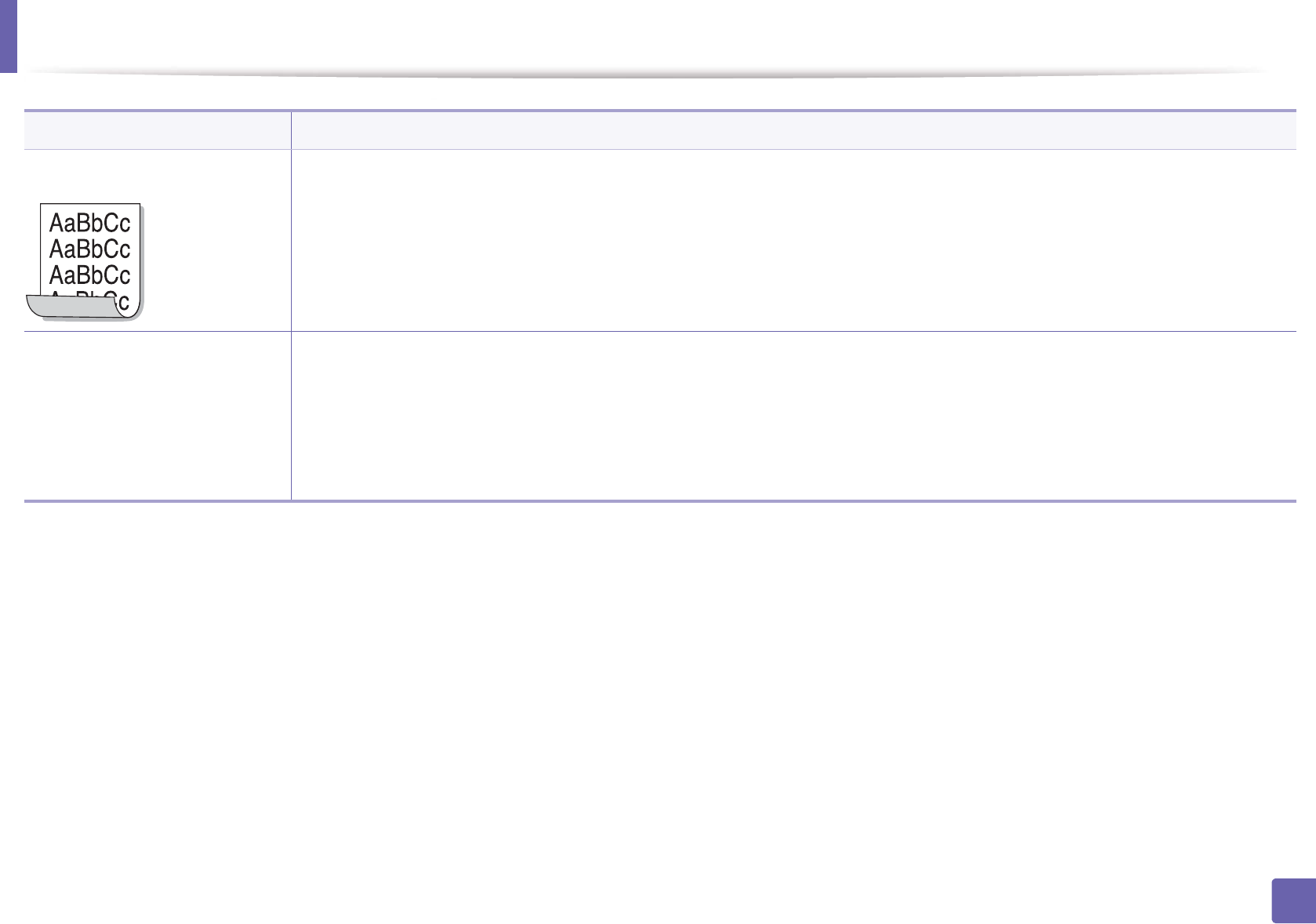

Misformed characters • If characters are improperly formed and producing hollow images, the paper stock may be too slick. Try different paper.

Page skew • Ensure that the paper is loaded properly.

• Check the paper type and quality.

• Ensure that the guides are not too tight or too loose against the paper stack.

Curl or wave • Ensure that the paper is loaded properly.

• Check the paper type and quality. Both high temperature and humidity can cause paper curl.

• Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray.

Condition Suggested solutions

AaBb

AaBbC

Printing quality problems

267

6. Troubleshooting

Wrinkles or creases • Ensure that the paper is loaded properly.

• Check the paper type and quality.

• Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray.

Back of printouts are dirty • Check for leaking toner. Clean the inside of the machine (see "Cleaning the machine" on page 82).

Solid color or black pages • The toner cartridge may not be installed properly. Remove the cartridge and reinsert it.

• The toner cartridge may be defective. Remove the toner cartridge and install a new one (see "Replacing the toner cartridge" on

page 70).

• The machine may require repairing. Contact a service representative.

Condition Suggested solutions

Printing quality problems

268

6. Troubleshooting

Loose toner • Clean the inside of the machine (see "Cleaning the machine" on page 82).

• Check the paper type, thickness, and quality.

• Remove the toner cartridge and then, install a new one (see "Replacing the toner cartridge" on page 70).

If the problem persists, the machine may require repair. Contact a service representative.

Character voids Character voids are white areas within parts of characters that should be solid black:

• You may be printing on the wrong surface of the paper. Remove the paper and turn it around.

• The paper may not meet paper specifications.

Horizontal stripes If horizontally aligned black streaks or smears appear:

• The toner cartridge may be installed improperly. Remove the cartridge and reinsert it.

• The toner cartridge may be defective. Remove the toner cartridge and install a new one (see "Replacing the toner cartridge" on

page 70).

If the problem persists, the machine may require repairing. Contact a service representative.

Condition Suggested solutions

Printing quality problems

269

6. Troubleshooting

Curl If the printed paper is curled or paper does not feed into the machine:

• Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray.

• Change the printer’s paper option and try again. Go to Printing Preferences, click the Paper tab, and set type to Thin (see

"Opening printing preferences" on page 51).

•An unknown image

repetitively appears on a few

sheets

•Loose toner

•Light print or contamination

occurs

Your machine is probably being used at an altitude of 1,000 m (3,281 ft) or above.

The high altitude may affect the print quality, such as loose toner or light imaging. Change the altitude setting for your machine (see

"Altitude adjustment" on page 209).

Condition Suggested solutions

270

6. Troubleshooting

Operating system problems

Common Windows problems

Refer to the Microsoft Windows User’s Guide that came with your computer for further information on Windows error messages.

Condition Suggested solutions

“File in Use” message appears

during installation.

Exit all software applications. Remove all software from the startup group, then restart Windows. Reinstall the printer driver.

“General Protection Fault”,

“Exception OE”, “Spool 32”, or

“Illegal Operation” messages

appear.

Close all other applications, reboot Windows and try printing again.

“Fail To Print”, “A printer

timeout error occurred”

message appear.

These messages may appear during printing. Just keep waiting until the machine finishes printing. If the message appears in ready

mode or after printing has completed, check the connection and/or whether an error has occurred.

Samsung Printer Experience is

not shown when you click more

settings.

Samsung Printer Experience is not installed. Download the app. from the Windows Store and install it.

Machine information is not

displayed when you click the

device in the Devices and

Printers.

Check the Printer properties. Click the Ports tab.

(Control Panel > Devices and Printers > Right-click on your printer icon and select Printer properties)

If the port is set to File or LPT, uncheck them and select TCP/IP, USB, or WSD.

Operating system problems

271

6. Troubleshooting

Common Mac problems

Refer to the Mac User’s Guide that came with your computer for further information on Mac error messages.

Condition Suggested solutions

The machine does not print PDF files

correctly. Some parts of graphics, text, or

illustrations are missing.

Printing the PDF file as an image may enable the file to print. Turn on Print As Image from the Acrobat printing options.

It will take longer to print when you print a PDF file as an image.

Some letters are not displayed normally

during cover page printing.

Mac OS cannot create the font while printing the cover page. The English alphabet and numbers are displayed normally on

the cover page.

Operating system problems

272

6. Troubleshooting

Common Linux problems

Refer to the Linux User’s Guide that came with your computer for further information on Linux error messages.

condition Suggested solutions

The machine does not print. • Check if the printer driver is installed in your system. Open Unified Driver Configurator and switch to the Printers tab

in Printers configuration window to look at the list of available machines. Make sure that your machine is displayed

on the list. If not, open Add new printer wizard to set up your device.

• Check if the machine is started. Open Printers configuration and select your machine on the printers list. Look at the

description in the Selected printer pane. If its status contains Stopped string, press the Start button. After that normal

operation of the machine should be restored. The “stopped” status might be activated when some problems in printing

occurred.

• Check if your application has special print option such as “-oraw”. If “-oraw” is specified in the command line parameter,

then remove it to print properly. For Gimp front-end, select “print” -> “Setup printer” and edit command line parameter

in the command item.

I encounter error “Cannot open port

device file” when printing a document.

Avoid changing print job parameters (via LPR GUI, for example) while a print job is in progress. Known versions of CUPS

(Common UNIX Printing System) server break the print job whenever print options are changed and then try to restart the

job from the beginning. Since Unified Linux Driver locks the port while printing, the abrupt termination of the driver keeps

the port locked and unavailable for subsequent print jobs. If this situation occurs, try to release the port by selecting

Release port in Port configuration window.

When printing a document over the

network in SuSE 9.2, the printer does not

print.

The CUPS (Common UNIX Printing System) version distributed with SuSE Linux 9.2 (cups-1.1.21) has a problem with ipp

(Internet Printing Protocol) printing. Use the socket printing instead of ipp or install later version of CUPS (Common UNIX

Printing System) (cups-1.1.22 or higher).

Operating system problems

273

6. Troubleshooting

Common PostScript problems

The following situations are PS language specific and may occur when several printer languages are used.

Problem Possible cause Solution

The PostScript file cannot be

printed

The PostScript driver may not be installed

correctly.

• Install the PostScript driver (see "Software Installation" on page 133).

• Print a configuration page and verify that the PS version is available for

printing.

• If the problem persists, contact a service representative.

Limit Check Error report prints The print job was too complex. You might need to reduce the complexity of the page or install more memory.

A PostScript error page prints The print job may not be PostScript. Make sure that the print job is a PostScript job. Check to see whether the software

application expected a setup or PostScript header file to be sent to the machine.

The optional tray is not

selected in the driver

The printer driver has not been configured to

recognize the optional tray.

Open the driver properties, select the Device Options tab, and set the tray option

(see "Setting Device Options" on page 76).

274

Contact SAMSUNG worldwide

If you have any comments or questions regarding Samsung products, contact

the Samsung customer care center.

Country/Region Customer Care Center WebSite

ANGOLA 91-726-7864 www.samsung.com

ARGENTINA 0800-333-3733 www.samsung.com

ARMENIA 0-800-05-555 www.samsung.com

AUSTRALIA 1300 362 603 www.samsung.com

AUSTRIA 0810-SAMSUNG (7267864, €

0.07/min)

www.samsung.com

AZERBAIJAN 088-55-55-555 www.samsung.com

BAHRAIN

8000-4726 www.samsung.com/ae

(English)

www.samsung.com/

ae_ar (Arabic)

BELARUS 810-800-500-55-500 www.samsung.com

BELGIUM

02-201-24-18 www.samsung.com/be

(Dutch)

www.samsung.com/

be_fr (French)

BOLIVIA 800-10-7260 www.samsung.com

BOSNIA 051 133 1999 www.samsung.com

BOTSWANA 0800-726-000 www.samsung.com

BRAZIL 0800-124-421

4004-0000

www.samsung.com

BULGARIA 07001 33 11 , normal tariff www.samsung.com

CAMEROON 7095- 0077 www.samsung.com

CANADA

1-800-SAMSUNG (726-7864) www.samsung.com/ca

(English)

www.samsung.com/

ca_fr (French)

CHILE 800-SAMSUNG (726-7864)

From mobile 02-24 82 82 00

www.samsung.com/cl

CHINA 400-810-5858 www.samsung.com

COLOMBIA 01-8000112112

Bogotá: 6001272

www.samsung.com/co

COSTA RICA

0-800-507-7267 www.samsung.com/

latin (Spanish)

www.samsung.com/

latin_en (English)

CROATIA 062 SAMSUNG (062 726 786) www.samsung.com

Cote D’ Ivoire 8000 0077 www.samsung.com

Country/Region Customer Care Center WebSite

Contact SAMSUNG worldwide

275

Contact SAMSUNG worldwide

CYPRUS

8009 4000 only from landline

(+30) 210 6897691 from mobile

and land line

www.samsung.com

CZECH 800-SAMSUNG (800-726786) www.samsung.com

DENMARK 70 70 19 70 www.samsung.com

DOMINICA

1-800-751-2676 www.samsung.com/

latin (Spanish)

www.samsung.com/

latin_en (English)

ECUADOR

1-800-10-7267 www.samsung.com/

latin (Spanish)

www.samsung.com/

latin_en (English)

EGYPT 08000-726786 www.samsung.com

EIRE 0818 717100 www.samsung.com

EL SALVADOR

800-6225 www.samsung.com/

latin (Spanish)

www.samsung.com/

latin_en (English)

ESTONIA 800-7267 www.samsung.com/ee

FINLAND 030-6227 515 www.samsung.com

Country/Region Customer Care Center WebSite

FRANCE 01 48 63 00 00 www.samsung.com/fr

GERMANY

0180 5 SAMSUNG bzw.

0180 5 7267864* (*0,14 €/Min.

aus dem dt. Festnetz, aus dem

Mobilfunk max. 0,42 €/Min.)

www.samsung.com

GEORGIA 8-800-555-555 www.samsung.com

GHANA 0800-10077

0302-200077

www.samsung.com

GREECE

80111-SAMSUNG (80111 726

7864) only from land line

(+30) 210 6897691 from mobile

and land line

www.samsung.com

GUATEMALA

1-800-299-0013 www.samsung.com/

latin (Spanish)

www.samsung.com/

latin_en (English)

HONDURAS

800-27919267 www.samsung.com/

latin (Spanish)

www.samsung.com/

latin_en (English)

Country/Region Customer Care Center WebSite

Contact SAMSUNG worldwide

276

Contact SAMSUNG worldwide

HONG KONG

(852) 3698-4698 www.samsung.com/hk

(Chinese)

www.samsung.com/

hk_en (English)

HUNGARY 06-80-SAMSUNG (726-7864) www.samsung.com

INDIA 1800 3000 8282

1800 266 8282

www.samsung.com/in

INDONESIA 0800-112-8888

021-5699-7777

www.samsung.com/id

IRAN 021-8255 www.samsung.com

ITALIA 800-SAMSUNG (726-7864) www.samsung.com

JAMAICA 1-800-234-7267 www.samsung.com

JAPAN 0120-327-527 www.samsung.com

JORDAN 800-22273

065777444

www.samsung.com/

Levant (English)

KAZAKHSTAN 8-10-800-500-55-500 (GSM:7799) www.samsung.com

KENYA 0800 724 000 www.samsung.com

Country/Region Customer Care Center WebSite

KUWAIT

183-2255 (183-CALL) www.samsung.com/ae

(English)

www.samsung.com/

ae_ar (Arabic)

KYRGYZSTAN 00-800-500-55-500 www.samsung.com

LATVIA 8000-7267 www.samsung.com/lv

LITHUANIA 8-800-77777 www.samsung.com/lt

LUXEMBURG 261 03 710 www.samsung.com

MALAYSIA 1800-88-9999 www.samsung.com/

MEXICO 01-800-SAMSUNG (726-7864) www.samsung.com

MOLDOVA 0-800-614-40 www.samsung.com

MONGOLIA +7-800-555-55-55 www.samsung.com

MONTENEGRO 020 405 888 www.samsung.com

MOROCCO 080 100 2255 www.samsung.com

NAMIBIA 8197267864 www.samsung.com

NIGERIA 0800-726-7864 www.samsung.com

NETHERLANDS 0900-SAMSUNG (0900-7267864)

(€ 0,10/min)

www.samsung.com

NEW ZEALAND 0800 SAMSUNG (0800 726 786) www.samsung.com

Country/Region Customer Care Center WebSite

Contact SAMSUNG worldwide

277

Contact SAMSUNG worldwide

NICARAGUA

00-1800-5077267 www.samsung.com/

latin (Spanish)

www.samsung.com/

latin_en (English)

NORWAY 815-56 480 www.samsung.com

OMAN

800-SAMSUNG (726-7864) www.samsung.com/ae

(English)

www.samsung.com/

ae_ar (Arabic)

PANAMA

800-7267 www.samsung.com/

latin (Spanish)

www.samsung.com/

latin_en (English)

PARAGUAY 98005210001 www.samsung.com

PERU

0-800-777-08 (Only from

landline)

336-8686 (From HHP & landline)

www.samsung.com

Country/Region Customer Care Center WebSite

PHILIPPINES

1-800-10-SAMSUNG(726-7864)

for PLDT

1-800-3-SAMSUNG(726-7864) for

Digitel

1-800-8-SAMSUNG(726-7864) for

Globe

02-5805777

www.samsung.com/ph

POLAND

0 801-1SAMSUNG(172-678) *

lub +48 22 607-93-33 **

* (całkowity koszt połączenia jak

za 1 impuls według taryfy

operatora)

** (koszt połączenia według

taryfy operatora)

www.samsung.com/pl

PORTUGAL 808 20-SAMSUNG (808 20 7267) www.samsung.com

PUERTO RICO 1-800-682-3180 www.samsung.com

QATAR

800-2255 (800-CALL) www.samsung.com/ae

(English)

www.samsung.com/

ae_ar (Arabic)

ROMANIA

08008 SAMSUNG (08008 726

7864)

TOLL FREE No.

www.samsung.com

Country/Region Customer Care Center WebSite

Contact SAMSUNG worldwide

278

Contact SAMSUNG worldwide

RUSSIA 800-00-0077 www.samsung.com

SAUDI ARABIA 9200-21230 www.samsung.com/sa

(Arabic)

SENEGAL 8-800-555-55-55 www.samsung.com

SERBIA

+381 11 321 6899

(old number still active 0700

7267864)

www.samsung.com

SINGAPORE 1800-SAMSUNG (726-7864) www.samsung.com

SLOVAKIA 0800 - SAMSUNG(0800-726 786) www.samsung.com

SOUTH AFRICA 0860 SAMSUNG (726-7864) www.samsung.com

SPAIN 902-1-SAMSUNG(902 172 678) www.samsung.com

SWEDEN 0771 726 7864 (SAMSUNG) www.samsung.com

SWITZERLAND

0848-SAMSUNG (7267864, CHF

0.08/min)

www.samsung.com/ch

www.samsung.com/

ch_fr/

SYRIA 18252273 www.samsung.com/

Levant (English)

TADJIKISTAN 8-10-800-500-55-500 www.samsung.com

TAIWAN 0800-329-999

0266-026-066

www.samsung.com

Country/Region Customer Care Center WebSite

TANZANIA 0685 88 99 00 www.samsung.com

THAILAND 1800-29-3232

02-689-3232

www.samsung.com/th

TRINIDAD &

TOBAGO

1-800-SAMSUNG (726-7864) www.samsung.com

TURKEY 444 77 11 www.samsung.com

U.A.E 800-SAMSUNG (726-7864) www.samsung.com

U.K 0330 SAMSUNG (726-7864) www.samsung.com

U.S.A 1-800-SAMSUNG (726-7864) www.samsung.com

UGANDA 0800 300 300 www.samsung.com

UKRAINE

0-800-502-000 www.samsung.com/ua

(Ukrainian)

www.samsung.com/

ua_ru (Russian)

URUGUAY 40543733 www.samsung.com

UZBEKISTAN 8-10-800-500-55-500 www.samsung.com

VENEZUELA 0-800-100-5303 www.samsung.com

VIETNAM 1 800 588 889 www.samsung.com

ZAMBIA 211350370 www.samsung.com

Country/Region Customer Care Center WebSite

279

Glossary

The following glossary helps you get familiar with the product by

understanding the terminologies commonly used with printing as well as

mentioned in this user’s guide.

802.11

802.11 is a set of standards for wireless local area network (WLAN)

communication, developed by the IEEE LAN/MAN Standards Committee (IEEE

802).

802.11b/g/n

802.11b/g/n can share same hardware and use the 2.4 GHz band. 802.11b

supports bandwidth up to 11 Mbps, 802.11n supports bandwidth up to 150

Mbps. 802.11b/g/n devices may occasionally suffer interference from

microwave ovens, cordless telephones, and Bluetooth devices.

Access point

Access Point or Wireless Access Point (AP or WAP) is a device that connects

wireless communication devices together on wireless local area networks

(WLAN), and acts as a central transmitter and receiver of WLAN radio signals.

ADF

An Automatic Document Feeder (ADF) is a scanning unit that will automatically

feed an original sheet of paper so that the machine can scan some amount of the

paper at once.

AppleTalk

AppleTalk is a proprietary suite of protocols developed by Apple, Inc for

computer networking. It was included in the original Mac (1984) and is now

deprecated by Apple in favor of TCP/IP networking.

BIT Depth

A computer graphics term describing the number of bits used to represent the

color of a single pixel in a bitmapped image. Higher color depth gives a broader

range of distinct colors. As the number of bits increases, the number of possible

colors becomes impractically large for a color map. 1-bit color is commonly

called as monochrome or black and white.

BMP

A bitmapped graphics format used internally by the Microsoft Windows

graphics subsystem (GDI), and used commonly as a simple graphics file format

on that platform.

Glossary

280

Glossary

BOOTP

Bootstrap Protocol. A network protocol used by a network client to obtain its IP

address automatically. This is usually done in the bootstrap process of

computers or operating systems running on them. The BOOTP servers assign

the IP address from a pool of addresses to each client. BOOTP enables 'diskless

workstation' computers to obtain an IP address prior to loading any advanced

operating system.

CCD

Charge Coupled Device (CCD) is a hardware which enables the scan job. CCD

Locking mechanism is also used to hold the CCD module to prevent any damage

when you move the machine.

Collation

Collation is a process of printing a multiple-copy job in sets. When collation is

selected, the device prints an entire set before printing additional copies.

Control Panel

A control panel is a flat, typically vertical, area where control or monitoring

instruments are displayed. They are typically found in front of the machine.

Coverage

It is the printing term used for a toner usage measurement on printing. For

example, 5% coverage means that an A4 sided paper has about 5% image or text

on it. So, if the paper or original has complicated images or lots of text on it, the

coverage will be higher and at the same time, a toner usage will be as much as

the coverage.

CSV

Comma Separated Values (CSV). A type of file format, CSV is used to exchange

data between disparate applications. The file format, as it is used in Microsoft

Excel, has become a de facto standard throughout the industry, even among

non-Microsoft platforms.

DADF

A Duplex Automatic Document Feeder (DADF) is a scanning unit that will

automatically feed and turn over an original sheet of paper so that the machine

can scan on both sides of the paper.

Default

The value or setting that is in effect when taking a printer out of its box state,

reset, or initialized.

Glossary

281

Glossary

DHCP

A Dynamic Host Configuration Protocol (DHCP) is a client-server networking

protocol. A DHCP server provides configuration parameters specific to the DHCP

client host requesting, generally, information required by the client host to

participate on an IP network. DHCP also provides a mechanism for allocation of

IP addresses to client hosts.

DIMM

Dual Inline Memory Module (DIMM), a small circuit board that holds memory.

DIMM stores all the data within the machine like printing data, received fax data.

DLNA

The Digital Living Network Alliance (DLNA) is a standard that allows devices on

a home network to share information with each other across the network.

DNS

The Domain Name Server (DNS) is a system that stores information associated

with domain names in a distributed database on networks, such as the Internet.

Dot Matrix Printer

A dot matrix printer refers to a type of computer printer with a print head that

runs back and forth on the page and prints by impact, striking an ink-soaked

cloth ribbon against the paper, much like a typewriter.

DPI

Dots Per Inch (DPI) is a measurement of resolution that is used for scanning and

printing. Generally, higher DPI results in a higher resolution, more visible detail

in the image, and a larger file size.

DRPD

Distinctive Ring Pattern Detection. Distinctive Ring is a telephone company

service which enables a user to use a single telephone line to answer several

different telephone numbers.

Duplex

A mechanism that will automatically turn over a sheet of paper so that the

machine can print (or scan) on both sides of the paper. A printer equipped with

a Duplex Unit can print on both sides of paper during one print cycle.

Duty Cycle

Duty cycle is the page quantity which does not affect printer performance for a

month. Generally the printer has the lifespan limitation such as pages per year.

The lifespan means the average capacity of print-outs, usually within the

warranty period. For example, if the duty cycle is 48,000 pages per month

assuming 20 working days, a printer limits 2,400 pages a day.

Glossary

282

Glossary

ECM

Error Correction Mode (ECM) is an optional transmission mode built into Class 1

fax machines or fax modems. It automatically detects and corrects errors in the

fax transmission process that are sometimes caused by telephone line noise.

Emulation

Emulation is a technique of one machine obtaining the same results as another.

An emulator duplicates the functions of one system with a different system, so

that the second system behaves like the first system. Emulation focuses on exact

reproduction of external behavior, which is in contrast to simulation, which

concerns an abstract model of the system being simulated, often considering its

internal state.

Ethernet

Ethernet is a frame-based computer networking technology for local area

networks (LANs). It defines wiring and signaling for the physical layer, and frame

formats and protocols for the media access control (MAC)/data link layer of the

OSI model. Ethernet is mostly standardized as IEEE 802.3. It has become the most

widespread LAN technology in use during the 1990s to the present.

EtherTalk

A suite of protocols developed by Apple Computer for computer networking. It

was included in the original Mac (1984) and is now deprecated by Apple in favor

of TCP/IP networking.

FDI

Foreign Device Interface (FDI) is a card installed inside the machine to allow a

third party device such as a coin operated device or a card reader. Those devices

allow the pay-for-print service on your machine.

FTP

A File Transfer Protocol (FTP) is a commonly used protocol for exchanging files

over any network that supports the TCP/IP protocol (such as the Internet or an

intranet).

Fuser Unit

The part of a laser printer that fuses the toner onto the print media. It consists of

a heat roller and a pressure roller. After toner is transferred onto the paper, the

fuser unit applies heat and pressure to ensure that the toner stays on the paper

permanently, which is why paper is warm when it comes out of a laser printer.

Glossary

283

Glossary

Gateway

A connection between computer networks, or between a computer network

and a telephone line. It is very popular, as it is a computer or a network that

allows access to another computer or network.

Grayscale

A shade of gray that represent light and dark portions of an image when color

images are converted to grayscale; colors are represented by various shades of

gray.

Halftone

An image type that simulates grayscale by varying the number of dots. Highly

colored areas consist of a large number of dots, while lighter areas consist of a

smaller number of dots.

Mass storage device (HDD)

Mass storage device (HDD), commonly referred to as a hard drive or hard disk, is

a non-volatile storage device which stores digitally-encoded data on rapidly

rotating platters with magnetic surfaces.

IEEE

The Institute of Electrical and Electronics Engineers (IEEE) is an international

non-profit, professional organization for the advancement of technology

related to electricity.

IEEE 1284

The 1284 parallel port standard was developed by the Institute of Electrical and

Electronics Engineers (IEEE). The term "1284-B" refers to a specific connector

type on the end of the parallel cable that attaches to the peripheral (for example,

a printer).

Intranet

A private network that uses Internet Protocols, network connectivity, and

possibly the public telecommunication system to securely share part of an

organization's information or operations with its employees. Sometimes the

term refers only to the most visible service, the internal website.

IP address

An Internet Protocol (IP) address is a unique number that devices use in order to

identify and communicate with each other on a network utilizing the Internet

Protocol standard.

Glossary

284

Glossary

IPM

The Images Per Minute (IPM) is a way of measuring the speed of a printer. An IPM

rate indicates the number of single-sided sheets a printer can complete within

one minute.

IPP

The Internet Printing Protocol (IPP) defines a standard protocol for printing as

well as managing print jobs, media size, resolution, and so forth. IPP can be used

locally or over the Internet to hundreds of printers, and also supports access

control, authentication, and encryption, making it a much more capable and

secure printing solution than older ones.

IPX/SPX

IPX/SPX stands for Internet Packet Exchange/Sequenced Packet Exchange. It is a

networking protocol used by the Novell NetWare operating systems. IPX and

SPX both provide connection services similar to TCP/IP, with the IPX protocol

having similarities to IP, and SPX having similarities to TCP. IPX/SPX was

primarily designed for local area networks (LANs), and is a very efficient protocol

for this purpose (typically its performance exceeds that of TCP/IP on a LAN).

ISO

The International Organization for Standardization (ISO) is an international

standard-setting body composed of representatives from national standards

bodies. It produces world-wide industrial and commercial standards.

ITU-T

The International Telecommunication Union is an international organization

established to standardize and regulate international radio and

telecommunications. Its main tasks include standardization, allocation of the

radio spectrum, and organizing interconnection arrangements between

different countries to allow international phone calls. A -T out of ITU-T indicates

telecommunication.

ITU-T No. 1 chart

Standardized test chart published by ITU-T for document facsimile

transmissions.

JBIG

Joint Bi-level Image Experts Group (JBIG) is an image compression standard with

no loss of accuracy or quality, which was designed for compression of binary

images, particularly for faxes, but can also be used on other images.

JPEG

Joint Photographic Experts Group (JPEG) is a most commonly used standard

method of lossy compression for photographic images. It is the format used for

storing and transmitting photographs on the World Wide Web.

Glossary

285

Glossary

LDAP

The Lightweight Directory Access Protocol (LDAP) is a networking protocol for

querying and modifying directory services running over TCP/IP.

LED

A Light-Emitting Diode (LED) is a semiconductor device that indicates the status

of a machine.

MAC address

Media Access Control (MAC) address is a unique identifier associated with a

network adapter. MAC address is a unique 48-bit identifier usually written as 12

hexadecimal characters grouped in pairs (e. g., 00-00-0c-34-11-4e). This address

is usually hard-coded into a Network Interface Card (NIC) by its manufacturer,

and used as an aid for routers trying to locate machines on large networks.

MFP

Multi Function Peripheral (MFP) is an office machine that includes the following

functionality in one physical body, so as to have a printer, a copier, a fax, a

scanner and etc.

Modified Huffman (MH) is a compression method for decreasing the amount of

data that needs to be transmitted between the fax machines to transfer the

image recommended by ITU-T T.4. MH is a codebook-based run-length

encoding scheme optimized to efficiently compress white space. As most faxes

consist mostly of white space, this minimizes the transmission time of most

faxes.

MMR

Modified Modified READ (MMR) is a compression method recommended by ITU-

T T.6.

Modem

A device that modulates a carrier signal to encode digital information, and also

demodulates such a carrier signal to decode transmitted information.

Modified Read (MR) is a compression method recommended by ITU-T T.4. MR

encodes the first scanned line using MH. The next line is compared to the first,

the differences determined, and then the differences are encoded and

transmitted.

Glossary

286

Glossary

NetWare

A network operating system developed by Novell, Inc. It initially used

cooperative multitasking to run various services on a PC, and the network

protocols were based on the archetypal Xerox XNS stack. Today NetWare

supports TCP/IP as well as IPX/SPX.

OPC

Organic Photo Conductor (OPC) is a mechanism that makes a virtual image for

print using a laser beam emitted from a laser printer, and it is usually green or

rust colored and has a cylinder shape.

An imaging unit containing a drum slowly wears the drum surface by its usage

in the printer, and it should be replaced appropriately since it gets worn from

contact with the cartridge development brush, cleaning mechanism, and paper.

Originals

The first example of something, such as a document, photograph or text, etc,

which is copied, reproduced or translated to produce others, but which is not

itself copied or derived from something else.

OSI

Open Systems Interconnection (OSI) is a model developed by the International

Organization for Standardization (ISO) for communications. OSI offers a

standard, modular approach to network design that divides the required set of

complex functions into manageable, self-contained, functional layers. The layers

are, from top to bottom, Application, Presentation, Session, Transport, Network,

Data Link and Physical.

PABX

A private automatic branch exchange (PABX) is an automatic telephone

switching system within a private enterprise.

PCL

Printer Command Language (PCL) is a Page Description Language (PDL)

developed by HP as a printer protocol and has become an industry standard.

Originally developed for early inkjet printers, PCL has been released in varying

levels for thermal, dot matrix printer, and laser printers.

PDF

Portable Document Format (PDF) is a proprietary file format developed by

Adobe Systems for representing two dimensional documents in a device

independent and resolution independent format.

Glossary

287

Glossary

PostScript

PostScript (PS) is a page description language and programming language used

primarily in the electronic and desktop publishing areas. - that is run in an

interpreter to generate an image.

Printer Driver

A program used to send commands and transfer data from the computer to the

printer.

Print Media

The media like paper, envelopes, labels, and transparencies which can be used

in a printer, a scanner, a fax or, a copier.

PPM

Pages Per Minute (PPM) is a method of measurement for determining how fast

a printer works, meaning the number of pages a printer can produce in one

minute.

PRN file

An interface for a device driver, this allows software to interact with the device

driver using standard input/output system calls, which simplifies many tasks.

Protocol

A convention or standard that controls or enables the connection,

communication, and data transfer between two computing endpoints.

See PostScript.

PSTN

The Public-Switched Telephone Network (PSTN) is the network of the world's

public circuit-switched telephone networks which, on industrial premises, is

usually routed through the switchboard.

RADIUS

Remote Authentication Dial In User Service (RADIUS) is a protocol for remote

user authentication and accounting. RADIUS enables centralized management

of authentication data such as usernames and passwords using an AAA

(authentication, authorization, and accounting) concept to manage network

access.

Resolution

The sharpness of an image, measured in Dots Per Inch (DPI). The higher the dpi,

the greater the resolution.

Glossary

288

Glossary

SMB

Server Message Block (SMB) is a network protocol mainly applied to share files,

printers, serial ports, and miscellaneous communications between nodes on a

network. It also provides an authenticated Inter-process communication

mechanism.

SMTP

Simple Mail Transfer Protocol (SMTP) is the standard for e-mail transmissions

across the Internet. SMTP is a relatively simple, text-based protocol, where one

or more recipients of a message are specified, and then the message text is

transferred. It is a client-server protocol, where the client transmits an email

message to the server.

SSID

Service Set Identifier (SSID) is a name of a wireless local area network (WLAN). All

wireless devices in a WLAN use the same SSID in order to communicate with

each other. The SSIDs are case-sensitive and have a maximum length of 32

characters.

Subnet Mask

The subnet mask is used in conjunction with the network address to determine

which part of the address is the network address and which part is the host

address.

TCP/IP

The Transmission Control Protocol (TCP) and the Internet Protocol (IP); the set of

communications protocols that implement the protocol stack on which the

Internet and most commercial networks run.

TCR

Transmission Confirmation Report (TCR) provides details of each transmission

such as job status, transmission result and number of pages sent. This report can

be set to print after each job or only after failed transmissions.

TIFF

Tagged Image File Format (TIFF) is a variable-resolution bitmapped image

format. TIFF describes image data that typically come from scanners. TIFF

images make use of tags, keywords defining the characteristics of the image that

is included in the file. This flexible and platform-independent format can be

used for pictures that have been made by various image processing

applications.

Toner Cartridge

A kind of bottle or container used in a machine like a printer which contains

toner. Toner is a powder used in laser printers and photocopiers, which forms

the text and images on the printed paper. Toner can be fused by by a

combination of heat/pressure from the fuser, causing it to bind to the fibers in

the paper.

Glossary

289

Glossary

TWAIN

An industry standard for scanners and software. By using a TWAIN-compliant

scanner with a TWAIN-compliant program, a scan can be initiated from within

the program. It is an image capture API for Microsoft Windows and Apple Mac

operating systems.

UNC Path

Uniform Naming Convention (UNC) is a standard way to access network shares

in Window NT and other Microsoft products. The format of a UNC path is:

\\<servername>\<sharename>\<Additional directory>

URL

Uniform Resource Locator (URL) is the global address of documents and

resources on the Internet. The first part of the address indicates what protocol to

use, the second part specifies the IP address or the domain name where the

resource is located.

USB

Universal Serial Bus (USB) is a standard that was developed by the USB

Implementers Forum, Inc., to connect computers and peripherals. Unlike the

parallel port, USB is designed to concurrently connect a single computer USB

port to multiple peripherals.

Watermark

A watermark is a recognizable image or pattern in paper that appears lighter

when viewed by transmitted light. Watermarks were first introduced in Bologna,

Italy in 1282; they have been used by papermakers to identify their product, and

also on postage stamps, currency, and other government documents to

discourage counterfeiting.

WEP

Wired Equivalent Privacy (WEP) is a security protocol specified in IEEE 802.11 to

provide the same level of security as that of a wired LAN. WEP provides security

by encrypting data over radio so that it is protected as it is transmitted from one

end point to another.

WIA

Windows Imaging Architecture (WIA) is an imaging architecture that is originally

introduced in Windows Me and Windows XP. A scan can be initiated from within

these operating systems by using a WIA-compliant scanner.

WPA

Wi-Fi Protected Access (WPA) is a class of systems to secure wireless (Wi-Fi)

computer networks, which was created to improve upon the security features of

WEP.

Glossary

290

Glossary

WPA-PSK

WPA-PSK (WPA Pre-Shared Key) is special mode of WPA for small business or

home users. A shared key, or password, is configured in the wireless access point

(WAP) and any wireless laptop or desktop devices. WPA-PSK generates a unique

key for each session between a wireless client and the associated WAP for more

advanced security.

WPS

The Wi-Fi Protected Setup (WPS) is a standard for establishing a wireless home

network. If your wireless access point supports WPS, you can configure the

wireless network connection easily without a computer.

XPS

XML Paper Specification (XPS) is a specification for a Page Description Language

(PDL) and a new document format, which has benefits for portable document

and electronic document, developed by Microsoft. It is an XML-based

specification, based on a new print path and a vector-based device-

independent document format.

291

Index

accessories

installing 76

ordering 64

AirPrint 183

AnyWeb Print 234

buttons

eco 23, 24

print screen 23, 24

wps 24

cleaning

inside 83

outside 82

pickup roller 85

cleaning a machine 82

control panel 23

touch screen 34

convention 12

default settings

tray setting 48

device options 76

direct printing utility 222

driver installation

Unix 149

eco printing 53

entering character 210

error message 105

favorites settings, for printing 52

features 5

machine features 188

print media feature 113

general icons 12

general settings 194

glossary 279

google cloud printing 185

jam

clearing paper 90

tips for avoiding paper jams 89

layout 191

Linux

common Linux problems 272

driver installation for network connected

148

driver installation for USB cable connected

136

driver reinstallation for USB cable connected

137

printer properties 226

printing 225

system requirements 116

unifled driver configurator 251

using SetIP 142

paper in multi-purpose (or manual feeder)

tray 42

Index

292

Index

paper in the tray1 40

paper in the tray1 / optional trays 41

special media 44

Mac

common Mac problems 271

driver installation for network connected

147

driver installation for USB cable connected

134

driver reinstallation for USB cable connected

135

printing 223

system requirements 116

using SetIP 141

machine overview

front view 20

rear view 22

maintenance parts 65

memory

memory upgrading 78

memory/hard drive feature 229

admin setup 201

counter 205, 206, 207

direct usb 203

eco 202

emulation 197

information 190

job management 200

job status 204

menu map 190

menu overview 31

multi-purpose (or manual feeder) tray

loading 42

tips on using 42

using special media 44

network

driver installation

Linux 148

Mac 147

UNIX 149

Windows 144

general setup 198

installing environment 118

introducing network programs 139

IPv6 configuration 152

SetIP program 140, 141, 142, 174

wired network setup 140

wireless network setup 156

numeric keypad 24

n-up printing

Mac 224

optional tray 64

ordering 64

output support 49

overlay printing

create 219

delete 219

print 219

paper 192

Parallel

ordering 64

placing a machine

adjusting the altitude 209

postScript driver

Index

293

Index

troubleshooting 273

mobile OS 182

mobile print 182

print media

card stock 47

envelope 45

glossy paper 48

labels 46

output support 113

preprinted paper 47

setting the paper size 48

setting the paper type 48

special media 44

transparency 46

printer preferences

Linux 226

printer status

general information 243

printing

changing the default print settings 213

Linux 225

Mac 223

multiple pages on one sheet of paper

Mac 224

printing a document

Windows 50

printing on both sides of paper

Mac 224

printing to a file 214

setting as a default machine 213

special printer features 215

UNIX 227

USB memory 57

using direct printing utility 222

printing a document

Linux 225

Mac 223

UNIX 227

printing feature 213

problem

operating system problems 270

problems

paper feeding problems 256

power problems 257

printing problems 258

printing quality problems 262

regulatiory information 119

safety

information 13

symbols 13

samsung printer experience 245

Samsung Printer Status 243

secure printing 55

service contact numbers 274

SetIP program 140, 174

Special features 208

specifications 111

print media 113

status 23, 24, 25

supplies

available supplies 62

estimated toner cartridge life 67

machine information 190

monitoring the supplies life 80

ordering 62

replacing toner cartridge 70

Index

294

Index

SyncThru Web Service

general information 236

SyncThru™ Web Service 236

toner cartridge

estimated life 67

handling instructions 66

non-Samsung and refilled 66

redistributing toner 68

replacing the cartridge 70

storing 66

tray

adjusting the width and length 39

changing the tray size 39

loading paper in multi-purpose (or manual

feeder) tray 42

ordering an optional tray 64

ordering an parallel 64

setting the paper size and type 48

understanding the status LED 102

UNIX

driver installation for network connected

149

printing 227

Unix

system requirements 117

USB cable

driver installation 27, 29, 134, 136

driver reinstallation 135, 137

USB flash memory

managing 58

printing 57

using help 52, 225

watermark

create 218

delete 218

edit 218

Windows

common Windows problems 270

driver installation for network connected

144

driver installation for USB cable connected

27, 29

system requirements 115

using SetIP 140, 174

wireless

ad hoc mode 156

Infrastructure mode 156

USB cable 163

WPS

disconnecting 160

disconnectiong

PBC mode 160

WPS (the machine does not have a display

screen)

PBC 161

PIN 161

wireless network

network cable 173

Samsung Electronics Co SLM4025NX Mono Laser Printer User Manual MagpieN english

Samsung Electronics Co Ltd Mono Laser Printer MagpieN english

Contents

Users Manual 7

Navigation menu

Namespaces

Views

Navigation
