3.2.2.7 Interleaved 2 of 5

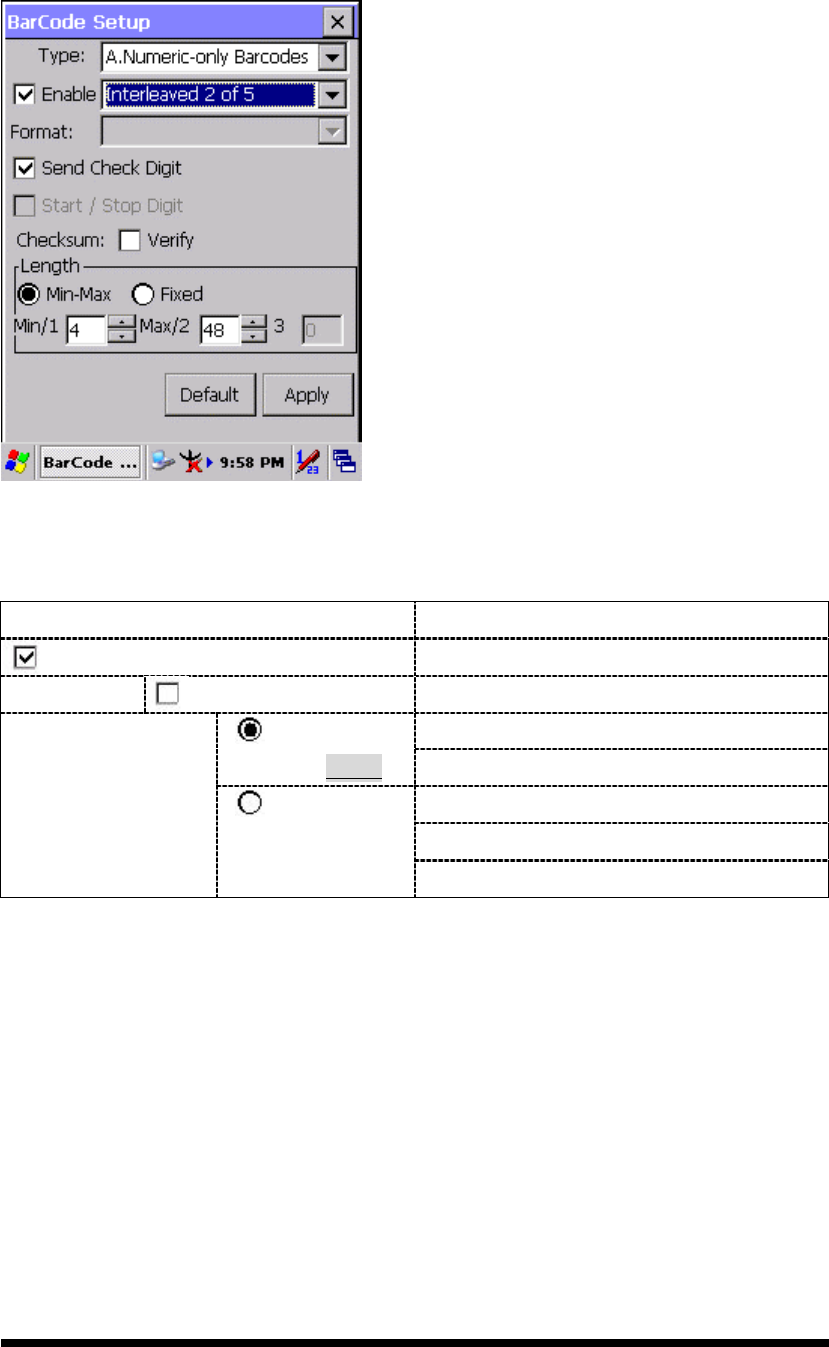

Figure 3-12 Interleaved 2 of 5
Table 3-10 Interleaved 2 of 5 Explaining
Item Explaining
Send Check Digit Whether send check digit by barcode.
Checksum Verify Whether verify checksum by barcode.
Min Length can be set from 2 to 48
Min / Max
(Default: 4 / 48) Max Length can be set from 2 to 48
Length 1 can be set from 2 to 48
Length 2 can be set from 2 to 48
Length
Fixed
Length 3 can be set from 2 to 48
![](/img.php?id=635831&img=bg2.png)
3
-
15
3.2.2.8 Plessey / MSI

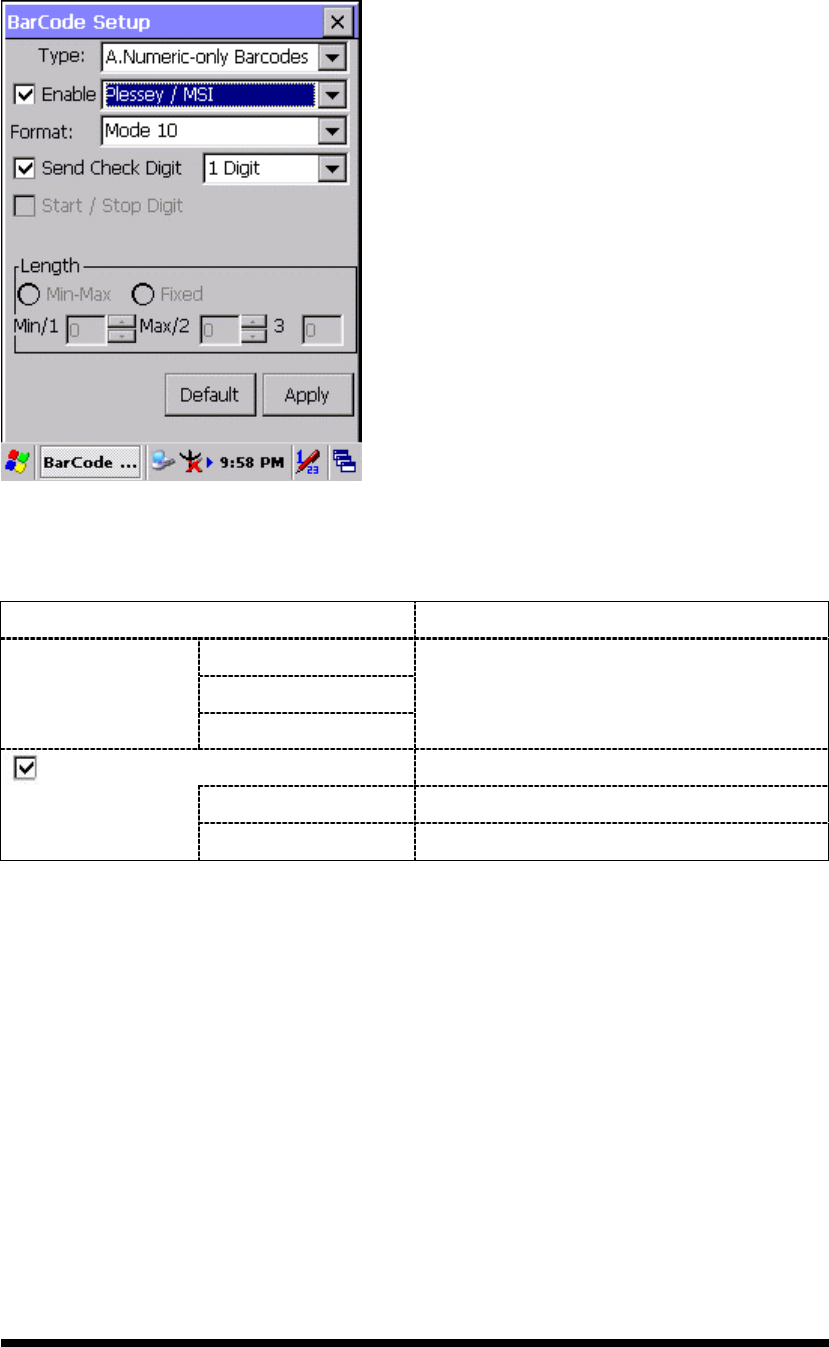

Figure 3-13 Plessey / MSI
Table 3-11 Plessey / MSI Explaining
Item Explaining
Mode 10
Mode 10-10
Format
Mode 11-10
Checksum mode for this barcode.
Send Check Digit Whether send check digit by barcode.
1 Digit Check 1 digit & send by checksum.
2 Digits Check 2 digits & send by checksum.
![](/img.php?id=635831&img=bg3.png)
3
-
16
3.2.2.9 Code11

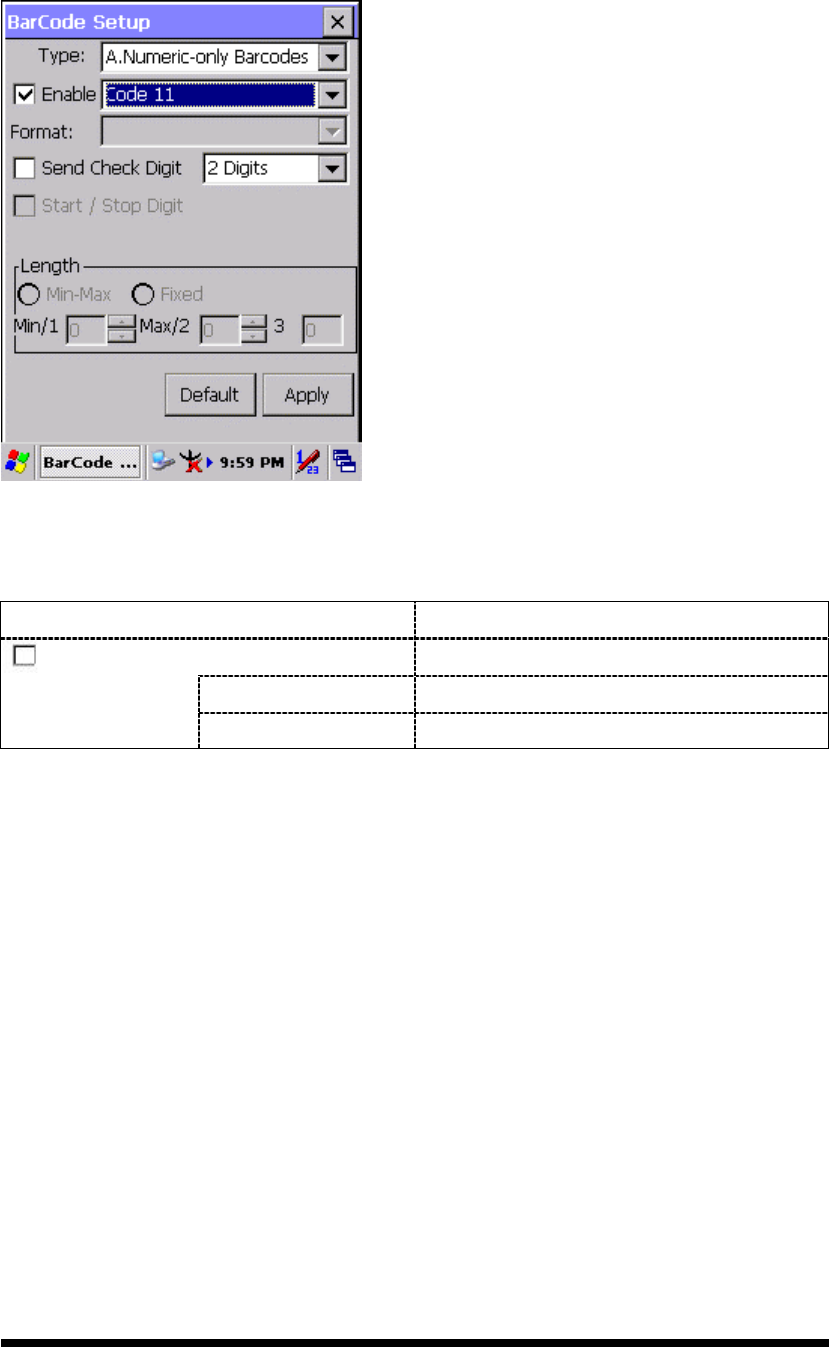

Figure 3-14 Code 11
Table 3-12 Code 11 Explaining
Item Explaining
Send Check Digit Whether send check digit by barcode.
1 Digit Check 1 digit & send by checksum.
2 Digits Check 2 digits & send by checksum.
![](/img.php?id=635831&img=bg4.png)
3
-
17
3.2.2.10 Codabar / NW7

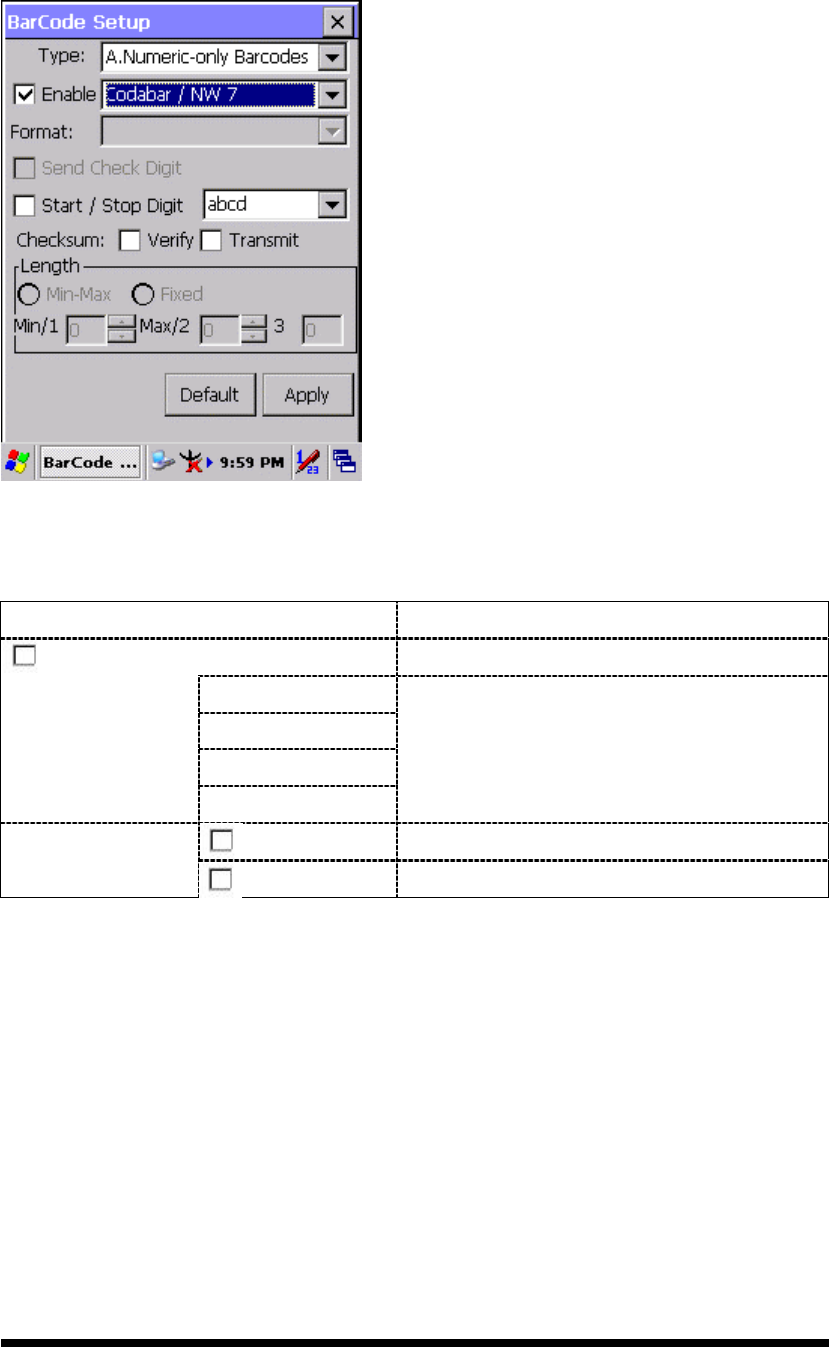

Figure 3-15 Codabar / NW7
Table 3-13 Codabar / NW7 Explaining
Item Explaining
Start / Stop Digit Whether transmit Start & Stop Digit.
ABCD
abcd
TN*E
tn*e
Start / Stop transmit type
Verify Whether verify checksum by barcode.
Checksum Transmit Whether transmit checksum by barcode.
![](/img.php?id=635831&img=bg5.png)
3
-
18
3.2.2.11 Matrix 2 of 5

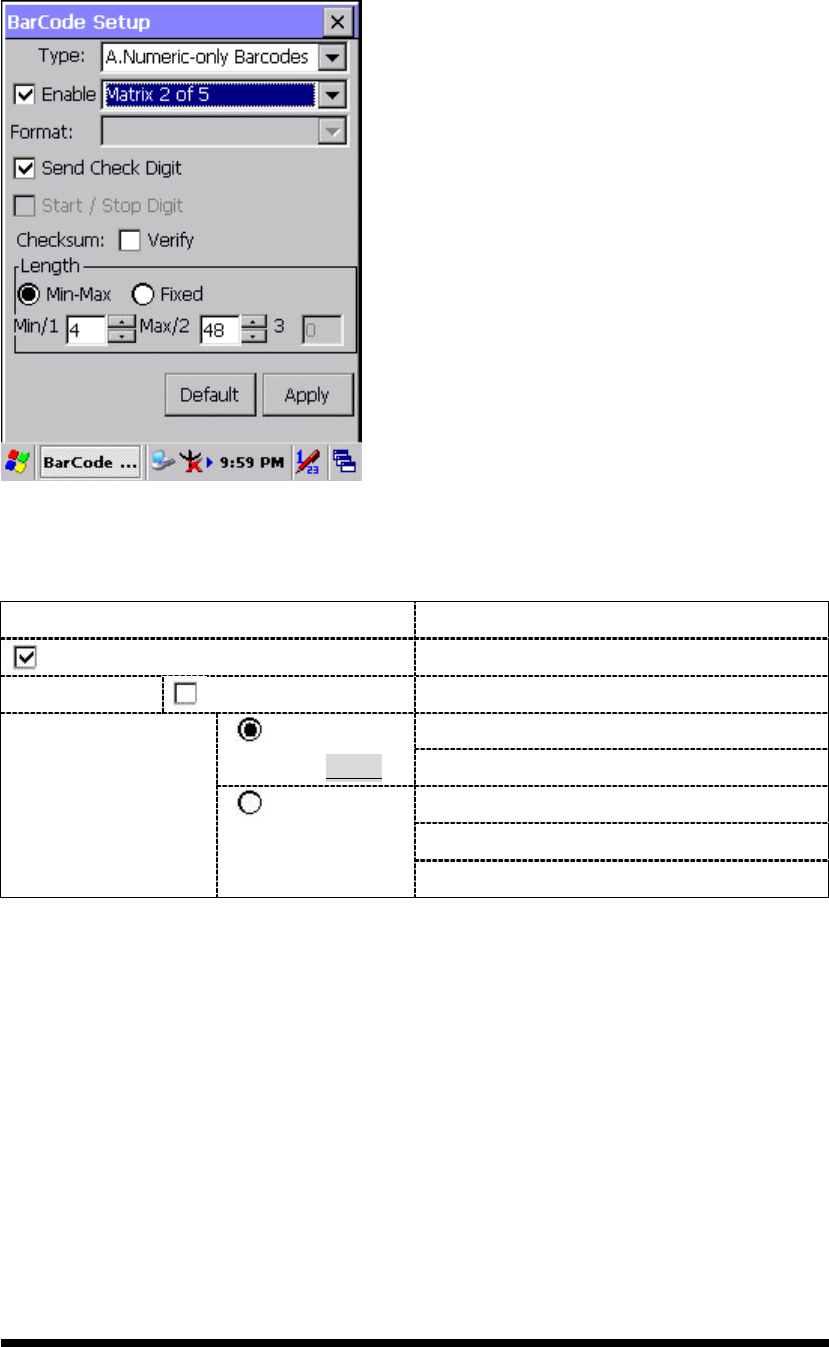

Figure 3-16 Matrix 2 of 5
Table 3-14 Matrix 2 of 5 Explaining
Item Explaining
Send Check Digit Whether send check digit by barcode.
Checksum Verify Whether verify checksum by barcode.
Min Length can be set from 4 to 48
Min-Max
(Default: 4 / 48) Max Length can be set from 4 to 48
Length 1 can be set from 4 to 48
Length 2 can be set from 4 to 48
Length
Fixed
Length 3 can be set from 4 to 48
![](/img.php?id=635831&img=bg6.png)
3
-
19
B Type -- Alphanumeric Barcodes
3.2.2.12 Code39 / Code32

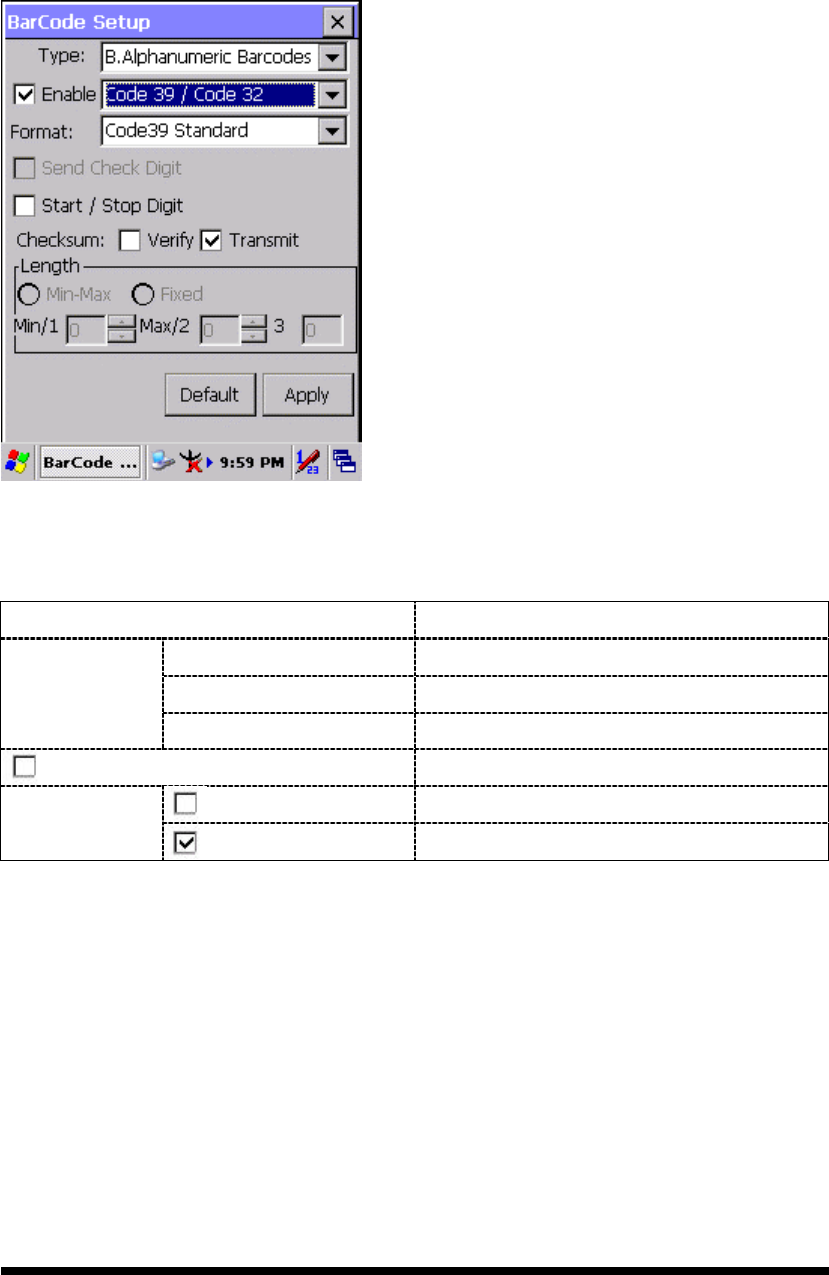

Figure 3-17 Code39 / Code32
Table 3-15 Code39 / Code32 Explaining
Item Explaining
Code39 Standard Enable Code 39 Standard characters
Code39 Full ASCII Enable Code 39 Full ASCII character
Format
Code32 Enable Code 32
Start / Stop Digit Whether transmit Start & Stop Digit.
Verify Whether verify checksum by barcode.
Checksum Transmit Whether transmit checksum by barcode.
![](/img.php?id=635831&img=bg7.png)
3
-
20
3.2.2.13 Code93
The barcode do not have setting.

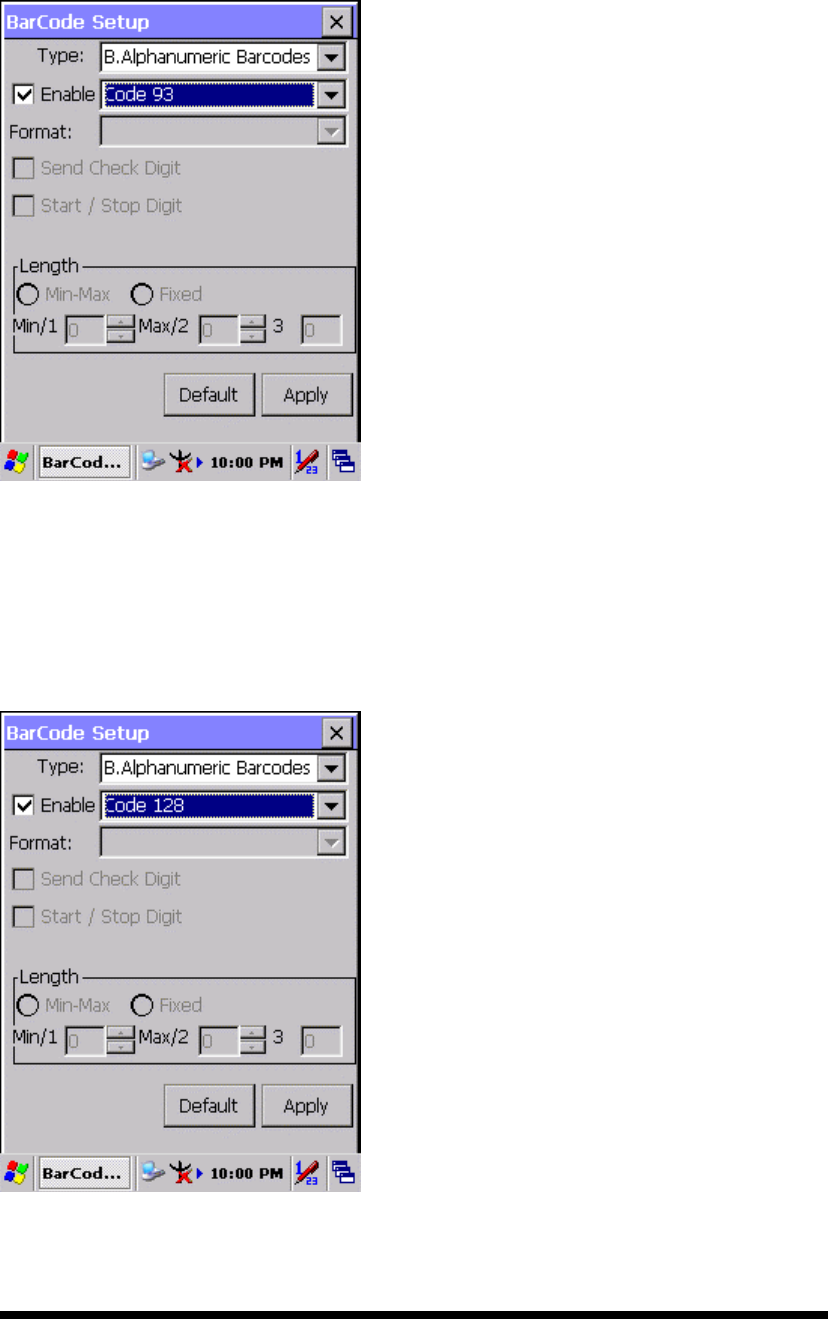

Figure 3-18 Code93
3.2.2.14 Code128
The barcode do not have setting.
Figure 3-19 Code 128
