Mode / Editing ftp Profiles / FTP
Menu Guide 165
FTP Menu, Page 2/3
Anonymous login: Highlight this option and
press the multi selector right to toggle it on
(M) or off. Turn this option on for
anonymous login, off to enter a user name
and password as described below.

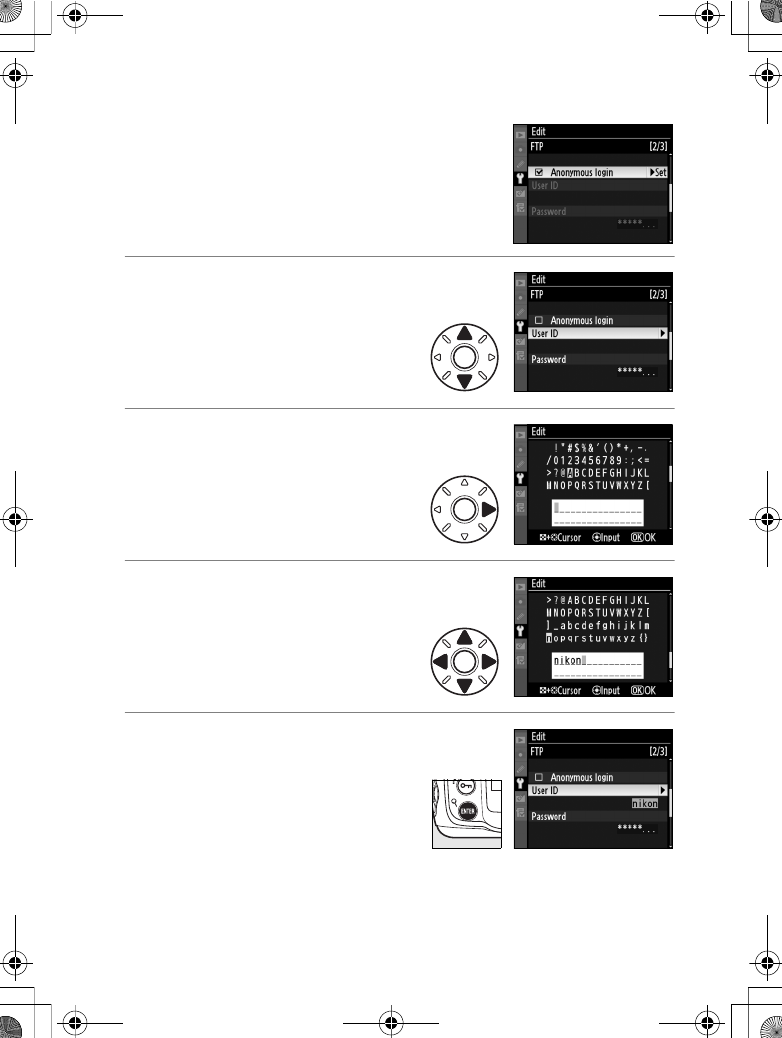

1Highlight [User ID].
2Display text entry dialog.
3Enter user name (pg.153).
4Return to ftp menu (2/3).
$00_WT-4_En.book Page 165 Friday, August 10, 2007 2:02 PM
Mode / Editing ftp Profiles / FTP
Menu Guide166

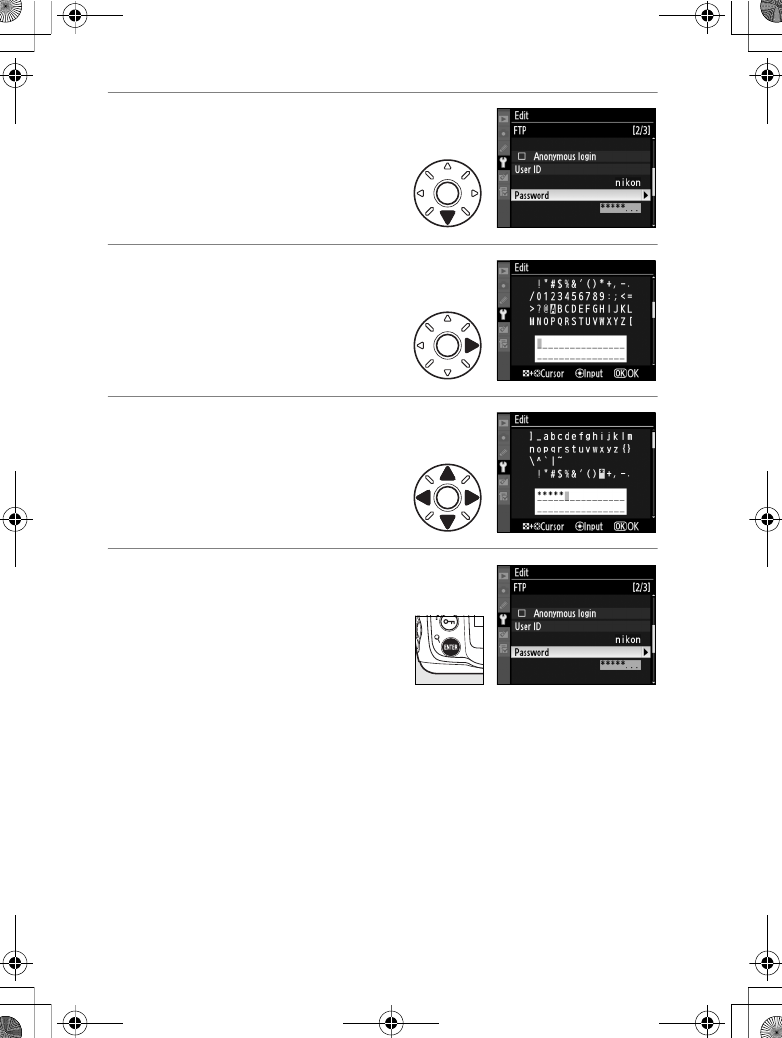

5Highlight [Password].
6Display text entry dialog.
7Enter password (pg.153).
8Return to ftp menu (2/3).
Password is disguised as a row
of dots.
$00_WT-4_En.book Page 166 Friday, August 10, 2007 2:02 PM
Mode / Editing ftp Profiles / FTP
Menu Guide 167
FTP Menu, Page 3/3
Use proxy server: Highlight this option and
press the multi selector right to toggle it on
(M) or off. If a proxy server is required for ftp,
turn this option on and enter an address and
port number as described below.

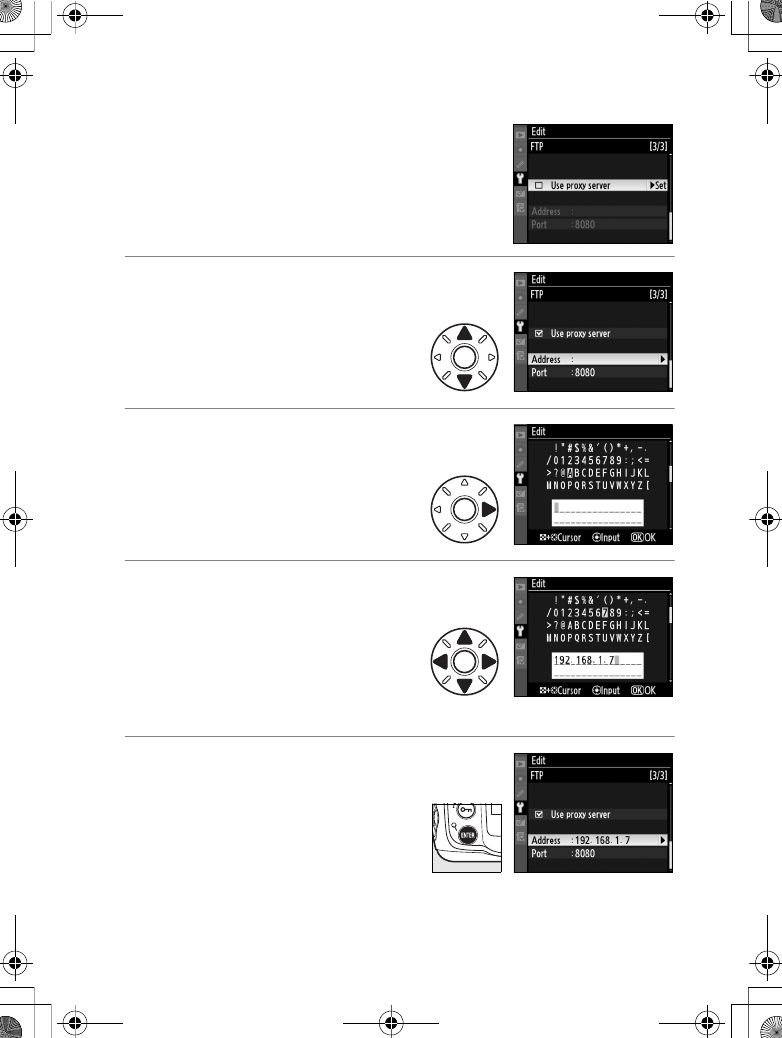

1Highlight [Address].
2Display text entry dialog.
3Enter proxy server address
(pg.153).
4Return to ftp menu (3/3).
$00_WT-4_En.book Page 167 Friday, August 10, 2007 2:02 PM
Mode / Editing ftp Profiles / FTP
Menu Guide168

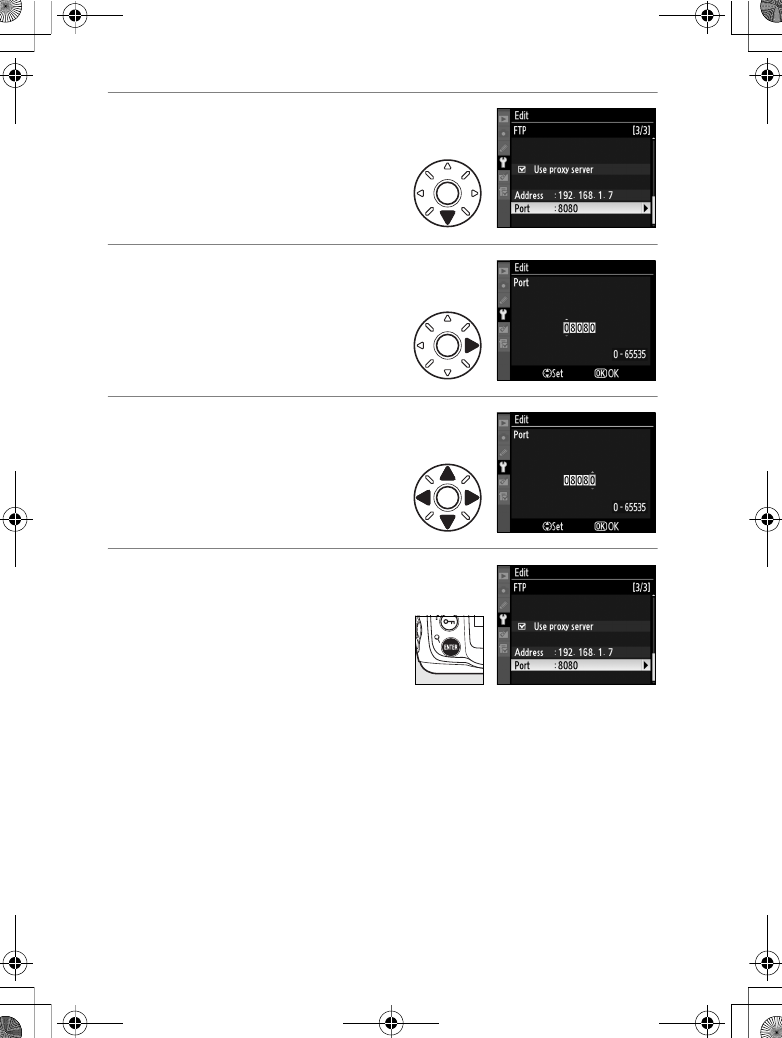

5Highlight [Port].
6Enter edit mode.
7Press multi selector left or right
to select, up or down to
change.
8Return to ftp menu (3/3).
$00_WT-4_En.book Page 168 Friday, August 10, 2007 2:02 PM
169
Transfer settings (Transfer Mode Only) / Auto Send
Menu Guide
Transfer settings (Transfer Mode Only)
The following settings are available in transfer mode:
Auto Send

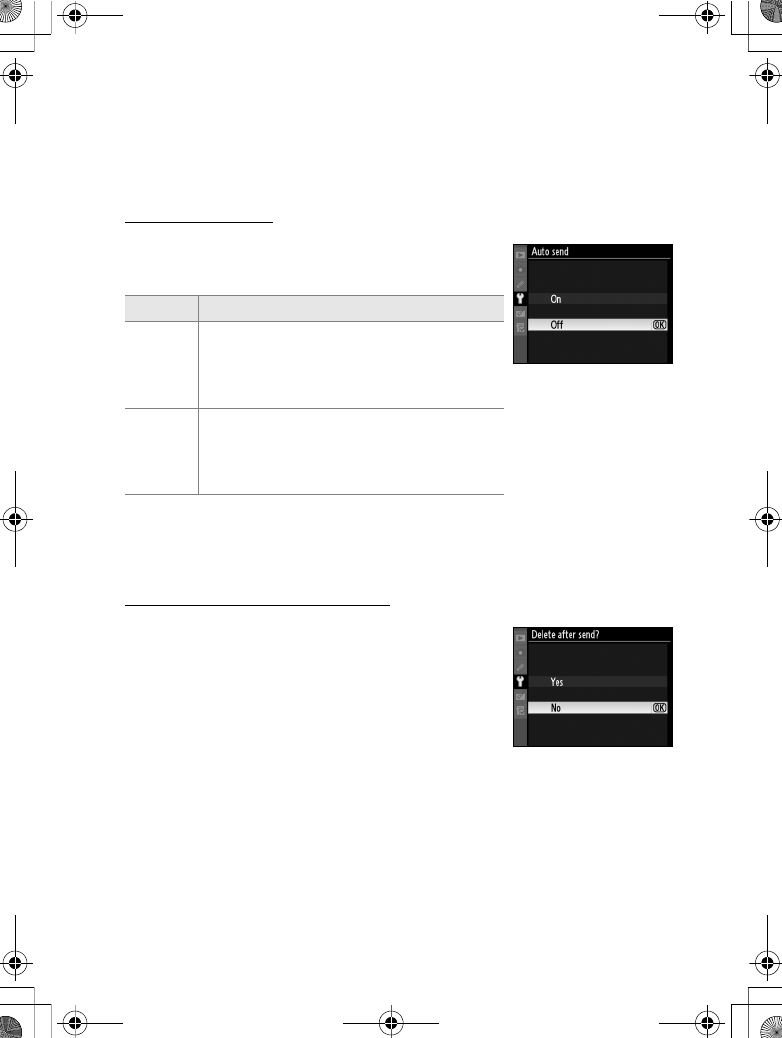

Choose whether to upload photographs to
the server as they are taken.
* Pictures will not be uploaded to the server when the WT-4 is turned off.
Pictures will instead be marked with a “send” indicator as they are
recorded to the memory card.
Delete After Send?
Select [Yes] to delete photographs from the
camera memory card automatically once
upload is complete (the default option is
[No]). Files uploaded before this option was
selected are not affected. File deletion will be
paused while the images are displayed in
menus such as [Delete], [Hide image], [Copy
image(s)] (D3 only), [Slide show], [Print set], [White balance]
(preset manual), [Retouch], [Choose slot] (D3 only), [Choose folder]
(D300 only), and during magnified display or live view shooting.
Deletion will re-commence after quitting these menus.
Option Description
On
Photos are uploaded immediately after
being recorded to camera memory
card. * Be sure memory card is inserted
in camera before shooting.
Off
(default)
Photos are not automatically uploaded
as they are taken. Photos can be
selected for transmission when camera
is in playback mode.
$00_WT-4_En.book Page 169 Friday, August 10, 2007 2:02 PM
170
Transfer settings (Transfer Mode Only) / Send File As
Menu Guide
Send File As

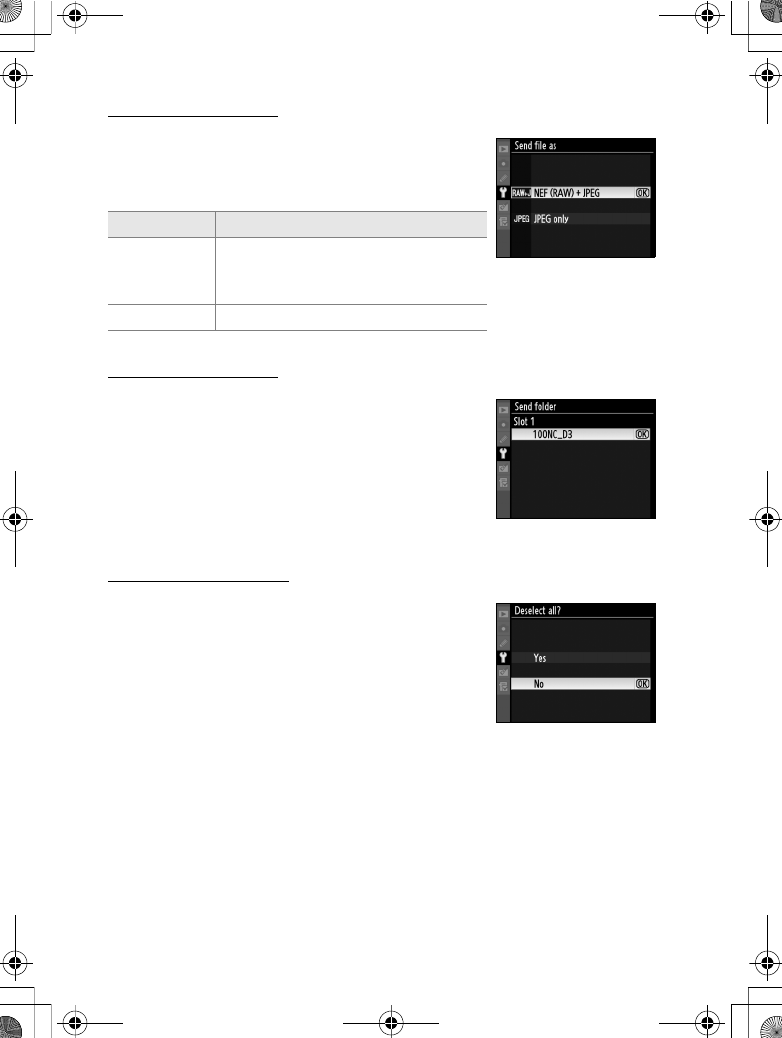

When uploading NEF + JPEG images to an ftp
server, choose whether to send both NEF
(RAW) and JPEG files or only the JPEG files.
Send Folder
All files in the selected folder (including
those already marked as “sent”) will be
uploaded, beginning when the folder is
selected.
Deselect All?
Select [Yes] to remove “send,” “sending,” and
“sent” marking from all images on the
memory card. Upload of any images marked
with a “sending” icon will immediately be
terminated.
Option Description
NEF (RAW)
+ JPEG
(default)
Upload both NEF (RAW) and JPEG
files. JPEG files are sent first.
JPEG only Upload JPEG files only.
$00_WT-4_En.book Page 170 Friday, August 10, 2007 2:02 PM
171
Print (Print Mode Only) / Deselect All?
Menu Guide
Print (Print Mode Only)

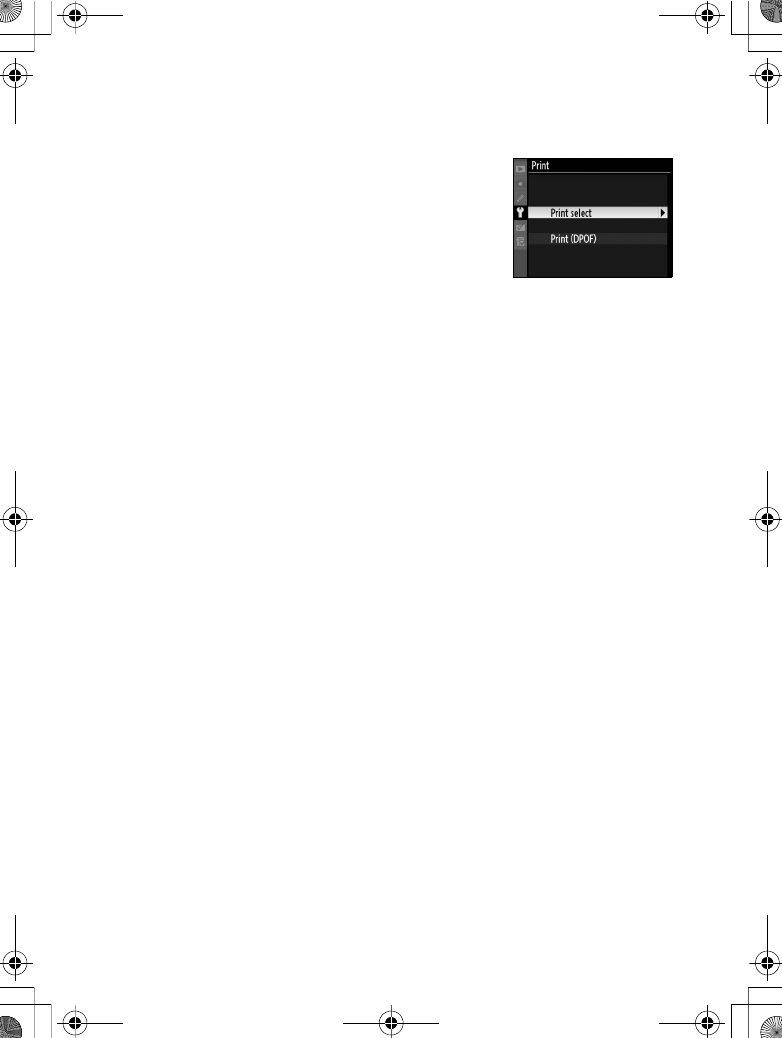

Choose a printer from the profile list. Once a
connection has been established,
photographs can be printed as described in
the camera manual. This option is only
available when the WT-4 and computer are
connected with a USB cable and the WT-4 is
on.
ARestrictions to Print Mode
•The WT-4 print mode is not compliant with the printing of RAW and TIFF
images. To print RAW and TIFF images, first send them to your computer,
then print them using the ViewNX software supplied with your camera,
or other separately-sold software such as Capture NX.
•The Index print function cannot be used.
•Pressing the camera's K button will not display the playback screen.
$00_WT-4_En.book Page 171 Friday, August 10, 2007 2:02 PM
172
Device Info / Battery Info
Menu Guide
Device Info
This menu displays the following information about the WT-4.
This option is only available when the WT-4 and computer are
connected with a USB cable and the WT-4 is on.

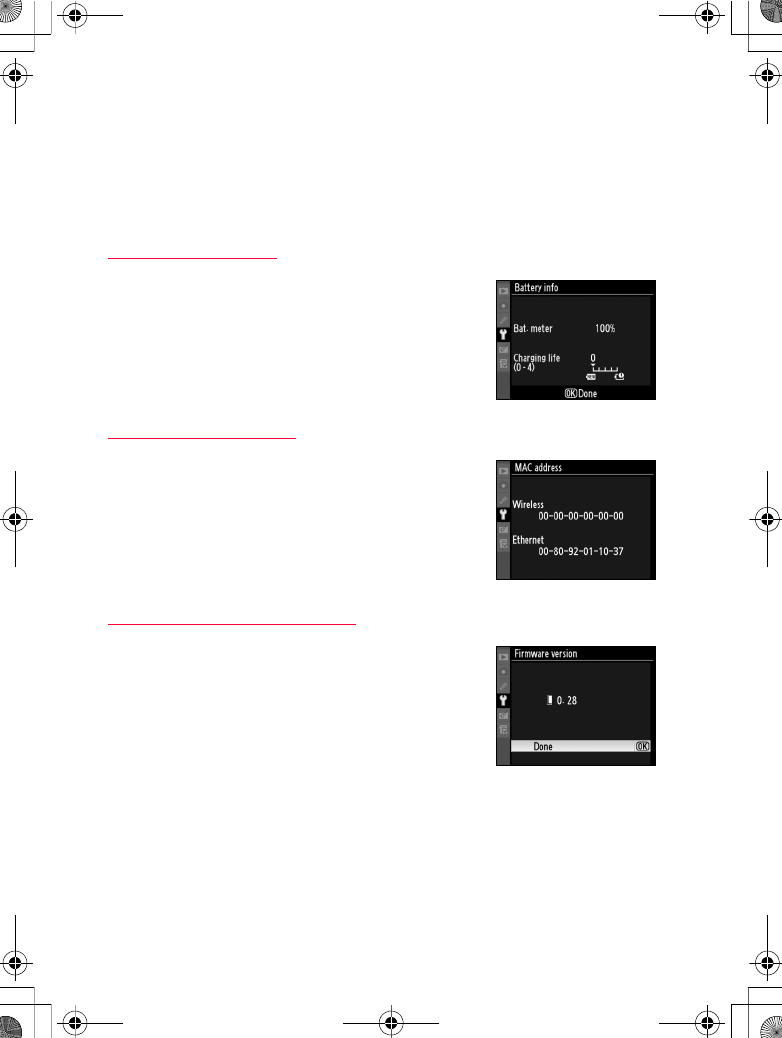

Battery Info
Displays information on the battery inserted
in the WT-4. The [Charging life] display
shows battery age; replace [Charging life]
reaches [4].
MAC Address
Shows the MAC address of the WT-4.
Firmware Version
Displays the WT-4 firmware version.
DUMMY
DUMMY
$00_WT-4_En.book Page 172 Friday, August 10, 2007 2:02 PM
173
Device Settings / Auto Power Off
Menu Guide
Device Settings
Format the transmitter’s internal memory and choose the delay
before the WT-4 turns off automatically. This option is only
available when the WT-4 and computer are connected with a USB
cable and the WT-4 is on.

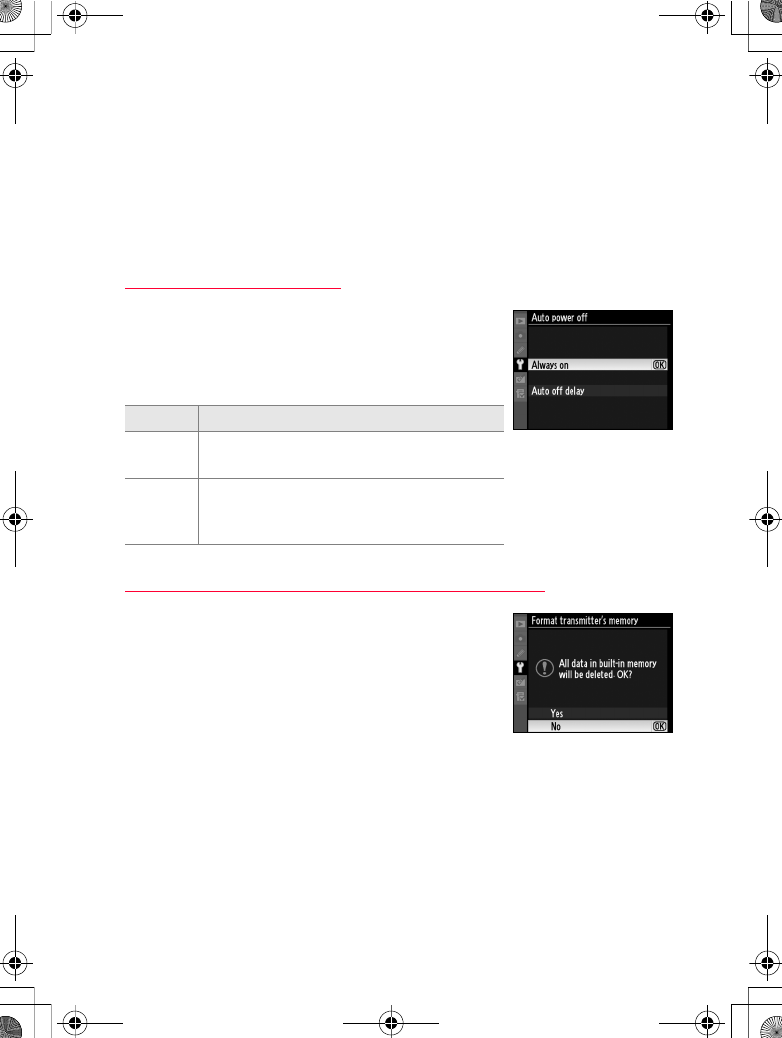

Auto Power Off
Set the time delay until the WT-4 power
automatically turns off after the USB
connection between the camera and WT-4 is
terminated.
Format Transmitter’s Memory
Format transmitter’s memory. All images
and voice memos stored in internal memory
will be deleted.
Option Description
Off
(default)
The WT-4 does not turn off
automatically.
On
Choose the delay before the WT-4 turns
off automatically from 30 seconds,
1 minute, 10 minutes, and 30 minutes.
$00_WT-4_En.book Page 173 Friday, August 10, 2007 2:02 PM
174
Device Settings / Format Transmitter’s Memory
Menu Guide
$00_WT-4_En.book Page 174 Friday, August 10, 2007 2:02 PM
Appendices 175
Appendices
Creating ftp Profiles Using
Camera Menus
In transfer mode, the camera menus can be used in place of the WT-4
Setup Utility to create ftp profiles. Before creating an ftp profile with
the camera menus, set the camera [USB] option to [MTP/PTP] and
connect the WT-4. To prevent unexpected loss of power, be sure the
battery is fully charged or use an optional AC adapter.

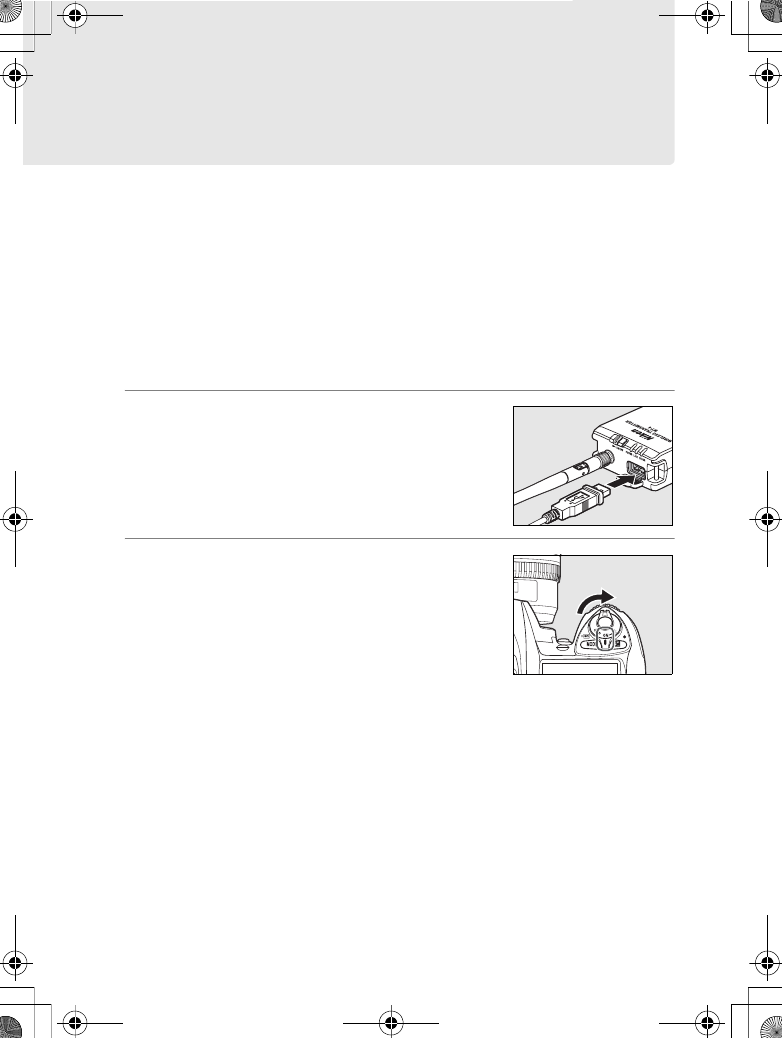

1Open the WT-4 USB connector cover and
connect the USB cable from the WT-4 to
the camera USB connector.
2Turn the camera on.
DUsing the Menus
If the shutter-release button on the camera is pressed while menus are
displayed, the monitor will turn off and any changes to the current profile
will be lost.
AFirewalls
The WT-4 uses TCP ports 20 and 21 for ftp. It may be necessary to adjust
firewall settings before connecting to a server behind a firewall.
AEditing Existing ftp Profiles
See the Menu Guide for information on using camera menus to edit
existing ftp profiles.
U
MMY
$00_WT-4_En.book Page 175 Friday, August 10, 2007 2:02 PM
176
Creating ftp Profiles Using Camera Menus
Appendices
3Turn on the WT-4.
4Select [Transfer mode] for [Wireless
transmitter] > [Mode] (pg.152).
5A profile list will be displayed showing
the connections available in transfer
mode. Highlight [FTP registration] and
press the multi selector to the right.
Note a new ftp profile can not be created
if the camera already contains nine
profiles; if necessary, delete a profile using the O button.
6The registration dialog shown at right
will be displayed. Press 1 or 3 to
highlight an option, then press to the
right to select. Select [Done] to proceed
to Step 5 when settings are complete.
Rename: The dialog shown at right will be
displayed. Enter a profile name of up to
16 characters as described in “Text Entry”
(pg.153) and press the J button to
return to the registration dialog.
Power switch
$00_WT-4_En.book Page 176 Friday, August 10, 2007 2:02 PM
177
Creating ftp Profiles Using Camera Menus
Appendices

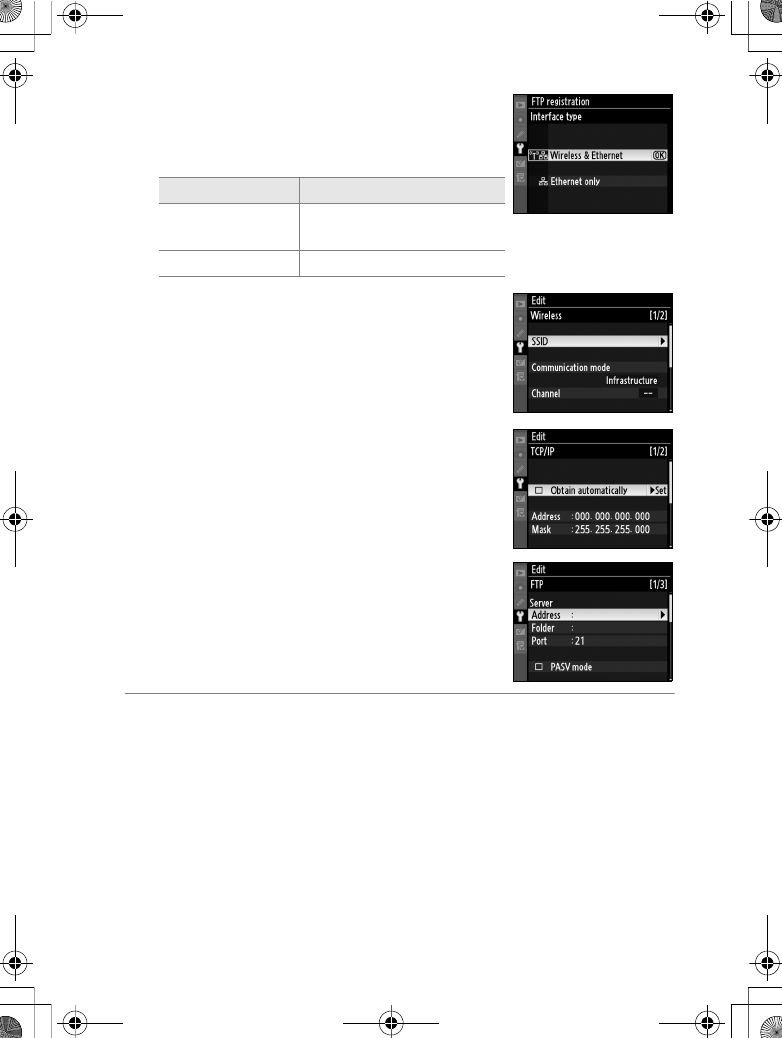

Interface type
: The dialog shown at right
will be displayed. Highlight one of the
following options and press the
J
button
to return to the registration dialog.
Wireless:
If [Wireless & Ethernet] is selected
for [Interface type], select this option to
adjust wireless settings as described in
the Menu Guide (pp.154–157). Press
4
to
return to the registration dialog when
settings are complete.
TCP/IP: Adjust TCP/IP settings as
described in the Menu Guide (pp.158–
161). Press 4 to return to the
registration dialog when settings are
complete.
FTP: Adjust ftp settings as described in
the Menu Guide (pp.162–168). Press 4
to return to the registration dialog when
settings are complete.
7A confirmation dialog will be displayed. Choose from the
following options:
•Yes: Open a connection to the new server and return to the
top level of the wireless transmitter menu.
•No: Return to Step 3 without connecting to the server.
AErrors
An error will be displayed if the new profile does not match server
settings. Edit wireless, TCP/IP, and ftp settings as described in the Menu
Guide (pg.153).
Option Description
Wireless & Ethernet
(default)
Connect via wireless and/
or Ethernet.
Ethernet only Connect via Ethernet only.
$00_WT-4_En.book Page 177 Friday, August 10, 2007 2:02 PM
178
Troubleshooting
Appendices
Troubleshooting
Problem Solution Page
“POWER” LED does
not light.
•Turn the WT-4 on.
•Confirm that the battery is inserted
and fully charged.
pg.71, 82, 91,
103, 141
pg.8, 172
[Wireless
transmitter] option
not available.
•Select [MTP/PTP] for [USB] option in
camera setup menu.
•Confirm that the connection
between the WT-4 and camera and
turn the WT-4 on.
pg.7
pg.70, 81, 90,
102, 140
The [Print], [Device
info], and [Device
settings] menus
cannot be
selected.
•Confirm that the connection
between the WT-4 and camera and
turn the WT-4 on.
pg.70, 81, 90,
102, 140
Excessive radio
interference. Change orientation of antenna. —
All LEDs blink at
once.
WT-4 hardware or battery
malfunction. Contact a Nikon-
authorized service representative.
—
Camera displays
TCP/IP or FTP error.
•Check settings for host and/or
wireless LAN adapter and adjust
camera settings appropriately.
•Check firewall settings.
pg.54, 65,
123, 134, 153
pg.5
Camera displays
wireless error.
•Confirm that host and wireless LAN
adapter are on.
•Ensure that there are no obstacles
between WT-4 and wireless LAN
adapter.
•Check settings for host and/or
wireless LAN adapter and adjust
camera settings appropriately.
—
—
pg.54, 65,
123, 134, 153
Camera displays
“Ethernet cable is
not connected”.
Connect Ethernet cable or change
interface setting to [Wireless &
Ethernet].
pg.51, 62,
121, 131, 177
$00_WT-4_En.book Page 178 Friday, August 10, 2007 2:02 PM
179
Troubleshooting
Appendices
Memory card error
displayed.
Confirm that memory card is properly
inserted. pg.70, 81, 140
Error displayed
stating that no
images are
available for
printing.
Only JPEG images can be printed from
the camera. Transfer RAW (NEF) and
TIFF images to computer and print
them using Capture NX (available
separately) or View NX.
—
Transfer
interrupted before
all photographs
are sent.
Transfer will resume if camera is
turned off and then on again,
exposure meters are reactivated, or
WT-4 is turned off and then on again.
pg.71, 82, 91,
103, 141
The USB cable was
detached during
transmission.
Re-insert the USB cable while the
camera is on. —
Problem Solution Page
$00_WT-4_En.book Page 179 Friday, August 10, 2007 2:02 PM
180
Glossary
Appendices
Glossary
Ad-hoc: Devices in an ad-hoc wireless network communicate directly (“peer
to peer”), without a wireless access point.
AES (Advanced Encryption Standard): An encryption standard developed for use
by the American government. AES has been praised for combining strong
encryption with rapid processing.
Auto IP (APIPA—Automatic Private IP Addressing): Allows devices in a network to
automatically assign themselves unique IP addresses if no DHCP server is
found on the network. Auto IP uses addresses from 169.254.1.0 to
169.254.254.255 and a sub-net mask of 255.255.0.0. These addresses are
neither global nor private but are reserved for Auto IP.
BSS-ID (Basic Service Set ID): All wireless devices on an ad-hoc wireless network
share the same BSS-ID. The BSS-ID may be up to thirty-two characters
long and is case sensitive. See also Ad-hoc.
Channel: When multiple wireless LANs with different ESS-IDs are operating
on a single frequency within a given area, transmission speeds will drop.
Specifying a separate channel (frequency) for each network can prevent
interference and increase transmission speeds (note that all devices in the
same network must be set to the same channel). In the IEEE 802.11a
standard, the 5 GHz band is divided into 19 channels, each separated by
20 MHz. In the IEEE 802.11b/g standard, the 2.4 GHz band is divided into
14 channels, each separated by 4 MHz.
DHCP (Dynamic Host Configuration Protocol) Server: Each device in a TCP/IP
network requires an IP address. If a DHCP server is present on the
network, IP addresses will be assigned automatically.
DNS (Domain Name Server): A server that contains a database of IP addresses and
host names for the machines it administers and that converts host names to
IP addresses in response to queries from clients. Each DNS can also query
other Domain Name Servers for addresses not listed in its database.
ESS-ID (Extended Service Set ID): Multiple BSSs can be configured to form an ESS,
allowing users to roam between wireless access points. Only devices with the
same ESS-ID as a given access point can communicate with that access point.
The ESS-ID may be up to thirty-two characters long and is case sensitive.
Ethernet: The name given to the IEEE 802.3 LAN standard. Devices in an
Ethernet network are connected via UTP cables for transmission speeds of
up to 10 Mbps (10 base-T) or 100 Mbps (100 base-TX).
Gateway: A network node that acts as an entrance to another network, for
example between a company network and the Internet.
$00_WT-4_En.book Page 180 Friday, August 10, 2007 2:02 PM
181
Glossary
Appendices
IEEE 802.11a/b/g: A wireless LAN standard determined by the 802 committee
which plans LAN technology standards at the IEEE.
IIS (Internet Information Services): Microsoft’s name for its Web server software.
Notable for its close connection to Windows-based systems through
Active Server Pages (ASPs). When installed as part of the operating
system, IIS makes it relatively easy to build web a server.
Infrastructure: Devices in an infrastructure network communicate via
wireless access points that may be connected to an Ethernet network,
allowing wireless and Ethernet devices to coexist on a single network.
IP address: The address given to each node in a TCP/IP network. All nodes in
a TCP/IP network must have a unique IP address. Private IP addresses are
recommended for nodes that are part of a local network.
Key index: A number identifying which WEP key is to be used for encryption
when communicating via an access point with more than one WEP key.
All devices on the network must use the same key index.
LAN (Local Area Network): A network of computers located in relatively close
proximity to one another. LANs generally support data transfer speeds of
10–100 Mbps.
MAC (Media Access Control) Address: A unique hardware address for each device
on a network, required when sending and receiving packets.
Open system: The name given to a wireless network using no authentication
(open authentication). Open systems are relatively insecure, as a
password is not required to gain access to the server.
PASV mode: PASV mode is used by clients behind firewalls, when it allows
the ftp server to supply the port number.
Private IP address: An IP address that is only visible within a local network.
Because packets using a private IP address can not be transmitted to
another network, they are usually sent between networks via a proxy
server or NAT. Private IP addresses in the range 10.0.0.0–10.255.255.255
are termed “class A.” Class B addresses are in the range 172.16.0.0–
172.31.255.255, class C addresses in the range 192.168.0.0–
192.168.255.255. The class of address used depends on the size of the
network. Class C addresses are often used for small networks.
Protocol: A set of rules for passing information back and forth between
devices in a network. By defining such elements of communication as
how links are established, how receipt of a signal is acknowledged, how
data are encoded, and how to handle errors, a protocol ensures that data
are transmitted without loss of information.
Proxy: A server that stands between large networks and local networks or
computers, typically to ensure security. One element of a firewall.
$00_WT-4_En.book Page 181 Friday, August 10, 2007 2:02 PM
182
Glossary
Appendices
PTP-IP (Picture Transfer Protocol over Internet Protocol): A commonly used name
for the CIPA DC-005-2005 image transfer protocol for transmitting images
over LANs. It represents an extension to the Picture Transfer Protocol (PTP)
used to transfer images between cameras and computers connected via
USB cable. The WT-4 uses PTP-IP to communicate with host computers.
Shared key: An authentication system in which WEP keys are used to
establish whether a client has access to the network. Communication is
restricted to devices with the same WEP key.
SS-ID (Service Set ID): An SS-ID prevents interference between devices in
different networks by allowing communication only between devices that
share an SS-ID. See BSS-ID, ESS-ID.
Sub-net mask: A mask that divides a network into sub-nets.
TCP/IP (Transmission Control Protocol/Internet Protocol): A dual protocol consisting
of a transport-layer protocol (TCP) that divides data into packets which it
later reassembles, and a network protocol (IP) that handles transmission
of the packets between points in the network. It can be implemented on
different platforms, allowing data to be transmitted between machines
with different operating systems.
TKIP (Temporal Key Integrity Protocol): An encryption standard using dynamic
WPA-PSK keys that change periodically or after a specified amount of data have
been transmitted, making it more secure that WEP, which uses fixed keys.
UDP (User Datagram Protocol): A fast but unreliable transport layer
transmission protocol using the OSI model.
USB (Universal Serial Bus): A standard for connecting peripheral devices. USB
supports data transfer rates of up to 480 Mbps (USB 2.0). Devices
connected via USB can be connected and disconnected with the power
on (“hot plug”) and do not require separate IRQ (interrupt request)
numbers, preventing conflicts with other devices.
WAN (Wide Area Network): A network connecting computers or LANs in widely
separated locations. The Internet is an example of a WAN.
WEP (Wired Equivalent Privacy): A type of encryption in which the data
transmitted between devices is encoded using a shared encryption key
(WEP key).
Wireless LAN access point: A wireless transceiver that acts as the connection
between wireless devices and a wireless network.
WPA-PSK (WiFi Protected Access with Pre-Shared Key): A type of authentication for
wireless networks using previously-established (pre-shared) TKIP or AES
keys. Wireless devices using this form of authentication can only
communicate with devices with the same pre-shared key.
$00_WT-4_En.book Page 182 Friday, August 10, 2007 2:02 PM
183
Specifications
Appendices
Specifications
* Maximum logical data rates according to IEEE standard. Actual rates
may differ.
Wireless
Standards
IEEE 802.11a (J52/W52/W53)/b/g (standard wireless
LAN protocol), ARIB STD-T66, ARIB STD-T71
(standard for low power data communications
systems)
Communications
protocols
IEEE 802.11a/g: OFDM
IEEE 802.11b: DBPSK, DQPSK, CCK
Operating frequency
5170–5320 MHz (J52: 4 channels, W52/W53: 8
channels)
2412–2472 MHz (13 channels)
Range (line of sight)
IEEE802.11a: Approximately 260 m (853 ft.) with
large antenna at wireless LAN access point
IEEE802.11b/g: Approximately 180 m (590 ft.) with
large antenna at wireless LAN access point
Data rates * IEEE 802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
IEEE 802.11b: 1, 2, 5.5, and 11 Mbps
Security TKIP, AES, 128/64-bit (104/40-bit) WEP
Access protocols Infrastructure/ad-hoc
Ethernet
Standards IEEE 802.3u (100 base-TX)/IEEE 802.3 (10 base-T)
Data rates 10/100 Mbps with auto detect
Port 100 base-TX/10 base-T (AUTO-MDIX)
Data transfer protocols PTP-IP, ftp
Power consumption 4.5 W maximum
Power source Rechargeable EN-EL3e Li-ion battery ×1 (available
separately), EH-6 AC adapter (available separately)
Operating environment Temperature: 0–40 °C (32–131 °F)
Humidity: less than 85% (no condensation)
Weight WT-4: 150 g/5.3 oz. (body only)
Dimensions (W × H × D) 67 mm × 125 mm × 35 mm
(2.6 in. × 4.9 in. × 1.4 in.)
$00_WT-4_En.book Page 183 Friday, August 10, 2007 2:02 PM
184
Specifications
Appendices
ANumber of Shots Which Can Be Transferred and Operating Time
(Battery Life)
Reference value: The estimated number of shots which can be transferred
and estimated operating time (battery life) using a Li-ion rechargeable
battery EN-EL3e (1500mAh).
Battery life will differ depending on the charge and usage environment.
•Measurements are conducted in accordance with our company's
measurement conditions (normal temperature 23°C (73.4 °F)).
•Indicated values are derived on the basis of our company's test
conditions. These values will vary according to shooting conditions,
signal condition, and WT-4 settings.
•When image files at an average size of 3 Mbytes per shot are
continuously transmitted.
•The WT-4 should be configured to transfer mode with the network
computer (Windows Vista Ultimate).
•The wireless LAN connection method should be set to infrastructure
mode.
To ensure maximum battery performance:
•Keep the battery contacts clean.
Soiled contacts can reduce battery
performance.
•Use batteries immediately after charging.
Batteries will lose their charge
if left unused.
Number of shots
during continuous
uploading
Operating time
Wireless LAN (802.11a) uploading 4,500 shots 150 minutes
(2.5 hour)
Wireless LAN (802.11g) uploading 4,500 shots 150 minutes
(2.5 hour)
Ethernet (100BASETx) uploading 10,000 shots 150 minutes
(3.2 hour)
$00_WT-4_En.book Page 184 Friday, August 10, 2007 2:02 PM
185
Index
Symbols
a, b, c76, 147
A
AC Adapter 9
Ad-hoc 15, 16, 25, 37, 48, 119, 154, 180
Antenna 2, 3, 8, 178
[Auto power off] 9, 173
[Auto send] 169
B
[Battery info] 172
BSS-ID 29, 35, 54, 65, 154, 180
C
Camera Control Pro 2 4, 90, 94
Channel 40, 54, 123, 155
Connecting the WT-4 70, 81, 90, 102, 140
D
[Delete after send?] 169
[Deselect all?] 170
[Device info] 172
[Device settings] 173
DHCP server 56, 67, 125, 136, 158, 180
Domain Name Server (DNS) 56, 67, 125, 136, 161, 180
E
Encryption 18, 20, 22, 29, 31, 35, 40, 41, 44, 54, 65, 123, 134, 156
key 18, 20, 22, 29, 31, 35, 40, 41, 44, 54, 65, 123, 134, 156
Errors 178
ftp 178
TCP/IP 178
wireless 178
ESS-ID 29, 35, 54, 65, 154, 180
Ethernet 2, 4, 5, 51, 62, 121, 131, 177, 180
F
File names 78, 146, 149
[Firmware Version] 172
Folders 50, 61, 75, 87, 113, 116, 126, 137, 163
[Format transmitter’s memory] 173
[FTP] 162, 177
ftp server 108, 126, 137, 162
G
Gateway 125, 136, 160, 180
$00_WT-4_En.book Page 185 Friday, August 10, 2007 2:02 PM
186
I
Infrastructure 15, 20, 31, 41, 59, 129, 154, 181
IP address 56, 67, 125, 136, 158, 177, 181
M
[MAC address] 171
Memory cards 70, 81, 102
Menus 151–173, 175–177
entering text in 153
[Mode] 4, 71, 81, 91, 102, 152
P
password 50, 61
PASV mode 126, 137, 164, 181
PC mode 4, 90
Port 5, 112, 116, 126, 137, 163, 175
Print mode 4, 97
Printing 4, 102, 171
Proxy 126, 137, 167, 181
PTP-IP 182, 183
S
[Send file as] 170
[Send folder] 170
SS-ID 29, 35, 54, 65, 154, 182
Status LEDs 2, 3, 77, 88, 95, 104
T
[TCP/IP] 158, 177
TCP/IP 56, 67, 125, 136, 158, 177, 182
Thumbnail select mode 4, 79
Transfer mode 4, 70, 176
U
Upload 70, 74, 145
deleting images after 169
Interrupting 75, 146
selecting images for 74, 145
[USB] 7
User ID 126, 137, 165
W
[Wireless] 154, 177
Wireless LAN 15
access point 15, 20, 31, 41, 154, 182
[Wireless transmitter] 151
WT-4 Setup Utility 10, 48, 97, 119
$00_WT-4_En.book Page 186 Friday, August 10, 2007 2:02 PM
