Configuring the Network
Introduction
Configuring the Network
This section describes how to create ad-hoc and infrastructure
networks under Windows Vista, Windows XP, and Mac OS X.
AConnecting to Existing Wireless LANs
The WT-4 can also be used to connect to existing wireless LANs. Switch to
the existing network after creating a new network for use with the WT-4.
AWireless Networks: Infrastructure Versus Ad-hoc
Wireless networks may be either infrastructure or ad-hoc.
Windows Vista
Ad hoc Network pg.16
Infrastructure Network pg.20
Windows XP
Ad hoc Network pg.25
Infrastructure Network pg.31
Macintosh
Ad hoc Network pg.37
Infrastructure Network pg.41

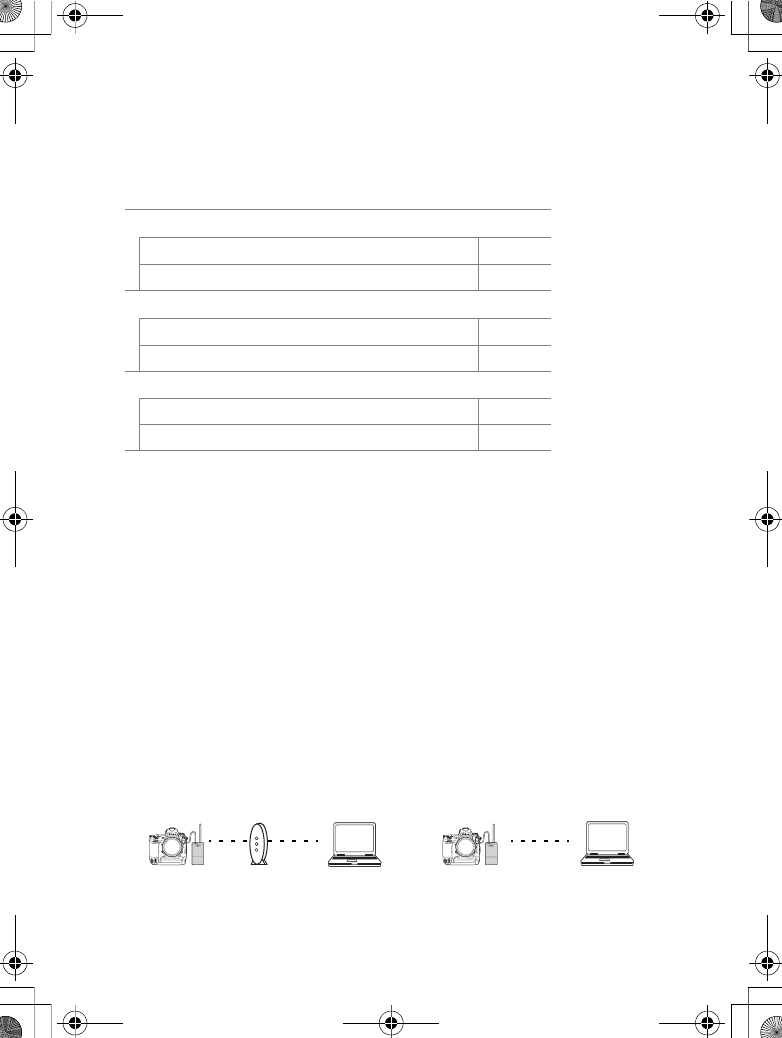

•Infrastructure: Connection is via a
wireless LAN access point.
•Ad-hoc: A peer-to-peer wireless
network consisting solely of the
WT-4 and the host.
WT-4 Wireless
LAN access
point
Host WT-4 Host
$00_WT-4_En.book Page 15 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bg2.png)
Configuring the Network / Windows Vista / Creating an Ad Hoc Network
Introduction16
Windows Vista
❏Creating an Ad Hoc Network

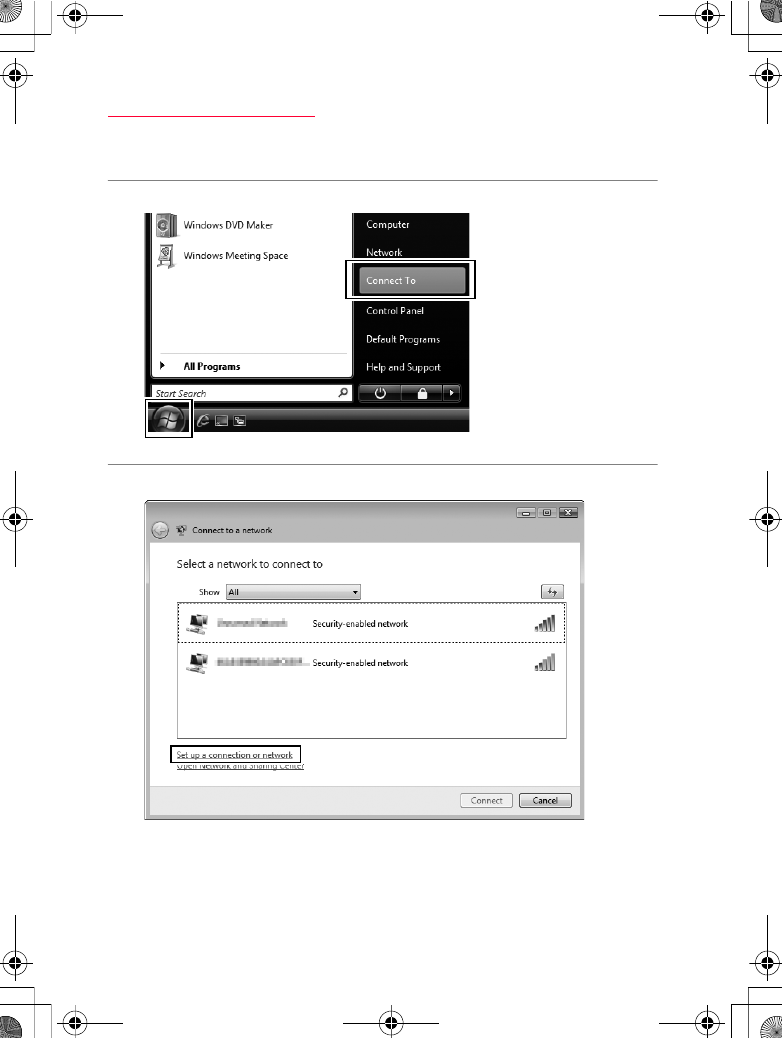

1Click the [Start] and select [Connect To].
2Click [Set up a connection or network].
$00_WT-4_En.book Page 16 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bg3.png)
Configuring the Network / Windows Vista / Creating an Ad Hoc Network
Introduction 17

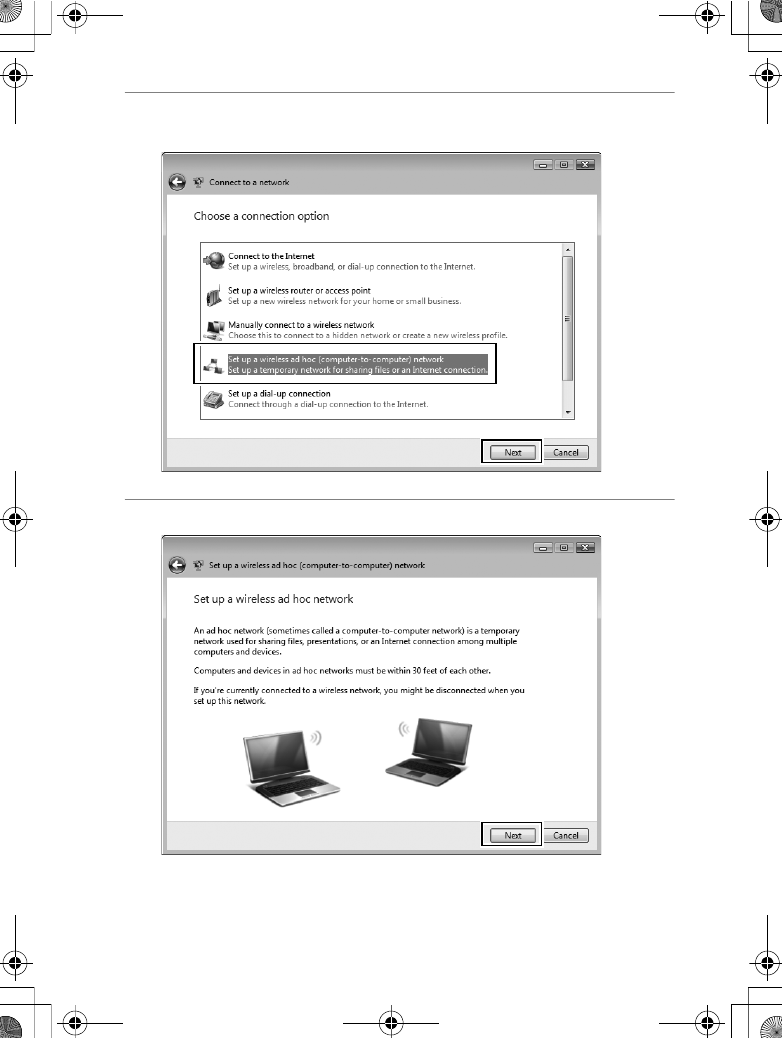

3Select [Set up a wireless ad hoc (computer-to-computer)
network] and click [Next].
4Click [Next].
$00_WT-4_En.book Page 17 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bg4.png)
Configuring the Network / Windows Vista / Creating an Ad Hoc Network
Introduction18
5After entering a network name and choosing security options
as described below, select [Save this network] and click [Next].
•Network name: Enter a name of up to 32 characters.
•Security type: Choose from [WEP] and [No authentication
(Open)].
•Security key/passphrase: If [WEP] is selected for [Security type],
enter a security key. To enable 64-bit encryption, enter a
five-character ASCII or ten-digit hexadecimal key. To enable
128-bit encryption, enter a 13-character ASCII or 26-digit
hexadecimal key. ASCII keys may contain letters,
punctuation, and the numbers 0–9, hexadecimal keys the
numbers 0–9 and the letters a, b, c, d, e, and f.
$00_WT-4_En.book Page 18 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bg5.png)
Configuring the Network / Windows Vista / Creating an Ad Hoc Network
Introduction 19
6Click [Close].
Network setup is now complete. Proceed to “Operating the WT-4
for Computer” (pg.47), “Operating the WT-4 for FTP” (pg.107).
$00_WT-4_En.book Page 19 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bg6.png)
Configuring the Network / Windows Vista / Connecting to an Infrastructure
Introduction20
❏Connecting to an Infrastructure Network
Procedures for connecting your computer to a wireless LAN access
point are described here.
Configuring the Wireless LAN Access Point
Following the instructions in the manual for the wireless LAN
access point, choose a network name (SS-ID), authentication,
encryption, security key, and key index.
Configuring the Host

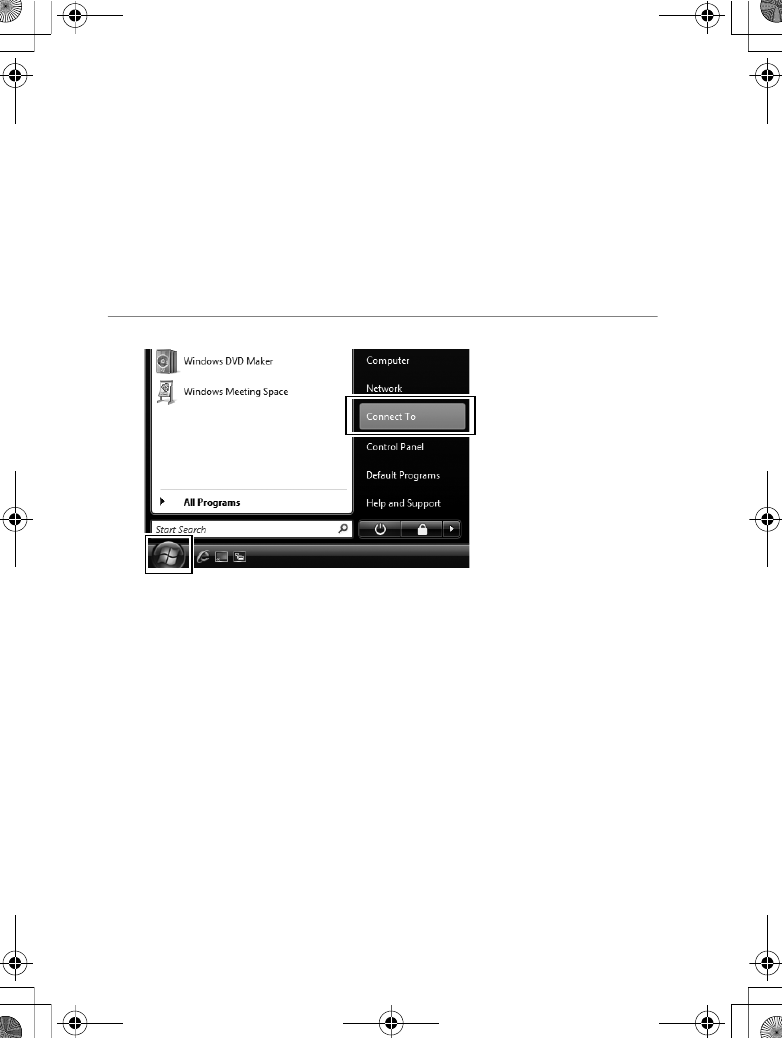

1Click the [Start] orb and select [Connect To].
$00_WT-4_En.book Page 20 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bg7.png)
Configuring the Network / Windows Vista / Connecting to an Infrastructure
Introduction 21

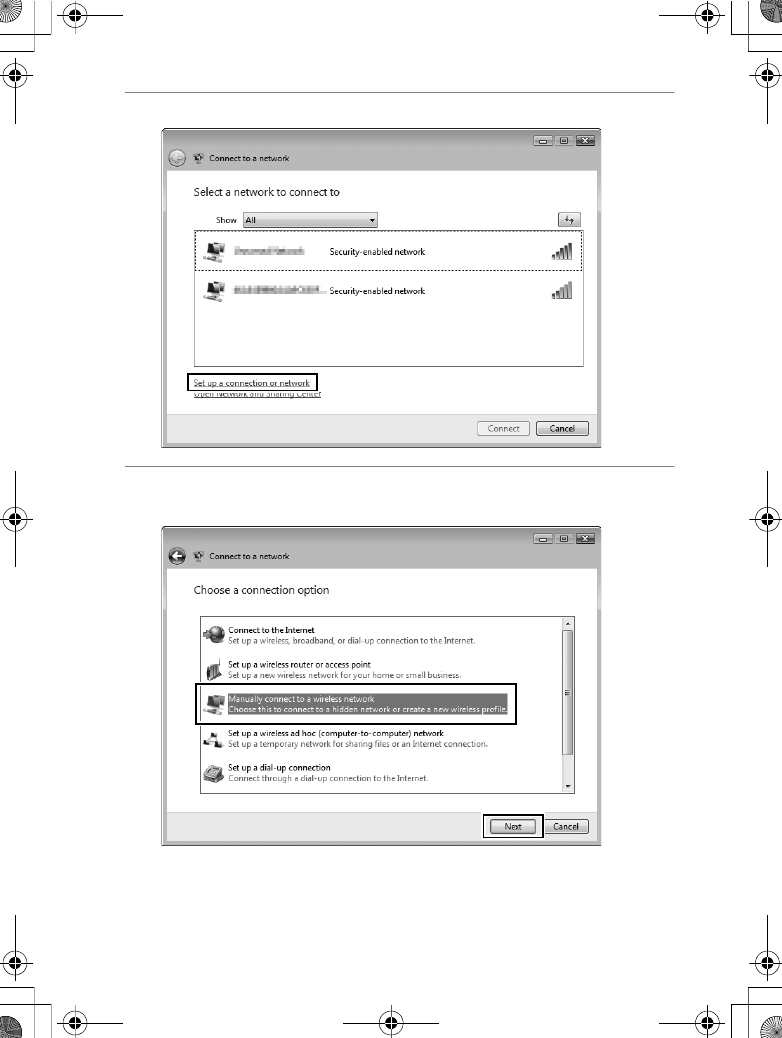

2Click [Set up a connection or network].
3Select [Manually connect to a wireless network] and click
[Next].
If a [Manually connetct to a wireless network] is not displayed,
install the necessary driver software as described in the
documentation for the wireless LAN adapter.
$00_WT-4_En.book Page 21 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bg8.png)
Configuring the Network / Windows Vista / Connecting to an Infrastructure
Introduction22
4After entering a network name and choosing security options
to match those selected for the wireless LAN access point,
select [Save this network] and click [Next].
•Network name: Enter a name of up to 32 characters.
•Security type: Choose from [No authentication (Open)], [WEP],
[WPA-Personal], and [WPA2-Personal]. [WPA-Enterprise],
[WPA2-Enterprise], and [802.1x] can not be used with the
WT-4.
•Encryption type: The type of encryption available depends on
the options selected for [Security type]:
❏None (open system): [None]
❏WEP: [WEP]
❏WPA, WPA2: [TKIP], [AES]
•Security key/passphrase: If [WEP] is selected for [Security type],
enter a 5- or 13-character ASCII key or 10- or 26-digit
hexadecimal key. Entering a five-character ASCII or ten-digit
hexadecimal key enables 64-bit encryption, a 13-character
ASCII or 26-digit hexadecimal key 128-bit encryption. ASCII
keys may contain letters, punctuation, and the numbers 0–9,
hexadecimal keys the numbers 0–9 and the letters a, b, c, d,
e, and f. If [TKIP] or [AES] is selected for [Security type], enter
an ASCII key of 8 to 63 characters or a 64-digit hexadecimal
key.
$00_WT-4_En.book Page 22 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bg9.png)
Configuring the Network / Windows Vista / Connecting to an Infrastructure
Introduction 23
5Click [Connect to…].
$00_WT-4_En.book Page 23 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bga.png)
Configuring the Network / Windows Vista / Connecting to an Infrastructure
Introduction24

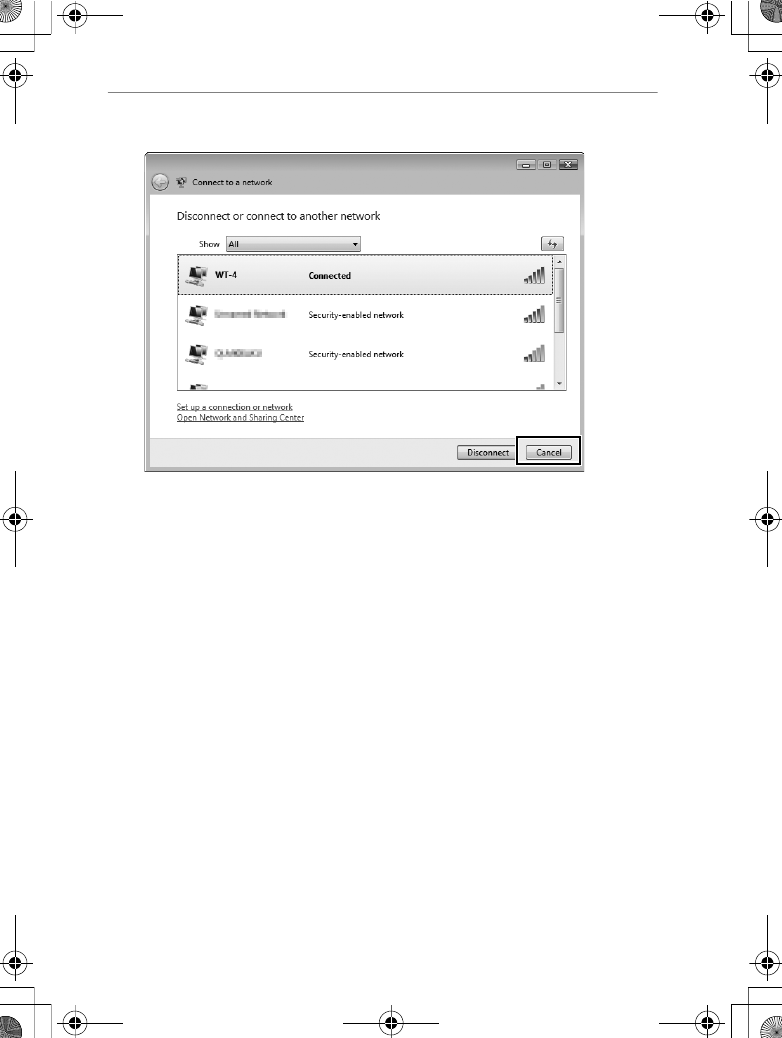

6Confirm that [Connected] appears next to the network name
entered in Step 4 and click [Cancel].
Network setup is now complete. Proceed to “Operating the WT-4
for Computer” (pg.47), “Operating the WT-4 for FTP” (pg.107).
$00_WT-4_En.book Page 24 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bgb.png)
Configuring the Network / Windows XP / Creating an Ad Hoc Network
Introduction 25
Windows XP
❏Creating an Ad Hoc Network

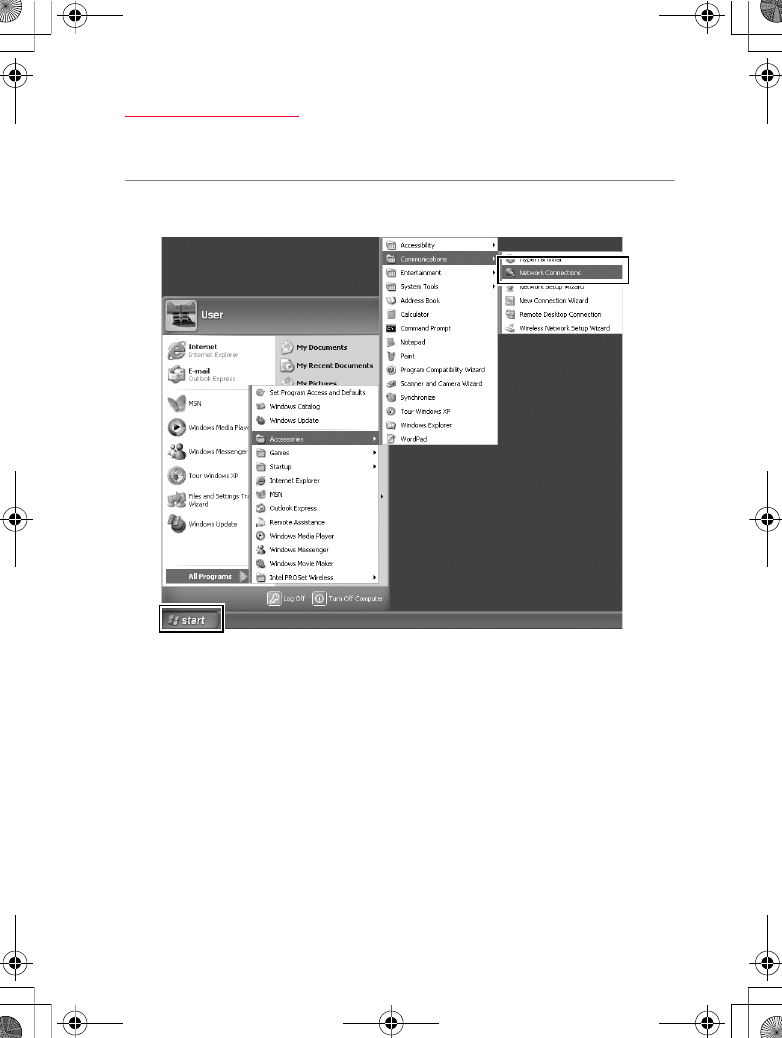

1Click [Start] and select [All Programs] > [Accessories] >
[Communications] > [Network Connections].
$00_WT-4_En.book Page 25 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bgc.png)
Configuring the Network / Windows XP / Creating an Ad Hoc Network
Introduction26
2Select [Wireless Network Connection] and click [Change
settings of this connection].
If a [Wireless Network Connection] icon is not displayed, install
the necessary driver software as described in the
documentation for the wireless LAN adapter.
$00_WT-4_En.book Page 26 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bgd.png)
Configuring the Network / Windows XP / Creating an Ad Hoc Network
Introduction 27

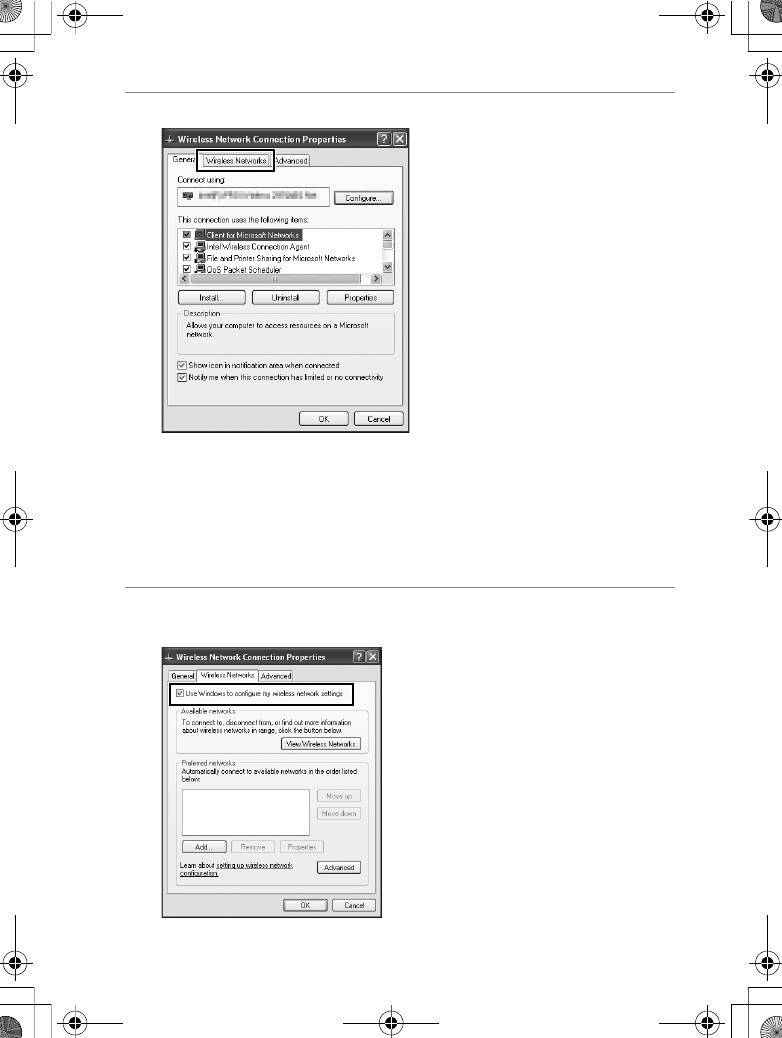

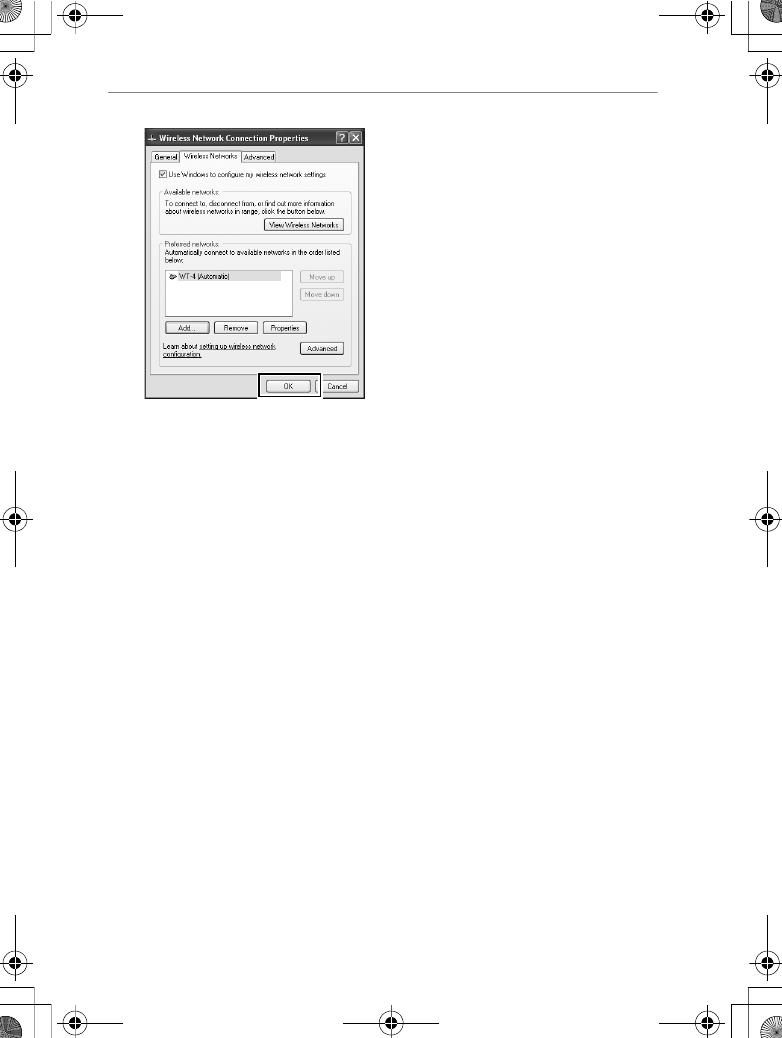

3Click the [Wireless Networks] tab.
If a third-party wireless connection program is installed, the
[Wireless Networks] tab will not be displayed. Choose
authentication, encryption, and a security key as described in
the documentation for the wireless LAN adapter. Make a note
of the security key, as it will be required when setting up the
camera.
4Select [Use Windows to configure my wireless network
settings].
$00_WT-4_En.book Page 27 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bge.png)
Configuring the Network / Windows XP / Creating an Ad Hoc Network
Introduction28

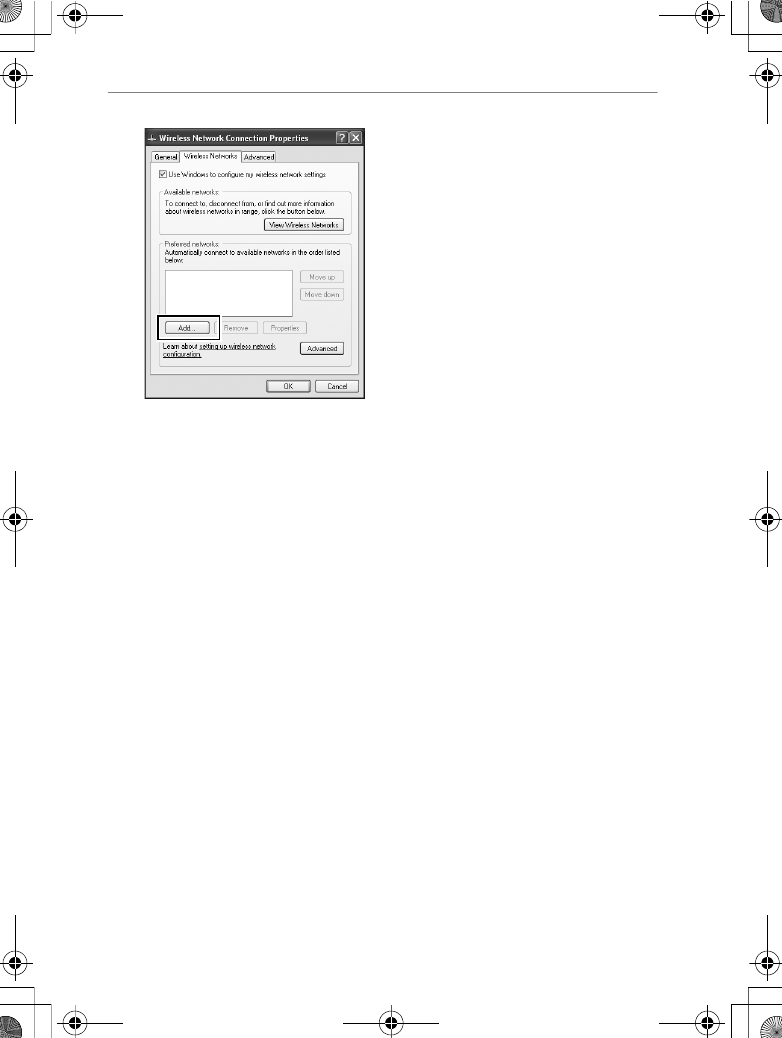

5Click [Add].
$00_WT-4_En.book Page 28 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bgf.png)
Configuring the Network / Windows XP / Creating an Ad Hoc Network
Introduction 29
6After entering a network name and choosing security options
as described below, select [This is a computer-to-computer
(ad hoc) network; wireless access points are not used] and
click [OK]. Do not select [The key is provided for me
automatically].
•Network name (SSID): Enter a name of up to 32 characters.
•Network Authentication: Choose from [Open] and [Shared].
•Data encryption: Choose from [WEP] and [Disabled].
•Network key: If [WEP] is selected for [Data encryption], enter a
security key. To enable 64-bit encryption, enter a five-
character ASCII or ten-digit hexadecimal key. To enable 128-
bit encryption, enter a 13-character ASCII or 26-digit
hexadecimal key. ASCII keys may contain letters,
punctuation, and the numbers 0–9, hexadecimal keys the
numbers 0–9 and the letters a, b, c, d, e, and f.
•Key index (advanced): If [WEP] is selected for [Data encryption],
choose a key index.
$00_WT-4_En.book Page 29 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bg10.png)
Configuring the Network / Windows XP / Creating an Ad Hoc Network
Introduction30
7Click [OK].
Network setup is now complete. Proceed to “Operating the WT-4
for Computer” (pg.47), “Operating the WT-4 for FTP” (pg.107).
$00_WT-4_En.book Page 30 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bg11.png)
Configuring the Network / Windows XP / Connecting to an Infrastructure
Introduction 31
❏Connecting to an Infrastructure Network
Procedures for connecting your computer to a wireless LAN access
point are described here.
Configuring the Wireless LAN Access Point
Following the instructions in the manual for the wireless LAN
access point, choose a network name (SS-ID), authentication,
encryption, security key, and key index.
Configuring the Host

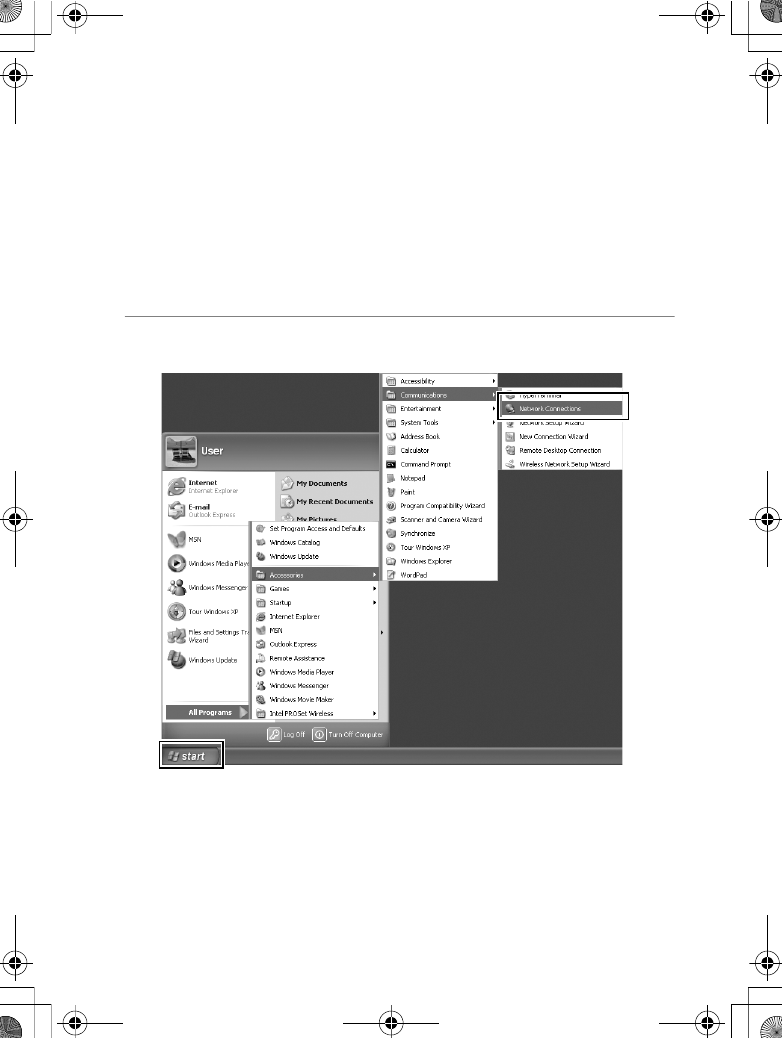

1Click [Start] and select [All Programs] > [Accessories] >
[Communications] > [Network Connections].
$00_WT-4_En.book Page 31 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bg12.png)
Configuring the Network / Windows XP / Connecting to an Infrastructure
Introduction32
2Select [Wireless Network Connection] and click [Change
settings of this connection].
If a [Wireless Network Connection] icon is not displayed, install
the necessary driver software as described in the
documentation for the wireless LAN adapter.
$00_WT-4_En.book Page 32 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bg13.png)
Configuring the Network / Windows XP / Connecting to an Infrastructure
Introduction 33
3Click the [Wireless Networks] tab.
If a third-party wireless connection program is installed, the
[Wireless Networks] tab will not be displayed. Choose
authentication, encryption, and a security key as described in
the documentation for the wireless LAN adapter. Make a note
of the security key, as it will be required when setting up the
camera.
4Select [Use Windows to configure my wireless network
settings].
$00_WT-4_En.book Page 33 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bg14.png)
Configuring the Network / Windows XP / Connecting to an Infrastructure
Introduction34
5Click [Add].
$00_WT-4_En.book Page 34 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bg15.png)
Configuring the Network / Windows XP / Connecting to an Infrastructure
Introduction 35
6After entering a network name and choosing security options
to match those selected for the wireless LAN access point,
remove the check from [This is a computer-to-computer (ad
hoc) network; wireless access points are not used] and click
[OK].
•Network name (SSID): Enter a name of up to 32 characters.
•Network Authentication: Choose from [Open], [Shared], [WPA],
and [WPA-PSK].
•Data encryption: The type of encryption available depends on
the options selected for [Network Authentication]:
❏Open, Shared: [WEP], [Disabled]
❏WPA, WPA-PSK: [TKIP], [AES]
•Network key: If [WEP] is selected for [Data encryption], enter a
5- or 13-character ASCII key or 10- or 26-digit hexadecimal
key. Entering a five-character ASCII or ten-digit hexadecimal
key enables 64-bit encryption, a 13-character ASCII or 26-
digit hexadecimal key 128-bit encryption. ASCII keys may
contain letters, punctuation, and the numbers 0–9,
hexadecimal keys the numbers 0–9 and the letters a, b, c, d,
e, and f. If [TKIP] or [AES] is selected for [Data encryption],
enter an ASCII key of 8 to 63 characters or a 64-digit
hexadecimal key.
$00_WT-4_En.book Page 35 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bg16.png)
Configuring the Network / Windows XP / Connecting to an Infrastructure
Introduction36
7Click [OK].
Network setup is now complete. Proceed to “Operating the WT-4
for Computer” (pg.47), “Operating the WT-4 for FTP” (pg.107).
$00_WT-4_En.book Page 36 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bg17.png)
Configuring the Network / Macintosh / Creating an Ad Hoc Network
Introduction 37
Macintosh
❏Creating an Ad Hoc Network
1Open [System Preferences] and click [Network].
$00_WT-4_En.book Page 37 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bg18.png)
Configuring the Network / Macintosh / Creating an Ad Hoc Network
Introduction38
2Choose [Network Port Configurations] from the [Show] menu.
3Enable [AirPort], drag it to the top of the list, and click [Apply
Now].
$00_WT-4_En.book Page 38 Friday, August 10, 2007 2:02 PM
![](/img.php?id=853223&img=bg19.png)
Configuring the Network / Macintosh / Creating an Ad Hoc Network
Introduction 39

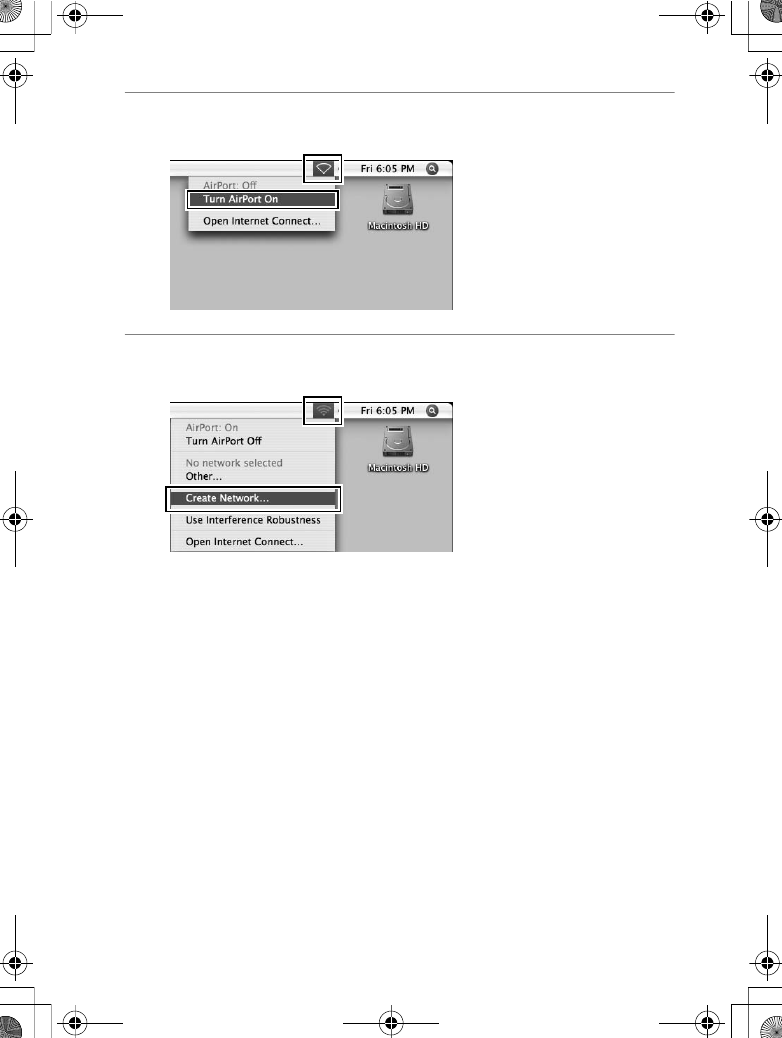

4Click the AirPort status icon in the menu bar and select [Turn
AirPort On].
5Click the AirPort status icon in the menu bar and select [Create
Network...].
$00_WT-4_En.book Page 39 Friday, August 10, 2007 2:02 PM
