Yaesu Musen 30573X30 HANDHELD MARINE TRANSCEIVER User Manual
Yaesu Musen Co., Ltd. HANDHELD MARINE TRANSCEIVER
Contents
User Manual
Page 1
HX870
HX870
6 Watt VHF/FM
Floating Marine Transceiver with DSC Class D and GPS
Owner’s Manual
Page 2
HX870
TABLE OF CONTENTS
Quick Reference Guide ............................................................................... 4
RADIO CARE ................................................................................................ 5
1 GENERAL INFORMATION .....................................................................6
2 PACKING LIST .......................................................................................7
3 OPTIONAL ACCESSORIES ...................................................................8
4 ONLINE WARRANTY REGISTRATION (in USA or Canada only) ....... 8
5 ABOUT THIS RADIO ..............................................................................9
5.1 PROHIBITED COMMUNICATIONS ............................................. 9
5.2 ABOUT VHF RADIO ....................................................................9
5.3 DISTRESS AND HAILING (CHANNEL 16) ..................................9
5.4 CALLING ANOTHER VESSEL (CHANNEL 16 OR 9)................10
5.5 MAKING TELEPHONE CALLS ..................................................11
5.6 BRIDGE CHANNELS 13 AND 67 ..............................................11
5.7 AUTOMATED RADIO CHECK SERVICE ..................................12
6 GETTING STARTED.............................................................................13
6.1 BATTERIES AND CHARGERS..................................................13
6.1.1 Battery Safety ..................................................................13
6.1.2 Battery Installation/Removal ............................................15
6.1.3 Battery Life Information .................................................... 15

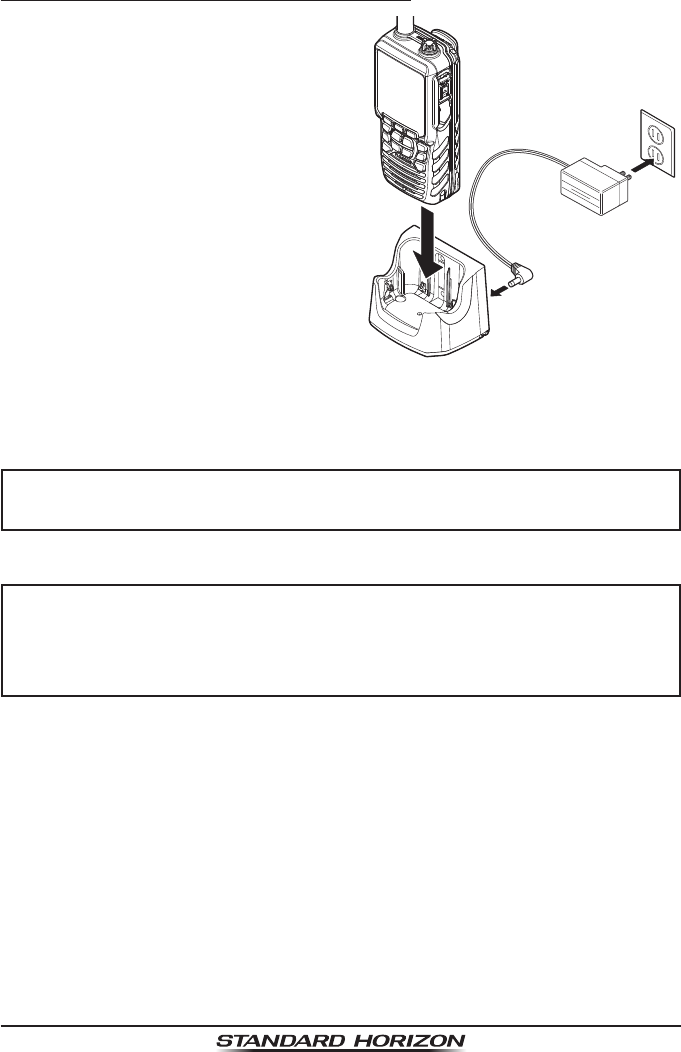

6.1.4 Using the SBH-12 Charger Cradle ................................... 16
6.2 CONNECTING A USB DATA TERMINAL TO THE PC ...............17

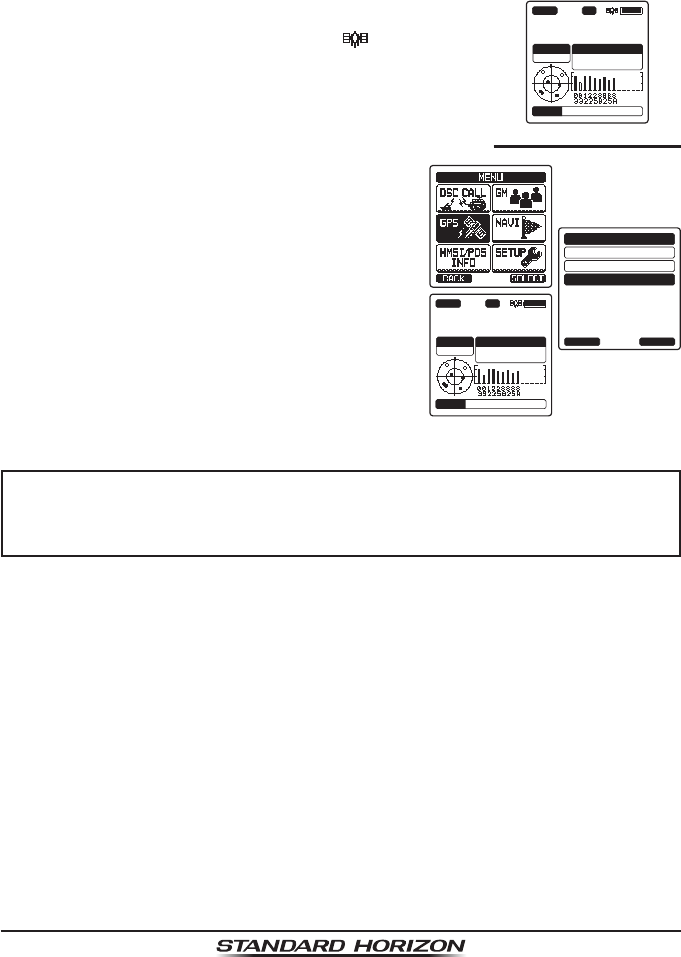

6.3 CHECKING GPS SIGNAL (GPS STATUS DISPLAY) ................18
6.4 CHANGING THE GPS TIME .....................................................19
6.5 CHANGING THE TIME LOCATION ...........................................20
6.6 CHANGING THE TIME FORMAT ..............................................20

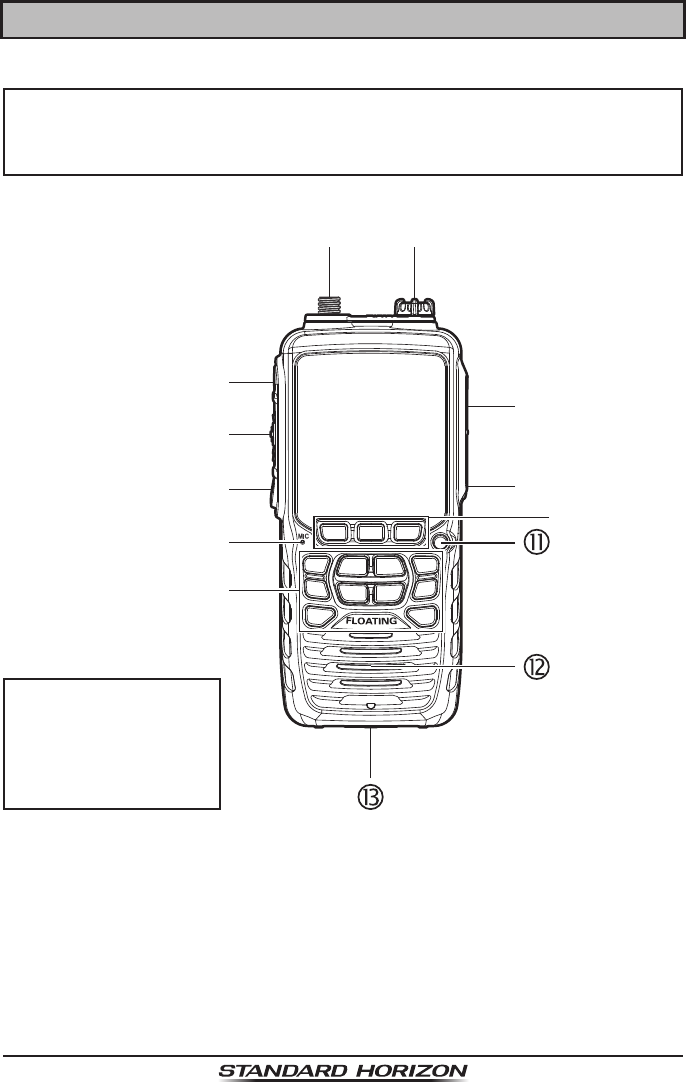

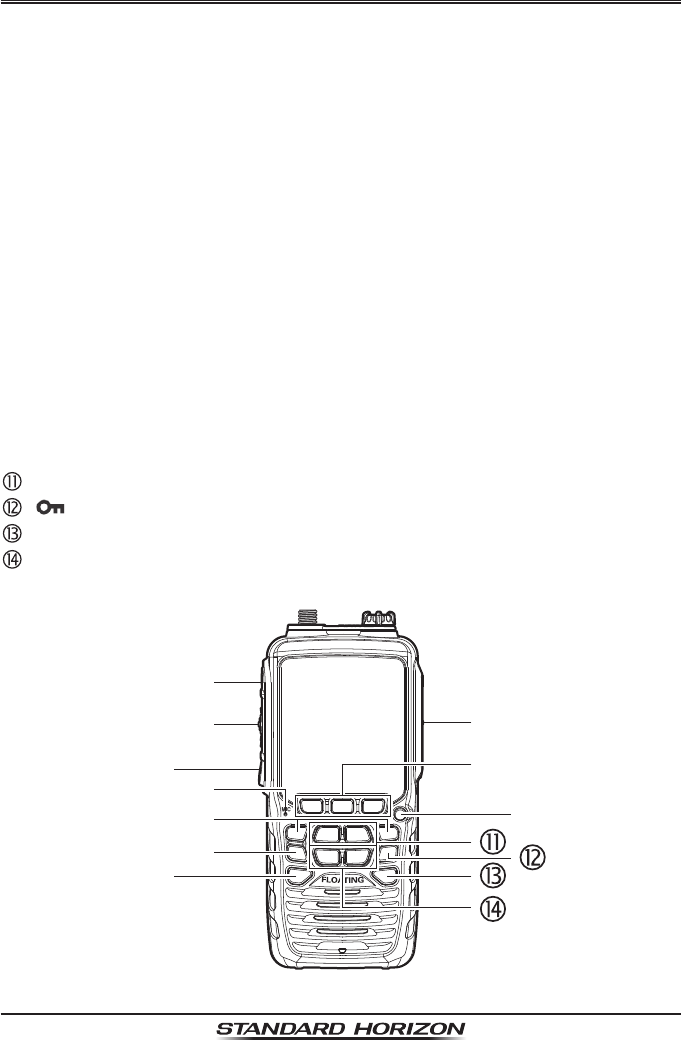

7 CONTROLS AND INDICATORS ..........................................................21
8 BASIC OPERATION ............................................................................. 25
8.1 INITIAL SETUP ..........................................................................25
8.2 RECEPTION ..............................................................................25
8.3 TRANSMISSION ........................................................................ 25
8.4 TRANSMIT TIME - OUT TIMER (TOT) ......................................26
8.5 SIMPLEX/DUPLEX CHANNEL USE ..........................................26
8.6 USA, INTERNATIONAL, AND CANADA MODE ........................26
8.7 NOAA WEATHER CHANNELS ..................................................27
8.7.1 NOAA Weather Alert ........................................................27
8.7.2 NOAA Weather Alert Testing ............................................ 28
8.8 DUAL WATCH (TO CHANNEL 16) ............................................28
8.9 SCANNING ................................................................................28
8.9.1 Selecting the Scan Type ..................................................29
8.9.2 Programming Scan Memory ............................................30
8.9.3 Memory Scanning (M-SCAN) ..........................................30
8.9.4 Priority Scanning (P-SCAN) ............................................. 31
8.10 PRESET CHANNELS: INSTANT ACCESS ...............................31
8.10.1 Programming .................................................................31
8.10.2 Operation .......................................................................32
8.10.3 Deletion .......................................................................... 32
9 GPS Operation .....................................................................................33
9.1 GPS Logger Operation ..............................................................33
9.2 GPS Compass Display ..............................................................33
9.3 GPS Information Display ............................................................ 34
9.4 Numerical display with GPS status ............................................34
10 DIGITAL SELECTIVE CALLING (DSC) ...............................................35
10.1 GENERAL ..................................................................................35
10.2 MARITIME MOBILE SERVICE IDENTITY (MMSI) ....................35
10.2.1 What is an MMSI? .......................................................... 35
10.2.2 Programming the MMSI .................................................36
10.3 DSC DISTRESS CALL...............................................................37
10.3.1 Transmitting a DSC Distress Call ................................... 37
10.3.2 Receiving a DSC Distress Call ......................................39
10.4 ALL SHIPS CALL .......................................................................41
10.4.1 Transmitting an All Ships Call ........................................41
10.4.2 Receiving an All Ships Call ............................................42
10.5 INDIVIDUAL CALL .....................................................................43
10.5.1 Setting up the Individual / Position Call Directory ..........43
10.5.2 Setting up the Individual Call Reply ...............................44
10.5.3 Enabling the Individual Call Acknowledgment ...............45
10.5.4 Transmitting an Individual Call .......................................45
10.5.5 Receiving an Individual Call ........................................... 48
10.5.6 Setting up the Individual Call Ringer .............................. 49
10.6 GROUP CALL ............................................................................51
10.6.1 Setting up a Group Call .................................................. 51
10.6.2 Transmitting a Group Call ..............................................53
10.6.3 Receiving a Group Call ..................................................55
10.6.4 Setting up the Group Call Ringer ...................................56
10.7 POSITION REQUEST ...............................................................57
10.7.1 Setting up a Position Request Reply ............................57
10.7.2 Transmitting a Position Request to Another Vessel .......58
10.7.3 Receiving a Position Request ........................................60
10.7.4 Setting up a Position Request Ringer ............................61
10.8 POSITION REPORT ..................................................................61
10.8.1 Transmitting a DSC Position Report Call .......................62
10.8.2 Receiving a DSC Position Report Call ........................... 63
10.8.3 Navigating to a Position Report .....................................64
10.8.4 Stopping Navigation to a Position Report ......................64
10.8.5 Saving a Position Report as a Waypoint ........................64
10.8.6 Navigating to a Saved Waypoint ....................................65
10.8.7 Setting up a Position Report Ringer ............................... 65
10.9 MANUAL INPUT OF A GPS LOCATION (LAT/LON) ..................66
10.10 AUTO POS POLLING ................................................................67
10.10.1 Setting up the Polling Time Interval .............................67
10.10.2 Selecting Stations to be Automatically Polled
(Tracked) ......................................................................67
10.10.3 Enabling/Disabling Auto POS Polling ........................... 68
10.11 DSC TEST .................................................................................69
10.11.1 Programming MMSI into Individual Directory ...............69
10.11.2 DSC Test call by using Individual/Position Directory .... 69
10.11.3 DSC Test Call by Manually Entering an MMSI ............. 70
10.12 POLLING CALL..........................................................................71
10.12.1 Transmitting a Polling Call to Another Vessel ..............71
10.12.2 Receiving a Polling Call ...............................................72
10.13 DSC LOG OPERATION .............................................................73
10.13.1 Reviewing and Resending a Transmitted Logged
Call ............................................................................... 73
10.13.2 Reviewing a Logged DSC Distress Call ....................... 74
10.13.3 Reviewing Other Logged Calls ....................................75
10.13.4 Deleting a Call from the DSC Log Directory ................75
11 NAVIGATION ........................................................................................77
11.1 OPERATION ..............................................................................77
11.1.1 Operation .......................................................................77
11.1.2 Navigating to a Saved Waypoint ....................................77
11.2 SETTING UP WAYPOINT DIRECTORY ....................................78
11.2.1 Marking a Position ............................................... ........... 78
11.2.2 Adding a Waypoint .........................................................79
11.2.3 Editing a Waypoint .........................................................80
11.2.4 Deleting a Waypoint .......................................................81
11.2.5 Saving a DSC Position Call as a Waypoint ....................81
11.2.6 Selecting the Waypoint Range .......................................82
11.2.7 Selecting the Arrived Range ...........................................82
12 CONFIGURATION ................................................................................83
12.1 DIMMER ADJUSTMENT............................................................83
12.2 LAMP .........................................................................................83
12.3 DISPLAY CONTRAST ...............................................................84
12.4 KEY BEEP .................................................................................84
12.5 BATTERY SAVER ......................................................................85
Page 3
HX870
TABLE OF CONTENTS
12.6 STROBE LED ............................................................................85
12.6.1 EMARGENCY LED ........................................................85
12.6.2 WATER HAZARD LED ................................................... 86
12.7 SOFT KEYS ...............................................................................87
12.7.1 Key Assignment .............................................................87
12.7.2 Key Timer .......................................................................87
13 CHANNEL FUNCTION SETUP ............................................................89
13.1 CHANNEL GROUP .................................................................... 89
13.2 SCAN MEMORY ........................................................................89
13.3 SCAN TYPE ............................................................................... 89
13.4 SCAN RESUME ......................................................................... 89
13.5 PRIORITY CHANNEL ................................................................90
13.6 WEATHER ALERT .....................................................................90
13.7 CHANNEL NAME.......................................................................91
13.8 SUMMARY OF THE CANNEL FUNCTION SETUP ................... 92
14 DSC SETUP .......................................................................................... 93
14.1 INDIVIDUAL DIRECTORY .........................................................93
14.2 INDIVIDUAL REPLY ..................................................................93
14.3 INDIVIDUAL ACKNOWLEDGMENT ..........................................93
14.4 INDIVIDUAL RINGER ................................................................93
14.5 GROUP DIRECTORY ................................................................93
14.6 POSITION REPLY .....................................................................94
14.7 AUTO POS POLLING ................................................................94
14.8 AUTO POS INTERVAL ..............................................................94
14.9 AUTO CH CHANGE ..................................................................94
14.10 NO ACT TIMER..........................................................................95
14.11 DSC BEEP .................................................................................95
14.12 SUMMARY OF THE DSC SETUP MENU..................................96
15 GPS SETUP .......................................................................................... 97
15.1 GPS ON/OFF ............................................................................. 97
15.2 POWER SAVE ...........................................................................97
15.3 LOCATION FORMAT .................................................................98
15.4 TIME OFFSET ...........................................................................98
15.5 TIME AREA ................................................................................99
15.6 TIME FORMAT...........................................................................99
15.7 UNIT OF MEASURE ..................................................................99
15.8 PINNING ..................................................................................100
15.9 SBAS (Satellite Based Augmentation System) ........................100
15.10 OUTPUT SENTENCES ...........................................................101
15.11 LOGGER INTERVAL ...............................................................101
15.12 LOG ERASE ............................................................................102
15.13 SUMMARY OF THE GPS SETUP ...........................................102
16 MAINTENANCE ..................................................................................103
16.1 REPLACEMENT PARTS .........................................................103
16.2 FACTORY SERVICE ...............................................................104
16.3 TROUBLESHOOTING CHART ................................................104
17 CHANNEL ASSIGNMENTS................................................................105
18 WARRANTY........................................................................................ 111
19 INSTALLATION OF THE SBT-13 ....................................................... 115
20 SPECIFICATIONS ..............................................................................116
20.1 GENERAL ................................................................................ 116
20.2 TRANSMITTER .......................................................................116
20.3 RECEIVER (for Voice and DSC) ..............................................117
20.4 GPS .........................................................................................117
20.5 NMEA OUTPUT ....................................................................... 117
21 FCC RADIO LICENSE INFORMATION .............................................. 118
21.1 STATION LICENSE..................................................................118
21.2 RADIO CALL SIGN .................................................................. 118
21.3 CANADIAN SHIP STATION LICENSING .................................118
21.4 FCC / INDUSTRY CANADA INFORMATION ...........................118
22 RF EXPOSURE SAFETY STATEMENT ............................................. 119
23 FCC NOTICE ......................................................................................120
Page 4
HX870
Quick RefeRence Guide
The HX870 is equipped with the E2O (Easy-To-Operate) system. Basic opera-
tion may be accomplished by following the procedure below:
POWER: Press and hold to turn on/off the transceiver.
PTT (Push-To-Talk): Activates the transmitter when pressed.
SQL: Press to display the SQL level setting screen, then press the CH▲
key to squelch or press the CH▼ to un-squelch the radio.
MIC: Speak slowly and clearly into the MIC hole having it about 1/2 to 1
inch (1.2 to 2.5 cm) away from your mouth while pressing the PTT key.
◄/►: Press to toggle the on-screen menus to right/left.
CLR: Press to cancel a function or menu selection.
MENU: Press to access MENU.
DISTRESS: Sends a DSC distress call. Lift the red cover, press the
DISTRESS once, then press and hold until the radio alarms.
Soft keys: These three programmable keys can be customized through
the setup menu mode. By pressing one of these keys briey, display the
key functions at the bottom of the display.
TX/BUSY Indicator: Press to toggle the on-screen menus up/down.
CH▲/CH▼: Press to change the operating channel.
: Press and hold to lock and unlock the keypad.
16/S: Press to recall channel 16. Press and hold to recall channel 9.
VOL−/VOL+: Press to adjust the speaker audio volume.
Page 5
HX870
Congratulations on your purchase of the HX870! Whether this is your rst
portable marine VHF transceiver, or if you have other STANDARD HORIZON
equipment, the STANDARD HORIZON organization is committed to ensuring
your enjoyment of this high performance transceiver, which should provide you
with many years of satisfying communications even in the harshest of envi-
ronments. STANDARD HORIZON technical support personnel stands behind
every product sold, and we invite you to contact us by phone (800) 767-2450.
We appreciate your purchase of the HX870, and encourage you to read this
manual thoroughly, so as to learn and fully understand the capabilities of the
HX870.
RADIO CARE
Before using the radio:
1. It is recommended the battery be charged. Please see section “6.1.4 Using
the SBH-12 Charger Cradle” for details.
2. Insure the speaker microphone jack, antenna and battery are in place and
rmly tightened.
3. Care must be taken if the radio was dropped and a close inspection may
be needed to insure the radio case and gaskets are in adequate condition.
NOTE
This is to keep the rubber switches and speaker grill clean and in top
operating condition after exposure to water: Clean the radio with fresh
water after exposure to salt water by rinsing the radio under a sink faucet
or by dunking the radio in a bucket of fresh water. After washing, use
a soft cloth and thoroughly dry all parts of the radio.
Page 6
HX870
1 GENERAL INFORMATION
The STANDARD HORIZON HX870 Portable Marine transceiver is designed
to be used in USA, International, and Canadian Marine bands. The HX870 can
be operated from 11 to 16 VDC and has a switchable RF output power of 1 watt,
2 watts or 6 watts.
The HX870 is capable of DSC (Digital Selective Calling) ITU Class D operation.
Class D operation allows continuous receiving of Digital Selective Calling func-
tions on channel 70 even if the radio is receiving a call. The HX870 operates
on all currently-allocated marine channels which are switchable for use with
USA, International, or Canadian regulations. Emergency channel 16 can be
immediately selected from any channel by pressing the red 16/S key. NOAA
weather channel can also be accessed immediately by selecting [WX] on the
main menu screen.
With the internal high-performance GPS receiver, WASS and QZSS satellites
can be received.
Page 7
HX870
2 PACKING LIST
When the package containing the transceiver is rst opened, please check it
for the following contents:
HX870 Transceiver
CAT460* Antenna
SBR-13LI 7.4V 1800mAh Li-ion Battery Pack
SBH-12 Charger Cradle for HX870
SAD-11B 120VAC Wall Charger for SBH-12
E-DC-19A DC Cable with 12 V Cigarette Lighter Plug for SBH-12
SBT-13 Alkaline Battery Case for AAA x 5 pcs

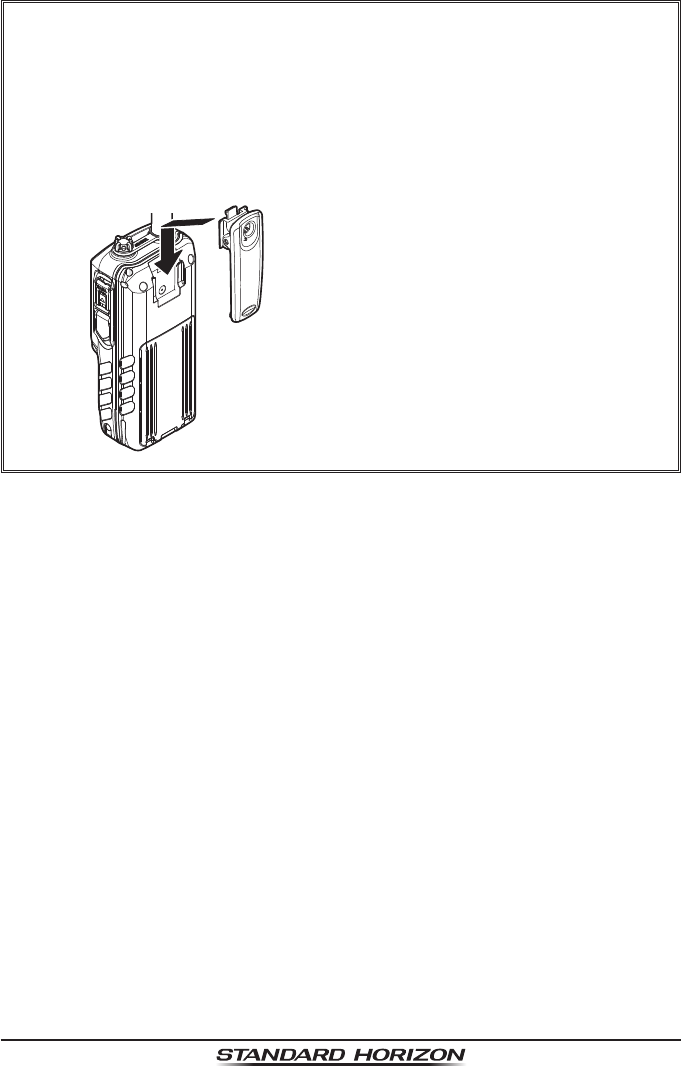

Clip-22 Belt Clip
YS-05-01 Hand Strap
T9101606 USB Cable (Type USB “A” plug to Type USB mini “B” plug)
Owner’s Manual
* Antenna gain: -1.5 dBi
Impedance: 50 ohms
Page 8
HX870
3 OPTIONAL ACCESSORIES
MH-73A4B ................................................... Submersible Speaker/Microphone
MH-57A4B ................................................................ Mini Speaker/Microphone
VC-24 ........................................................................................VOX Headset
SSM-55A ....................................................................... Earpiece/Microphone
SSM-10 ..................... Submersible Speaker/Microphone with Earphone Jack
SEP-10 ......................................................................... Earphone for SSM-10
CN-3 ........................................................... Radio-to-Ship’s-Antenna Adapter
SBH-12 ................................................................................... Charger Cradle
SBR-13 LI .................................................7.4V 1800mAh Li-ion Battery Pack
SBT-13 ...................................................Alkaline Battery Case (AAA x 5 pcs)
E-DC-19A .....................................DC Cable with 12 V Cigarette Lighter Plug
SAD-11B/C/U .................................................. Wall Charger for the SBH-12
E-DC-6 .............................................................. DC Cable; plug and wire only
: “B” sufx is for use with 120 VAC (Type-A plug), “C” sufx is for use with 230
VAC (Type-C plug), and “U” sufx is for use with 230 VAC (Type-BF plug).
4 ONLINE WARRANTY REGISTRATION
(in USA or Canada only)
Please visit www.standardhorizon.com to register the HX870 Marine VHF. It
should be noted that visiting the website from time to time may be benecial
to you, as new products are released they will appear on the STANDARD
HORIZON website.
PRODUCT SUPPORT INQUIRIES
If you have any questions or comments regarding the use of the HX870, you
can visit the STANDARD HORIZON website to send an E-Mail or contact the
Product Support team at (800) 767-2450 M-F 8:00-5:00 PST.
Page 9
HX870
5 ABOUT THIS RADIO
5.1 PROHIBITED COMMUNICATIONS
The FCC prohibits the following communications:
• False distress or emergency messages:
• Messages to “any boat” except in emergencies and radio tests;
• Messages to or from a vessel on land;
• Transmission while on land;
• Obscene, indecent, or profane language (potential ne of $10,000).
5.2 ABOUT VHF RADIO
The radio frequencies used in the VHF marine band lie between 156 and 158
MHz with some shore stations available between 161 and 163 MHz. The marine
VHF band provides communications over distances that are essentially “line of
sight” (VHF signals do not travel well through objects such as buildings, hills
or trees). Actual transmission range depends much more on antenna type,
gain and height than on the power output of the transmitter. On a xed mount
25W radio transmission expected distances can be greater than 15 miles, for
a portable 6W radio transmission the expected distance can be greater than
5 miles in “line of sight”.
5.3 DISTRESS AND HAILING (CHANNEL 16)
Channel 16 is known as the Hail and Distress Channel. An emergency may
be dened as a threat to life or property. In such instances, be sure the
transceiver is on and set to CHANNEL 16. Then use the following procedure:
1. Press the PTT (Push-To-Talk) button and say “Mayday, Mayday, Mayday.
This is , , ” (your vessel’s name).
2. Then repeat once: “Mayday, ” (your vessel’s name).
3. Now report your position in latitude/longitude, or by giving a true or magnetic
bearing (state which) to a well-known landmark such as a navigation aid
or geographic feature such as an island or harbor entry.
4. Explain the nature of your distress (sinking, collision, aground, re, heart
attack, life-threatening injury, etc.).
5. State the kind of assistance your desire (pumps, medical aid, etc.).
6. Report the number of persons aboard and condition of any injured.
7. Estimate the present seaworthiness and condition of your vessel.
8. Give your vessel’s description: length, design (power or sail), color and other
distinguishing marks. The total transmission should not exceed 1 minute.
9. End the message by saying “OVER”. Release the PTT button and listen.
10. If there is no answer, repeat the above procedure. If there is still no response,
try another channel.
Page 10
HX870
NOTE
The HX870 has the DSC Distress calling, that can transmit a distress
call digitally to all ships with compatible DSC radios. Refer to section
“10 DIGITAL SELECTIVE CALLING (DSC)”.
5.4 CALLING ANOTHER VESSEL (CHANNEL 16 OR 9)
Channel 16 may be used for initial contact (hailing) with another vessel.
However, its most important use is for emergency messages. This channel
must be monitored at all times except when actually using another channel.
It is monitored by the U.S. and Canadian Coast Guards and by other vessels.
Use of channel 16 for hailing must be limited to initial contact only. Call-
ing should not exceed 30 seconds, but may be repeated 3 times at 2-minute
intervals. In areas of heavy radio trafc, congestion on channel 16 resulting
from its use as a hailing channel can be reduced signicantly in U.S. waters
by using channel 9 as the initial contact (hailing) channel for non-emergency
communications. Here, also, calling time should not exceed 30 seconds but
may be repeated 3 times at 2-minute intervals.
Prior to making contact with another vessel, refer to the channel charts in this
manual, and select an appropriate channel for communications after initial
contact. For example, Channels 68 and 69 of the U.S. VHF Charts are some
of the channels available to non-commercial (recreational) boaters. Monitor
your desired channel in advance to make sure you will not be interrupting
other trafc, and then go back to either channel 16 or 9 for your initial contact.
When the hailing channel (16 or 9) is clear, press the PTT button and state the
name of the other vessel you wish to call and then “this is” followed by the
name of your vessel and your Station License (Call Sign) then release the PTT
button. When the other vessel returns your call, immediately request another
channel by pressing the PTT button and saying “go to”, the number of the
other channel, say “over” and release the PTT button. Then switch to the new
channel. When the new channel is not busy, call the other vessel.
After a transmission, say “over”, and release the PTT button. When all commu-
nication with the other vessel is completed, end the last transmission by stating
your Call Sign and the word “out”. Note that it is not necessary to state your
Call Sign with each transmission, only at the beginning and end of the contact.
Remember to return to Channel 16 when not using another channel. Some
radios automatically monitor Channel 16 even when set to other channels or
when scanning.
Page 11
HX870
5.5 MAKING TELEPHONE CALLS
To make a radiotelephone call, use a channel designated for this purpose.
The fastest way to learn which channels are used for radiotelephone trafc
is to ask at a local marina. Channels available for such trafc are designated
Public Correspondence channels on the channel charts in this manual. Some
examples for USA use are Channels 24, 25, 26, 27, 28, 84, 85, 86, and 87. Call
the marine operator and identify yourself by your vessel’s name. The marine
operator will then ask you how you will pay for the call (telephone credit card,
collect, etc.) and then link your radio transmission to the telephone lines.
The marine telephone company managing the VHF channel you are using may
charge a link-up fee in addition to the cost of the call.
5.6 BRIDGE CHANNELS 13 AND 67
Channel 13 is used at docks, bridges and by vessels maneuvering in port.
Messages on this channel must concern navigation only, such as meeting and
passing in restricted waters.
Channel 67 is used for navigational trafc between vessels.
By regulation, power is normally limited to 1 Watt on these channels. Your radio
is programmed to automatically reduce power to this limit on these channels.
However, in certain situations it may be necessary to temporarily use a higher
power. See Page xx for means to temporarily override the low-power limit on
these two channels.
Page 12
HX870
5.7 AUTOMATED RADIO CHECK SERVICE
In areas across the country, Sea Tow offers boaters a way to conduct radio
checks. To use Sea Tow’s free Automated Radio Check service, simply tune
your VHF radio to the appropriate channel for your location and conduct a
radio check as you typically would. Upon releasing your radio’s microphone,
the system will play an automated message and relay your transmission back
to you, thereby letting you know how your signal will sound to other boaters.
The Automated Radio Check Service is currently available in the areas listed
below.
West Coast Sea Tow Newport/LA - Ch. 27
Sea Tow San Diego - Ch. 27
Northeast Sea Tow Portland-Midcoast (Maine) - Ch. 27
Sea Tow Boston - Ch. 27
Sea Tow South Shore (Mass.) - Ch. 28
Sea Tow Rhode Island - Ch. 24
Sea Tow Eastern Long Island - Ch. 27
Sea Tow Huntington (N.Y.) - Ch. 27
Sea Tow Manasquan (N.J.) - Ch. 28
Mid-Atlantic Sea Tow Northern Chesapeake (Md.) - Ch. 28
Sea Tow Central Chesapeake (Md.) - Ch. 27
Sea Tow Hampton Roads (Va.) - Ch. 28
North Carolina Sea Tow Wrightsville Beach - Ch. 28
Sea Tow Ocean Isle Beach - Ch. 28
Florida Sea Tow Sebastian - Ch. 28
Sea Tow Fort Lauderdale - Ch. 27
Sea Tow Charlotte Harbor - Ch. 24
Sea Tow Tampa Bay - Ch. 27
Sea Tow Horseshoe Beach - Ch. 27
Sea Tow Carrabelle/St. Marks - Ch. 27
Sea Tow Pensacola/Orange Beach (Ala.) - Ch. 27
Page 13
HX870
6 GETTING STARTED
NOTE
Before operating the HX870 for the rst time, it is recommended that
the battery be charged. Please see section “6.1.4 Using the SBH-12
Charger Cradle” for details.
6.1 BATTERIES AND CHARGERS
If the radio has never been used, or its charge is depleted, it may be charged
by connecting the SBH-12 Charger Cradle with the SAD-11B battery charger,
as shown in the illustration. If 12V DC power is available, the E-DC-19A DC
Cable with 12 V Cigarette Lighter Plug or the optional E-DC-6 DC Cable may
be used for charging the battery. The SAD-11B, E-DC-19A and E-DC-6 will
charge a completely discharged SBR-13LI battery pack in about 3 hours.
The SBR-13LI is a high performance Li-ion battery providing high capacity in
a compact package.
SBR-13LI Rechargeable Battery Pack
Capacity 1800 mAh
Nominal Voltage 7.4 V
Temperature Range Minimum Maximum
°C °F °C °F
Charge 5 41 35 95
Discharge –20 –4 60 140
Storage –10 14 35 95
CAUTION
To avoid risk of explosion and injury, SBR-13LI battery pack should only
be removed, charged or recharged in non-hazardous environments.
6.1.1 Battery Safety
Battery packs for your transceiver contain Li-ion batteries. This type of battery
stores a charge powerful enough to be dangerous if misused or abused,
especially when removed from the transceiver. Please observe the following
precautions:
DO NOT SHORT BATTERY PACK TERMINALS: Shorting the terminals that
power the transceiver can cause sparks, severe overheating, burns, and battery
cell damage. If the short is of sufcient duration, it is possible to melt battery
components. Do not place a loose battery pack on or near metal surfaces or
Page 14
HX870
objects such as paper clips, keys, tools, etc. When the battery pack is installed
on the transceiver, the terminals that transfer current to the transceiver are not
exposed. The terminals that are exposed on the battery pack when it is mounted
on the transceiver are charging terminals only and do not constitute a hazard.
DO NOT INCINERATE: Do not dispose of any battery in a re or incinerator. The
heat of re may cause battery cells to explode and/or release dangerous gases.
Battery Maintenance
For safe and proper battery use, please observe the following:
Battery packs should be charged only in non-hazardous environments;
Use only STANDARD HORIZON-approved batteries;
Use only a STANDARD HORIZON, (a Marine Division of YAESU USA)
approved charger. The use of any other charger may cause permanent
damage to the battery.
Follow charging instructions provided with the chargers.
Keep the battery contacts clean.
Battery Storage
Store the batteries in a cool place to maximize storage life. Since batteries are
subject to self-discharge, avoid high storage temperatures that cause large
self-discharge rates. After extended storage, a full recharge is recommended.
Battery Recycling
DO NOT PLACE USED BATTERIES IN YOUR REGULAR TRASH!
LI-ION BATTERIES MUST BE COLLECTED, RECYCLED OR DISPOSED
OF IN AN ENVIRONMENTALLY SOUND MANNER.
The incineration, land lling or mixing of Li-ion batteries with
the municipal solid waste stream is PROHIBITED BY LAW
in most areas.
Return batteries to an approved Li-ion battery recycler. This
may be where you purchased the battery.
Contact your local waste management ofcials for other
information regarding the environmentally sound collection,
recycling and disposal of Li-ion batteries.
Page 15
HX870
6.1.2 Battery Installation/Removal
1. To install the battery pack, slide the battery cover lock switch to the
“UNLOCK” position, then press “PUSH” to open the battery cover. Install
the battery pack aligning it to the battery contacts until it clicks. Attach the
battery cover, then slide the battery cover lock switch to the “LOCK” posi-
tion.
2. To remove the battery pack, turn the transceiver off, open the battery cover,
then remove the battery pack.
NOTE
The battery lock must be set to “LOCK” position to ensure water integrity
and from the battery coming loose.
6.1.3 Battery Life Information
When the battery charge is almost depleted, a “ ” icon
will appear on the display. When the “ ” icon appears, it
is recommended that you charge the battery soon.
HIUSA
LAT/LON
23°
56.890E
123°
56.890W
Oct/25 09:56AM
DATE
STATUS
SEARCH
65
A
BUSY
: Full battery power
: Enough battery power
: Low battery power
: Poor battery power
: Charge (or replace) the battery
Page 16
HX870
6.1.4 Using the SBH-12 Charger Cradle
1. Turn the transceiver off.
2. Insert the DC plug from the SAD-
11B into the DC jack on the SBH-12
bottom panel, then plug the SAD-
11B into the AC line outlet.
3. Insert the HX870 (with the battery
pack) into the SBH-12; the antenna
should be at the left side when view-
ing the charger from the front.
4. If the HX870 is inserted correctly,
the HX870’s LCD display will show
the battery charging icon. A fully-
discharged pack will be charged
completely in approximately 3
hours.
5. When charging is completed, the battery charging icon will disappear.
CAUTION
The SBH-12 is NOT designed to be waterproof. Charge the radio in
a dry location.
NOTE
The SBH-12 is only designed for the charging of the HX870’s battery,
and is not suitable for other purposes. The SBH-12 may contribute
noise to TV and radio reception in the immediate vicinity, so we do not
recommend its use adjacent to such devices.
Page 17
HX870
6.2 CONNECTING A USB DATA TERMINAL TO THE PC
The HX870 outputs the following NMEA 0183 sentences 9600: GLL, GGA,
GSA, GSV, RMC, DSC and DSE.
If you have further inquires, please feel free to contact Product Support at:
Phone: (800) 767-2450
Email: marinetech@yaesu.com
To connect a PC, use the supplied USB cable to connect the HX870 to the
USB jack of the PC.
NOTE
When mounting the HX870 inside of a cabin where GPS reception is
limited, choose a place where GPS satellite reception is good enough
referring to the GPS status display.
Page 18
HX870
6.3 CHECKING GPS SIGNAL (GPS STATUS DISPLAY)
The HX870 has a GPS status display which shows the satellites currently being
received, along with a graphical (bar-graph) representation of the relative signal
strengths from the satellites.
When the HX870 receives the GPS signal through the
internal GPS, a small satellite icon or “ ” will appear
on the top right corner of the display and your current
location (latitude/longitude) is shown on the display.
(GPS StatuS DiSPlay moDe)
HIUSA
LAT/LON
23°
56.890E
123°
56.890W
Oct/25 09:56AM
DATE
STATUS
FIX 3D
65
A
BUSY
1. Press the MENU key to display “MENU”, then
select “GPS” with the CH▲/CH▼/◄/► key.
GPS INFO
COMPASS
ENTER
GPS
GPS STATUS
BACK
HIUSA
LAT/LON
23°
56.890E
123°
56.890W
Oct/25 09:56AM
DATE
STATUS
SEARCH
65
A
BUSY
2. Press the [SELECT] soft key, then select
“GPS STATUS” with the CH▲/CH▼ key.
3. Press the [ENTER] soft key to display the
GPS status currently being received.
4. Press the CLR key to return to radio opera-
tion.
NOTE
When the HX870 is rst turned on, it may take several minutes to
compute a x of your position. This is normal, as the HX870 is down-
loading “almanac” information from the GPS satellites.
Page 19
HX870
6.4 CHANGING THE GPS TIME
From the factory the HX870 shows GPS satellite time or UTC (Universal Time
Coordinated) time. A time offset is needed to show the local time in your area.
The time offset must be changed in order for the radio to display the current
time in your area. See the Offset Time Table below.
offSet time table
1. Press the MENU key to display “MENU”, then
select “SETUP” with the CH▲/CH▼/◄/►
key.
DSC SETUP
GM SETUP
BACK
SETUP
WAYPOINT SETUP
CH SETUP
GPS SETUP
ATIS SETUP
SELECT
GPS ON/OFF
POWER SAVE
DIRECTION
LOCATION FORMAT
TIME OFFSET
TIME AREA
TIME FORMAT
GPS SETUP
BACK SELECT
ON
+09:00
BACK
GPS SETUP
+09:30
+10:00
+10:30
+11:00
ENTER
TIME OFFSET

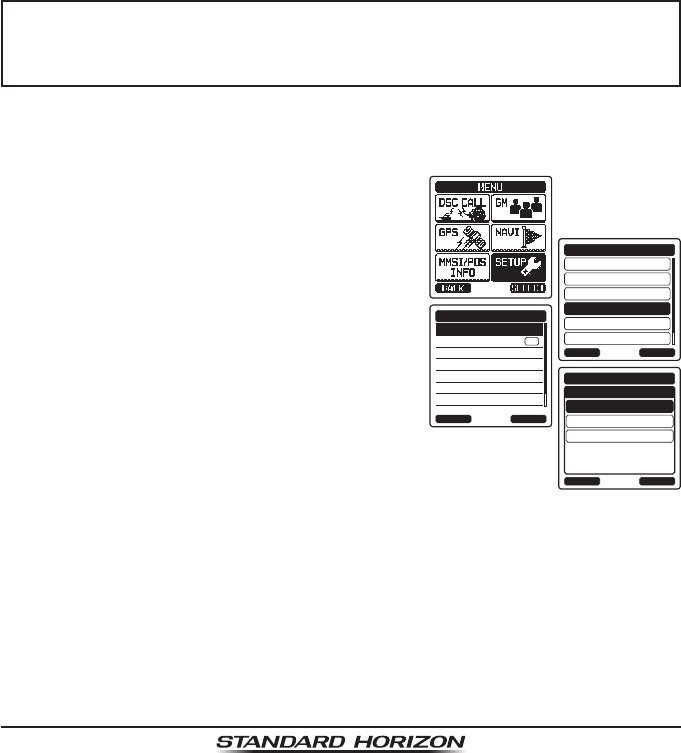

2. Select “GPS SETUP” with the CH▲/CH▼ key.
3. Press the [SELECT] soft key, then select
“TIME OFFSET” with the CH▲/CH▼ key.
4. Press the [SELECT] soft key, then press the
CH▲/CH▼ key to select time offset of your
location. See illustration above to nd your
offset time. If “00:00” is assigned, the time
is the same as UTC or GPS satellite time.
5. Press the [ENTER] soft key to store the time
offset.
6. Press the CLR key to return to radio operation.
Page 20
HX870
6.5 CHANGING THE TIME LOCATION
This menu selection allows the radio to show UTC time or local time with the
offset.
1. Press the MENU key to display “MENU”, then
select “SETUP” with the CH▲/CH▼/◄/►
key.
DSC SETUP
GM SETUP
BACK
SETUP
WAYPOINT SETUP
CH SETUP
GPS SETUP
ATIS SETUP
SELECT
GPS ON/OFF
POWER SAVE
DIRECTION
LOCATION FORMAT
TIME OFFSET
TIME AREA
TIME FORMAT
GPS SETUP
BACK SELECT
ON
UTC
BACK
GPS SETUP
LOCAL
ENTER
TIME AREA

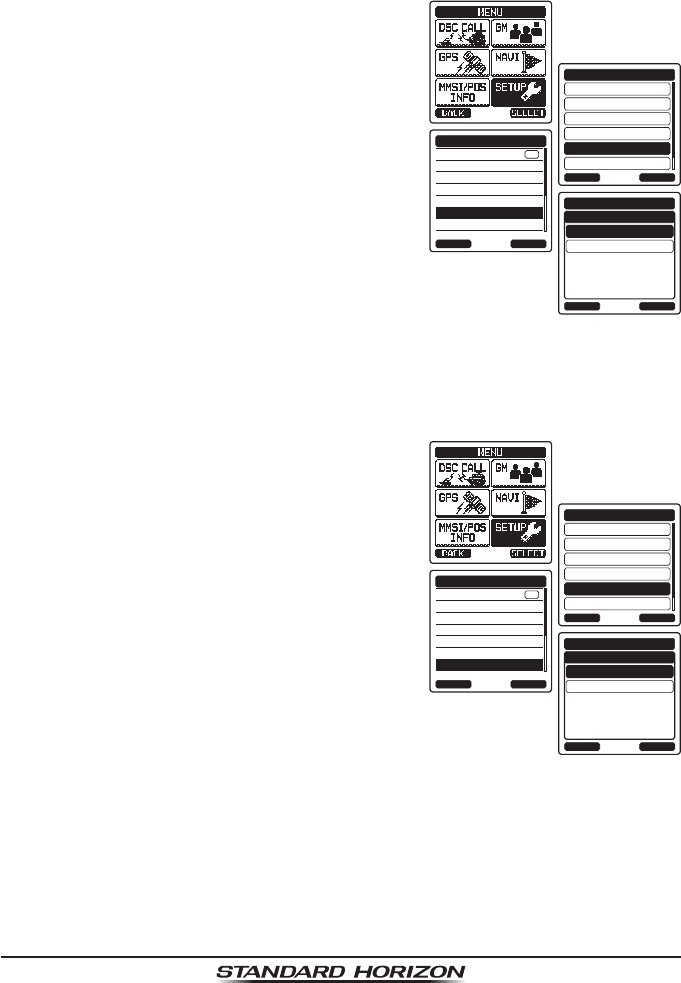

2. Select “GPS SETUP” with the CH▲/CH▼ key.
3. Press the [SELECT] soft key, then rotate
the CH▲/CH▼ key to “TIME AREA”.
4. Press the [SELECT] soft key.
5. Press the CH▲/CH▼ key to select “UTC” or
“LOCAL”.
6. Press the [ENTER] soft key to store the
selected setting.
7. Press the CLR key to return to radio opera-
tion.
6.6 CHANGING THE TIME FORMAT
This menu selection allows the radio to setup to show time in 12-hour or
24-hour format.
1. Press the MENU key to display “MENU”, then
select “SETUP” with the CH▲/CH▼/◄/►
key.
DSC SETUP
GM SETUP
BACK
SETUP
WAYPOINT SETUP
CH SETUP
GPS SETUP
ATIS SETUP
SELECT
GPS ON/OFF
POWER SAVE
DIRECTION
LOCATION FORMAT
TIME OFFSET
TIME AREA
TIME FORMAT
GPS SETUP
BACK SELECT
ON
24hour
BACK
GPS SETUP
12hour
ENTER
TIME FORMAT
2. Select “GPS SETUP” with the CH▲/CH▼ key.
3. Press the [SELECT] soft key, then rotate the
CH▲/CH▼ key to select “TIME FORMAT”.
4. Press the [SELECT] soft key.
5. Press the CH▲/CH▼ key to select “12
HOUR” or “24 HOUR”.
6. Press the [ENTER] soft key to store the
selected setting.
7. Press the CLR key to return to radio opera-
tion.
Page 21
HX870
7 CONTROLS AND INDICATORS
NOTE
This section denes each control of the transceiver. See illustration at
the next page for location of controls. For detailed operating instructions
refer to chapter 8 of this manual.
ANT Jack (Top Panel)
The supplied CAT460 exible antenna is attached here.
POWER switch
Press and hold to toggle the radio on or off.
PTT (Push-To-Talk) button (Left side)
When pushed activates the transmitter.
NOTE
When transmitting, position
your mouth about 1/2 to 1
inch (1.2 ~ 2.5 cm) away
from the small mic hole.
Speak slowly and clearly
into the microphone.
Page 22
HX870
SQL switch
Press this key to activate the squelch adjusting mode. Press the CH▲ or
CH▼ key to adjust the squelch threshold level.
Press and hold this key for 3 seconds to open the squelch, allowing you to
monitor the operating channel. Release the key to resume normal (quiet)
monitoring.
MIC
The internal microphone is located here.
NOTE
When transmitting, position your mouth about 1/2 to 1 inch (1.2 ~
2.5 cm) away from the small mic hole. Speak slowly and clearly
into the microphone.
Keypad
MENU Key
Press to access MENU.
CH▲ Key
This key is used to change the operating channel, receiver volume
level, and squelch threshold level.
Press the key momentarily, the channel (or level) increases one step.
Holding the key, the channel (or level) increases continuously.
CH▼ Key
This key is used to change the operating channel, receiver volume
level, and squelch threshold level.
Press the key momentarily, the channel (or level) decreases one step.
Holding the key, the channel (or level) decreases continuously.
Key
Hold down this key to lock the keypad so that they are not accidentally
changed. “LOCK” will appear on the entire screen, to indicate that the
functions are locked. Hold down this key until “UNLOCK” appears to
unlock the radio.
◄/► Key
Press to toggle the on-screen menus to right/left.
VOL+ Key
Press to increase the speaker audio volume level.
Page 23
HX870
VOL− Key
Press to decrease the speaker audio volume level.
16/S Key
Pressing this key immediately recalls channel 16 from any channel
location. Holding down this key recalls the SUB channel (The default
setting is channel 9). Pressing this key again reverts to the previous
selected working channel.
CLR Key
Press this key to cancel a menu selection and/or keypad entry.
MIC/SP Jack (Top Panel)
The jack accepts the optional MH-73A4B Submersible Speaker/Microphone,
MH-57A4B Mini Speaker/Microphone, VC-24 VOX Headset, SSM-10
Submersible Speaker/Microphone, or SSM-55A Earpiece/Microphone.
When this jack is used, the internal speaker and microphone are disabled.
DATA jack (Right side)
Use the USB mini type B jack to output the NMEA data, congure the
transceiver settings and download the GPS logger data.
DISTRESS Key (Right side)
Used to send a DSC Distress Call. To send the distress call, refer to section
“9.3.1 Transmitting a DSC Distress Call”.
Soft Keys
The 3 programmable soft keys can be customized by the Setup Menu
mode described in section “12.7 SOFT KEYS”. When one of the soft keys
is pressed briey, the functions will appear above each key on the display.
Strobe Light Indicator
When the Emergency feature is activated, this indicator blinks the interna-
tionally-recognized Morse Code “S.O.S” message.
Speaker
The internal speaker is located here.
Battery Pack Lock (Bottom side)
Turn the Battery Pack Lock to the “UNLOCK” position for battery removal.
Page 24
HX870
BELT CLIP INSTALLATION / REMOVAL
inStallation
To install the Belt Clip: align
the Belt Clip to the groove of
the Battery pack, then press
the Belt Clip downward until it
locks in place with a “Click”.
Removal
To remove the Belt Clip: press the
Belt Clip Tab away from the bat-
tery pack to unlock the Belt Clip,
then slide the Belt Clip upward to
remove it.
Page 25
HX870
8 BASIC OPERATION
8.1 INITIAL SETUP
1. Install the battery pack on the transceiver (see section “6.1.2 Battery
Installation/Removal”).
2. Install the antenna onto the transceiver, hold the bottom end of the antenna,
then screw it onto the mating connector on the transceiver until it is snug.
Do not over-tighten.
NOTE
Water resistance of the transceiver is assured only when the battery
cover is attached to the transceiver, DATA jack cover is locked and
MIC/SP cap is installed in the MIC/SP jack.
8.2 RECEPTION
1. Press and hold the POWER key until the radio turns on.
2. Press the SQL key, then press the CH▼ key. This state is known as “squelch
off”.
3. Press the VOL−/VOL+ key until noise or audio from the speaker is at a
comfortable level.
4. Press the SQL key, then press the CH▲ key until the random noise disap-
pears. This state is known as the “squelch threshold”.
5. Press the CH▲/CH▼ key to select the desired channel. Refer to the chan-
nel chart on Page 136 for available channels.
6. When a message is received, adjust the volume to the desired listening
level. The “[BUSY]” indicator on the display indicates that communications
are being received.
8.3 TRANSMISSION
1. Perform steps 1 through 5 of RECEPTION.
2. Before transmitting, monitor the channel to ensure it is clear.
THIS IS AN FCC REQUIREMENT!
3. Press the PTT (push-to-talk) button. The “[TX]” indicator on the LCD is
displayed.
4. Speak slowly and clearly into the MIC.
5. When the transmission is nished, release the PTT button.
NOTE
This is a noise-canceling microphone. Position “MIC” within 1/2” (1.5
cm) from the mouth for optimum performance.
Page 26
HX870
8.4 TRANSMIT TIME - OUT TIMER (TOT)
When the PTT button is held down, transmit time is limited to 5 minutes. This
limits unintentional transmissions due to a stuck microphone. About 10 seconds
before automatic transmitter shutdown, a warning beep will be heard from the
speaker(s). The transceiver will automatically go to receive mode, even if the
PTT button is continually held down. Before transmitting again, the PTT button
must rst be released and then pressed again.
8.5 SIMPLEX/DUPLEX CHANNEL USE
Refer to the VHF MARINE CHANNEL CHART (Page 136) for instructions on
use of simplex and duplex channels.
NOTE
All channels are factory-programmed in accordance with FCC (USA),
Industry Canada (Canada), and International regulations. Mode of
operation cannot be altered from simplex to duplex or vice-versa.

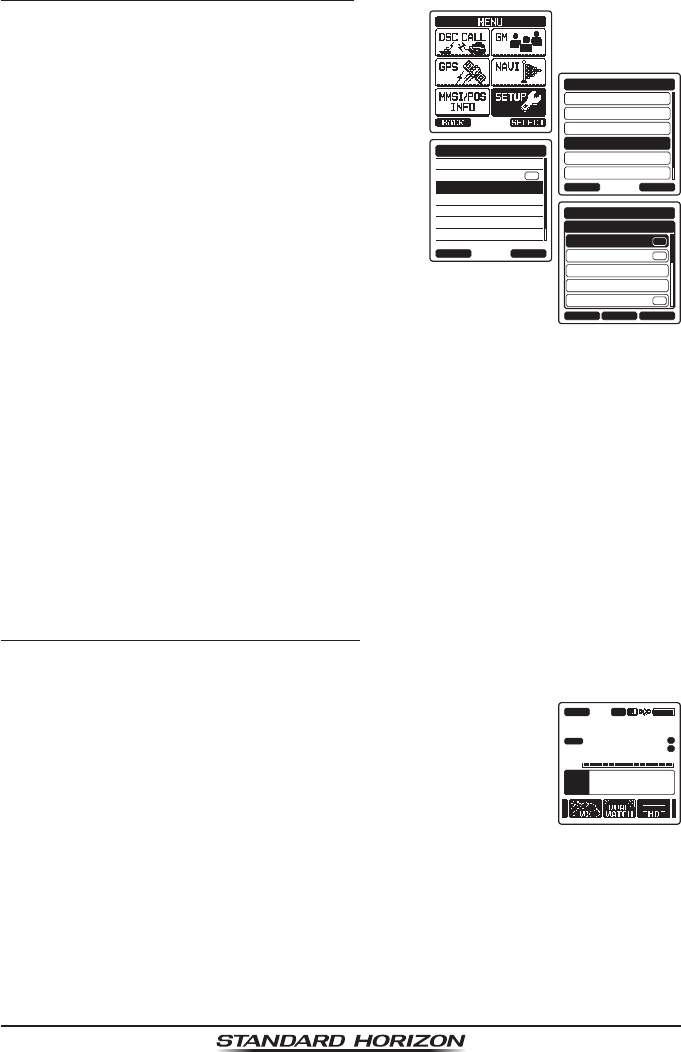

8.6 USA, INTERNATIONAL, AND CANADA MODE
To change the channel group from USA to International or Canada:
1. Press the MENU key to display “MENU”, then
select “SETUP” with the CH▲/CH▼/◄/►
key.
DSC SETUP
GM SETUP
BACK
SETUP
WAYPOINT SETUP
CH SETUP
GPS SETUP
ATIS SETUP
SELECT
CH GROUP
WX ALERT
SCAN MEMORY
SCAN TYPE
SCAN RESUME
PRIORITY CH
SUB CH
CH SETUP
BACK SELECT
ON
USA
BACK
CH SETUP
INTL
CAN
ENTER
CH GROUP
2. Press the CH▲/CH▼ key to select “CH
SETUP”.
3. Press the [SELECT] soft key, then press the
CH▲/CH▼ key to select “CH GROUP”.
4. Press the [SELECT] soft key.
5. Press the CH▲/CH▼ key to select desired
channel group “USA”, “INTL”, or “CAN”.
6. Press the [ENTER] soft key to store the
selected setting.
7. Press the CLR key to return to radio opera-
tion.
Page 27
HX870
8.7 NOAA WEATHER CHANNELS
1. To receive a NOAA weather channel on the main menu
screen, press ◄/► key repeatedly until the [WX] soft key
is displayed at the bottom of the screen.
07
162.525MHz
VOL
118°
09.582
33°
37.120
W
s
LOC 09.56 AM
BUSY
WX
TIME
LON
LAT
2. Press the [WX] soft key. The “WX” indicator appears on
the top part of the screen.
3. Press the CH▲/CH▼ key to select a different NOAA
weather channel.
4. To exit from the NOAA weather channels, press the [CH] soft key. The
transceiver returns to the channel it was on prior to a weather channel and
the “WX” icon disappears from the display.

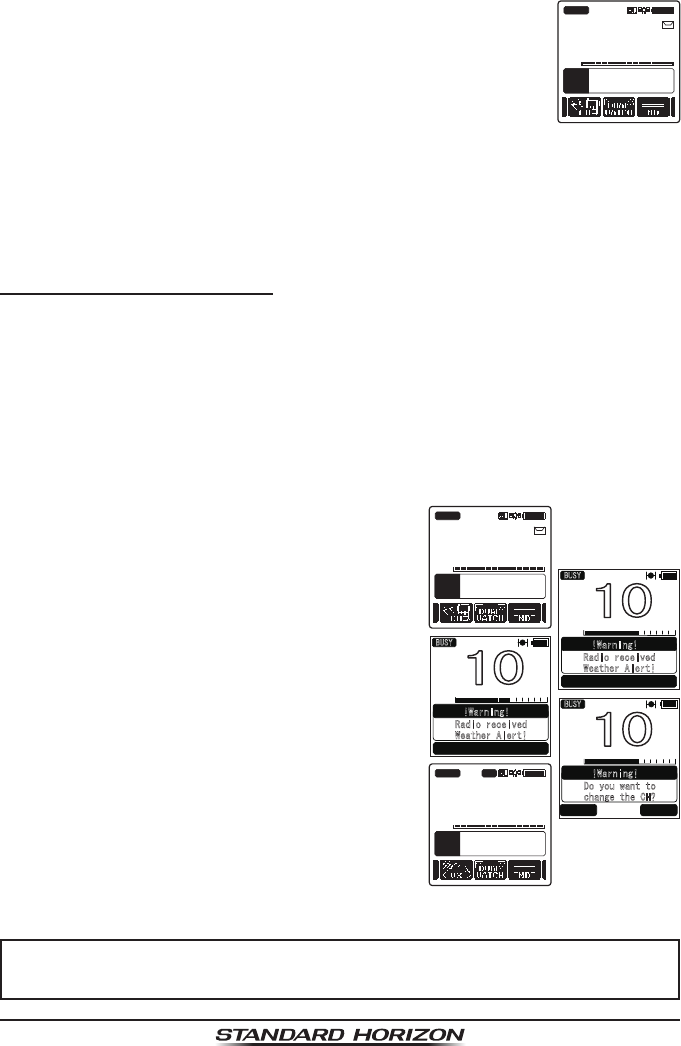

8.7.1 NOAA Weather Alert
In the event of extreme weather disturbances, such as storms and hurricanes,
the NOAA (National Oceanic and Atmospheric Administration) sends a weather
alert accompanied by a 1050 Hz tone and subsequent weather report on one
of the NOAA weather channels.
The HX870 can receive weather alerts when on a weather channel and on
the last selected weather channel during scanning modes or while on another
channel.
When an alert is received on a NOAA weather
channel, scanning will stop and the transceiver
will emit a loud beep to alert the user of a NOAA
broadcast. Press any key to stop the alert.
After stopping the beep sound, the weather
alert reception conrmation screen will appear.
Press [OK] to display a conrmation screen.
The conrmation screen will ask you whether
to move to the weather channel or return in the
marine channel. Press [YES] to remain in the
weather channel, and press [NO] to return to
the marine channel.
To disable the weather alert function, refer to
section “13.6 WEATHER ALERT”.
07
162.525MHz
VOL
118°
09.582
33°
37.120
W
s
LOC 09.56 AM
BUSY
WX
TIME
LON
LAT
1
BUSY
V
OL
163.275MHz
WX
0
!Warnin
g
!
Radio received
Press an
y
ke
y
s
Weather Alert!
1
BUSY
V
OL
163.275MHz
WX
0
!Warnin
g
!
Radio received
O
K
Weather Alert!
1
BUSY
V
OL
163.275MHz
WX
0
!Warnin
g
!
Do you want to
change the CH?
YES NO
1
BUSY
V
OL
163.275MHz
WX
0
!Warnin
g
!
Radio received
Press an
y
ke
y
s
Weather Alert!
1
BUSY
V
OL
163.275MHz
WX
0
!Warnin
g
!
Radio received
O
K
Weather Alert!
1
BUSY
V
OL
163.275MHz
WX
0
!Warnin
g
!
Do you want to
change the CH?
YES NO
1
BUSY
V
OL
163.275MHz
WX
0
!Warnin
g
!
Radio received
Press an
y
ke
y
s
Weather Alert!
1
BUSY
V
OL
163.275MHz
WX
0
!Warnin
g
!
Radio received
O
K
Weather Alert!
1
BUSY
V
OL
163.275MHz
WX
0
!Warnin
g
!
Do you want to
change the CH?
YES NO
A
P
26
USCG
VOL
118°
09.582
33°
37.120
W
s
LOC 09.56 AM
BUSY HI
USA
TIME
LON
LAT
C
A
MEM
P-SET
NOTE

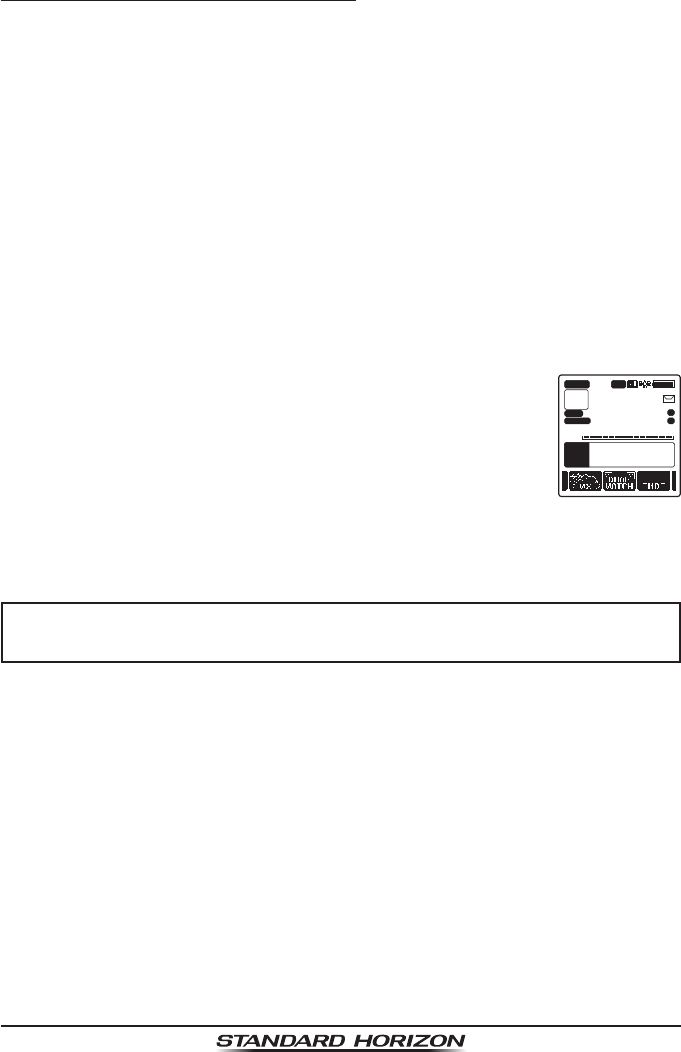

If any key is not pressed the alert will sound for 5 minutes and then the
weather report will be received.
Page 28
HX870
8.7.2 NOAA Weather Alert Testing
NOAA tests the alert system ever Wednesday between 11AM and 1PM. To test
the HX870’s NOAA weather feature, on Wednesday between 11AM and 1PM,
setup as in section “8.7.1 NOAA Weather Alert” and conrm the alert is heard.
8.8 DUAL WATCH (TO CHANNEL 16)
Dual watch is used to scan two channels for communications. One channel
is a normal VHF channel and the other is the priority, Channel 16. When a
signal is received on the normal channel the radio briey switches between the
normal channel and Channel 16 to look for a transmission. If the radio receives
communications on Channel 16 the radio stops and listens to Channel 16 until
communication ends and then starts dual watch scan again.
1. Press the SQL key, then press the CH▲/CH▼ key until the background
noise disappears.
2. Press the CH▲/CH▼ key to select a channel you wish to watch.
3. Press one of the soft keys, then press the [DW] soft key.
A
P
26
DISTRESS
DW
16
VOL
118°
09.582
33°
37.120
W
s
LOC 09.56 AM
BUSY HI
USA
TIME
LON
LAT
C
A
MEM
P-SET
The radio will monitor CH16 and the channel that was
selected in step 2.
If a transmission is received on the channel selected in
step 2, the HX870 will dual watch to CH16.
4. To stop dual watch, press one of the soft keys, then press the [DW] soft
key again.
NOTE
The priority channel may be changed from CH16 to another channel.
Refer to section “13.5 PRIORITY CHANNEL”.
8.9 SCANNING
The HX870 will automatically scan channels programmed into the preset
channel memory and also the scan channel memory, and the last selected
weather channel.
When an incoming signal is detected on one of the channels during scan, the
radio will pause on that channel, allowing you to listen to the incoming transmis-
sion. The radio will automatically start scanning again after the transmission
stops.
Page 29
HX870

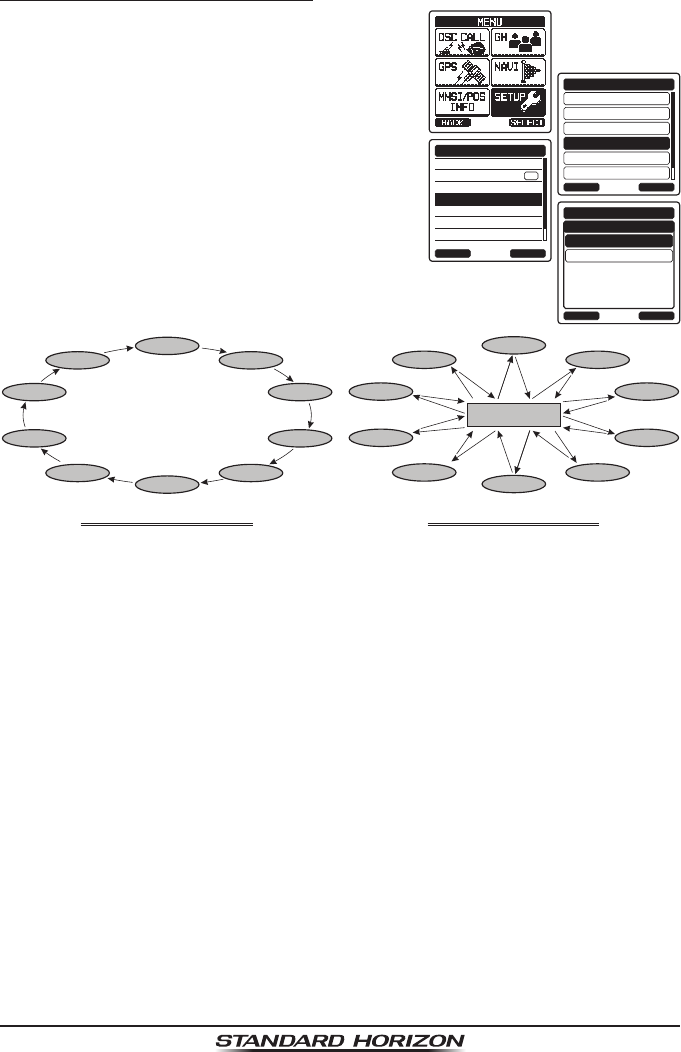

8.9.1 Selecting the Scan Type
1. Press the MENU key to display “MENU”.
DSC SETUP
GM SETUP
BACK
SETUP
WAYPOINT SETUP
CH SETUP
GPS SETUP
ATIS SETUP
SELECT
CH GROUP
WX ALERT
SCAN MEMORY
SCAN TYPE
SCAN RESUME
PRIORITY CH
SUB CH
CH SETUP
BACK SELECT
ON
PRIORITY
BACK
CH SETUP
MEMORY
ENTER
SCAN TYPE
2. Press the CH▲/CH▼/◄/► key to select “CH
SETUP”.
3. Press the [SELECT] soft key, then select
“SCAN TYPE” with the CH▲/CH▼ key.
4. Press the [SELECT] soft key.
5. Press the CH▲/CH▼ key to select “PRI
SCAN” or “MEM SCAN”.
6. Press the [ENTER] soft key to store the
selected setting.
7. Press the CLR key to return to radio opera-
tion.
memoRy Scan (m-Scan)
CH12
CH09
CH01A
CH15
CH18
CH22A
CH61A
CH68A
CH68A
CH88A
PRioRity Scan (P-Scan)
PriorityChannel
CH12
CH09
CH01A
CH15
CH18
CH22A
CH61A
CH68A
CH68A
CH88A
Page 30
HX870
8.9.2 Programming Scan Memory
1. Press the MENU key to display “MENU”.
DSC SETUP
GM SETUP
BACK
SETUP
WAYPOINT SETUP
CH SETUP
GPS SETUP
ATIS SETUP
SELECT
CH GROUP
WX ALERT
SCAN MEMORY
SCAN TYPE
SCAN RESUME
PRIORITY CH
SUB CH
CH SETUP
BACK SELECT
ON
CH:16
BACK
CH SETUP
CH:17
CH:18A
CH:19
CH:20
MEM
SCAN MEMORY
ON
ON
ON
FINISH
2. Press the CH▲/CH▼/◄/► key to select
“CH SETUP”.
3. Press the [SELECT] soft key, then press the
CH▲/CH▼ key to select “SCAN MEMORY”.
4. Press the [SELECT] soft key.
5. Press the CH▲/CH▼ key to select a desired
channel to be scanned, then press the
[MEM] soft keys. “ON” icon will appear at
the right side of the selected channel.
6. Repeat step 5 for all the desired channels
to be scanned.
7. To DELETE a channel from the list, select
the channel then press the [MEM] soft key.
“ON” icon of the selected channel will disap-
pear.
8. When you have completed your selection,
press the CLR key to return to radio opera-
tion.
When “SCAN MEMORY” is assigned to the soft key, every time you press the
[MEM] soft key, the memory function switches between on and off.
To check the scanned channel on the normal display, while pressing [SCAN],
press the CH▲/CH▼ key.
8.9.3 Memory Scanning (M-SCAN)
1. Press the SQL key, then press the CH▲/CH▼ key until background noise
disappears.
2. Press the ◄/► key repeatedly, then press the [SCAN] soft
key. “M-SCAN” appears on the display. Scanning will proceed
from the lowest to the highest programmed channel number
and preset channel (described in the next section) and will
stop on a channel when a transmission is received.
A
P
26
M-SCAN
VOL
118°
09.582
33°
37.120
W
s
LOC 09.56 AM
BUSY LO
USA
TIME
LON
LAT
C
A
MEM
P-SET
The channel number will blink during reception.
3. To stop scanning, press the 16/S, [SCAN] or CLR key.
