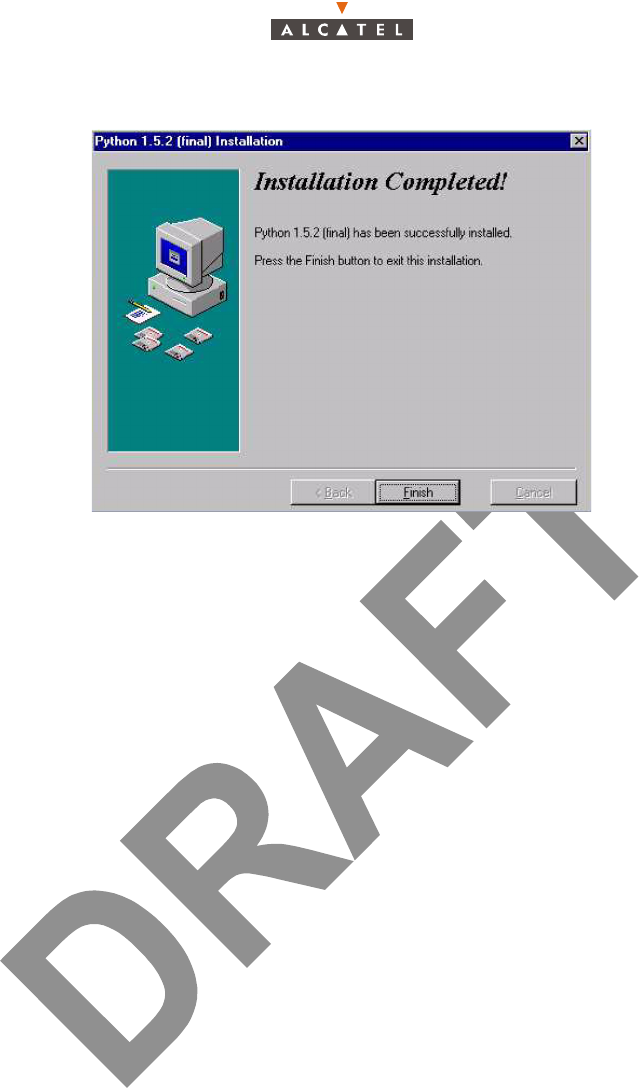

– Press "Finish".
– Now you are ready to use Python for the MIB migration.
A.3.4 – LT configuration file modification
If the MIB migration CD content has not been copied in the default directory ("C:"), you need to edit the
LT configuration file (C:\ProgramFiles\7390LT\Craft.ini) and modify the following parameter:
MIB_MIGRATION_SCRIPT_PATH="C:\mibconv"
If "Python" has not been installed in the default directory, you need to edit the LT configuration file
(C:\ProgramFiles\7390LT\Craft.ini) and modify the following parameter:
MIB_MIGRATION_PYTHON_EXE="C:\Program Files\Python\Python.exe"
332/346 Issue 01 - April 2001 - Draft 04 3CC12426AAAA TQ BJA 01
332
PAGE INTENTIONALLY LEFT BLANK
3CC12426AAAA TQ BJA 01 Issue 01 - April 2001 - Draft 04 333/346
336

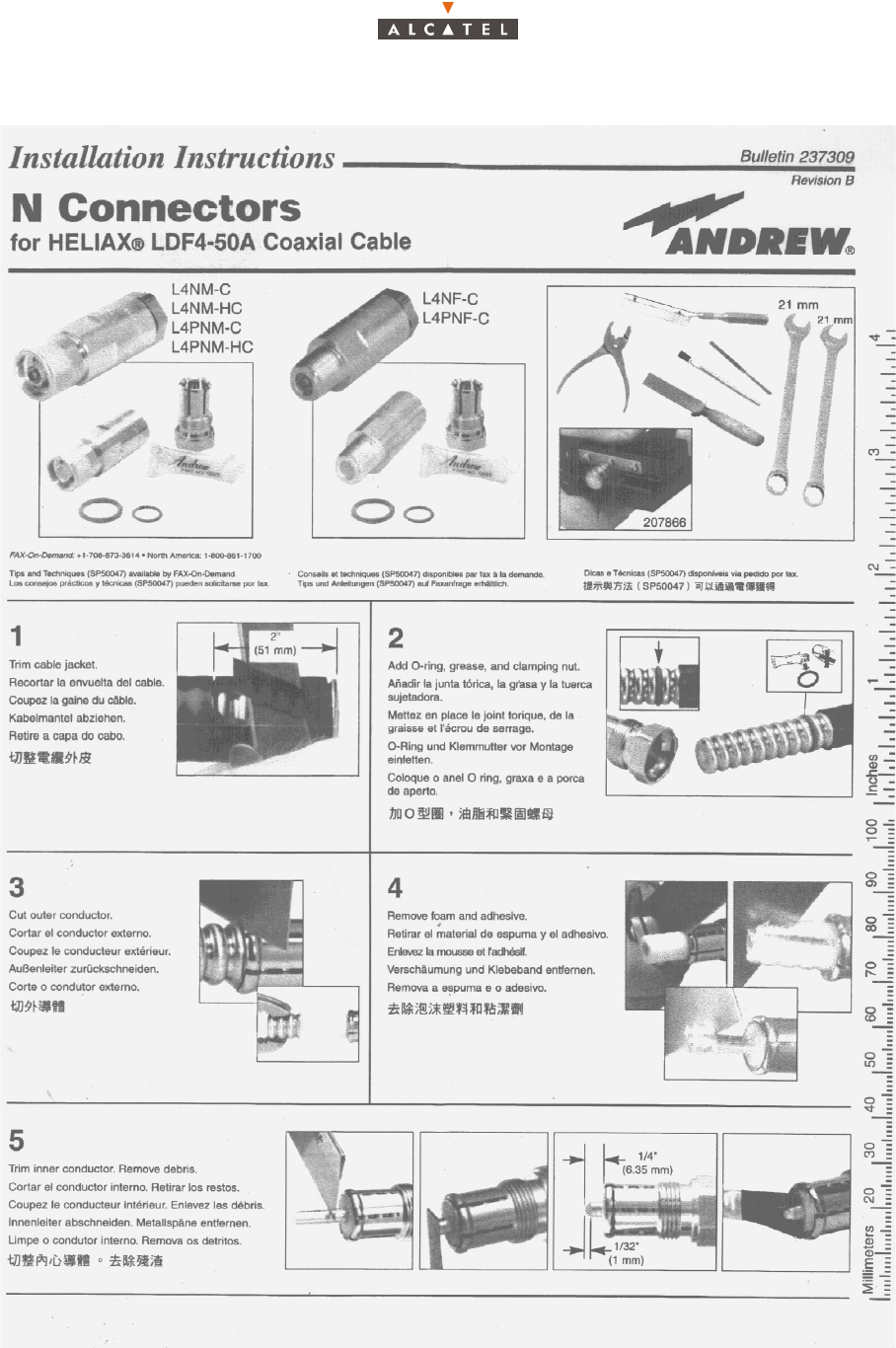

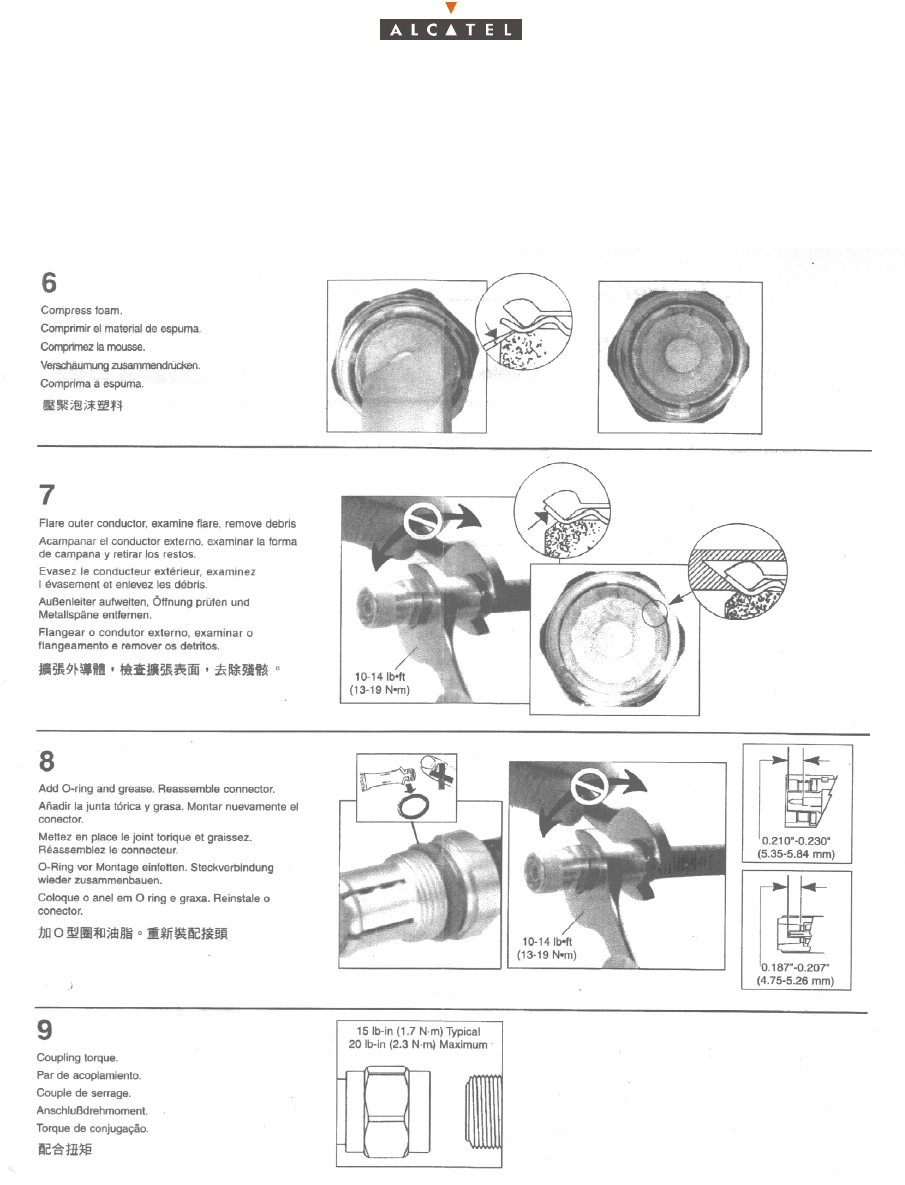

Appendix 4 – Mounting coaxial connector
Mounting on cable LDF4
Alcatel Code: 77096434
334/346 Issue 01 - April 2001 - Draft 04 3CC12426AAAA TQ BJA 01
336
3CC12426AAAA TQ BJA 01 Issue 01 - April 2001 - Draft 04 335/346
336
336/346 Issue 01 - April 2001 - Draft 04 3CC12426AAAA TQ BJA 01
336
PAGE INTENTIONALLY LEFT BLANK
3CC12426AAAA TQ BJA 01 Issue 01 - April 2001 - Draft 04 337/346
338
Appendix 5 – Correspondence between commercial
codes and industrial codes relating to the BS
Installation item Commercial code Industrial code Comments
DBS basic configuration
Rack 22 U 9900CAB001 3CC 10067 AAxx
DBS installation items
Power S. cable POWCAB0001 77096649 15 m 3x10 mm2
Distributor Panel
16x2 Mbits/s
9900XXI416 3CC 08061 AAxx
2x3CC 11236 AAxx
75 Ohms
1.6 / 5.6
9900XXI416 3CC 08061 ABxx
2x3CC 11237 AAxx 75 Ohms / BNC
9900XXI416 3CC 10316 ABxx
2x3CC 11238 AAxx 120 Ohms - EMC
RBS installation items
Grounding cable
(20 meters) 9900XXC502 3CC 08166 AAxx
(per meter)
Consummable 9900UXT002 3CC 06503 AAxx
50 Ohms coaxial cable
(50 meters) 9900UXI202 50 m of
1AC 001100022
Coaxial connector 9900UXI203 2 x 1AB 095530021 (x2)
Grounding kit 9900UXI204 1AB 128500002
114 mm tube (2 meters) SUPOUTD001 3CC 04658 AExx
2 pole-mounting fastening kit
(1+1) 9900UXI104 3CC 11681 AAxx
Self supporting mast 114 mm
(1.5 meter) SUPMAST001 3CC 05148 AAxx
Cable tray cablofil (6 m) INFRA00003 3CC 07580 AAxx
Cable tray PVC (4 m) INFRA00004 3CC 06511 AAxx
Cable tray CES (12 m) INFRA00005 3CC 06759 AAxx
Gaine Capri (12 m) INFRA00006 3CC 06512 AAxx
Cable LDF 4-50 9900WVG001 77 096 434 50 Ohms (10 m)
N Connector kit 9900UXX022 77 096 433
N male right,
1 for each cable
LDF4-50
338/346 Issue 01 - April 2001 - Draft 04 3CC12426AAAA TQ BJA 01
338
Installation item Commercial code Industrial code Comments
Jumper 9900WVG004 3CC 09514 AAAA N male bented/
Nmale right (3 m)
Jumper 9900WVG005 3CC 09514 ABAA N female bented/
N male right (3 m)
RBS installation tools
Tool kit 9900UXT103 3CC 08409 AAxx
PC 9900LT
Laptop PC French
(incl. Ethernet module) 9900LTH001 3CC 10939 AAxx
Desktop PC French
(incl. Ethernet module) 9900LTH002 3CC 10626 AAxx
Laptop PC English
(incl. Ethernet module) 9900LTH001 3CC 11200 AAxx
Desktop PC English
(incl. Ethernet module) 9900LTH002 3CC 11201 AAxx
NFS Server software
LT application software
CDROM
Embedded software
package CDROM
CDROM User Manual
2.1, 2.2a, 2.2b
9900LTS001
1AH 00845 AAxx
3CC 12468 AAxx
3CC 12464 AAxx
3CC 12144 AAxx
3CC12426AAAA TQ BJA 01 Issue 01 - April 2001 - Draft 04 339/346
344
Appendix 6 – Error messages and corrective actions
The tables below list the main error messages when operating 7390 LT.
The purpose of this chapter is to give, for each message, an additional information and to suggest one
or more corrective actions. However, various causes may originate malfunction and it may occur and
derive one from another; thus the corrective action suggested may not be the only solution. Furthermore,
the operator is, in some cases, free to take initiative to solve the problem, considering that
troubleshooting should take into account the configuration context.
Whenever the malfunction is not fixed, please contact TAC (see page 3).
A.6.1 – Error messages for 7390LT software
A.6.2 – NT management error messages
Message Definition Corrective actions
Error in craft.ini file 7390LT software can not be laun-
ched, its configuration file contains
errors. The errored parameter name
is displayed on the screen.
The solution requires an
intervention at the craft.ini file
level. Only qualified personnel
should intervene.
For this purpose, please contact
the TAC (see page 3).
An error occured when
opening the Data Base
7390LT can not retrieve its data
base files.
Make sure the .mdb files are ins-
talled in the database directory. If
not, install again 7390LT (see
Appendix A.2).
Info model version com-
patible
When connecting to a BS, the data
base versions differ on agent and
manager side: e.g.: the 7390LT is
version 2.1 whereas the base sta-
tion is version 2.0.
Perform download of the appro-
priate software version (see §
7.3.10).
Message Definition Corrective actions
Error when declaring the
new NT
Declaring the new NT is denied. Make sure that:
. the serial number is valid,
(preceded by 4 dashes then CU
follow-up by 1 dashe)
. the associated AMD board
configuration is fully carried out.
An NT with this index
already exists
The NT identification number ente-
red is already assigned to another
NT.
Assign a free number. Contact
the scheduler.
Waiting NT characteris-
tics
This message displays a system
status and shows no anomaly. At
the end of the NT creation, the sys-
tem is waiting for information about
it.
Please, wait until the relevant
information is transmitted.
Error at the reception of
SNMP message: Error
when destroying the NT.
The NT destroy control is denied,
one of its ports being used by an IP
cross-connection or leased lines
(LL).
Delete all IP or LL cross-connec-
tions that use the NT ports
before initiating the NT destroy
control.
340/346 Issue 01 - April 2001 - Draft 04 3CC12426AAAA TQ BJA 01
344
A.6.3 – Error messages for communication between BS and 7390LT
A.6.4 – Error message linked with client services
A.6.4.1 – Error messages linked with E1 leased lines
Message Definition Corrective actions
An error occured at the
BS connection: Error
when declaring the
manager
Declaring the manager is denied. Make sure that no other LT
session is active (see section
4.3.1).
Connection failure: NE
not found
The communication establishment
with BS at the IP level failed.
. Check the IP level link with BS.
. Check if the cable fits to your
network configuration (crossed or
no Pc-DBS ethernet cable).
TIMEOUT on request No answer to SNMP request when
timeout expired. One of the causes
may be a communication
interruption between the BS and the
PC on which 7390 LT is installed.
This interruption may be brief. If this
problem is persistent, the message
"The connection with the NE has
been lost. The Craft will be re-
initialized" comes to confirm a
permanent cut.
If the interruption is brief, the
malfunction will disappear
without any intervention being
required. In case of a permanent
cut, refer to the following mes-
sage: "The connection with the
NE has been lost. The Craft will
be re-initialized".
The connection with the
NE has been lost. The
Craft will be re-initialized
Permanent cut of communication
between the BS and the PC on
which 7390LT is installed.
Start again the 7390LT. If the
problem persists, check all ele-
ments involved in the connection
between BS and PC.
Message Definition Corrective actions
Already involved in ano-
ther cross-connection
Creation control for a leased line
denied, assigned TSs being already
used by other cross-connections.
Try to create another leased line
using available TSs.
A cross-connection
exists on the TNT port
N°xxx
Creation control for a leased line
denied, another line using the port
N°xxx of the TNT.
Try to create another leased line
using available TNT port (see the
cross-connections list in section
4.11.4.1).
A cross-connection
exists on the NT port
N°xxx
Creation control for a leased line
denied, another line using the port
N°xxx of the NT.
Try to create another leased line
using available NT port (see the
cross-connections list in section
4.11.4.1).
Error when creating the
cross-connection: not
enough downstream
resources allocated.
Creation control for a leased line
denied because of a lack of resour-
ces for the upstream communica-
tion.
Check the upstream channel
traffic using the supervision (see
section 4.7).
Error when creating the
cross-connection: not
enough upstream resour-
ces allocated.
Creation control for a leased line
denied because of a lack of resour-
ces for the downstream communi-
cation.
Check the allocation with the
scheduler.
3CC12426AAAA TQ BJA 01 Issue 01 - April 2001 - Draft 04 341/346
344
A.6.4.2 – Error messages linked with IP "cross-connection"
A.6.4.3 – Error messages linked with circuit emulation
The selected ports must
be configured identically
before selecting a TS
(Time Slot).
Creation control for a leased line
denied because the selected ports
have a different configuration.
Check the configuration of the NT
and TNT ports (see section
4.11.1.3). Perform any relevant
modification.
E1 slots must be conse-
cutive
Creation control for a leased line
denied because the time slots num-
bers are not consecutive.
Assign contiguous numbers to
time slots (TS).
Time out on creating the
leased line
Creating the leased line did not suc-
ceed at the time out.
Carry out data downloading (see
section 4.4.1).
Time out on deleting the
selected leased line
Deleting the selected leased line did
not succeed at the time out.
Carry out data downloading (see
section 4.4.1).
Error when deleting the
Cross-connection: the
cross-connection on
leased line is not locked
Creation control for a cross-connec-
tion on leased line denied because
it is liable to route traffic.
Lock the cross-connection before
triggering the deletion control
(see § 4.11.4.5).
Message Definition Corrective actions
Error when creating the
Cross-connection:
Down Resource Pro-
blem.
Creation control for an IP cross-con-
nection denied because of a lack of
upstream resources.
Check upstream traffic using the
supervision (see section 4.7).
Error when creating the
Cross-connection:
Up Resource Problem.
Creation control for an IP cross-con-
nection denied because of a lack of
down-stream resources.
Check allocation with the
scheduler.
Error when creating the
Cross-connection: Ether-
net Port already involved.
Creation control for an IP cross-con-
nection denied because the NT
Ethernet port is already used.
see the IP cross-connection list
that displays the used ports (see
section 4.12.2.1). Carry out any
relevant modification.
Error when creating the
Cross-connection:
ATM Port Value error.
Creation control for an IP cross-con-
nection denied because one of the
following values is false: either
"VCL Vpi" or "VCL Vci".
Assign a value within the range of
the possible values (see section
4.12.2.3).
Error creating the cross-
co : ATM Medium type is
not configured
Configure the ATM medium type
(see section 4.9.1).
Message Definition Corrective actions
CES link configuration
failed
Creation control for an CES denied
because the TNT port is unlocked.
lock TNT port (see section
4.11.1.4)
Message Definition Corrective actions
342/346 Issue 01 - April 2001 - Draft 04 3CC12426AAAA TQ BJA 01
344
A.6.5 – Download error messages
A.6.6 – Error message at backup / restore
A.6.7 – Error messages for radio management
A.6.7.1 – Error messages linked to the radio configuration
A.6.7.2 – Radio Resources Manager (RRM)
Message Definition Corrective actions
Software download done
with problems detected.
An error occurred during data down-
load.
. Check the NFS server status is
operational,
. Chek hardware description for
the BS boards.
. Check the exported directory
has been added to the omni-NFS
server during a session with
adminis-trator rights.
Package commit done
with problems.
An error occurred during referen-
cing.
Check for any current board
alarms. If so, rectify the problem
in all cases (whether or not the
card presented an alarm) carry
out again a complete download.
Message Definition Corrective actions
Error when transfering
the sRam File
NFS server problem (directory not
recognized by the server)
Export the directory in R/W to the
NFS server.
Message Definition Corrective actions
Error when setting the
radiolink characteristics
The modification of the radio link
characteristics displayed cannot be
taken into account.
Before modifying the bandwidth,
suppress the NTs linked to this
radio link (see 4.6.3)
Message Definition Corrective actions
Bad static Value down-
stream
Inconsistency between the services
already created and the modified
static zone in the downstream
- Cancel the modification
- Update the static zone with a
value compatible with the static
services already created
Bad static Value ups-
tream
Inconsistency between the services
already created and the modified
static zone in the upstream (x from
1 to 4)
- Cancel the modification
- Update the static zone with a
value compatible with the static
services already created
Bad dynamic max Value
downstream
Inconsistency between the services
already created and the modified
dynamic zone in the downstream.
Update the dynamic zone with a
value compatible with the
dynamic service already created
and the overbooking factor limit
3CC12426AAAA TQ BJA 01 Issue 01 - April 2001 - Draft 04 343/346
344
A.6.8 – ASAP error messages
A.6.9 – Miscellaneous error messages
Bad dynamic Value ups-
tream x
Inconsistency between the services
already created and the modified
dynamic zone in the upstream.
Update the dynamic zone with a
value compatible with the
dynamic service already created
and the overbooking factor limit
Bad dynamic max Value
upstream x
(x from 1 to 4) Update over booking factor limit
with a value compatible with the
dynamic services created and
the dynamic zone.
Message Definition Corrective actions
Error removing ASAP The ASAP cannot be removed
because at least one NT is attached
to the ASAP table.
Before removing, the ASAP table
has to be deleted for each NT
attached to the table.
Message Definition Corrective actions
Error when destroying
the board
Board deletion control denied. The corrective action is related to
the type of board:
. AMD board: make sure that no
NT is associated with the board.
. TNT board: make sure that no
port is used either by a leased
line or as a potential source of
synchronization.
. NT board: make sure that no
port is used either by a leased
line or by an IP cross-connection.
Error when modifying the
TNT board
The modification of the TNT board
characteristics cannot be taken into
account.
All circuit emulation services
must be suppressed before
modifying the configuration of a
TNT board.
Error when updating the
BS
In BS's local network screen one
parameter is not correct.
- Check that BS's IP address is a
real IP address.
- Check that Ethernet and ATM
networks are different.
Error when setting syn-
chro parameters
Synchronization configuration is not
allowed.
Check that the reserved chan-
nels are configured (see § 4.11).
Error when enabling/
disabling E1 traffic on a
TNT port
Enabling/disabling is not allowed. If the TNT port is used for system
synchronization, the TNT port
cannot be locked.
Message Definition Corrective actions
344/346 Issue 01 - April 2001 - Draft 04 3CC12426AAAA TQ BJA 01
344
PAGE INTENTIONALLY LEFT BLANK
3CC12426AAAA TQ BJA 01 Issue 01 - April 2001 - Draft 04 345/346
346
Appendix 7 – List of abbreviations
MNEMONIC ENGLISH
AAL ATM Adaptation Layer
AIS Alarm Indication Signal
AL Alarm
AMD ATM Modulator Demodulator
ANT ATM Network Termination
ASAP Alarm Severity Assignment Profile
ATM Asynchronous Transfer Mode
AT Attend alarm on LT
AVC Attribute Value Change
BER Bit Error Rate
BNC Bayonet-locking Connector
BS Base Station
CBR Constant Bite Rate
CCIR International radio consultative
comitee
CEPT
Conference of European Post and
Telecommunications administra-
tions
CPL Coupler
CRC Cyclic Redundancy Check
DBS Digital Base Station
EMC ElectroMagnetic Compatibility
EPROM Electronically Programmable
Read-Only Memory
ETSI European Telecommunications
Standards Institute
ETH Ethernet
FAS Frame Alignment Signal
FEC Forward Error Correction
HDB3 High Density Binary 3 code
(3rd order)
IBS Intermediate frequency Base Sta-
tion
ICS Identifier Change Status
I2C or IIC Inter Integrated Circuit
ID IDentifier
IEC International Electrotechnical
Commission
IM Information Model
IP Internet Protocol
ISDN Integrated Services Digital Network
ITU International Telecommunication
Union
LAIS Line Alarm Indication Signal
LAN Local Area Network
LED Light Emitting Diode
LMDS Local Multipoint Distribution Service
LMFA Loss of MultiFrame Alignment
LOF Loss Of Frame
LOP Loss Of Pointer
LOPC Loss Of Polling Cell
LORF Loss Of Radio Frame
LOS Loss Of Signal
LRDI Line Remote Defect Indicator
LT Local Terminal
MAC Medium Access Control
Mbps Mega Bit Per Second
MIB Management Information Base
MMI Man Machine Interface
MSC Message Sequence Chart
MUX Multiplexer
NE Network Element
NFS Network File System
NIT Network Installation Tool
NRZ Non return to zero
NT Network Terminal
MNEMONIC ENGLISH
346/346 Issue 01 - April 2001 - Draft 04 3CC12426AAAA TQ BJA 01
346
END OF DOCUMENT
OC Object Creation
OD Object Deletion
OOF Out Of Frame
OS Operation System
PAIS Path Alarm Indication Signal
PC Personal Computer
PCR Peak Cell Rate
PDH Plesiochronous Digital Hierarchy
PLL Phase Locked Loop
PSU Power Supply Unit
PVC Permanent Virtual Circuit
QAM Quadrature amplitude Modulation
RAI Remote Alarm Indicator
X-Pol RBS Radio of Base Station
RDI Remote Defect Indication
REI Remote Error Indication
RF Radio Frequency
RIT Radio Installation Tool
RT Radio Terminal
SC State Change
SDH Synchonous Digital Hierarchy
SMD Surface Mounted Device
SNMP Simple Network Management
Protocol
SNTP Simple Network Time Protocol
STP Shielded Twisted Pair
TAC Technical Assistance Center
TCP Transmission Control Protocol
TDM Time Division Multiplex
TE Transaction End
TNT TDM Network Termination
TS Terminal Station
UNI User Network Interface
MNEMONIC ENGLISH
VPI Virtual Path Identifier
VCI Virtual Channel Identifier
WAN Wide Area Network
X-Pol RT Cross Polarized Radio Terminal
X-Pol RBS Rx Cross Polarized Radio Base Sta-
tion Reception
X-Pol RBS Tx Cross Polarized Radio Base Sta-
tion Emission
MNEMONIC ENGLISH

Navigation menu
