Electronic Systems Technology ESTEEM195ES Wireless Ethernet Radio Modem User Manual Apx B Specifications
Electronic Systems Technology Wireless Ethernet Radio Modem Apx B Specifications
Contents
Users Manual Appednix B Revision 2
APPENDIX B
SPECIFICATIONS
Model 195Es Case Specifications
LED Indicators
Power On/Off Receiver On/Off
Carrier Detect On/Off Transmitter On/Off
Link Status On/Off
I/O Connectors
Ethernet 10/100Base T (Port 1) RJ-45 Female
Ethernet 10/100Base T (Port 2) RJ-45 Female
RS-232C Port
(2,400 to 115.2K baud) RJ-45 Female
RS-232C Programming Port (38.4 K
baud) RJ-45 Female
Antenna Input/Output TNC Reverse Polarity Female
Remote Input Power Power Over Ethernet Cable
Direct Input Power Optional, Header Screw Connector
Transmiter
Frequency of Operation 902 to 928 MHz
Software Selectable
RF Data Rates 200 Kbps
Tx Output Power 1 Watt
RF Output Impedance 50 ohms
Receiver
Rx Sensitivity @ Frame Error Rate <10% -98 dBm @ 200 Kbps
Power
Power over Ethernet IEEE 802.3af Standard Power Supply,
48 VDC @ 13 Watts
Power Connector on Unit 10 to 16 VDC
Receive 220 ma @ 12 VDC
Transmit 1000 ma @ 12 VDC
Case
Dimensions 1.9 in. H x 6.7 in. W x 6.2 in. L
Weight 1.25 lbs.
Outdoor Pole Mounting Kit Optional, EST P/N 195PM
Other
Warranty 1 Year
Temperature Range -30° to +60° C
Humidity 95% Non-condensing
FCC Type Acceptance Pending
Industry Canada Type Acceptance Pending
Specifications Subject to Change Without Notice
APPENDIX B
SPECIFICATIONS

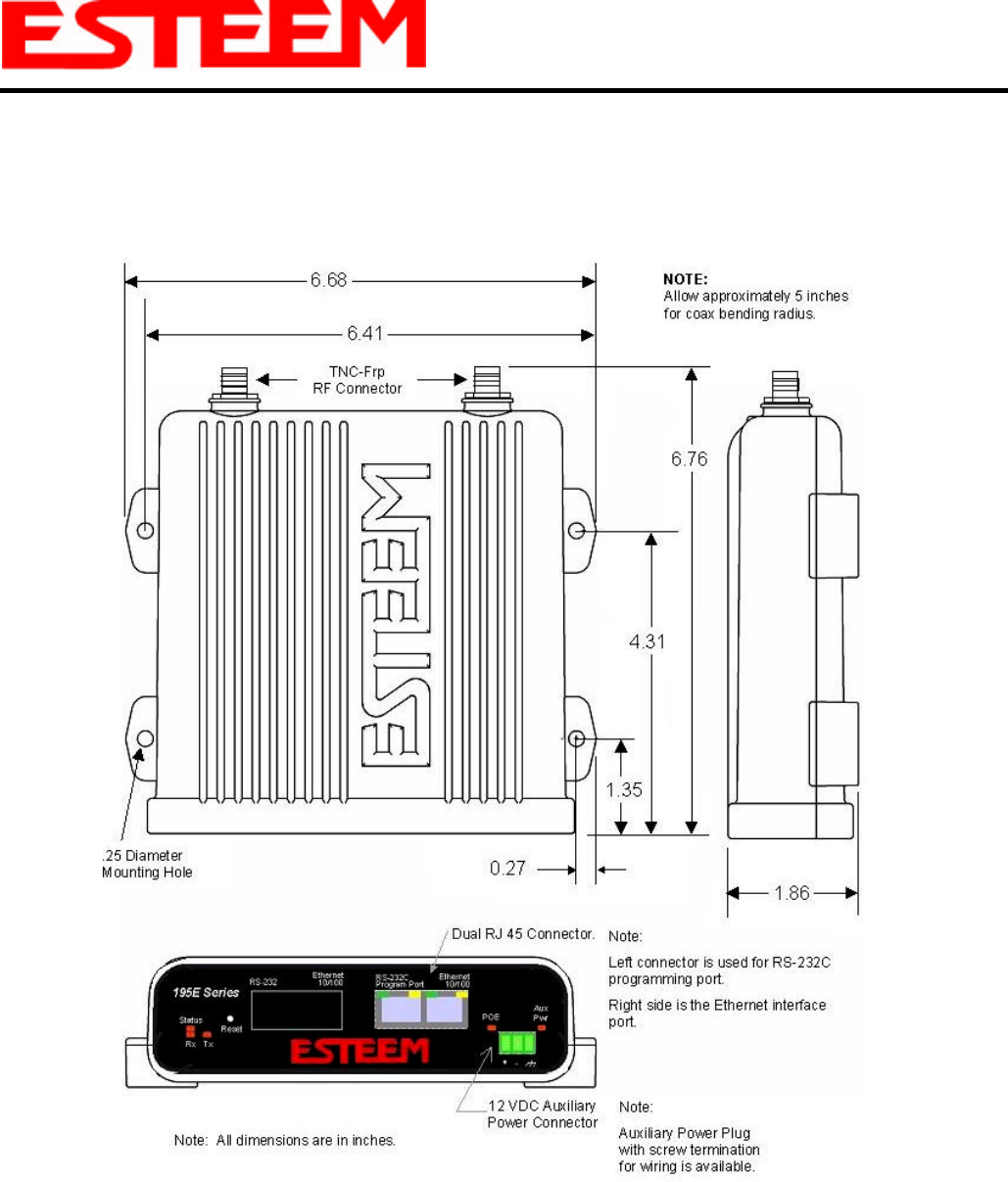

Model 195Es Case Specifications
APPENDIX B
SPECIFICATIONS
Antenna Specifications
Revised: 20 Feb 07 APX B-3EST P/N AA107S
Model No: AA191s
Antenna Type: Omni-Directional, Permanent Vehicle Mount
Applications:Direct mount
Frequency: 896 to 940 MHz
Polarization: Vertical
Impedance: 50 ohms
Gain: 5 dB
VSWR: < 1.5 to 1
Front to Back Ratio: n/a
Horizontal Beamwidth: n/a
Vertical Beamwidth: n/a
Antenna Material: Molded Polymer
Mounting Hardware: Included
Antenna Connector:TNC-R Male
Antenna Envelope: 32 in. length
Weight: <1 lbs.
Model: AA20DMEs
Applications: Model 195Es direct case mount
Antenna Type: Omni-Directional, Sleeve dipole
Frequency: 902 to 928 MHz
Polarization: Vertical
Impedance: 50 ohms
Gain: 2 dBi (3 dBd)
VSWR: < 2:1
Power: 10 W
Front To Back Ratio: n/a
Horizontal Beamwidth: n/a
Vertical Beamwidth: 60 degrees
Antenna Material: Polyurethane Plastic Radome
Recommended Mounting Hardware: n/a
Antenna Connector: TNC-R Male
Flexibility: +/- 20 °
Antenna Envelope: 8.8 in. length by .51 in. width
Temperature: -20 to +65 C°
Weight: 35 grams

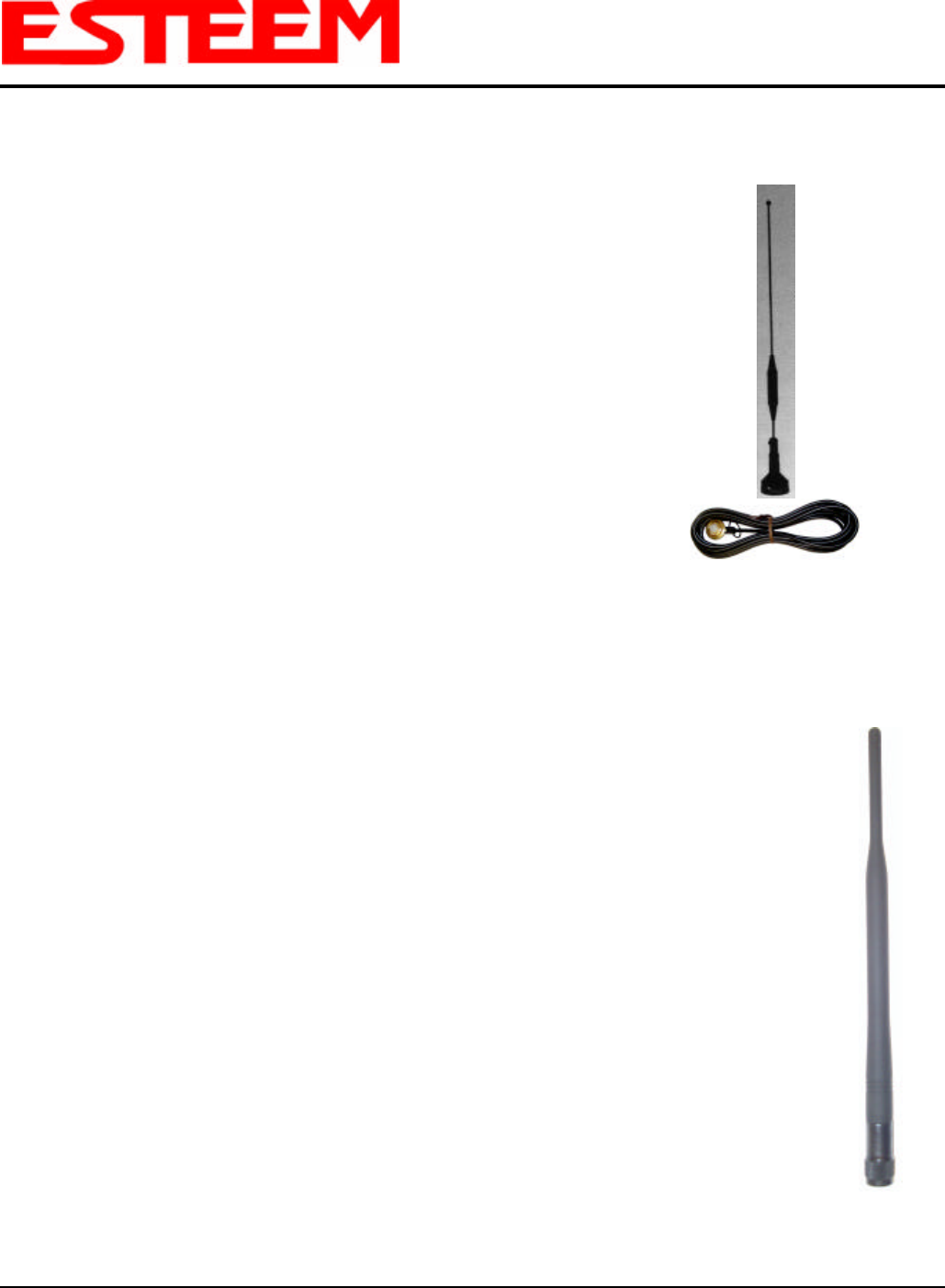

Model AA191s
Model AA20DMEs
Caution
Omni-directional antenna
should not be located within
23 cm of personnel.
Caution
Omni-directional antenna
should not be located within
23 cm of personnel.
APPENDIX B
SPECIFICATIONS
Antenna Specifications
Revised: 20 Feb 07 APX B-4EST P/N AA107S
Model No: AA20Es900
Antenna Type: Omni Directional, DC Grounded
Applications:Fixed base
Frequency: 902 to 928 MHz
Polarization: Vertical
Impedance: 50 ohms
Gain: 7 dBi (5dBd)
VSWR: 1.5:1 Typical
Front to Back Ratio: n/a
Horizontal Beamwidth: n/a
Vertical Beamwidth: 22 degrees @ ½ power
Antenna Material: Brass radiator, UV inhibited
fiberglass enclosed
Mounting Hardware: Base to Mast, Supplied.
Maximum Power Input: 150 Watts
Wind Survival: 100 mph
Bending Moment: 14.2 ft-lbs. @ 100 mph
Antenna Connector:TNC-R Male with 36in. pig-tail.
Antenna Envelope: 48 in. L x 1-5/16 in. Dia.
Weight: 1.75 lbs.
Mounting Bracket
Model AA20Eg
Caution
To comply with the FCC
exposure compliance
requirements, a separation
distance of at least 23 cm
must be maintained between
the antenna and all persons.
APPENDIX B
SPECIFICATIONS
Antenna Specifications
Revised: 20 Feb 07 APX B-5EST P/N AA107S
Model No: AA203Es900
Antenna Type: Directional, DC grounded
Applications:Fixed base.
Frequency: 902 to 928 MHz
Polarization: Vertical or Horizontal
Impedance: 50 ohms
Gain: 7 dBi (5 dBd)
VSWR: < 1.5:1 Nominal
Front to Back Ratio: > 16 dB
Horizontal Beamwidth: 130 degrees @ ½ power
Vertical Beamwidth: 70 degrees @ ½ power
Antenna Material: Aluminum
Mounting Hardware: Heavy duty U bolts for mounting up to 2.0 in. pipe
(included).
Antenna Connector:TNC-R Male with 2 ft. pigtail with ESTeem weatherproof
boot.
Maximum Power Input: 50 Watts
Antenna Envelope: 1.1 ft. length by 6 in. width
Windload (RWV): 150 mph
Wind Surface Area: .11 ft²
Weight: 1 lbs.

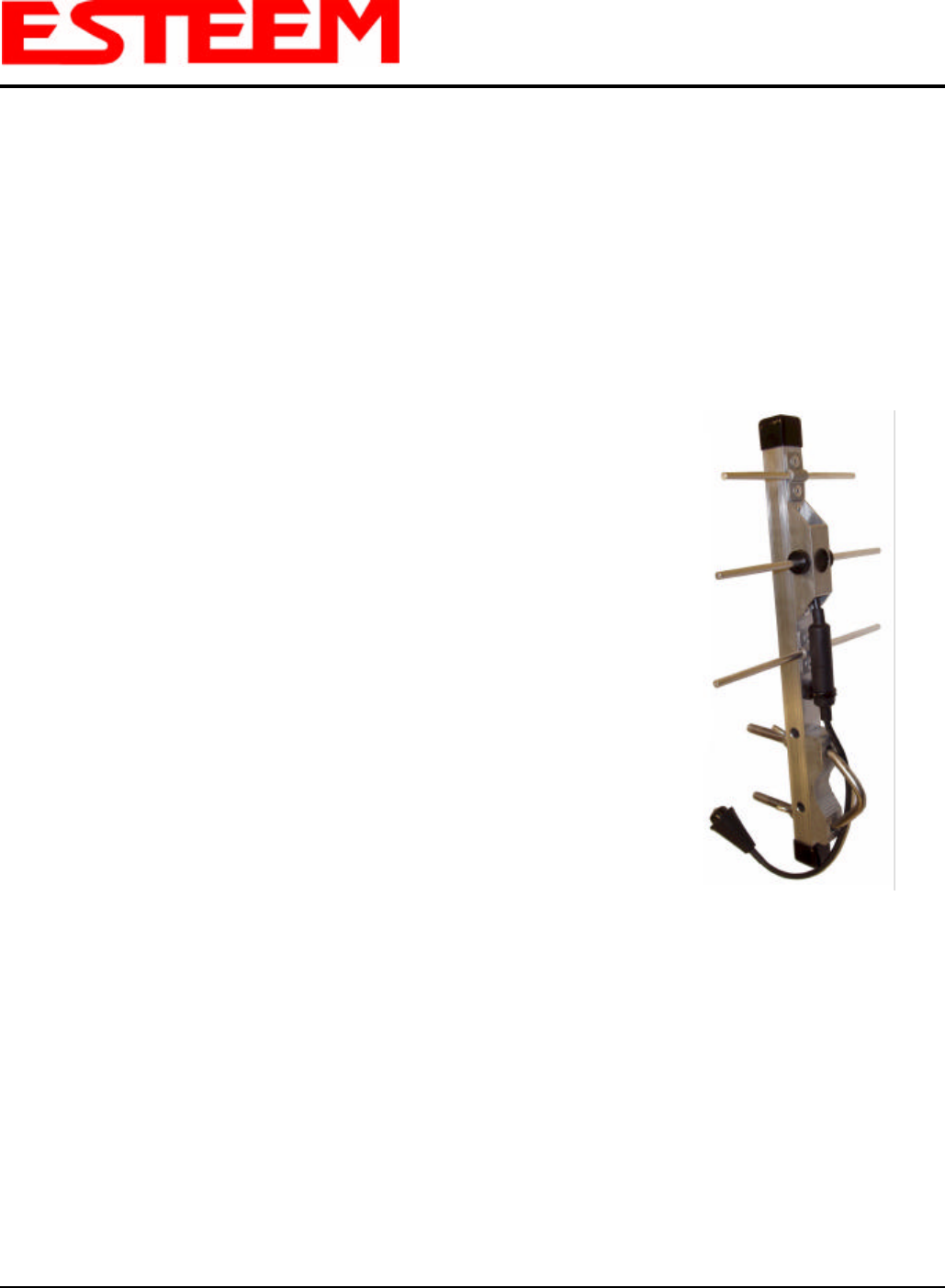

Model AA203Eg
Caution
To comply with the FCC
exposure compliance
requirements, a separation
distance of at least 23 cm
must be maintained
between the antenna and all
persons.
