HAICOM Electronics HI-601VT GPS/GSM Tracking Device - Decoder Unit User Manual Manual 3

HAICOM Electronics Corp. GPS/GSM Tracking Device - Decoder Unit Manual 3

Manual 3

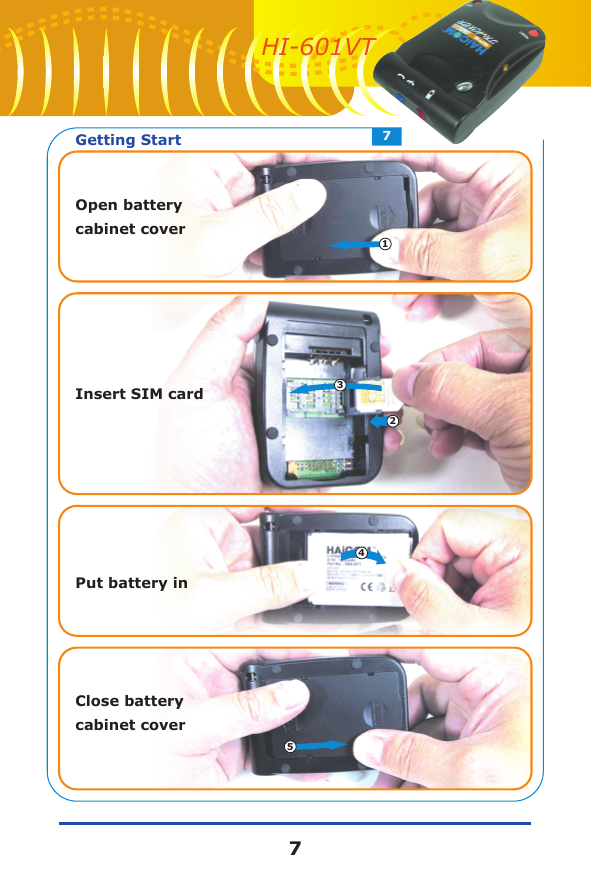

Open battery cabinet coverInsert SIM cardPut battery inClose battery cabinet cover34152Getting Start77HI-601VT

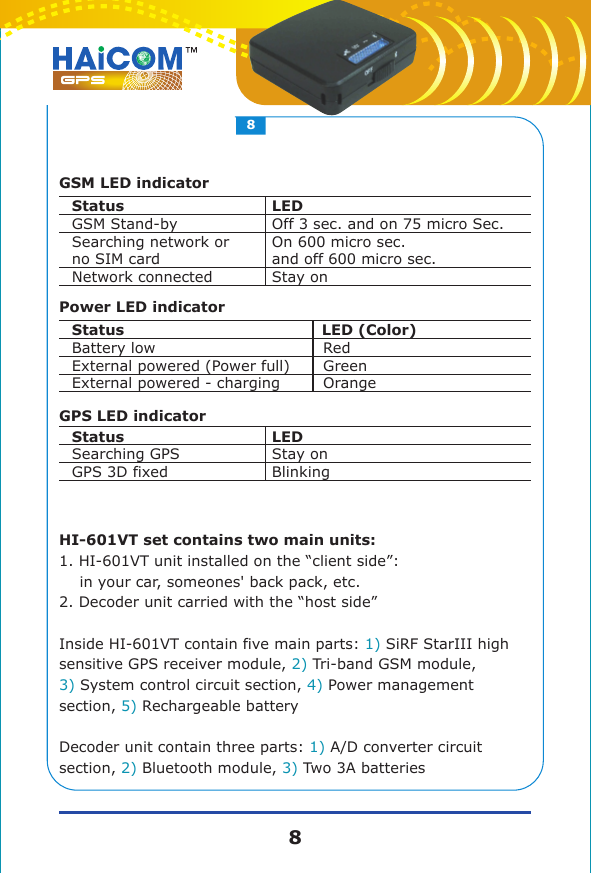

GSM LED indicatorPower LED indicatorGPS LED indicatorHI-601VT set contains two main units:1. HI-601VT unit installed on the “client side”: in your car, someones' back pack, etc.2. Decoder unit carried with the “host side”Inside HI-601VT contain five main parts: 1) SiRF StarIII high sensitive GPS receiver module, 2) Tri-band GSM module, 3) System control circuit section, 4) Power management section, 5) Rechargeable batteryDecoder unit contain three parts: 1) A/D converter circuit section, 2) Bluetooth module, 3) Two 3A batteriesStatusGSM Stand-bySearching network orno SIM cardNetwork connectedStatusBattery lowExternal powered (Power full)External powered - chargingStatusSearching GPSGPS 3D fixedLEDOff 3 sec. and on 75 micro Sec.On 600 micro sec. and off 600 micro sec.Stay on LED (Color) Red Green OrangeLEDStay onBlinking88

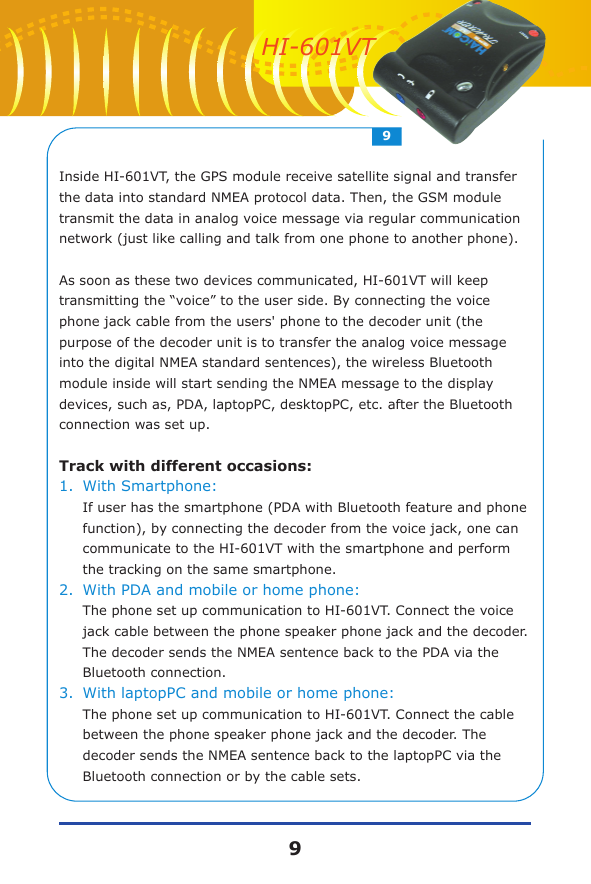

Inside HI-601VT, the GPS module receive satellite signal and transfer the data into standard NMEA protocol data. Then, the GSM module transmit the data in analog voice message via regular communication network (just like calling and talk from one phone to another phone).As soon as these two devices communicated, HI-601VT will keep transmitting the “voice” to the user side. By connecting the voice phone jack cable from the users' phone to the decoder unit (the purpose of the decoder unit is to transfer the analog voice message into the digital NMEA standard sentences), the wireless Bluetooth module inside will start sending the NMEA message to the display devices, such as, PDA, laptopPC, desktopPC, etc. after the Bluetooth connection was set up. Track with different occasions:1.With Smartphone: If user has the smartphone (PDA with Bluetooth feature and phone function), by connecting the decoder from the voice jack, one can communicate to the HI-601VT with the smartphone and perform the tracking on the same smartphone. 2.With PDA and mobile or home phone: The phone set up communication to HI-601VT. Connect the voice jack cable between the phone speaker phone jack and the decoder. The decoder sends the NMEA sentence back to the PDA via the Bluetooth connection.3.With laptopPC and mobile or home phone: The phone set up communication to HI-601VT. Connect the cable between the phone speaker phone jack and the decoder. The decoder sends the NMEA sentence back to the laptopPC via the Bluetooth connection or by the cable sets.99HI-601VT

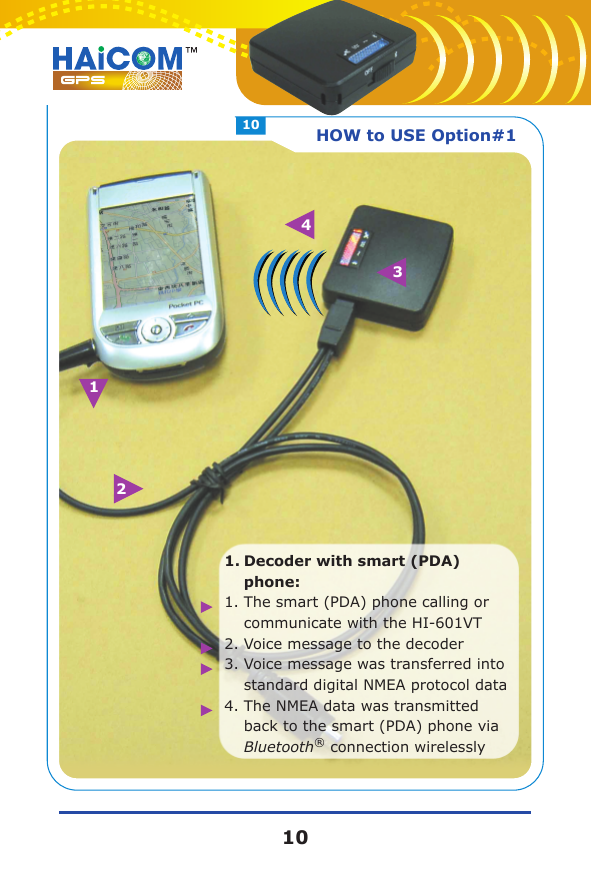

1.Decoder with smart (PDA) phone:1.The smart (PDA) phone calling or communicate with the HI-601VT2.Voice message to the decoder3.Voice message was transferred into standard digital NMEA protocol data4.The NMEA data was transmitted back to the smart (PDA) phone via Bluetooth® connection wirelesslyHOW to USE Option#112341010
