HAICOM Electronics HI-601VT GPS/GSM Tracking Device - Decoder Unit User Manual Manual 8

HAICOM Electronics Corp. GPS/GSM Tracking Device - Decoder Unit Manual 8

Manual 8

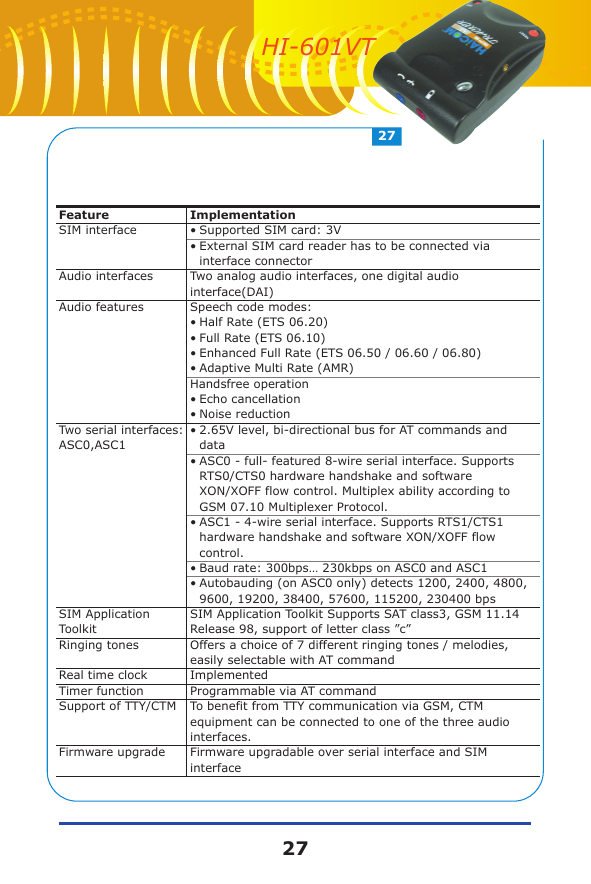

FeatureSIM interfaceAudio interfacesAudio featuresTwo serial interfaces:ASC0,ASC1SIM Application ToolkitRinging tonesReal time clock Timer functionSupport of TTY/CTMFirmware upgradeImplementation•Supported SIM card: 3V•External SIM card reader has to be connected via interface connectorTwo analog audio interfaces, one digital audio interface(DAI)Speech code modes:•Half Rate (ETS 06.20)•Full Rate (ETS 06.10)•Enhanced Full Rate (ETS 06.50 / 06.60 / 06.80)•Adaptive Multi Rate (AMR)Handsfree operation•Echo cancellation•Noise reduction•2.65V level, bi-directional bus for AT commands and data•ASC0 - full- featured 8-wire serial interface. Supports RTS0/CTS0 hardware handshake and software XON/XOFF flow control. Multiplex ability according to GSM 07.10 Multiplexer Protocol.•ASC1 - 4-wire serial interface. Supports RTS1/CTS1 hardware handshake and software XON/XOFF flow control.•Baud rate: 300bps… 230kbps on ASC0 and ASC1•Autobauding (on ASC0 only) detects 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400 bpsSIM Application Toolkit Supports SAT class3, GSM 11.14 Release 98, support of letter class ”c”Offers a choice of 7 different ringing tones / melodies, easily selectable with AT commandImplementedProgrammable via AT commandTo benefit from TTY communication via GSM, CTM equipment can be connected to one of the three audio interfaces.Firmware upgradable over serial interface and SIM interface2727HI-601VT

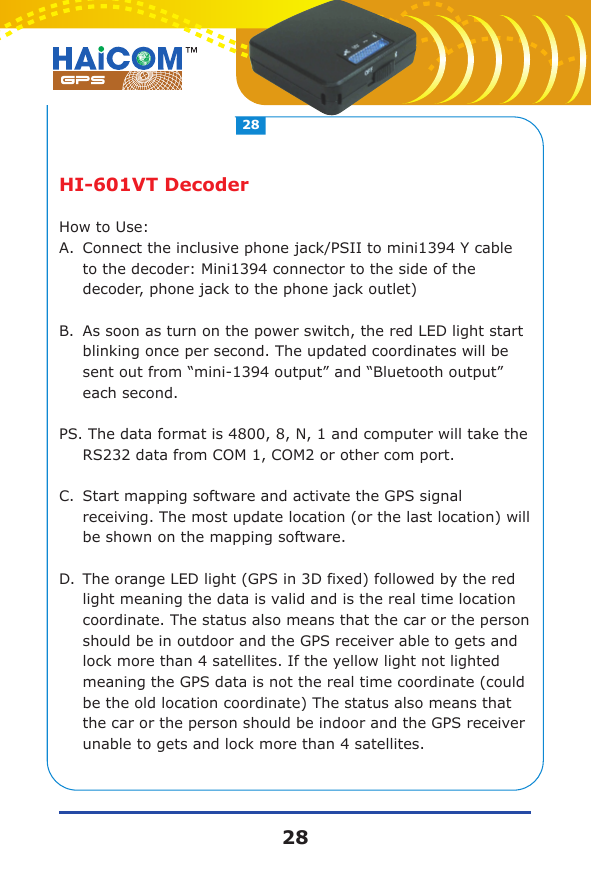

HI-601VT DecoderHow to Use:A.Connect the inclusive phone jack/PSII to mini1394 Y cable to the decoder: Mini1394 connector to the side of the decoder, phone jack to the phone jack outlet)B.As soon as turn on the power switch, the red LED light start blinking once per second. The updated coordinates will be sent out from “mini-1394 output” and “Bluetooth output” each second.PS. The data format is 4800, 8, N, 1 and computer will take the RS232 data from COM 1, COM2 or other com port.C.Start mapping software and activate the GPS signal receiving. The most update location (or the last location) will be shown on the mapping software.D.The orange LED light (GPS in 3D fixed) followed by the red light meaning the data is valid and is the real time location coordinate. The status also means that the car or the person should be in outdoor and the GPS receiver able to gets and lock more than 4 satellites. If the yellow light not lighted meaning the GPS data is not the real time coordinate (could be the old location coordinate) The status also means that the car or the person should be indoor and the GPS receiver unable to gets and lock more than 4 satellites.2828

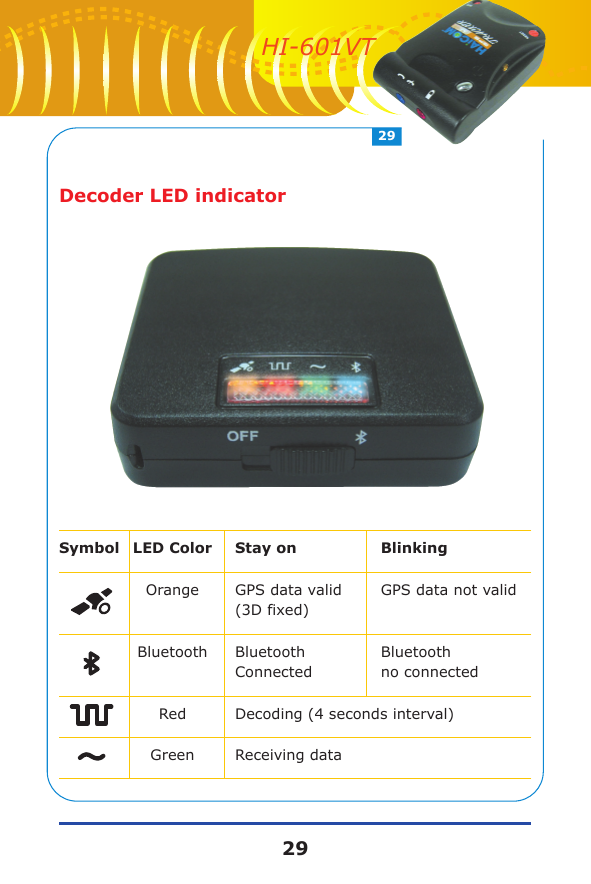

Decoder LED indicatorSymbol LED ColorOrangeBluetoothRedGreenStay onGPS data valid (3D fixed)Bluetooth ConnectedDecoding (4 seconds interval)Receiving dataBlinkingGPS data not validBluetooth no connected2929HI-601VT
