HAICOM Electronics HI-601VT GPS/GSM Tracking Device - Decoder Unit User Manual Manual 4

HAICOM Electronics Corp. GPS/GSM Tracking Device - Decoder Unit Manual 4

Manual 4

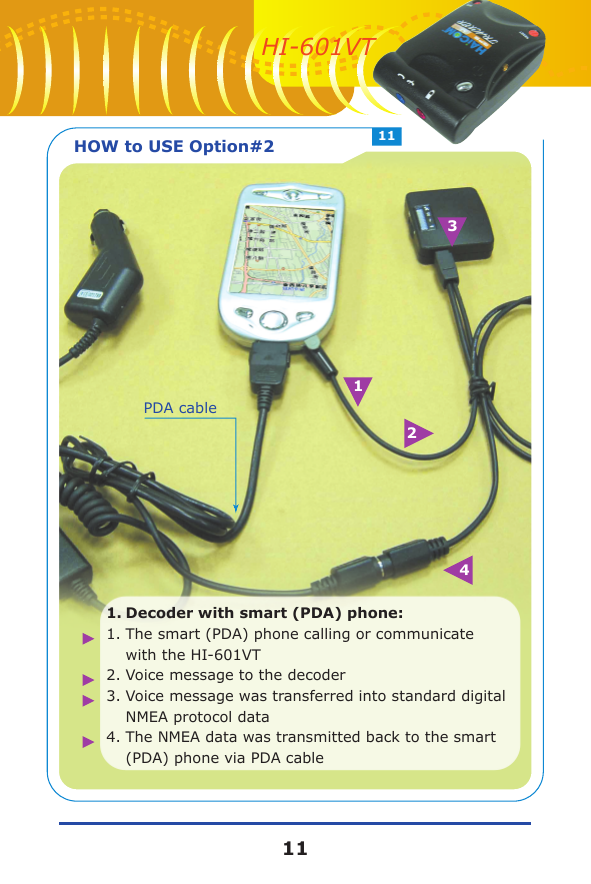

1.Decoder with smart (PDA) phone:1.The smart (PDA) phone calling or communicate with the HI-601VT2.Voice message to the decoder3.Voice message was transferred into standard digital NMEA protocol data4.The NMEA data was transmitted back to the smart (PDA) phone via PDA cableHOW to USE Option#21324PDA cable1111HI-601VT

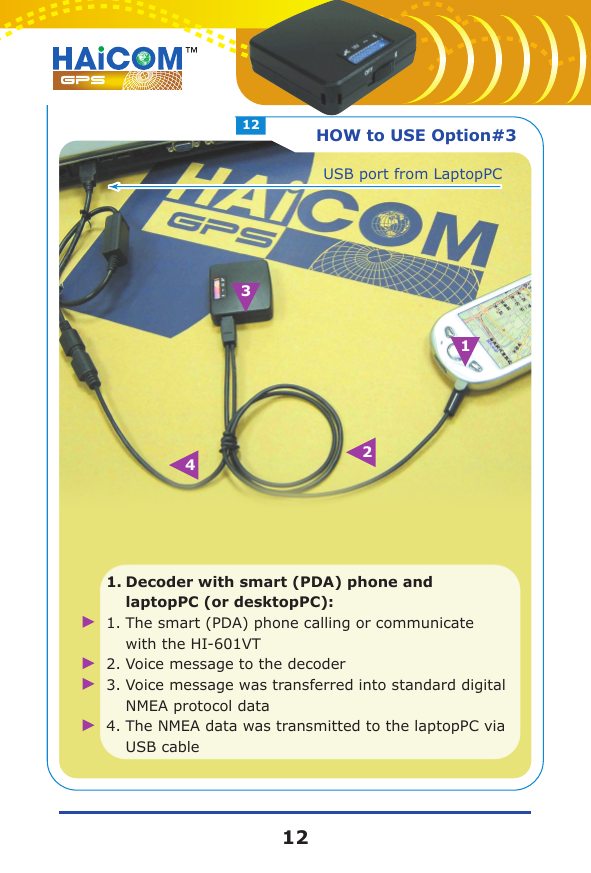

HOW to USE Option#31.Decoder with smart (PDA) phone and laptopPC (or desktopPC):1.The smart (PDA) phone calling or communicate with the HI-601VT2.Voice message to the decoder3.Voice message was transferred into standard digital NMEA protocol data4.The NMEA data was transmitted to the laptopPC via USB cable1324USB port from LaptopPC1212

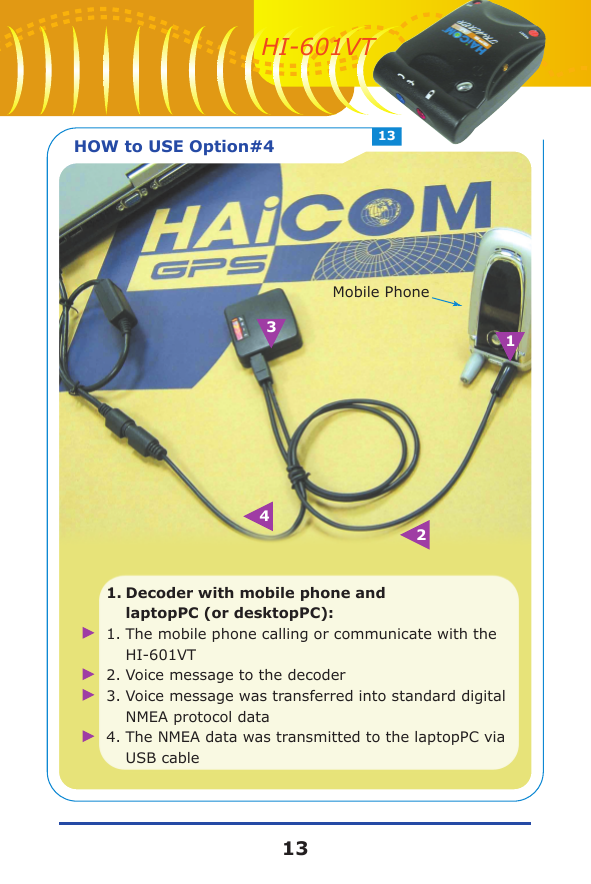

HOW to USE Option#41.Decoder with mobile phone and  laptopPC (or desktopPC):1.The mobile phone calling or communicate with the HI-601VT2.Voice message to the decoder3.Voice message was transferred into standard digital NMEA protocol data4.The NMEA data was transmitted to the laptopPC via USB cable1324Mobile Phone1313HI-601VT

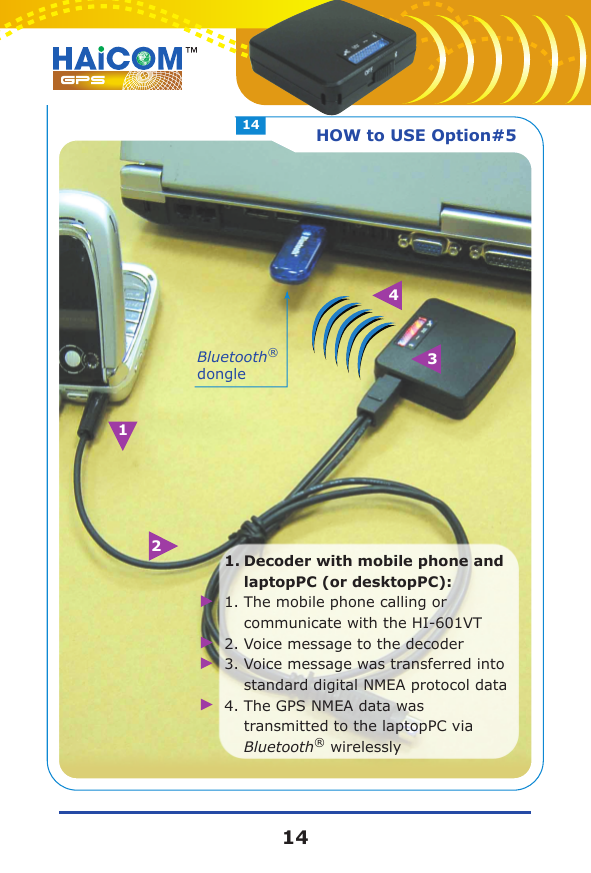

HOW to USE Option#51.Decoder with mobile phone and  laptopPC (or desktopPC):1.The mobile phone calling or communicate with the HI-601VT2.Voice message to the decoder3.Voice message was transferred into standard digital NMEA protocol data4.The GPS NMEA data was transmitted to the laptopPC via Bluetooth® wirelessly1234Bluetooth® dongle1414
