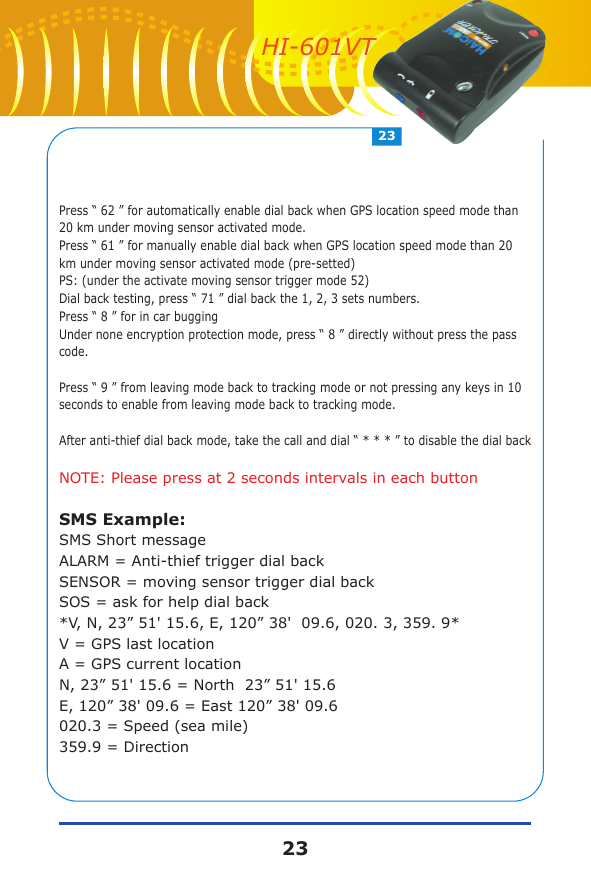

Press “ 62 ” for automatically enable dial back when GPS location speed mode than 20 km under moving sensor activated mode.Press “ 61 ” for manually enable dial back when GPS location speed mode than 20 km under moving sensor activated mode (pre-setted)PS: (under the activate moving sensor trigger mode 52)Dial back testing, press “ 71 ” dial back the 1, 2, 3 sets numbers.Press “ 8 ” for in car buggingUnder none encryption protection mode, press “ 8 ” directly without press the pass code.Press “ 9 ” from leaving mode back to tracking mode or not pressing any keys in 10 seconds to enable from leaving mode back to tracking mode.After anti-thief dial back mode, take the call and dial “ * * * ” to disable the dial backNOTE: Please press at 2 seconds intervals in each buttonSMS Example:SMS Short messageALARM = Anti-thief trigger dial backSENSOR = moving sensor trigger dial backSOS = ask for help dial back*V, N, 23” 51' 15.6, E, 120” 38' 09.6, 020. 3, 359. 9*V = GPS last locationA = GPS current locationN, 23” 51' 15.6 = North 23” 51' 15.6E, 120” 38' 09.6 = East 120” 38' 09.6020.3 = Speed (sea mile)359.9 = Direction2323HI-601VT

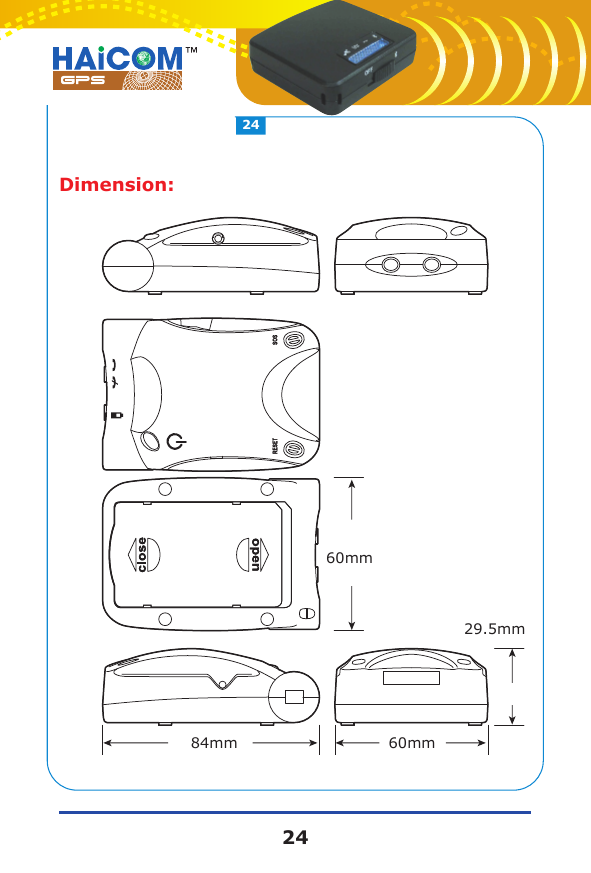

Dimension:84mm 60mm60mm29.5mm2424

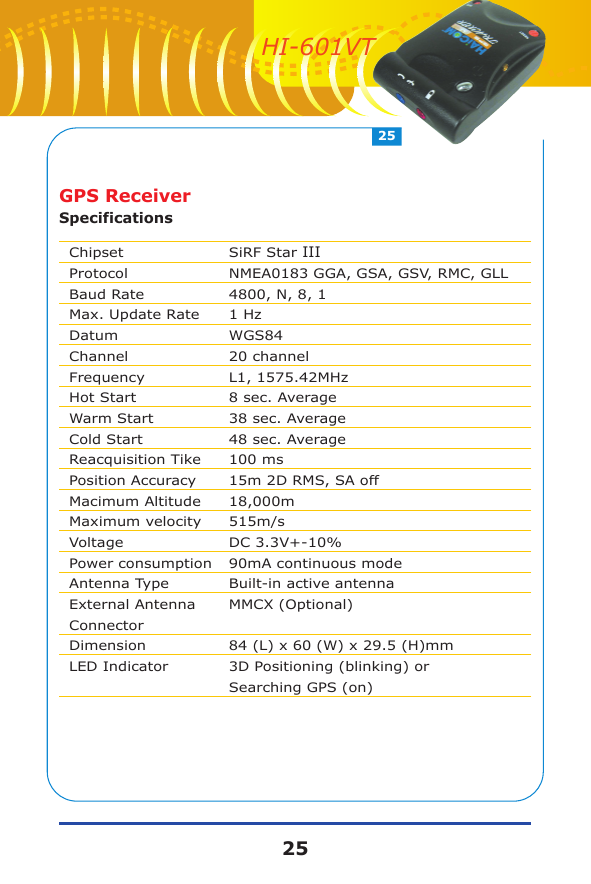

GPS ReceiverSpecificationsChipsetProtocolBaud RateMax. Update RateDatumChannelFrequencyHot StartWarm StartCold StartReacquisition TikePosition AccuracyMacimum AltitudeMaximum velocityVoltagePower consumptionAntenna TypeExternal Antenna ConnectorDimensionLED IndicatorSiRF Star IIINMEA0183 GGA, GSA, GSV, RMC, GLL4800, N, 8, 11 HzWGS8420 channelL1, 1575.42MHz8 sec. Average38 sec. Average48 sec. Average100 ms15m 2D RMS, SA off18,000m515m/sDC 3.3V+-10%90mA continuous modeBuilt-in active antennaMMCX (Optional)84 (L) x 60 (W) x 29.5 (H)mm3D Positioning (blinking) or Searching GPS (on)2525HI-601VT

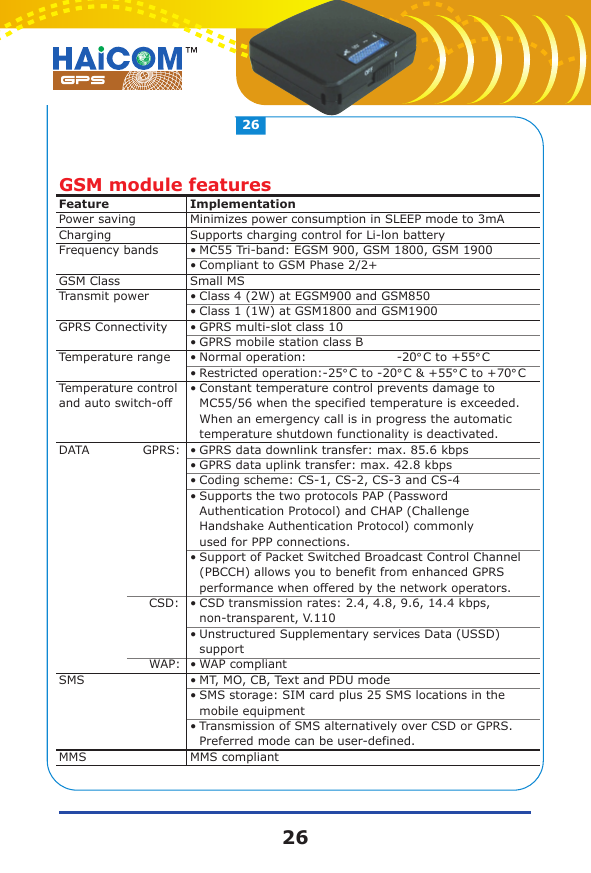

GSM module featuresFeaturePower savingChargingFrequency bandsGSM ClassTransmit powerGPRS ConnectivityTemperature rangeTemperature control and auto switch-offDATA GPRS: CSD: WAP:SMSMMSImplementationMinimizes power consumption in SLEEP mode to 3mASupports charging control for Li-lon battery•MC55 Tri-band: EGSM 900, GSM 1800, GSM 1900•Compliant to GSM Phase 2/2+Small MS•Class 4 (2W) at EGSM900 and GSM850•Class 1 (1W) at GSM1800 and GSM1900•GPRS multi-slot class 10•GPRS mobile station class B•Normal operation: -20°C to +55°C•Restricted operation:-25°C to -20°C & +55°C to +70°C•Constant temperature control prevents damage to MC55/56 when the specified temperature is exceeded. When an emergency call is in progress the automatic temperature shutdown functionality is deactivated.•GPRS data downlink transfer: max. 85.6 kbps•GPRS data uplink transfer: max. 42.8 kbps•Coding scheme: CS-1, CS-2, CS-3 and CS-4•Supports the two protocols PAP (Password Authentication Protocol) and CHAP (Challenge Handshake Authentication Protocol) commonly used for PPP connections.•Support of Packet Switched Broadcast Control Channel (PBCCH) allows you to benefit from enhanced GPRS performance when offered by the network operators.•CSD transmission rates: 2.4, 4.8, 9.6, 14.4 kbps, non-transparent, V.110•Unstructured Supplementary services Data (USSD) support•WAP compliant•MT, MO, CB, Text and PDU mode•SMS storage: SIM card plus 25 SMS locations in the mobile equipment•Transmission of SMS alternatively over CSD or GPRS. Preferred mode can be user-defined.MMS compliant2626
