HAICOM Electronics HI-601VT GPS/GSM Tracking Device - Decoder Unit User Manual Manual 7
HAICOM Electronics Corp. GPS/GSM Tracking Device - Decoder Unit Manual 7
Contents
Manual 7
Press “ 62 ” for automatically enable dial back when GPS location speed mode than
20 km under moving sensor activated mode.
Press “ 61 ” for manually enable dial back when GPS location speed mode than 20
km under moving sensor activated mode (pre-setted)
PS: (under the activate moving sensor trigger mode 52)
Dial back testing, press “ 71 ” dial back the 1, 2, 3 sets numbers.
Press “ 8 ” for in car bugging
Under none encryption protection mode, press “ 8 ” directly without press the pass
code.
Press “ 9 ” from leaving mode back to tracking mode or not pressing any keys in 10
seconds to enable from leaving mode back to tracking mode.
After anti-thief dial back mode, take the call and dial “ * * * ” to disable the dial back
NOTE: Please press at 2 seconds intervals in each button
SMS Example:
SMS Short message
ALARM = Anti-thief trigger dial back
SENSOR = moving sensor trigger dial back
SOS = ask for help dial back
*V, N, 23” 51' 15.6, E, 120” 38' 09.6, 020. 3, 359. 9*
V = GPS last location
A = GPS current location
N, 23” 51' 15.6 = North 23” 51' 15.6
E, 120” 38' 09.6 = East 120” 38' 09.6
020.3 = Speed (sea mile)
359.9 = Direction
23
23
HI-601VT

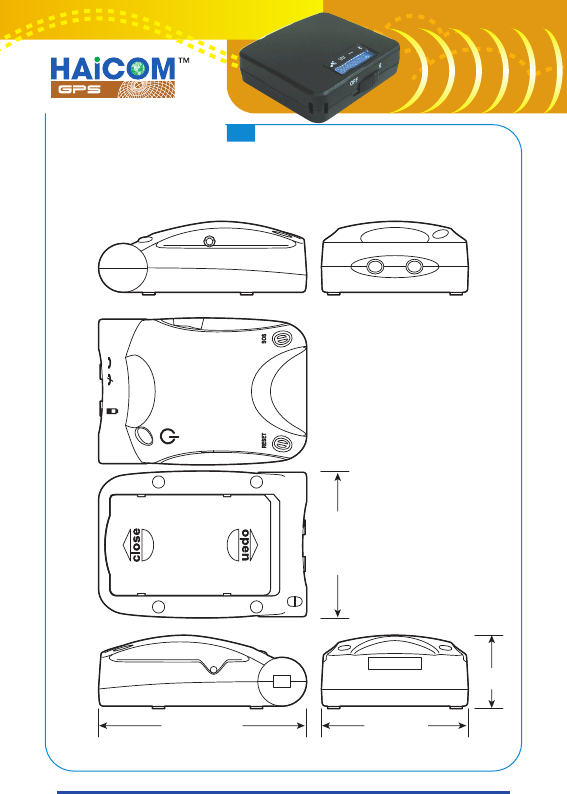

Dimension:
84mm 60mm
60mm
29.5mm
24
24
GPS Receiver
Specifications
Chipset
Protocol
Baud Rate
Max. Update Rate
Datum
Channel
Frequency
Hot Start
Warm Start
Cold Start
Reacquisition Tike
Position Accuracy
Macimum Altitude
Maximum velocity
Voltage
Power consumption
Antenna Type
External Antenna
Connector
Dimension
LED Indicator
SiRF Star
III
NMEA0183 GGA, GSA, GSV, RMC, GLL
4800, N, 8, 1
1 Hz
WGS84
20 channel
L1, 1575.42MHz
8 sec. Average
38 sec. Average
48 sec. Average
100 ms
15m 2D RMS, SA off
18,000m
515m/s
DC 3.3V+-10%
90mA continuous mode
Built-in active antenna
MMCX (Optional)
84 (L) x 60 (W) x 29.5 (H)mm
3D Positioning (blinking) or
Searching GPS (on)
25
25
HI-601VT

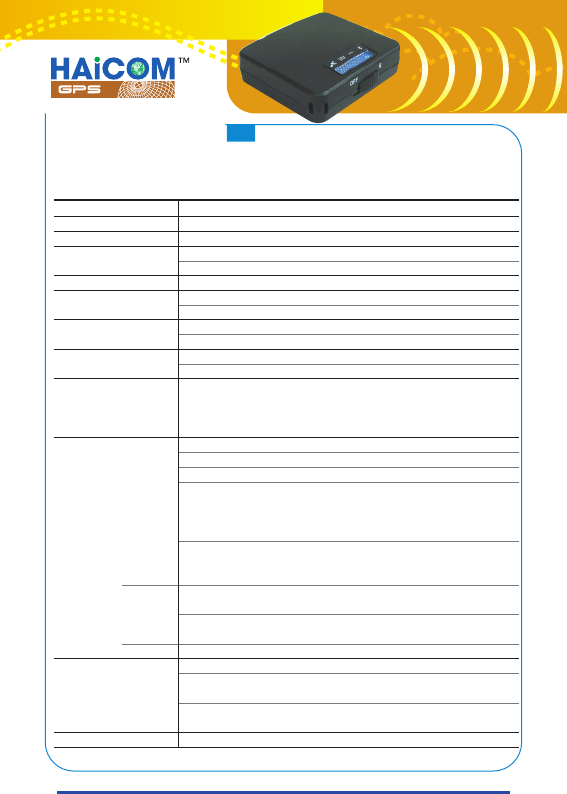

GSM module features
Feature
Power saving
Charging
Frequency bands
GSM Class
Transmit power
GPRS Connectivity
Temperature range
Temperature control
and auto switch-off
DATA GPRS:
CSD:
WAP:
SMS
MMS
Implementation
Minimizes power consumption in SLEEP mode to 3mA
Supports charging control for Li-lon battery
•MC55 Tri-band: EGSM 900, GSM 1800, GSM 1900
•Compliant to GSM Phase 2/2+
Small MS
•Class 4 (2W) at EGSM900 and GSM850
•Class 1 (1W) at GSM1800 and GSM1900
•GPRS multi-slot class 10
•GPRS mobile station class B
•Normal operation: -20°C to +55°C
•Restricted operation:-25°C to -20°C & +55°C to +70°C
•Constant temperature control prevents damage to
MC55/56 when the specified temperature is exceeded.
When an emergency call is in progress the automatic
temperature shutdown functionality is deactivated.
•GPRS data downlink transfer: max. 85.6 kbps
•GPRS data uplink transfer: max. 42.8 kbps
•Coding scheme: CS-1, CS-2, CS-3 and CS-4
•Supports the two protocols PAP (Password
Authentication Protocol) and CHAP (Challenge
Handshake Authentication Protocol) commonly
used for PPP connections.
•Support of Packet Switched Broadcast Control Channel
(PBCCH) allows you to benefit from enhanced GPRS
performance when offered by the network operators.
•CSD transmission rates: 2.4, 4.8, 9.6, 14.4 kbps,
non-transparent, V.110
•Unstructured Supplementary services Data (USSD)
support
•WAP compliant
•MT, MO, CB, Text and PDU mode
•SMS storage: SIM card plus 25 SMS locations in the
mobile equipment
•Transmission of SMS alternatively over CSD or GPRS.
Preferred mode can be user-defined.
MMS compliant
26
26
