ACCESSORIES:

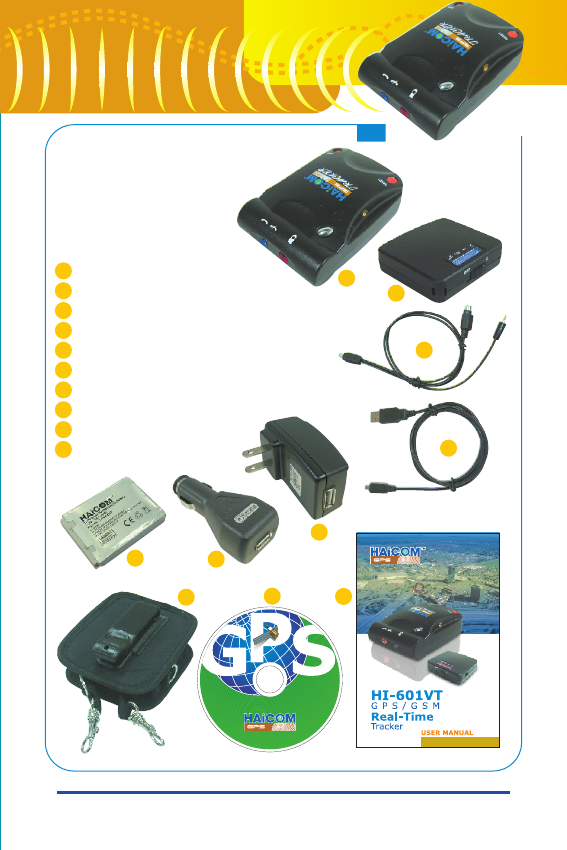

Standard Accessories:
1. HI-601VT unit
2. Decoder unit
3. Voice jack/PSII to mini-1394 Y cable
4. Mini-1394 to USB power cable
5. AC power adaptor with USB plug
6. Cigarette lighter adaptor with USB plug
7. 1600 mAh Li-on rechargeable battery
8. Carrying pouch
9. Mini CD
10.User manual
1
6
810
7
2
3
4
5
9
19
19
HI-601VT

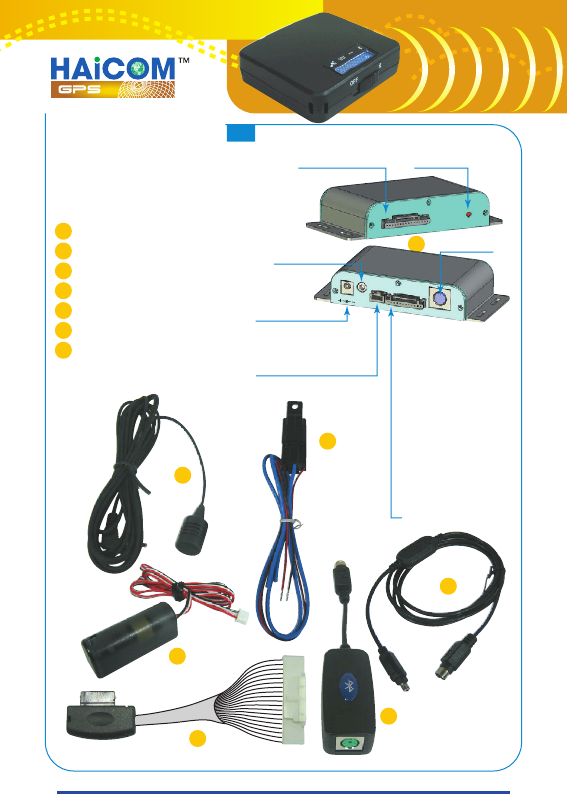

Optional Accessories:
1. Car control kits main unit
2. Car control cable sets
3. Micro-phone cable set
4. Vibration sensor cable set
5. HI-601VT to car kit cable
6. HI-403BTcube
7. Mini-1394 to
PS/II (male) cable
DC 12V~24V
DC 12V~24V
(Cigarette Lighter)
To Vibration Sensor
1
2
3
4
5
6
7
8
9
10
11
12
GND
Vin 12~24V
Burglar trigger
Remote Relay 2
Remote Relay 2
1
2
3
4
6
5
7
Vibration
sensor reset
help sw
panic button
—
—
>
>
x
—
>
>
Power LEDTo HI-601VT
Tapping MIC
To 403BT
20
20
Operation Easy Manual
No pass code required mode
Press “5” to enter the emergency status
Press “8” to activate the bugging under none encryption mode saving mode
activated)
Press “ * ” to stop sending voice message back and hear “du du” responding
Press “ 0 0 0 0 ” (per-setted) and
hear a long “du” verifying the pass code confirmed.
Change the pass code by pressing “ 0 1234 1234 ” (example)
pass code correct: a long “du” and pass code incorrect: du 4 times “du du du du”
Set the first set dial-back telephone number: “ 1 0912 345678*”
Setup correct: a long “du” and incorrect: du 4 times “du du du du” (anti-thief alarm)
Set the second set dial-back telephone number: “ 2 0912 345678* “
Setup correct: a long “du” and incorrect: du 4 times “du du du du” (anti-thief alarm)
Set the third set dial-back telephone number: “ 3 0912 345678* ”
Setup correct: a long “du” and incorrect: du 4 times “du du du du” (anti-thief alarm)
Remove first set dial-back telephone number: “ 1 * ”
Remove correct: a long “du” and incorrect: du 4 times “du du du du”
Remove second set dial-back telephone number: “ 2 * ”
Remove correct: a long “du” and incorrect: du 4 times “du du du du”
Remove third set dial-back telephone number: “ 3 * ”
Remove correct: a long “du” and incorrect: du 4 times “du du du du”
SOS dial-back: 4, 5, 6 three sets
Press “ # ” to stop sending voice message back and hear “du du” responding
Press “ 0 0 0 0 ” (per-setted) and hear a long “ du” verifying the pass code
confirmed.
Change the PIN code by pressing “ 0 5678 5678 ” (example)
PIN code correct: a long “du” and Cancel PIN code by pressing “ 0 # ” and a long
“du” confirm it is correct
Press “ 1 ” for temporary disable tracking encryption mode under tracking encryption
mode.
21
21
HI-601VT
Send back data 50 times (around 3 minites ) when the set up correct.
Short message send back to the preset dial-back number by pressing
“ 21 ” “ 22 ” “ 23 ” Connection hanged up when set up correctly.
Press “ 2# ” to disable short message function
Press “ 2* ” to enable short message function (pre-setted)
Set up correct: a long “du” and incorrect: du 4 times “du du du du”
Press “ 40 ” to immediately cut off oil and electricity
Set up correct: a long “du” and incorrect: du 4 times “du du du du”
Press “ 51 ” to disable moving sensor function (pre-setted)
Press “ 52 ” to enable moving sensor function
Set up correct: a long “du” and incorrect: du 4 times “du du du du”
(Anti-thief mode can also works normally)
Press “ 54 ” to bugging without the pass code mode (pre-setted)
Press “ 55 ” to bugging with pass code required mode
Set up correct: a long “du” and incorrect: du 4 times “ du du du du”
Press “ 57 ” to tracking with no encryption required (pre-setted)
Press “ 58 ” to tracking with encryption mode
(under encryption mode, the voice message is steady tune and unable to decode it)
Set up correct: a long “du” and incorrect: du 4 times “du du du du”
Press “ 53 ” for moving sensor trigger and instant dial back (pre-setted)
Press “ 56 ” for moving sensor trigger and delay dial back
Set up correct: a long “du” and incorrect: du 4 times “du du du du”
Press “ 6* ” for GPS location dial back on certain times
Connection hanged up when set up correctly.
Press “ 6# ” for GPS location speed mode than 20 km
Connection hanged up when set up correctly.
