Contents
Site Pro Manual Part 2
PRODUCT STRUCTURE
MM101271V1 R2A 147

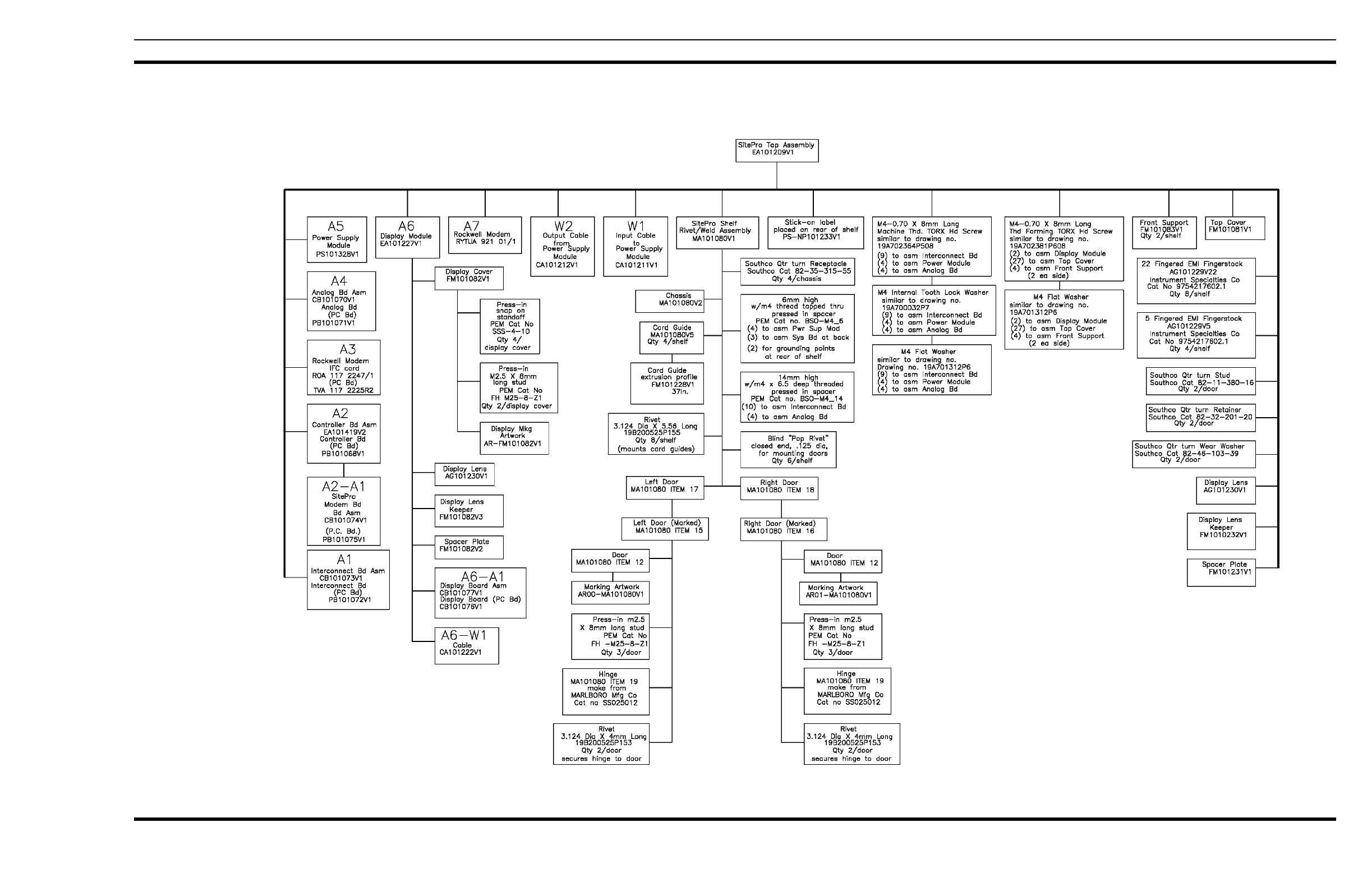

13.0 PRODUCT STRUCTURE
(PX01-EA101209V1, Rev. D)
INTERCONNECTION DIAGRAM
148 MM101271V1 R2A

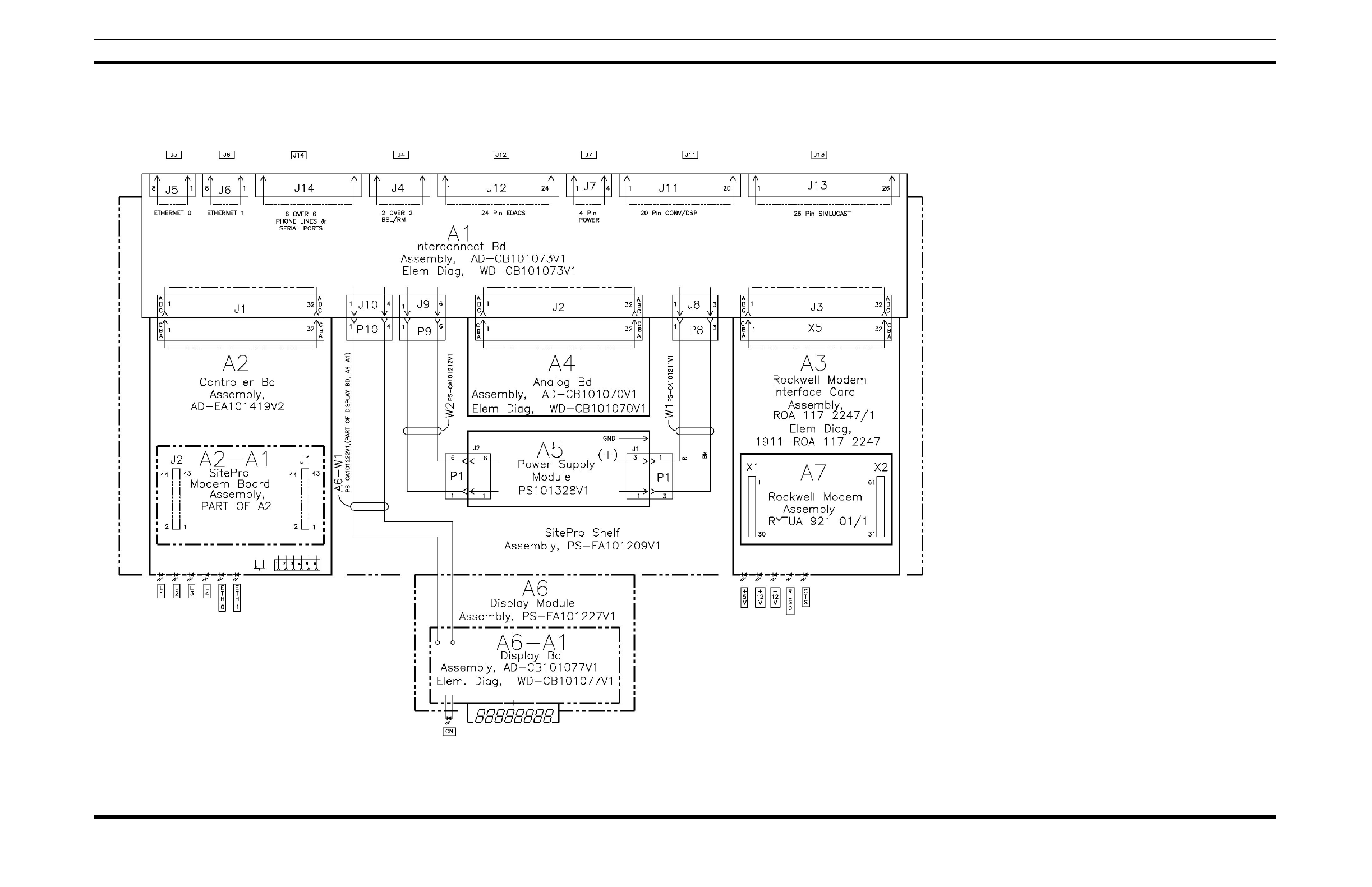

14.0 INTERCONNECTION DIAGRAM
SITEPRO SHELF EA101209V1
(ID-EA101209, Rev. A)
ASSEMBLY DIAGRAM
MM101271V1 R2A 149

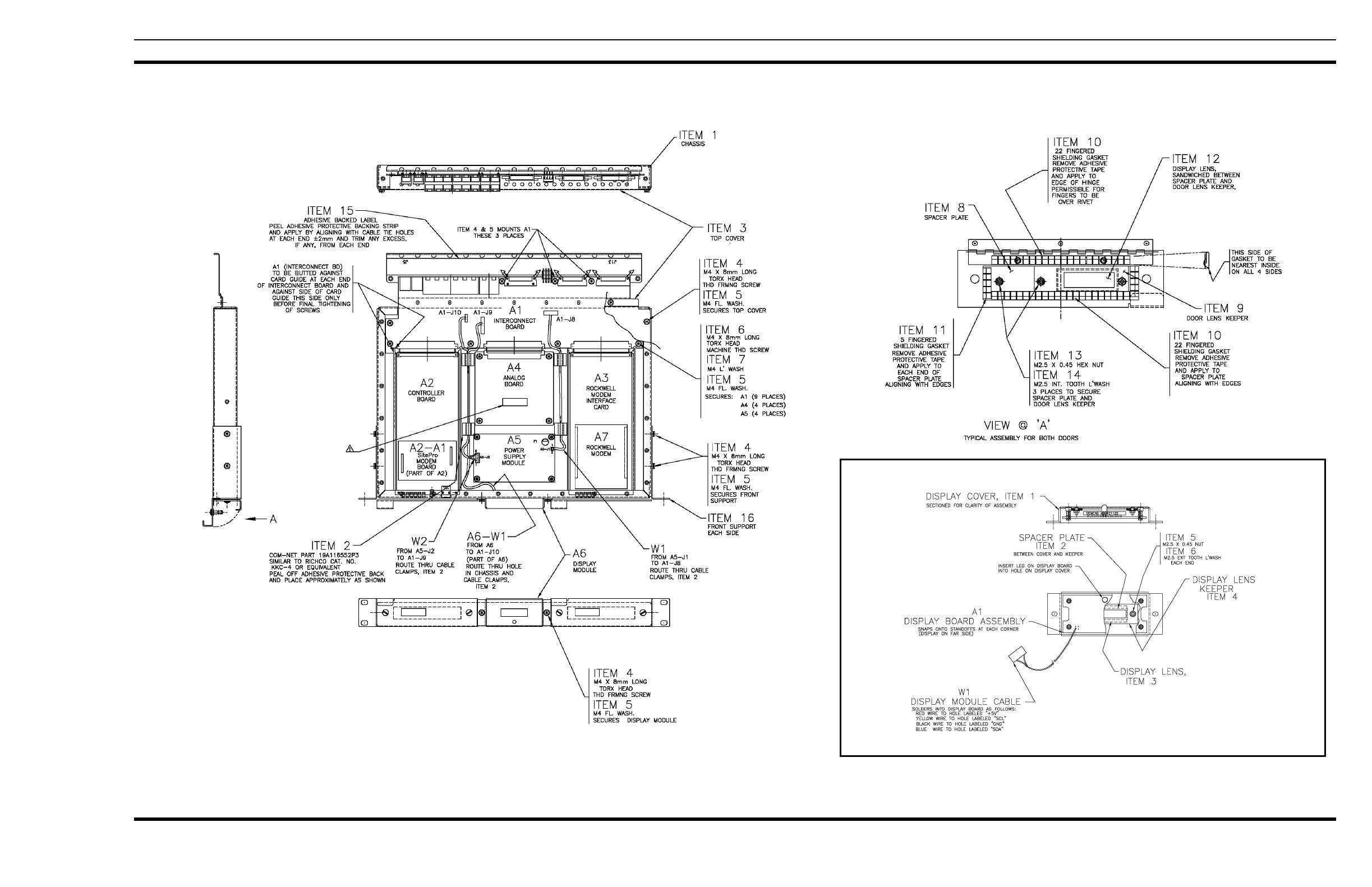

15.0 ASSEMBLY DIAGRAM
A6 DISPLAY MODULE EA101227
(AD-EA101227V1, Rev. A)
SITEPRO SHELF ASSEMBLY EA101209V1
(AD-EA101209V1, Rev. D)
OUTLINE DIAGRAM
150 MM101271V1 R2A
16.0 OUTLINE DIAGRAMS

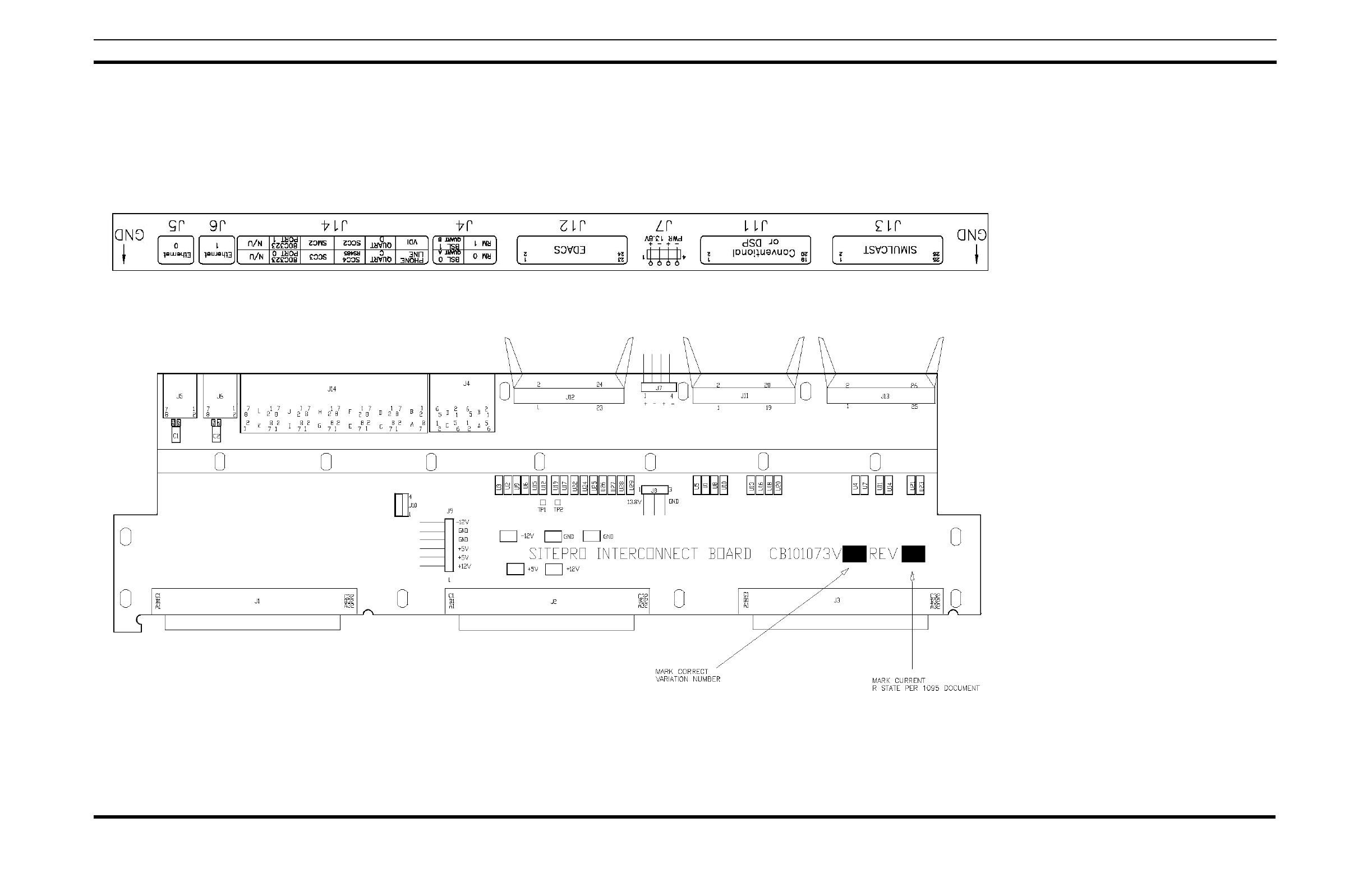

16.1 INTERCONNECT BOARD (A1) CB101073V1
REAR LABEL NP101233V1
(AD-CB101073V1, Rev. A)
OUTLINE DIAGRAM
MM101271V1 R2A 151

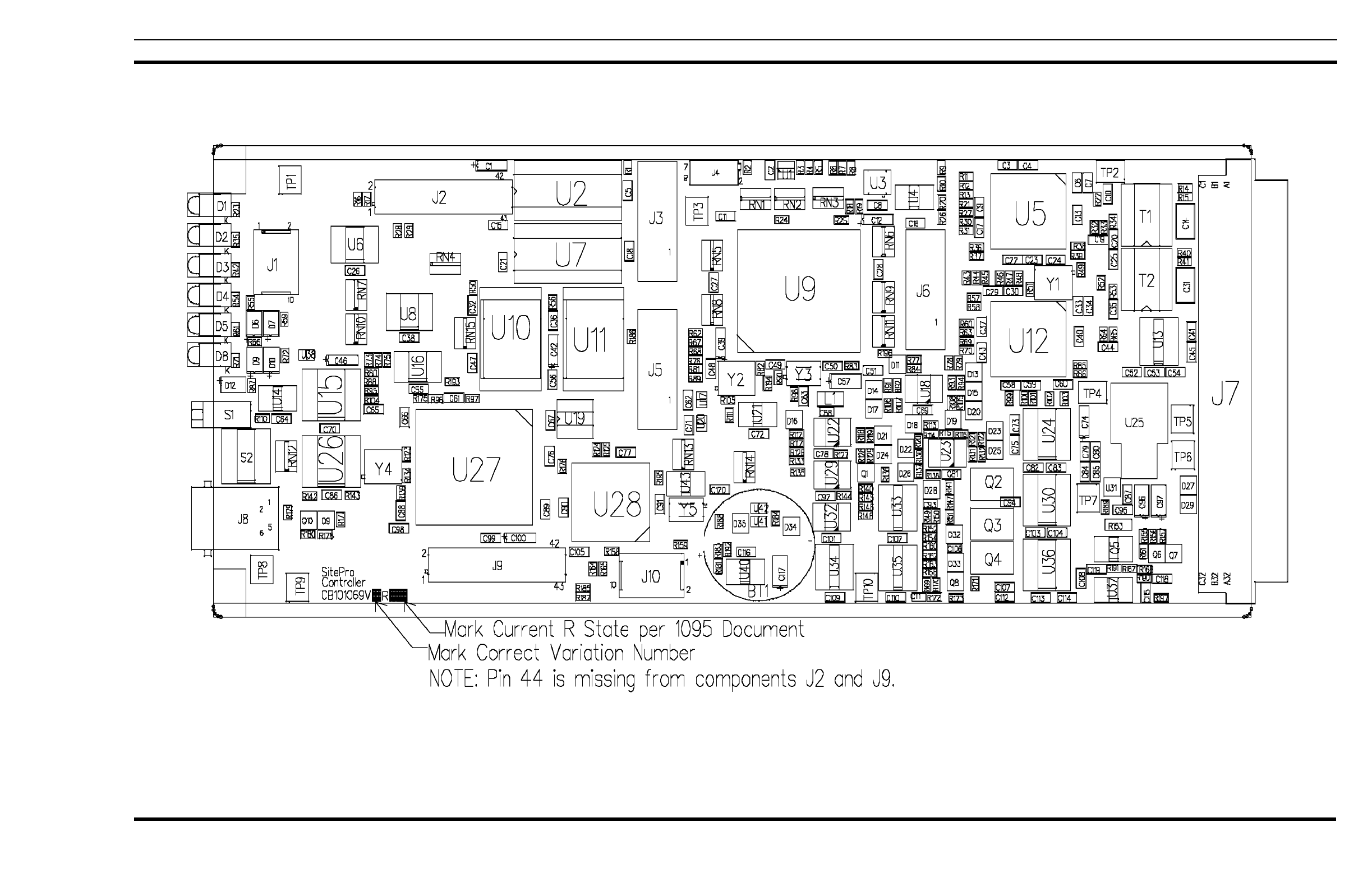

16.2 CONTROLLER BOARD (A2) CB101069V1
(AD-CB101069V1, Rev. A)
OUTLINE DIAGRAM
152 MM101271V1 R2A

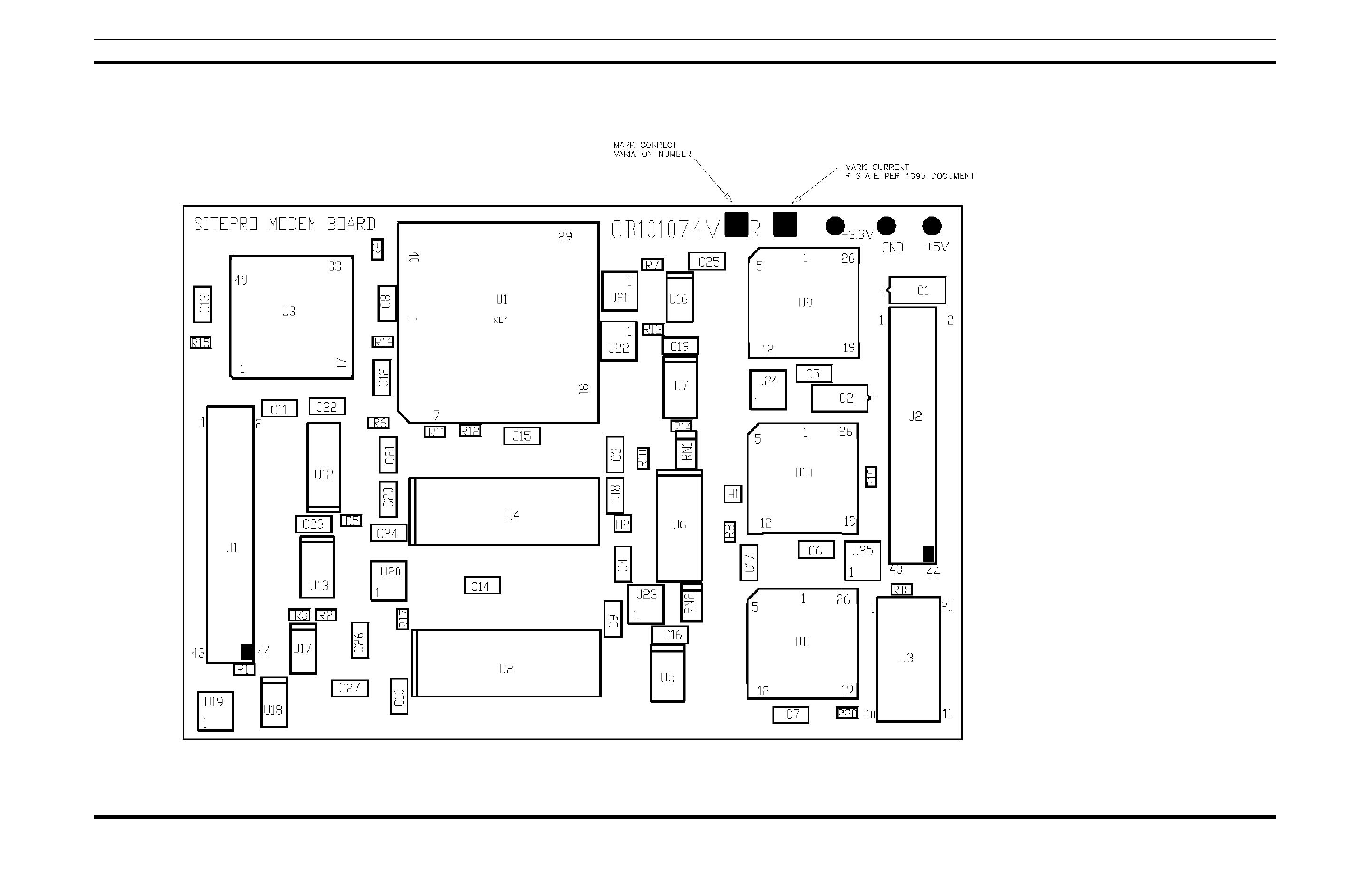

16.3 SitePro MODEM BOARD (A2-A1) CB101074V1
(AD-CB101074V1, Rev. A)
ASSEMBLY DIAGRAM
MM101271V1 R2A 153

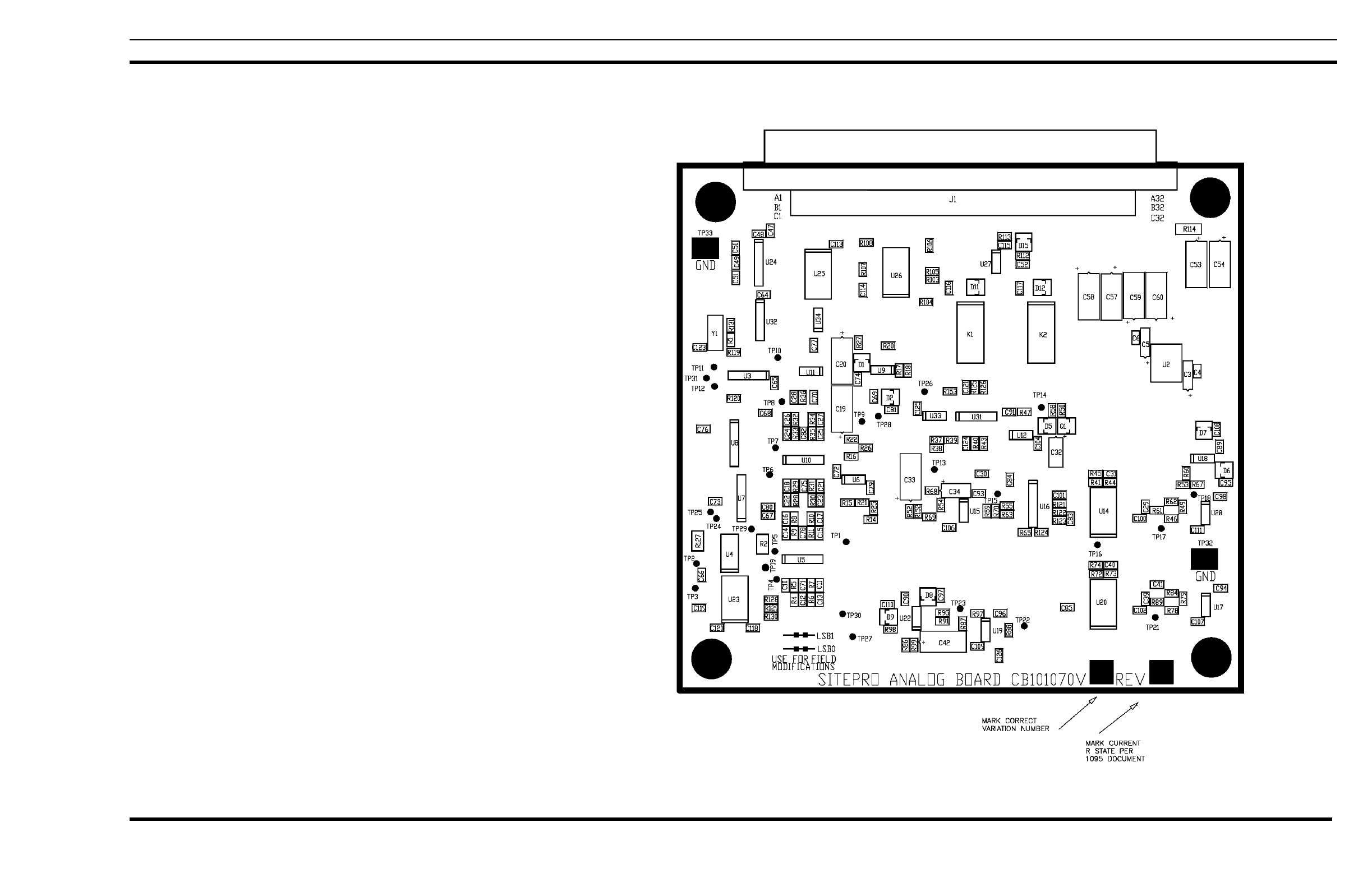

16.4 ANALOG BOARD (A4) CB101070V1
(AD-CB101070V1, Rev. A)
OUTLINE DIAGRAM
154 MM101271V1 R2A

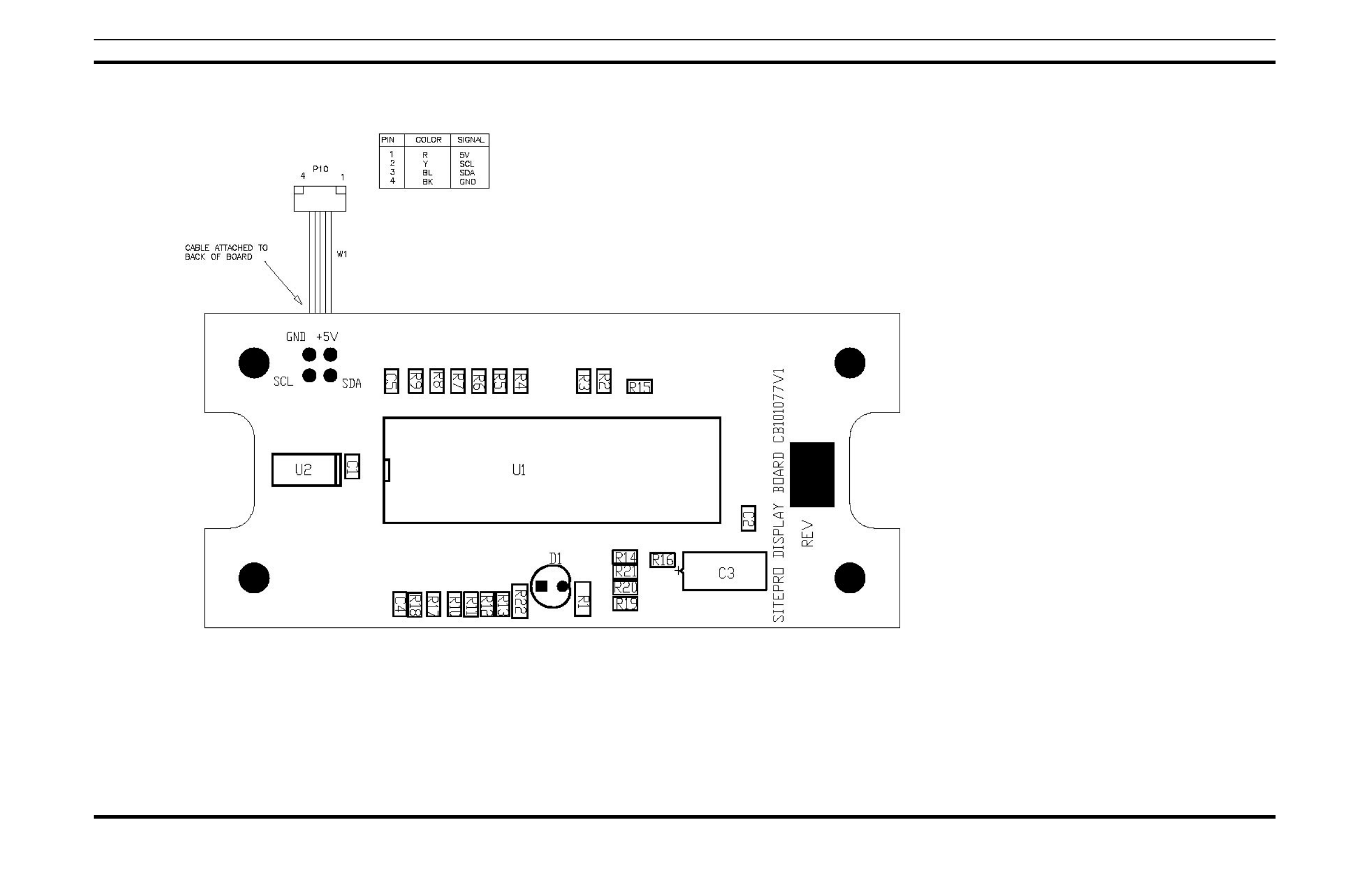

16.5 DISPLAY MODULE (A6-A1) CB101077V1
(AD-CB101077V1, Rev. A)
SCHEMATIC DIAGRAM
MM101271V1 R2A 155
17.0 SCHEMATIC DIAGRAMS

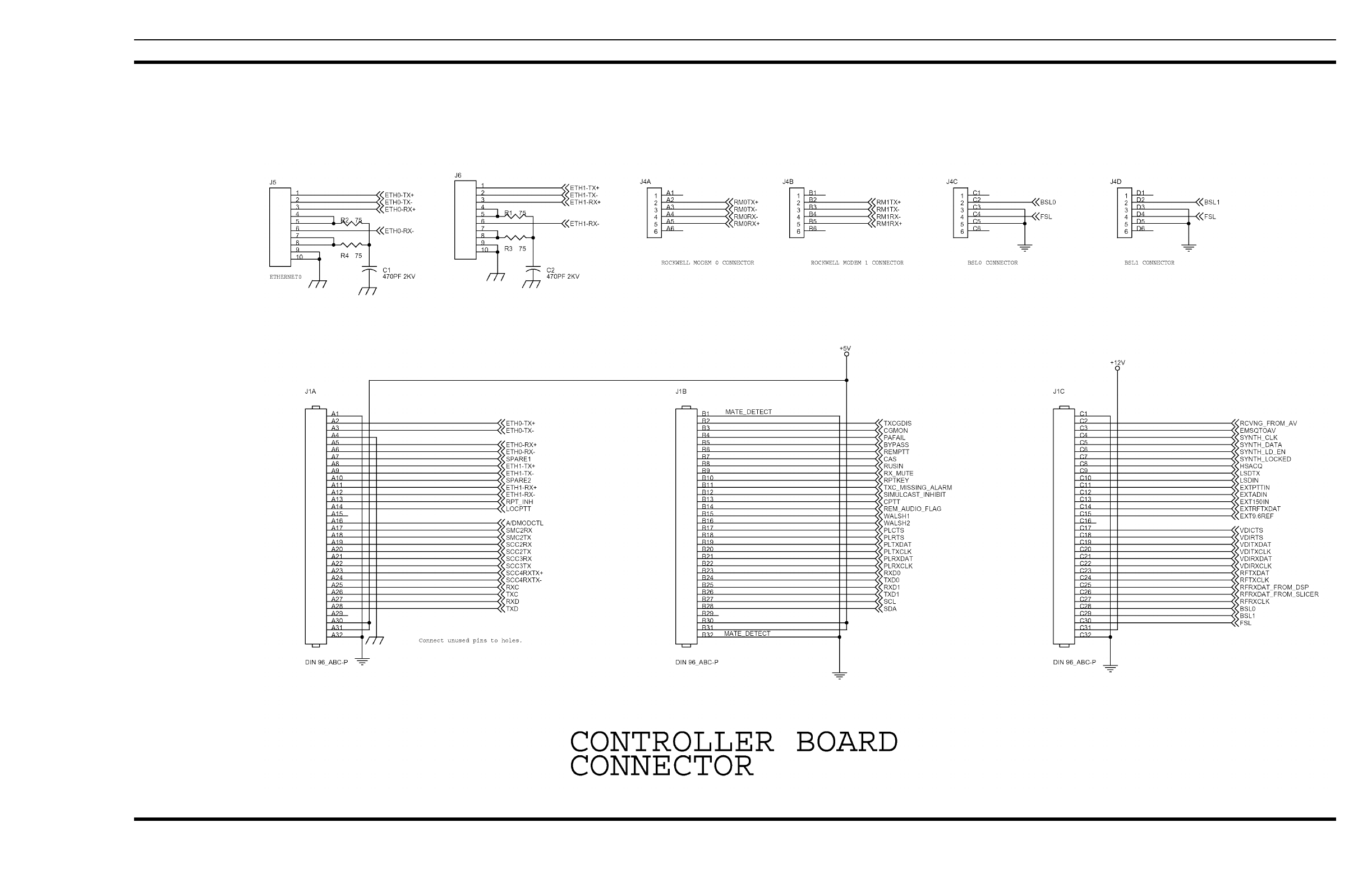

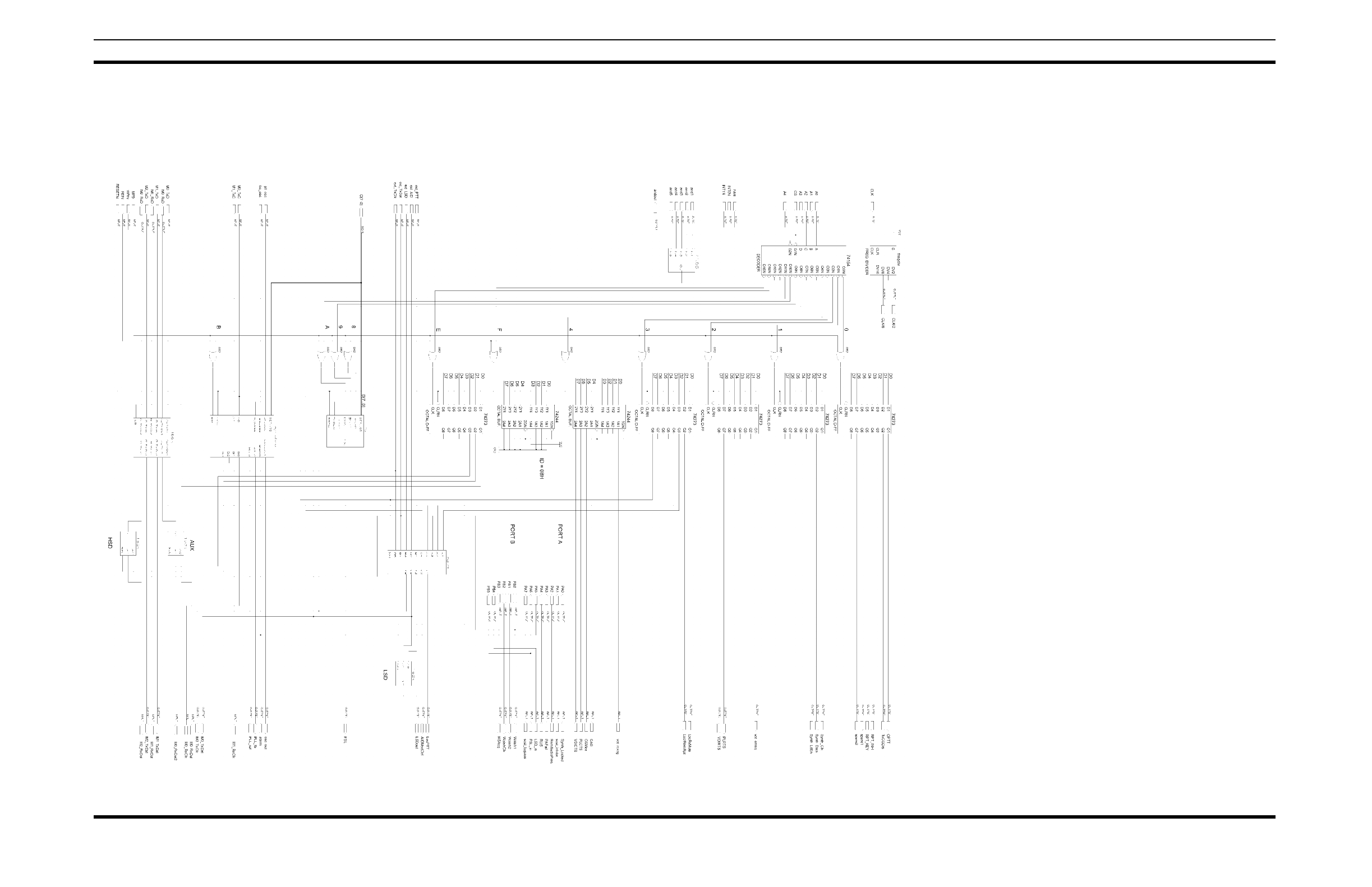

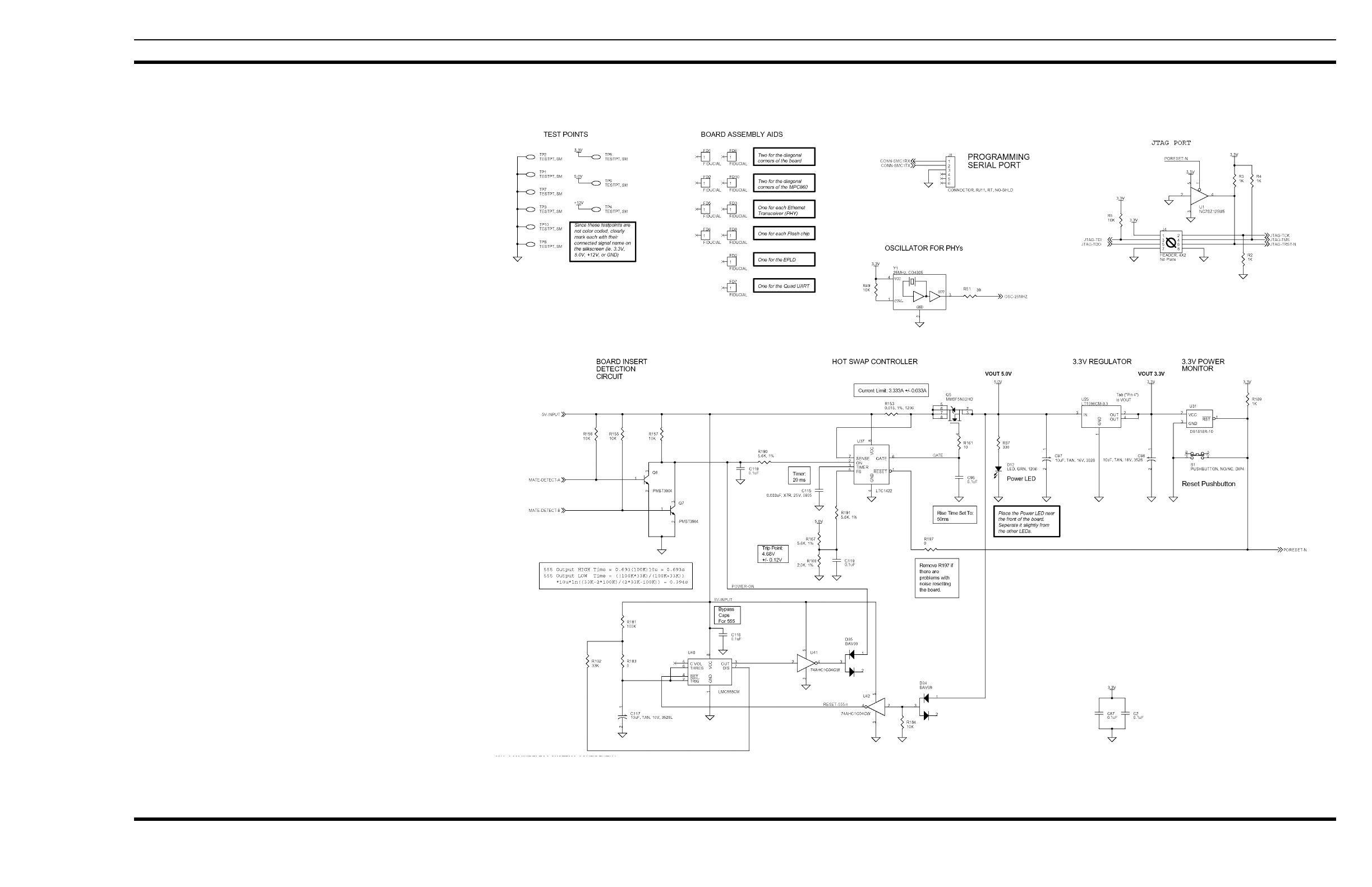

17.1 INTERCONNECT BOARD (A1) CB101073V1
(WD-CB101073V1, Sh. 1, Rev. A)
SCHEMATIC DIAGRAM
156 MM101271V1 R2A
INTERCONNECT BOARD (A1) CB101073V1
(WD-CB101073V1, Sh. 2, Rev. A)
SCHEMATIC DIAGRAM
MM101271V1 R2A 157
INTERCONNECT BOARD (A1) CB101073V1
(WD-CB101073V1, Sh. 3, Rev. A)
SCHEMATIC DIAGRAM
158 MM101271V1 R2A
INTERCONNECT BOARD (A1) CB101073V1
(WD-CB101073V1, Sh. 4, Rev. A)
SCHEMATIC DIAGRAM
MM101271V1 R2A 159
17.2 CONTROLLER BOARD (A2) CB101069V1

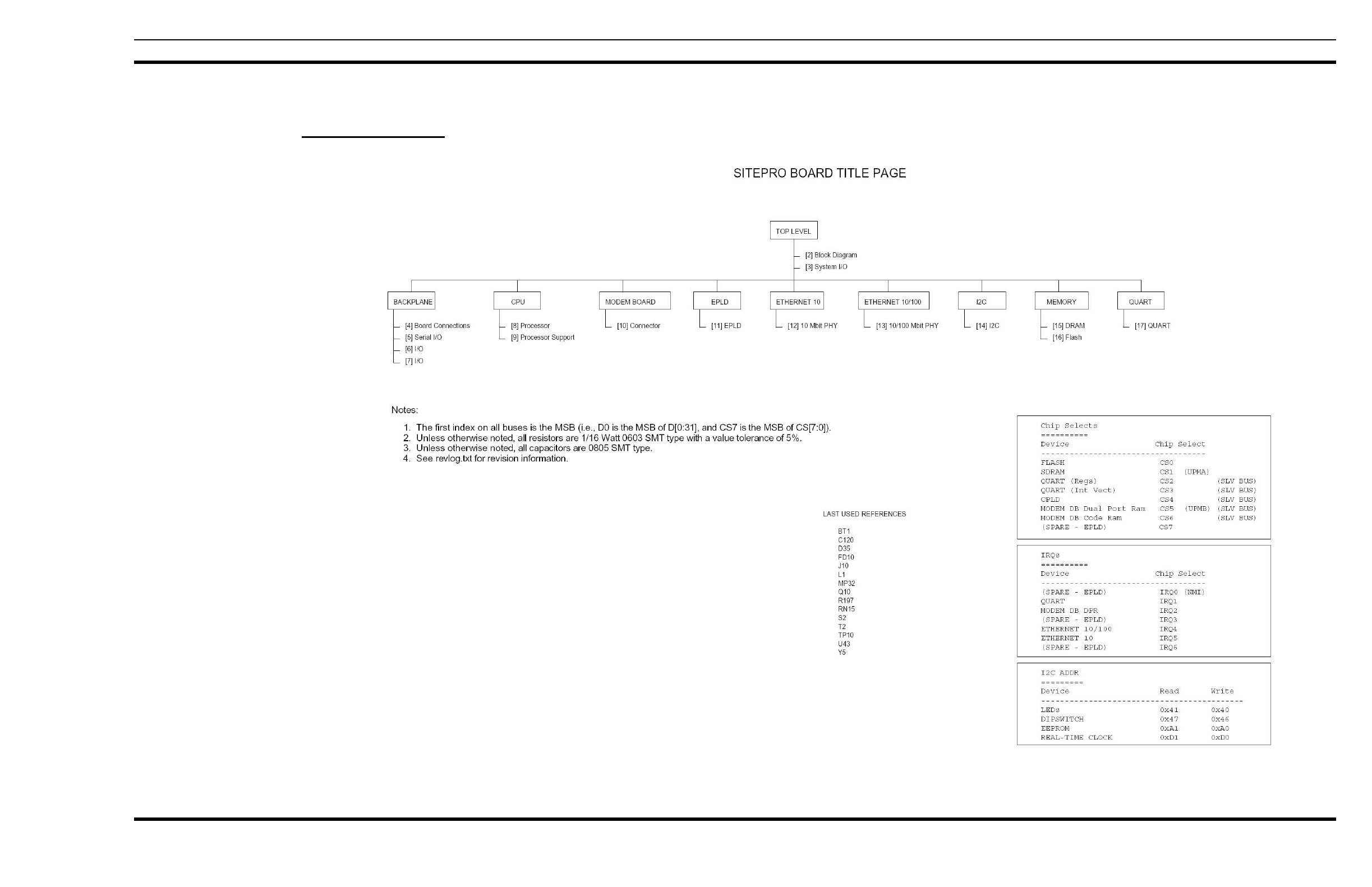

17.2.1 SitePro Board Title Page
(WD-CB101069V1, Sh. 1, Rev. A)
SCHEMATIC DIAGRAM
160 MM101271V1 R2A

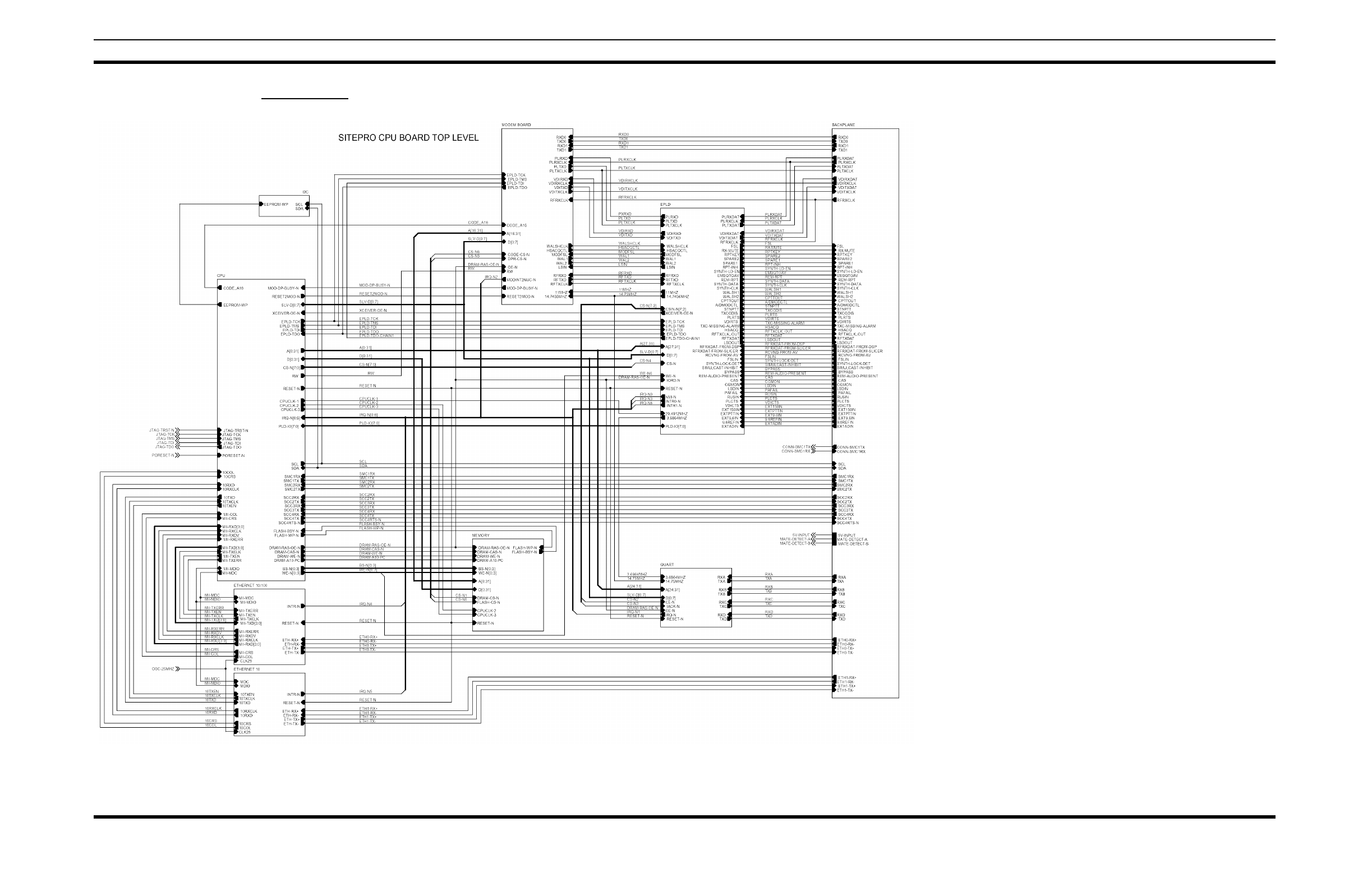

17.2.2 Block Diagram
CONTROLLER BOARD (A2) CB101069V1
(WD-CB101069V1, Sh. 2, Rev. A)
SCHEMATIC DIAGRAM
MM101271V1 R2A 161

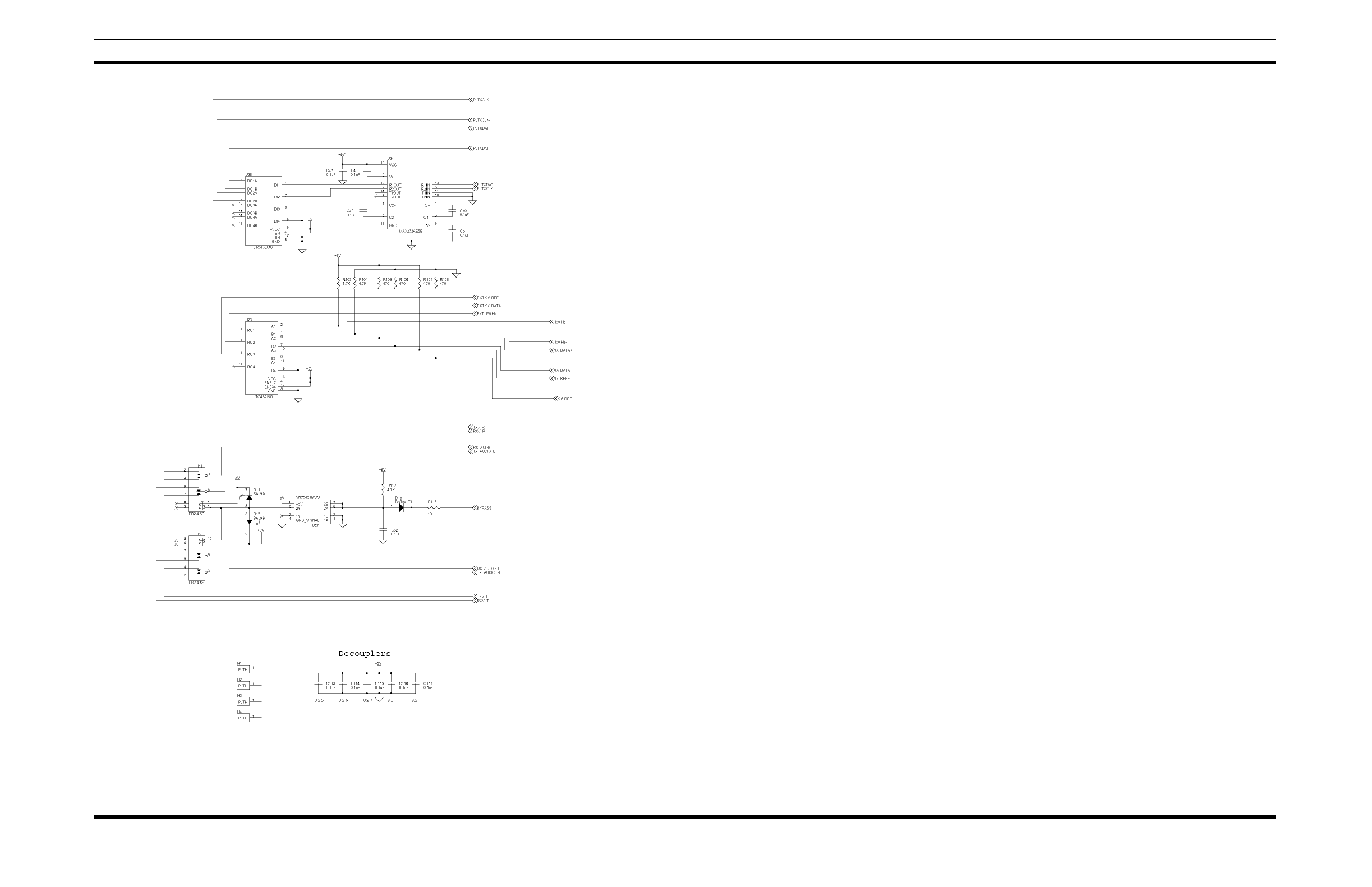

17.3 SYSTEM I/O
CONTROLLER BOARD (A2) CB101069V1
(WD-CB101069V1, Sh. 3, Rev. A)
SCHEMATIC DIAGRAM
162 MM101271V1 R2A

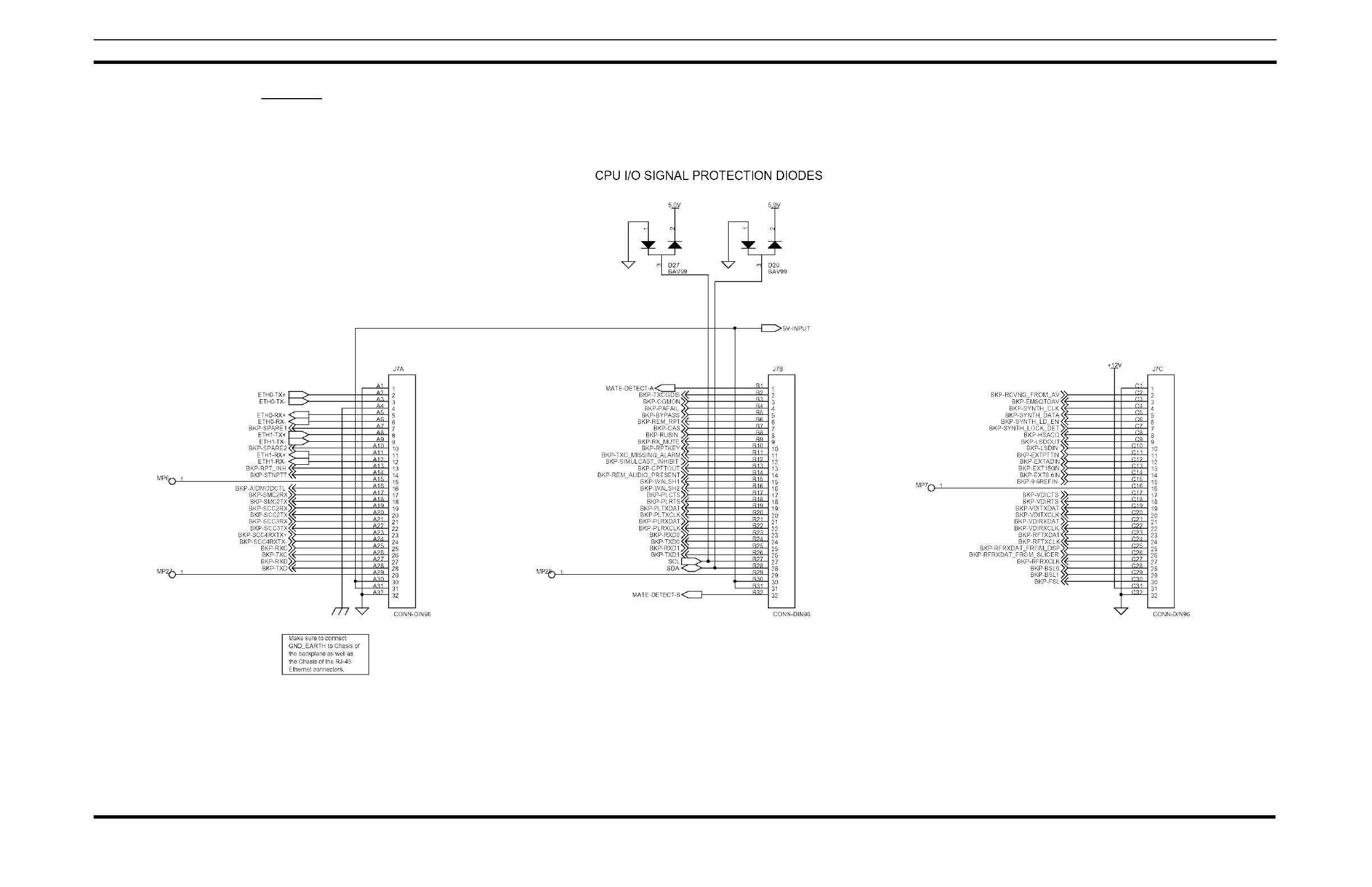

17.3.1 Backplane
CONTROLLER BOARD (A2) CB101069V1
Board Connections
(WD-CB101069V1, Sh. 4, Rev. A)
SCHEMATIC DIAGRAM
MM101271V1 R2A 163

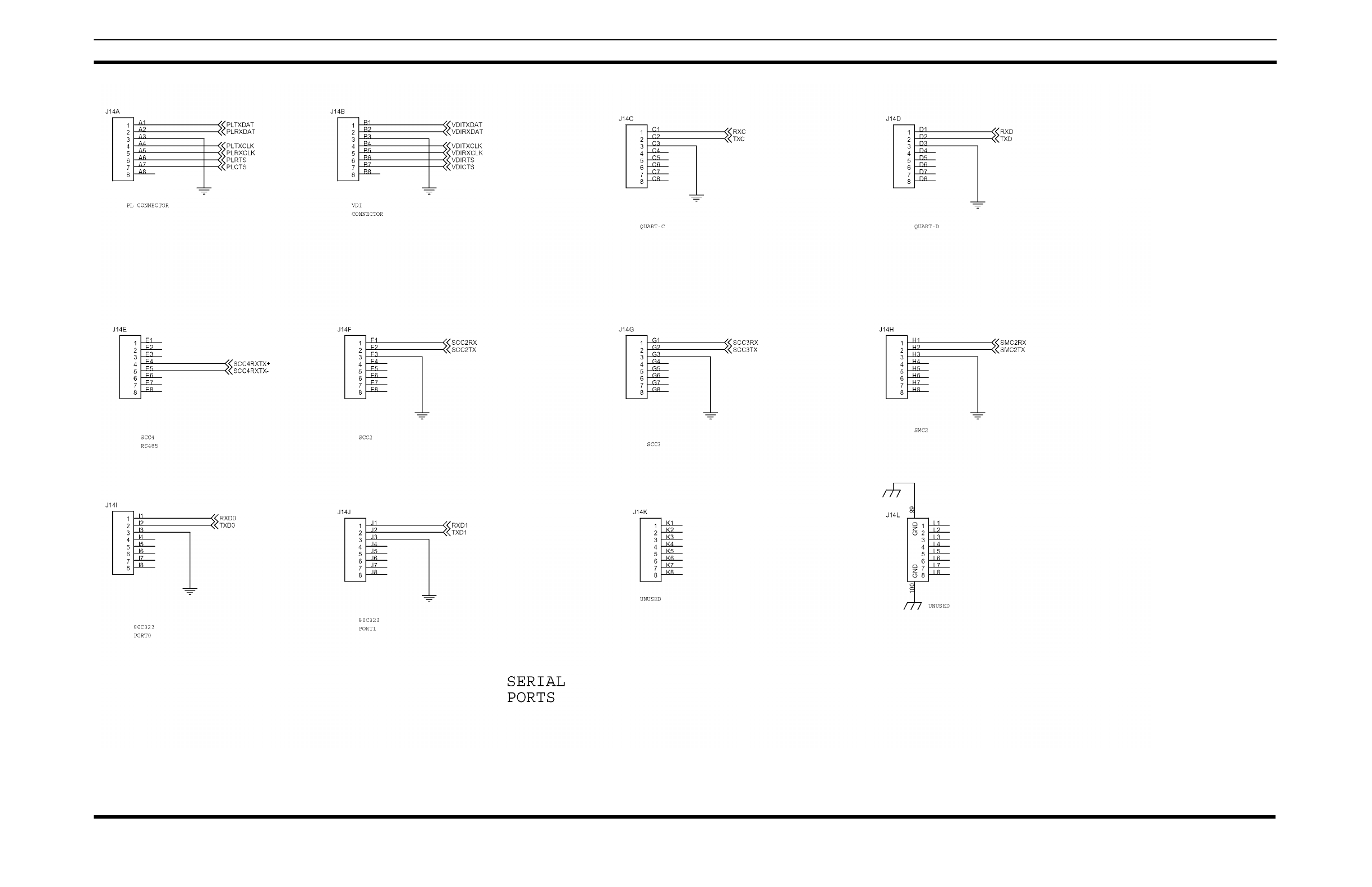

CONTROLLER BOARD (A2) CB101069V1
Backplane
Serial I/O
(WD-CB101069V1, Sh. 5, Rev. A)
SCHEMATIC DIAGRAM
164 MM101271V1 R2A

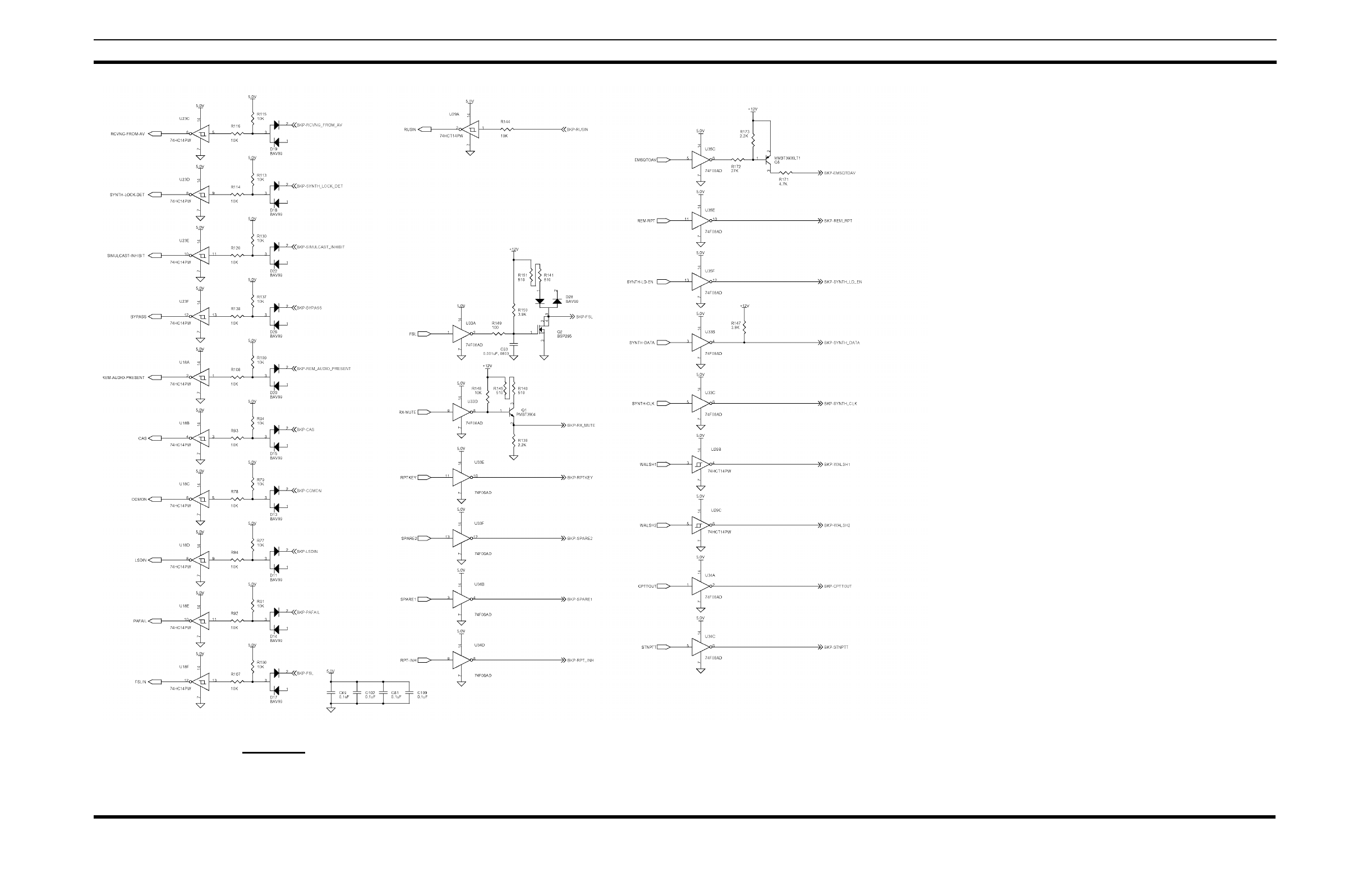

CONTROLLER BOARD (Backplane) A2 CB101069V1
I/O
(WD-CB101069V1, Sh. 6, Rev. A)
SCHEMATIC DIAGRAM
MM101271V1 R2A 165

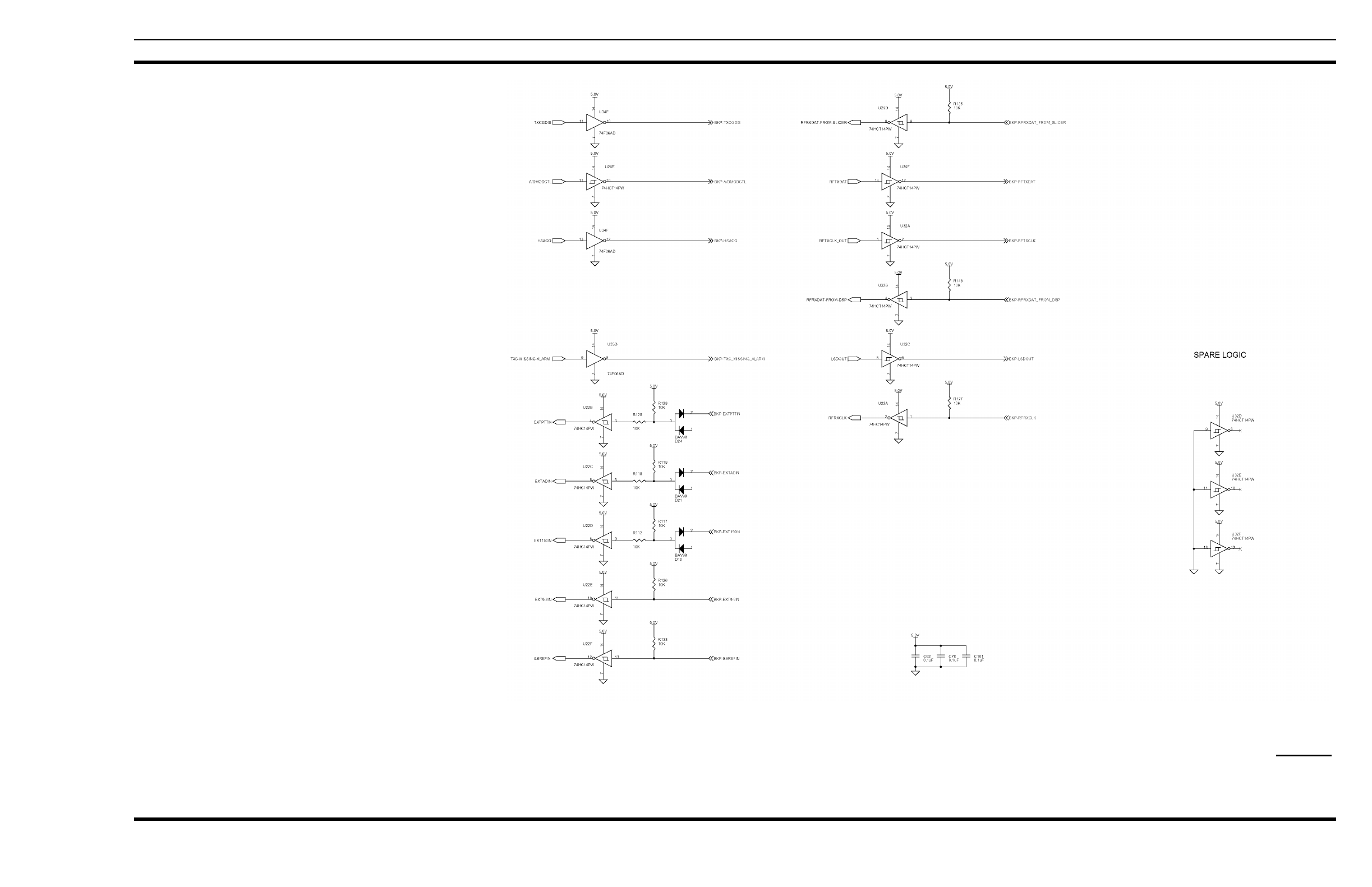

CONTROLLER BOARD (A2) CB101069V1
Backplane
I/O
(WD-CB101069V1, Sh. 7, Rev. A)
SCHEMATIC DIAGRAM
166 MM101271V1 R2A

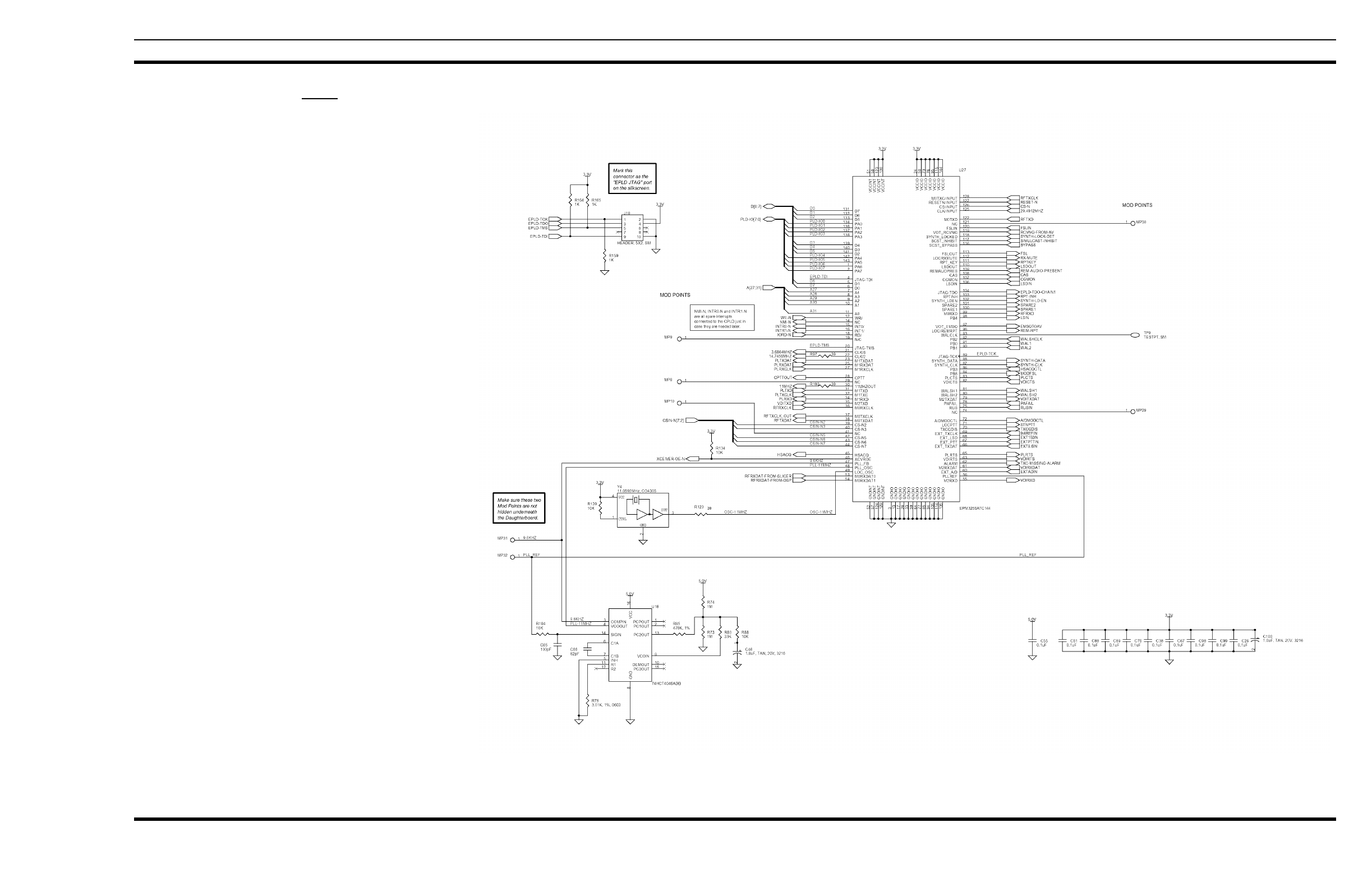

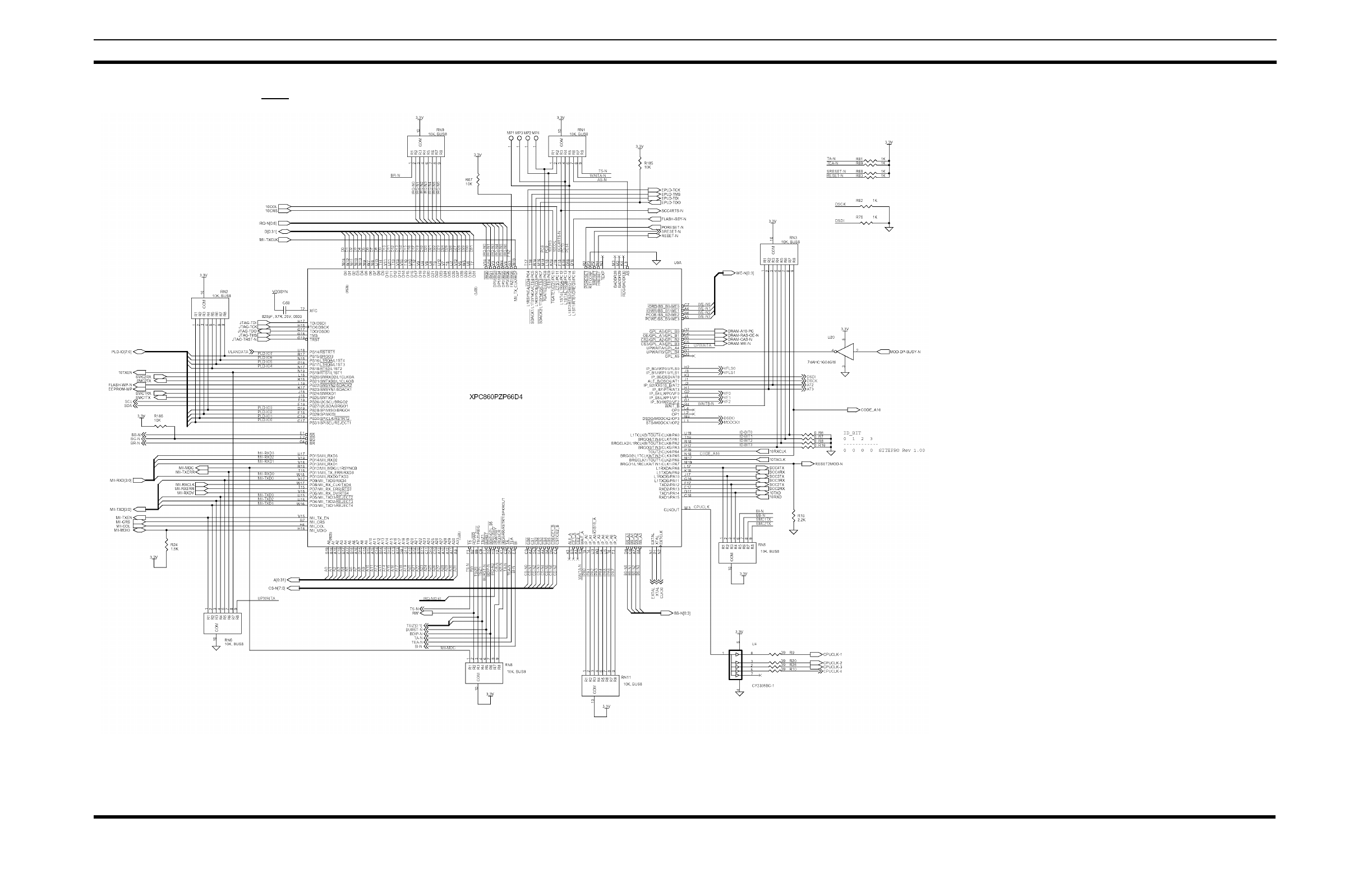

17.3.2 CPU
CONTROLLER BOARD (A2) CB101069V1
Processor
(WD-CB101069V1, Sh. 8, Rev. A)
SCHEMATIC DIAGRAM
MM101271V1 R2A 167

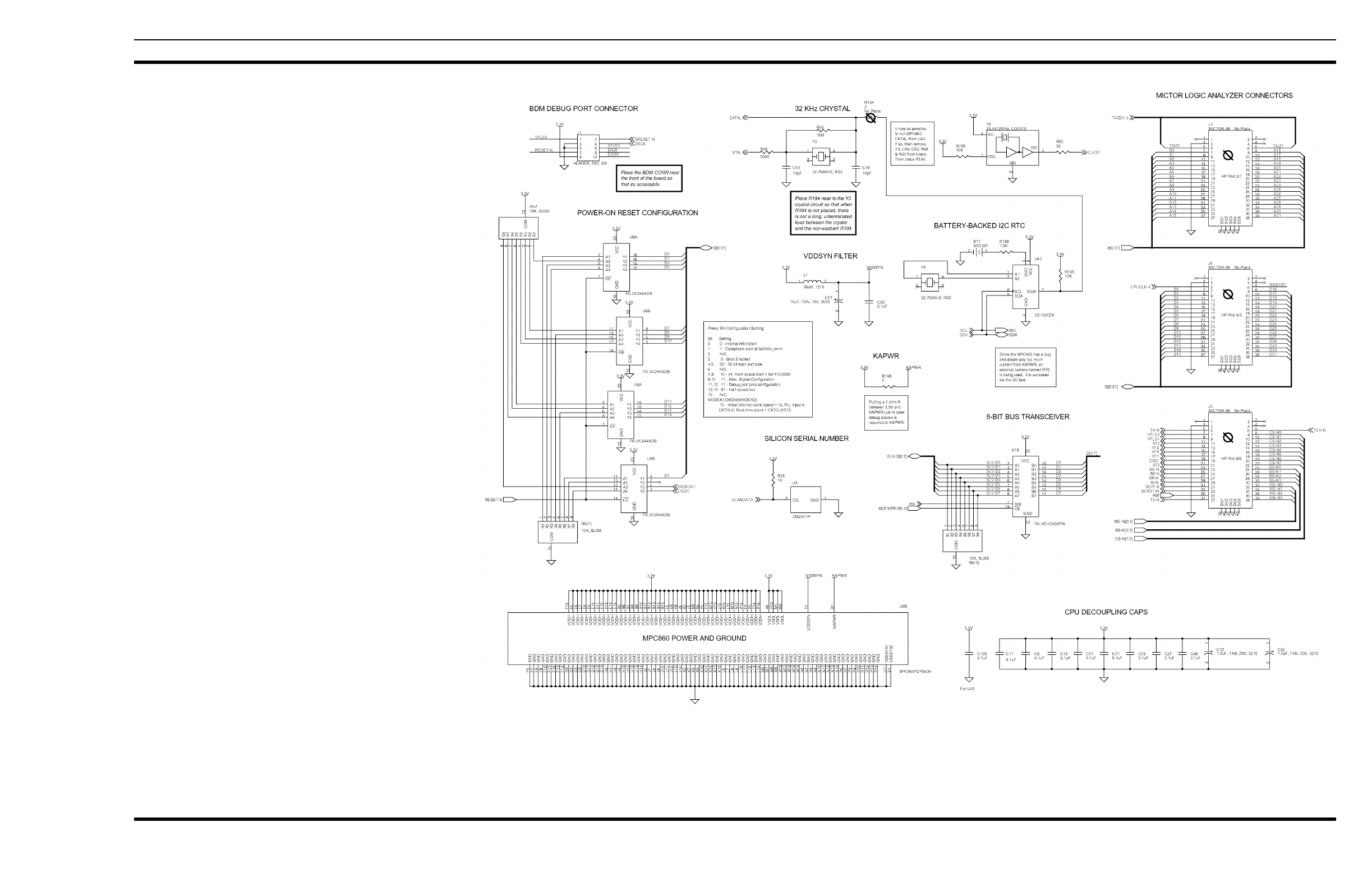

CONTROLLER BOARD (A2) CB101069V1
Processor Support
(WD-CB101069V1, Sh. 9, Rev. A)
SCHEMATIC DIAGRAM
168 MM101271V1 R2A

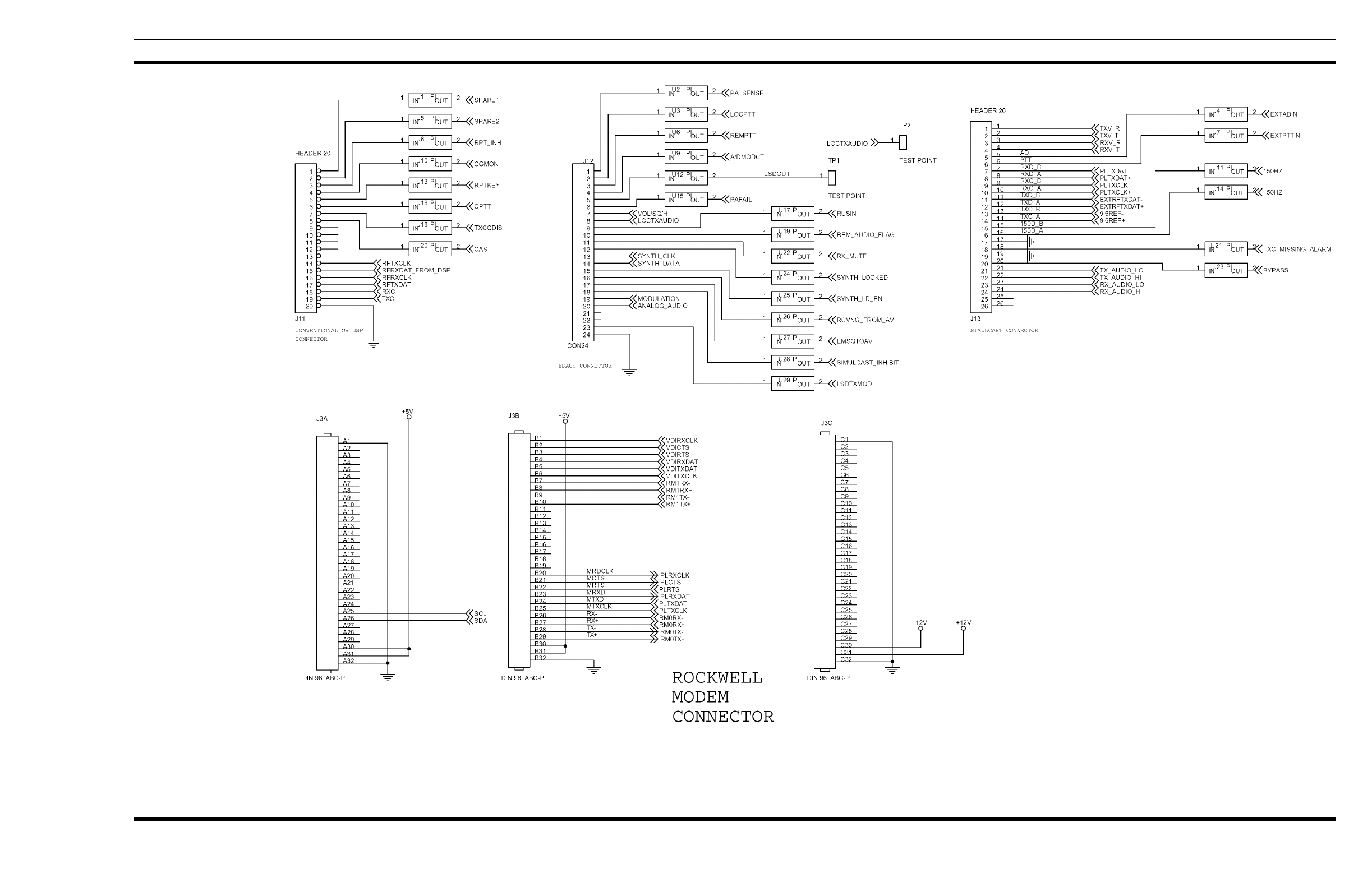

17.3.3 Modem Board Connector
CONTROLLER BOARD (A2) CB101069V1
(WD-CB101069V1, Sh. 10, Rev. A)
SCHEMATIC DIAGRAM
MM101271V1 R2A 169

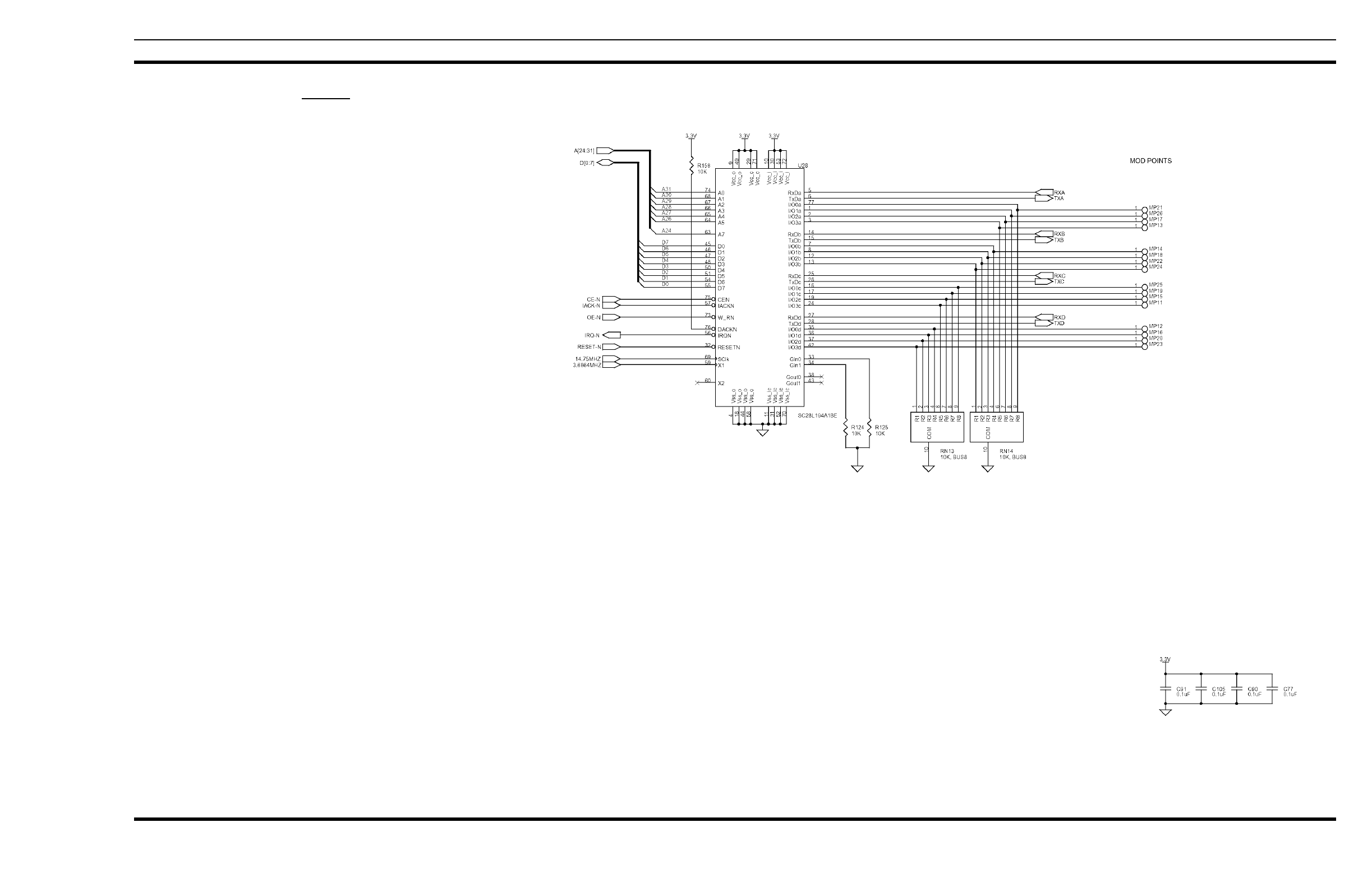

17.3.4 EPLD
CONTROLLER BOARD (A2) CB101069V1
(WD-CB101069V1, Sh. 11, Rev. A)
SCHEMATIC DIAGRAM
170 MM101271V1 R2A

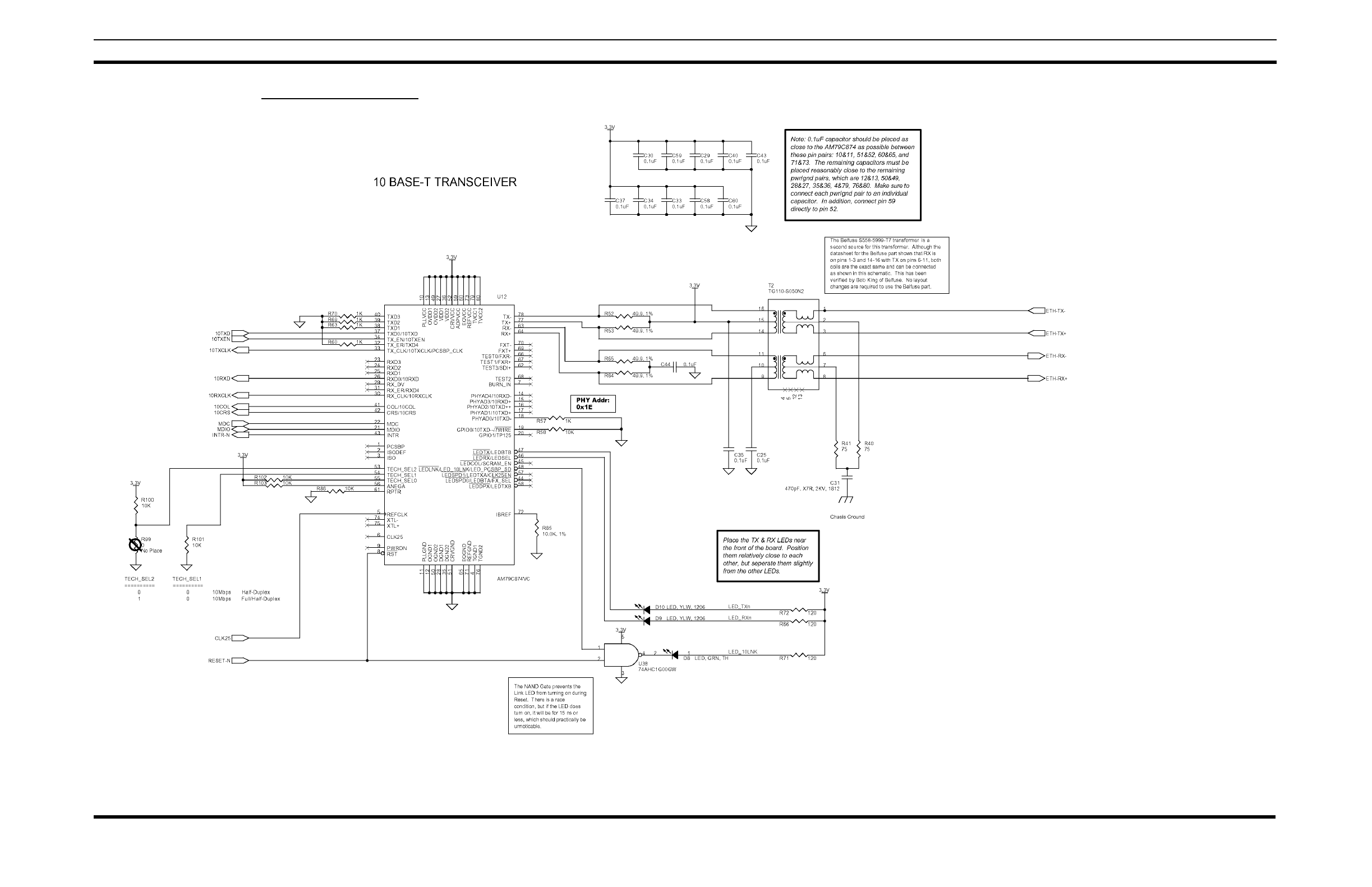

17.3.5 Ethernet 10 (10 Mbit PHY)
CONTROLLER BOARD (A2) CB101069V1
(WD-CB101069V1, Sh. 12, Rev. A)
SCHEMATIC DIAGRAM
MM101271V1 R2A 171

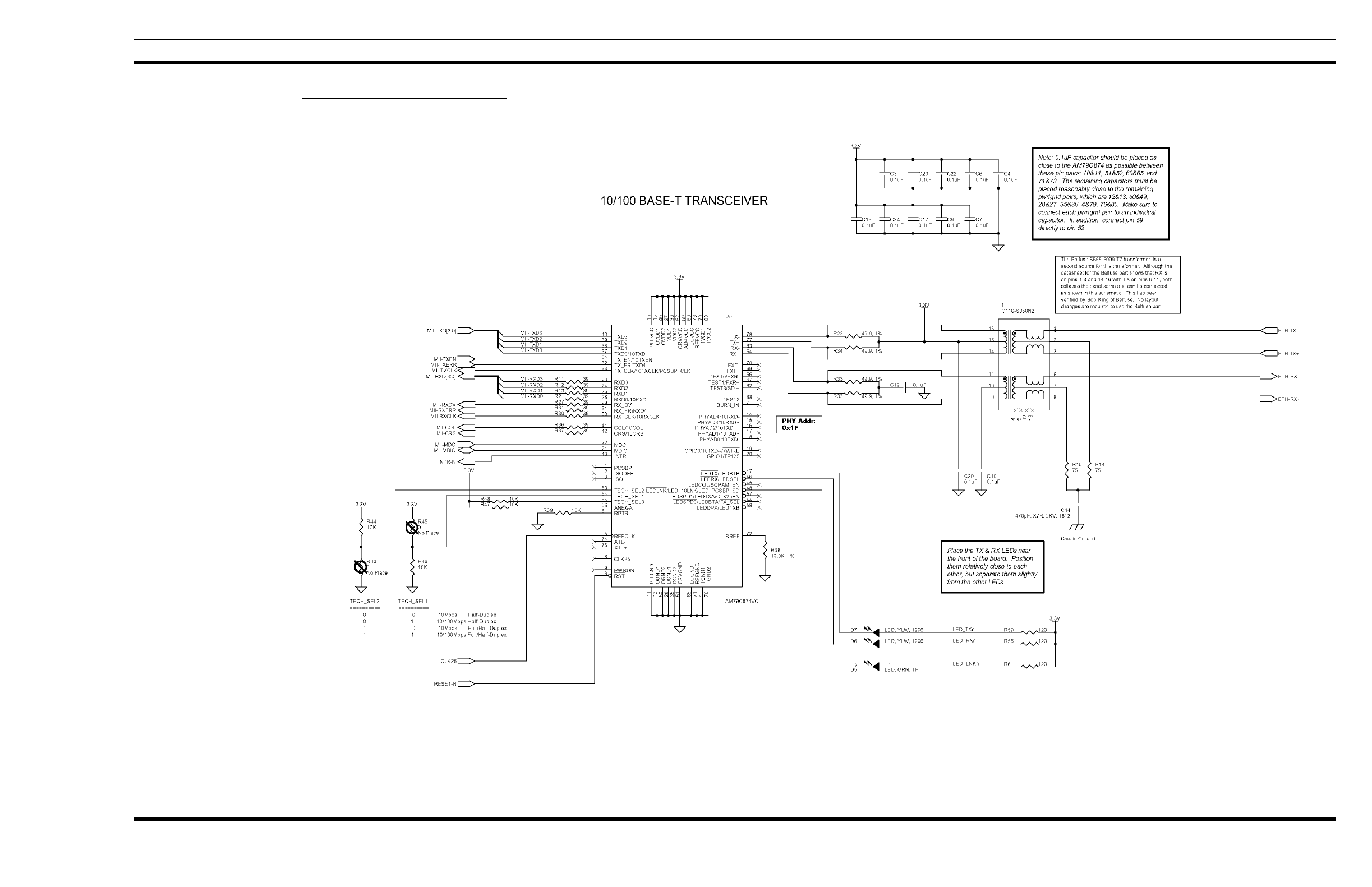

17.3.6 Ethernet 10/100 (10/100 Mbit PHY)
CONTROLLER BOARD (A2) CB101069V1
(WD-CB101069V1, Sh. 13, Rev. A)
SCHEMATIC DIAGRAM
172 MM101271V1 R2A

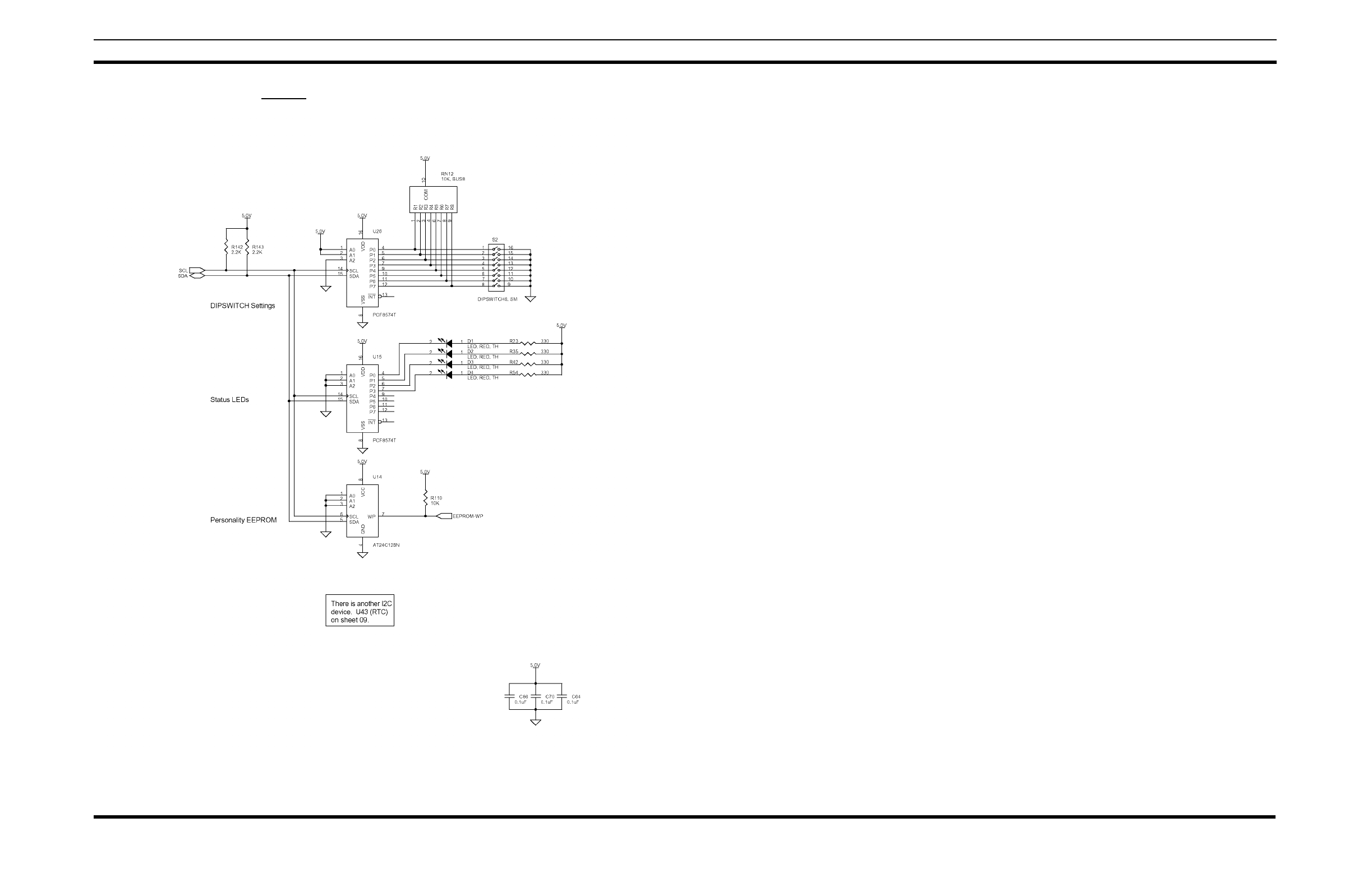

17.3.7 I2C Bus
CONTROLLER BOARD (A2) CB101069V1
(WD-CB101069V1, Sh. 14, Rev. A)
SCHEMATIC DIAGRAM
MM101271V1 R2A 173

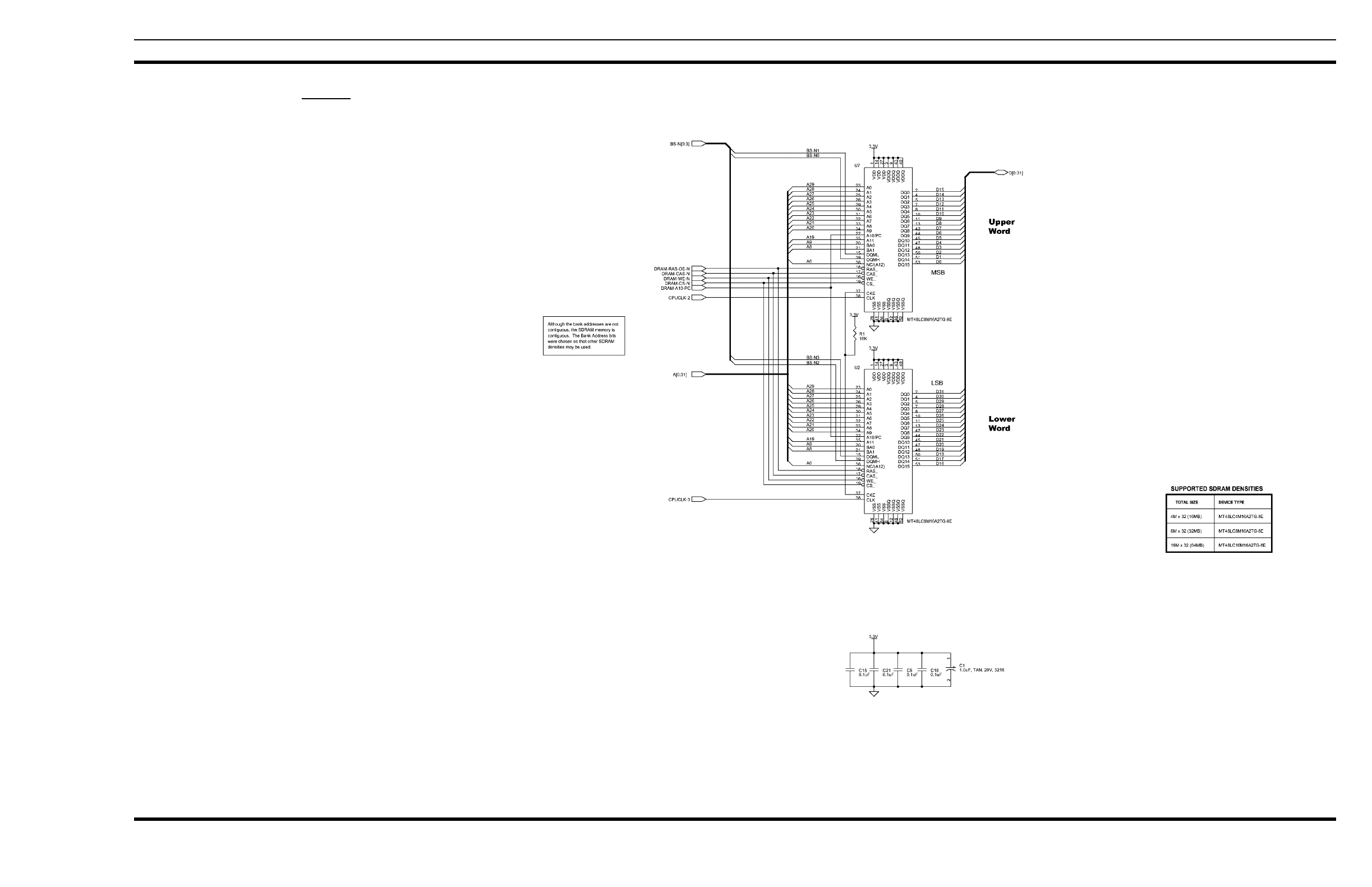

17.3.8 Memory
CONTROLLER BOARD (A2) CB101069V1
DRAM
(WD-CB101069V1, Sh. 15, Rev. 1.03)
SCHEMATIC DIAGRAM
174 MM101271V1 R2A

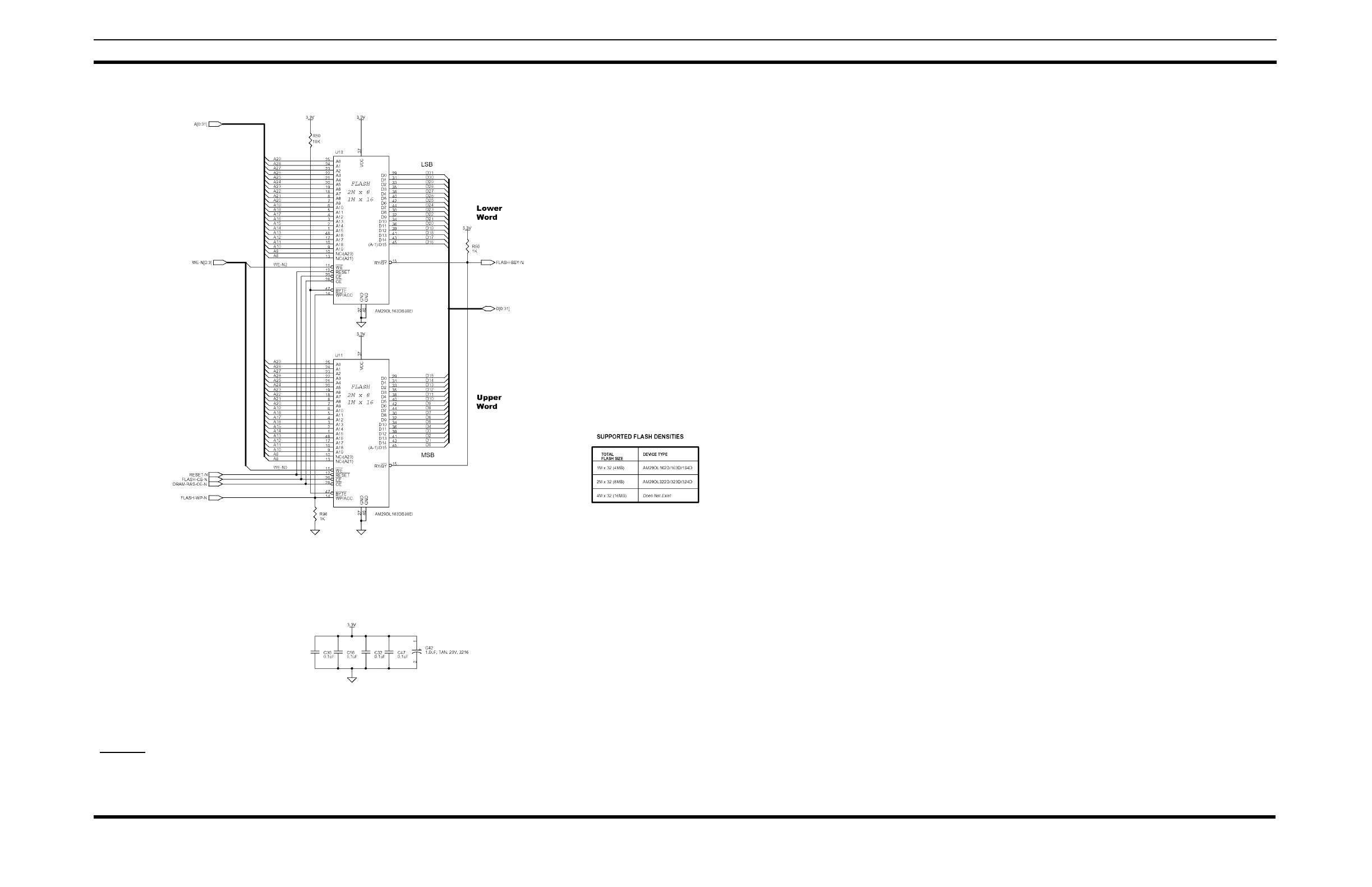

CONTROLLER BOARD (A2) CB101069V1
Memory
Flash
(WD-CB101069V1, Sh. 16, Rev. A)
SCHEMATIC DIAGRAM
MM101271V1 R2A 175
17.3.9 QUART
CONTROLLER BOARD (A2) CB101069V1
(WD-CB101069V1, Sh. 17, Rev. A)
SCHEMATIC DIAGRAM
176 MM101271V1 R2A

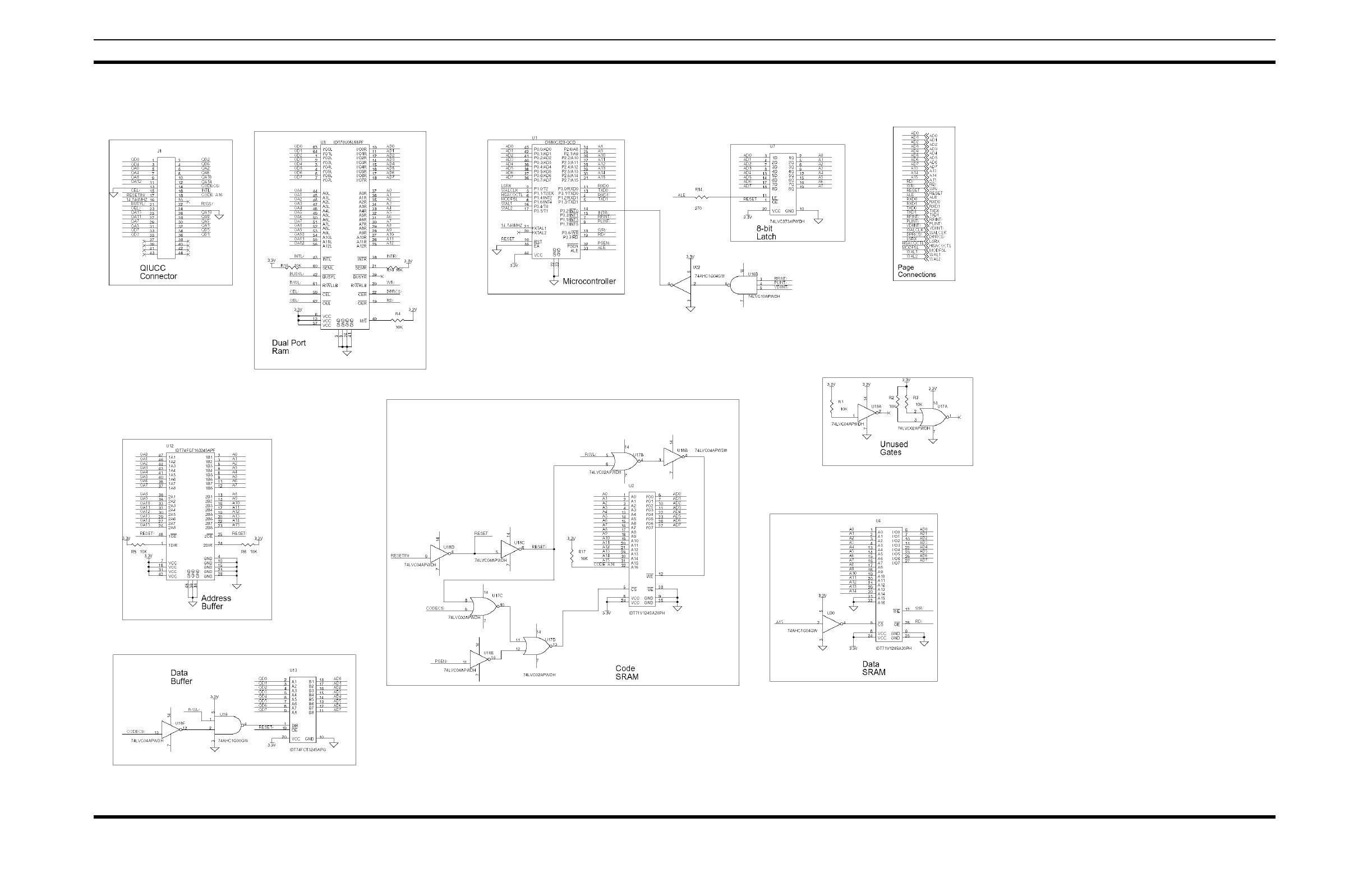

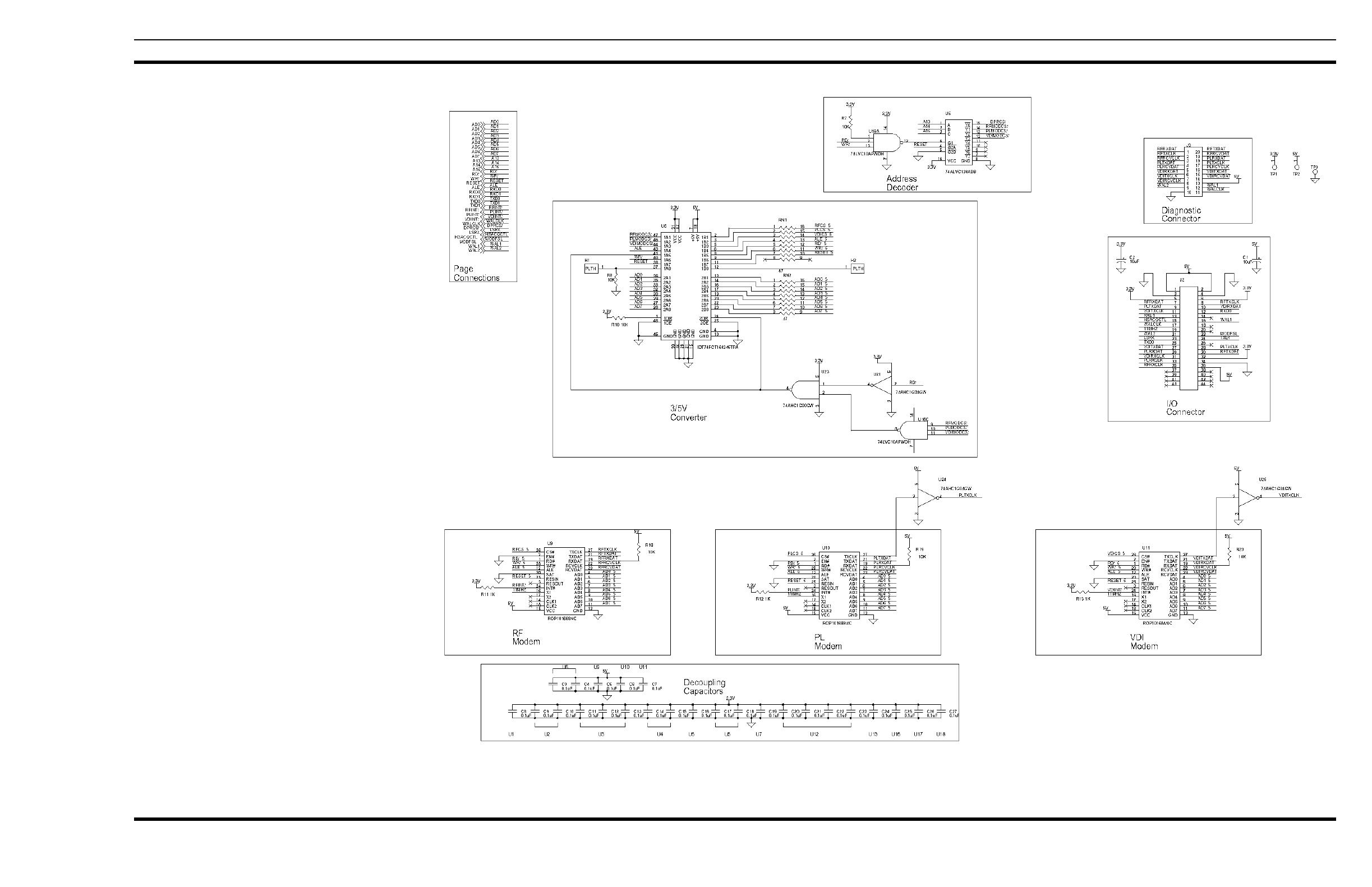

17.4 SitePro MODEM BOARD (A2-A1) CB101074V1
(WD-CB101074V1, Sh. 1, Rev. B)
SCHEMATIC DIAGRAM
MM101271V1 R2A 177
MODEM BOARD (A8) CB101074V1
(WD-CB101074V1, Sh. 2, Rev. B)
SCHEMATIC DIAGRAM
178 MM101271V1 R2A

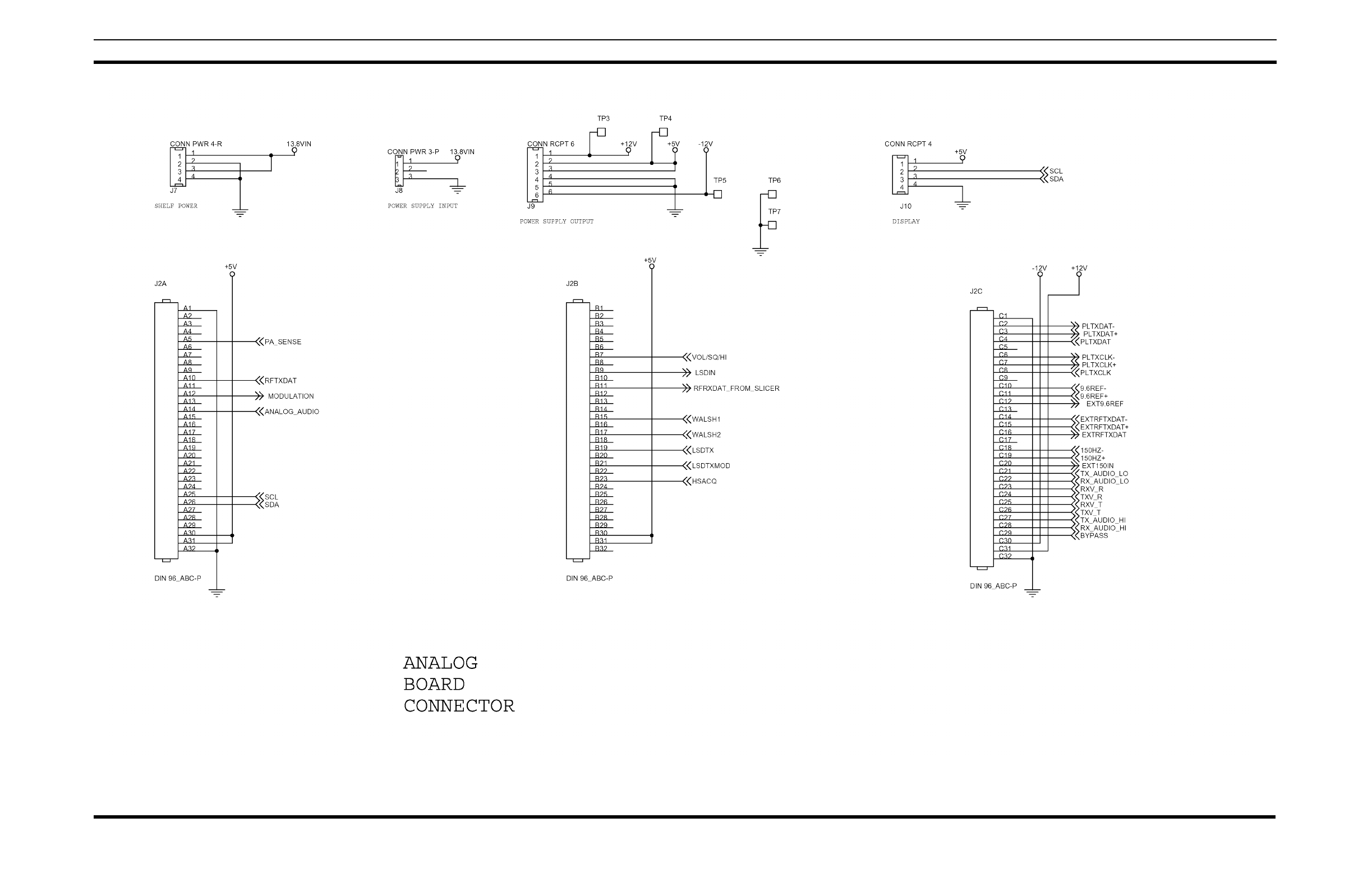

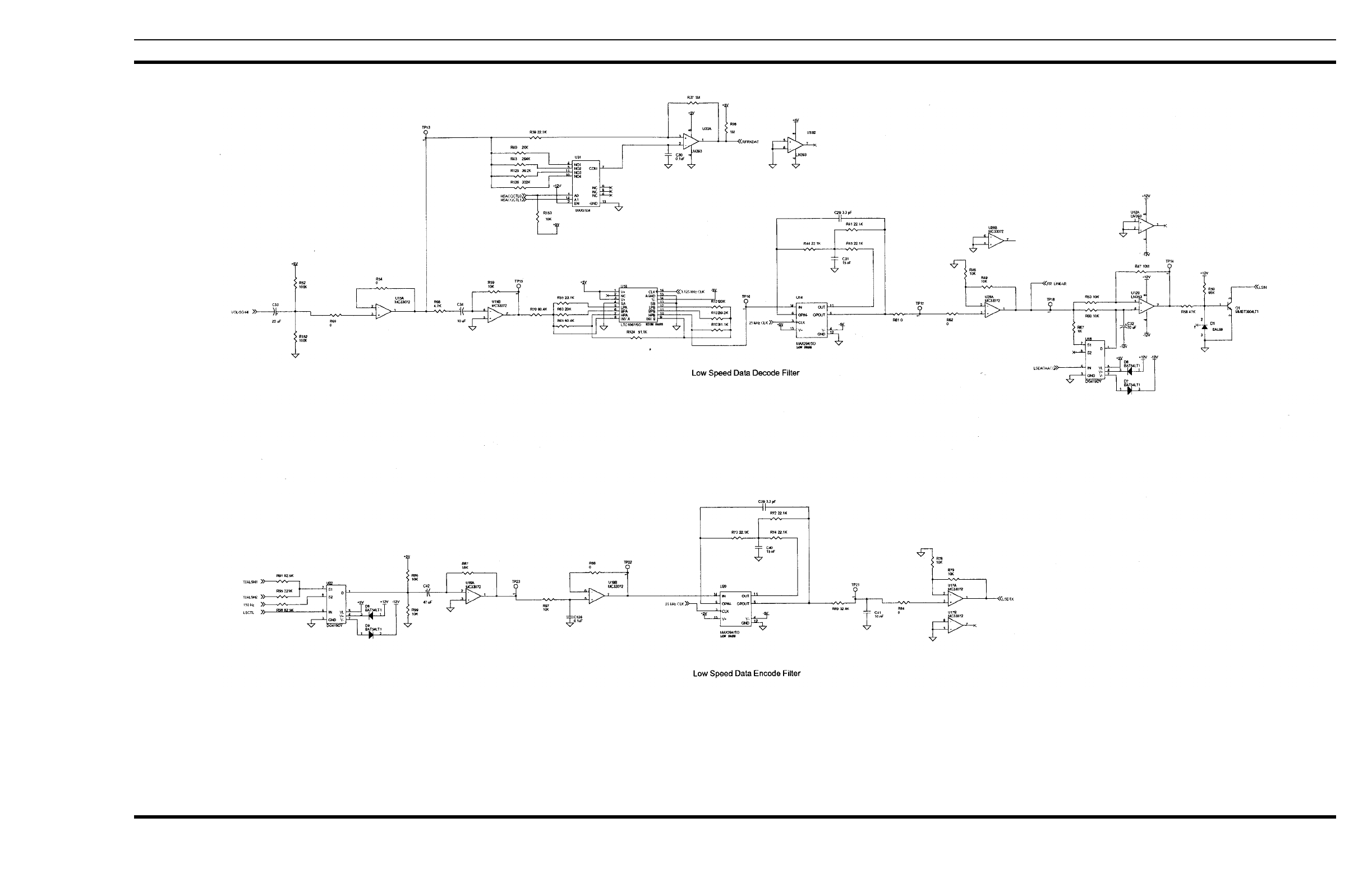

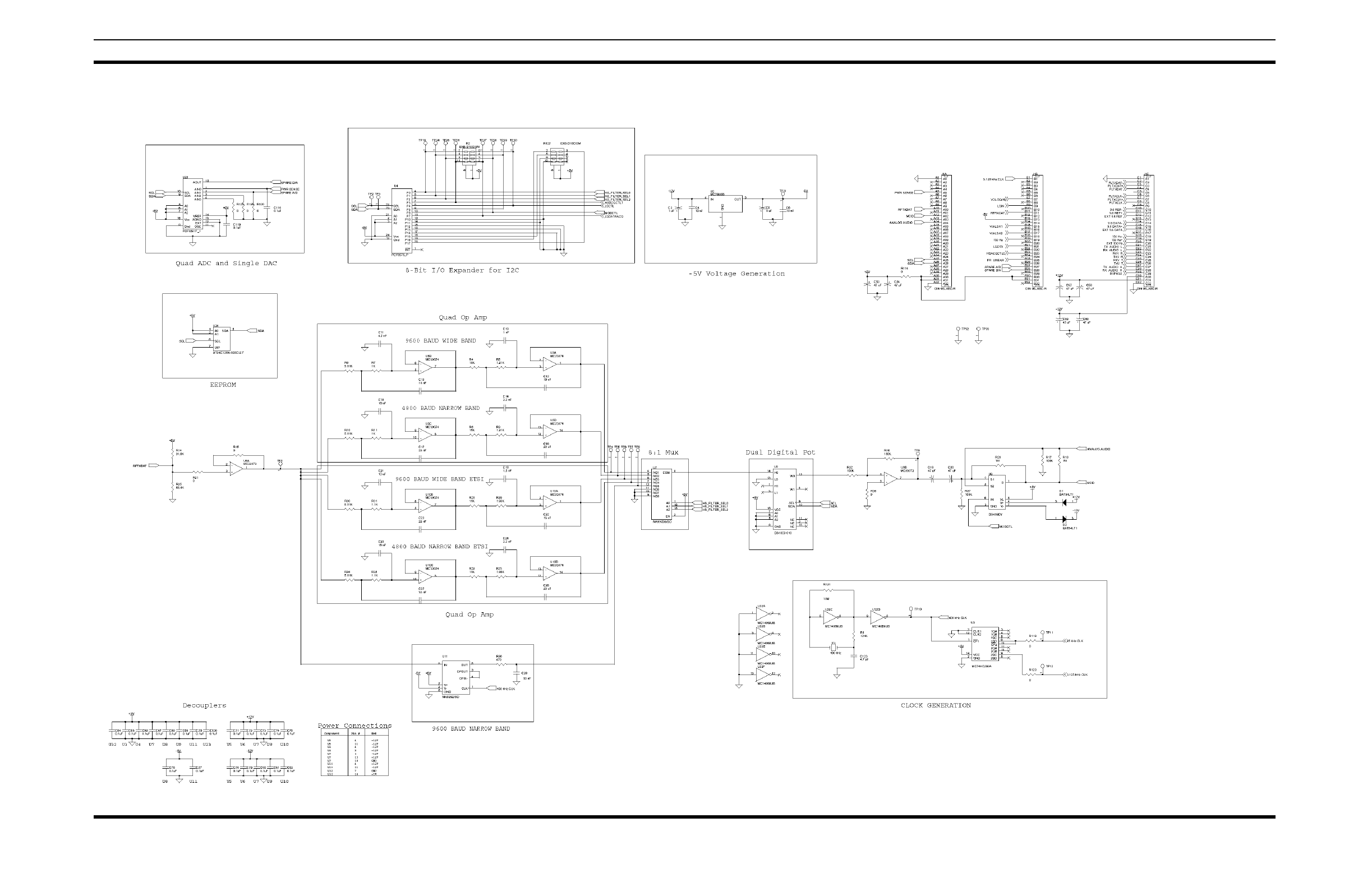

17.5 ANALOG FILTER BOARD (A4) CB101070V1
(WD-CB101070V1, Sh. 1, Rev. A)
SCHEMATIC DIAGRAM
MM101271V1 R2A 179
ANALOG FILTER BOARD (A4) CB101070V1
(WD-CB101070V1, Sh. 2, Rev. A)
SCHEMATIC DIAGRAM
180 MM101271V1 R2A
ANALOG FILTER BOARD (A4) CB101070V1
(WD-CB101070V1, Sh. 3, Rev. A)
SCHEMATIC DIAGRAM
MM101271V1 R2A 181
17.6 DISPLAY BOARD (A6-A1) CB101077V1
(WD-CB101077V1, Rev. A)
CABLE DIAGRAM
182 MM101271V1 R2A
18.0 CABLE DIAGRAMS

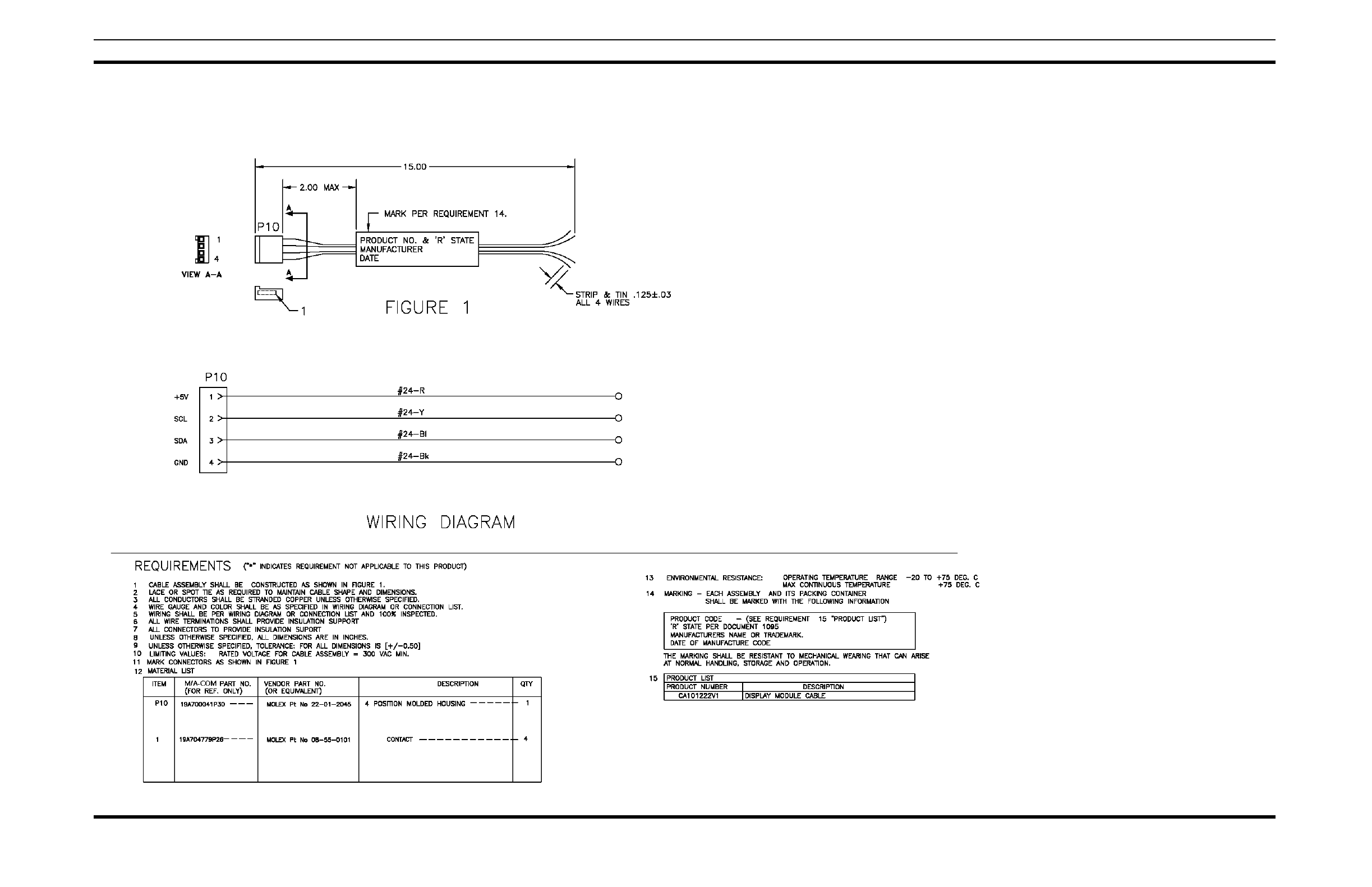

18.1 DISPLAY BOARD (A6-W1) DATA CABLE CA101222V1
(WD-CA101222V1, Rev. B)
CABLE DIAGRAM
MM101271V1 R2A 183

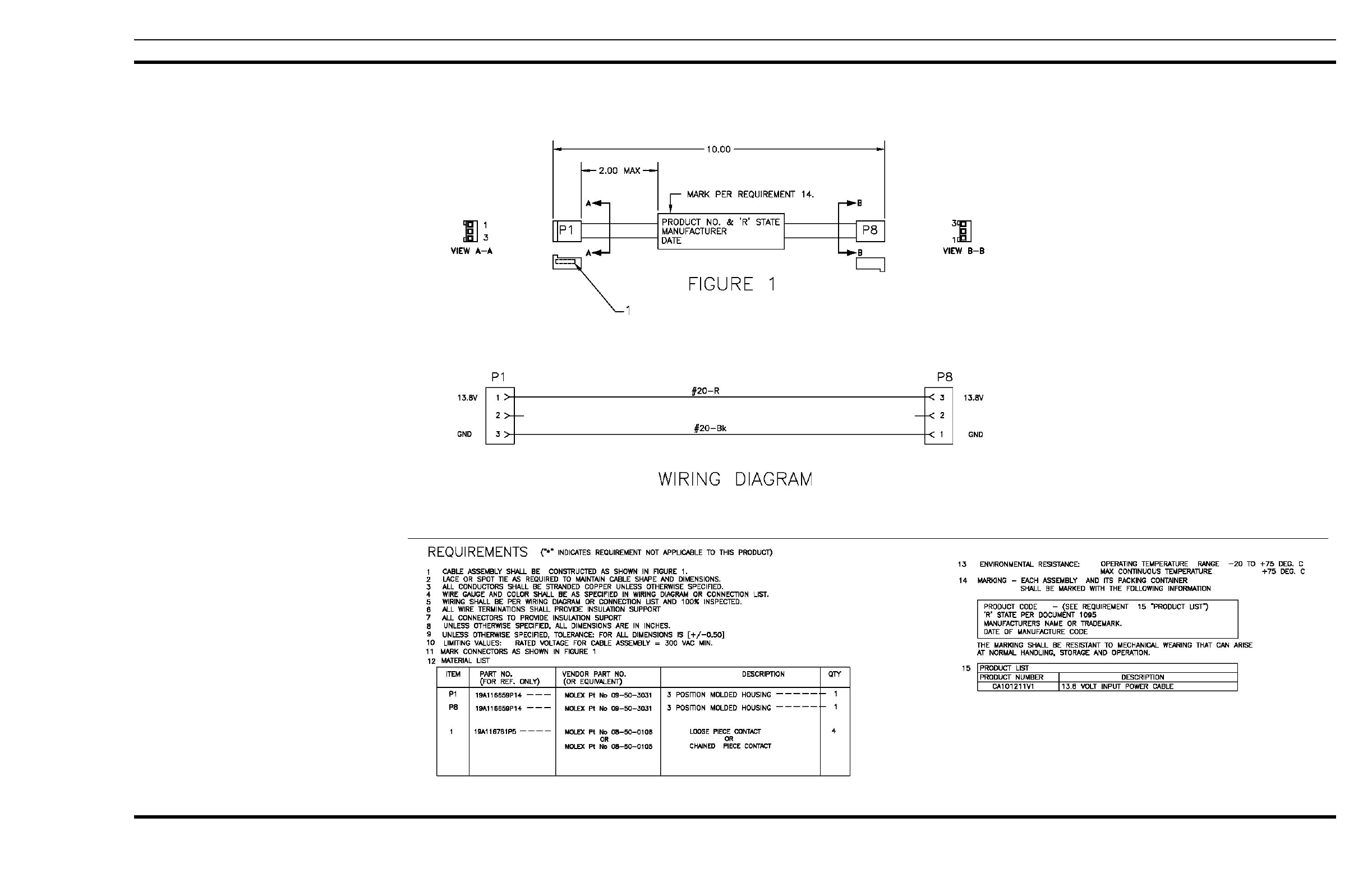

18.2 13.8V INPUT POWER CABLE (W1) (Input) CA101211V1
(PS-CA101211V1, Rev. C)
CABLE DIAGRAM
184 MM101271V1 R2A

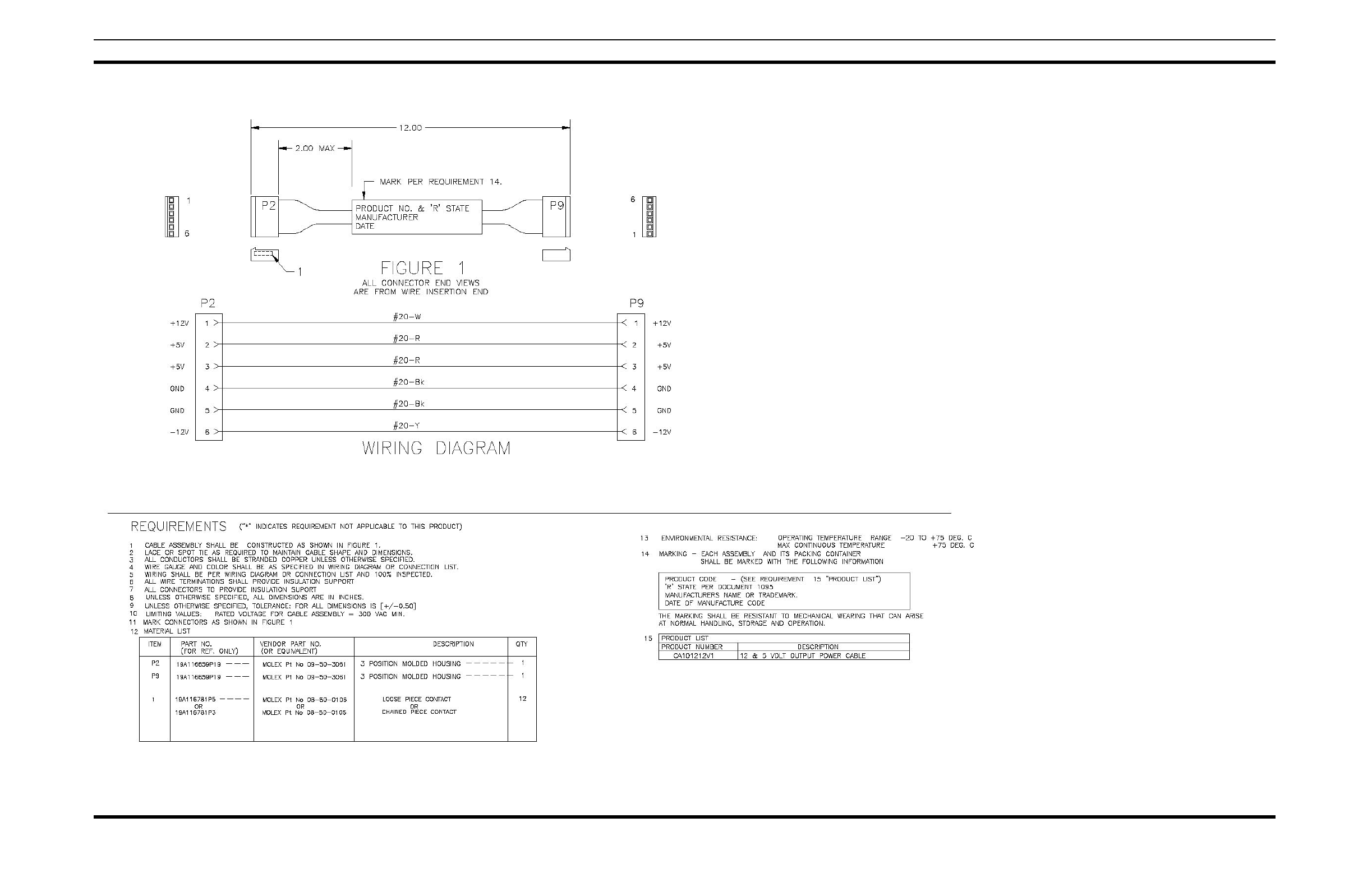

18.3 POWER CABLE (W2) (Output) CA101212V1
(PS-CA101212V1, Rev. A)
CABLE DIAGRAM
MM101271V1 R2A 185

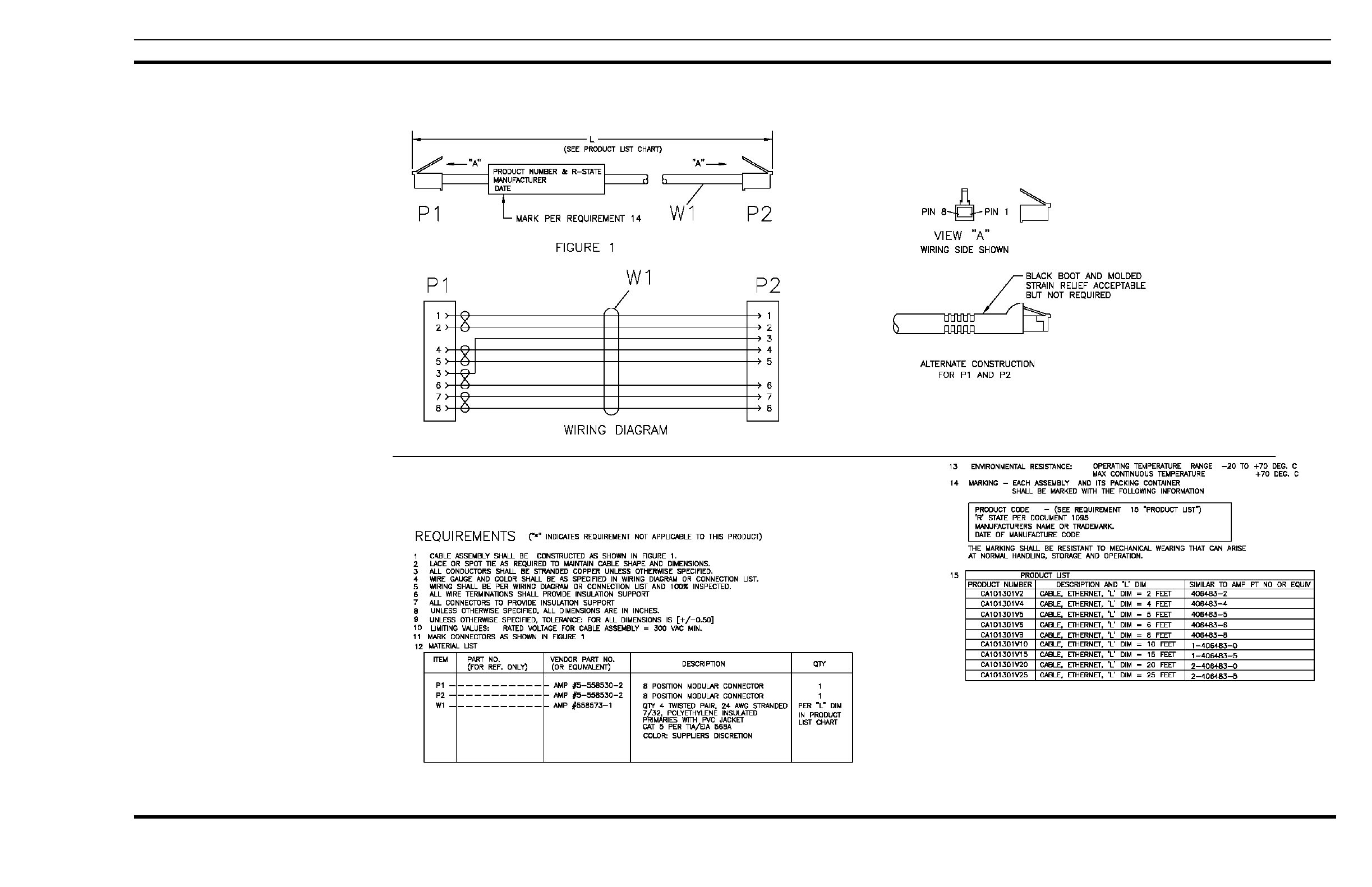

18.4 ETHERNET CABLES CV101301V1 THRU V8
(PS-CA101301, Rev. D)
EPLD DRAWINGS
186 MM101271V1 R2A

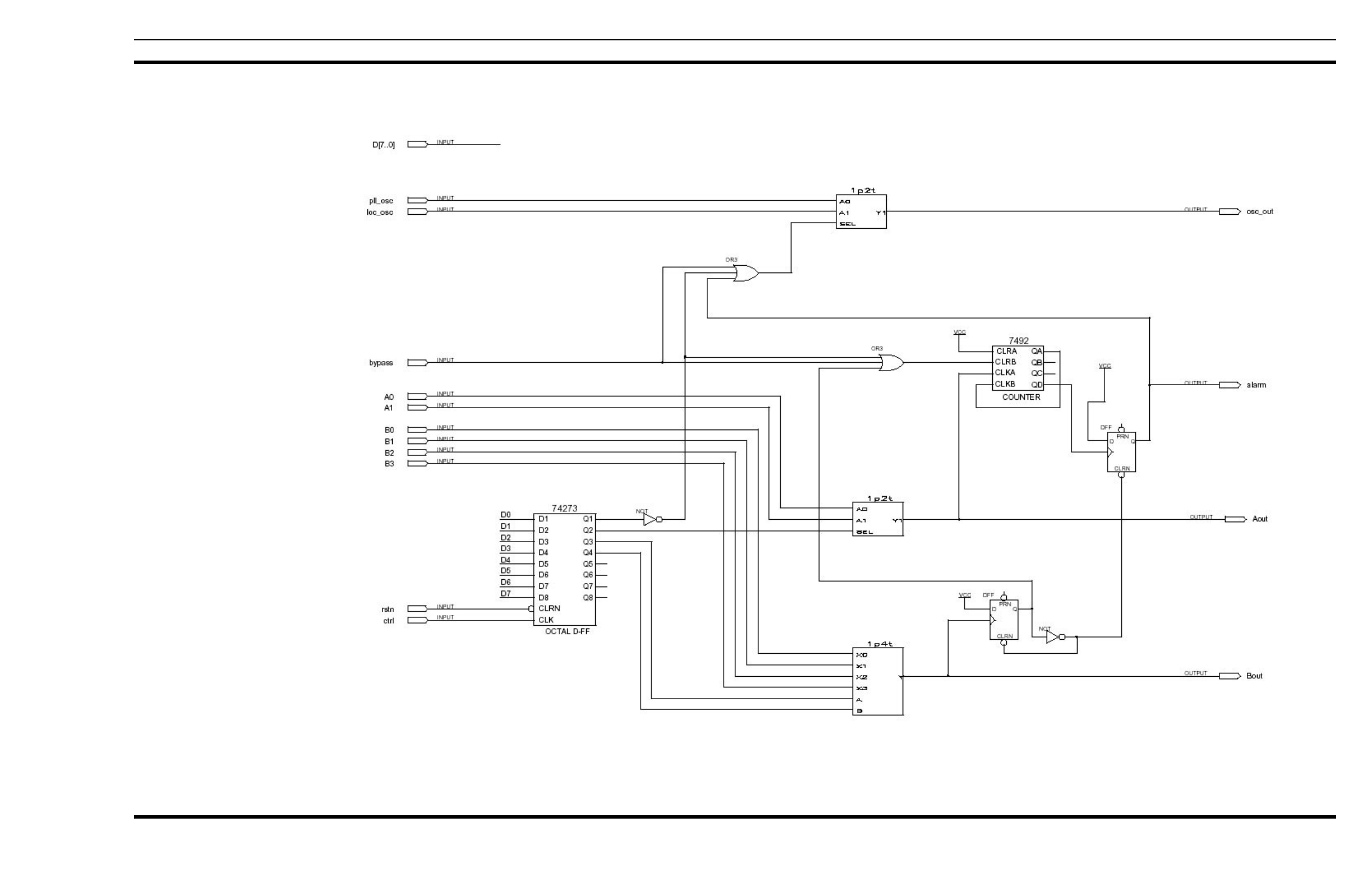

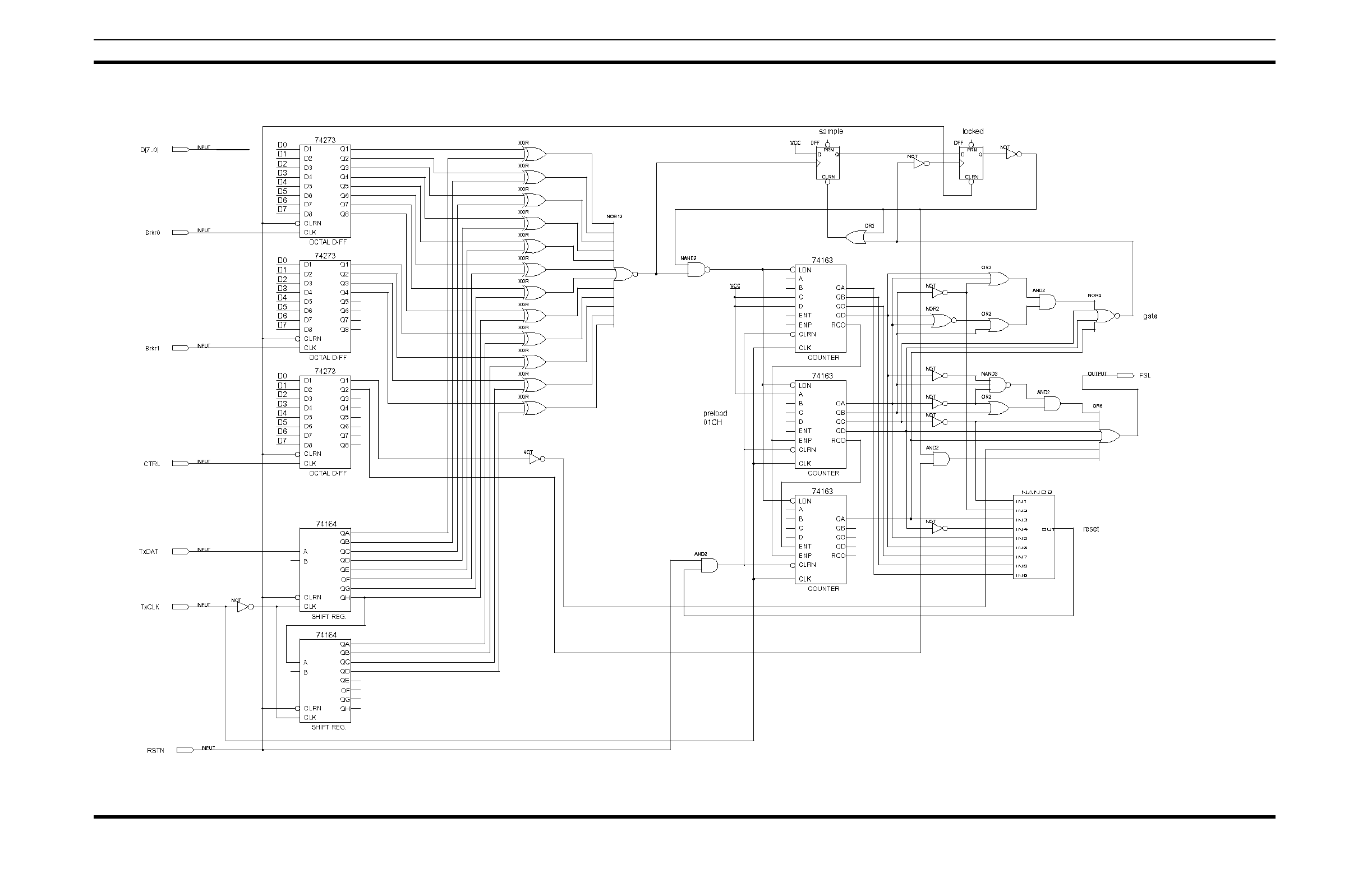

19.0 EPLD DRAWINGS
19.1 SITEPRO TOP LEVEL
EPLD DRAWINGS
MM101271V1 R2A 187

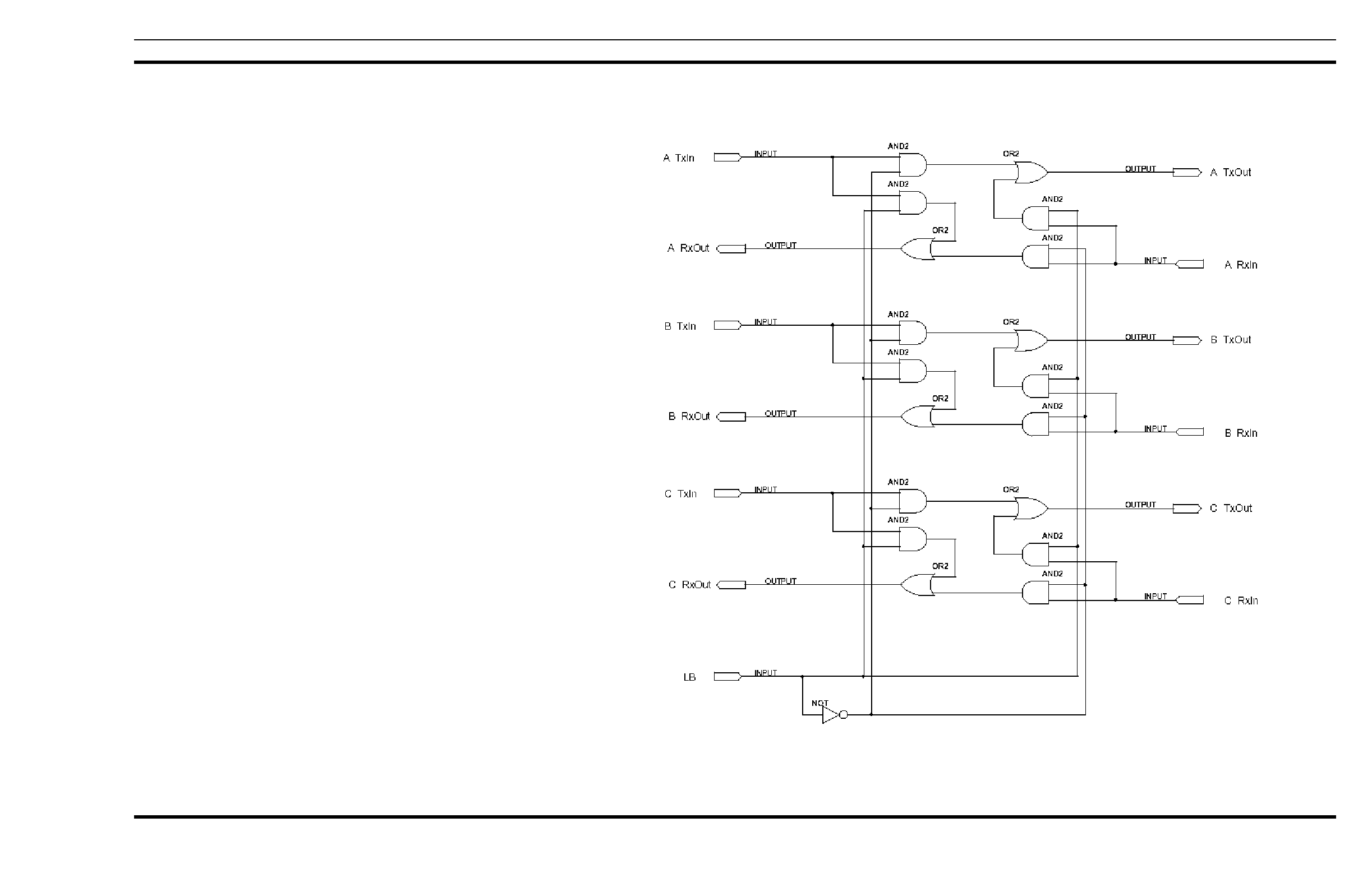

19.2 LBSW
EPLD DRAWINGS
188 MM101271V1 R2A
19.3 FSL
EPLD DRAWING
MM101271V1 R2A 189
19.4 SYNCHRO
EPLD DRAWING
190 MM101271V1 R2A
19.5 PIN NAMES
PLD PIN NAME PIN TYPE PLD PIN NUMBER SIGNAL NAME
CLK IN 125 29.4912MHZ
CLK/2 OUT 22 14.7456MHZ
CLK/8 OUT 21 3.6864MHZ
A0 IN 11 A31
A1 IN 10 A30
A2 IN 9 A29
A3 IN 8 A28
CS IN 126 CS-N
A4 IN 7 A27
NMI IN 14 NMI-N
INT0N IN 15 INTR0-N
INT1N IN 16 INTR1-N
and1 IN 39 CSIN-N2
and2 IN 40 CSIN-N3
and3 IN 42 CSIN-N5
and4 IN 43 CSIN-N6
and5 IN 44 CSIN-N7
andout OUT 46 XCEIVER-OE-N
ext_PTT IN 67 EXTPTTIN
ext_A/D IN 60 EXTADIN
ext_LSD IN 68 EXT150IN
ext_ TxDat IN 66 EXT9.6IN
ext_TxClk IN 69 9.6REFIN
Pll_osc IN 48 PLL-11MHz
Loc_osc IN 49 OSC-11MHz
M0_TxC IN 128 RFTXCLK
M1_TxC IN 32 PLTXCLK
M0_TxD IN 122 RFTXD
M0_RxD OUT 99 RFRXD
M1_TxD IN 31 PLTXD
M1_RxD OUT 34 PLRXD
M2_TxD IN 35 VDITXD
M2_RxD (OUTPUT OUT 55 VDIRXD
M9 IN 12 WE-N
WRN IN 19 MP9
RDN IN 18 IORD-N
RESETN IN 127 RESET-N
CPTT OUT 28 CPTTOUT
TxCGDis OUT 70 TXTCGDIS
RPT_INH OUT 103 RPT-INH
RPT_KEY OUT 111 RPTKEY
Spare 1 OUT 100 SPARE1
Spare 2 OUT 101 SPARE2
Synth_Clk OUT 87 SYNTH-CLK
Synth_Data OUT 88 SYNTH-DATA
PLD PIN NAME PIN TYPE PLD PIN NUMBER SIGNAL NAME
Synth_LdEn OUT 102 SYNTH-LD-EN
Vot_emsq OUT 97 EMSQTOAV
PLRTS OUT 65 PLRTS
VDIRTS OUT 63 VDIRTS
LocRxMute OUT 112 RX-MUTE
Loc/RemRpt IN 96 REM-RPT
vot_rcvng IN 119 RCVNG-FROM-AV
CAS IN 108 CAS
CGMon IN 107 CGMON
PLCTS IN 83 PLCTS
VDICTS IN 82 VDICTS
Synth_Locked IN 118 SYNTH-LOCK-DET
scst_inhibit IN 117 SIMULCAST-INHIBIT
RemAudioPres IN 109 REM-AUDIO-PRESENT
PAFail IN 78 PAFAIL
RUS IN 75 RUSIN
LSD_in IN 106 LSDIN
FSL_ in IN 120 FSLIN
scst_bypass OUT 116 BYPASS
PA0 OUT 134 PLD-IO0
PA1 OUT 136 PLD-IO1
PA2 OUT 137 PLD-IO2
PA3 OUT 138 PLD-IO3
PA4 OUT 142 PLD-IO4
PA5 OUT 143 PLD-IO5
PA6 OUT 1 PLD-IO6
PA7 OUT 2 PLD-IO7
Walsh1 OUT 81 WALSH1
Walsh2 OUT 80 WALSH2
WalshClk OUT 93 TP9
HSAcq IN 45 HSACQ
PB0 IN 91 WAL1
PB1 IN 90 WAL2
PB2 IN 92 WALSHCLK
PB3 OUT 86 HSACQCTL
PB4 OUT 98 LSIN
PB5 OUT 84 MODFSL
LocPTT OUT 71 STNPTT
A/DModCtrl OUT 72 A/DMODCTL
LSDout OUT 110 LSDOUT
FSL OUT 113 FSL
Osc_out OUT 30 11MHZ
Alarm OUT 62 TXC-MISSING-ALARM
PLL_fb OUT 47 9.6KHZ
PLL_ref IN 56 PLL_REF
M1_RxClk OUT 27 PLRXCLK
M0_TxDat OUT 38 RFTXDAT
PLD PIN NAME PIN TYPE PLD PIN NUMBER SIGNAL NAME
M0_TxClk IN 37 RFTXCLK-OUT
M0_RxDat IN 53 RFTXDAT-FROM-SLICER
M0_RxClk IN 36 RFRXCLK
M0_RxDat2 OUT 54 RFRXDAT-FROM-DSP
M1xDat IN 23 PLTXDAT
M1_RxDat OUT 25 PLRXDAT
M2_TxDat IN 79 VDITXDAT
M2_RxDat IN 61 VDIRXDAT
D7 BIDIR 131 D0
D6 BIDIR 132 D1
D5 BIDIR 133 D2
D4 BIDIR 139 D3
D3 BIDIR 140 D4
D2 BIDR 141 D5
D1 BIDIR 5 D6
D0 BIDIR 6 D7
JTAG-TDI IN 4 EPLD-TDI
JTAG-TMS IN 20 EPLD-TMS
JTAG-TDO OUT 104 EPLD-TDO-CHAIN1
JTAG-TCK IN 89 EPLD-TCK
NC 29 MP8
NC 41 MP10
NC 121 MP30
NC 74 MP29
