Honeywell LXE4830P 802.11g Compact Flash Module User Manual HX2 User s Guide

Honeywell International, Inc. 802.11g Compact Flash Module HX2 User s Guide

User Manual HX2

HX2 User’s Guide
(Microsoft® Windows® CE 5.0 Equipped)
FOR Approvals REVIEW – DO NOT PUBLISH OR DISTRIBUTE –
LXE CONFIDENTIAL – DRAFT 09 / Approvals –
Copyright © 2007 by LXE Inc.
All Rights Reserved
E-EQ-HX2OGWW-A
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
Language: English
Notices
LXE Inc. reserves the right to make improvements or changes in the products described in this guide at any time
without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy,
LXE assumes no liability resulting from any errors or omissions in this document, or from the use of the information
contained herein. Further, LXE Incorporated, reserves the right to revise this publication and to make changes to it
from time to time without any obligation to notify any person or organization of such revision or changes.
Copyright:
This document is copyrighted. All rights are reserved. This document may not, in whole or in part, be copied,
photocopied, reproduced, translated or reduced to any electronic medium or machine-readable form without prior
consent, in writing, from LXE Inc.
Copyright © 2007 by LXE Inc. An EMS Technologies Company.
125 Technology Parkway, Norcross, GA 30092 U.S.A. (770) 447-4224
Trademarks:
LXE® and Spire® are registered trademarks of LXE Inc. RFTerm® is a registered trademark of EMS
Technologies Company.
Summit Data Communications, the Summit logo, and “The Pinnacle of Performance” are trademarks of Summit
Data Communications, Inc.
Microsoft®, Windows® and the Windows logo are registered trademarks of Microsoft Corporation in the United
States and/or other countries.
Symbol® is a registered trademark of Symbol Technologies. MOTOROLA® and the Stylized M Logo are
registered trademarks of Motorola®, Inc.
Java® and Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in
the U.S. or other countries, and are used under license.
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by LXE,
Inc. is under license.
RAM® and RAM Mount™ are both trademarks of National Products Inc., 1205 S. Orr Street, Seattle, WA 98108.
Wavelink®, the Wavelink logo and tagline, Wavelink Studio™, Avalanche Management Console™, Mobile
Manager™, and Mobile Manager Enterprise™ are trademarks of Wavelink Corporation, Kirkland.
All other brand or product names are trademarks or registered trademarks of their respective companies or
organizations.
When this document is in PDF format: “Acrobat ® Reader Copyright © 2007 Adobe Systems Incorporated. All
rights reserved. Adobe, the Adobe logo, Acrobat, and the Acrobat logo are trademarks of Adobe Systems
Incorporated.” Applies.
The user is strongly encouraged to read Appendix B - Regulatory Notices and
Safety Information. Important safety cautions, warnings and worldwide regulatory
agency information is contained in Appendix B.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
E-EQ-HX2OGWW-A HX2 User’s Guide
Table of Contents
INTRODUCTION 1
Overview ................................................................................................................................................. 1
Ring Scanner Warnings and Labels .................................................................................................... 2
Important Battery Information .............................................................................................................. 3
Environmental Specifications .............................................................................................................. 4
HX2.......................................................................................................................................................................4
Lithium Ion Battery Pack......................................................................................................................................4
Document Conventions......................................................................................................................... 5
Getting Help............................................................................................................................................ 6
Manuals.................................................................................................................................................................6
Accessories ...........................................................................................................................................................6
COMPONENTS 9
Front ...................................................................................................................................................... 10
Back....................................................................................................................................................... 11
Left Arm Use ......................................................................................................................................................11
Right Arm Use ....................................................................................................................................................11
Connectors ........................................................................................................................................... 12
Ring Scanner / Audio / Battery Connection........................................................................................................12
Cradle Connection...............................................................................................................................................12
Tethered Ring Scanner / Imager......................................................................................................... 13
Cables ................................................................................................................................................... 14
Li-Ion Battery........................................................................................................................................ 15
Standard Battery..................................................................................................................................................15
Extended Battery.................................................................................................................................................15
Mounting Bracket Clips....................................................................................................................... 16
Mounting Devices ................................................................................................................................ 17
Armband .............................................................................................................................................................17
Straps................................................................................................................................................................17
Hip Flip ...............................................................................................................................................................18
QUICK START 19
Getting Started ..................................................................................................................................... 19
Pre-requisites.......................................................................................................................................................19
HX2 Quick Start .................................................................................................................................................19
Wearable Device Assembly ................................................................................................................................20
Armband...........................................................................................................................................................20
Hip Flip ............................................................................................................................................................21
Ring Scanner Strap...........................................................................................................................................21
Connecting the Battery and Ring Scanner........................................................................................ 22
Ring Scanner on the Left Hand...........................................................................................................................22
Ring Scanner on the Right Hand.........................................................................................................................22
Connecting the Audio Cable and a Headset ..................................................................................... 23
Adjust Microphone and Secure the Cable...........................................................................................................23
Tapping the Power Key ....................................................................................................................... 24
Tapping the Touchscreen with a Stylus ............................................................................................ 24
Calibrating the Touchscreen .............................................................................................................. 24
Power Key Functions .......................................................................................................................... 25
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
ii Table of Contents
HX2 User’s Guide E-EQ-HX2OGWW-A
Hardware Reset...................................................................................................................................................25
Warm Boot..........................................................................................................................................................25
Cold Boot............................................................................................................................................................25
Using the 23 Key Keypad.................................................................................................................... 26
Inserting Characters Using the Input Panel.........................................................................................................26
System Status LEDS............................................................................................................................ 27
Entering Data........................................................................................................................................ 28
Keypad Entry ......................................................................................................................................................28
Stylus Data Entry ................................................................................................................................................28
Ring Scanner Data Entry.....................................................................................................................................29
Laser Scanner...................................................................................................................................................29
2D Imager ........................................................................................................................................................29
Scan Status LED ..............................................................................................................................................30
Voice Data ..........................................................................................................................................................30
Input Panel / Virtual Keyboard ...........................................................................................................................31
Bluetooth Devices................................................................................................................................ 32
Checking Battery Status ..................................................................................................................... 32
Entering the Multi AppLock Activation Key...................................................................................... 33
Application Switching Activation Key ...............................................................................................................33
Touch ..................................................................................................................................................................33
Setting the Power Schemes Timers................................................................................................... 34
Battery Power Scheme........................................................................................................................................34
AC Power Scheme ..............................................................................................................................................34
Setting The Audio Speaker Volume ................................................................................................... 35
Using the Keypad................................................................................................................................................35
Using the Touchscreen........................................................................................................................................35
Adjusting the Display Backlight Timer .............................................................................................. 36
Turning the Keypad Backlight On or Off ........................................................................................... 37
Cleaning the Glass Display/Ring Scanner Aperture ........................................................................ 37
OPTIONAL EQUIPMENT 39
HX2 Rubber Boot Assembly ............................................................................................................... 39
Protective Film for the Screen Display .............................................................................................. 39
HX2 Voice Case Assembly.................................................................................................................. 40
Removing/Replacing the Armband Straps........................................................................................ 41
HX2 Docking/Charging Cradle............................................................................................................ 43
Cradle LEDs........................................................................................................................................................44
HX2 Docked/Receiving Power LED ...............................................................................................................44
Left and Right Battery Charging LED .............................................................................................................44
HX2 Multi-Charger................................................................................................................................ 45
Charging Pocket LED .........................................................................................................................................45
Charger/Analyzer LEDs......................................................................................................................................46
APPENDIX A KEY MAPS 47
23 Key Keypad ..................................................................................................................................... 47
APPENDIX B REGULATORY NOTICES AND SAFETY INFORMATION 51
HX2 Approvals/Standards................................................................................................................... 52
Laser Light Class 2 Labels – Ring Scanners .................................................................................... 56
Laser Light Class 2 Labels – Bluetooth Scanners ........................................................................... 56
INDEX 57
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
Table of Contents iii
E-EQ-HX2OGWW-A HX2 User’s Guide
Illustrations
Figure 1 Ring Scanner Caution Label – Class 2 Laser Scanner...........................................................................2
Figure 2 Front ....................................................................................................................................................10
Figure 3 Back.....................................................................................................................................................11
Figure 4 Scanner / Audio / Battery Ports – Connector 1 and 2 ..........................................................................12
Figure 5 Cradle/Power Port – Connector 3 (Base).............................................................................................12
Figure 6 Laser Ring Scanner..............................................................................................................................13
Figure 7 Imager Ring Scanner ...........................................................................................................................13
Figure 8 Concept - Ring Scanner Hook and Loop Strap...................................................................................13
Figure 9 Ring Scanner/Imager Apertures...........................................................................................................13
Figure 10 Cable – Battery and HX2 Connectors................................................................................................14
Figure 11 Cable – Audio, Battery and HX2 Connectors....................................................................................14
Figure 12 Cable – Laser Ring Scanner and HX2 Connectors ............................................................................14
Figure 13 Cable – Imager Ring Scanner and HX2 Connectors..........................................................................14
Figure 14 HX2 Standard and HX2 Extended Battery ........................................................................................15
Figure 15 Mounting Brackets.............................................................................................................................16
Figure 16 Armband and Hip Flip Mount Assembly and Clips ..........................................................................16
Figure 17 Armband / Top and Bottom...............................................................................................................17
Figure 18 Armband Straps .................................................................................................................................17
Figure 19 Hip Flip and Belt ...............................................................................................................................18
Figure 20 HX2 Armband, Left Arm Orientation, Ring Scanner, Audio ............................................................20
Figure 21 HX2 Hip Flip, Audio .........................................................................................................................21
Figure 22 Tether the Battery and Ring Scanner – Left / Right...........................................................................22
Figure 23 Audio Cable and Headset ..................................................................................................................23

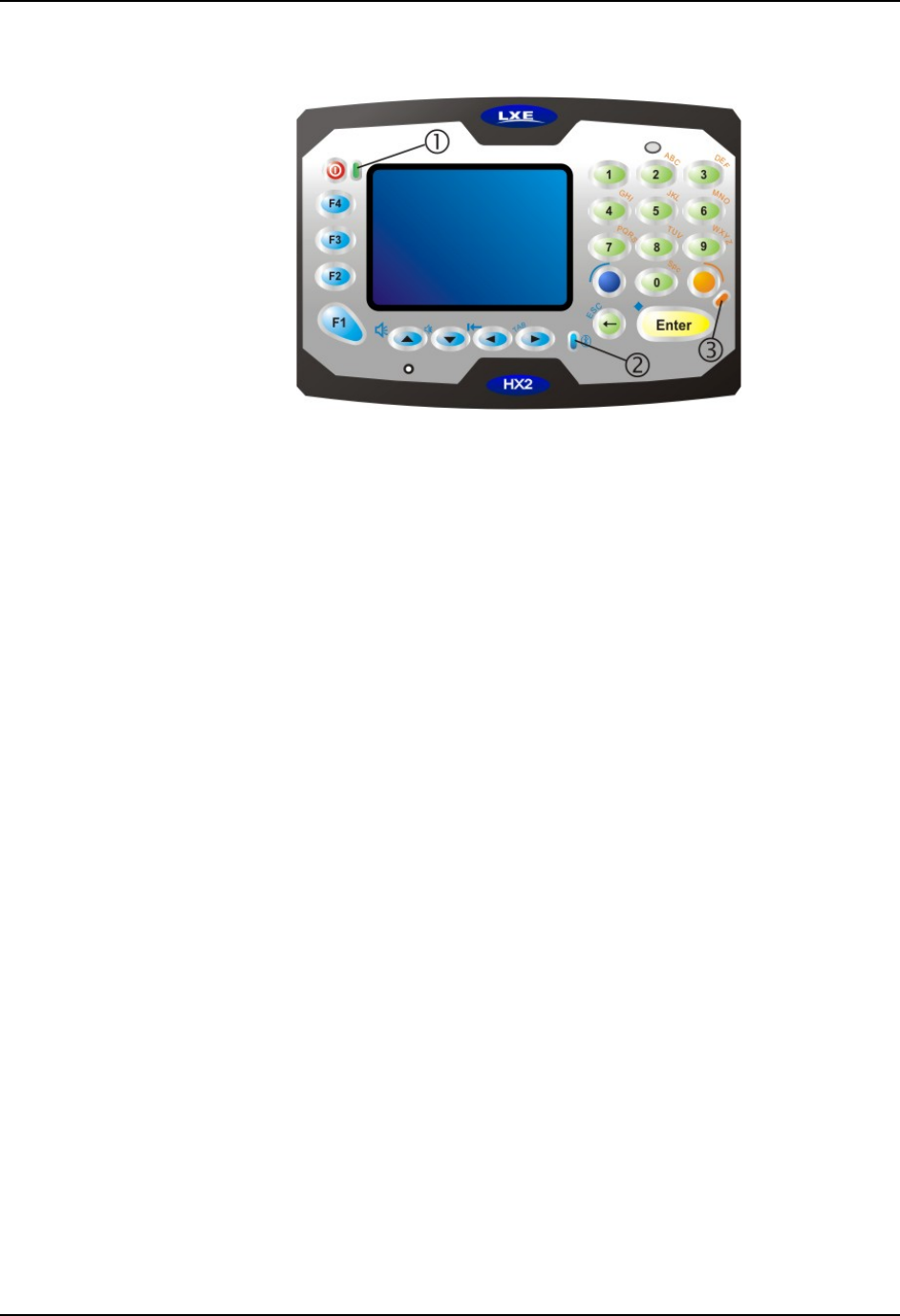

Figure 24 The 23 Key Keypad...........................................................................................................................26
Figure 25 System Status LEDs ..........................................................................................................................27
Figure 26 Laser Scan Beam on Linear Barcode.................................................................................................29
Figure 27 Imager Bracketed Crosshair Target on 2D Barcode ..........................................................................29
Figure 28 Concept - Scan Status LED ...............................................................................................................30

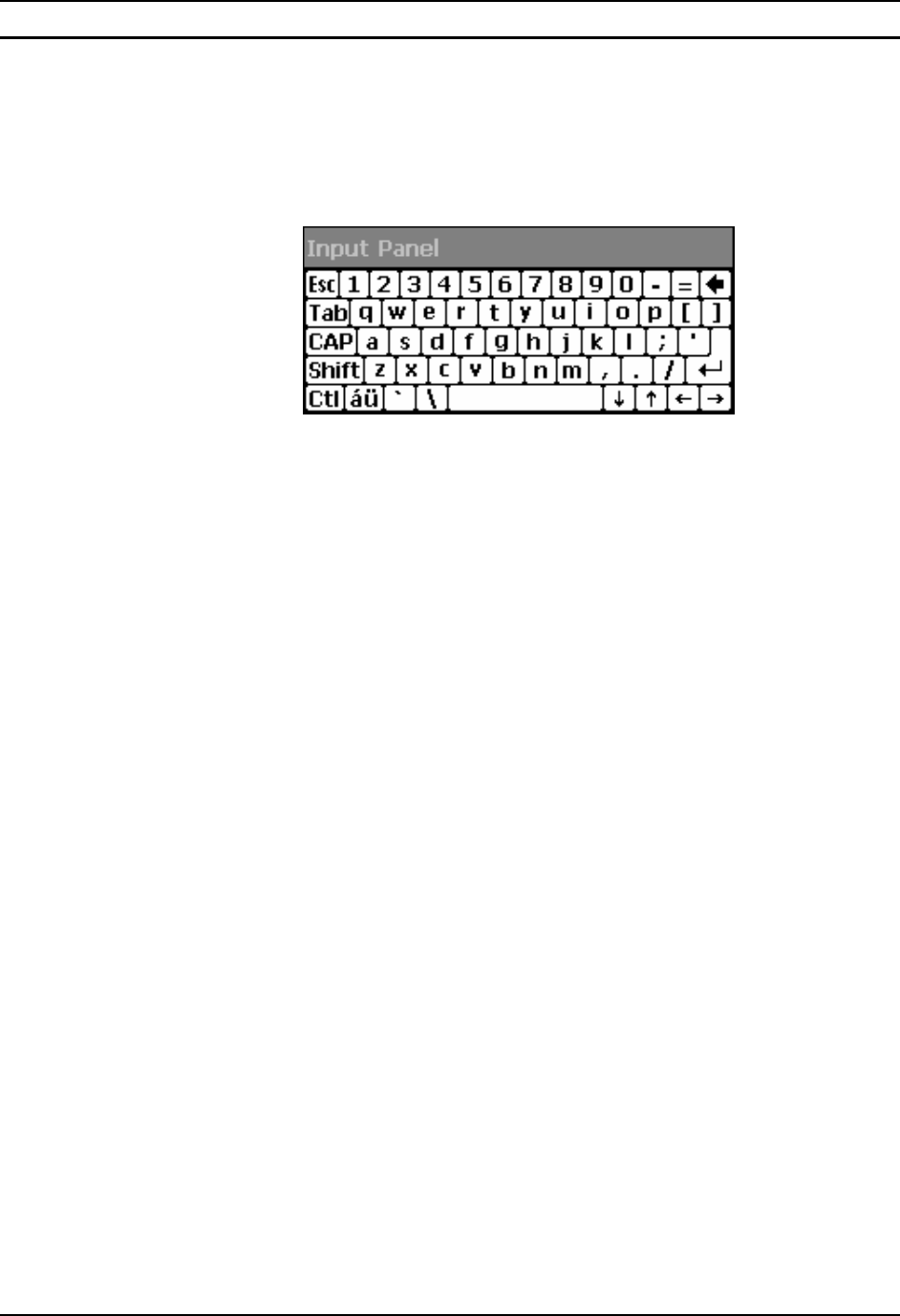

Figure 29 Input Panel / Virtual Keyboard..........................................................................................................31
Figure 30 AppLock – How to Switch Applications ...........................................................................................33
Figure 31 Power Properties – Schemes Tab.......................................................................................................34

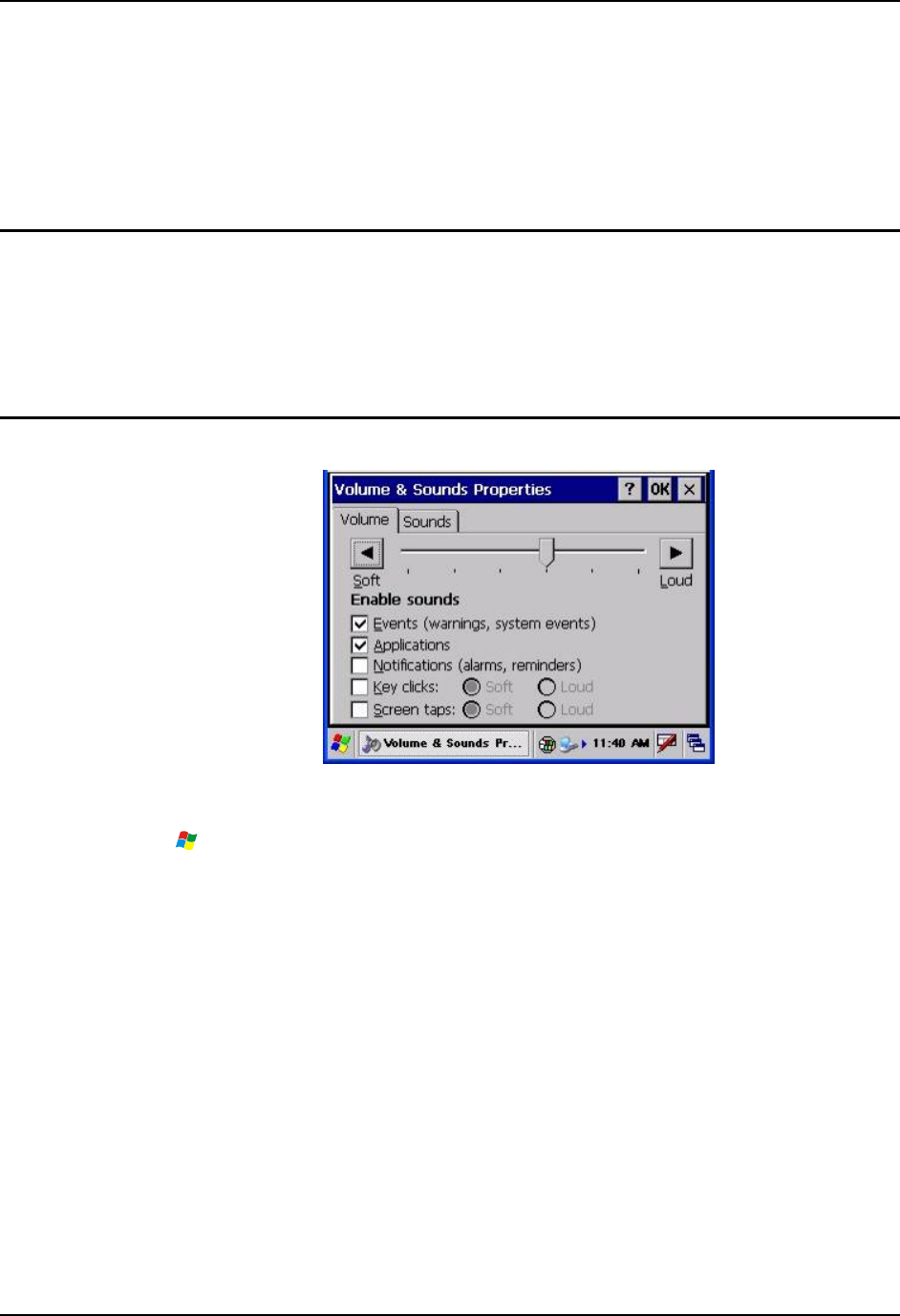

Figure 32 Volume & Sounds Properties ............................................................................................................35

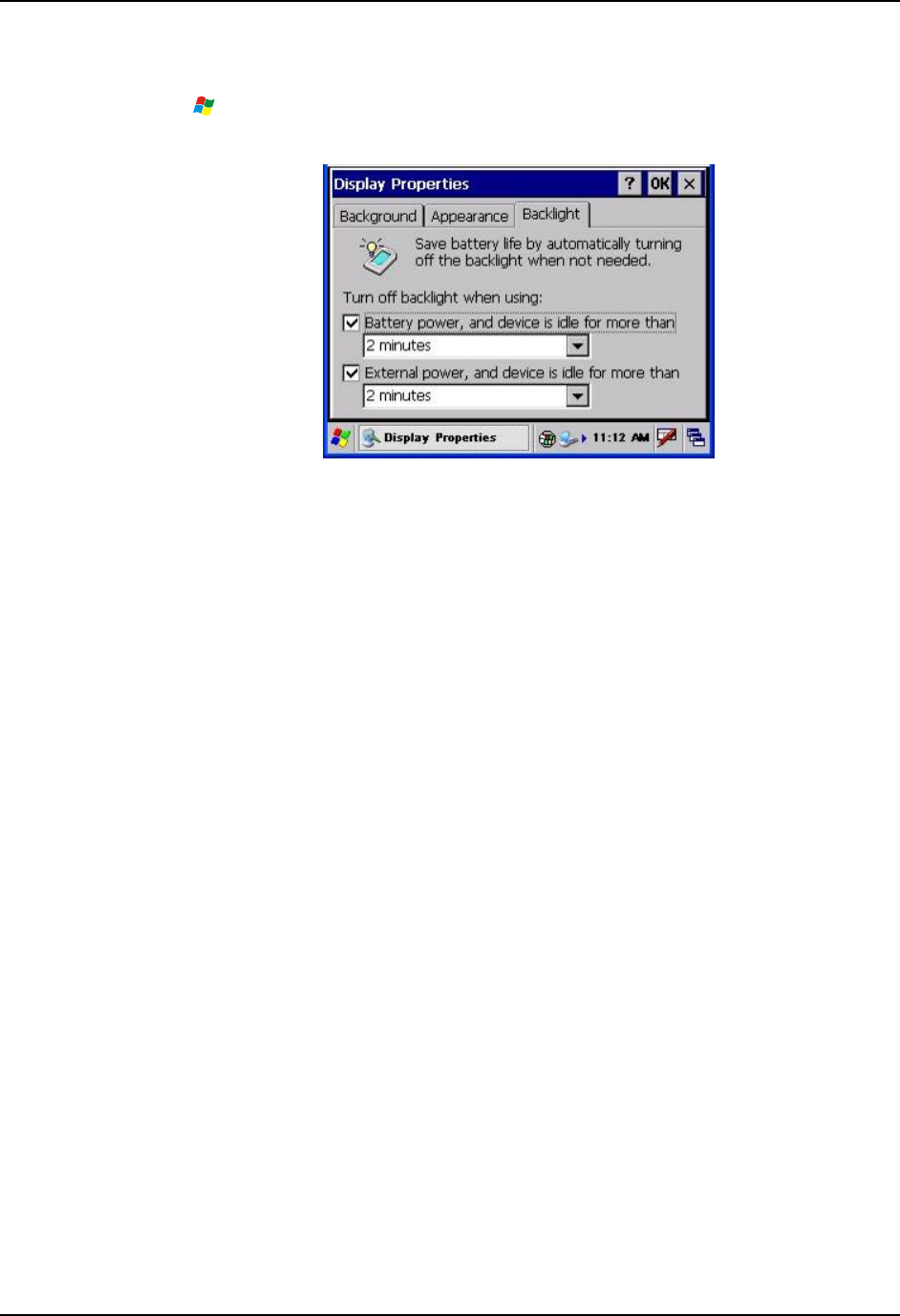

Figure 33 Setting the Display Backlight Timer..................................................................................................36

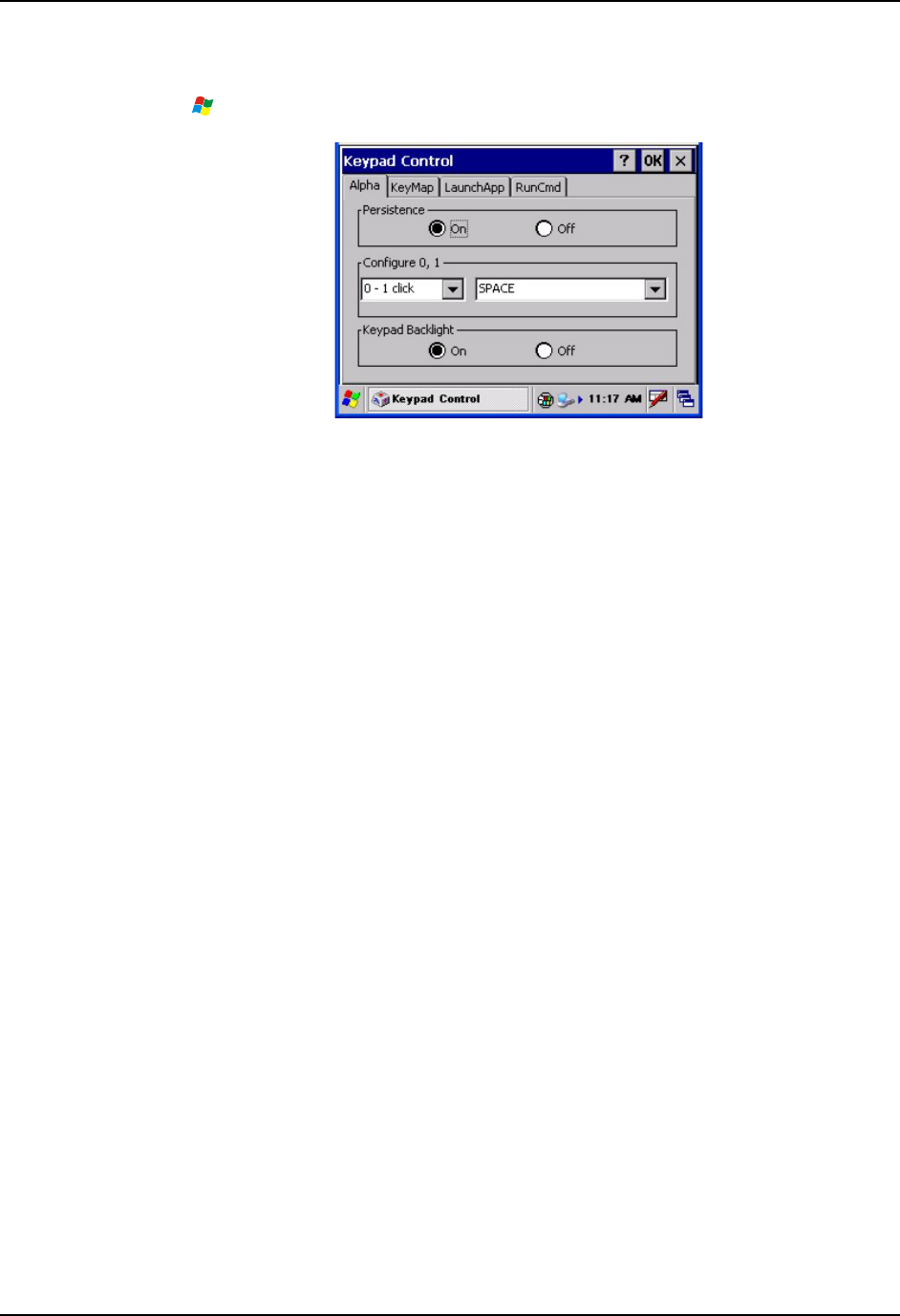

Figure 34 Turning the Keypad Backlight On or Off..........................................................................................37
Figure 35 HX2 Rubber Boot..............................................................................................................................39
Figure 36 HX2 Voice Case ................................................................................................................................40

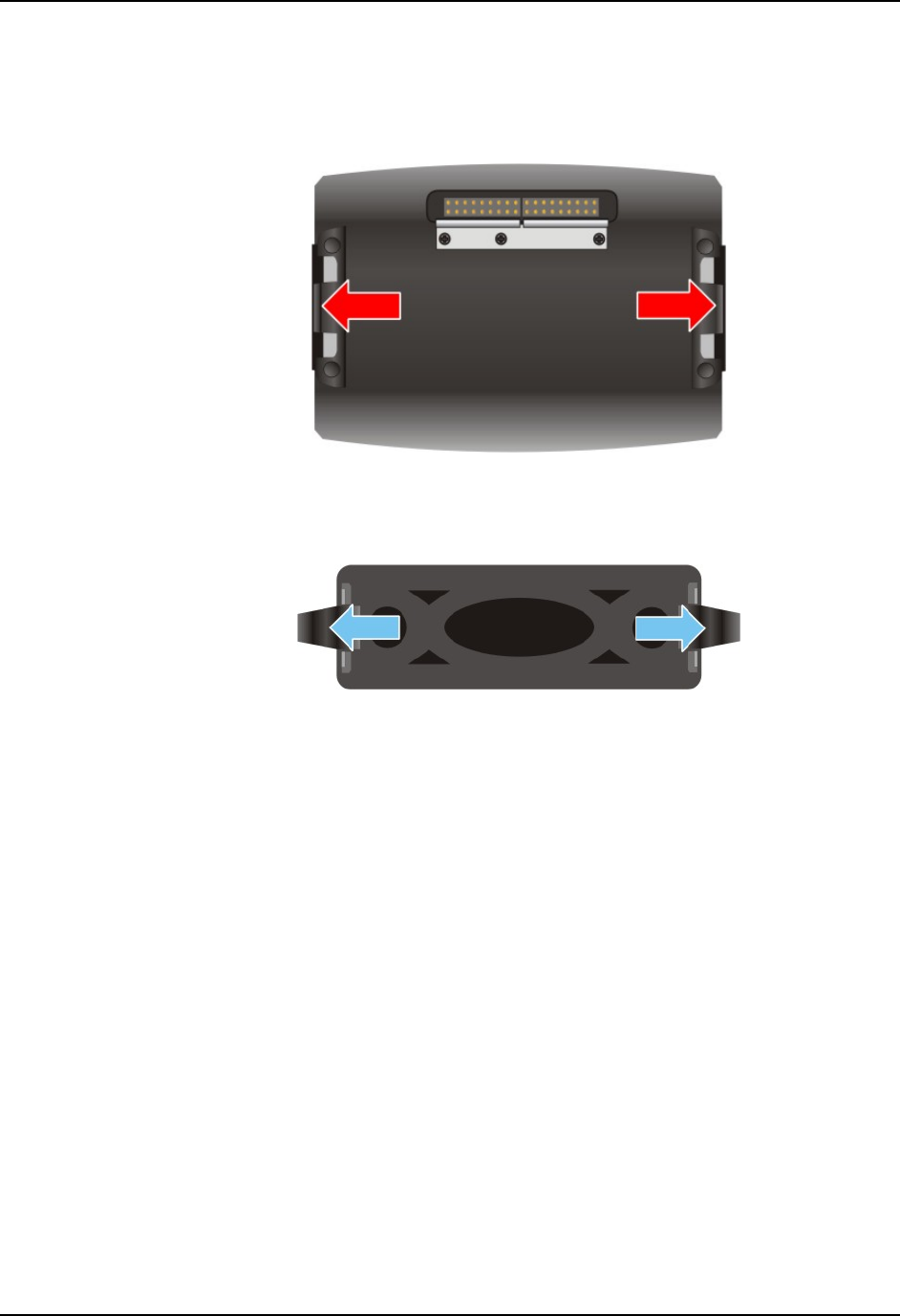

Figure 37 Removing/Replacing the Armband Straps.........................................................................................41
Figure 38 Armband Straps .................................................................................................................................41
Figure 39 Concept – An HX2, Two Batteries and 1 Ring Scanner in Cradle ....................................................43
Figure 40 Concept - Powered Cradle LEDs.......................................................................................................44
Figure 41 HX2 Multi-Charger ...........................................................................................................................45
Figure 42 Multi-Charger Control Panel .............................................................................................................46
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
iv Table of Contents
HX2 User’s Guide E-EQ-HX2OGWW-A
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
E-EQ-HX2OGWW-A HX2 User’s Guide
Introduction
Overview
The LXE® HX2 is a small, lightweight mobile computer designed to be worn on a person’s arm
or waist. The HX2 is most useful for applications that require computational support while the
user's hands are actively engaged with the physical environment, including piece picking to carts,
containers or conveyers; case picking; parcel moves; and broken case activities.
The armbands that secure both the unit and its battery keeps the HX2 in the ready position at all
times by preventing the unit from rotating around the wearer’s arm. The adaptable armbands can
be worn close to the elbow or near the wrist.
The primary data inputs are a keypad or a ring scanner. The HX2 is voice ready. Voice can also be
used as an input with 3rd party software. Output is presented using the screen display or audio
feedback generated by the mobile device and delivered through an internal speaker or audio
headset.
The HX2 is powered by a tethered low profile, light and unobtrusive battery. The entire HX2
wearable computer system features breakaway connections at multiple points and a low-profile,
smooth design to resist snagging on common warehouse fixtures and equipment.
The HX2 has a Microsoft® Windows®
CE 5.0 operating system with an
Intel® XScale® PXA255 CPU. The
HX2 supports an 802.11b/g WLAN
radio and Bluetooth® 2.0+EDR radio.
Connectors are available which
interface with peripherals such as a
Ring Scanner (1D Laser and 2D
Imager Ring Scanner), an audio
headset, a docking/charging cradle and
a tethered battery (see Components for
port locations).
The QVGA color display with a touch
panel has a diagonal viewing area of
2.5” (6.3 cm) in landscape orientation.
The display backlight brightness can
be adjusted using a series of
keypresses. The keypad backlight can

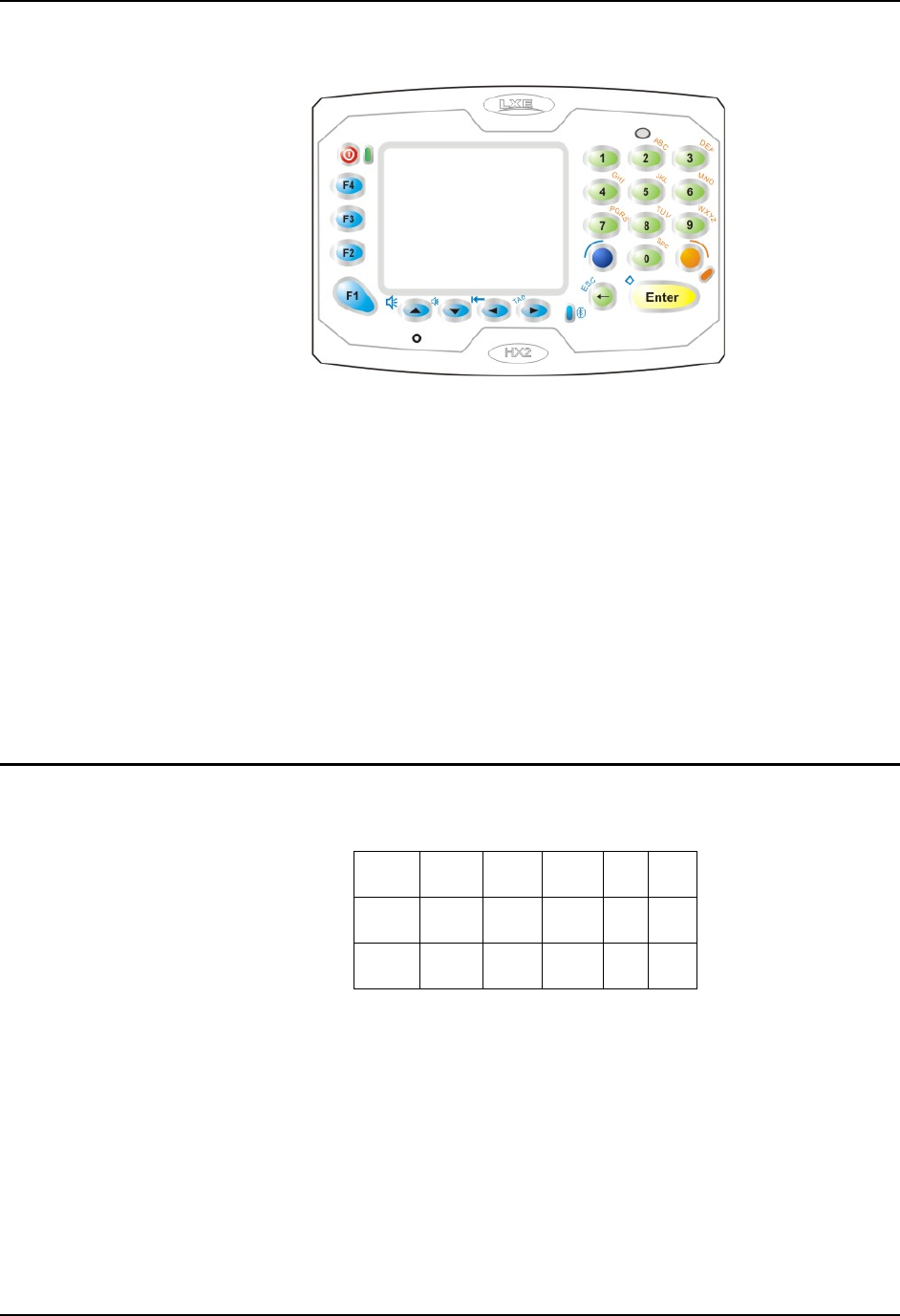

be either on or off. The 23 key keypad has a Power key, alphanumeric keys, function keys, cursor
control keys, and Blue, Alpha, Enter, and Backspace keys.
The HX2 hip flip holster, voice case, rubber boot, powered cradle, touchscreen stylus and
protective film for the screen are available from LXE as accessories (see Accessories).
Note: Until the tethered battery and backup battery are completely depleted, the HX2 is always
drawing power from the batteries (On).
Note: If the mobile device has AppLock installed, please refer to the HX2 Reference Guide for
setup and processing information before continuing.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals

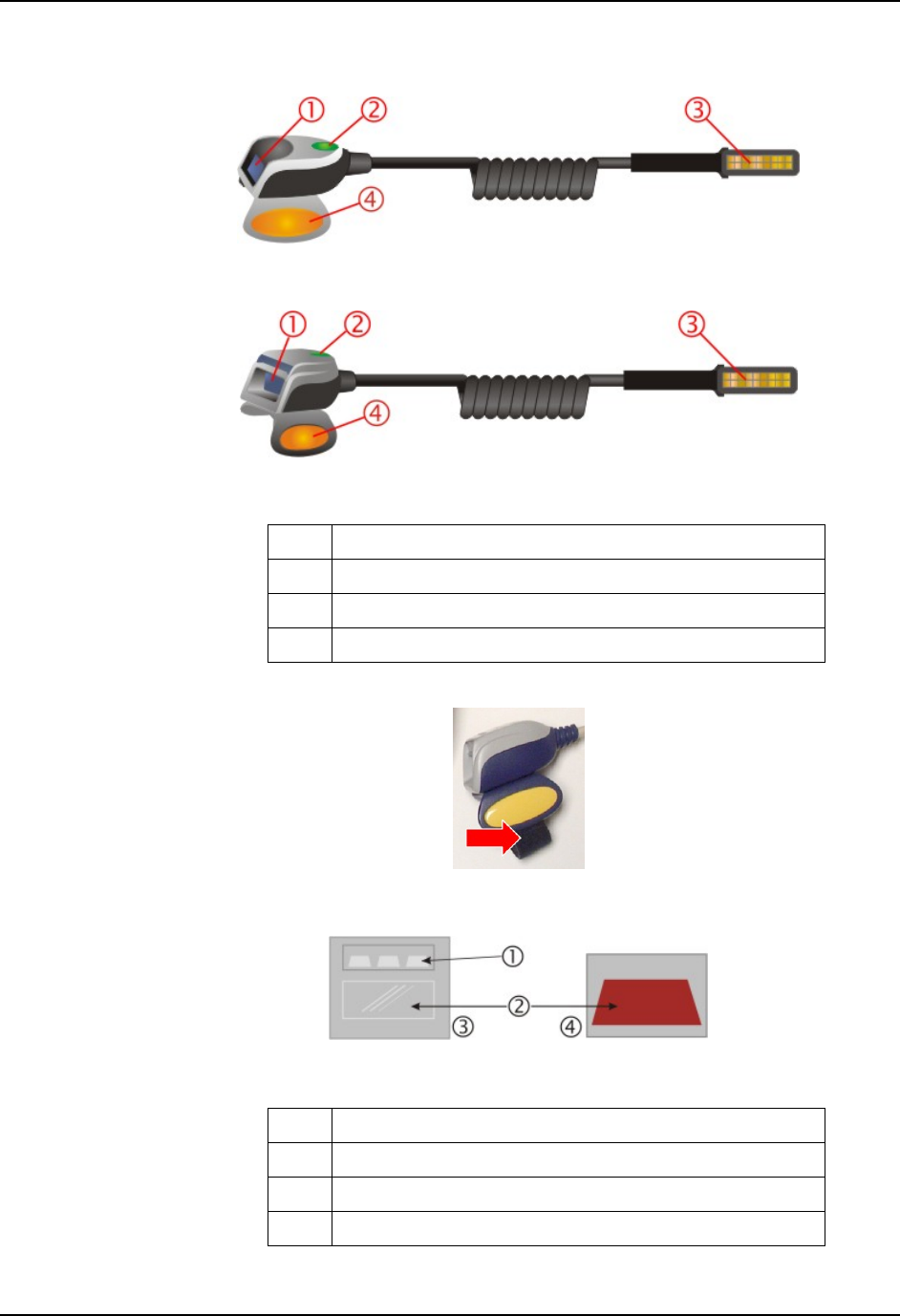

2 Ring Scanner Warnings and Labels
HX2 User’s Guide E-EQ-HX2OGWW-A
Related Manuals
This guide takes you through an introduction to and operation of the HX2.
Ring Scanner Programming Guide – contains programming barcodes used when setting up ring
barcode reader engines.
HX2 Reference Guide – contains technical information and advanced instruction.
HX2 Multi-Charger User’s Guide – contains user, technical and troubleshooting information for
the HX2 battery multi-charger.
HX2 Cradle Reference Guide – contains user, technical and troubleshooting information for the
HX2 cradle.
Ring Scanner Warnings and Labels
• Do not look into the ring scanner/imager aperture.
• Do not stare directly into the ring scanner/imager laser beam.
• Do not remove the laser caution labels from the ring scanner/imager.
• Do not connect the ring scanner aperture to any other device.
Caution:
Laser radiation when open. Please read the caution labels.
Use of controls, adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
Class 2 laser scanners use a low power, visible light diode. As with any very
bright light source, such as the sun, the user should avoid staring directly into
the light beam. Momentary exposure to a Class 2 laser is not known tro be
harmful.

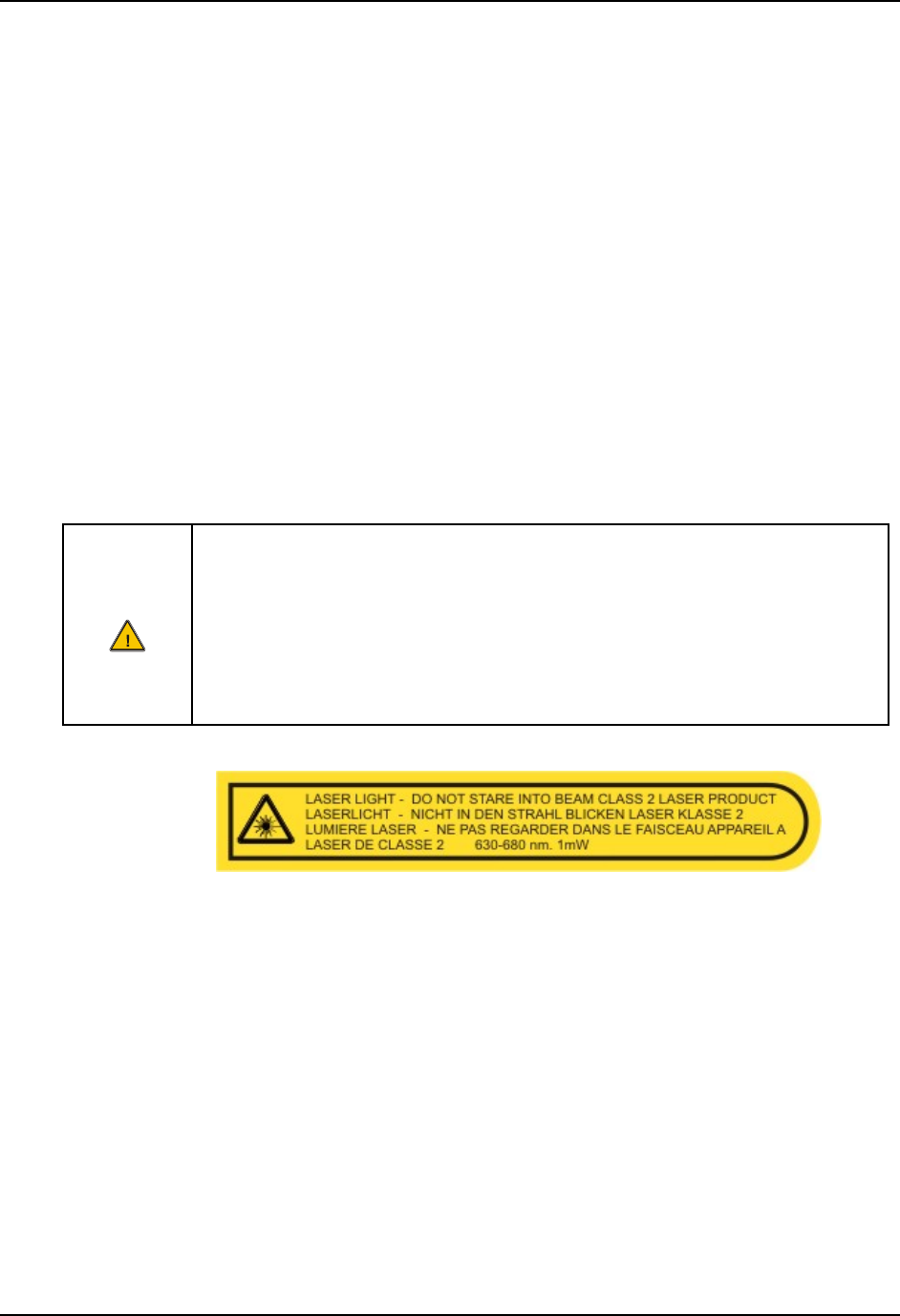

Figure 1 Ring Scanner Caution Label – Class 2 Laser Scanner
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
Important Battery Information 3
E-EQ-HX2OGWW-A HX2 User’s Guide
Important Battery Information
Backup Battery -- If the HX2 has been without a power source (connected to a fully charged
tethered battery or docked in a powered cradle) for an extended period of time or if HX2 external
power sources become completely discharged or dead, a fully charged HX2 backup battery will
last for up to 15 minutes. If the backup battery is fully discharged, the HX2 will reset as soon as it
is docked in a powered cradle or connected to a fully charged tethered battery. A reset will cause
loss of data and custom programs in RAM. Always store unused HX2s with a fully charged
tethered battery. If possible, ensure the HX2 is periodically docked in a powered cradle to
maintain an optimum backup battery charged status.
To check battery status tap | Settings | Control Panel | Battery tab.
• Until the tethered battery and backup battery are completely depleted, the HX2 is always
drawing power from the batteries (On).
• New Standard / Extended batteries must be fully charged prior to use.
• Whenever possible, place the HX2 in a powered cradle to conserve tethered battery power and
recharge the backup battery.
• When a new battery is tethered to the HX2 for the first time (or after the backup battery has
been fully depleted), the Time and Date reverts to factory default values.
• Backup battery replacement is performed by LXE.
The HX2 cradle can charge two standard batteries in less than four hours or two extended batteries
in less than 8 hours in the battery wells behind the HX2 docking bay. The cradle requires an
external power source before battery charging can commence.

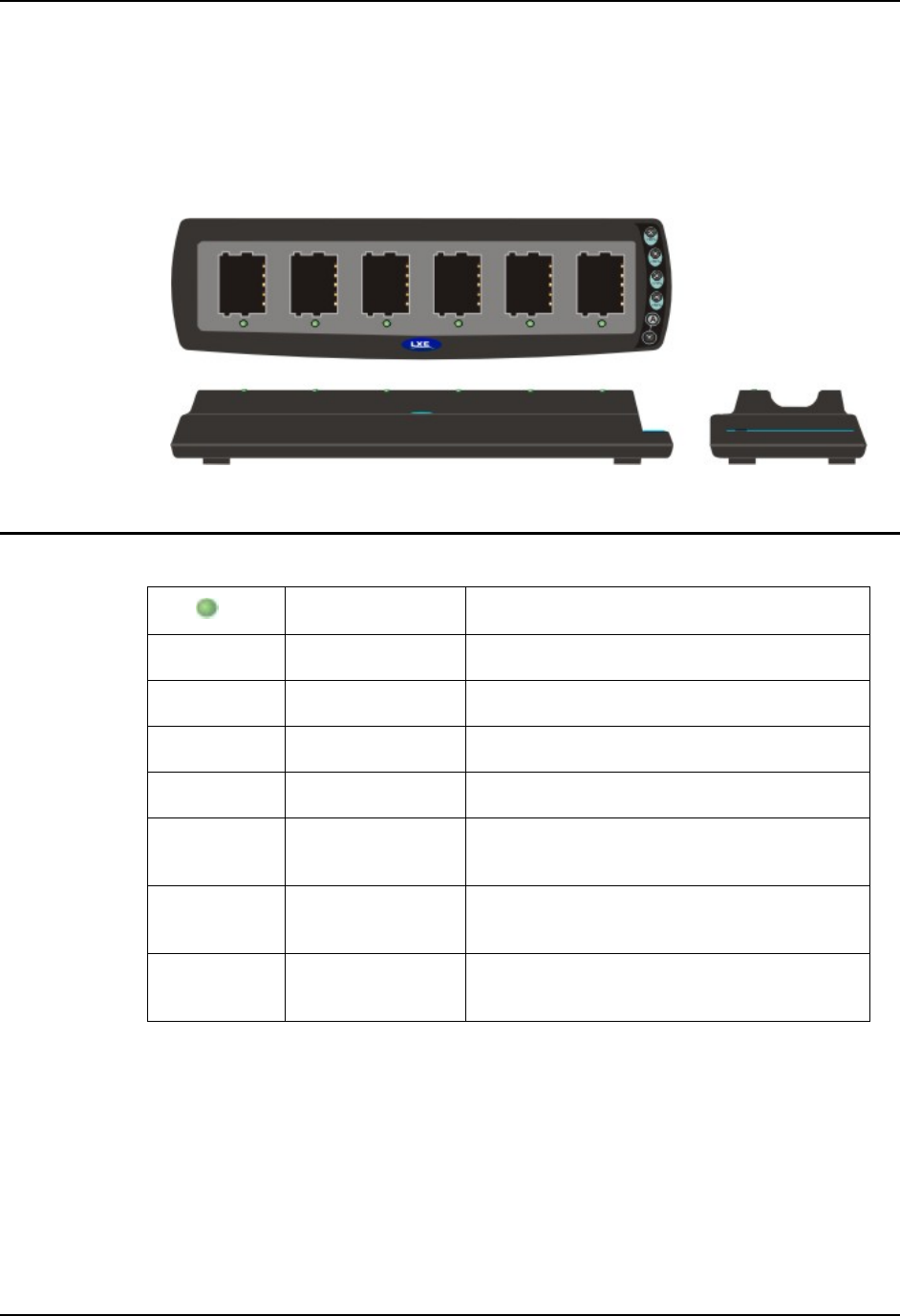

The HX2 Multi-Charger can charge up to six batteries at the same time. Each charging bay can
accept either battery. The Multi-Charger requires an external power source before
charging/analyzing can occur.
Li-Ion Battery
When disposing of the HX2 tethered batteries, the following precautions should be observed: The
battery should be disposed of properly. The battery should not be disassembled or crushed. The
battery should not be heated above 212°F (100°C) or incinerated.
Caution
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS.
Attention
II y a danger d’explosion s’il y a remplacement incorrect de la batterie.
Remplacer uniquement avec une batterie du même type ou d’un type
equivalent recommandé par le constructeur. Mettre au rebut les
batteries usagées conformément aux instructions du fabricant.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
4 Environmental Specifications
HX2 User’s Guide E-EQ-HX2OGWW-A
Environmental Specifications
HX2
Operating Temperature 14°F to 122°F (-10°C to 50°C) [non-condensing]
Storage Temperature -4°F to 158°F (-20°C to 60°C) [non-condensing]
Water and Dust IEC 60529 compliant to IP54
Operating Humidity 5% to 90% non-condensing at 104°F (40°C)
Display Readability Indoor readable
Wireless Compatibility WiFi, CCX, LXE-delivered/certified access points
Bluetooth Range 32.8 feet (10 meters) Direct line of sight only.
Lithium Ion Battery Pack
Note: Battery packs can only be charged when their temperature is between 50°F (10°C) and 113°F (45°C).
Operating Temperature -4°F to 120°F (-20°C to 50°C) [non-condensing]
Storage Temperature -4°F to 160°F (-20°C to 70°C) [non-condensing]
Water and Dust IEC 60529 compliant to IP54
Operating Humidity 5% to 90% non-condensing at 104°F (40°C)
mAh Standard battery pack: 2000 mAh
Extended battery pack: 4000 mAh
Charge Time Standard battery pack: 4 hours
Extended battery pack: 8 hours
Discharge Time Standard battery pack: 8 hours
Extended battery pack: 16 hours
Dimensions Standard battery pack: 1.7” Width x 0.6” Height x 4.9” Length
Extended battery pack: 1.7” Width x 1.0” Height x 4.9” Length
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
Document Conventions 5
E-EQ-HX2OGWW-A HX2 User’s Guide

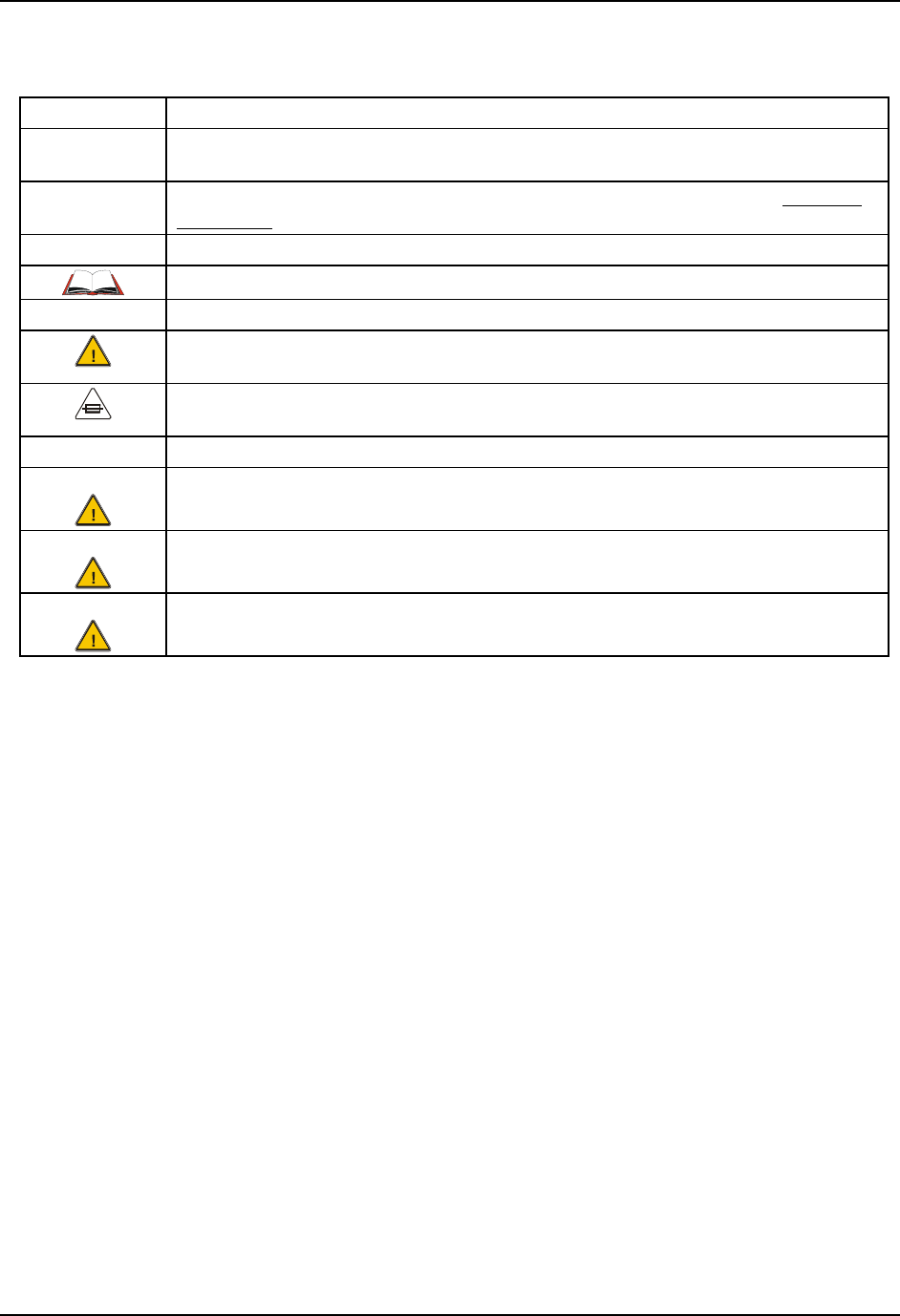

Document Conventions
ALL CAPS All caps are used to represent disk directories, file names, and application names.
Menu | Choice Rather than use the phrase “choose the Save command from the File menu”, this guide uses
the convention “choose File | Save”.
Italic Titles Indicates the title of a book, chapter or a section within a chapter (for example, Document
Conventions).
< > Indicates a key on the keypad (for example, <Enter> ).
Indicates a reference to other documentation.
ATTENTION Keyword that indicates vital or pivotal information to follow.
Attention symbol that indicates vital or pivotal information to follow. Also, when marked
on product, means to refer to the user’s guide.
International fuse replacement symbol. When marked on the product, the label includes
fuse ratings in volts (v) and amperes (a) for the product.
Note: Keyword that indicates immediately relevant information.
Caution
Keyword that indicates a potentially hazardous situation which, if not avoided, may result
in minor or moderate injury.
Warning
Keyword that indicates a potentially hazardous situation which, if not avoided, could result
in death or serious injury.
Danger
Keyword that indicates a imminent hazardous situation which, if not avoided, will result in
death or serious injury.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
6 Getting Help
HX2 User’s Guide E-EQ-HX2OGWW-A
Getting Help
All LXE user guides are now available on one CD and they can also be viewed/downloaded from
the LXE ServicePass website. Contact your LXE representative to obtain the LXE Manuals CD.
You can also get help from LXE by calling the telephone numbers listed on the LXE Manuals CD,
in the file titled Contacting LXE. This information is also available on the LXE website.
Explanations of terms and acronyms used in this guide are located in the file titled LXE Technical
Glossary on the LXE Manuals CD and the LXE ServicePass website.
Manuals
• HX2 User’s Guide - English
• HX2 User’s Guide – German
• HX2 Cradle Reference Guide
• HX2 Reference Guide
• HX2 Multi-Charger / Analyzer User’s Guide
• LXEbook – HX2 User’s Guide (download to mobile device)
• RFTerm Reference Guide
• LXE Security Primer
• CE API Programmers Guide
• Ring Scanner Programming Guide
Accessories
Note: Items with a Green letter R in the second column are ROHS-compliant. Please contact your LXE
representative when ordering ROHS-compliant items as the part number may have changed. Items
without the letter R may have received ROHS-compliance after this guide was published. E
designator means the accessory is Exempt.
Power
HX2 Standard Battery, Lithium Ion E HX2A301BATTSTD
HX2 Extended Battery, Lithium Ion E HX2A302BATTEXT
6 slot battery charger with universal power supply.
Includes analyzing capabilities on one slot. US power cord
included.
R HX2A310CHRG6US
6 slot battery charger with universal power supply.
Includes analyzing capabilities on one slot. Power cord not
included.
R HX2A311CHRG6WW
Cradle
HX2 Desk cradle with spare charging slot. Includes
universal power supply. US power cord included. R HX2A312DESKCRADLEUS
HX2 Desk cradle with spare charging slot. Includes
universal power supply. Power cord not included. R HX2A313DESKCRADLEWW
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
Getting Help 7
E-EQ-HX2OGWW-A HX2 User’s Guide
Mobility
Armband with standard wrist straps R HX2A201ARMBAND
Replacement wrist straps (standard) for armband R HX2A202WRISTSTD
Replacement wrist straps (extended) for armband R HX2A203WRISTEXT
Hip Flip (for belt mounting) R HX2A221HIPFLIP
Voice case (for belt mounting) R HX2A222VOICECASE
Belt for hip flip or voice case R 9200L67
Barcode Readers
SR laser for armband (short cable) R HX2A101SRSLASER
SR laser for hip flip or voice case (long cable) R HX2A102LRSLASER
RS-409 SR laser for armband (short cable) R HX2A120SRS409
2D Imager for armband (short cable) R HX2A110SRSIMAGER
2D imager for hip flip or voice case (long cable) R HX2A111LRSIMAGER
Cables
USB ActiveSync Cable (Type A to HX2 cradle connector) R HX2A001CBLACTVSYNC
Battery Cable R HX2A002CBLBATT
Battery Cable with Audio R HX2A003CBLBATTAUDIO
Battery Extension Cable R HX2A004CBLBATTEXT
Miscellaneous

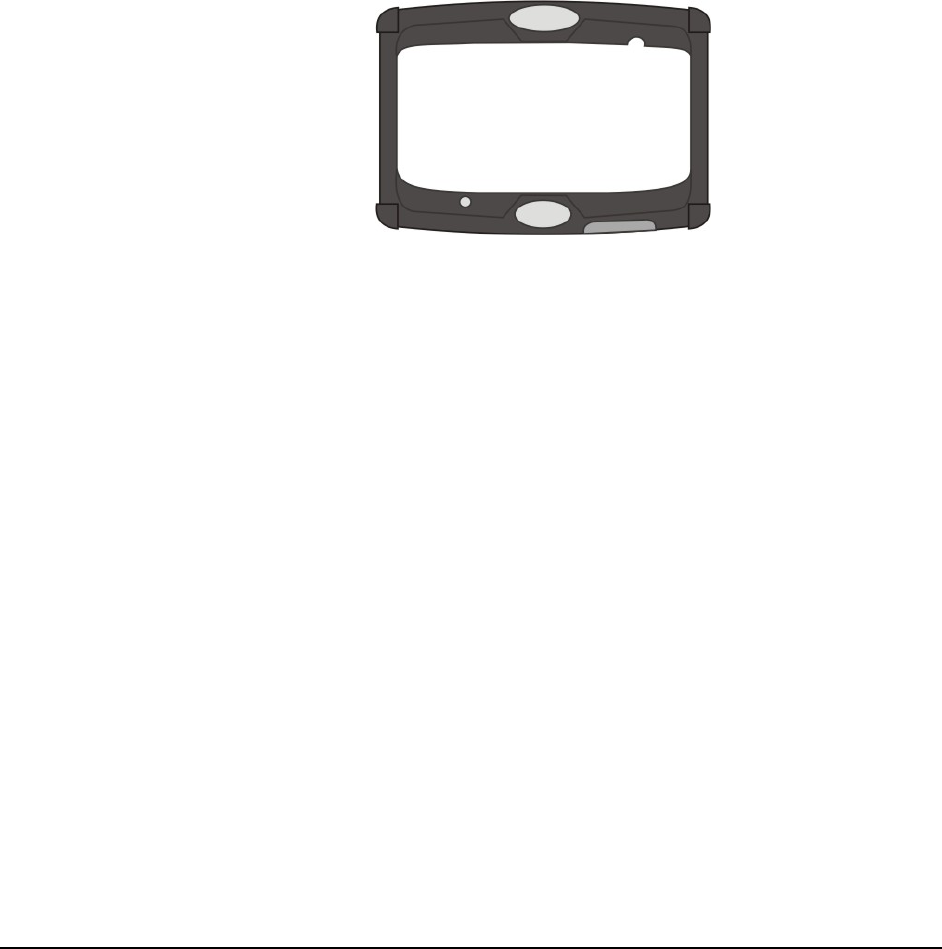

Rubber protective boot, gray R HX2A232BOOTGRAY
Replacement Stylus , 10-pack R 9000A507STYLUS
CD with CE 5.0 API’s and LXE API’s with documentation
for custom application development R HX2A501CE50SDK
Touchscreen anti-glare anti-reflective protective film, 10
pack R HX2A502PROTFILM
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
8 Getting Help
HX2 User’s Guide E-EQ-HX2OGWW-A
Audio
Single ear, single headband, headset with noise canceling
microphone, includes 5 replacement windscreens R HX1A501SNGBHEADSET
Single ear, dual headband, headset with noise canceling
microphone, includes 5 replacement windscreens R HX1A502DUALBHEADSET
Dual ear, behind the head, headset with noise canceling
microphone, includes 5 replacement windscreens R HX1A503BTHHEADSET
Replacement foam block for 502 dual band headsets, qty 1 R HX1A504AHSBLOCKFOAM
Replacement head yoke for dual band 502 headset, qty 1 R HX1A505DUALYOKE
Replacement head yoke for single band 501 headset, qty 1 R HX1A506SINGLEYOKE
Replacement windscreen for all headset microphones,
10 Pack R HX1A508WINDSCREEN10
Replacement windscreen for all headset microphones,
50 Pack R HX1A509WINDSCREEN50
Replacement foam ear piece cover for 501 and 502
headsets, 10 pack R HX1A510FOAMEAR10
Replacement foam ear piece cover for 501 and 502
headsets, 50 pack R HX1A511FOAMEAR50
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
E-EQ-HX2OGWW-A HX2 User’s Guide
Components
Note: The figures on the next few pages assume a fully charged tethered battery is in the battery
sleeve (on an armband or hip flip) and positioned at the top of the figure.
Please contact your System Administrator for assistance with HX2 accessories.
Note: New batteries must be charged prior to use. The backup battery is continually recharged
by the tethered battery.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
10 Front
HX2 User’s Guide E-EQ-HX2OGWW-A
Front
Figure 2 Front
1 On / Off Button
2 System Status LED
3 Microphone
4 Bluetooth LED
5 Speaker
6 Alpha Mode LED
7 Enter Button
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
Back 11
E-EQ-HX2OGWW-A HX2 User’s Guide
Back
Note: Before connecting cables to the back, make sure the battery sleeve on the armband is
uppermost or the left arm / right arm directions won’t work.

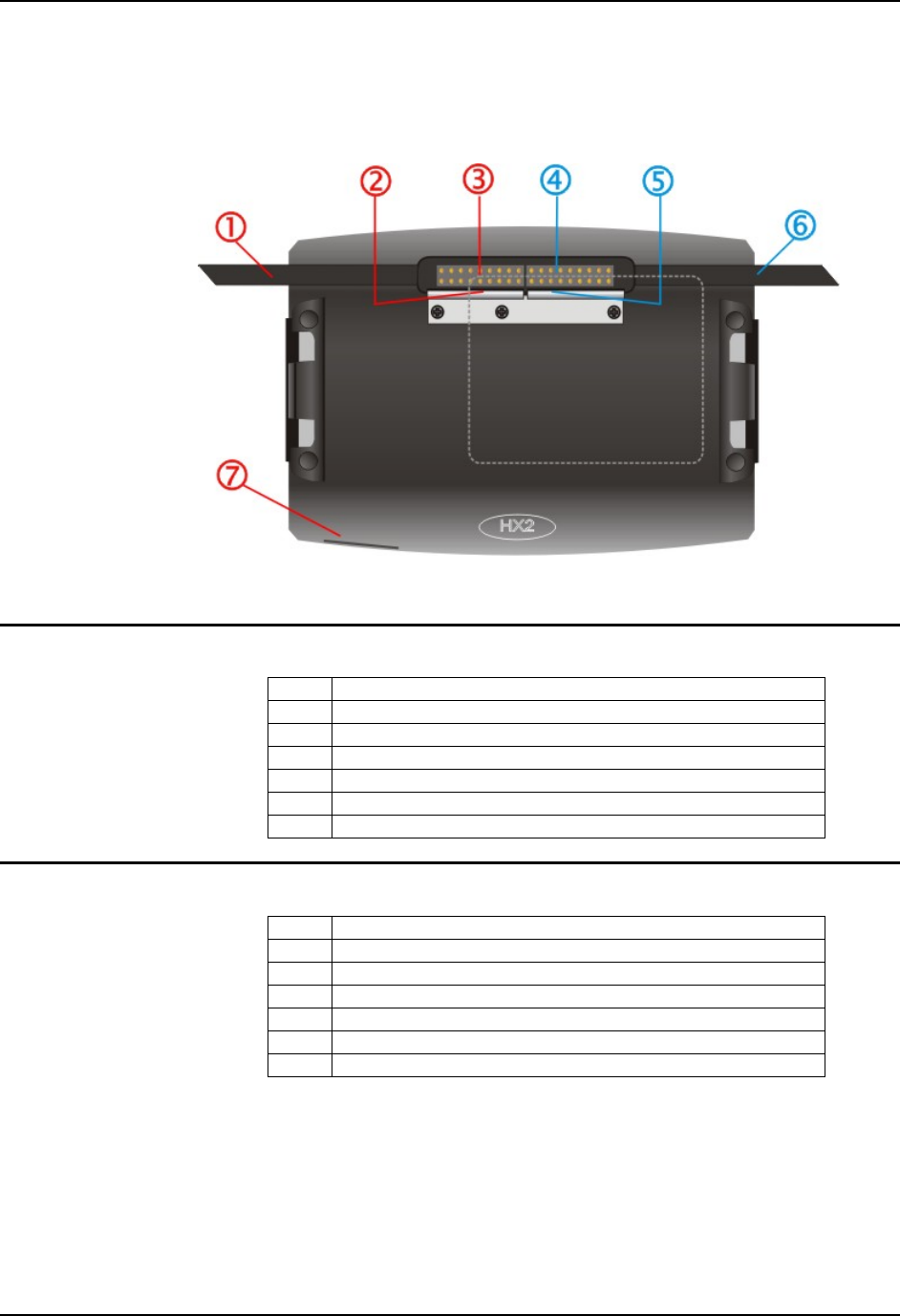

Figure 3 Back
Left Arm Use
1 Ring Scanner Tether cable channel
2 Retaining Clip for Ring Scanner Tether Connector
3 Ring Scanner cable connector
4 Battery Cable connector
5 Retaining Clip for Tethered Battery Connector
6 Tethered Battery Cable channel
7 Cradle Connector
Right Arm Use
1 Tethered Battery Cable channel
2 Retaining Clip for Tethered Battery Connector
3 Battery Cable connector
4 Ring Scanner cable connector
5 Retaining Clip for Ring Scanner Tether Connector
6 Ring Scanner Tether Cable channel
7 Cradle Connector
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
12 Connectors
HX2 User’s Guide E-EQ-HX2OGWW-A

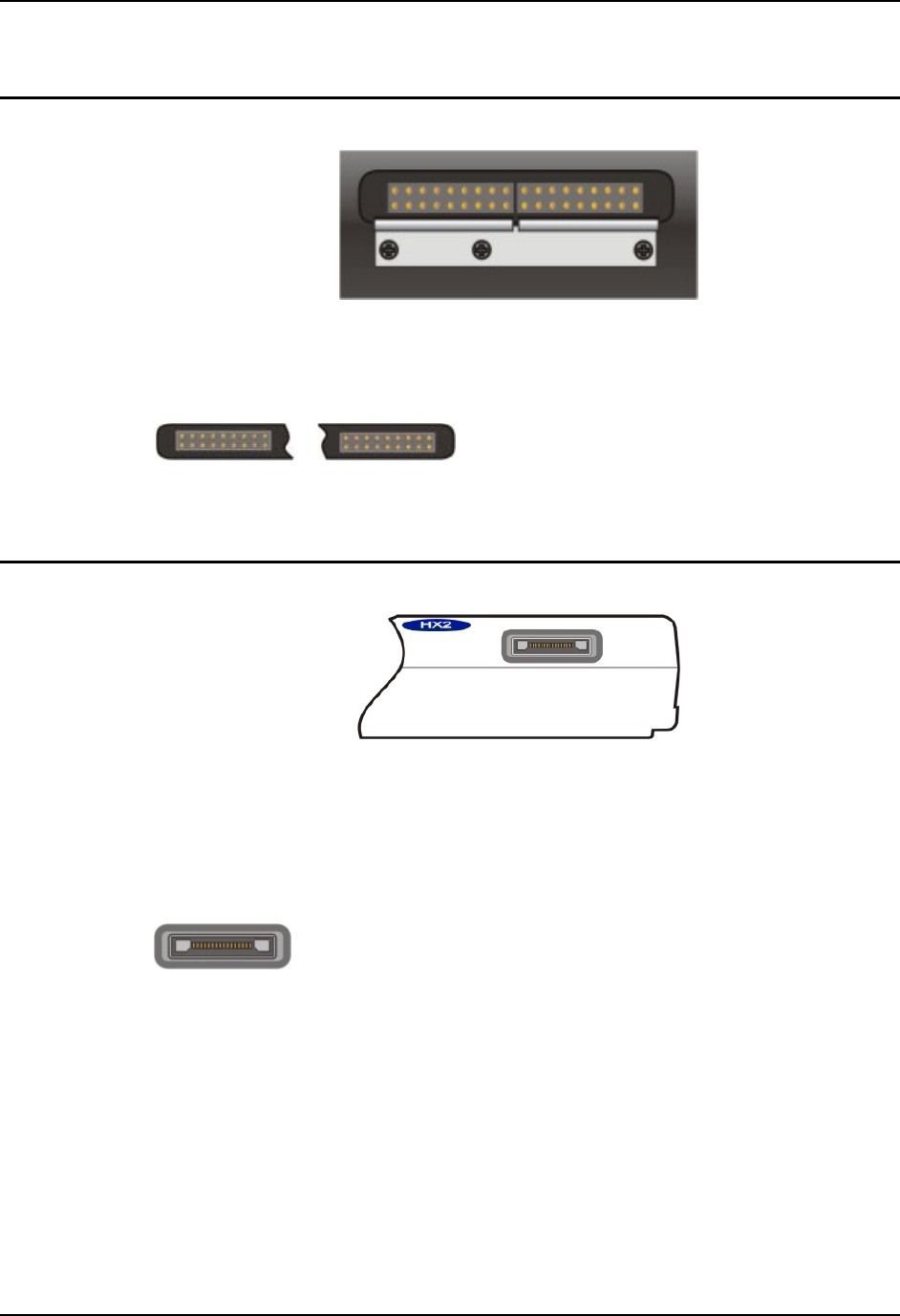

Connectors
Ring Scanner / Audio / Battery Connection
Figure 4 Scanner / Audio / Battery Ports – Connector 1 and 2
Connector 1
Connector 2
• Tethered Ring Scanner (Laser or Imager)
• Tethered Headset/Microphone and HX2
Battery
• Tethered Battery
See Cables.
Cradle Connection
Figure 5 Cradle/Power Port – Connector 3 (Base)
Connector 3 is at the base of the HX2. It connects to the Cradle. When the HX2 is in a powered
cradle, the HX2 receives external power through the Cradle connector. USB Keyboard or USB
Mouse input is received through the Cradle connector when the HX2 is in a cradle.
Connector 3
• Cradle
• Cradle Power Input
• USB Keyboard or mouse through cradle ports
See the HX2 Cradle Reference Guide for instruction.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
Tethered Ring Scanner / Imager 13
E-EQ-HX2OGWW-A HX2 User’s Guide
Tethered Ring Scanner / Imager
Figure 6 Laser Ring Scanner
Figure 7 Imager Ring Scanner
1 Laser /Imager Scan Aperture
2 Scan-in-Progress LED
3 HX2 Connector
4 Scan button (Trigger)
Figure 8 Concept - Ring Scanner Hook and Loop Strap
Figure 9 Ring Scanner/Imager Apertures
1 Imager – Illumination LEDs
2 Beam Aperture
3 Imager – Clear Glass Lens
4 Laser Scanner – Red Glass Lens
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
14 Cables
HX2 User’s Guide E-EQ-HX2OGWW-A
Cables
Figure 10 Cable – Battery and HX2 Connectors
Figure 11 Cable – Audio, Battery and HX2 Connectors
Figure 12 Cable – Laser Ring Scanner and HX2 Connectors
Figure 13 Cable – Imager Ring Scanner and HX2 Connectors
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
Li-Ion Battery 15
E-EQ-HX2OGWW-A HX2 User’s Guide

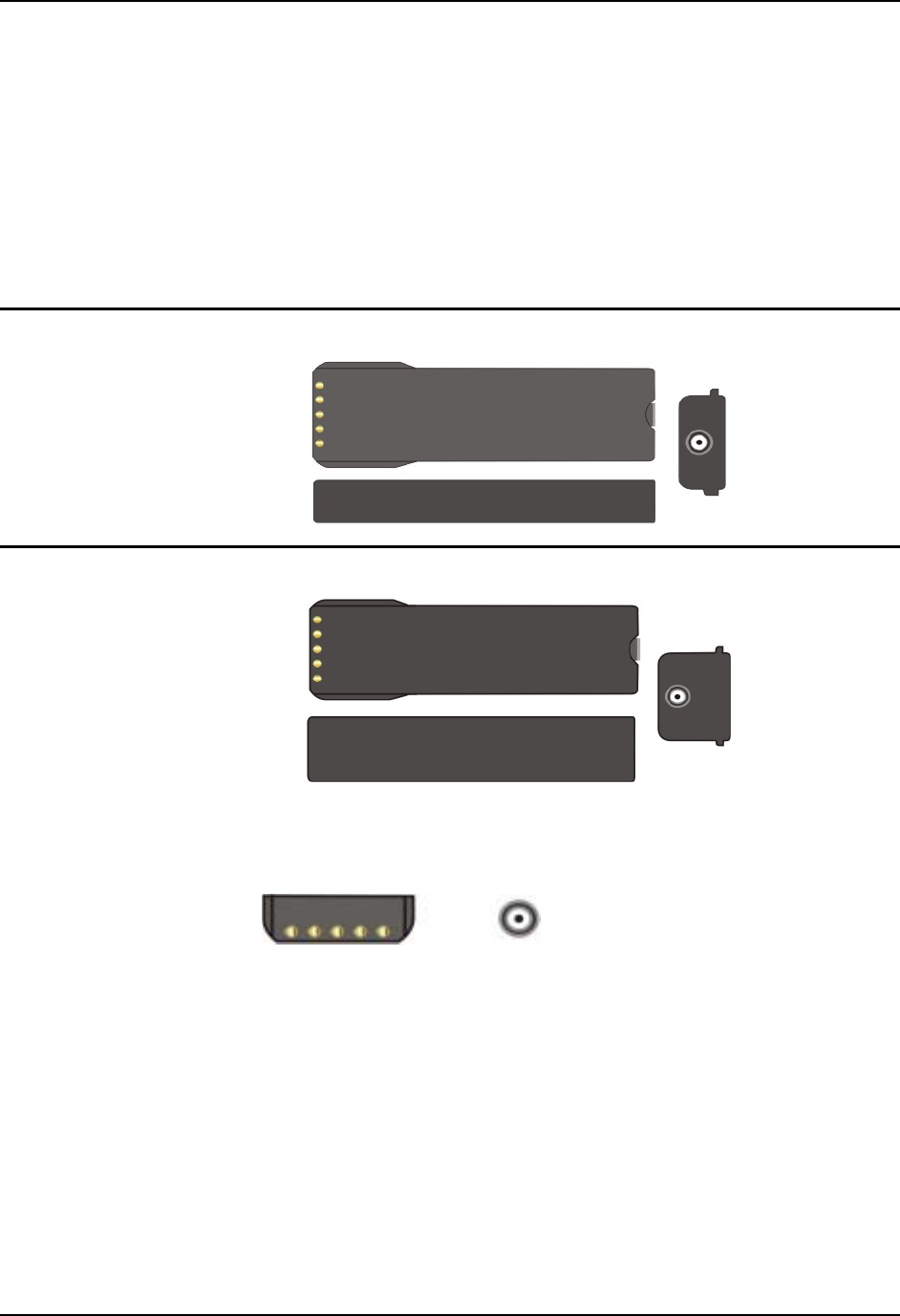

Li-Ion Battery
Main battery charging is handled exclusively by the HX2 Multi-Charger/analyzer and the battery
charger integrated into a powered HX2 cradle.
The Standard battery is much thinner than the Extended battery.
Each battery will fit in the battery sleeve on an armband, hip flip and the voice case.
Note: Do not allow water or chemical cleaning agents of any kind to come in contact with the
battery charging contacts or the battery cable connector; they may be damaged. If
necessary, clean them with a soft-bristle, dry brush or compressed air.
Standard Battery
Extended Battery
Figure 14 HX2 Standard and HX2 Extended Battery
Battery Charge/Connect
Terminals
HX2 Battery Cable
Connector
Note: When placing the tethered battery in an armband or hip flip battery sleeve, ensure the
Battery Charge/Connect terminals are protected from accidental damage by keeping
them covered by the sleeve fabric at all times.
Note: New batteries must be charged prior to use. The backup battery is continually recharged
by the tethered battery.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
16 Mounting Bracket Clips
HX2 User’s Guide E-EQ-HX2OGWW-A
Mounting Bracket Clips
Mounting brackets are pre-installed to the back of the HX2. The brackets (one on each side)
secure the HX2 to the mounting bracket clips on a hip flip or the armband.
Figure 15 Mounting Brackets
The HX2 mount assembly is pre-installed to a hip flip or armband.
Figure 16 Armband and Hip Flip Mount Assembly and Clips
Connect
Center the HX2 over the mount assembly and gently push down until both bracket clips (indicated
by the arrows shown above) snap over the brackets on the HX2. Carefully test the connection to
make sure the HX2 is secured to the armband or hip flip.
Reset the connection by pressing down on either mounting clip to release the HX2 and try again.
Disconnect
Remove the HX2 from the mount assembly by pushing down on either mounting clip, or both,
until the HX2 mounting bracket disconnects.
Or you can disconnect one side, then lift the HX2 up at a 45 degree angle until the other side
disconnects. Lift the HX2 up and away from the mount assembly.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
Mounting Devices 17
E-EQ-HX2OGWW-A HX2 User’s Guide
Mounting Devices
Armband
Armband – Top View
1 HX2 Mounting Bracket
2 Bracket Clips
3 Battery Sleeve
4 Stylus Holder
5 Arm Strap Brackets
Armband – Bottom View
1 Removable Mesh Arm Cover
2 Arm Strap Brackets
3 Adjustable Arm Straps
Figure 17 Armband / Top and Bottom
Straps
Figure 18 Armband Straps
1 Hook Fabric
2 Loop Fabric
3 Connection tabs. Slide through Arm Strap Brackets and press hook
and loop fabric together to secure strap to arm band.
4 Put this side of the strap on the inside, against the arm
5 Put this side of the strap on the outside
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
18 Mounting Devices
HX2 User’s Guide E-EQ-HX2OGWW-A
Hip Flip
Figure 19 Hip Flip and Belt
1 HX2 Mounting Bracket on Hip Flip
2 Mounting Bracket Clips
3 A Belt inside the Belt Loop
4 Brace (Adjustable)
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
E-EQ-HX2OGWW-A HX2 User’s Guide
Quick Start
Getting Started
Note: The sequence of steps in Getting Started/Pre-requisites must also be completed when the
HX2 returns from a Cold Boot and when a new OS version is loaded. The wireless client,
flash card, virtual keyboard and scanner parameters may also need to be reset after a
cold reset.
This section’s instructions are based on the assumption that your new device is pre-configured and
requires only accessory installation (e.g. stylus, headset, ring scanner, etc.) and a battery. LXE
recommends that installation or removal of accessories be performed on a clean, well-lit surface.
When necessary, protect the work surface, the mobile device, and components from electrostatic
discharge.
Pre-requisites
• A fully charged battery is available.
• Optional add-on devices are available (e.g. stylus, headset, ring scanner, hip flip, voice case,
armband).
• Wireless Client configuration has been completed by the System Administrator.
• Required configured (mappable) keys have been assigned by the System Administrator. For
example, the default keypad configuration does not have a , Control, Shift, Alt or Del key
(or the equivalent). Key mapping can be changed to map those specific keys if needed.
• Optional software and LXE applications have been installed and setup by the System
Administrator.
HX2 Quick Start
First Connect cabled devices to the HX2 See Connecting the Battery and Ring Scanner.
See Connecting the Audio Cable and a Headset.
Next Power up the HX2 and set up personal
preferences
See Tapping the Power Key.
Locate the stylus. Calibrate the touchscreen, if necessary.
See Tapping the Touchscreen with a Stylus and
Calibrating the Touchscreen.
A white screen will appear during the bootup process
until all drivers and applications are loaded and installed.
Setup screens may appear and disappear while files are
loading. After all files are loaded and the Desktop is
displayed, adjust audio volume and other parameters if
desired.
Then Setup wearable accessories See Wearable Device Assembly and Optional Equipment.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
20 Getting Started
HX2 User’s Guide E-EQ-HX2OGWW-A
HX2 Mobile Device - Quick Start Troubleshooting
Can’t calibrate the
touchscreen, change the
date/time or adjust the
volume.
AppLock is installed and running on the mobile device. AppLock
restricts User access to running programs. Changes or modifications
require Administrator access.
Refer to HX2 Reference Guide for setup and processing information.
RFterm® opens and
runs upon each cold
reset and warm reset.
Tap File | Exit to close the RFTerm application. By default RFTerm
runs upon each cold reset and warm reset.
HX2 seems to lockup
as soon as it is warm
booted.
There may be slight delays while the wireless client connects to the
network, authorization for voice-enabled applications complete,
Wavelink Avalanche management of the HX2 startup completes, and
Bluetooth relationships establish or re-establish. When the desktop
appears or an application begins, the HX2 is ready for use.
Wearable Device Assembly
Armband
Figure 20 HX2 Armband, Left Arm Orientation, Ring Scanner, Audio
Prerequisite: Optional add-on devices are available.
• Fasten the armband to your left or right arm before continuing with these directions. See
Connecting the Battery and Ring Scanner.
• Slide the battery into the battery sleeve on the armband.
• Snap all tethered devices to the connectors at the back of the HX2. See Connecting the Battery
and Ring Scanner and Connecting the Audio Cable and a Headset.
• Snap the HX2 into the armband mounting bracket. See Mounting Bracket Clips.
• Attach the battery cable to the battery.
• Connect audio devices (see Connecting the Audio Cable and a Headset), if included.
• Slip the ring scanner (if included) over one of your fingers, making sure your thumb or trigger
finger can easily reach the Scan button. See Ring Scanner Strap.
• Adjust the HX2 arm assembly for comfort. Occasionally check all connectors for stability.
The wearable computer is ready for use.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
Getting Started 21
E-EQ-HX2OGWW-A HX2 User’s Guide
Hip Flip
Prerequisite: Optional add-on devices are available.
• Unpack the Hip Flip. Slide the belt through the loops on the
Hip Flip. Do not put the hip flip on yet.
• Slide the battery into the battery sleeve on the hip flip.
• Snap all tethered devices to the connectors at the back of the
HX2. See Connecting the Battery and Ring Scanner and
Connecting the Audio Cable and a Headset.
• Snap the HX2 into the hip flip mounting bracket. See
Mounting Bracket Clips.
• Attach the battery cable to the battery.
• Put the hip flip on.
• Slip the ring scanner (if included) over one of your fingers,
making sure your thumb or trigger finger can easily reach the
scan button. See Ring Scanner Strap.
• Adjust the HX2 hip assembly for comfort. Occasionally check
all connectors for stability.
Figure 21 HX2 Hip Flip, Audio
The wearable computer is ready for use.
Ring Scanner Strap
The ring scanner finger loop is located under the ring scanner.
Pull gently on the end of the finger loop strap to separate the hook and loop fabric.
Slide your finger into the opened loop under the ring scanner.
Grasp the end of the finger loop strap and loosen then tighten the finger strap until the ring scanner
is comfortably snug and the scan aperture is secured in the desired location.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
22 Connecting the Battery and Ring Scanner
HX2 User’s Guide E-EQ-HX2OGWW-A
Connecting the Battery and Ring Scanner
Note: The unit will not function unless a battery is securely tethered. Be sure to place the
mobile device in Suspend mode before disconnecting a battery, or all unsaved data may
be lost.
The battery and ring scanner cables should not be exchanged or replaced in a dirty, harsh or
hazardous environment. When the tethers are disconnected, any dust or moisture that adheres to
the tether connector can potentially cause damage upon cable connection.
Follow the numbers in the following tables to connect the battery and ring scanner to the HX2.
Note: Before connecting cables to the back, make sure the battery sleeve on the armband is
uppermost or the following left/right directions won’t work.
Figure 22 Tether the Battery and Ring Scanner – Left / Right
When you want to switch connectors from left to right, or vice versa, first gently press downward
on the Retaining Clip, then pinch and pull the cable connector (not the cable!) straight up and
away from the HX2. Do not use a metal object, or extreme force, to remove the cable connector
from the HX2. Re-connect cables and reassemble the HX2 body-worn components.
Ring Scanner on the Left Hand
1 Ring Scanner Tether cable
2 Retaining Clip for Ring Scanner Tether Connector
3 Ring Scanner cable connector
4 Battery Cable connector
5 Retaining Clip for Tethered Battery Connector
6 Tethered Battery Cable
Ring Scanner on the Right Hand
1 Tethered Battery Cable
2 Retaining Clip for Tethered Battery Connector
3 Battery Cable connector
4 Ring Scanner cable connector
5 Retaining Clip for Ring Scanner Tether Connector
6 Ring Scanner Tether Cable
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
Connecting the Audio Cable and a Headset 23
E-EQ-HX2OGWW-A HX2 User’s Guide
Connecting the Audio Cable and a Headset
Note: The audio option draws power from the tethered battery.The mobile device internal
speaker and internal microphone are disabled when a headset and microphone is
connected.
The headset consists of an earpiece, a microphone and an attached cable. The headset attaches to
the audio cable which attaches to the HX2.
Figure 23 Audio Cable and Headset
1 Align the audio connector and the headset quick connect cable end. Firmly push
the cable ends together until they click and lock in place.
2 Snap the battery plug into the battery cable connector at the top of the battery.
3 Press the battery/audio connector into either left or right connector on the back of
the HX2. The retaining clip will snap into place and secure the cable connection.
Place the cable in the cable groove.
See section titled Set the Audio Speaker Volume.
Adjust Microphone and Secure the Cable
Do not twist the microphone boom when adjusting the microphone.
The microphone should be adjusted to be about two finger widths from your mouth.
Make sure the microphone is pointed at your mouth. Note the small “Talk” label near the
mouthpiece. Make sure the Talk label is in front of your mouth.
The microphone cable can be routed over or under clothing.
Under Clothing
• Leave the cable exposed only at the top of the collar.
• Be sure to leave a small loop of cable to allow movement of your head.
Over Clothing
• Use clothing clips to hold the cable close to your body.
• Tuck the cable under the belt, but leave a small loop where it goes under the belt.
• Do not wear the cable on the front of your body. It may get in your way or get caught on
protruding objects.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
24 Tapping the Power Key
HX2 User’s Guide E-EQ-HX2OGWW-A
Tapping the Power Key
The Power key is a round button located above the F4 key.
When a battery is connected to the HX2 for the first time press the Power key. The mobile device
begins the startup process. Wait until the Windows CE desktop appears.
Suspend/Resume Mode -- At other times, tapping the Power key places the HX2 immediately in
Suspend Mode. Tapping the Power key again immediately returns the HX2 from Suspend.
Tapping the Touchscreen with a Stylus
Note: Always use the point of the stylus for tapping or making strokes on the touchscreen.
Never use an actual pen, pencil, or sharp/abrasive object to write on the touchscreen.
Hold the stylus as if it were a pen or pencil. Touch an element on the screen with the tip of the
stylus then remove the stylus from the screen. Firmly press the stylus into the stylus holder when
the stylus is not in use.
Similar to using a mouse to left-click icons on a desktop computer screen, using the stylus to tap
icons on the touchscreen is the basic action that can:
• Open applications
• Choose menu commands
• Select options in dialog boxes or drop-down boxes
• Drag the slider in a scroll bar
• Select text by dragging the stylus across the text
Place the cursor in a text box prior to typing in data or retrieving data using the ring scanner or an
input/output device connected to a serial port.
A stylus can be ordered from LXE. See the section titled Accessories.
Note: A “right mouse click” function must be programmed into the customer application to
accept a constant stream of left mouse click messages. An application can choose to
interpret this stream of messages as a right mouse click. LXE does not support non-LXE
application programming.
Calibrating the Touchscreen
If the touchscreen is not responding properly to stylus taps, you may need to recalibrate the
touchscreen. Recalibration involves tapping the center of a target. If you miss the center, keep the
stylus on the screen, slide it over the target’s center, and then lift the stylus.
To recalibrate the screen, select | Settings | Control Panel | Stylus | Calibration tab.
To begin, tap the Recalibrate button on the screen with the stylus.
Follow the instructions on the screen and press the Enter key to save the new calibration settings
or press Esc to cancel or quit.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
Power Key Functions 25
E-EQ-HX2OGWW-A HX2 User’s Guide
Power Key Functions
See Also: Sections titled LED Indicators and System Status LED later in this guide.
• If installed, RFTerm runs automatically at the conclusion of each reboot.
• If installed and enabled, AppLock runs automatically at the conclusion of each reboot.
• The wireless client connects automatically during each reboot.
• Bluetooth re-connects to paired devices automatically at the conclusion of each reboot.
• If installed and pre-configured, Wavelink Avalanche connects remotely and downloads
updates automatically during each reboot.
Hardware Reset
Press and hold the Power key for approximately 15 seconds until the display blanks, then release
the key. If user data was not saved before the Hardware Reset function started, data loss occurs
and unsaved registry settings are lost. User data is saved whenever a Suspend/Resume function is
complete.
Warm Boot
Tap | Run and type warmboot. Tap the OK button. A warm boot does not affect the operating
system, but programs and data in RAM are cleared, and registry changes, if any, are saved.
Network and Bluetooth connections will need to be re-established. There may be slight delays
while the wireless client connects to the network, re-authorization for voice-enabled applications
completes, Wavelink Avalanche management of the HX2 startup completes, or Bluetooth
relationships establish or re-establish.
Cold Boot
Tap | Run and type coldboot. Tap the OK button. Factory default settings overwrite all
previously saved user settings.
Calibrating the touchscreen will need to be performed when the cold boot process is complete.
Wireless Client configuration will need to be completed by the System Administrator.
Required mappable keys will need to be configured. For example, there is no , Control, Shift,
Alt or Del key (or their equivalent) available using the HX2 default keypad setting.
Optional software 1 and LXE application 2 parameters will need to be set up by the System
Administrator.
Important -- Because of the extreme nature of the Cold Boot, LXE recommends that the Cold
Boot process be used only as an emergency procedure and Warm Boot or Suspend/Resume be
used whenever necessary.
Note: Refer to the section titled Power Modes in the HX2 Reference Guide for more
information relating to the power states of the HX2.
1 Optional software setup may include Summit Wireless Client communication setup, Voice-Enabled software
connection to wireless link, Wavelink Avalanche management of the HX2 file structure at startup, and
Bluetooth device-pairing and re-connect.
2 LXE application software setup may include Summit Wireless Client communication setup, RFTerm terminal
emulation configuration, and AppLock application-locking configuration.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
26 Using the 23 Key Keypad
HX2 User’s Guide E-EQ-HX2OGWW-A
Using the 23 Key Keypad
Figure 24 The 23 Key Keypad
• When using a sequence of keys that require an alphabet key, first press the Alpha key to force
Alpha mode on the numeric keys. See Alpha Modifier Key in the HX2 Reference Guide.
• Double tap the Alpha key for upper case alphabetic characters (similar to CapsLock. Single
tap the Alpha key to exit CapsLock mode).
• Single tap the Alpha key to enter and exit Alpha mode.
• Default Alpha mode produces lower case alphabetic characters when numeric keys are
pressed.
• Pressing the Alpha key forces “Alpha” mode for all keys.
• To create a combination of numbers and letters before pressing Enter, remember to tap the
Alpha key to toggle between Alpha and Numeric mode.
• Use the Input Panel to enter characters that are not available using the 23-key keypad.
• When using a sequence of keys that do not include the Alpha key (Orange) but does include a
sticky key (Blue), press the Blue key in sequence.
Inserting Characters Using the Input Panel
You can use the Input Panel to insert the following characters:
< > { } [ ] ( ) _ +
: ; “ ‘ ? / ~ ` ! @
# $ % ^ & |
See Input Panel later in this guide.
See Appendix A Key Maps for instruction on the specific keypresses to access all allowed keypad
functions.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
System Status LEDS 27
E-EQ-HX2OGWW-A HX2 User’s Guide
System Status LEDS
Figure 25 System Status LEDs
LED Color Indicates . . .
Green - Blinking Display turned off when timer expired. This will
help to conserve battery power. Tap the screen
or press any key (except the Power button) to
turn the display on again. The HX2 is not in
Suspend Mode.
Red - Steady Main Battery Low. If the main battery is not
replaced with a fully charged battery before the
main battery fails, the HX2 is turned Off.
1 System
Status
Red - Blinking Main Battery Power Fail
Blue - Blinking Slowly Idle
Blue - Blinking Fast Bluetooth is discovering Bluetooth devices
2 Bluetooth
Off Bluetooth hardware has been turned off or does
not exist in the HX2
3 Alpha Amber - Steady Alpha Mode enabled.
When multiple system status conditions are present, the most urgent condition is indicated. The
conditions listed above are in increasing order of urgency by LED type.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
28 Entering Data
HX2 User’s Guide E-EQ-HX2OGWW-A
Entering Data
You can enter data into the HX2 through several different methods. The Ring Scanner aperture
provides barcode data entry, the Input/Output (I/O) ports, the built-in microphone and speaker are
used to input/output data, and the physical and virtual keypads provide text entry.
Mobile devices with a touchscreen use a stylus to input data, devices connected to the I/O ports
and/or the keypad. An input panel (virtual keyboard) is available for applications that expect
keyed input.
Keypad Entry
The keypad is used to manually input data that is not collected otherwise. A subset of desktop PC
full keyboard functions are provided. Other key functions can be obtained using the programmable
key (Blue+Enter), configurable 0 and 1 keys, or by remapping one of the mappable keys.
Please refer to Appendix A – Key Maps for instruction on the unique keypresses to access the
available keyboard functions.
Almost every key on the keypad has two or three different functions. The primary function or
numeric character is printed on the key.
The Alpha or Blue keys are pressed when you want to use a second key function. For example,
when you press the Blue key (the sticky key), then press the key that has the desired second-
function key, the second-function key is the “active” key. The specific sticky character is printed
above the corresponding key in Blue.
Stylus Data Entry
Note: This section is directed to the HX2 daily user. The assumption is that the mobile device
has been configured and the touch screen calibrated by the System Administrator prior to
releasing the HX2 for daily use. The touch screen should be calibrated before initial use.
The stylus performs the same function as the mouse that is used to point to and click elements on a
desktop computer. The stylus is used in the same manner as a mouse – single tap or double tap to
select menu options, drag the stylus across text to select, hold the stylus down to activate slider
bars, etcetera.
Hold the stylus as if it were a pen or pencil. Touch an element on the screen with the tip of the
stylus then remove the stylus from the screen. The touchscreen responds to an actuation force
(touch) of 4 oz. (or greater) of pressure.
The stylus can be used in conjunction with the keyboard and scanner and an input/output device
connected to a serial port.
Touch the stylus to the field of the data entry form to receive the next data feed.
The cursor begins to flash in the field.
The unit is ready to accept data from either the physical keypad, virtual keyboard, or the ring
scanner.
Note: Always use the point of the stylus for tapping or making strokes on the display. Never use
an actual pen, pencil or sharp/abrasive object to write on the touchscreen.
Place the stylus in the stylus holder when not in use. There is a built in stylus holder on the hip flip
and the armband.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
Entering Data 29
E-EQ-HX2OGWW-A HX2 User’s Guide
Ring Scanner Data Entry
Read all cautions, warnings and labels before using the ring scanner.
Do not look into the ring scanner/imager lens.
Do not stare directly into any beam emitted from the scanner/imager lens.
Laser Scanner
To scan with the laser barcode scanner, point the ring scanner laser aperture towards a barcode and
press the Scan button. You will see a red laser beam strike the barcode. Align the red beam so that
the barcode is centered within the beam. The laser beam must cross the entire barcode. Move the
ring scanner towards or away from the barcode so that the barcode takes up approximately two-
thirds the width of the beam.
There may be an audible response combined with the Scan function.
Correct Scan Incorrect Scan Incorrect Scan
Figure 26 Laser Scan Beam on Linear Barcode
See section titled Scan Status LED.
2D Imager
Figure 27 Imager Bracketed Crosshair Target on 2D Barcode
To scan with the Imager Ring Scanner, point the scan aperture towards a 2D barcode and press the
Scan button. You will see a bracketed crosshair strike the barcode. Align the brackets so that the
center of the barcode is covered by the crosshair.
Move the ring scanner towards or away from the barcode until a response is emitted by the HX2 (1
beep, 2 beeps, a WAV file, etc) or the bracketed crosshair times out and disappears.
The Imager LED may illuminate when the Scan button is pressed. There are three options that can
be set by the System Administrator using the Scanner control panel applet: Internal illumination,
External illumination, or Both. If external illumination is chosen, there are three white LEDs
located above the imager aperture that will illuminate for the duration of the scan then turn off.
See the previous section titled Tethered Ring Scanner / Imager figure titled Ring Scanner/Imager
Apertures.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
30 Entering Data
HX2 User’s Guide E-EQ-HX2OGWW-A
Scan Status LED
Figure 28 Concept - Scan Status LED
The Scan Status LED (oval shaped LED on the top of the ring scanner) turns red when the laser
beam is on. Following a barcode scan and read the Scan Status LED turns green for two seconds
and the HX2 may beep, indicating a successful scan. If the scan was unsuccessful, the Scan Status
LED turns off and a different beep sequence is heard.
The ring scanner engine and Scan Status LED automatically turn off after a successful or
unsuccessful read. The ring scanner is ready to scan again after the Scan button is released, or after
the Scan Status LED turns off following a successful scan.
Voice Data
Data is entered into the HX2 by speaking into the headset’s microphone (or the internal
microphone located below the Up Arrow) when prompted.
Please contact your System Administrator if assistance is needed with the voice software installed
on your HX2.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
Entering Data 31
E-EQ-HX2OGWW-A HX2 User’s Guide
Input Panel / Virtual Keyboard
The virtual keyboard or input panel is always available when needed e.g. text field input. Tap the
Keyboard icon in the Taskbar to put the virtual keyboard on the display. Using the stylus:
• Tap the Shift key to type one capital letter.
• Tap the CAPS key to type all capital letters.
• Tap the au key to access symbols.
Figure 29 Input Panel / Virtual Keyboard
Some applications do not automatically display the Input Panel. In this case, do the following to
use the Input Panel:
1. Tap the Input Panel/Virtual Keyboard icon in the taskbar.
2. Select Keyboard from the menu.
3. Tap the data entry area on the display when you want to enter data using the Input Panel.
When finished entering data, tap the Keyboard icon in the Taskbar. Select Hide Input Panel.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
32 Bluetooth Devices
HX2 User’s Guide E-EQ-HX2OGWW-A
Bluetooth Devices
Assumption: The System Administrator has Discovered and Paired targeted Bluetooth devices
for each HX2. The System Administrator has also enabled / disabled Bluetooth
settings and assigned a Computer Friendly Name for each HX2. See the HX2
Reference Guide for information and instruction on the HX2, Bluetooth control
panel applet and supported Bluetooth printers and scanners.
The Bluetooth taskbar Icon state and Bluetooth LED states change as Bluetooth devices are
discovered, pair, connect, and disconnect. The Bluetooth LED is located next to the Right Arrow
key on the keypad.
The Bluetooth LED blinks slowly when it is idle. Blinks quickly when the HX2 is discovering
other Bluetooth devices. And blinks normally when it is connected. There may be audible or
visual signals from paired devices as they re-connect with the HX2. Non-LXE Bluetooth devices
may be discovered but are inaccessible as they are filtered out on the Bluetooth Devices panel and
are not displayed (see HX2 Reference Guide for details).
Taskbar Icon Legend
Bluetooth module is connected to one or more of the targeted Bluetooth
device(s).
HX2 is not connected to any Bluetooth device.
HX2 is ready to connect with any Bluetooth device.
HX2 is out of range of all paired Bluetooth device(s). Connection is
inactive.
Blue - Blinking Slowly Idle.
Blue - Blinking Fast Bluetooth discovering other Bluetooth
devices.
Bluetooth
LED
Off Bluetooth hardware has been turned off or
does not exist in the HX2.
Note: When an active paired device, not the HX2, enters Suspend Mode, is turned Off or leaves
the HX2 Bluetooth scan range, the Bluetooth connection between the linked device and
the HX2 is lost. There may be audible or visual signals as paired devices disconnect from
the HX2. The Bluetooth remote device should be as close as possible, in direct line of
sight, with the HX2 during the pairing process.
See Accessories for supported Bluetooth printers and scanners.
AppLock, if installed, does not stop the end-user from using Bluetooth application, nor does it
stop authorized Bluetooth-enabled devices from pairing with the HX2 while AppLock is in
control. See HX2 Reference Guide for more Bluetooth information.
Checking Battery Status
Important: Until the tethered battery and backup battery are completely depleted, the HX2 is
always drawing power from the batteries (On).
Tap the | Settings | Control Panel | Battery icon. Main battery level, backup battery level,
status and other details are displayed.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
Entering the Multi AppLock Activation Key 33
E-EQ-HX2OGWW-A HX2 User’s Guide
Entering the Multi AppLock Activation Key
Note: The mobile device must have the touch screen enabled.
Tap the taskbar icon to place the AppLock popup menu on screen. Tap Keyboard if a hotkey
sequence will require Input Panel access.
Application Switching Activation Key
If the mobile device uses LXE’s Multi AppLock to allow the user to switch between two
applications, the Activation key sequence is assigned by the AppLock Administrator. The key
sequence switches the focus between one application and another. User data is entered using the
application running in the foreground only.
Touch
Figure 30 AppLock – How to Switch Applications
Tap the taskbar icon to place the popup menu on screen. Tap one of the application icons in the
popup menu. Tap Keyboard if a hotkey sequence will require Input Panel access.
The selected application is brought to the foreground while the other application continues to run
in the background. Stylus taps affect the application running in the foreground only.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
34 Setting the Power Schemes Timers
HX2 User’s Guide E-EQ-HX2OGWW-A
Setting the Power Schemes Timers
Note: Refer to the section titled Power Modes in the HX2 Reference Guide for information
relating to the power states of the mobile device.
Select | Settings | Control Panel | Power | Schemes tab. Change the parameter values and tap
OK to save the changes.
Figure 31 Power Properties – Schemes Tab
Battery Power Scheme
Use this option when the mobile device will be running on battery power only.
Switch state to User Idle: Default is After 3 seconds
Switch state to System Idle: Default is After 15 seconds
Switch state to Suspend: Default is After 5 minutes
AC Power Scheme
Use this option when the mobile device will be running on external power (e.g. docked in a
powered cradle).
Switch state to User Idle: Default is After 2 minute
Switch state to System Idle: Default is After 2 minutes
Switch state to Suspend: Default is After 5 minutes
The mode timers are cumulative. The System Idle timer begins the countdown after the User Idle
timer has expired and the Suspend timer begins the countdown after the System Idle timer has
expired. When the User Idle timer is set to “Never”, the power scheme timers never place the
device in User Idle, System Idle or Suspend modes (even when the device is idle).
Because of the cumulative effect, and using the Battery Power Scheme Defaults listed above:
• The backlight turns off after 3 seconds of no activity,
• The display turns off after 18 seconds of no activity (15seconds + 3seconds),
• And the device enters Suspend after 5 minutes and 18 seconds of no activity.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
Setting The Audio Speaker Volume 35
E-EQ-HX2OGWW-A HX2 User’s Guide
Setting The Audio Speaker Volume
Note: An application may override the control of the speaker volume. Turning off sounds saves
power and prolongs battery life.
The internal speaker is located on the front of the device above the “2” key. The audio volume can
be adjusted to a comfortable level for the listener. Operational “beeps” are emitted from the
speaker. A Battery/Audio cable is available for headsets, see Accessories and Cables.
Using the Keypad
Note: Volume & Sounds (in Settings | Control Panel) must be enabled before the following
default key sequences will adjust the volume.
The volume is increased or decreased one step each time the volume key sequence is pressed.
To adjust speaker volume use the Blue+Up Arrow and Blue+Down Arrow keys to adjust volume
until the speaker volume is satisfactory.
Using the Touchscreen
Figure 32 Volume & Sounds Properties
Tap | Settings | Control Panel | Volume & Sounds | Volume tab. Change the volume setting
and tap OK to save the change. You can also select / deselect sounds for key clicks and screen taps
and whether each is loud or soft.
As the volume scrollbar is moved between Loud and Soft, the computer will emit a tone each time
the volume increases or decreases in decibel range.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
36 Adjusting the Display Backlight Timer
HX2 User’s Guide E-EQ-HX2OGWW-A
Adjusting the Display Backlight Timer
Select | Settings | Control Panel | Display | Backlight tab. Change the parameter values and
tap OK to save the changes.
Figure 33 Setting the Display Backlight Timer
The first option affects the display when the HX2 is running on battery power only. The second
option affects the display when the HX2 is running on external power (e.g. docked in a powered
cradle).
The default value for the battery power timer is 3 seconds.
The default value for the external power timer is 2 minutes. The display backlight will remain
on all the time when both checkboxes are blank.
The display backlight timer dims the backlight at the end of the specified time.
When the Keypad Backlight is On, it responds to the settings of the Display Backlight Timer. See
next segment titled Turning the Keypad Backlight On or Off.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
Turning the Keypad Backlight On or Off 37
E-EQ-HX2OGWW-A HX2 User’s Guide
Turning the Keypad Backlight On or Off
Select | Settings | Control Panel | Display | Keypad | Alpha tab.
Figure 34 Turning the Keypad Backlight On or Off
Tap the Off radio button when the keypad backlight is to remain Off regardless of the OS event in
process. The default is On. When On the keypad backlight responds to OS events as designed.
When On, the keypad backlight responds to the settings of the Display Backlight Timer. See
previous segment titled Adjusting the Display Backlight Timer.
Cleaning the Glass Display/Ring Scanner Aperture
Note: These instructions are for components made of glass. If there is a removable protective
film sheet on the display screen, remove the film sheet before cleaning the screen.
Keep fingers and rough or sharp objects away from the ring scanner aperture and the mobile
device display. If the glass becomes soiled or smudged, clean only with a standard household
cleaner such as Windex® without vinegar or use Isopropyl Alcohol. Do not use paper towels or
harsh-chemical-based cleaning fluids since they may result in damage to the glass surface. Use a
clean, damp, lint-free cloth. Do not scrub optical surfaces. If possible, clean only those areas
which are soiled. Lint/particulates can be removed with clean, filtered canned air.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
38 Cleaning the Glass Display/Ring Scanner Aperture
HX2 User’s Guide E-EQ-HX2OGWW-A
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
E-EQ-HX2OGWW-A HX2 User’s Guide
Optional Equipment
HX2 Rubber Boot Assembly
The rubber boot is a lightweight, flexible covering for the HX2 housing. The rubber boot cannot
protect the HX2 from destructive, excessive force. It is designed to protect the HX2 housing from
minor, trivial bumps or jostling. The rubber boot does not inhibit tethered devices, cradle docking,
Hip Flip assembly or Armband assembly.
Note: Remove the rubber boot when placing the HX2 in a voice case.
The rubber boot slips over the front and halfway down the sides of the HX2, leaving the touch
screen, keypad, LXE logo and the HX2 logo visible.
Figure 35 HX2 Rubber Boot
Gently stretch the rubber boot over each corner of the front housing until the rubber boot fits
snugly. It can be removed for cleaning, if necessary.
Smaller openings are available in the rubber boot to
• allow access to the cradle connector on the bottom of the HX2
• allow audible signals from the internal speaker to be heard
• and allow audible signals to be sent through the internal microphone.
Protective Film for the Screen Display
First, clean the display of fingerprints, lint particles, dust and smudges.
Remove the protective film from its container. Remove any protective backing from the film sheet
by lifting the backing from a corner of the film. Discard the backing.
Apply the film to the screen starting at one side and smoothing it across the display. If air bubbles
appear, raise the film slightly and continue smoothing the film across the display until it covers the
glass surface of the display.
If dust, lint or smudges are trapped between the protective film and the glass display, remove the
protective film, clean the display and apply the protective film again.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
40 HX2 Voice Case Assembly
HX2 User’s Guide E-EQ-HX2OGWW-A
HX2 Voice Case Assembly
The voice case is a sturdy, lightweight covering for the HX2, tethered battery, and voice
accessories. The voice case cannot protect the HX2 from destructive, excessive force or a harsh or
wet environment. It is designed to protect the HX2 from dirt, dampness, and minor, trivial bumps
or jostling.
Figure 36 HX2 Voice Case
1. Slide the belt through the belt loop on the voice case. Do not put the belt on yet.
2. Attach the battery cable, ring scanner and audio device to the HX2.
3. Slip the HX2 into the voice case. Be sure the screen and keypad are visible through the
clear window of the voice case.
4. Slide the battery cable through the protective loop at the bottom of the voice case. Make
sure the tethered cable for the ring accessory is on the outside of the voice case.
5. Slip the battery into the battery sleeve and connect the battery to the battery cable. The
battery charge terminals (small metallic circles) should always be covered by the sleeve.
6. Press the hook and loop fabric at the top of the device together.
7. The HX2 in the Voice Case is ready for use.
8. Put the belt on. Adjust the belt and voice case for comfort.
Examine the tethers and the hook and loop fabric fastening periodically. If any are loose or
unfastened, tighten the tethers and the top fastener before placing the voice case back into service.
If the voice case is damaged, it should be removed from service.
Note: The HX2 with a voice case does not fit in the HX2 cradle. Remove the voice case before
placing the HX2 in a charged cradle.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
Removing/Replacing the Armband Straps 41
E-EQ-HX2OGWW-A HX2 User’s Guide
Removing/Replacing the Armband Straps
Note: Remove the HX2 and any of its tethered devices from the Armband before removing and
replacing the armband straps.
The armband is a lightweight, sturdy mounting platform for the HX2. There are two armband
straps. The shorter strap is used at the end-user wrist area and the longer strap is used at the end-
user forearm area. See Accessories for replacement or different lengths of LXE HX2 armband
straps.
Armband – Bottom View
1 Removable Mesh Arm Cover
2 Arm Strap Brackets
3 Adjustable Arm Straps
Figure 37 Removing/Replacing the Armband Straps
Figure 38 Armband Straps
1 Hook Fabric
2 Loop Fabric
3 Connection tabs.
4 Strap side for inside.
5 Strap side for outside.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
42 Removing/Replacing the Armband Straps
HX2 User’s Guide E-EQ-HX2OGWW-A
1. Slip each end of the arm strap through the arm strap brackets ensuring the hook and loop
fastening sections are on the outside of the armband.
2. Press the hook end against the loop fastener, located just below the loop fastener, to secure
each end of the strap to the armband. After both straps are loosely fastened in this manner,
snap the HX2 onto the armband bracket.
3. Slip your hand through the armband straps until the armband is in the desired location. Grasp
the tab at one end of the strap to loosen and then tighten each strap until the armband is
comfortably snug.
4. Ensure the HX2 on the armband is stable and does not slide or slip around your arm.
5. Periodically check the straps, strap brackets and hook and loop fabric areas for damage. The
damaged parts should be replaced before the straps or strap brackets are used on an armband
again.
Note: The armband is washable, but only the mesh arm cover and straps are machine
washable.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
HX2 Docking/Charging Cradle 43
E-EQ-HX2OGWW-A HX2 User’s Guide
HX2 Docking/Charging Cradle
Figure 39 Concept – An HX2, Two Batteries and 1 Ring Scanner in Cradle
The HX2 USB desktop cradle secures the HX2 with or without a rubber boot, recharges the
tethered HX2 battery and a spare battery (Standard and Extended), has a protected storage bay for
the tethered Ring Scanner when the HX2 is docked, and enables serial communication with USB
devices (host, client, and other USB cabled devices).
HX2 keypad data entries can be mixed with ring scanner barcode data entries while the HX2 is
docked in a cradle.
Using an external power supply the HX2 cradle recharges Standard batteries in approximately 4
hours (8 hours for the Extended battery). The HX2 does not need to be docked during a spare
battery charging process. See Accessories.
Remove the voice case before placing the HX2 in the cradle.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
44 HX2 Docking/Charging Cradle
HX2 User’s Guide E-EQ-HX2OGWW-A
Cradle LEDs
Figure 40 Concept - Powered Cradle LEDs
1 LED - Left battery charging
bay
Normal State – Off. With battery and power, normal state
may be any state listed in Cradle LEDs.
2 LED - HX2 Docked /
Receiving Power bay
Normal State – Off. With HX2 and power, normal state is
On.
3 LED - Right battery charging
bay
Normal State – Off. With battery and power, normal state
may be any state listed in Cradle LEDs.
HX2 Docked/Receiving Power LED
When LED is … It means ….
Off
No AC/DC power supplied to the cradle
and/or
No HX2 or HX2 is not properly seated in charging bay.
Green HX2 properly seated in charging bay and is receiving power through
the cradle.
Left and Right Battery Charging LED
When LED is … It means ….
Off No battery or no AC
power
No spare battery in the battery bay(s) or no
AC/DC power is being applied to the cradle.
Green Charged Spare battery pack fully charged.
Red Charging Spare battery pack charging.
Amber Standby Spare battery pack temperature out of range.
Flashing Red Fault Spare battery pack fault or failure.
Refer to the HX2 Cradle Reference Guide for instruction in setting up the cradle, inserting the
battery packs, interpreting the LEDs, connecting cables and using the cradle for powering the HX2
and communication.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
HX2 Multi-Charger 45
E-EQ-HX2OGWW-A HX2 User’s Guide
HX2 Multi-Charger
The LXE HX2 Multi-Charger is designed to simultaneously charge up to six HX2 Rechargeable
Lithium Ion Batteries at a time, in any combination of Standard or Extended batteries. The
Standard batteries require less than four hours and the Extended batteries require less than 8 hours.
Total charging time required depends upon battery pack temperature and conditions. There is one
bay that is used for Charging only when the Analyze button is not pressed.
Figure 41 HX2 Multi-Charger
Charging Pocket LED
LED Indication Description
Off No Battery/power Battery pack not plugged in or no power applied.
Green Charged Battery pack fully charged.
Red Charging Battery pack charging.
Yellow Standby Battery pack temperature out of range.
Flashing Red
on any station
Fault Battery pack fault or failure.
Flashing Red
on any station
Timeout Battery analyzer’s 4.5 hour timeout period
expired.
Flashing Red
on all stations.
Charger/Analyzer
Failure
Battery analyzer fault or failure.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
46 HX2 Multi-Charger
HX2 User’s Guide E-EQ-HX2OGWW-A

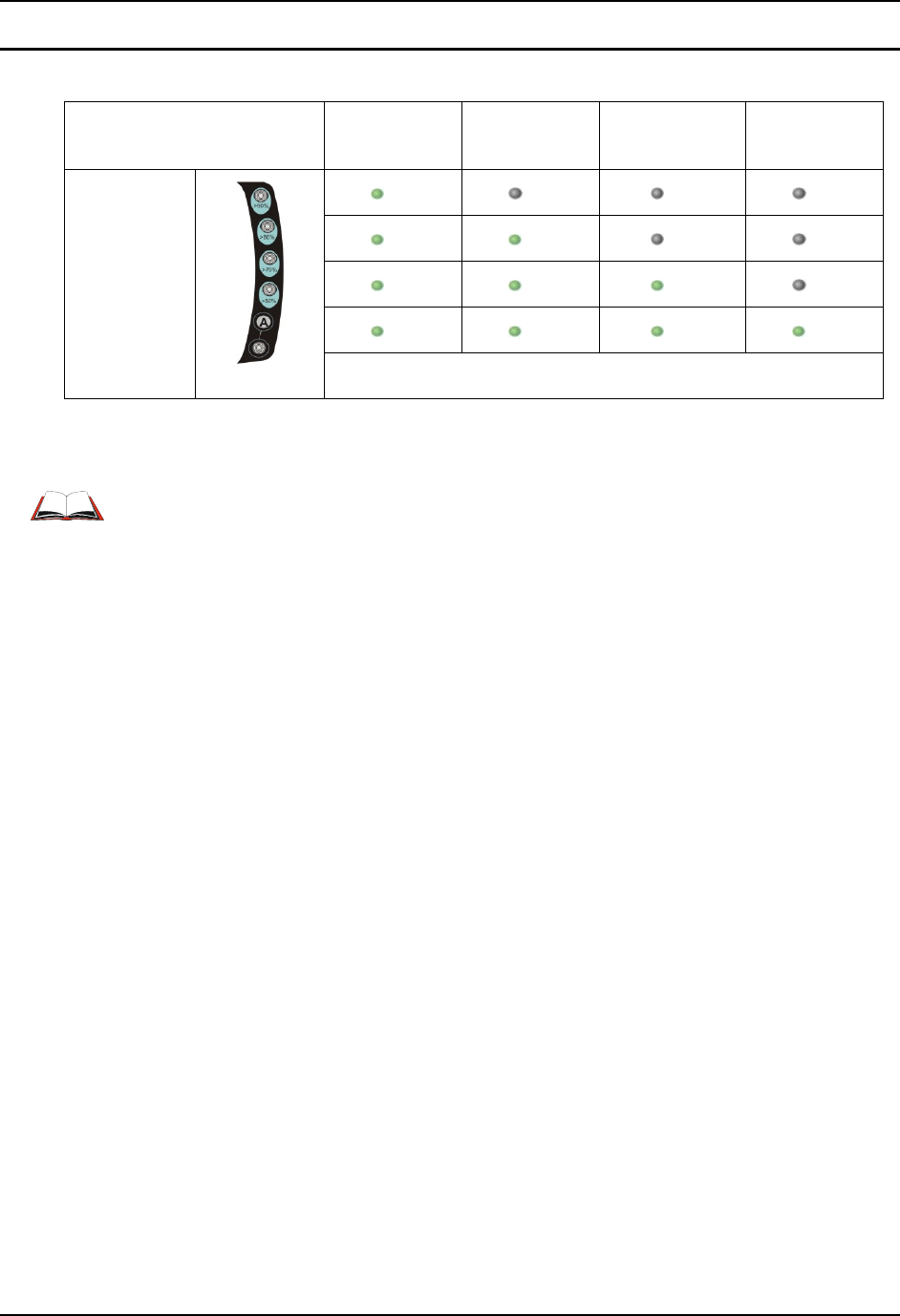

Charger/Analyzer LEDs
Percentage of Battery
Capacity
Between 90%
and 100%
Between 80%
and 90 %
Between 70%
and 80%
Between 50%
and 70%
On Off Off Off
On On Off Off
On On On Off
On On On On
Analyze
Progress
LED Status
When all LEDs are off, the battery capacity is less than 50%.
Figure 42 Multi-Charger Control Panel
Refer to the HX2 Multi-Charger User’s Guide for instruction in setting up the charger, inserting
the battery packs into the charging bays, interpreting the LEDs and using the Charge/Analyze
Pocket.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
E-EQ-HX2OGWW-A HX2 User’s Guide
Appendix A Key Maps
23 Key Keypad
Hints
• When using a sequence of keys that require an alpha key, first press the Alpha key.
• Double tap the Alpha key for upper case alphabetic characters.
• Single tap the Alpha key to enter and exit Alpha mode.
• Default Alpha mode produces lower case alphabetic characters when numeric keys are
pressed.
• Pressing the Alpha key forces “Alpha” mode for all keys.
• To create a combination of numbers and letters before pressing Enter, remember to tap the
Alpha key to toggle between Alpha and Numeric mode.
• Use the Input Panel to enter characters that are not available using the 23-key keypad.
• When using a sequence of keys that do not include the Alpha key (Orange) but does include a
sticky key (Blue), press the Blue key first then the rest of the key sequence.
First Press This Key
To Get This Key /
Function Blue Alpha
Then Press This Key
Power / Suspend Power
Volume Up Blue Up Arrow
Volume Down Blue Down Arrow
Blue Mode (Toggle) Blue
Alpha Mode (Toggle) Alpha
Diamond Key Blue Enter
(Start Button) Only Available when
Mapped 3
Uppercase Alpha (Toggle) 4 Alpha Doubleclick
Alpha key 4
Lowercase Alpha 4 N/A (default)
Space Alpha 0
Enter Enter
CapsLock Mode 4 Alpha times 2 Alpha
Back Space Backspace
Escape Blue Backspace
Tab Blue Right Arrow
BackTab Blue Left Arrow
Up Arrow (Cursor Up) Up Arrow
3 Please contact your System Administrator for assistance with User Configured (Mapped) Keys.
4 See Using the 23 Key Keypad for explanation.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
48 23 Key Keypad
HX2 User’s Guide E-EQ-HX2OGWW-A
First Press This Key
To Get This Key /
Function Blue Alpha
Then Press This Key
Down Arrow (Cursor Down) Down Arrow
Right Arrow (Cursor Right) Right Arrow
Left Arrow (Cursor Left) Left Arrow
F1 F1
F2 F2
F3 F3
F4 F4
F5 Blue F1
F6 Blue F2
F7 Blue F3
F8 Blue F4
F9 Only Available when
Mapped 3
F10 Blue 0
F11 Blue 1
F12 Blue 2
F13 Blue 3
F14 Blue 4
F15 Blue 5
F16 Blue 6
F17 Blue 7
F18 Blue 8
F19 Blue 9
F20 Only Available When
Mapped 3
a Alpha 2
b Alpha 22
c Alpha 222
d Alpha 3
e Alpha 33
f Alpha 333
g Alpha 4
h Alpha 44
i Alpha 444
j Alpha 5
k Alpha 55
l Alpha 555
m Alpha 6
n Alpha 66
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
23 Key Keypad 49
E-EQ-HX2OGWW-A HX2 User’s Guide
First Press This Key
To Get This Key /
Function Blue Alpha
Then Press This Key
o Alpha 666
p Alpha 7
q Alpha 77
r Alpha 777
s Alpha 7777
t Alpha 8
u Alpha 88
v Alpha 888
w Alpha 9
x Alpha 99
y Alpha 999
z Alpha 9999
A Alpha times 2 2
B Alpha times 2 22
C Alpha times 2 222
D Alpha times 2 3
E Alpha times 2 33
F Alpha times 2 333
G Alpha times 2 4
H Alpha times 2 44
I Alpha times 2 444
J Alpha times 2 5
K Alpha times 2 55
L Alpha times 2 555
M Alpha times 2 6
N Alpha times 2 66
O Alpha times 2 666
P Alpha times 2 7
Q Alpha times 2 77
R Alpha times 2 777
S Alpha times 2 7777
T Alpha times 2 8
U Alpha times 2 88
V Alpha times 2 888
W Alpha times 2 9
X Alpha times 2 99
Y Alpha times 2 999
Z Alpha times 2 9999
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
50 23 Key Keypad
HX2 User’s Guide E-EQ-HX2OGWW-A
First Press This Key
To Get This Key /
Function Blue Alpha
Then Press This Key
1 1 and 11111 (Alpha Mode)
2 2 and 2222 (Alpha Mode)
3 3 and 3333 (Alpha Mode)
4 4 and 4444 (Alpha Mode)
5 5 and 5555 (Alpha Mode)
6 6 and 6666 (Alpha Mode)
7 7 and 77777 (Alpha Mode)
8 8 and 8888 (Alpha Mode)
9 9 and 99999 (Alpha Mode)
0 0 and 00 (Alpha Mode)
. (period) Alpha 1
\ Alpha 11
* (asterisk) Alpha 111
- (dash or minus sign) Alpha 1111
< > Use Input Panel
[ ] Use Input Panel
{ } Use Input Panel
( ) Use Input Panel
_ (underscore) Use Input Panel
+ (plus sign) Use Input Panel
: ; Use Input Panel
“ ‘ Use Input Panel
? / Use Input Panel
` ` Use Input Panel
! Use Input Panel
@ Use Input Panel
# Use Input Panel
$ Use Input Panel
% Use Input Panel
^ Use Input Panel
& Use Input Panel
| Use Input Panel
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
E-EQ-HX2OGWW-A HX2 User’s Guide
Appendix B Regulatory Notices and Safety Information
FCC Information:
This device complies with FCC Rules, part 15. Operation is subject to the following two conditions:
1. This device may not cause harmful interference,
and
2. This device must accept any interference received, including interference that may cause undesired
operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a residential environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. However, there is no guarantee that the interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to this device not expressly approved by LXE, Inc., could void the user’s
authority to operate this equipment.
Industry Canada:
This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations.
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouiller du
Canada. Le present appareil numérique n’emet pas de bruits radioélectriques dépassant les limites applicables aux
appareils numeriques de le Classe B préscrites dans le Reglement sur le brouillage radioélectrique édits par le
ministere des Communications du Canada.
Notice:
The long term characteristics or the possible physiological effects of radio frequency electromagnetic fields have not
been investigated by UL.
Li-Ion Battery
When disposing of the HX2 main battery, the following precautions should be observed: The battery should be
disposed of promptly. The battery should not be disassembled or crushed. The battery should not be heated above
212°F (100°C) or incinerated.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
52 Index
HX2 User’s Guide E-EQ-HX2OGWW-A
R&TTE Directive Requirements (Applies only to equipment operated within the EU/EFTA)
Information to User
A label on the exterior of the device should resemble one of the labels shown below (the label contains
the LXE part number of the installed radio card). The labels shown below and affixed to the device,
identify where the device may be used and where its use is restricted. Use of a device is prohibited in
countries not listed below or otherwise identified by the label. (May or may not include the 0560
Notifed Body No. Substitute 4 digit Notified Body No. may also be applied.)
Permitted for use in: Austria, Belgium, Denmark, Finland, Germany,
Greece, Hungary, Iceland, Italy, Ireland, Liechtenstein, Luxembourg,
Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, and the
United Kingdom
Permitted for use in France.
WEEE Statement
Important: This symbol is placed on the product to remind users to dispose of Waste Electrical and
Electronic Equipment (WEEE) appropriately, per Directive 2002-96-EC. In most areas, this product
can be recycled, reclaimed and re-used when properly discarded. Do not discard labeled units with
trash. For information about proper disposal, contact LXE through your local sales representative,
or visit www lxe com.
HX2 Approvals/Standards
Product EMI / EMC Standards Safety Standards
HX2
FCC Part 15 Subpart B, Class B
EN 55022 Class B (CISPR 22)
EN 55024:1998
AS/NZS 3548, Class B (CISPR 22)
UL 60950-1 / CSA C22.2 No. 60950-1
IEC/EN 60950-1
Complies with 21CFR1040.10 and
1040.11 except for deviations pursuant
to Laser Notice No. 50, dated July 26,
2001.
• EN60825-1:1994+ A1:2002 +A2:2001
• IEC60825-1:1993+A1:1997+A2:2001
Transceiver:
Transceiver RF (2.4 GHz) standards RF Safety Standards
HX2 with 802.11b/g
[Summit Client]
FCC Part 15.247, Subpart C
FCC Bulletin OET-65
EN 300 328
IC-RSS 210
IC-RSS 102
Unlicensed Operation
Unlicensed Operation
Requires License for Outdoor Use
This device contains transmitter Module FCC ID: KDZLXE4830P
RF Safety Notice (Summit Client)
Caution
This portable device with its antenna complies with FCC’s and Industry Canada’s RF exposure
limits set for an uncontrolled environment. This equipment has shown compliance with FCC and
Industry Canada Specific Absorption Rate (SAR) limits. Highest reported SAR for the HX2 is
.641W/kg on body. Any accessories not provided by LXE should not be used with this device.
This device must not be co-located or operating in conjunction with any other antenna or
transmitter.
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
Index 53
E-EQ-HX2OGWW-A HX2 User’s Guide
LXE 802.11b/g WLAN Declaration of Conformity (Summit Client)
DECLARATION OF CONFORMITY
according to Directives:
1999/5/EC
93/68/EEC
Radio Equipment and Telecommunications Terminal Equipment
and the mutual recognition of their conformity
CE Marking Directive
Type of Equipment:
Brand Name or Trademark:
Type Designation:
Manufacturer:
Address:
Year of Manufacturer:
Direct Sequence 2.4 GHz Wireless LAN Card
LXE
LXE 4830
LXE Inc.
125 Technology Parkway
Norcross, GA 30092-2993 USA
2006
The following harmonized European Standards, technical specifications, or other normative
documents have been applied:
EMC:
EN 301 489-1: 07-2000
EN 301-489-17 07-2000
Radio:
EN 300 328-1 and -2: 2000-7
Safety:
EN 60950-2: 1992 + A1..A4
Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 1: Common technical requirements
Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 17: Specific conditions for Wideband data and
HIPERLAN equipment
Radio Equipment and Systems (RES);
Wideband transmission systems;
Technical characteristics and test conditions for data transmission
equipment operating in the 2,4 GHz ISM band and using spread
spectrum modulation techniques
Safety of information technology equipment, including electrical business
equipment
We, LXE Inc., declare that the equipment specified above complies with all Essential
Health and Safety Requirements of the above Directives and Standards, as amended.
Place: LXE Inc., Norcross GA USA C. Binnom Jr.
RF Approvals Engineer
Date of issue: 26 March 2007
LXE Inc. 125 Technology Parkway Norcross, GA 30092-2993 USA
ph. 770/447-4224 fax 770/447-6928
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
54 Index
HX2 User’s Guide E-EQ-HX2OGWW-A
Annex to DoC for LXE 4830
With regard to the use of external antennas
The LXE 4830 can be equipped with external antennas. The antennas listed have been evaluated with the LXE 4830
pursuant to EN 300 328, and therefore meet the definition of ‘dedicated antenna’ per ERC/REC 70-03 Appendix 1
Table 3; thus the requirement set forth in ERC/REC 70-03 , Annex 3 are met by the LXE model 4830 transceiver.
Dedicated Antennas for use with LXE 4830
LXE P/N Antenna Gain Radio Power Level Antenna Description
153180-0001 2.2 dBi 15.8 dBm Omni, for LXE VX-series computers
160952-0001 0 dBi 15.8 dBm Omni, for LXE MX3-series computers
158399-0001 0 dBi 15.8 dBm Omni, for LXE MX5-series computers
159900-0001 0 dBi 15.8 dBm Omni, for LXE MX7-series computers
160019-0001 0 dBi 15.8 dBm Omni, for LXE VX-series computers
160501-0001 0 dBi 15.8 dBm Omni, for LXE HX1-series computers
160260-0001 0 dBi 15.8 dBm Omni, for LXE HX2-series computers
C. Binnom Jr.
RF Approvals Engineer
26 March 2007
LXE Inc. 125 Technology Parkway Norcross, GA 30092-2993 USA
ph. 770/447-4224 fax 770/447-6928
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
Index 55
E-EQ-HX2OGWW-A HX2 User’s Guide
Laser Light Safety Statement
Warning:
This product uses laser light. One of the following labels is provided on the scanner. Please read the Caution
statement. (US)
Mise én garde:
Ce produit utilise un rayon laser. L’une des étiquettes suivantes est apposée sur le scanneur. Veuillez lire l’avertissement qu’elle
contient. (FR)
Advertência:
Este produto usa luz de laser. O scanner contém um dos seguintes avisos. Favor ler o Aviso. (PT)
Varning:
Denna produkt använder laserljus. En av de nedanstående etiketterna sitter på scannern. Var god läs varningstexten. (SE)
Advarsel:
Dette produkt anvender laserlys. En af følgende mærkater anvendes på scanneren. Læs venligst sikkerhedsforanstaltningen.
(DK)
Varoitus:
Tämä tuote käyttää laservaloa. Skannerissa on jokin seuraavista tarroista. Lue Huomio-kohta. (FI)
Warnung:
Dieses Produkt verwendet Laserlicht. Eines der folgenden Etiketten befindet sich auf dem Scanner. Bitte lesen Sie den
Gefahrenhinweis. (DE)
Attenzione:
Questo prodotto utilizza luce laser. Una delle etichette seguenti c’ ubicata sullo scanner. Si raccomanda di leggere con attenzione
le avvertenze riportate. (IT)
Advarsel:
Dette utstyret bruker laserlys. En av følgende etiketter er plassert på scanneren. Les advarselen på etiketten. (NO)
Advertencia:
Este producto usa luz de láser. Las etiquetas se proveen en la máquina exploradora. Por favor, lea detenidamente la explicación
para las precauciones. (ES)
Waarschuwing:
Dit product gebruikt laserlicht. Een van de volgende labels is op de scanner aangebracht. Lees a.u.b. de waarschuwing onder
Oppassen. (NL)
A
þ
a
ð
ý
d
a
ki
et
ik
et
l
er
d
en
bi
r tanes
i
tara
yý
c
ý
n
ý
n üstünde saðlan
ý
r.
Lüt
f
en D
ikk
at
if
a
d
es
i
n
i
o
k
u
y
un
.
(TR)
(GR)
(KR)
(JP)
(CN)
Legend:
Chinese-CN; Danish-DK; Dutch-NL; English-US; Finnish-
FI; French-FR; German-DE; Greek-GR; Italian-IT;
Japanese-JP; Korean-KR; Norwegian-NO; Portuguese-PT;
Spanish-ES; Swedish-SE; Turkish-TR
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
56 Index
HX2 User’s Guide E-EQ-HX2OGWW-A
Laser Light Class 2 Labels – Ring Scanners
Waiting for JPG file of labels
Laser Light Class 2 Labels – Bluetooth Scanners
Waiting for JPG file of labels
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
E-EQ-HX2OGWW-A HX2 User’s Guide
Index
23 key keypad hints .................................................30
2D Imager................................................................29
A
AC Power Scheme...................................................34
Accessories................................................................6
Electrostatic Discharge .......................................19
Activation Key.........................................................33
Alpha Mode LED ....................................................27
AppLock..................................................................33
Armband..................................................................17
Armband assembly ............................................20, 41
Assembly
armband ..............................................................41
Armband .............................................................20
Audio Cable, Headset and Battery......................23
Battery and Ring Scanner ...................................22
Cables..................................................................22
protective film.....................................................39
rubber boot..........................................................39
voice case............................................................40
Audio Cable, Headset and Battery assembly...........23
Audio Volume settings ............................................35
B
Backlight timer ..................................................36, 37
Barcode reader aperture...........................................13
Battery
Check status ........................................................32
Important...............................................................3
Battery and Ring Scanner ........................................22
Battery Power Scheme.............................................34
Bluetooth Status LED..............................................27
Bracket Clips ...........................................................16
C
Charge and connect contacts ...................................15
Cleaning...................................................................37
Coldboot ..................................................................25
Color displays and backlight timers.........................36
Components...............................................................9
Armband .............................................................17
Back ....................................................................11
Cables..................................................................14
Connectors ..........................................................12
Cradle connector .................................................12
Front....................................................................10
Hip Flip ...............................................................18
Mounting brackets...............................................16
Ring Scanners .....................................................13
Tethered battery ..................................................15
Contact LXE..............................................................6
Cradle
Features...............................................................43
LEDs ...................................................................44
D
Data entry
imager .................................................................29
keypad.................................................................28
laser scanner........................................................29
stylus ...................................................................28
virtual keyboard ..................................................31
Data entry ................................................................28
Data Loss
Backup Battery......................................................3
Display and scanner aperture cleaning ....................37
Display backlight timer .....................................36, 37
E
Entering Data...........................................................28
F
Features .....................................................................1
Forms entry..............................................................28
G
Getting Started.........................................................19
Glossary.....................................................................6
H
Hardware Reset .......................................................25
Help ...........................................................................6
Hints
Key Maps............................................................47
Hip Flip....................................................................18
I
Important Battery Information...................................3
Input panel
For Approvals Review - Do not publish or distribute - LXE Confidential - Draft 09 / Approvals
58 Index
HX2 User’s Guide E-EQ-HX2OGWW-A
virtual keyboard ..................................................31
K
Key Maps.................................................................47
Keypad and entering data ........................................28
Keypad and Input Panel keys ..................................26
L
LEDs
Cradle..................................................................44
HX2.....................................................................27
Multi-Charger .....................................................45
Li-ion battery...........................................................15
Lithium Ion battery warning......................................3
LXE applications .....................................................25
LXE Manuals CD ......................................................6
M
Microphone on headset............................................23
Mode timers, Power.................................................34
Mounting brackets ...................................................16
Multi-Charger
Features...............................................................45
Multifunction cables................................................14
O
Operating Temperature
Battery...................................................................4
HX2.......................................................................4
Optional software ....................................................25
P
Power key ................................................................24
Power Scheme .........................................................34
Protective film .........................................................39
Q
Quick Start
Prerequisites........................................................19
Quick Start Instructions ...........................................19
R
Recalibrate...............................................................24
Regulatory Notices ..................................................51
Related Manuals ........................................................2
Resume Mode, How To...........................................24
Risk of explosion
Battery...................................................................3
RoHS Accessories .....................................................6
Rubber boot assembly .............................................39
S
Safety Information...................................................51
Scanner status, LED ................................................30
Scanning and data entry...........................................29
Scheme ....................................................................34
Soft case..............................................See Voice Case
Sound Scheme .........................................................35
Stylus and data entry................................................28
Stylus, Using............................................................24
Suspend Mode, How To ..........................................24
Suspend Timer.........................................................34
Switching applications
AppLock .............................................................33
System Idle Timer ...................................................34
System Status LED..................................................27
T
Timer
User, System, Suspend........................................34
Touchscreen and data entry .....................................28
Touchscreen calibration...........................................24
Transcribing and data entry .....................................28
Troubleshooting, Quick Start...................................20
U
User Idle Timer........................................................34
V
Virtual keyboard
Input panel ..........................................................31
Voice case assembly................................................40
Voice data and data entry ........................................30
Volume
adjust audio volume ............................................35
W
Warmboot................................................................25
Warnings and Labels
Ring Scanner.........................................................2
