User Manual MX3X

MX3X User’s Guide

(Microsoft® Windows® CE .NET 4.2 / CE 5.0 Equipped)

E-EQ-MX3XOGWW-J

Language: English

Notices

LXE Inc. reserves the right to make improvements or changes in the products described in this guide at any time without notice.

While reasonable efforts have been made in the preparation of this document to assure its accuracy, LXE assumes no liability

resulting from any errors or omissions in this document, or from the use of the information contained herein. Further, LXE

Incorporated, reserves the right to revise this publication and to make changes to it from time to time without any obligation to

notify any person or organization of such revision or changes.

This manual is copyrighted. All rights are reserved. This document may not, in whole or in part, be copied, photocopied,

reproduced, translated or reduced to any electronic medium or machine-readable form without prior consent, in writing, from

LXE Inc.

125 Technology Parkway, Norcross, GA 30092 U.S.A. (770) 447-4224

Trademarks:

LXE® and Spire® are registered trademarks of LXE Inc. RFTerm® is a registered trademark of EMS Technologies, Norcross,

GA.

Summit Data Communications, Inc. Summit Data Communications, the Summit logo, and “The Pinnacle of Performance” are

trademarks of Summit Data Communications, Inc.

The Cisco Square Bridge logo is a trademark of Cisco Systems, Inc.; Aironet, Cisco and Cisco Systems are registered trademarks

of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.

Symbol, the Symbol logo and Spectrum24 are registered trademarks of Symbol Technologies, Inc.

Microsoft®, ActiveSync®, MSN, Outlook®, Windows®, the Windows logo, and Windows Media are either registered

trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Java® and Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. or

other countries, and are used under license.

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by LXE, Inc. is under

license.

Wavelink®, the Wavelink logo and tagline, Wavelink Studio™, Avalanche Management Console™, Mobile Manager™, and

Mobile Manager Enterprise™ are trademarks of Wavelink Corporation, Kirkland.

RAM® and RAM Mount™ are both trademarks of National Products Inc., 1205 S. Orr Street, Seattle, WA 98108.

All other brand or product names are trademarks or registered trademarks of their respective companies or organizations.

Adobe®, the Adobe logo, Acrobat®, and the Acrobat logo are registered trademarks of Adobe Systems Incorporated” applies.

Initial Release June 2004.

The user is strongly encouraged to read Appendix B - Regulatory Notices and Safety Information.

Important safety cautions, warnings and regulatory information is contained in Appendix B.

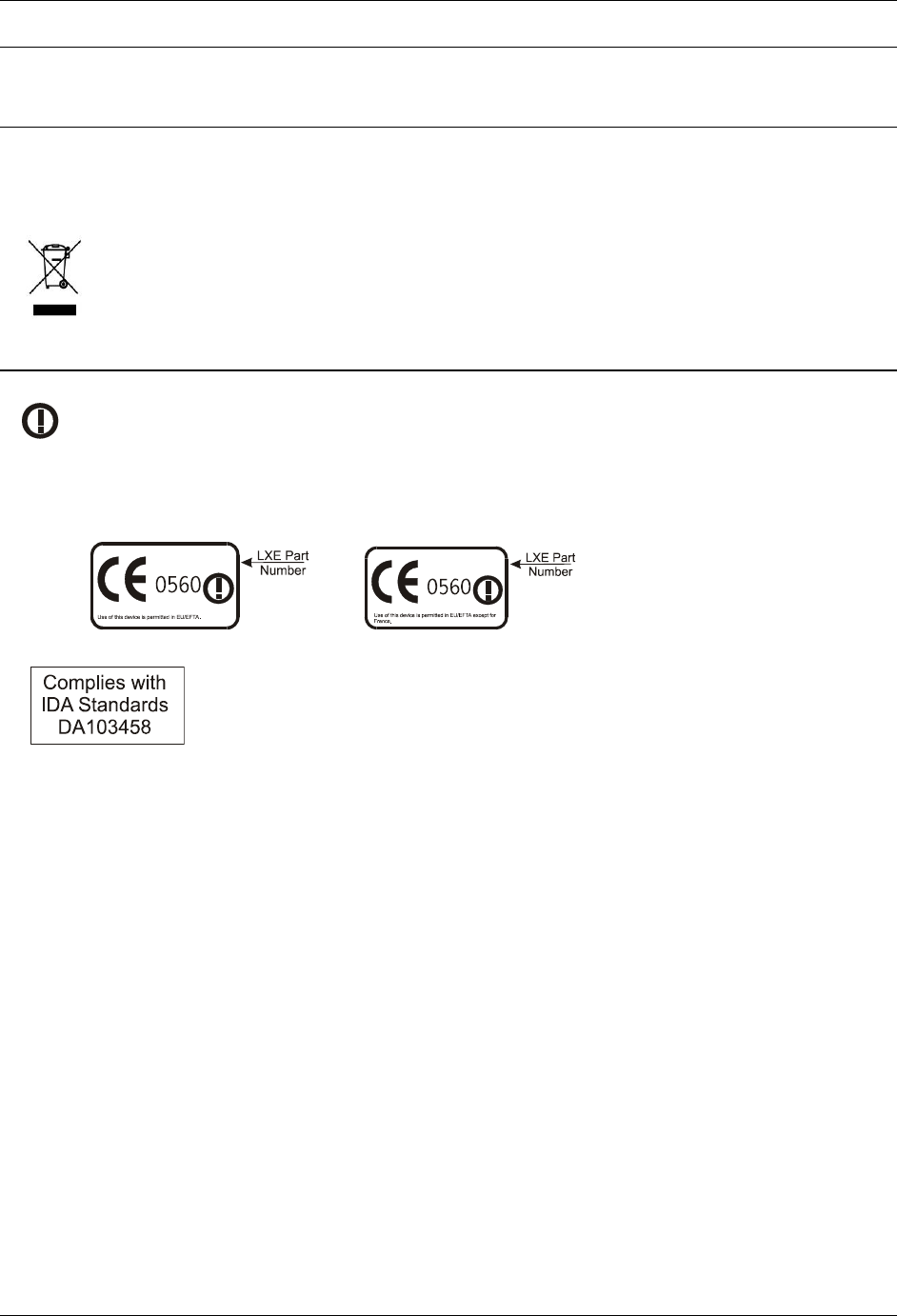

Important: This symbol is placed on the product to remind users to dispose of Waste Electrical and Electronic

Equipment (WEEE) appropriately, per Directive 2002-96-EC. In most areas, this product can be recycled,

reclaimed and re-used when properly discarded. Do not discard labeled units with trash. For information about

proper disposal, contact LXE through your local sales representative, or visit www lxe com.

Revision Notice

Location Description

Introduction Revised Components and Optional Devices sections for endcap and remote

antenna options.

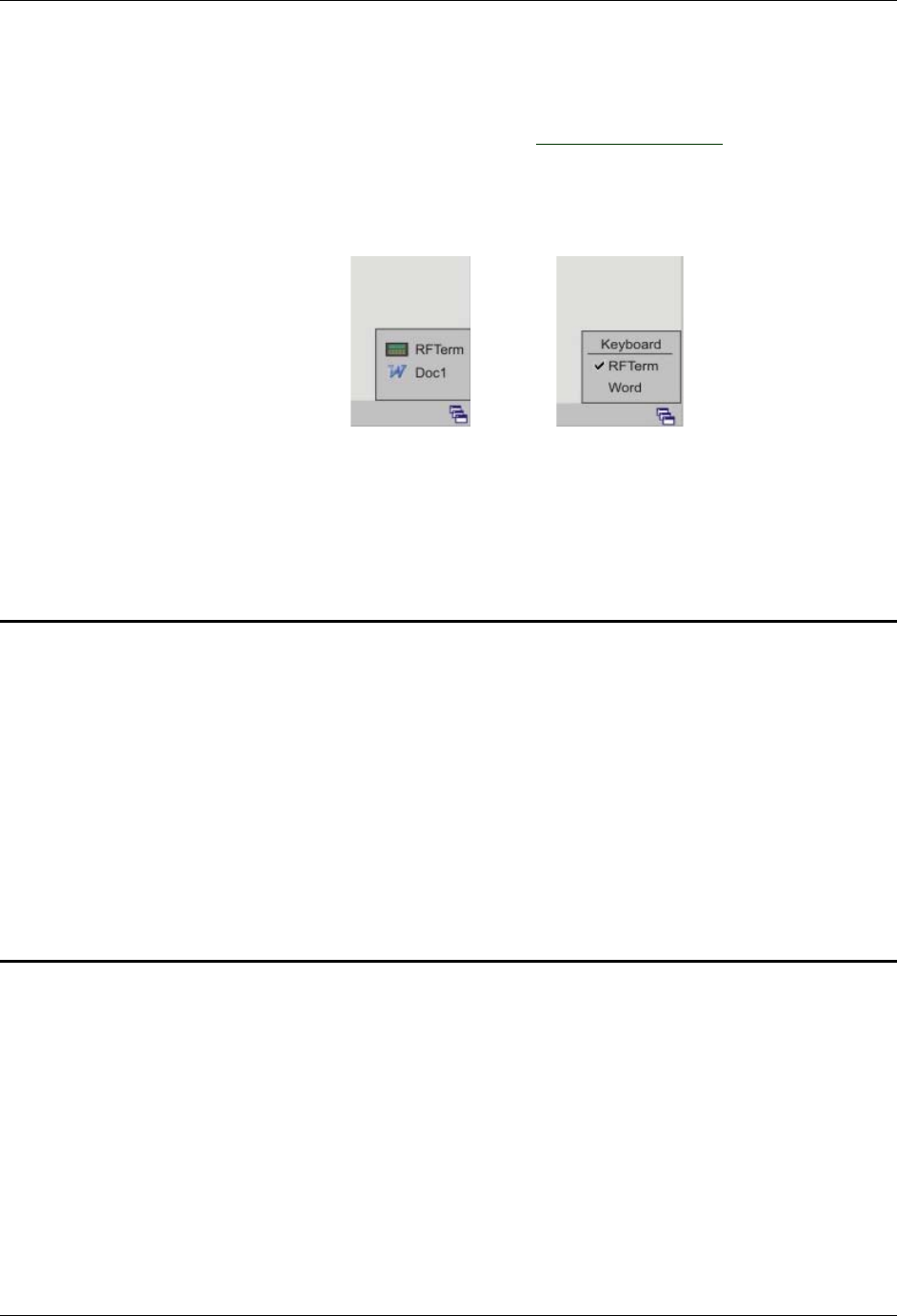

Updated AppLock application switching instruction to include AppLock Launch

function.

Updated Accessories. Added Bluetooth Mobile Barcode Readers to Accessories.

Appendix B – Regulatory

Notices and Safety

Information

Updated R&TTE CE segment.

Added label and text : “Republic of Singapore – LXE Dealer License Number

DA103458 complies with IDA Standards.”

Entire Manual Added Bluetooth information and instruction.

E-EQ-MX3XOGWW-J MX3X User’s Guide

Table of Contents

INTRODUCTION 1

Overview.................................................................................................................................... 1

Features/Options for the MX3X Family ..................................................................................................................2

Related Manuals ......................................................................................................................................................3

Document Conventions............................................................................................................................................4

Environmental Specifications ..................................................................................................................................4

Laser Warnings and Labels..................................................................................................... 5

MX3X ......................................................................................................................................................................5

Battery Well Vent Aperture.....................................................................................................................................6

Components.............................................................................................................................. 7

Front and Back Views..............................................................................................................................................7

Endcap Options........................................................................................................................................................8

MX3P Module .........................................................................................................................................................8

Quick Start ................................................................................................................................9

Troubleshooting .......................................................................................................................................................9

About Lithium-Ion Batteries ..................................................................................................10

Insert Main Battery .................................................................................................................11

Check Battery Status..............................................................................................................................................11

Optional Devices ....................................................................................................................12

Attach Handstrap (Optional)..................................................................................................................................12

Attach the Stylus Clip (Optional)...........................................................................................................................12

Attach to Hip-Flip (Optional) ................................................................................................................................13

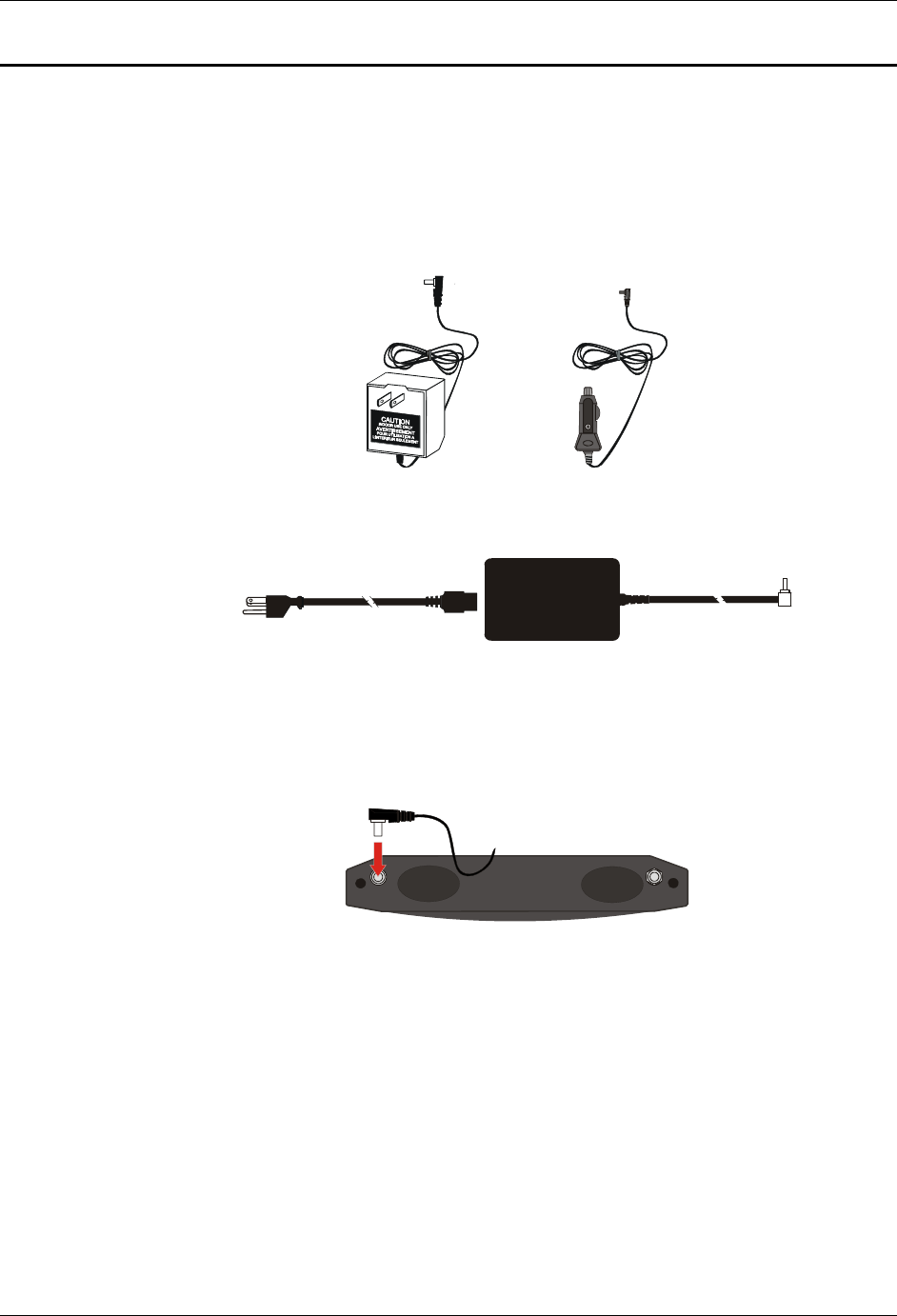

Connect External Power Supply to MX3X or Cradle (Optional)...........................................................................14

Connect External Power Supply to the MX3P.......................................................................................................15

MX3P Specific Power Accessories.....................................................................................................................15

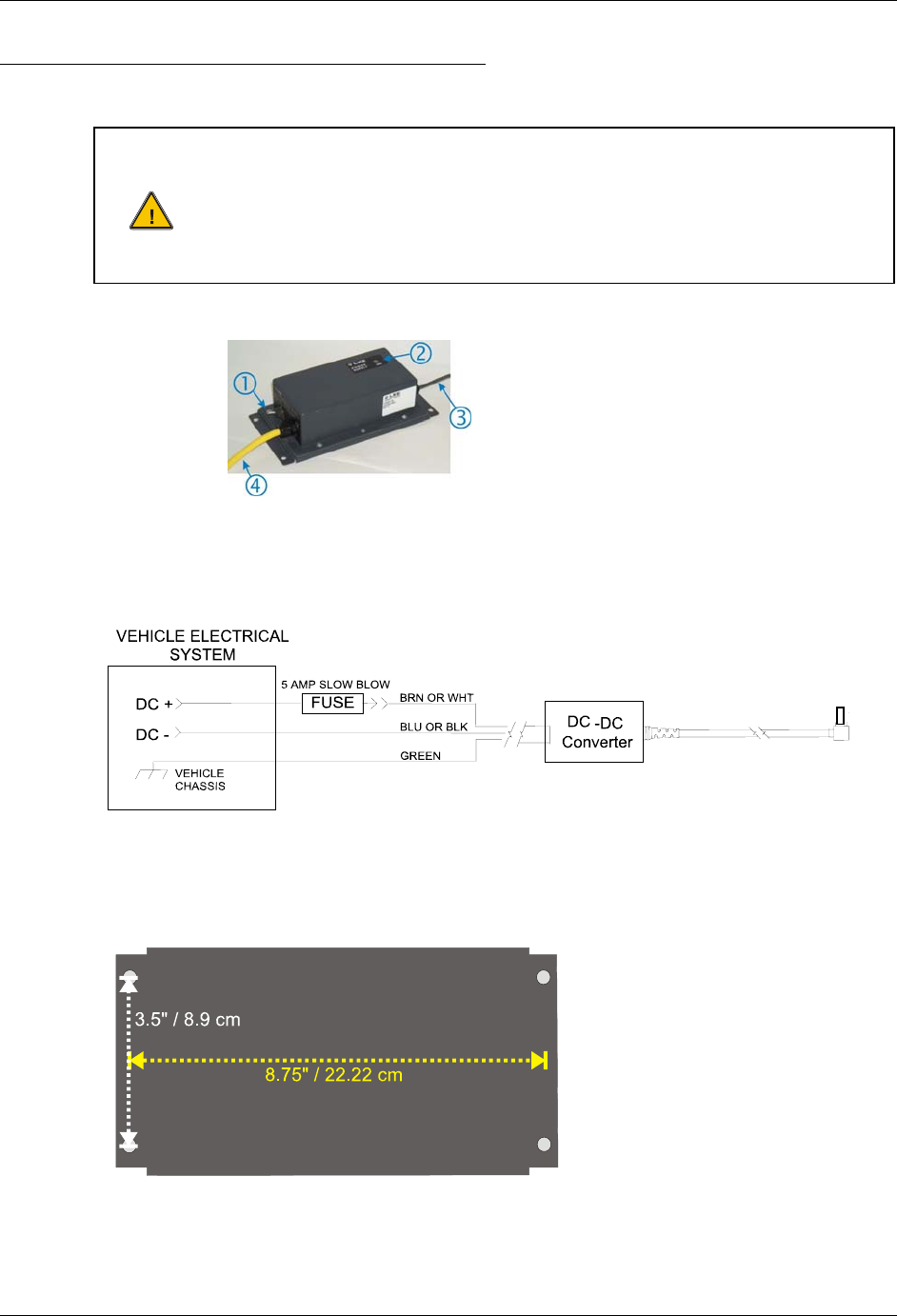

24/72 Maximum VDC Power Supply Input/Output Cable Connection ..............................................................16

12V VDC Power Cable Connection ...................................................................................................................18

Connect MX3X Audio Jack (Optional) .................................................................................................................19

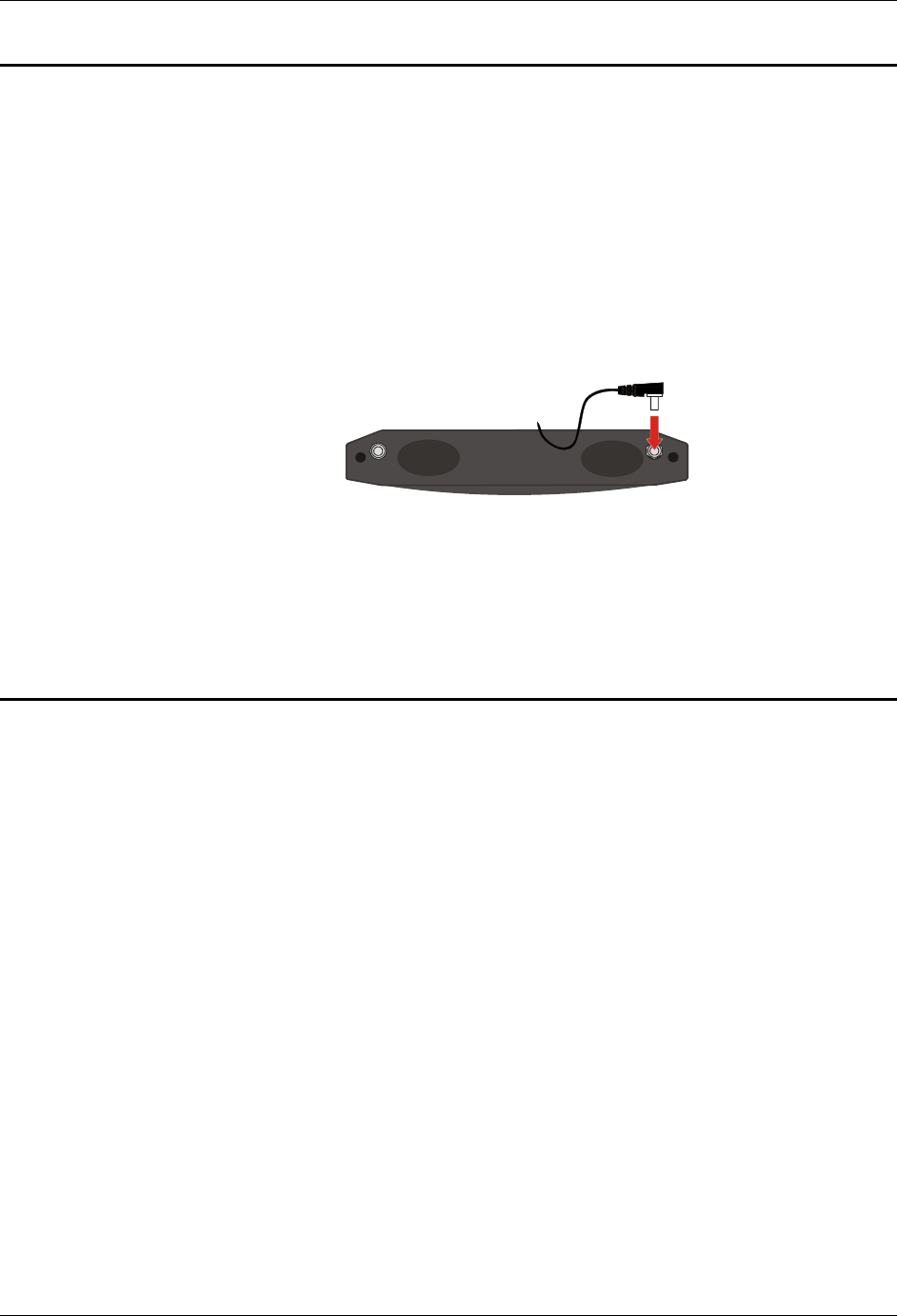

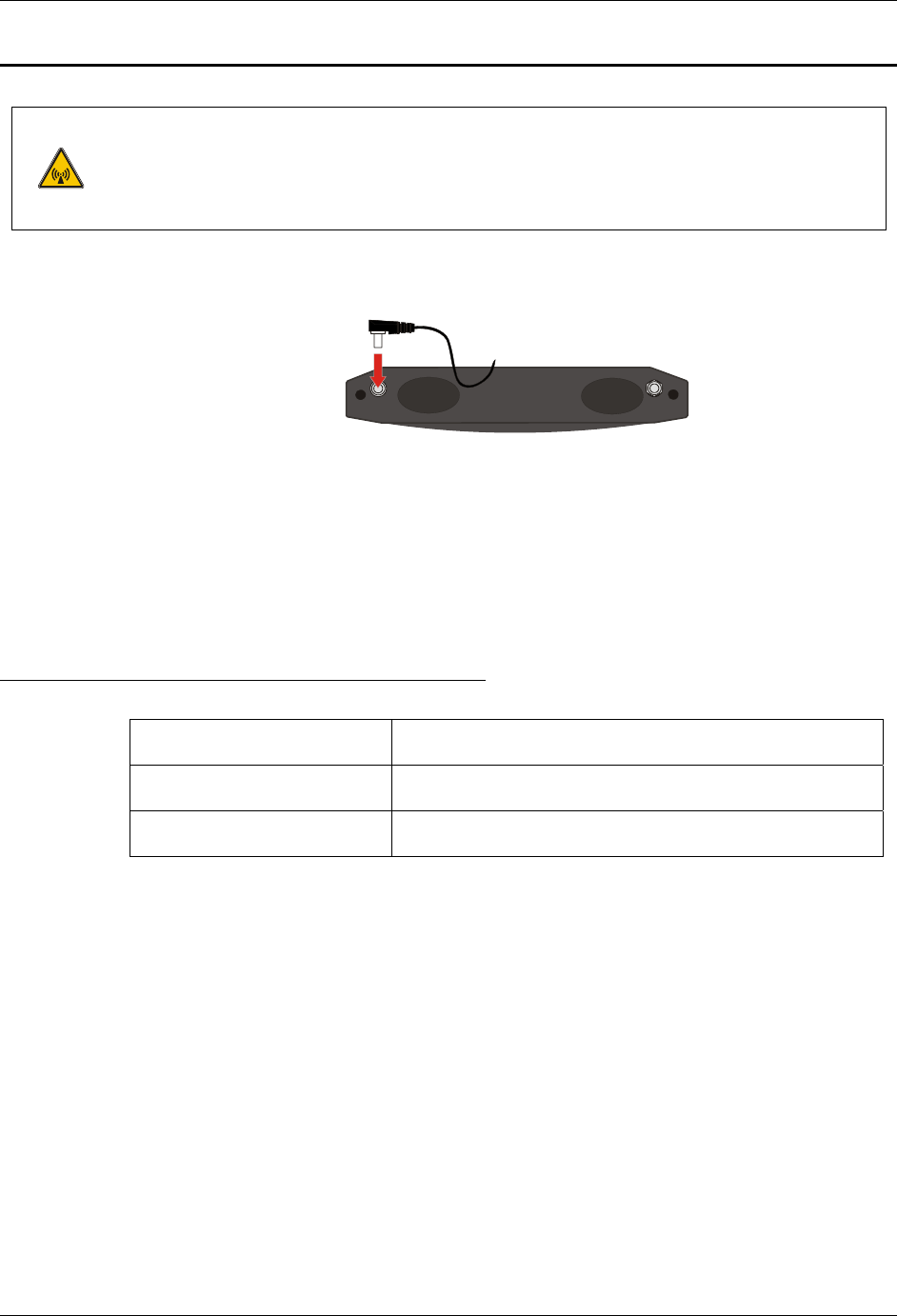

Connect Remote Antenna (Optional).....................................................................................................................19

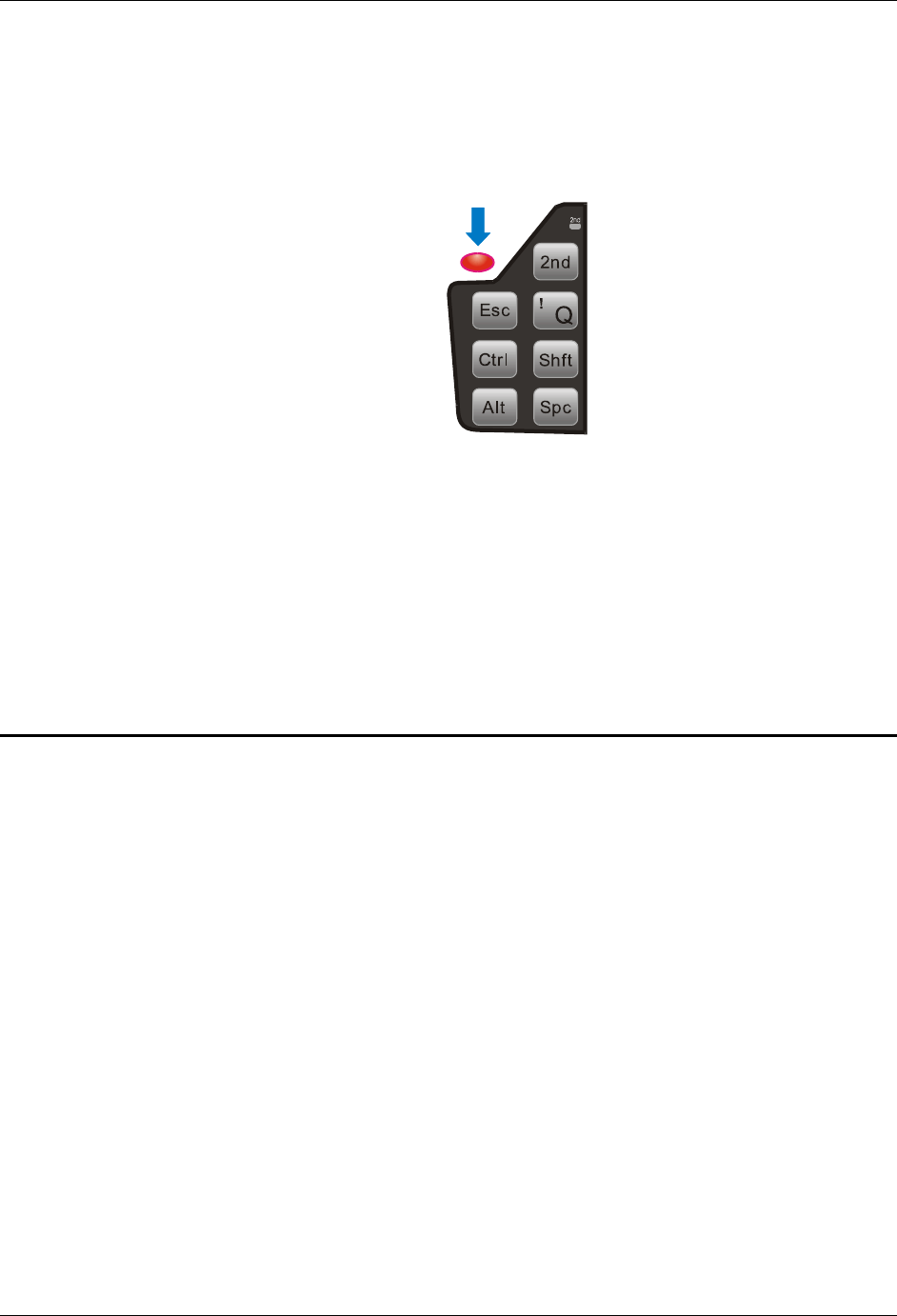

Power Button .......................................................................................................................... 20

Restart Sequence....................................................................................................................................................20

Tapping the Touchscreen with a Stylus............................................................................... 21

Keypad Shortcuts...................................................................................................................................................21

Entering the Multi AppLock Activation Key .........................................................................22

Using a Stylus Tap.................................................................................................................................................22

Using the Switch Key Sequence ............................................................................................................................22

Touchscreen ........................................................................................................................... 23

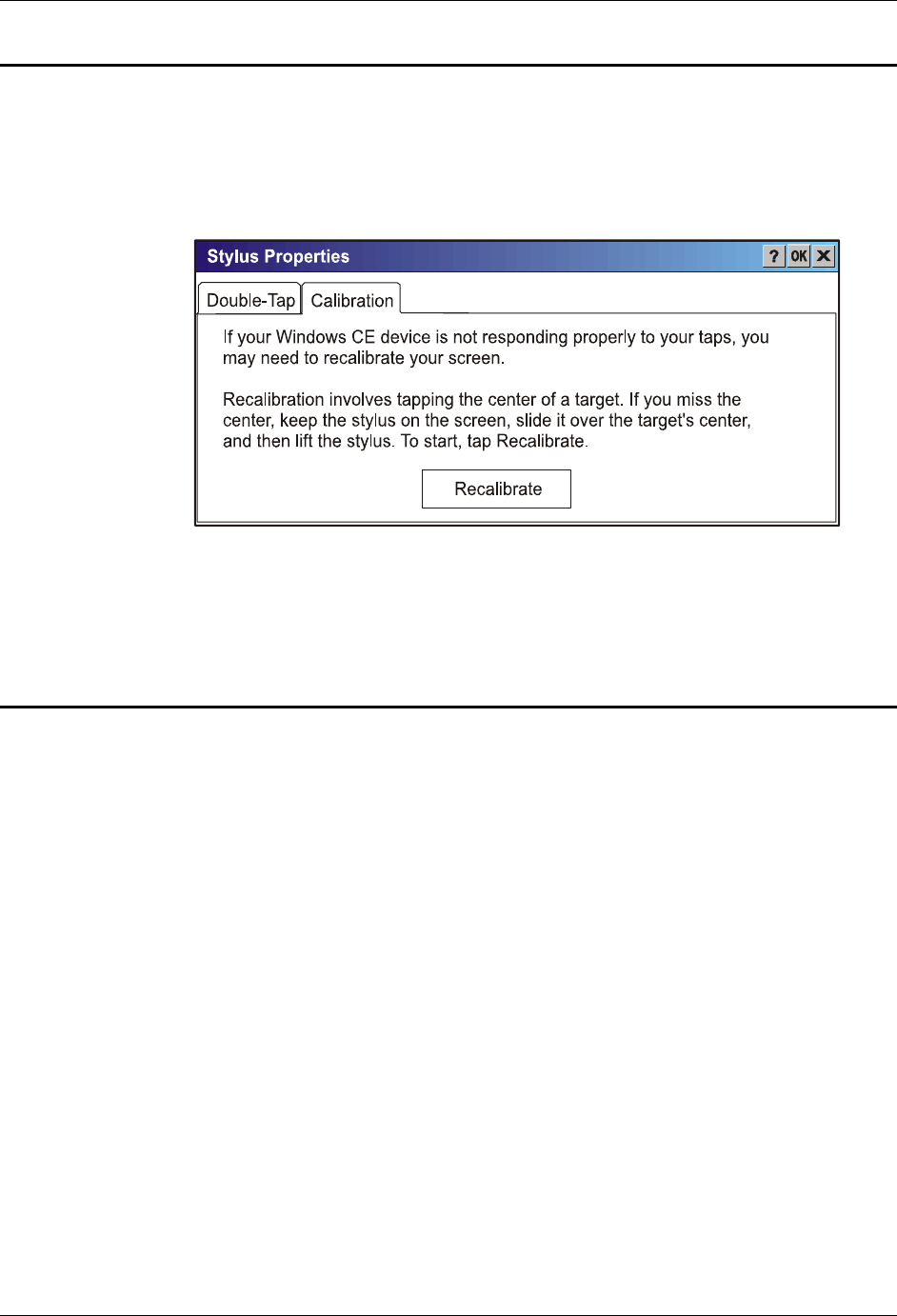

Calibration .............................................................................................................................................................23

Set The Display Contrast .......................................................................................................................................24

Set the Display Backlight Timer............................................................................................................................24

Set The Display Brightness....................................................................................................................................24

Set the Power Schemes Timers..............................................................................................................................25

Battery Power Scheme........................................................................................................................................25

AC Power Scheme ..............................................................................................................................................25

Set The Audio Speaker Volume.............................................................................................26

Using the Keypad...................................................................................................................................................26

Using the Touchscreen...........................................................................................................................................26

Enter Data................................................................................................................................ 27

Keypad Entry .........................................................................................................................................................27

ii Table of Contents

MX3X User’s Guide E-EQ-MX3XOGWW-J

Stylus Entry ...........................................................................................................................................................27

Input Panel .............................................................................................................................................................27

Integrated Laser Scanner Data Entry .....................................................................................................................28

Using a Headset and Voice for Data Entry ............................................................................................................29

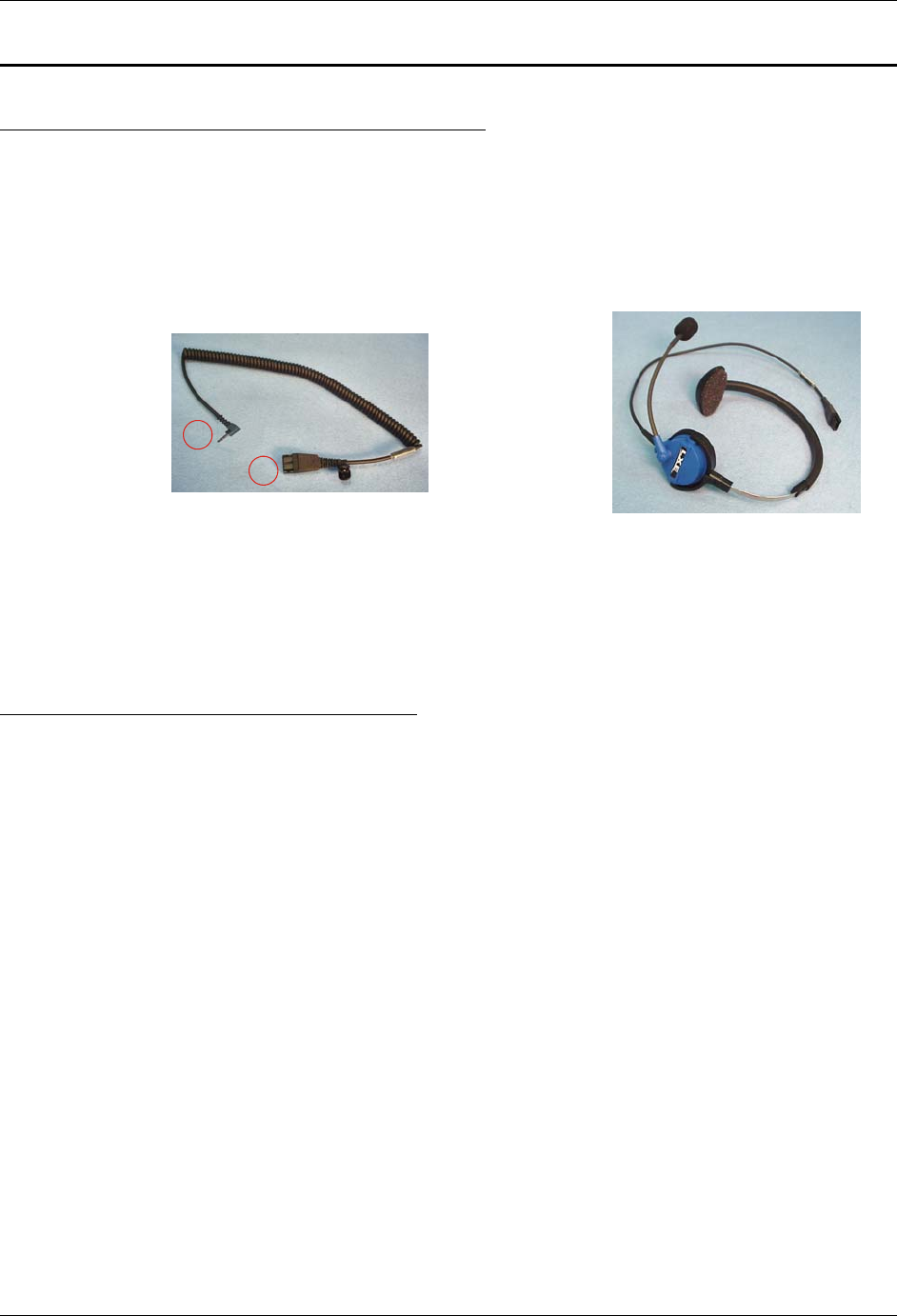

Connecting the Audio Cable and a Headset........................................................................................................29

Adjust Microphone and Secure the Cable...........................................................................................................29

Entering Data ......................................................................................................................................................30

Tethered Scanner ...................................................................................................................................................30

Bluetooth Devices ..................................................................................................................31

Getting Help ............................................................................................................................32

Manuals..................................................................................................................................................................32

Accessories ............................................................................................................................................................32

THE MX3X HAND HELD COMPUTER 37

Touchscreen Display .............................................................................................................37

Applying the Protective Film to the Display..........................................................................................................37

Display Backlight ..................................................................................................................................................37

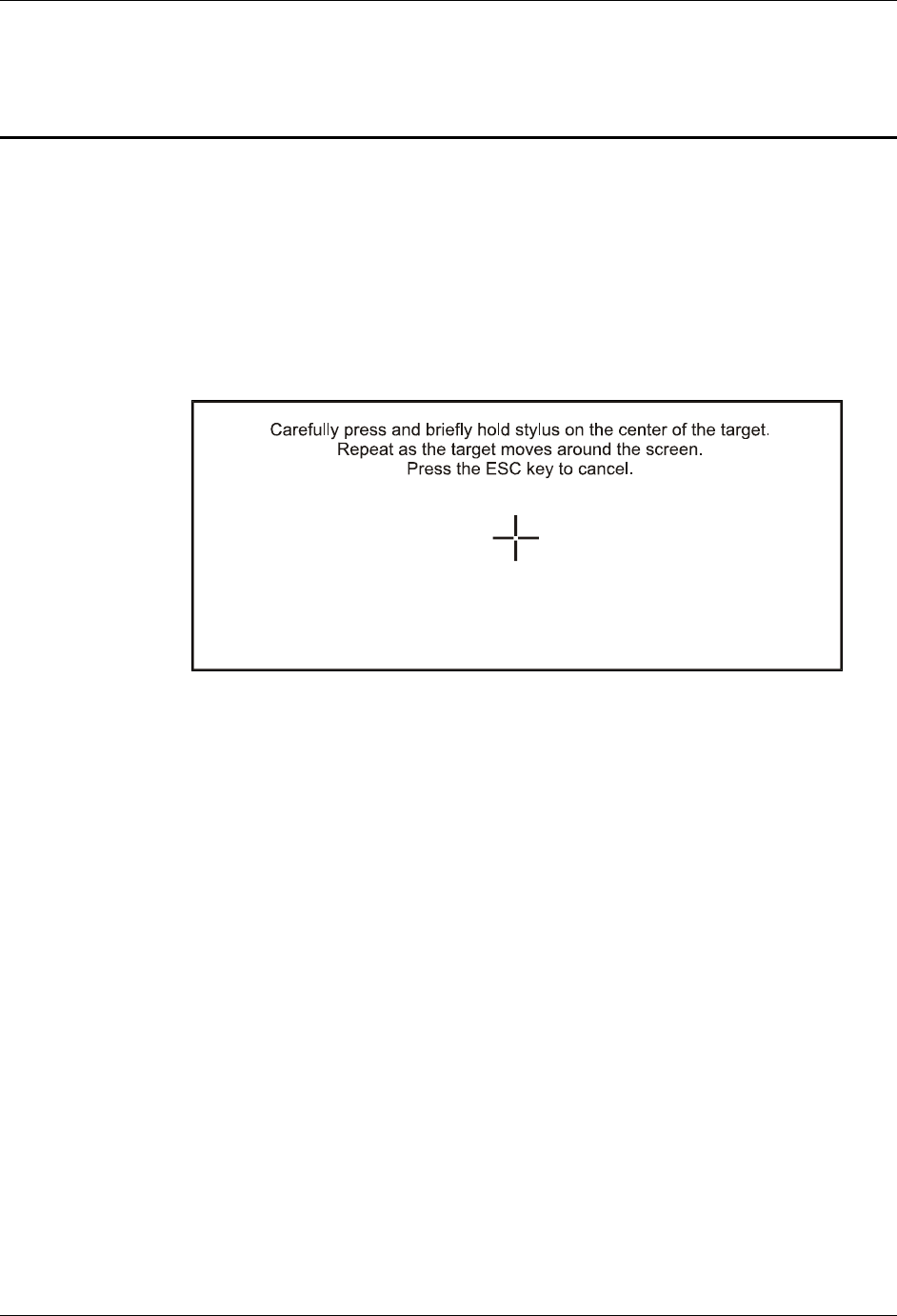

Touchscreen Calibration ........................................................................................................................................38

Cleaning the Glass Display/Scanner Aperture.......................................................................................................38

Scan Buttons ..........................................................................................................................................................39

Field Exit Key Function (IBM 5250/TN5250 Only)...........................................................................................40

Scan Buttons and the SCNR LED.......................................................................................................................40

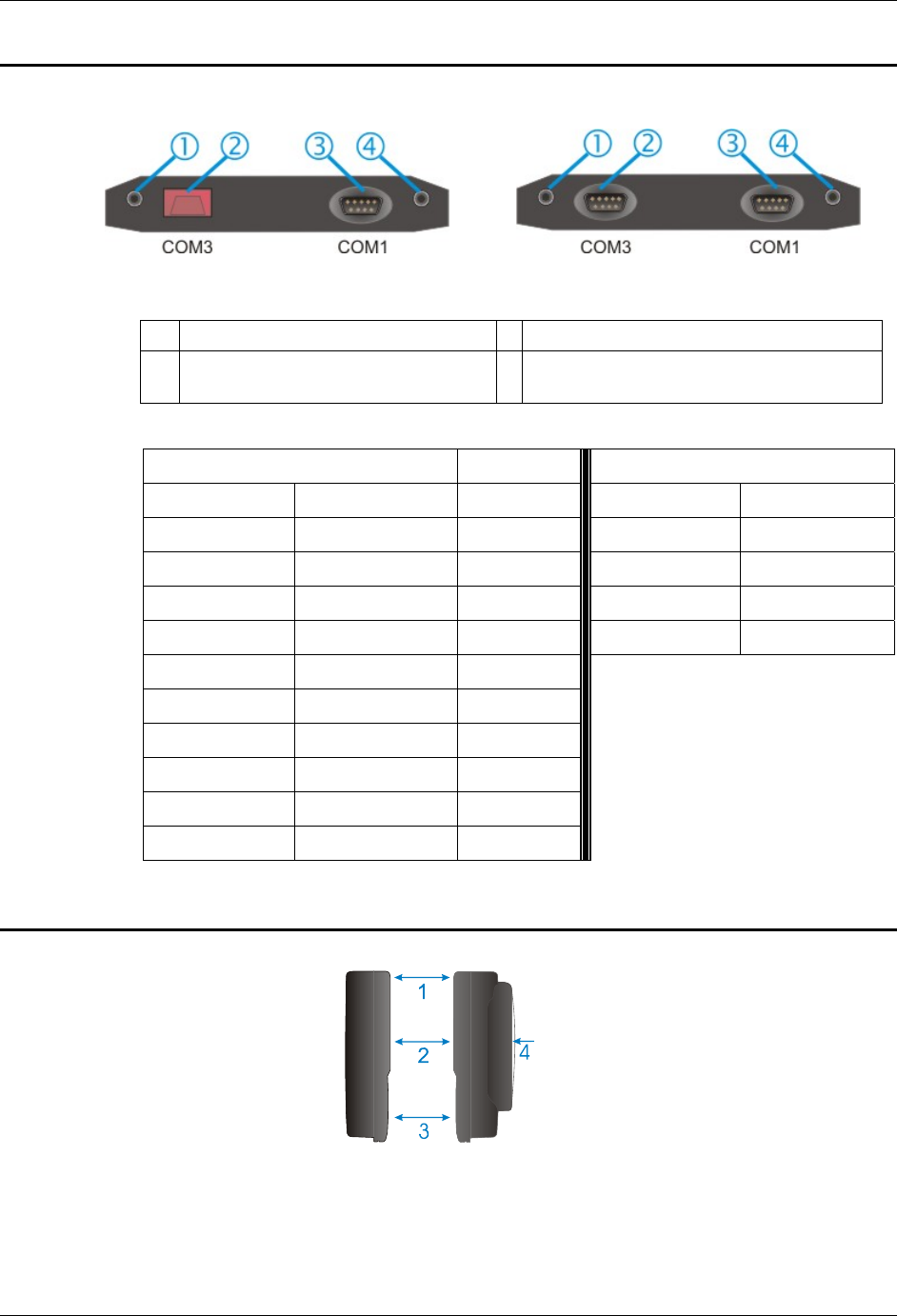

Endcaps and COM Ports........................................................................................................ 41

Endcap Combinations ............................................................................................................................................42

Tethered Scanners..................................................................................................................................................42

USB Port................................................................................................................................................................42

IR Port....................................................................................................................................................................43

The Keypad ............................................................................................................................. 44

Key Functions........................................................................................................................................................44

Field Exit Key Function (IBM 5250/TN5250 Only) .............................................................................................45

Caps Key and CapsLock Mode..............................................................................................................................45

Keypress Sequences...............................................................................................................................................45

Custom Key Maps .................................................................................................................................................45

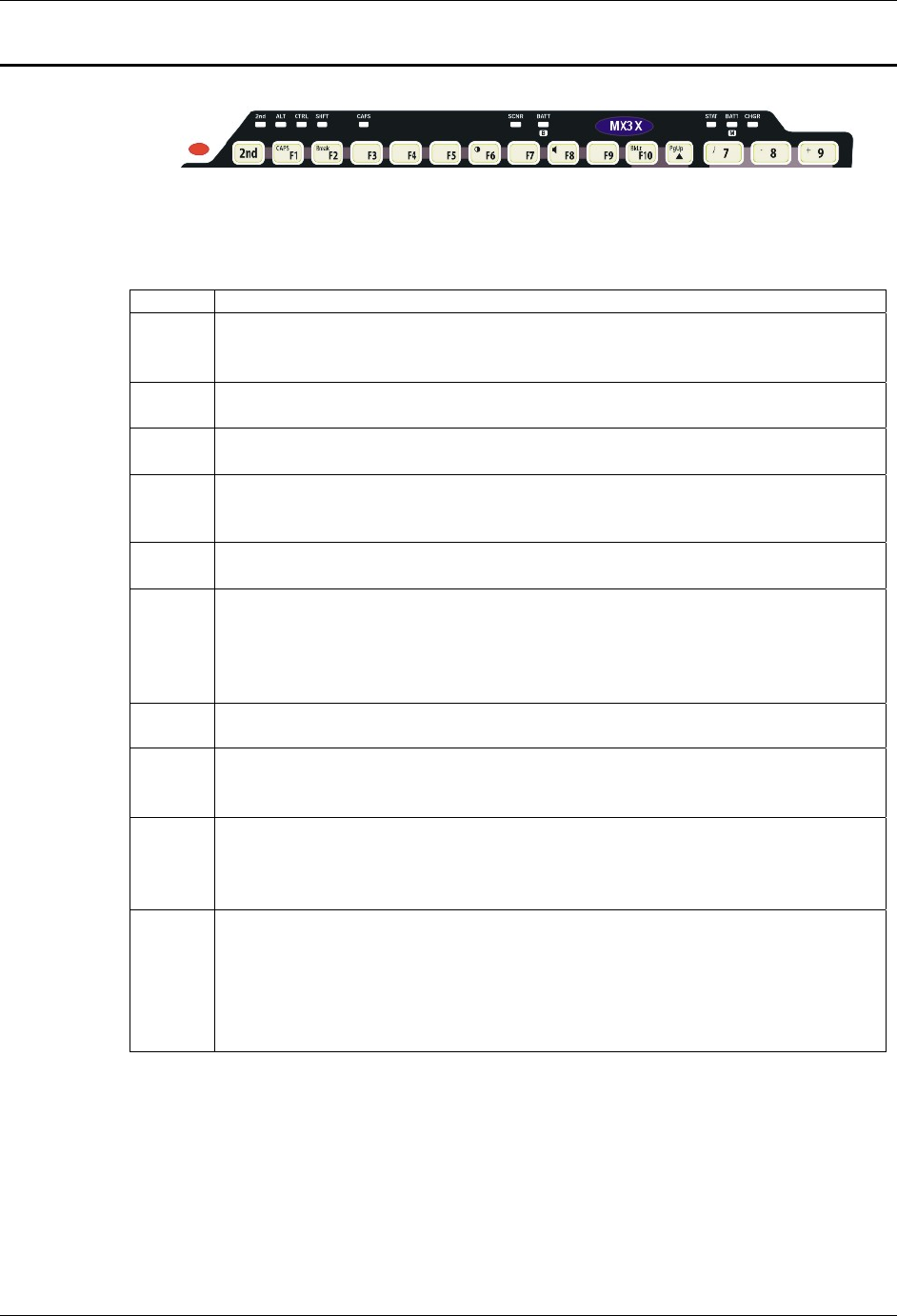

LED Functions.......................................................................................................................................................46

Batteries .................................................................................................................................. 47

Main Battery ..........................................................................................................................................................47

Backup Battery ......................................................................................................................................................47

Battery Hot-Swapping ...........................................................................................................................................47

Battery Chargers ....................................................................................................................48

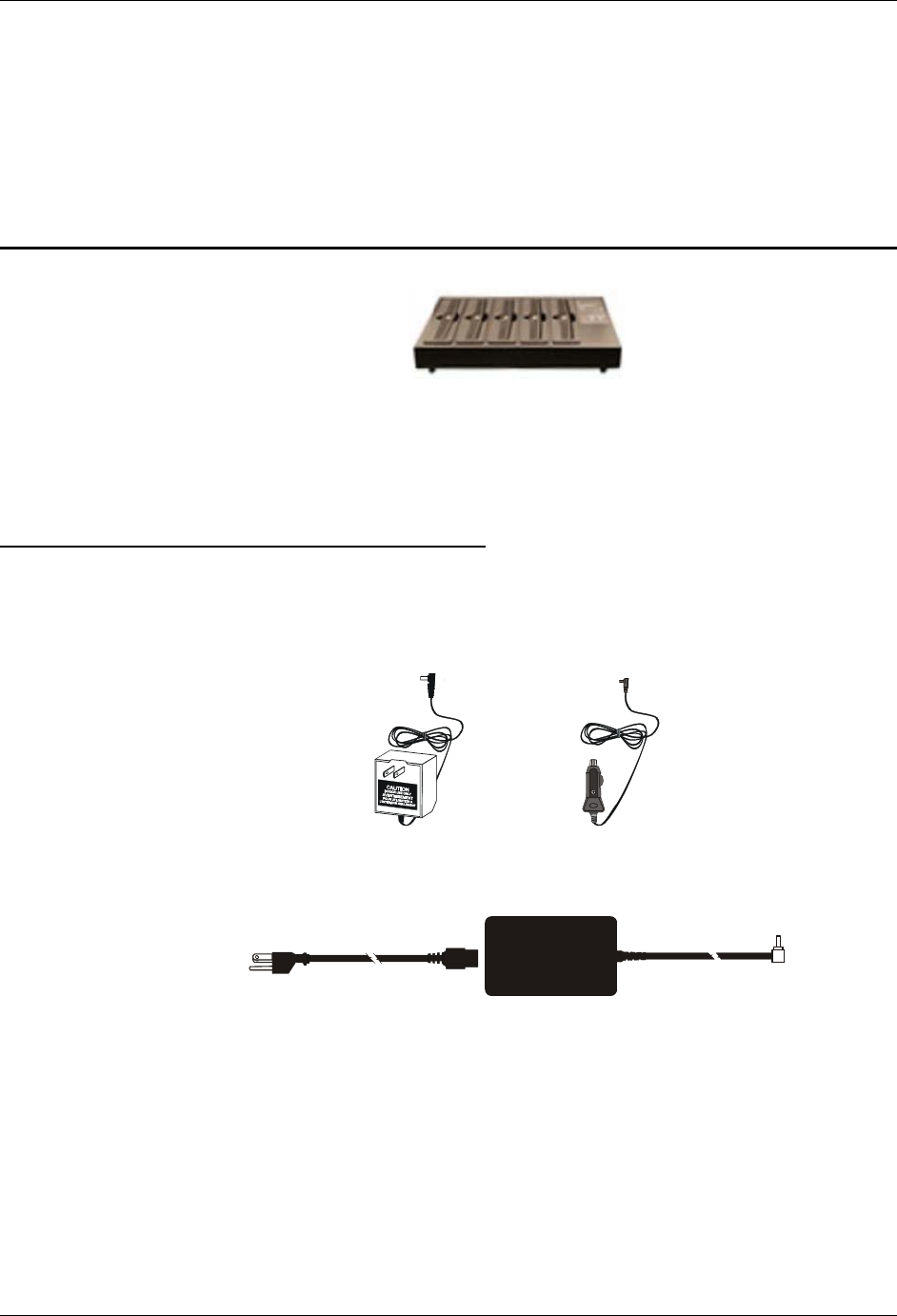

LXE Multi-Charger Plus........................................................................................................................................48

External Power Supply (Optional)......................................................................................................................48

Storage Cradles ......................................................................................................................49

Status LED.............................................................................................................................................................49

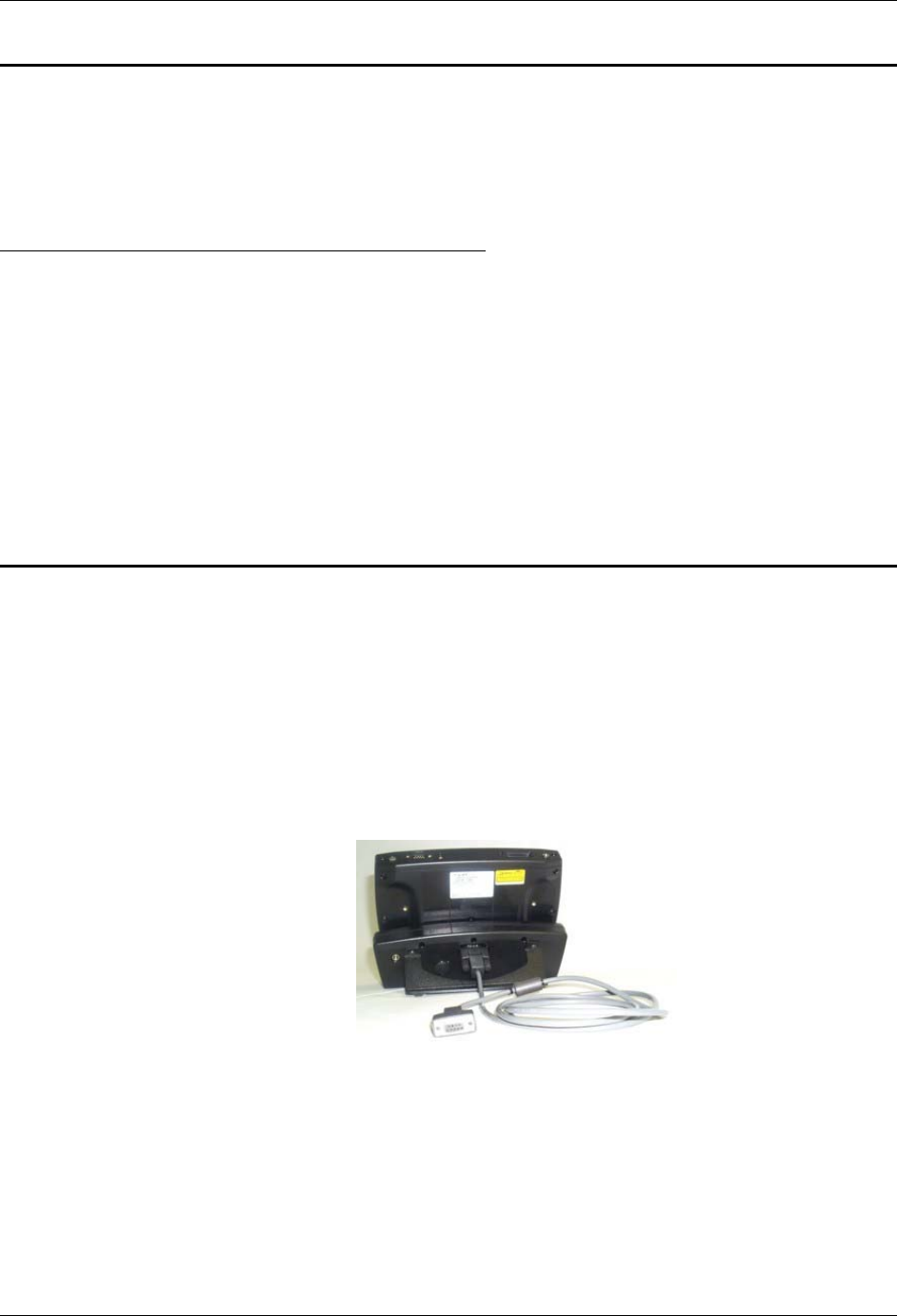

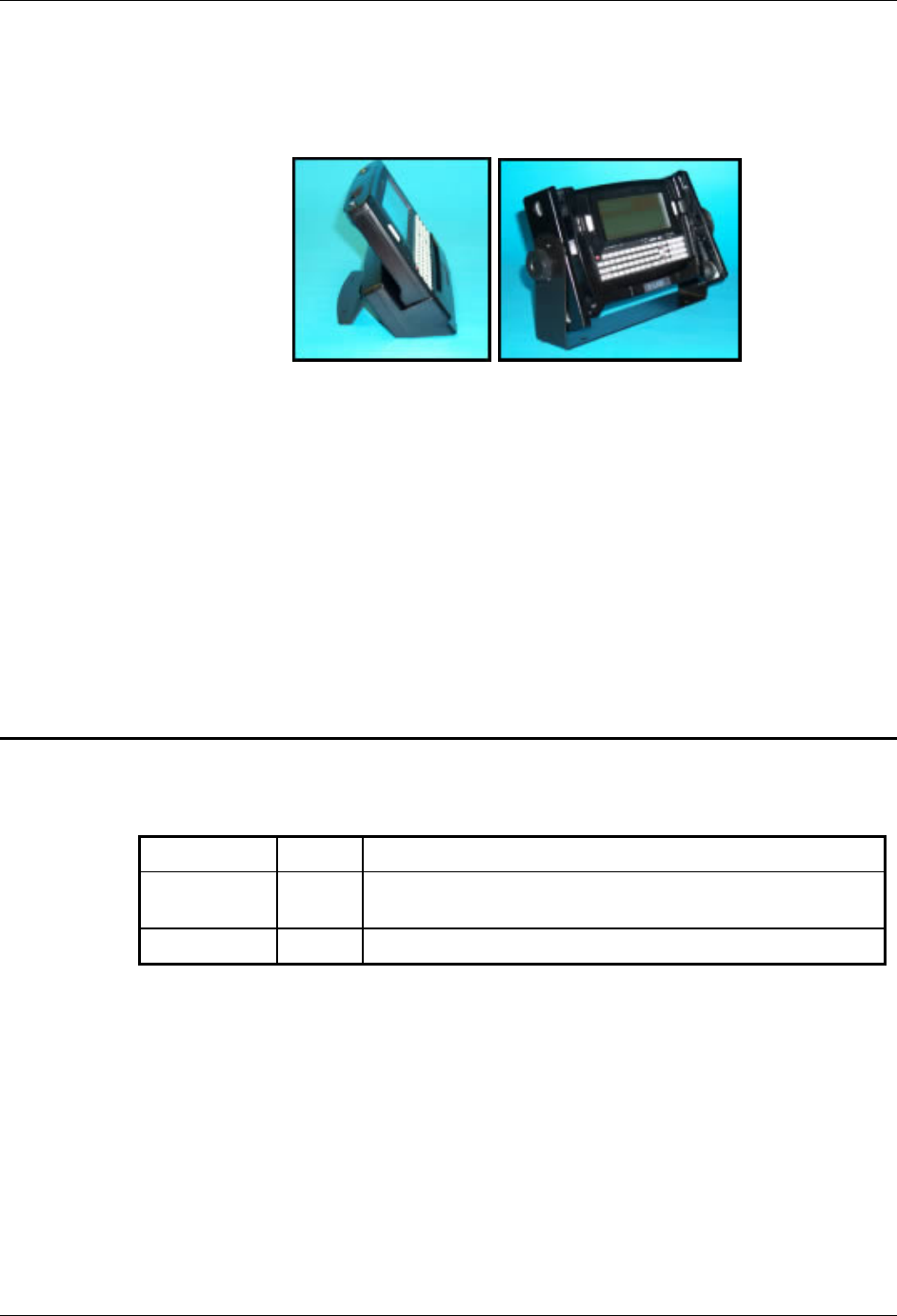

Desktop Cradle for MX3X.....................................................................................................................................50

Connectors ..........................................................................................................................................................50

Vehicle Mount Cradle for MX3X..........................................................................................................................51

Connectors ..........................................................................................................................................................51

ActiveSync with a Cradle ......................................................................................................................................51

Tethered Scanner and a Cradle ..............................................................................................................................52

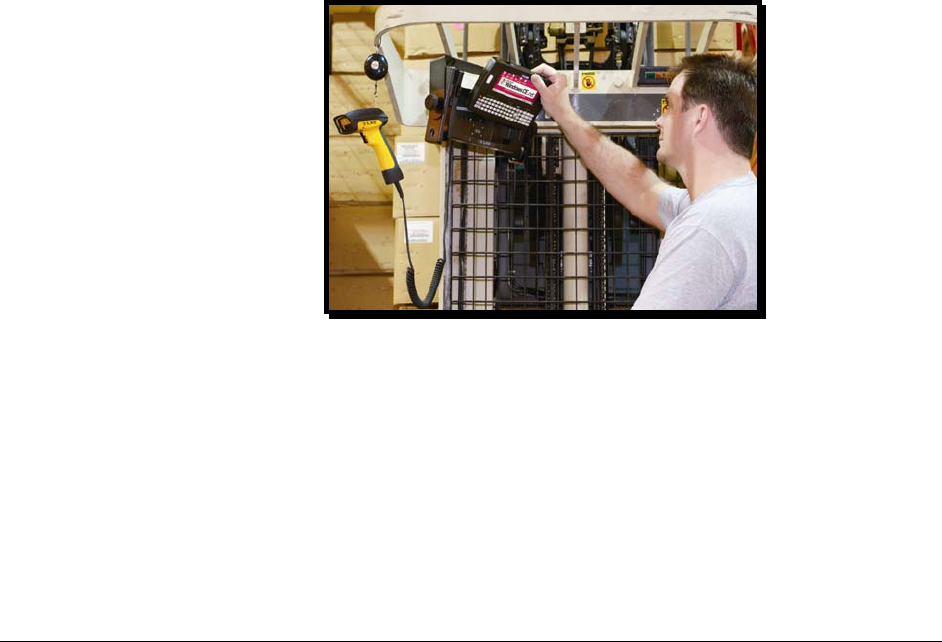

The Passive Vehicle Cradle ...................................................................................................................................52

Table of Contents iii

E-EQ-MX3XOGWW-J MX3X User’s Guide

APPENDIX A KEY MAPS 53

Keypad..................................................................................................................................... 53

Key Map 101-Key Equivalencies ..........................................................................................................................53

3270 Key Sequences..............................................................................................................................................57

5250 Key Sequences..............................................................................................................................................57

APPENDIX B REGULATORY NOTICES AND SAFETY INFORMATION 59

Approvals ................................................................................................................................ 61

Revision History ..................................................................................................................... 71

INDEX 73

iv Table of Contents

MX3X User’s Guide E-EQ-MX3XOGWW-J

Illustrations

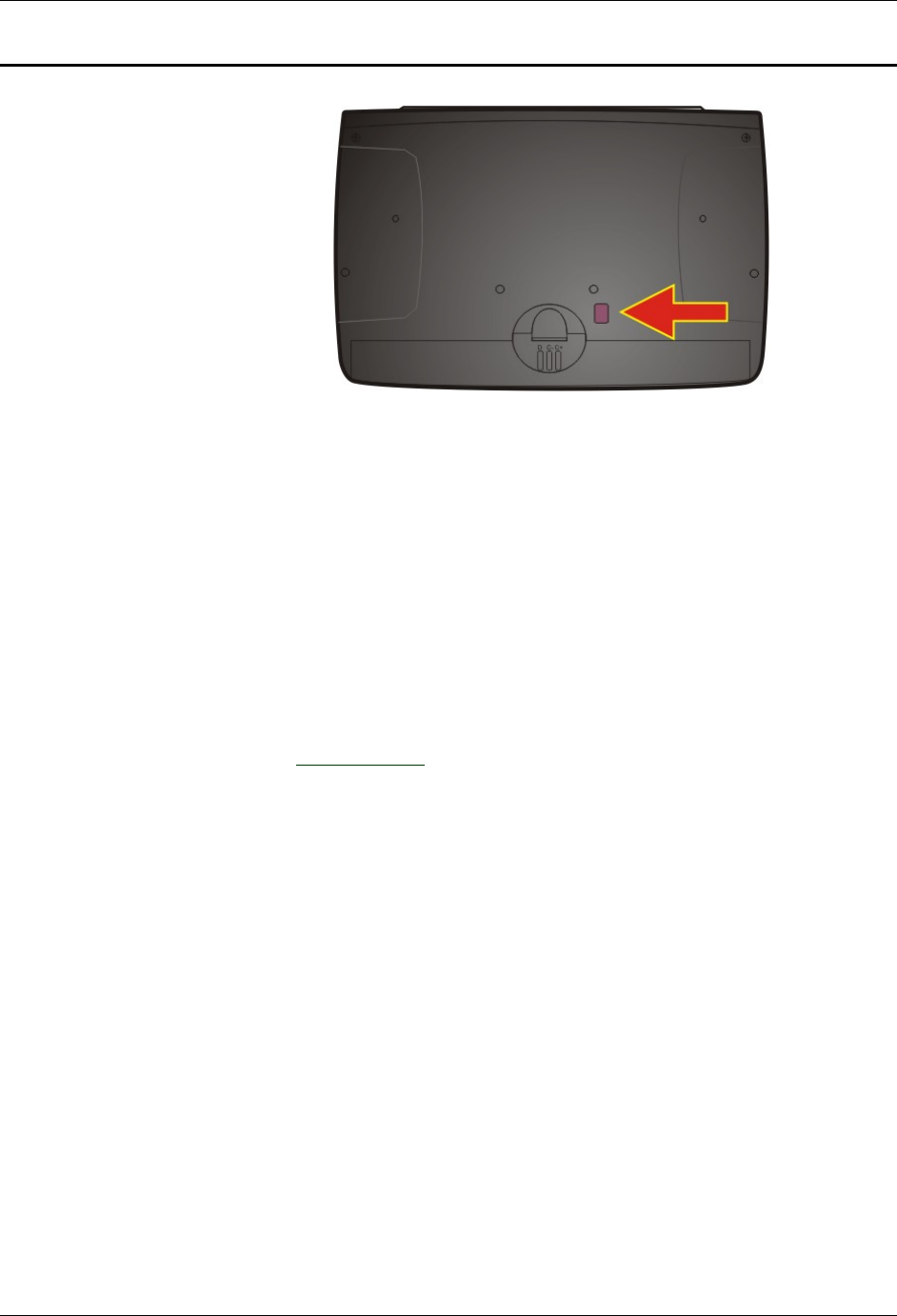

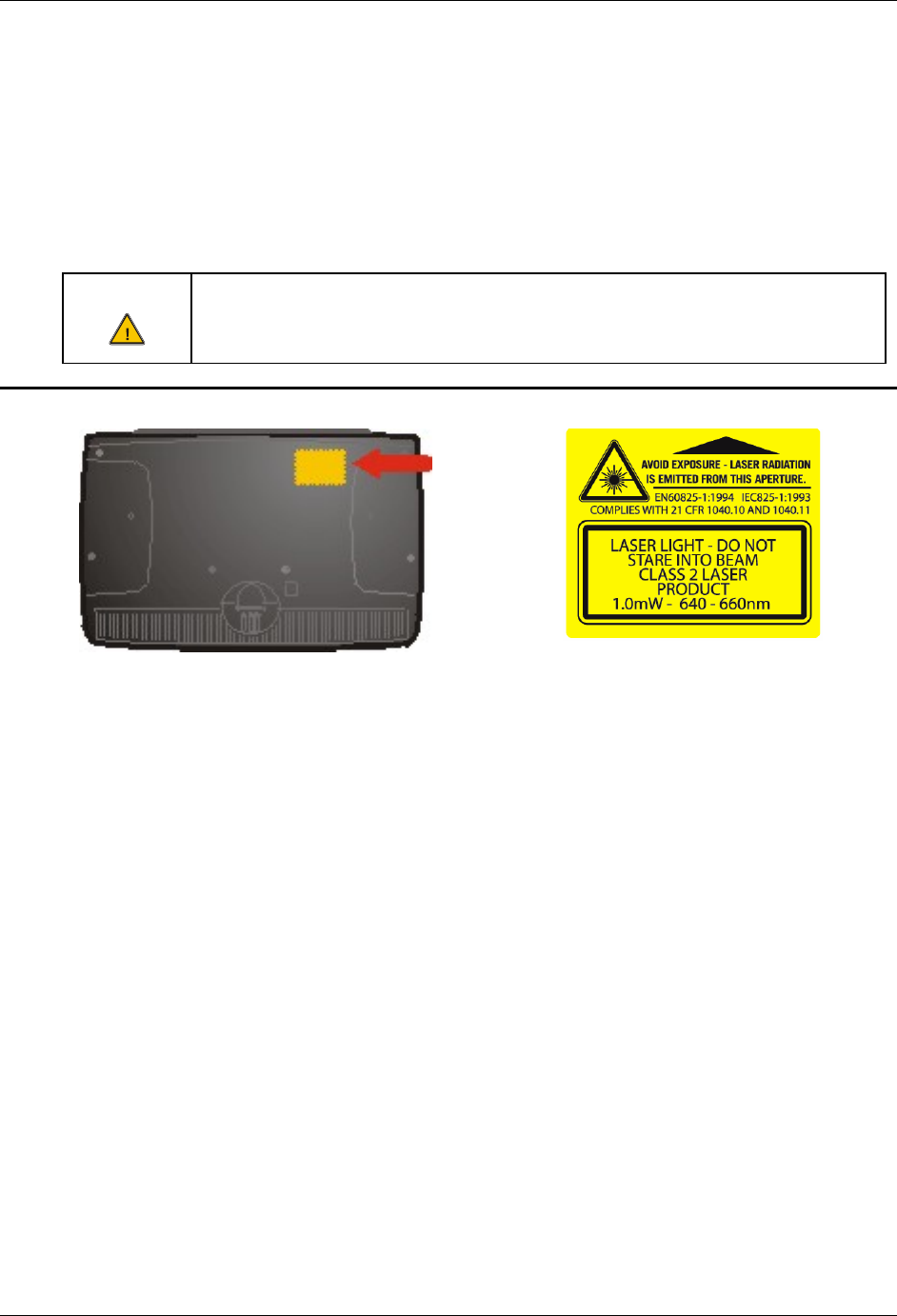

Figure 1 CDRH / IEC 825 Caution Label Location – MX3X, Back................................................................. 5

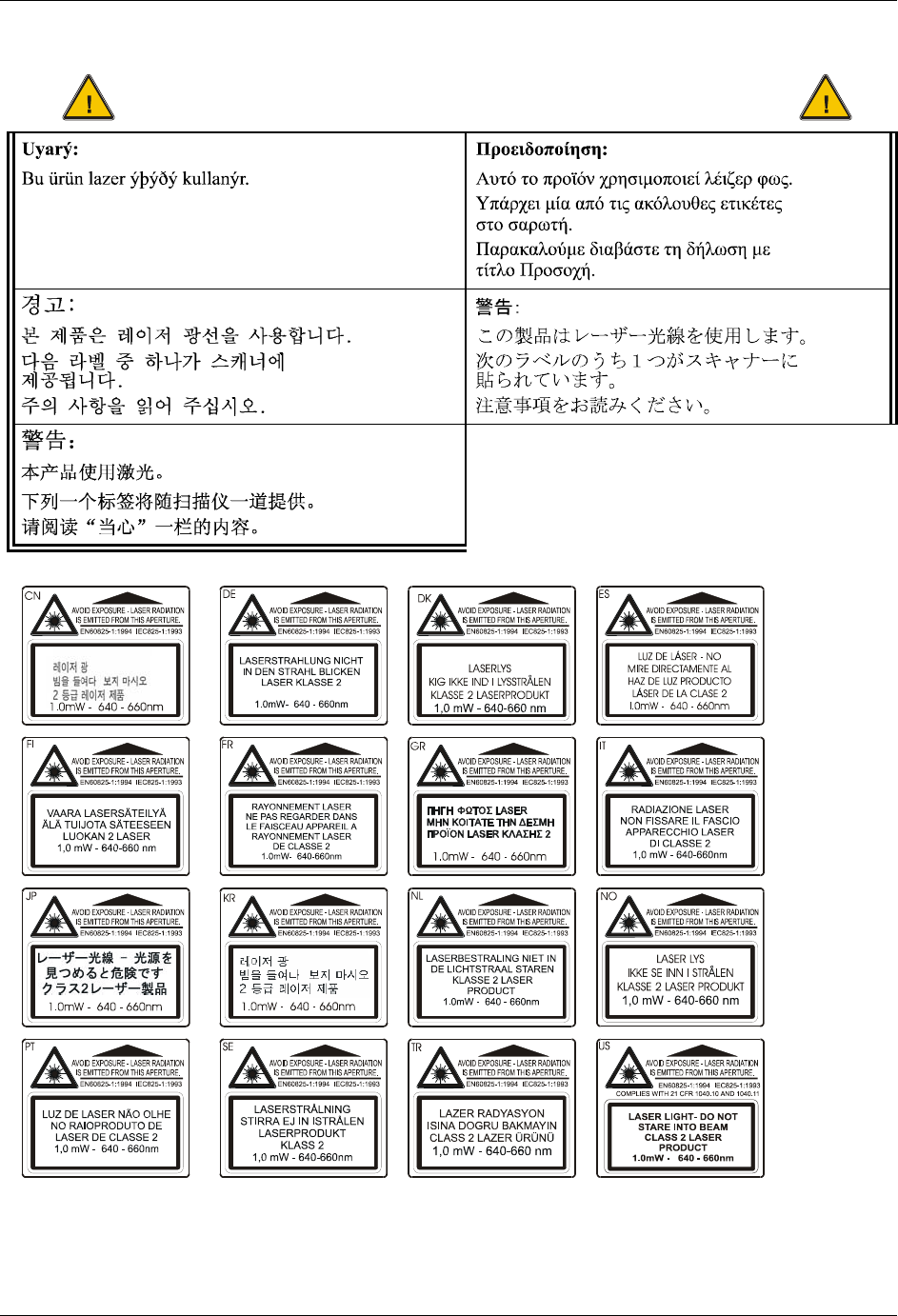

Figure 2 Caution Label – Laser Scanner........................................................................................................... 5

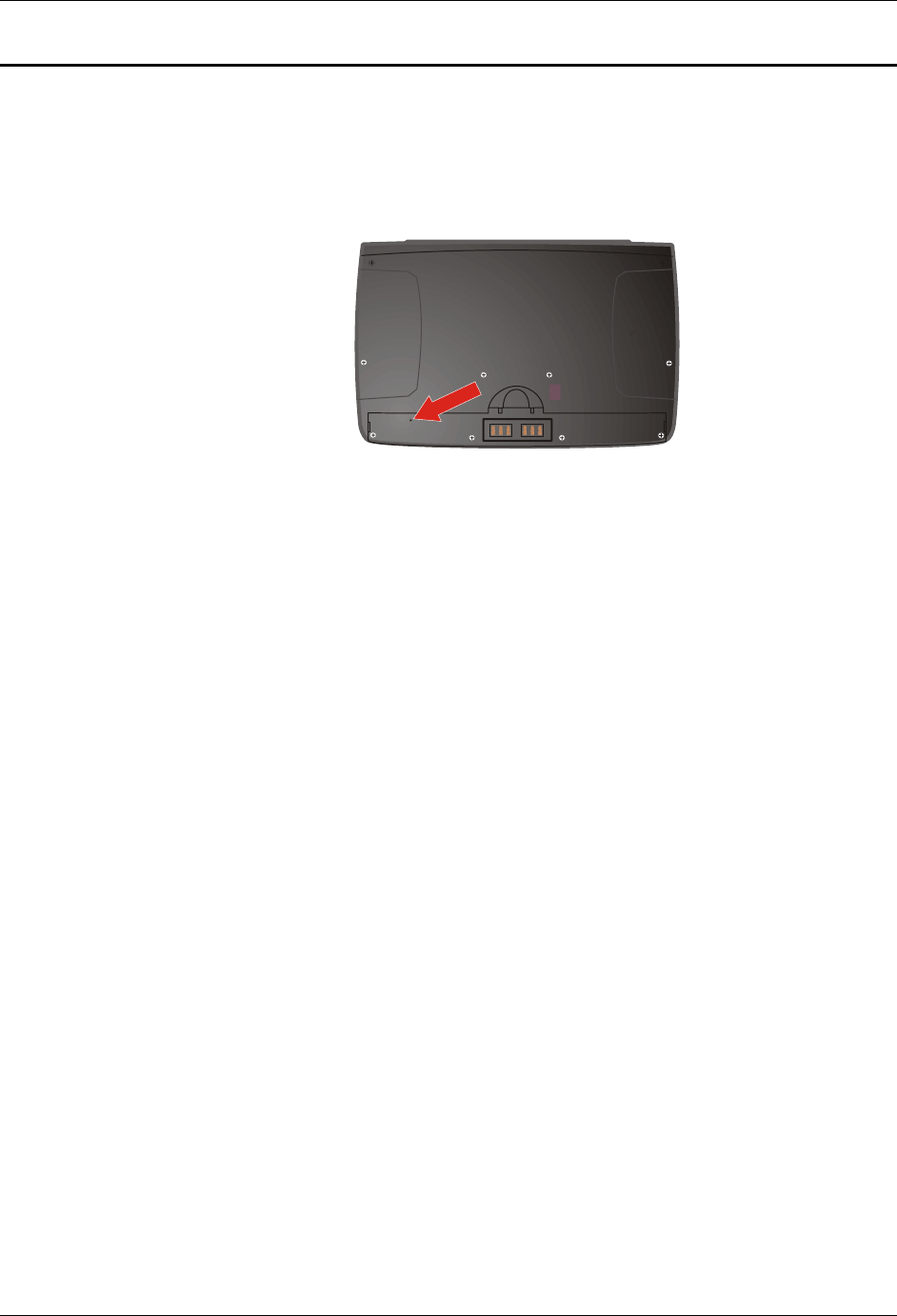

Figure 3 Vent Aperture in Battery Well – Do Not Cover .................................................................................6

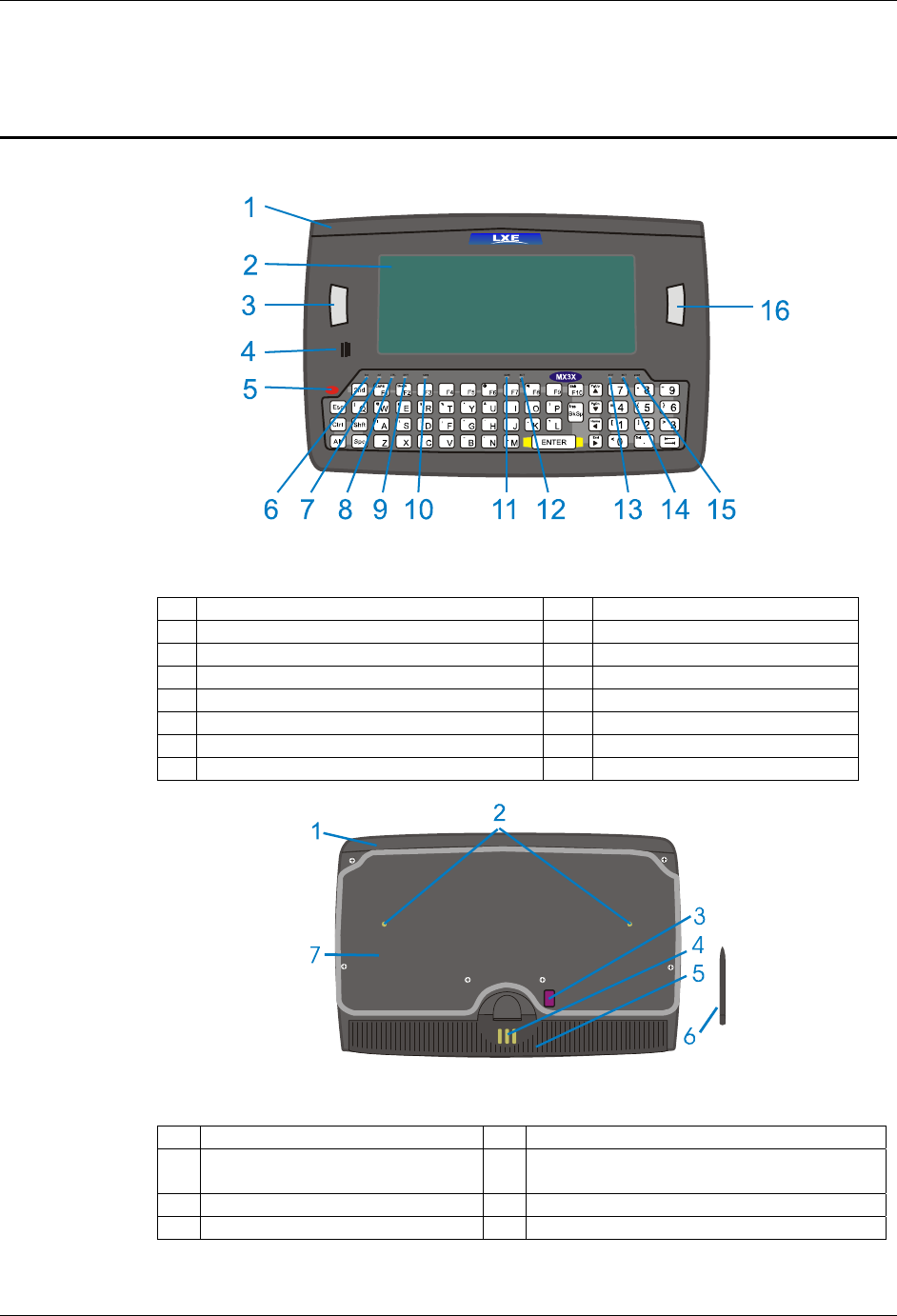

Figure 4 Front ...................................................................................................................................................7

Figure 5 Back....................................................................................................................................................7

Figure 6 Endcaps............................................................................................................................................... 8

Figure 7 Side View ........................................................................................................................................... 8

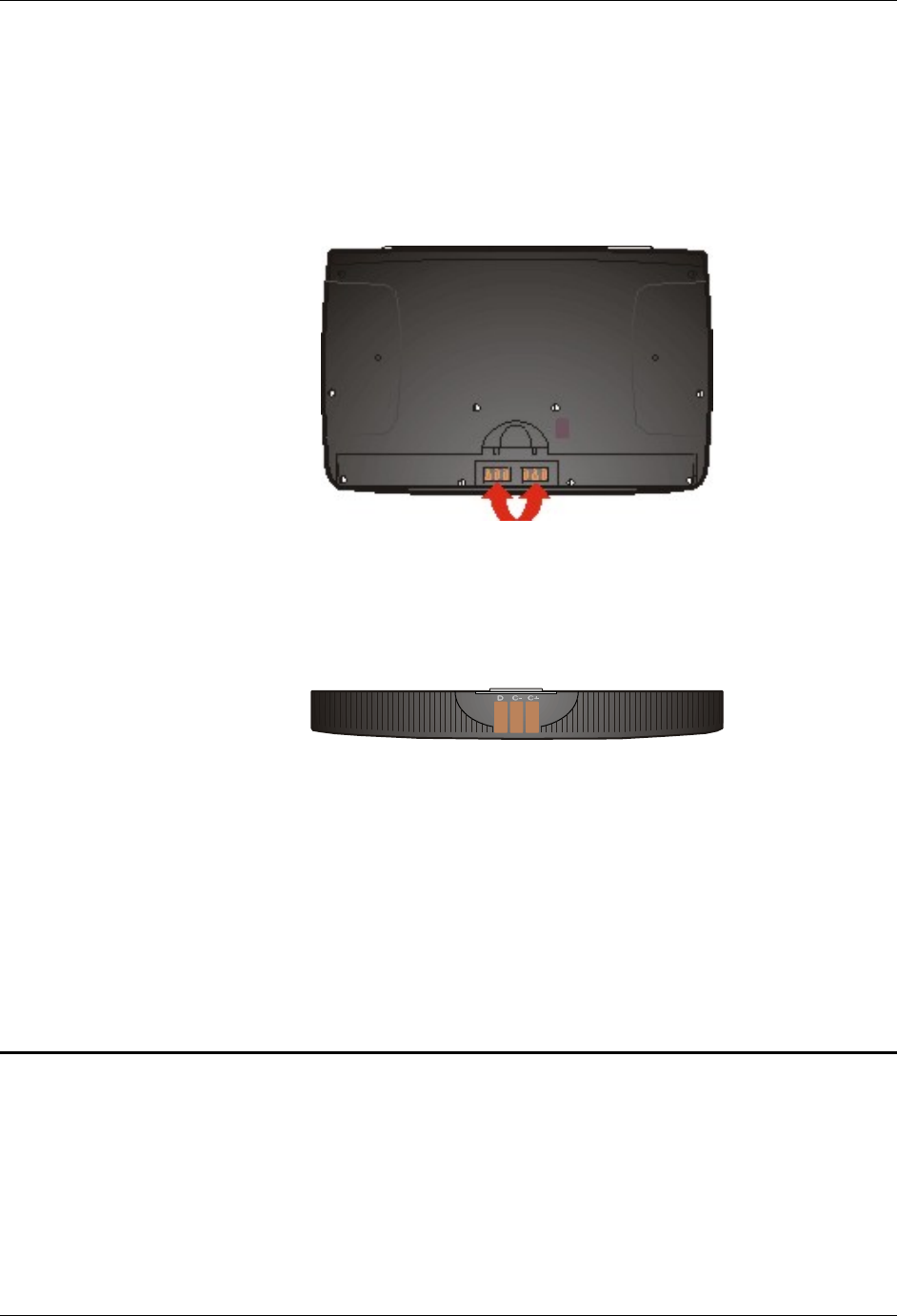

Figure 8 Battery Contacts in Battery Compartment........................................................................................11

Figure 9 Main Battery .....................................................................................................................................11

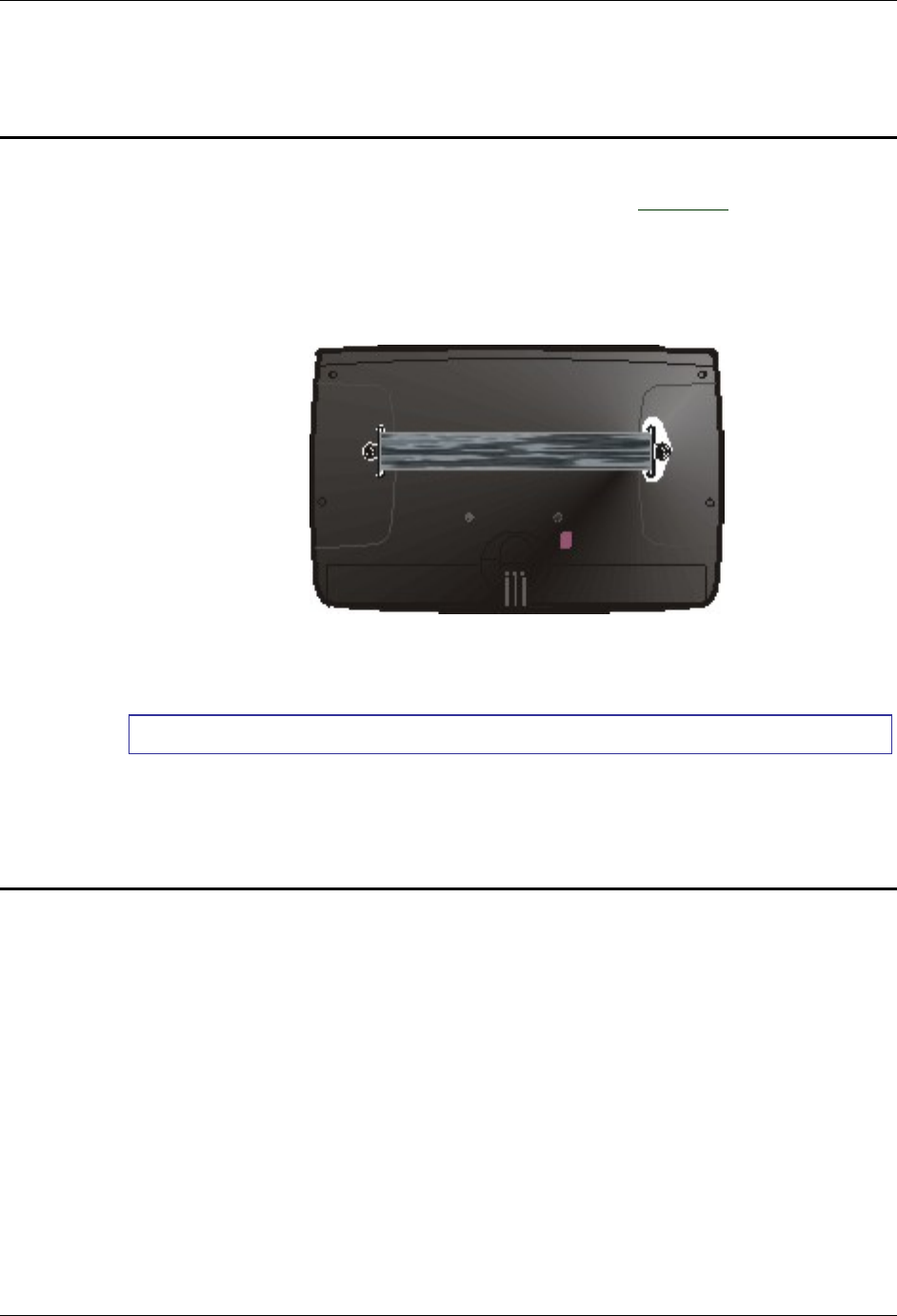

Figure 10 MX3X With Handstrap Installed....................................................................................................12

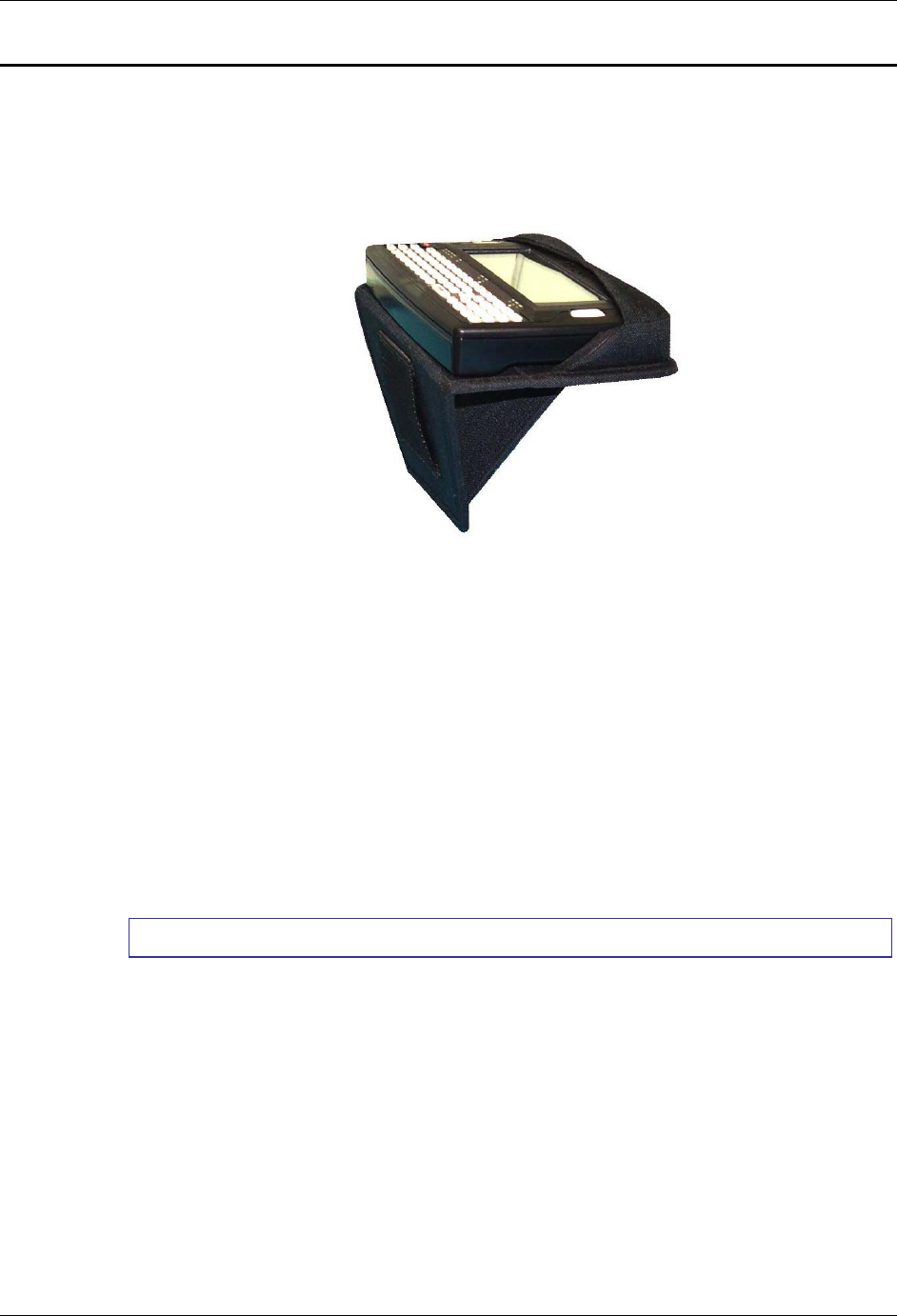

Figure 11 Hip-Flip Accessory......................................................................................................................... 13

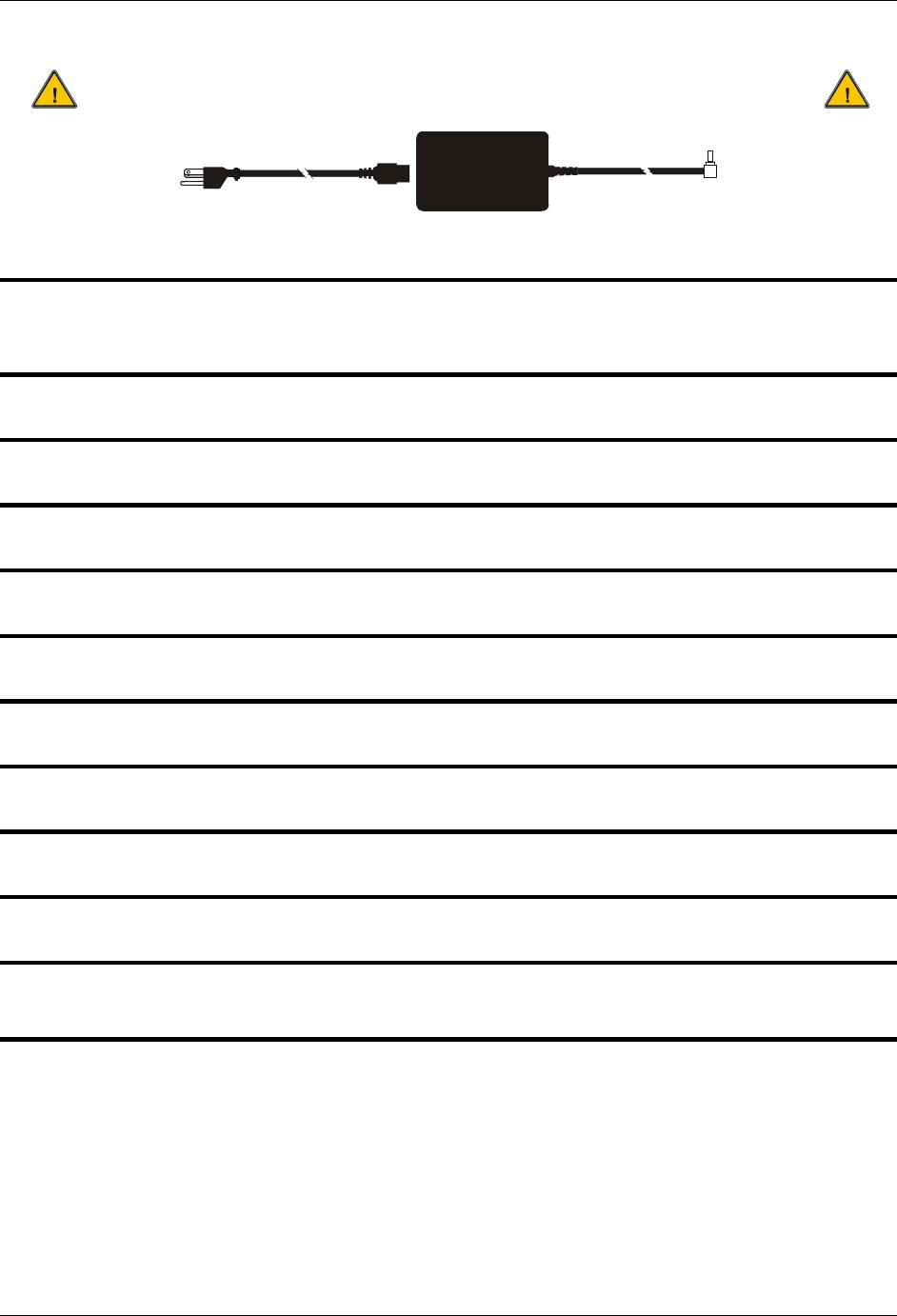

Figure 12 US AC/DC 12V Power Supply and Automotive Power Adapter ...................................................14

Figure 13 International AC/DC 12V Power Supply .......................................................................................14

Figure 14 Connect External Power Supply.....................................................................................................14

Figure 15 Connect External Power Supply.....................................................................................................15

Figure 16 Vehicle Power Supply, 24 – 72 Maximum VDC (Fuse Not Shown)..............................................16

Figure 17 Connecting the Power Supply to the MX3P Endcap Power Jack...................................................16

Figure 18 Vehicle Power Supply Footprint.....................................................................................................16

Figure 19 Vehicle Connection Wiring Color Codes ....................................................................................... 17

Figure 20 Connect Audio Jack........................................................................................................................19

Figure 21 Power Button ..................................................................................................................................20

Figure 22 End-User Multi Applock Touch Panel Segment.............................................................................22

Figure 23 Touchscreen Recalibration .............................................................................................................23

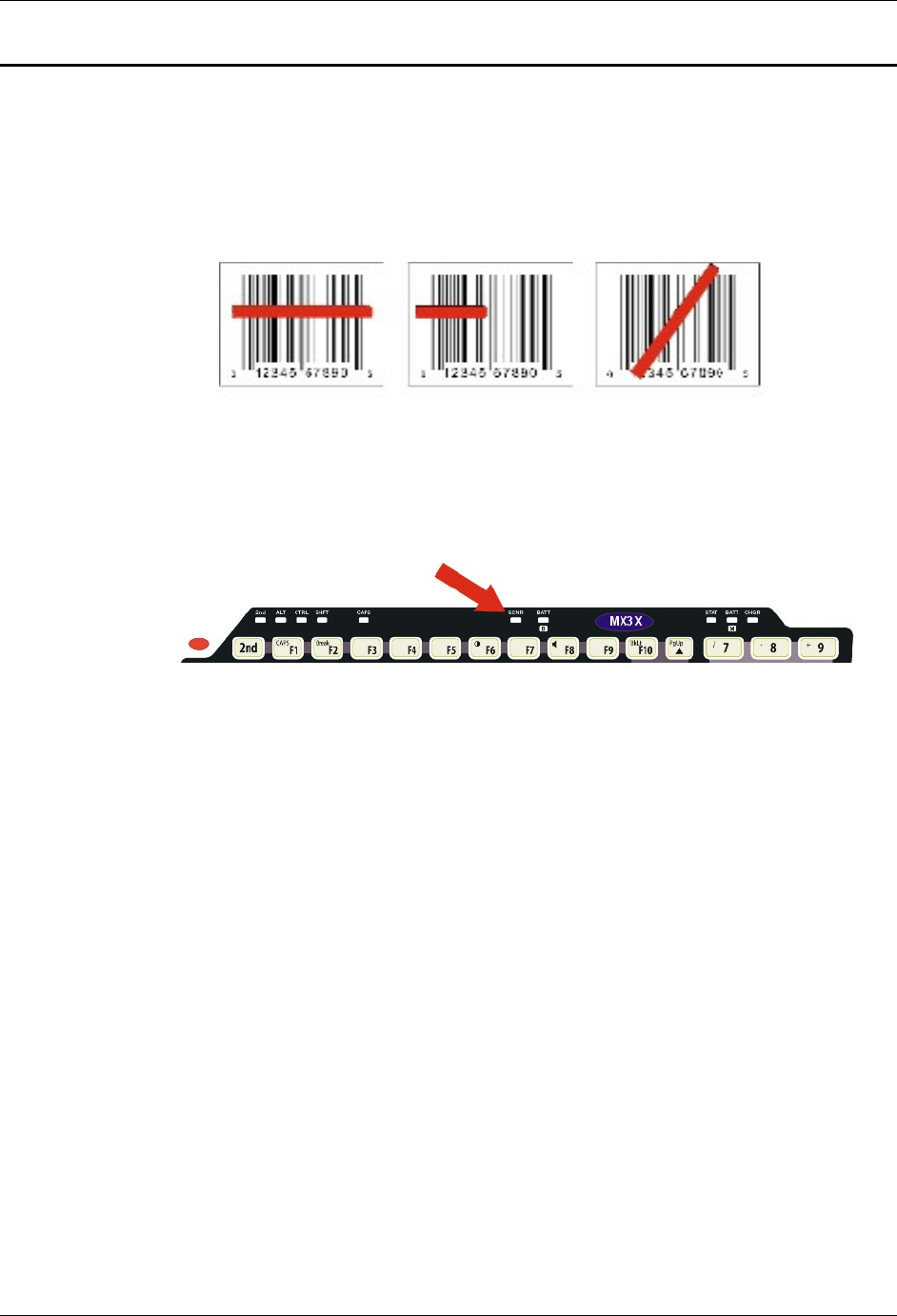

Figure 24 Scan Beam ......................................................................................................................................28

Figure 25 Scanner LED Location ...................................................................................................................28

Figure 26 Audio Cable and Headset ...............................................................................................................29

Figure 27 Touchscreen Display ......................................................................................................................37

Figure 28 Touchscreen Recalibration .............................................................................................................38

Figure 29 Programmable Buttons ...................................................................................................................39

Figure 30 Endcap and COM Ports .................................................................................................................. 41

Figure 31 Labelled Ports and Cables...............................................................................................................41

Figure 32 IR Port (COM 2)............................................................................................................................. 43

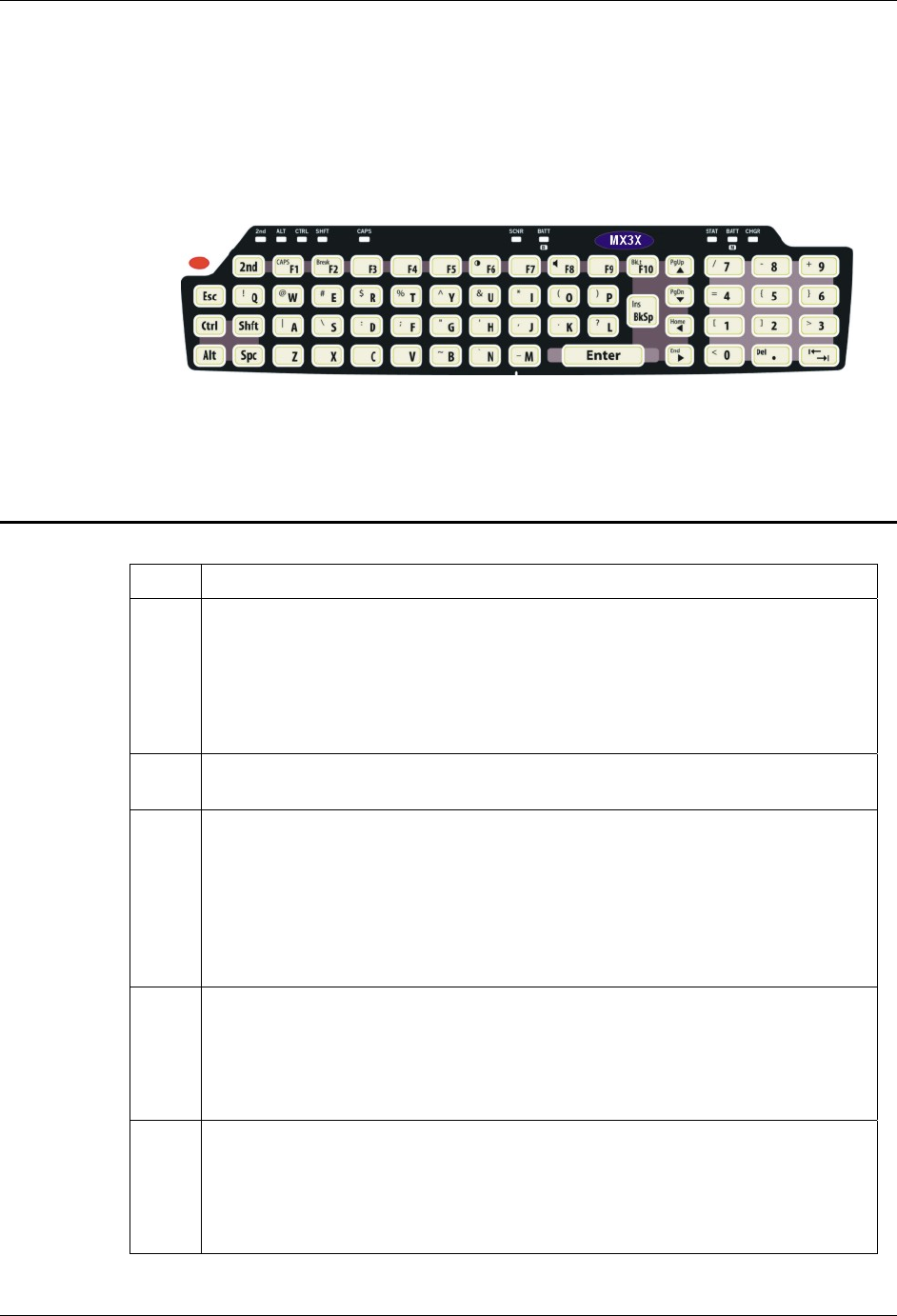

Figure 33 The QWERTY Keypad...................................................................................................................44

Figure 34 LED Functions................................................................................................................................46

Figure 35 MX3 Multi-Charger Plus................................................................................................................48

Figure 36 US AC/DC 12V Power Supply and Cigarette Lighter Adapter......................................................48

Figure 37 International AC/DC 12V Power Supply .......................................................................................48

Figure 38 ActiveSync Cable Connected to Serial port on Cradle ...................................................................51

E-EQ-MX3XOGWW-J MX3X User’s Guide

Introduction

Overview

The LXE® MX3X is a rugged, portable, hand-held Microsoft® Windows® CE .NET 4.2 or CE

5.0 equipped mobile computer capable of wireless data communications. The mobile device can

transmit information using wireless LAN radios with internal antennas or an external remote

mount antenna. It can store information for later transmission through an RS-232, InfraRed, or

USB port. The device can be scaled from a limited function batch computer to an integrated

wireless scanning computer.

The mobile device is horizontally oriented and features backlighting for the display. The touch-

screen display supports graphic features and Windows icons that the installed Windows operating

system supports. The keys on the keypad are constructed of a phosphorescent material that can

easily be seen in dimly lighted areas.

The MX3-RFID version of the MX3X has an RFID module permanently attached to the back of

the device. The module protects the RFID antenna and tag reader. A passive vehicle cradle is

available that has been designed specifically for the MX3-RFID device deeper back cover.

The MX3P is another version of the MX3X with a deeper back cover. The deeper back cover

allows it to use the MX3-RFID passive vehicle mount cradle. The MX3P does not have an

integrated laser scanner nor does it have an RFID tag reader.

Device-specific cables are available for all versions. The stylus in the Stylus Kit (shipped with

each unit) is used to assist in entering data and configuring the unit. Protective film for the

touchscreen is available as an accessory.

Note: Until the main battery and backup battery are completely depleted, the mobile device is

always drawing power from the main and backup batteries (On).

Note: A mobile device functioning as a Summit client can run Microsoft Windows CE .NET 4.2

or CE 5.0. Microsoft Windows CE 5.0 is available on a Summit client mobile device only.

2 Overview

MX3X User’s Guide E-EQ-MX3XOGWW-J

Features/Options for the MX3X Family

Feature MX3X MX3-RFID MX3P VX3X

Operating System - CE .NET 4.2 X X X X

Operating System - CE 5.0 X - X X

MX3X Main Battery X X X -

AC/DC Power Supply X X X X

Remote Antenna Connector X - - X

Color and Touch Panel X X X X

SE 923 Laser Scanner X X - -

SE 955 Laser Scanner X X - X

RFID Module Enclosure - X X -

RFID Tag Reader - X - -

Power/Communication Cradles X - - X

Passive Vehicle Cradle - X X X

Summit Client Utility X - X X

Cisco Client Utility X X - -

Symbol Client X - - -

LXEZ Pairing (Bluetooth mobile

scanners) X - - X

RFTerm® X X X X

Voice Compatible X - - X

Wavelink Avalanche Enabler X - X X

ActiveSync specific cables X X X X

Hip-Flip Accessory X - - -

IP 66 Compliant X - - -

IP 65 Compliant - X X -

Note: A Bluetooth managed LED is not available on any of the above devices.

Overview 3

E-EQ-MX3XOGWW-J MX3X User’s Guide

Related Manuals

MX3X The MX3X Reference Guide contains MX3X and MX3P technical information and

instruction. An abbreviated user’s guide (LXEbook – MX3X User’s Guide) is

available for download to the MX3X device from the LXE Manuals CD or the

LXE ServicePass website.

MX3-RFID The MX3-RFID User’s Guide and MX3-RFID Reference Guide contain user and

technical information and instruction for the MX3-RFID mobile device.

Cradle Please refer to the MX3 Cradle Reference Guide for technical information relating

to the MX3X-compatible Desk Top and Vehicle Mount cradles.

Charger Please refer to the MX3 Multi-Charger Plus User’s Guide for instruction and

technical information relating to charging/analyzing MX3X batteries in a multi-

charging station.

Scanner To set up the integrated SE923 or SE955 scanner barcode parameters, please refer

to the Integrated Scanner Programming Guide on the LXE Manuals CD or the

LXE website. The SE923 scanner was replaced by the SE955 scanner in July

2006.

Note: Always store unused devices with a fully charged main battery installed. LXE

recommends an in-use mobile device be frequently connected to an external power

source to retain optimum power levels in the main battery and the backup battery. When

the backup battery and main battery are dead, the mobile device reverts to it’s default

values when a fully charged main battery is installed and the device is powered On

again.

4 Overview

MX3X User’s Guide E-EQ-MX3XOGWW-J

Document Conventions

ALL CAPS All caps are used to represent disk directories, file names, and application names.

Menu | Choice Rather than use the phrase “choose the Save command from the File menu”, this guide uses the

convention “choose File | Save”.

“Quotes” or

Italics

Indicates the title of a book, chapter or a section within a chapter (for example, “Document

Conventions” or Document Conventions).

< > Indicates a key on the keypad (for example, <Enter> ).

Indicates a reference to other documentation.

ATTENTION Keyword that indicates vital or pivotal information to follow.

Attention symbol that indicates vital or pivotal information to follow. Also, when marked on product,

means to refer to the user’s guide.

International fuse replacement symbol. When marked on the product, the label includes fuse ratings

in volts (v) and amperes (a) for the product.

Note: Keyword that indicates immediately relevant information.

CAUTION

Keyword that indicates a potentially hazardous situation which, if not avoided, may result in minor or

moderate injury.

WARNING

Keyword that indicates a potentially hazardous situation which, if not avoided, could result in death

or serious injury.

DANGER

Keyword that indicates a imminent hazardous situation which, if not avoided, will result in death or

serious injury.

Environmental Specifications

Operating Temperature Monochrome display : -4°F to 122°F (-20°C to 50°C) [non-condensing]

Color display : 32°F to 122°F (0°C to 50°C) [non-condensing]

Storage Temperature -22°F to 158°F (-30°C to 70°C) [non-condensing]

Water and Dust MX3X : IEC IP66

MX3P : IEC IP65

Operating Humidity 5% to 95% non-condensing at 104°F (40°C)

Vibration Based on MIL Std 810D

ESD 8 kV air, 4kV contact

Shock 75G, 5ms duration, 100 shock impacts

Note: Environmental Specifications for the MX3 Cradles are contained in the MX3 Cradle Reference Guide.

Laser Warnings and Labels 5

E-EQ-MX3XOGWW-J MX3X User’s Guide

Laser Warnings and Labels

• Do not look into the laser’s lens.

• Do not stare directly into the laser beam.

• Do not remove the laser caution labels from the MX3X or MX3-RFID.

• Do not connect the laser barcode window to any other device. The laser barcode window

is certified for use with the MX3X and MX3-RFID only.

Caution:

Laser radiation when open. Please read the caution labels.

Use of controls, adjustments or performance of procedures other than those specified

herein may result in hazardous radiation exposure.

MX3X

Figure 1 CDRH / IEC 825 Caution Label Location –

MX3X, Back

Figure 2 Caution Label – Laser Scanner

6 Laser Warnings and Labels

MX3X User’s Guide E-EQ-MX3XOGWW-J

Battery Well Vent Aperture

Caution

The vent aperture in the battery well should never be blocked with any device other than an

approved LXE main battery. The vent aperture functions to relieve any heat or pressure that may

build up in the mobile device during everyday use.

Figure 3 Vent Aperture in Battery Well – Do Not Cover

If the vent hole is covered by an object, e.g. a tracking label, other than an approved LXE main

battery, the touch screen may be damaged. If damage occurs to the touch screen, please contact

your LXE representative for the process to follow when returning the device to LXE for repair.

Note that the MX3X has a dust and water protection enclosure rating of IEC 60529 compliant to

IP66. The MX3P has an enclosure rating of IP65.

Components 7

E-EQ-MX3XOGWW-J MX3X User’s Guide

Components

Front and Back Views

Figure 4 Front

1 Endcap 9 Shift LED

2 Display 10 Caps LED

3 Scan, Enter or Field Exit (programmable) 11 Scanner LED

4 Beeper 12 Backup Battery LED

5 On/Off Button 13 Status LED

6 2nd LED 14 Main Battery LED

7 Alt LED 15 Charger LED

8 Ctrl LED 16 Scan or Enter (programmable)

Figure 5 Back

1 Endcap 5 Main Battery

2 Leather Handstrap Connector

(N/A on MX3P) 6 Stylus

3 IR Port (Com 2 Port) 7 Back Cover (MX3P only)

4 Cradle Input Contacts

8 Components

MX3X User’s Guide E-EQ-MX3XOGWW-J

Endcap Options

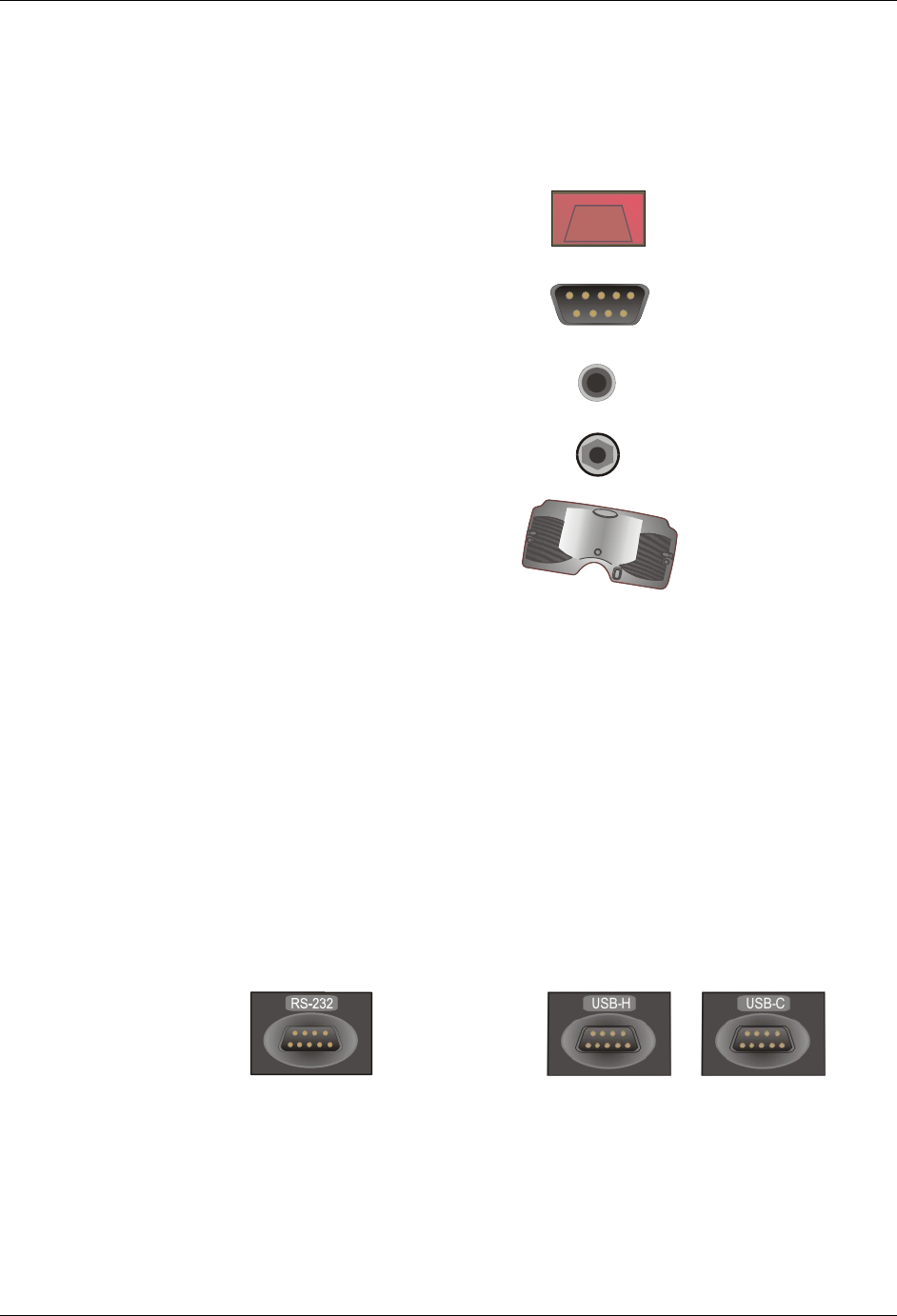

Figure 6 Endcaps

1 DC Power Jack 3 Serial COM 1 or USB Client Port (USB-C)

2 Serial COM 3 or USB Host (USB-H)

or Scanner Port 4Audio Jack or External Antenna Connector

Note: The IR port on the back of the mobile device is COM 2.

MX3X MX3P*

Left Port (2) Right Port (3) See (4) Left Port (2) Right Port (3)

Serial COM3 Serial COM1 Audio Jack Serial COM3 Serial COM1

Serial COM3 USB Client Audio Jack Serial COM3 USB Client

USB Host Serial COM1 Audio Jack USB Host Serial COM1

USB Host USB Client Audio Jack USB Host USB Client

Scanner* Serial COM1 Audio Jack

Scanner* USB Client Audio Jack

Serial COM3 Serial COM1 Antenna

Serial COM3 USB Client Antenna

USB Host Serial COM1 Antenna

USB Host USB Client Antenna

* The MX3P does not have an integrated scanner nor an RFID tag reader.

MX3P Module

MX3X MX3P

1 Endcap

2 Touchscreen

3 Keypad

4 MX3P (and MX3-RFID) Back

Cover

Figure 7 Side View

Quick Start 9

E-EQ-MX3XOGWW-J MX3X User’s Guide

Quick Start

Important

If the mobile device has AppLock installed, please refer to MX3X Reference Guide,

AppLock for setup and processing information before continuing.

Note: When your mobile device is pre-configured, the radio, PCMCIA card and endcaps are

assembled by LXE to your specifications.

This section’s instructions are based on the assumption that your new system is pre-configured

and requires only accessory installation (e.g. handstrap, stylus) and a power source. LXE

recommends that installation or removal of accessories be performed on a clean, well-lit surface.

When necessary, protect the work surface, the mobile device, and components from electrostatic

discharge.

This guide takes you through an introduction to and operation of the MX3X.

In general, the sequence of events is:

1. Insert a fully charged battery and press the Power button.

2. Connect an external power source to the unit (if required).

3. If the screen does not automatically display, press the Power button.

4. Adjust screen display, audio volume and other parameters if desired.

Note: Do not connect a tethered scanner cable to a USB-C or USB-H labeled endcap port.

These ports cannot power a tethered scanner.

Troubleshooting

Can’t align the screen,

change the date/time or

adjust the volume.

AppLock is installed and running on the mobile device.

AppLock restricts access to the control panels. Contact your

System Administrator.

Touchscreen is not

accepting stylus taps or need

recalibration.

Press <Ctrl>+<Esc> to force the Start Menu to appear. Use

the tab, backtab and cursor keys to move the cursor from

element to element.

MX3X seems to lockup as

soon as it is warm booted.

There may be slight delays while the wireless client connects

to the network, authorization for voice-enabled applications

complete, Wavelink Avalanche management of the MX3X

startup completes, and Bluetooth relationships establish or re-

establish. When the desktop appears or an application begins,

the MX3X is ready for use.

10 About Lithium-Ion Batteries

MX3X User’s Guide E-EQ-MX3XOGWW-J

About Lithium-Ion Batteries

Li-Ion batteries (like all batteries) gradually lose their capacity over time (in a linear fashion) and

never just stop working. This is important to remember – this mobile device is always ‘on’ even

when in the Suspend state and draws battery power at all times. Use the Start | Settings | Control

Panel | Power | Battery tab to check the battery status and power reading.

Always replace the used main battery with a fully charged main battery. The Battery Low

Warning LED illuminates red at approximately 35% of power left in the main battery. You need to

determine the point at which battery life becomes unacceptable for your business practices and

replace the main battery before that point.

Note: Until the main battery and backup battery are completely depleted, the mobile device is

always drawing power from the batteries (On).

Insert Main Battery 11

E-EQ-MX3XOGWW-J MX3X User’s Guide

Insert Main Battery

Press the Power button after the battery is inserted into the battery compartment.

Note: New batteries must be charged prior to first use. This process takes up to four hours in

an LXE Multi-Charger Plus and eight hours with an external power source connected to

the power jack on the endcap of the mobile device.

Figure 8 Battery Contacts in Battery Compartment

The Main Battery compartment is located at the bottom of the back of the computer. The arrows in

the figure titled Battery Contacts point to the battery contacts in the computer. The figure titled

Main Battery shows the cradle and charger contacts on the back of the main battery.

Figure 9 Main Battery

Place the battery in the compartment, making sure the side of the battery with six contacts matches

up with the battery contacts in the computer battery compartment. Do not slide the battery

sideways into the compartment.

Firmly press the battery into the compartment until the Retaining Clip on the battery clicks. The

battery is now securely fastened to the computer. The computer draws power from the battery

immediately upon successful connection.

Note: Do not cover the vent aperture in the battery well (vent aperture is located in the top left

area of the battery well) with anything other than the main battery.

Check Battery Status

Tap the Start | Settings | Control Panel | Power icon. Main and backup battery level, status and

Power Scheme timeout setting options are displayed.

12 Optional Devices

MX3X User’s Guide E-EQ-MX3XOGWW-J

Optional Devices

Attach Handstrap (Optional)

Note: These instructions are not to be used for the MX3P. See Accessories for MX3P holding

accessories e.g. holster mounted, shoulder straps, etc.

Once installed, the elastic handstrap provides a means for the user to secure the computer to their

hand. It is adjustable to fit practically any size hand and does not interfere with battery charging

when the MX3X is in a cradle.

Figure 10 MX3X With Handstrap Installed

Tool Required: #1 Phillips Screwdriver

Installation

1. Place the MX3X, with the screen facing down, on a flat stable surface.

2. Attach the handstrap to the MX3X with the screws and washers provided.

3. Test the strap's connection making sure the MX3X is securely connected to each end of the

strap connectors.

Attach the Stylus Clip (Optional)

Carefully remove the paper backing from the Stylus Clip sticky. Firmly press the sticky side of the

clip onto the mobile device and hold in place for 15 seconds. Thread the tether through the end of

the stylus and tie the ends firmly to the Stylus Clip so that the ends don’t interfere with placing the

stylus in the Stylus Clip. Place the stylus in the Stylus Clip when not in use.

An extra or replacement stylus can be ordered from LXE. See the section titled Accessories for the

stylus part number.

Optional Devices 13

E-EQ-MX3XOGWW-J MX3X User’s Guide

Attach to Hip-Flip (Optional)

Note: The MX3P does not fit in the Hip-Flip accessory. The Hip-Flip is not to be used with the

MX3P device. See Accessories for device-specific holding accessories e.g. holster

mounted, shoulder straps, etc.

Figure 11 Hip-Flip Accessory

Note: #1 flat head screwdriver is not supplied by LXE. A waist belt accessory can be ordered

from LXE.

Once the MX3X is attached to the hip-flip and the hip-flip securely fastened to the user by a belt

around their waist, the MX3X can be operated at a convenient height, leaving the user's hands

free.

The hip-flip adjusts downward to allow removing and replacing the main battery without

removing the unit from the hip-flip or the user's body.

The MX3X must be removed from the hip-flip before being placed in a docking station.

Caution: Never use the MX3X in the hip-flip without first securing the device to the hip-flip

with the screws.

Installation

1. If the MX3X has a handstrap, remove the handstrap and set it aside along with the handstrap

screws and washers.

2. Slide the MX3X into the pocket in the hip-flip, making sure the keypad is up and the endcap

ports are visible in the openings at the base of the hip-flip.

3. Place the MX3X (in the hip-flip) on a flat stable surface with the keypad down.

4. Tighten the assembly with the black screws provided, using the holes used for the handstrap

(if used) on the back of the MX3X.

5. Test the hip-flip's connection making sure the MX3X is securely attached.

6. Slide the waist-belt through the loop in the hip-flip and secure the belt around your body.

14 Optional Devices

MX3X User’s Guide E-EQ-MX3XOGWW-J

Connect External Power Supply to MX3X or Cradle (Optional)

The LXE-approved AC Power Adapter is only intended for use in a 25ºC (77ºF) maximum ambient

temperature environment.

There are three external power supplies available for the MX3X and the MX3 desktop cradle:

• US AC/DC 12V Power Supply

• Cigarette Lighter Adapter

• International AC/DC 12V Power Supply

Figure 12 US AC/DC 12V Power Supply and Automotive Power Adapter

Figure 13 International AC/DC 12V Power Supply

The DC power jack is located on the endcap. The standard MX3 cradle power jack is located on

the back of the MX3 cradle (the passive cradle does not have a power jack). The MX3P accepts

power through the endcap only.

Figure 14 Connect External Power Supply

1. Insert the barrel connector into the power jack on the MX3X endcap and push in firmly.

2. The CHGR LED above the keypad illuminates when the computer is receiving external

power through the power jack.

Note: When the mobile device is receiving external power through a powered cradle, the

cradle's Status LED and the mobile device's CHGR LED are illuminated.

See section titled LED Functions for explanations of the LEDs for the BATT B and BATT M

illuminations.

Optional Devices 15

E-EQ-MX3XOGWW-J MX3X User’s Guide

Connect External Power Supply to the MX3P

Caution

This device is intended to transmit RF energy. In accordance with FCC and Industry Canada radio-

frequency safety regulations, when operating this device with the Hip-Flip accessory, it should be used in

accordance with the user's instructions. Additionally, the user should take care to ensure that a minimum

separation distance of 15cm (6 in.) is maintained from the antenna to nearby persons. Use of this device in a

manner not consistent with these instructions can increase the risk of RF exposure. This device is not to be

co-located with other transmitters.

The DC power jack is located on the endcap. The passive cradle does not have a power jack.

Figure 15 Connect External Power Supply

1. Insert the barrel connector into the power jack on the mobile device endcap and push in

firmly.

2. The CHGR LED above the keypad illuminates when the mobile device is receiving

external power through the power jack.

See section titled LED Functions for explanations of the LEDs for the BATT B and BATT M

illuminations.

MX3P Specific Power Accessories

Part Number Description

9000A060CBL12V POWER CABLE, BARE WIRE, 12 FT, 12V, DC JACK

9000A316PS24V72VMX3P PS, 24V-72V, BARE WIRE INPUT, MX3P OUTPUT

16 Optional Devices

MX3X User’s Guide E-EQ-MX3XOGWW-J

24/72 Maximum VDC Power Supply

Input/Output Cable Connection

Caution

For proper and safe installation, the input power cable must be connected to a fused

circuit on the vehicle. This fused circuit requires a 5 Amp maximum time delay (slow

blow) fuse. If the supply connection is made directly to the battery, the fuse should be

installed in the positive lead within 5 inches of the battery positive (+) terminal.

Recommended for vehicle electrical systems that use between 2 and 5 twelve volt

batteries in series.

LXE Part Number: 9000A316PS24V72VMX3P

1. Power Switch

2. Power On Indicator

3. Output to MX3P

4. Input from Vehicle Battery

Figure 16 Vehicle Power Supply, 24 – 72 Maximum VDC (Fuse Not Shown)

Figure 17 Connecting the Power Supply to the MX3P Endcap Power Jack

DIAGRAM IS NOT TO SCALE

Power Supply Dimensions

Length 9.25”

Height 2.5”

Width 4.7”

Mounting hole center Width: 3.5”

Mounting hole center Length: 8.75”

Figure 18 Vehicle Power Supply Footprint

Optional Devices 17

E-EQ-MX3XOGWW-J MX3X User’s Guide

1. If the mobile device is in the cradle, it can be either On or in Suspend Mode during this

process.

2. Turn the Power Supply toggle switch to the Off position.

3. While observing the fuse requirements specified above, connect the power cable as close as

possible to the actual battery terminals of the vehicle. When available, always connect to

unswitched terminals in the vehicle fuse panel, after providing proper fusing.

IMPORTANT:

For uninterrupted power, electrical supply connections should not be made at any point

after the ignition switch of the vehicle.

4. Route the cable the shortest way possible. The input cable from the connection to the battery

is rated for a maximum temperature of 60°C (140°F). When routing this cable it should be

protected from physical damage and from surfaces which might exceed this temperature.

Additionally do not expose the cable to chemicals or oil that may cause the wiring insulation

to deteriorate.

Note: If the vehicle is equipped with a panel containing Silicon Controlled Rectifiers

(SCR's), avoid routing the power cable in close proximity to these devices.

Always route the cable so that it does not interfere with the driver’s safe operation and

maintenance of the vehicle.

Use proper electrical and mechanical fastening means for terminating the cable. Properly

sized "crimp" type electrical terminals are an accepted method of termination.

Wiring color codes for LXE supplied DC input power cabling:

Vehicle Supply Wire Color

+24-72 Max VDC (DC +) Brown or White

Return (DC -) Blue or Black

Vehicle Chassis (GND) Green

Figure 19 Vehicle Connection Wiring Color Codes

Note: The input power cord for the DC-DC Power Supply uses white, black and green

wires. Some LXE products have DC input power cords with brown, blue and green

wires. The previous table shows the correct electrical connection for either type of

cable.

5. Provide mechanical support for the cable by securing it to the vehicle structure at

approximately one foot intervals, taking care not to over tighten and pinch conductors or

penetrate outer cable jacket.

6. Connect the Power Supply to the MX3P by plugging the computer end into the Power Jack on

the endcap.

7. Turn the Power Supply on. The ON LED on the Power Supply illuminates when it is

receiving power from the vehicle.

8. The mobile device CHGR LED illuminates.

18 Optional Devices

MX3X User’s Guide E-EQ-MX3XOGWW-J

12V VDC Power Cable Connection

9000A060CBL12V POWER CABLE, BARE WIRE, 12 FT, 12V, DC JACK

1. If the mobile device is in the cradle, it can be either On or in Suspend Mode during this

process.

2. Connect the two-wire end of the power cable to the 12V power source battery terminals.

3. Provide mechanical support for the cable by securing it to the vehicle structure at

approximately one foot intervals, taking care not to over tighten and pinch conductors or

penetrate outer cable jacket.

4. Connect the 12V power source to the MX3P by plugging the computer end into the Power

Jack on the endcap.

5. The mobile device CHGR LED illuminates.

Optional Devices 19

E-EQ-MX3XOGWW-J MX3X User’s Guide

Connect MX3X Audio Jack (Optional)

Note: When the MX3X has a remote antenna connector, it does not have an audio jack.

The audio jack is located on the endcap. The MX3X provides an external headset connection via

an audio jack connector labeled Audio. The audio jack accepts a headset with a 2.5mm plug, such

as a mono headset with microphone or a stereo headset. Please refer to the MX3X Reference

Guide for information on configuring the audio port for a mono headset with microphone or a

stereo headset.

An adapter cable (LXE Part No. 9000A076CBLHEADSET1) can be attached to the audio port.

The adapter cable has a 2.5mm plug on one end to attach to the MX3X and a quick disconnect

connector on the other end to connect to a variety of LXE voice recognition headsets.

Figure 20 Connect Audio Jack

Insert the 2.5mm barrel end of the connector into the audio jack on the endcap and push the

connector in firmly. See section titled Set the Audio Speaker Volume.

Note: The audio option draws power from the battery. The MX3X speaker is disabled when a

headset is plugged into the audio jack.

Connect Remote Antenna (Optional)

Prerequisite: The MX3X is secured in a vehicle mounted cradle and the remote antenna

mounting installation is complete. See the MX3 Cradle Reference Guide for

installation instruction.

Note: When the MX3X endcap has an audio jack it does not have a remote antenna connector.

If the MX3X has the optional remote mount external antenna port on its endcap, please refer to the

Vehicle Remote Mount Antenna Installation Sheet, available on the LXE Manuals CD or the LXE

ServicePass website, for installation instructions.

If the MX3X has an internal antenna (no remote antenna connector on the endcap), the internal

antenna was connected when the MX3X was manufactured.

20 Power Button

MX3X User’s Guide E-EQ-MX3XOGWW-J

Power Button

Note: Refer to the section titled Power Modes in the MX3X Reference Guide for information

relating to the power states of the mobile device.

Figure 21 Power Button

The power button is located above the ESC key on the keypad. When a battery is inserted in the

mobile device press the Power button.

Quickly tapping the Power button places the device immediately in Suspend mode. Quickly

tapping the Power button again, or touching the screen, immediately returns the device from

Suspend.

When the Windows desktop is displayed or an application begins, the power up (or reboot)

sequence is complete. Please refer to the section titled Power Modes in the MX3X Reference Guide

for a list of the kinds of activities (Primary Events) that will return the device from Suspend Mode.

Restart Sequence

Tap Start | Run, type warmboot in the text box, then press the Enter button. If the touchscreen is

not accepting taps or needs recalibration, press <Ctrl>+<Esc> to force the Start Menu to appear.

When the Windows desktop is displayed or an application begins, the power on (or reboot)

sequence is complete. If any changes to the settings had been saved previously, they are restored

on reboot.

Tapping the Touchscreen with a Stylus 21

E-EQ-MX3XOGWW-J MX3X User’s Guide

Tapping the Touchscreen with a Stylus

Note: Always use the point of the stylus for tapping or making strokes on the touchscreen.

Never use an actual pen, pencil, abrasive or sharp object to write on the touchscreen.

Hold the stylus as if it were a pen or pencil. Touch an element on the screen with the tip of the

stylus then remove the stylus from the screen. Firmly press the stylus into the stylus holder when

the stylus is not in use.

Like using a mouse to left-click icons on a desktop computer screen, using the stylus to tap icons

on the touchscreen is the basic action that can:

• Open applications

• Choose menu commands

• Select options in dialog boxes or drop-down boxes

• Drag the slider in a scroll bar

• Select text by dragging the stylus across the text

• Place the cursor in a text box prior to typing in data or retrieving data using the integrated

barcode scanner or an input/output device connected to the serial port.

An extra or replacement stylus can be ordered from LXE. See the section titled Accessories for the

stylus part number.

Keypad Shortcuts

Use keyboard shortcuts instead of the stylus:

• Press Tab and an Arrow key to select a file.

• Press Shift and an Arrow key to select several files.

• Once you've selected a file, press Alt then press Enter to open its Properties dialog.

• Press 2nd then press numeric dot to delete a file.

• To force the Start menu to display, press Ctrl then press Esc.

22 Entering the Multi AppLock Activation Key

MX3X User’s Guide E-EQ-MX3XOGWW-J

Entering the Multi AppLock Activation Key

Note: The touch screen must be enabled. See the MX3X Reference Guide for AppLock

instruction.

AppLock may be installed and running on the mobile device. AppLock restricts access to

programs and the Windows CE Control Panel. Please contact your system administrator for

instruction.

Figure 22 End-User Multi Applock Touch Panel Segment

A checkmark indicates applications currently active or available for Launching by the user.

Previous versions used the program icon to indicate the same function. When Keyboard is

selected, the MX3X default input method (Input Panel, Transcriber, or custom input method) is

activated.

Using a Stylus Tap

When the mobile device enters end-user mode, a Switchpad icon (it looks like three tiny windows

one above the other) is visible at the far right in the taskbar. The taskbar is always visible on top of

the application in focus.

When the user taps the Switchpad icon, a menu is displayed showing the applications available to

the end-user. They can tap an application name in the popup menu and the selected application is

brought to the foreground. The previous application continues to run in the background. Stylus

taps affect the application in focus only. When the user needs to use the Input Panel, they tap the

Keyboard option. Input Panel taps affect the application in focus only.

The figure shown above is an example and is shown only to aid in describing how the user can

switch between applications using a stylus. The switchpad lists user applications as well as the

Keyboard option.

Using the Switch Key Sequence

One switch key sequence (or hotkey) is defined by the administrator for the end-user to use when

switching between locked applications. This is known as the Activation key. The Activation key

is assigned by the Administrator using the Global Key parameter (the default Global Key is

<Ctrl>+<Spc>). When the switch key sequence is pressed on the keypad, the next application in

the AppLock configuration is moved to the foreground and the previous application moves to the

background. The previous application continues to run in the background. End-user key presses

affect the application in focus only.

Note that the system administrator may have assigned a different key sequence to use when

switching applications.

Touchscreen 23

E-EQ-MX3XOGWW-J MX3X User’s Guide

Touchscreen

Calibration

If the touchscreen is not responding properly to pen touch taps, you may need to recalibrate the

touchscreen. Recalibration involves tapping the center of a target. If you miss the center, keep the

stylus on the screen, slide it over the target's center, and then lift the stylus.

If the touchscreen is not accepting taps or needs recalibration, press <Ctrl>+<Esc> to force the

Start Menu to appear.

To recalibrate the screen, select Start | Settings | Control Panel | Stylus | Calibration tab.

To begin, tap the Recalibrate button on the screen with the stylus.

Figure 23 Touchscreen Recalibration

Follow the instructions on the screen and press the Enter key to save the new calibration settings

or press Esc to cancel or quit.

24 Touchscreen

MX3X User’s Guide E-EQ-MX3XOGWW-J

Set The Display Contrast

Adjusting screen contrast lightens or darkens the characters to make them visible at a comfortable

level. The contrast is incremented or decremented one step each time the contrast key is pressed.

To adjust screen contrast, locate the <F6> key at the top of the keypad. Adjust the

display contrast by pressing the:

• 2nd key then the <F6> key

• Use the Up Arrow and Down Arrow keys to adjust contrast until the display lightens or

darkens to your satisfaction.

• Press the Enter key to exit this mode.

The LED for the 2nd key blinks until the special editing mode (set contrast) is complete.

Set the Display Backlight Timer

Note: Refer to the section titled Power Modes in the MX3X Reference Guide for information

relating to the power states of the mobile device.

Select Start | Settings | Control Panel | Display | Backlight tab. Change the parameter values

and tap OK to save the changes.

The first option affects the mobile device when it is running on battery power only. The second

option affects the device when it is running on external power (e.g. AC adapter, cigarette adapter,

powered cradle).

The default value for the battery power timer is 3 seconds. The default value for the external

power timer is 2 minutes. The backlight will remain on all the time when both checkboxes are

blank.

The transmissive color display backlight timer dims the backlight at the end of the specified time.

The transflective monochrome display backlight timer turns the backlight off at the end of the

specified time.

Set The Display Brightness

The brightness adjustment feature depends on the display type, color versus monochrome.

Adjusting screen brightness lightens or darkens the background to make characters visible at a

comfortable level. The brightness on a color display is incremented or decremented one step each

time the arrow key is pressed until either the maximum or minimum brightness is achieved (8

steps). The brightness setting is recalled at power up.

Color -- To adjust screen brightness on the MX3X or MX3P device, locate the <F10> key at the

top of the keypad. Adjust the display brightness by pressing the:

• 2nd key then the <F10> key

• Use the Up Arrow and Down Arrow keys to adjust brightness until the display lightens or

darkens to your satisfaction.

• Press the Enter key to exit this mode.

Monochrome – MX3X only. The 2nd key + F10 key sequence toggles the backlight from it’s

brightest (On) to it’s dimmest (Off) readable settings.

The LED for the 2nd key blinks until the special editing mode (set display brightness) is complete.

Touchscreen 25

E-EQ-MX3XOGWW-J MX3X User’s Guide

Set the Power Schemes Timers

Note: Refer to the section titled Power Modes in the MX3X Reference Guide for information

relating to the power states of the mobile device.

Select Start | Settings | Control Panel | Power | Schemes tab. Change the parameter values and

tap OK to save the changes.

Battery Power Scheme

Use this option when the device will be running on battery power only.

Switch state to User Idle: Default is After 3 seconds

Switch state to System Idle: Default is After 15 seconds

Switch state to Suspend: Default is After 5 minutes

AC Power Scheme

Use this option when the device will be running on external power (e.g. AC adapter, cigarette

adapter, powered cradle).

Switch state to User Idle: Default is After 2 minute

Switch state to System Idle: Default is After 2 minutes

Switch state to Suspend: Default is After 5 minutes

These mode timers are cumulative. The System Idle timer begins the countdown after the User

Idle timer has expired and the Suspend timer begins the countdown after the System Idle timer has

expired. When the User Idle timer is set to Never, the power scheme timers never place the device

in User Idle, System Idle or Suspend modes (even when the device is idle).

Because of the cumulative effect, and using the Battery Power Scheme Defaults listed above:

• The backlight turns off after 3 seconds of no activity,

• The display turns off after 18 seconds of no activity (15sec + 3sec),

• And the device enters Suspend after 5 minutes and 18 seconds of no activity.

26 Set The Audio Speaker Volume

MX3X User’s Guide E-EQ-MX3XOGWW-J

Set The Audio Speaker Volume

Note: An application may override the control of the speaker volume. Turning off sounds saves

power and prolongs battery life.

The speaker is located on the front of the device above the Power button. The audio volume can be

adjusted to a comfortable level for the user. The volume is increased or decreased one step each

time the volume key is pressed. The device has an internal speaker and a jack for an external

headset. Operational beeps are emitted from the speaker.

Refer to the MX3X Reference Guide.

Using the Keypad

Note: Volume & Sounds (in Control Panel) must be enabled before the following key sequences

will adjust the volume.

To adjust speaker volume, locate the <F8> key at the top of the keypad. Adjust the speaker

volume by pressing the:

• 2nd key then the <F8> key to enter Volume change mode.

• Use the Up Arrow and Down Arrow keys to adjust volume until the speaker volume is

satisfactory.

• Press the Enter key to exit this mode.

The LED for the 2nd key blinks until the special editing mode (set audio speaker volume) is

complete.

Using the Touchscreen

Select Start | Settings | Control Panel | Volume & Sounds | Volume tab. Change the volume

setting and tap OK to save the change. You can also select / deselect sounds for key clicks and

screen taps and whether each is loud or soft.

As the volume scrollbar is moved between Loud and Soft, the computer will emit a tone each time

the volume increases or decreases in decibel range.

Enter Data 27

E-EQ-MX3XOGWW-J MX3X User’s Guide

Enter Data

You can enter data into the mobile device through several different methods. The Scanner window

accepts barcode data entry, the RS-232 and the IR port are used to input/output data, and the

keypad and stylus provide manual entry.

Keypad Entry

The keypad is used to manually input data that is not collected otherwise. Almost any function that

a full sized computer keyboard can provide is duplicated on the mobile device’s keypad but it may

take a few more keystrokes to accomplish a keyed task.

Almost every key has two or three different functions. The primary alpha or numeric character is

printed on the key.

For example, when the 2nd key is pressed, the 2nd key LED illuminates. By then pressing the

desired second-function key the device will then produce the 2nd character. The specific 2nd

character is printed above the corresponding key. The 2nd key LED turns off when key sequence

finishes (unless when setting volume or contrast – the 2nd key LED will flash at those times).

Please refer to Appendix A - Key Maps for instruction on the specific keypresses to access all

keypad functions.

Stylus Entry

The stylus performs the same function as a mouse that is used to point to and click elements on a

desktop computer. The stylus is used in the same manner as a mouse – single tap or double tap to

select menu options, drag the stylus across text to select, hold the stylus down to activate slider

bars, etcetera. Always use the point of the stylus for tapping or making strokes on the display.

Never use an actual pen, pencil, sharp or abrasive object to write on the touchscreen.

Hold the stylus as if it were a pen or pencil. Touch an element on the screen with the tip of the

stylus then remove the stylus from the screen. The touchscreen responds to an actuation force

(touch) of 4 oz. (or greater) of pressure.

The stylus can be used in conjunction with the keyboard and scanner and an input/output device

connected to one of the serial ports.

• Touch the stylus to the field of the data entry form to receive the next data feed.

• The cursor begins to flash in the field.

• The unit is ready to accept data from either the keyboard, integrated scanner or a scanner

connected to the serial port, if the scanner applet is configured correctly.

Input Panel

The Input Panel icon looks like a keyboard and is shown in the System tray. To show or hide the

input panel, tap the Input Panel icon. Use the input panel to enter information in any program.

28 Enter Data

MX3X User’s Guide E-EQ-MX3XOGWW-J

Integrated Laser Scanner Data Entry

Read all cautions, warnings and labels before using the laser

scanner.

To scan with the integrated laser barcode reader, point the laser window towards a barcode and

press the Scan button. You will see a red laser beam strike the barcode. The laser scanner has an

SE923 or SE955 scan engine.

Correct Scan Incorrect Scan Incorrect Scan

Figure 24 Scan Beam

Align the red beam so that the barcode is centered within the beam. The laser beam must cross the

entire barcode. Move the mobile device towards or away from the barcode so that the barcode

takes up approximately two-thirds the width of the beam.

Figure 25 Scanner LED Location

The SCNR LED turns red when the laser beam is on. Following a barcode scan and read the

SCNR LED turns green and the mobile device beeps, indicating a successful scan.

The laser and SCNR LED automatically turn off after a successful or unsuccessful read. The

scanner is ready to scan again when the Scan key is pressed.

Large barcodes can be scanned at the maximum distance. Hold the scanner closer to small

barcodes (or with bars that are very close together).

When the scan is successful, the Scan LED turns green, then switches off, and the mobile device

emits a distinctive audible tone.

When the scan is unsuccessful, the SCNR LED remains red until the 3 second timeout (default)

occurs or the Scan key is released. The mobile device emits distinctive audible tones. Check the

following:

• Check the barcode for marks or physical damage e.g. ripped label, missing section, etc.

• Try scanning test symbols of the same code type at different distances and angles.

• Is the scan aperture unscratched and unsoiled?

See the Integrated Scanner Programming Guide for Windows Devices for parameter barcodes,

default scanning ranges, barcode reading instruction and troubleshooting.

Enter Data 29

E-EQ-MX3XOGWW-J MX3X User’s Guide

Using a Headset and Voice for Data Entry

Connecting the Audio Cable and a Headset

Note: The audio option draws power from the main battery. The Headset and Voice option is

not available for an MX3P configuration. The speaker is disabled when a headset is

plugged into the audio jack.

The headset consists of an earpiece, a microphone and an attached cable. The headset attaches to

an audio cable which attaches to the MX3X. The audio jack is located on the MX3X endcap.

Quick

Disconnect

Connector

9000A076CBLHEADSET1

2.5mm

Connector

Figure 26 Audio Cable and Headset

Insert the 2.5mm barrel end of the connector into the audio jack on the endcap and push the

connector in firmly.

Align the audio cable quick disconnect end and the headset quick connect cable end. Firmly push

the cable ends together until they click and lock in place.

Adjust Microphone and Secure the Cable

Do not twist the microphone boom when adjusting the microphone.

The microphone should be adjusted to be about two finger widths from your mouth.

Make sure the microphone is pointed at your mouth. Note the small Talk label near the

mouthpiece. Make sure the Talk label is in front of your mouth.

The microphone cable can be routed over or under clothing.

Under Clothing

• Leave the cable exposed only at the top of the collar.

• Be sure to leave a small loop of cable to allow movement of your head.

Over Clothing

• Use clothing clips to hold the cable close to your body.

• Tuck the cable under the belt, but leave a small loop where it goes under the belt.

• Do not wear the cable on the front of your body. It may get in your way or get caught on

protruding objects.

30 Enter Data

MX3X User’s Guide E-EQ-MX3XOGWW-J

Entering Data

Data is entered into the mobile device by speaking into the headset’s microphone when prompted.

Please contact your System Administrator if assistance is needed with the voice software installed

on the mobile device.

Note: The Headset and Voice option is not available for an MX3-RFID or MX3P configuration.

Note: When the MX3X endcap has a remote antenna connector, it does not have an audio jack.

Tethered Scanner

Do not connect a tethered scanner cable to a USB-C or USB-H labeled endcap port. They are

USB ports and cannot power a tethered scanner.

Some endcap configurations contain a single serial port or dual serial ports. These ports are

labeled RS-232 and are configured either as COM1 or COM3. Tethered scanners connect to RS-

232 labeled ports on the endcap and, for the MX3X only, can connect to the RS-232 port on a

powered cradle.

The MX3X Scan buttons have no effect on tethered barcode scanners (connected to an RS-232

serial port). Tethered scanners read barcode scans only when the trigger on the tethered scanner is

pressed. The tethered scanner requires power on pin 9 of the RS232 serial port.

To set the mobile device to use a tethered scanner, select Start | Settings | Control Panel |

Scanner | COM1 (or 2 or 3).

Tap the Power on Pin 9 (+5V) checkbox for the COM port selected. The COM port that accepts

the scanner data can be configured for data rate, parity, stop bits and data bits.

Seat the tethered scanner connector firmly over the pins and turn the thumbscrews in a clockwise

direction. Do not overtighten.

See Also: Section titled Tethered Scanner and Cradles when using a tethered scanner with a

cradle.

Refer to the documentation received with the tethered scanner for complete instructions.

Bluetooth Devices 31

E-EQ-MX3XOGWW-J MX3X User’s Guide

Bluetooth Devices

Assumption: The System Administrator has Discovered and Paired targeted Bluetooth devices

for each MX3X. The System Administrator has also enabled / disabled Bluetooth

settings and assigned a Computer Friendly Name for each MX3X. See the MX3X

Reference Guide for information and instruction on the MX3X, Bluetooth control

panel applet and supported LXE Bluetooth printers and scanners.

The Bluetooth taskbar Icon state and Bluetooth scanner LED states change as Bluetooth devices

are discovered, pair, connect and disconnect. There may be audible or visual signals as paired

devices re-connect with the MX3X. LXE Bluetooth printers and scanners are displayed on the

Bluetooth Devices screen. All other Bluetooth devices are ignored (see the MX3X Reference Guide

for details).

Taskbar Icon Legend

Bluetooth module is connected to one or more of the targeted Bluetooth

device(s).

MX3X is not connected to any Bluetooth device.

MX3X is ready to connect with any Bluetooth device.

MX3X is out of range of all paired Bluetooth device(s). Connection is inactive.

Note: When an active paired device, not the MX3X, enters Suspend Mode, is turned Off or

leaves the MX3X Bluetooth scan range, the Bluetooth connection between the linked

device and the MX3X is lost. There may be audible or visual signals as paired devices

disconnect from the MX3X. The Bluetooth remote device should be as close as possible,

in direct line of sight, with the MX3X during the pairing process.

Notes

• The MX3X does not have a Bluetooth managed LED.

• The LED on the Bluetooth scanner illuminates during a scanning operation; the Scan LED

on the MX3X does not illuminate.

• Barcode data captured by the Bluetooth scanner is manipulated by the settings in the

MX3X Scanner Properties control panel applet.

• Multiple beeps may be heard during a barcode scan using the Bluetooth scanner; beeps

from the Bluetooth scanner as the barcode data is accepted/rejected, and other beeps from

the MX3X during final barcode data manipulation.

See Accessories for supported Bluetooth printers and scanners.

AppLock, if installed, does not stop the end-user from using the Bluetooth application, nor does it

stop authorized Bluetooth-enabled devices from pairing with the MX3X while AppLock is in

control. See the MX3X Reference Guide for more Bluetooth information.

32 Getting Help

MX3X User’s Guide E-EQ-MX3XOGWW-J

Getting Help

All LXE user guides are now available on one CD and they can also be viewed/downloaded from

the LXE ServicePass website. Contact your LXE representative to obtain the LXE Manuals CD.

You can also get help from LXE by calling the telephone numbers listed on the LXE Manuals CD,

in the file titled Contacting LXE. This information is also available on the LXE website.

Explanations of terms and acronyms used in this guide are located in the file titled LXE Technical

Glossary on the LXE Manuals CD.

Manuals

MX3X Reference Guide

LXEbook – MX3X User’s Guide (download to MX3X)

MX3 Cradle Reference Guide

MX3 Multi-Charger Plus User’s Guide

CE API Programming Guide

RFTerm Reference Guide

Integrated Scanner Reference Guide

Accessories

Note: Items with a Green letter R in the first column are ROHS-compliant. Please contact your LXE

representative when ordering ROHS-compliant items as the part number may have changed. Items without

the letter R may have received ROHS-compliance after this guide was published.

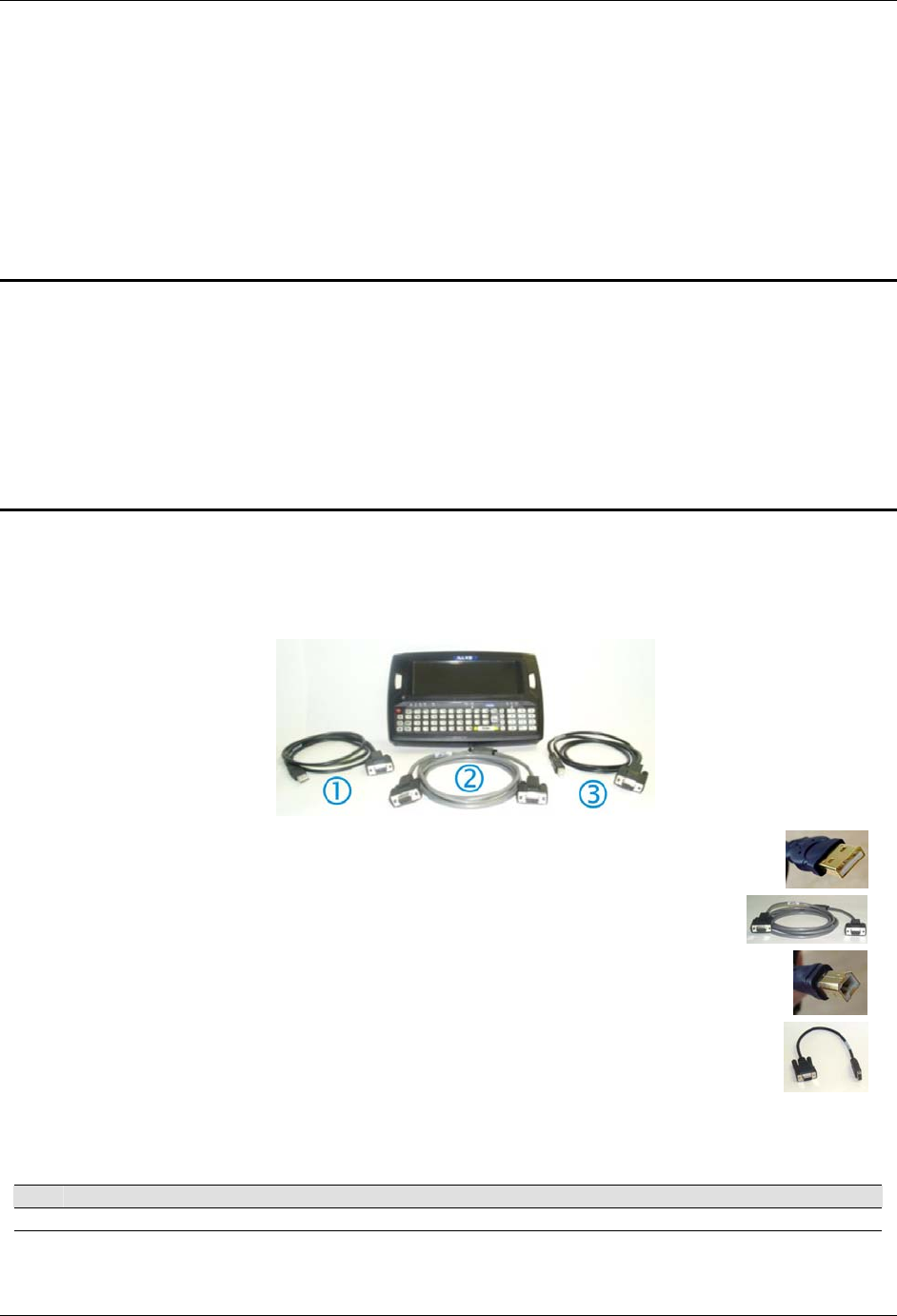

R 1 Cable, USB Host D9F to USB, 6’ (Endcap only)

MX3XA069CBL09USBCLNT (for endcaps with a USB-C port only)

R 2 Cable, D9F to D9F for ActiveSync only, 6’ (Cradle use only)

MX3XA070CBLD9RS232AS / Cradle MX3RA002DESKCRADLE

R 3 Cable, USB Client D9F to USB, 6’ (Endcap only)

MX3XA071CBLD9USBTYPB (for endcaps with a USB-H port only)

R Cable, 12 in., D9F / USB Type A Receptacle

MX3XA068CBLD9USBHOST (for endcaps with a USB-H port only)

Note: MX3X endcaps with a remote antenna connector (female reverse TNC [RTNC]) do not have an

audio port and the MX3X will not have an integrated antenna (normally located inside the device,

under the endcap).

Tethered Scanners

R Scanner, Powerscan SR, 8’ Cbl, WW 8300A326SCNRPWRSR8DA9F

Scanner, Powerscan SR, 12’ Cbl, US 8300A327SCNRPWRSR12DA9F

Getting Help 33

E-EQ-MX3XOGWW-J MX3X User’s Guide

R Scanner, Powerscan LR, 8’ Cbl, WW 8310A326SCNRPWRLR8DA9F

R Scanner, Powerscan LR, 12’ Cbl, US 8310A327SCNRPWRLR12DA9F

R Scanner, Powerscan XLR, 8’ Cbl, WW 8320A326SCNRPWRXLR8DA9F

Scanner, Powerscan XLR, 12’ Cbl, US 8320A327SCNRPWRXLR12DA9F

R Scanner, LS3408ER, 9’ Cbl, US See Note 8520A326SCNRERDA9F

R Scanner, LS3408FZ, Fuzzy Logic, 9’ Cbl, US See Note 8510A326SCNRFZYDA9F

Holding Accessories

R Strap, Hand, Nylon MX3RA497HANDSTRAP

R MX3X Nylon Holster for use with Belt MX3RA401HOLSTER

R MX3X Nylon Hip Flip 9000A408HIPFLIP

R Adjustable Belt for Hip Flip – Velcro ends 9200L67

R Belt Strap with plastic scanner clip 9200L57

MX3-RFID Nylon Case with Shoulder Strap 1 MX3XA411RFIDCASE

R MX3X Nylon Case with Shoulder Strap 9000A409CASE

R Scanner Clip Strap (85XX scanners only) 9000A411SCNRSTRAP

Bracket, Mounting LS300 Scanner, Tethered 8010A001BRKT

Holster, Hood, Nylon, 5300IP Series Scanner, Tethered 8100A401HLSTRHOOD

*** Voice Recognition and Headsets

R MX3X Voice Case optional shoulder strap 9000A410SHOULDERSTRP

R MX3X Nylon Case, Voice Recognition w/Belt MX3XA410VOICECASE

R MX3X to Headset adapter cable, 2.5mm 9000A076CBLHEADSET1

R Single ear and headband, headset with microphone, 5 windscreens HX1A501SNGBHEADSET

R Single ear, dual headband, headset with microphone, 5

windscreens HX1A502DUALBHEADSET

R Dual ear, behind head, headset with microphone, 5 windscreens HX1A503BTHHEADSET

R Replacement foam block for dual headband HX1A504AHSBLOCKFOAM

R Replacement head yoke for dual headband HX1A505DUALYOKE

R Replacement head yoke for single headband HX1A506SINGLEYOKE

R Replacement windscreen for all microphones, 10 pack HX1A508WINDSCREEN10

R Replacement windscreen for all microphones, 50 pack HX1A509WINDSCREEN50

R Replacement foam ear piece cover for single/dual headsets, 10

pack HX1A510FOAMEAR10

R Replacement foam ear piece cover for single/dual headsets, 50

pack HX1A511FOAMEAR50

*** Contact your LXE representative for availability.

Miscellaneous

R Stylus Kit includes stick-on clip, stylus and tether, 5 pack 9000A507STYLUS

R MX3X SDK, CD (Windows CE .NET 4.2 oonly) MX3XA504CENET42SDK

R Windows CE 5.0 Pro SDK with English Font Call LXE

R Cover Plate, RS-232 Port, MX3/MX3-CE MX3RA351RS232CVR

R Touchscreen Protective Film, Monochrome Display MX3XA502PROTFILMMONO

R Touchscreen Protective Film, Color Display MX3XA503PROTFILMCOLR

Battery Chargers and Battery

R Battery Charger/Analyzer, US V1.01 9000A377CHGR5US

R Battery Charger/Analyzer, WW 9000A377CHGR5WW

Battery, Replacement, RFID Device MX3A380RFIDBATT

R Battery, Li-Ion MX3A378BATT

Antenna Mount Kits

R Remote Mount Antenna Assembly Kit, 8 Ft Cable 9000A279ANTREMOTE8

R Remote Mount Antenna Assembly Kit, 6 Ft Cable 9000A278ANTREMOTE6

1 Accessories designed specifically for the MX3-RFID device are compatible with the MX3P

device.

34 Getting Help

MX3X User’s Guide E-EQ-MX3XOGWW-J

- Right Angle Remote Mount Antenna Assembly Kit, 6 Ft Cable 9000A280ANTREMOTE6RT

- Right Angle Remote Mount Antenna Assembly Kit, 15 Ft Cable 9000A281ANTREMOT15RT

Cables for Cradle and Endcap Serial Ports

R Cable, Null Modem, PC, D9F to D9F, 6’ 9000A054CBL6D9D9

- Cable, Null Modem, Printer/PC, D9F to D25F, 6’ 9000A053CBL6D9D25

R Cable, USB D9F to USB Type A Receptacle (for endcaps with a

USB-H port only) MX3XA068CBLD9USBHOST

R Cable, USB D9F to USB Type A Plug (for endcaps with a USB-C

port only) MX3XA069CBLD9USBCLNT

R Cable, USB D9F to USB Type B Plug (for endcaps with a USB-H

port only) MX3XA071CBLD9USBTYPEB

R Cable, D9F to D9F for ActiveSync only, 6’ See Note MX3XA070CBLD9RS232AS

Cradles and Power Supplies

MX3-RFID \ MX3P Passive Mounting Cradle MX3XA001RFIDCRADLE

MX3-RFID \ MX3P RAM Mounting Kit for Passive Cradle 9000A019RAMKIT

R MX3X Desktop Cradle 2 MX3RA002DESKCRADLE

R MX3X Vehicle Mount Cradle 2 MX3RA003VMCRADLE

R MX3X Vehicle Mount Cradle, 19.2K baud rate 9000A005VMCRADLE19KB

Power Supply, Vehicle Cradle, 9-30VDC 2381A054CRDLDCPWR30V

Power Supply, Vehicle Cradle, 30-80VDC 2381A055CRDLDCPWR80V

R AC Power Supply, External, US 9000A301PSACUS

R AC Power Supply, External, AC, International 9000A302PSACWW

R Power Cord, AC, US 9000A066CBLPWRAC

P/S, External, Cigarette Lighter Adapter 9000A303PSCIGLTADPT

R Power Adapter, Bare Wire 12 VDC 9000A079CBL12ML3

R Power Adapter, 24-72 VDC, Bare Wire (Vehicle) 9000A316PS24V72VMX13

Power Adapter, 110-240 VAC 1300A303PSACWW

MX3P Power Cable, Bare Wire, 12 Ft, 12V, DC Jack 9000A060CBL12V

MX3P Power Supply, Bare Wire input, MX3P output 9000A316PS24V72VMX3P

Bluetooth Mobile Barcode Readers and Accessories

R PowerScan 7000BT Scanner RS-232 with pointer 8700A301SCNRBTSRI

R PowerScan 7000BT Base Station, RS232, without universal power

supply.

8700A501BASERS232

R PowerScan 7000BT Base Station Power Supply, Std US, 120V 8700A502PSACUS

R PowerScan 7000BT, RS232 Cable for Base Station, DB9S, Coil,

8’

8700A001CBL8DA9F

R PowerScan 7000BT Battery Charger with Power Supply, Four

Station, US Std

8700A503CHGR4US

R PowerScan 7000BT Battery Pack 8700A504BATT

R Bluetooth Standard Range Fuzzy Logic laser 8810A326SCNRBTFZ

R Bluetooth Auto Range LORAX laser 8820A327SCNRBTER

R Spare battery 8800A376BATTERY

R US AC Power Cord (use with 8800A301ACPS and

8800A379CHGRBASE)

8800A051POWERCORD

R Single Slot Universal Battery Charger adapter cup for 8800

Battery

8800A377CHGRADPTRCUP

R Single slot battery charger with International power supply 8800A378CHGR1SLOT

R Universal Battery charger 4-Slot Base. Power Supply included, no

AC power cord.

8800A379CHGRBASE

R LS3408 Scanner Holster for Belt 8200A501HOLSTRBELT

R Mounted Take Up Reel (Mounted applications) 8000A501INDREEL

R Auto Sense Intellistand, Hands Free Scanning 8500A505STANDSMT

2 Power Adapter Required.

Getting Help 35

E-EQ-MX3XOGWW-J MX3X User’s Guide

R Strap with Scanner Clip 9000A411SCNRSTRAP

R CBL ASSY, DA9F, 9ft (cradle to terminal) 8500A051CBL9DA9F

R Desk Cradle, Radio/Charging, Multi-Interface (requires data cable

and power supply)

8800A001CRADLERCMI

R Desk Cradle, Charge Only, Multi-Interface (requires data cable

and power supply)

8800A002CRADLECMI

R Forklift Cradle, Radio/Charging, Multi-Interface (requires data

cable and power supply)

8800A003CRADLEVRCMI

R Forklift Cradle, Charge Only, Multi-Interface (requires data cable

and power supply)

8800A004CRADLEVCMI

R US AC Power Cord (use with 8800A301ACPS and

8800A379CHGRBASE)

8800A051POWERCORD

R Universal Desktop Power Supply 90-264VAC, 9VDC, 2A, EPS 8800A301ACPS

R 9-60VDC Forklift Power Supply (For Use with Forklift Cradles) 8800A302DCPS

R Power Cable: Connects DC Power Supply to Forklift Cradle 8800A052DCPWRCABLE

R Forklift Rugged Scanner Holder with RAM mount (all metal with

cloth padding)

8800A005STAND

Note: The MX3X Desktop Cradle supports RS-232 ActiveSync communication via the

MX3XA070CBLD9RS232AS cable.

Note: When using the 8500 Series tethered scanners (LS3408), the tethered scanner Power Mode must be set to

Reduced Power Mode to conserve the device’s main battery life. The reduced power mode setting will not

impact performance of the 8500 series scanner. The default mode is Continuous On. Please refer to the

tethered scanner manufacturer’s user guide for instruction.

Note: There may be different SDK kits for Windows CE .NET 4.2 and CE 5.0. Contact your LXE representative to

order an LXE SDK CD.

36 Getting Help

MX3X User’s Guide E-EQ-MX3XOGWW-J

E-EQ-MX3XOGWW-J MX3X User’s Guide

The MX3X Hand Held Computer

Touchscreen Display

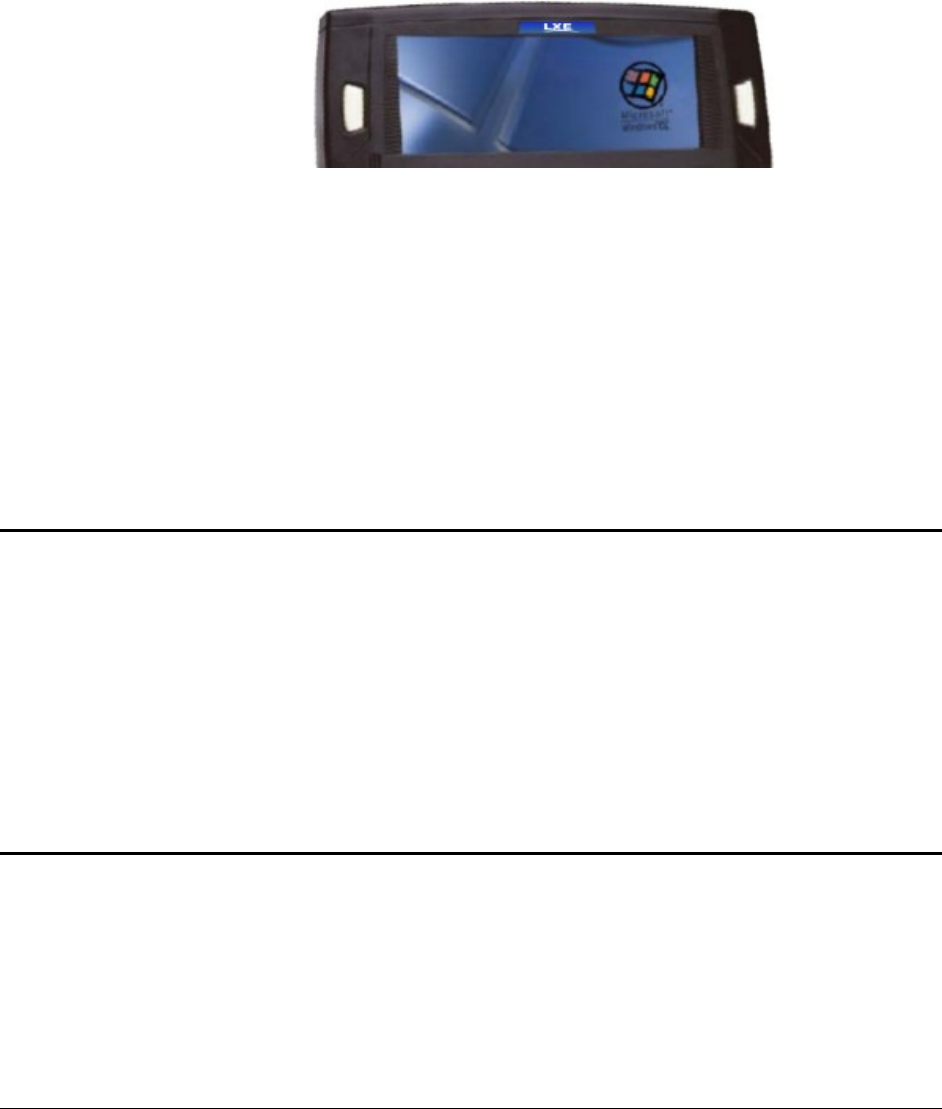

Figure 27 Touchscreen Display

The Touchscreen Display is an LCD unit capable of supporting VGA graphics modes. Display

size is 640 x 240 pixels. The touchscreen allows signature capture and touch input. A pen stylus is

included. The touchscreen responds to an actuation force (touch) of 4 oz. of pressure (or greater).

There are two types of displays available: transflective greyscale monochrome and transmissive

color. The transmissive color display is optimized for indoor lighting. It cannot be used without

the backlight. The transflective monochrome display is optimized for outdoor use but may also be

used indoors. The monochrome display has an electroluminescent backlight. The color display has

a CCFL (Cold-Cathode Fluorescent Lighting) backlight.

The transflective display appears to have a greenish hue when the display is off. The transmissive

display appears black when the display is off.

Applying the Protective Film to the Display

First, clean the display of fingerprints, lint particles, dust and smudges (see Cleaning the Glass

Display/Scanner Aperture).

Remove the protective film from it’s container. Remove any protective backing from the film

sheet by lifting the backing from a corner of the film. Discard the backing.

Apply the film to the screen starting at one side and smoothing it across the display. If air bubbles

appear, raise the film slightly and continue smoothing the film across the display until it covers the

glass surface of the display.

If dust, lint or smudges are trapped between the protective film and the glass display, remove the

protective film, clean the display and apply the protective film again.

Display Backlight

The Display backlight is turned on when the unit returns from Suspend Mode. The display

backlighting feature is programmable and activates based on power source and amount of idle

time before entering the Suspend state.

See the section titled Set the Display Backlight Timer in the previous section Quick Start.

38 Touchscreen Display

MX3X User’s Guide E-EQ-MX3XOGWW-J

Touchscreen Calibration

If the touchscreen is not responding properly to stylus touch taps, the touchscreen may need to be

recalibrated. Press <Ctrl>+<Esc> to force the Start Menu to appear, if needed. Contact your

System Administrator for assistance.

To recalibrate the screen, select Start | Settings | Control Panel | Stylus | Calibration.

Figure 28 Touchscreen Recalibration

To start, tap Recalibrate. Follow the instructions on the screen and press the Enter key to save the

new calibration settings or press <Esc> to cancel or quit.

See the MX3X Reference Guide for complete instructions.

Cleaning the Glass Display/Scanner Aperture

Note: These instructions are for components made of glass. If there is a removable protective

film sheet on the display screen, remove the film sheet before cleaning the screen.

Keep fingers and rough, abrasive or sharp objects away from the scan aperture and display. If the

glass becomes soiled or smudged, clean only with a standard household cleaner such as

Windex(R) without vinegar or use Isopropyl Alcohol. Do not use paper towels or harsh-chemical-

based cleaning fluids since they may result in damage to the glass surface. Use a clean, damp, lint-

free cloth. Do not scrub optical surfaces. If possible, clean only those areas which are soiled.

Lint/particulates can be removed with clean, filtered canned air.

Touchscreen Display 39

E-EQ-MX3XOGWW-J MX3X User’s Guide

Scan Buttons

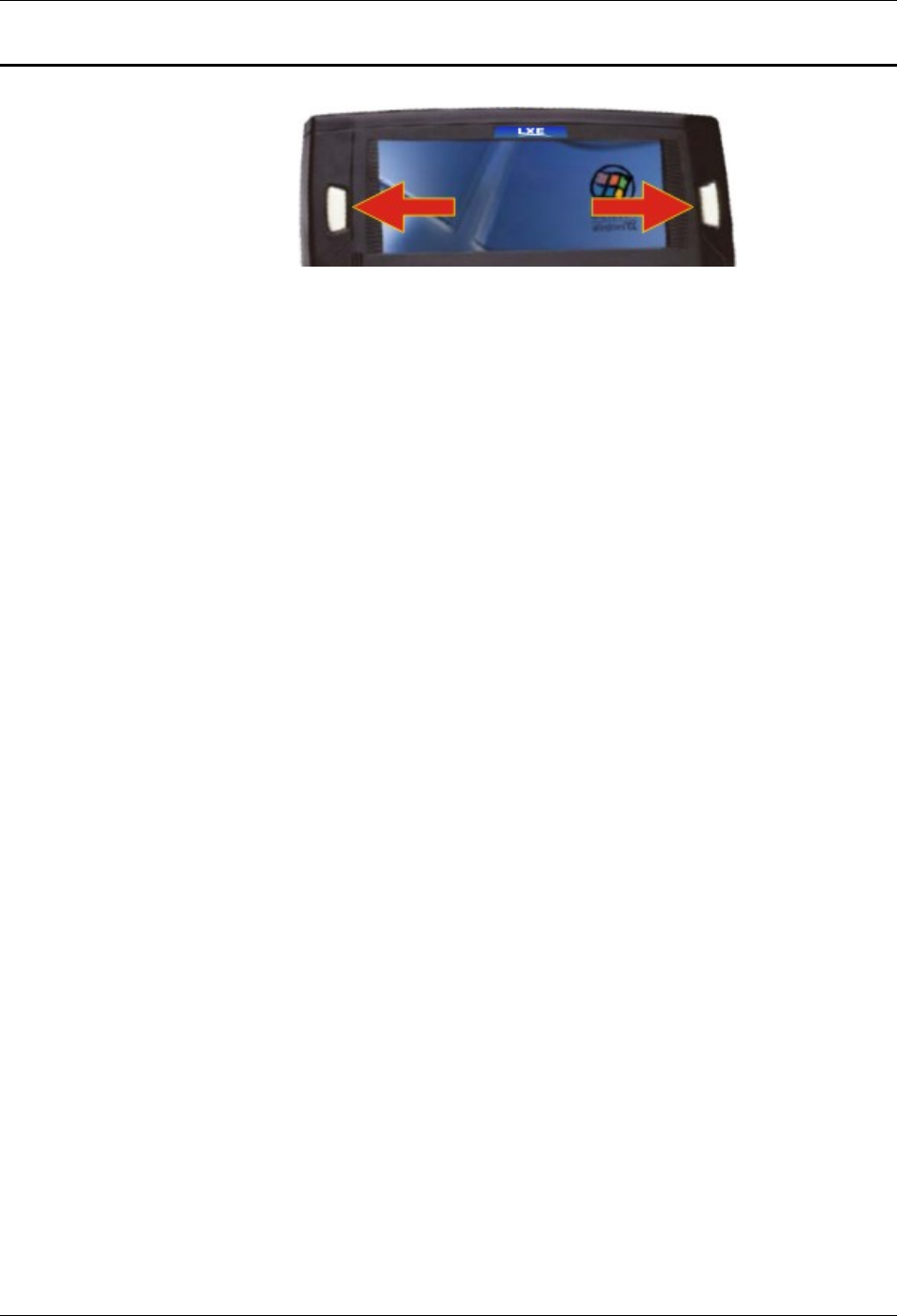

Figure 29 Programmable Buttons

There are two buttons, one on each side of the display. The buttons can be programmed to perform

specific functions. The programmable keys have no effect on barcode scanners tethered to the

device. When there is no integrated scanner installed, both buttons default to Enter buttons (with

the exception of IBM 5250 terminal emulation devices – in this case, the left button is labelled and

functions as Field Exit).

Note: The programmable Scan key is the Field Exit key when the MX3X is an IBM 5250 /

TN5250 compatible device. It can also be programmed as the RFID Read key for an

MX3-RFID device.

To edit the button parameters, select Start | Settings | Control Panel | Scanner. Change the

parameter values and tap OK to save the changes.

The default setting for the right button on an MX3X (and MX3P) is Enter. The default setting for

the left button is Scan. When the device does not have an integrated scanner, both buttons default

to Enter keys and the Scan selection is greyed out.

Each button can be setup as:

• Disabled – no response when pressed

• Scan – initiate a barcode scan sequence (integrated scanner only)

• Enter Key

• Tab Key

• Field Exit (IBM 5250 / TN5250 devices only)

• Virtual Key (default values F20 and F21)

• RFID Read

40 Touchscreen Display

MX3X User’s Guide E-EQ-MX3XOGWW-J

Field Exit Key Function (IBM 5250/TN5250 Only)

The Field Exit key is used to exit an input field. If the field is an Auto Enter field, the

auto transmit function is activated. This key function is present on the IBM

5250/TN5250 specific keypad only.

Scan Buttons and the SCNR LED

The SCNR LED, located above the keypad, illuminates during an integrated barcode scanner

function. It is affected by internal scanner algorithms.

• Red - scanning.

• Green - good scan.

• Unlit – laser scanner is inactive.

The Scan buttons have no effect on tethered barcode scanners connected to a serial port. Tethered

scanners read barcode scans only when the trigger on the tethered scanner is pressed. Pressing the

trigger on the tethered scanner has no effect on the device’s Scan buttons.

Note: Refer to the MX3X Reference Guide before programming the Scan / Enter buttons. The

Reference Guide also contains instructions for the Key Map Utility for the keypad.

Endcaps and COM Ports 41

E-EQ-MX3XOGWW-J MX3X User’s Guide

Endcaps and COM Ports

The computer supports three COM port options. Two external serial ports are dependent on the

end cap chosen. A third serial port is used to support an infrared transciever (barcode reader). An

additional endcap configuration supports serial and USB slave input/output at 1.5 MBps.

Standard Range Scanner Port

RS-232 Port (Serial Port) or

USB Client or USB Host

Audio Jack

Remote Antenna Connector

DC Power Jack

RFID Module or

MX3P Enclosure

Figure 30 Endcap and COM Ports

The COM 2 port is always the IR port on the back of the mobile device, regardless of the type of

endcap installed. COM 2 can only be accessed when a tethered scanner is connected to the RS-232

port on the cradle, and the MX3X is in the cradle. The cradle does not need to be powered by an

alternate AC or DC power source. Tethered scanners receive power from the mobile device's main

battery.

On the Standard Range Scanner / RS-232 labelled port endcap COM 3 is the Integrated Scanner

port. The integrated barcode scanner scans only when the Scan button is pressed. To edit Scanner

port parameters, select Start | Settings | Control Panel | Scanner. Change the parameter values

and tap OK to save the changes.

On the Dual Serial Port endcap the COM1 port is the serial port on the right side of the endcap

when the display is facing you.

Caution -- Do Not Use the RS-232

Labelled Port for Cables with USB

Plugs/Receptacles:

Caution -- Do Not Use these USB

Labelled Endcap Ports for Tethered

Scanners:

Figure 31 Labelled Ports and Cables

Seat the connector firmly over the pins and turn the thumbscrews in a clockwise direction. Do not

overtighten.

Note: When the MX3X has a remote antenna connector, it does not have an audio jack.

42 Endcaps and COM Ports

MX3X User’s Guide E-EQ-MX3XOGWW-J

Endcap Combinations

MX3X MX3P

Left Port Right Port Left Port Right Port

Serial COM3 Serial COM1 Audio Jack Serial COM3 Serial COM1

Serial COM3 USB Client Audio Jack Serial COM3 USB Client

USB Host Serial COM1 Audio Jack USB Host Serial COM1

USB Host USB Client Audio Jack USB Host USB Client

Scanner* Serial COM1 Audio Jack

Scanner* USB Client Audio Jack

Serial COM3 Serial COM1 Antenna

Serial COM3 USB Client Antenna

USB Host Serial COM1 Antenna

USB Host USB Client Antenna

The MX3P does not have an

integrated scanner or an RFID tag

reader.

Rear IR Port is COM2.

Barcode scanners, tethered to the serial port on a cradle, send ASCII data to the MX3X in the

cradle through the COM2 Port.

Tethered Scanners

Do not connect a tethered scanner cable to a mobile device’s USB-C or USB-H labeled endcap

port. These ports cannot power a tethered scanner. Tethered scanners connect to RS-232-labeled

ports on the endcap and can connect to the RS-232 port on a powered cradle.

The MX3X Scan buttons have no effect on tethered barcode scanners (connected to a serial port).

Tethered scanners read barcode scans only when the trigger on the tethered scanner is pressed. The

tethered scanner requires power on pin 9 of the mobile device’s serial port.

To set the MX3X to use a tethered scanner, select Start | Settings | Control Panel | Scanner |

COM1 (or 2 or 3).

Tap the Power on Pin 9 (+5V) checkbox for the COM port selected. The COM port that accepts

the scanner data can be configured for data rate, parity, stop bits and data bits.

See Also: Section titled Cradles when using a tethered scanner with a powered cradle.

USB Port

The USB port requires a 9-pin to USB cable (available from LXE). The 9-pin port/USB port also

supports serial data transfer (using a null modem cable) and non-host USB I/O at 1.5 Mbps. The

operating system automatically detects the USB cable configuration. Refer to section titled

Accessories in this guide for part numbers for the 9-pin USB cable and the null modem cable.

Endcaps and COM Ports 43

E-EQ-MX3XOGWW-J MX3X User’s Guide

IR Port

Figure 32 IR Port (COM 2)

The InfraRed (IR) port provides a means of transferring information to a device with a similar port

and the proper software. The IR port can be used to communicate with printers or a host computer

with the use of an adapter. The IR Port is specified as COM 2 and is a bi-directional half-duplex

infrared port. It supports the Slow IrDA (Infrared Data Access) PHY Layer standard that allows

communication speeds up to 115k baud.

When sending data through the IR port to another MX3X's IR port, make sure both units are in

close proximity to each other. The IR operating envelope has a distance range of 2 cm (.79 inches)

to 1 meter (3.2 feet) with a viewing angle of 30 degrees.

Refer to the MX3X Reference Guide for complete instructions when sending data through the IR

port.

Note: ActiveSync will transfer files over the RS-232 connector on the cradle. The cradle

performs a file pass through to the IR port on the back of the MX3X. Refer to section

titled Accessories in this guide for part numbers for ActiveSync and cradle cables.

44 The Keypad

MX3X User’s Guide E-EQ-MX3XOGWW-J

The Keypad

The QWERTY keypad is phosphorescent. A phosphorescent keypad does not use a keypad

backlight but glows in dim/dark areas after exposure to a light source.

The keypad is installed and configured by LXE.

Figure 33 The QWERTY Keypad

ASCII, TN5250 and TN3270 keymaps (keypress sequences) are located in Appendix A - Key

Maps.

Key Functions

Key Function

Scan (Scanner integrated into endcaps only.) The Scan key activates the scanner when a

scanner endcap is installed and the Scan button is pressed. The internal scanner scans

only when the Scan button is pressed. A Scan button press has no effect on externally

attached scanners.

When there is no integrated scanner endcap, the Scan keys function as Enter keys.

For IBM 5250 configurations, the left button is the Field Exit key.

Enter The Enter key is used to confirm a forms entry or to transmit information. How it is

used is determined by the application running on the computer.

2nd The 2nd key is used to activate the 2nd functions of the keypad. Printed on many keys

at the upper left corner are small characters that represent the 2nd function of that key.

Using the 2nd key activates the second key function. Note that the 2nd key only stays

active for one keystroke. Each time you need to use the 2nd function you must press

the 2nd key. To cancel a 2nd function before pressing another key, press the 2nd key

again.

When the 2nd function is active, the 2nd LED illuminates.

Ctrl The Ctrl key enables the control functions of the keypad. This function is similar to a

regular keyboard’s Control key. Note that the Ctrl key only stays active for one

keystroke. Each time you need to use a Ctrl function, you need to press the Ctrl key

before pressing the desired key.

When the Ctrl function is active, the Ctrl LED illuminates.

Alt The Alt key enables the alternate functions of the keypad. This function is similar to a

regular keyboard’s Alt key. Note that the Alt key only stays active for one keystroke.

Each time you need to use an alternate function, you need to press the Alt key before

pressing the desired key.

When the Alt function is active, the Alt LED illuminates.

The Keypad 45

E-EQ-MX3XOGWW-J MX3X User’s Guide

Key Function

Shft The Shft key enables the shifted functions of the keypad. This function is similar to a

regular keyboard’s Shift key. Note that the Shift key only stays active for one

keystroke. Each time you need to use a Shifted function, you need to press the Shft

key before pressing the desired key. When the Shft function is active, the Shft LED

illuminates.

When the Shft key is pressed the next key is determined by the major key legends,

i.e., the alpha keys display lower case letters -- when CAPS is On alpha characters

are capitalized. For example, when CAPS is on and the Shft key and the G key are

pressed, a lower case g is displayed.

Spc The Spc key adds a space to the line of data on the display. This function is similar to

a regular keyboard’s Spacebar. Note that the Spc key only stays active for one

keystroke.

Field Exit Key Function (IBM 5250/TN5250 Only)

The Field Exit key is used to exit an input field. If the field is an Auto Enter field, the

auto transmit function is activated. This key function is present on the IBM

5250/TN5250 specific keypad only.

Caps Key and CapsLock Mode

This function is similar to a regular keyboard’s CapsLock key. Note that the CapsLock mode stays

active until the CapsLock key sequence is pressed again. Each time you need to use a Caps

function, you need to press the Caps key sequence first. To cancel a CapsLock function press the

Caps key sequence again. When the CapsLock mode is active, the Caps LED illuminates.

The CapsLock key sequence is <2nd >+ <F1>.

• No CapsLock AND No Shift keypress – result is a lowercase letter.

• CapsLock OR Shift – result is an uppercase letter.

• CapsLock AND Shift keypress – result is a lowercase letter.

Keypress Sequences

See Appendix A for all key press sequences.

Custom Key Maps

The System Administrator creates Custom Key Maps for the MX3X. To activate the Custom

keymap, select Start | Settings | Control Panel | Keyboard icon. Select the Custom keymap from

the keyboard popup menu, and close the control panel with the OK button.

To return to the default keymap, select 0409 from the keymap popup and tap OK.

46 The Keypad

MX3X User’s Guide E-EQ-MX3XOGWW-J

LED Functions

Figure 34 LED Functions

Across the top of the keypad are LEDs that provide visual cues to current computer operation.

When the LED is not illuminated, the function is inactive.

LED When illuminated ...

2nd

The next keypress is a 2nd keypress.

• Amber when on

• Blinks amber during configuration key sequence.

ALT The next keypress is an ALT keypress.

• Amber when on and unlit when off.

CTRL The next keypress is a CTRL keypress.

• Amber when on and unlit when off.

SHFT

The next letter is the uppercase letter on alpha keys and the shifted character on the

numeric keypad keys.

• Amber when on and unlit when off.

CAPS Uppercase letters are active until the CAPS key sequence is pressed again.

• Amber when on and unlit when off.

SCNR

Barcode scanner function, affected by both tethered scanners and the scanner

endcap.

• Red - scanning.

• Green - good scan.

• Unlit - scanner is inactive.

BATT

Backup Battery. When illuminated, the backup battery is charging. When unlit, the

backup battery is not charging

STAT

Status Indicator.

• Amber – device is booting up.

• Blinking Green when display Suspend state begins.

BATT

Main Battery. When illuminated, main battery capacity is low.

• Red – low battery.

• Blinking Red – power fail.

• Unlit - Main battery is not low OR all charge is depleted in both batteries..

CHGR

Charger. When on, the mobile device is receiving external power either from the DC

power jack or the MX3X is seated in a powered cradle.

• Red - Main battery is charging.

• Amber – Fault or temporary standby (Contact LXE Customer Support).

• Green - battery charge is complete and the mobile device is connected to

external power through the power jack or a powered cradle.

The MX3P does not fit in any standard MX3 powered docking cradle. See Accessories for the

MX3P passive vehicle docking cradle part number and description.

Batteries 47

E-EQ-MX3XOGWW-J MX3X User’s Guide

Batteries

Note: New batteries must be charged prior to use. If the main battery and backup battery are

depleted, the computer reverts to factory default values. RF configuration parameters

will need to re-entered when the depleted main battery is replaced. The backup battery is

eventually recharged by the main battery.

The mobile device is designed to work with a Lithium-Ion (Li-ion) battery from LXE. Under

normal conditions it should last approximately eight to ten hours before requiring a recharge. The

more you use the scanner or the RF transmitter, the shorter the time required between battery

recharges. The operating system keeps date and time valid for a minimum of four days using a

fully charged backup battery and a main battery that has reached the Low Warning point.

Main Battery

The main battery has a rugged plastic enclosure that is designed to withstand the ordinary rigors of

an industrial environment. Exercise care when transporting the main battery making sure it does

not come in contact with excessive heat or any power source other than an LXE MultiCharger or

the mobile device.

Backup Battery

The internal Nickel Cadmium (NiCd) backup battery provides power to the device for a short

amount of time when the main battery has been depleted, removed or has failed. The backup

battery requires no user intervention. Replacement is performed by LXE.

Note: An uninterrupted external power source (wall AC adapters or DC/DC converters)

transfers power to the computer’s internal charging circuitry which, in turn, recharges

the main battery and backup battery. Frequent connection to an external power source is

recommended to maintain backup battery charge status.

Battery Hot-Swapping

When the battery power level is low, the BATT-M LED illuminates and remains on. You can

replace the main battery without shutting the device off. Place the device in Suspend and simply

replace the discharged battery with a fully-charged battery. The backup battery will retain data

during a main battery hot-swap for at least five minutes.

48 Battery Chargers

MX3X User’s Guide E-EQ-MX3XOGWW-J

Battery Chargers

Note: LXE recommends that the correct MX3 Multicharger Plus always be used to charge the

MX3X main battery. The Multicharger plus label is located on the back of the device and

the charger must have been upgraded to V1.01. Please contact your LXE representative

for further information about theV1.01 upgrade kit, if needed.

LXE Multi-Charger Plus

Figure 35 MX3 Multi-Charger Plus

The main battery can be charged in the MX3 Multi-Charger Plus. The main battery charges the

backup battery using the mobile device's internal charging circuitry. The battery charger requires

an AC power source before charging can begin.

External Power Supply (Optional)

The DC power jack is located on the endcap.

The cradle power jack is located on the back of the cradle. The mobile device (and the Desktop

Cradle) connect to any of the following power supplies through their DC Power Jack.

Figure 36 US AC/DC 12V Power Supply and Cigarette Lighter Adapter

Figure 37 International AC/DC 12V Power Supply

Note: When the MX3X is receiving power through a cradle connected to external power, the

cradle's Status LED and the device's CHGR LED are illuminated. The MX3P does not fit

in any standard MX3 docking cradle. See Accessories for the MX3P passive vehicle

docking cradle part number and description. The MX3P accepts power through the

endcap only.

The LXE-approved AC Power Adapter is only intended for use in a 25ºC (77ºF) maximum

ambient temperature environment.

Storage Cradles 49

E-EQ-MX3XOGWW-J MX3X User’s Guide

Storage Cradles

Note: The MX3 Cradle Reference Guide contains cradle installation and technical information.

There are two types of cradles for the MX3X: a desktop cradle for table top

charging/communication applications and a vehicle mount cradle for vehicle mounted

charging/communication applications.

A passive vehicle cradle is available for the MX3P device. The MX3P accepts power and/or

communication through connections on the endcap only.

The powered cradles give the MX3X the ability to communicate with a host computer and other

equipment. In addition, using wall AC adapters or DC/DC converters, the cradle transfers power

to the internal charging circuitry of the MX3X and, in turn, the operating system recharges the

main battery.

The MX3X can be either on or in Suspend mode while in the cradle. The MX3X can be inserted

and removed from the cradle with one hand.

Cables are available from LXE for connecting the cradle to a printer, a personal computer or a

barcode printer. Tethered scanners (for RS-232 cradle connection) are also available from LXE.

Status LED

An LED indicator on the front of the standard MX3 cradle shows the status of the cradle. When

the indicator is not illuminated, there is no power applied to the cradle.

Cradle Power Amber External power applied to the cradle.

Docked Green Power applied to the cradle and charging connection made with

the MX3X.

IR Active Red IR communication is active.

50 Storage Cradles

MX3X User’s Guide E-EQ-MX3XOGWW-J

Desktop Cradle for MX3X

Note: LXE recommends the correct Desktop Cradle always be used to store / charge /

communicate with the MX3X. The MX3X Desktop Cradle label is located on the bottom

of the device. The MX3X Desktop cradle Product Number is

MX3RA002DESKCRADLE.

Lower the mobile device straight into the cradle, tilt it forward and then let it rest backward in the

cradle. Ensure that the mobile device is properly seated on the charging contacts. The CHGR LED

will illuminate green when the MX3X is correctly seated in the cradle. The CHGR LED will

illuminate red when the MX3X main battery is being charged (in a cradle connected to an external

power source). To remove the MX3X, tilt the MX3X forward and lift it straight up out of the

cradle.

Note: Do not "slam" or slide the mobile device sideways into the cradle. Damage may result.

Note: The MX3P device does not fit in the MX3 desktop cradle.

Connectors

The Power connector is located on the back of the cradle in the top left hand corner. The cradle

can be powered, if required, by an LXE US AC Adapter or an LXE International AC Adapter.

When powered, the cradle transfers power to the internal charging circuitry of the MX3X allowing

it to recharge the main battery. A powered cradle supports RS-232 and IR communications.

The RS-232 connector is located in the back center of the cradle. When the MX3X is properly

docked, the bi-directional half-duplex transceivers in the MX3X and cradle are aligned through

their IR windows. The half-duplex IR signals from the MX3X are converted to RS-232 signals in

the cradle and available at this connector.

Storage Cradles 51

E-EQ-MX3XOGWW-J MX3X User’s Guide

Vehicle Mount Cradle for MX3X

This cradle is specifically designed for vehicle mount applications. The cradle restrains the mobile

device and isolates the computer from shock and vibration. The MX3X is inserted into the cradle

by placing the base of the unit in the pocket and then firmly pressing the unit backwards until the

release mechanisms latch and hold the unit in the cradle. The MX3X is removed from the cradle

by pressing the release mechanisms and pulling the MX3X up and away from the cradle.

Connectors

The Power connector is located on the back of the cradle below and to the left of the RS-232 port.

The cradle is powered by either a vehicle's 12V battery or from an approved accessory for vehicles

with higher voltage (24 to 60 VDC) batteries. When powered, the cradle transfers external power

to the MX3X, which in turn, recharges the main battery. A powered cradle allows RS-232 and IR

communication.

The RS-232 connector is located on the back of the cradle below and to the right of the power

connector. When the MX3X is properly docked, the bi-directional half-duplex transceivers in the

MX3X and cradle are aligned through their IR windows. The half-duplex IR signals from the

MX3X are converted to RS-232 signals in the cradle and available at this connector.

Note: ActiveSync will transfer files over the RS-232 connector on the vehicle cradle.

ActiveSync with a Cradle

To ActiveSync, the cradle must be powered off, the ActiveSync cradle cable attached to the

desktop PC and the cradle, then the cradle powered up.

Note: ActiveSync transfers files to the MX3X over the RS-232 connector on the cradle using the

MX3X070CBLD9RS232AS cable.

Note: The MX3P uses a passive, non-powered cradle (refer to The Passive Vehicle Cradle).

ActiveSync connects through powered cradles or through the RS-232 ports on the mobile

device endcap.

Figure 38 ActiveSync Cable Connected to Serial port on Cradle

52 Storage Cradles

MX3X User’s Guide E-EQ-MX3XOGWW-J

Tethered Scanner and a Cradle

To use a tethered scanner connected to the RS-232 port on the cradle, the cradle must be powered

off, the cable removed and the cradle powered up. Then, the tethered scanner can be attached to

the cradle’s serial port. The passive vehicle cradle does not have a serial port.

The Passive Vehicle Cradle

The MX3P cannot fit in standard MX3 charging cradles. There is a passive vehicle cradle

available (as well as a RAM bracket installation kit) for the MX3P device that secures the mobile

device to the cradle only. See Accessories.

Mobile device main battery charging and RF communication is not available when the mobile

device is in the passive vehicle cradle unless the mobile device is receiving external power

through the power jack in the endcap.

The passive vehicle cradle does not have LEDs or indicators. The passive vehicle cradle does not

require an external power source.

The mobile device in the passive cradle requires a power source, either from the main battery or

from power applied via the power jack on the endcap.

E-EQ-MX3XOGWW-J MX3X User’s Guide

Appendix A Key Maps

Keypad

Note: The key mapping in this appendix relates to the physical keypad. See section titled Input Panel for the

Virtual (or Soft) Keypad used with the stylus.

Key Map 101-Key Equivalencies

Note: This key mapping is used on mobile devices that are NOT running an LXE Terminal Emulator.

When using a sequence of keys that includes the 2nd key, press the 2nd key first then the rest of the key sequence.

Note: When the computer boots, the default condition of NumLock is On and the default condition of Caps (or

CapsLock) is Off. The Caps (or CapsLock) condition can be toggled with a 2nd+F1 key sequence. The

CAPS LED is illuminated when CapsLock is On.

Press These Keys and Then

To get this key

2nd Shift Ctrl Alt CapsLock

Press this key

Contrast x F6

Volume x F8

Backlight x F10

2nd 2

Shift Shft

Alt Alt

Ctrl Ctrl

Esc Esc

Space Spc

Enter Enter

Scan 3 Scan

CapsLock (Toggle) x F1

Back Space BkSp

Tab Tab

BackTab x Tab

Break x F2

Pause x x F3

Up Arrow Up Arrow

Down Arrow Down Arrow

3 Left Scan key default value is Scan. Right Scan key default value is Enter.

54 Key Maps

MX3X User’s Guide E-EQ-MX3XOGWW-J

Press These Keys and Then

To get this key

2nd Shift Ctrl Alt CapsLock

Press this key

Right Arrow Right Arrow

Left Arrow Left Arrow

Insert x BkSp

Delete x DOT

Home x Left Arrow

End x Right Arrow

Page Up x Up Arrow

Page Down x Down Arrow

ScrollLock x x F4

F1 F1

F2 F2

F3 F3

F4 F4

F5 F5

F6 F6

F7 F7

F8 F8

F9 F9

F10 F10

F11 x x F1

F12 x x F2

a Off A

b Off B

c Off C

d Off D

e Off E

f Off F

g Off G

h Off H

i Off I

j Off J

k Off K

l Off L

m Off M

n Off N

Key Maps 55

E-EQ-MX3XOGWW-J MX3X User’s Guide

Press These Keys and Then

To get this key

2nd Shift Ctrl Alt CapsLock

Press this key

o Off O

p Off P

q Off Q

r Off R

s Off S

t Off T

u Off U

v Off V

w Off W

x Off X

y Off Y

z Off Z

A x A

B x B

C x C

D x D

E x E

F x F

G x G

H x H

I x I

J x J

K x K

L x L

M x M

N x N

O x O

P x P

Q x Q

R x R

S x S

T x T

U x U

V x V

W x W

56 Key Maps

MX3X User’s Guide E-EQ-MX3XOGWW-J

Press These Keys and Then

To get this key

2nd Shift Ctrl Alt CapsLock

Press this key

X x X

Y x Y

Z x Z

1 1

2 2

3 3

4 4

5 5

6 6

7 7

8 8

9 9

0 0

DOT DOT

< x 0

[ x 1

] x 2

> x 3

= x 4

{ x 5

} x 6

/ x 7

- x 8

+ x 9

* x I

: (colon) x D

; (semicolon) x F

? x L

` x N

_ (underscore) x M

, (comma) x J

‘ (apostrophe) x H

~ (tilde) x B

\ x S

| x A

Key Maps 57

E-EQ-MX3XOGWW-J MX3X User’s Guide

Press These Keys and Then

To get this key

2nd Shift Ctrl Alt CapsLock

Press this key

“ x G

! x Q

@ x W

# x E

$ x R

% x T

^ x Y

& x U

( x O

) x P

3270 Key Sequences

Legend ........................Explanation.........................Key Sequence

Attn..............................Attention............................... Ctrl + A

Clr................................Clear..................................... Ctrl + C

Del ...............................Delete ................................... Ctrl + D

E-Inp............................Erase Input ...........................Ctrl + BkSp

Ins ................................Insert ....................................Ctrl + I

NL................................New Line.............................. Ctrl + N

PA1............................................................................Ctrl+F1

PA2............................................................................Ctrl+F2

PA3............................................................................Ctrl+F3

Rst................................Reset..................................... Ctrl + R

SysReq.........................System ................................. Ctrl + S
