Manual MX3X rev3
MX3X User’s Guide
(Microsoft® Windows® CE .NET Equipped)
Copyright © August 2006 by LXE Inc.
All Rights Reserved
E-EQ-MX3XOGWW-F
For FCC Review - Draft 02 - Not for Distribution
Language: English
Notices
LXE Inc. reserves the right to make improvements or changes in the products described in this guide at any time
without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy,
LXE assumes no liability resulting from any errors or omissions in this document, or from the use of the information
contained herein. Further, LXE Incorporated, reserves the right to revise this publication and to make changes to it
from time to time without any obligation to notify any person or organization of such revision or changes.
Copyright:
This manual is copyrighted. All rights are reserved. This document may not, in whole or in part, be copied,
photocopied, reproduced, translated or reduced to any electronic medium or machine-readable form without prior
consent, in writing, from LXE Inc.
Copyright © 2006 by LXE Inc. An EMS Technologies Company.
125 Technology Parkway, Norcross, GA 30092 U.S.A. (770) 447-4224
Trademarks:
LXE® is a registered trademark of LXE Inc. Microsoft®, ActiveSync®, MSN, Outlook®, Windows®, the
Windows logo, and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries. RAM® and RAM Mount™ are both trademarks of National Products Inc.,
1205 S. Orr Street, Seattle, WA 98108. Odyssey® and Funk® are registered trademarks of Funk Software, Inc.
Summit Data Communications, Inc. Summit Data Communications, the Summit logo, and “The Pinnacle of
Performance” are trademarks of Summit Data Communications, Inc.All other brand or product names are
trademarks or registered trademarks of their respective companies or organizations. When this manual is in PDF
format: “Acrobat® Reader® Copyright © 2006 Adobe Systems Incorporated. All rights reserved. Adobe®, the
Adobe logo, Acrobat®, and the Acrobat logo are registered trademarks of Adobe Systems Incorporated.” Applies.
Initial Release June 2004.
The user is strongly encouraged to read Appendix B, “Regulatory Notices and Safety
Information”. Important safety cautions, warnings and regulatory information is
contained in Appendix B.
Important: This symbol is placed on the product to remind users to dispose of Waste Electrical and
Electronic Equipment (WEEE) appropriately, per Directive 2002-96-EC. In most areas, this product
can be recycled, reclaimed and re-used when properly discarded. Do not discard labeled units with
trash. For information about proper disposal, contact LXE through your local sales representative, or
visit www lxe com.
For FCC Review - Draft 02 - Not for Distribution
Revision Notice
Notices Added trademarks for RAM mounting products. Added trademark notice for
Odyssey and Summit client radios.
Introduction Added:
- “Features/Options for the MX3X Family.”
- Caution for battery well vent obstructions, “Battery Well Vent Aperture.”
- “RFID and MX3P Devices and the MX3 Cradles”.
- Key sequence to use if the touchscreen is not accepting taps or needs
recalibration to Quick Start | Troubleshooting.
- New section titled “Connect External Power Supply to the MX3P.” Added
proximity caution statement to new section.
- “Entering the Multi AppLock Activation Key”.
- Instruction for audio cable, headsets and voice data entry in “Using a Headset
and Voice for Data Entry”
- Ambient temperature statement to “Connect External Power Supply to MX3X
or Cradle.”
- Voice headsets and cables to “Accessories.” Updated cradle product numbers
(e.g. 2381 to MX3R). Removed references to TalkManager Reference Guide.
- Accessories for the MX3P mobile device.
- ROHS classification to “Accessories”.
Changed:
Changed MX3-RFID IP rating from “dust and water protection enclosure rating
of IEC 60529 compliant to IP55” to “...IP65”.
The MX3X Hand Held
Computer
Added new section titled “The Passive Vehicle Cradle.”
Clarified differences between MX3X, MX3P and MX3-RFID devices, cradles,
batteries and chargers.
Appendix B – Regulatory
Notices and Safety
Information
Added:
- Revision History section.
- Ambient temperature statement to “AC Power Supply Safety Statement.”
- Summit Radio to Approvals section.
Entire Manual Updated device graphics that are shipping with new LXE 2005 logo. Noted July
2006 replacement of SE923 scanner with SE955 scanner.
Note: MX3X User Guide revision history is included at the end of Appendix B, “Regulatory Notices and Safety
Information”.
For FCC Review - Draft 02 - Not for Distribution
For FCC Review - Draft 02 - Not for Distribution
E-EQ-MX3XOGWW-F MX3X User’s Guide
Table of Contents
INTRODUCTION 1
Overview ...................................................................................................................... 1
Features/Options for the MX3X Family .....................................................................................2
Related Manuals..........................................................................................................................2
Document Conventions...............................................................................................................3
Environmental Specifications .....................................................................................................3

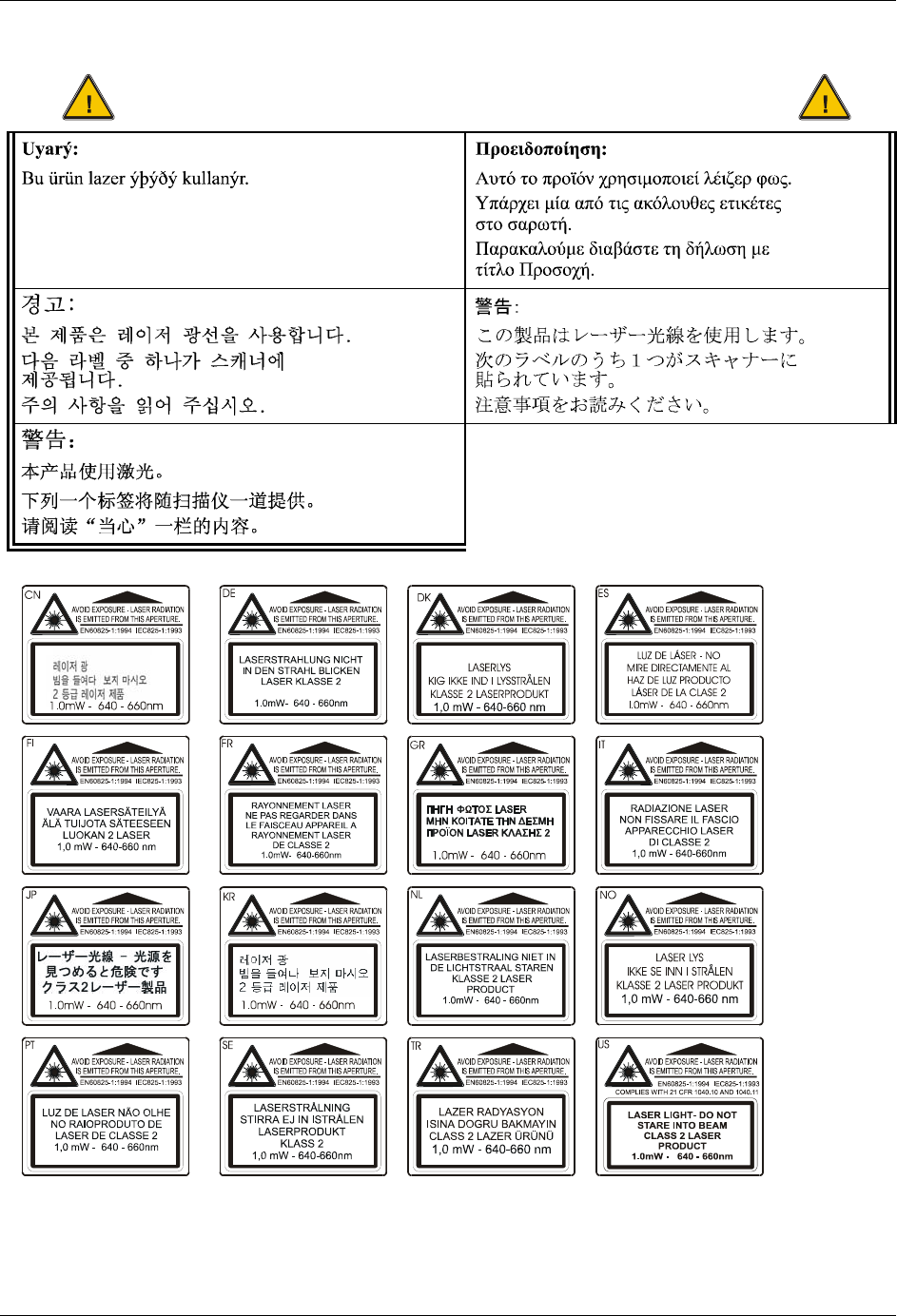

Laser Warnings and Labels ....................................................................................... 4
MX3X .........................................................................................................................................4
MX3-RFID..................................................................................................................................4

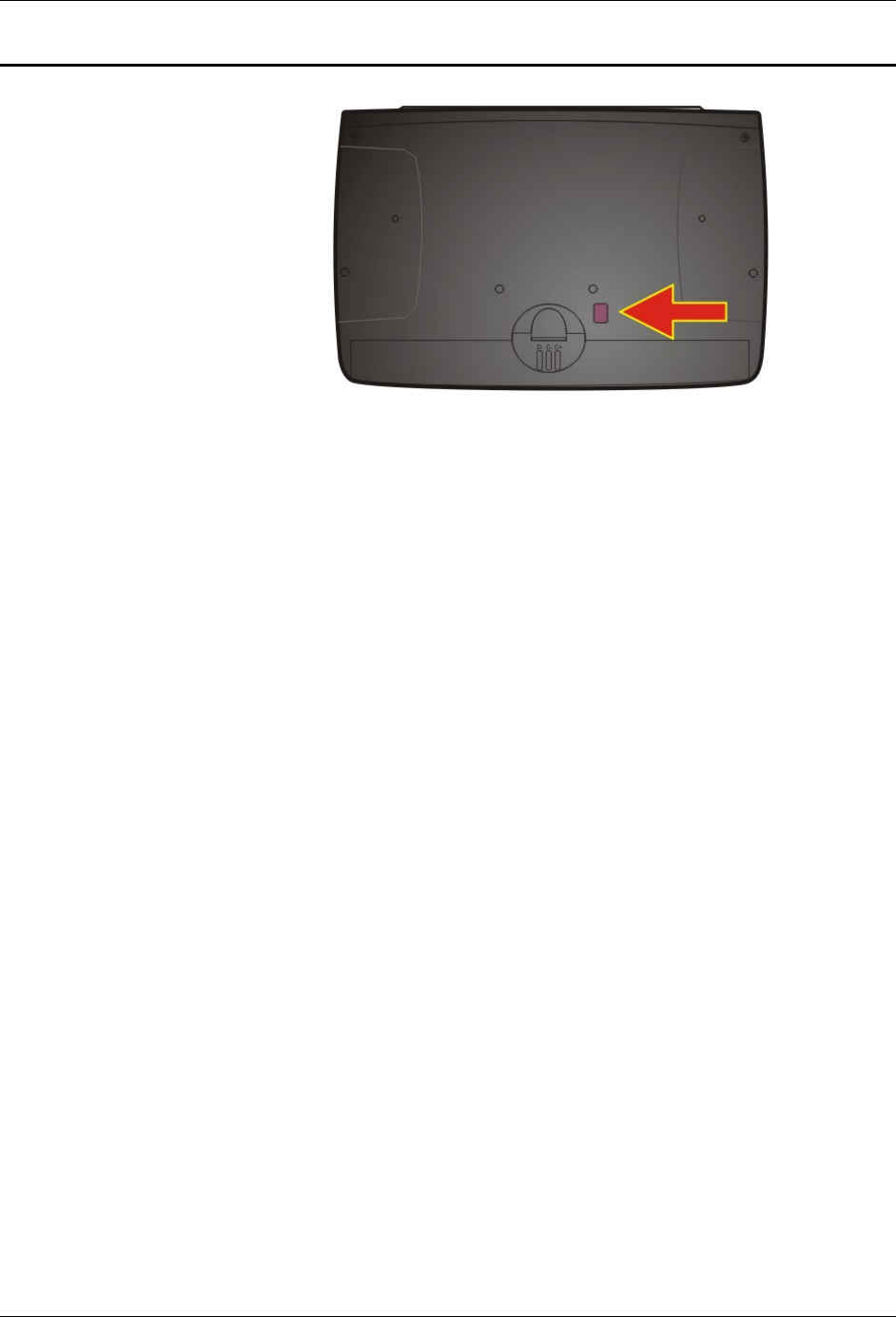

Battery Well Vent Aperture ........................................................................................................5
Components ................................................................................................................ 6

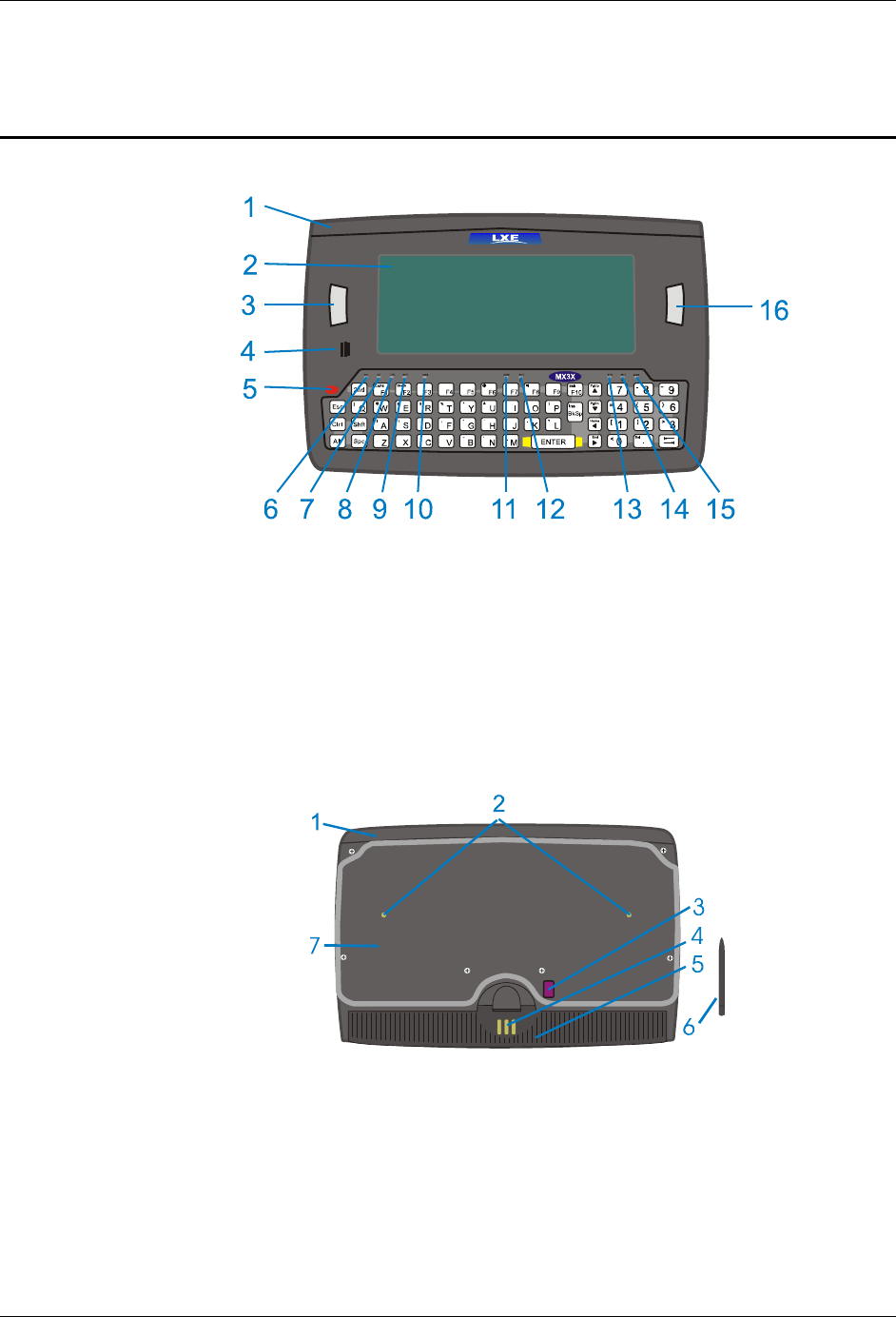

Front and Back Views.................................................................................................................6
Endcap Options ...........................................................................................................................7
MX3-RFID Module ....................................................................................................................7
Quick Start................................................................................................................... 8
Troubleshooting ..........................................................................................................................8
About Lithium-Ion Batteries....................................................................................... 8
RFID Introduction........................................................................................................ 9
RFID Reader Scan Range ...........................................................................................................9
Integrated Laser Scanner.............................................................................................................9
RFID and MX3P Devices and the MX3 Cradles........................................................................9
Insert Main Battery.................................................................................................... 10
Check Battery Status.................................................................................................................10
Optional Devices ....................................................................................................... 11
Attach Handstrap (Optional).....................................................................................................11
Attach the Stylus Clip (Optional)..............................................................................................11

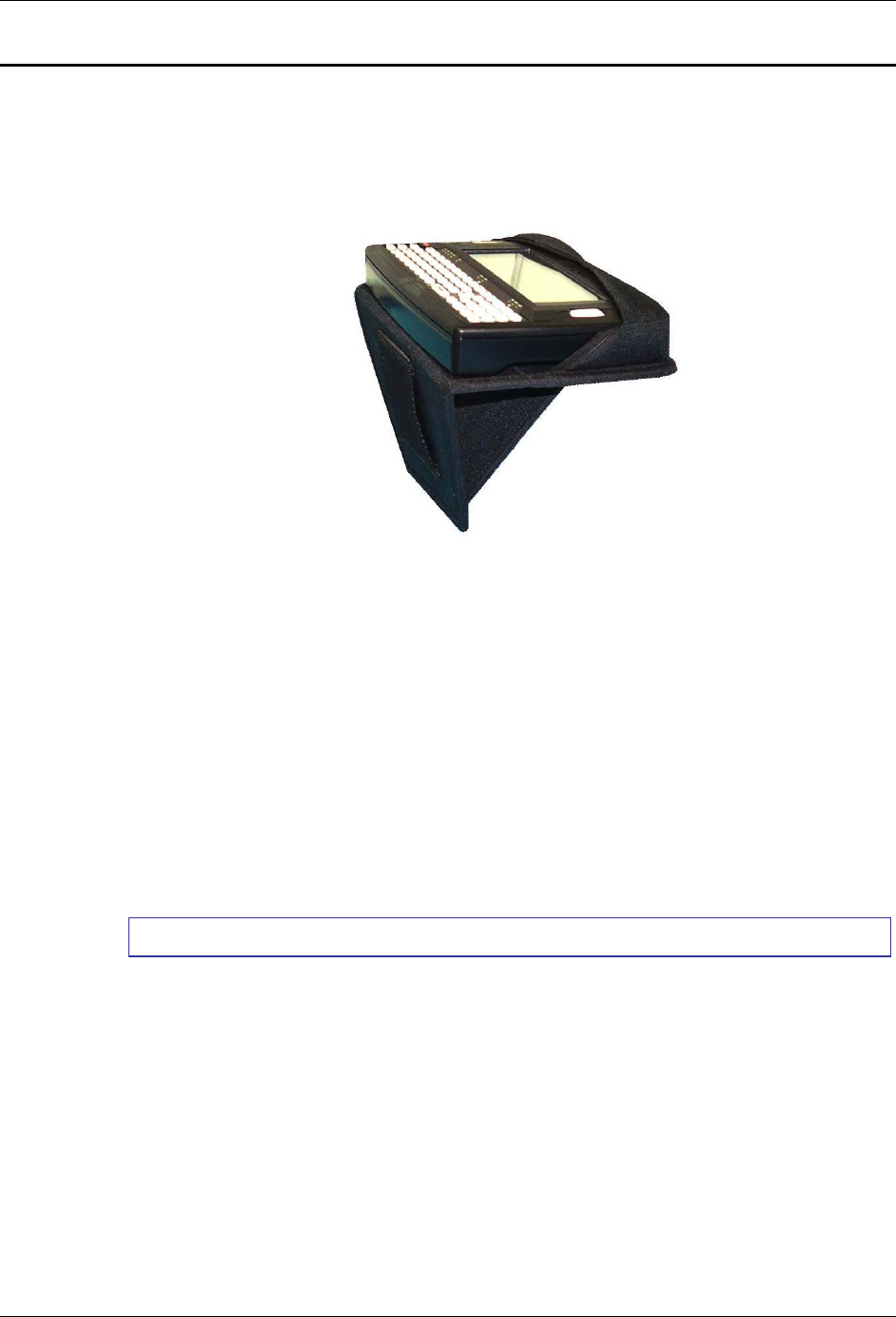

Attach to Hip-Flip (Optional) ...................................................................................................12

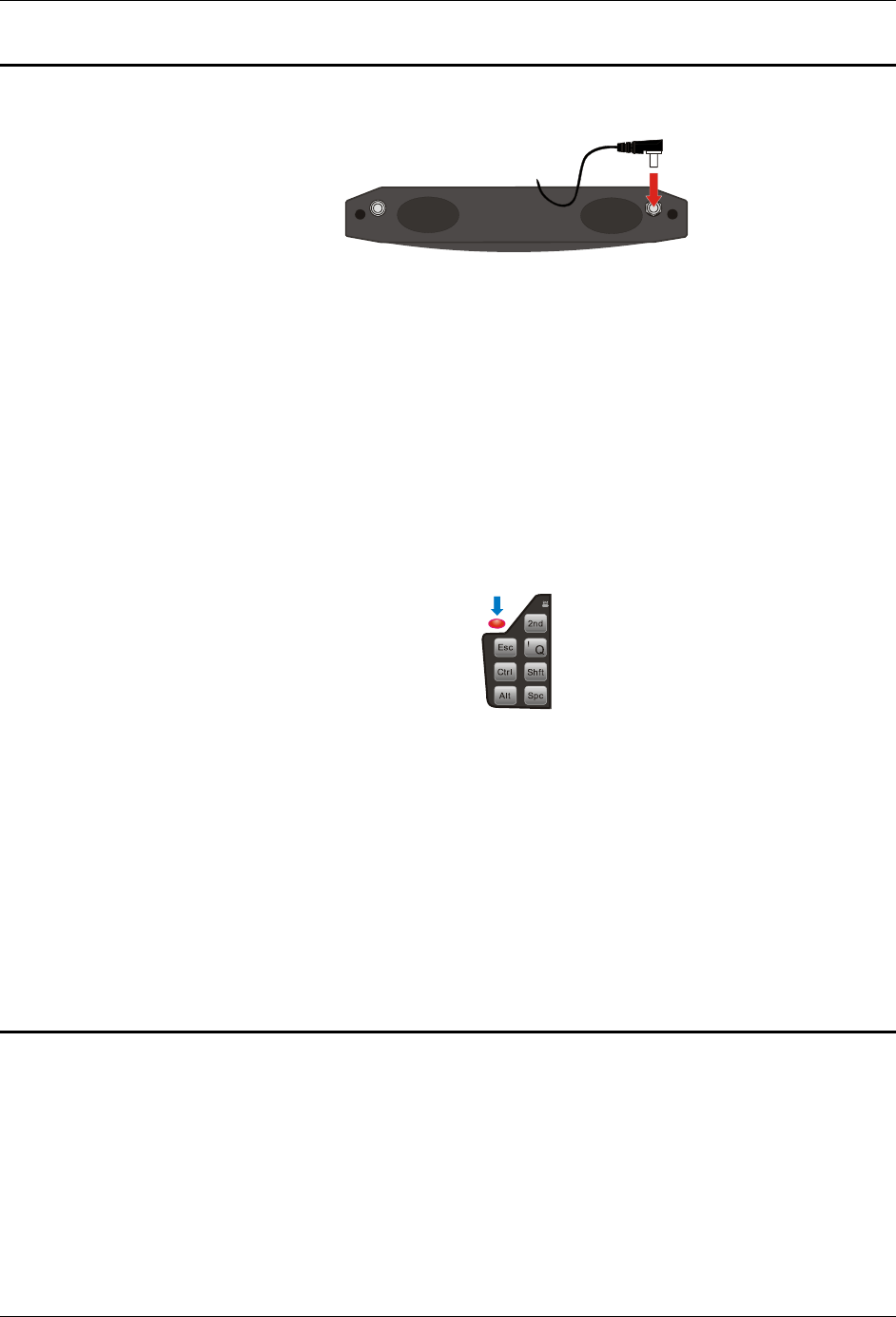

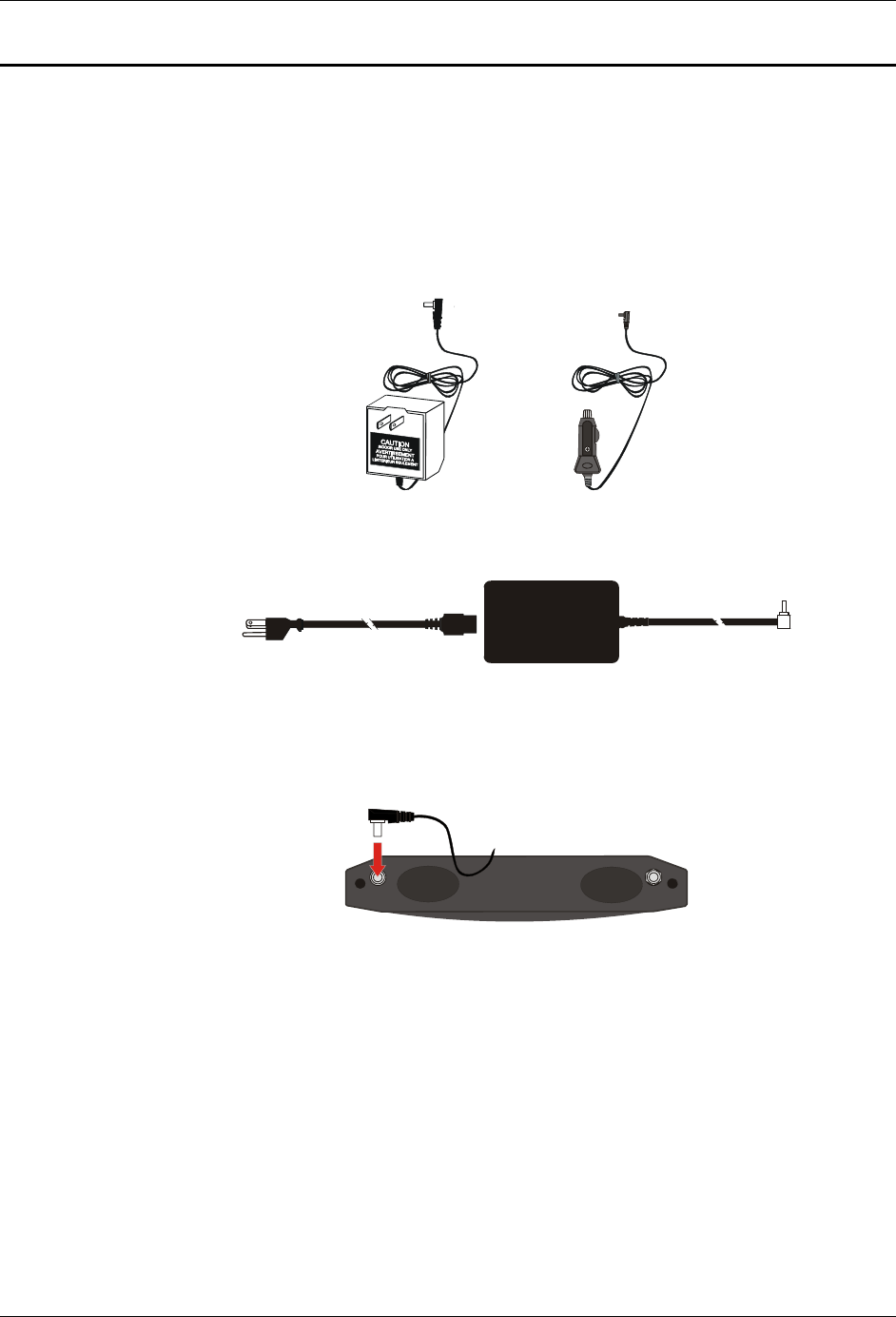

Connect External Power Supply to MX3X or Cradle (Optional) .............................................13
Connect External Power Supply to the MX3P..........................................................................14
MX3P Specific Power Accessories..................................................................................................... 14

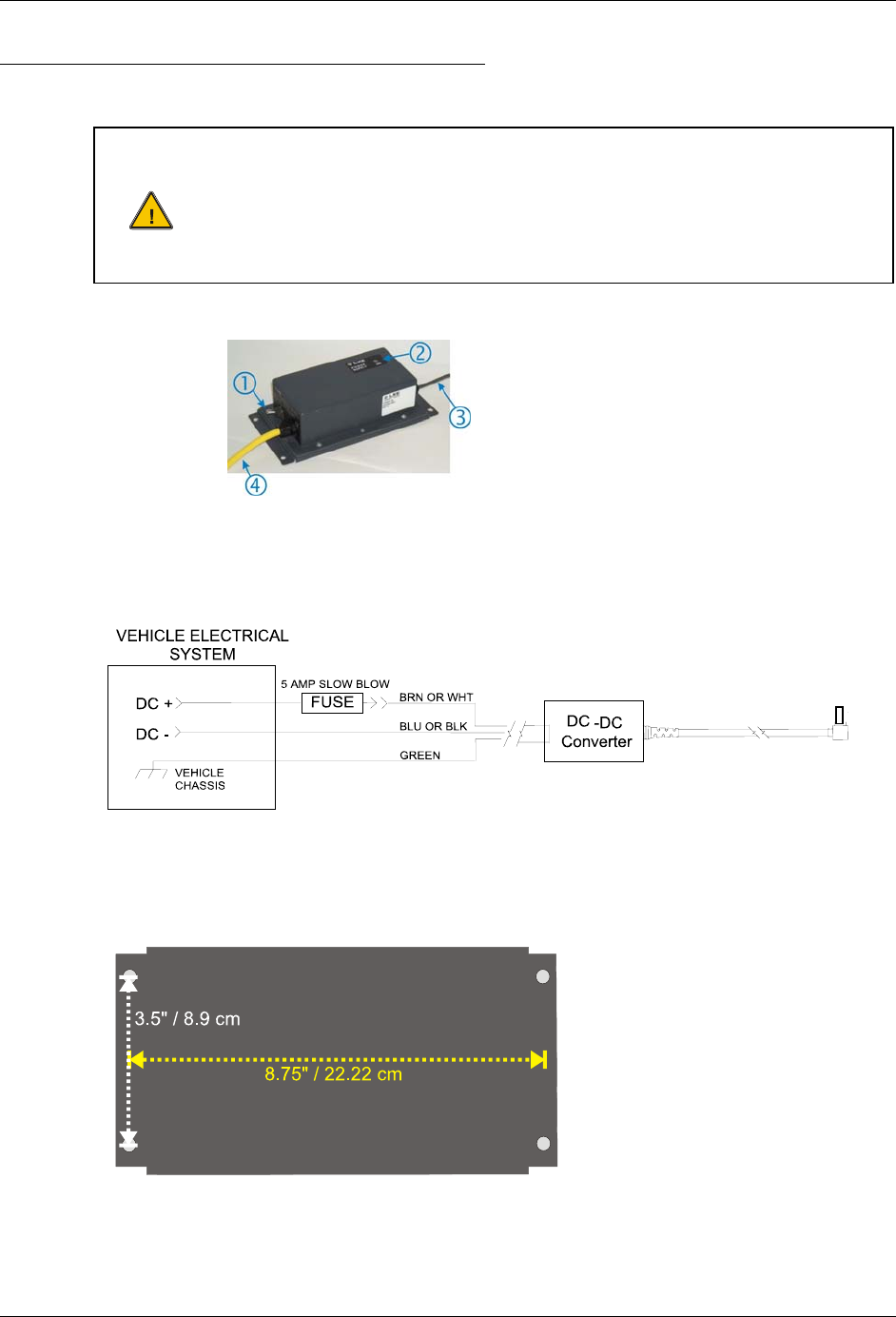

24/72 Maximum VDC Power Supply Input/Output Cable Connection.............................................. 15
12V VDC Power Cable Connection ................................................................................................... 17
Connect MX3X Audio Jack (Optional) ....................................................................................18
Power Button............................................................................................................. 18
Restart Sequence .......................................................................................................................18
Tapping the Touchscreen with a Stylus.................................................................. 19
Keypad Shortcuts ......................................................................................................................19
Entering the Multi AppLock Activation Key............................................................ 20
Touch ........................................................................................................................................20
Hotkey.......................................................................................................................................20
Touchscreen.............................................................................................................. 21
Calibration.................................................................................................................................21
For FCC Review - Draft 02 - Not for Distribution
ii Table of Contents
MX3X User’s Guide E-EQ-MX3XOGWW-F
Set The Display Contrast ..........................................................................................................22
Set the Display Backlight Timer...............................................................................................22
Set The Display Brightness.......................................................................................................22
Set the Power Schemes Timers.................................................................................................23
Battery Power Scheme ........................................................................................................................ 23
AC Power Scheme .............................................................................................................................. 23
Set The Audio Speaker Volume ............................................................................... 24
Using the Keypad......................................................................................................................24
Using the Touchscreen..............................................................................................................24
Enter Data .................................................................................................................. 25
Keypad Entry ............................................................................................................................25
Stylus Entry...............................................................................................................................25
Input Panel ................................................................................................................................25
Integrated Laser Scanner Data Entry ........................................................................................26
Using a Headset and Voice for Data Entry ...............................................................................27
Connecting the Audio Cable and a Headset........................................................................................27
Adjust Microphone and Secure the Cable........................................................................................... 27
Entering Data ...................................................................................................................................... 28
Tethered Scanner.......................................................................................................................28
RFID Tag Data Collection ........................................................................................................28
Getting Help............................................................................................................... 29
Accessories................................................................................................................................29
THE MX3X HAND HELD COMPUTER 33
Touchscreen Display ................................................................................................ 33

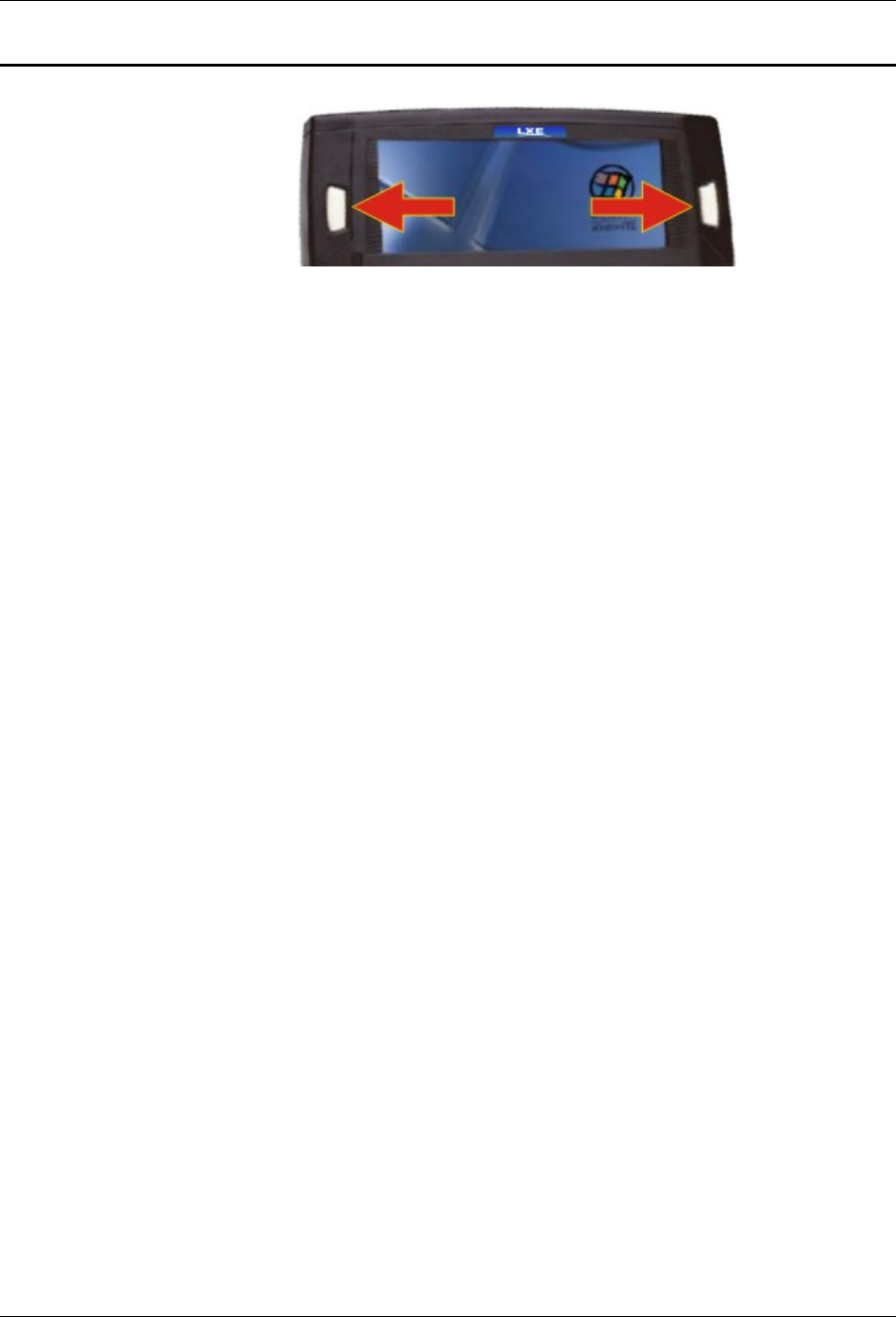

Applying the Protective Film to the Display ............................................................................33
Display Backlight......................................................................................................................33
Touchscreen Calibration ...........................................................................................................34
Cleaning the Glass Display/Scanner Aperture..........................................................................34
Scan Buttons .............................................................................................................................35
Field Exit Key Function (IBM 5250/TN5250 Only) .......................................................................... 36

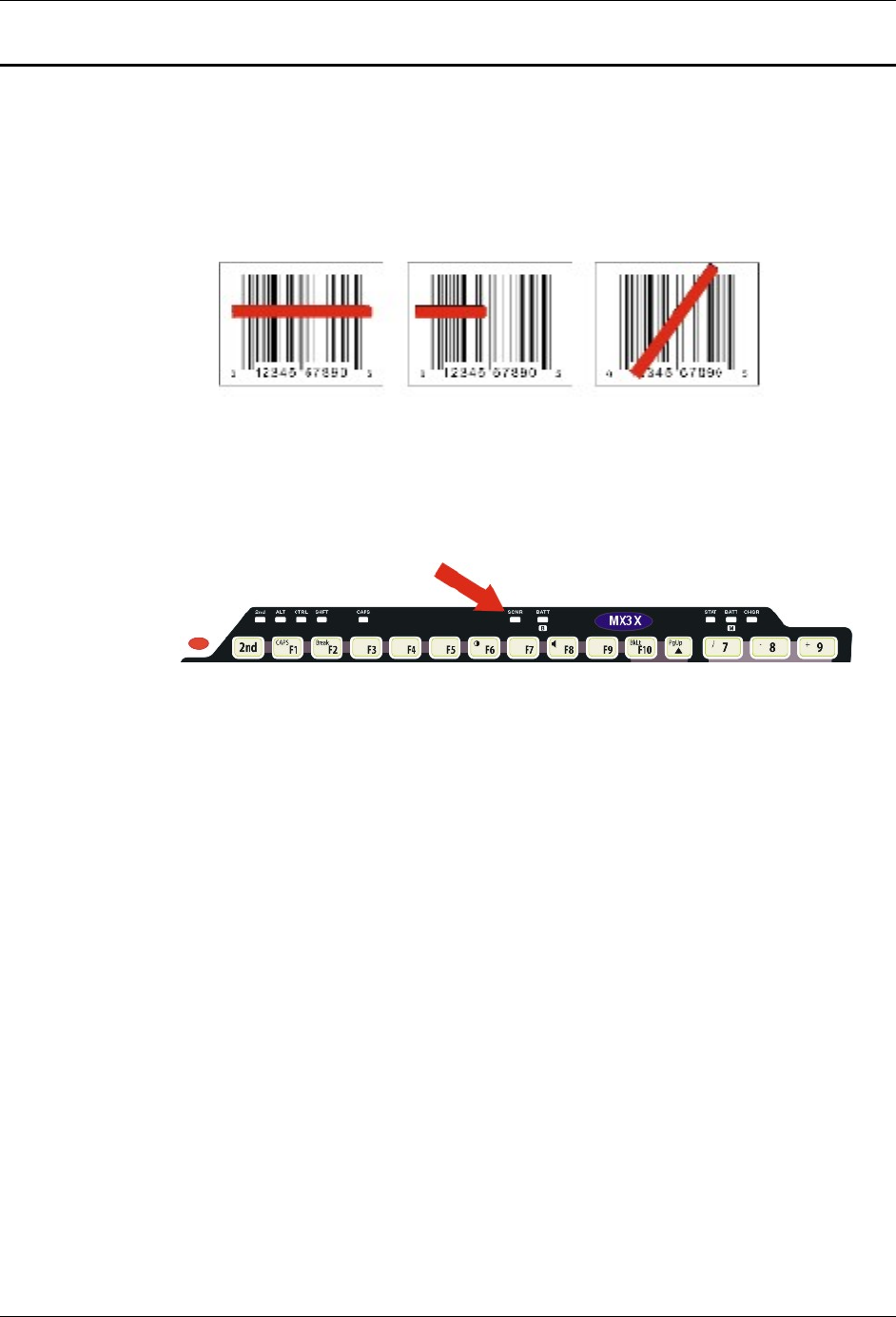

Scan Buttons and the SCNR LED....................................................................................................... 36
Endcaps and COM Ports .......................................................................................... 37
Endcap Combinations ...............................................................................................................38
Tethered Scanners .....................................................................................................................38
USB Port ...................................................................................................................................38
IR Port .......................................................................................................................................39

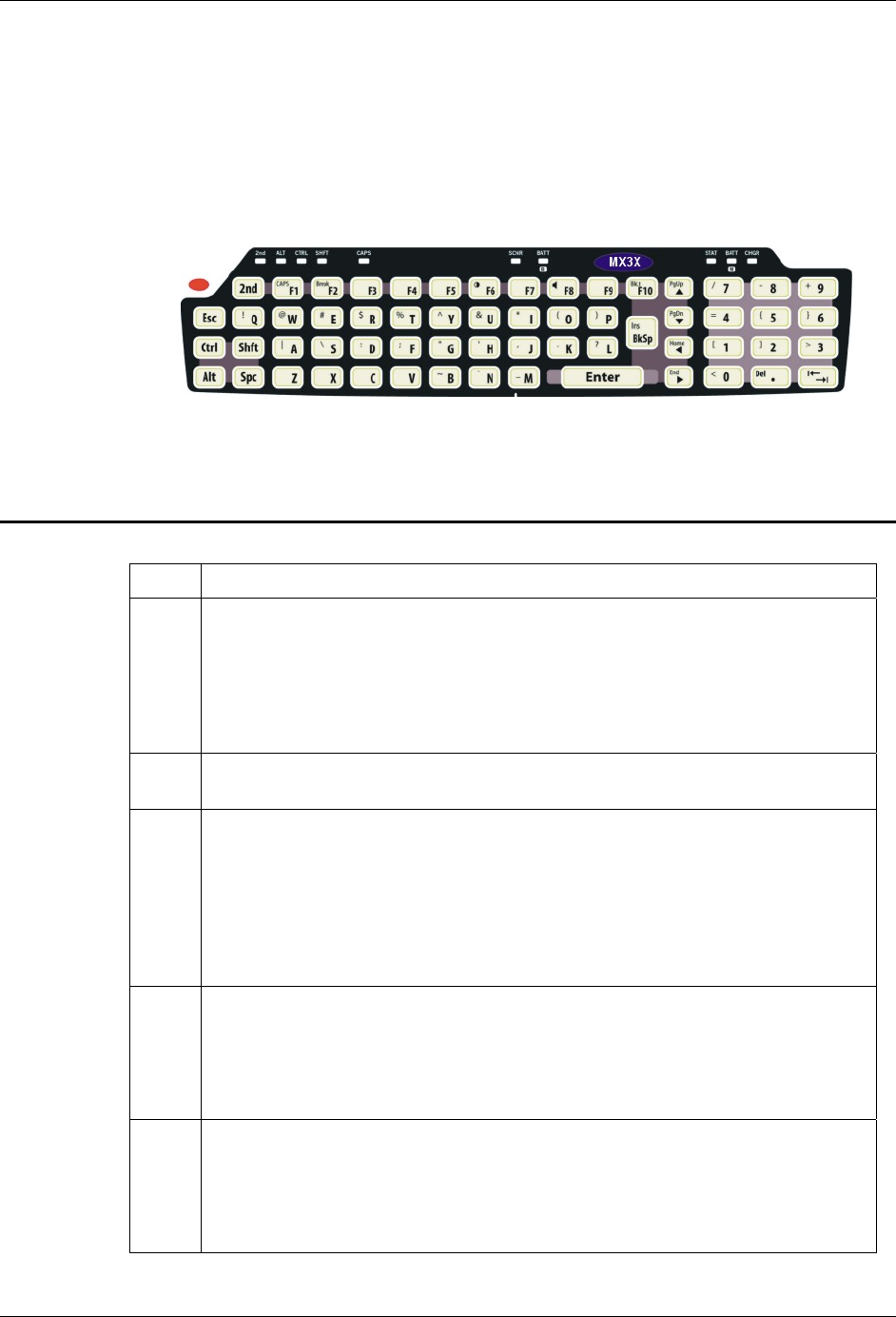

The Keypad................................................................................................................ 40
Key Functions ...........................................................................................................................40
Field Exit Key Function (IBM 5250/TN5250 Only) ................................................................41
Caps Key and CapsLock Mode.................................................................................................41
Keypress Sequences..................................................................................................................41
Custom Key Maps.....................................................................................................................41
LED Functions ..........................................................................................................................42
Batteries..................................................................................................................... 43
Main Battery .............................................................................................................................43
For FCC Review - Draft 02 - Not for Distribution
Table of Contents iii
E-EQ-MX3XOGWW-F MX3X User’s Guide
Backup Battery..........................................................................................................................43
Battery Hot-Swapping...............................................................................................................43

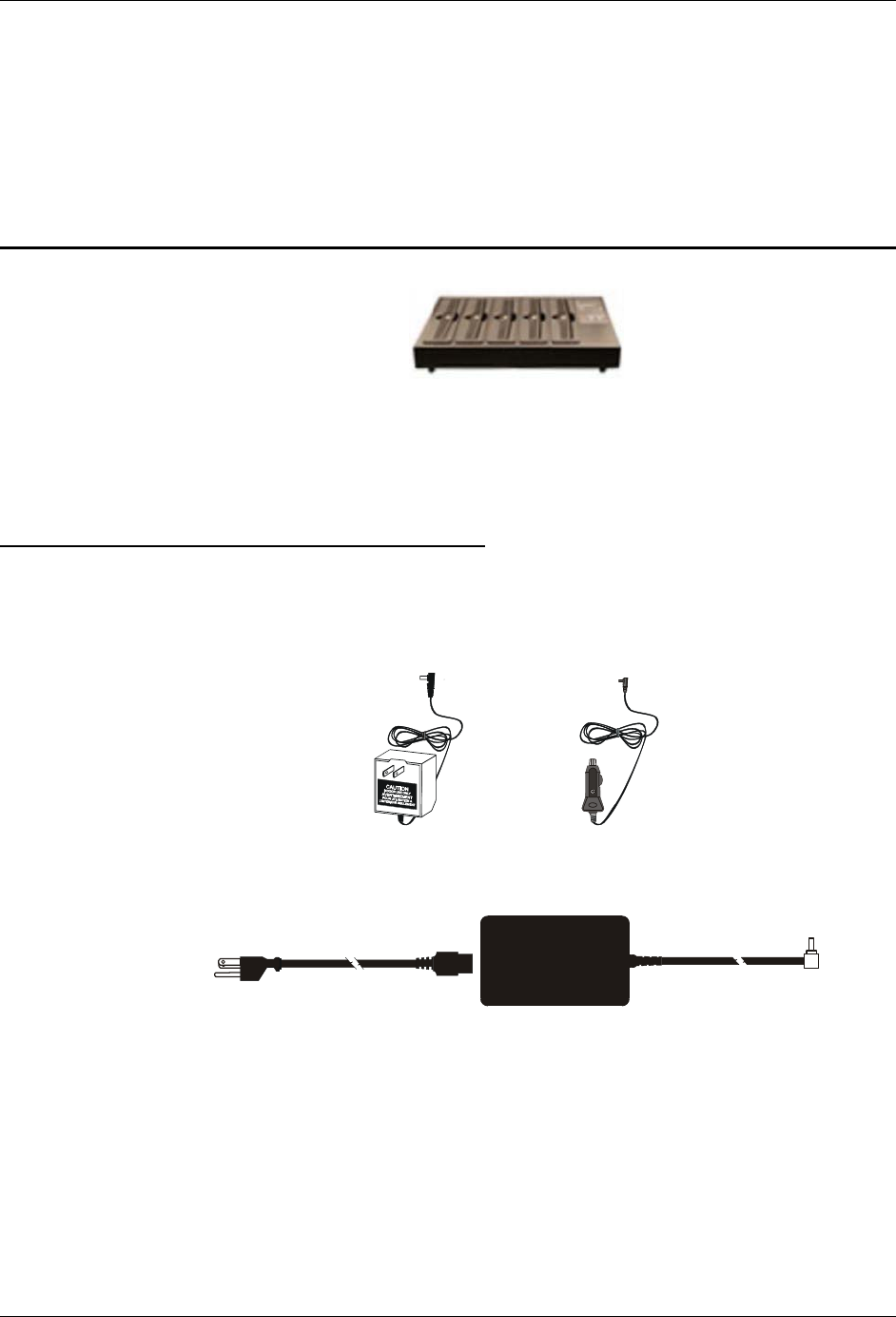

Battery Chargers ....................................................................................................... 44
LXE Multi-Charger Plus...........................................................................................................44
External Power Supply (Optional) ...................................................................................................... 44
Storage Cradles......................................................................................................... 45
Status LED ................................................................................................................................45
Desktop Cradle for MX3X........................................................................................................46
Connectors .......................................................................................................................................... 46
Vehicle Mount Cradle for MX3X.............................................................................................47
Connectors .......................................................................................................................................... 47
ActiveSync with a Cradle .........................................................................................................47
Tethered Scanner and a Cradle .................................................................................................48
The Passive Vehicle Cradle ......................................................................................................48
APPENDIX A KEY MAPS 49
Keypad ....................................................................................................................... 49
Key Map 101-Key Equivalencies .............................................................................................49
APPENDIX B REGULATORY NOTICES AND SAFETY INFORMATION 55
Approvals .................................................................................................................. 57
Revision History........................................................................................................ 67
INDEX 69
For FCC Review - Draft 02 - Not for Distribution
iv Table of Contents
MX3X User’s Guide E-EQ-MX3XOGWW-F
Illustrations
Figure 1 CDRH / IEC 825 Caution Label Location – MX3X, Back................................................................. 4
Figure 2 Caution Label – Laser Scanner........................................................................................................... 4
Figure 3 CDRH / IEC 825 Caution Label Location – MX3-RFID, Back .........................................................4
Figure 4 Caution Label – Laser Scanner........................................................................................................... 4
Figure 5 Vent Aperture in Battery Well – Do Not Cover ................................................................................. 5
Figure 6 Front ...................................................................................................................................................6
Figure 7 Back....................................................................................................................................................6
Figure 8 Endcaps............................................................................................................................................... 7
Figure 9 Side View ........................................................................................................................................... 7
Figure 10 RFID Tag Reading Ranges ............................................................................................................... 9
Figure 11 Battery Contacts in Battery Compartment......................................................................................10
Figure 12 Main Battery ...................................................................................................................................10
Figure 13 MX3X With Handstrap Installed....................................................................................................11
Figure 14 Hip-Flip Accessory......................................................................................................................... 12
Figure 15 US AC/DC 12V Power Supply and Automotive Power Adapter ................................................... 13
Figure 16 International AC/DC 12V Power Supply .......................................................................................13
Figure 17 Connect External Power Supply.....................................................................................................13
Figure 18 Connect External Power Supply.....................................................................................................14
Figure 19 Vehicle Power Supply, 24 – 72 Maximum VDC (Fuse Not Shown).............................................. 15
Figure 20 Connecting the Power Supply to the MX3P Endcap Power Jack................................................... 15
Figure 21 Vehicle Power Supply Footprint.....................................................................................................15
Figure 22 Vehicle Connection Wiring Color Codes ....................................................................................... 16
Figure 23 Connect Audio Jack........................................................................................................................ 18
Figure 24 Power Button ..................................................................................................................................18
Figure 25 End-User Multi Applock Touch Panel ...........................................................................................20
Figure 26 Touchscreen Recalibration .............................................................................................................21
Figure 27 Scan Beam ...................................................................................................................................... 26
Figure 28 Scanner LED Location ................................................................................................................... 26
Figure 29 Audio Cable and Headset ...............................................................................................................27
Figure 30 Touchscreen Display ......................................................................................................................33
Figure 31 Touchscreen Recalibration .............................................................................................................34
Figure 32 Programmable Buttons ...................................................................................................................35
Figure 33 Endcap and COM Ports ..................................................................................................................37

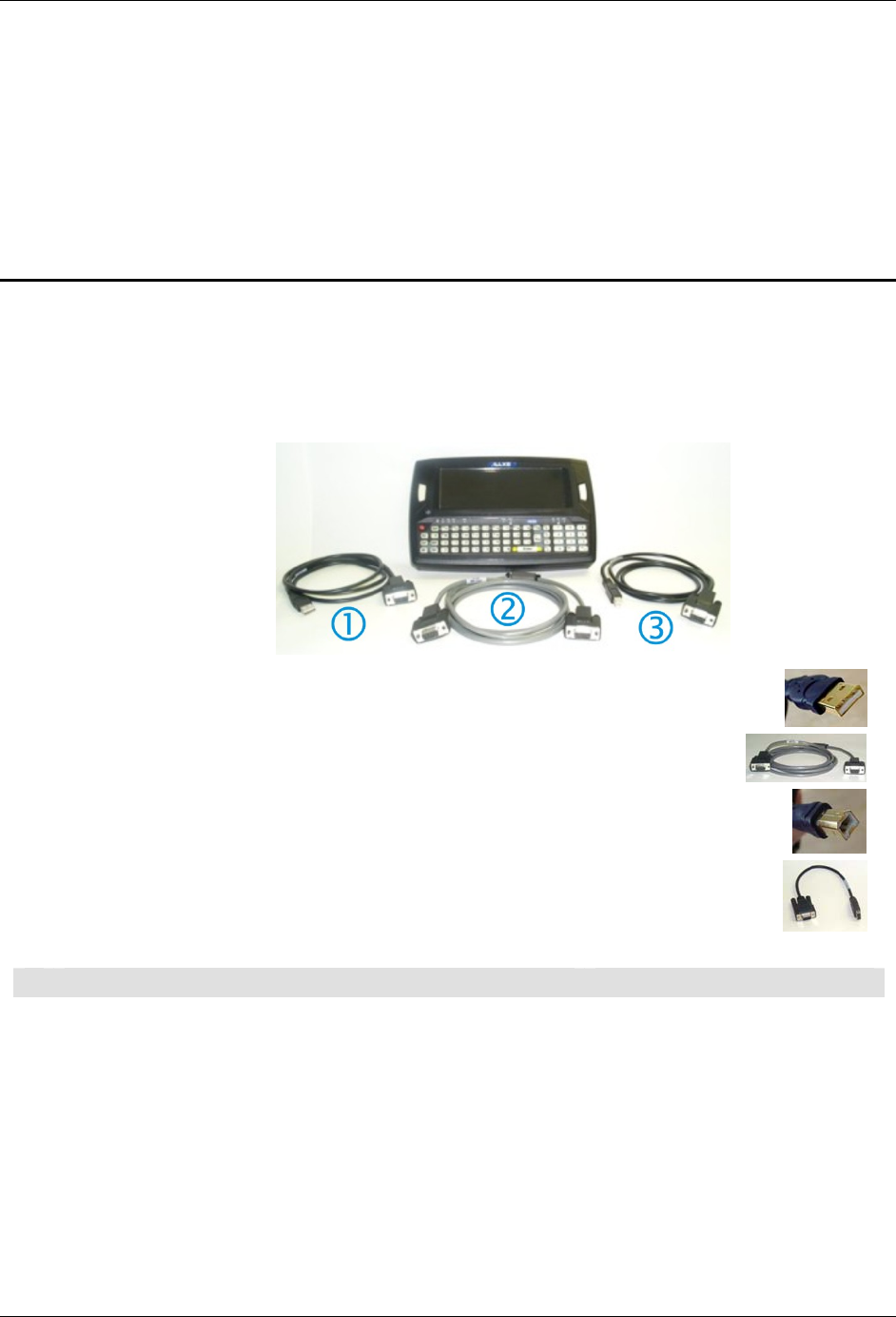

Figure 34 Labelled Ports and Cables...............................................................................................................37
Figure 35 IR Port (COM 2)............................................................................................................................. 39
Figure 36 The QWERTY Keypad...................................................................................................................40
Figure 37 LED Functions................................................................................................................................42
Figure 38 MX3 Multi-Charger Plus................................................................................................................44
Figure 39 US AC/DC 12V Power Supply and Cigarette Lighter Adapter......................................................44
Figure 40 International AC/DC 12V Power Supply .......................................................................................44
Figure 41 ActiveSync Cable Connected to Serial port on Cradle ................................................................... 47
For FCC Review - Draft 02 - Not for Distribution
E-EQ-MX3XOGWW-F MX3X User’s Guide
Introduction
Overview
The LXE MX3X is a rugged, portable, hand-held Microsoft® Windows® CE .NET equipped
mobile computer capable of wireless data communications. The mobile device can transmit
information using a 2.4 GHz radio (with an internally mounted antenna) and it can store
information for later transmission through an RS-232, InfraRed, or USB port. The device can be
scaled from a limited function batch computer to an integrated RF scanning computer.
The mobile device is horizontally oriented and features backlighting for the display. The touch-
screen display supports graphic features and Windows icons that the Windows CE .NET operating
system supports. The keys on the keypad are constructed of a phosphorescent material that can
easily be seen in dimly lighted areas.
The MX3-RFID version of the MX3X has an RFID module permanently attached to the back of
the device. The module protects the RFID antenna and tag reader. A passive vehicle cradle is
available that has been designed specifically for the MX3-RFID device deeper back cover.
The MX3P is another version of the MX3X with a deeper back cover. The deeper back cover
allows it to use the MX3-RFID passive vehicle mount cradle. The MX3P does not have an
integrated laser scanner nor does it have an RFID tag reader.
Device-specific cables are available for all versions. The stylus in the Stylus Kit (shipped with
each unit) is used to assist in entering data and configuring the unit. Protective film for the
touchscreen is available as an accessory.
Throughout this guide, an MX3X without RFID capability is labeled “MX3X”. The MX3X with an
RFID Module and capability is labeled “MX3-RFID”. The MX3P, similar to the MX3-RFID in
form but without RFID capability, is labeled “MX3X”. User and technical information specific to
one over another is labeled appropriately in this guide.
If there is no distinction between directions for the user with an MX3X or MX3P and a user with a
MX3-RFID mobile device, the instruction or information in this guide is the same for all unless
noted.
Note: Until the main battery and backup battery are completely depleted, the mobile device is
always drawing power from the main and backup batteries (On).
For FCC Review - Draft 02 - Not for Distribution
2 Overview
MX3X User’s Guide E-EQ-MX3XOGWW-F
Features/Options for the MX3X Family
Feature MX3X MX3-RFID MX3P
CE .NET 4.2 Operating System x x x
MX3X Main Battery x x x
AC/DC Power Supply x x x
Color and Touch Panel x x x
SE 923 Laser Scanner x x -
SE 955 Laser Scanner x x -
RFID Module Enclosure - x x
RFID Tag Reader - x -
Power/Communication Cradles x - -
Passive Vehicle Cradle - x x
Voice Compatible x - -
ActiveSync specific cables x x x
Hip-Flip Accessory x - -
IP 66 Compliant x - -
IP 65 Compliant - x x
Related Manuals
The “MX3X Reference Guide” contains MX3X, MX3P and MX3-RFID technical information and
instruction. An abbreviated user’s guide (LXEbook – MX3X User’s Guide) is available for
download to the MX3X device from the LXE Manuals CD or the LXE ServicePass website.
Please refer to the “MX3 Cradle Reference Guide” for technical information relating to the
MX3X-compatible Desk Top and Vehicle Mount cradles.
If you need to set up the integrated SE923 or SE955 scanner barcode reading parameters, please
refer to the “Integrated Scanner Programming Guide” on the LXE Manuals CD or the LXE
website. The SE923 scanner was replaced with the SE955 scanner in July 2006.
Note: Always store unused devices with a fully charged main battery installed. LXE
recommends an in-use mobile device be frequently connected to an external power
source to retain optimum power levels in the main battery and the backup battery. When
the backup battery and main battery are dead, the mobile device reverts to it’s default
values when a fully charged main battery is installed and the device is powered On
again.
For FCC Review - Draft 02 - Not for Distribution
Overview 3
E-EQ-MX3XOGWW-F MX3X User’s Guide
Document Conventions
ALL CAPS All caps are used to represent disk directories, file names, and application names.
Menu | Choice Rather than use the phrase “choose the Save command from the File menu”, this guide uses the
convention “choose File | Save”.
“Quotes” Indicates the title of a book, chapter or a section within a chapter (for example, “Document
Conventions”).
< > Indicates a key on the keypad (for example, <Enter> ).
Indicates a reference to other documentation.
ATTENTION Keyword that indicates vital or pivotal information to follow.
Attention symbol that indicates vital or pivotal information to follow. Also, when marked on product,
means to refer to the user’s guide.
International fuse replacement symbol. When marked on the product, the label includes fuse ratings
in volts (v) and amperes (a) for the product.
Note: Keyword that indicates immediately relevant information.
CAUTION
Keyword that indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury.
WARNING
Keyword that indicates a potentially hazardous situation which, if not avoided, could result in death
or serious injury.
DANGER
Keyword that indicates a imminent hazardous situation which, if not avoided, will result in death or
serious injury.
Environmental Specifications
Operating Temperature Monochrome display : -4°F to 122°F (-20°C to 50°C) [non-condensing]
Color display : 32°F to 122°F (0°C to 50°C) [non-condensing]
Storage Temperature -22°F to 158°F (-30°C to 70°C) [non-condensing]
Water and Dust MX3X : IEC IP66
MX3-RFID and MX3P : IEC IP65
Operating Humidity 5% to 95% non-condensing at 104°F (40°C)
Vibration Based on MIL Std 810D
ESD 8 kV air, 4kV contact
Shock 75G, 5ms duration, 100 shock impacts
Note: Environmental Specifications for the MX3 Cradles are contained in the “MX3 Cradle Reference
Guide.”
For FCC Review - Draft 02 - Not for Distribution
4 Laser Warnings and Labels
MX3X User’s Guide E-EQ-MX3XOGWW-F
Laser Warnings and Labels
• Do not look into the laser’s lens.
• Do not stare directly into the laser beam.
• Do not remove the laser caution labels from the MX3X or MX3-RFID.
• Do not connect the laser barcode window to any other device. The laser barcode window is
certified for use with the MX3X and MX3-RFID only.
Caution:
Laser radiation when open. Please read the caution labels.
Use of controls, adjustments or performance of procedures other than those specified
herein may result in hazardous radiation exposure.
MX3X
Figure 1 CDRH / IEC 825 Caution Label Location –
MX3X, Back
Figure 2 Caution Label – Laser Scanner
MX3-RFID
Figure 3 CDRH / IEC 825 Caution Label Location –
MX3-RFID, Back
Figure 4 Caution Label – Laser Scanner
For FCC Review - Draft 02 - Not for Distribution
Laser Warnings and Labels 5
E-EQ-MX3XOGWW-F MX3X User’s Guide
Battery Well Vent Aperture
Caution
The vent aperture in the battery well should never be blocked with any device other than an
approved LXE main battery. The vent aperture functions to relieve any heat or pressure that may
build up in the mobile device during everyday use.
Figure 5 Vent Aperture in Battery Well – Do Not Cover
If the vent hole is covered by an object, e.g. a tracking label, other than an approved LXE main
battery, the touch screen may be damaged. If damage occurs to the touch screen, please contact
your LXE representative for the process to follow when returning the device to LXE for repair.
Note that the MX3X has a dust and water protection enclosure rating of IEC 60529 compliant to
IP66. The MX3-RFID and MX3P have an enclosure rating of IP65.
For FCC Review - Draft 02 - Not for Distribution
6 Components
MX3X User’s Guide E-EQ-MX3XOGWW-F
Components
Front and Back Views
`
Figure 6 Front
1 Endcap 9 Shift LED
2 Display 10 Caps LED
3 Scan, Enter or Field Exit (programmable) 11 Scanner LED
4 Beeper 12 Backup Battery LED
5 On/Off Button 13 Status LED
6 2nd LED 14 Main Battery LED
7 Alt LED 15 Charger LED
8 Ctrl LED 16 Scan or Enter (programmable)
Figure 7 Back
1 Endcap 5 Main Battery
2 Leather Handstrap Connector
(N/A on RFID Module) 6 Stylus
3 IR Port (Com 2 Port) 7 RFID Module (MX3-RFID device only)
4 Cradle Input Contacts 7 Back Cover (MX3P only)
For FCC Review - Draft 02 - Not for Distribution
Components 7
E-EQ-MX3XOGWW-F MX3X User’s Guide
Endcap Options
Figure 8 Endcaps
1 DC Power Jack 3 Serial Com 1 or USB Client Port
2 Serial Com 3 or USB Host or
Scanner Port
4 Audio Jack
MX3X / MX3P* MX3-RFID
Left Port Right Port Left Port Right Port
Serial COM3 Serial COM1 Scanner USB Client
Serial COM3 USB Client
USB Host Serial COM1
USB Host USB Client
Scanner* Serial COM1
Scanner* USB Client
* The MX3P does not have an integrated scanner nor an RFID tag reader.
MX3-RFID Module
MX3X MX3-RFID
1 Endcap w/Laser Scanner
2 Touchscreen
3 Keypad
4 RFID Module or
MX3P Back Cover
Figure 9 Side View
For FCC Review - Draft 02 - Not for Distribution
8 Quick Start
MX3X User’s Guide E-EQ-MX3XOGWW-F
Quick Start
Important
If the mobile device has AppLock installed, please refer to “MX3X Reference Guide”,
“AppLock” for setup and processing information before continuing.
Note: When your mobile device is pre-configured, the radio, PCMCIA card and endcaps are
assembled by LXE to your specifications.
This section’s instructions are based on the assumption that your new system is pre-configured
and requires only accessory installation (e.g. handstrap, stylus) and a power source. LXE
recommends that installation or removal of accessories be performed on a clean, well-lit surface.
When necessary, protect the work surface, the mobile device, and components from electrostatic
discharge.
This guide takes you through an introduction to and operation of the MX3X with and without the
RFID module/enclosure.
In general, the sequence of events is:
1. Insert a fully charged battery and press the Power button.
2. Connect an external power source to the unit (if required).
3. If the screen does not automatically display, press the Power button.
4. Adjust screen display, audio volume and other parameters if desired.
Note: Do not connect a tethered scanner cable to a USB-C or USB-H labeled endcap port.
These ports cannot power a tethered scanner.
Troubleshooting
Can’t align the screen, change the
date/time or adjust the volume.
AppLock is installed and running on the mobile device.
AppLock restricts access to the control panels. Contact
your System Administrator.
Touchscreen is not accepting stylus
taps or need recalibration.
Press <Ctrl>+<Esc> to force the Start Menu to appear.
Use the tab, backtab and cursor keys to move the cursor
from element to element.
About Lithium-Ion Batteries
Li-Ion batteries (like all batteries) gradually lose their capacity over time (in a linear fashion) and
never just stop working. This is important to remember – this mobile device is always ‘on’ even
when in the Suspend state and draws battery power at all times. Use the Start | Settings | Control
Panel | Power | Battery tab to check the battery status and power reading.
Always replace the used main battery with a fully charged main battery. The Battery Low
Warning LED illuminates red at approximately 35% of power left in the main battery. You need to
determine the point at which battery life becomes unacceptable for your business practices and
replace the main battery before that point.
Note: Until the main battery and backup battery are completely depleted, the mobile device is
always drawing power from the batteries (On).
For FCC Review - Draft 02 - Not for Distribution
RFID Introduction 9
E-EQ-MX3XOGWW-F MX3X User’s Guide
RFID Introduction
Radio frequency identification, or RFID, is a generic term for technologies that use radio waves to
automatically identify individual items. The individual items identified/read by a RFID reader
contain a tag (also known as an electronic label or transponder). Unlike barcodes that must be read
by a beam passing over the barcode, RFID tags do not have to be in the line of sight of the reader
before the reader can collect the data from the tag but they do need to be within the established
reading range of the RFID-module.
See the “MX3X Reference Guide” for further information and configuration.
RFID Reader Scan Range
Type of Tag Scan Range
Class 0 Tag 2 feet / .7 meters
Class 1 Tag 3 feet / .9 meters
Figure 10 RFID Tag Reading Ranges
Unlike barcode scanners that require line-of-sight before successfully reading a barcode, the RFID
reader does not require line-of-sight when searching for and reading tags. Pressing the RFID Read
button on the MX3-RFID starts a 360 degree search “beam” that stops at the limits of the scan
range of the RFID reader. The “beam” stops searching when the read timer expires.
Integrated Laser Scanner
The integrated laser barcode scanner can only read barcodes. Tethered laser barcode scanners can
only read barcodes. The MX3-RFID cannot read barcode labels and RFID labels at the same time.
For example, the MX3-RFID can scan a barcode label and when the good read/bad read/store data
process is complete, it is then free to begin the process of reading and storing the data from an
RFID tag.
The RFID module can only read RFID tags.
• COM1 is the RFID module.
• COM3 is the integrated barcode scanner.
RFID and MX3P Devices and the MX3 Cradles
The MX3-RFID and MX3P devices do not fit in the standard MX3 powered cradles. There is a
passive vehicle cradle available for the MX3-RFID and MX3P devices that secures the device to
the cradle only. See section titled “Accessories”.
Main battery charging and host communication is not available directly through the passive
vehicle cradle. The passive vehicle cradle does not have LEDs or indicators. It does not accept DC
power connection. The MX3-RFID and MX3P mobile devices can be directly connected to
external power through the power jack located on the mobile device’s endcap. Host
communication is available wirelessly while the mobile device is secured in the passive vehicle
cradle.
For FCC Review - Draft 02 - Not for Distribution
10 Insert Main Battery
MX3X User’s Guide E-EQ-MX3XOGWW-F
Insert Main Battery
Press the Power button after the battery is inserted into the battery compartment.
Note: New batteries must be charged prior to first use. This process takes up to four hours in
an LXE Multi-Charger Plus and eight hours with an external power source connected to
the power jack on the endcap of the mobile device.
Figure 11 Battery Contacts in Battery Compartment
The Main Battery compartment is located at the bottom of the back of the computer. The arrows in
the figure titled “Battery Contacts” point to the battery contacts in the computer. The figure titled
“Main Battery” show the cradle and charger contacts on the back of the main battery.
Figure 12 Main Battery
Place the battery in the compartment, making sure the side of the battery with six contacts matches
up with the battery contacts in the computer battery compartment. Do not slide the battery
sideways into the compartment.
Firmly press the battery into the compartment until the Retaining Clip on the battery clicks. The
battery is now securely fastened to the computer. The computer draws power from the battery
immediately upon successful connection.
Note: Do not cover the vent aperture in the battery well (located in the left side of the battery
well) with anything other than the main battery.
Check Battery Status
Tap the Start | Settings | Control Panel | Power icon. Main and backup battery level, status and
Power Scheme timeout setting options are displayed.
For FCC Review - Draft 02 - Not for Distribution
Optional Devices 11
E-EQ-MX3XOGWW-F MX3X User’s Guide
Optional Devices
Attach Handstrap (Optional)
Note: These instructions are not to be used for the MX3-RFID or MX3P. See “Accessories” for
MX3-RFID and MX3P holding accessories e.g. holster mounted, shoulder straps, etc.
Once installed, the elastic handstrap provides a means for the user to secure the computer to their
hand. It is adjustable to fit practically any size hand and does not interfere with battery charging
when the MX3X is in a cradle.
Figure 13 MX3X With Handstrap Installed
Tool Required: #1 Phillips Screwdriver
Installation
1. Place the MX3X, with the screen facing down, on a flat stable surface.
2. Attach the handstrap to the MX3X with the screws and washers provided.
3. Test the strap's connection making sure the MX3X is securely connected to each end of the
strap connectors.
Attach the Stylus Clip (Optional)
Carefully remove the paper backing from the Stylus Clip sticky. Firmly press the sticky side of the
clip onto the mobile device and hold in place for 15 seconds. Thread the tether through the end of
the stylus and tie the ends firmly to the Stylus Clip so that the ends don’t interfere with placing the
stylus in the Stylus Clip. Place the stylus in the Stylus Clip when not in use.
An extra or replacement stylus can be ordered from LXE. See the section titled “Accessories” for
the stylus part number.
For FCC Review - Draft 02 - Not for Distribution
12 Optional Devices
MX3X User’s Guide E-EQ-MX3XOGWW-F
Attach to Hip-Flip (Optional)
Note: The MX3-RFID and MX3P do not fit the Hip-Flip accessory. The Hip-Flip is not to be
used with the MX3-RFID or MX3P device. See “Accessories” for device-specific holding
accessories e.g. holster mounted, shoulder straps, etc.
Figure 14 Hip-Flip Accessory
Note: #1 flat head screwdriver is not supplied by LXE. A waist belt accessory can be ordered
from LXE.
Once the MX3X is attached to the hip-flip and the hip-flip securely fastened to the user by a belt
around their waist, the MX3X can be operated at a convenient height, leaving the user's hands
free.
The hip-flip adjusts downward to allow removing and replacing the main battery without
removing the unit from the hip-flip or the user's body.
The MX3X must be removed from the hip-flip before being placed in a docking station.
Caution: Never use the MX3X in the hip-flip without first securing the device to the hip-flip
with the screws.
Installation
1. If the MX3X has a handstrap, remove the handstrap and set it aside along with the handstrap
screws and washers.
2. Slide the MX3X into the pocket in the hip-flip, making sure the keypad is up and the endcap
ports are visible in the openings at the base of the hip-flip.
3. Place the MX3X (in the hip-flip) on a flat stable surface with the keypad down.
4. Tighten the assembly with the black screws provided, using the holes used for the handstrap
(if used) on the back of the MX3X.
5. Test the hip-flip's connection making sure the MX3X is securely attached.
6. Slide the waist-belt through the loop in the hip-flip and secure the belt around your body.
For FCC Review - Draft 02 - Not for Distribution
Optional Devices 13
E-EQ-MX3XOGWW-F MX3X User’s Guide
Connect External Power Supply to MX3X or Cradle (Optional)
The LXE-approved AC Power Adapter is only intended for use in a 25ºC (77ºF) maximum ambient
temperature environment.
There are three external power supplies available for the MX3X and the MX3 desktop cradle:
• US AC/DC 12V Power Supply
• Cigarette Lighter Adapter
• International AC/DC 12V Power Supply

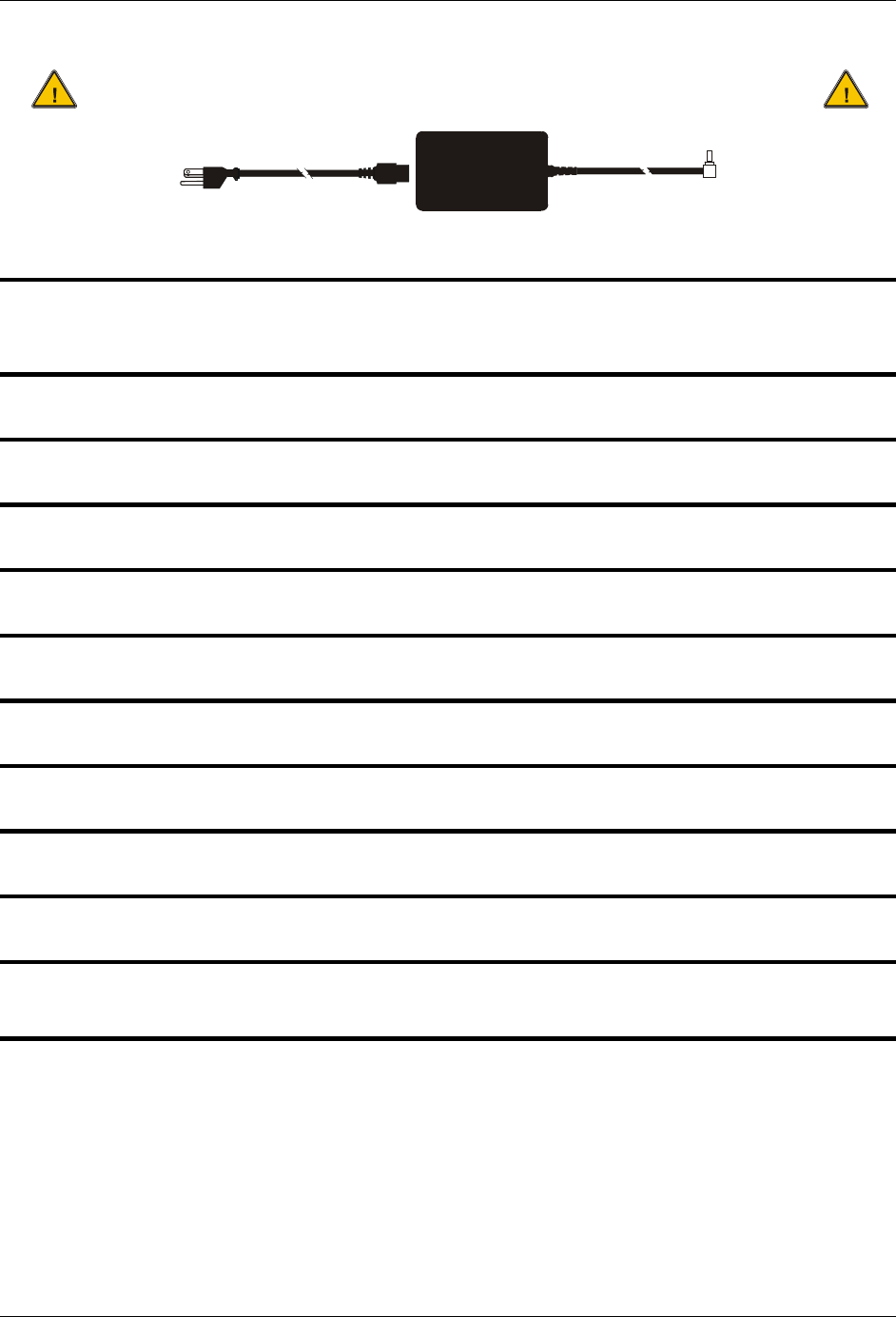

Figure 15 US AC/DC 12V Power Supply and Automotive Power Adapter
Figure 16 International AC/DC 12V Power Supply
The DC power jack is located on the endcap. The standard MX3 cradle power jack is located on
the back of the MX3 cradle (the passive cradle does not have a power jack).
Figure 17 Connect External Power Supply
1. Insert the barrel connector into the power jack on the MX3X endcap and push in firmly.
2. The CHGR LED above the keypad illuminates when the computer is receiving external
power through the power jack.
Note: When the mobile device is receiving external power through a powered cradle, the
cradle's Status LED and the mobile device's CHGR LED are illuminated.
See section titled “LED Functions” for explanations of the LEDs for the BATT B and BATT M
illuminations.
For FCC Review - Draft 02 - Not for Distribution
14 Optional Devices
MX3X User’s Guide E-EQ-MX3XOGWW-F
Connect External Power Supply to the MX3P
Caution
This device is intended to transmit RF energy. In accordance with FCC and Industry Canada radio-
frequency safety regulations, when operating this device with the Hip-Flip accessory, it should be used in
accordance with the user's instructions. Additionally, the user should take care to ensure that a minimum
separation distance of 15cm (6 in.) is maintained from the antenna to nearby persons. Use of this device in a
manner not consistent with these instructions can increase the risk of RF exposure. This device is not to be
co-located with other transmitters.
The DC power jack is located on the endcap. The passive cradle does not have a power jack.
Figure 18 Connect External Power Supply
1. Insert the barrel connector into the power jack on the mobile device endcap and push in
firmly.
2. The CHGR LED above the keypad illuminates when the MX3P is receiving external power
through the power jack.
See section titled “LED Functions” for explanations of the LEDs for the BATT B and BATT M
illuminations.
MX3P Specific Power Accessories
Part Number Description
9000A060CBL12V POWER CABLE, BARE WIRE, 12 FT, 12V, DC JACK
9000A316PS24V72VMX3P PS, 24V-72V, BARE WIRE INPUT, MX3P OUTPUT
For FCC Review - Draft 02 - Not for Distribution
Optional Devices 15
E-EQ-MX3XOGWW-F MX3X User’s Guide
24/72 Maximum VDC Power Supply
Input/Output Cable Connection
Caution
For proper and safe installation, the input power cable must be connected to a fused
circuit on the vehicle. This fused circuit requires a 5 Amp maximum time delay (slow
blow) fuse. If the supply connection is made directly to the battery, the fuse should be
installed in the positive lead within 5 inches of the battery positive (+) terminal.
Recommended for vehicle electrical systems that use between 2 and 5 twelve volt
batteries in series.
LXE Part Number: 9000A316PS24V72VMX3P
1. Power Switch
2. Power On Indicator
3. Output to MX3P
4. Input from Vehicle Battery
Figure 19 Vehicle Power Supply, 24 – 72 Maximum VDC (Fuse Not Shown)
Figure 20 Connecting the Power Supply to the MX3P Endcap Power Jack
DIAGRAM IS NOT TO SCALE
Power Supply Dimensions
Length 9.25”
Height 2.5”
Width 4.7”
Mounting hole center Width: 3.5”
Mounting hole center Length: 8.75”
Figure 21 Vehicle Power Supply Footprint
For FCC Review - Draft 02 - Not for Distribution
16 Optional Devices
MX3X User’s Guide E-EQ-MX3XOGWW-F
1. If the mobile device is in the cradle, it can be either On or in Suspend Mode during this
process.
2. Turn the Power Supply toggle switch to the Off position.
3. While observing the fuse requirements specified above, connect the power cable as close as
possible to the actual battery terminals of the vehicle. When available, always connect to
unswitched terminals in the vehicle fuse panel, after providing proper fusing.
IMPORTANT:
For uninterrupted power, electrical supply connections should not be made at any point
after the ignition switch of the vehicle.
4. Route the cable the shortest way possible. The input cable from the connection to the battery
is rated for a maximum temperature of 60°C (140°F). When routing this cable it should be
protected from physical damage and from surfaces which might exceed this temperature.
Additionally do not expose the cable to chemicals or oil that may cause the wiring insulation
to deteriorate.
Note: If the vehicle is equipped with a panel containing Silicon Controlled Rectifiers
(SCR's), avoid routing the power cable in close proximity to these devices.
Always route the cable so that it does not interfere with the operator's safe operation and
maintenance of the vehicle.
Use proper electrical and mechanical fastening means for terminating the cable. Properly
sized "crimp" type electrical terminals are an accepted method of termination.
Wiring color codes for LXE supplied DC input power cabling:
Vehicle Supply Wire Color
+24-72 Max VDC (DC +) Brown or White
Return (DC -) Blue or Black
Vehicle Chassis (GND) Green
Figure 22 Vehicle Connection Wiring Color Codes
Note: The input power cord for the DC-DC Power Supply uses white, black and green wires.
Some LXE products have DC input power cords with brown, blue and green wires. The
previous table shows the correct electrical connection for either type of cable.
5. Provide mechanical support for the cable by securing it to the vehicle structure at approximately
one foot intervals, taking care not to over tighten and pinch conductors or penetrate outer cable
jacket.
6. Connect the Power Supply to the MX3P by plugging the computer end into the Power Jack on the
endcap.
7. Turn the Power Supply on. The ON LED on the Power Supply illuminates when it is receiving
power from the vehicle.
8. The mobile device CHGR LED illuminates.
For FCC Review - Draft 02 - Not for Distribution
Optional Devices 17
E-EQ-MX3XOGWW-F MX3X User’s Guide

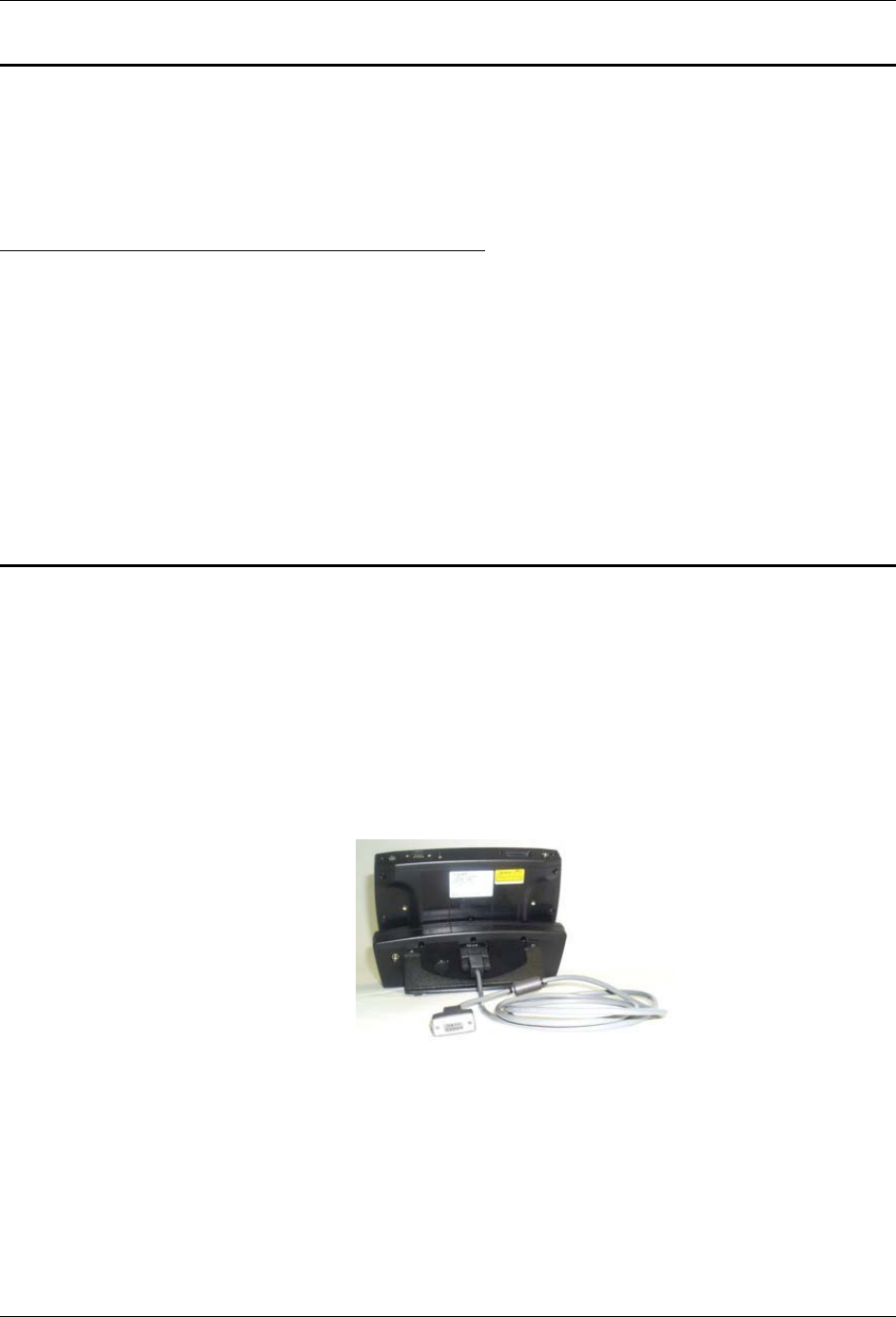

12V VDC Power Cable Connection
9000A060CBL12V POWER CABLE, BARE WIRE, 12 FT, 12V, DC JACK
1. If the mobile device is in the cradle, it can be either On or in Suspend Mode during this
process.
2. Connect the two-wire end of the power cable to the 12V power source battery terminals.
3. Provide mechanical support for the cable by securing it to the vehicle structure at
approximately one foot intervals, taking care not to over tighten and pinch conductors or
penetrate outer cable jacket.
4. Connect the 12V power source to the MX3P by plugging the computer end into the Power
Jack on the endcap.
5. The mobile device CHGR LED illuminates.
For FCC Review - Draft 02 - Not for Distribution
18 Power Button
MX3X User’s Guide E-EQ-MX3XOGWW-F
Connect MX3X Audio Jack (Optional)
The audio jack is located on the endcap.
Figure 23 Connect Audio Jack
Insert the 2.5mm barrel end of the connector into the audio jack on the endcap and push the
connector in firmly. See section titled “Set the Audio Speaker Volume”.
Note: The audio option draws power from the battery.The speaker is disabled when a headset is
plugged into the audio jack.
Power Button
Note: Refer to the section titled "Power Modes" in the “MX3X Reference Guide” for
information relating to the power states of the mobile device.

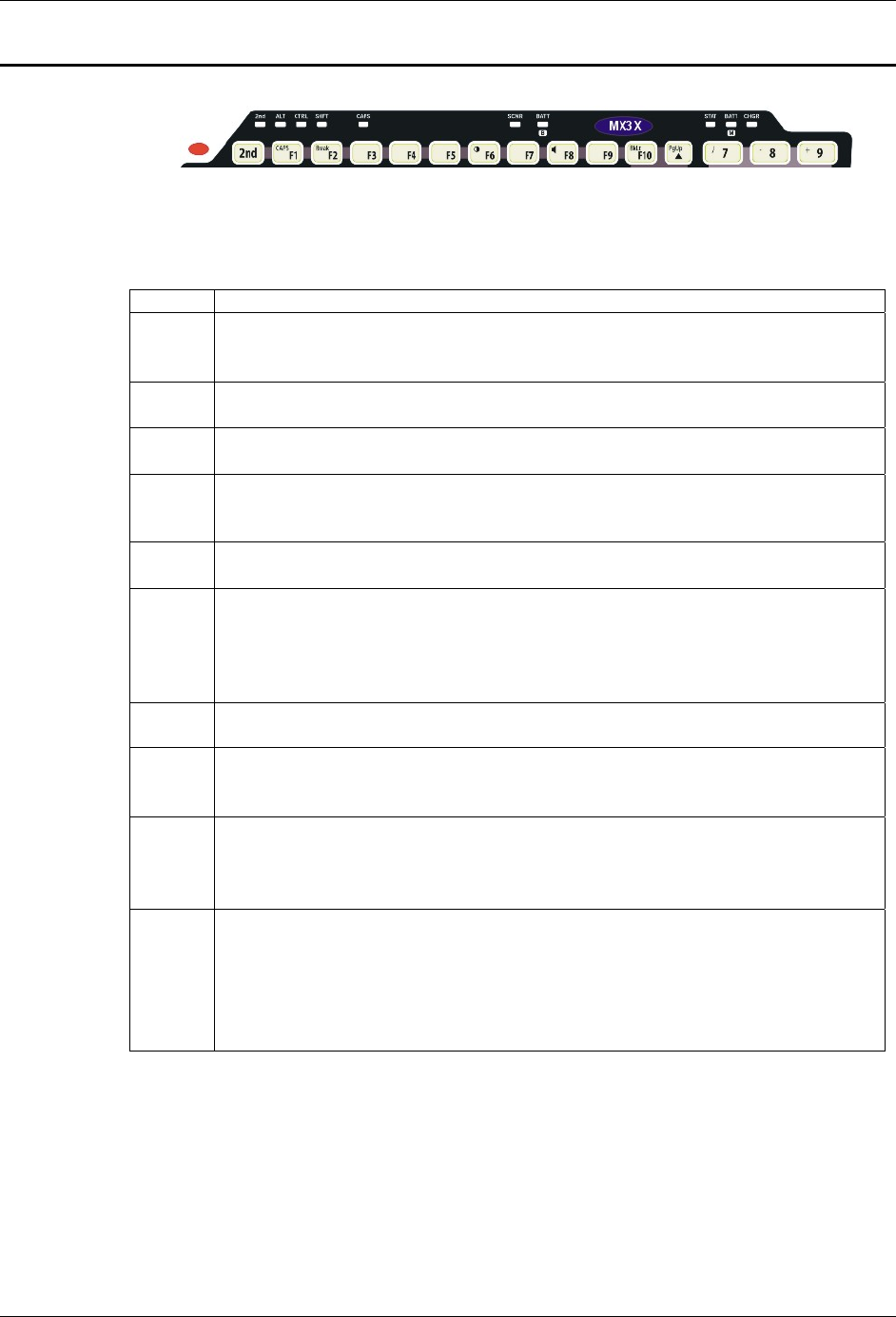

Figure 24 Power Button
The power button is located above the ESC key on the keypad. When a battery is inserted in the
mobile device press the Power button.
Quickly tapping the Power button places the device immediately in Suspend mode. Quickly
tapping the Power button again, or touching the screen, immediately returns the device from
Suspend.
When the Windows desktop is displayed or an application begins, the power up (or reboot)
sequence is complete. Please refer to the section titled "Power Modes" in the MX3X Reference
Guide for a list of the kinds of activities (Primary Events) that will return the device from Suspend
Mode.
Restart Sequence
Tap Start | Run, type warmboot in the text box, then press the Enter button. If the touchscreen is
not accepting taps or needs recalibration, press <Ctrl>+<Esc> to force the Start Menu to appear.
When the Windows desktop is displayed or an application begins, the power on (or reboot)
sequence is complete. If any changes to the settings had been saved previously, they are restored
on reboot.
Any RFID tag data retrieved and not saved is lost during a reboot or reset.
For FCC Review - Draft 02 - Not for Distribution
Tapping the Touchscreen with a Stylus 19
E-EQ-MX3XOGWW-F MX3X User’s Guide
Tapping the Touchscreen with a Stylus
Note: Always use the point of the stylus for tapping or making strokes on the touchscreen.
Never use an actual pen, pencil, abrasive or sharp object to write on the touchscreen.
Hold the stylus as if it were a pen or pencil. Touch an element on the screen with the tip of the
stylus then remove the stylus from the screen. Firmly press the stylus into the stylus holder when
the stylus is not in use.
Like using a mouse to left-click icons on a desktop computer screen, using the stylus to tap icons
on the touchscreen is the basic action that can:
• Open applications
• Choose menu commands
• Select options in dialog boxes or drop-down boxes
• Drag the slider in a scroll bar
• Select text by dragging the stylus across the text
• Place the cursor in a text box prior to typing in data or retrieving data using the integrated
barcode scanner or an input/output device connected to the serial port.
An extra or replacement stylus can be ordered from LXE. See the section titled "Accessories" for
the stylus part number.
Keypad Shortcuts
Use keyboard shortcuts instead of the stylus:
• Press Tab and an Arrow key to select a file.
• Press Shift and an Arrow key to select several files.
• Once you've selected a file, press Alt then press Enter to open its Properties dialog.
• Press 2nd then press numeric dot to delete a file.
• To force the Start menu to display, press Ctrl then press Esc.
For FCC Review - Draft 02 - Not for Distribution
20 Entering the Multi AppLock Activation Key
MX3X User’s Guide E-EQ-MX3XOGWW-F
Entering the Multi AppLock Activation Key
The appearance of taskbar icons are different on various mobile device platforms and may differ
from the example shown below. This example is shown only to aid in describing how the user can
switch between applications using a stylus. If RFTerm and Microsoft Word were the two
applications locked, and the user tapped the taskbar icon to place the popup menu on screen, a
switching menu showing both application icons is displayed on the screen.
Figure 25 End-User Multi Applock Touch Panel
Touch
Tap the taskbar icon to place the popup menu on screen. Tap one of the application icons in the
popup menu. The selected application is brought to the foreground while the other application
continues to run in the background. Stylus taps affect the application running in the foreground
only.
Alternatively you can use the Tab, BackTab and/or cursor keys to move the on-screen cursor.
Then press the Enter key to activate the highlighted choice.
Hotkey
If the mobile device uses LXE’s Multi AppLock to allow the user to switch between two
applications, the default Activation key is Ctrl+Spc. The key sequence switches the focus
between one application and another. Data entry affects the application running in the foreground
only. Note that the system administrator may have assigned a different key sequence to use when
switching applications.
For FCC Review - Draft 02 - Not for Distribution
Touchscreen 21
E-EQ-MX3XOGWW-F MX3X User’s Guide
Touchscreen
Calibration
If the touchscreen is not responding properly to pen touch taps, you may need to recalibrate the
touchscreen. Recalibration involves tapping the center of a target. If you miss the center, keep the
stylus on the screen, slide it over the target's center, and then lift the stylus.
If the touchscreen is not accepting taps or needs recalibration, press <Ctrl>+<Esc> to force the
Start Menu to appear.
To recalibrate the screen, select Start | Settings | Control Panel | Stylus | Calibration tab.
To begin, tap the Recalibrate button on the screen with the stylus.
Figure 26 Touchscreen Recalibration
Follow the instructions on the screen and press the Enter key to save the new calibration settings
or press Esc to cancel or quit.
For FCC Review - Draft 02 - Not for Distribution
22 Touchscreen
MX3X User’s Guide E-EQ-MX3XOGWW-F
Set The Display Contrast
Adjusting screen contrast lightens or darkens the characters to make them visible at a comfortable
level. The contrast is incremented or decremented one step each time the contrast key is pressed.
To adjust screen contrast, locate the <F6> key at the top of the keypad. Adjust the
display contrast by pressing the:
• 2nd key then the <F6> key
• Use the Up Arrow and Down Arrow keys to adjust contrast until the display lightens or
darkens to your satisfaction.
• Press the Enter key to exit this mode.
The LED for the 2nd key blinks until the special editing mode (set contrast) is complete.
Set the Display Backlight Timer
Note: Refer to the section titled "Power Modes" in the MX3X Reference Guide for information
relating to the power states of the mobile device.
Select Start | Settings | Control Panel | Display | Backlight tab. Change the parameter values
and tap OK to save the changes.
The first option affects the mobile device when it is running on battery power only. The second
option affects the device when it is running on external power (e.g. AC adapter, cigarette adapter,
powered cradle).
The default value for the battery power timer is 3 seconds. The default value for the external
power timer is 2 minutes. The backlight will remain on all the time when both checkboxes are
blank.
The transmissive color display backlight timer dims the backlight at the end of the specified time.
The transflective monochrome display backlight timer turns the backlight off at the end of the
specified time.
Set The Display Brightness
The brightness adjustment feature depends on the display type, color versus monochrome.
Adjusting screen brightness lightens or darkens the background to make characters visible at a
comfortable level. The brightness on a color display is incremented or decremented one step each
time the arrow key is pressed until either the maximum or minimum brightness is achieved (8
steps). The brightness setting is recalled at power up.
Color -- To adjust screen brightness on the MX3X, MX3P or MX3-RFID device, locate the <F10>
key at the top of the keypad. Adjust the display brightness by pressing the:
• 2nd key then the <F10> key
• Use the Up Arrow and Down Arrow keys to adjust brightness until the display lightens or
darkens to your satisfaction.
• Press the Enter key to exit this mode.
Monochrome – MX3X only. The 2nd key + F10 key sequence toggles the backlight from it’s
brightest (On) to it’s dimmest (Off) readable settings.
The LED for the 2nd key blinks until the special editing mode (set display brightness) is complete.
For FCC Review - Draft 02 - Not for Distribution
Touchscreen 23
E-EQ-MX3XOGWW-F MX3X User’s Guide
Set the Power Schemes Timers
Note: Refer to the section titled "Power Modes" in the MX3X Reference Guide for information
relating to the power states of the mobile device.
Select Start | Settings | Control Panel | Power | Schemes tab. Change the parameter values and
tap OK to save the changes.
Battery Power Scheme
Use this option when the device will be running on battery power only.
Switch state to User Idle: Default is After 3 seconds
Switch state to System Idle: Default is After 15 seconds
Switch state to Suspend: Default is After 5 minutes
AC Power Scheme
Use this option when the device will be running on external power (e.g. AC adapter, cigarette
adapter, powered cradle).
Switch state to User Idle: Default is After 2 minute
Switch state to System Idle: Default is After 2 minutes
Switch state to Suspend: Default is After 5 minutes
These mode timers are cumulative. The System Idle timer begins the countdown after the User
Idle timer has expired and the Suspend timer begins the countdown after the System Idle timer has
expired. When the User Idle timer is set to “Never”, the power scheme timers never place the
device in User Idle, System Idle or Suspend modes (even when the device is idle).
Because of the cumulative effect, and using the Battery Power Scheme Defaults listed above:
• The backlight turns off after 3 seconds of no activity,
• The display turns off after 18 seconds of no activity (15sec + 3sec),
• And the device enters Suspend after 5 minutes and 18 seconds of no activity.
For FCC Review - Draft 02 - Not for Distribution
24 Set The Audio Speaker Volume
MX3X User’s Guide E-EQ-MX3XOGWW-F
Set The Audio Speaker Volume
Note: An application may override the control of the speaker volume. Turning off sounds saves
power and prolongs battery life.
The speaker is located on the front of the device above the Power button. The audio volume can be
adjusted to a comfortable level for the user. The volume is increased or decreased one step each
time the volume key is pressed. The device has an internal speaker and a jack for an external
headset. Operational “beeps” are emitted from the speaker.
Using the Keypad
Note: Volume & Sounds (in Control Panel) must be enabled before the following key sequences
will adjust the volume.
To adjust speaker volume, locate the <F8> key at the top of the keypad. Adjust the speaker
volume by pressing the:
• 2nd key then the <F8> key to enter Volume change mode.
• Use the Up Arrow and Down Arrow keys to adjust volume until the speaker volume is
satisfactory.
• Press the Enter key to exit this mode.
The LED for the 2nd key blinks until the special editing mode (set audio speaker volume) is
complete.
Using the Touchscreen
Select Start | Settings | Control Panel | Volume & Sounds | Volume tab. Change the volume
setting and tap OK to save the change. You can also select / deselect sounds for key clicks and
screen taps and whether each is loud or soft.
As the volume scrollbar is moved between Loud and Soft, the computer will emit a tone each time
the volume increases or decreases in decibel range.
For FCC Review - Draft 02 - Not for Distribution
Enter Data 25
E-EQ-MX3XOGWW-F MX3X User’s Guide
Enter Data
You can enter data into the mobile device through several different methods. The Scanner window
accepts barcode data entry, the RS-232 and the IR port are used to input/output data, and the
keypad and stylus provide manual entry. The RFID module can either read or read and write data.
Keypad Entry
The keypad is used to manually input data that is not collected otherwise. Almost any function that
a full sized computer keyboard can provide is duplicated on the mobile device’s keypad but it may
take a few more keystrokes to accomplish a keyed task.
Almost every key has two or three different functions. The primary alpha or numeric character is
printed on the key.
For example, when the 2nd key is pressed, the 2nd key LED illuminates. By then pressing the
desired second-function key the device will then produce the 2nd character. The specific 2nd
character is printed above the corresponding key. The 2nd key LED turns off when key sequence
finishes (unless when setting volume or contrast – the 2nd key LED will flash at those times).
Please refer to “Appendix A - Key Maps” for instruction on the specific keypresses to access all
keypad functions.
Stylus Entry
The stylus performs the same function as a mouse that is used to point to and click elements on a
desktop computer. The stylus is used in the same manner as a mouse – single tap or double tap to
select menu options, drag the stylus across text to select, hold the stylus down to activate slider
bars, etcetera. Always use the point of the stylus for tapping or making strokes on the display.
Never use an actual pen, pencil, sharp or abrasive object to write on the touchscreen.
Hold the stylus as if it were a pen or pencil. Touch an element on the screen with the tip of the
stylus then remove the stylus from the screen. The touchscreen responds to an actuation force
(touch) of 4 oz. (or greater) of pressure.
The stylus can be used in conjunction with the keyboard and scanner and an input/output device
connected to one of the serial ports.
• Touch the stylus to the field of the data entry form to receive the next data feed.
• The cursor begins to flash in the field.
• The unit is ready to accept data from either the keyboard, integrated scanner or a scanner
connected to the serial port, if the scanner applet is configured correctly.
Input Panel
The Input Panel icon looks like a keyboard and is shown in the System tray. To show or hide the
input panel, tap the Input Panel icon. Use the input panel to enter information in any program.
For FCC Review - Draft 02 - Not for Distribution
26 Enter Data
MX3X User’s Guide E-EQ-MX3XOGWW-F
Integrated Laser Scanner Data Entry
Read all cautions, warnings and labels before using the laser
scanner.
To scan with the integrated laser barcode reader, point the laser window towards a barcode and
press the Scan button. You will see a red laser beam strike the barcode. The laser scanner has an
SE923 scan engine.
Correct Scan Incorrect Scan Incorrect Scan
Figure 27 Scan Beam
Align the red beam so that the barcode is centered within the beam. The laser beam must cross the
entire barcode. Move the mobile device towards or away from the barcode so that the barcode
takes up approximately two-thirds the width of the beam.
Figure 28 Scanner LED Location
The SCNR LED turns red when the laser beam is on. Following a barcode scan and read the
SCNR LED turns green and the mobile device beeps, indicating a successful scan.
The laser and SCNR LED automatically turn off after a successful or unsuccessful read. The
scanner is ready to scan again when the Scan key is pressed.
Large barcodes can be scanned at the maximum distance. Hold the scanner closer to small
barcodes (or with bars that are very close together).
When the scan is successful, the Scan LED turns green, then switches off, and the mobile device
emits a distinctive audible tone.
When the scan is unsuccessful, the SCNR LED remains red until the 3 second timeout (default)
occurs or the Scan key is released. The mobile device emits distinctive audible tones. Check the
following:
• Check the barcode for marks or physical damage e.g. ripped label, missing section, etc.
• Try scanning test symbols of the same code type at different distances and angles.
• Is the scan aperture unscratched and unsoiled?
See the “Integrated Scanner Programming Guide” for barcode samples, default scanning ranges,
barcode reading instruction and troubleshooting.
For FCC Review - Draft 02 - Not for Distribution
Enter Data 27
E-EQ-MX3XOGWW-F MX3X User’s Guide
Using a Headset and Voice for Data Entry
Connecting the Audio Cable and a Headset
Note: The audio option draws power from the main battery. The Headset and Voice option is
not available for an MX3-RFID or MX3P configuration. The speaker is disabled when a
headset is plugged into the audio jack.
The headset consists of an earpiece, a microphone and an attached cable. The headset attaches to
an audio cable which attaches to the MX3X. The audio jack is located on the MX3X endcap.
9000A076CBLHEADSET1
Figure 29 Audio Cable and Headset
Insert the 2.5mm barrel end of the connector into the audio jack on the endcap and push the
connector in firmly.
Align the audio cable quick disconnect end and the headset quick connect cable end. Firmly push
the cable ends together until they click and lock in place.
Adjust Microphone and Secure the Cable
Do not twist the microphone boom when adjusting the microphone.
The microphone should be adjusted to be about two finger widths from your mouth.
Make sure the microphone is pointed at your mouth. Note the small “Talk” label near the
mouthpiece. Make sure the Talk label is in front of your mouth.
The microphone cable can be routed over or under clothing.
Under Clothing
• Leave the cable exposed only at the top of the collar.
• Be sure to leave a small loop of cable to allow movement of your head.
Over Clothing
• Use clothing clips to hold the cable close to your body.
• Tuck the cable under the belt, but leave a small loop where it goes under the belt.
• Do not wear the cable on the front of your body. It may get in your way or get caught on
protruding objects.
For FCC Review - Draft 02 - Not for Distribution
28 Enter Data
MX3X User’s Guide E-EQ-MX3XOGWW-F
Entering Data
Data is entered into the mobile device by speaking into the headset’s microphone when prompted.
Please contact your System Administrator if assistance is needed with the voice software installed
on the mobile device.
Note: The Headset and Voice option is not available for an MX3-RFID or MX3P configuration.
Tethered Scanner
Do not connect a tethered scanner cable to a USB-C or USB-H labeled endcap port. They are
USB ports and cannot power a tethered scanner.
Tethered scanners connect to RS232-labeled ports on the endcap and, for the MX3X only, can
connect to the RS232 port on a powered cradle.
The Scan buttons have no effect on tethered barcode scanners (connected to the RS232 serial
port). Tethered scanners read barcode scans only when the trigger on the tethered scanner is
pressed. The tethered scanner requires power on pin 9 of the RS232 serial port.
To set the mobile device to use a tethered scanner, select Start | Settings | Control Panel |
Scanner | COM1 (or 2 or 3).
Tap the "Power on Pin 9 (+5V)" checkbox for the COM port selected. The COM port that accepts
the scanner data can be configured for data rate, parity, stop bits and data bits.
See Also: Section titled “Tethered Scanner and Cradles” when using a tethered scanner with a
cradle.
RFID Tag Data Collection
When the RFID Read button is pressed, the reader turns on and the MX3-RFID beeps once if the
tag was located and read successfully. The reader turns off at a predetermined time limit after a
good read or a failed read.
There may be a buzz sound during the time the reader is “searching and reading” if the RFID
reader is configured to buzz during a read cycle.
For FCC Review - Draft 02 - Not for Distribution
Getting Help 29
E-EQ-MX3XOGWW-F MX3X User’s Guide
Getting Help
All LXE user guides are now available on one CD and they can also be viewed/downloaded from
the LXE ServicePass website. Contact your LXE representative to obtain the LXE Manuals CD.
You can also get help from LXE by calling the telephone numbers listed on the LXE Manuals CD,
in the file titled "Contacting LXE". This information is also available on the LXE website.
Explanations of terms and acronyms used in this guide are located in the file titled "LXE
Technical Glossary" on the LXE Manuals CD.
Accessories
Note: Items with a Green letter R in the first column are ROHS-compliant. Please contact your LXE
representative when ordering ROHS-compliant items as the part number may have changed. Items without
the letter R may have received ROHS-compliance after this guide was published.
R 1 Cable, USB Host D9F to USB, 6’ (Endcap only)
MX3XA069CBL09USBCLNT
R 2 Cable, D9F to D9F for ActiveSync only, 6’ (Cradle use only)
MX3XA070CBLD9RS232AS / Cradle MX3RA002DESKCRADLE
R 3 Cable, USB Client D9F to USB, 6’ (Endcap only)
MX3XA071CBLD9USBTYPB
R Cable, 12 in., D9F / USB Type A Receptacle
MX3XA068CBLD9USBHOST
Tethered Scanners
Scanner, Powerscan SR, 8’ Cbl, WW 8300A326SCNRPWRSR8DA9F
Scanner, Powerscan SR, 12’ Cbl, US 8300A327SCNRPWRSR12DA9F
Scanner, Powerscan LR, 8’ Cbl, WW 8310A326SCNRPWRLR8DA9F
Scanner, Powerscan LR, 12’ Cbl, US 8310A327SCNRPWRLR12DA9F
Scanner, Powerscan XLR, 8’ Cbl, WW 8320A326SCNRPWRXLR8DA9F
Scanner, Powerscan XLR, 12’ Cbl, US 8320A327SCNRPWRXLR12DA9F
Scanner, LS3408ER, 9’ Cbl, US See Note 8520A326SCNRERDA9F
Scanner, LS3408FZ, Fuzzy Logic, 9’ Cbl, US See Note 8510A326SCNRFZYDA9F
For FCC Review - Draft 02 - Not for Distribution
30 Getting Help
MX3X User’s Guide E-EQ-MX3XOGWW-F
Holding Accessories
R Strap, Hand, Nylon MX3RA497HANDSTRAP
R MX3X Nylon Holster for use with Belt MX3RA401HOLSTER
R MX3X Nylon Hip Flip 9000A408HIPFLIP
R Adjustable Belt for Hip Flip – Velcro ends 9200L67
R Belt Strap with plastic scanner clip 9200L57
MX3-RFID Nylon Case with Shoulder Strap 1 MX3XA411RFIDCASE
R MX3X Nylon Case with Shoulder Strap 9000A409CASE
R Scanner Clip Strap (85XX scanners only) 9000A411SCNRSTRAP
Bracket, Mounting LS300 Scanner, Tethered 8010A001BRKT
Holster, Hood, Nylon, 5300IP Series Scanner, Tethered 8100A401HLSTRHOOD
*** Voice Recognition and Headsets
R MX3X Voice Case optional shoulder strap 9000A410SHOULDERSTRP
R MX3X Nylon Case, Voice Recognition w/Belt MX3XA410VOICECASE
R MX3X to Headset adapter cable, 2.5mm 9000A076CBLHEADSET1
Single ear and headband, headset with microphone, 5 windscreens HX1A501SNGBHEADSET
Single ear, dual headband, headset with microphone, 5
windscreens HX1A502DUALBHEADSET
Dual ear, behind head, headset with microphone, 5 windscreens HX1A503BTHHEADSET
Replacement foam block for dual headband HX1A504AHSBLOCKFOAM
Replacement head yoke for dual headband HX1A505DUALYOKE
Replacement head yoke for single headband HX1A506SINGLEYOKE
Replacement windscreen for all microphones, 10 pack HX1A508WINDSCREEN10
Replacement windscreen for all microphones, 50 pack HX1A509WINDSCREEN50
Replacement foam ear piece cover for single/dual headsets, 10
pack HX1A510FOAMEAR10
Replacement foam ear piece cover for single/dual headsets, 50
pack HX1A511FOAMEAR50
*** Contact your LXE representative for availability. Scheduled for release by June 2006.
Miscellaneous
R Stylus Kit includes stick-on clip, stylus and tether, 5 pack 9000A507STYLUS
R MX3X SDK, CD MX3XA504CENET42SDK
R Cover Plate, RS-232 Port, MX3/MX3-CE MX3RA351RS232CVR
R Touchscreen Protective Film, Monochrome Display MX3XA502PROTFILMMONO
R Touchscreen Protective Film, Color Display MX3XA503PROTFILMCOLR
Battery Chargers and Battery
R Battery Charger/Analyzer, US V1.01 9000A377CHGR5US
R Battery Charger/Analyzer, WW 9000A377CHGR5WW
Battery, Replacement, RFID Device MX3A380RFIDBATT
R Battery, Li-Ion MX3A378BATT
1 Accessories designed specifically for the MX3-RFID device are compatible with the MX3P device.
For FCC Review - Draft 02 - Not for Distribution
Getting Help 31
E-EQ-MX3XOGWW-F MX3X User’s Guide
Cradles and Power Supplies
MX3-RFID \ MX3P Passive Mounting Cradle MX3XA001RFIDCRADLE
MX3-RFID \ MX3P RAM Mounting Kit for Passive Cradle 9000A019RAMKIT
R MX3X Desktop Cradle 2 MX3RA002DESKCRADLE
R MX3X Vehicle Mount Cradle 2 MX3RA003VMCRADLE
R MX3X Vehicle Mount Cradle, 19.2K baud rate 9000A005VMCRADLE19KB
Power Supply, Vehicle Cradle, 9-30VDC 2381A054CRDLDCPWR30V
Power Supply, Vehicle Cradle, 30-80VDC 2381A055CRDLDCPWR80V
R AC Power Supply, External, US 9000A301PSACUS
R AC Power Supply, External, AC, International 9000A302PSACWW
R Power Cord, AC, US 9000A066CBLPWRAC
P/S, External, Cigarette Lighter Adapter 9000A303PSCIGLTADPT
R Power Adapter, Bare Wire 12 VDC 9000A079CBL12ML3
R Power Adapter, 24-72 VDC, Bare Wire (Vehicle) 9000A316PS24V72VMX13
Power Adapter, 110-240 VAC 1300A303PSACWW
MX3P Power Cable, Bare Wire, 12 Ft, 12V, DC Jack 9000A060CBL12V
MX3P Power Supply, Bare Wire input, MX3P output 9000A316PS24V72VMX3P
Cables for Cradle and Endcap Serial Ports
R Cable, Null Modem, PC, D9F to D9F, 6’ 9000A054CBL6D9D9
Cable, Null Modem, Printer/PC, D9F to D25F, 6’ 9000A053CBL6D9D25
R Cable, USB D9F to USB Type A Receptacle MX3XA068CBLD9USBHOST
R Cable, USB D9F to USB Type A Plug MX3XA069CBLD9USBCLNT
R Cable, USB D9F to USB Type B Plug MX3XA071CBLD9USBTYPEB
R Cable, D9F to D9F for ActiveSync only, 6’ See Note MX3XA070CBLD9RS232AS
Note: The MX3X Desktop Cradle supports RS-232 ActiveSync communication via the
MX3XA070CBLD9RS232AS cable.
Note: MX3-RFID mobile devices available in the US only.
Note: When using the 8500 Series tethered scanners (LS3408), the tethered scanner Power Mode must be
set to “Reduced Power Mode” to conserve the device’s main battery life. The reduced power mode setting
will not impact performance of the 8500 series scanner. The default mode is “Continuous On”. Please refer
to the tethered scanner manufacturer’s user guide for instruction.
2 Power Adapter Required.
For FCC Review - Draft 02 - Not for Distribution
32 Getting Help
MX3X User’s Guide E-EQ-MX3XOGWW-F
For FCC Review - Draft 02 - Not for Distribution
E-EQ-MX3XOGWW-F MX3X User’s Guide
The MX3X Hand Held Computer
Touchscreen Display
Figure 30 Touchscreen Display
The Touchscreen Display is an LCD unit capable of supporting VGA graphics modes. Display
size is 640 x 240 pixels. The touchscreen allows signature capture and touch input. A pen stylus is
included. The touchscreen responds to an actuation force (touch) of 4 oz. of pressure (or greater).
There are two types of displays available: transflective greyscale monochrome and transmissive
color. The transmissive color display is optimized for indoor lighting. It cannot be used without
the backlight. The transflective monochrome display is optimized for outdoor use but may also be
used indoors. The monochrome display has an electroluminescent backlight. The color display has
a CCFL (Cold-Cathode Fluorescent Lighting) backlight.
The transflective display appears to have a greenish hue when the display is off. The transmissive
display appears black when the display is off.
Applying the Protective Film to the Display
First, clean the display of fingerprints, lint particles, dust and smudges.
Remove the protective film from it’s container. Remove any protective backing from the film
sheet by lifting the backing from a corner of the film. Discard the backing.
Apply the film to the screen starting at one side and smoothing it across the display. If air bubbles
appear, raise the film slightly and continue smoothing the film across the display until it covers the
glass surface of the display.
If dust, lint or smudges are trapped between the protective film and the glass display, remove the
protective film, clean the display and apply the protective film again.
Display Backlight
The Display backlight is turned on when the unit returns from Suspend Mode. The display
backlighting feature is programmable and activates based on power source and amount of idle
time before entering the Suspend state.
See the section titled "Set the Display Backlight Timer " in the previous section "Quick Start."
For FCC Review - Draft 02 - Not for Distribution
34 Touchscreen Display
MX3X User’s Guide E-EQ-MX3XOGWW-F
Touchscreen Calibration
If the touchscreen is not responding properly to stylus touch taps, the touchscreen may need to be
recalibrated. Press <Ctrl>+<Esc> to force the Start Menu to appear, if needed. Contact your
System Administrator for assistance.
To recalibrate the screen, select Start | Settings | Control Panel | Stylus | Calibration.
Figure 31 Touchscreen Recalibration
To start, tap Recalibrate. Follow the instructions on the screen and press the Enter key to save the
new calibration settings or press <Esc> to cancel or quit.
See the "MX3X Reference Guide" for complete instructions.
Cleaning the Glass Display/Scanner Aperture
Note: These instructions are for components made of glass. If there is a removable protective
film sheet on the display screen, remove the film sheet before cleaning the screen.
Keep fingers and rough, abrasive or sharp objects away from the scan aperture and display. If the
glass becomes soiled or smudged, clean only with a standard household cleaner such as
Windex(R) without vinegar or use Isopropyl Alcohol. Do not use paper towels or harsh-chemical-
based cleaning fluids since they may result in damage to the glass surface. Use a clean, damp, lint-
free cloth. Do not scrub optical surfaces. If possible, clean only those areas which are soiled.
Lint/particulates can be removed with clean, filtered canned air.
For FCC Review - Draft 02 - Not for Distribution
Touchscreen Display 35
E-EQ-MX3XOGWW-F MX3X User’s Guide
Scan Buttons
Figure 32 Programmable Buttons
There are two buttons, one on each side of the display. The buttons can be programmed to perform
specific functions. The programmable keys have no effect on barcode scanners tethered to the
device. When there is no integrated scanner installed, both buttons default to Enter buttons (with
the exception of IBM 5250 terminal emulation devices – in this case, the left button is labelled and
functions as “Field Exit”).
Note: The programmable Scan key is the Field Exit key when the MX3X is an IBM 5250 /
TN5250 compatible device. It can also be programmed as the RFID Read key for an
MX3-RFID device.
To edit the button parameters, select Start | Settings | Control Panel | Scanner. Change the
parameter values and tap OK to save the changes.
The default setting for the right button on an MX3X (and MX3P) is Enter; on an MX3-RFID the
default setting is RFID Read. The default setting for the left button is Scan. When the device does
not have an integrated scanner, both buttons default to Enter keys and the Scan selection is greyed
out.
Each button can be setup as:
• Disabled – no response when pressed
• Scan – initiate a barcode scan sequence (integrated scanner only)
• Enter Key
• Tab Key
• Field Exit (IBM 5250 / TN5250 devices only)
• Virtual Key (default values F20 and F21)
• RFID Read
For FCC Review - Draft 02 - Not for Distribution
36 Touchscreen Display
MX3X User’s Guide E-EQ-MX3XOGWW-F
Field Exit Key Function (IBM 5250/TN5250 Only)
The Field Exit key is used to exit an input field. If the field is an Auto Enter field, the
auto transmit function is activated. This key function is present on the IBM
5250/TN5250 specific keypad only.
Scan Buttons and the SCNR LED
The SCNR LED, located above the keypad, illuminates during an integrated barcode scanner
function. It is affected by internal scanner algorithms.
• Red - scanning.
• Green - good scan.
• Unlit – laser scanner is inactive.
The Scan buttons have no effect on tethered barcode scanners connected to a serial port. Tethered
scanners read barcode scans only when the trigger on the tethered scanner is pressed. Pressing the
trigger on the tethered scanner has no effect on the device’s Scan buttons.
Note: Refer to the “MX3X Reference Guide” before programming the Scan / Enter buttons. The
Reference Guide also contains instructions for the Key Map Utility for the keypad.
For FCC Review - Draft 02 - Not for Distribution
Endcaps and COM Ports 37
E-EQ-MX3XOGWW-F MX3X User’s Guide
Endcaps and COM Ports
The computer supports three COM port options. Two external serial ports are dependent on the
end cap chosen. A third serial port is used to support an infrared transciever (barcode reader). An
additional endcap configuration supports serial and USB “slave” input/output at 1.5 MBps.
Standard Range Scanner Port
RS-232 Port (Serial Port)
USB Client / USB Host
Audio Jack
DC Power Jack
RFID Module or
MX3P Enclosure
Figure 33 Endcap and COM Ports
The COM 2 port is always the IR port on the back of the mobile device, regardless of the type of
endcap installed. COM 2 can only be accessed when a tethered scanner is connected to the RS-232
port on the cradle, and the MX3X is in the cradle. The cradle does not need to be powered by an
alternate AC or DC power source. Tethered scanners receive power from the mobile device's main
battery.
On the Standard Range Scanner / RS-232 labelled port endcap COM 3 is the Integrated Scanner
port. The integrated barcode scanner scans only when the Scan button is pressed. To edit Scanner
port parameters, select Start | Settings | Control Panel | Scanner. Change the parameter values
and tap OK to save the changes.
On the Dual Serial Port endcap the COM1 port is the serial port on the right side of the endcap
when the display is facing you.
Caution -- Do Not Use the RS-232
Labelled Port for Cables with USB
Plugs/Receptacles:
Caution -- Do Not Use these USB
Labelled Endcap Ports for Tethered
Scanners:
Figure 34 Labelled Ports and Cables
The MX3P does not have an integrated scanner nor an RFID scanner or antenna.
For FCC Review - Draft 02 - Not for Distribution
38 Endcaps and COM Ports
MX3X User’s Guide E-EQ-MX3XOGWW-F
Endcap Combinations
Left Port Right Port
Serial COM3 Serial COM1
Serial COM3 USB Client
USB Host Serial COM1
USB Host USB Client
Scanner* Serial COM1
Scanner* USB Client
Rear IR Port is COM2
Barcode scanners, tethered to the serial port on a cradle, send
ASCII data to the MX3X in the cradle through the COM2 Port.
MX3X with RFID Module
RFID Module – COM1
IR Port – COM2
Integrated Scanner on Endcap – COM3
USB Client on Endcap – USB-C
* The MX3P does not have an integrated scanner or an RFID tag reader.
Tethered Scanners
Do not connect a tethered scanner cable to a mobile device’s USB-C or USB-H labeled endcap
port. These ports cannot power a tethered scanner. Tethered scanners connect to RS232-labeled
ports on the endcap and can connect to the RS232 port on a powered cradle.
The Scan buttons have no effect on tethered barcode scanners (connected to a serial port).
Tethered scanners read barcode scans only when the trigger on the tethered scanner is pressed. The
tethered scanner requires power on pin 9 of the mobile device’s serial port.
To set the MX3X to use a tethered scanner, select Start | Settings | Control Panel | Scanner |
COM1 (or 2 or 3).
Tap the "Power on Pin 9 (+5V)" checkbox for the COM port selected. The COM port that accepts
the scanner data can be configured for data rate, parity, stop bits and data bits.
See Also: Section titled “Cradles” when using a tethered scanner with a powered cradle.
USB Port
The USB port requires a 9-pin to USB cable (available from LXE). The 9-pin port/USB port also
supports serial data transfer (using a null modem cable) and non-host USB I/O at 1.5 Mbps. The
operating system automatically detects the USB cable configuration. Refer to section titled
"Accessories" in this guide for part numbers for the 9-pin USB cable and the null modem cable.
For FCC Review - Draft 02 - Not for Distribution
Endcaps and COM Ports 39
E-EQ-MX3XOGWW-F MX3X User’s Guide
IR Port
Figure 35 IR Port (COM 2)
The InfraRed (IR) port provides a means of transferring information to a device with a similar port
and the proper software. The IR port can be used to communicate with printers or a host computer
with the use of an adapter. The IR Port is specified as COM 2 and is a bi-directional half-duplex
infrared port. It supports the Slow IrDA (Infrared Data Access) PHY Layer standard that allows
communication speeds up to 115k baud.
When sending data through the IR port to another MX3X's IR port, make sure both units are in
close proximity to each other. The IR operating envelope has a distance range of 2 cm (.79 inches)
to 1 meter (3.2 feet) with a viewing angle of 30 degrees.
See the "MX3X Reference Guide" for complete instructions when sending data through the IR
port.
Note: ActiveSync will transfer files over the RS-232 connector on the cradle. The cradle
performs a “file pass through” to the IR port on the back of the MX3X.
For FCC Review - Draft 02 - Not for Distribution
40 The Keypad
MX3X User’s Guide E-EQ-MX3XOGWW-F
The Keypad
The QWERTY keypad is phosphorescent. A phosphorescent keypad does not use a keypad
backlight but glows in dim/dark areas after exposure to a light source. There is no difference in
key function between the MX3X, MX3P or the MX3-RFID devices.
The keypad is installed and configured by LXE.
Figure 36 The QWERTY Keypad
The keymaps (keypress sequences) are located in “Appendix A - Key Maps.”
Key Functions
Key Function
Scan (Scanner integrated into endcaps only.) The Scan key activates the scanner when a
scanner endcap is installed and the Scan button is pressed. The internal scanner scans
only when the Scan button is pressed. A Scan button press has no effect on externally
attached scanners.
When there is no integrated scanner endcap, the Scan keys function as Enter keys.
For IBM 5250 configurations, the left button is the “Field Exit” key.
Enter The Enter key is used to confirm a forms entry or to transmit information. How it is
used is determined by the application running on the computer.
2nd The 2nd key is used to activate the 2nd functions of the keypad. Printed on many keys
at the upper left corner are small characters that represent the 2nd function of that key.
Using the 2nd key activates the second key function. Note that the 2nd key only stays
active for one keystroke. Each time you need to use the 2nd function you must press
the 2nd key. To cancel a 2nd function before pressing another key, press the 2nd key
again.
When the 2nd function is active, the 2nd LED illuminates.
Ctrl The Ctrl key enables the control functions of the keypad. This function is similar to a
regular keyboard’s Control key. Note that the Ctrl key only stays active for one
keystroke. Each time you need to use a Ctrl function, you need to press the Ctrl key
before pressing the desired key.
When the Ctrl function is active, the Ctrl LED illuminates.
Alt The Alt key enables the alternate functions of the keypad. This function is similar to a
regular keyboard’s Alt key. Note that the Alt key only stays active for one keystroke.
Each time you need to use an alternate function, you need to press the Alt key before
pressing the desired key.
When the Alt function is active, the Alt LED illuminates.
For FCC Review - Draft 02 - Not for Distribution
The Keypad 41
E-EQ-MX3XOGWW-F MX3X User’s Guide
Key Function
Shft The Shft key enables the shifted functions of the keypad. This function is similar to a
regular keyboard’s Shift key. Note that the Shift key only stays active for one
keystroke. Each time you need to use a Shifted function, you need to press the Shft
key before pressing the desired key. When the Shft function is active, the Shft LED
illuminates.
When the Shft key is pressed the next key is determined by the major key legends,
i.e., the alpha keys display lower case letters -- when CAPS is On alpha characters
are capitalized. For example, when CAPS is on and the Shft key and the G key are
pressed, a lower case g is displayed.
Spc The Spc key adds a space to the line of data on the display. This function is similar to
a regular keyboard’s Spacebar. Note that the Spc key only stays active for one
keystroke.
Field Exit Key Function (IBM 5250/TN5250 Only)
The Field Exit key is used to exit an input field. If the field is an Auto Enter field, the
auto transmit function is activated. This key function is present on the IBM
5250/TN5250 specific keypad only.
Caps Key and CapsLock Mode
This function is similar to a regular keyboard’s CapsLock key. Note that the CapsLock mode stays
active until the CapsLock key sequence is pressed again. Each time you need to use a Caps
function, you need to press the Caps key sequence first. To cancel a CapsLock function press the
Caps key sequence again. When the CapsLock mode is active, the Caps LED illuminates.
The CapsLock key sequence is <2nd >+ <F1>.
• No CapsLock AND No Shift keypress – result is a lowercase letter.
• CapsLock OR Shift – result is an uppercase letter.
• CapsLock AND Shift keypress – result is a lowercase letter.
Keypress Sequences
See Appendix A for all key press sequences.
Custom Key Maps
The System Administrator creates Custom Key Maps for the MX3X. To activate the Custom
keymap, select Start | Settings | Control Panel | Keyboard icon. Select the Custom keymap from
the keyboard popup menu, and close the control panel with the OK button.
To return to the default keymap, select 0409 from the keymap popup and tap OK.
For FCC Review - Draft 02 - Not for Distribution
42 The Keypad
MX3X User’s Guide E-EQ-MX3XOGWW-F
LED Functions
Figure 37 LED Functions
Across the top of the keypad are LEDs that provide visual cues to current computer operation.
When the LED is not illuminated, the function is inactive.
LED When illuminated ...
2nd
The next keypress is a 2nd keypress.
• Amber when on
• Blinks amber during configuration key sequence.
ALT The next keypress is an ALT keypress.
• Amber when on and unlit when off.
CTRL The next keypress is a CTRL keypress.
• Amber when on and unlit when off.
SHFT
The next letter is the uppercase letter on alpha keys and the shifted character on the
numeric keypad keys.
• Amber when on and unlit when off.
CAPS Uppercase letters are active until the CAPS key sequence is pressed again.
• Amber when on and unlit when off.
SCNR
Barcode scanner function, affected by both tethered scanners and the scanner
endcap.
• Red - scanning.
• Green - good scan.
• Unlit - scanner is inactive.
BATT
B
Backup Battery. When illuminated, the backup battery is charging. When unlit, the
backup battery is not charging
STAT
Status Indicator.
• Amber – device is booting up.
• Blinking Green when display Suspend state begins.
BATT
M
Main Battery. When illuminated, main battery capacity is low.
• Red – low battery.
• Blinking Red – power fail.
• Unlit - Main battery is not low OR all charge is depleted in both batteries..
CHGR
Charger. When on, the mobile device is receiving external power either from the DC
power jack or the MX3X is seated in a powered cradle.
• Red - Main battery is charging.
• Amber – Fault or temporary standby (Contact LXE Customer Support).
• Green - battery charge is complete and the mobile device is connected to
external power through the power jack or a powered cradle.
For FCC Review - Draft 02 - Not for Distribution
Batteries 43
E-EQ-MX3XOGWW-F MX3X User’s Guide
Batteries
Note: New batteries must be charged prior to use. If the main battery and backup battery are
depleted, the computer reverts to factory default values. RF configuration parameters
will need to re-entered when the depleted main battery is replaced. The backup battery is
eventually recharged by the main battery.
The mobile device is designed to work with a Lithium-Ion (Li-ion) battery from LXE. Under
normal conditions it should last approximately eight to ten hours before requiring a recharge. The
more you use the scanner or the RF transmitter, the shorter the time required between battery
recharges. The operating system keeps date and time valid for a minimum of four days using a
fully charged backup battery and a main battery that has reached the Low Warning point.
Main Battery
The main battery has a rugged plastic enclosure that is designed to withstand the ordinary rigors of
an industrial environment. Exercise care when transporting the main battery making sure it does
not come in contact with excessive heat or any power source other than an LXE MultiCharger or
the mobile device.
Backup Battery
The internal Nickel Cadmium (NiCd) backup battery provides power to the device for a short
amount of time when the main battery has been depleted, removed or has failed. The backup
battery requires no user intervention. Replacement is performed by LXE.
Note: An uninterrupted external power source (wall AC adapters or DC/DC converters)
transfers power to the computer’s internal charging circuitry which, in turn, recharges
the main battery and backup battery. Frequent connection to an external power source is
recommended to maintain backup battery charge status.
Battery Hot-Swapping
When the battery power level is low, the BATT-M LED illuminates and remains on. You can
replace the main battery without shutting the device off. Place the device in Suspend and simply
replace the discharged battery with a fully-charged battery. The backup battery will retain data
during a main battery hot-swap for at least five minutes.
For FCC Review - Draft 02 - Not for Distribution
44 Battery Chargers
MX3X User’s Guide E-EQ-MX3XOGWW-F
Battery Chargers
Note: LXE recommends that the correct MX3 Multicharger Plus always be used to charge the
MX3X main battery. The Multicharger plus label is located on the back of the device and
the charger must have been upgraded to V1.01. Please contact your LXE representative
for further information about theV1.01 upgrade kit, if needed.
LXE Multi-Charger Plus
Figure 38 MX3 Multi-Charger Plus
The main battery can be charged in the MX3 Multi-Charger Plus. The main battery charges the
backup battery using the mobile device's internal charging circuitry. The battery charger requires
an AC power source before charging can begin.
External Power Supply (Optional)
The DC power jack is located on the endcap.
The cradle power jack is located on the back of the cradle. The mobile device (and the Desktop
Cradle) connect to any of the following power supplies through their DC Power Jack.
Figure 39 US AC/DC 12V Power Supply and Cigarette Lighter Adapter
Figure 40 International AC/DC 12V Power Supply
Note: When the MX3X is receiving power through a cradle connected to external power, the
cradle's Status LED and the device's CHGR LED are illuminated. The MX3-RFID and
MX3P do not fit in any standard MX3 docking cradle. See “Accessories” for the MX3-
RFID and MX3P passive vehicle docking cradle part number and description.
The LXE-approved AC Power Adapter is only intended for use in a 25ºC (77ºF) maximum
ambient temperature environment.
For FCC Review - Draft 02 - Not for Distribution
Storage Cradles 45
E-EQ-MX3XOGWW-F MX3X User’s Guide
Storage Cradles
Note: The “MX3 Cradle Reference Guide” contains cradle installation and technical
information.
There are two types of cradles for the MX3X: a desktop cradle for table top
charging/communication applications and a vehicle mount cradle for vehicle mounted
charging/communication applications.
A passive vehicle cradle is available for the MX3-RFID and MX3P devices. See the following
section “The MX3-RFID and Cradles”.
The powered cradles give the MX3X the ability to communicate with a host computer and other
equipment. In addition, using wall AC adapters or DC/DC converters, the cradle transfers power
to the internal charging circuitry of the MX3X and, in turn, the operating system recharges the
main battery.
The MX3X can be either on or in Suspend mode while in the cradle. The MX3X can be inserted
and removed from the cradle with one hand.
Cables are available from LXE for connecting the cradle to a printer, a personal computer or a
barcode printer. Tethered scanners (for RS-232 cradle connection) are also available from LXE.
Status LED
An LED indicator on the front of the standard MX3 cradle shows the status of the cradle. When
the indicator is not illuminated, there is no power applied to the cradle.
Cradle Power Amber External power applied to the cradle.
Docked Green Power applied to the cradle and charging connection made with
the MX3X.
IR Active Red IR communication is active.
For FCC Review - Draft 02 - Not for Distribution
46 Storage Cradles
MX3X User’s Guide E-EQ-MX3XOGWW-F
Desktop Cradle for MX3X
Note: LXE recommends the correct Desktop Cradle always be used to store / charge /
communicate with the MX3X. The MX3X Desktop Cradle label is located on the bottom
of the device. The MX3X Desktop cradle Product Number is
MX3RA002DESKCRADLE.
Lower the mobile device straight into the cradle, tilt it forward and then let it rest backward in the
cradle. Ensure that the mobile device is properly seated on the charging contacts. The CHGR LED
will illuminate green when the MX3X is correctly seated in the cradle. The CHGR LED will
illuminate red when the MX3X main battery is being charged (in a cradle connected to an external
power source). To remove the MX3X, tilt the MX3X forward and lift it straight up out of the
cradle.
Note: Do not "slam" or slide the mobile device sideways into the cradle. Damage may
result.The MX3-RFID and MX3P devices do not fit in the MX3 desktop cradle.
Connectors
The Power connector is located on the back of the cradle in the top left hand corner. The cradle
can be powered, if required, by an LXE US AC Adapter or an LXE International AC Adapter.
When powered, the cradle transfers power to the internal charging circuitry of the MX3X allowing
it to recharge the main battery. A powered cradle supports RS-232 and IR communications.
The RS-232 connector is located in the back center of the cradle. When the MX3X is properly
docked, the bi-directional half-duplex transceivers in the MX3X and cradle are aligned through
their IR windows. The half-duplex IR signals from the MX3X are converted to RS-232 signals in
the cradle and available at this connector.
For FCC Review - Draft 02 - Not for Distribution
Storage Cradles 47
E-EQ-MX3XOGWW-F MX3X User’s Guide
Vehicle Mount Cradle for MX3X
This cradle is specifically designed for vehicle mount applications. The cradle restrains the mobile
device and isolates the computer from shock and vibration. The MX3X is inserted into the cradle
by placing the base of the unit in the pocket and then firmly pressing the unit backwards until the
release mechanisms latch and hold the unit in the cradle. The MX3X is removed from the cradle
by pressing the release mechanisms and pulling the MX3X up and away from the cradle.
Connectors
The Power connector is located on the back of the cradle below and to the left of the RS-232 port.
The cradle is powered by either a vehicle's 12V battery or from an approved accessory for vehicles
with higher voltage (24 to 60 VDC) batteries. When powered, the cradle transfers external power
to the MX3X, which in turn, recharges the main battery. A powered cradle allows RS-232 and IR
communication.
The RS-232 connector is located on the back of the cradle below and to the right of the power
connector. When the MX3X is properly docked, the bi-directional half-duplex transceivers in the
MX3X and cradle are aligned through their IR windows. The half-duplex IR signals from the
MX3X are converted to RS-232 signals in the cradle and available at this connector.
Note: ActiveSync will transfer files over the RS-232 connector on the vehicle cradle.
ActiveSync with a Cradle
To ActiveSync, the cradle must be powered off, the ActiveSync cradle cable attached to the
desktop PC and the cradle, then the cradle powered up.
Note: ActiveSync transfers files to the MX3X over the RS-232 connector on the cradle using the
MX3X070CBLD9RS232AS cable.
Note: The MX3-RFID and the MX3P use a passive, non-powered cradle (refer to “The Passive
Vehicle Cradle”). ActiveSync connects through powered cradles or through the RS-232
ports on the mobile device endcap.
Figure 41 ActiveSync Cable Connected to Serial port on Cradle
For FCC Review - Draft 02 - Not for Distribution
48 Storage Cradles
MX3X User’s Guide E-EQ-MX3XOGWW-F
Tethered Scanner and a Cradle
To use a tethered scanner connected to the RS-232 port on the cradle, the cradle must be powered
off, the cable removed and the cradle powered up. Then, the tethered scanner can be attached to
the cradle’s serial port. The passive vehicle cradle does not have a serial port.
The Passive Vehicle Cradle
The MX3-RFID and the MX3P with an RFID enclosure cannot fit in standard MX3 charging
cradles. There is a passive vehicle cradle available (as well as a RAM bracket installation kit) for
the MX3-RFID and MX3P devices that secures the mobile device to the cradle only. See
“Accessories”.
Mobile device main battery charging and RF communication is not available in the passive vehicle
cradle unless the mobile device is receiving external power through the power jack in the endcap.
The passive vehicle cradle does not have LEDs or indicators. The passive vehicle cradle does not
require an external power source.
The mobile device in the passive cradle requires a power source, either from the main battery or
from power applied via the power jack on the endcap.
For FCC Review - Draft 02 - Not for Distribution
E-EQ-MX3XOGWW-F MX3X User’s Guide
Appendix A Key Maps
Keypad
Throughout this guide, an MX3X without RFID capability is labeled “MX3X”. The MX3X with an RFID Module
is labeled “MX3-RFID”. The MX3X with an RFID enclosure but without RFID capability is labeled “MX3X”.
Information specific to one over another is marked appropriately. No distinction is made to information that is the
same for all mobile devices. Keypads functions are the same for the MX3X, MX3P and MX3-RFID devices.
Note: The key mapping in this appendix relates to the physical keypad. See section titled “Input Panel” for the
Virtual (or Soft) Keypad used with the stylus.
Key Map 101-Key Equivalencies
Note: This key mapping is used on mobile devices that are NOT running an LXE Terminal Emulator.
When using a sequence of keys that includes the 2nd key, press the 2nd key first then the rest of the key sequence.
Note: When the computer boots, the default condition of NumLock is On and the default condition of Caps (or
CapsLock) is Off. The Caps (or CapsLock) condition can be toggled with a 2nd+F1 key sequence. The
CAPS LED is illuminated when CapsLock is On.
Press These Keys and Then
To get this key
2nd Shift Ctrl Alt CapsLock
Press this key
Contrast x F6
Volume x F8
Backlight x F10
2nd 2
nd
Shift Shft
Alt Alt
Ctrl Ctrl
Esc Esc
Space Spc
Enter Enter
Scan 3 Scan
CapsLock (Toggle) x F1
Back Space BkSp
Tab Tab
3 Left Scan key default value is Scan. Right Scan key default value is Enter. When an RFID
Module is installed, Right Scan key defaults to RFID Read and Left Scan key defaults to Scan or
Enter or Field Exit (Field Exit - 5250 only).
For FCC Review - Draft 02 - Not for Distribution
50 Key Maps
MX3X User’s Guide E-EQ-MX3XOGWW-F
Press These Keys and Then
To get this key
2nd Shift Ctrl Alt CapsLock
Press this key
BackTab x Tab
Break x F2
Pause x x F3
Up Arrow Up Arrow
Down Arrow Down Arrow
Right Arrow Right Arrow
Left Arrow Left Arrow
Insert x BkSp
Delete x DOT
Home x Left Arrow
End x Right Arrow
Page Up x Up Arrow
Page Down x Down Arrow
ScrollLock x x F4
F1 F1
F2 F2
F3 F3
F4 F4
F5 F5
F6 F6
F7 F7
F8 F8
F9 F9
F10 F10
F11 x x F1
F12 x x F2
a Off A
b Off B
c Off C
d Off D
e Off E
f Off F
g Off G
h Off H
i Off I
For FCC Review - Draft 02 - Not for Distribution
Key Maps 51
E-EQ-MX3XOGWW-F MX3X User’s Guide
Press These Keys and Then
To get this key
2nd Shift Ctrl Alt CapsLock
Press this key
j Off J
k Off K
l Off L
m Off M
n Off N
o Off O
p Off P
q Off Q
r Off R
s Off S
t Off T
u Off U
v Off V
w Off W
x Off X
y Off Y
z Off Z
A x A
B x B
C x C
D x D
E x E
F x F
G x G
H x H
I x I
J x J
K x K
L x L
M x M
N x N
O x O
P x P
Q x Q
R x R
For FCC Review - Draft 02 - Not for Distribution
52 Key Maps
MX3X User’s Guide E-EQ-MX3XOGWW-F
Press These Keys and Then
To get this key
2nd Shift Ctrl Alt CapsLock
Press this key
S x S
T x T
U x U
V x V
W x W
X x X
Y x Y
Z x Z
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9
0 0
DOT DOT
< x 0
[ x 1
] x 2
> x 3
= x 4
{ x 5
} x 6
/ x 7
- x 8
+ x 9
* x I
: (colon) x D
; (semicolon) x F
? x L
` x N
_ (underscore) x M
For FCC Review - Draft 02 - Not for Distribution
Key Maps 53
E-EQ-MX3XOGWW-F MX3X User’s Guide
Press These Keys and Then
To get this key
2nd Shift Ctrl Alt CapsLock
Press this key
, (comma) x J
‘ (apostrophe) x H
~ (tilde) x B
\ x S
| x A
“ x G
! x Q
@ x W
# x E
$ x R
% x T
^ x Y
& x U
( x O
) x P
For FCC Review - Draft 02 - Not for Distribution
54 Key Maps
MX3X User’s Guide E-EQ-MX3XOGWW-F
For FCC Review - Draft 02 - Not for Distribution
E-EQ-MX3XOGWW-F MX3X User’s Guide
Appendix B Regulatory Notices and Safety Information
FCC Information:
This device complies with FCC Rules, part 15. Operation is subject to the following two conditions:
1. This device may not cause harmful interference,
and
2. This device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction guide, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
Warning: Changes or modifications to this device not expressly approved by LXE, Inc., could void the user’s
authority to operate this equipment.
EMC Directive Requirements:
This is a Class A product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.
Industry Canada:
This Class A digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations.
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouiller du
Canada. Le present appareil numérique n’emet pas de bruits radioélectriques dépassant les limites applicables aux
appareils numeriques de le Classe A préscrites dans le Reglement sur le brouillage radioélectrique édits par le
ministere des Communications du Canada.
This device contains transmitter Module FCC ID: KDZLXE4830P
RF Safety Notice (4830)
Caution
This portable device with its antenna complies with FCC’s and Industry Canada’s RF exposure limits set for
an uncontrolled environment. This equipment has shown compliance with FCC and Industry Canada Specific
Absorption Rate (SAR) limits. Highest reported SAR for the MX3X is 1.176W/kg on body. Any accessories
not provided by LXE should not be used with this device. This device must not be co-located or operating in
conjunction with any other antenna or transmitter.
For FCC Review - Draft 02 - Not for Distribution
56 Regulatory Notices and Safety Information
MX3X User’s Guide E-EQ-MX3XOGWW-F
Notice:
The long term characteristics or the possible physiological effects of radio frequency electromagnetic fields have not
been investigated by UL.
Li-Ion Battery
When disposing of the main battery, the following precautions should be observed: The battery should be disposed
of promptly. The battery should not be disassembled or crushed. The battery should not be heated above 212°F
(100°C) or incinerated.
Important: This symbol is placed on the product to remind users to dispose of Waste Electrical and
Electronic Equipment (WEEE) appropriately, per Directive 2002-96-EC. In most areas, this product
can be recycled, reclaimed and re-used when properly discarded. Do not discard labeled units with
trash. For information about proper disposal, contact LXE through your local sales representative, or
visit www lxe com.
R&TTE Directive Requirements (Applies only to equipment operated within the EU/EFTA)
Information to User
A label on the exterior of the device should resemble one of the labels shown below (the label contains
the LXE part number of the installed radio card). The labels shown below and affixed to the device,
identify where the device may be used and where its use is restricted. Use of a device is prohibited in
countries not listed below or otherwise identified by the label. (May or may not include the 0560
Notifed Body No.)
Permitted for use in: Austria, Belgium, Denmark, Finland, Germany,
Greece, Hungary, Iceland, Italy, Ireland, Liechtenstein, Luxembourg,
Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, and the
United Kingdom
Permitted for use in France.
For FCC Review - Draft 02 - Not for Distribution
Regulatory Notices and Safety Information 57
E-EQ-MX3XOGWW-F MX3X User’s Guide
Approvals
Product EMI / EMC Standards Safety Standards
FCC Part 15 Subpart B, Class A
EN 55022:1998
Class A
EN 55024:1998
Industry Canada Class A
MX3X
MX3X with RFID
Module
MX3X with RFID
Enclosure
FCC Part 15.207 and 15.209, Class B
ICES-0003 Class B
AS/NZS 3548 Class B
EN 301 489-1/17
CISPR22 and Class B
UL 60950; CSA C22.2
No. 60950
CDRH: 21 CFR 1040.10
and 1040.11
EN 60950
IEC 60825-1
IEC 60950
Cradle Approvals:
Product EMI / EMC Standards Safety Standards
MX3 Table
MX3 Vehicle Mount
MX3-RFID / MX3P
Passive Vehicle Cradle
FCC Part 15 Subpart B, Class A
EN 55022:1998
Class A
EN 55024:1998
Industry Canada Class A
UL 60950; CSA C22.2 No. 60950
EN 60950
IEC 60950
Transceiver:
Transceiver RF Standards Notes
6726 (LXE Model No.) [Cisco] FCC Part 15, Subpart C
FCC Part 2
EN 300 328
EN 300 826
IC-RSS 139
IC-RSS 102
Unlicensed Operation
Unlicensed Operation
Requires License for Outdoor Use
6816 (LXE Model No.) [Symbol]
2.4GHz Type II PCMCIA Card
FCC Part 15, Subpart C
FCC Part 2
EN 300 328
EN 300 826
IC-RSS 139
IC-RSS 102
Unlicensed Operation
Unlicensed Operation
Requires License for Outdoor Use
4830 (LXE Model No.) [LXE
CF/Summit]
2.4GHz PCMCIA Card
FCC Part 15.247, Subpart
C
FCC Bulletin OET-65
EN 300 328
IC-RSS 210
IC-RSS 102
Unlicensed Operation
Unlicensed Operation
Requires License for Outdoor Use
For FCC Review - Draft 02 - Not for Distribution
58 Regulatory Notices and Safety Information
MX3X User’s Guide E-EQ-MX3XOGWW-F
LXE Transceiver LXE 6726 Declaration of Conformity
DECLARATION OF CONFORMITY
according to Directives:
1999/5/EC Radio Equipment and Telecommunications Terminal Equipment
and the mutual recognition of their conformity
93/68/EEC CE Marking Directive
Type of Equipment: Direct Sequence 2.4 GHz Wireless LAN Card
Brand Name or Trademark: LXE
Type Designation: LXE 6726
Manufacturer: LXE Inc.
Address: 125 Technology Parkway
Norcross, GA 30092-2993 USA
Year of Manufacturer: 2001
The following harmonized European Standards, technical specifications, or other normative
documents have been applied:
EMC:
EN 301 489-1: 07-2000
EN 301 489-17 07-2000
Electromagnetic compatibility and Radio spectrum Matters
(ERM); ElectroMagnetic Compatibility (EMC) standard for radio
equipment and services; Part 1: Common technical
requirements
Electromagnetic compatibility and Radio spectrum Matters
(ERM); ElectroMagnetic Compatibility (EMC) standard for radio
equipment and services; Part 17: Specific conditions for
Wideband data and HIPERLAN equipment
Radio:
EN 300 328-1 and -2: 2000-7 Radio Equipment and Systems (RES);
Wideband transmission systems;
Technical characteristics and test conditions for data
transmission equipment operating in the 2,4 GHz ISM band
and using spread spectrum modulation techniques
Safety:
EN 60950-2: 1992 + A1..A4 Safety of information technology equipment, including electrical
business equipment
We, LXE Inc., declare that the equipment specified above complies with all Essential Health and
Safety Requirements of the above Directives and Standards, as amended.
Place LXE Inc., Norcross GA USA
Date of issue 24 June 2004
C. Binnom Jr.
RF Approvals Engineer
LXE Inc. 125 Technology Parkway Norcross, GA 30092-2993 USA
ph. 770/447-4224 fax 770/447-6928
For FCC Review - Draft 02 - Not for Distribution
Regulatory Notices and Safety Information 59
E-EQ-MX3XOGWW-F MX3X User’s Guide
Annex to DoC for LXE 6726
With regard to the use of external antennas
The LXE 6726 can be equipped with external antennas. The antennas listed have been evaluated with the LXE 6726 pursuant to
ETSI EN 300 328, and therefore meet the definition of ‘dedicated antenna’ per ERC/REC 70-03 Appendix 1 Table 3; thus the
requirement set forth in ERC/REC 70-03 , Annex 3 are met by the LXE model 6726 transceiver.
Dedicated Antennas for use with LXE 6726
LXE P/N Antenna Gain Radio Power Level Antenna Description
153180-0001 0 dBi 17 dBm Omni, for LXE VX-series computers
155522-0001 0 dBi 17 dBm Omni, for LXE MX1-series computers
155814-0001 0 dBi 17 dBm Patch, for LXE MX1-series computers
157368-0001 0 dBi 17 dBm Patch, for LXE MX3-series computers
157399-0001 0 dBi 17 dBm Omni, for LXE MX5-series computers
99004-0027 0 dBi 17 dBm 3 dB Omni, for LXE model 2325 computer
DAC2450CT1
(Toko P/N)
2.15 dBi 17 dBm Omni, for LXE MX2-series computers
153179-0001 0 dBi 17 dBm Omni, Access Point Antenna
153325-0001 0 dBi 17 dBm Omni, Access Point Antenna
480424-0400 0 dBi 17 dBm Omni, Access Point Antenna
153599-0001 3 dBi 17 dBm Omni, Access Point Antenna
153600-0001 3 dBi 17 dBm Omni, Access Point Antenna
480424-3404 3 dBi 17 dBm Omni, Access Point Antenna
155846-0001 3 dBi 17 dBm Spire® Access Point Antenna
155845-0001 6 dBi 13 dBm Spire® Access Point Antenna
155311-0001 6 dBi 13 dBm Patch, Access Point Antenna
480424-3411 6 dBi 13 dBm Patch, Access Point Antenna
480424-3402 6 dBi 13 dBm Patch, Access Point Antenna
481246-2400 6 dBi 13 dBm Patch, Access Point Antenna
480424-1702 6 dBi 13 dBm 180° Directional, Access Point Antenna
480424-0411 9 dBi 7 dBm Omni, Access Point Antenna
480429-2703 12 dBi 7 dBm 90° Directional, Access Point Antenna
480429-0411 12 dBi 7 dBm Omni, Access Point Antenna
460601-3020 15 dBi 3 dBm YAGI, Access Point Antenna
460602-3020 15 dBi 3 dBm YAGI, Access Point Antenna
480429-0415 15 dBi 3 dBm Omni, Access Point Antenna
C. Binnom Jr.
RF Approvals Engineer
24 June 2004
LXE Inc. 125 Technology Parkway Norcross, GA 30092-2993 USA
ph. 770/447-4224 fax 770/447-6928
For FCC Review - Draft 02 - Not for Distribution
60 Regulatory Notices and Safety Information
MX3X User’s Guide E-EQ-MX3XOGWW-F
LXE Transceiver LXE 6816 Declaration of Conformity
DECLARATION OF CONFORMITY
according to:
the R&TTE Directive; 99/5/EEC
The EMC Directive; 89/336/EEC
The Low Voltage Directive; 73/23/EEC
and the Marking Directive; 93/68/EEC
Type of Equipment: DSSS 2.4GHz WLAN Radio Card
Brand Name or Trademark: LXE
Type Designation: 6816
Manufacturer: LXE Inc.
Address: 125 Technology Parkway
Norcross, GA 30092 USA
The following harmonized European Norms have been applied:
EMC Standards:
EN 301 489-1: 07-2000 Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio
equipment and services; Part 1: Common technical requirements
EN 301 489-17:07-2000 Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio
equipment and services; Part 17: Specific conditions for
Wideband data and HIPERLAN equipment
EN 55022: 1998 Limits and methods of measurement of radio disturbance
characteristics of information technology equipment
Radio Standards:
EN 300 328-1 and -2: 2000-7 Radio Equipment and Systems (RES);
Wideband transmission systems;
Technical characteristics and test conditions for data transmission
equipment operating in the 2.4 GHz ISM band and using spread
spectrum modulation techniques
Safety Standard:
EN60950-1: 2001 Safety of information technology equipment, including electrical
business equipment
The product carries the CE Mark:
We, LXE Inc., declare that the equipment specified above complies with all Essential Health
and Safety Requirements of the above Directives and Standards, as amended.
Date of issue: June 18, 2003
Cyril A. Binnom Jr.
Regulatory Engineer
LXE Inc. 125 Technology Parkway Norcross, GA 30092-2993 USA
ph. 770/447-4224 fax 770/447-6928
For FCC Review - Draft 02 - Not for Distribution
Regulatory Notices and Safety Information 61
E-EQ-MX3XOGWW-F MX3X User’s Guide
Annex to DoC for LXE 6816
With regard to the use of external antennas
The LXE 6816 can be equipped with external antennas. The antennas listed have been assessed with the LXE 6816 pursuant to EN
300 328, and therefore meet the definition of ‘dedicated antenna’. The table below lists the maximum output power setting for the
radio module in order to result in a total EIRP of 100mW or less. Any combination of output power and a specific type of antenna
resulting in an EIRP greater than 100mW is illegal for use throughout the Community and is outside the scope of this DoC.
Antennas not listed below are also outside the scope of this DoC.
Dedicated Antennas for use with LXE 6816
LXE Antenna
Part Number
LXE Model
Number
Antenna
Gain
Max Radio
Power Level
Antenna
Description
153180-0001 N/A 2.2 dBi 17 dBm Cushcraft Omni Antenna
155846-0001 6000A279ANT3SPIREL
6000A280ANT3SPIRER
6000A283ANT3INDSPR
3 dBi 17 dBm Spire® Omni Antenna
155845-0001 6000A277ANT6SPIREL
6000A278ANT6SPIRER
6000A282ANT3INDSPR
6 dBi 13 dBm Spire® Omni Antenna
480424-0411 N/A 9 dBi 11 dbm Mobile Mark Omni Antenna
155104-0001 N/A 0 dbi 20 dbm LXE Omni
154591-0001 N/A 0 dbi 20 dbm LXE Patch
Toko DAC2450CT1 N/A 0 dbi 20 dbm LXE Omni
157368-0001 N/A 0 dbi 20 dbm LXE Omni
158586-0001 N/A 0 dbi 20 dbm LXE Omni
158399-0001 N/A 0 dbi 20 dbm LXE Omni
Cyril A. Binnom Jr.
Regulatory Engineer
18 June 2003
LXE Inc. 125 Technology Parkway Norcross, GA 30092-2993 USA
ph. 770/447-4224 fax 770/447-6928
For FCC Review - Draft 02 - Not for Distribution
62 Regulatory Notices and Safety Information
MX3X User’s Guide E-EQ-MX3XOGWW-F
LXE 802.11b/g WLAN Declaration of Conformity (4830)
DECLARATION OF CONFORMITY
according to Directives:
1999/5/EC
93/68/EEC
Radio Equipment and Telecommunications Terminal
Equipment and the mutual recognition of their conformity
CE Marking Directive
Type of Equipment:
Brand Name or Trademark:
Type Designation:
Manufacturer:
Address:
Year of Manufacturer:
Direct Sequence 2.4 GHz Wireless LAN Card
LXE
LXE 4830
LXE Inc.
125 Technology Parkway
Norcross, GA 30092-2993 USA
2006
The following harmonized European Standards, technical specifications, or other normative
documents have been applied:
EMC:
EN 301 489-1: 07-2000
EN 301-489-17 07-2000
Radio:
EN 300 328-1 and -2: 2000-7
Safety:
EN 60950-2: 1992 + A1..A4
Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 1: Common technical requirements
Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 17: Specific conditions for Wideband data and
HIPERLAN equipment
Radio Equipment and Systems (RES);
Wideband transmission systems;
Technical characteristics and test conditions for data transmission
equipment operating in the 2,4 GHz ISM band and using spread
spectrum modulation techniques
Safety of information technology equipment, including electrical business
equipment
We, LXE Inc., declare that the equipment specified above complies with all Essential
Health and Safety Requirements of the above Directives and Standards, as amended.
Place: LXE Inc., Norcross GA USA C. Binnom Jr.
RF Approvals Engineer
Date of issue: 14 July 2006
LXE Inc. 125 Technology Parkway Norcross, GA 30092-2993 USA
ph. 770/447-4224 fax 770/447-6928
For FCC Review - Draft 02 - Not for Distribution
Regulatory Notices and Safety Information 63
E-EQ-MX3XOGWW-F MX3X User’s Guide
Annex to DoC for LXE 4830
With regard to the use of external antennas
The LXE 4830 can be equipped with external antennas. The antennas listed have been evaluated with the LXE 4830
pursuant to EN 300 328, and therefore meet the definition of ‘dedicated antenna’ per ERC/REC 70-03 Appendix 1
Table 3; thus the requirement set forth in ERC/REC 70-03 , Annex 3 are met by the LXE model 4830 transceiver.
Dedicated Antennas for use with LXE 4830
LXE P/N Antenna Gain Radio Power Level Antenna Description
153180-0001 2.2 dBi 15.8 dBm Omni, for LXE VX-series computers
160952-0001 0 dBi 15.8 dBm Omni, for LXE MX3-series computers
158399-0001 0 dBi 15.8 dBm Omni, for LXE MX5-series computers
159900-0001 0 dBi 15.8 dBm Omni, for LXE MX7-series computers
160019-0001 0 dBi 15.8 dBm Omni, for LXE VX-series computers
160501-0001 0 dBi 15.8 dBm Omni, for LXE HX1-series computers
C. Binnom Jr.
RF Approvals Engineer
14 July 2006
LXE Inc. 125 Technology Parkway Norcross, GA 30092-2993 USA
ph. 770/447-4224 fax 770/447-6928
For FCC Review - Draft 02 - Not for Distribution
64 Regulatory Notices and Safety Information
MX3X User’s Guide E-EQ-MX3XOGWW-F
A/C Power Supply Safety Statement – MX3X
Output Rated 12 VDC, 1 A.
The LXE-approved AC Power Adapter is only intended for use in a 25ºC (77ºF) maximum
ambient temperature environment.
Optional A/C Power Supply:
Outside North America, this unit is intended for use with an IEC certified ITE power supply with output rated as
stated at the top of this page. (US)
Alimentation c.a. optionnelle:
Hors de l'Amérique du Nord, cette unité est conçue pour être utilisée avec une alimentation ITE certifiée CEI de sortie nominale
indiquée au haut de cette page. (FR)
Valgfrit vekselstrømforsygning
Udenfor Nord Amerika er denne enhed udstattet med en IEC (international elektronisk Kommission) udfærdiget med en ITE
strømforsygning med strømudgang som fastslået på denne sides begyndelse. (DK)
Vaihtoehtoinen vaihtovirran syöttölaite:
Pohjois-Amerikan ulkopuolella tämä laite on tarkoitettu käytettäväksi sellaisen IEC:n sertifioiman ITE-tehonsyöttölaitteen
kanssa, jonka antoteho on tämän sivun yläosassa esitetyn mukainen. (FI)
Optionales Netzteil (Wechselstrom)
Außerhalb Nordamerikas sollte diese Einheit über ein der IEC-Norm entsprechendes ITE-Netzteil gespeist werden, und zwar mit
einer wie oben auf dieser Seite genannten Ausspeisung. (DE)
Προαιρετική Τροφοδοσία Συνεχούς Ρεύματος
Εκτός Β. Αμερικής, η μονάδα αυτή προορίζεται για χρήση με ένα τροφοδοτικό ITE πιστοποιημένο κατά IEC με ονομαστική ισχύ
όπως δηλώνεται στην αρχή της σελίδας. (GR)
Alimentazione opzionale a corrente alternata:
Al di fuori dei paesi dell'America del nord, l'unità deve essere impiegata con un dispositivo d'alimentazione per attrezzature
informatiche approvato dalla IEC la cui potenza nominale sia pari a quella indicata all'inizio della pagina. (IT)
Vekselstrømforsyning (ekstrautstyr):
Utenfor Nord-Amerika skal dette produktet brukes med en IEC-sertifisert ITE-strømforsyning med klassifisert effekt som angitt
øverst på denne siden. (NO)
Fornecimento opcional de CA:
Fora dos EUA, esta unidade destina-se a ser usada com dispositivos de fornecimento de corrente ITE com certificação IEC, com
a capacidade indicada no topo desta página. (PT)
Suministro optativo de corriente alterna
Fuera de América del Norte, esta unidad se debe utilizar con un alimentador ITE homologado por la IEC (comisión electrotécnica
internacional) con una salida que tenga la calificación que figura en la parte superior de esta página. (ES)
Valfri A/C Strömförsörjning
Utanför Nordamerika är det meningen att denna enheten används med en IEC-certifierad ITE-strömförsörjare med den uteffekt
som anges längst uppe på den här sidan. (SE)
İsteğe Bağlı A/C Güç Kaynağı:
Kuzey Amerika dışında, bu ünite, çıkış sınıflandırması bu sayfanın başında belirtilen IEC sertifikalı bir ITE güç kaynağı ile
birlikte kullanılmak üzere tasarlanmıştır. (TR)
Updated 10/01/2001
Legend: Danish – DK; English – US; Finnish – FI; French- - FR; German – DE; Greek – GR; Italian – IT;
Norwegian – NO; Portuguese – PT; Spanish – ES; Swedish – SE; Turkish – TR.
For FCC Review - Draft 02 - Not for Distribution
Regulatory Notices and Safety Information 65
E-EQ-MX3XOGWW-F MX3X User’s Guide
Laser Light Safety Statement
Warning:
This product uses laser light. One of the following labels is provided on the scanner. Please read the Caution
statement. (US)
Mise én garde:
Ce produit utilise un rayon laser. L’une des étiquettes suivantes est apposée sur le scanneur. Veuillez lire
l’avertissement qu’elle contient. (FR)
Advertência:
Este produto usa luz de laser. O scanner contém um dos seguintes avisos. Favor ler o Aviso. (PT)
Varning:
Denna produkt använder laserljus. En av de nedanstående etiketterna sitter på scannern. Var god läs varningstexten.
(SE)
Advarsel:
Dette produkt anvender laserlys. En af følgende mærkater anvendes på scanneren. Læs venligst
sikkerhedsforanstaltningen. (DK)
Varoitus:
Tämä tuote käyttää laservaloa. Skannerissa on jokin seuraavista tarroista. Lue Huomio-kohta. (FI)
Warnung:
Dieses Produkt verwendet Laserlicht. Eines der folgenden Etiketten befindet sich auf dem Scanner. Bitte lesen Sie
den Gefahrenhinweis. (DE)
Attenzione:
Questo prodotto utilizza luce laser. Una delle etichette seguenti c’ ubicata sullo scanner. Si raccomanda di leggere
con attenzione le avvertenze riportate. (IT)
Advarsel:
Dette utstyret bruker laserlys. En av følgende etiketter er plassert på scanneren. Les advarselen på etiketten. (NO)
Advertencia:
Este producto usa luz de láser. Las etiquetas se proveen en la máquina exploradora. Por favor, lea detenidamente la
explicación para las precauciones. (ES)
Waarschuwing:
Dit product gebruikt laserlicht. Een van de volgende labels is op de scanner aangebracht. Lees a.u.b. de
waarschuwing onder Oppassen. (NL)
For FCC Review - Draft 02 - Not for Distribution
66 Regulatory Notices and Safety Information
MX3X User’s Guide E-EQ-MX3XOGWW-F
Laser Light Safety Statement
A
þ
a
ð
ý
d
a
ki
et
ik
et
l
er
d
en
bi
r tanes
i
tara
yý
c
ý
n
ý
n üstünde saðlan
ý
r.
Lüt
f
en D
ikk
at
if
a
d
es
i
n
i
o
k
u
y
un
.
(TR)
(GR)
(KR)
(JP)
(CN)
Legend:
Chinese-CN; Danish-DK; Dutch-NL; English-US; Finnish-
FI; French-FR; German-DE; Greek-GR; Italian-IT;
Japanese-JP; Korean-KR; Norwegian-NO; Portuguese-PT;
Spanish-ES; Swedish-SE; Turkish-TR
Labels - MX3X Hand Held Computer
For FCC Review - Draft 02 - Not for Distribution
Regulatory Notices and Safety Information 67
E-EQ-MX3XOGWW-F MX3X User’s Guide
Revision History
Revision E, October 2005
• Notices -- Added Waste Electrical and Electronic Equipment (WEEE) statement to
Notices. Added WEEE statement to Appendix B.
• Introduction -- Added Scanner Clip Strap (85XX scanners only) to “Accessories.”
Revision D, April 2005
• Cover Page -- Updated LXE logo. Added “Microsoft Windows CE .NET Equipped” on
cover page to separate this device from similar MX3 mobile devices.
• Appendix B, Regulatory Notices and Safety Information -- Added Hungary to “Permitted
for use in” radio approval in “R&TTE Directive Requirements”.
Revision C, December 2004
• Entire Guide -- Added user information/instruction for the MX3-RFID mobile device.
• Introduction -- Corrected part numbers for MX3-RFID accessories.
• MX3X Hand Held Computer -- Removed “Power Modes” explanation.
Revision B, August 2004
• Introduction -- Added screen display figures for setting the Backlight Timer, Power
Schemes Timer, and Audio Speaker Volume. Corrected Accessories section “Cables for
Cradle and MX3X Serial Ports”. Added 8500 series tethered scanners to “Accessories”.
• MX3X Hand Held Computer -- Added cautions for cables with and without USB plugs /
receptacles and the endcap serial ports. Added ActiveSync cable part number to section
“Cradles”.
• Appendix B, Regulatory Notices and Safety Information -- Updated Cisco 6726
Declaration of Compliance.
Revision A, Initial Release, June 2004
For FCC Review - Draft 02 - Not for Distribution
68 Regulatory Notices and Safety Information
MX3X User’s Guide E-EQ-MX3XOGWW-F
For FCC Review - Draft 02 - Not for Distribution
Index 69
E-EQ-MX3XOGWW-F MX3X User’s Guide
Index
2nd key function ...................................................40
A
AC Power
and LEDs on cradles ...........................................44
Accessories ...........................................................29
Electrostatic Discharge .........................................8
Installing ...............................................................8
Activation Key, AppLock Multiple Applications.20
Alt key function ....................................................40
AppLock Activation Key......................................20
Audio Cable
Install ..................................................................27
Audio Jack, connect..............................................18
Audio Volume settings .........................................24
B
Backlight for Display............................................33
Backlight Timer....................................................22
Barrel connector, MX3P power jack ....................14
Barrel connector, power jack ................................13
Battery
Charge New ..........................................................8
Hot Swap.............................................................43
Battery Chargers ...................................................44
Battery Compartment............................................10
Battery, Backup
described .............................................................43
Battery, charge before using .................................10
Battery, Main ........................................................43
described .............................................................43
Baud Rate
IR port .................................................................39
C
Calibrate touch screen...........................................34
Calibrate touchscreen............................................21
Caps mode function ..............................................41
Caution
Fused Circuit Connection....................................15
Charger, battery ....................................................44
Check battery status..............................................10
Cleaning................................................................34
Color Codes ..........................................................16
Color displays .......................................................33
Color displays and backlight timers......................22
COM 2, IR port.....................................................39
COM ports ............................................................37
Components
Back ......................................................................6
Top ........................................................................7
Contacting LXE....................................................29
Cradle for MX3-RFID and MX3P........................48
Cradles, function...................................................45
Ctrl key function...................................................40
Cumulative mode timers.......................................23
D
Data entry .............................................................25
Default AppLock Activation Key.........................20
Desktop cradle ......................................................46
Power connection................................................46
RS-232 connection..............................................46
Status Indicator ...................................................45
Display
adjust contrast .....................................................22
Features...............................................................33
Pixels...................................................................33
Display and scanner aperture cleaning .................34
Display brightness and contrast ............................22
Display Contrast ...................................................22
Dual Serial Port endcap ........................................37
E
Edit the button parameters ....................................35
Endcap Combinations...........................................38
Endcaps and COM Ports.......................................37
Enter key function.................................................40
Entering Data........................................................25
Environmental Specifications.................................3
External Power Supplies, MX3X..........................13
F
Features...............................................................1, 2
Field Exit key function ...................................36, 41
Function
2nd Key...............................................................40
Alt Key................................................................40
For FCC Review - Draft 02 - Not for Distribution
70 Index
MX3X User’s Guide E-EQ-MX3XOGWW-F
Caps Mode ..........................................................41
Ctrl Key...............................................................40
Enter Key ............................................................40
Field Exit Key...............................................36, 41
Scan Key .............................................................40
Shft Key ..............................................................41
Spc Key...............................................................41
G
Getting Started........................................................8
H
Handstrap, installation ..........................................11
Headset data entry.................................................28
Headset, Install and Adjust ...................................27
Help ......................................................................29
Hip-Flip, Assembly...............................................12
Hot Swap Battery..................................................43
I
IEC IP66 and IP65 ..................................................3
Infrared (IR) port, described .................................39
Infrared Data Access (IrDA).................................39
Input Panel and data entry ....................................25
Insert Main Battery...............................................10
IR operating envelope...........................................39
IR Port
bi-directional half-duplex....................................39
K
Key Maps, Custom ...............................................41
Keymaps ...............................................................49
Keypad and entering data .....................................25
Keypad File Manipulation Shortcuts ....................19
L
LEDs
2nd function ........................................................42
ALT function ......................................................42
BATT B function ................................................42
BATT M function ...............................................42
CAPS function ....................................................42
CHGR function ...................................................42
CTRL function ....................................................42
on keypads,location.............................................42
SCNR function....................................................42
SHFT function ....................................................42
STAT function ....................................................42
Li-Ion battery life....................................................8
Lithium-Ion (Li-ion) .............................................43
Location, Components........................................6, 7
M
Manuals ..................................................................2
Microphone adjustment ........................................27
Mode Key Functions.............................................41
Mode timing, cumulative effect............................23
Multi AppLock .....................................................20
MX3P Power Jack, attach power supply ..............14
MX3P, description..................................................1
MX3-RFID, MX3P and Cradles.......................9, 48
N
New Battery............................................................8
O
Operating Temperature...........................................3
P
Passive vehicle cradle ...........................................45
Pen Stylus .......................................................19, 33
Pen Stylus and data entry......................................25
Port, Infrared.........................................................39
Power button, location ..........................................18
Power Jack, attach power supply..........................13
Power Supply, Cigarette Lighter Adapter.............44
Power Supply, International AC/DC ....................44
Power Supply, US AC/DC....................................44
Protective Film .....................................................33
Q
Quick Start Instructions ..........................................8
QWERTY keypad.................................................40
R
Radio frequency identification (RFID)...................9
Recalibrate ......................................................21, 34
Regulatory Notices ...............................................55
RFID Module........................................................37
RFID Module Connected to the MX3X..................9
RFID Tag Data Collection....................................28
RFID tags................................................................9
For FCC Review - Draft 02 - Not for Distribution
Index 71
E-EQ-MX3XOGWW-F MX3X User’s Guide
S
Safety Information................................................55
Scan buttons
and tethered scanners ....................................28, 38
Scan Buttons .........................................................35
Scan buttons and the SCNR LED .........................36
Scan key function .................................................40
Scan Ranges
RFID .....................................................................9
Scanner LED, functioning ....................................26
Scanning and data entry........................................26
Screwdriver
Phillips, for handstrap .........................................11
SE923 scan engine................................................26
Shift key function .................................................41
Space key function................................................41
Speaker Volume....................................................24
using keypad .......................................................24
using touchscreen................................................24
Specifications
Environmental.......................................................3
