USERS MANUAL
MX8 User’s Guide
(Microsoft® Windows® CE 5.0 Equipped)
FOR REVIEW – DO NOT PUBLISH OR DISTRIBUTE -- LXE
CONFIDENTIAL - DRAFT 01 --
Copyright © 2007 by LXE Inc.
All Rights Reserved
E-EQ-MX8OGWW-A
For Review - Preliminary - Draft 01 - Not for distribution
Notices
LXE Inc. reserves the right to make improvements or changes in the products described in this document at any time
without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy,
LXE assumes no liability resulting from any errors or omissions in this document, or from the use of the information
contained herein. Further, LXE Incorporated, reserves the right to revise this document and to make changes to it
from time to time without any obligation to notify any person or organization of such revision or changes.
Copyright:
This document is copyrighted. All rights are reserved. This document may not, in whole or in part, be copied,
photocopied, reproduced, translated or reduced to any electronic medium or machine-readable form without prior
consent, in writing, from LXE Inc.
Copyright © 2007 by LXE Inc. An EMS Technologies Company.
125 Technology Parkway, Norcross, GA 30092 U.S.A. (770) 447-4224
Trademarks:
LXE® and Spire® are registered trademarks of LXE Inc. RFTerm® is a registered trademark of EMS
Technologies, Norcross, GA.
Microsoft®, ActiveSync®, MSN, Outlook®, Windows®, the Windows logo, and Windows Media are either
registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Summit Data Communications, Inc. Summit Data Communications, the Summit logo, and “The Pinnacle of
Performance” are trademarks of Summit Data Communications, Inc.
Java® and Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in
the U.S. or other countries, and are used under license.
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by LXE,
Inc. is under license.
Hand Held® is a registered trademark of Hand Held Products, Inc., located in Skaneateles Falls, NY.
Wavelink®, the Wavelink logo and tagline, Wavelink Studio™, Avalanche Management Console™, Mobile
Manager™, and Mobile Manager Enterprise™ are trademarks of Wavelink Corporation, Kirkland.
RAM® and RAM Mount™ are both trademarks of National Products Inc., 1205 S. Orr Street, Seattle, WA 98108.
All other brand or product names are trademarks or registered trademarks of their respective companies or
organizations.
When this manual is in PDF format: “Acrobat® Reader® Copyright © 2007 Adobe Systems Incorporated. All rights
reserved. Adobe®, the Adobe logo, Acrobat®, and the Acrobat logo are registered trademarks of Adobe Systems
Incorporated.” applies.
The user is strongly encouraged to read Appendix B, Regulatory Notices and Safety Information.
Important safety cautions, warnings and regulatory information is contained in Appendix B.
Important: This symbol is placed on the product to remind users to dispose of Waste Electrical and
Electronic Equipment (WEEE) appropriately, per Directive 2002-96-EC. In most areas, this product
can be recycled, reclaimed and re-used when properly discarded. Do not discard labeled units with
trash. For information about proper disposal, contact LXE through your local sales representative, or
visit www lxe com.
For Review - Preliminary - Draft 01 - Not for distribution
E-EQ-MX8OGWW-A MX8 User’s Guide
Table of Contents
INTRODUCTION 1
Overview.................................................................................................................................... 1
MX8 Features .......................................................................................................................................... 2
Important Battery Information................................................................................................................. 3
Document Conventions ........................................................................................................................... 4
Environmental Specifications.................................................................................................................. 4

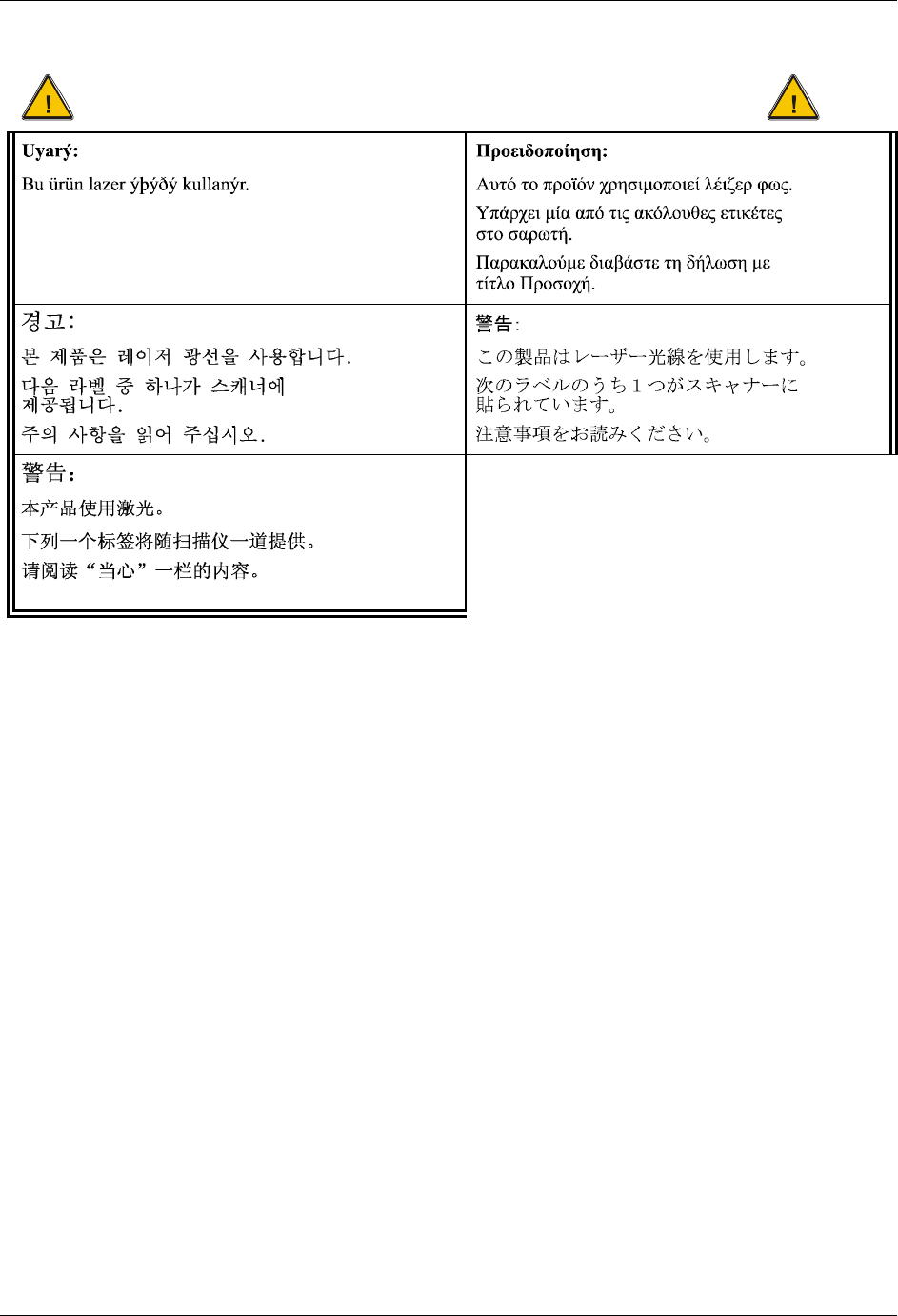

Laser Warnings and Labels..................................................................................................... 5
Components.............................................................................................................................. 6
Front View............................................................................................................................................... 6
Back View ............................................................................................................................................... 7
Scanner / Imager Aperture....................................................................................................................... 8
Trigger Handle......................................................................................................................................... 8
Handstrap................................................................................................................................................. 9
I/O Port and Cables................................................................................................................................ 10
MX8 AC Adapter .................................................................................................................................. 11
QUICK START 13
In Brief . . . ...............................................................................................................................13
Troubleshooting..................................................................................................................................... 14
Related Manuals for Startup .................................................................................................................. 14

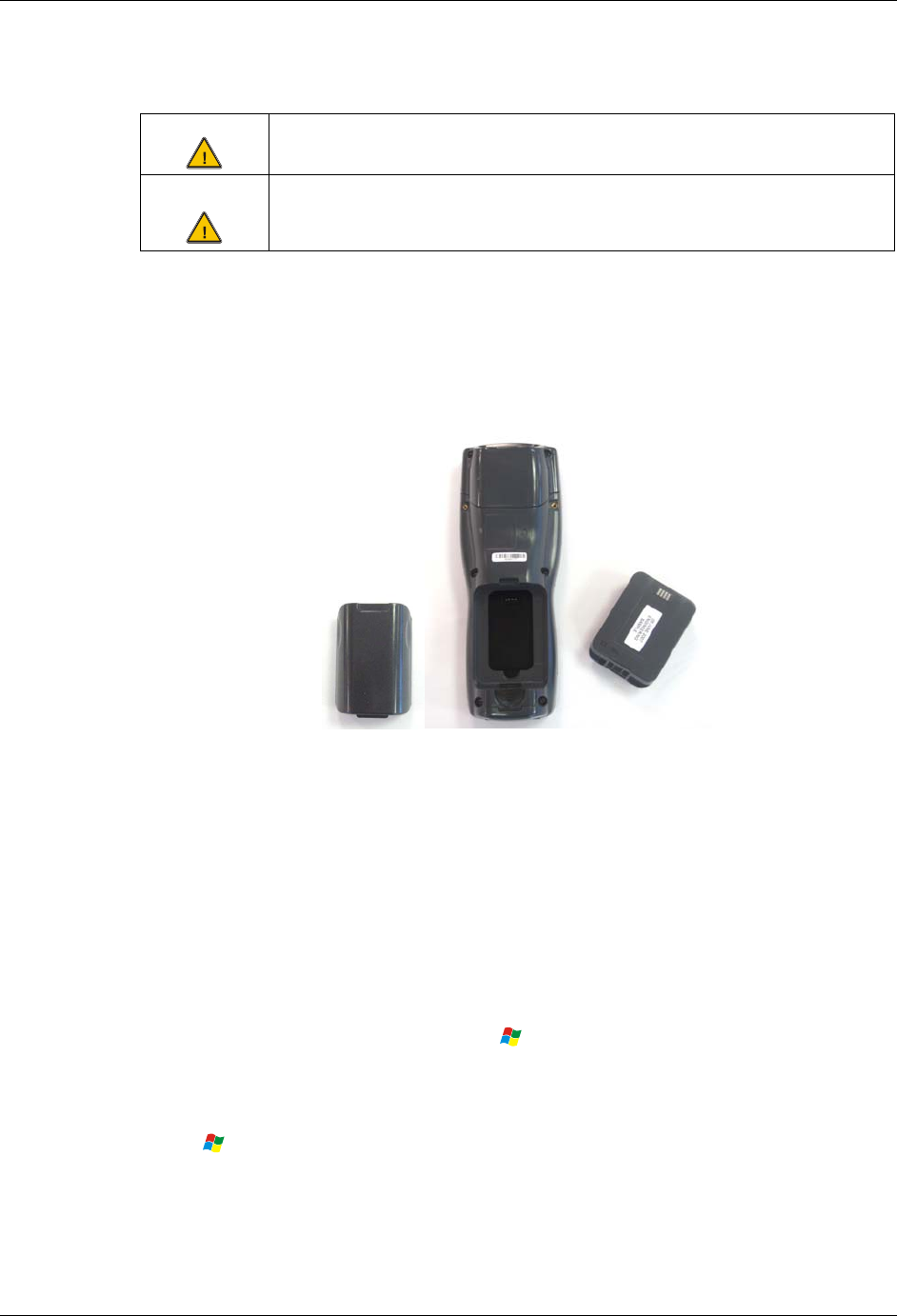

Inserting Fully Charged Battery ............................................................................................ 15
Checking Battery Status ........................................................................................................15
About Lithium-Polymer Batteries ......................................................................................................... 16
Tapping the Power Key.......................................................................................................... 16
Tapping the Touchscreen with a Stylus............................................................................... 17
Keypad Shortcuts................................................................................................................................... 17

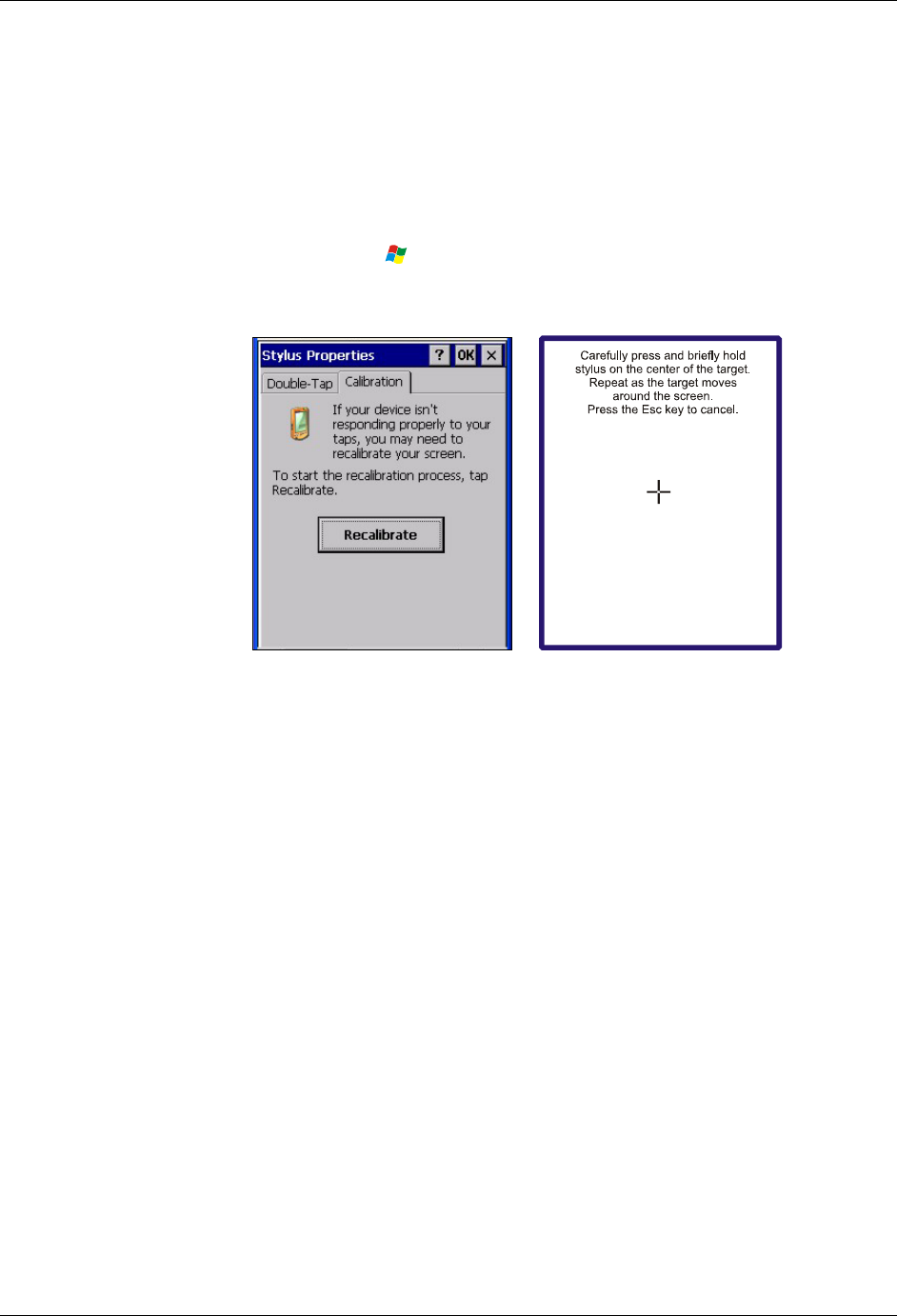

Calibrating the Touchscreen .................................................................................................18
Set Time Zone (Optional) .......................................................................................................18
Entering the AppLock Activation Key .................................................................................. 19
Hotkey (Activation Hotkey) .................................................................................................................. 19
Touch ..................................................................................................................................................... 19
Optional Accessory Installation............................................................................................20
Attaching Handstrap (Optional)............................................................................................................. 20
Connecting an External Power Supply (Optional)................................................................................. 21
Putting it all together … ..................................................................................................................... 21
Assembling the 5V AC Power Adapter ..............................................................................................21

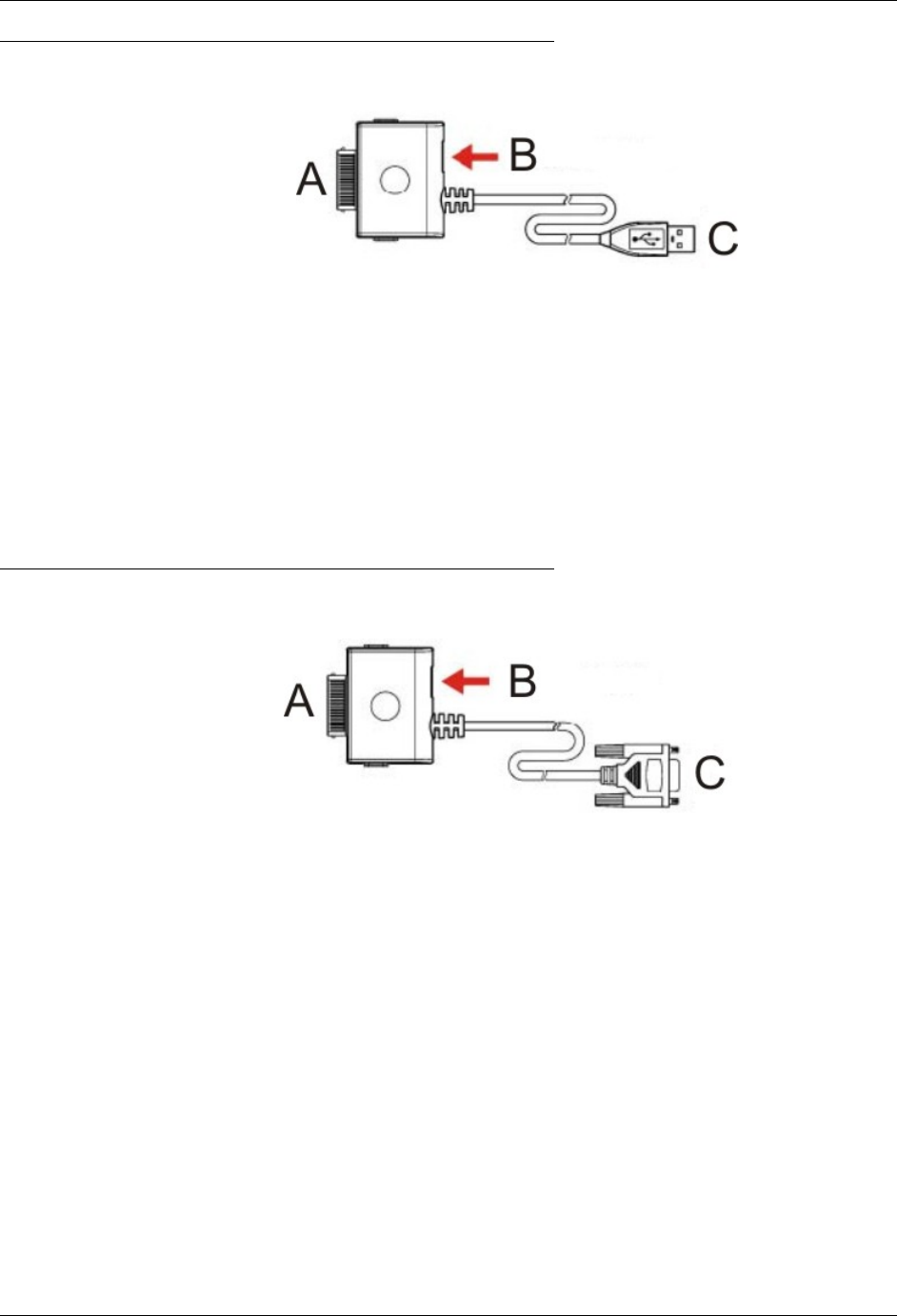

Connecting the Multipurpose USB / Power Cable.............................................................................. 22
Connecting the Multipurpose RS-232 / Power Cable ......................................................................... 22

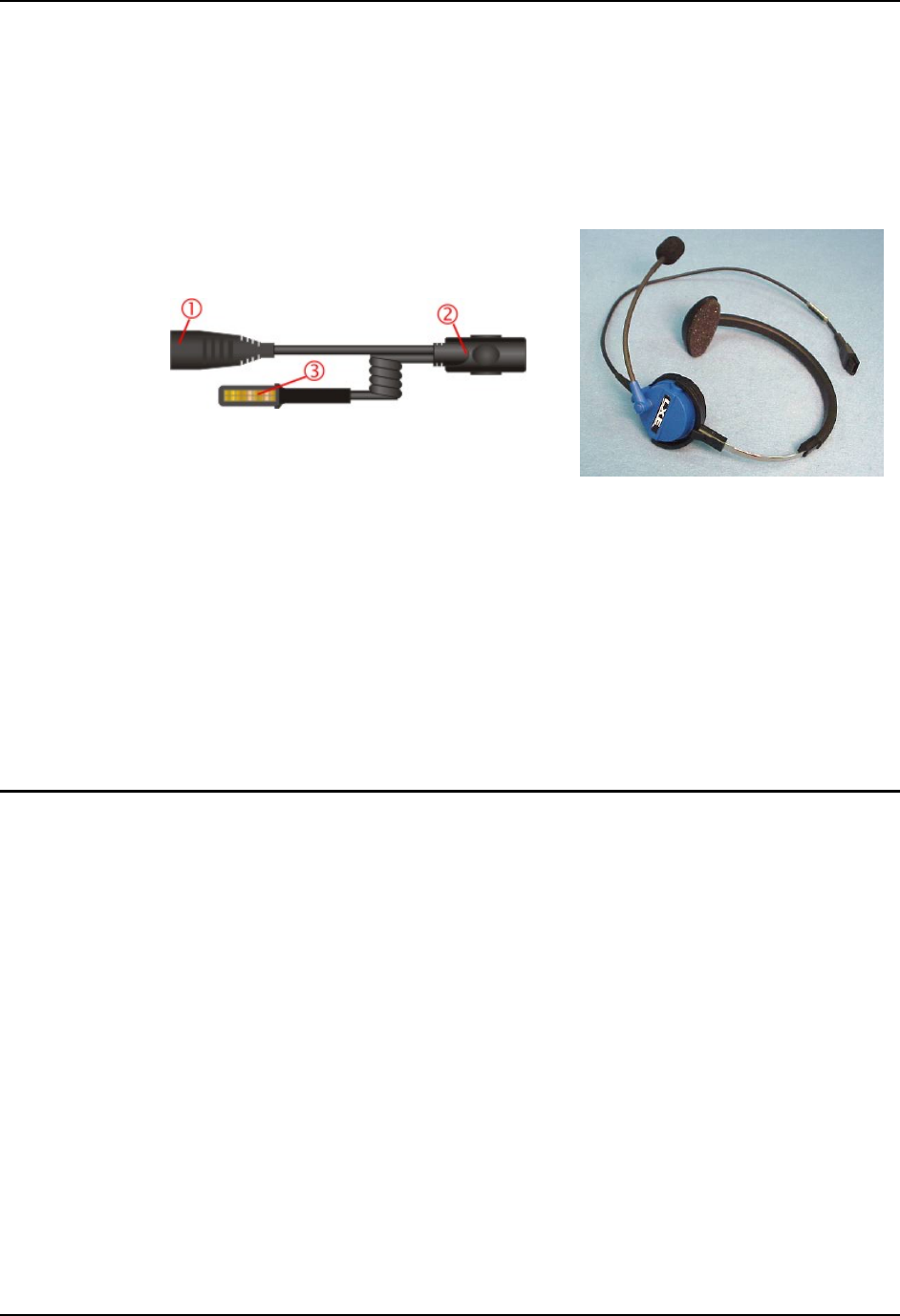

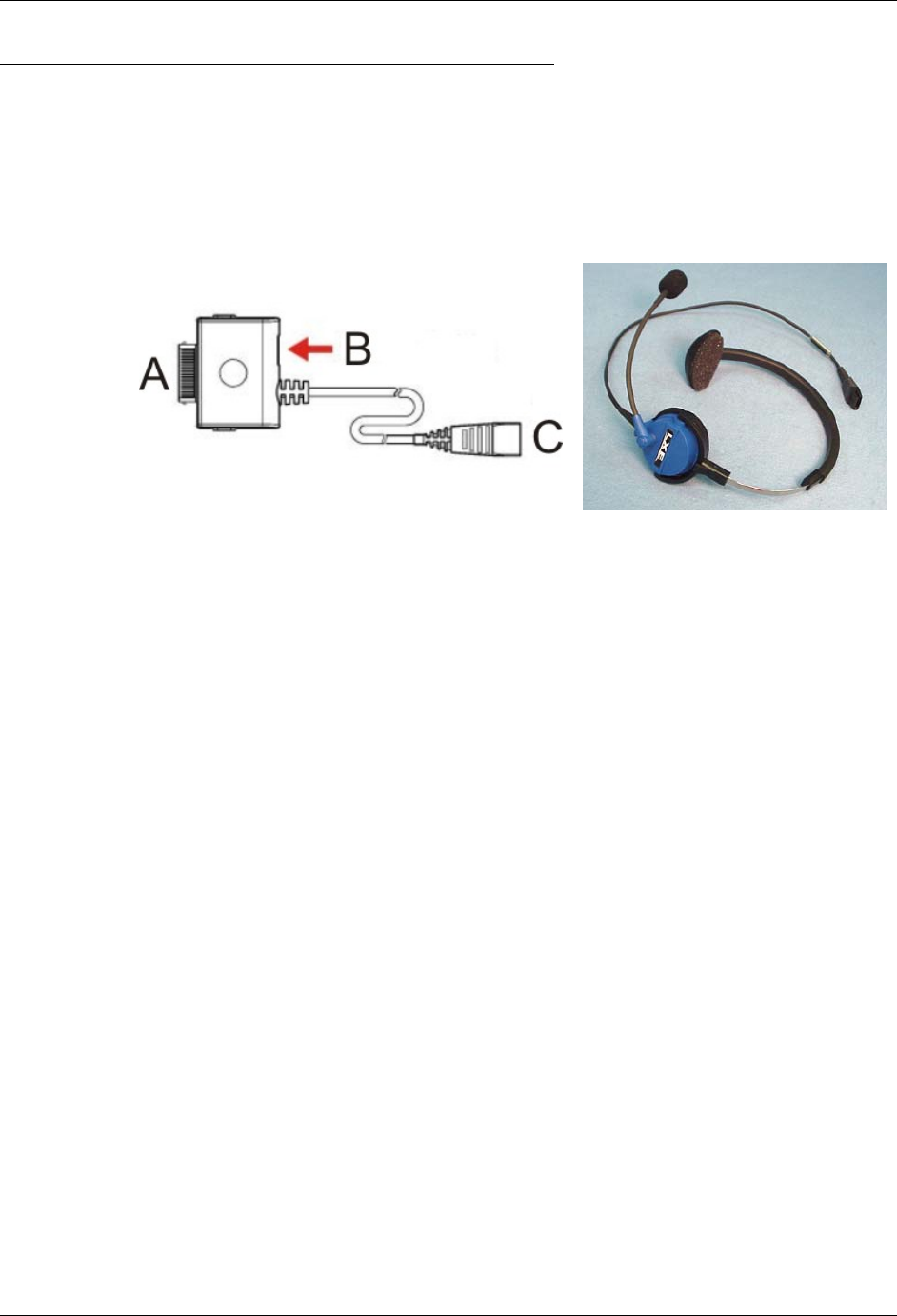

Connecting the Audio Cable and a Headset........................................................................................23
Adjust Microphone and Secure the Cable ........................................................................................ 23

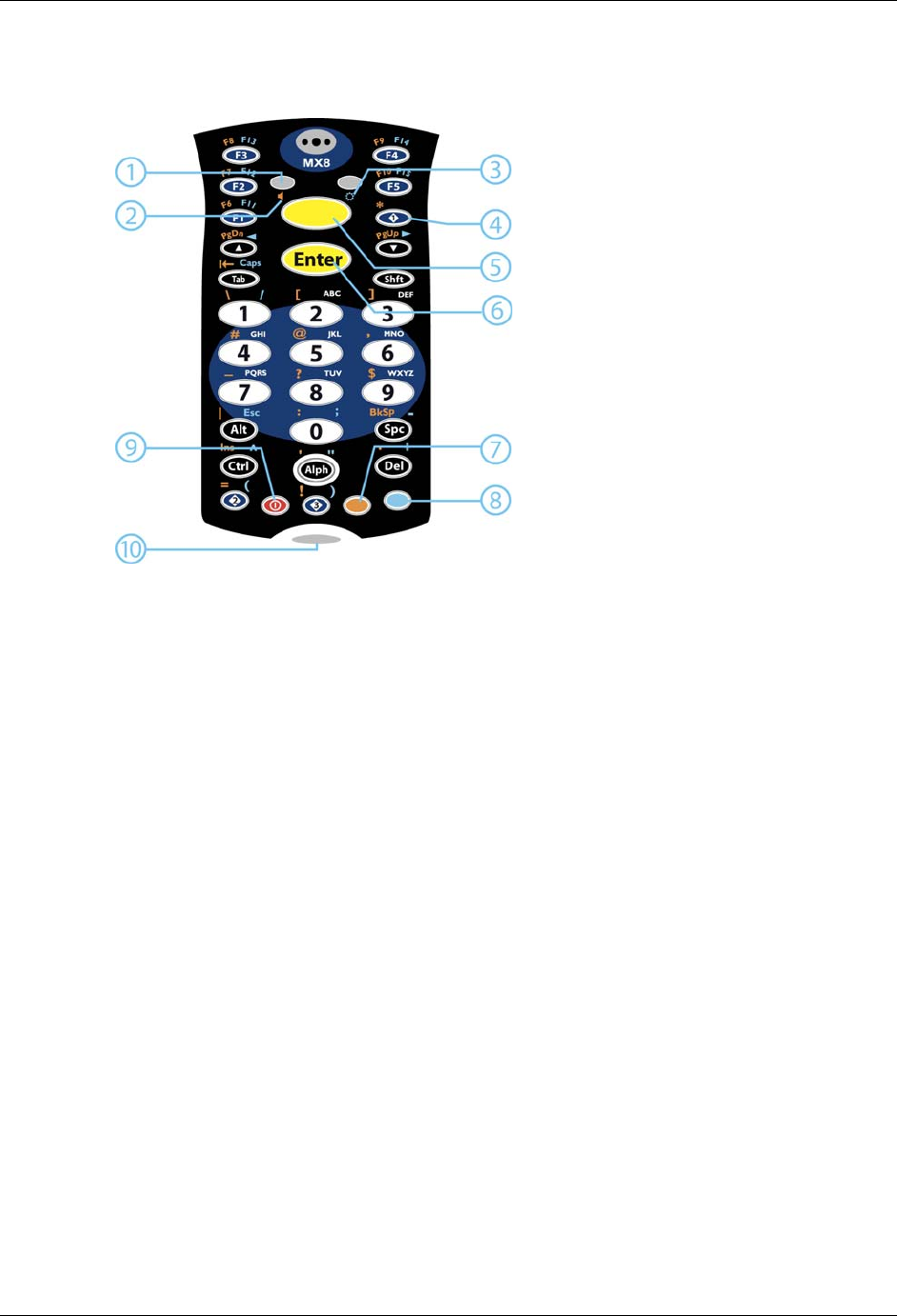

Using the 32-Key Numeric-Alpha Keypad ............................................................................24
Entering Data .......................................................................................................................... 25
Using the Keypad .................................................................................................................................. 25
For Review - Preliminary - Draft 01 - Not for distribution
ii Table of Contents
MX8 User’s Guide E-EQ-MX8OGWW-A

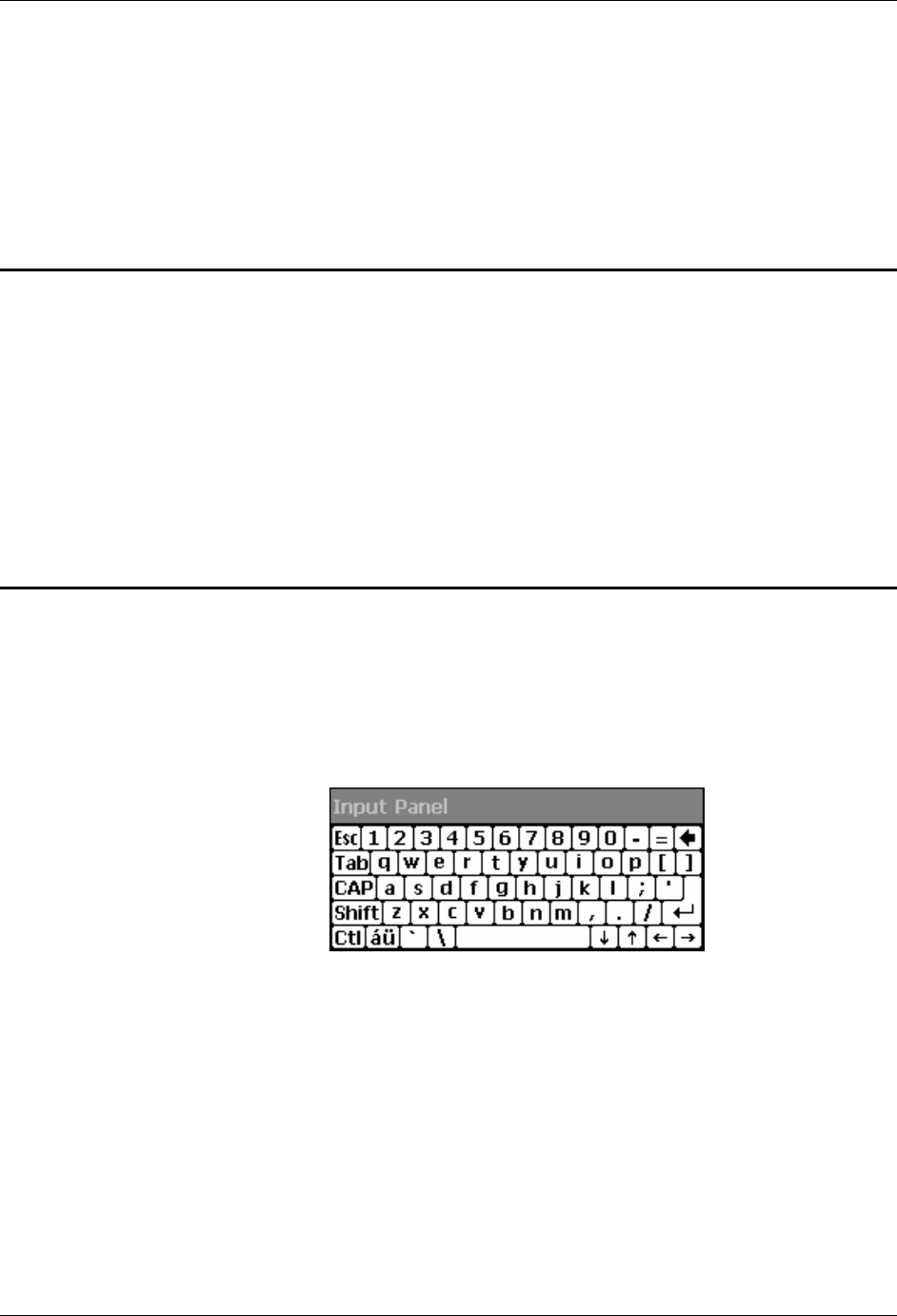

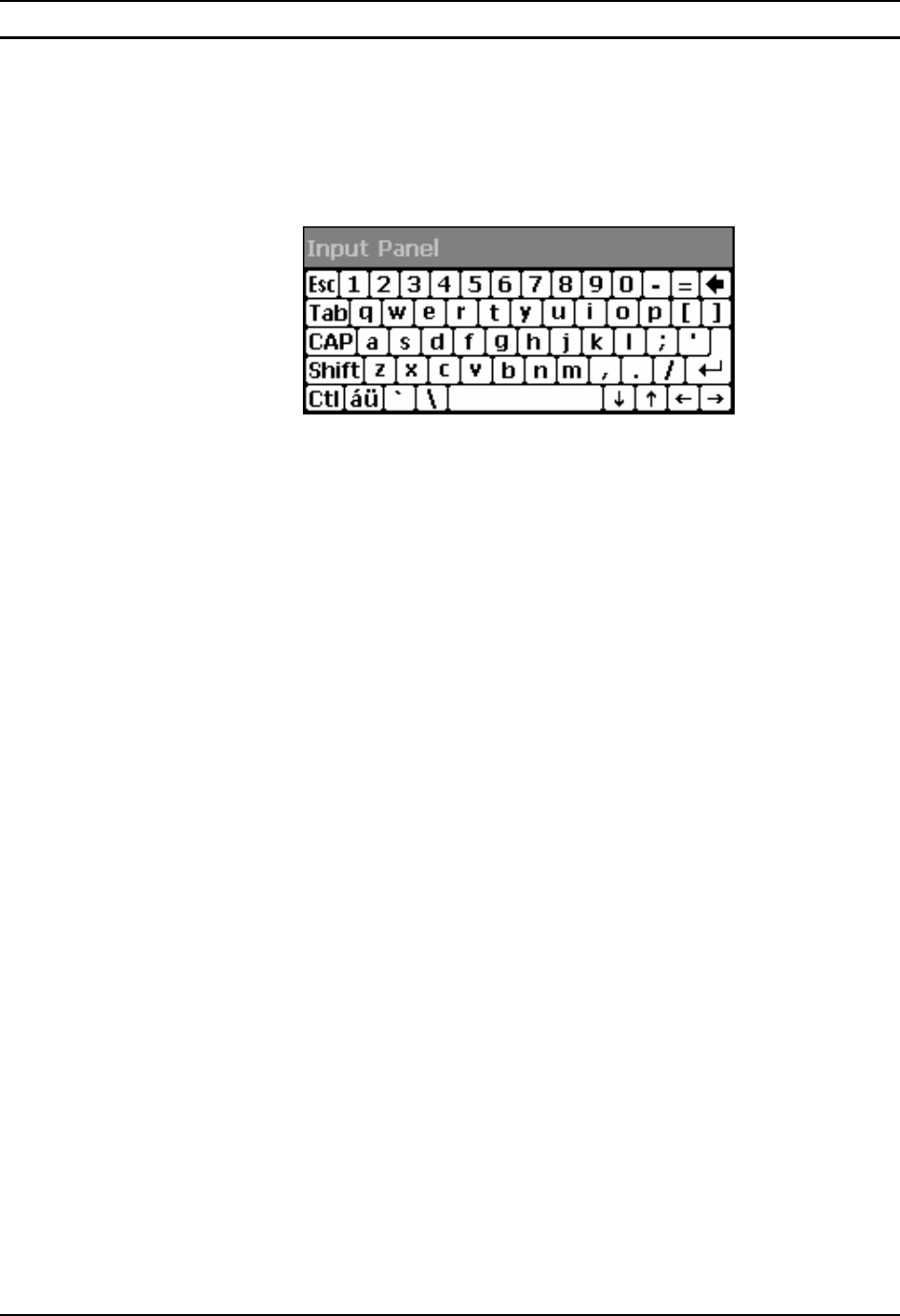

Using the Input Panel or Virtual Keyboard ........................................................................................... 25
Using the Stylus..................................................................................................................................... 26

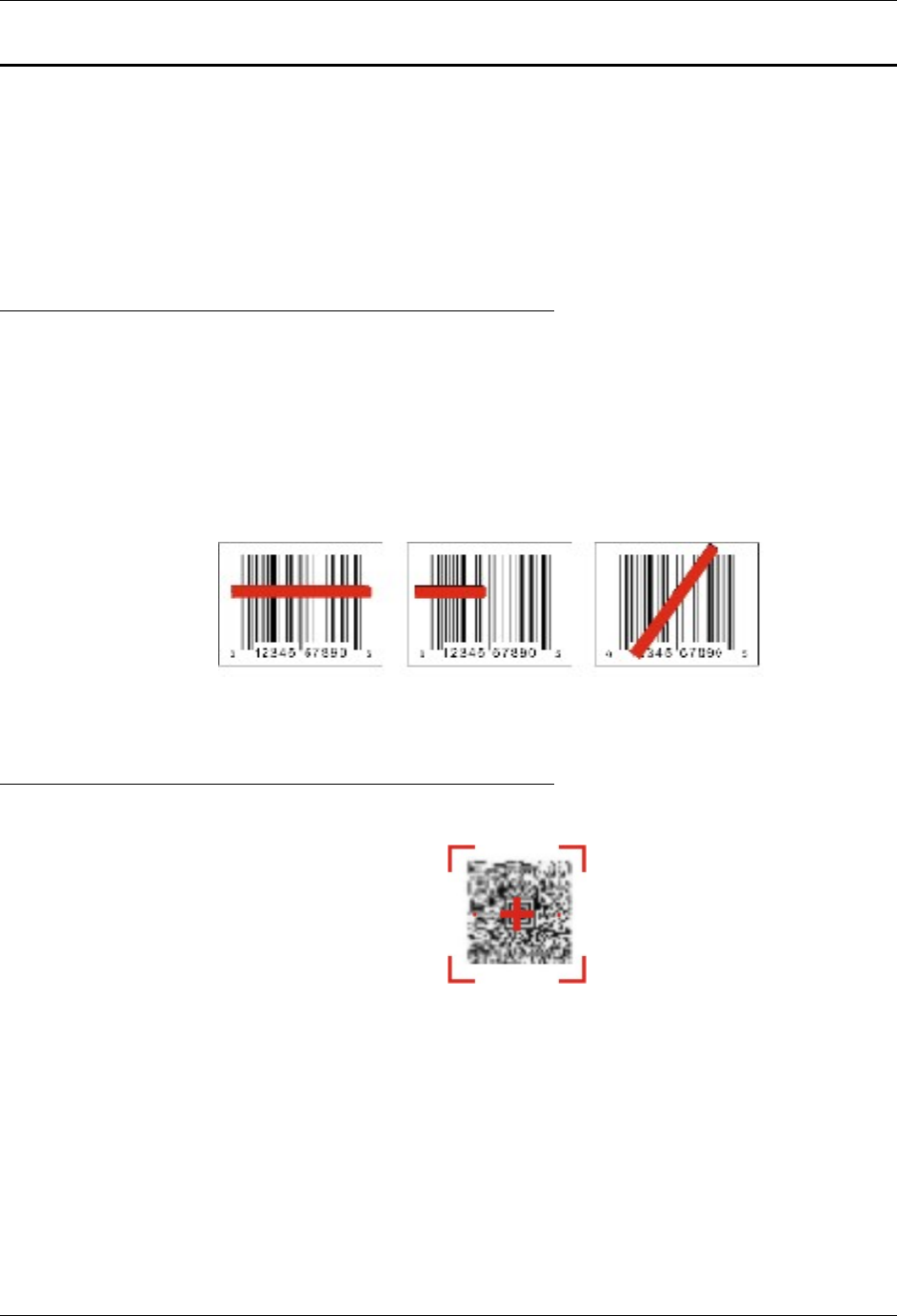

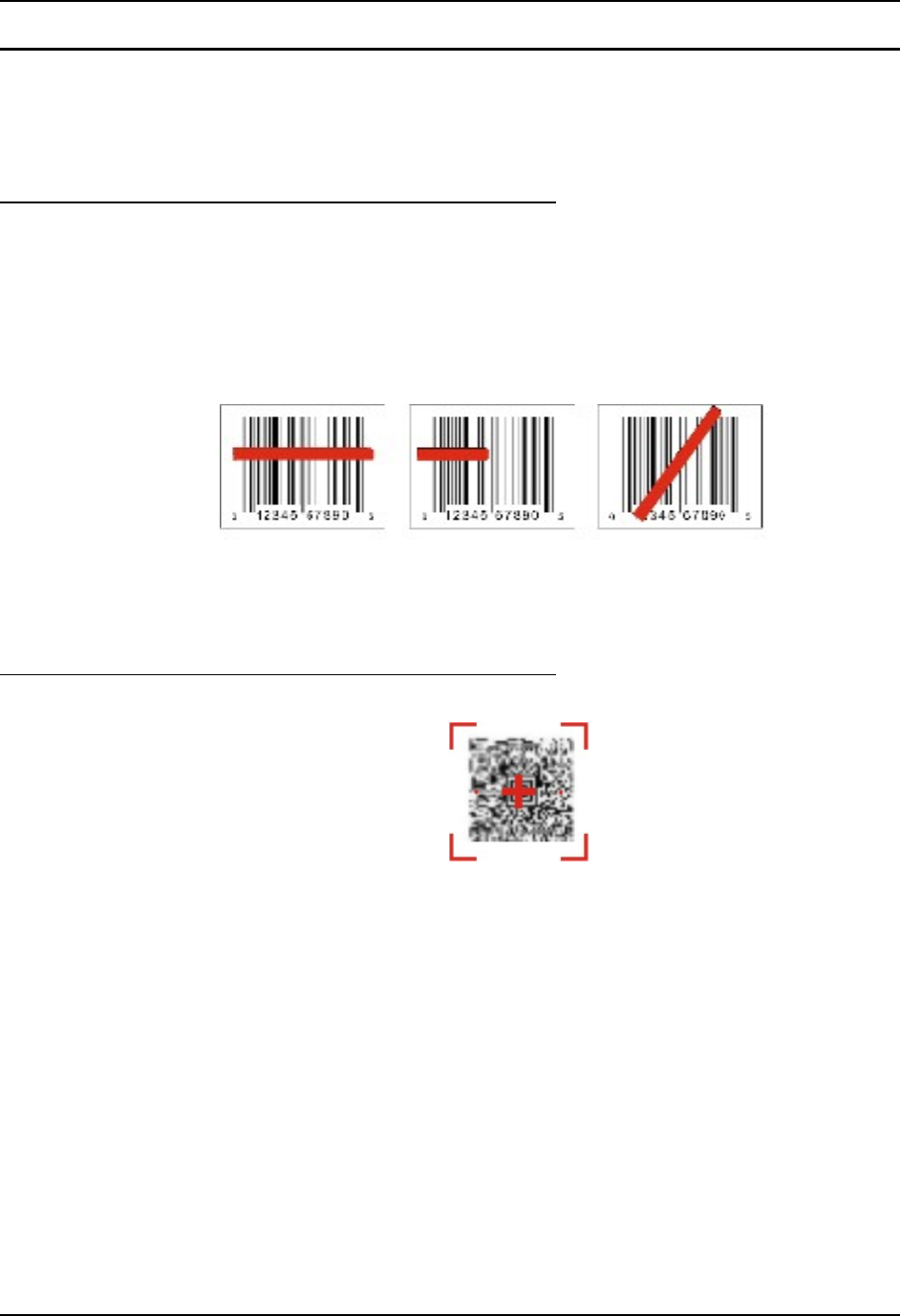

Using the Integrated Barcode Scanner or Imager ..................................................................................27
Barcode Scanner ................................................................................................................................. 27
2D Imager ........................................................................................................................................... 27
Scan Status LED ................................................................................................................................. 28

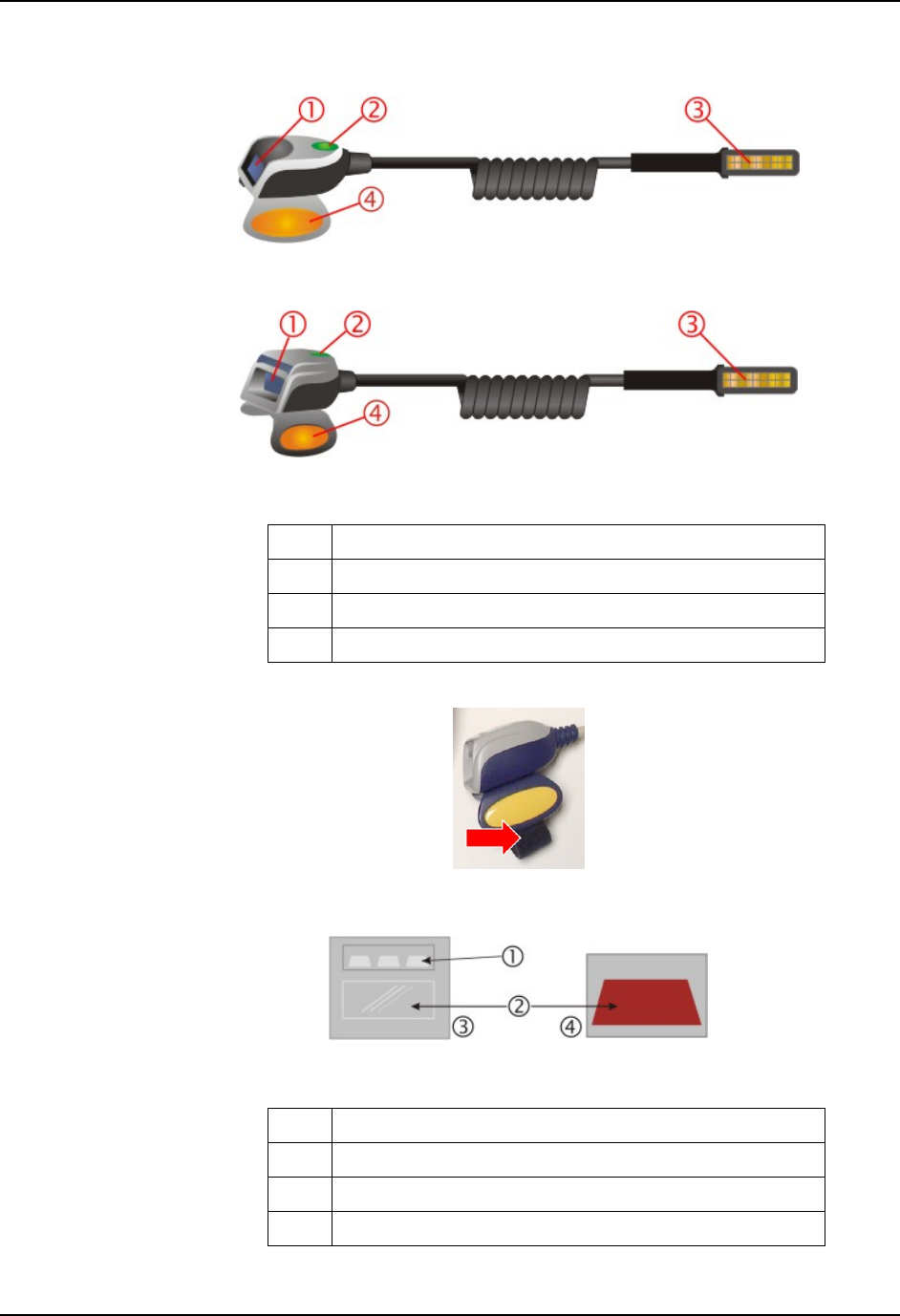

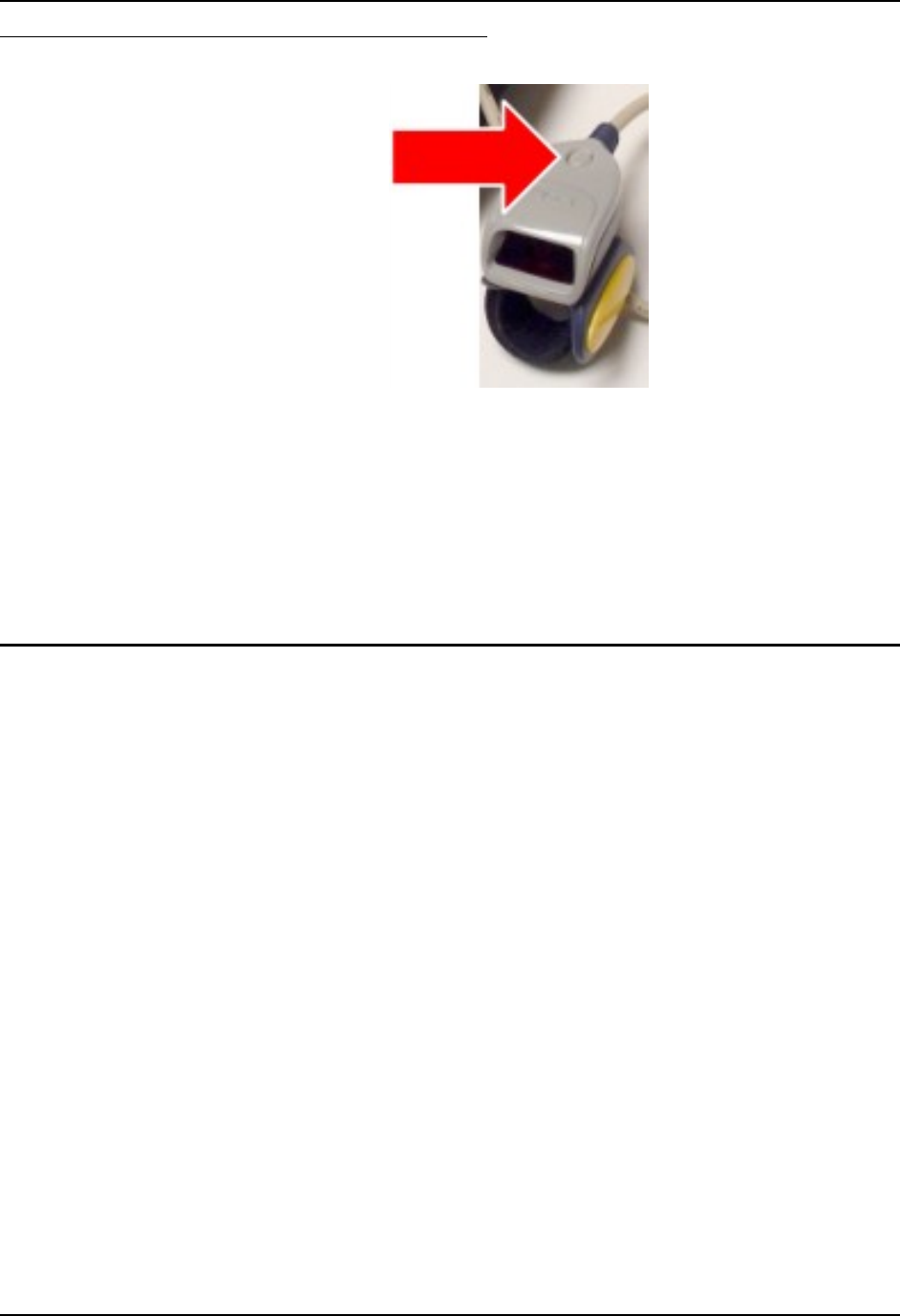

Tethered Scanners.................................................................................................................................. 28
Bluetooth Scanners and Printers............................................................................................................ 28
Voice Data ............................................................................................................................................. 28
Bluetooth Devices .................................................................................................................. 29
Getting Help ............................................................................................................................ 30
Manuals ................................................................................................................................................. 30
Accessories – please verify.................................................................................................................... 30
THE MX8 HAND HELD COMPUTER 33
Reboot Sequence ................................................................................................................... 33
Warm Reset ........................................................................................................................................... 33
Cold Reset.............................................................................................................................................. 33
Saving Changes to the Registry – process still true?......................................................... 33
Touchscreen Display .............................................................................................................34
Cleaning the Glass Display/Beam Aperture .......................................................................................... 34
Applying the Protective Film to the Display ......................................................................................... 34
Adjusting the Display Backlight............................................................................................35

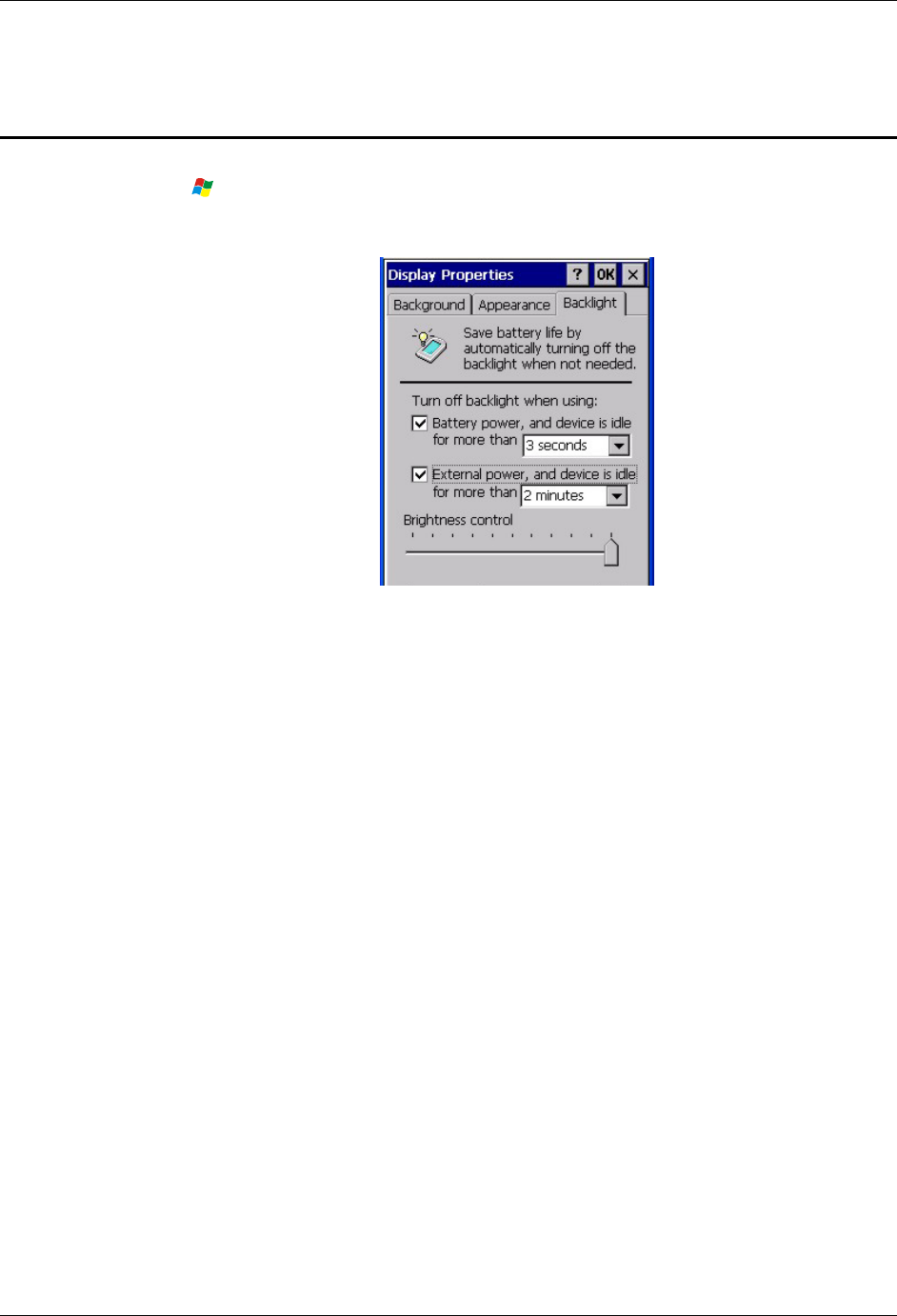

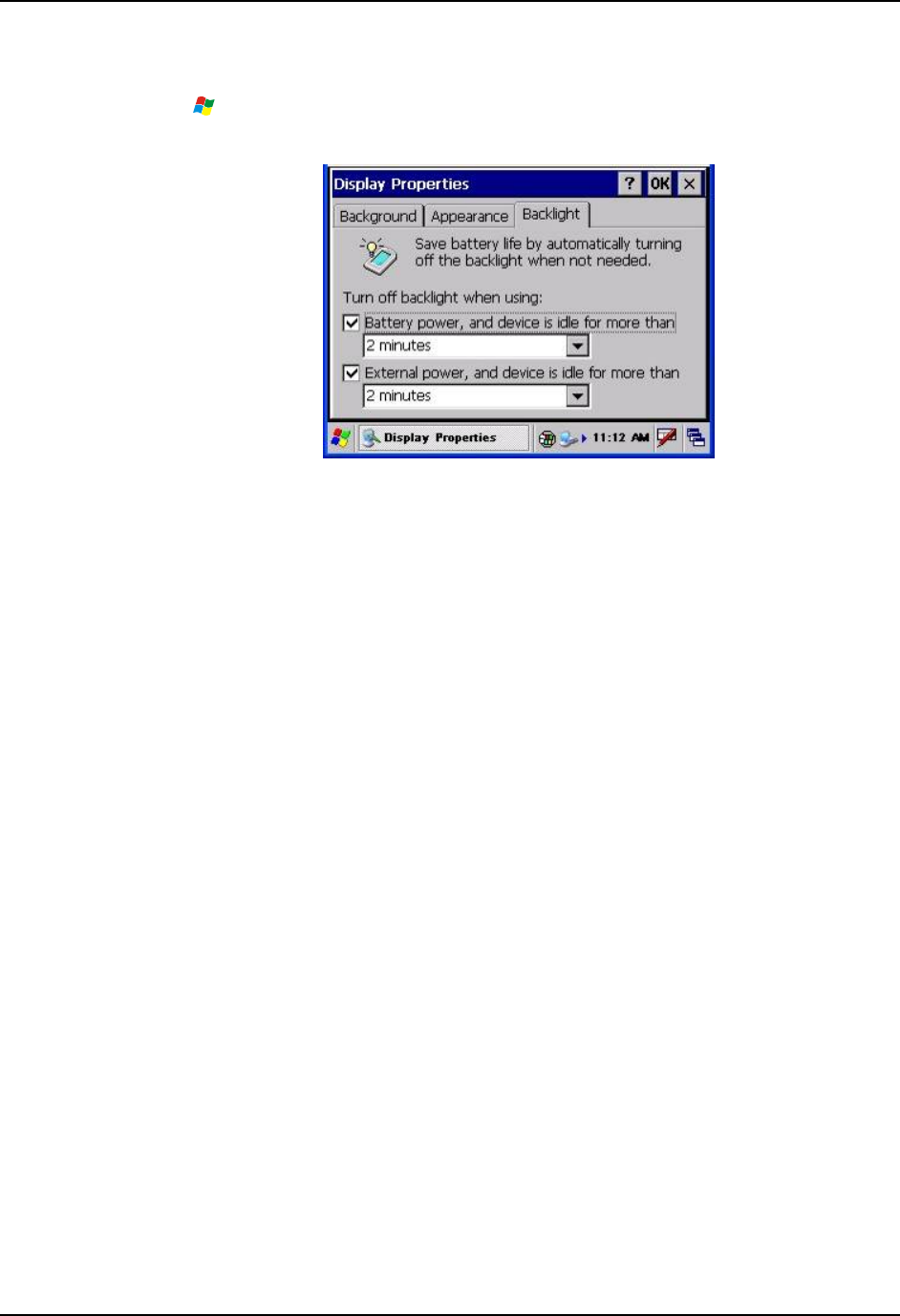

Set the Display Backlight Timer............................................................................................................ 35

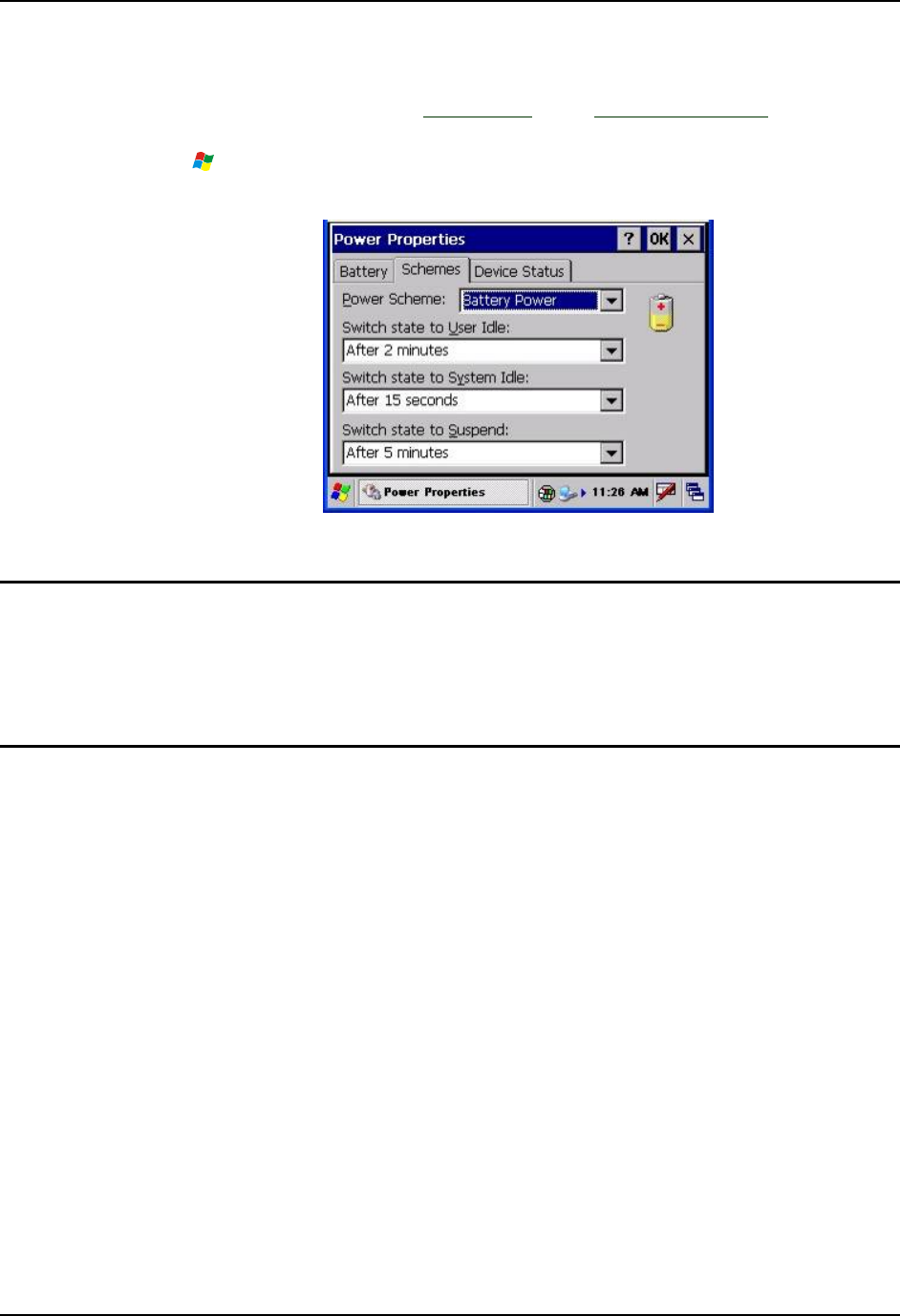

Setting the Power Schemes Timers...................................................................................... 36
Battery Power Scheme........................................................................................................................... 36
AC Power Scheme................................................................................................................................. 36

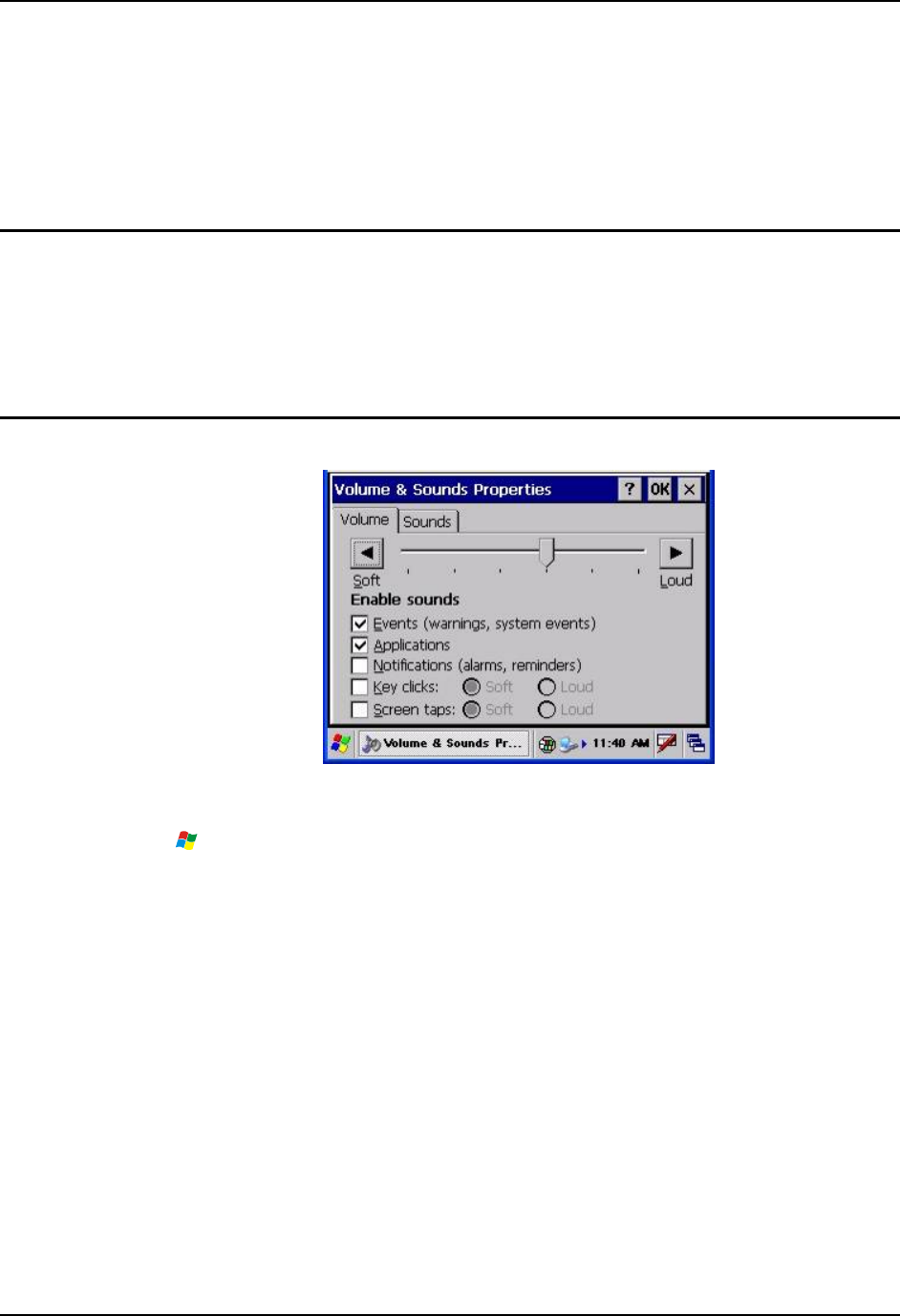

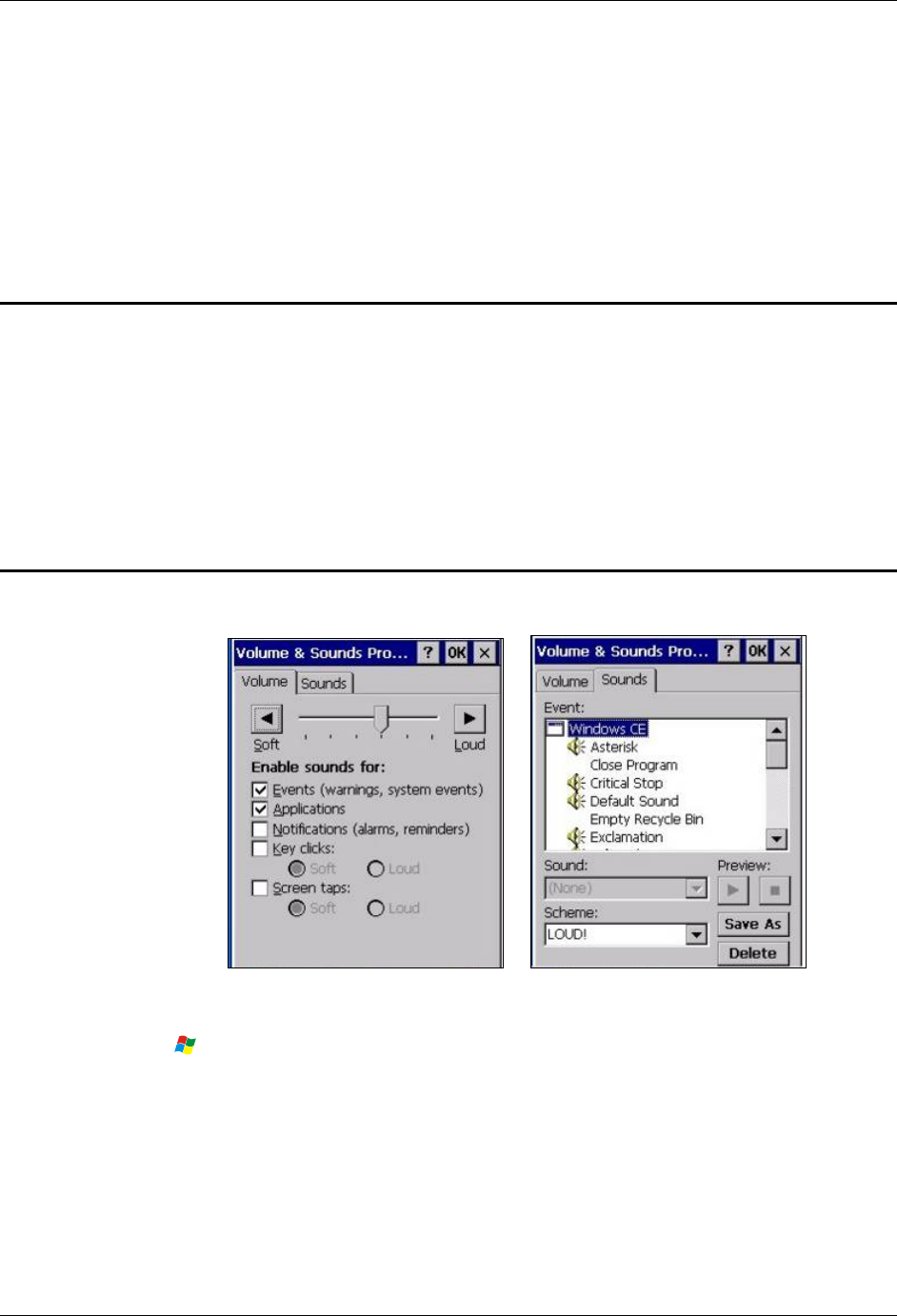

Setting The Audio Speaker Volume......................................................................................37
Using the Keypad .................................................................................................................................. 37
Using the Touchscreen .......................................................................................................................... 37
The Keypad ............................................................................................................................. 38
LED Indicators....................................................................................................................................... 38
System Status ...................................................................................................................................... 38
Scan Status .......................................................................................................................................... 39
Alpha Mode......................................................................................................................................... 39
Standard Keys........................................................................................................................................ 39
Function Keys........................................................................................................................................ 40

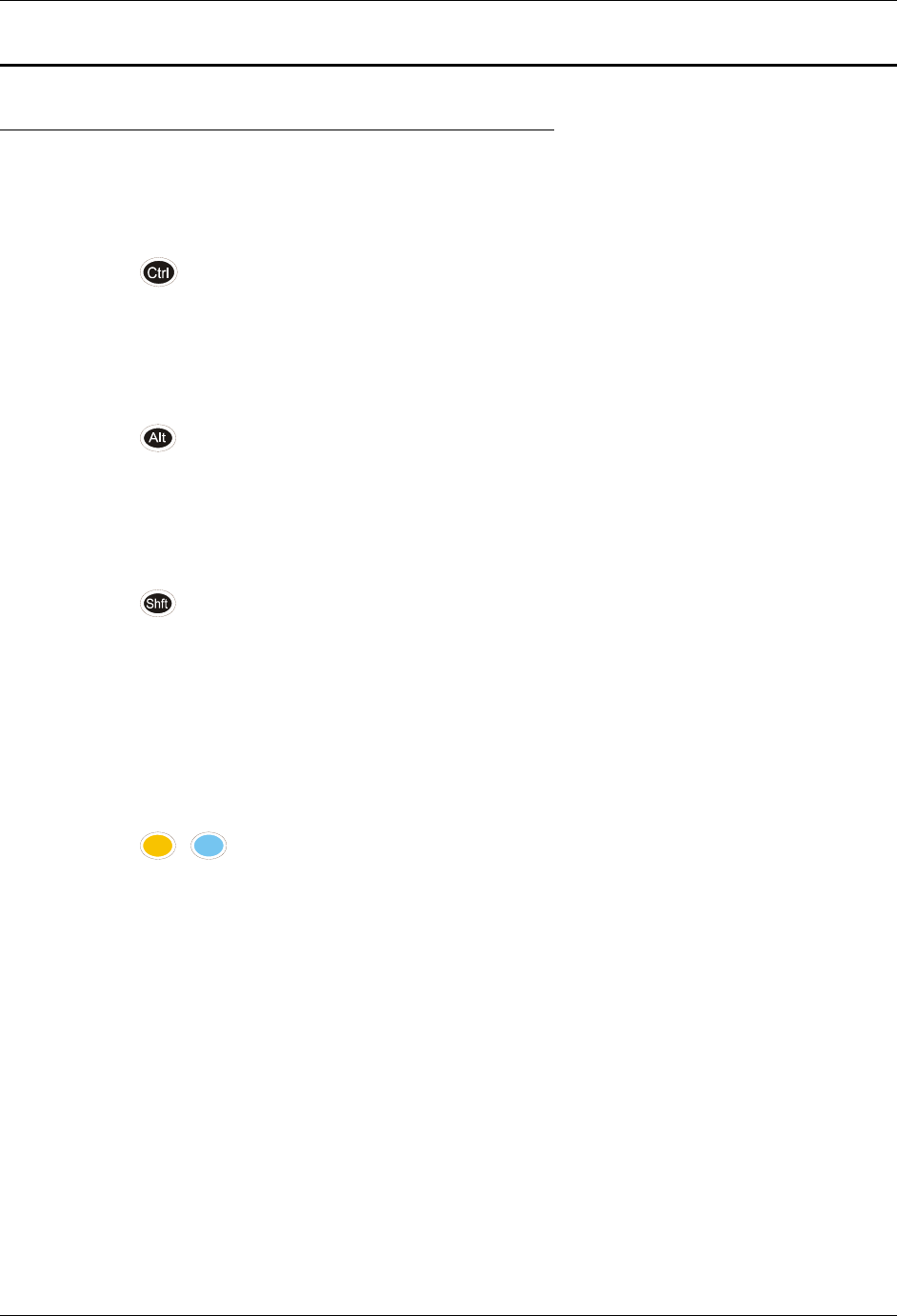

Sticky Keys ......................................................................................................................................... 40
Ctrl (Control key) ............................................................................................................................. 40
Alt (Alternate key)............................................................................................................................ 40
Shft (Shift key) ................................................................................................................................. 40
Orange and Blue Keys...................................................................................................................... 40
CapsLock Mode Function ................................................................................................................... 41
Batteries .................................................................................................................................. 42
Main Battery .......................................................................................................................................... 42
Backup Battery ...................................................................................................................................... 43
Battery Hotswapping ............................................................................................................................. 43

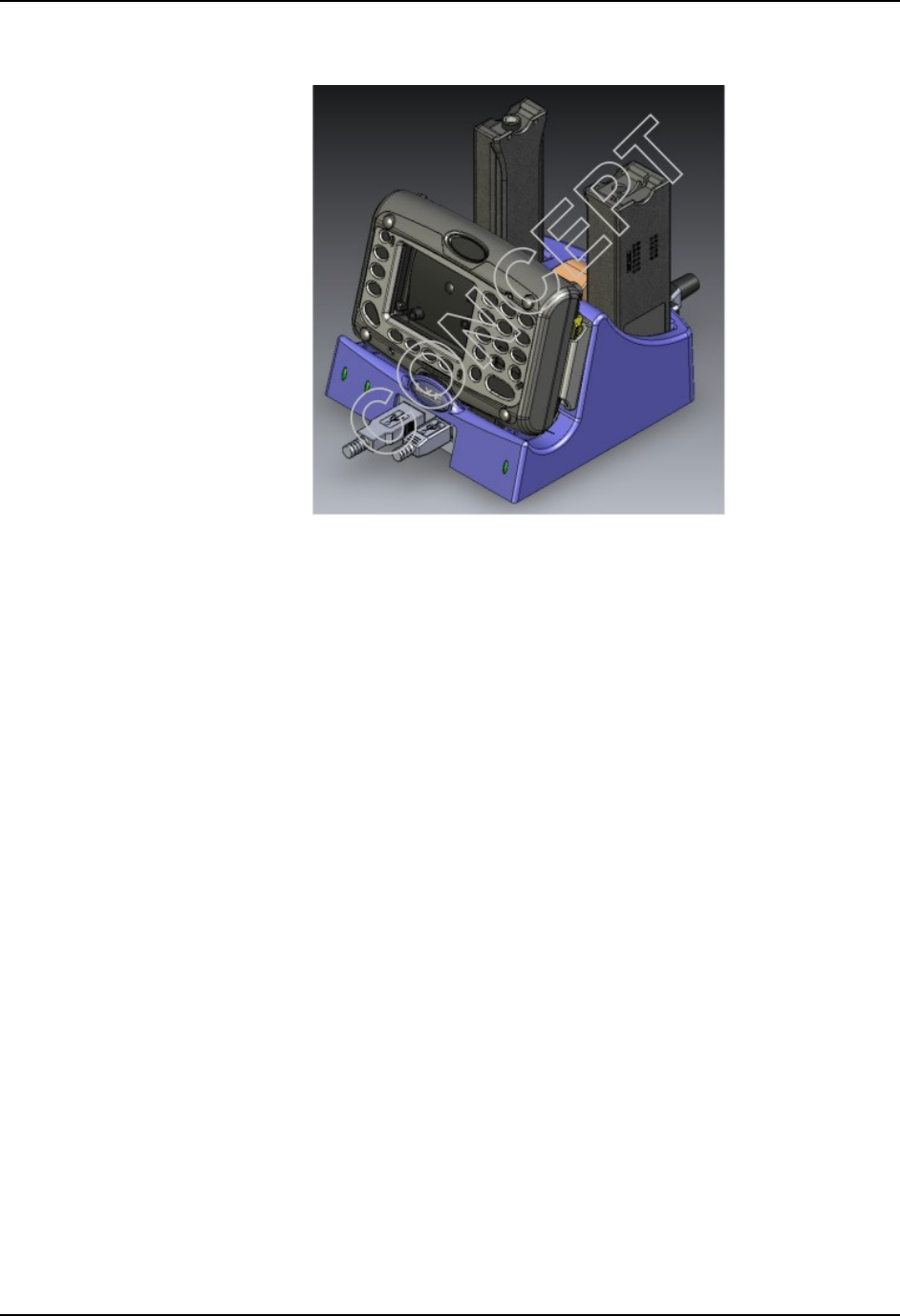

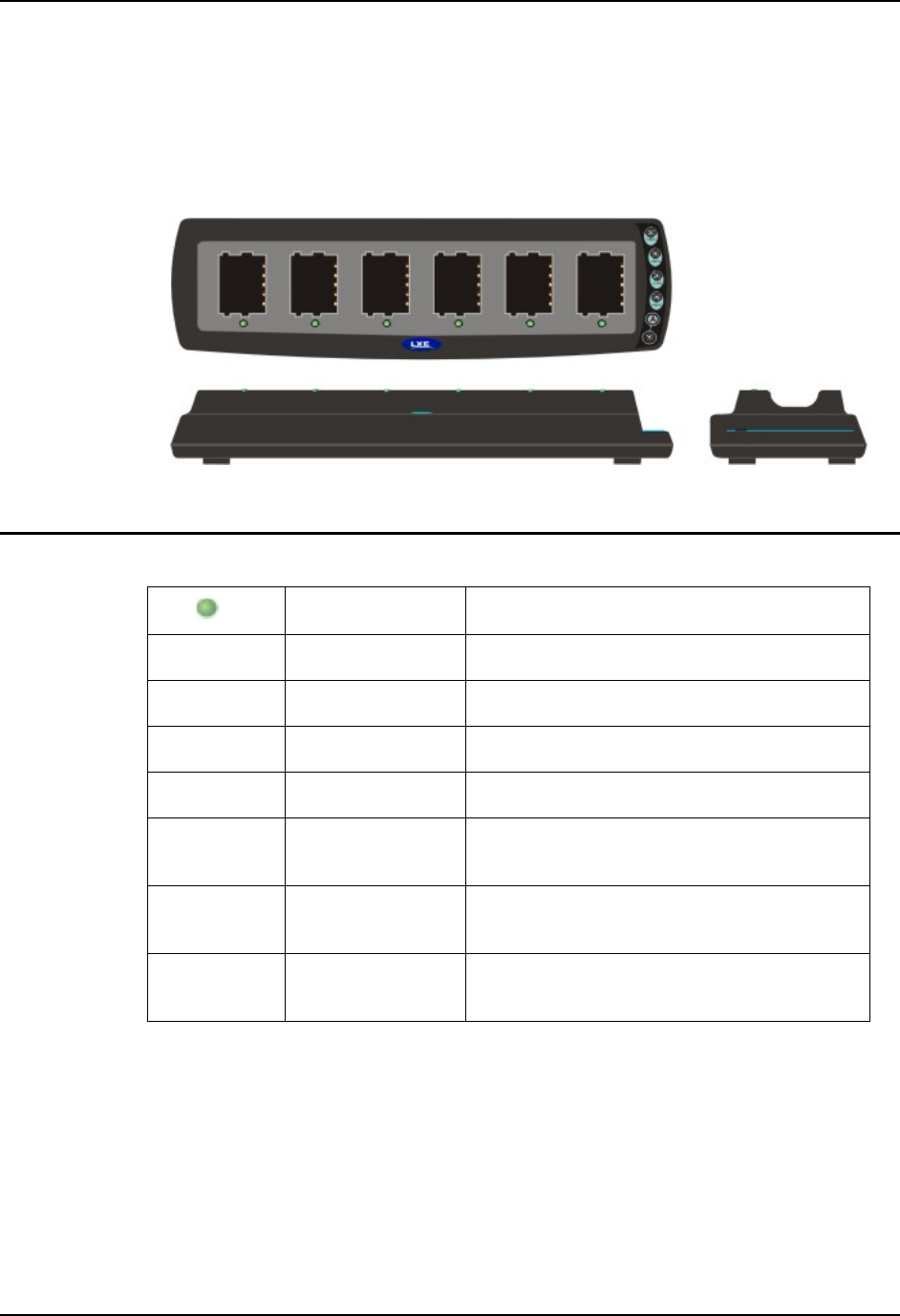

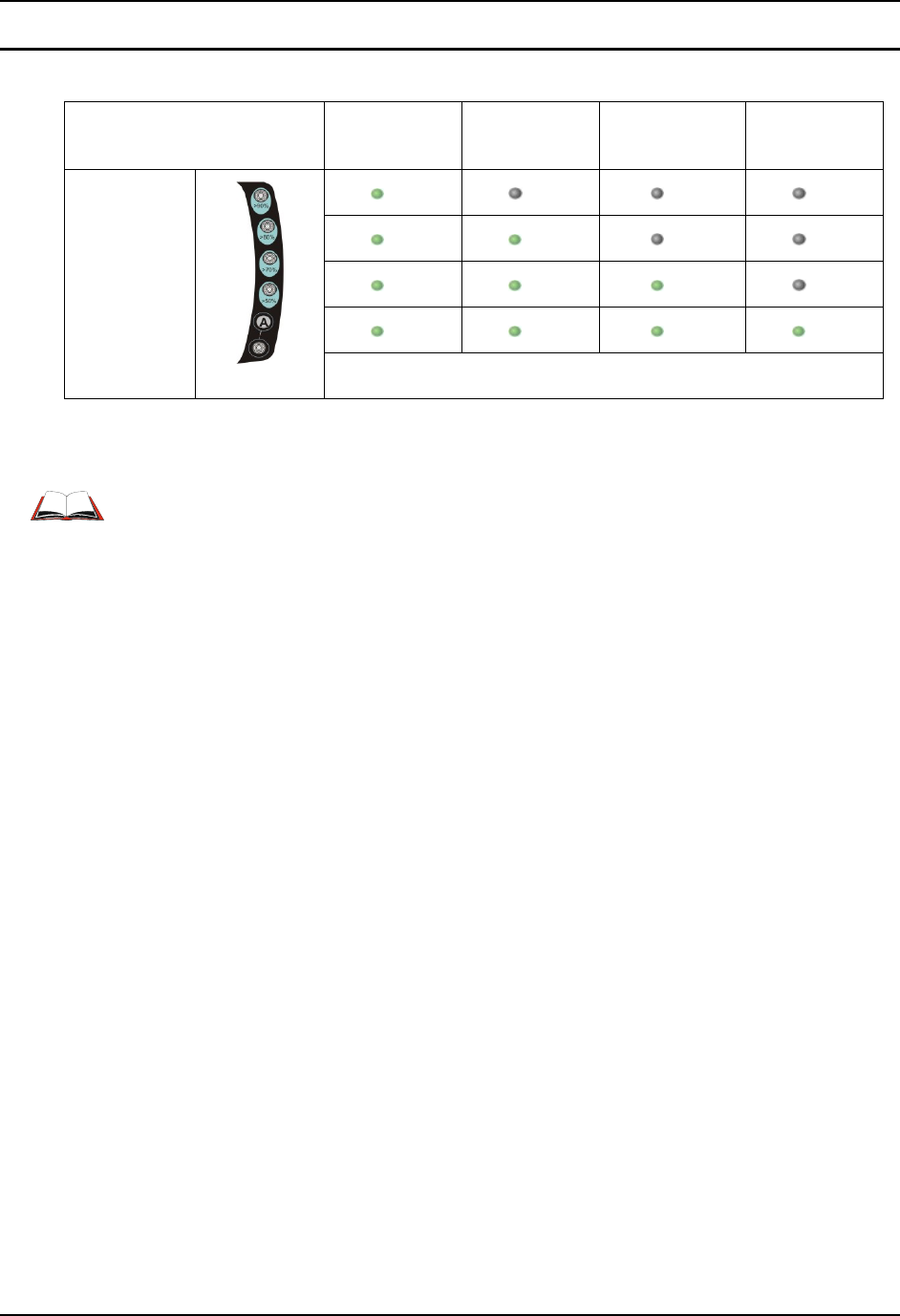

MX8 Battery Multi-Charger ....................................................................................................44
Charge a Main Battery Pack .................................................................................................................. 44

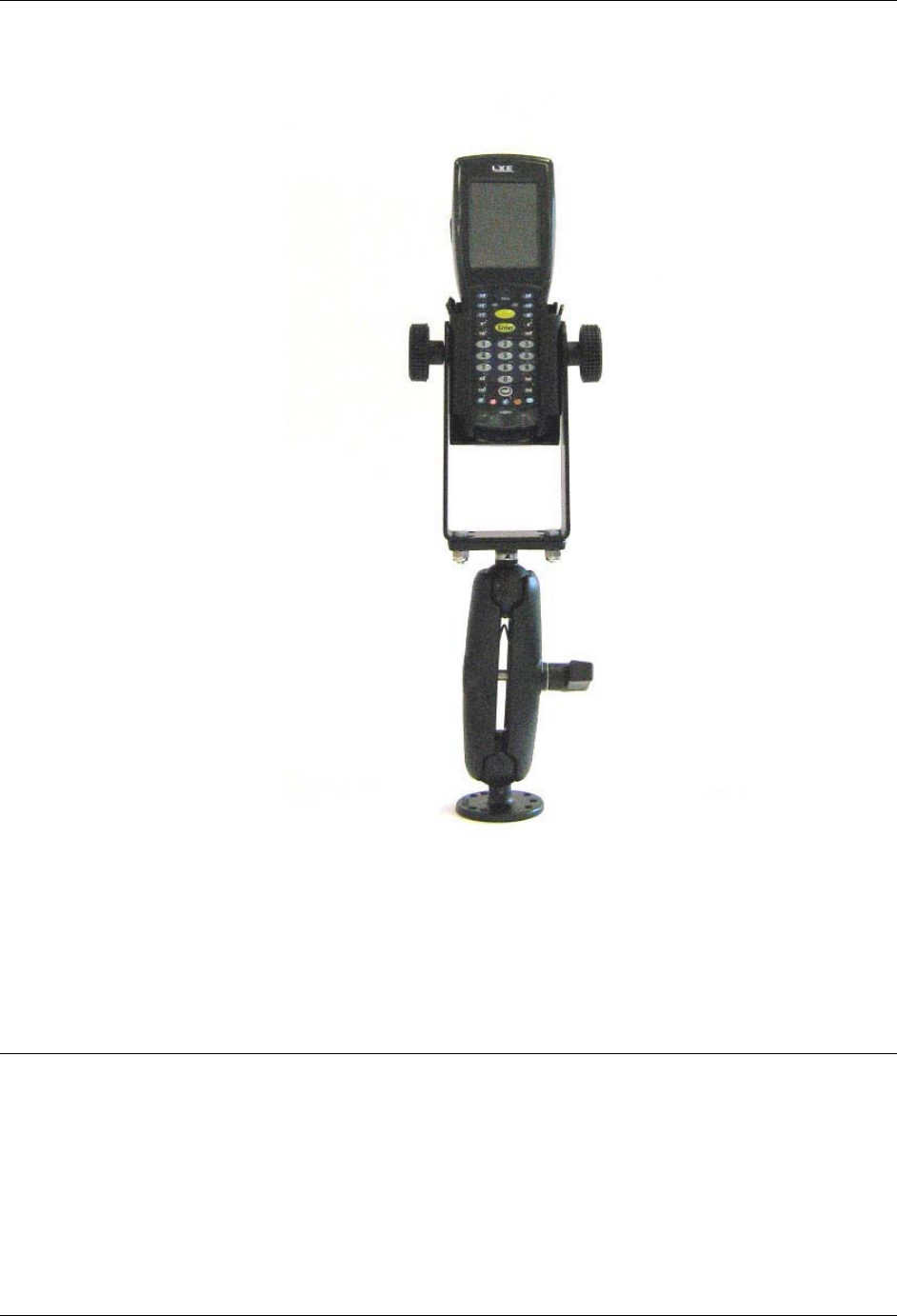

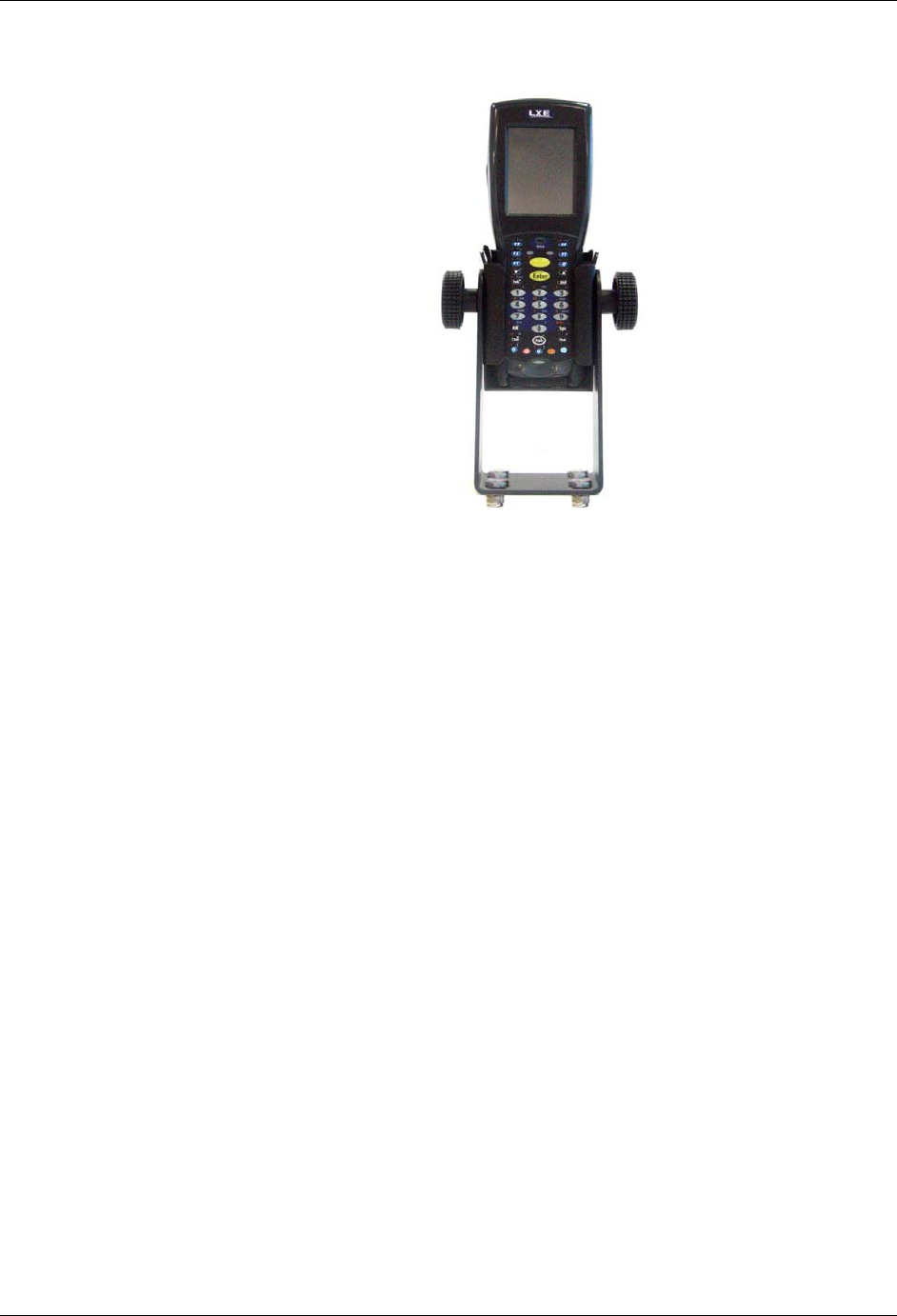

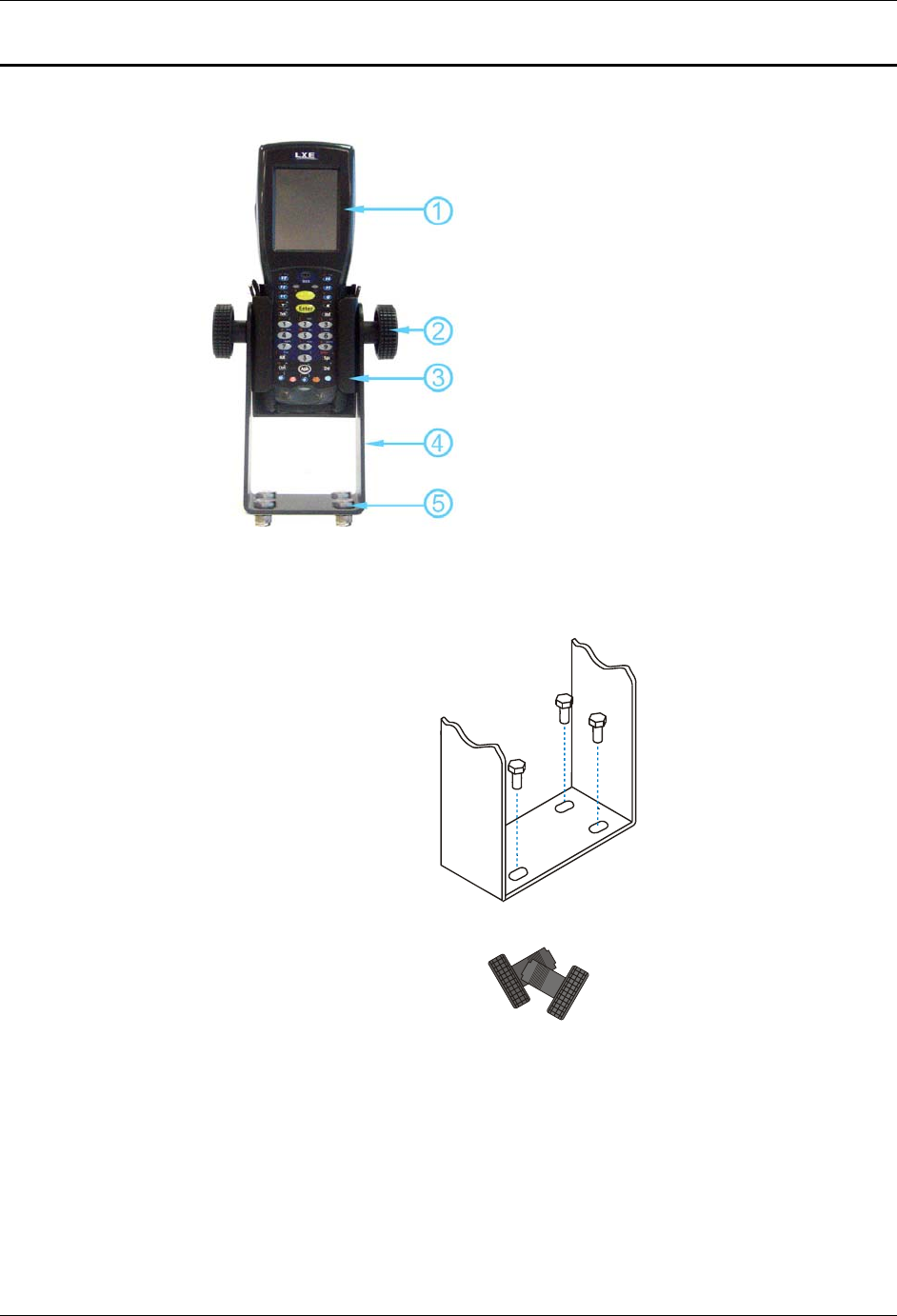

Passive Vehicle Mount Cradle...............................................................................................45
For Review - Preliminary - Draft 01 - Not for distribution
Table of Contents iii
E-EQ-MX8OGWW-A MX8 User’s Guide

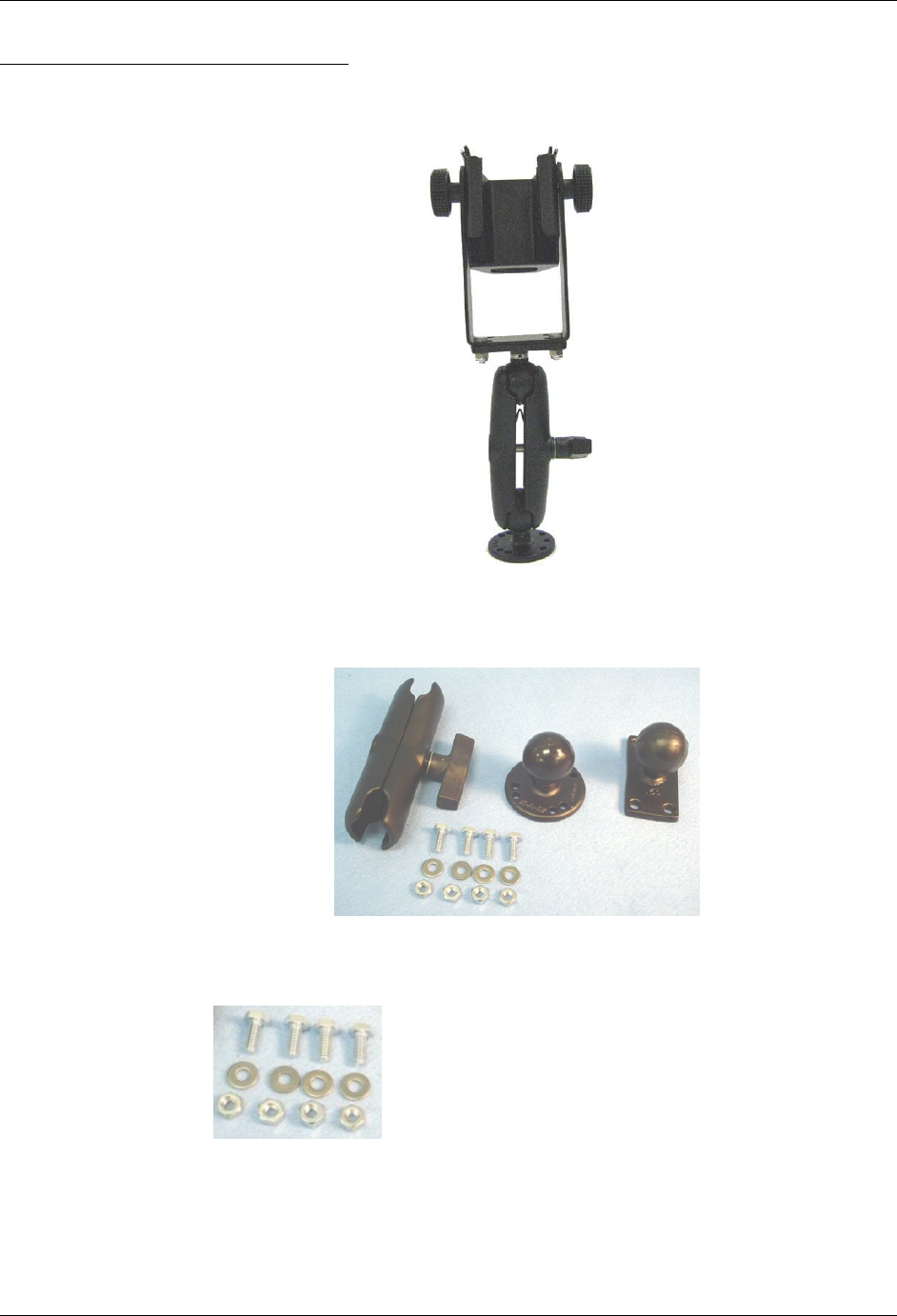

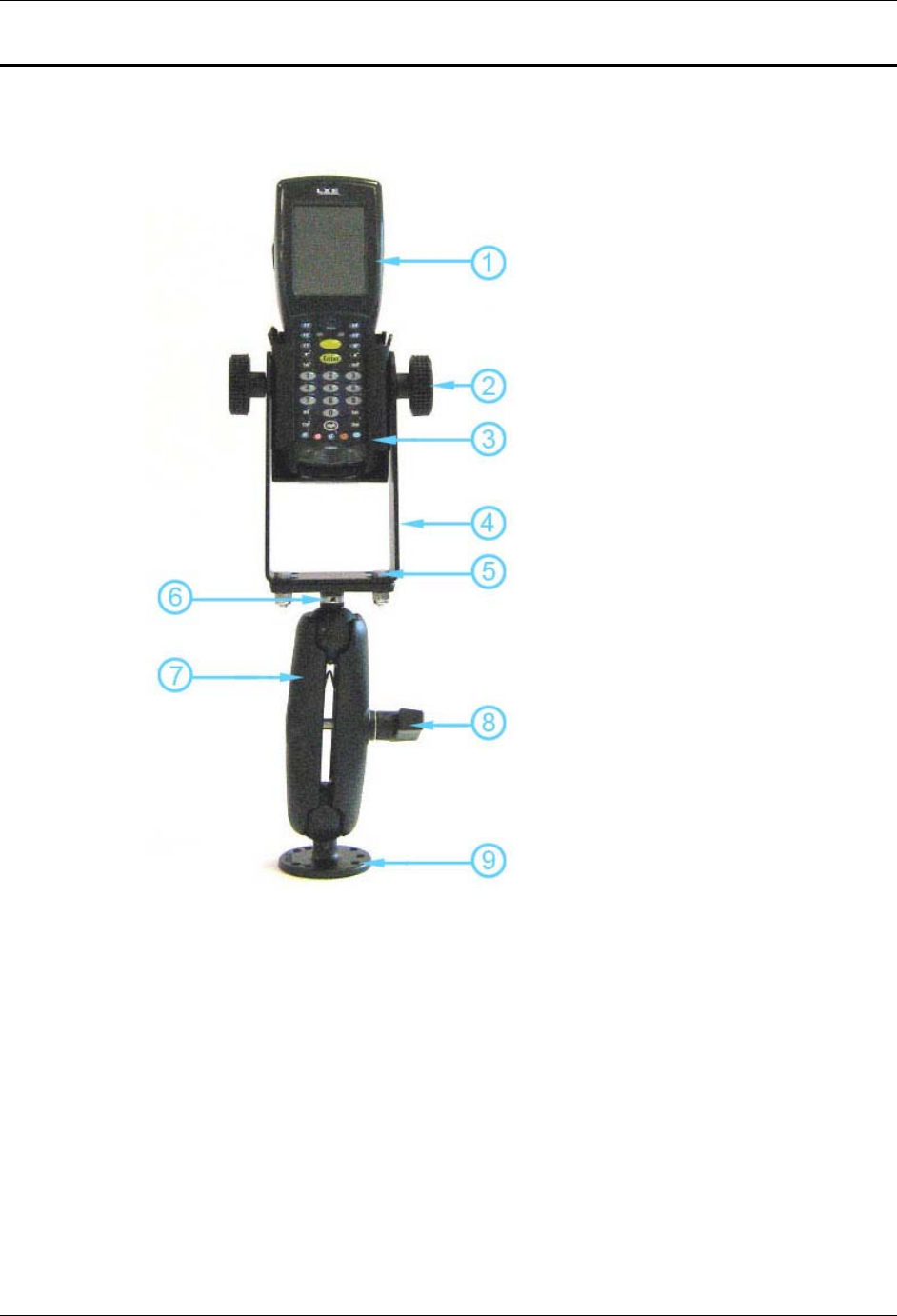

Cradle Assembly Components .............................................................................................................. 46
U-Bracket ............................................................................................................................................ 46

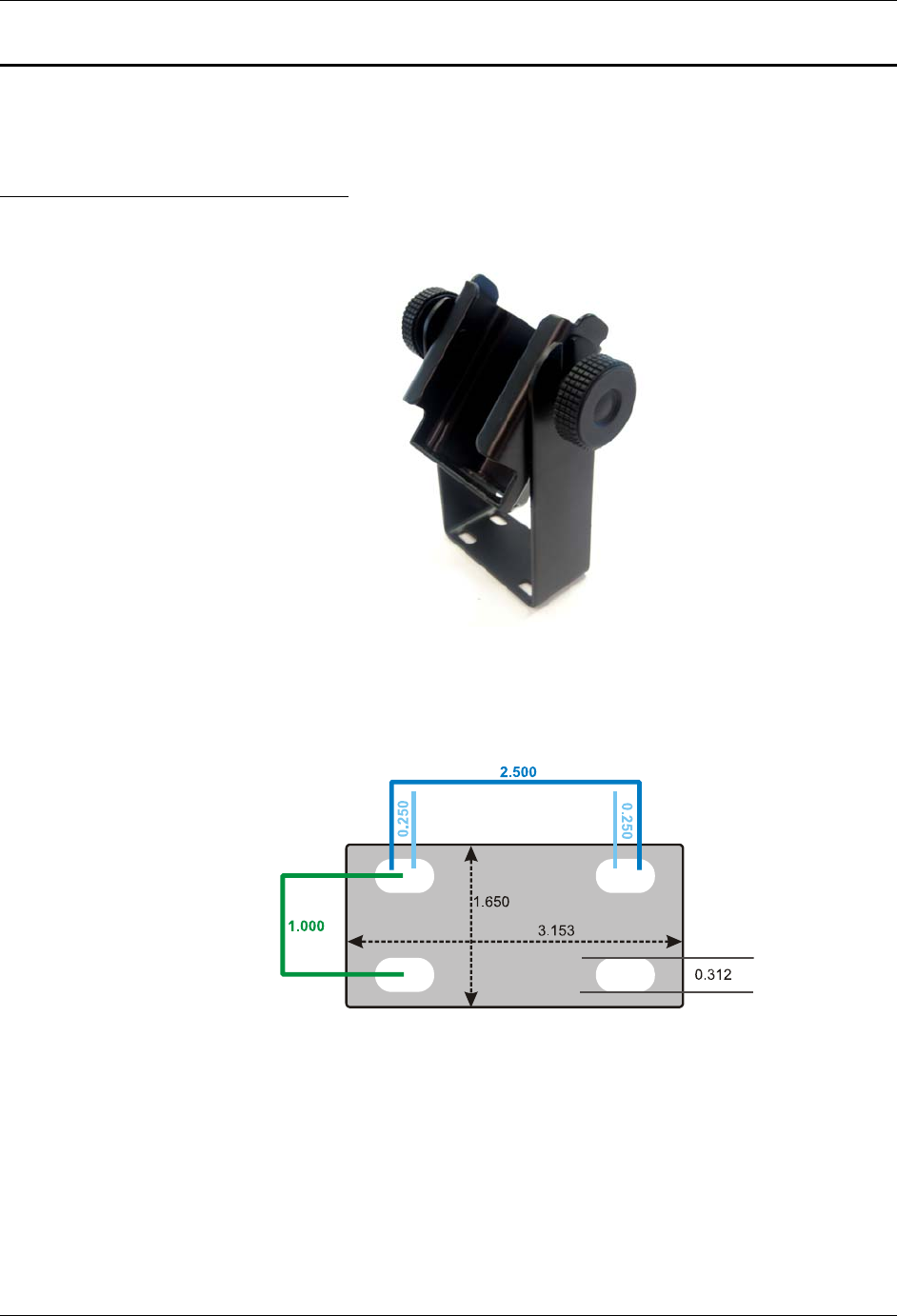

U-Bracket Footprint.......................................................................................................................... 46

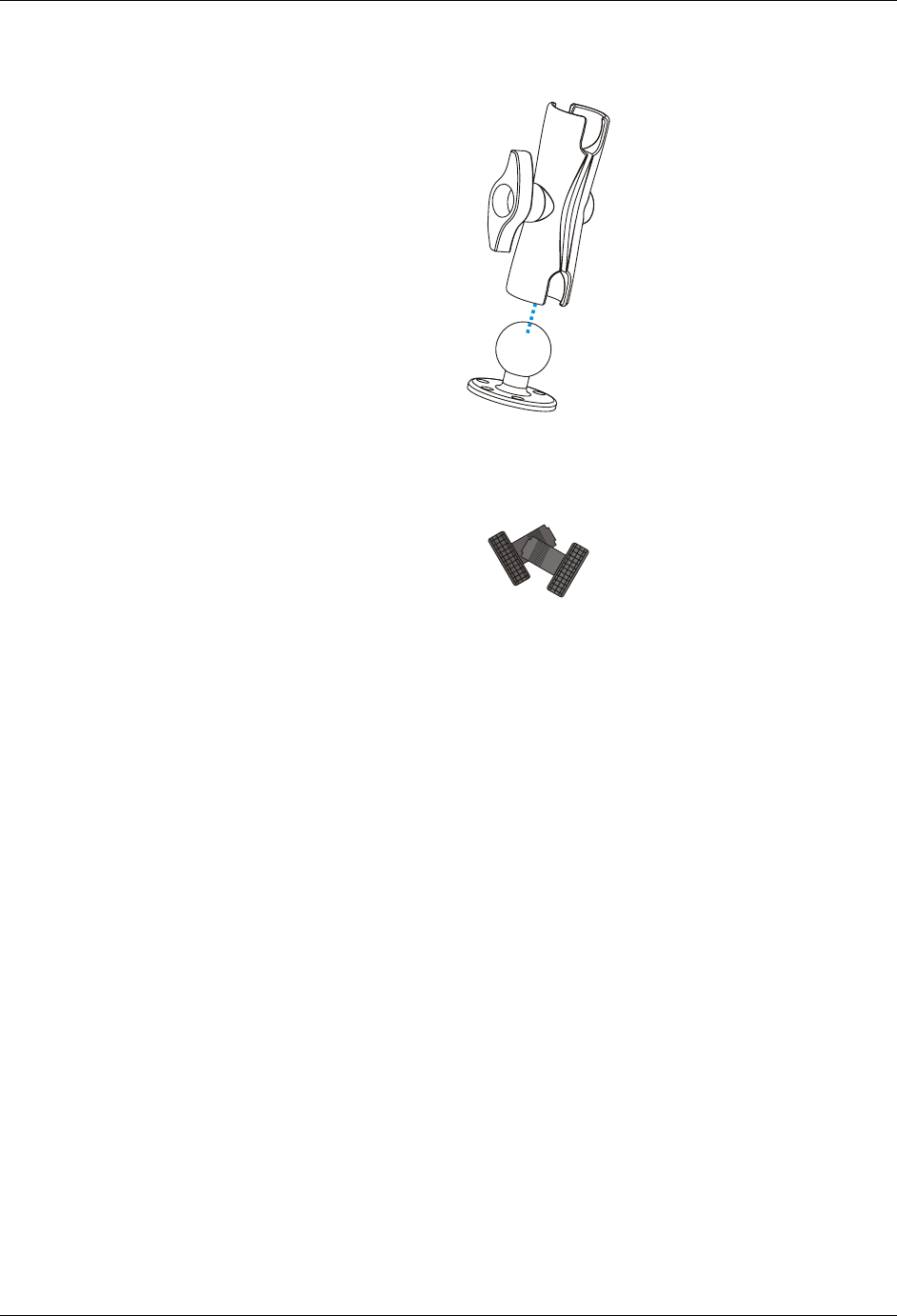

RAM Ball and Cylinder ...................................................................................................................... 47

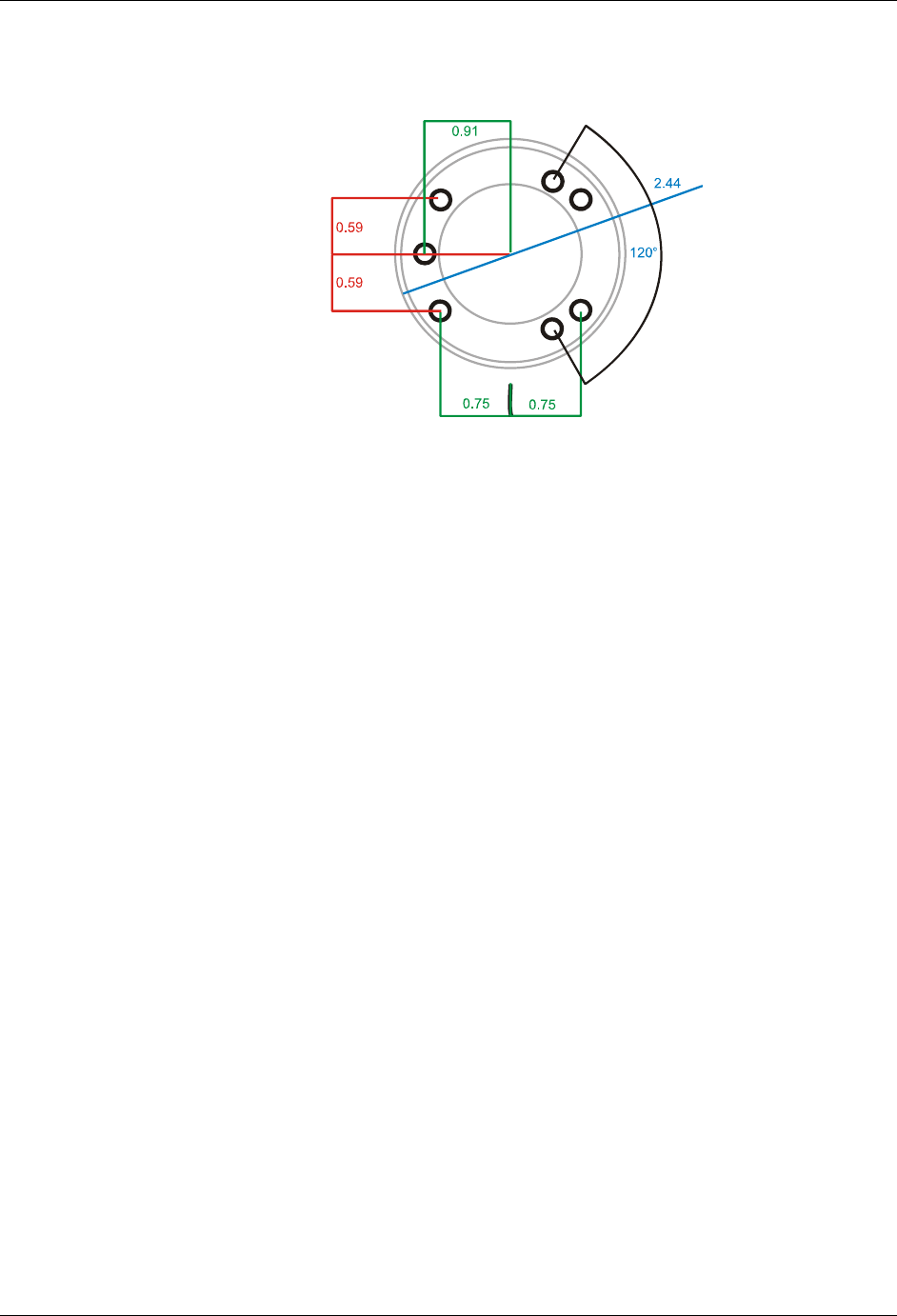

RAM Assembly Footprint ................................................................................................................ 48
How to Install the Cradle U-Bracket ..................................................................................................... 49
How To Install the RAM Bracket.......................................................................................................... 51
APPENDIX A KEY MAPS 55
Introduction............................................................................................................................. 55

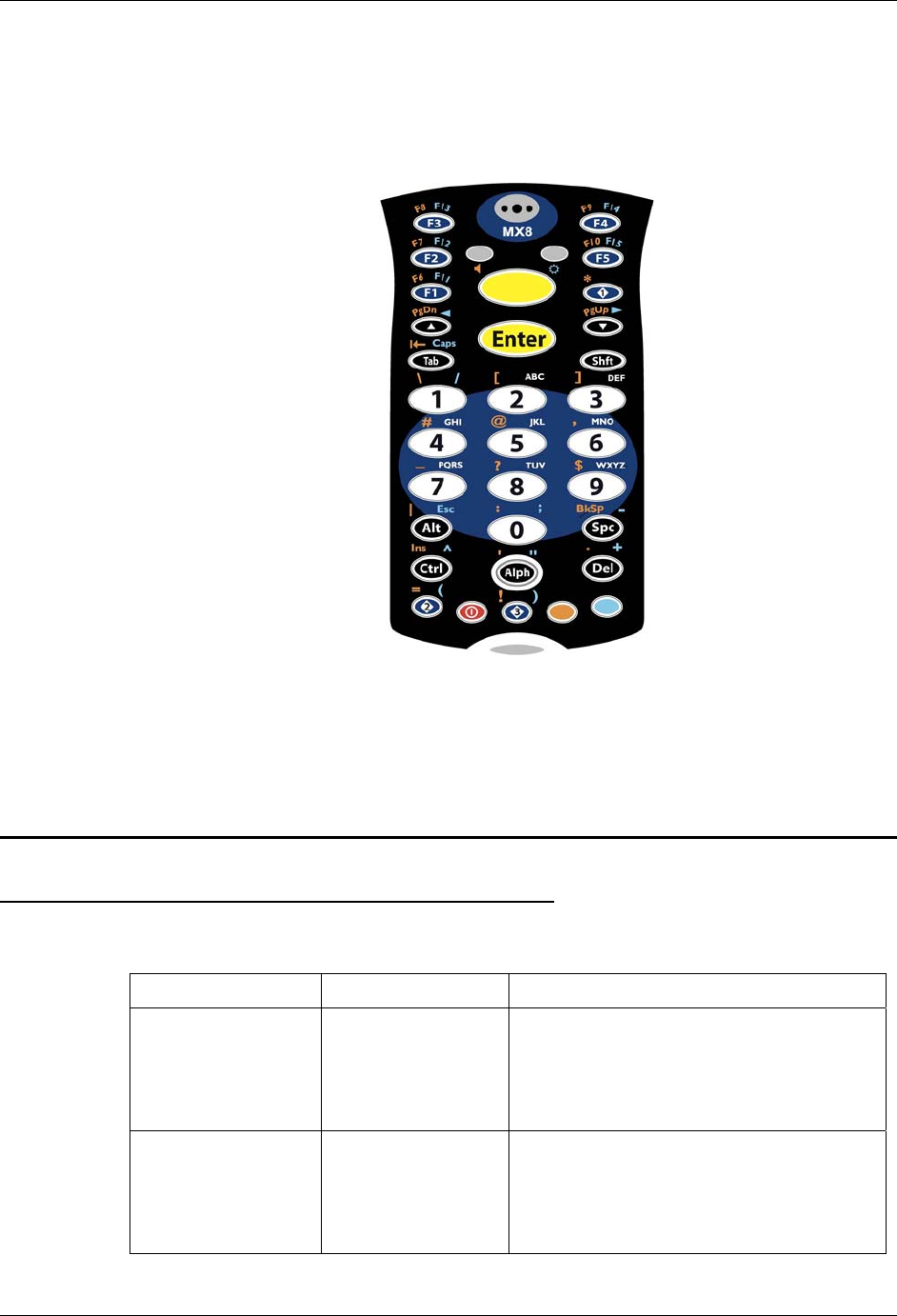

32-Key Numeric-Alpha Keypad ............................................................................................. 55
APPENDIX B REGULATORY NOTICES AND SAFETY INFORMATION 61
MX8 Approvals/Standards ..................................................................................................... 62
INDEX 69
For Review - Preliminary - Draft 01 - Not for distribution
iv Table of Contents
MX8 User’s Guide E-EQ-MX8OGWW-A
Illustrations

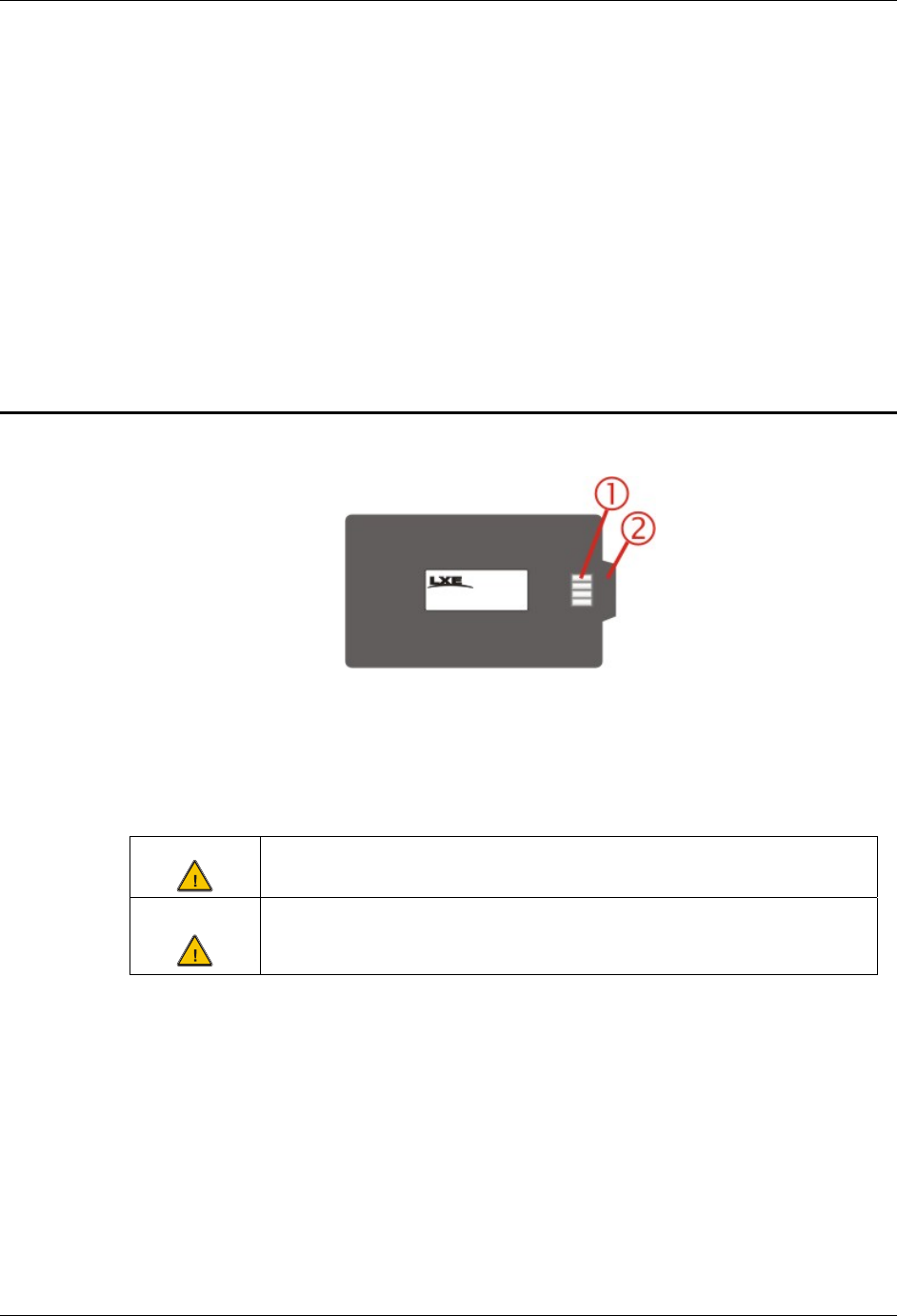

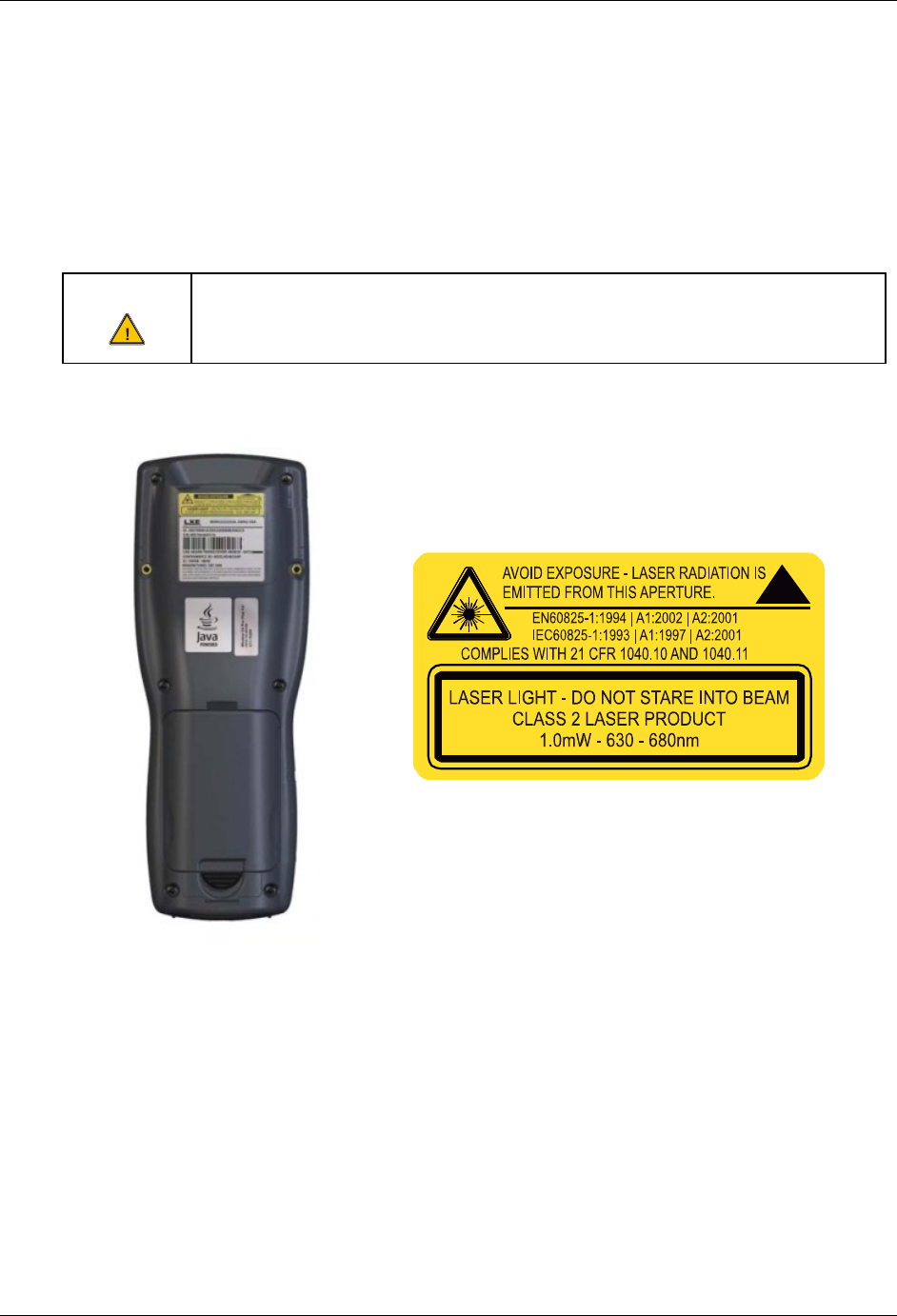

Figure 1 CDRH / IEC 825 Caution Label Location – MX8, Back ...................................................................5

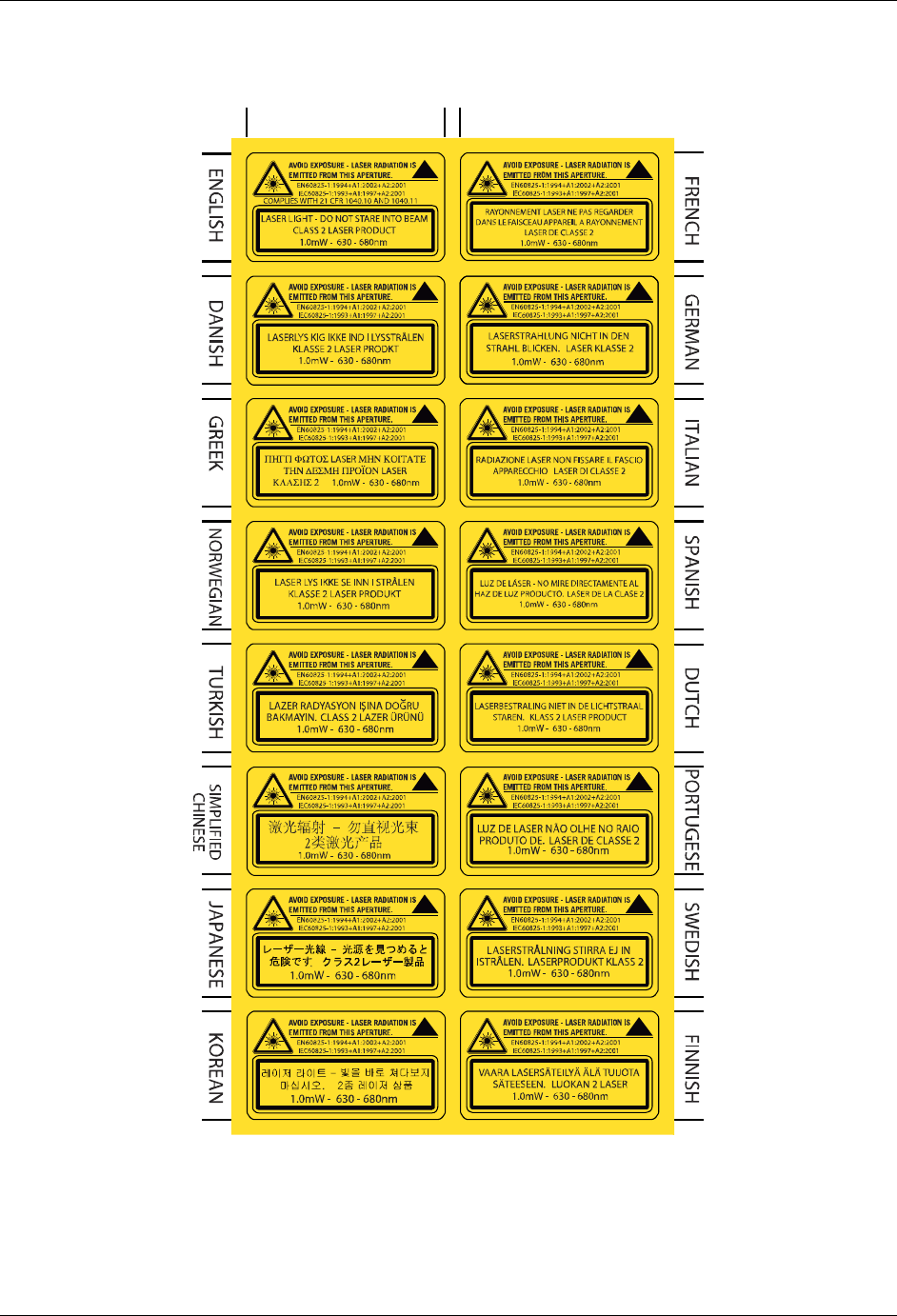

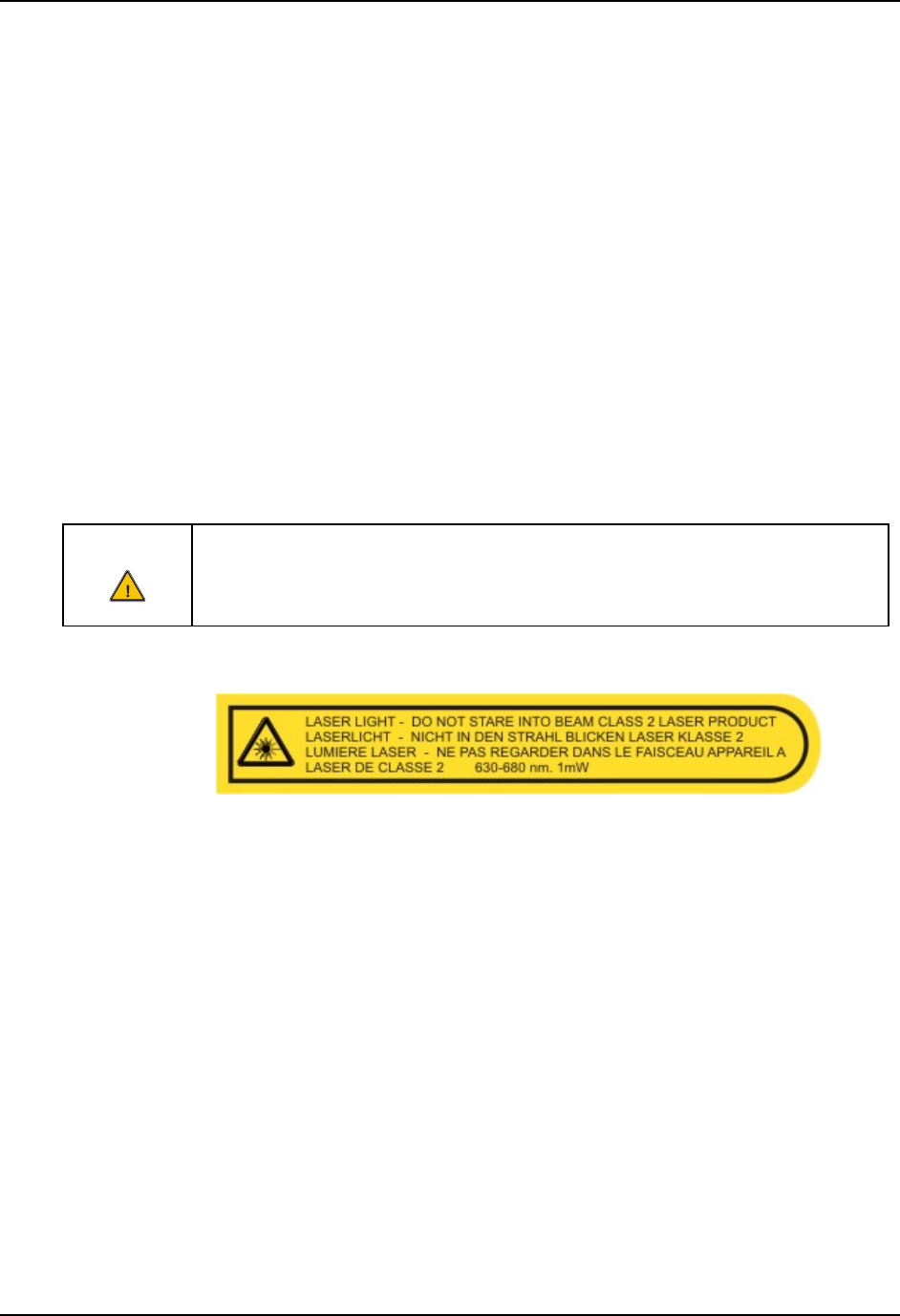

Figure 2 Caution Label – Class 2 Laser Scanner .............................................................................................. 5

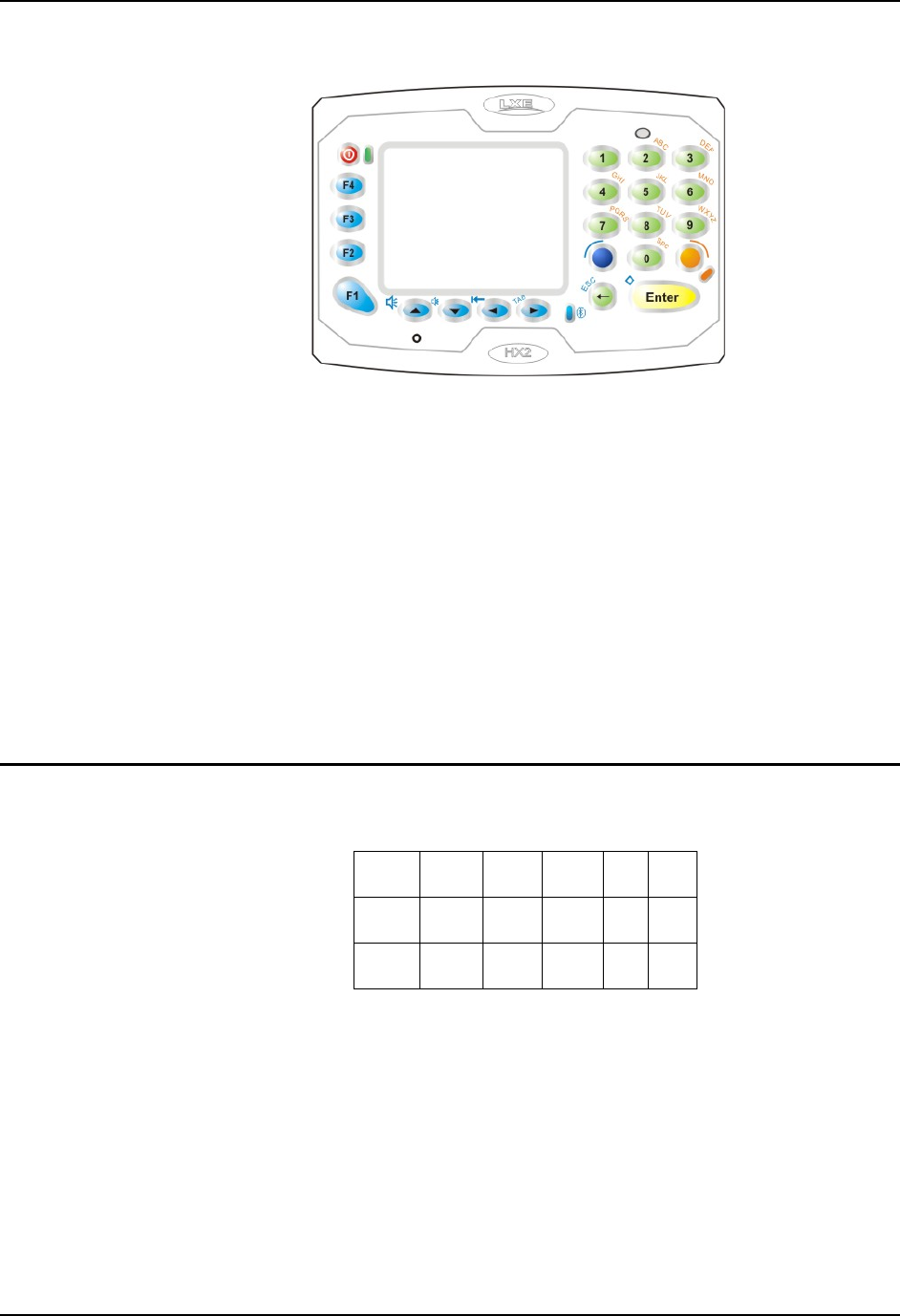

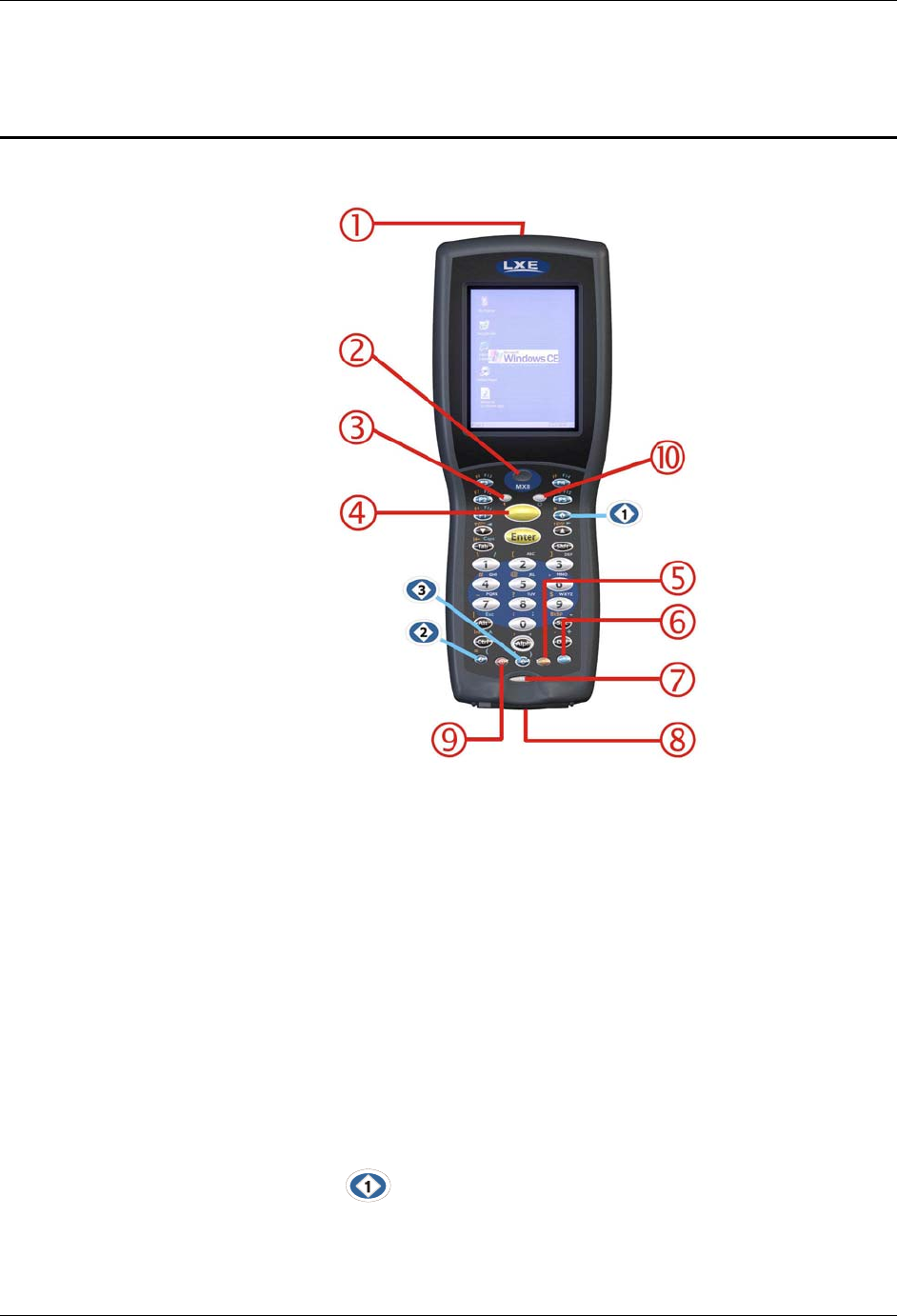

Figure 3 Front of MX8......................................................................................................................................6

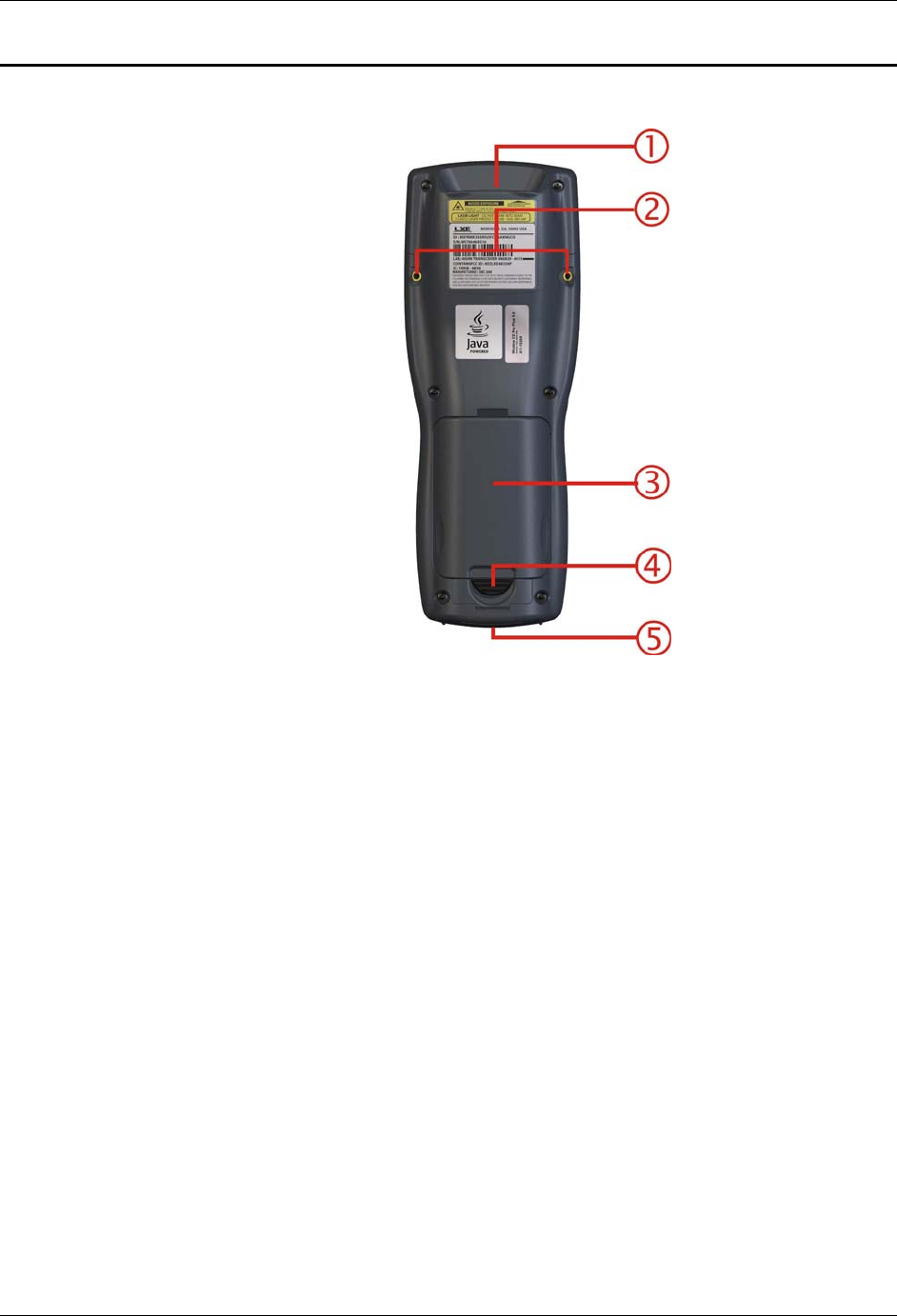

Figure 4 Back....................................................................................................................................................7

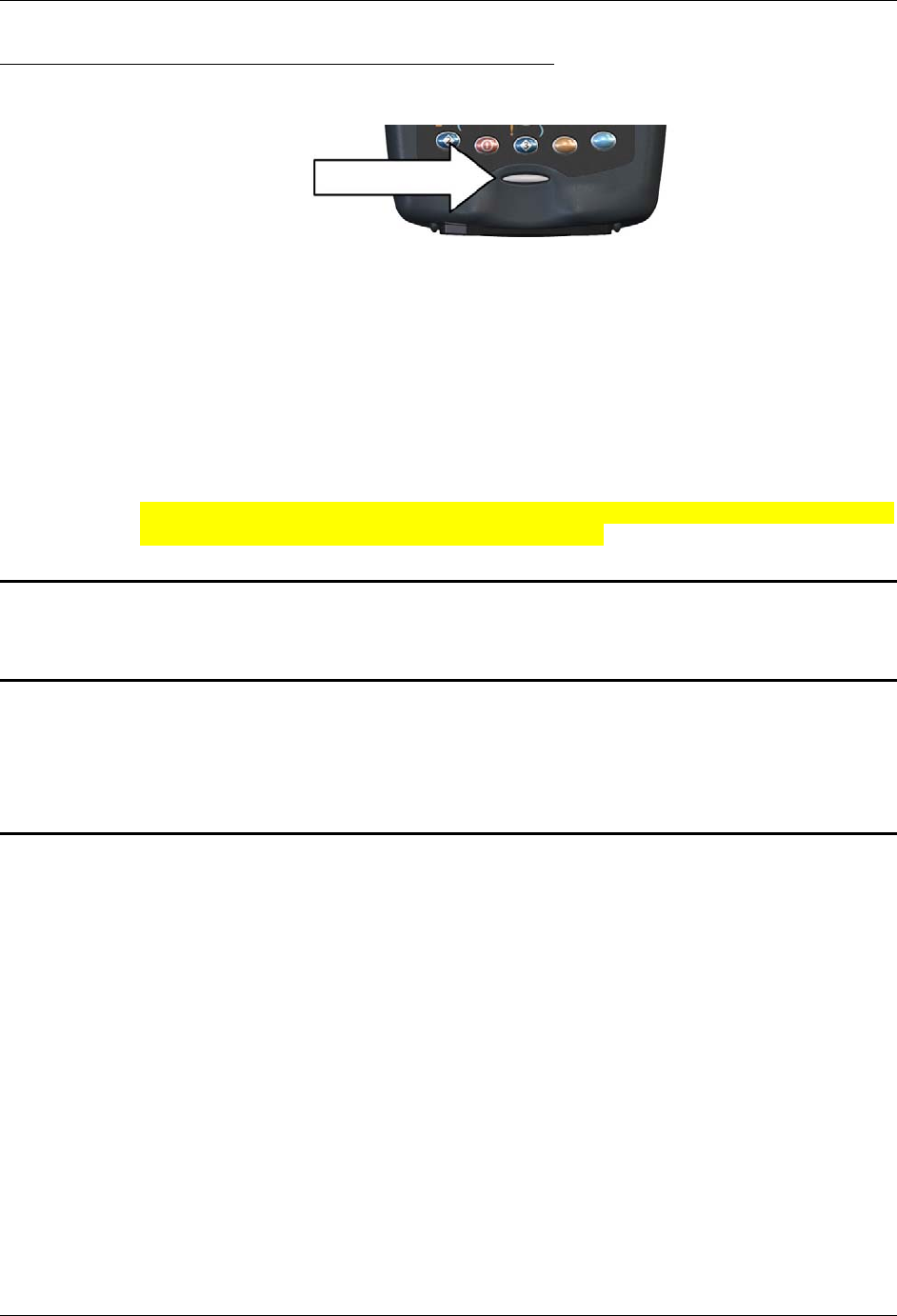

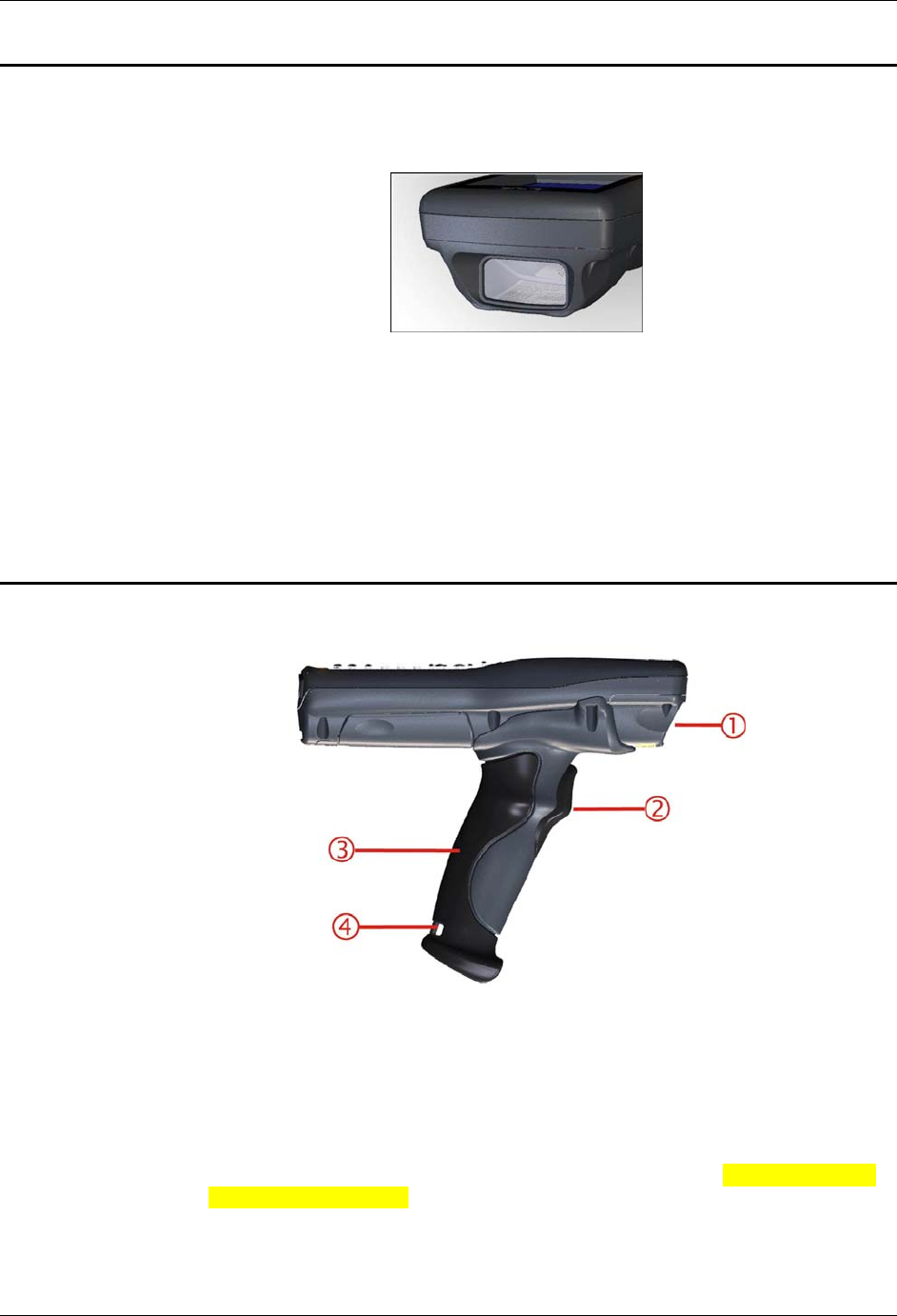

Figure 5 Beam Aperture....................................................................................................................................8
Figure 6 Trigger Handle (Optional) ..................................................................................................................8

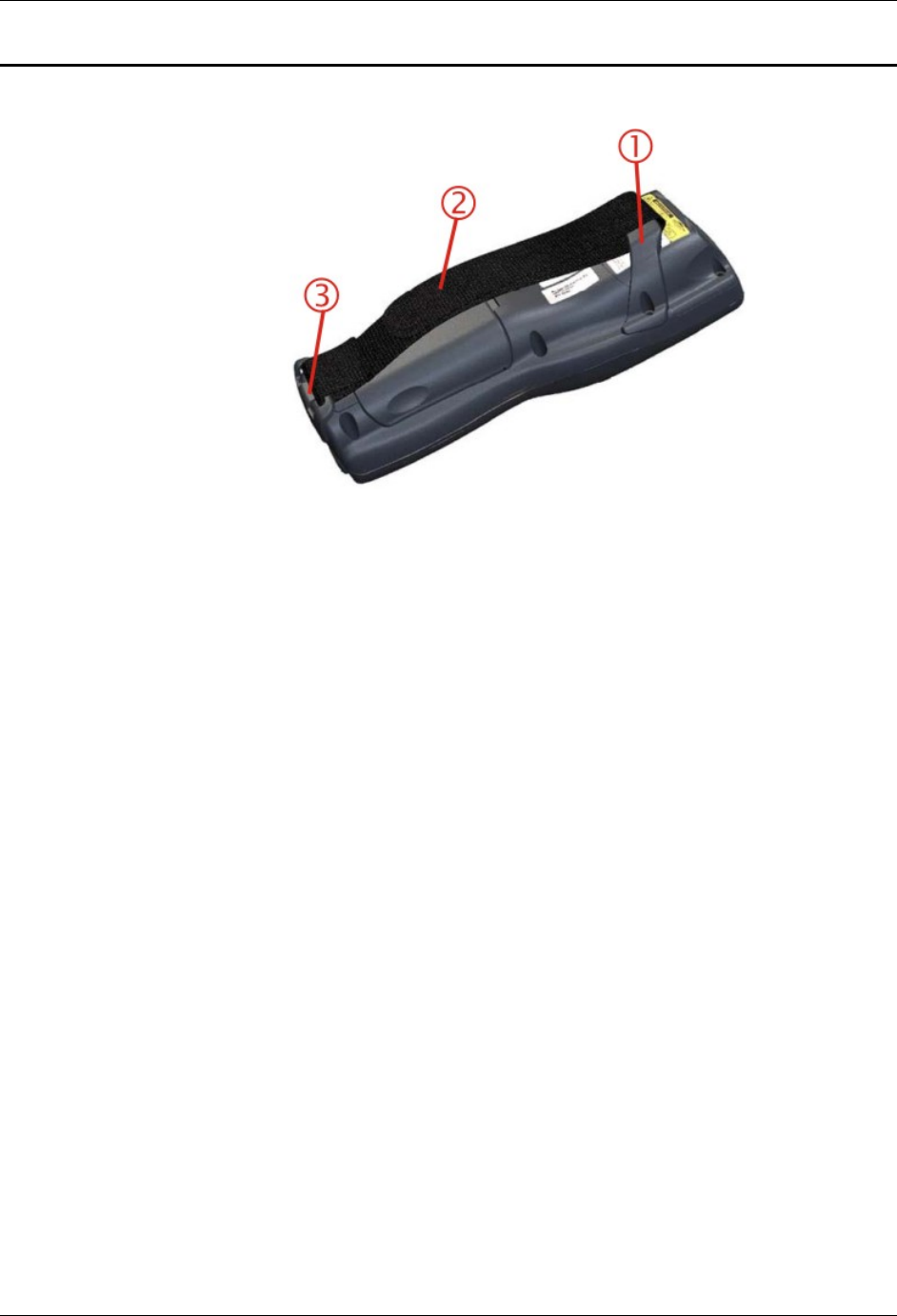

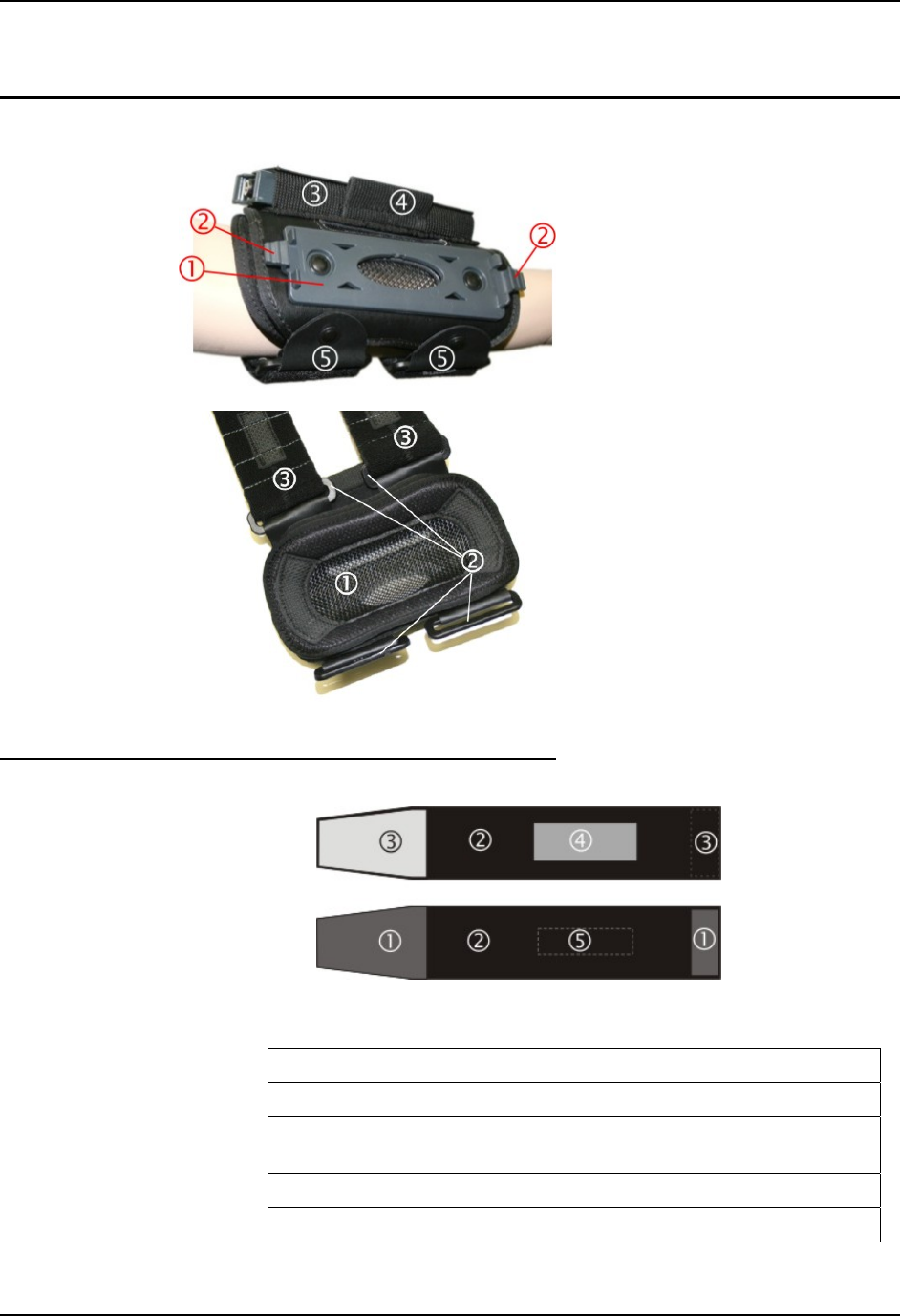

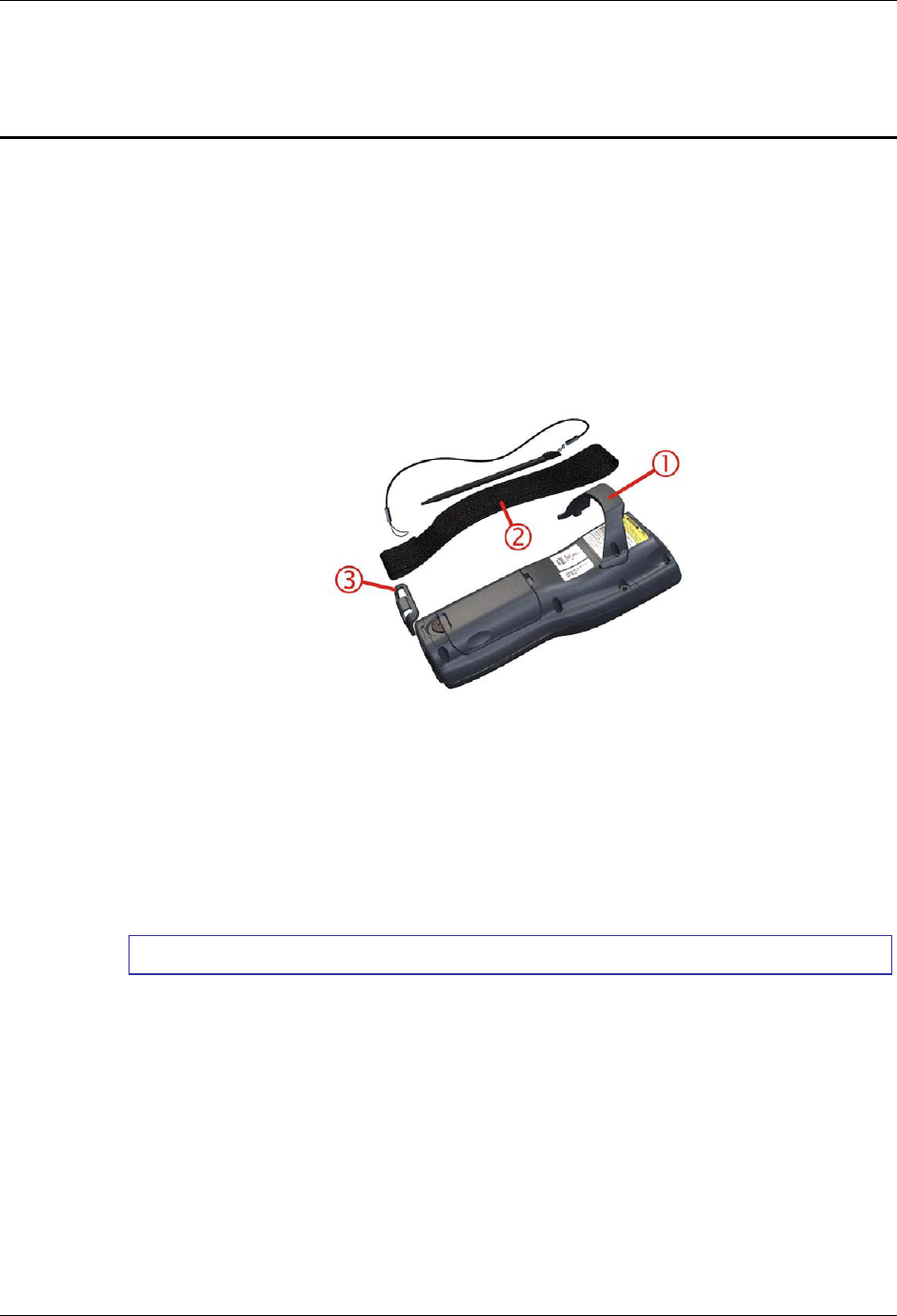

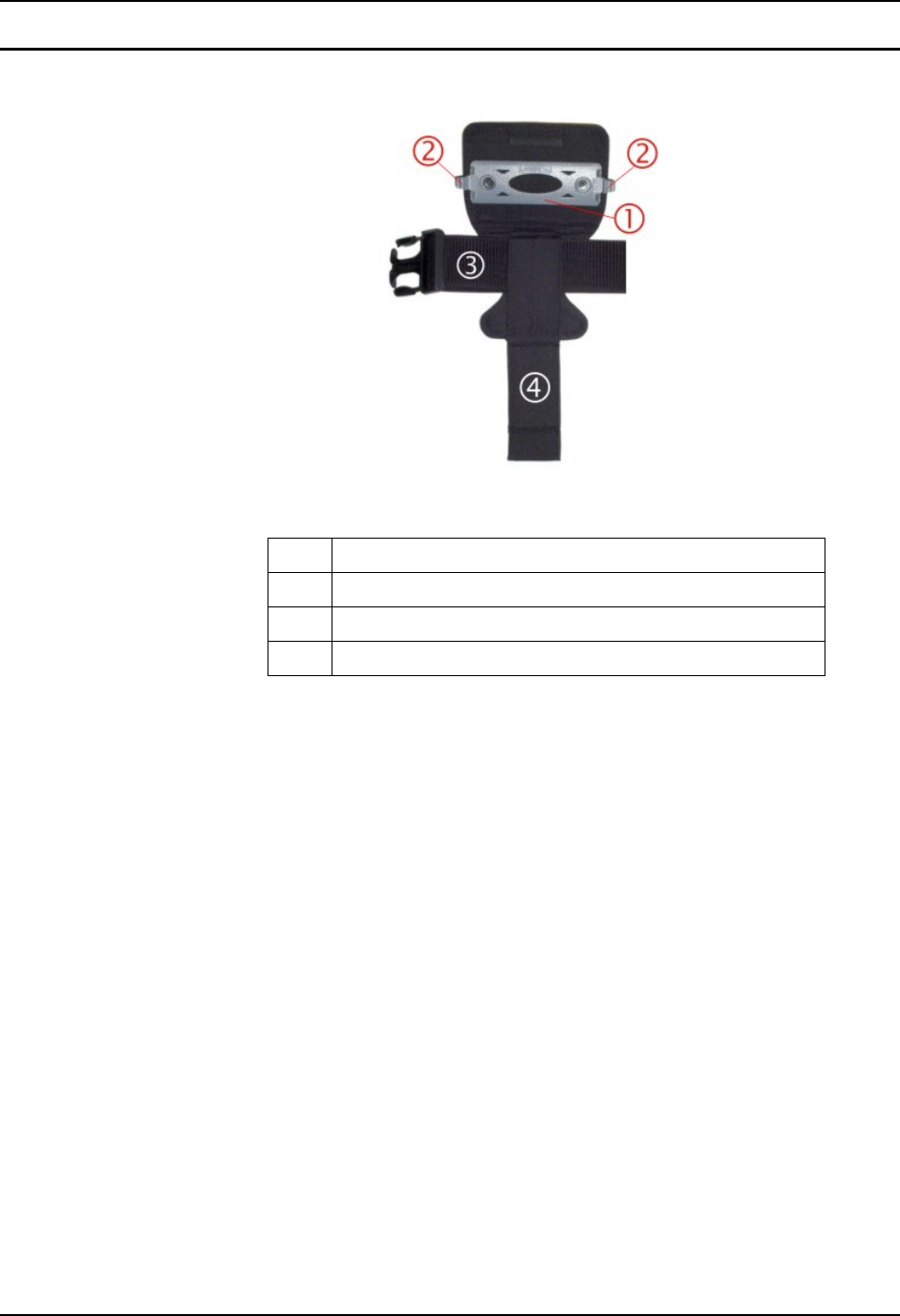

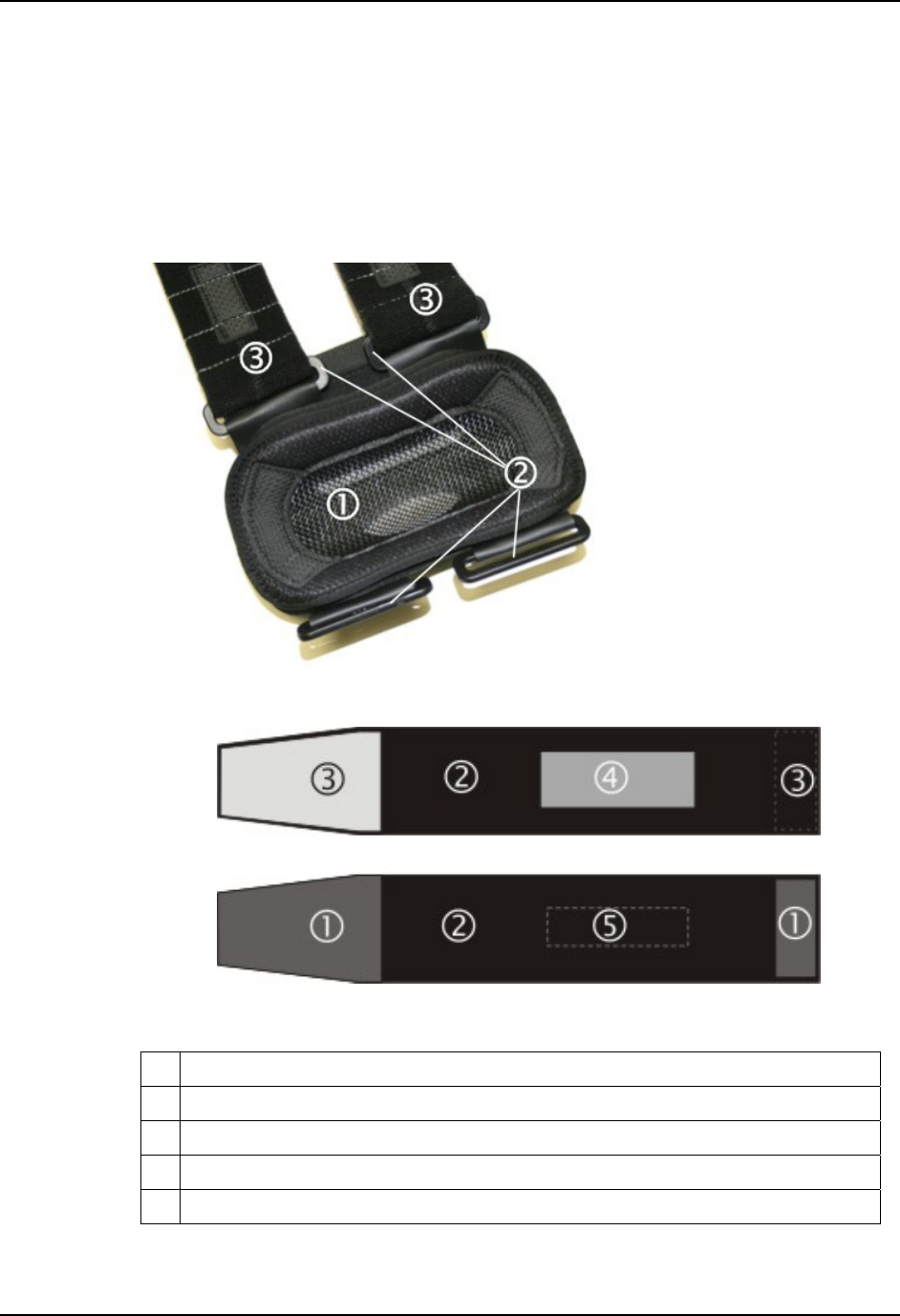

Figure 7 Handstrap (Optional) ..........................................................................................................................9

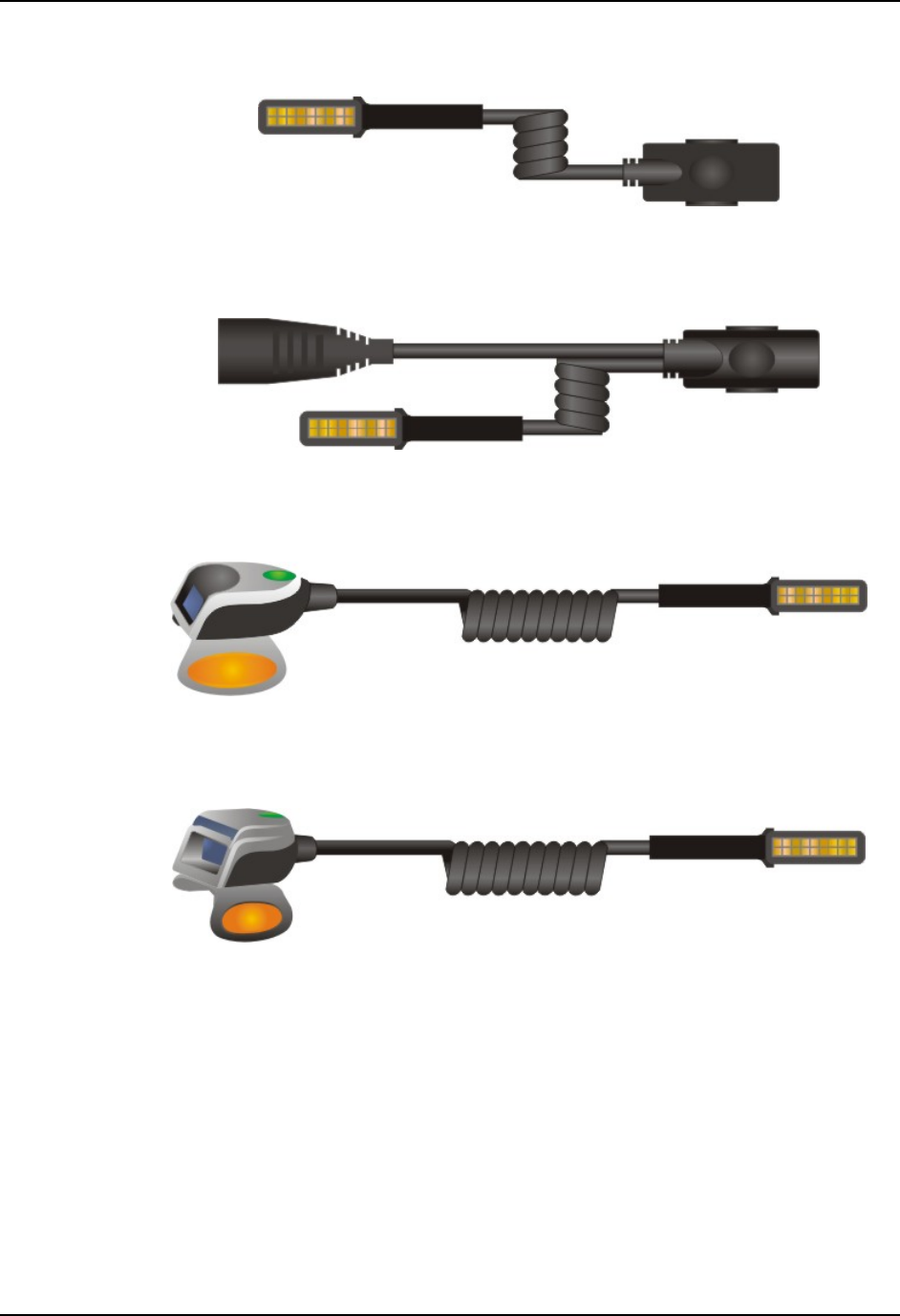

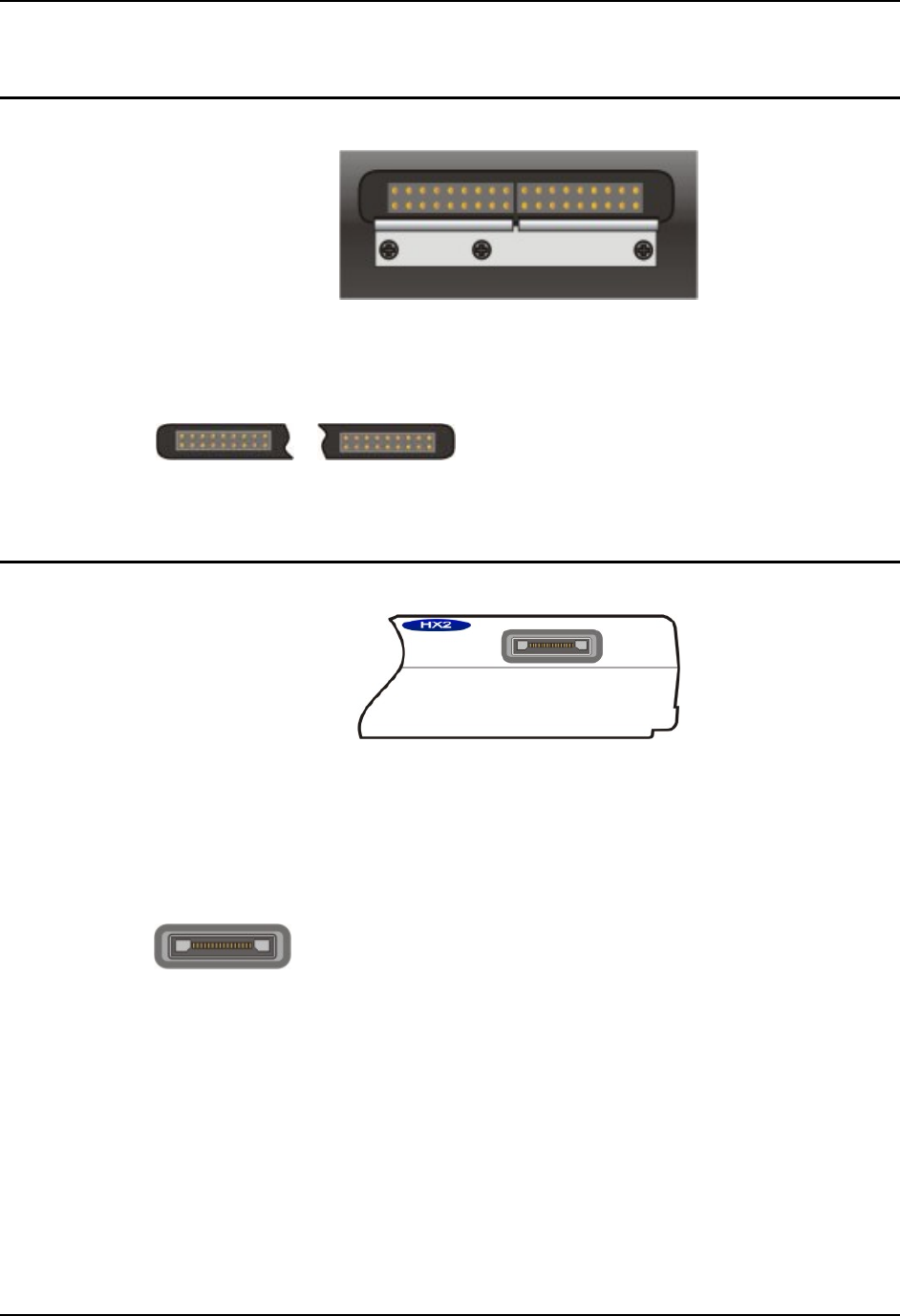

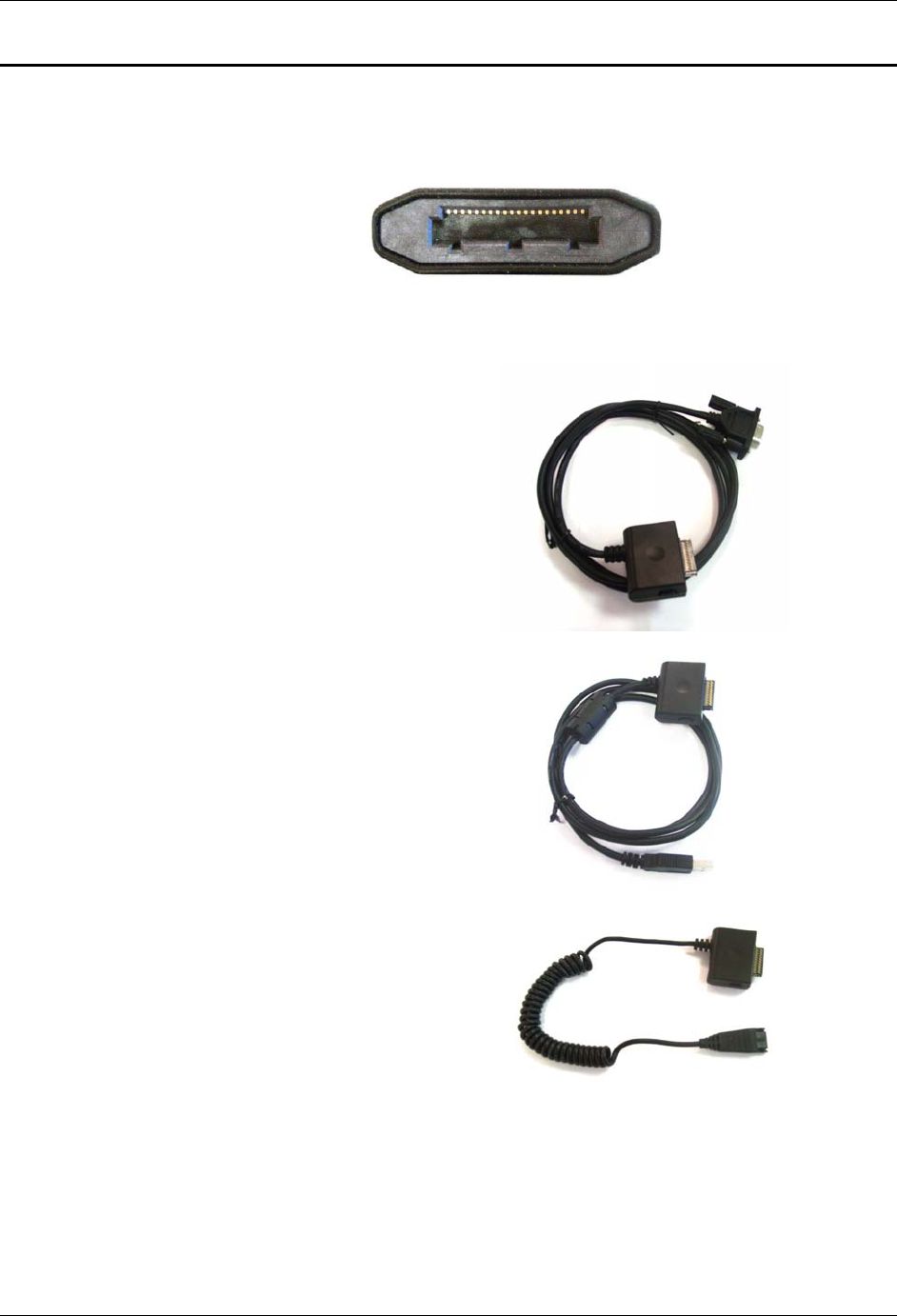

Figure 8 I/O Port and Cables........................................................................................................................... 10

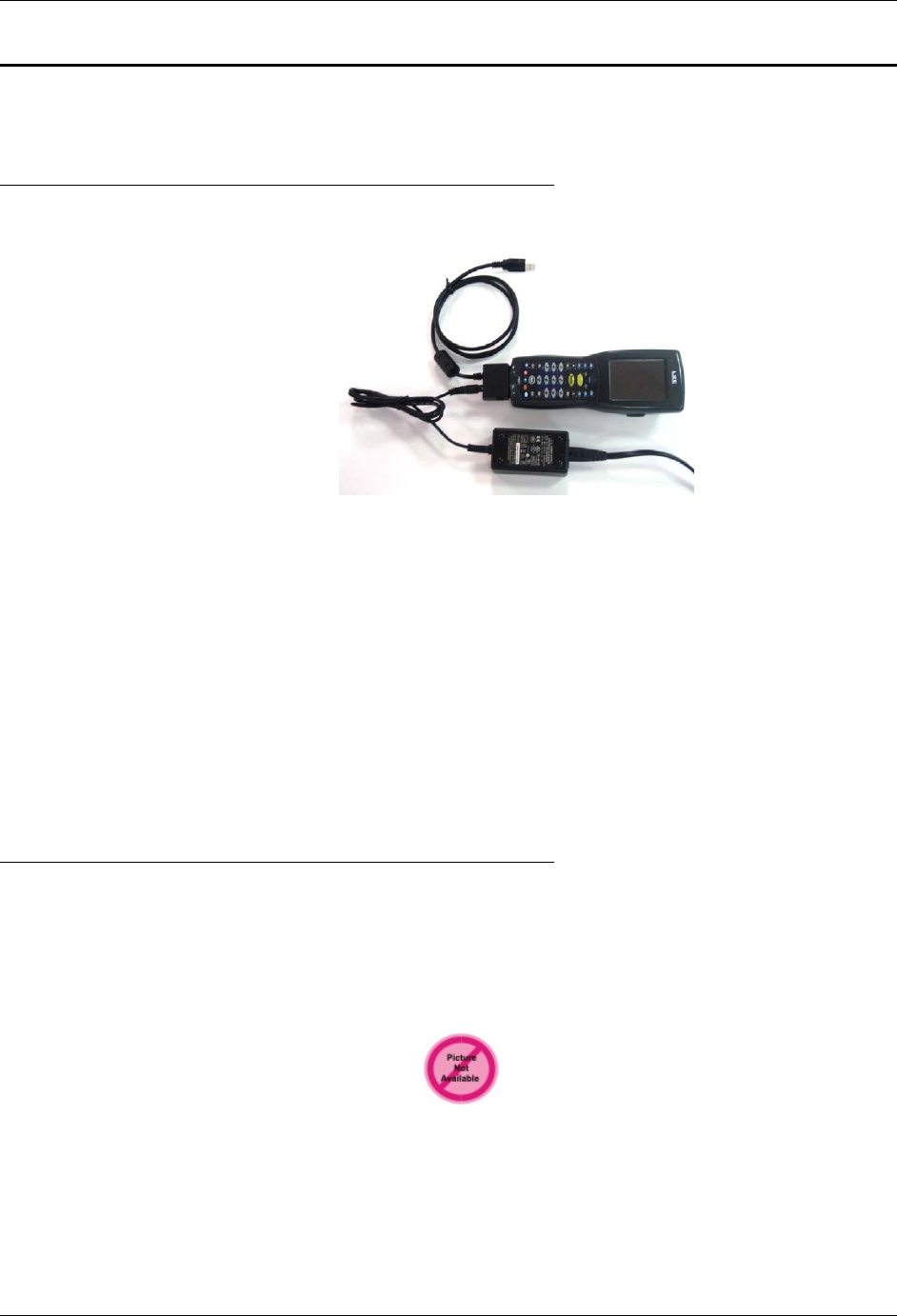

Figure 9 5V AC Adapter - Assembled ............................................................................................................ 11

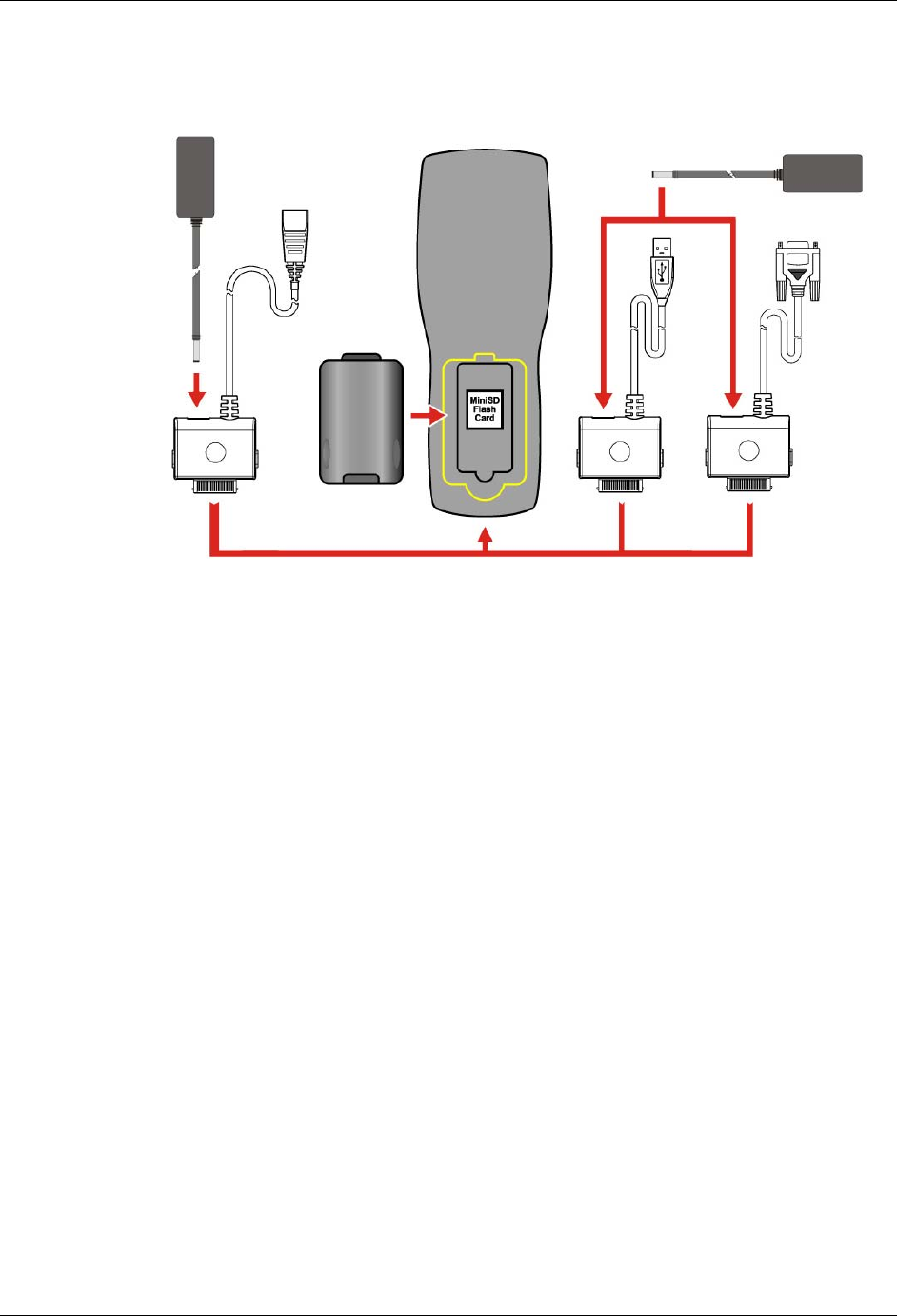

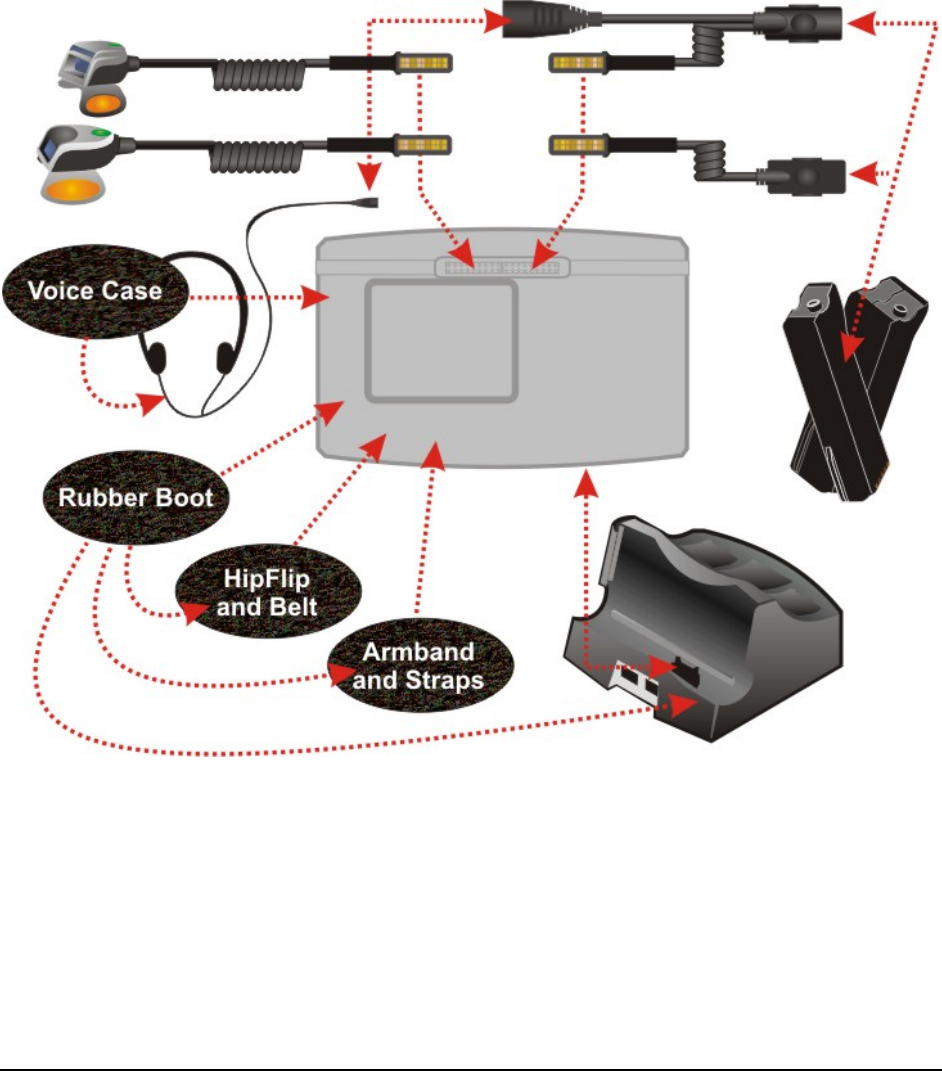

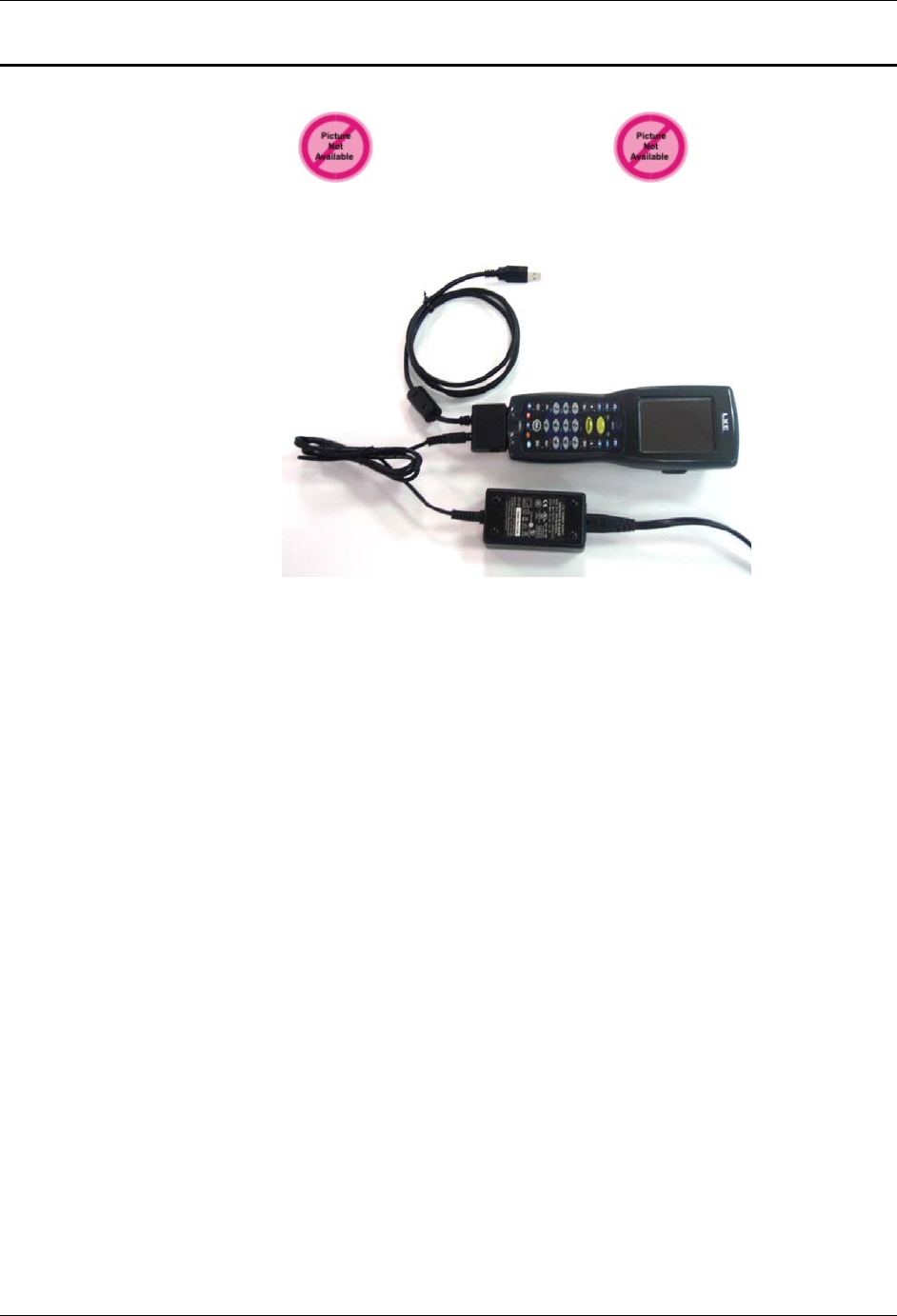

Figure 10 MX8 Cabling Options.....................................................................................................................12

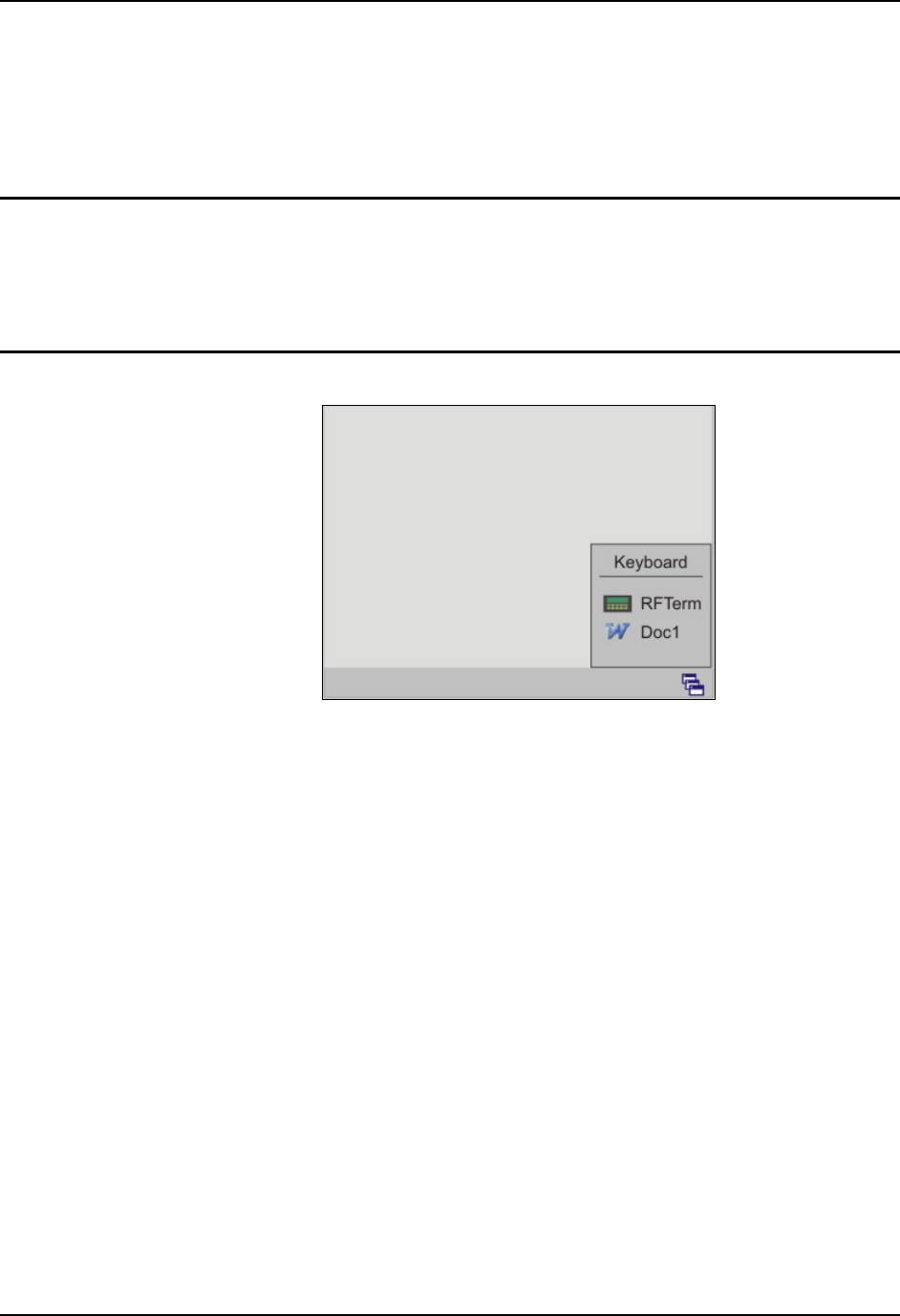

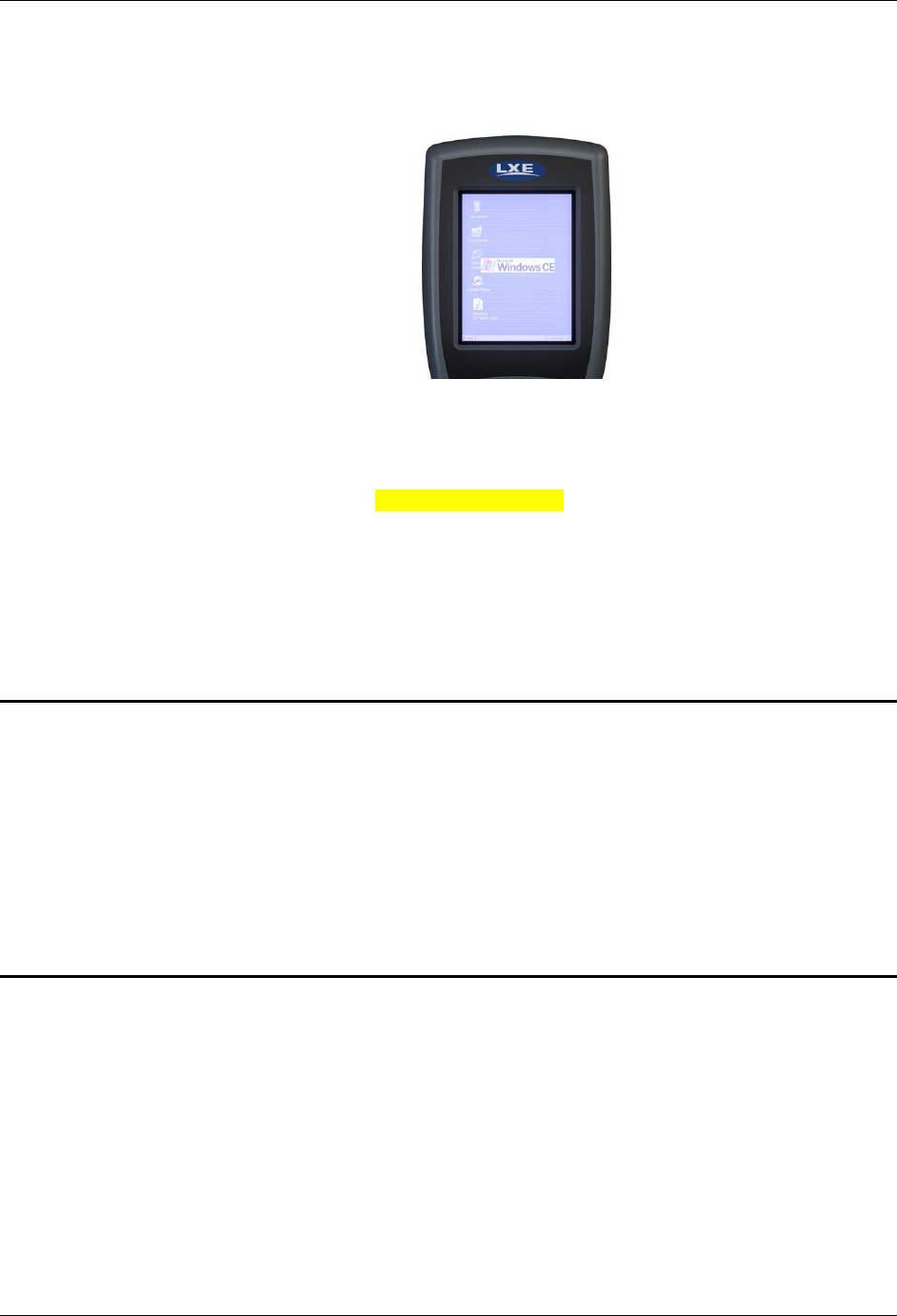

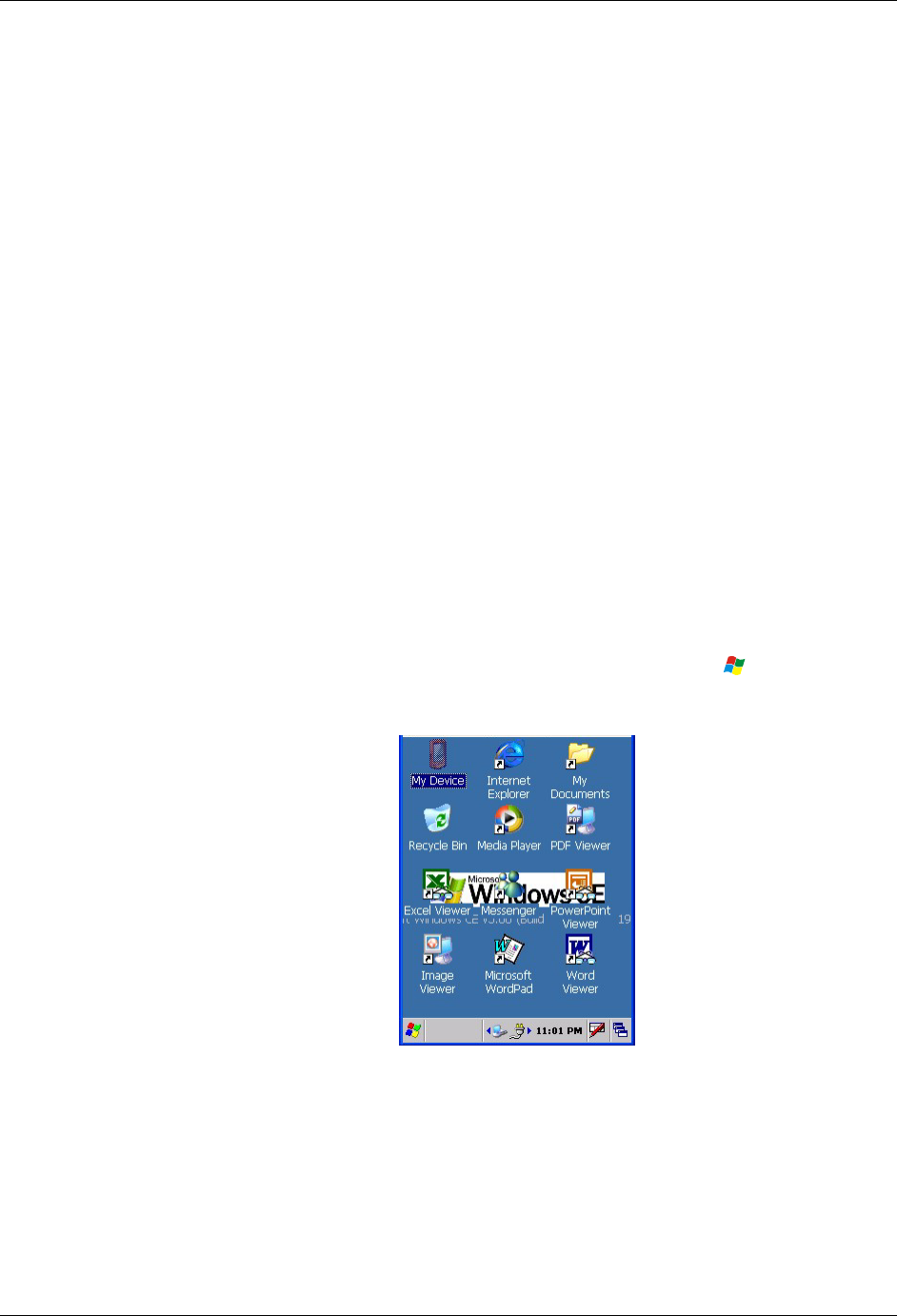

Figure 11 MX8 Desktop ................................................................................................................................. 13
Figure 12 Lithium Polymer Battery Pack .......................................................................................................15
Figure 13 Power Key Location ....................................................................................................................... 16
Figure 14 Touchscreen Recalibration .............................................................................................................18
Figure 15 Attaching the Handstrap .................................................................................................................20
Figure 16 USB – MX8 – Power Assembly .....................................................................................................21
Figure 17 AC/DC 5V External Power Supply ................................................................................................21
Figure 18 Connect the USB / Power Cable to the MX8 Port..........................................................................22
Figure 19 Connect the RS-232 / Power Cable to the MX8 Port......................................................................22
Figure 20 Audio Cable and Headset ...............................................................................................................23
Figure 21 The 32-Key Keypad........................................................................................................................24
Figure 22 Input Panel / Virtual Keyboard....................................................................................................... 25
Figure 23 Laser Scanner Beam on Linear Barcode......................................................................................... 27
Figure 24 Imager Bracketed Crosshair Target on 2D Barcode ....................................................................... 27
Figure 25 Scan Status LED.............................................................................................................................28
Figure 26 Touchscreen Display ......................................................................................................................34
Figure 27 Setting the Display Backlight Timer...............................................................................................35
Figure 28 Volume & Sounds Properties .........................................................................................................37
Figure 29 The 32-key Keypad........................................................................................................................38
Figure 30 Lithium Polymer Battery Pack .......................................................................................................42
Figure 31 MX8 Multi-Charger / Analyzer ......................................................................................................44
Figure 32 Insert Battery Pack in Charging Pocket.......................................................................................... 44
Figure 33 Passive Vehicle Mount Cradle and U-Bracket ...............................................................................46
Figure 34 Bracket Mounting Footprint ............................................................................................................46
Figure 35 Passive Vehicle Mount Cradle / RAM Ball Assembly ...................................................................47
Figure 36 RAM Bracket Components............................................................................................................. 47
Figure 37 RAM Assembly Footprint ..............................................................................................................48
Figure 38 Install Cradle U-Bracket .................................................................................................................49
Figure 39 Install RAM Bracket Assembly......................................................................................................51
For Review - Preliminary - Draft 01 - Not for distribution
E-EQ-MX8OGWW-A MX8 User’s Guide
Introduction
Overview
The LXE® MX8 is a rugged, portable, hand-held Microsoft® Windows® CE 5.0 equipped mobile
computer capable of wireless data communications. The mobile device can transmit information
using an 802.11 network card and it can store information for later transmission through an RS-
232 or USB port.
The mobile device is vertically oriented and features backlighting for the display. The touch-
screen display supports graphic features and Windows icons that the Windows CE 5.0 operating
system supports. Keypads are available in 32-key numeric-alpha versions.
This device is a Windows CE 5.0 compatible computer that can be scaled from a limited function
batch computer to an integrated RF scanning computer. A trigger handle is available as an
accessory.
The stylus attached to the handstrap is used to assist in entering data and configuring the mobile
device. Protective film for the touchscreen is available as an accessory.
The MX8 is powered by a 3000 mAh Lithium-Polymer main battery pack and an internal Ni-MH
backup battery.
Important
• If the mobile device has AppLock installed, please refer to the MX8 Reference Guide,
Chapter 6 – AppLock for setup and processing.
• Wireless configuration and security parameters are described in detail in the MX8
Reference Guide, Chapter 5 – Wireless Network Configuration.
For Review - Preliminary - Draft 01 - Not for distribution
2 Overview
MX8 User’s Guide E-EQ-MX8OGWW-A
MX8 Features
The appropriate wireless utility for your device configuration has been pre-installed by LXE.
The desktop will display a Summit Client Utility icon for 802.11 wireless configuration and
security.
Summit
Optional?
LXE 802.11 b/g Radio x No
Summit® Client Utility x No
LXE Bluetooth Printers and Scanners x Yes
520MHz x No
128MB RAM x No
128MB Flash x No
SE955 Laser Scanner x Yes
EV-15 Linear Imager x Yes
5380SF 2D Imager x Yes
CE 5.0 x No
Voice x Yes
RFTerm® x Yes
JAVA® x Yes
AppLock x Yes
The MX8 does not have a Bluetooth managed LED.
For Review - Preliminary - Draft 01 - Not for distribution
Overview 3
E-EQ-MX8OGWW-A MX8 User’s Guide
Important Battery Information
Note: This mobile device’s backup battery maintains it’s charge by drawing power from the
main battery pack. Always store unused devices with a fully charged main battery pack
installed. LXE recommends an in-use mobile device be frequently connected to an
external power source to maintain optimum power levels in the main battery pack and the
backup battery. When the backup battery and main battery pack are dead, the mobile
device reverts to the last saved setup defaults when a fully charged main battery pack is
installed and the device is powered On again.
Tap | Settings | Control Panel | Battery tab.
• Until the main battery and backup battery are completely depleted, the MX8 is always
drawing power from the batteries (On).
• New batteries must be fully charged prior to use.
• Whenever possible, use the AC power adapter with the MX8 to conserve the main battery
and recharge the backup battery.
• Ni-MH backup battery replacement must be performed by qualified service personnel.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
ATTENTION
II y a danger d’explosion s’il y a remplacement incorrect de la batterie.
Remplacer uniquement avec une batterie du même type ou d’un type equivalent
recommandé par le constructeur. Mettre au rebut les batteries usagées
conformément aux instructions du fabricant.
For Review - Preliminary - Draft 01 - Not for distribution
4 Overview
MX8 User’s Guide E-EQ-MX8OGWW-A
Document Conventions
ALL CAPS All caps are used to represent disk directories, file names, and application names.
Menu | Choice Rather than use the phrase “choose the Save command from the File menu”, this guide uses
the convention “choose File | Save”.
“Quotes” or
Italics
Indicates the title of a book, chapter or a section within a chapter (for example, “Document
Conventions” and Document Conventions).
< > Indicates a key on the keypad (for example, <Enter> ).
Indicates a reference to other documentation.
ATTENTION Keyword that indicates vital or pivotal information to follow.
Attention symbol that indicates vital or pivotal information to follow. Also, when marked
on product, means to refer to the user’s guide.
International fuse replacement symbol. When marked on the product, the label includes
fuse ratings in volts (v) and amperes (a) for the product.
Note: Keyword that indicates immediately relevant information.
CAUTION
Keyword that indicates a potentially hazardous situation which, if not avoided, may result
in minor or moderate injury.
WARNING
Keyword that indicates a potentially hazardous situation which, if not avoided, could result
in death or serious injury.
DANGER
Keyword that indicates a imminent hazardous situation which, if not avoided, will result in
death or serious injury.
Environmental Specifications
Operating Temperature 14°F to 122°F (-10°C to 50°C) [non-condensing]
Storage Temperature -4°F to 158°F (-20°C to 70°C) [non-condensing]
Water and Dust IEC 60529 compliant to IP54
Operating Humidity 5% to 90% non-condensing at 104°F (40°C)
Vibration Based on MIL Std 810D
ESD 8 kV air, 4kV contact
Bluetooth Range 32.8 feet (10 meters) Direct line of sight only.
For Review - Preliminary - Draft 01 - Not for distribution
Laser Warnings and Labels 5
E-EQ-MX8OGWW-A MX8 User’s Guide

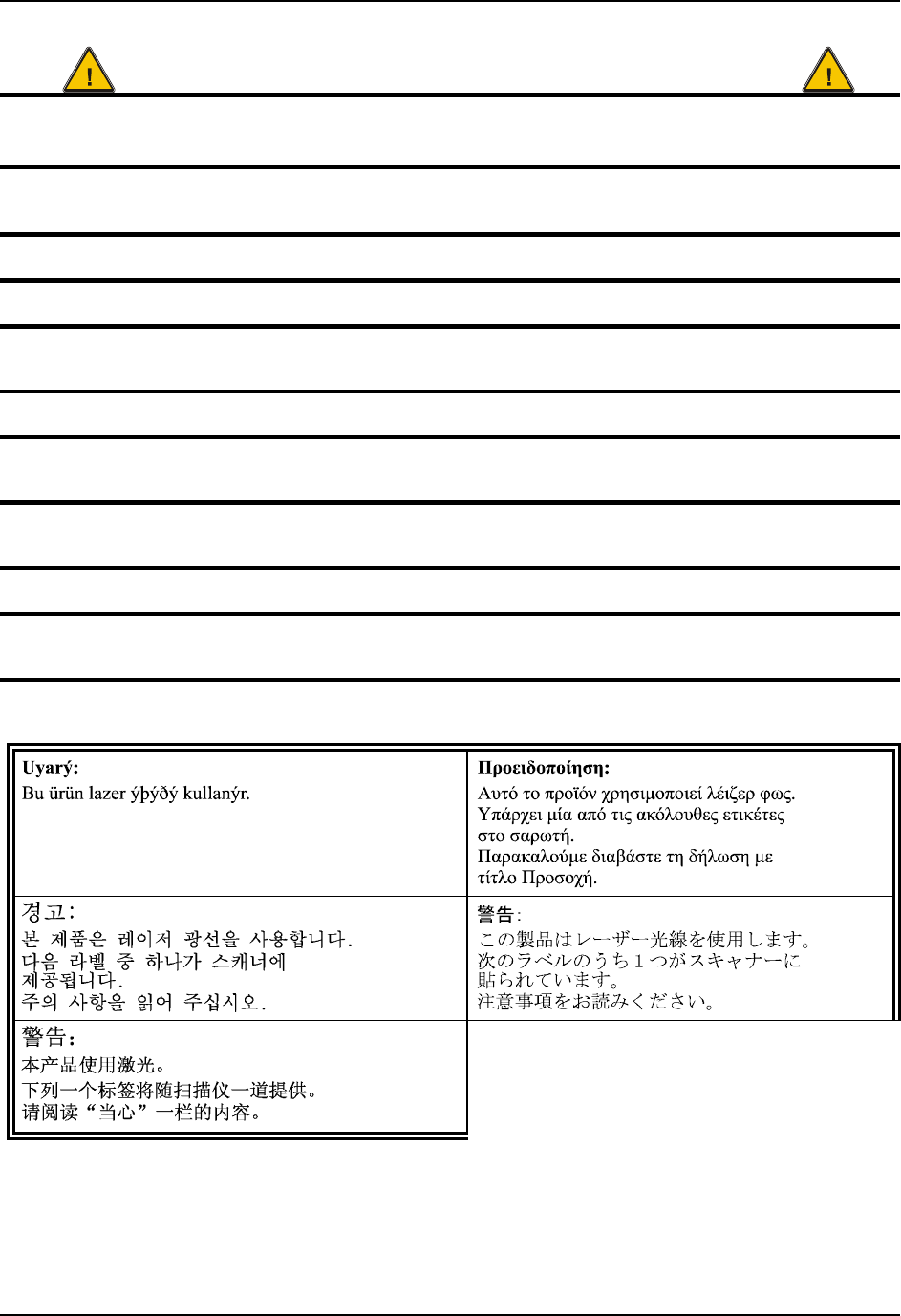

Laser Warnings and Labels
• Do not look into the laser’s lens.
• Do not stare directly into the laser beam.
• Do not remove the laser caution labels from the MX8.
• Do not connect the laser barcode aperture to any other device. The laser barcode aperture
is certified for use with the MX8 only.
Caution:
Laser radiation when open. Please read the caution labels.
Use of controls, adjustments or performance of procedures other than those specified
herein may result in hazardous radiation exposure.
Figure 1 CDRH / IEC 825 Caution
Label Location – MX8, Back
Figure 2 Caution Label – Class 2 Laser Scanner
For Review - Preliminary - Draft 01 - Not for distribution
6 Components
MX8 User’s Guide E-EQ-MX8OGWW-A
Components
Front View
Figure 3 Front of MX8
1 Imager/Scanner Aperture
2 Speaker
3 System Status LED
4 Scan Button
5 Orange Key (Sticky Key)
6 Blue Key (Sticky Key)
7 Scan Status LED
8 Cable Port
9 On / Off Button
10 Alpha Mode LED
Diamond Number Keys
For Review - Preliminary - Draft 01 - Not for distribution
Components 7
E-EQ-MX8OGWW-A MX8 User’s Guide
Back View
Figure 4 Back
1 Imager/Scanner Aperture
2
Trigger Handle Attach Points
and
Handstrap Retainer Bracket Attach Points
3 Main Battery
4 Battery Fastener
5 Cable Ports (I/O Port)
Note: The touch screen stylus is tethered to the handstrap or the trigger handle.
For Review - Preliminary - Draft 01 - Not for distribution
8 Components
MX8 User’s Guide E-EQ-MX8OGWW-A
Scanner / Imager Aperture
CAUTION: Never stare directly into the beam aperture. Read the previous section Laser
Warnings and Labels before using the scanner/imager.
Figure 5 Beam Aperture
Identify the type of integrated imager or laser scanner installed in the MX8 by looking at the type
of plastic lens covering the Beam aperture.
• The No-Scanner option has an opaque lens protecting the MX8 internal components.
• The SE955 laser barcode scanner has a red lens protecting the laser engine.
• The EV-15 integrated imager has a clear lens protecting the imager engine.
• The 5380SF 2D imager has an opaque lens protecting the imager engine.
Trigger Handle
Figure 6 Trigger Handle (Optional)
1 Scan Aperture 3 Handle
2 Trigger 4 Tether Attach Point
Note: Either the trigger handle is attached to the MX8 or the handstrap is attached, not both.
LXE recommends that, in the absence of a trigger handle, the handstrap be used at all
times. The stylus is tethered to the handstrap or the trigger handle. LXE pre-installs the
trigger handle, if ordered.
Refer to the MX8 Reference Guide for Trigger Handle installation instruction.
For Review - Preliminary - Draft 01 - Not for distribution
Components 9
E-EQ-MX8OGWW-A MX8 User’s Guide
Handstrap
Figure 7 Handstrap (Optional)
1 Handstrap Retainer Bracket
2 Handstrap
3 Handstrap Clip
Note: Either the trigger handle is attached to the MX8 or the handstrap is attached, not both.
LXE recommends that, in the absence of a trigger handle, the handstrap be used at all
times. The stylus is tethered to the handstrap or the trigger handle. LXE pre-installs the
handstrap when the MX8 is purchased without a trigger handle.
For Review - Preliminary - Draft 01 - Not for distribution
10 Components
MX8 User’s Guide E-EQ-MX8OGWW-A
I/O Port and Cables
Note: There is no IR port on the MX8. Tethered scanners are not supported on the MX8.

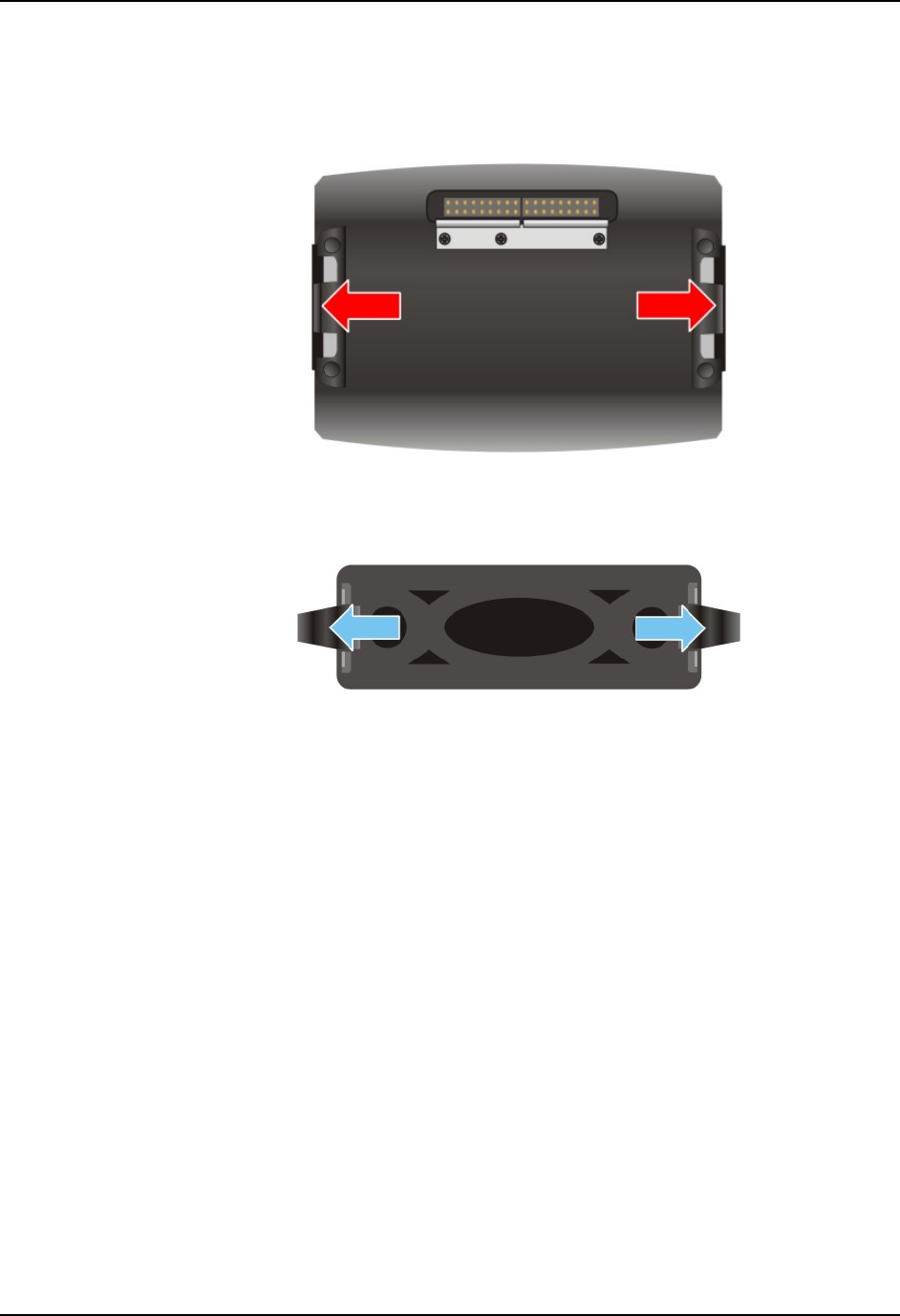

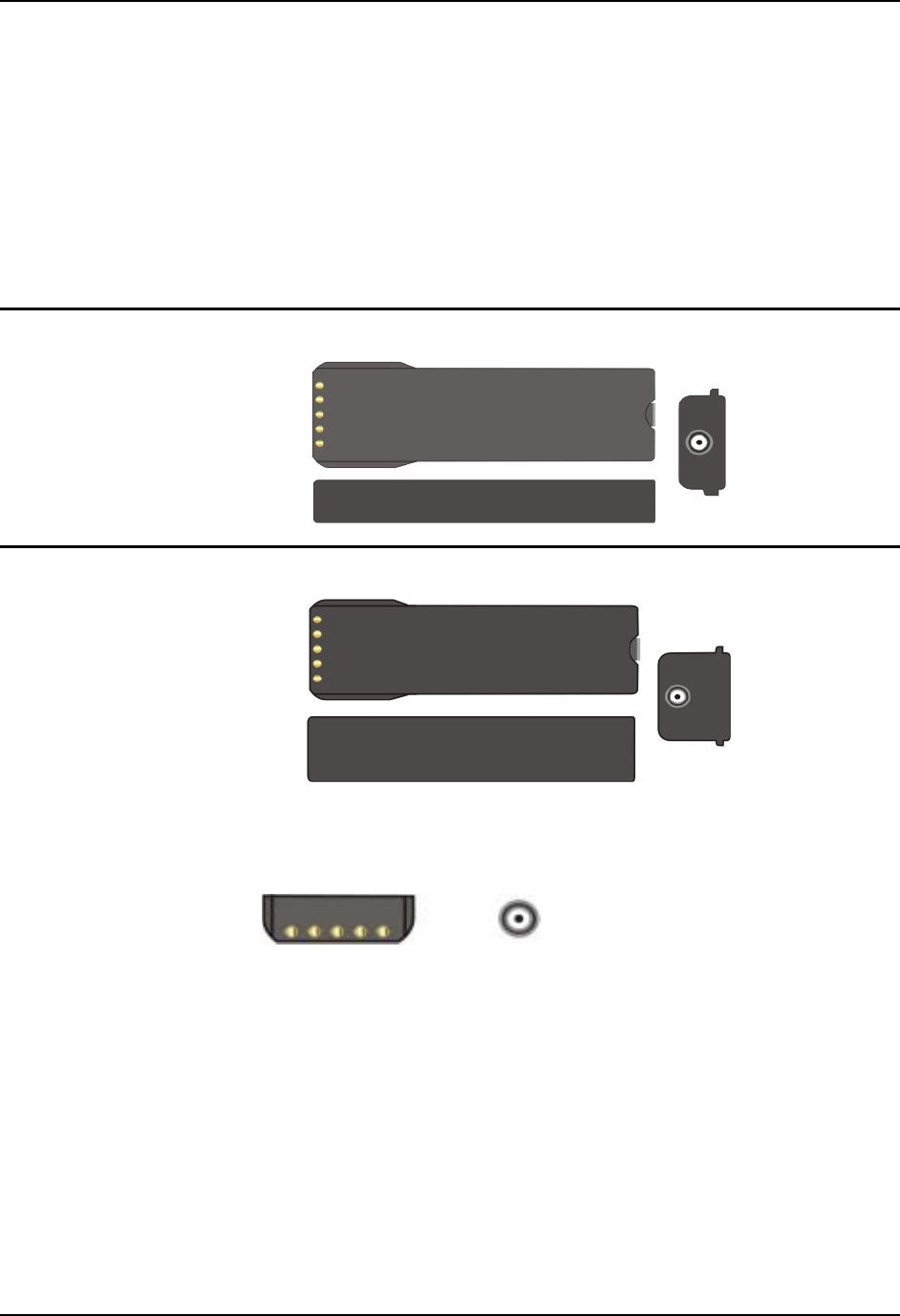

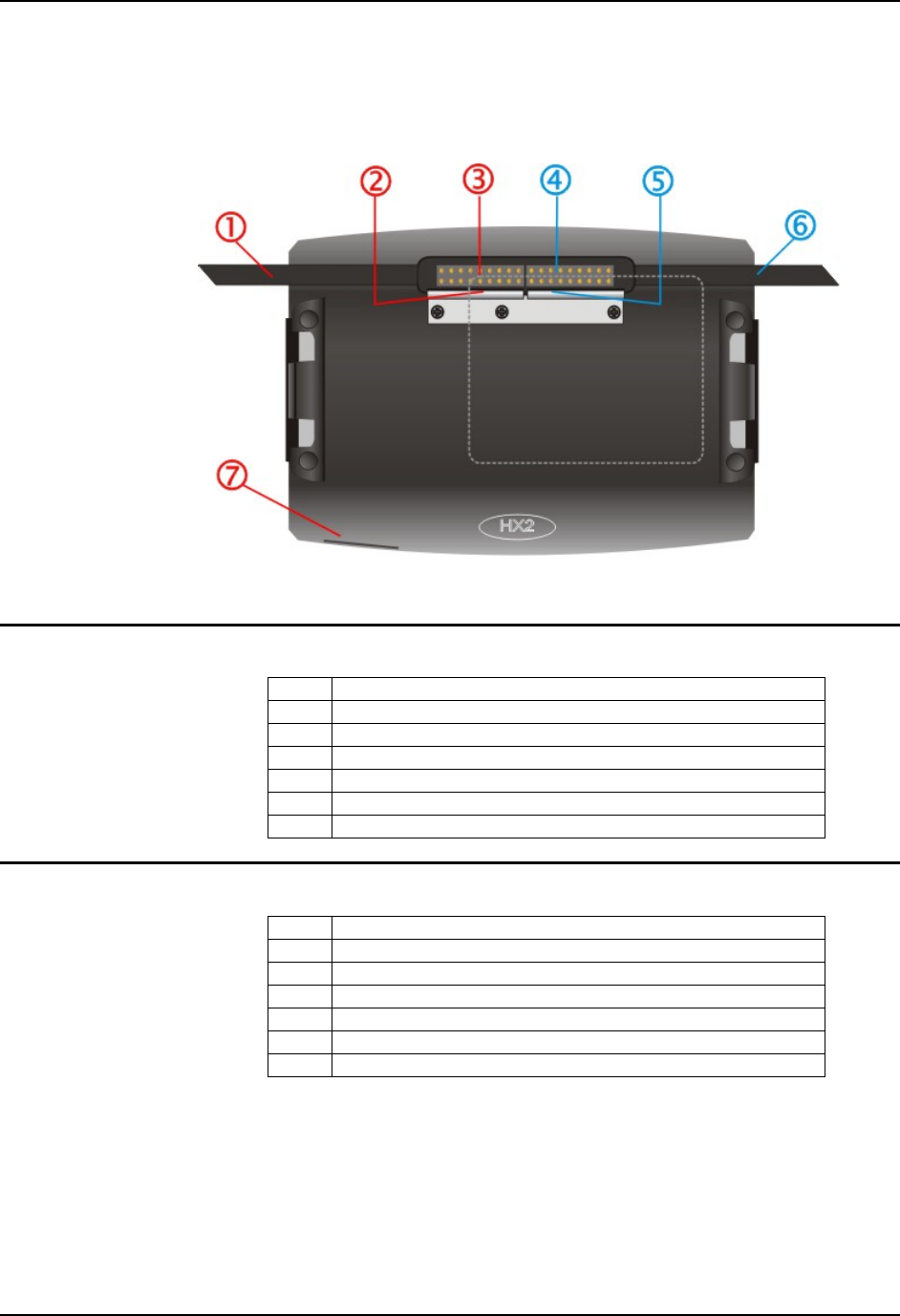

Figure 8 I/O Port and Cables
Cable: Multipurpose RS-232 and Power
MX8A055MULTICBLDA9F
Cable: Multipurpose USB and Power
MX8A052MULTICBLUSB
Adapter/Cable : Audio
MX8A060ADPTCBLVOICE
For Review - Preliminary - Draft 01 - Not for distribution
Components 11
E-EQ-MX8OGWW-A MX8 User’s Guide
MX8 AC Adapter
need pic need pic
AC Adapter AC Power Cable
Figure 9 5V AC Adapter - Assembled
The LXE-approved AC Power Adapter is only intended for use in a 25°C (77°F) maximum
ambient temperature environment.
For Review - Preliminary - Draft 01 - Not for distribution
12 Components
MX8 User’s Guide E-EQ-MX8OGWW-A
Note: Tethered scanners connected to the MX8 I/O port are not supported by LXE.

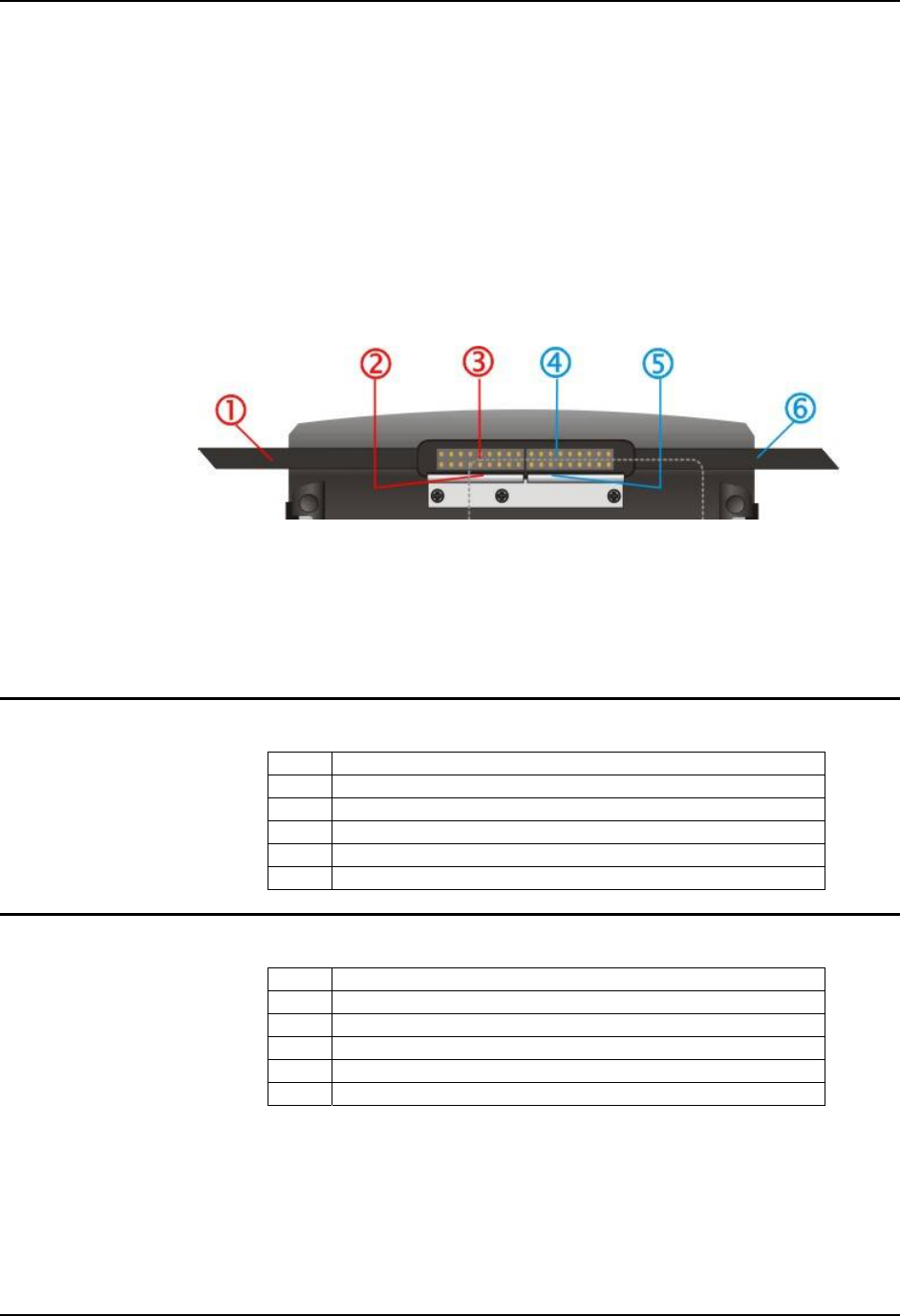

Figure 10 MX8 Cabling Options
For Review - Preliminary - Draft 01 - Not for distribution
E-EQ-MX8OGWW-A MX8 User’s Guide
Quick Start
In Brief . . .
Note: When your mobile device is pre-configured, the client, keypad and scan aperture
configurations are assembled by LXE to your specifications. The desktop will display a
Summit Client Utility icon.
This section’s instructions are based on the assumption that your new device is pre-configured and
requires only accessory installation (e.g. stylus) and a power source. LXE recommends that
installation or removal of accessories be performed on a clean, well-lit surface. When necessary,
protect the work surface, the mobile device, and components from electrostatic discharge.
In general, the sequence of events is:
1. Insert a fully charged battery. (Always put a fully charged battery in the mobile device at the
beginning of the shift or workday.)
2. Connect an external power source to the unit (if available).
3. If the screen does not automatically display, tap the Power key.
4. Calibrate the touchscreen.
5. A white screen will appear during the boot process until all CAB files and applications are
loaded and installed. Radio setup screens may appear and disappear while files are loading.
6. After all files are loaded and the Microsoft Windows CE Desktop is displayed, adjust audio
volume and other parameters if desired.
If needed, change the Time and Date from it’s default value by tapping the | Settings | Control
Panel | Date/Time icon.
Figure 11 MX8 Desktop
For Review - Preliminary - Draft 01 - Not for distribution
14 In Brief . . .
MX8 User’s Guide E-EQ-MX8OGWW-A
Troubleshooting
Can’t calibrate the touch screen,
change the date/time or adjust the
volume.
AppLock is installed and running on the mobile device. AppLock
restricts User access to running programs. Changes or modifications
require Administrator access.
Refer to AppLock in the MX8 Reference Guide for setup and
processing information.
RFterm opens and runs upon each
cold reset and warm reset.
Tap File | Exit to close the RFTerm application. RFTerm opens and
runs by default after every reset.
The MX8 seems to lockup as soon
as it is warm booted.
There may be small delays while the wireless client connects to the
network, authorization for Voxware-enabled applications complete,
Wavelink Avalanche management of the MX8 startup completes, and
Bluetooth relationships establish or re-establish..
Related Manuals for Startup
Integrated Scanner Programming Guide – contains programming barcodes used when setting up
integrated scan engines.
• SE955 scanner barcode reading parameters, refer to Chapter 2 in the Integrated Scanner
Programming Guide.
• Intermec EV-15 linear imager, refer to Chapter 3 in the Integrated Scanner Programming
Guide.
• 5380SF 2D imager, refer to Chapter 4 in the Integrated Scanner Programming Guide.
MX8 Reference Guide – contains instruction, technical and troubleshooting information for
software and hardware functions.
MX8 Multicharger User’s Guide – contains user, technical and troubleshooting information for the
MX8 battery multi-charger.
For Review - Preliminary - Draft 01 - Not for distribution
Inserting Fully Charged Battery 15
E-EQ-MX8OGWW-A MX8 User’s Guide
Inserting Fully Charged Battery
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
ATTENTION
II y a danger d’explosion s’il y a remplacement incorrect de la batterie.
Remplacer uniquement avec une batterie du même type ou d’un type equivalent recommandé par
le constructeur. Mettre au rebut les batteries usagées conformément aux instructions du fabricant.
Press the Power key after the battery is inserted into the MX8.
Note: On first use the MX8 batteries should be charged with an external power source (i.e. AC
Adapter) – 5 hours for the main battery and 7 hours for the backup battery. New main
battery packs alone must be charged prior to first use – this process takes up to five
hours in an LXE Multi-Charger.
Figure 12 Lithium Polymer Battery Pack
The MX8 Battery Compartment is located at the bottom of the back of the computer. The main
battery functions as the battery well cover.
Place the battery in the battery well, making sure the tab on the bottom of the battery pack fits into
the slot at the bottom end of the battery well. Push the battery down into the battery well until the
tab clicks into place and the battery pack is secure in the battery well.
The backup battery is trickle-charged by the main battery. Whenever possible, use the AC power
adapter with the MX8 to conserve the main battery and charge the backup battery.
The Status LED indicates battery condition. It is steady red when the main battery is Low. When
the battery has sufficient energy the Status LED is unlit. The Battery control panel displays main
and backup battery charging and power status ( | Settings | Control Panel | Battery).
Checking Battery Status
Tap the | Settings | Control Panel | Battery icon. Main battery level, backup battery level, status
and other details are displayed.
For Review - Preliminary - Draft 01 - Not for distribution
16 Tapping the Power Key
MX8 User’s Guide E-EQ-MX8OGWW-A
About Lithium-Polymer Batteries
Li-Polymer batteries (like all batteries) gradually lose their capacity over time (in a linear fashion)
and never just stop working. This is important to remember – the MX8 is always ‘on’ even when
in the Suspend state and draws power from the batteries at all times. Tap the | Settings |
Control Panel | Power tab to check the battery status and power reading.
The following chart is an approximation. Actual battery capacity varies based on usage, ambient
temperature and peripherals drawing power from the MX8:
100% capacity 2800 mAh minimum
80% capacity 2280 mAh minimum
Deciding when to put a fully charged main battery pack in the MX8 is difficult to quantify because
it is very application specific. 2000 mAh may be the cutoff for one customer who uses the mobile
device frequently, while 1500 mAh may be perfectly fine for a customer who occasionally uses
the mobile device. You need to determine the point at which battery life becomes unacceptable for
your business practices and replace the main battery pack before that point.
Tapping the Power Key
Note: Refer to the section titled Power Modes in the MX8 Reference Guide for information
relating to the power states of the MX8.
Important: Until the main battery and backup battery are completely depleted, the
MX8 is always drawing power from the batteries (On).
The Power key is located at the bottom of the keypad. When a battery is inserted in the MX8 for
the first time press the Power key.
Tapping the Power key places the MX8 immediately in Suspend mode.
Tapping the Power key again immediately returns the MX8 from Suspend.
or
Tap | Suspend.
Power
Key Power Key Location

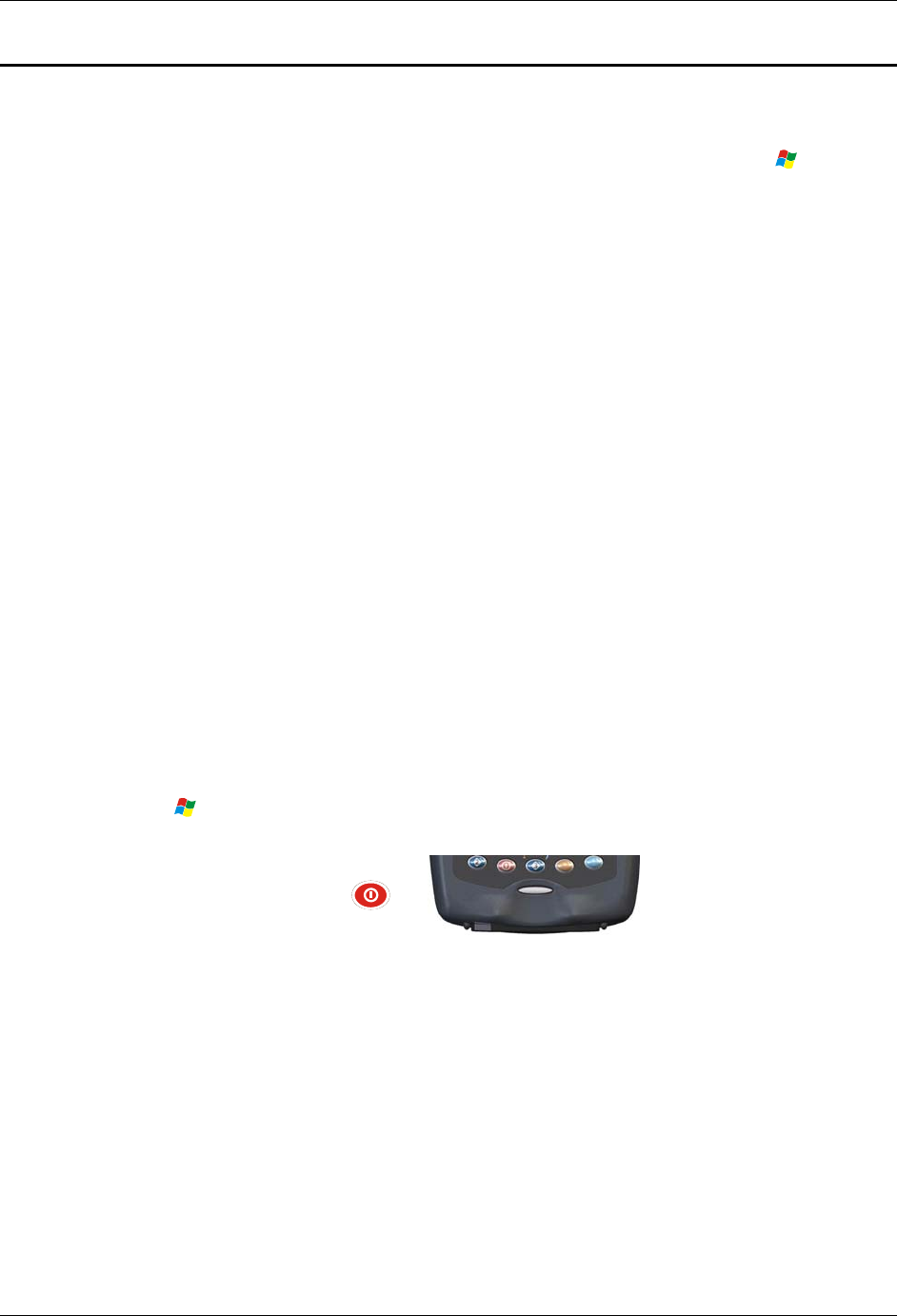

Figure 13 Power Key Location
See Also: LED Indicators and System Status LED later in this guide.
See Also: Reboot Sequence in MX8 Hand Held Computer for reboot options and instruction.
For Review - Preliminary - Draft 01 - Not for distribution
Tapping the Touchscreen with a Stylus 17
E-EQ-MX8OGWW-A MX8 User’s Guide
Tapping the Touchscreen with a Stylus
Note: Always use the point of the stylus for tapping or making strokes on the touchscreen.
Never use an actual pen, pencil, sharp or abrasive object to write on the touchscreen.
Hold the stylus as if it were a pen or pencil. Touch an element on the screen with the tip of the
stylus then remove the stylus from the screen. Place the stylus into the stylus holder when the
stylus is not in use.
Like using a mouse to left-click icons on a desktop computer screen, using the stylus to tap icons
on the touchscreen is the basic action that can:
• Open applications
• Choose menu commands
• Select options in dialog boxes or drop-down boxes
• Drag the slider in a scroll bar
• Select text by dragging the stylus across the text
• Place the cursor in a text box prior to typing in data or retrieving data using the Scan
button or an input/output device connected to the serial port.
• A mouse right-click is performed by holding the stylus down on the touchscreen. A circle
of dots appear and then the right-click operation can be performed. See note.
Note: A “right mouse click” function must be programmed by the customer to accept a Tap and
Hold function. An application can choose to interpret this function as a right mouse click.
LXE does not support non-LXE application programming.
Keypad Shortcuts
Use keyboard shortcuts instead of the stylus:
• Press <Tab> and an <Arrow> key to select a file.
• Once you’ve selected a file, press <Enter> to open the file or press <Alt> then press
<Enter> to open its Properties dialog.
• Press <Del> to delete a file.
• To force the Start menu to display, press <Ctrl> and release, press <Blue> and release,
then press <Esc> (the Alt key).
See the section titled Accessories for the stylus replacement kit part number.
For Review - Preliminary - Draft 01 - Not for distribution
18 Calibrating the Touchscreen
MX8 User’s Guide E-EQ-MX8OGWW-A
Calibrating the Touchscreen
If the touchscreen is not responding properly to stylus taps, you may need to recalibrate the
touchscreen. Recalibration involves tapping the center of a target. If you miss the center, keep the
stylus on the screen, slide it over the target’s center, and then lift the stylus.
If the touchscreen is not accepting taps or needs recalibration, press <Ctrl>+<Blue>+<Alt> to
force the Start Menu to appear.
To recalibrate the screen, select | Settings | Control Panel | Stylus | Calibration tab.
To begin, tap the Recalibrate button on the screen with the stylus.
Figure 14 Touchscreen Recalibration
Follow the instructions on the screen and press the Enter key to save the new calibration settings
or press Esc to cancel or quit.
Set Time Zone (Optional)
Note: The first time it is powered up, or the device returns from a Cold Reset, the MX8 resets
the Time Zone to the factory default values (GMT-05:00 Eastern Time).
To set the Time Zone, tap the Start | Settings | Control Panel | Date/Time icon.
Select the physical time zone. Enable the checkbox next to “Automatically adjust clock for
daylight saving” if applicable.
If required, adjust the time and calendar date and tap the Apply button. Tap the OK button when
you are finished or the X button to ignore any changes.
For Review - Preliminary - Draft 01 - Not for distribution
Entering the AppLock Activation Key 19
E-EQ-MX8OGWW-A MX8 User’s Guide
Entering the AppLock Activation Key
Hotkey (Activation Hotkey)
If the mobile device uses LXE’s AppLock to allow the user to switch between applications, the
default Activation key is <Ctrl>+<Spc>. The key sequence switches the focus between one
application and another. Data entry affects the application running in the foreground only. Note
that the system administrator may have assigned a different key sequence to use when switching
applications.
Touch
Note: The touch panel must be enabled.
Tap the Switchpad taskbar icon to place the popup menu on screen. Tap one of the application
names in the popup menu. The selected application is brought to the foreground while the other
application continues to run in the background. Stylus taps affect the application running in the
foreground only.
For Review - Preliminary - Draft 01 - Not for distribution
20 Optional Accessory Installation
MX8 User’s Guide E-EQ-MX8OGWW-A
Optional Accessory Installation
Attaching Handstrap (Optional)
Note: Either the trigger handle is attached to the MX8 or the handstrap is attached, not both.
LXE recommends that, in the absence of a trigger handle, the handstrap be used at all
times. LXE pre-installs the handstrap on devices that are purchased without a trigger
handle. Refer to the MX8 Reference Guide for instructions on installing the Trigger
Handle (a torque wrench will be required).
Once installed, the handstrap provides a means for the user to secure the computer to their hand. It
is adjustable to fit practically any size hand and does not interfere with the multipurpose cable, if
connected, when the mobile device is in a cradle.
Figure 15 Attaching the Handstrap
1 Handstrap Retainer Bracket
2 Handstrap
3 Handstrap Clip
Tool Required: #1 Phillips Screwdriver (not supplied by LXE)
Installation
1. Place the MX8, with the screen facing down, on a flat stable surface.
2. Attach the handstrap retainer bracket to the MX8 with the screws provided.
3. Slip the Handstrap Clip into the bracket at the base of the MX8.
4. Making sure the closed loop fastener surfaces on the handstrap are facing up, slide the strap
through the pin in the retainer bracket and the clip.
5. Fold each end of the the strap over so that the closed loop fastener surfaces mate evenly.
6. Test the strap's connection making sure the MX8 is securely connected to each end of the
strap connectors.
Check the closed loop fastener, retainer bracket and clip connections frequently. If they have
loosened, they must be tightened before the MX8 is placed into service again. If the handstrap gets
worn or damaged, it must be replaced.
For Review - Preliminary - Draft 01 - Not for distribution
Optional Accessory Installation 21
E-EQ-MX8OGWW-A MX8 User’s Guide
Connecting an External Power Supply (Optional)
The MX8 receives AC/DC power from the AC/DC 5V Power Supply. The MX8 external power
connection is part of the RS-232 cable assembly and the USB cable assembly.
Putting it all together … .
Figure 16 USB – MX8 – Power Assembly
To apply external power to the MX8 follow the steps below in sequence.
1. Plug the 2 prong adapter cable end of the external power module into an AC power source
(e.g. wall outlet).
2. Squeeze the sides of the power connector and push the power cable connector into the
MX8 I/O port until it clicks. The click means the connector is seated firmly.
The System LED above the Scan key illuminates when the MX8 is charging the main battery pack
using external power through the power cable. The backup battery is always being trickle charged
by the main battery pack.
Whenever possible, use the AC power adapter with the MX8 to conserve the main battery power
and maintain a charge in the backup battery.
Assembling the 5V AC Power Adapter
The LXE-approved AC Power Adapter is only intended for use in a 25°C (77°F) maximum
ambient temperature environment.
If the AC power cable is not included with the AC Adapter, please contact your LXE
representative for assistance.
need new pic
Figure 17 AC/DC 5V External Power Supply
Plug the 2-prong cable into an AC wall outlet. Firmly press the female end of the power cable into
the male connector on the power adapter. AC power is now being supplied to the power adapter.
See Accessories for the LXE part number for the AC Power Adapter to use with the MX8.
For Review - Preliminary - Draft 01 - Not for distribution
22 Optional Accessory Installation
MX8 User’s Guide E-EQ-MX8OGWW-A
Connecting the Multipurpose USB / Power Cable
Figure 18 Connect the USB / Power Cable to the MX8 Port
Connector A Squeeze the clips on the connector cable to open the catches in the connector
assembly. Firmly press Connector A into the connector at the base of the MX8.
Release the clips in the connector cable. Test the connection for stability before
connecting to USB
Connector B Firmly push the power cable connector pin into connector B. Plug the 2-prong
cable into an AC wall outlet.
Connector C Insert the USB Type A plug into an appropriate USB port on a desktop/laptop
computer for ActiveSync communication.
Connecting the Multipurpose RS-232 / Power Cable
Figure 19 Connect the RS-232 / Power Cable to the MX8 Port
Connector A Squeeze the clips on the connector cable to open the catches in the connector
assembly. Firmly press Connector A into the connector at the base of the MX8.
Release the clips in the connector cable. Test the connection for stability before
connecting the B or C connector.
Connector B Firmly push the power cable connector pin into connector. Plug the 2-prong cable
into an AC wall outlet.
Connector C Align the RS-232 serial cable end carefully to an appropriate serial port on a
desktop/laptop computer for ActiveSync communication. Press the ends together
and hand tighten the screws on either side of the serial cable until the MX8 is
securely connected to the serial device.
For Review - Preliminary - Draft 01 - Not for distribution
Optional Accessory Installation 23
E-EQ-MX8OGWW-A MX8 User’s Guide
Connecting the Audio Cable and a Headset
See section titled Set the Audio Speaker Volume. Use the Control Panel Mixer applet to set up the
mono headphone. The Summit Client supports mono only.
Note: The audio option draws power from the main battery.
The headset consists of an earpiece, a microphone and an attached cable. The headset attaches to
the audio cable which attaches to the MX8.
Figure 20 Audio Cable and Headset
Connector A Squeeze the clips on the connector cable to open the catches in the connector
assembly. Firmly press Connector A into the connector at the base of the MX8.
Release the clips in the connector cable. Test the connection for stability before
continuing.
Connector B (Optional) Firmly push the power cable connector pin into the MX8 connector.
Plug the 2-prong cable into an AC wall outlet.
Connector C Align Connector C and the headset quick connect cable end. Firmly push the
cable ends together until they click and lock in place.
Adjust Microphone and Secure the Cable
Do not twist the microphone boom when adjusting the microphone.
The microphone should be adjusted to be about two finger widths from your mouth.
Make sure the microphone is pointed at your mouth. Note the small “Talk” label near the
mouthpiece. Make sure the Talk label is in front of your mouth.
The microphone cable can be routed over or under clothing.
Under Clothing
• Leave the cable exposed only at the top of the collar.
• Be sure to leave a small loop of cable to allow movement of your head.
Over Clothing
• Use clothing clips to hold the cable close to your body.
• Tuck the cable under the belt, but leave a small loop where it goes under the belt.
• Do not wear the cable on the front of your body. It may get in your way or get caught on
protruding objects.
For Review - Preliminary - Draft 01 - Not for distribution
24 Using the 32-Key Numeric-Alpha Keypad
MX8 User’s Guide E-EQ-MX8OGWW-A
Using the 32-Key Numeric-Alpha Keypad
1 System Status LED
2 Speaker adjust icon
3 Brightness adjust icon
4 Diamond Keys (Mappable keys)
5 Scan Button
6 Enter Key
7 Orange Key (Sticky Key)
8 Blue Key (Sticky Key)
9 On/Off Button
10 Scan Status LED
Figure 21 The 32-Key Keypad
• When using a sequence of keys that require an alpha key, first press the Alph key. Use the
Shft sticky key or the Caps key sequence (Blue+Tab) for upper case alphabetic characters.
• Pressing the Alph key forces “Alpha” mode for the 2,3,4,5,6,7,8, and 9 keys. The 1 and 0
keys continue to place a 1 and 0 into the text field.
• To create a combination of numbers and letters before pressing Enter, remember to tap the
Alph key to toggle between Alpha and Numeric mode.
• When using a sequence of keys that do not include the Alph key but does include a sticky
key, press the sticky key first then the rest of the key sequence.
The keymaps (keypress sequences) are located in Appendix A – Key Maps.
For Review - Preliminary - Draft 01 - Not for distribution
Entering Data 25
E-EQ-MX8OGWW-A MX8 User’s Guide
Entering Data
You can enter data into the MX8 through several different methods. The scanner aperture provides
barcode data entry, the I/O port is used to input/output data, and the keypad provides manual (or
keyed) data entry.
Mobile devices with a touchscreen use a stylus to input data, the I/O port and/or the keypad. An
input panel (virtual keyboard) is available in applications that expect keyed input.
Using the Keypad
The keypad is used to manually input data that is not collected otherwise. Almost any function that
a full sized computer keyboard can provide is duplicated on the MX8 keypad but it may take a few
more keystrokes to accomplish a keyed task. Please refer to Appendix A – Key Maps for
instruction on the specific keypresses to access all keypad functions.
Almost every key has two or three different functions. The primary alpha or numeric character is
printed on the key.
The Orange or Blue keys are pressed when you want to use a “sticky” key function. For example,
when you press a Blue or Orange key (the sticky key), then press the key that has the desired
second-function key, the second-function key is the “active” key. The specific sticky character is
printed above the corresponding key in either Orange or Blue.
Using the Input Panel or Virtual Keyboard
The virtual keyboard is always available when needed e.g. text field input. Tap the keyboard icon
at the bottom of the screen to put the virtual keyboard on the display. Using the stylus:
• Tap the Shift key to type one capital letter.
• Tap the CAPS key to type all capital letters.
• Tap the au key to access symbols.
Figure 22 Input Panel / Virtual Keyboard
Some applications do not automatically display the Input Panel. In this case, do the following to
use the Input Panel:
1. Tap the Input Panel/Virtual Keyboard icon in the taskbar.
2. Select Keyboard from the menu.
3. Tap the data entry area on the display when you want to enter data using the Input Panel.
For Review - Preliminary - Draft 01 - Not for distribution
26 Entering Data
MX8 User’s Guide E-EQ-MX8OGWW-A
Using the Stylus
Note: This section is directed to the MX8 daily user. The assumption is that the mobile device
has been configured and the touch panel calibrated by the System Administrator prior to
releasing the MX8 for daily use. The touch screen should be calibrated before initial use.
The stylus performs the same function as the mouse that is used to point to and click elements on a
desktop computer. The stylus is used in the same manner as a mouse – single tap or double tap to
select menu options, drag the stylus across text to select, hold the stylus down to activate slider
bars, etcetera.
Hold the stylus as if it were a pen or pencil. Touch an element on the screen with the tip of the
stylus then remove the stylus from the screen. Place the stylus into the stylus holder when the
stylus is not in use.
The stylus can be used in conjunction with the keyboard and scanner and an input/output device
connected to the serial port.
• Touch the stylus to the field of the data entry form to receive the next data feed.
• The cursor begins to flash in the field.
• The unit is ready to accept data from either the physical keypad, virtual keyboard, an
input/output device connected to the serial port or the integrated scan aperture.
Note: Always use the point of the stylus for tapping or making strokes on the display. Never use
an actual pen, pencil or sharp object to write on the touch screen.
For Review - Preliminary - Draft 01 - Not for distribution
Entering Data 27
E-EQ-MX8OGWW-A MX8 User’s Guide
Using the Integrated Barcode Scanner or Imager
Use the integrated laser scanner to scan linear barcodes.
Use the EV-15 integrated imager to scan 1D linear barcodes.
Use the 5380SF integrated imager to scan 2D barcodes.
• Read all cautions, warnings and labels before using the laser scanner.
• Do not look into the laser’s lens.
• Do not stare directly into the laser beam.
Barcode Scanner
To scan with the integrated laser barcode reader, point the scan aperture towards a barcode and
press the Scan button. You will see a red beam strike the barcode. Align the beam so that the
barcode is centered within the beam. The laser beam must cross the entire barcode. Move the MX8
towards or away from the barcode so that the barcode takes up approximately two-thirds the width
of the beam.
There may be a tactile response combined with the Scan functions.
Laser
Correct Scan Incorrect Scan Incorrect Scan
Figure 23 Laser Scanner Beam on Linear Barcode
2D Imager
Figure 24 Imager Bracketed Crosshair Target on 2D Barcode
To scan with the integrated imager, point the scan aperture towards a 2D barcode and press the
Scan button. You will see a bracketed crosshair strike the barcode. Align the brackets so that the
center of the barcode is covered by the crosshair.
Move the MX8 towards or away from the barcode until a response is received by the MX8 (beep,
tactile response, etc) or the bracketed crosshair times out and disappears.
For Review - Preliminary - Draft 01 - Not for distribution
28 Entering Data
MX8 User’s Guide E-EQ-MX8OGWW-A
Scan Status LED
Figure 25 Scan Status LED
The Scan Status LED (oval shaped LED below keypad) turns red when the laser beam is on.
Following a barcode scan and read the Scan Status LED turns green for two seconds and the MX8
beeps or vibrates, indicating a successful scan. If the scan was unsuccessful, the Scan Status LED
turns off and a different beep sequence is heard.
The laser engine and Scan Status LED automatically turn off after a successful read, or after the
timer expires after an unsuccessful read. The scanner / imager is ready to scan again after the Scan
key (or trigger on the handle if installed) is released, or after the Scan Status LED turns off
following a successful scan.
The Scan Status LED turns amber when scanner/imager programming changes, if any, are being
saved. When the LED is off, the MX8 is ready to scan again.
Tethered Scanners
Tethered scanners cabled to the MX8 I/O port are not supported by LXE.
Bluetooth Scanners and Printers
Bluetooth scanners are paired to the MX8 wirelessly using the MX8 Bluetooth wireless client.
Only LXE Bluetooth scanners and LXE Bluetooth printers are supported by LXE. See
Accessories.
Voice Data
Data is entered into the MX8 by speaking into the headset’s microphone when prompted. Please
contact your System Administrator if assistance is needed with the voice software.
For Review - Preliminary - Draft 01 - Not for distribution
Bluetooth Devices 29
E-EQ-MX8OGWW-A MX8 User’s Guide
Bluetooth Devices
Assumption: The System Administrator has Discovered and Paired targeted Bluetooth
devices for each MX8. The System Administrator has also enabled / disabled Bluetooth settings
and assigned a Computer Friendly Name for each MX8. See the MX8 Reference Guide for
information and instruction on the MX8, Bluetooth control panel applet and supported LXE
Bluetooth printers and scanners.
The Bluetooth taskbar Icon state and Bluetooth scanner LED states change as Bluetooth devices
are discovered, pair, connect and disconnect. There may be audible or visual signals as paired
devices re-connect with the MX8. Non-LXE Bluetooth devices may be discovered but are
inaccessible as they are filtered out on the Bluetooth Devices panel and are not displayed (see
MX8 Reference Guide for details).
Taskbar Icon Legend
Bluetooth module is connected to one or more of the targeted Bluetooth
device(s).
MX8 is not connected to any Bluetooth device.
MX8 is ready to connect with any Bluetooth device.
MX8 is out of range of all paired Bluetooth device(s). Connection is inactive.
Note: When an active paired device, not the MX8, enters Suspend Mode, is turned Off or leaves
the MX8 Bluetooth scan range, the Bluetooth connection between the linked device and
the MX8 is lost. There may be audible or visual signals as paired devices disconnect from
the MX8.
Notes:
• The MX8 does not have a Bluetooth managed LED.
• The LED on the Bluetooth scanner illuminates during a scanning operation; the Scan LED
on the MX8 does not illuminate.
• Barcode data captured by the Bluetooth scanner is manipulated by the settings in the MX8
Scanner Properties control panel applet.
• Multiple beeps may be heard during a barcode scan using the Bluetooth scanner; beeps
from the Bluetooth scanner as the barcode data is accepted/rejected, and other beeps from
the MX8 during final barcode data manipulation.
See Accessories for supported Bluetooth printers and scanners.
AppLock, if installed, does not stop the end-user from using Bluetooth, nor does it stop authorized
Bluetooth devices from pairing with the MX8 while AppLock is in control.
For Review - Preliminary - Draft 01 - Not for distribution
30 Getting Help
MX8 User’s Guide E-EQ-MX8OGWW-A
Getting Help
All LXE user guides are now available on one CD and they can also be viewed/downloaded from
the LXE ServicePass website. Contact your LXE representative to obtain the LXE Manuals CD.
You can also get help from LXE by calling the telephone numbers listed on the LXE Manuals CD,
in the file titled Contacting LXE. This information is also available on the LXE website.
Explanations of terms and acronyms used in this guide are located in the file titled LXE Technical
Glossary on the LXE Manuals CD and the LXE ServicePass website.
Manuals
MX8 Reference Guide
MX8 Multi-Charger / Analyzer User’s Guide
LXEbook – MX8 User’s Guide (download to mobile device)
RFTerm Reference Guide
LXE Security Primer
CE API Programmers Guide
Integrated Scanner Programmers Guide
Accessories – please verify
Note: Items with a Green letter R in the second column are ROHS-compliant. Please contact
your LXE representative when ordering ROHS-compliant items as the part number may
have changed. Items without the letter R may have received ROHS-compliance after this
guide was published.
MX8 Main Battery, Lithium Polymer R MX8A380BATT
4 Unit Main Battery Charger (US power cord) R MX8A385CHGR5US
4 Unit Main Battery Charger (no power cord) R MX8A386CHGR5WW
MX8 Passive vehicle cradle. Does not support charging or
communication. U-Bracket included. R MX8A007VMCRADLE
RAM mount kit for MX8 Vehicle Bracket. This kit does NOT include
the Cradle. Attaches to U-Bracket. R MX8A001RAMBRKT
Replacement MX8 Hand Strap R MX8A401HANDSTRAP

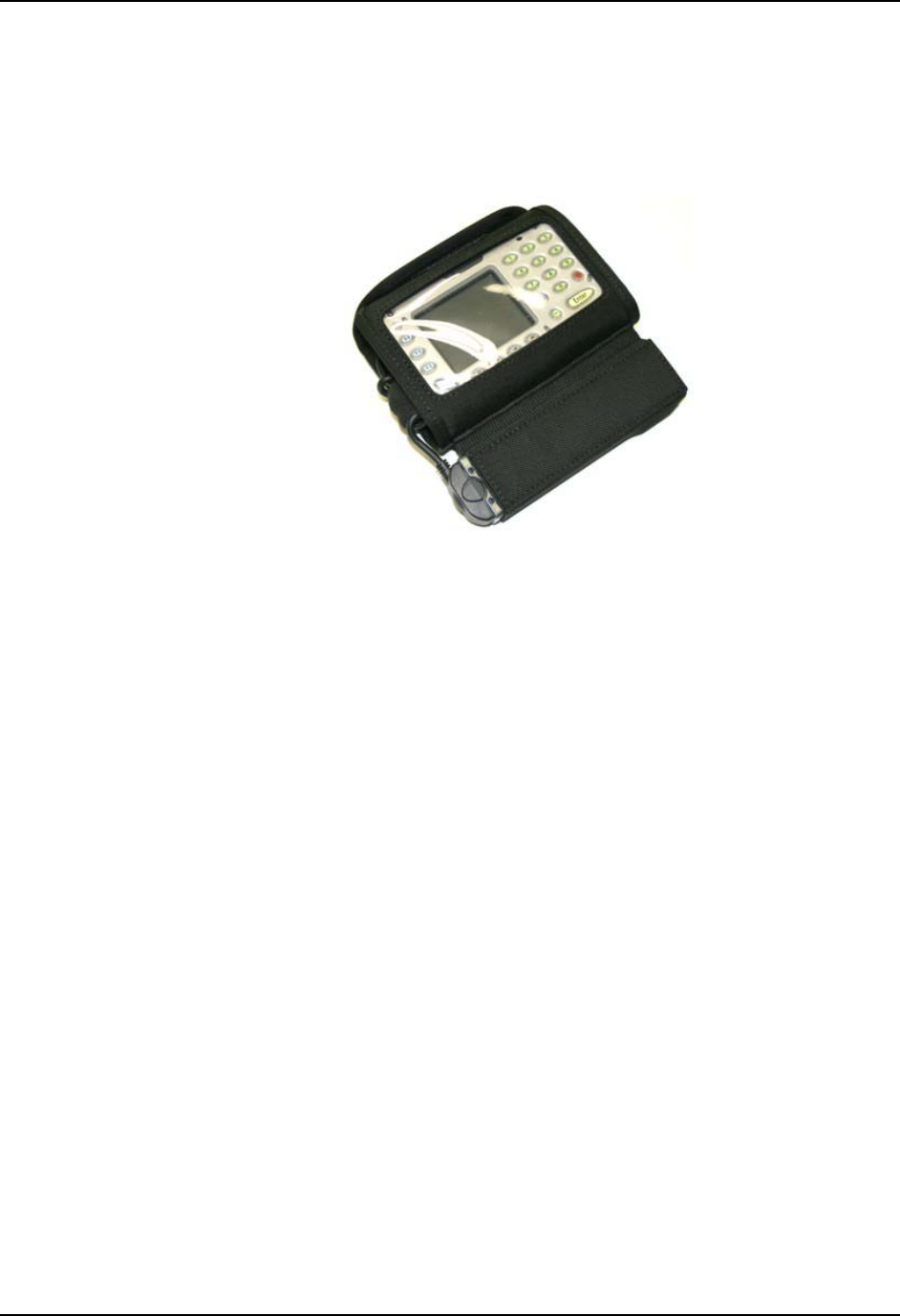

Carry case for MX8 with no handle, includes shoulder strap R MX8A402CASENHDL
Carry case for MX8 with handle, includes shoulder strap R MX8A403CASEHDL
MX8 Voice Application case with belt R MX8A404CASEVRNHDL
Holster for MX8 with handle, belt NOT included R MX8A405HOLSTERHDL
MX8 Padded handle with rubber overmold and two finger trigger,
includes wrist strap R MX8A406HANDLE
Holster for MX8 with no handle, belt not included R MX8A407HOLSTERNHDL

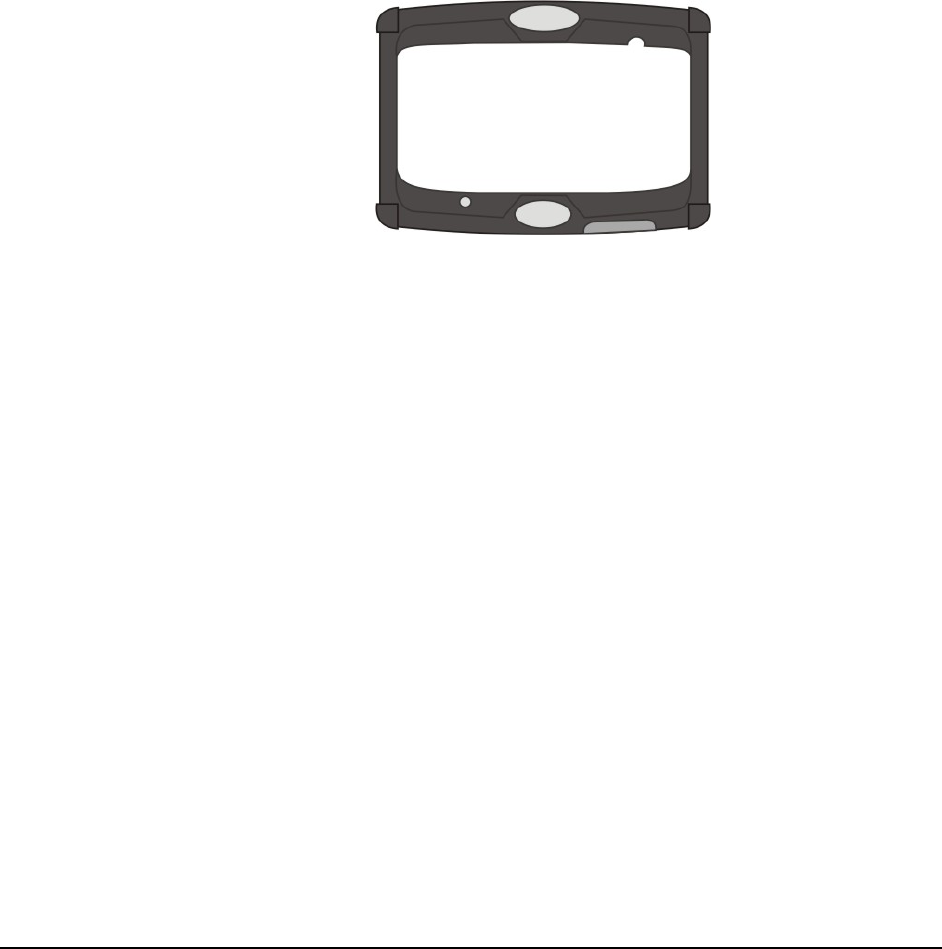

Black rubber protective boot R MX8A488PROTBOOT
Yellow rubber protective boot R MX8A489PROTBOOTYEL
Carry case for MX8 with Gearkeeper retractor R MX8A408RETRACTORCASE
For Review - Preliminary - Draft 01 - Not for distribution
Getting Help 31
E-EQ-MX8OGWW-A MX8 User’s Guide
Non-handle holster that fits MX8 with boot R MX8A409HOLSTERWBOOT
Holster belt R 9200L67
MX8 Charge/Comm Interface Cable, USB Client for ActiveSync R MX8A052MULTICBLUSB
MX8 Charge/Comm Interface Cable, RS-232 Serial ActiveSync, D9
Female R MX8A055MULTICBLDA9F
AC/DC power supply with US power cord for use with MX8
Charge/Comm cables R 9000A319PSACUS
AC/DC power supply without power cord for use with MX8
Charge/Comm cables R 9000A302PSACWW
RS-232 Serial Adapter cable, 6in, for use with printers that provide their
own source of power. R MX8A058ADPTCBLPER
MX8 Headset coiled adapter cable, includes quick disconnect headset
connector. A headset is still required. R MX8A060ADPTCBLVOICE
MX8 Replacement Stylus , 10-pack R MX8A584STYLUS
Large tethered stylus which fit the MX8 carry cases, 5 pack R 9000A507STYLUS
CD with CE 5.0 API’s and LXE API’s with documentation for custom
application development R MX8A504CE50SDK
Touch screen anti-glare anti-reflective protective film, 10 pack R MX8A584PROTFILM
VoxBrowser™ English & Americas VOXBROWSER ENG
VoxBrowser™ Rest-of-the-World VOXBROWSER ROW
Single ear, single headband, headset with noise canceling microphone,
includes 5 replacement windscreens HX1A501SNGBHEADSET
Single ear, dual headband, headset with noise canceling microphone,
includes 5 replacement windscreens HX1A502DUALBHEADSET
Dual ear, behind the head, headset with noise canceling microphone,
includes 5 replacement windscreens HX1A503BTHHEADSET
Replacement foam block for 502 dual band headsets, qty 1 HX1A504AHSBLOCKFOAM
Replacement head yoke for dual band 502 headset, qty 1 HX1A505DUALYOKE
Replacement head yoke for single band 501 headset, qty 1 HX1A506SINGLEYOKE
Replacement windscreen for all headset microphones, 10 Pack HX1A508WINDSCREEN10
Replacement windscreen for all headset microphones, 50 Pack HX1A509WINDSCREEN50
Replacement foam ear piece cover for 501 and 502 headsets, 10 pack HX1A510FOAMEAR10
Replacement foam ear piece cover for 501 and 502 headsets, 50 pack HX1A511FOAMEAR50
For Review - Preliminary - Draft 01 - Not for distribution
32 Getting Help
MX8 User’s Guide E-EQ-MX8OGWW-A
For Review - Preliminary - Draft 01 - Not for distribution
E-EQ-MX8OGWW-A MX8 User’s Guide
The MX8 Hand Held Computer
Reboot Sequence
When the Windows CE desktop is displayed or an application begins, the power up (or reboot)
sequence is complete. If you have previously saved your settings, they will be restored on reboot.
Application changes are saved when OK is clicked on an application applet.
Warm Reset
There are two methods for the Warm Reset.
1. Using the input panel, you can tap | Run and type WARMBOOT. Tap the OK button.
2. Hold down the Power key and the Enter key until the screen blanks. Release the keys and the
MX8 resets.
Data not saved is lost.
Cold Reset
Important:-- Because of the extreme nature of the Cold Reset, LXE recommends that the Cold
Reset be used only as an emergency procedure and the Warm Reset be used whenever
necessary.
There are two methods for the Cold Reset.
1. Tap | Run and type COLDBOOT.EXE. Tap the OK button to coldboot the MX8. The
default settings are restored when the device powers on again.
2. Hold down the Scan key, Blue function key and the Power key until the screen blanks.
Release the keys and the default settings are restored when the device powers on again.
Calibrating the touchscreen will need to be performed when the cold boot process is complete.
If needed, change the MX8 Time and Date from it’s factory default value by tapping the |
Settings | Control Panel | Date/Time icon.
Saving Changes to the Registry – process still true?
The MX8 saves the registry when you:
• Tap the | Run | and type Warmboot.
• Perform a Suspend / Resume function (by pressing the Pwr key and then pressing it
again).
The registry save process takes 5 – 10 seconds.
The registry is automatically saved every 20 minutes. It is also saved every tenth time the registry
settings are changed. Registry settings are changed when control panel applet (e.g. Date/Time)
parameters are changed by the user and a warm boot was not performed afterward.
When you tap | Run | and type Coldboot, factory default registry settings are loaded. All user
changes and settings are lost.
For Review - Preliminary - Draft 01 - Not for distribution
34 Touchscreen Display
MX8 User’s Guide E-EQ-MX8OGWW-A
Touchscreen Display
Figure 26 Touchscreen Display
The touchscreen display is an active color LCD unit capable of supporting VGA graphics modes.
Display size is 240 x 320 pixels or ¼ VGA in portrait orientation. The covering is designed to
resist stains. The touchscreen allows signature capture and touch input. A pen stylus is included
with the handstrap and the trigger handle. The touchscreen responds to an actuation force (touch)
of 4 oz. of pressure (or greater).
The color display is optimized for indoor lighting. The display is black when the mobile device is
in Suspend mode or when both batteries have expired and the unit is Off.
See section titled Calibrating the Touchscreen in the Quick Start section for touchscreen
calibration instruction. See the MX8 Reference Guide for full instruction.
Cleaning the Glass Display/Beam Aperture
Note: These instructions are for components made of glass. If there is a removable protective
film sheet on the display screen, remove the film sheet before cleaning the screen.
Keep fingers and rough or sharp objects away from the scan aperture and display. If the glass
becomes soiled or smudged, clean only with a standard household cleaner such as Windex®
without vinegar or use Isopropyl Alcohol. Do not use paper towels or harsh-chemical-based
cleaning fluids since they may result in damage to the glass surface. Use a clean, damp, lint-free
cloth. Do not scrub optical surfaces. If possible, clean only those areas which are soiled.
Lint/particulates can be removed with clean, filtered canned air.
Applying the Protective Film to the Display
First, clean the display of fingerprints, lint particles, dust and smudges.
Remove the protective film from its container. Remove any protective backing from the film sheet
by lifting the backing from a corner of the film. Discard the backing.
Apply the film to the screen starting at one side and smoothing it across the display. If air bubbles
appear, raise the film slightly and continue smoothing the film across the display until it covers the
glass surface of the display.
If dust, lint or smudges are trapped between the protective film and the glass display, remove the
protective film, clean the display and apply the protective film again.
For Review - Preliminary - Draft 01 - Not for distribution
Adjusting the Display Backlight 35
E-EQ-MX8OGWW-A MX8 User’s Guide
Adjusting the Display Backlight
Set the Display Backlight Timer
Select | Settings | Control Panel | Display | Backlight tab. Change the parameter values and tap
OK to save the changes.
Figure 27 Setting the Display Backlight Timer
The first option affects the mobile device when it is running on battery power only. The second
option affects the device when it is running on external power (e.g. AC adapter).
The default value for the battery power timer is 3 seconds. The default value for the external
power timer is 2 minutes. The backlight will remain on all the time when both checkboxes are
blank.
The display backlight timer dims the backlight at the end of the specified time.
For Review - Preliminary - Draft 01 - Not for distribution
36 Setting the Power Schemes Timers
MX8 User’s Guide E-EQ-MX8OGWW-A
Setting the Power Schemes Timers
Note: Refer to the section titled Power Modes in the MX8 Reference Guide for information
relating to the power states of the mobile device.
Select | Settings | Control Panel | Power | Schemes tab. Change the parameter values and tap
OK to save the changes.
Battery Power Scheme
Use this option when the device will be running on battery power only.
Switch state to User Idle: Default is After 3 seconds
Switch state to System Idle: Default is After 15 seconds
Switch state to Suspend: Default is After 5 minutes
AC Power Scheme
Use this option when the device will be running on external power (e.g. AC adapter).
Switch state to User Idle: Default is After 2 minute
Switch state to System Idle: Default is After 2 minutes
Switch state to Suspend: Default is After 5 minutes
These mode timers are cumulative. The System Idle timer begins the countdown after the User
Idle timer has expired and the Suspend timer begins the countdown after the System Idle timer has
expired. When the User Idle timer is set to “Never”, the power scheme timers never place the
device in User Idle, System Idle or Suspend modes (even when the device is idle).
Because of the cumulative effect, and using the Battery Power Scheme Defaults listed above:
• The backlight turns off after 3 seconds of no activity,
• The display turns off after 18 seconds of no activity (15sec + 3sec),
• And the device enters Suspend after 5 minutes and 18 seconds of no activity.
For Review - Preliminary - Draft 01 - Not for distribution
Setting The Audio Speaker Volume 37
E-EQ-MX8OGWW-A MX8 User’s Guide
Setting The Audio Speaker Volume
Note: An application may override the control of the speaker volume. Turning off sounds saves
power and prolongs battery life.
The speaker is located on the front of the device above the MX8 logo. The audio volume can be
adjusted to a comfortable level for the listener. The volume is increased or decreased one step each
time the volume key sequence is pressed. The device has an internal speaker and a jack for an
external headset. Operational “beeps” are emitted from the speaker.
Using the Keypad
Note: Volume & Sounds (in Settings|Control Panel) must be enabled before the following key
sequences will adjust the volume.
To adjust speaker volume:
• Tap the Orange key then the Scan key to enter Volume change mode.
• Use the Up Arrow and Down Arrow keys to adjust volume until the speaker volume is
satisfactory.
• Press the Enter key to exit this mode.
Using the Touchscreen
Figure 28 Volume & Sounds Properties
Tap | Settings | Control Panel | Volume & Sounds | Volume tab. Change the volume setting and
tap OK to save the change. You can also select / deselect sounds for key clicks and screen taps and
whether each is loud or soft.
As the volume scrollbar is moved between Loud and Soft, the computer will emit a tone each time
the volume increases or decreases in decibel range.
For Review - Preliminary - Draft 01 - Not for distribution
38 The Keypad
MX8 User’s Guide E-EQ-MX8OGWW-A
The Keypad
The keypad is installed and configured by LXE to your specifications.
Figure 29 The 32-key Keypad
See Appendix A – Key Maps for instruction on the specific keypresses to access all keypad
functions.
LED Indicators
System Status
The System Status LED is located at the top left of the keypad, above the Scan button.
When the LED is . . . The Status is . . . Comment
Blinking Red Power Fail
Replace the main battery with a fully charged
main battery.
Or
Connect the MX8 to external AC power.
Steady Red Main Battery Low
Low Battery Warning. Replace the main
battery with a fully charged main battery.
Or
Connect the MX8 to external AC power.
For Review - Preliminary - Draft 01 - Not for distribution
The Keypad 39
E-EQ-MX8OGWW-A MX8 User’s Guide
When the LED is . . . The Status is . . . Comment
Blinking Green Display Off No user intervention required.
No Color Good No user intervention required.
Scan Status
The Scan Status LED is located below the MX8 keypad.
When the Scan Status LED is . . . The Status is . . .
Steady Green Good Scan
Steady Red Scan in Progress
Amber ?? Scanner/imager programming changes are being saved.
No Color Scanner/Imager ready for use.

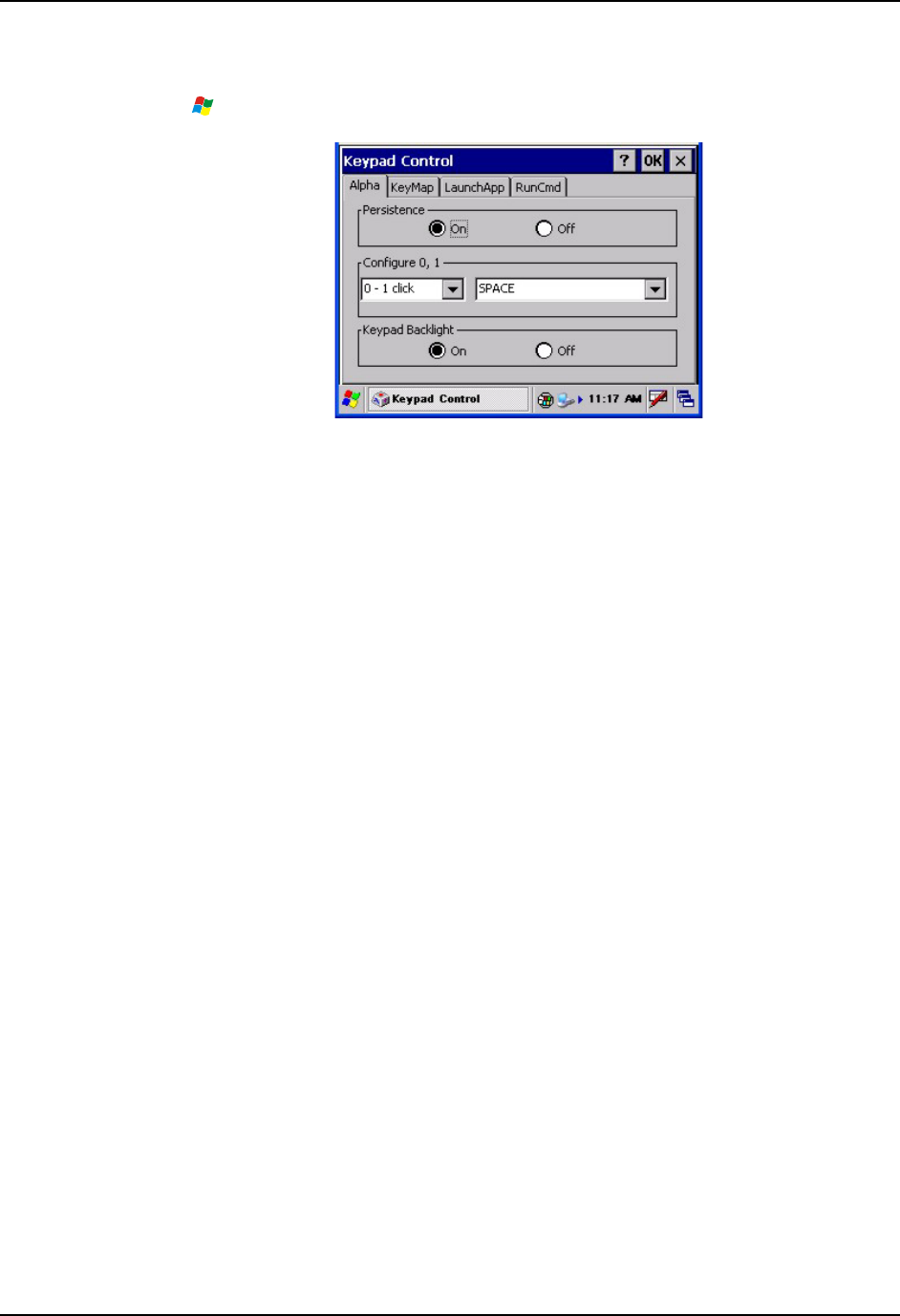

Alpha Mode
The Alpha Mode LED is located beside the <F5> key on the 32-key keypad.
When the Alph LED is . . . The Status is . . .
Steady Green Device is in “Alpha” character input mode.
No Color Device is in “Numeric” key input mode.
Standard Keys
See Also: Appendix A – Key Maps
Scan The integrated scanner/imager scans only when the Scan button is pressed (or
when the scan trigger is pressed on the optional trigger handle).
Enter The Enter key is used to confirm a forms entry or to transmit information. How it
is used is determined by the application running on the mobile device.
Diamond The Diamond key(s) can be programmed to duplicate a single keypress (as defined
by Windows CE) with the exception of the Shift, Alt and Ctrl key.
Numeric The number keys are used to add numbers to data entry fields.
Alpha The alpha keys are used to add letters and characters to data entry fields.
Space
The Spc key adds a space to the line of data on the display. This function is similar
to a regular keyboard’s Spacebar. Note that the Spc key only stays active for one
keystroke.
For Review - Preliminary - Draft 01 - Not for distribution
40 The Keypad
MX8 User’s Guide E-EQ-MX8OGWW-A
Function Keys
Sticky Keys
The Sticky Key feature allows the user to activate multi-keypress combinations with one finger.
Ctrl (Control key)
A Control sticky keypress stays active until the Control key is pressed again. The Control
key enables the control functions of the keypad. This function is similar to a regular keyboard’s
Control key. Each time you need to use a Control function, you need to press the Ctrl key before
pressing the desired key.
Alt (Alternate key)
An Alt sticky keypress stays active until the Alt key is pressed again. The Alt key enables
the alternate functions of the keypad. This function is similar to a regular keyboard’s Alt key. Each
time you need to use an alternate function, you need to press the Alt key before pressing the
desired key.
Shft (Shift key)
A Shift keypress ends a sticky key function. The Shft key enables the shifted functions of
the keypad. This function is similar to a regular keyboard’s Shift key. Note that the Shift key only
stays active for one keystroke. Each time you need to use a Shifted function, you need to press the
Shft key before pressing the desired key.
When the Shft key is pressed the next key is determined by the major key legends, i.e., the alpha
keys display lower case letters -- when CAPS is On alpha characters are capitalized. For example,
when CAPS is On and the Shft key and the G key are pressed, a lower case g is displayed.
Orange and Blue Keys
/ The Orange and Blue keys are sticky keys that, when tapped, activate the second
functions of the keypad. Printed above many keys are small characters, in either orange (on the left
side of the key) or blue (on the right side of the key), that represent the second function of that
key. Using the sticky key activates the second key function.
Note that the blue and orange sticky keys only stay active for one keystroke. Each time you need
to activate a second function you must press the Orange or Blue key. To cancel a sticky key
function before pressing another key, press the same sticky key again.
Orange Key
Tap the Orange key to enter “orange” mode. Tap it again to cancel “orange” mode. If you were in
“blue” mode before you pressed the Orange key, blue mode is cancelled and you enter Orange
mode.
Blue Key
Tap the Blue key to enter “blue” mode. Tap it again to cancel “blue” mode. If you were in
“orange” mode before you pressed the Blue key, orange mode is cancelled and you enter Blue
mode.
For Review - Preliminary - Draft 01 - Not for distribution
The Keypad 41
E-EQ-MX8OGWW-A MX8 User’s Guide
CapsLock Mode Function
The CapsLock key sequence is Blue key then the <Tab> key.
This function is similar to a regular keyboard’s CapsLock key. Note that the CapsLock mode stays
active until the CapsLock key sequence is pressed again. Each time you need to use a Caps
function, you need to press the Caps key sequence first. To cancel a CapsLock function press the
Caps key sequence again.
Example: 2 B or Not 2 B
To put the number 2 in a text entry field: Tap the <2> key once.
To put a lowercase “b” in a text field: Tap the <Alph> key, then tap the <2> key twice.
To put an uppercase “B” in a text field: Tap the <Alph> key, tap the <Shft> key or the
<CapsLock> key, then tap the <2> key twice.
To enter a string of letters in a text field, tap the <Alph> key to toggle it On. It remains active until
it is tapped again and toggled off.
To enter a string of numbers in a text field, make sure the <Alph> key is toggled off.
For Review - Preliminary - Draft 01 - Not for distribution
42 Batteries
MX8 User’s Guide E-EQ-MX8OGWW-A
Batteries
Note: New batteries must be charged prior to use. If the main battery and backup battery are
depleted, the mobile device reverts to factory default values. Wireless configuration
parameters will need to be re-entered after reverting to factory default values. The
backup battery is continually recharged by the main battery pack.
The mobile device is designed to work with a replaceable 3000 mAh Lithium-Polymer (Li-Poly)
battery pack from LXE. Under normal conditions it should last approximately eight to ten hours
before requiring a recharge. During very heavy scanning or RF transmitter use, the operating time
of the battery may be less. The operating system keeps date and time valud for a minimum of four
days using a fully charged backup battery and a main battery pack installed that has reached the
Low Warning point. The status indicator is illuminated when the backup battery is being charged
by the main battery pack.
Main Battery
Figure 30 Lithium Polymer Battery Pack
1. Contacts, Battery Charging
2. Tab
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
ATTENTION
II y a danger d’explosion s’il y a remplacement incorrect de la batterie.
Remplacer uniquement avec une batterie du même type ou d’un type equivalent recommandé par
le constructeur. Mettre au rebut les batteries usagées conformément aux instructions du fabricant.
The main battery has a rugged plastic enclosure that is designed to withstand the ordinary rigors of
an industrial environment. Exercise care when transporting the main battery making sure it does
not come in contact with excessive heat or any power source other than an MX8 MultiCharger or
the mobile device.
A new main battery pack can be fully charged in 5 hours when it is in an MX8 connected to AC
power and 5 hours when it is in the MX8 multi charger.
For Review - Preliminary - Draft 01 - Not for distribution
Batteries 43
E-EQ-MX8OGWW-A MX8 User’s Guide
Backup Battery
The internal 80mAh Nickel Metal Hydrate (NiMH) backup battery provides power to the device
for a short amount of time when the main battery has been depleted, removed or has failed. The
backup battery status and conditioning is available using | Settings | Control Panel | Battery.
The backup battery is charged by the main battery pack only.
Recharging maintains the battery near full charge at all times. If the backup battery is completely
discharged, it may take up to 5 hours to recharge. The capability to discharge the backup battery is
provided to allow the user to condition the battery in order to recover fully backup batttery
capacity.
Backup battery replacement must be performed by qualified service personnel. The backup battery
has a minimum 2 years service life.
Note: An uninterrupted external power source (wall AC adapters) transfers power to the
computer’s internal charging circuitry which, in turn, recharges the main battery and
backup battery. Frequent connection to an external power source, if feasible, is
recommended to maintain backup battery charge status as the backup battery cannot be
recharged by a dead or missing main battery.
Battery Hotswapping
Important: When the backup battery power is Low or Very Low ( | Settings | Control Panel |
Power | Battery tab) connect the AC adapter to the MX8 before replacing the main battery pack.
Replace the main battery pack after first pressing the Power key and placing the MX8 in Suspend
Mode. LXE recommends any work in progress be saved prior to replacing the main battery pack.
Simply replace the discharged main battery with a fully-charged main battery. A fully charged
backup battery will retain data during a main battery hotswap for 5 minutes.
Warning: Never replace the main battery in a hazardous location.
For Review - Preliminary - Draft 01 - Not for distribution
44 MX8 Battery Multi-Charger
MX8 User’s Guide E-EQ-MX8OGWW-A
MX8 Battery Multi-Charger
– need data (battery retaining clip described in instructions)
The MX8 Multi-Charger is not approved for use in a Hazardous Location.
Charge a Main Battery Pack
The main battery pack can be charged while it is in the MX8 (connected to an AC power supply)
or while it is in the LXE MX8 Multi-Charger.
Please refer to the MX8 Multi-Charger User’s Guide for instruction.
The multi-charger requires an external power source before battery pack charging/analyzing can
commence.
The external Power Supply for the Multi-charger is shipped with the multi-charger.
MX8 Multi-Chargers are not approved for use in Hazardous Locations.
need pic

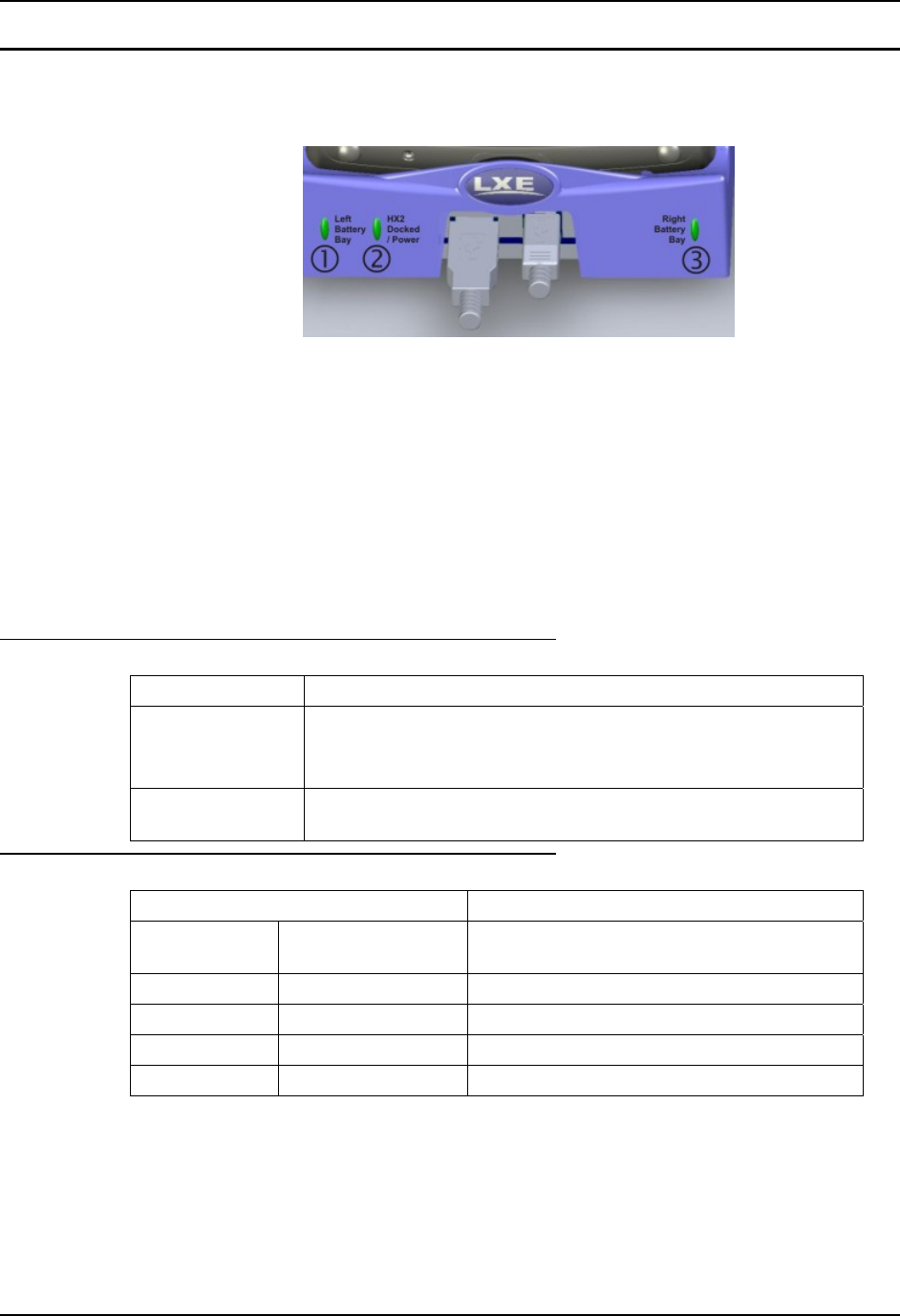

Figure 31 MX8 Multi-Charger / Analyzer
1 Front 4 Power Connection
2 Battery Charging Pocket 5 LCD Display
3 LED Indicators
need pic
Figure 32 Insert Battery Pack in Charging Pocket
1. Battery Well
2. Retaining Clip
3. Battery Charging Contacts
Lower the battery pack straight into the battery charger pocket and push it down firmly. Do not
"slam" the battery into the charging cup or drop it into the cup.
Failure to follow these instructions can result in damage to the main battery or the charger.
Please refer to the MX8 Multi-charger User’s Guide for technical information and
operating instructions.
For Review - Preliminary - Draft 01 - Not for distribution
Passive Vehicle Mount Cradle 45
E-EQ-MX8OGWW-A MX8 User’s Guide
Passive Vehicle Mount Cradle
A passive vehicle mount cradle is available for the MX8. The cradle restrains the MX8. The
passive cradle does not have an external device connector e.g. power/RS-232 cable. Wireless
client interaction is available as long as the mobile device has sufficient energy in the MX8 main
battery pack and a clear signal path.
The cradle is lined with strips of hook-and-loop fabric to ensure a snug fit between the MX8 and
the inside of the cradle.
The vehicle cradle should be mounted in an area in the vehicle where it:
• Does not obstruct the driver’s vision or safe vehicle operation.
• Will be protected from rain or inclement weather.
• Will be protected from extremely high concentrations of dust or wind-blown debris.
• Can be easily accessed by a user seated in the driver’s seat.
There are two mounting options for the cradle:
• U-bracket mounting
• RAM ball cylinder mounting
Before installation begins, verify you have the applicable vehicle mounting bracket assembly
components necessary for your mount type, as shown in the section titled “Assembly
Components”.
Do not slide the MX8 into the passive cradle until the cradle is securely fastened to the
vehicle.
For Review - Preliminary - Draft 01 - Not for distribution
46 Passive Vehicle Mount Cradle
MX8 User’s Guide E-EQ-MX8OGWW-A
Cradle Assembly Components
Note: Bolts, washers, and wrench needed when attaching the mobile device to the vehicle are
not supplied by LXE.
U-Bracket
Figure 33 Passive Vehicle Mount Cradle and U-Bracket
U-Bracket Footprint
Not To Scale
Figure 34 Bracket Mounting Footprint
Note: LXE does not supply the bolts or washers needed when mounting the cradle assembly to
the vehicle chassis. LXE recommends using bolts with a maximum 10/32” (0.3125)
diameter.
For Review - Preliminary - Draft 01 - Not for distribution
Passive Vehicle Mount Cradle 47
E-EQ-MX8OGWW-A MX8 User’s Guide
RAM Ball and Cylinder
Figure 35 Passive Vehicle Mount Cradle / RAM Ball Assembly
Figure 36 RAM Bracket Components
Mount the cradle U-bracket to the upper RAM ball
assembly with the bolts, washers and nuts supplied by
LXE.
Qty 4 – Hex Cap ¼-20 x ¾ bolts
Qty 4 – ¼ flat washer
Qty 4 – ¼-20 nylon insert lock nuts
For Review - Preliminary - Draft 01 - Not for distribution
48 Passive Vehicle Mount Cradle
MX8 User’s Guide E-EQ-MX8OGWW-A
RAM Assembly Footprint
Not To Scale
Figure 37 RAM Assembly Footprint
Note: LXE does not supply the bolts or washers needed when mounting the cradle assembly to
the vehicle chassis. LXE recommends using bolts with a maximum 10/32” (0.3125)
diameter.
For Review - Preliminary - Draft 01 - Not for distribution
Passive Vehicle Mount Cradle 49
E-EQ-MX8OGWW-A MX8 User’s Guide
How to Install the Cradle U-Bracket
1. MX8
2. Angle Adjust Knob
3. Passive Cradle
4. U-Bracket
5. Mounting Bolt
Figure 38 Install Cradle U-Bracket
1. Attach the U-Bracket to the vehicle, making sure it does not impede safe operation of
the vehicle.
2. Attach the Passive Cradle to the U-Bracket using the Angle Adjust knobs.
Use both knobs to loosen and tighten the cradle to the U-bracket while determining
the best viewing angle.
For Review - Preliminary - Draft 01 - Not for distribution
50 Passive Vehicle Mount Cradle
MX8 User’s Guide E-EQ-MX8OGWW-A
3. The passive vehicle mounted cradle is ready for use.
Periodically test the mounting device and retighten bolts and/or knob as needed. If the cradle
becomes cracked or warped it must be replaced.
For Review - Preliminary - Draft 01 - Not for distribution
Passive Vehicle Mount Cradle 51
E-EQ-MX8OGWW-A MX8 User’s Guide
How To Install the RAM Bracket
1. MX8
2. Angle Adjust Knobs
3. Passive Cradle
4. U-Bracket
5. Mounting Hex Bolt
6. Upper RAM Ball Assembly
7. Arm
8. Thumbscrew
9. Lower RAM Ball Assembly
Figure 39 Install RAM Bracket Assembly
1. Attach the lower RAM ball assembly to the vehicle, making sure it does not impede
safe operation of the vehicle.
2. Fasten the upper RAM ball assembly to the base of the U-bracket using the supplied
bolts, washers and screws.
For Review - Preliminary - Draft 01 - Not for distribution
52 Passive Vehicle Mount Cradle
MX8 User’s Guide E-EQ-MX8OGWW-A
3. Loosen the turnscrew on the RAM arm, place the lower socket over the vehicle
mount RAM ball, then the other arm socket over the RAM ball on the U-bracket.
4. Tighten the arm turnscrew until the U-bracket is secured to the RAM arm and the
vehicle.
5. Attach the Passive Cradle to the U-Bracket using the Angle Adjust knobs.
Use both knobs to loosen and tighten the cradle to the U-bracket while determining
the best viewing angle.
6. The passive vehicle mounted cradle is ready for use.
For Review - Preliminary - Draft 01 - Not for distribution
Passive Vehicle Mount Cradle 53
E-EQ-MX8OGWW-A MX8 User’s Guide
Periodically test the mounting device and retighten bolts and/or knob as needed. If the cradle or
any cradle assembly component becomes cracked or warped it must be replaced before being
placed into service.
For Review - Preliminary - Draft 01 - Not for distribution
54 Passive Vehicle Mount Cradle
MX8 User’s Guide E-EQ-MX8OGWW-A
For Review - Preliminary - Draft 01 - Not for distribution
E-EQ-MX8OGWW-A MX8 User’s Guide
Appendix A Key Maps
Introduction
Remember :
“Sticky” keys are also known as “second” function keys.
Ctl/Ctrl, Alt, Shft, Blue and Orange keys are “sticky keys”. Sticky keys do not need
to be held down before pressing the next (or desired) key. It is valid to use
combined modifiers on specific keys.
Note: The key mapping in this appendix relates to the physical keypad. See section titled Input Panel for the
Virtual (or Soft) Keypad used with the stylus.
32-Key Numeric-Alpha Keypad
When using a sequence of keys that require an alpha key, first press the Alph key. Use the Shft sticky key or the
Caps key sequence (Blue+Tab) for upper case alphabetic characters.
Pressing the Alph key forces “Alpha” mode for the 2,3,4,5,6,7,8, and 9 keys. The 1 and 0 keys continue to place a 1
and 0 into the text field.
To create a combination of numbers and letters before pressing Enter, remember to tap the Alph key to toggle
between Alpha and Numeric mode.
When using a sequence of keys that do not include the Alph key but does include a sticky key, press the sticky key
first then the rest of the key sequence.
Press These Keys and Then …
To Get This MX8 Key /
Function Blue Orange Ctl Alt Shft Alpha Press This Key
Power / Suspend Power 1
Field Exit (default
VK_PAUSE) MAP MAP Diamond#1
MAP=Mappable
=
or
(
x
x
MAP
Diamond#2
Default is MAP
MAP=Mappable
!
or
)
x
x
MAP
Diamond#3
Default is MAP
MAP=Mappable
Volume Adjust Mode x Scan Key
2
1 Tapping the Power key when in any sticky mode (Blue, Orange, Shift, etc) either turns the
device On (when Off) or places it in Suspend (when active).
2 Orange+Scan enters Volume Adjust Mode. Use Up Arrow and Down Arrow to adjust volume.
Press any other key but Up Arrow or Down Arrow to exit Adjust Mode.
For Review - Preliminary - Draft 01 - Not for distribution
56 32-Key Numeric-Alpha Keypad
MX8 User’s Guide E-EQ-MX8OGWW-A
Press These Keys and Then …
To Get This MX8 Key /
Function Blue Orange Ctl Alt Shft Alpha Press This Key
Display Backlight
Brightness Adjust Mode x Scan Key 3
Toggle Blue Mode Blue
Toggle Orange Mode Orange
Toggle Shift Mode Shft
Toggle Alpha Mode Alph
Alt Mode Alt
Control Mode Ctrl
Scan Mode Scan Key
Esc x Alt
Space Spc
Enter Enter
CapsLock (Toggle) x Tab
Back Space x Spc
Tab Tab
BackTab x Tab
Up Arrow Up Arrow
Down Arrow Down Arrow
Right Arrow x Up Arrow
Left Arrow x Down Arrow
Insert x Ctrl
Delete Del
Home x Down Arrow
End x Up Arrow
Page Up x Up Arrow
Page Down x Down Arrow
F1 F1
F2 F2
F3 F3
F4 F4
F5 F5
F6 x F1
F7 x F2
F8 x F3
F9 x F4
F10 x F5
F11 x F1
F12 x F2
3 Blue+Scan enters Backlight Brightness Adjust Mode. Use the Up Arrow and Down Arrow to
adjust brightness. Press any other key but Up Arrow or Down Arrow to exit Adjust Mode.
For Review - Preliminary - Draft 01 - Not for distribution
32-Key Numeric-Alpha Keypad 57
E-EQ-MX8OGWW-A MX8 User’s Guide
Press These Keys and Then …
To Get This MX8 Key /
Function Blue Orange Ctl Alt Shft Alpha Press This Key
F13 x F3
F14 x F4
F15 x F5
F16 x F1
F17 x F2
F18 x F3
F19 x F4
F20 x F5
F21 x x F1
F22 x x F2
F23 x x F3
F24 x x F4
a x 2
b x 22
c x 222
d x 3
e x 33
f x 333
g x 4
h x 44
i x 444
j x 5
k x 55
l x 555
m x 6
n x 66
o x 666
p x 7
q x 77
r x 777
s x 7777
t x 8
u x 88
v x 888
w x 9
x x 99
y x 999
z x 9999
A x x 2
B x x 22
For Review - Preliminary - Draft 01 - Not for distribution
58 32-Key Numeric-Alpha Keypad
MX8 User’s Guide E-EQ-MX8OGWW-A
Press These Keys and Then …
To Get This MX8 Key /
Function Blue Orange Ctl Alt Shft Alpha Press This Key
C x x 222
D x x 3
E x x 33
F x x 333
G x x 4
H x x 44
I x x 444
J x x 5
K x x 55
L x x 555
M x x 6
N x x 66
O x x 666
P x x 7
Q x x 77
R x x 777
S x x 7777
T x x 8
U x x 88
V x x 888
W x x 9
X x x 99
Y x x 999
Z x x 9999
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9
0 0
. (period) x DEL
< x 7
[
x
x
2
or
2
For Review - Preliminary - Draft 01 - Not for distribution
32-Key Numeric-Alpha Keypad 59
E-EQ-MX8OGWW-A MX8 User’s Guide
Press These Keys and Then …
To Get This MX8 Key /
Function Blue Orange Ctl Alt Shft Alpha Press This Key
]
x
x
3
or
3
> x 8
= x Diamond#2
{ x 4
} x 5
/ x 1
- x Spc
+ x Del
* (asterisk)
x
x
8
or
Diamond#1
: (colon) x 0
; (semicolon) x 0
. (period) x Del
? x 8
` (accent) x 6
_ (underscore) x 7
, (comma) x 6
‘ (apostrophe) x Alph
~ (tilde) x 9
\ x 1
| x Alt
“ x Alph
!
x
x
Diamond#3
or
1
@
x
x
2
or
5
#
x
x
3
or
4
$
x
x
9
or
4
% x 5
^
x
x
6
or
Ctrl
For Review - Preliminary - Draft 01 - Not for distribution
60 32-Key Numeric-Alpha Keypad
MX8 User’s Guide E-EQ-MX8OGWW-A
Press These Keys and Then …
To Get This MX8 Key /
Function Blue Orange Ctl Alt Shft Alpha Press This Key
& x 7
(
x
x
Diamond#2
or
9
)
x
x
Diamond#3
or
0 (zero)
For Review - Preliminary - Draft 01 - Not for distribution
E-EQ-MX8OGWW-A MX8 User’s Guide

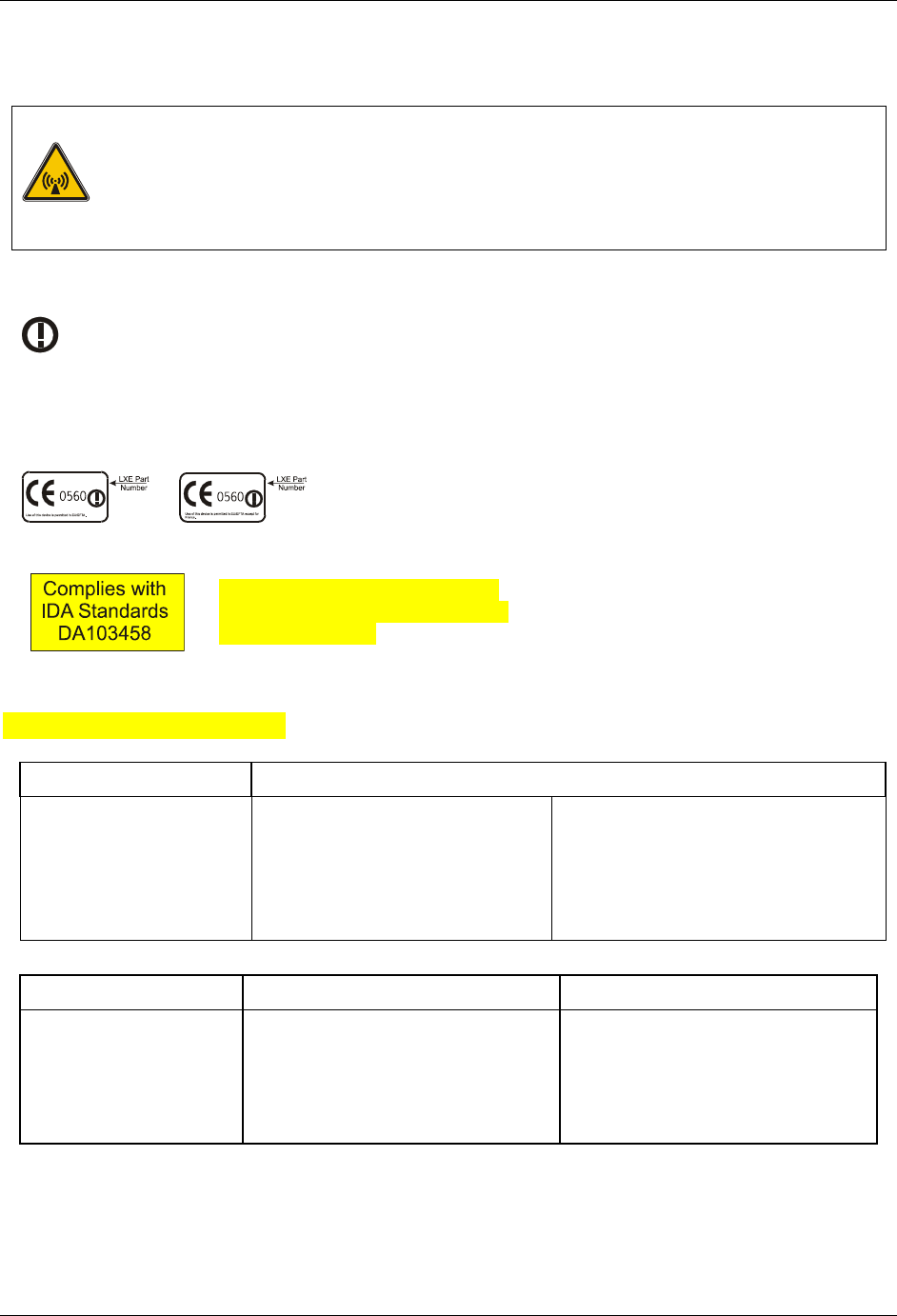

Appendix B Regulatory Notices and Safety Information
FCC Information:
This device complies with FCC Rules, part 15. Operation is subject to the following two conditions:
1. This device may not cause harmful interference,
and
2. This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction guide, may cause harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Warning: Changes or modifications to this device not expressly approved by LXE, Inc., could void the user’s authority to
operate this equipment.
EMC Directive Requirements:
This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be
required to take adequate measures.
Industry Canada:
This Class A digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is
subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques
de Classe A prescrites dans le Règlement sur le brouillage radioélectrique édits par le ministère des Communications du Canada.
Notice:
The long term characteristics or the possible physiological effects of radio frequency electromagnetic fields have not been
investigated by UL.
Li-Polymer Battery
When disposing of the MX8 main battery, the following precautions should be observed: The battery should be disposed of
promptly. The battery should not be disassembled or crushed. The battery should not be heated above 212°F (100°C) or
incinerated.
Important: This symbol is placed on the product to remind users to dispose of Waste Electrical and Electronic
Equipment (WEEE) appropriately, per Directive 2002-96-EC. In most areas, this product can be recycled,
reclaimed and re-used when properly discarded. Do not discard labeled units with trash. For information about
proper disposal, contact LXE through your local sales representative, or visit www lxe com.
For Review - Preliminary - Draft 01 - Not for distribution
62 Appendix B Regulatory Notices and Safety Information
MX8 User’s Guide E-EQ-MX8OGWW-A
This device contains transmitter Module FCC ID: KDZLXE4830P
RF Safety Notice (Summit Client - 4830)
Caution
This portable device with its antenna complies with FCC’s and Industry Canada’s RF exposure
limits set for an uncontrolled environment. This equipment has shown compliance with FCC and
Industry Canada Specific Absorption Rate (SAR) limits. Highest reported SAR for the MX8 is
.758W/kg on body. Any accessories not provided by LXE should not be used with this device.
This device must not be co-located or operating in conjunction with any other antenna or
transmitter.
R&TTE Directive Requirements (Applies only to equipment operated within the EU/EFTA)
Information to User
A label on the exterior of the device should resemble one of the labels shown below (the label contains
the LXE part number of the installed radio card). The labels shown below and affixed to the device,
identify where the device may be used and where its use is restricted. Use of a device is prohibited in
countries not listed below or otherwise identified by the label. (May or may not include the 0560
Notifed Body No. Substitute 4 digit Notified Body No. may also be applied.)
Republic of Singapore - LXE Dealer
License Number DA103458 complies
with IDA Standards.
MX8 Approvals/Standards
Product EMI / EMC Standards Safety Standards
MX8 FCC Part 15 Subpart B, Class A
EN 55022
Class A (CISPR 22)
EN 55024:1998
AS/NZS 3548, Class A (CISPR 22)
UL 60950 / CSA C22.2 No. 60950
IEC/EN 60950-1
CDRH: 21 CFR 1040.10
IEC/EN 60825-1
Transceiver:
Transceiver RF (2.4 GHz) standards RF Safety Standards
MX8 with 802.11b/g
[Summit Client - 4830]
FCC Part 15.247, Subpart C
FCC Bulletin OET-65
EN 300 328
IC-RSS 210
IC-RSS 102
FCC O.E.T. Bulletin 65
Industry Canada RSS 102
For Review - Preliminary - Draft 01 - Not for distribution
Appendix B Regulatory Notices and Safety Information 63
E-EQ-MX8OGWW-A MX8 User’s Guide
LXE Transceiver LXE 4830 Declaration of Conformity
DECLARATION OF CONFORMITY
according to Directives:
1999/5/EC Radio Equipment and Telecommunications Terminal
Equipment and the mutual recognition of their conformity
93/68/EEC CE Marking Directive
Type of Equipment: Direct Sequence 2.4 GHz Wireless LAN Card
Brand Name or
Trademark:
LXE
Type Designation: LXE 4830
Manufacturer: LXE Inc.
Address: 125 Technology Parkway
Norcross, GA 30092-2993 USA
Year of Manufacturer: 2006
The following harmonized European Standards, technical specifications, or other
normative documents have been applied:
EMC:
EN 301 489-1: 07-2000
EN 301 489-17 07-2000
Electromagnetic compatibility and Radio spectrum
Matters (ERM); ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services; Part 1:
Common technical requirements
Electromagnetic compatibility and Radio spectrum
Matters (ERM); ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services; Part 17:
Specific conditions for Wideband data and HIPERLAN
equipment
Radio:
EN 300 328-1 and -2: 2000-7 Radio Equipment and Systems (RES);
Wideband transmission systems;
Technical characteristics and test conditions for data
transmission equipment operating in the 2.4 GHz ISM
band and using spread spectrum modulation
techniques
Safety:
EN 60950-1: 2001 Safety of information technology equipment, including
electrical business equipment
We, LXE Inc., declare that the equipment specified above complies with all Essential
Health and Safety Requirements of the above Directives and Standards, as amended.
Place LXE Inc., Norcross GA USA
Date of issue 23 October 2006
C. Binnom Jr.
RF Approvals Engineer
LXE Inc. 125 Technology Parkway Norcross, GA 30092-2993 USA
ph. 770/447-4224 fax 770/447-6928
For Review - Preliminary - Draft 01 - Not for distribution
64 Appendix B Regulatory Notices and Safety Information
MX8 User’s Guide E-EQ-MX8OGWW-A
Annex to DoC for LXE 4830
With regard to the use of external antennas
The LXE 4830 can be equipped with external antennas. The antennas listed have been evaluated with the LXE 4830
pursuant to EN 300 328, and therefore meet the definition of ‘dedicated antenna’ per ERC/REC 70-03 Appendix 1
Table 3; thus the requirement set forth in ERC/REC 70-03 , Annex 3 are met by the LXE model 4830 transceiver.
Dedicated Antennas for use with LXE 4830
LXE P/N Antenna Gain Radio Power Level Antenna Description
153180-0001 2.2 dBi 15.8 dBm Omni, for LXE VX-series computers
160952-0001 0 dBi 15.8 dBm Omni, for LXE MX3-series computers
158399-0001 0 dBi 15.8 dBm Omni, for LXE MX5-series computers
159900-0001 0 dBi 15.8 dBm Omni, for LXE MX8-series computers
160019-0001 0 dBi 15.8 dBm Omni, for LXE VX-series computers
160501-0001 0 dBi 15.8 dBm Omni, for LXE HX1-series computers
161029-0001 0 dBi 15.8 dBm Omni, for LXE RX2-series computers
C. Binnom Jr.
RF Approvals Engineer
23 October 2006
LXE Inc. 125 Technology Parkway Norcross, GA 30092-2993 USA
ph. 770/447-4224 fax 770/447-6928
For Review - Preliminary - Draft 01 - Not for distribution
Appendix B Regulatory Notices and Safety Information 65
E-EQ-MX8OGWW-A MX8 User’s Guide
A/C Power Supply Safety Statement – MX8
Output Rated 5 VDC, 1.25 A.
The LXE-approved AC Power Adapter is only intended for use in a 25°C (77°F) maximum ambient temperature
environment.
need pic
Optional A/C Power Supply:
Outside North America, this unit is intended for use with an IEC certified ITE power supply with output rated as
stated at the top of this page. (US)
Alimentation c.a. optionnelle:
Hors de l'Amérique du Nord, cette unité est conçue pour être utilisée avec une alimentation ITE certifiée CEI de sortie nominale indiquée au haut
de cette page. (FR)
Valgfrit vekselstrømforsygning
Udenfor Nord Amerika er denne enhed udstattet med en IEC (international elektronisk Kommission) udfærdiget med en ITE strømforsygning
med strømudgang som fastslået på denne sides begyndelse. (DK)
Vaihtoehtoinen vaihtovirran syöttölaite:
Pohjois-Amerikan ulkopuolella tämä laite on tarkoitettu käytettäväksi sellaisen IEC:n sertifioiman ITE-tehonsyöttölaitteen kanssa, jonka antoteho
on tämän sivun yläosassa esitetyn mukainen. (FI)
Optionales Netzteil (Wechselstrom)
Außerhalb Nordamerikas sollte diese Einheit über ein der IEC-Norm entsprechendes ITE-Netzteil gespeist werden, und zwar mit einer wie oben
auf dieser Seite genannten Ausspeisung. (DE)
Προαιρετική Τροφοδοσία Συνεχούς Ρεύματος
Εκτός Β. Αμερικής, η μονάδα αυτή προορίζεται για χρήση με ένα τροφοδοτικό ITE πιστοποιημένο κατά IEC με ονομαστική ισχύ όπως
δηλώνεται στην αρχή της σελίδας. (GR)
Alimentazione opzionale a corrente alternata:
Al di fuori dei paesi dell'America del nord, l'unità deve essere impiegata con un dispositivo d'alimentazione per attrezzature informatiche
approvato dalla IEC la cui potenza nominale sia pari a quella indicata all'inizio della pagina. (IT)
Vekselstrømforsyning (ekstrautstyr):
Utenfor Nord-Amerika skal dette produktet brukes med en IEC-sertifisert ITE-strømforsyning med klassifisert effekt som angitt øverst på denne
siden. (NO)
Fornecimento opcional de CA:
Fora dos EUA, esta unidade destina-se a ser usada com dispositivos de fornecimento de corrente ITE com certificação IEC, com a capacidade
indicada no topo desta página. (PT)
Suministro optativo de corriente alterna
Fuera de América del Norte, esta unidad se debe utilizar con un alimentador ITE homologado por la IEC (comisión electrotécnica internacional)
con una salida que tenga la calificación que figura en la parte superior de esta página. (ES)
Valfri A/C Strömförsörjning
Utanför Nordamerika är det meningen att denna enheten används med en IEC-certifierad ITE-strömförsörjare med den uteffekt som anges längst
uppe på den här sidan. (SE)
İsteğe Bağlı A/C Güç Kaynağı:
Kuzey Amerika dışında, bu ünite, çıkış sınıflandırması bu sayfanın başında belirtilen IEC sertifikalı bir ITE güç kaynağı ile birlikte kullanılmak
üzere tasarlanmıştır. (TR)
Updated 10/01/2001
Legend: Danish – DK; English – US; Finnish – FI; French- - FR; German – DE; Greek – GR; Italian – IT; Norwegian – NO; Portuguese – PT;
Spanish – ES; Swedish – SE; Turkish – TR.
For Review - Preliminary - Draft 01 - Not for distribution
66 Appendix B Regulatory Notices and Safety Information
MX8 User’s Guide E-EQ-MX8OGWW-A
Laser Light Safety Statement
Warning:
This product uses laser light. One of the following labels is provided on the scanner. Please read the Caution
statement. (US)
Mise én garde:
Ce produit utilise un rayon laser. L’une des étiquettes suivantes est apposée sur le scanneur. Veuillez lire
l’avertissement qu’elle contient. (FR)
Advertência:
Este produto usa luz de laser. O scanner contém um dos seguintes avisos. Favor ler o Aviso. (PT)
Varning:
Denna produkt använder laserljus. En av de nedanstående etiketterna sitter på scannern. Var god läs varningstexten.
(SE)
Advarsel:
Dette produkt anvender laserlys. En af følgende mærkater anvendes på scanneren. Læs venligst
sikkerhedsforanstaltningen. (DK)
Varoitus:
Tämä tuote käyttää laservaloa. Skannerissa on jokin seuraavista tarroista. Lue Huomio-kohta. (FI)
Warnung:
Dieses Produkt verwendet Laserlicht. Eines der folgenden Etiketten befindet sich auf dem Scanner. Bitte lesen Sie
den Gefahrenhinweis. (DE)
Attenzione:
Questo prodotto utilizza luce laser. Una delle etichette seguenti c’ ubicata sullo scanner. Si raccomanda di leggere
con attenzione le avvertenze riportate. (IT)
Advarsel:
Dette utstyret bruker laserlys. En av følgende etiketter er plassert på scanneren. Les advarselen på etiketten. (NO)
Advertencia:
Este producto usa luz de láser. Las etiquetas se proveen en la máquina exploradora. Por favor, lea detenidamente la
explicación para las precauciones. (ES)
Waarschuwing:
Dit product gebruikt laserlicht. Een van de volgende labels is op de scanner aangebracht. Lees a.u.b. de
waarschuwing onder Oppassen. (NL)
For Review - Preliminary - Draft 01 - Not for distribution
Appendix B Regulatory Notices and Safety Information 67
E-EQ-MX8OGWW-A MX8 User’s Guide
Laser Light Safety Statement
A
þ
a
ð
ý
d
a
ki
et
ik
et
l
er
d
en
bi
r tanes
i
tara
yý
c
ý
n
ý
n üstünde saðlan
ý
r.
Lüt
f
en D
ikk
at
if
a
d
es
i
n
i
o
k
u
y
un
.
(TR)
(GR)
(KR)
(JP)
(CN)
Legend:
Chinese-CN; Danish-DK; Dutch-NL; English-US;
Finnish-FI; French-FR; German-DE; Greek-GR;
Italian-IT; Japanese-JP; Korean-KR; Norwegian-NO;
Portuguese-PT; Spanish-ES; Swedish-SE; Turkish-
TR
For Review - Preliminary - Draft 01 - Not for distribution
68 Appendix B Regulatory Notices and Safety Information
MX8 User’s Guide E-EQ-MX8OGWW-A
Labels – MX8 Hand Held Computer [Summit Client]
For Review - Preliminary - Draft 01 - Not for distribution
Index 69
E-EQ-MX8OGWW-A MX8 User’s Guide
Index
2D Imager.............................................................27
2nd key function, described..................................40
32-key Keymap.....................................................55
A
AC External Power Supply, How to .....................21
AC Power
and LEDs on multicharger ..................................44
AC Power Adapter
Assembly ............................................................21
AC Power Scheme................................................36
Accessories
Electrostatic Discharge .......................................13
Installing .............................................................13
Activation Key
AppLock .............................................................19
Alph key
Enter a string of letters in a text field..................41
Alpha Mode LED .................................................39
Alt key function ....................................................40
Alt sticky keypress................................................40
Assemble
RS232 connection .........................................22, 23
USB connection ..................................................22
Audio Cable
Install ..................................................................23
Audio Volume settings .........................................37
B
Backlight timer .....................................................35
battery
trickle charging ...................................................15
Battery ..................................................................42
charge before using .............................................15
Check status ........................................................15
Check status and power reading..........................16
Compartment.......................................................15
Important...............................................................3
status LED...........................................................15
Battery Multi-Charger ..........................................44
Battery Power Scheme..........................................36
Battery, Backup
described .............................................................43
Battery, Main
described .............................................................42
Bluetooth icons .....................................................29
Bluetooth printers and scanners............................29
C
Cable
Adapter, Audio....................................................10
Multipurpose RS-232 and Power ........................10
Multipurpose USB and Power ............................10
CapsLock key sequence........................................41
CapsLock mode function......................................41
Change the Time and Date....................................13
Charger, battery ....................................................44
Cleaning................................................................34
Cold Reset.............................................................33
Cold reset, How to ................................................33
Color Display........................................................34
Color displays and backlight timers......................35
Components............................................................6
Connect External PS.............................................21
Contact LXE .........................................................30
Control sticky keypress.........................................40
Ctrl key function...................................................40
D
Data entry
imager .................................................................27
keypad.................................................................25
laser scanner........................................................27
stylus ...................................................................26
virtual keyboard ..................................................25
Data entry .............................................................25
Display..................................................................34
Display and scanner aperture cleaning .................34
Display backlight timer.........................................35
E
Enter key function.................................................39
Entering Data........................................................25
Environmental Specifications.................................4
External PS ...........................................................21
For Review - Preliminary - Draft 01 - Not for distribution
70 Index
MX8 User’s Guide E-EQ-MX8OGWW-A
F
Features...................................................................2
Footprint
passive vehicle cradle, RAM assembly...............48
passive vehicle cradle, U-bracket........................46
Forms entry...........................................................25
Function
2nd Key...............................................................40
Alt Key................................................................40
CapsLock Mode ..................................................41
Ctrl Key...............................................................40
Enter Key ............................................................39
Shft Key ..............................................................40
Spc Key...............................................................39
Function keys........................................................40
G
Getting Started......................................................13
H
Handstrap................................................................9
Handstrap or Trigger Handle ..................................9
Handstrap, installation ..........................................20
Headset, Install .....................................................23
Help ......................................................................30
Hotswapping
cautions ...............................................................43
I
IEC IP54 .................................................................4
Input panel
virtual keyboard ..................................................25
Install
Passive Mounting Bracket, Vehicle ....................45
K
Key
Alpha...................................................................39
Diamond..............................................................39
Enter....................................................................39
Numeric ..............................................................39
Scan.....................................................................39
Space...................................................................39
Key functions........................................................40
Keypad
and entering data .................................................25
Keypad Shortcuts..................................................17
Keypad, 32 Key ....................................................24
L
Li-Polymer battery life .........................................16
Lithium-Polymer (Li-Poly)...................................42
M
Microphone adjustment ........................................23
Mode Key Functions.............................................41
Mode timers..........................................................36
N
Nickel Metal Hydrate (NiMH) .............................43
O
Operating Temperature...........................................4
Orange and Blue sticky keypresses.......................40
Overview ................................................................1
P
Passive vehicle cradle ...........................................45
Passive Vehicle Mounting Bracket
Installation Procedure .........................................45
Pen Stylus
and data entry......................................................26
Power key .............................................................16
Power Scheme ......................................................36
Protective Film .....................................................34
Q
Quick Start Instructions ........................................13
R
Reboot, How to.....................................................33
Recalibrate ............................................................18
Registry and save settings.....................................33
Regulatory Notices ...............................................61
S
Safety Information................................................61
Save settings .........................................................33
For Review - Preliminary - Draft 01 - Not for distribution
Index 71
E-EQ-MX8OGWW-A MX8 User’s Guide
Scan Status LED...................................................39
Scanner Aperture identify type ...............................8
Scanning and data entry........................................27
Scanning status, LED............................................28
Scheme..................................................................36
Screwdriver
Phillips, for handstrap .........................................20
Setting the Time Zone ..........................................18
Shift key function .................................................40
Shift keypress and sticky keys ..............................40
