Installing the 100W-R/100W-R+ and 100WP-R/100WP-R+ ERT Module
TDC
-0951-006 100W-R/100W-R+ and 100WP-R/100WP-R+ Datalogging ERT Module Installation Guide 17
Proprietary and Confidential

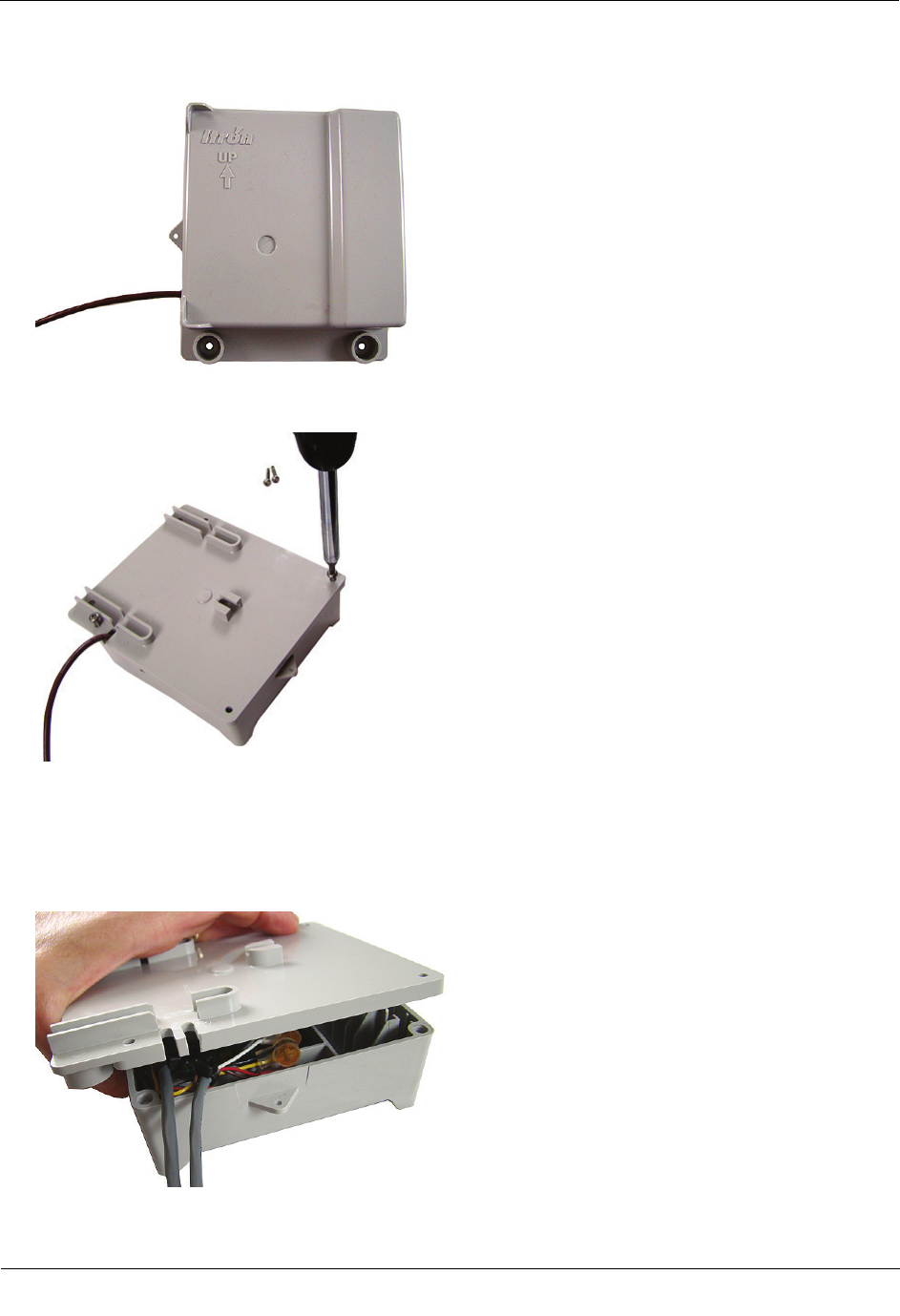

2. Align the ERT module backplate with the mounting screw holes. Verify the Itron logo and arrow point up.
3. Insert a backplate mounting screw in one corner and tighten two to three turns. Insert the remaining three
screws, tightening a few turns.
4. Completely tighten all the screws in an alternating fashion.
To attach an encoder/pulser and leak sensor backplate

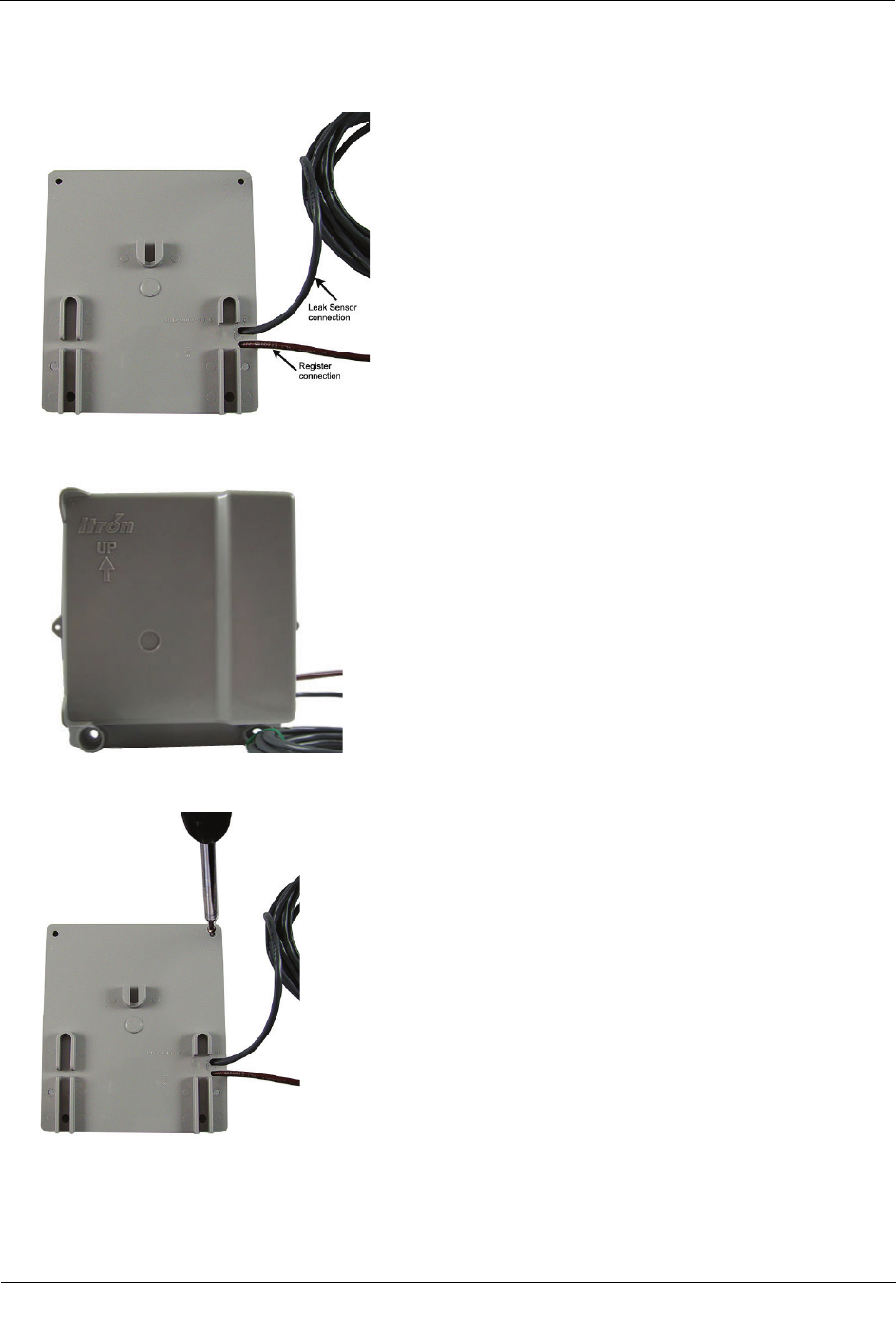

1. Route the register cable and Leak Sensor cable through the dual-port backplate. Ensure the cable strain
reliefs are inside the module housing and backplate assembly.
![](/img.php?id=1841317&img=bg2.png)
Installing the 100W-R/100W-R+ and 100WP-R/100WP-R+ ERT Module
TDC
-0951-006 100W-R/100W-R+ and 100WP-R/100WP-R+ Datalogging ERT Module Installation Guide 18
Proprietary and Confidential
2. Route the register cable through the appropriate backplate cutout and the Leak Sensor cable through the
remaining cutout.
3. Align the ERT module backplate with the mounting screw holes. Verify the Itron logo and arrow point up.
4. Insert a backplate mounting screw in one corner and tighten two to three turns. Insert the remaining three
screws, tightening a few turns.
5. Completely tighten all screws evenly, in an alternating fashion.
![](/img.php?id=1841317&img=bg3.png)
Installing the 100W-R/100W-R+ and 100WP-R/100WP-R+ ERT Module
TDC
-0951-006 100W-R/100W-R+ and 100WP-R/100WP-R+ Datalogging ERT Module Installation Guide 19
Proprietary and Confidential
Pipe Mount Installation
The ERT module can mount on a pipe vertically, diagonally, or horizontally using a Pipe Mounting Kit and
Remote Mount Kit (see 100W-R/100W-R+ and 100WP-R/100WP-R+ ERT Module Accessories).
To mount the adapter plate on a vertical pipe

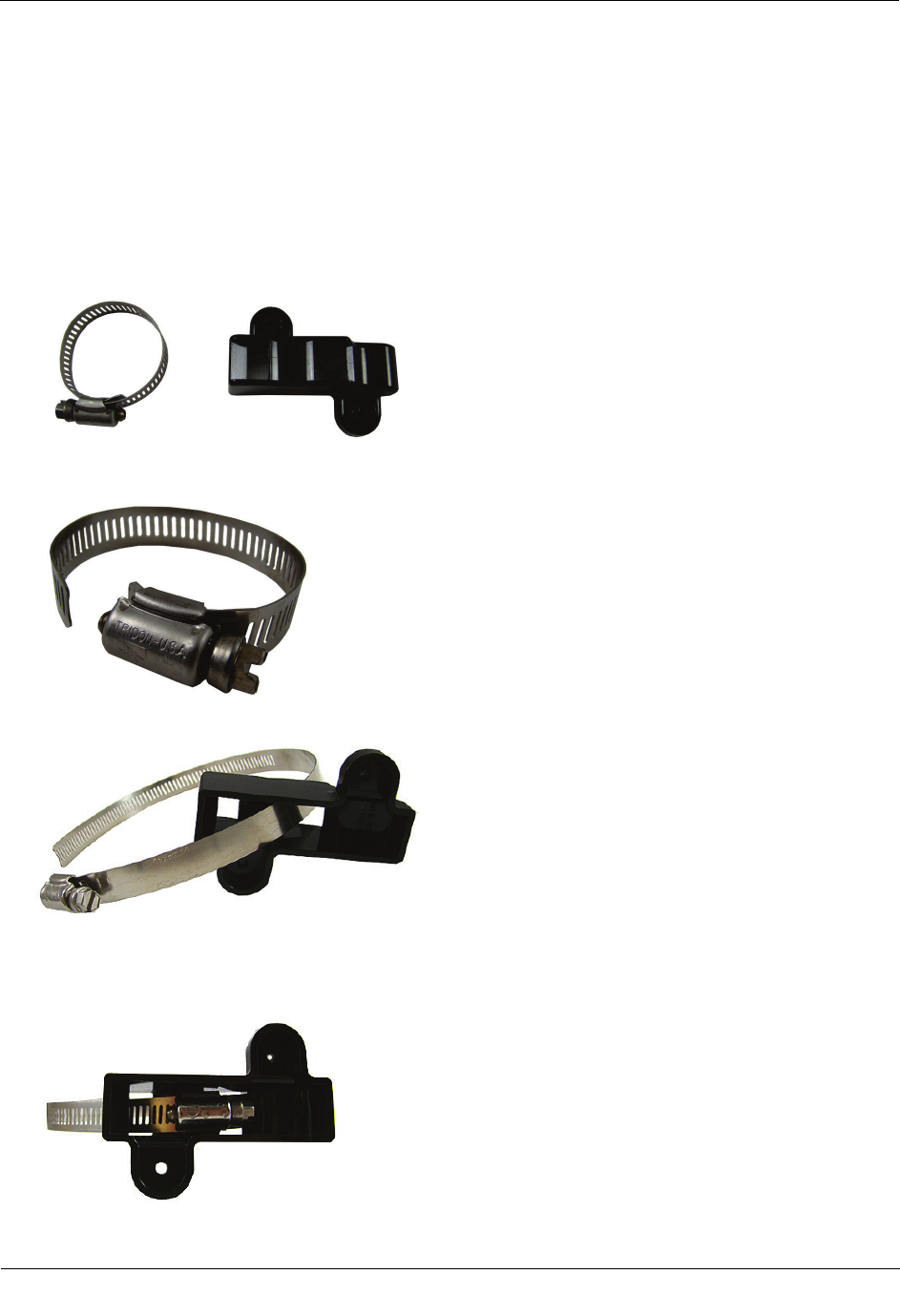

1. Take the pipe bracket and band clamp from the Pipe Mount Kit.
2. Loosen the clamp screw until the end of the band releases.
3. Push the end of the band through the hole in the pipe bracket.
4. Place the band clamp around the pipe. Push the end of the band through the hole in the band clamp and
into the entrance to the screw assembly. Tighten the band clamp until you can push the end of the band
into the hole in the pipe bracket.
![](/img.php?id=1841317&img=bg4.png)
Installing the 100W-R/100W-R+ and 100WP-R/100WP-R+ ERT Module
TDC
-0951-006 100W-R/100W-R+ and 100WP-R/100WP-R+ Datalogging ERT Module Installation Guide 20
Proprietary and Confidential
5. Tighten the clamp screw three or four more turns to make sure the end of the band does not pop back out
on this side of the pipe bracket. Verify the pipe clamp is in the final installation position on the pipe and
completely tighten the band clamp screw.

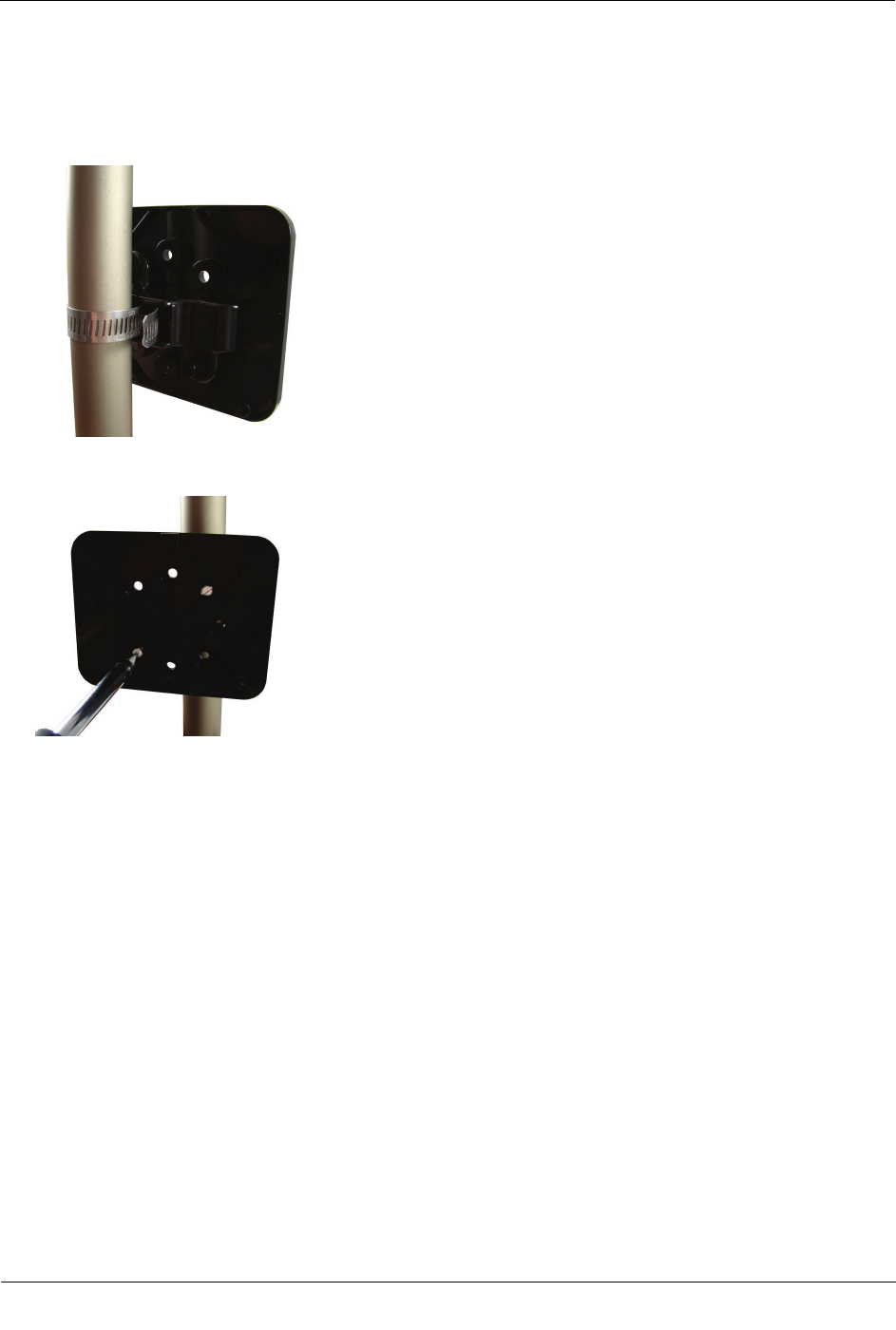

6. Place the adapter plate on the pipe bracket. The adapter-plate screw boss goes into the pipe-bracket recess.
7. Using the two shortest (1/2-inch) adapter-plate mounting screws from the Remote Mount Kit, connect the
adapter plate to the pipe bracket using the screw holes shown below.
8. Tighten both screws to 9 to 12 inch-pounds of torque.
To mount the adapter plate in other positions
The installation procedure in the previous section shows how to mount the adapter plate on a vertical pipe.
The following pictures show the adapter plate on 45 degree angle and horizontal pipes. Regardless of the
angle of the pipe, the adapter plate mounting lug (1) must always be at the top.
![](/img.php?id=1841317&img=bg5.png)
Installing the 100W-R/100W-R+ and 100WP-R/100WP-R+ ERT Module
TDC
-0951-006 100W-R/100W-R+ and 100WP-R/100WP-R+ Datalogging ERT Module Installation Guide 21
Proprietary and Confidential

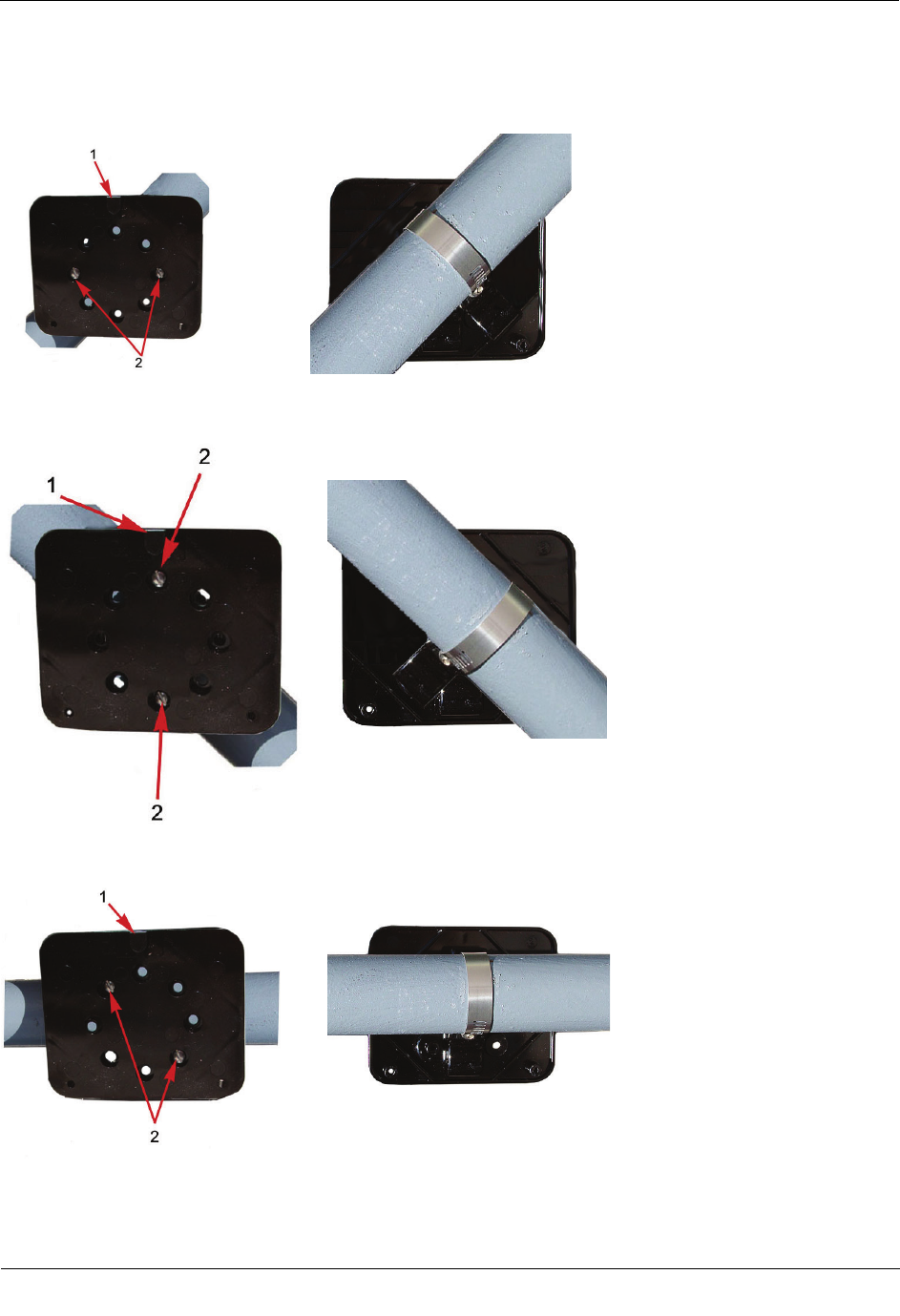

If the pipe is at a 45 degree angle up to the right, install the adapter plate with the mounting screws (2) as
shown in the pictures below.
If the pipe is at a 45 degrees angle up to the left, install the adapter plate as shown in the pictures below.
If the pipe is horizontal, install the adapter plate as shown in the pictures below.
![](/img.php?id=1841317&img=bg6.png)
Installing the 100W-R/100W-R+ and 100WP-R/100WP-R+ ERT Module
TDC
-0951-006 100W-R/100W-R+ and 100WP-R/100WP-R+ Datalogging ERT Module Installation Guide 22
Proprietary and Confidential
To mount the ERT module on the adapter plate

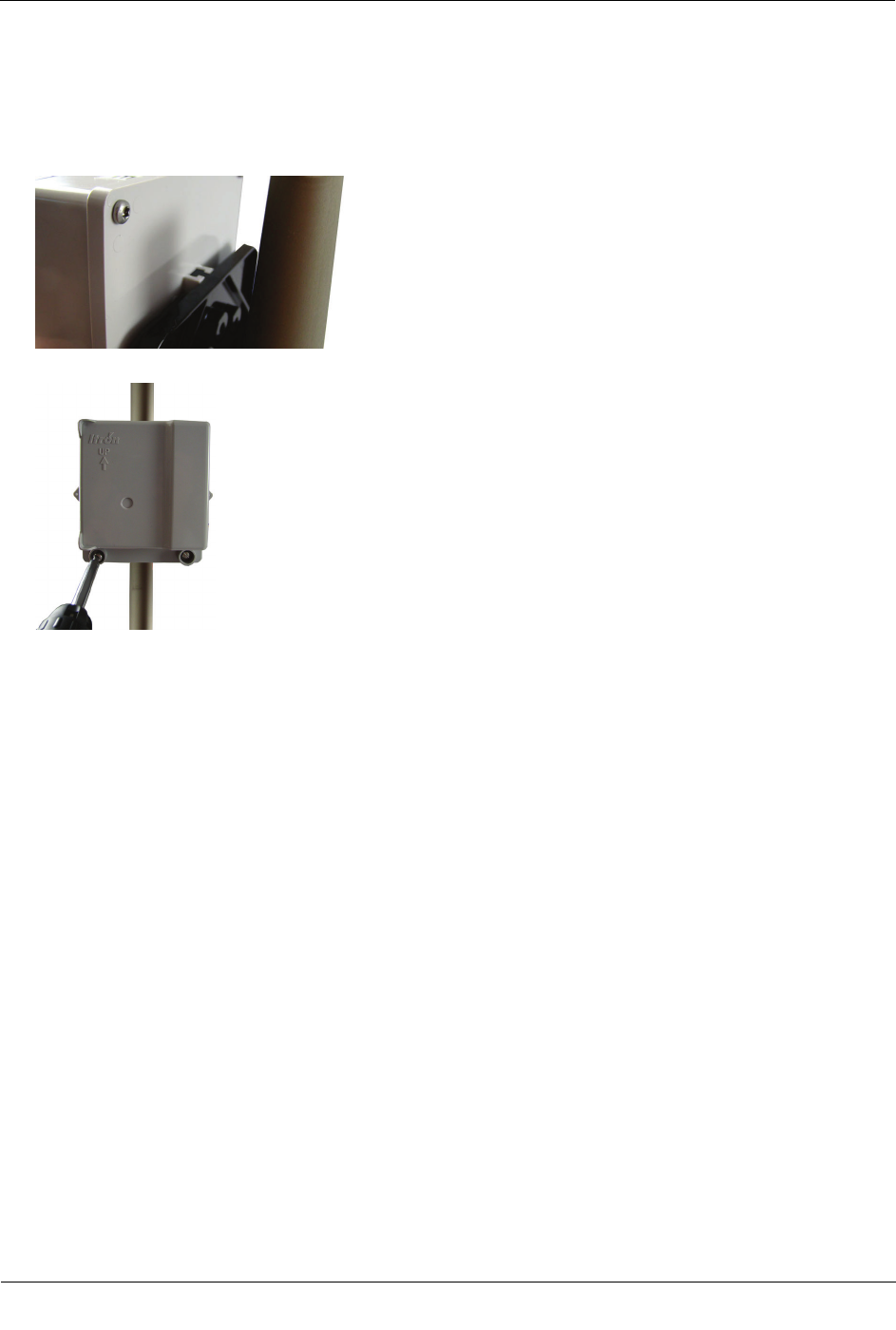

1. Locate the two 1-inch ERT module mounting screws in the Pipe Mount Kit.
2. Slide the ERT module back cover onto the adapter, pushing up to secure the lug adapter in the lug slot.
3. Install the two 1-inch ERT module mounting screws.
4. Tighten the screws to 9 to 12 inch-pounds of torque.
Optional Leak Sensor Installation
Leak Sensors (LS) analyze water flow sound patterns to detect new, evolving, and pre-existing leaks. LS
analysis data is uploaded to mlogonline™ Network Leak Monitoring for data analysis and accessed through a
secure Internet portal unique to your utility. This section describes installation of the Leak Sensor (LS) in a
100W-R/100W-R+ and 100WP-R/100WP-R+ ERT module system.
The ERT module stores 20 days of Leak Sensor data. On the 21st day, the ERT module begins to write over
stored data in a first in, first out manner.
The ERT module automatically detects the presence of connected Leak Sensors. The ERT module will
automatically detect the Leak Sensor within 22.5 minutes and begin reading Leak Sensor data. To
immediately detect the Leak Sensor and begin reading data, perform a Check ERT with a handheld computer
running FDM software.
The LS is used in conjunction with both indoor (basement) and outdoor (mounting on the exterior of the
house) 100W-R/100W-R+ and 100WP-R/100WP-R+ ERT module installations. LS devices are mounted on a
water service pipe or meter insetter (meter horn) and connect to the Leak Sensor connector on the ERT
module as described in Connecting the Leak Sensor to the 100W-R/100W-R+ and 100WP-R/100WP-R+ ERT
Module. The mounting bracket shipped with the Leak Sensor accommodates an (up to) 1-1/2-inch OD pipe.
An optional mounting bracket is available for pipe sizes (up to 2 1/2-inch OD).
![](/img.php?id=1841317&img=bg7.png)
Installing the 100W-R/100W-R+ and 100WP-R/100WP-R+ ERT Module
TDC
-0951-006 100W-R/100W-R+ and 100WP-R/100WP-R+ Datalogging ERT Module Installation Guide 23
Proprietary and Confidential

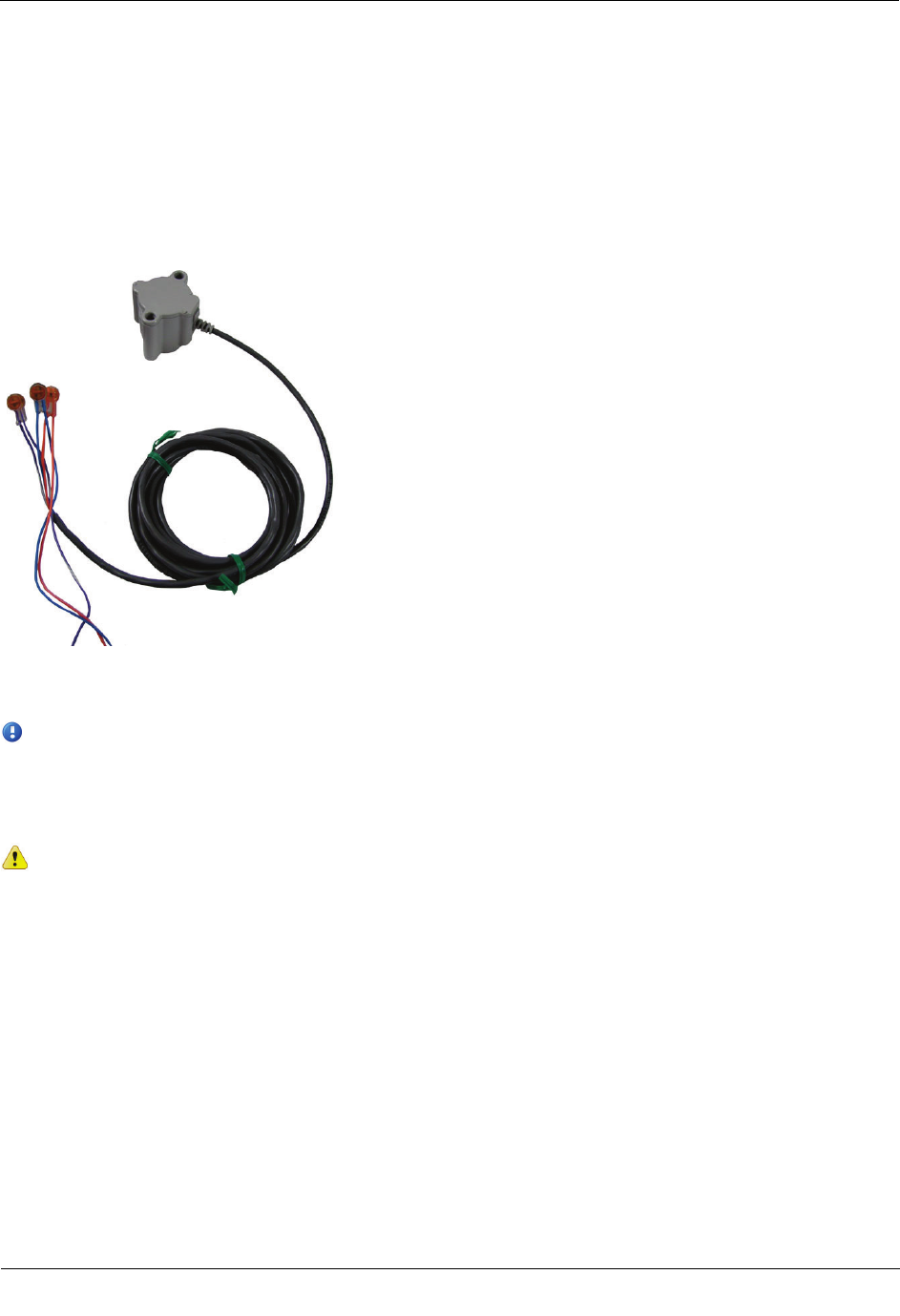

Connecting the Leak Sensor to the 100W-R/100W-R+ and 100WP-R/100WP-R+ ERT
Module
Connecting a Leak Sensor to the 100W-R/100W-R+ and 100WP-R/100WP-R+ ERT module requires a Leak
Sensor enabled ERT module. See 100W-R/100W-R+ and 100WP-R/100WP-R+ Models. Connect the ERT
modules flying lead wires to the Leak Sensor (for more information, see Using Gel Cap Connectors) matching
wire colors to complete the three connections.
See Connecting the Leak Sensor to the 100W-R/100W-R+ and 100WP-R/100WP-R+ ERT Module for Leak
Sensor mounting information.
Note If the ERT module will mount on the exterior of the house but the Leak Sensor is on a
pipe on the interior, the Leak Sensor cable must run through a hole in the wall before connecting
it to the ERT module.
Caution Extension cable lengths must not exceed 300 ft. Extension cabling from Itron is
stranded, tinned, and pre-bonded for reliability and proper connection to gel cap connectors.
Extension cabling manufactured by non-approved Itron manufacturers may result in unreliable
and problematic connections. Contact Itron Support for more information.
![](/img.php?id=1841317&img=bg8.png)
Installing the 100W-R/100W-R+ and 100WP-R/100WP-R+ ERT Module
TDC
-0951-006 100W-R/100W-R+ and 100WP-R/100WP-R+ Datalogging ERT Module Installation Guide 24
Proprietary and Confidential

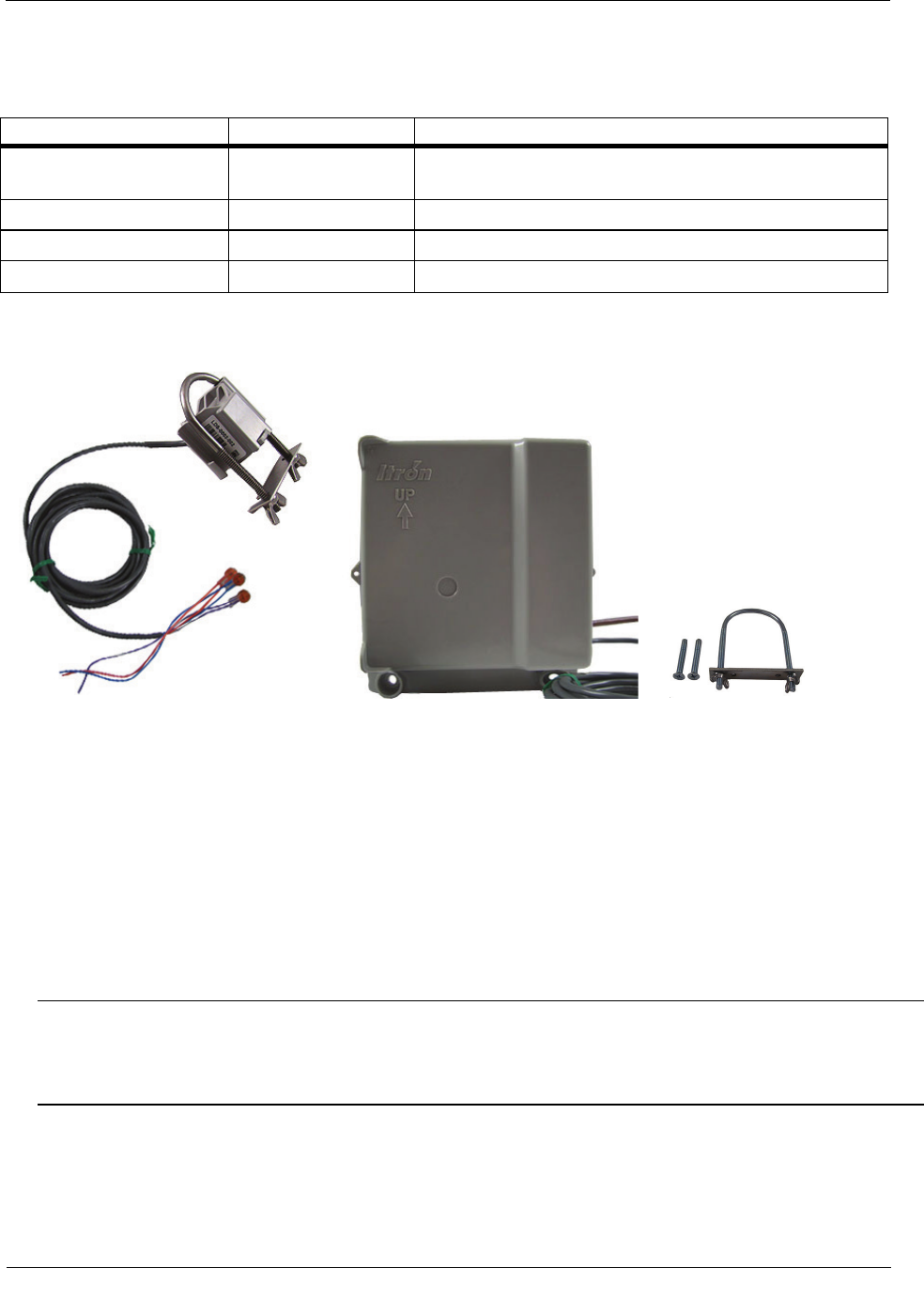

Required Equipment
Equipment
Itron Part Number
Description
Leak Sensor LDS-0002-001 LS with bracket; 5-foot cable, and mounting bolt (fits up to 1-1/2-
inch
OD pipe).
Optional mounting bracket CFG-0349-002 Mounting bolt fits up to 2-1/2-inch OD pipe.
100W-R Encoder Remote ERW-1300-314 100W-R with Leak Sensor, 10-inch flying lead.
100WP-R Pulser Remote ERW-1300-316 100WP-R with Leak Sensor, 10-inch flying lead.
Leak Sensor 100W remote ERT module Optional 2 in. mounting
bracket
Pipe Preparation
Clean any dust or dirt from the pipe to facilitate direct contact with the LS surface.
To install the Leak Sensor on a pipe or meter insetter
1. Select a Leak Sensor mounting location. Mount the sensor on the water input side of the meter.
Caution The Leak Sensor must be mounted on the water input side of the meter. Failure to follow this
mounting requirement could result in errors in the leak detection data. Installation requires Itron mounting
hardware. Repair costs and service charges relating to the use on non-compliant mounting hardware will
be charged to the customer. Contract Itron Support for more information.
![](/img.php?id=1841317&img=bg9.png)
Installing the 100W-R/100W-R+ and 100WP-R/100WP-R+ ERT Module
TDC
-0951-006 100W-R/100W-R+ and 100WP-R/100WP-R+ Datalogging ERT Module Installation Guide 25
Proprietary and Confidential

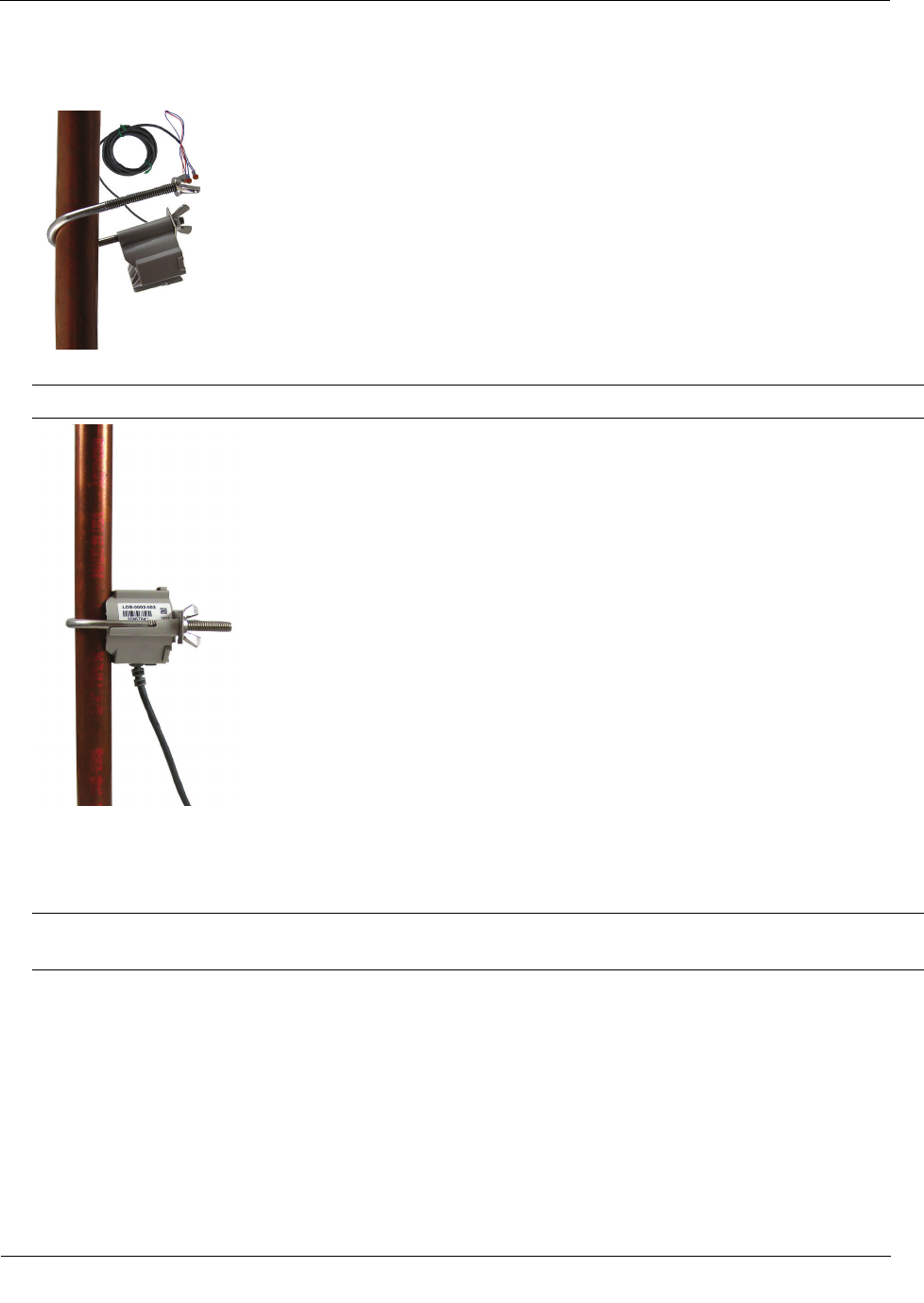

2. Verify the pipe’s mounting surface is free from dirt and debris. Place the curved surface of the LS against
the pipe.
3. Insert the mounting U-bolt over the pipe and into the LS mounting holes.
Caution Do not mount the Leak Sensor on a pipe coupler, joint, or nut.
4. Insert the mounting plate over the U-bolt's threaded screw ends. Attach the two wing nuts over the clamp
screw ends and tighten the wing nuts until snug (to a minimum of 5-inch pounds) to prevent device
rotation on the pipe. After the second wing nut is tightened, check the Leak Sensor to verify the device is
snug. If the sensor moves, tighten the wing nuts until there is no movement.
Caution Do not tighten the Leak Sensor to more than 20 inch-pounds. Over-tightening could damage the
Leak Sensor housing and/or the pipe.
