Contents

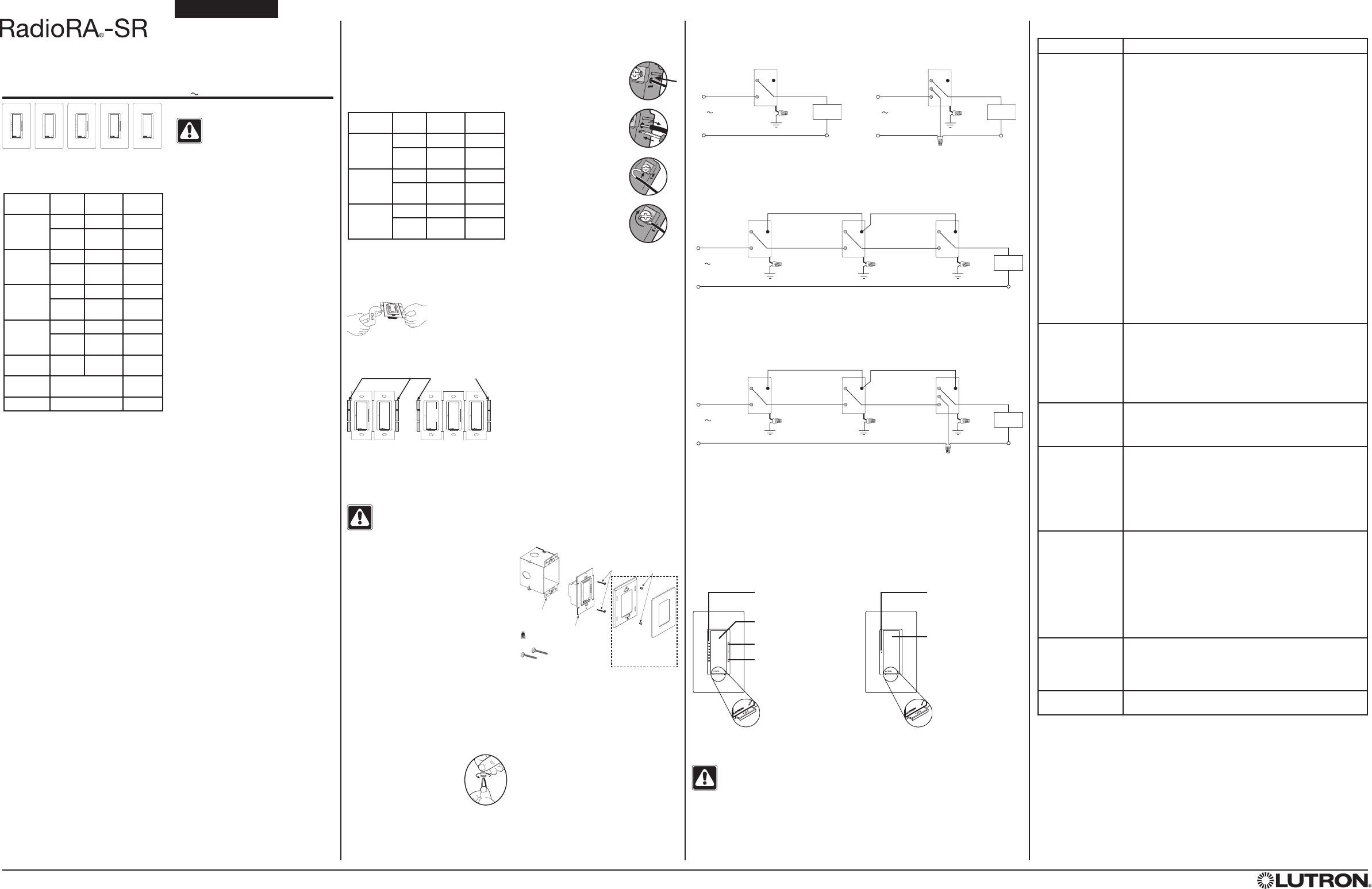

User Manual 6
Designer-Style RF Maestro®
Dimmers: SRD-6D, SRD-10D, SRD-10ND
Switch: SRD-8ANS
Fan Speed Control: SRD-2ANF
Remote Dimmer: SD-RD
Remote Switch: SD-RS
120 V 50 / 60 Hz
Installation Instructions
Please Read Before Installing
Multigang Installations
In multigang installations, several controls
are grouped horizontally in one multigang
wallbox.
When combining controls in a wallbox,
derating is required; however, no derat-
ing is required for Fan Speed or Remote
Dimmers / Switches.
Derating Chart
Control Load
Type End of
Gang Middle of
Gang
SRD-6D
Incand. 500 W 400 W
MLV 400 W /
500 VA 300 W /
400 VA
SRD-10D,
SRD-10ND
Incand. 800 W 650 W
MLV 600 W /
800 VA 500 W /
650 VA
SRD-8ANS
Lighting 6.5 A 5 A
Motor 1/4 HP
5.8 A 1/6 HP
4.4 A
Note: -8ANS controls have fins that need
to be removed for multigang installations.
-6D, -10D, -10ND, -2ANF, -RD and -RS
controls do not have fins that need to be
removed for multigang installations.
Short Circuit Check: Check the instal-
lation for short circuits before installing
control(s). With power OFF, install standard
mechanical switch(es) between Hot and
load. Restore power. If lights or fan do
not work or a breaker trips, check wiring.
Correct wiring and check again. Install
control(s) only when short is no longer
present. Warranty is void if control is
turned ON with a shorted circuit.
1. Turn power OFF at fusebox or circuit
breaker.
2. Prepare wires. When making wire con-
nections, follow the recommended strip
lengths and combinations for the sup-
plied wire connector. Note: Wire con-
nector provided is suitable for copper
wire only.
Multi-Location Installation2
-6D, -10D with SD-RD
Wiring Diagram 3
Single Location Installation with Neutral
-10ND, -8ANS, -2ANF
120 V
50 / 60 Hz
Brass
Silver
Black
Blue
Tighten1
Green
Ground
Hot/Live
Neutral
Load
Wiring Diagram 2
Single Location Installation
-6D, -10D
Wiring Diagram 1
Multi-Location Installation with Neutral2, 3
-10ND, SD-RD, -2ANF -8ANS with SD-RS
Dimmer / Switch / Fan
Speed Control
3 Neutral wire Dimmers / Switches / Fan Speed Controls must be connected on the Load
side of a multi-location installation.
2 Up to 9 RadioRA-SR Remote Dimmers / Switches may be connected to the RadioRA-SR
Dimmer / Switch. Total blue terminal wire length may be up to 250 ft (76 m).
1 When using controls in single location installations, tighten the blue terminal.
DO NOT connect the blue terminal to any other wiring or to ground.
Status LEDs (Dimmer / Fan Speed
Only)
Indicate light / speed level; glow
softly as night light when load is off
Tapswitch
Tap on/off
Dimming Rocker
Press to Brighten / Increase
Speed
Press to Dim / Decrease
Speed
FASSTM
Front
Accessible
Service
Switch
Dimmer / Fan Operation Switch Operation
Lamp Replacement
WARNING - For any procedure other than routine lamp replacement, power must
be disconnected at the main electrical panel. Working with power ON could result
in serious injury or even death.
For routine lamp replacement, remove power from the fixture(s) by pulling the FASS switch
out on both the Dimmer / Switch and all Remote Dimmers / Switches.
Troubleshooting Guide
Lutron Elec tron ics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299
Made and print ed in the U.S.A. 5 / 09 P/N 044-148 Rev. B
Mounting Diagram
Control
Mounting
Screws
Wallbox
Control
Included:
Wire Connector (1)
Mounting Screws (2)
Adapter
Mounting
Screws
Wallplate adapter and wall-
plate purchased separately.
Dimmer
Status LED (Switch Only)
Indicates light status; glows softly
as night light when light is off
Tapswitch
Tap on/off
FASS
Front
Accessible
Service
Switch
Brass
Black
Blue
Tighten1
Green
Ground
Hot/Live
Neutral
Lighting
Load
Dimmer
Brass
Black
Blue
Green
Ground
Lighting
Load
Dimmer
Brass
Black
Blue
Green
Ground
Remote Dimmer
120 V
50 / 60 Hz
Brass
Black
Blue
Green
Ground
Hot/Live
Neutral
Remote Dimmer
Brass
Silver
Black
Blue
Green
Ground
Load
Brass
Black
Blue
Green
Ground
Remote Dimmer/Switch
120 V
50 / 60 Hz
Brass
Black
Blue
Green
Ground
Hot/Live
Neutral
Remote Dimmer/Switch
Push-In Terminals: Insert
wires fully. To release wire,
insert small, flat screwdriver
into slot below push-in ter-
minal. Push screwdriver in
while pulling wire out. Push-in
terminals are for use with
14 AWG (1.5 mm2) solid cop-
per wire only. DO NOT use
stranded or twisted wire.
OR
Screw Terminals: Wrap
wire around screw terminal.
Tighten securely to 5 in-lbs
(0.55 N•m). Screw terminals
are for use with solid cop-
per wire only. DO NOT use
stranded or twisted wire.
Trim or strip wallbox wires to the length indi-
cated by the strip gauge on the back of the
control.
Wire Connector:
• Strip insulation 3/8 in (10 mm) for
14 AWG or 12 AWG (1.0 mm2 or
2.5 mm2) wire
• Strip insulation 7/16 in
(11 mm) for 18 AWG (0.75 mm2)
wire
• Use to join one or two 14 AWG
or 12 AWG (1.5 mm2 or
2.5 mm2) wires with one
18 AWG (0.75 mm2) control
wire.
Twist wire
connector
tight.
Removing Fins on -8ANS
Each control
has inside
fins removed
Control at middle
of Gang has all fins
removed
Do Not remove outside fins on
Controls at the end of gang
Control Location for Ganging
Installation
WARNING - To avoid the risk of
electric shock locate and remove
fuse or lock circuit breaker in the
OFF position before proceeding. Wiring
with power ON could result in serious
injury or death.
Dimmer / Switch
Wiring Diagram 4
Switch Fan Speed
Control
120 V
50 / 60 Hz
3. Wire controls as follows:
Single location installation: See Wiring
Diagrams 1 and 2.
Multi-location installation: See Wiring
Diagrams 3 and 4.
4. Push all wires back into the wallbox and
loosely fasten the control to the wallbox
using the control mounting screws pro-
vided. Do not pinch the wires.
5. Attach Lutron Claro or Satin Colors wall-
plate adapter and wallplate.
a. Install wallplate adapter onto front of
control(s).
b. Tighten control mounting screws until
wallplate adapter is flush to wall (do
not over-tighten).
c. Snap wallplate onto wallplate adapter,
and verify that control is aligned prop-
erly.
d. If control(s) is(are) misaligned, loosen
mounting screws appropriately.
6. Restore power. Check for correct local
operation (see Dimmer / Fan Operation
and Switch Operation).
Symptom Probable Cause and Action
No lights at all or no
fan response
Power not present
• Circuit breaker OFF or tripped. Perform Short Circuit Check.
• FASS is in the OFF position. Move FASS to the ON posi-
tion by fully pushing it in. Check both the Dimmer / Fan
Control / Switch and all of the Remote Dimmers / Switches.
Wiring
• Wires shorted. Make sure the blue terminal is not grounded
or shorted to any other wires.
• Wiring error. Check wiring to be sure it agrees with installa-
tion instructions and wiring diagrams.
Lamps burned out or not installed
• Replace or install lamps.
Dioded lamps
• If dioded lamps are being used, replace with non-dioded
lamps.
Fan setting
• Make sure the fan is set to its highest speed using the pull-
chain.
Fan Speed Control Wrong Load Type
• Make sure that only a single ceiling paddle fan (permanent
split-capacitor motor) rated at 2 A or less is connected to
the control.
• Make sure that no lighting load (i.e. light kit) is connected to
the control.
Lights / fan turn ON
when Tapswitch is
pressed, then turn
OFF
Wiring
• Wiring error. Check wiring to be sure it agrees with installa-
tion instructions and wiring diagrams.
Tapswitch stuck
• Tapswitch stuck at another location. Check to see that
tapswitches are not sticking for all control locations in the
circuit.
Light turns ON and
OFF continuously
Load is less than minimum load requirement
• Make sure the connected load meets the appropriate
minimum load requirement for that control. See Load
Specifications.
Lights / fan don’t
switch ON / OFF
when Tapswitch on
Dimmer / Switch /
Fan Speed Control/
Remote is pressed
Wiring
• Wires shorted. Make sure the blue terminal is not grounded
or shorted to any other wires.
• Wiring error. Check wiring to be sure it agrees with installa-
tion instructions and wiring diagrams.
• Neutral-based product installation location. Check that
neutral-based products are connected on the load side of a
multi-location installation (see Wiring Diagram 4).
Lights / fan don’t
switch ON/OFF from
Keypad
Improper programming
• Program according to the RadioRA-SR Setup Guide.
Out of RF range
• Reposition to be within 30 feet (9 m) of controling keypad.
Wiring
• Wires shorted. Make sure the blue terminal is not grounded
or shorted to any other wires.
• Wiring error. Check wiring to be sure it agrees with installa-
tion instructions and wiring diagrams.
Wallplate is warm Solid-state control dissipation
• Solid-state dimmers, switches, and fan controls internally
dissipate about 2% of the total connected load. It is normal
for dimmers, switches, and fan controls to feel warm to the
touch during operation.
Control is buzzing or
humming
It is normal for dimmers, switches, and fan controls to emit a
slight buzzing or humming sound.
For Installation Guides, System Setup Guide and
Setup tools visit http://www.lutron.com/radiorasr.
Load Specifications:
Control Load
Type Min.
Load Max.
Load
SRD-6D1
Incand. 50 W 600 W
MLV250 W / VA 450 W /
600 VA
SRD-10D1
Incand. 50 W 1000 W
MLV250 W / VA 800 W /
1000 VA
SRD-10ND1
Incand. 10 W 1000 W
MLV210 W / VA 800 W /
1000 VA
SRD-8ANS3
Lighting 10 W / VA 8 A
Motor 0.083 A 1/4 HP
5.8 A
SRD-2ANF4Ceiling
Fan 0.083 A 2 A
SD-RD See Dimmer/Fan
Speed Control 8.3 A
SD-RS See Switch 8.3 A
1 Dimmer Load Type: -6D, -10D and -10ND are
designed for use with permanently installed
incandescent, magnetic low-voltage, or tung-
sten halogen only. Do not install dimmers to
control receptacles or motor-operated appli-
ances.
2 Low-Voltage Applications: Use -6D,
-10D and -10ND with magnetic (core and coil)
low-voltage transformers only. Not for use with
electronic (solid-state) low-voltage transformers.
Operation of a low-voltage circuit with lamps
inoperative or removed may result in trans-
former overheating and premature failure. Lutron
strongly recommends the following:
• Do not operate low-voltage circuits without
operative lamps in place.
• Replace burned-out lamps as quickly as
possible.
• Use transformers that incorporate thermal
protection or fused transformer primary
windings to prevent transformer failure due
to overcurrent.
3 Switch Load Type: -8ANS is designed for
use with permanently installed incandescent,
magnetic low-voltage, electronic low-voltage,
or fluorescent loads and with motor loads up to
1/4 HP (5.8 A).
4 Ceiling Fan Application (SRD-2ANF):
DO:
• Use to control one paddle-type ceiling fan
(permanent split-capacitor).
• Use the ceiling fan’s pull chain to set its
speed to the highest setting.
DO NOT:
• Do not use to control fans that use shaded-
pole motors (i.e. bath exhaust fans).
• Do not use to control fans that have inte-
grated fan speed controls (i.e. fans that have
a remote control), unless the integrated con-
trol is removed from the ceiling fan.
• Do not connect to any other motor-operated
appliance or to any lighting load type.
• Do not use to control a fan lighting load (i.e.
light kit).
Technical Assistance:
USA / CAN: 1.800.523.9466
Mexico: +1.888.235.2910
Other Countries: +1.610.282.3800
24 hours a day, 7 days a week.
Important Notes
WARNING - To avoid the risk
of entrapment, serious injury, or
death, these controls must not be
used to control equipment which is not
visible from every control location or which
could create hazardous situations such
as entrapment if operated accidentally.
Examples of such equipment which must
not be operated by these controls include
(but are not limited to) motorized gates,
garage doors, industrial doors, microwave
ovens, heating pads, etc. It is the installer’s
responsibility to ensure that the equip-
ment being controlled is visible from every
control location and that only suitable
equipment is connected to these controls.
Failure to do so could result in serious
injury or death.
Codes: Install in accordance with all local
and national electrical codes.
Grounding: When no “grounding means”
exist within the wallbox, then the NEC®
2008, Article 404-9 allows a dimmer with-
out a grounding connection to be installed
as a replacement, as long as a plastic,
noncombustible wallplate is used. For
this type of installation, cap or remove the
green ground wire on the dimmer and use
an appropriate wallplate such as Lutron’s
Claro® or Satin Colors® wallplates.
Neutral Wire: -10ND, -8ANS, and -2ANF
require a neutral wire connection in the
wallbox where the Dimmer/Switch / Fan
Speed Control is to be installed. If a neu-
tral wire connection is not available in the
wallbox, contact a licensed electrician for
installation.
Environment: Ambient operating tempera-
ture: 32 °F to 104 °F (0 °C to 40 °C),
0% to 90% humidity, non-condensing.
Indoor use only.
Spacing: If mounting one control above
another, leave at least 4
1⁄2 in (114 mm) ver-
tical space between them.
Wallplates: Lutron® Claro and Satin Colors
wallplates are recommended for best color
match and aesthetic appearance. Do not
paint controls or wallplates.
Cleaning: To clean, wipe with a clean
damp cloth. DO NOT use any chemical
cleaning solutions.
Wallboxes: Lutron recommends using
31⁄2 in (89 mm) deep wallboxes for eas-
ier installation. Several controls may be
installed in one multigang wallbox — see
Derating Chart.
Remote Dimmers / Switches: Use only
Lutron RadioRA®-SR Maestro Remote
Dimmers (-RD) with -6D, -10D, -10ND,
and -2ANF controls. Use only Lutron
RadioRA-SR Maestro Remote Switches
(-RS) with -8ANS controls. Up to 9 -RD or
-RS controls may be used with a RadioRA-
SR Maestro Dimmer, Switch, or Fan Speed
Control. Mechanical 3- or 4-way switches
will not work.
RF Device Placement: RF Dimmers,
Switches, and Fan Speed Controls must
be located within 30 feet (9 m) of con-
trolling keypads. Remote Dimmers and
Switches are not required to be within a
specific range of controlling keypads.
RF Dimmers, Switches or Fan Speed
Controls cannot be controlled by the
system until they are programmed in a
RadioRA-SR system according to the
RadioRA-SR Setup Guide.
English
Remote
Dimmer
Remote
Switch
These products may be covered under one or more of the following U.S. patents: 4,992,709; 5,248,919; 5,399,940; 5,637,930; 5,798,581; 5,838,226; 5,848,054; 5,905,442; 5,982,103; 6,169,377; 6,687,487; 6,803,728; 7,071,634; 7,166,970; 7,362, 285; 7,365,282;
7,382,100; 7,408,525 and corresponding foreign patents. U.S. and foreign patents pending. NEC is a registered trademark of the National Fire Protection Association, Quincy, Massachusetts. Lutron, Claro, Satin Colors, Maestro, RadioRA and the sunburst logo are regis-
tered trademarks and FASS is a trademark of Lutron Electronics Co., Inc.
©2009 Lutron Electronics Co., Inc.
Wallplate
Adapter Wallplate
Returning Devices to Factory Settings
Note: Returning a control to its Factory Settings will remove the control from the system
and erase all programming.
Step 1 : Triple tap the main button on the control. DO NOT release after the third tap.
Step 2 : Keep the button pressed on the third tap (for approximately 3 seconds) until the
status LEDs start to scroll up and down quickly.
Step 3 : Release the button and immediately triple tap the button again. The status LEDs
will scroll up and down slowly.
The control has now been returned to Factory Settings.
Warranty: For Warranty information, please see the enclosed Warranty,
or visit www.lutron.com/resiinfo.
