Antenna 12 of 36
![](/img.php?id=1145127&img=bg1.png)

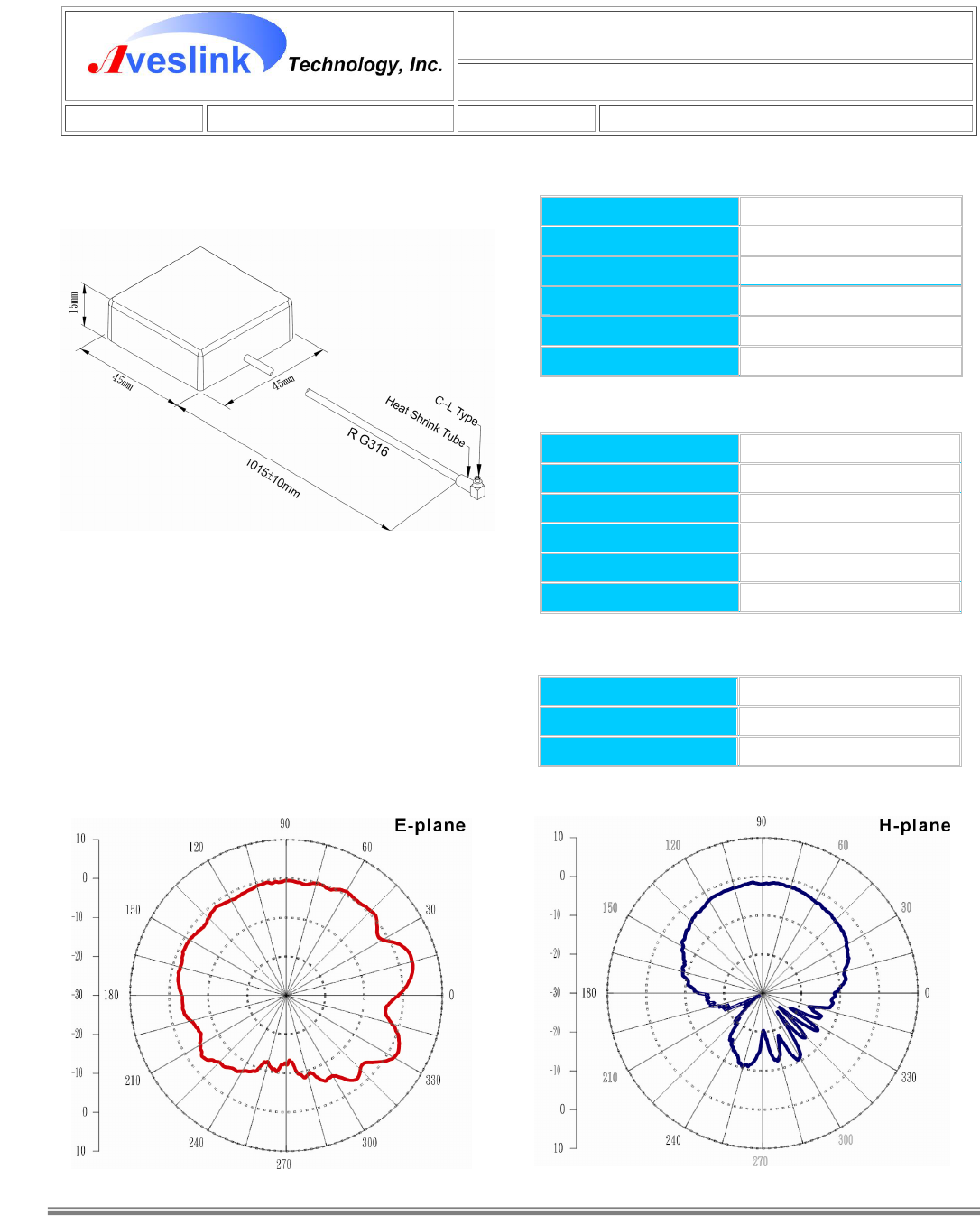

Mechanical Drawing
Mechanical Specification
Environmental Specification
Patch Antenna
Model No.: E-0030-AC
Rev. 1.0 Date Oct. 22, 2007
Connector Type RP-SMA
Material ABS / PC
Cable RG316 (1015mm)
Bushing Type --
Dimension 45x45x15mm
Weight 54g (est.)
2375 Zanker Rd., #240, San Jose, CA 95131 Phone: 408 383-0688 Fax: 408 383-0388
Operating Temp - 30℃ ~ + 65℃
Storage Temp - 30℃ ~ + 70℃
Substance Meets RoHs requirement
Electrical Specification
Frequency Range 2.4~2.4835GHz
Impedance 50Ω
V.S.W.R. ≦2.0
Radiation Directional
Gain 4dBi
Polarization Linear
Unit: mm
