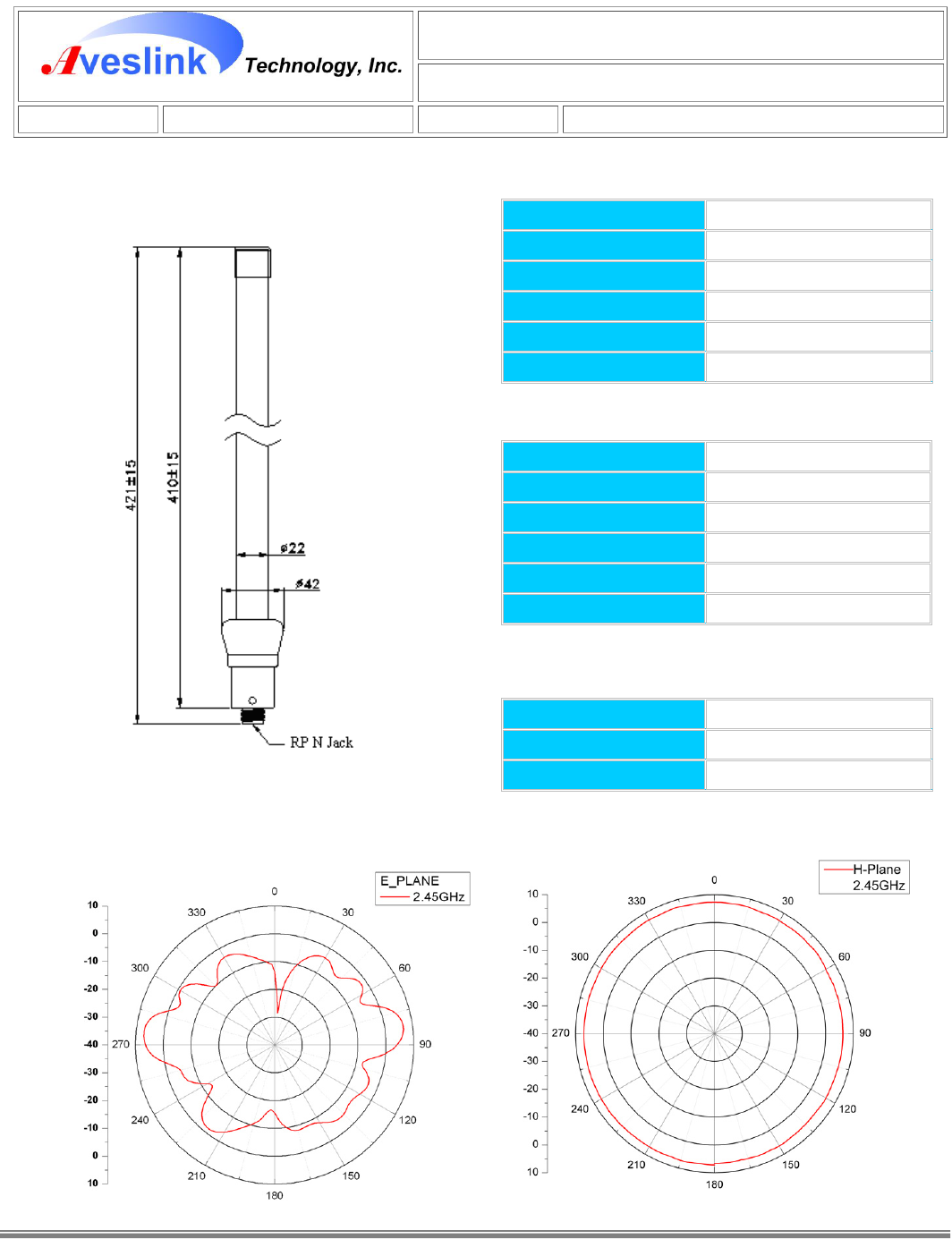

Antenna 7 of 36
![](/img.php?id=1145122&img=bg1.png)
Mechanical Drawing
Mechanical Specification
Environmental Specification
Base Station Antenna
Model No.: E-1020-AT
Rev. 1.0 Date Feb. 06, 2009
Connector Type RP N Jack (Brass)
Material Fiberglass
Cable --
Length 421mm
Water Proof IP65
Weight 379g (est.)
2375 Zanker Rd., #240, San Jose, CA 95131 Phone: 408 383-0688 Fax: 408 383-0388
Operating Temp - 20℃ ~ + 70℃
Storage Temp - 30℃ ~ + 85℃
Substance RoHS Compliant
Electrical Specification
Frequency Range 2.4~2.5GHz
Impedance 50Ω
V.S.W.R. ≦2.0
Radiation Omni-directional
Gain 6.5dBi
Polarization Vertical
Unit: mm
