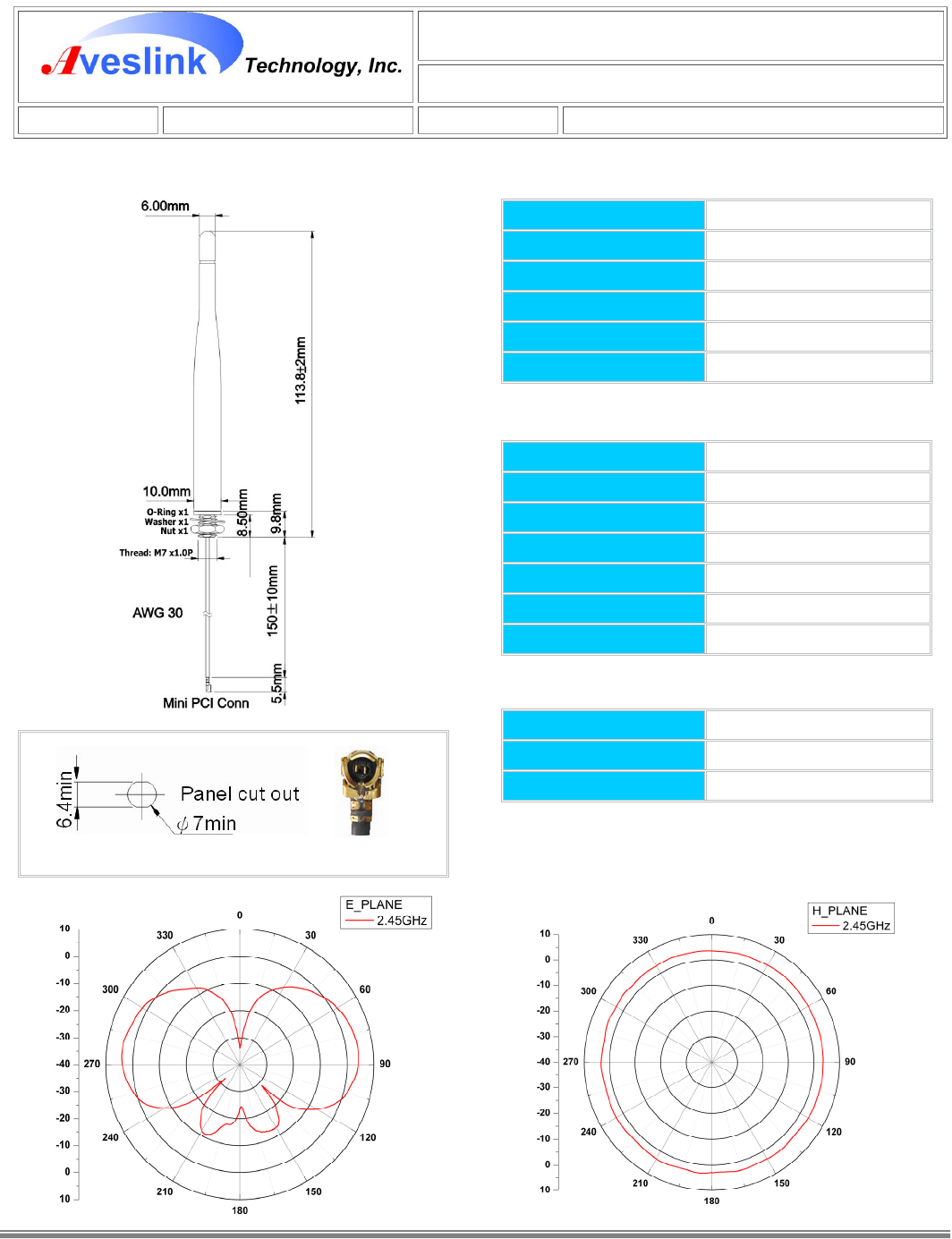

Antenna 14 of 36
Mechanical Drawing
Mechanical Specification
Environmental Specification
Flying Lead Antenna
Model No.: E-1520-CA
Rev. 1.0 Date Oct. 22, 2007
Connector Type µFL/Mini PCI (Brass)
Material Cover(PU) / Base(PC)
Cable AWG30 (150mm)
Bushing Type Straight 0°
Length 113.8mm
Water Proof IP65
Weight 16g (est.)
2375 Zanker Rd., #240, San Jose, CA 95131 Phone: 408 383-0688 Fax: 408 383-0388
Operating Temp - 20℃ ~ + 65℃
Storage Temp - 30℃ ~ + 70℃
Substance Meets RoHs requirement
Electrical Specification
Frequency Range 2.4~2.4835GHz
Impedance 50Ω
V.S.W.R. ≦2.0
Radiation Omni
Gain 4dBi
Polarization Vertical
Unit: mm
