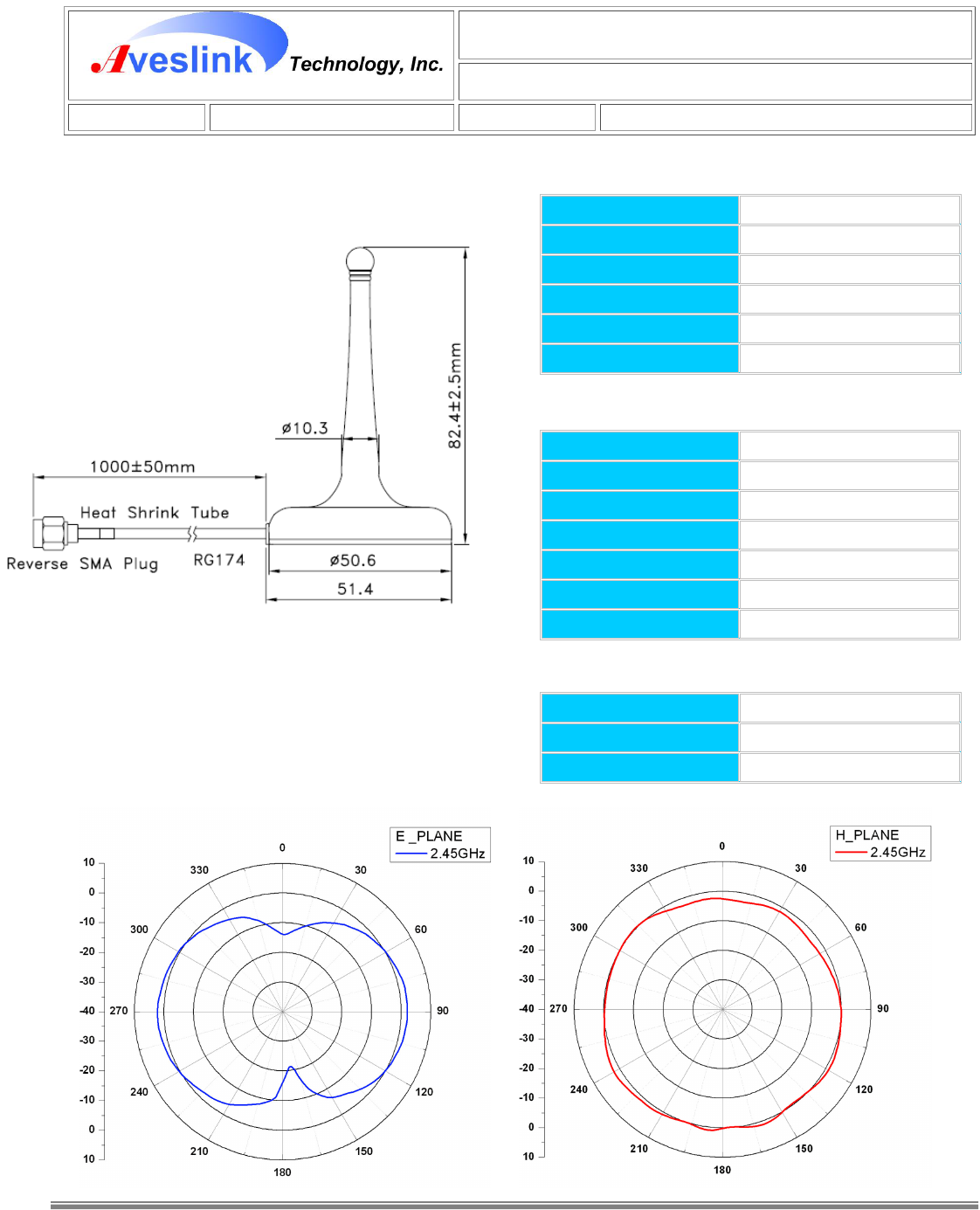

Antenna 23 of 36
Mechanical Drawing
Embedded Antenna
Model No.: E-0005-AC
Rev. 1.0 Date Jan. 17, 2009
Mechanical Specification
2375 Zanker Rd., #240, San Jose, CA 95131 Phone: 408 383-0688 Fax: 408 383-0388
Operating Temp - 20℃ ~ + 65℃
Storage Temp - 30℃ ~ + 70℃
Substance Meet RoHs requirement
Electrical Specification
Frequency Range 2.4~2.4835GHz
Impedance 50Ω
V.S.W.R. ≦2.0
Radiation Omni
Gain 2dBi
Polarization Vertical
Connector Type Reverse SMA Plug (Brass)
Material PU/ABS
Cable RG174 (1000mm)
Bushing Type --
Length 82.4mm
Water Proof --
Weight 31g (est.)
Environmental Specification
Unit: mm
