NXP Laboratories UK JN5148M4 IEEE 802.15.4 High Power Wireless Microcontroller User Manual JN DS JN5148MO 1v1

NXP Laboratories UK Ltd IEEE 802.15.4 High Power Wireless Microcontroller JN DS JN5148MO 1v1

user manual

Data Sheet – JN5148-001-Myy
IEEE802.15.4/ZigBee Module Family
JN-DS-JN5148-001-Myy 1v1 © Jennic 2009
Features: Module
• 2.4GHz IEEE802.15.4 & ZigBee
compatible
•
Sleep current (with active sleep
timer) 2.6µA
•
JN5148-001-M00/03
up to 1km range (Ext antenna)
M00: integral antenna 18x32mm
M03: uFl connector 18x30mm
o TX power +2.5dBm
o Receiver sensitivity –95dBm
o TX current 15mA
o RX current 17.5mA
o 2.3-3.6V operation
•
JN5148-001-M04
up to 4km range (Ext Antenna)
o 20dBm TX power
o Receiver sensitivity -98dBm
o uFl connector
o TX current 110mA
o RX current 23mA
o 18x41mm
o 2.7-3.6V operation
Features: Microcontroller
• 32-
bit RISC CPU, up to 32MIPs with
low power
• 128kB ROM stores system code
• 128kB RAM stores system data and
bootloaded program code
• 4Mbit serial flash for program code
and data
• On chip OTP efuse
• JTAG debug interface
• 4-input 12-bit ADC, 2 12-
bit DACs, 2
comparators
• 3 application timer/counters,
3 system timers
• 2 UARTs
• SPI port with 5 selects
• 2-wire serial interface
• 4-wire digital audio interface
• Watchdog timer
•
Up to 21 DIO
Industrial temp (-40°C to +85°C)
Lead
-free and RoHS compliant
Overview
The JN5148-001-Myy family is a range of ultra low power, high performance surface
mount modules targeted at ZigBee PRO networking applications, enabling users to
realise products with minimum time to market and at the lowest cost. They remove
the need for expensive and lengthy development of custom RF board designs and
test suites. The modules use Jennic’s JN5148 wireless microcontroller to provide a
comprehensive solution with large memory, high CPU and radio performance and all
RF components included. All that is required to develop and manufacture wireless
control or sensing products is to connect a power supply and peripherals such as
switches, actuators and sensors, considerably simplifying product development.
Three module variants are available: JN5148-001-M00 with an integrated antenna,
JN5148-001-M03 with an antenna connector and the JN5148-001-M04 with an
antenna connector, power amplifier and LNA for extended range. The modules can
implement networking stacks such as ZigBee PRO as well as customer applications

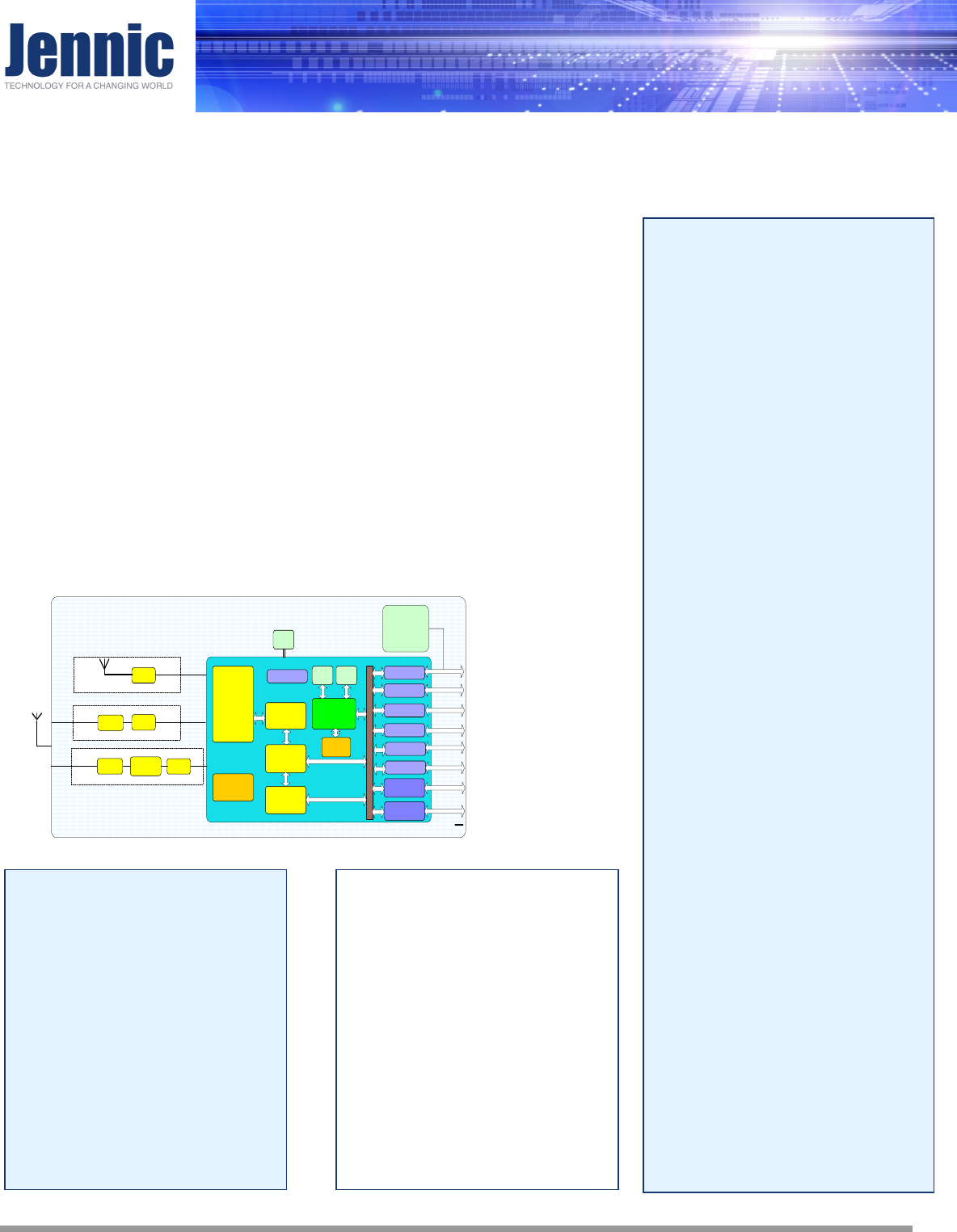

Module Block Diagram
Benefits
•
Microminiature module solutions
•
Ready to use in products
•
Minimises product development
time
•
No RF test required for systems
•
Compliant with FCC part 15
rules, IC Canada RSS 210e,
ETSI ETS 300-328 and Japan
ARIB STD-T66
•
Production volumes supplied
pre-programmed with
application software
Applications
•
Robust and secure low power
wireless applications
•
ZigBee PRO networks
•
Home and commercial building
automation
•
Utilities metering (e.g. AMR)
•
Location Aware services (e.g.
Asset Tracking)
•
Toys and gaming peripherals
•
Industrial systems
•
Telemetry
•
Remote Control
Timers
UARTs
12-bit ADC,
comparators
11-bit DACs,
temp sensor
2-wire serial
SPI
RAM
128kB
128-bit AES
Encryption
Accelerator
2.4GHz
Radio
ROM
128kB
RISC CPU
Power
Management
XTAL
O-QPSK
Modem
IEEE802.15.4
MAC
Accelerator
128kB Serial
Flash Memory
JN5148 chip
Power
Matching
uFl
Connector
Matching
Integrated Antenna
Matching
uFl
Connector PA / LNA
External
Antenna
M00 Option
M03 Option
M04 Option
4-Wire Audio
Sleep Counters
Watchdog timer
32-byte
OTP eFuse
Jennic
JennicJennic
Jennic
ii JN-DS-JN5148-001-Myy 1v1 © Jennic 2009
Contents
1. Introduction 3
1.1. Variants 3
1.2. Regulatory Approvals 3
2. Specifications 4
3. Product Development 5
3.1. JN5148 Single Chip Wireless Microcontroller 5
4. Pin Configurations 6
4.1. Pin Assignment 7
4.2. Pin Descriptions 8
4.2.1 Power Supplies 8
4.2.2 SPI Memory Connections 8
5. Electrical Characteristics 9
5.1. Maximum Ratings 9
5.2. Operating Conditions 9

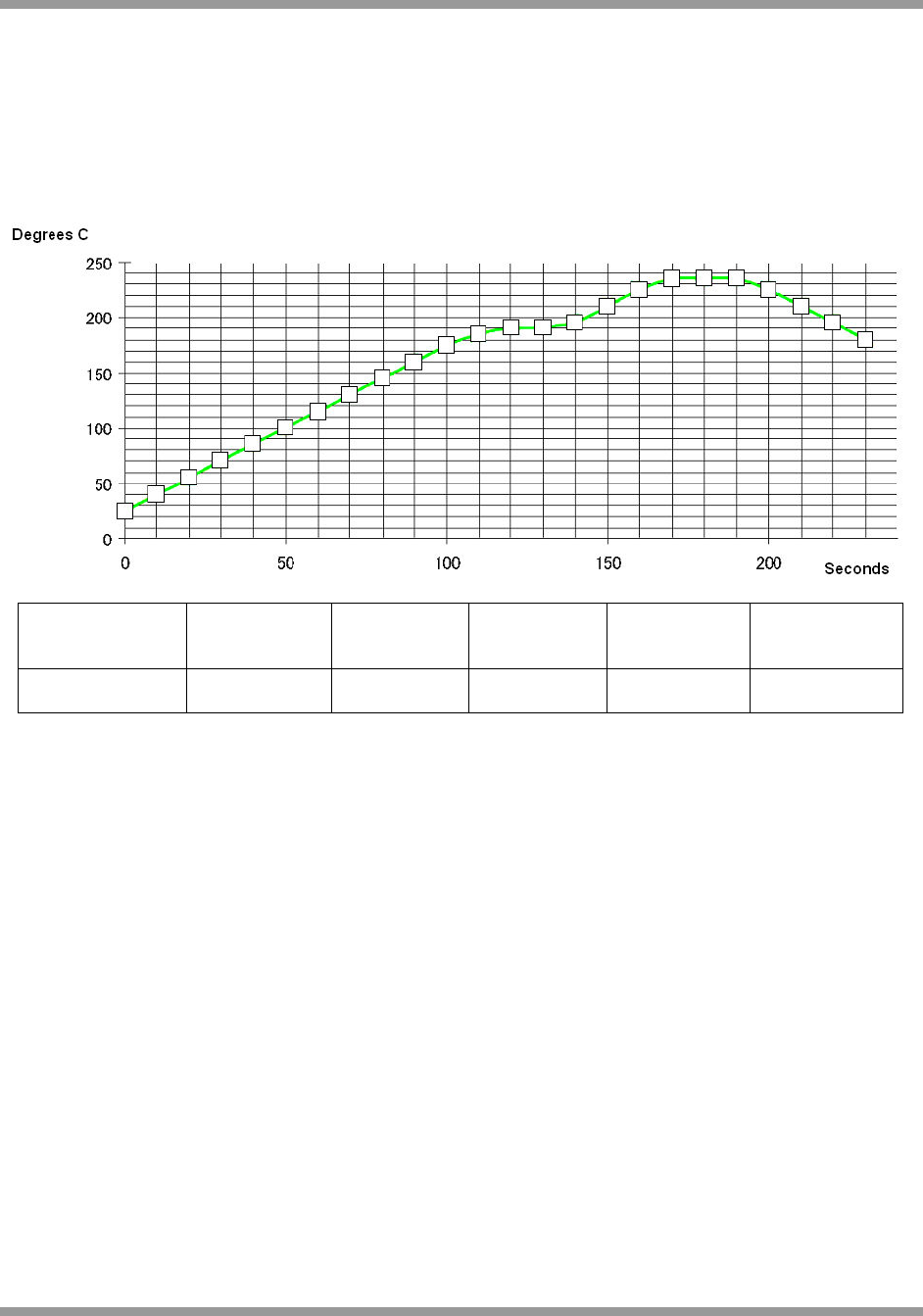

5.3. Reflow Profile 10
Appendix A Additional Information
11

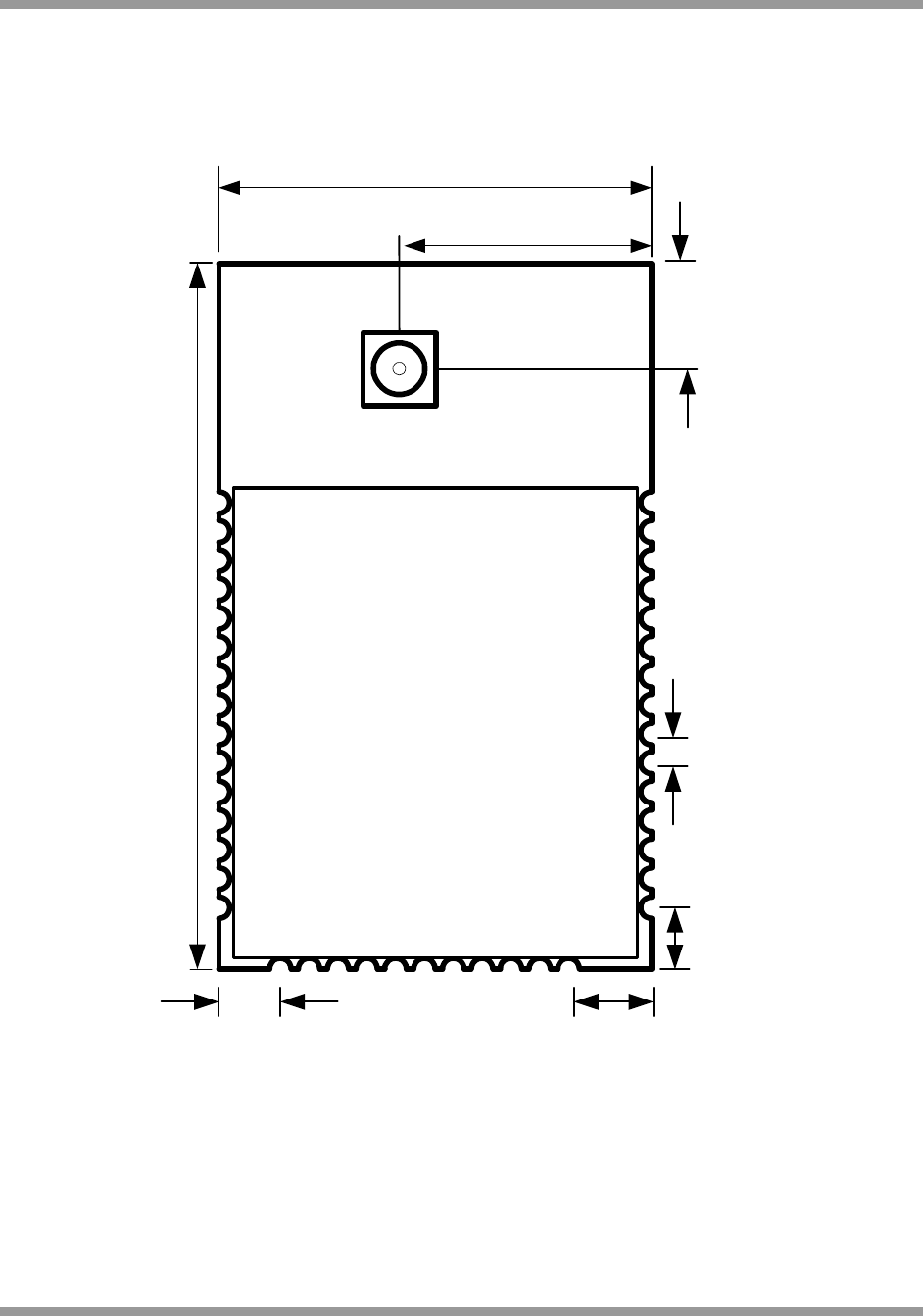

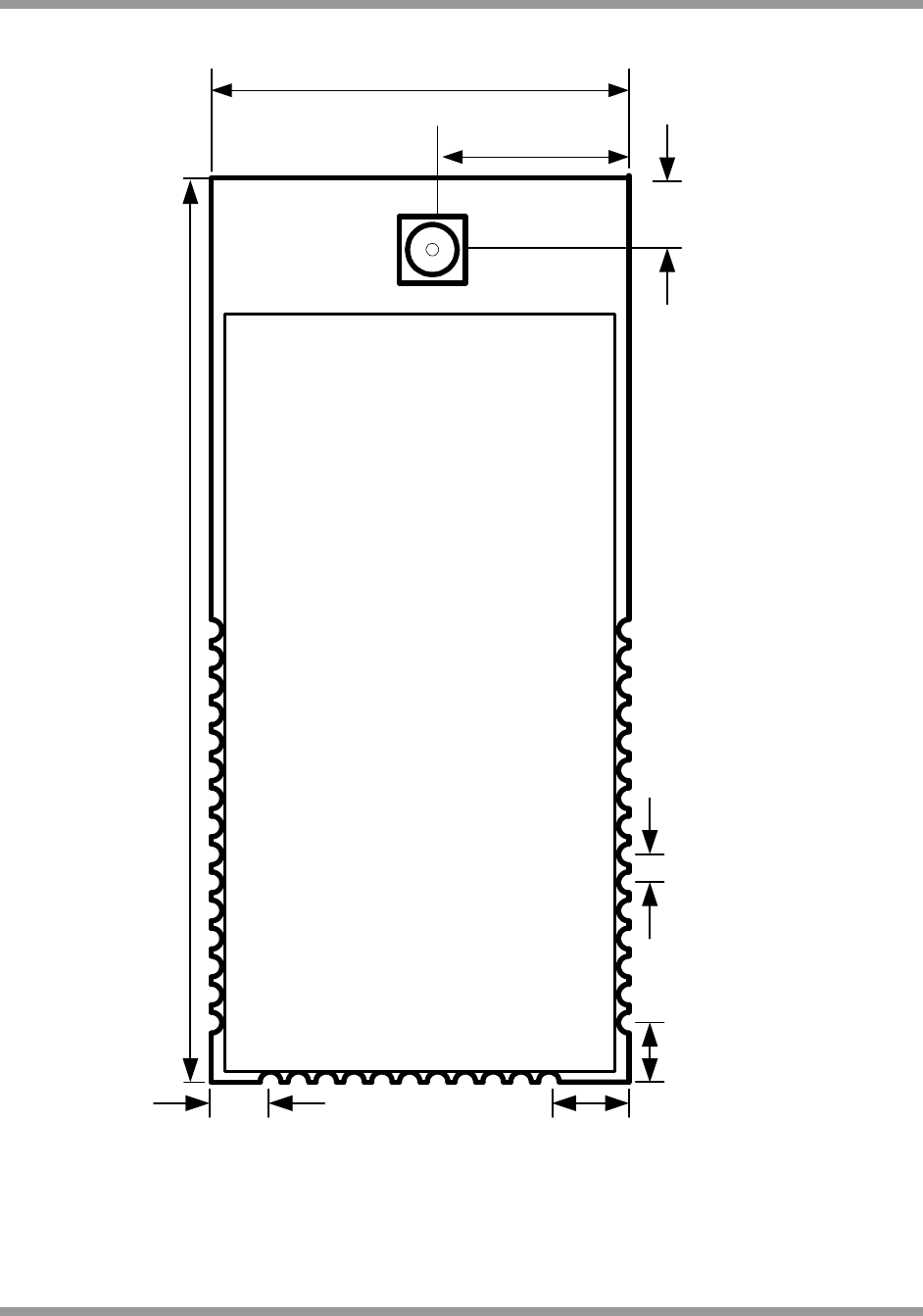

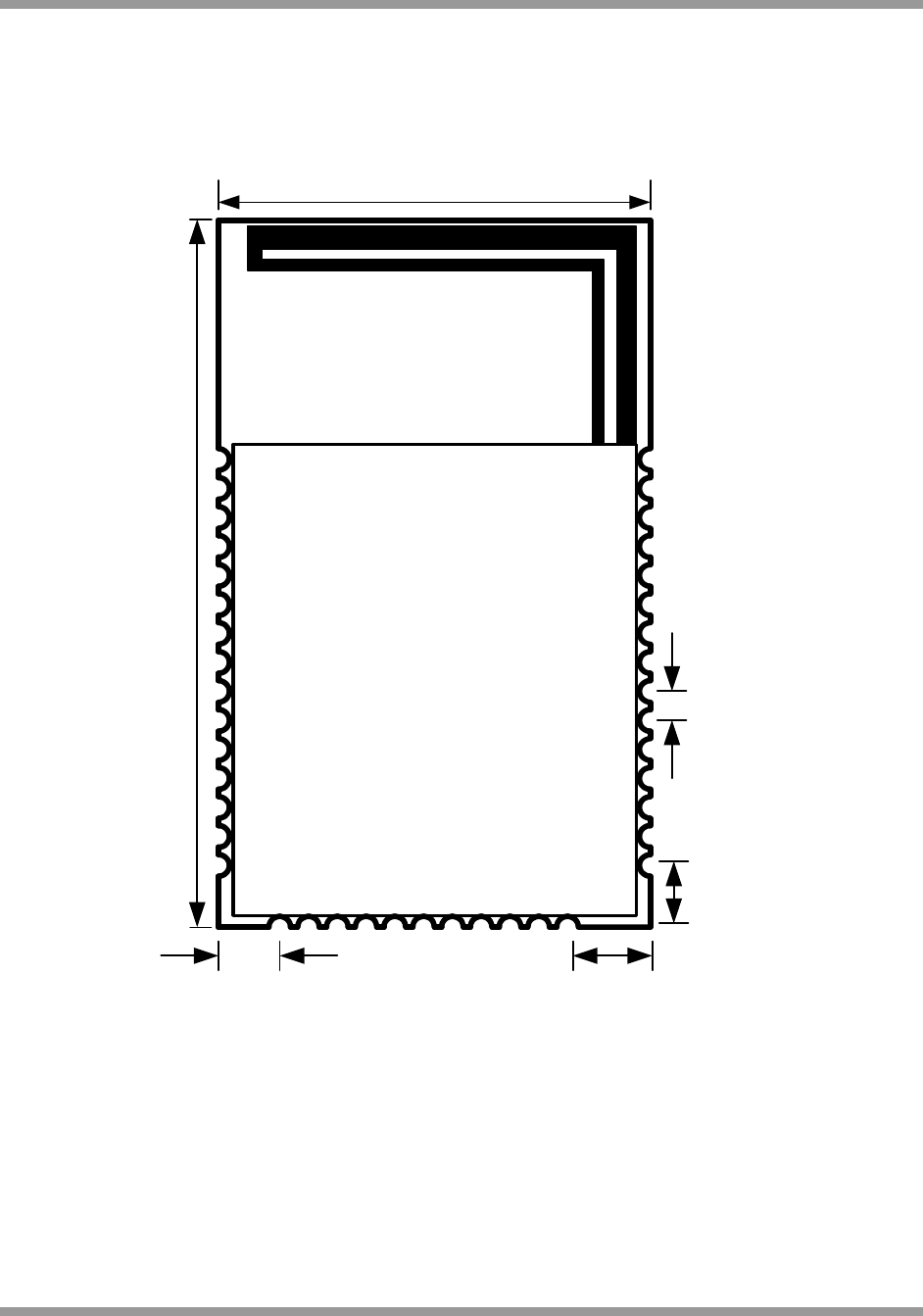

A.1 Outline Drawing 11

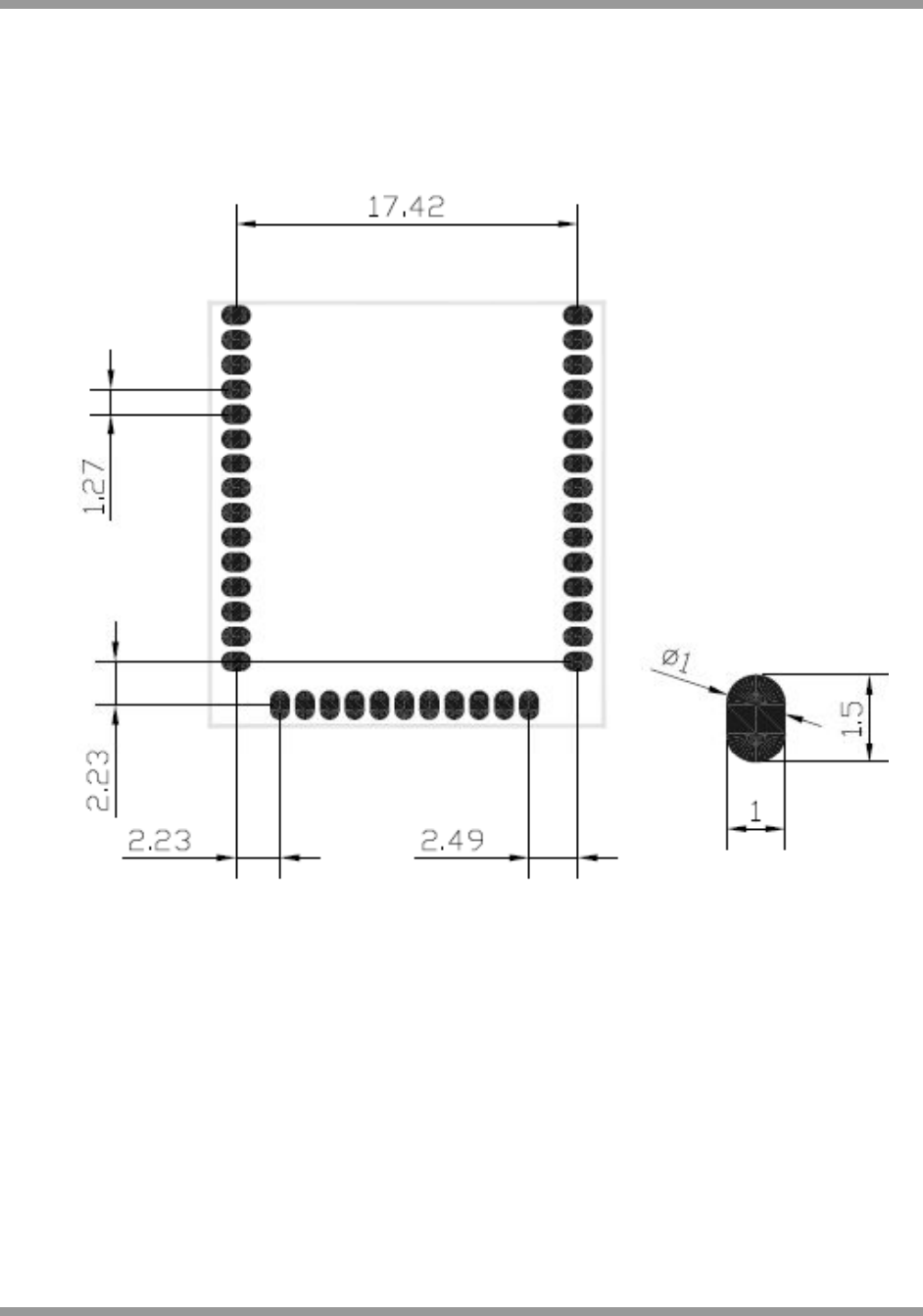

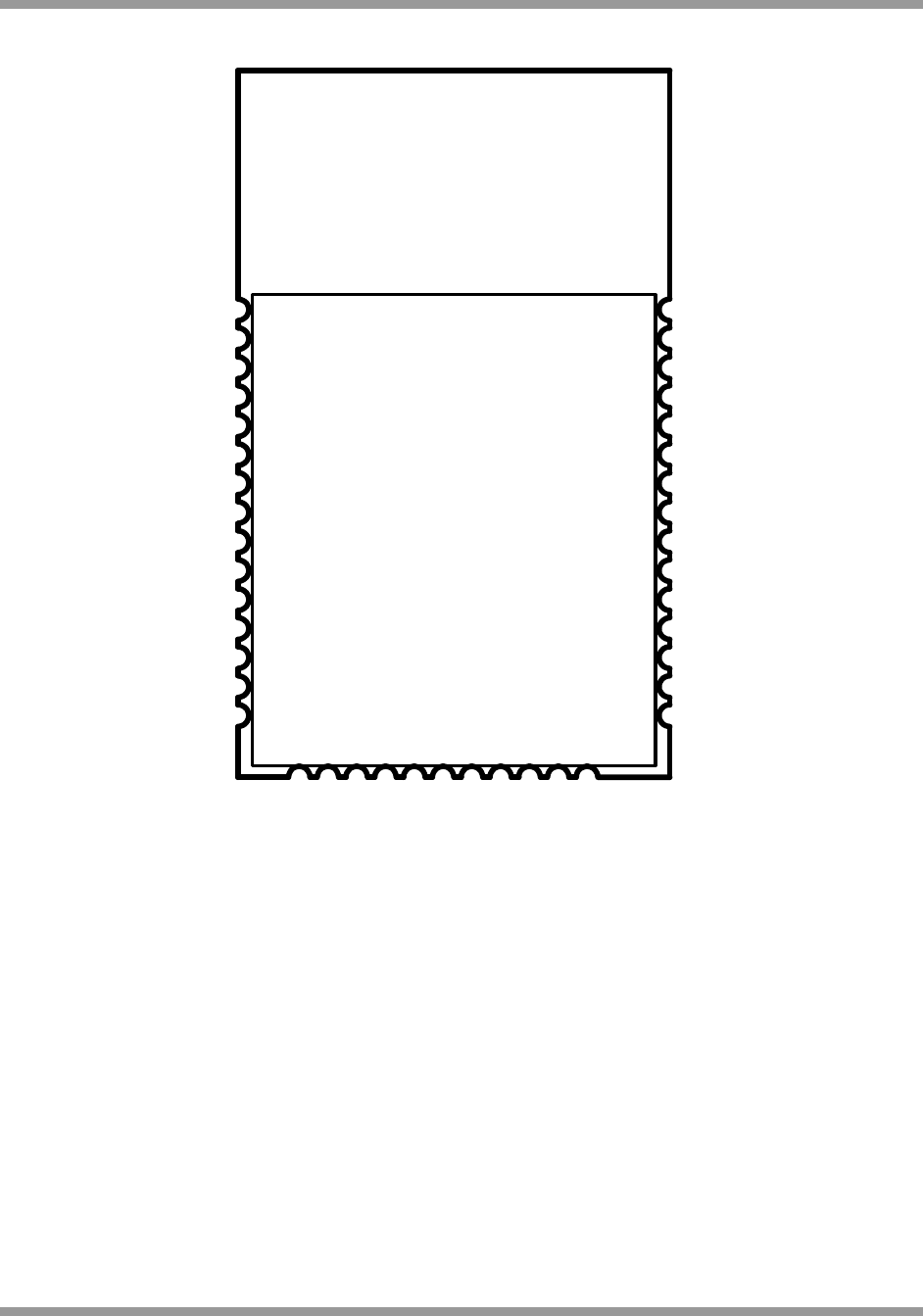

A.2 Module PCB Footprint 14

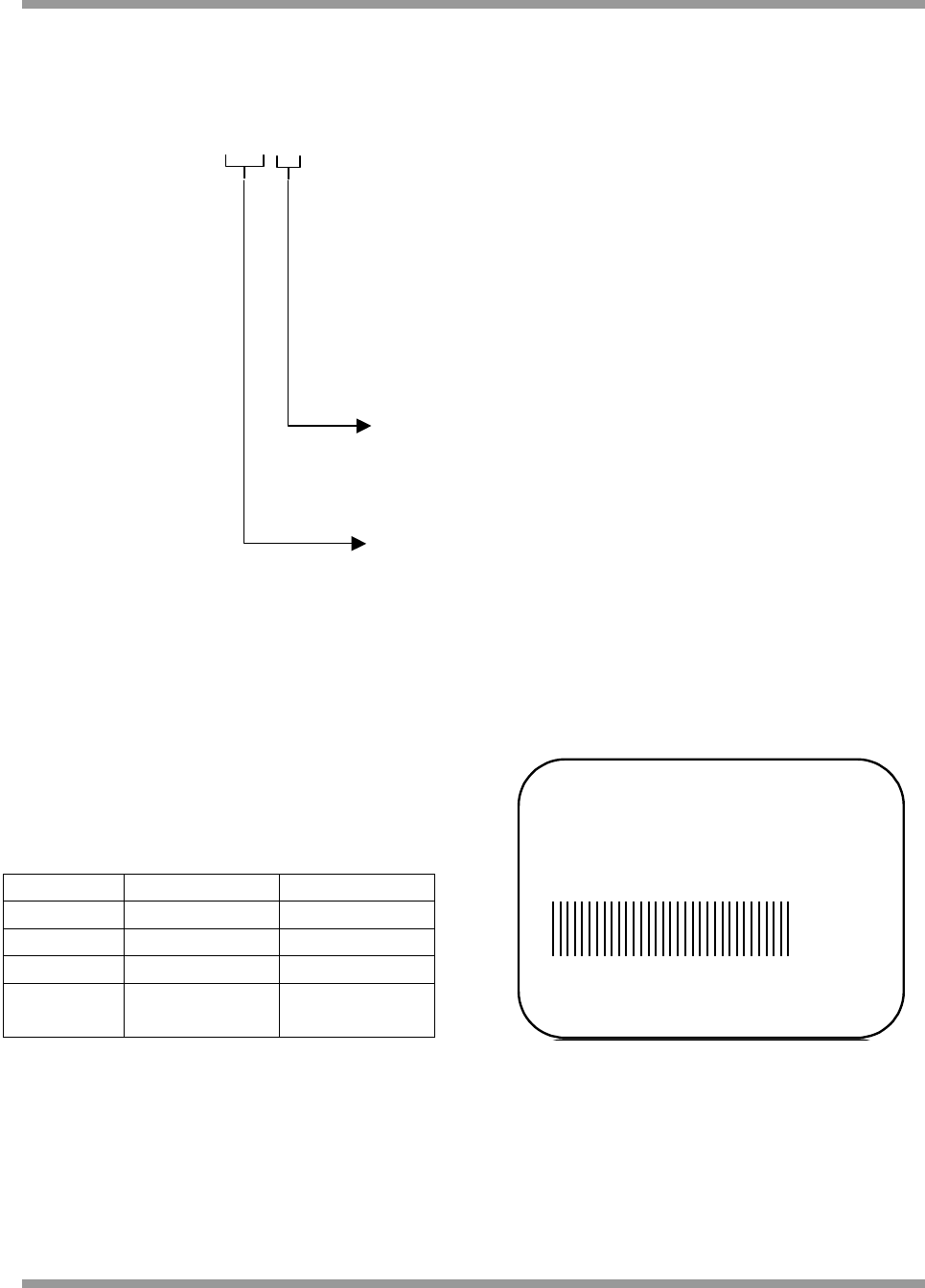

A.3 Ordering Information 15

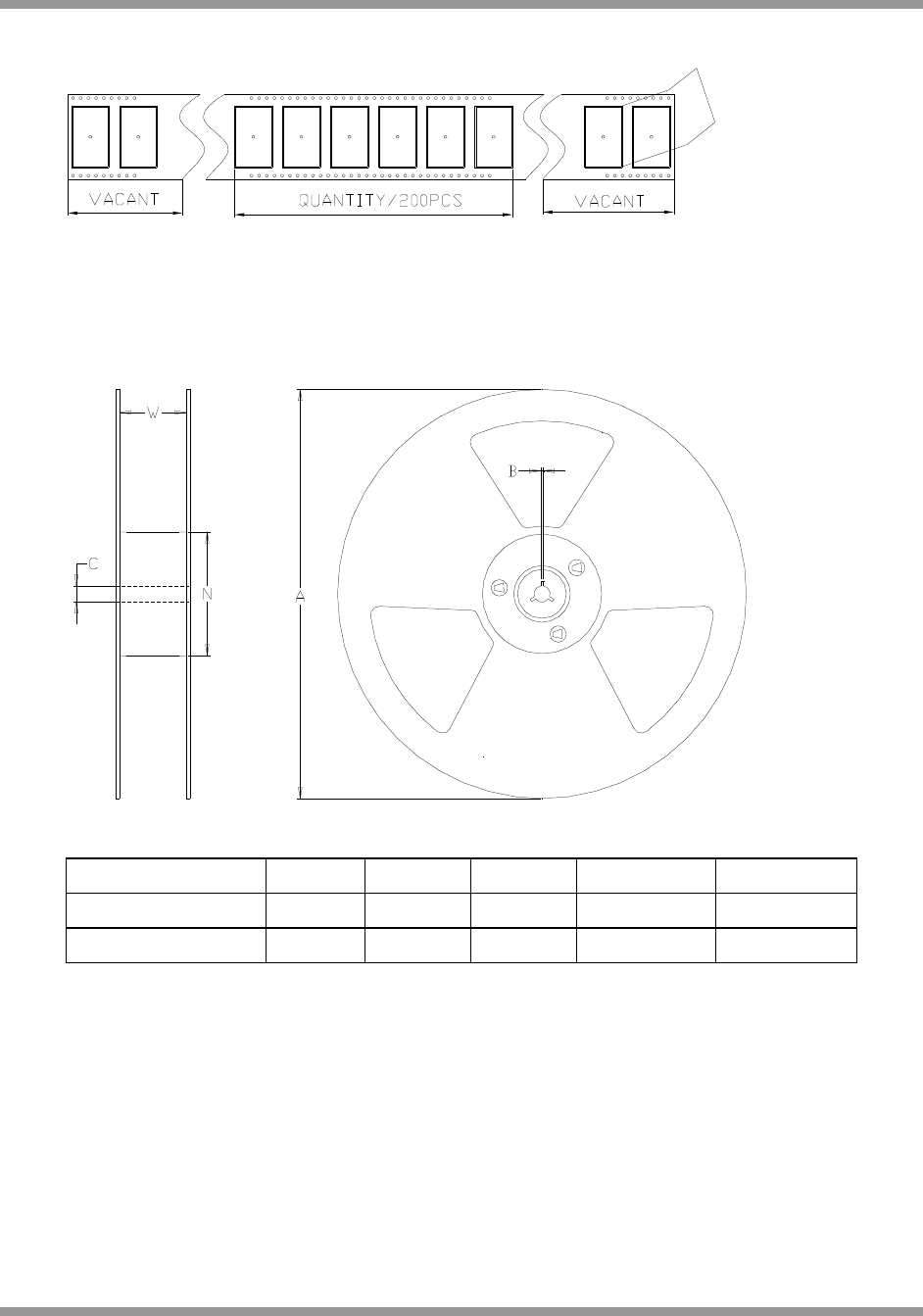

A.4 Tape and Reel Information: 16

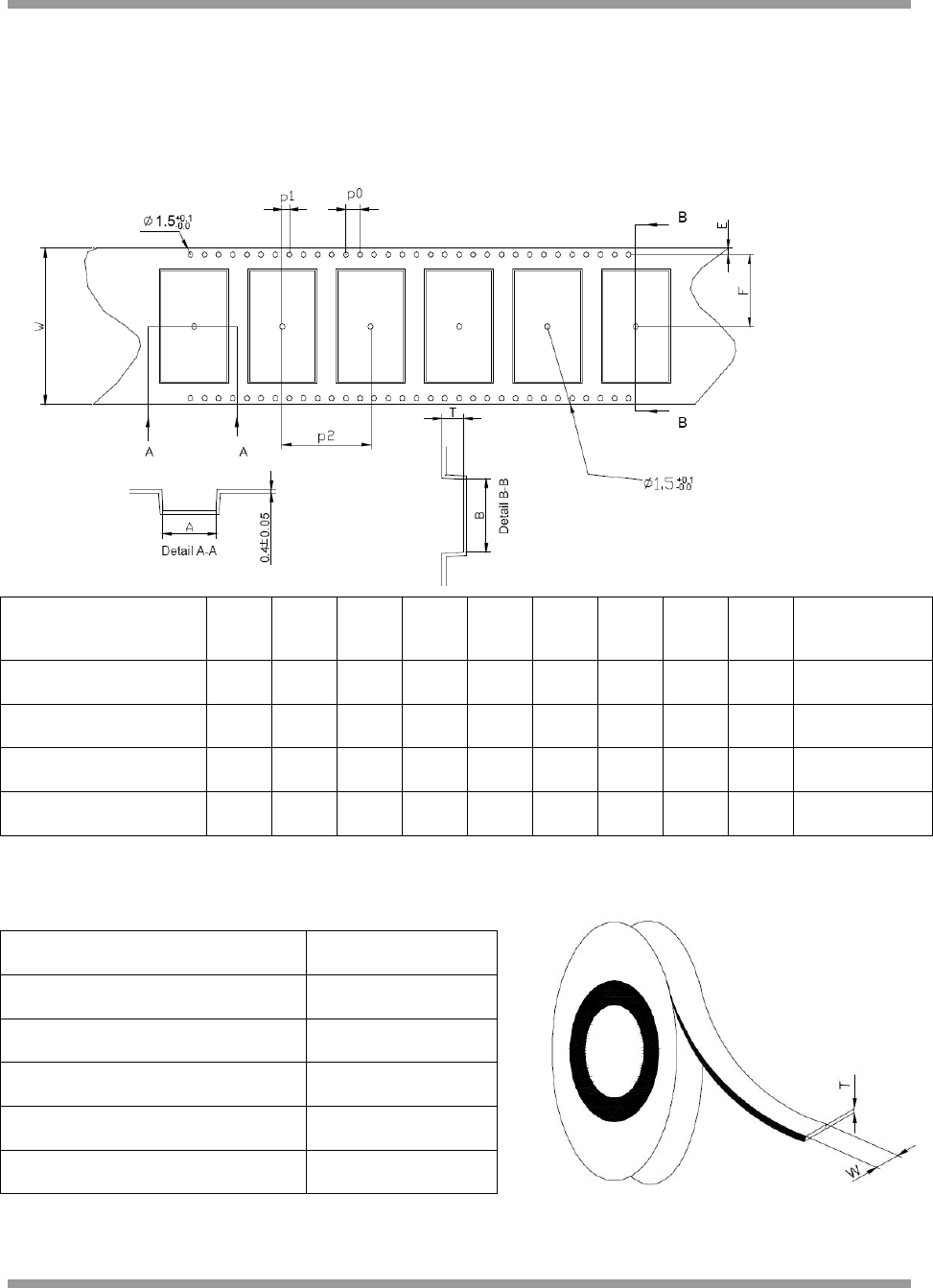

A.4.1 Tape Orientation and dimensions 16
A.4.2 Cover tape details 16
A.4.3 Leader and Trailer 17
A.4.4 Reel Dimensions: 17
A.5 Related Documents 17
A.6 Federal Communication Commission Interference Statement 18
A.6.1 Antennas to be approved by FCC for use with JN5148 modules 19
A.6.2 High Power Module usage limitation 20
A.6.3 High Power Module channel restriction 20
A.6.4 FCC End Product Labelling 20
A.7 Industry Canada Statement 20
A.7.1 Industry Canada End Product Labelling 20
A.8 European R & TTE Directive 1999/5/EC Statement 20
A.9 RoHS Compliance 21
A.10 Status Information 21
A.11 Disclaimers 22
A.12 Version Control 23
Jennic
JennicJennic
Jennic
© Jennic 2009 JN-DS-JN5148-001-Myy 1v1 3
1. Introduction
The JN5148-001-Myy module family provides designers with a ready made component which allows IEEE802.15.4
[1] wireless applications, using Jennic’s JenNet networking protocol or ZigBee PRO, to be quickly and easily included
in product designs. The modules integrate all of the RF components required, removing the need to perform
expensive RF design and test. Products can be designed by simply connecting sensors and switches to the module
IO pins. The modules use Jennic’s single chip IEEE802.15.4 Wireless Microcontroller, allowing designers to make
use of the extensive chip development support material. Hence, this range of modules allows designers to bring
wireless applications to market in the minimum time with significantly reduced development effort and cost.
Three variants are available: JN5148-001-M00 (standard module with integral antenna), JN5148-001-M03 (standard
module with uFl connector for use with external antennae) and JN5148-001-M04 (high RF power with uFL connector,
improved sensitivity module for evaluation of extended range applications). All modules will have FCC modular
approvals and be compliant with EU regulations. The variants available are described below.
1.1. Variants
1.2. Regulatory Approvals
All module types will be tested against the requirements of European standard ETS 300 328 v1.7.1 and a Notified
Body statement of opinion for this standard is available on request. The High Power module with M04 suffix will be
approved for use in Europe with reduced output power: +10dBm EIRP is the maximum permitted in Europe.
Additionally, modules with M00, M03 and M04 suffixes will have received FCC “Modular Approvals”, in compliance
with CFR 47 FCC part 15 regulations and in accordance to FCC Public notice DA00-1407. The modules are
approved for use with a number of antennas; refer to section Appendix A.6.1 for details. See Appendix A.6 for details
on the conditions applying to this modular approval. The modular approvals notice and test reports are available on
request.
The high power module variant is classified as ‘mobile’ device pursuant with FCC § 2.1091 and must not be used at a
distance of less than 20 cm (8”) from any person.
In addition, all modules will have Industry Canada RSS210e Issue 7 (June 2007) certification.
Variant Description FCCID
JN5148-001-M00 Standard Power, integrated antenna TYOJN5148M0
JN5148-001-M03 Standard Power, uFl connector TYOJN5148M3
JN5148-001-M04 High Power, uFl connector TYOJN5148M4
Jennic
JennicJennic
Jennic
4 JN-DS-JN5148-001-Myy 1v1 © Jennic 2009
2. Specifications
Most specification parameters for the modules are specified in the chip datasheet - JN-DS- JN5148 Wireless
Microcontroller Datasheet, [2]. Where there are differences, the parameters are defined here.
VDD=3.0V @ +25°C
Typical DC Characteristics Notes
JN5148-001-
M00/03
JN5148-001-
M04
Deep sleep current 1.3uA 1.3uA
Sleep current 2.6uA 2.6uA With active sleep timer
Radio transmit current 15mA 110mA CPU in doze, radio transmitting
Radio receive current 17.5mA 23mA CPU in doze, radio receiving
Centre frequency accuracy +/-25ppm +/-25ppm Additional +/-15ppm allowance for
temperature and ageing
Typical RF Characteristics Notes
Receive sensitivity -95dBm -98dBm Nominal for 1% PER, as per
802.15.4 section 6.5.3.3 (Note 1)
Maximum Transmit power +2.5dBm 18dBm Nominal (Note 1)
Transmit power at 3.6V 20dBm With Vdd=3.6V
Maximum input signal +5dBm -5dBm For 1% PER, measured as
sensitivity
RSSI range -95 to -10
dBm
-105 to -20
dBm
RF Port impedance – uFl connector 50 ohm 50 ohm 2.4 - 2.5GHz
VSWR (max) 2:1 2:1 2.4 - 2.5GHz
Peripherals Notes
Master SPI port 5 selects 3 selects 250kHz - 16MHz
Slave SPI port
250kHz - 8MHz
Two UARTs
16550 compatible
Two-wire serial I/F (compatible with SMbus & I
2
C)
Up to 400kHz
Two programmable Timer/Counters with
capture/compare facility, Tick timer
16MHz clock
Two programmable Sleep Timers
32kHz clock
Digital IO lines (multiplexed with UARTs, timers
and SPI selects)
21 19
Four channel Analogue-to-Digital converter
12-bit, up to 100ks/s
Two channel Digital-to-Analogue converter
12-bit, up to 100ks/s
Two programmable analogue comparators
Ultra low power mode for sleep
Internal temperature sensor and battery monitor
The performance of all peripherals is defined in the JN-DS- JN5148 Wireless Microcontroller Datasheet [2]
Note 1: Sensitivity is defined for conducted measurements on connectorised modules. Modules with an integrated
antenna have approximately 4 dB less e.i.r.p and reciprocal receive sensitivity.
Jennic
JennicJennic
Jennic
© Jennic 2009 JN-DS-JN5148-001-Myy 1v1 5
3. Product Development
Jennic supplies all the development tools and networking stacks needed to enable end-product development to occur
quickly and efficiently. These are all freely available from Jennic’s support website: http://www.jennic.com/support/ .
A range of evaluation/developer kits is also available, allowing products to be quickly bread boarded. Efficient
development of software applications is enabled by the provision of a complete, unlimited, software developer kit.
Together with the available libraries for the IEEE802.15.4 MAC and the ZigBee network stack, this package provides
everything required to develop application code and to trial it with hardware representative of the final module.
The modules can be user programmed for both in development and in production using software supplied by Jennic.
They can also be supplied ready loaded with customer defined software if required. Access to the on-chip
peripherals, MAC and network stack software is provided through specific APIs. This information is available on the
Jennic support website, together with many example applications, user guides, reference manuals and application
notes.
3.1. JN5148 Single Chip Wireless Microcontroller
The JN5148-001-Myy series is constructed around the JN5148-001 single chip wireless microcontroller, which
includes the radio system, a 32-bit RISC CPU, ROM and RAM memory and a range of analogue and digital
peripherals.
The chip is described fully in JN-DS- JN5148 Wireless Microcontroller Datasheet [2].
The module also includes a 4Mbit serial flash memory, which holds the application code that is loaded into the
JN5148 during the boot sequence and provides static data storage, required by the application.
Jennic
JennicJennic
Jennic
6 JN-DS-JN5148-001-Myy 1v1 © Jennic 2009
4. Pin Configurations
1
2
3
4
16
ADC4
DAC1
DAC2
COMP2+
COMP2-
SPICLK
SPIMISO
SPIMOSI
SPISSZ
DIO0/SPISEL1
DIO1/SPISEL2
DIO2/SPISEL3
SPISSM
SPISWP
DIO3/SPISEL4
DIO4/CTS0
DIO5/RTS0
DIO6/TXD0
DIO7/RXD0
DIO8/TIM0GT
DIO9/TIM0_CAP
DIO10/TIM0_OUT
DIO11/TIM1GT
VDD
GND
VSSA
ADC3
ADC2
ADC1
DIO20/RXD1
DIO19/TXD1
DIO18/RTS1
DIO17/CTS1
DIO16
DIO15/SIF_D
RESETN
DIO14/SIF_CLK
DIO13/TIM1_OUT
DIO12/TIM1_CAP
5
6
7
8
9
10
11
12
13
14
15
17 18 19 20 21 22 23 24 25 26
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
COMP1+
COMP1-
Figure 1: Pin Configuration (top view)
Note that the same basic pin configuration applies for all module designs. However, DIO3/SPISEL4 and
DIO2/SPISEL3 are not available on the high power modules.
Jennic
JennicJennic
Jennic
© Jennic 2009 JN-DS-JN5148-001-Myy 1v1 7
4.1. Pin Assignment
Pin Signal Function Alternative Function
1 ADC4 Analogue to Digital input
2 DAC1 Digital to Analogue output
3 DAC2 Digital to Analogue output
4 COMP2+
5 COMP2-
Comparator 2 inputs
6 SPICLK SPI master clock out
7 SPIMISO SPI Master In/Slave Out
8 SPIMOSI SPI Master Out/Slave In
9 SPISSZ SPI select from module - SS0 (output)
10 DIO0/SPISEL1 SPI Slave Select1 (output) General Purpose Digital I/O DIO0
11 DIO1/SPISEL2 SPI Slave Select2 (output) General Purpose Digital I/O DIO1
12 DIO2/SPISEL3* SPI Slave Select3 (output) General Purpose Digital I/O DIO2 *
13 SPISSM SPI select to FLASH (input)
14 SPISWP FLASH write protect (input)
15 DIO3/SPISEL4* SPI Slave Select4 (output) General Purpose Digital I/O DIO3*
16 DIO4/CTS0 UART0 Clear To Send (input) /TCK (JTAG) General Purpose Digital I/O DIO4
17 DIO5/RTS0 UART0 Request To Send (output) /TMS(JTAG) General Purpose Digital I/O DIO5
18 DIO6/TXD0 UART0 Transmit Data (output) /TDO(JTAG) General Purpose Digital I/O DIO6
19 DIO7/RXD0 UART0 Receive Data (input) / TDI(JTAG) General Purpose Digital I/O DIO7
20 DIO8/TIM0GT Timer0 clock/gate (input) General Purpose Digital I/O DIO8
21 DIO9/TIM0_CAP Timer0 capture (input) General Purpose Digital I/O DIO9
22 DIO10/TIM0_OUT Timer0 PWM (output) General Purpose Digital I/O DIO10
23 DIO11/TIM1GT Timer1 clock/gate (input) General Purpose Digital I/O DIO11
24 VDD 3V power
25 GND Digital ground
26 VSSA Analogue ground
27 DIO12/TIM1_CAP Timer1 capture (input) General Purpose Digital I/O DIO12
28 DIO13/TIM1_OUT Timer1 PWM (output) General Purpose Digital I/O DIO13
29 RESETN Active low reset
30 DIO14/SIF_CLK Serial Interface clock / Intelligent peripheral
clock
General Purpose Digital I/O DIO14
Jennic
JennicJennic
Jennic
8 JN-DS-JN5148-001-Myy 1v1 © Jennic 2009
Pin Signal Function Alternative Function
31 DIO15/SIF_D Serial Interface data / Intelligent Peripheral data
output
General Purpose Digital I/O DIO15
32 DIO16 Intelligent Peripheral data in General Purpose Digital I/O
33 DIO17CTS1 UART1 Clear To Send (input)/ Intelligent
Peripheral device select
General Purpose Digital I/O DIO17
34 DIO18/RTS1 UART1 Request To Send (output)/ Intelligent
Peripheral Interrupt
General Purpose Digital I/O DIO18
35 DIO19/TXD1 UART1 Transmit Data (output) General Purpose Digital I/O DIO19
36 DIO20/RXD1 UART1 Receive Data (input) General Purpose Digital I/O DIO20
37 COMP1-
38 COMP1+
Comparator 1 inputs
39 ADC1 Analogue to Digital input
40 ADC2 Analogue to Digital input
41 ADC3 Analogue to Digital input
*: These two pins are not connected for High power modules
4.2. Pin Descriptions
All pins behave as described in the JN-DS- JN5148 Wireless Microcontroller Datasheet [2], with the exception of the
following:
4.2.1 Power Supplies
A single power supply pin, VDD is provided. Separate analogue (VSSA) and digital (GND) grounds are provided.
These should be connected together at the module pins.
4.2.2 SPI Memory Connections
SPISWP is a write protect pin for the serial flash memory. This should be held low to inhibit writes to the flash device.
SPISSZ is connected to SPI Slave Select 0 on the JN5148.
SPISSM is connected to the Slave Select pin on the memory.
This configuration allows the flash memory device to be programmed using an external SPI programmer if required.
For programming in this mode, the JN5148 should be held in reset by taking RESETN low. Two potential flash 4MB
memory devices may be used in the module, the Numonyx M25P40 and the SST SST25VF040B.
The memory can also be programmed over the UART by using the flash programmer software provided by Jennic.
This is available as part of the Software Developer kit and libraries available from Jennic’s support website –
www.jennic.com/support. To enter this programming mode, SPIMISO (pin 7) should be held low whilst the chip is
reset. Once programming has finished, the chip should be reset, when it will execute the new code downloaded.
For normal operation of the module and programming over the UART, SPISSZ should be connected to
SPISSM.
Jennic
JennicJennic
Jennic
© Jennic 2009 JN-DS-JN5148-001-Myy 1v1 9
5. Electrical Characteristics
In most cases, the Electrical Characteristics are the same for both module and chip. They are described in detail in
the chip datasheet. Where there are differences, they are detailed below.
5.1. Maximum Ratings
Exceeding these conditions will result in damage to the device.
Parameter Min Max
Device supply voltage VDD -0.3V 3.6V
Voltage on analogue pins VREF, ADC1-4, DAC1-2,
COMP1M, COMP1P, COMP2M, COMP2P, IBIAS
-0.3V VDD + 0.3V
Voltage on 5v tolerant digital pins DIO0-DIO8 &
DIO11-20, RESETN
-0.3V Lower of (VDD + 2V) and
5.5V
Voltage on 3v tolerant digital pins DIO9, DIO10,
SPISSM, SPISWP, SPICLK, SPIMOSI, SPIMISO,
SPISSZ
-0.3V VDD + 0.3V
Storage temperature -40ºC 150ºC
Human Body Model
1
2.0kV
Machine Model
2
200V
ESD rating
Charged Device Model
3
500V
1) Testing for Human Body Model discharge is performed as specified in JEDEC Standard JESD22-A114.
2) Testing for Machine Model discharge is performed as specified in JEDEC Standard JESD11-A115.
3) Testing for Charged Device Model discharge is performed as specified in JEDEC Standard JESD22-C101.
This device is sensitive to ESD and should only be handled using ESD precautions.
5.2. Operating Conditions
Supply Min Max
VDD (Module M00/M03) 2.3V 3.6V
VDD (Module M04) 2.7V 3.6V
Ambient temperature range -40°C 85°C
Jennic
JennicJennic
Jennic
10 JN-DS-JN5148-001-Myy 1v1 © Jennic 2009
5.3. Reflow Profile
For reflow soldering, it is recommended to follow the reflow profile in figure 2 as a guide, as well as the paste
manufacturers guidelines on peak flow temperature, soak times, time above liquidus and ramp rates.
Figure 2: Recommended solder reflow profile
Temperature 25~160 ºC 160~190 ºC > 220º C 230~Pk. Pk. Temp
(235ºC)
Target Time (s) 90~130 30~60 20~50 10~15 160~270
Jennic
JennicJennic
Jennic
© Jennic 2009 JN-DS-JN5148-001-Myy 1v1 11
Appendix A Additional Information
A.1 Outline Drawing
32.2mm
18mm
2.76
mm
2.54
mm
2.54
mm
1.27
mm
Thickness: 3.5mm
Figure 3 JN5148-001-M00 Outline Drawing
Jennic
JennicJennic
Jennic
12 JN-DS-JN5148-001-Myy 1v1 © Jennic 2009
30mm
18mm
2.76
mm
2.54
mm
2.54
mm
6.58
mm
9.76mm
1.27
mm
Thickness: 3.5mm
Figure 4 JN5148-001-M03 Outline Drawing
Jennic
JennicJennic
Jennic
© Jennic 2009 JN-DS-JN5148-001-Myy 1v1 13
40.5mm
18mm
.
2.76
mm
2.54
mm
1.27
mm
2.54
mm
4.05mm
7.2mm
Thickness: 3.5mm
Figure 5 JN5148-001-M04 Outline Drawing
Jennic
JennicJennic
Jennic
14 JN-DS-JN5148-001-Myy 1v1 © Jennic 2009
A.2 Module PCB Footprint
All dimensions are in mm.
Note: All modules have the same footprint.
Figure 6 Module PCB footprint
RF note for –M00 modules with integral antenna: No components, ground plane or tracks on any layer of the
mother board should be placed within 20mm of the 3 free sides of the antenna. Tracks etc may be placed
adjacent to the can, but should not extend past the can towards the antenna end of the module for 20mm
from the antenna.
Jennic
JennicJennic
Jennic
© Jennic 2009 JN-DS-JN5148-001-Myy 1v1 15
A.3 Ordering Information
Where this Data Sheet is denoted as “Advanced” or “Preliminary”, devices will be either Engineering Samples or
Prototypes. Devices of this status have an Rx suffix after the module type to identify revision of silicon during these
product phases - for example JN5148-001-M00R1-T.
Shipping
X Tape mounted samples up to 50 pieces
T Tape Mounted 500 pieces reel
JN5148 - 001 - MY
1
Y
2
Y
3
Module Type
00 Standard Power, Integral antenna
03 Standard Power, uFl connector
04 High power, uFl connector
Label line 1:
IC ID Number
Label line 2: FCC ID Number
Label line 3: Part Name
Label line 4: Barcode Label
Label line 5: YYWWTNNNNN (see below)
Identifier
Description Format
YY Year 06(example)
WW Week 45(example)
T Module type
NNNNN Serial
Number
YYWWTNNNNN
IC: 7438A
CYO5148M0
FCC ID: TYOJN5148M0
JN51XX
-
XXX
-
XXX JENNIC
Figure 7: Example module labelling for FCC approved modules
Jennic
JennicJennic
Jennic
16 JN-DS-JN5148-001-Myy 1v1 © Jennic 2009
A.4 Tape and Reel Information:
A.4.1 Tape Orientation and dimensions
All dimensions are in mm
Module type: A B W F E P0 P1 P2 T Cover Tape
width (W)
JN5148-001-M00 18.4 32.6 44 20.2 1.75 4.0 2.0 24.0 3.4 37.5
JN5148-001-M03 18.4 30.4 44 20.2 1.75 4.0 2.0 24.0 3.4 37.5
JN5148-001-M04 18.5 40.9 56 26.2 1.75 4.0 2.0 24.0 3.4 49.5
Tolerance ±0.1 ±0.1 ±0.3 ±0.1 +0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1
A.4.2 Cover tape details
Thickness (T) 0.061mm
Surface resistivity (component side) 10
4
to 10
7
Ohms/sq
Surface resistivity (component side) Non-conductive
Backing type: Polyester
Adhesive type: PSA
Sealing: Room ambient
Jennic
JennicJennic
Jennic
© Jennic 2009 JN-DS-JN5148-001-Myy 1v1 17
A.4.3 Leader and Trailer
300 MM300 MM
A.4.4 Reel Dimensions:
All dimensions are in mm.
Module type: A B C N W (min)
JN5148-xxx-M00/03 330 ±1.0 2.2±0.5 13 ±0.2 100 +0.1 44.5 ±0.3
JN5148-xxx-M04 330 ±1.0 2.2±0.5 13 ±0.2 100 +0.1 56.5 ±0.3
A.5 Related Documents
[1] IEEE Std 802.15.4-2003 IEEE Standard for Information Technology – Part 15.4 Wireless Medium Access Control
(MAC) and Physical Layer (PHY) Specifications for Low-Rate Wireless Personal Area Networks (LR-WPANs)
[2] JN-DS- JN5148 Wireless Microcontroller Datasheet
[3] JN-RM-2002 802.15.4 Stack API
Jennic
JennicJennic
Jennic
18 JN-DS-JN5148-001-Myy 1v1 © Jennic 2009
A.6 Federal Communication Commission Interference Statement
This equipment will have been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device will comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment.
WARNING!
FCC Radiation Exposure Statement:
This portable equipment with its antenna complies with FCC’s RF radiation exposure limits set forth for an
uncontrolled environment. To maintain compliance follow the instructions below;
1. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
2. Avoid direct contact to the antenna, or keep it to a minimum while using this equipment.
This transmitter module is authorized to be used in other devices only by OEM integrators under the
following condition:
The transmitter module must not be co-located with any other antenna or transmitter.
As long as the above condition is met, further transmitter testing will not be required. However, the OEM integrator is
still responsible for testing their end product for any additional compliance requirements required with this module
installed (for example, digital device emissions, PC peripheral requirements, etc.).
Jennic
JennicJennic
Jennic
© Jennic 2009 JN-DS-JN5148-001-Myy 1v1 19
A.6.1 Antennas to be approved by FCC for use with JN5148 modules
Brand Model Number Description Gain (dBi)
Connector type
1 Aveslink Technology, Inc E-0360-AT Patch Antenna - outdoor 18 RP-N
2 Aveslink Technology, Inc E-0260-AT Patch Antenna - outdoor 15 RP-N
3 Aveslink Technology, Inc E-1050-AT Vertical - outdoor colinear 15 RP-N
4 Aveslink Technology, Inc E-1040-AT Vertical - outdoor colinear 12 RP-N
5 Aveslink Technology, Inc E-0100-AC Patch Antenna - flying lead 10 RP-SMA
6 Aveslink Technology, Inc E-1030-AT Vertical - outdoor colinear 9 RP-N
7 Aveslink Technology, Inc E-1020-AT Vertical - outdoor colinear 7 RP-N
8 Aveslink Technology, Inc E-1710-GC Vertical - swivel 7 RP-SMA
9 Aveslink Technology, Inc E-1710-GM Vertical - swivel 7 RP-TNC
10
Aveslink Technology, Inc E-1511-GC Vertical - swivel 5 RP-SMA
11
Aveslink Technology, Inc E-0030-AA Patch Antenna - flying lead 4 uFL
12
Aveslink Technology, Inc E-0030-AC Patch Antenna - flying lead 4 RP-SMA
13
Aveslink Technology, Inc E-1204-AC Ceiling antenna - flying lead 4 RP-SMA
14
Aveslink Technology, Inc E-1520-CA Vertical - bulkhead- flying lead
4 uFL
15
Aveslink Technology, Inc E-1520-GC Vertical - swivel 4 RP-SMA
16
Aveslink Technology, Inc E-1450-GC Vertical-swivel mount 4 RP-SMA
17
Nearson S152CL-L-PX-2450S Vertical - knuckle-flying lead 4 uFL
18
Antenna Factor ANT-2.4-CW-RCL Vertical - knuckle antenna 2.9 RP-SMA
19
Aveslink Technology, Inc E-0901-AA Embedded - flying lead 2.5 uFL
20
Antenna Factor ANT-2.4-CW-RCT-RP
Vertical - knuckle antenna 2.2 RP-SMA
21
Antennova 2010B6090-01 Vertical - knuckle antenna 2.2 RP-SMA
22
Hyperlink Technology HG2402RD-RSF Vertical - knuckle antenna 2.2 RP-SMA
23
Aveslink Technology, Inc E-0005-AC Vertical- flying lead 2 RP-SMA
24
Aveslink Technology, Inc E-2411-GC Vertical - swivel 2 RP-SMA
25
Aveslink Technology, Inc E-2410-CA Vertical - bulkhead- flying lead
2 uFL
26
Aveslink Technology, Inc E-2410-GC Vertical - swivel 2 RP-SMA
27
Aveslink Technology, Inc E-2820-CA Vertical - bulkhead- flying lead
2 uFL
28
Aveslink Technology, Inc E-2820-GC Vertical - swivel 2 RP-SMA
29
Aveslink Technology, Inc E-0903-AX Embedded - nickel silver strip 2 None
30
Aveslink Technology, Inc E-0904-AX Embedded - nickel silver strip 2 None
31
Embedded Antenna Design
FBKR35068-RS-KR Vertical - knuckle antenna 2 RP-SMA
32
Nearson S131CL-L-PX-2450S Vertical - knuckle-flying lead 2 uFL
33
Laird Technologies WRR2400-IP04 Vertical - knuckle-flying lead 1.5 uFL
34
Laird Technologies WRR2400-RPSMA Vertical - knuckle-flying lead 1.3 RP-SMA
35
Aveslink Technology, Inc E-6170-DA Vertical - right angle 1 uFL
36
Laird Technologies WCR2400-SMRP Vertical - knuckle antenna 1 RP-SMA
These antennae or versions with alternative connectors may be used to meet European regulations.
This device has been designed to operate with the antennas listed above, and having a maximum gain of 4.4 dBi.
Antennas not included in this list or having a gain greater than 4.4 dBi are strictly prohibited for use with this device.
The required antenna impedance is 50 ohms.
Jennic
JennicJennic
Jennic
20 JN-DS-JN5148-001-Myy 1v1 © Jennic 2009
A.6.2 High Power Module usage limitation
The high power module variants are classified as ‘mobile’ device pursuant with FCC § 2.1091 and must not be used
at a distance of < 20 cm (8”) from any nearby people.
IMPORTANT NOTE: In the event that these conditions can not be met (for certain configurations or co-location with
another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the
final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this
RF module in the user manual of the end product.
The user manual for the end product must include the following information in a prominent location;
“To comply with FCC’s RF radiation exposure requirements, the antenna(s) used for this transmitter must not be co-
located or operating in conjunction with any other antenna or transmitter.”
A.6.3 High Power Module channel restriction
The FCC grant for the TYOJN5148M4 does not permit the use of channel 26. Access to channel 26 is forbidden by
the 802.15.4 MAC layer when the JN5148 chip is in high power mode. High power mode enables the use of DIO2
and DIO3 to control the external RX/TX switching necessary when using a high power module. Users will not be able
to access channel 26 when using the JN5148-001-M04 module under any circumstances.
A.6.4 FCC End Product Labelling
The final ‘end product’ should be labelled in a visible area with the following:
“Contains TX FCC ID: TYOJN5148M0, TYOJN5148M3 or TYOJN5148M4 ” to reflect the version of the module being
used inside the product.
A.7 Industry Canada Statement
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.
These modules have been designed to operate with antennas having a maximum gain of 18 dBi. Antennas having a
gain greater than 18 dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms.
As long as the above condition is met, further transmitter testing will not be required. However, the OEM integrator is
still responsible for testing their end-product for any additional compliance requirements required with this module
installed (for example, digital device emissions, PC peripheral requirements, etc).
A.7.1 Industry Canada End Product Labelling
For Industry Canada purposes the following should be used.
“Contains Industry Canada ID IC: 7438A-CYO5148M0, IC: 7438A-CYO5148M3 or IC: 7438A-CYO5148M4” to reflect
the version of the module being used inside the product.
A.8 European R & TTE Directive 1999/5/EC Statement
All modules listed in this datasheet will be compliant with ETSI EN 300 328V1.7.1 (2006/05) and will be subject to a
Notified Body Opinion.
Jennic
JennicJennic
Jennic
© Jennic 2009 JN-DS-JN5148-001-Myy 1v1 21
The modules will be approved for use with the antennas listed in the following table. The high power module M04 is
limited to an antenna with a gain of 2.2 dBi or less.
Brand Model Number Description Gain Connector type
Antenna Factor ANT-2.4-CW-RCL Vertical - knuckle antenna 2.9dBi RP-SMA
Antenna Factor ANT-2.4-CW-RCT-SS
Vertical - knuckle antenna 2.2dBi SMA
Laird Technologies WCR2400-SMA Vertical - knuckle antenna 1.0dBi SMA
Laird Technologies WRR2400-IP04 Vertical - knuckle-flying lead 1.5dBi uFL
Embedded Antenna Design BKR2400 Vertical - knuckle antenna 2.0dBi SMA
Antennova Titanis Vertical - knuckle antenna 4.4dBi SMA
Nearson S131CL-L-PX-2450S Vertical - knuckle-flying lead 2.0dBi uFL
Nearson S152CL-L-PX-2450S Vertical - knuckle-flying lead 4.0dBi uFL
Aveslink Technology, Inc E-0030-AA Patch Antenna - flying lead 4dBi uFL
Aveslink Technology, Inc E-0030-AB Patch Antenna - flying lead 4dBi SMA
Aveslink Technology, Inc E-1204-AB Ceiling antenna - flying lead 4dBi SMA
Aveslink Technology, Inc E-0005-AB Vertical- flying lead 2dBi SMA
Aveslink Technology, Inc E-1450-GB Vertical-swivel mount 4dBi SMA
Aveslink Technology, Inc E-1450-GC Vertical-swivel mount 4dBi RP-SMA
Aveslink Technology, Inc E-1520-CA Vertical - bulkhead- flying lead 4dBi uFL
Aveslink Technology, Inc E-1520-GB Vertical - swivel 4dBi SMA
Aveslink Technology, Inc E-1520-GC Vertical - swivel 4dBi RP-SMA
Aveslink Technology, Inc E-2411-GB Vertical - swivel 2dBi SMA
Aveslink Technology, Inc E-2410-CA Vertical - bulkhead- flying lead 2dBi uFL
Aveslink Technology, Inc E-2410-GB Vertical - swivel 2dBi SMA
Aveslink Technology, Inc E-2410-GC Vertical - swivel 2dBi RP-SMA
Aveslink Technology, Inc E-2410-HA Vertical - swivel -flying lead 2dBi uFL
Aveslink Technology, Inc E-2820-CA Vertical - bulkhead- flying lead 2dBi uFL
Aveslink Technology, Inc E-2820-GB Vertical - swivel 2dBi SMA
Aveslink Technology, Inc E-2820-GC Vertical - swivel 2dBi RP-SMA
Aveslink Technology, Inc E-6170-DA Vertical - right angle 1dBi uFL
Aveslink Technology, Inc E-0901-AA Embedded - flying lead 2.5dBi uFL
Hyperlink Technologies HG2402RD-RSF Vertical – tilt and swivel 2.2dBi RP-SMA
A.9 RoHS Compliance
JN5148-001-Myy devices meet the requirements of Directive 2002/95/EC of the European Parliament and of the
Council on the Restriction of Hazardous Substance (RoHS).
The JN5148-001-M00, M03 and M04 modules meet the requirements of Chinese RoHS requirements SJ/T11363-
2006.
Full data can be found on the Jennic support website at www.jennic.com/support
A.10 Status Information
The status of this Data Sheet is Preliminary.
Jennic products progress according to the following format:
Jennic
JennicJennic
Jennic
22 JN-DS-JN5148-001-Myy 1v1 © Jennic 2009
Advanced
The Data Sheet shows the specification of a product in planning or in development.
The functionality and electrical performance specifications are target values and may be used as a guide to the final
specification.
Jennic reserves the right to make changes to the product specification at anytime without notice.
Preliminary
The Data Sheet shows the specification of a product that is commercially available, but is not yet fully qualified.
The functionality of the product is final. The electrical performance specifications are target values and may used as a
guide to the final specification. Modules are identified with an Rx suffix, for example JN5148-001-M00R2.
Jennic reserves the right to make changes to the product specification at anytime without notice.
Production
This is the final Data Sheet for the product.
All functional and electrical performance specifications, including minimum and maximum values are final.
This Data Sheet supersedes all previous document versions.
Jennic reserves the right to make changes to the product specification at anytime to improve its performance.
A.11 Disclaimers
The contents of this document are subject to change without notice. Jennic reserves the right to make changes,
without notice, in the products, including circuits and/or software, described or contained therein. Information
contained in this document regarding device applications and the like is intended through suggestion only and may
be superseded by updates. It is your responsibility to ensure that your application meets with your specifications.
Jennic warrants performance of its hardware products to the specifications applicable at the time of sale in
accordance with Jennic’s standard warranty. Testing and other quality control techniques are used to the extent
Jennic deems necessary to support this warranty. Except where mandatory by government requirements, testing of
all parameters of each product is not necessarily performed.
Jennic assumes no responsibility or liability for the use of any of these products, conveys no license or title under any
patent, copyright, or mask work right to these products, and makes no representations or warranties that these
products are free from patent, copyright, or mask work infringement, unless otherwise specified.
Jennic products are not intended for use in life support systems, appliances or systems where malfunction of these
products can reasonably be expected to result in personal injury, death or severe property or environmental damage.
Jennic customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify Jennic for any damages resulting from such use.
All products are sold subject to Jennic's terms and conditions of sale supplied at the time of order acknowledgment.
All trademarks are the property of their respective owners.
Jennic
JennicJennic
Jennic
© Jennic 2009 JN-DS-JN5148-001-Myy 1v1 23
A.12 Version Control
Version Notes
1.0 1st Issue of Advanced Datasheet
1.1 1st Issue of Preliminary Datasheet, minor parametric changes and addition of Apendix A6.3
Jennic Ltd
Furnival Street
Sheffield
S1 4QT
United Kingdom
Tel: +44 (0)114 281 2655
Fax: +44 (0) 114 281 2951
E-mail: info@jennic.com
For the contact details of your local Jennic office or distributor, refer to the Jennic web site:
www.jennic.com

Navigation menu
