2. Menu Overview and Basic Setup
Menu overview
The control panel provides access to various menus to set up the machine or use the machine’s functions.
1
Accessing the menu
• An checked (√) appears next to the currently selected menu.
• Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.
• Some menu names may differ from your machine depending on its options or the models.
• The menus are described in the Advanced Guide (see "Useful Setting Menus" on page 168).
1Press Menu( ) button on the control panel.
2 Press the arrows until the needed menu item appears and press OK.
3 If the setting item has sub menus, repeat step 2.
4 Press OK to save the selection.
5 Press (Stop/Clear) to return to the ready mode.
Menu overview
27
2. Menu Overview and Basic Setup
Information
(see "Information" on page 170)
Layout
(see "Layout" on page 171)
Paper
(see "Paper" on page 172)
Graphic
(see "Graphic" on page 173)
Configuration
Demo Page
Network Configuration
Supplies Information
Usage Counter
Accounta
Menu Map
PCL Font
PS Font
a. This is used only available when Job Accounting is enabled from the SyncThru™ Web Admin Service.
Orientation
Portrait
Landscape
Margin
Common Margin
MP Tray
Tray[x]b
Emulation Margin
Duplex
Off
Long Edge
Short Edge
b. [tray type] indicates the tray number.
Copies
Tray[x]b
Paper Size
Paper Type
MP Tray
Paper Size
Paper Type
Paper Source
Auto
Tray[x]b
MP Tray
Tray Confirm
Tray[x]b
MP Tray
Resolution
Standard
High Resolution
Clear Text
Off
Minimum
Medium
Maximum
Edge Enhancement
Off
Normal
Maximum
Auto CR
Menu overview
28
2. Menu Overview and Basic Setup
System Setup
(see "System Setup" on page 174)
Emulation
(see "Emulation" on page 177)
Image Management
(see "Image Management" on page 178)
Date & Time
Date Format
Clock Mode
Language
Default Paper
Power Save
Wakeup Event
Job Timeout
Held Job Timeout
Altitude Adjustment
Humidity
Job Rescheduling
Auto Continue
Auto Tray Switch
Paper Substitution
Tray Protection
Tray Mode
Skip Blank Pages
Maintenance
CLR Empty Msg.a
Supplies Life
RAM Diskb
Paper Low Alert
Toner Save
Quiet Mode
Eco Settings
Auto Power Off
Filing Policy
a. This option only appears when small amount of toner is left in the cartridge.
b. Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.
Emulation Type
Setup
Custom Color
Default
Print Density
Menu overview
29
2. Menu Overview and Basic Setup
Network
(see "Network" on page 179)
Direct USB
(see "Direct USB" on page 180)
Job Managementa
(see "Job Management" on page 181)
a. This option is available when the optional memory installed or RAM Disk is checked.
Admin Setup
(see "Admin Setup" on page 182)
TCP/IP (IPv4)
DHCP
BOOTP
Static
TCP/IP (IPv6)
IPv6 Protocol
DHCPv6 Config
Ethernet
Ethernet Port
Ethernet Speed
802.1x
Wi-Fib
Wi-Fi On/Off
Wi-Fi Settings
WPS
Wi-Fi Direct
Wi-Fi Signal
CLR Wi-Fi set.
b. This option is available when the optional Wireless/NFC kit installed.
Protocol Management
NFC
Network Configuration
Clear Setting
Print From
File Manage
Show Space
Active Job
Secure Job
Stored Job
Stamp
Stamp Activate
Item
Text Size
Opacity
Position
Change Admin Password
Firmware Upgrade
Import Setting
Export Setting
Secure Printc
Supplies Management
Toner Low Alert
c. This option is available when the System Setup > Maintenance > RAM Disk is enabled.
30
2. Menu Overview and Basic Setup
Machine’s basic settings
• You change the machine’s setting set in the machine from Samsung Easy
Printer Manager program or SyncThru™ Web Service.
- If you machine is connected to the local, you can set the machine’s
setting from Samsung Easy Printer Manager > Advanced Setting
> Device Settings (see "Using Samsung Easy Printer Manager" on
page 214).
- If your machine is connected to the network, you can set the
machine’s setting from SyncThru™ Web Service > Settings tab >
Machine Settings (see "Using SyncThru™ Web Service" on page 207).
After installation is complete, you may want to set the machine's default
settings.
To change the machine’s default settings, follow these steps:
It may be necessary to press OK to navigate to lower-level menus for some
models.
1Select (Menu) > System Setup on the control panel.
2 Select the option you want, then press OK.
•Language: Change the language that is displayed on the control
panel.
•Date & Time: You can set the time and date. They are printed on
reports. If, however, they are not correct, you need to change it for
the correct time being.
Enter the correct time and date using arrows or numeric keypad (see
"Keypad letters and numbers" on page 185).
• Month = 01 to 12
• Day = 01 to 31
• Year = requires four digits
• Hour = 01 to 12
• Minute = 00 to 59
•Clock Mode: You can set your machine to display the current time
using either a 12 hours or 24 hours format.
•Power Save: When you are not using the machine for a while, use
this feature to save power.
• When you press the power button or start printing, the product will wake
up from the power saving mode.
• When you press any button except power button, the machine wake up
from the power save mode. Press (Menu) > System Setup >
Wakeup Event > On on the control panel.
•Altitude Adjustment: Print quality is affected by atmospheric
pressure, which atmospheric pressure is determined by the height of
the machine above sea level. Before you set the altitude value,
determine the altitude where you are (see "Altitude adjustment" on
page 184).
3 Select the option you want, then press OK.
Machine’s basic settings
31
2. Menu Overview and Basic Setup
4 Press OK to save the selection.
5 Press (Stop/Clear) to return to the ready mode.
Refer to below links to set other settings useful for using the machine.
• See "Setting the paper size and type" on page 43.
• See "Keypad letters and numbers" on page 185.
32
2. Menu Overview and Basic Setup
Media and tray
This chapter provides information on how to load print media into your
machine.
• Using print media that does not meet these specifications may cause
problems or require repairs. Such repairs are not covered by Samsung’s
warranty or service agreements.
• Make sure not to use the inkjet photo paper with this machine. It could
cause damage to the machine.
• Using inflammable print media can cause a fire.
• Use designated print media (see "Print media specifications" on page
99).
• Make sure not to use the inkjet photo paper with this machine. It could
cause damage to the machine.
The use of inflammable media or foreign materials left in the printer may
lead to overheating of the unit and, in rare cases may cause a fire.
2
Tray overview

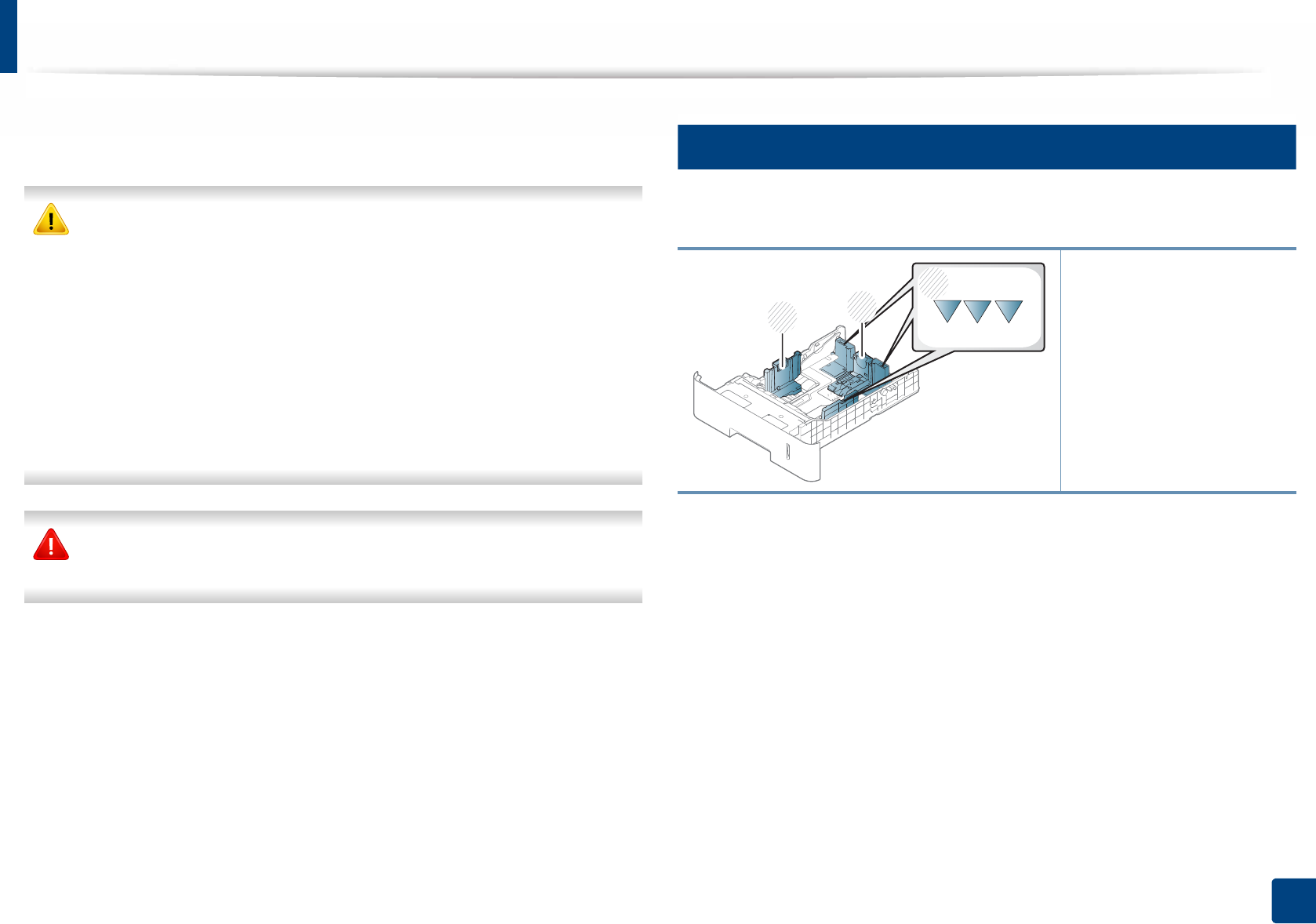

To change the size, you need to adjust the paper guides.
1 Paper length guide
2 Paper width guide
3 Paper limit mark
21
3
Media and tray
33
2. Menu Overview and Basic Setup

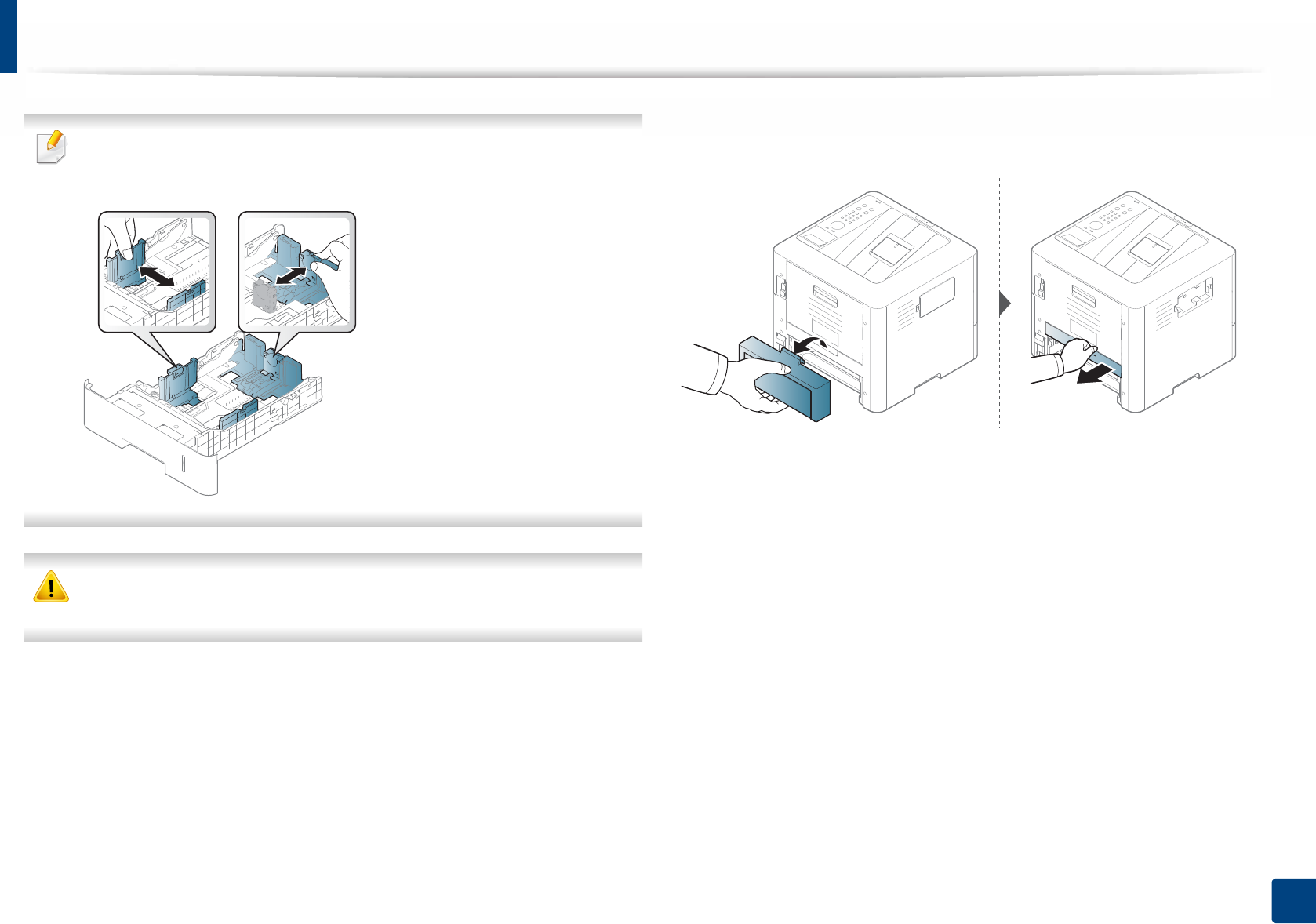

For Legal-sized paper
Push button as shown and pull out the tray.
If you do not adjust the guide, it may cause paper registration, image skew,
or jamming of the paper.
The duplex unit is preset to Letter/LGL or A4 size, depending on your country. To
change the paper size, adjust the guides as shown below.
Media and tray
34
2. Menu Overview and Basic Setup

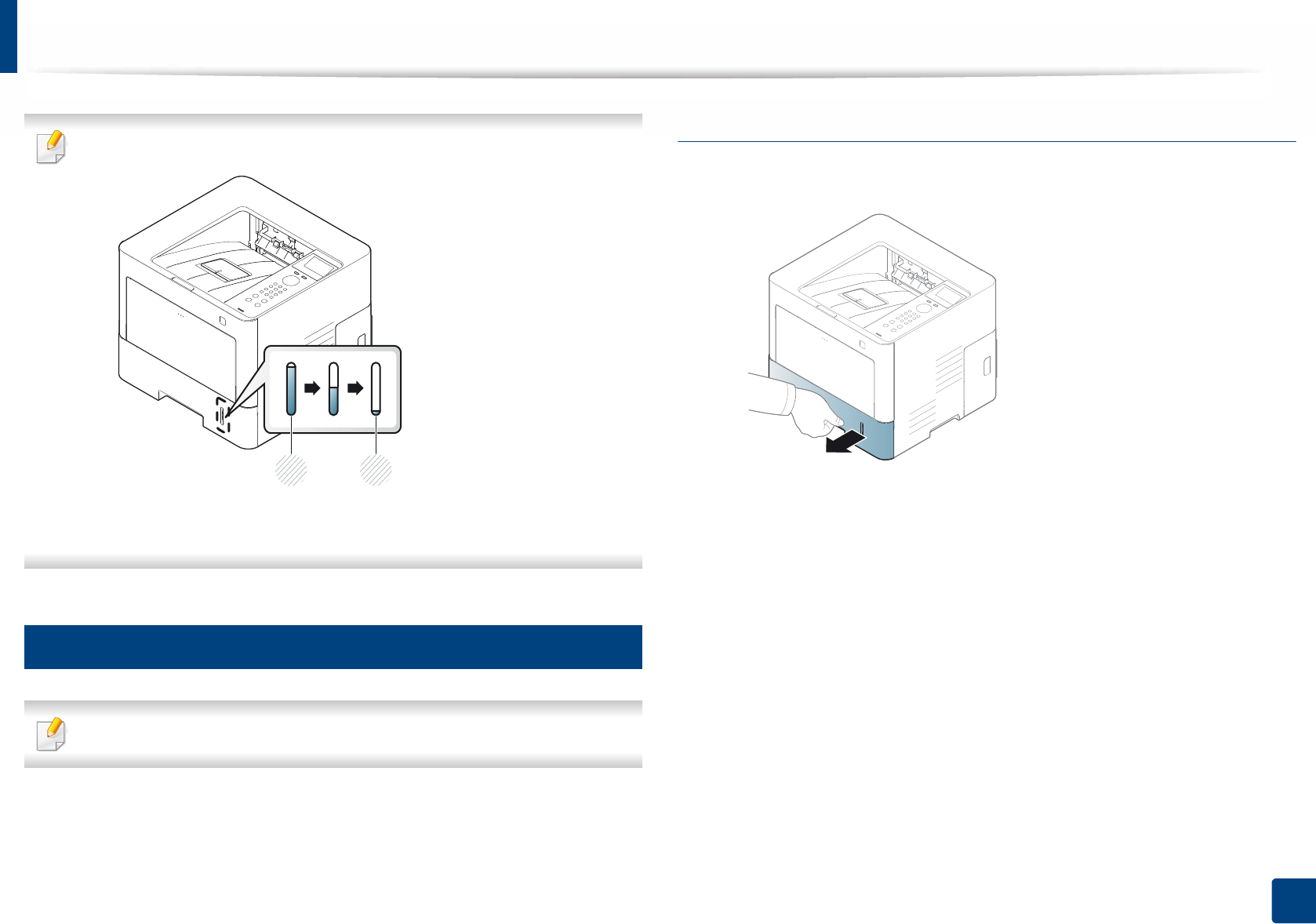

Paper quantity indicator shows the amount of paper in the tray.
1 Full
2 Empty
3
Loading paper in the tray
The procedure is same for all optional trays.
Tray 1 / optional tray
1Pull out the paper tray.
21
Media and tray
35
2. Menu Overview and Basic Setup

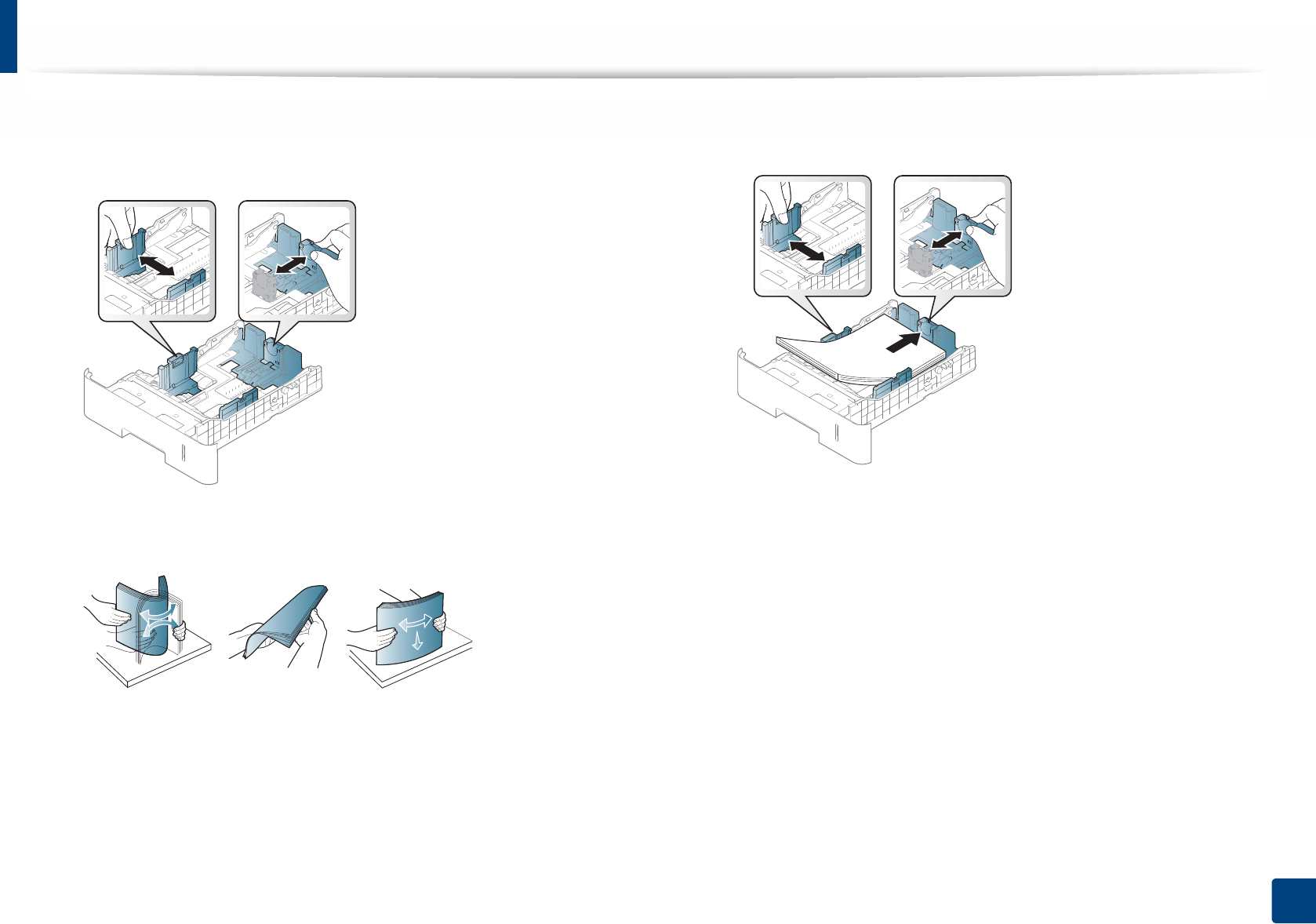

2 Squeeze and the paper width guide and paper length lever to locate
them in the correct paper size slot marked at the bottom of the tray to
adjust to the size (see "Tray overview" on page 32).
3 Flex or fan the edge of the paper stack to separate the pages before
loading papers.
4 After inserting paper into the tray, squeeze the paper width guides and
paper length guide.
Media and tray
36
2. Menu Overview and Basic Setup
• Do not push the paper width guide too far causing the media to warp.
• If you do not adjust the paper width guide, it may cause paper jams.
• Do not use a paper with a leading-edge curl, it may cause a paper jam or
the paper can be wrinkled.

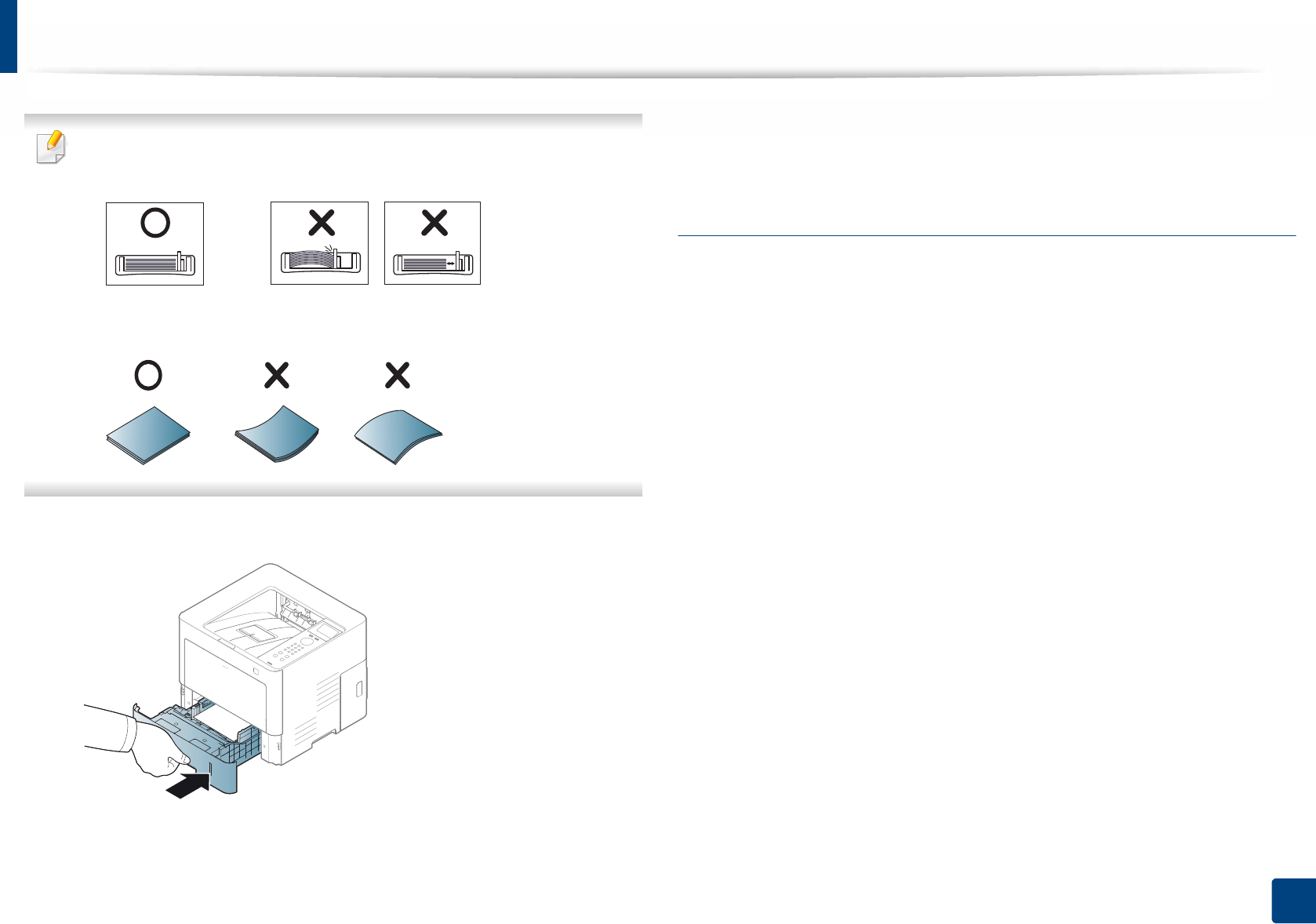

5 Insert the tray back into the machine.
6 When you print a document, set the paper type and size for the tray (see
"Setting the paper size and type" on page 43).
Multi-purpose tray
The Multi-purpose tray can hold special sizes and types of print material, such as
postcards, note cards, and envelopes (see "Print media specifications" on page
99).
Tips on using the Multi-purpose tray
• Load only one type, size and weight of print media at a time in the Multi-
purpose tray.
• To prevent paper jams, do not add paper while printing when there is still
paper in the Multi-purpose tray. This also applies to other types of print
media.
• Always load the specified print media only to avoid paper jams and print
quality problems (see "Print media specifications" on page 99).
• Flatten any curl on postcards, envelopes, and labels before loading them
into the Multi-purpose tray.
Media and tray
37
2. Menu Overview and Basic Setup

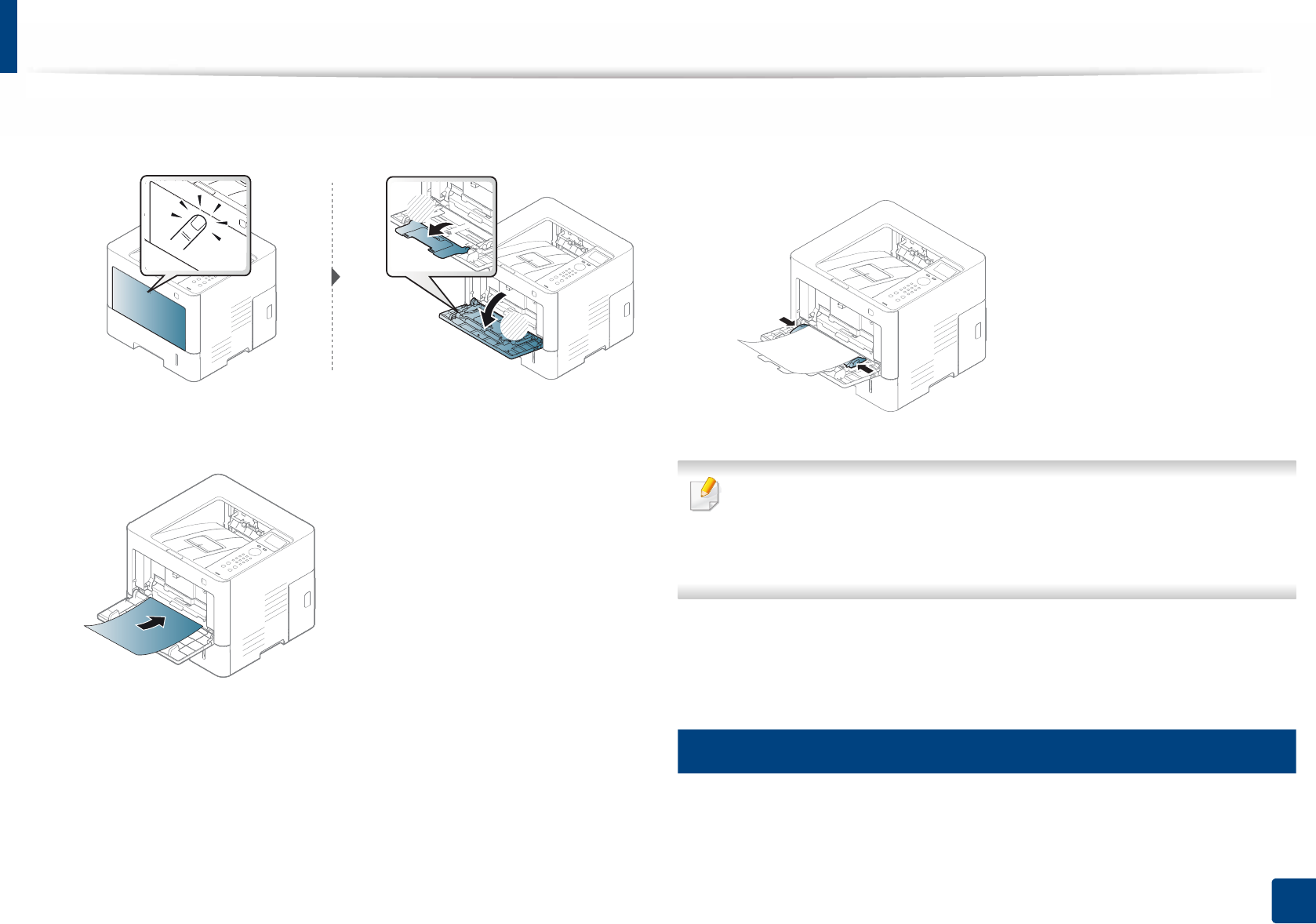

1Press the push-release of multi-purpose tray and it down to open. Unfold
the multi-purpose tray extension, as shown.
2 Load the paper.
3 Squeeze the Multi-purpose tray paper width guides and adjust them to
the width of the paper. Do not force them too much, or the paper will
bent resulting in a paper jam or skew.
• When printing the special media, you must follow the loading guideline
(See "Printing on special media" on page 37).
• When papers overlap when printing using Multi-purpose tray, open tray
1 and remove overlapping papers then try printing again.
4 When you print a document, set the paper type and size for the Multi-
purpose tray (see "Setting the paper size and type" on page 43).
4
Printing on special media
The table below shows the special media usable in tray.
1
2
Media and tray
38
2. Menu Overview and Basic Setup
The paper setting in the machine and driver should match to print without a paper
mismatch error.
The paper setting in the machine and driver should match to print without a
paper mismatch error.
• You change the paper setting set in the machine from Samsung Easy Printer
Manager
program or SyncThru™ Web Service.
- If you machine is connected to the local, you can set the machine’s setting
from
Samsung Easy Printer Manager
>
Advanced Setting
>
Device
Settings
(see "Using Samsung Easy Printer Manager" on page 261).
- If your machine is connected to the network, you can set the machine’s
setting from
SyncThru™ Web Service
>
Settings
tab >
Machine
Settings
(see "SyncThru™ Web Service" on page 248).
•
You can set it using
(Menu) > Paper >
select the tray you want >
Paper
Size
or
Paper Type
on the control panel.
To see for paper weights for each sheet, refer to
"Print media specifications" on page
99
.
(●: Supported, Blank: Not supported)

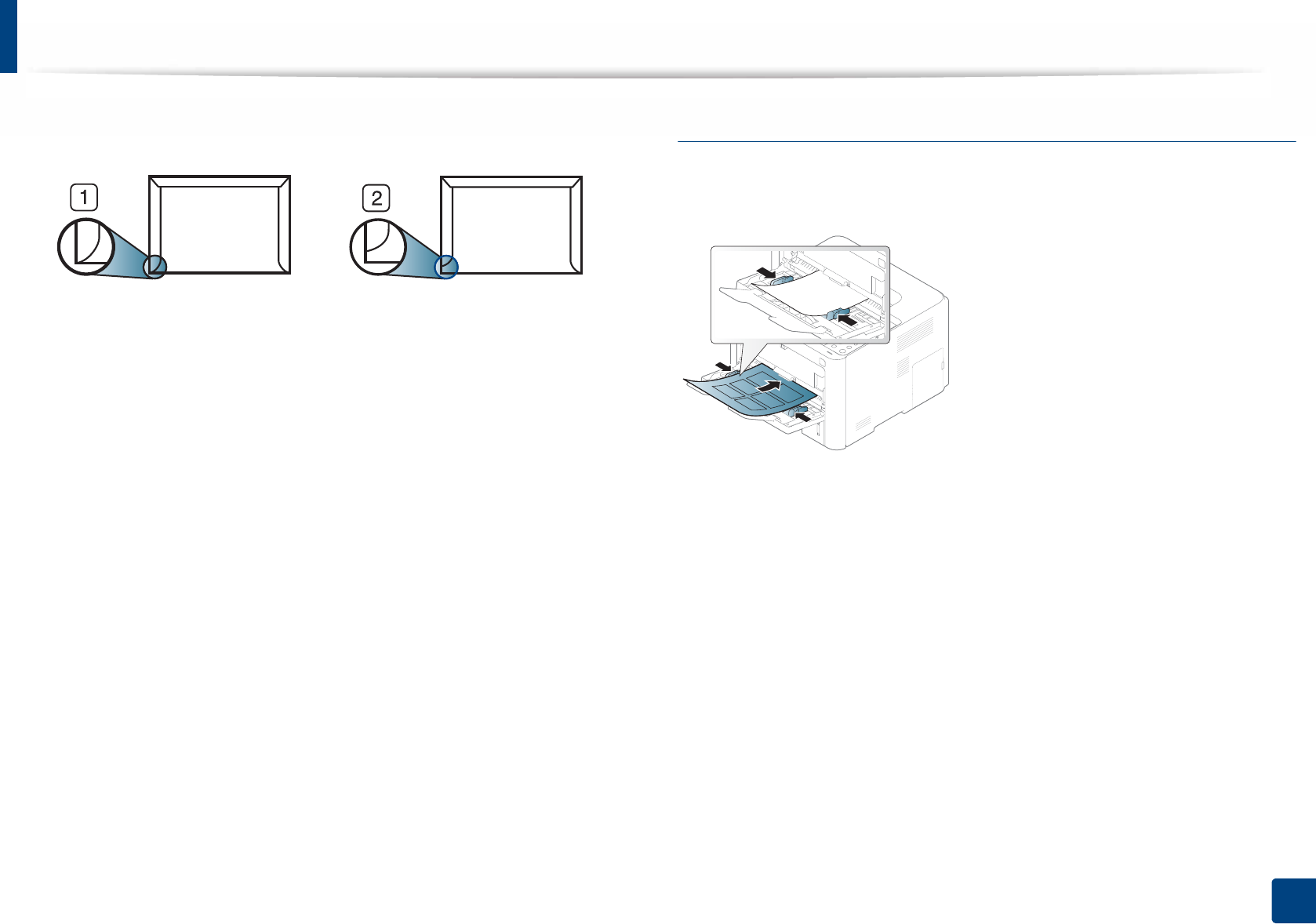

Envelope
Printing successfully on envelopes depends upon the quality of the envelopes.
Types Tray 1 Optional trayaMulti-purpose tray
Plain ●● ●
Thick ●● ●
Thicker ●
Thin ●● ●
Bond ●● ●
Color ●● ●
CardStock ●● ●
Labels ●● ●
Envelope ●●(Tray 2 only) ●
Preprinted ●● ●
Cotton ●● ●
Recycled ●● ●
Archive ●● ●
Letterhead ●● ●
Punched ●● ●
a. This is feature is available when you install and optional tray (see "Variety feature" on page 7).
Types Tray 1 Optional trayaMulti-purpose tray
Media and tray
39
2. Menu Overview and Basic Setup

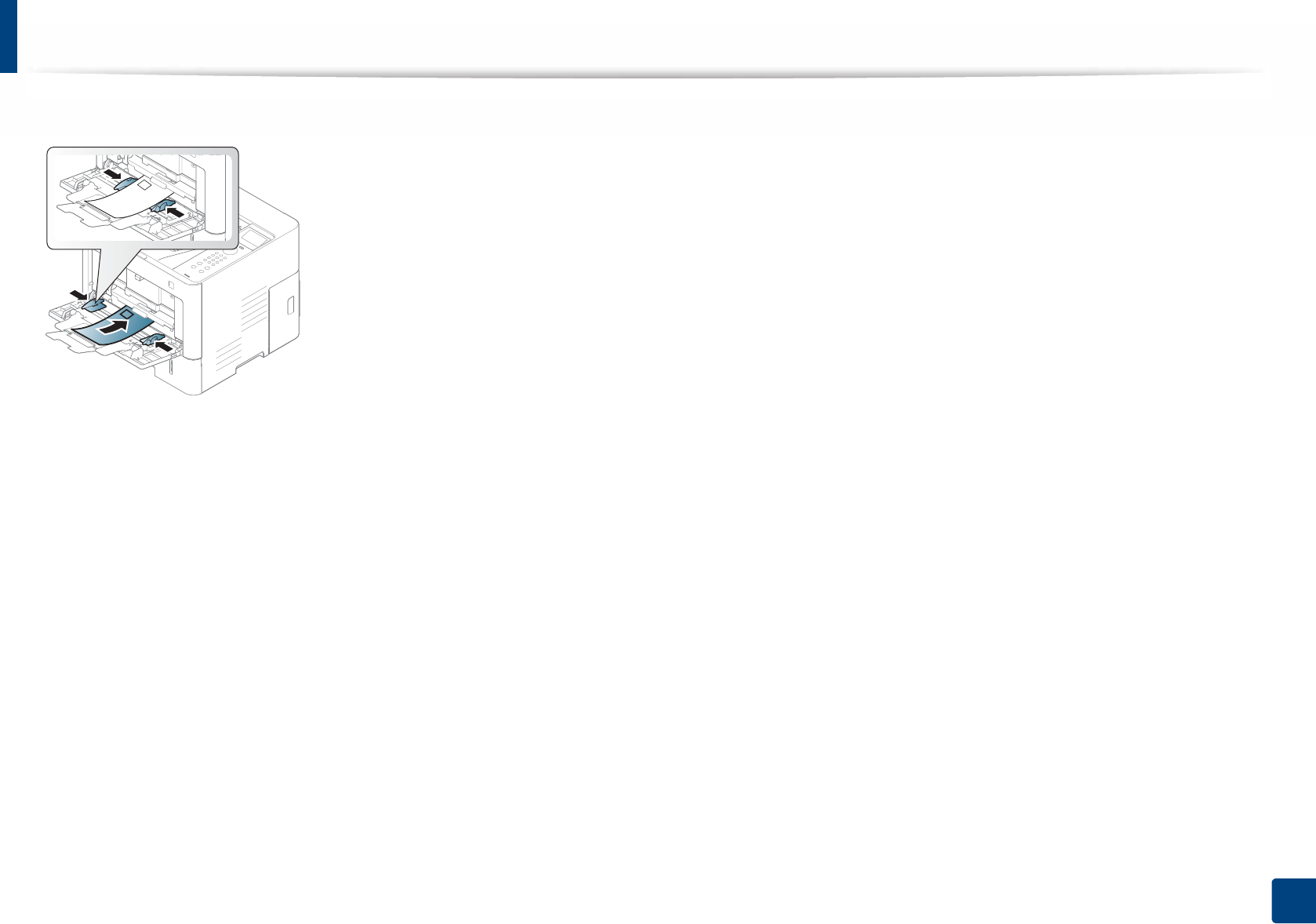

To print an envelope, place it as shown in the following figure.
Media and tray
40
2. Menu Overview and Basic Setup
• If envelopes are printed out with wrinkles, creases, or black bold lines,
open the rear cover and pull down the pressure lever on the right side
about 90 degrees and try printing again. Keep the rear cover opened
during printing.
1 Pressure lever
• When you are printing on an envelope, close the output support.
Otherwise, paper jam may occur.
1 Output support
• When selecting envelopes, consider the following factors:
-Weight: should not exceed 90 g/m2 otherwise; jams may occur.
-Construction: should lie flat with less than 6 mm curl and should not
contain air.
-Condition: should not be wrinkled, nicked, nor damaged.
-Temperature: should resist the heat and pressure of the machine
during operation.
• Use only well-constructed envelopes with sharp and well-creased folds.
• Do not use stamped envelopes.
• Do not use envelopes with clasps, snaps, windows, coated lining, self-
adhesive seals, or other synthetic materials.
• Do not use damaged or poorly made envelopes.
1
Media and tray
41
2. Menu Overview and Basic Setup
• Be sure the seam at both ends of the envelope extends all the way to the
corner of the envelope.
1 Acceptable
2 Unacceptable
• Envelopes with a peel-off adhesive strip or with more than one flap that
folds over to seal must use adhesives compatible with the machine’s fusing
temperature for 0.1 second about 170°C (338 °F). The extra flaps and strips
might cause wrinkling, creasing, or jams, and may even damage the fuser.
• For the best print quality, position margins no closer than 15 mm from the
edges of the envelope.
• Avoid printing over the area where the envelope’s seams meet.
Labels
To avoid damaging the machine, use only labels designed for use in laser
printers.
• When selecting labels, consider the following factors:
-Adhesives: Should be stable at your machine’s fusing temperature
about 170°C (338°F).
-Arrangement: Only use labels with no exposed backing between them.
Labels can peel off sheets that have spaces between the labels, causing
serious jams.
-Curl: Must lie flat with no more than 13 mm of curl in any direction.
-Condition: Do not use labels with wrinkles, bubbles, or other
indications of separation.
• Make sure that there is no exposed adhesive material between labels.
Exposed areas can cause labels to peel off during printing, which can cause
paper jams. Exposed adhesive can also cause damage to machine
components.
Media and tray
42
2. Menu Overview and Basic Setup
• Do not run a sheet of labels through the machine more than once. The
adhesive backing is designed for only a single pass through the machine.
• Do not use labels that are separating from the backing sheet or are wrinkled,
bubbled, or otherwise damaged.

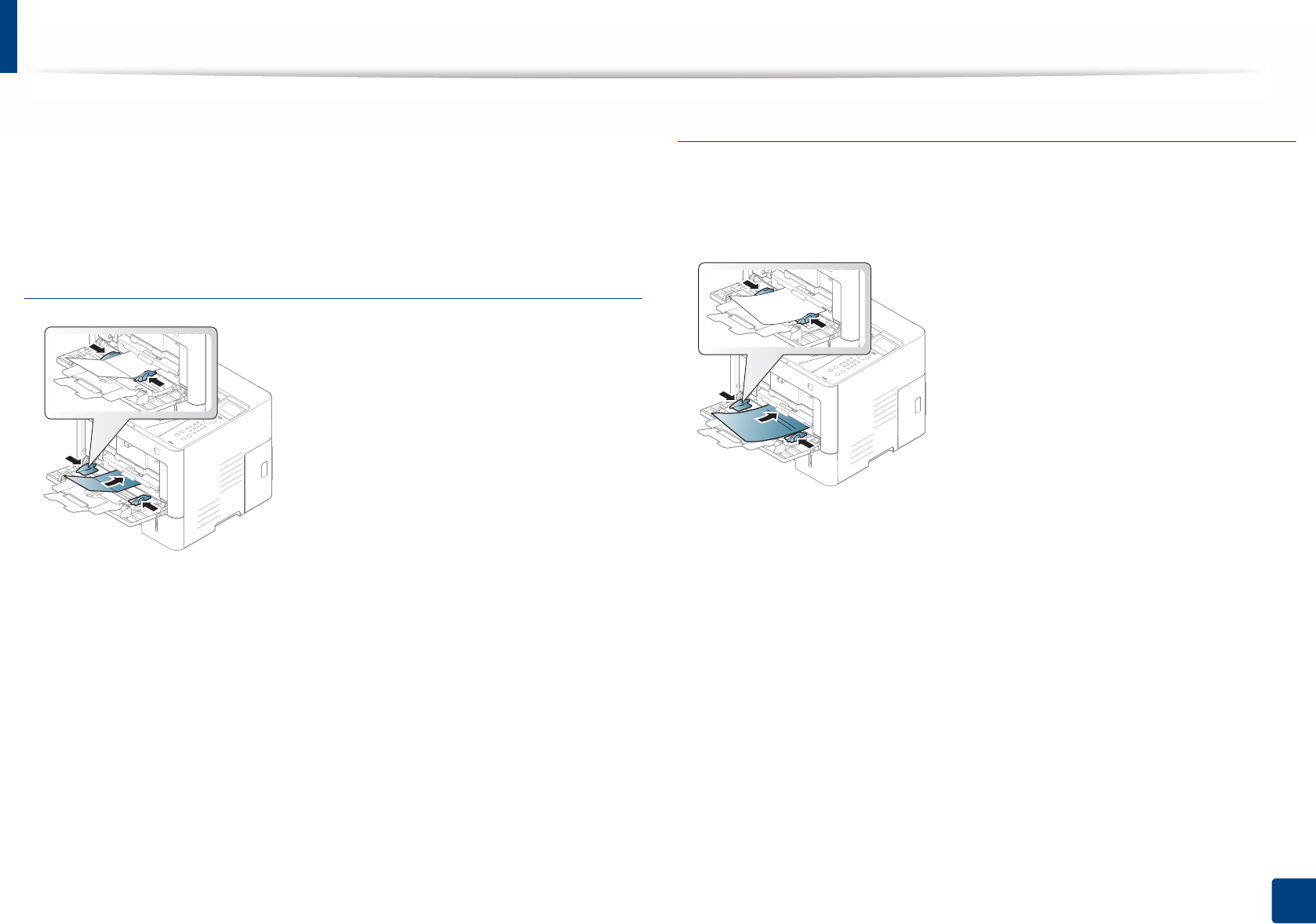

Card stock/ Custom-sized paper
• In the software application, set the margins to at least 6.4 mm (0.25 inches)
away from the edges of the material.
Preprinted paper
When loading preprinted paper, the printed side should be facing up with an
uncurled edge at the front. If you experience problems with paper feeding, turn
the paper around. Note that print quality is not guaranteed.
• Must be printed with heat-resistant ink that will not melt, vaporize, or
release hazardous emissions when subjected to the machine’s fusing
temperature for 0.1 second (about 170°C (338°F)).
• Preprinted paper ink must be non-flammable and should not adversely
affect machine rollers.
• Before you load preprinted paper, verify that the ink on the paper is dry.
During the fusing process, wet ink can come off preprinted paper, reducing
print quality.
Media and tray
43
2. Menu Overview and Basic Setup
5
Setting the paper size and type
After loading paper in the paper tray, set the paper size and type using the
display screen. For computer printing, select the paper size and type in the
application program you use on your computer (see "Opening printing
preferences" on page 46).
The paper setting in the machine and driver should match to print without
a paper mismatch error.
• You change the paper setting set in the machine from Samsung Easy
Printer Manager program or SyncThru™ Web Service.
- If you machine is connected to the local, you can set the machine’s
setting from Samsung Easy Printer Manager > Advanced Setting
> Device Settings (see "Using Samsung Easy Printer Manager" on
page 214).
- If your machine is connected to the network, you can set the
machine’s setting from SyncThru™ Web Service > Settings tab >
Machine Settings (see "Using SyncThru™ Web Service" on page 207).
•
You can set it using
(Menu) > Paper >
select the tray you want >
Paper
Size
or
Paper Type
on the control panel.
1Select (Menu) > Paper > select the tray you want > Paper Size or
Paper Type on the control panel.
2 Select the option you want.
3 Press OK to save the selection.
4 Press (Stop/Clear) to return to ready mode.
If you want to use special-sized paper such as billing paper, select the Paper
tab > Size > Edit... and set Custom Paper Size Settings in the Printing
Preferences (see "Opening printing preferences" on page 46).
Media and tray
44
2. Menu Overview and Basic Setup
6

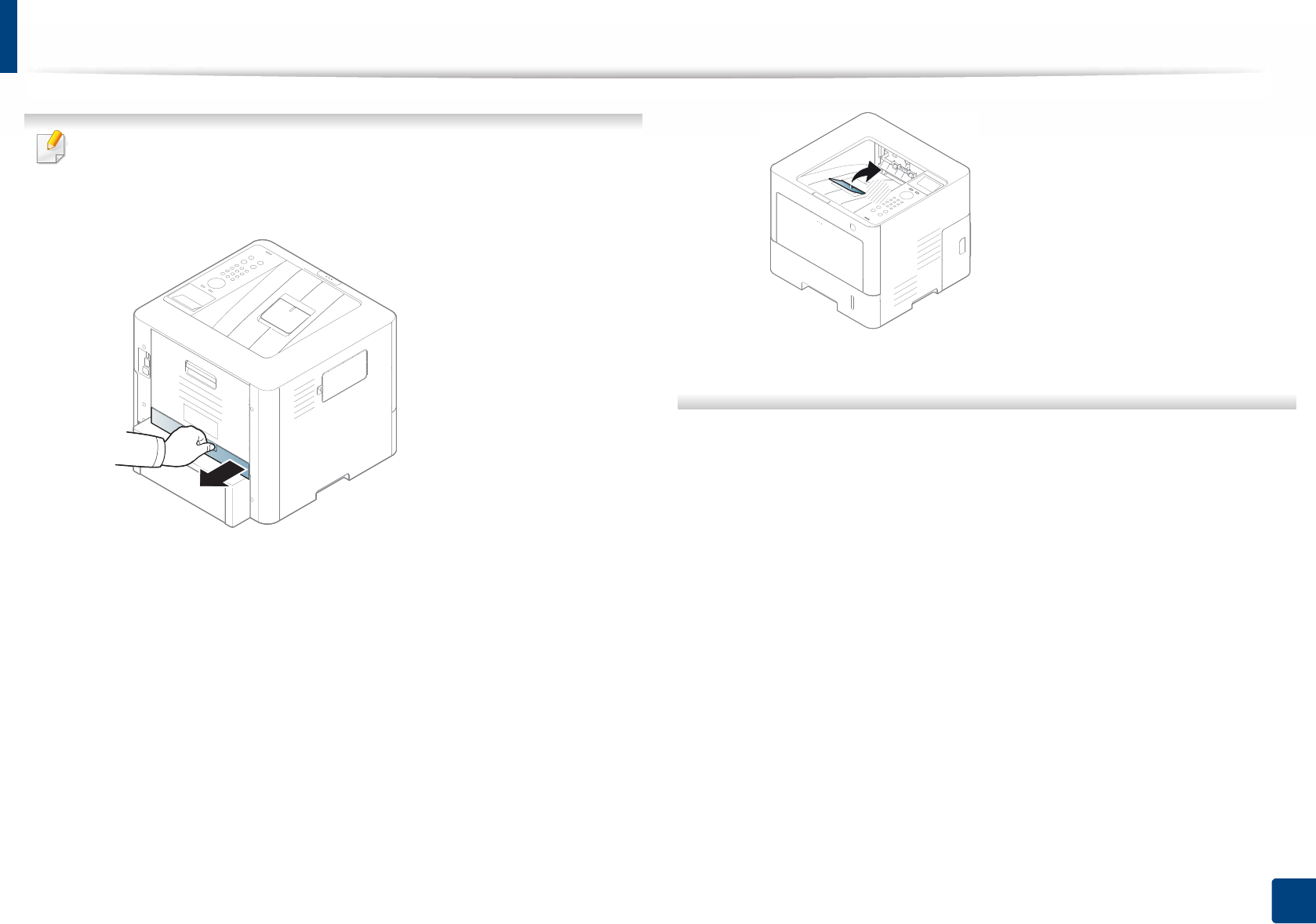

Using the output support
The surface of the output tray may become hot if you print a large number
of pages at once. Make sure that you do not touch the surface, and do not
allow children near it.

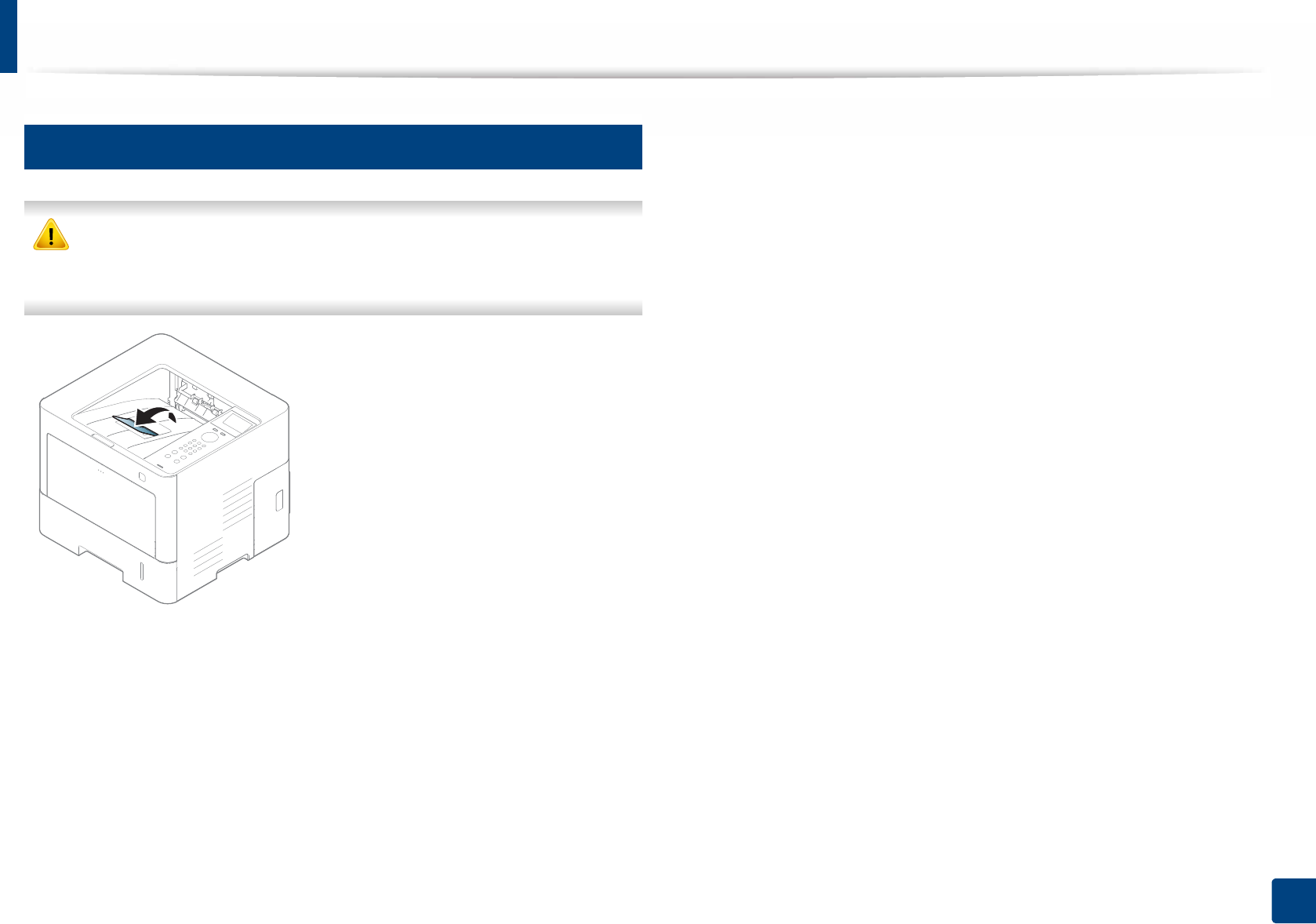

The machine sends output to the output tray by default. The printed lages stack
on the output support, and the output support will help the printed pages to
align. Open the output support.
45
2. Menu Overview and Basic Setup
Basic printing
For special printing features, refer to the Advanced Guide (see "Using
advanced print features" on page 187).
7
Printing
• Mac printing (see "Mac printing" on page 197).
• Linux printing (see "Linux printing" on page 199).
• UNIX printing (see "Unix printing" on page 200).

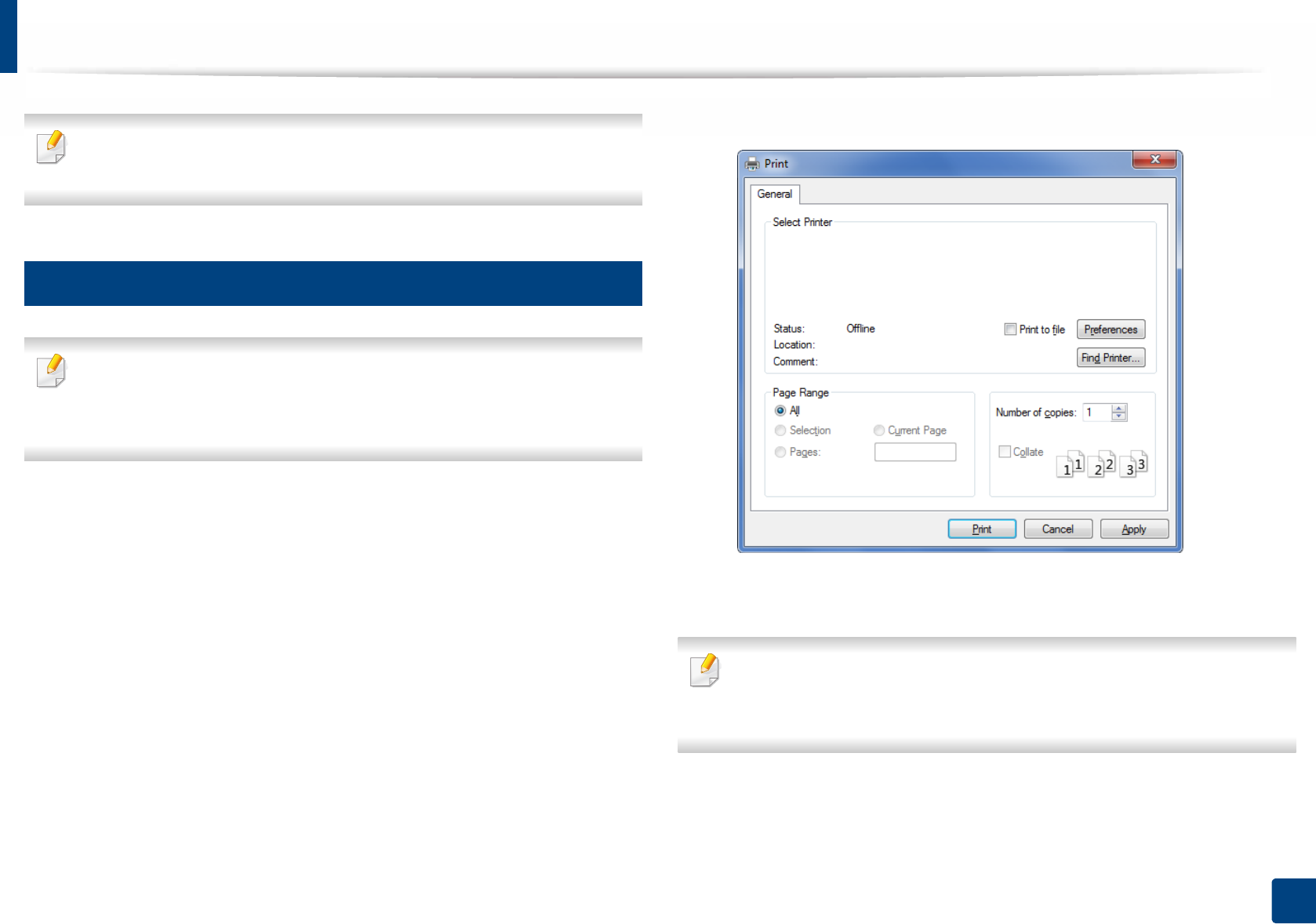

The following Printing Preferences window is for Notepad in Windows 7. Your
Printing Preferences window may differ, denpending on your operating
system or the application you ard using.
1Open the document you want to print.
2 Select Print from the File menu.
3 Select your machine from the Select Printer list.
The basic print settings inclouding the number of copies and print range
are selected within the Print window.
To take advantage of the printer features provided by your printer dirver,
click Properties or Preferences in the application’s Print window to
change the print setting (see "Opening printing preferences" on page 46).
4 To start the print job, click OK or Print in the Print window.
Basic printing
46
2. Menu Overview and Basic Setup
8
Canceling a print job
If the print job is waiting in the print queue or print spooler, cancel the job as
follows:
• You can access this window by simply double-clicking the machine icon
( ) in the Windows task bar.
• You can also cancel the current job by pressing (Stop/Clear) on the
control panel.
9
Opening printing preferences
When you select an option in Printing Preferences, you may see a warning
mark or . An exclamation mark ( ) means you can select that
certain option but it is not recommended, and ( ) mark means you cannot
select that option due to the machine’s setting or environment.
1Open the document you want to print.
2 Select Print from the file menu.
3 Select your Printer driver from the Select Printer list.
4 Click Properties or Preferences.

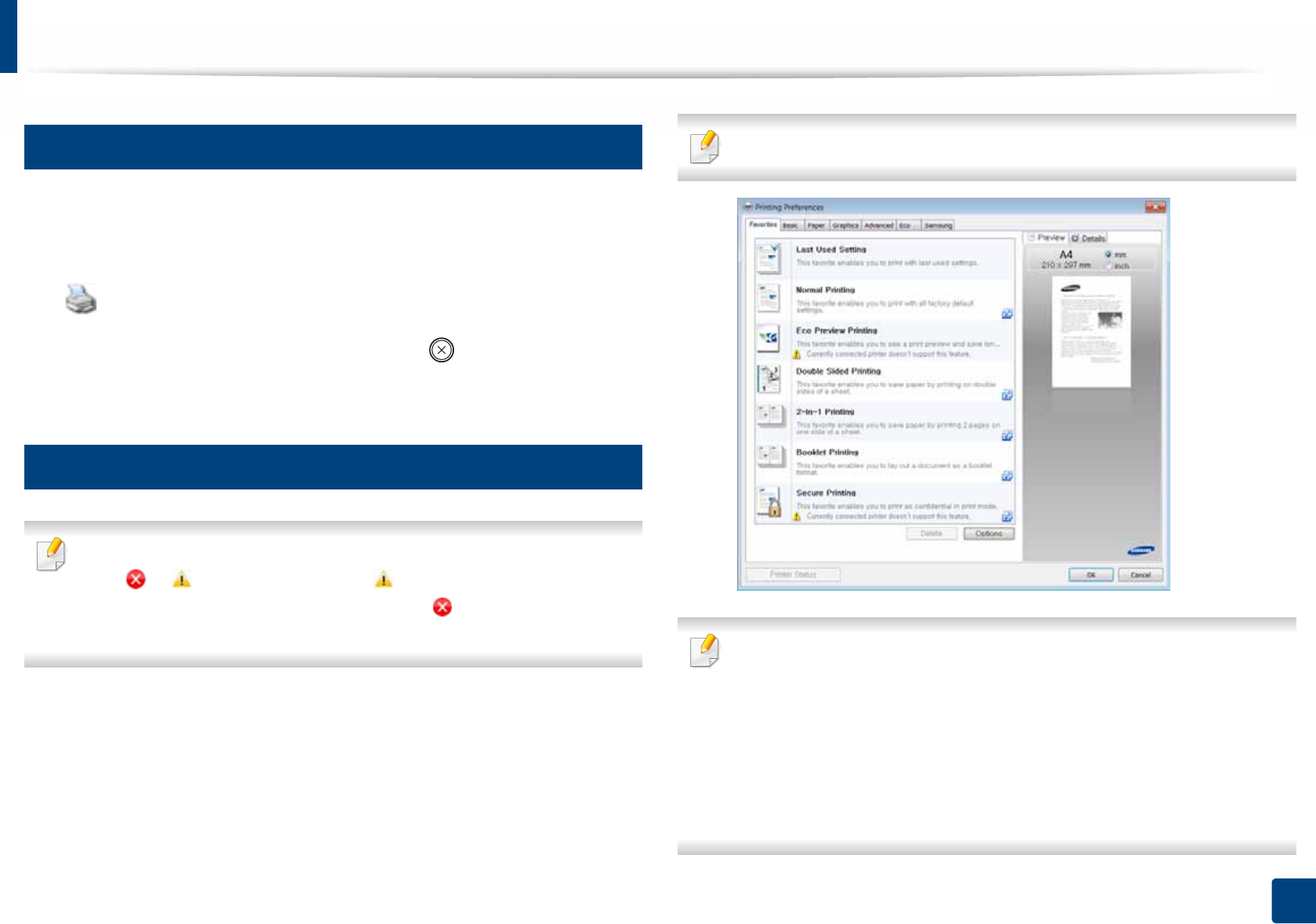

The screenshot may diffr depending on model.
• You can apply Eco features to save paper and toner before printing (see
"Easy Eco Driver" on page 206).
• You can check the machine’s current status pressing the Printer Status
button (see "Using Samsung Printer Status" on page 216).
• The printer driver includes a user interface that is optimized for
touchscreens. To use this UI, click Samsung Printer Center > Device
Options and then select Stylish User Interface (see "Using Samsung
Printer Center" on page 211).
Basic printing
47
2. Menu Overview and Basic Setup
Using a favorite setting

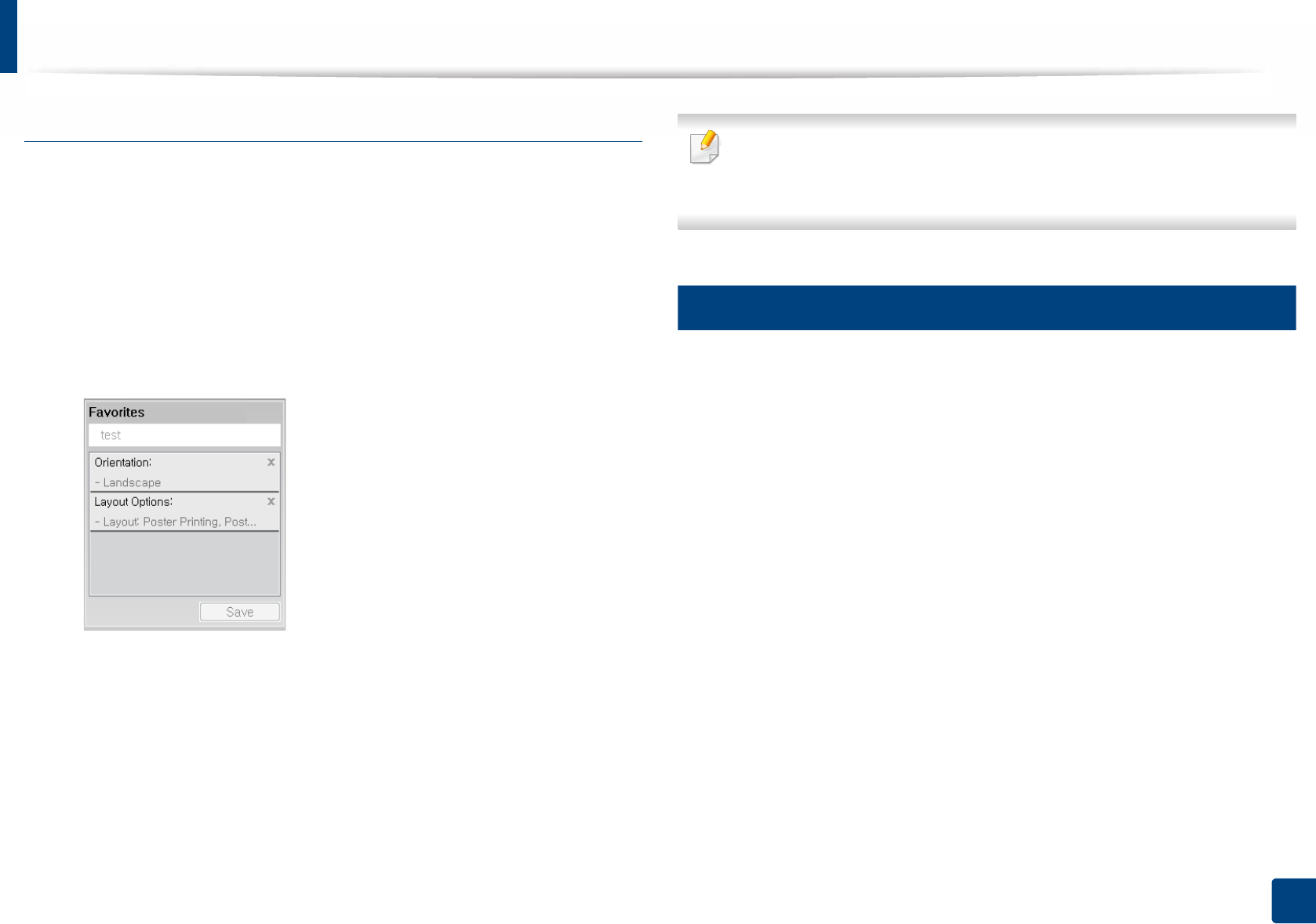

The Favorites option, which is visible on each preferences tab except for
Favorites tab and Samsung tab, allows you to save the current preferences for
future use.
To save Favorites items, follow these steps:
1Change the settings as needed on each tab.
2 Enter a name for the item in the Favorites input box.
3 Click Save.
4 Enter name and description, and then select the desired icon.
5 Click OK. When you save Favorites, all current driver settings are saved.
To use a saved setting, select it in the Favorites tab. The machine is now set
to print according to the settings you have selected. To delete saved
settings, select it in the Favorites tab and click Delete.
10
Using help
Click the option you want to know on the Printing Preferences window and
press F1 on your keyboard.
Basic printing
48
2. Menu Overview and Basic Setup
11
Eco printing
The Eco function reduces toner consumption and paper usage. The Eco
function allows you to save print resources and lead you to eco-friendly printing.
If you press the Eco button from the control panel, Eco mode is enabled. The
default setting of Eco mode is double-sided printing (long edge), multiple pages
per side (2-up), skip blank pages, and toner save. Some features may not be
available depending on the model.
• You change the machine’s setting set in the machine from Samsung Easy
Printer Manager program or SyncThru™ Web Service.
- If you machine is connected to the local, you can set the machine’s
setting from Samsung Easy Printer Manager > Advanced Setting
> Device Settings (see "Using Samsung Easy Printer Manager" on
page 214).
- If your machine is connected to the network, you can set the
machine’s setting from SyncThru™ Web Service > Settings tab >
Machine Settings (see "Using SyncThru™ Web Service" on page 207).
Depending on the printer driver you use, Skip blank pages may not work
properly. If Skip blank pages feature does not work properly, set the feature
from the Easy Eco Driver (see "Easy Eco Driver" on page 206).
Setting Eco mode on the control panel
1Select (Menu) > System Setup > Eco Settings on the control panel.
2 Select the option you want and press OK.
•Default Mode: Select this to turn on or off the Eco mode.
-Off: Set the Eco mode off.
-On: Set the Eco mode on.
If you set the Eco mode on with a password from the SyncThru™ Web
Service (Settings tab > Machine Settings > System > Eco Settings) or
Samsung Easy Printer Manager (Device Settings > Eco), the On force
message appears. You have to enter the passcode to change the Eco mode
status.
•Select Temp.: Follow the settings from Syncthru™ Web Service or
Samsung Easy Printer Manager. Before you select this item, you
must set the Eco function in SyncThru™ Web Service (Settings tab >
Machine Settings > System > Eco Settings) or Samsung Easy
Printer Manager (Device Settings > Eco).
-Default Settings: The machine is set to Default Eco mode.
-Custom Settings: Change any necessary values.
3 Press OK to save the selection.
4 Press (Stop/Clear) to return to ready mode.
Basic printing
49
2. Menu Overview and Basic Setup
Setting eco mode on the driver
To take advantage of the advanced printing features, click Properties or
Preferences from the Print window (see "Opening printing preferences" on
page 46).
Open the Eco tab to set Eco mode. When you see the eco image ( ), that
means the eco mode is currently enabled.
Eco options
•Printer Default: Follows the settings from the machine's control panel.
•None: Disables Eco mode.
•Eco Printing: To activate Eco mode, select Double-Sided Printing, Layout,
Color Mode, Skip Blank Pages, and Toner Save. You want to use in eco
mode to save on paper and toner usage. As long as you do not change the
options from the other tabs, the document will be printed out as a set in the
Eco mode with the selections you have chosen.
•Password: If the administrator fixed to enable the Eco mode, you have to
enter the password to change the status.
Password button: You can set from SyncThru™ Web Service (Settings tab >
Machine Settings > System > Eco Settings) or Samsung Easy Printer
Manager (Device Settings > Eco), the password button is activated. To
change the print settings, click on this button, enter the password or need
to contact the administrator.
Result simulator
Result Simulator shows the results of reduced emission of carbon dioxide, used
electricity, and the amount of saved paper in accordance with the settings you
selected.
• The results are calculated on the basis that the total number of printed
paper is one hundred without a blank page when the Eco mode is disabled.
• Refers to the calculation coefficient about CO2, energy, and paper from IEA,
the index of Ministry of Internal Affairs and Communication of Japan and
www.remanufacturing.org.uk. Each model has a different index.
• The power consumption in printing mode refers to the average printing
power consumption of this machine.
• The actual amount displayed is only an estimate as the actual amount may
differ depending on the operating system used, computing performance,
application software, connection method, media type [thickness], media
size, job complexity, etc.
Basic printing
50
2. Menu Overview and Basic Setup
12
Secure printing
• Some menus may not appear on the display depending on options or
models. If so, it is not applicable to your machine.
• You might not be able to print a complex document using the RAM disk.
Install an optional memory to print a complex document.
When you use a printing device in an office, school or other public place, you can
protect your personal documents or confidential information by using the
secure printing feature.
Starting secure printing from the SyncThru™ Web
Service
1Access a web browser, such as Internet Explorer, from Windows.
Enter the machine IP address of your printer (http://xxx.xxx.xxx.xxx) in
the address field and press the Enter key or click Go.
2 Click Login on the upper right of SyncThru™ Web Service website.
3 Settings > Machine Settings > System > Ram Disk.
4 Enable Ram Disk.
This features may not appear on the display depending on options or
models. If so, it is not applicable to your machine.
Printing secure documents from the control panel
1Select (Menu) > Job Management > Stored Job on the printer’s
control panel.
2 Select the document to print.
3 Enter the password that you set from the printer driver.
4 Print the document.
5 Press (Stop/Clear) to return to ready mode.
