PROGRAMMING EXAMPLES
In this chapter we will demonstrate how to program the ESTeem Model 195Ep for each of the operating modes. For a detailed
explanation of the modes, please refer to Chapter 1 of this manual. In the following examples we assume that the modems have
been initially configured for IP Address, Net Mask, etc. and are ready for programming from the Model 195Ep’s Web
Configuration Manager’s Setup Menu. The first example network in Figure 1 consist of two wired Ethernet networks (Large Plant
LAN and Remote Building) that will be bridged together through a repeater site and have a direct backup pathway. This same
wireless mesh canopy will provide wireless access to the single PLC on the forklift (Example 4).
Access Point Router
with Repeater
Feature Enabled
10/100BaseT
HUB or Switch
Mobile
PLC
EtherStation
Mode
10/100BaseT
Access Point Bridge
with Repeater
Feature Enabled
Primary Repeater Path
Backup Repeater Path
Access Point Bridge
with Repeater
Feature Enabled
Mobile Vehicle
Single Ethernet Device
Example #4
S/N: 14004
Primary Repeater Path
Plant Network
Large Wired LAN
Example #1
S/N: E-14001
WLAN MAC=00:04:3F:00:09:01
Remote Building
Small Ethernet Wired LAN
Example #3
S/N: E-14003
WLAN MAC=00:04:3F:00:09:10
Stand-Alone Repeater Site
Example #2
S/N: E-14002
WLAN MAC= 00:04:3F:00:09:05
Network
Router
(Required)

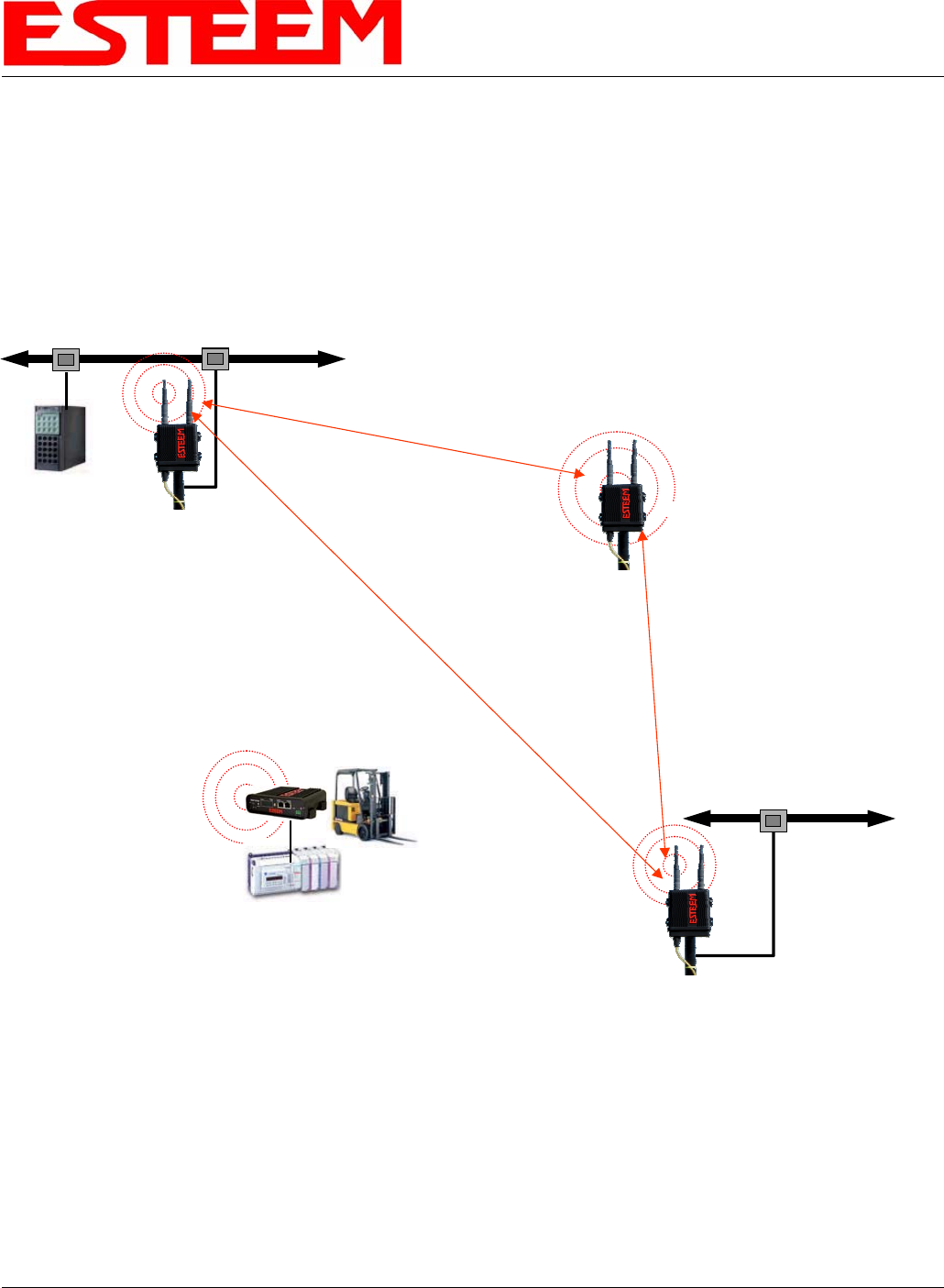

Figure 1: Programming Example #1 Diagram
The second example network in Figure 2 show how to configure the Model 195Ep if multiple Ethernet devices are connected to a
single ESTeem Model 195Ep. A separate network address for the connected hardware is required and can be configured for fixed
or dynamic IP (DHCP) addressing. The use of multiple network addresses will require that a network router be programmed for
each of the remote devices. As we learned in Chapter 1 of this manual, the difference in the Station Router and the Station
Masquerade Mode will depend upon the required availability of accessing the connected Ethernet devices to the 195Ep. The
Station Router will allow devices on the Ethernet LAN to access these device and the Station Masquerade will not, very similar to
a firewall.
CHAPTER 5
EXAMPLE CONFIGURATIONS
Revised: 16 Jun 06 5-2 EST P/N AA107P
Mobile
PLC
Station Router Mode
Voice over IP
Mobile Vehicle #1
Multiple Ethernet Devices
Example #5
S/N: 14005
Mobile Vehicle #2
Multiple Ethernet Devices
Example #6
S/N: 14006
Station Masquerade Mode
Remote PC GPS
10/100BaseT
Access Point Bridge
with Repeater
Feature Enabled
Ethernet Wired LAN
Network
Router
(Required)

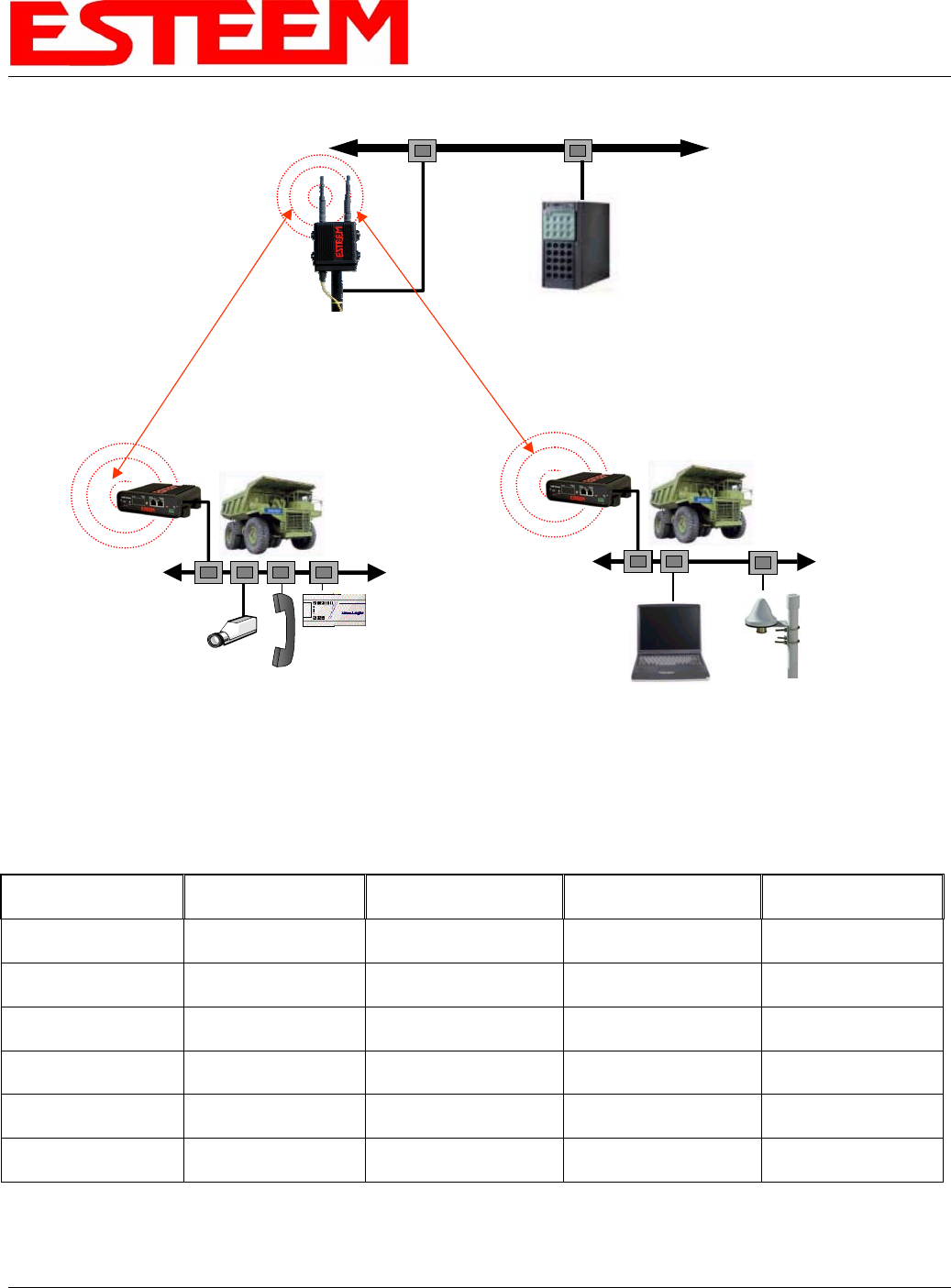

Figure 2: Programming Example #2 Diagram
Documentation
The first step when configuring your wireless system will be to document each Model 195Ep used in the network. The following
is an example of the System Configuration Table (Chapter 2 – Starting Out) completed for the two example applications:
Modem_ID(Name)
/Operating Mode Serial Number IP Address Ethernet MAC WLAN MAC
Plant Network
AP_Router E-14001 Ethernet 172.17.2.1
Wireless 172.16.2.1 00:04:3f:00:09:02 00:04:3f:00:09:01
Repeater
AP_Bridge E-14002 Bridge 172.16.2.5 00:04:3f:00:09:06 00:04:3f:00:09:05
Remote Building
AP_Bridge E-14003 Bridge 172.16.2.10 00:04:3f:00:09:11 00:04:3f:00:09:10
Forklift
EtherStation E-14004 N/A 00:04:3f:00:09:21 00:04:3f:00:09:20
Truck #1
Station Router E-14005 Wireless 172.16.2.20
Ethernet 172.18.1.1 00:04:3f:00:09:26 00:04:3f:00:09:25
Truck #2
Station Masquerade E-14006 Wireless 172.16.2.30
Ethernet 172.19.1.1 00:04:3f:00:09:31 00:04:3f:00:09:30
Table 1: Example System Configuration Table
CHAPTER 5
EXAMPLE CONFIGURATIONS
Revised: 16 Jun 06 5-3 EST P/N AA107P
Example 1 – Plant Network (Access Point Router with Repeater Enabled)
The ESTeem Model 195Ep configured as an Access Point Router will provide a separation between the larger Plant network and
the Ethernet devices connected on the wireless network. This mode of operation is most often used when connecting the wireless
system to a larger network to eliminate the Network broadcast traffic from entering the wireless system. If Ethernet devices on the
Plant network want to access Ethenet devices on the wireless network, a network router is required to resolve the IP conflict
created by having the wired and wireless networks on separate subnets.
Access Point Router with
Repeater Feature Enabled
10/100BaseT
HUB or Switch
Plant Network
Large Wired LAN
Example #1
S/N: E-14001
Ethernet MAC = 00:04:3F:00:09:02
WLAN MAC=00:04:3F:00:09:01
Network Router (Required)
IP Address 172.17.1.1
Netmask 255.255.0.0
Routes for 172.16.X.X network use
gateway 172.17.2.1
Wired Ethernet Address 172.17.X.X
Gateway Address = 172.17.1.1
Ethernet IP Address = 172.17.2.1
Netmask = 255.255.0.0
Wireless IP Address = 172.16.2.1
Netmask = 255.255.0.0
Default Route = 172.17.1.1
Wireless Addresses 172.16.X.X
Gateway (Route) Address = 172.16.2.1
Note: Ethernet and
Wireless Networks Must
Be on Separate Subnets
Figure 3: Access Point Router IP Addressing Example
1. Access the ESTeem Web page using your computer’s Web Browser as per instructions in Chapter 4. Select Setup from
the menu items. From the Select Mode of Operation pull down box , select AP Router (Figure 4) and push the Next
button below the pull down box.
Figure 4: Access Point Router Setup Screen
CHAPTER 5
EXAMPLE CONFIGURATIONS
Revised: 16 Jun 06 5-4 EST P/N AA107P
Note: Throughout the Configuration Manager are Help Screens that can accessed for further information on each item.
2. Select if you want to use client or server Dynamic Host Configuration Protocol (DHCP) for the Ethernet device. If you want
to enter a static IP address for the Model 195Ep, select Off and press the Next button. For our example, we have fixed IP
addresses and will select Off. For more information on the operation and configuration of DHCP, please refer to Appendix C
– Interface Ports. Reference Figure 5.

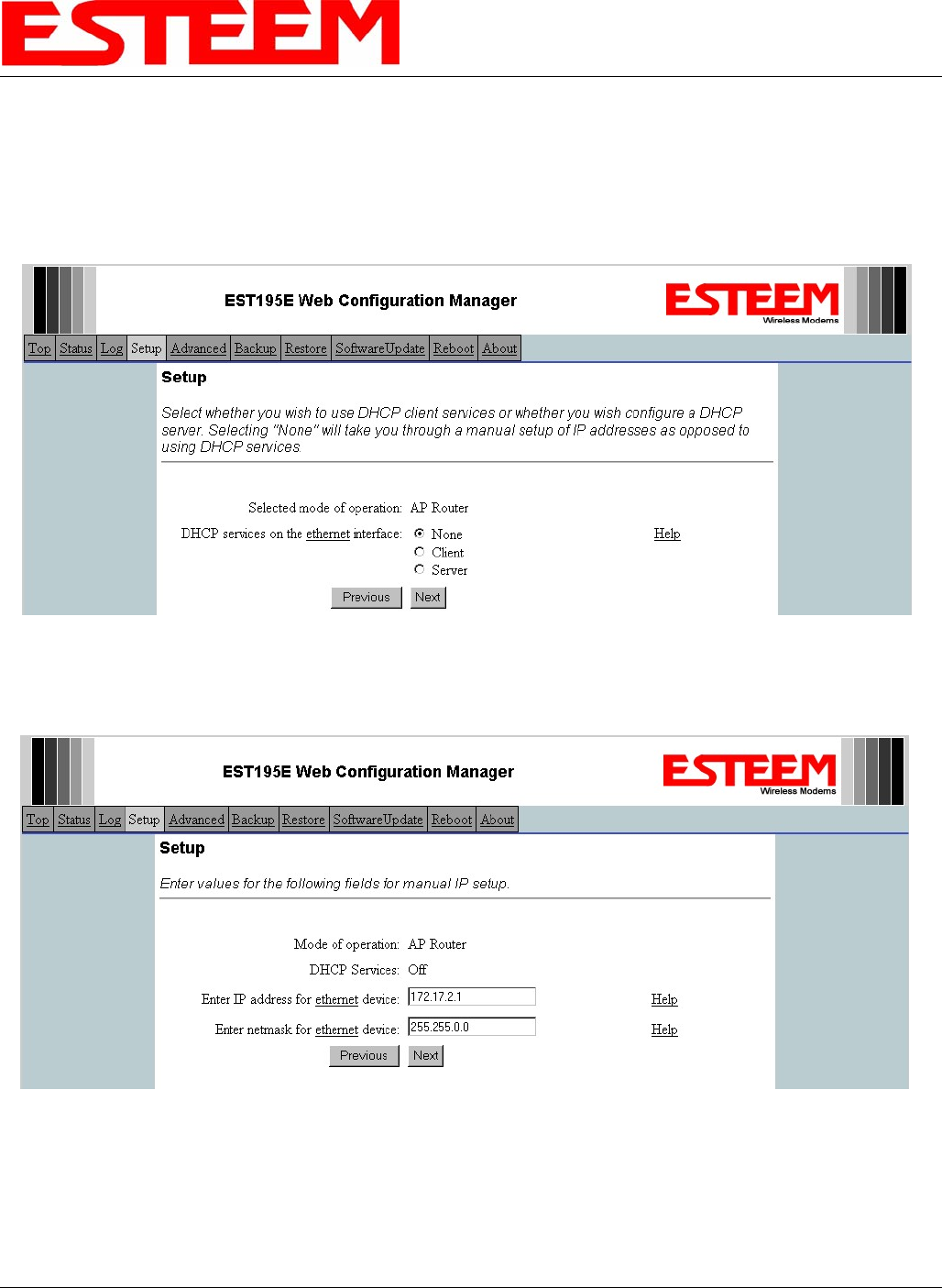

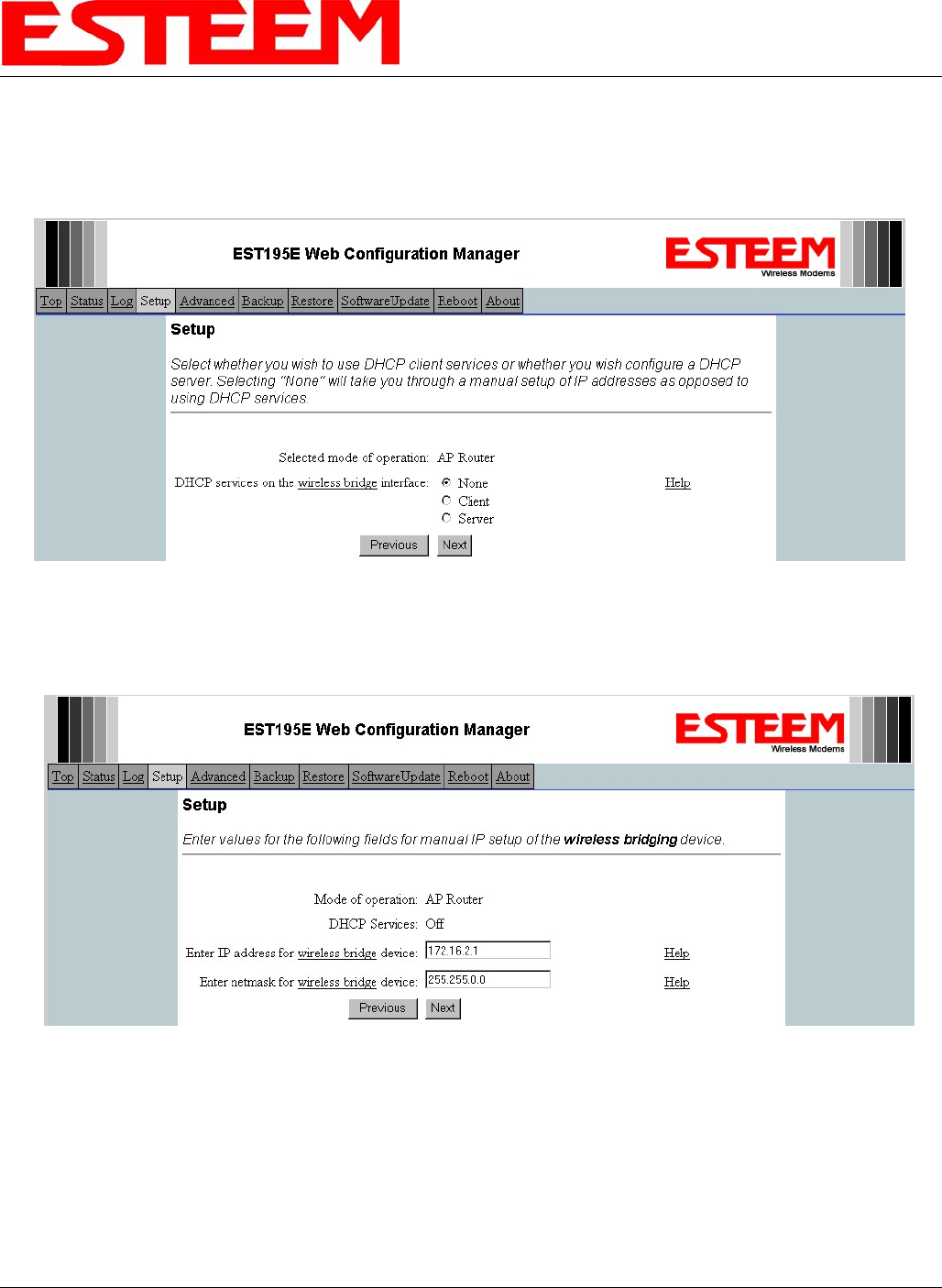

Figure 5: DHCP Ethernet Port
3. Refer to the site documentation (Table 1) and enter the IP Address and IP Netmask for the Model 195Ep on the Ethernet port.
Reference Figure 6.
Figure 6: Ethernet IP Addressing
CHAPTER 5
EXAMPLE CONFIGURATIONS
Revised: 16 Jun 06 5-5 EST P/N AA107P
4. Select if you want to use client or server Dynamic Host Configuration Protocol (DHCP) for the Wireless device. If you want
to enter a static IP address for the Model 195Ep, select Off and press the Next button. For our example, we have fixed IP
addresses and will select Off. For more information on the operation and configuration of DHCP, please refer to Appendix C
– Interface Ports. Reference Figure 7.
Figure 7: DHCP Wireless Port
5. Refer to the site documentation (Table 1) and enter the IP Address and IP Netmask for the Model 195Ep on the Wireless port.
Reference Figure 8.
Figure 8: Wireless IP Address
CHAPTER 5
EXAMPLE CONFIGURATIONS
Revised: 16 Jun 06 5-6 EST P/N AA107P
6. Enter the default route (Gateway) address for the network. This AP Router 195Ep will use the Network Router for address
resolution (Figure 3). Enter the IP address for the Network Router and any DNS server information. If you are not connecting
the Model 195Ep to the Internet, leave blank and press the Next button. Figure 9.

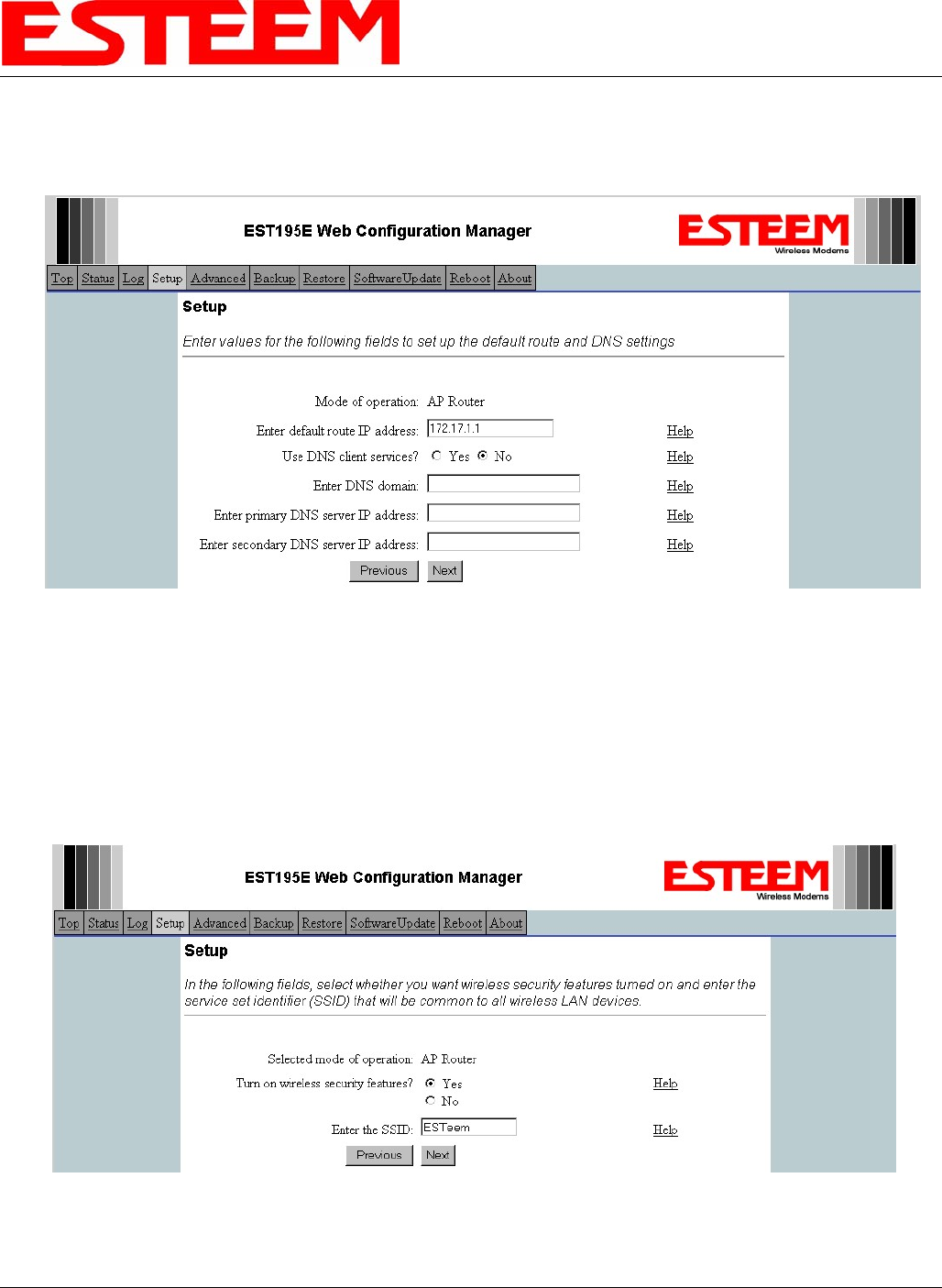

Figure 9: Wireless Security Level Settings
7. Select Yes if you will be using security for client access to your wireless network (recommened).
NOTE: The setting of this security level is ONLY for client access to the Model 195Ep. The security of the Bridge
communication between the Model 195Ep’s is separate and will be configured during the repeater configuration.
Enter the SSID for your network. The SSID is the unique identification for your wireless network and all 195Ep that share a
wireless network MUST have the same SSID code. This identification code is case sensitive and must NOT contain spaces.
Reference Figure 10.
Figure 10: WEP Key Entry
CHAPTER 5
EXAMPLE CONFIGURATIONS
Revised: 16 Jun 06 5-7 EST P/N AA107P
8. Select the encryption level for the wireless client access to the network. For further information on the different levels of
security, please refer to Appendix E – Security of this User’s Manual. If you would like to hide the SSID from broadcasting
from the Access Point and would like to discard the broadcast probes select Yes. If Yes is selected the Model 195Ep will no
longer send out periodic SSID radio beacons. The users of the network will have to know the SSID to enter the network and
security is increased, but if you want the SSID to be broadcast to the network for easy identification then select No. In our
example, we will be using mobile clients with 128 bit WEP. Reference Figure 11.
9. Enter the WEP key values for your application that will be used by all devices on the wireless network. Reference Figure 12.

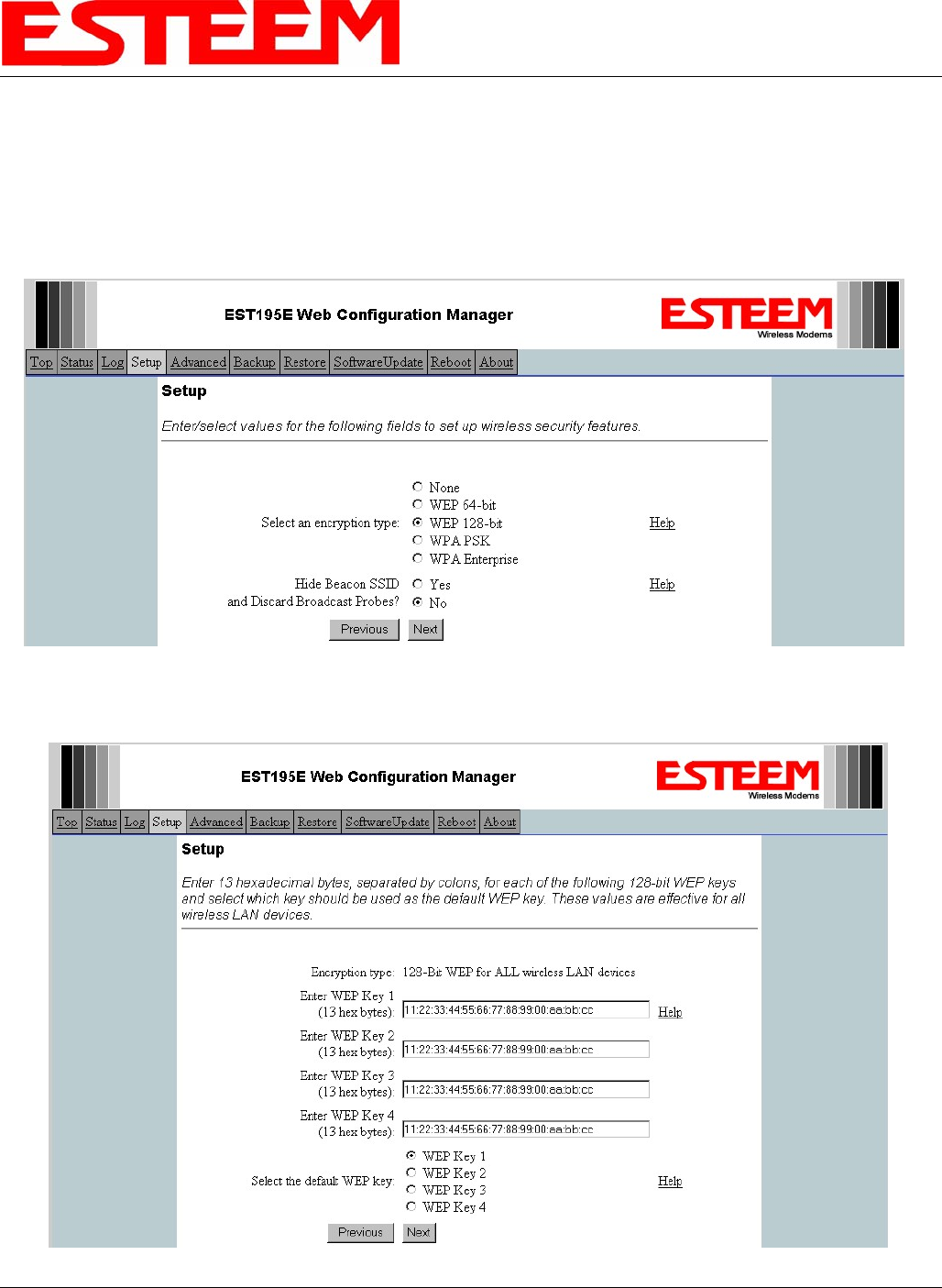

Figure 11: Security Selection
Figure 12: WEP Key Input Screen
CHAPTER 5
EXAMPLE CONFIGURATIONS
Revised: 16 Jun 06 5-8 EST P/N AA107P
10. Enter the values for the Access Control List (ACL). This is a configurable MAC filter that can be set to allow or deny specific
wireless MAC address to the network. This feature is further explained in Appendix E – Security. In our example we will not
use the ACL. Reference Figure 13.

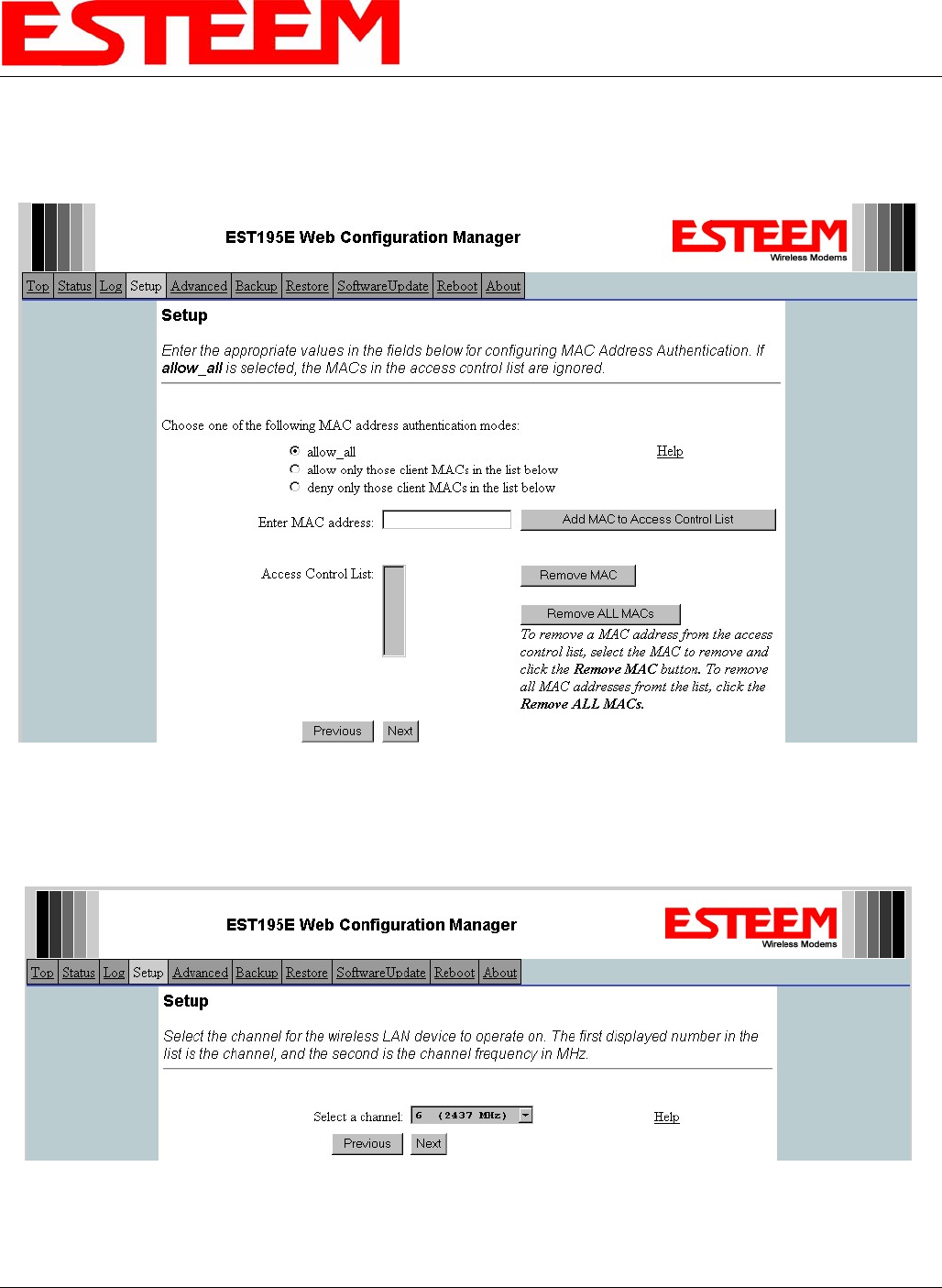

Figure 13: Access Control List Settings
11. Select the frequency channel of operation. All Access Points in the same Repeater Peer network need to be on the same radio
frequency channel. See Appendix D – Radio Configuration for help in selecting the frequency channel. Reference Figure 14.
Figure 14: Radio Channel Selection
CHAPTER 5
EXAMPLE CONFIGURATIONS
Revised: 16 Jun 06 5-9 EST P/N AA107P
12. The Repeater Peer Table (Figure 15) identifies which Model 195Ep’s will bridge wireless Ethernet communication. Only other
Access Point Repeaters need to be listed not the Model 195Ep’s in client modes. Multiple links to the same destination will
provide a backup pathway (Mesh Network) if the primary pathway is lost. Looking at the system layout in Figure 1, both the
repeater site and the direct link will be listed. Using the System Configuration Table (Table 1) as a guide, enter the Wireless
(WLAN) MAC address for the 195Ep’s that will communicate with the Access Point Router (Example 1) starting with the
primary repeater path through the stand-alone repeater.

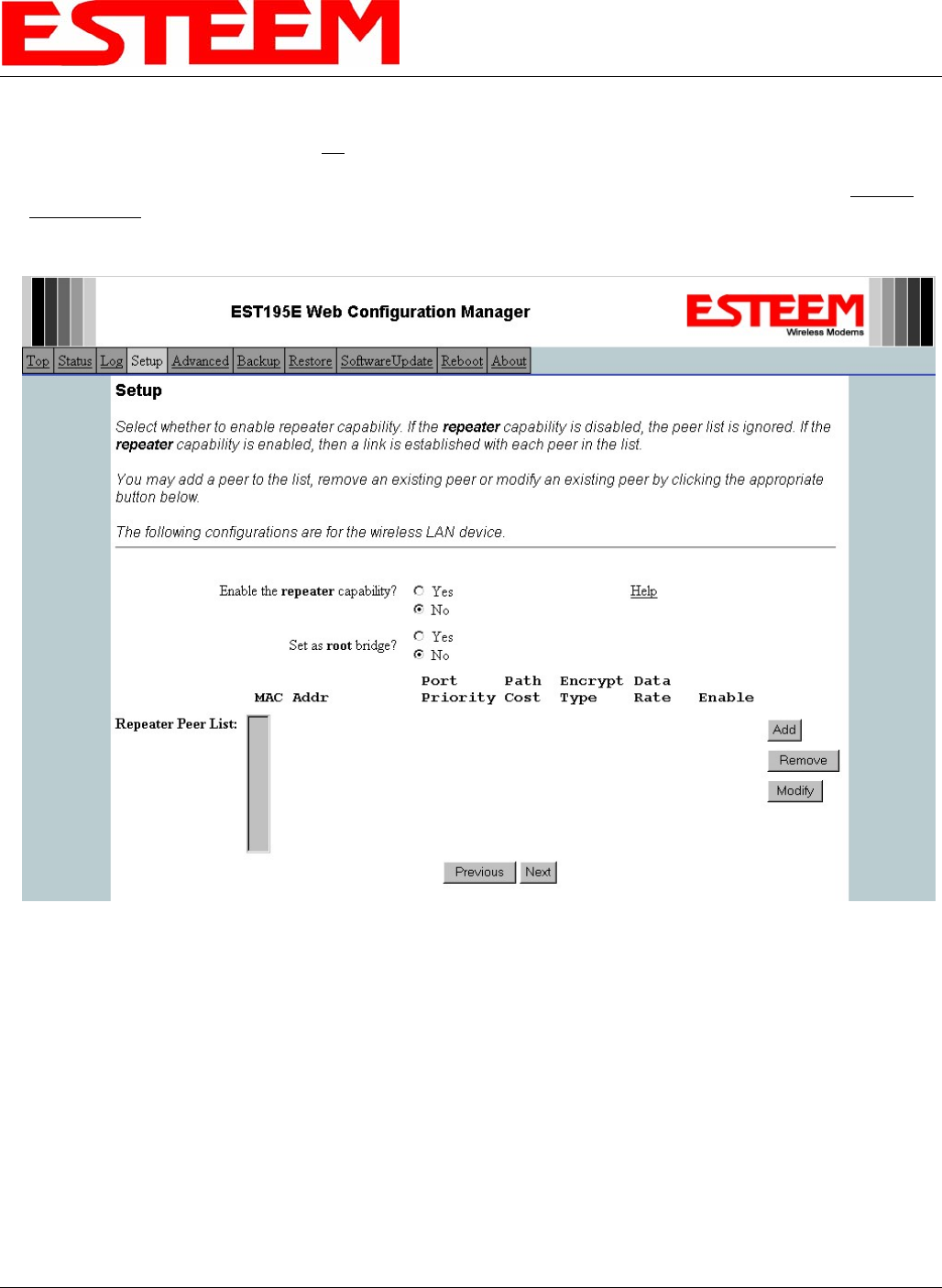

Figure 15: Blank Repeater Table
The communication link through repeater site is the best radio path from the Plant Network to the Remote Building and we
want this link to be the primary repeater route. The 195Ep follows the same networking “rules” as any other Ethernet device
and if we made no changes to the default path cost of 100 the lowest path cost would be directly to the Remote Building
(Direct = 100, Repeater = 200 (100+100)). To configure the 195Ep to select the repeater as the primary radio path, the direct
link’s path cost must be greater than the cost through the repeater link (any number greater than 200). We will set the path cost
at 201 for the direct link, making the repeater link a lower path cost and thus the primary pathway. Press the Add button to
enter the first repeater link to the Repeater Peer List and Figure 16 will be displayed.
Note: For a more complete description on configuring repeater routes, see Chapter 6 – Repeating Features.
CHAPTER 5
EXAMPLE CONFIGURATIONS
Revised: 16 Jun 06 5-10 EST P/N AA107P
First Repeater Link -
Enter the Wireless (WLAN) MAC address of the stand-alone repeater site and the path cost for this link will stay at the default
value at 100. Select the level of Encryption for this communication link. The encryption levels for the repeater peer link must
be the same on both sides, but is completely independent from the Encryption level for the client access to the network. For
consistency in our example, we will also use 128-Bit WEP Encryption for the Repeater Peer link. Setting the link data rate to
Dynamic will allow all data rates from 1 Mbps to 54 Mbps to be used. Verify the Repeater Link is set to Enable and press the
Create Repeater Peer Button.

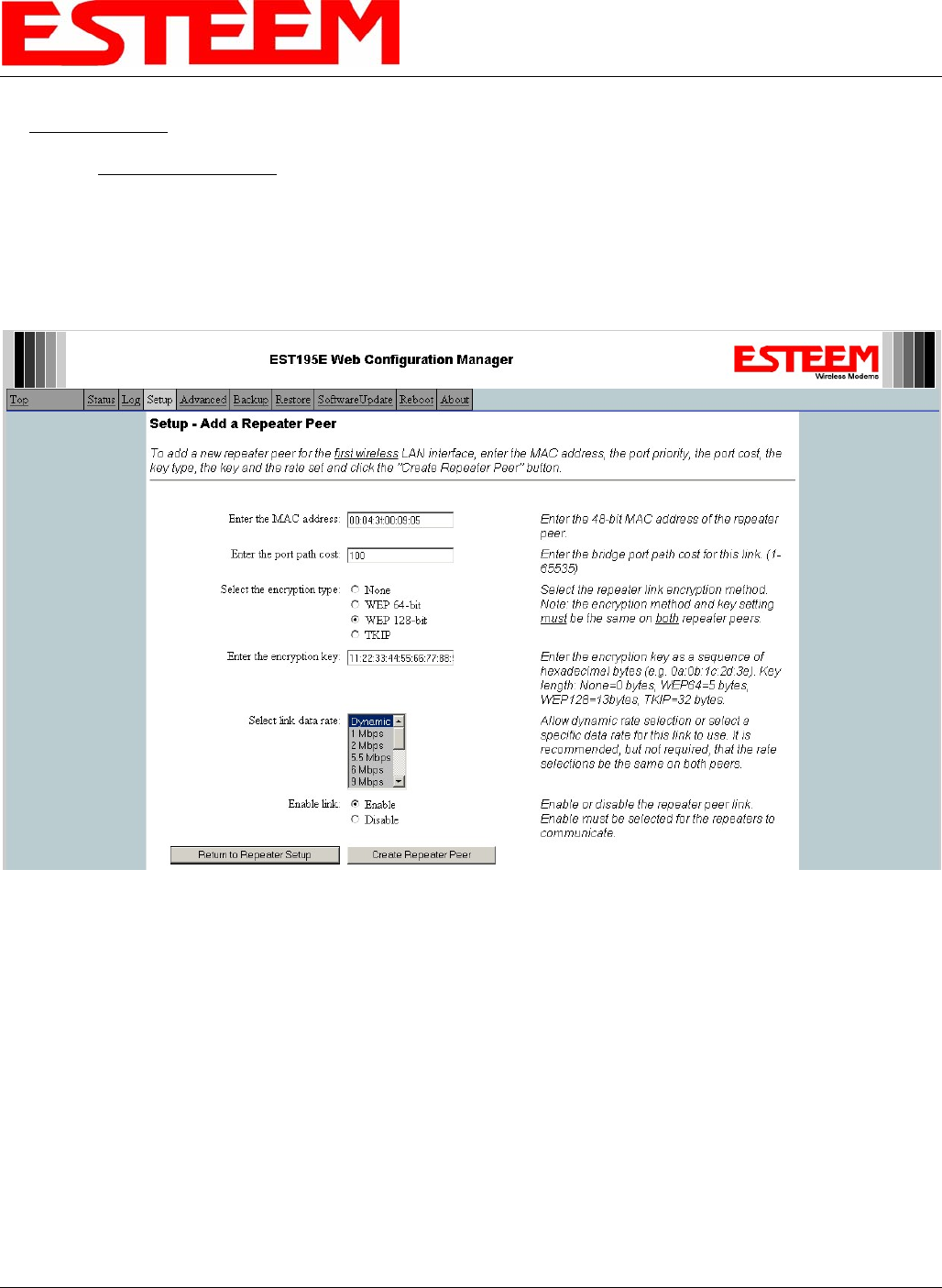

Figure 16: First (Primary) Repeater Link
CHAPTER 5
EXAMPLE CONFIGURATIONS
Revised: 16 Jun 06 5-11 EST P/N AA107P
Second Repeater Link (Direct Path) -
Press the Add button a second time (Figure15) and Figure 17 will be displayed. Enter the Wireless (WLAN) MAC address of
the Remote Building and set the path cost for this link to a value of 201. Select the level of Encryption for this communication
link. The encryption levels for the repeater peer link must be the same on both sides, but is completely independent from the
Encryption level for the client access to the network. For consistency in our example, we will also use 128-Bit WEP
Encryption for the Repeater Peer link. Setting the link data rate to Dynamic will allow all data rates from 1 Mbps to 54 Mbps
to be used. Verify the Repeater Link is set to Enable and press the Create Repeater Peer Button.

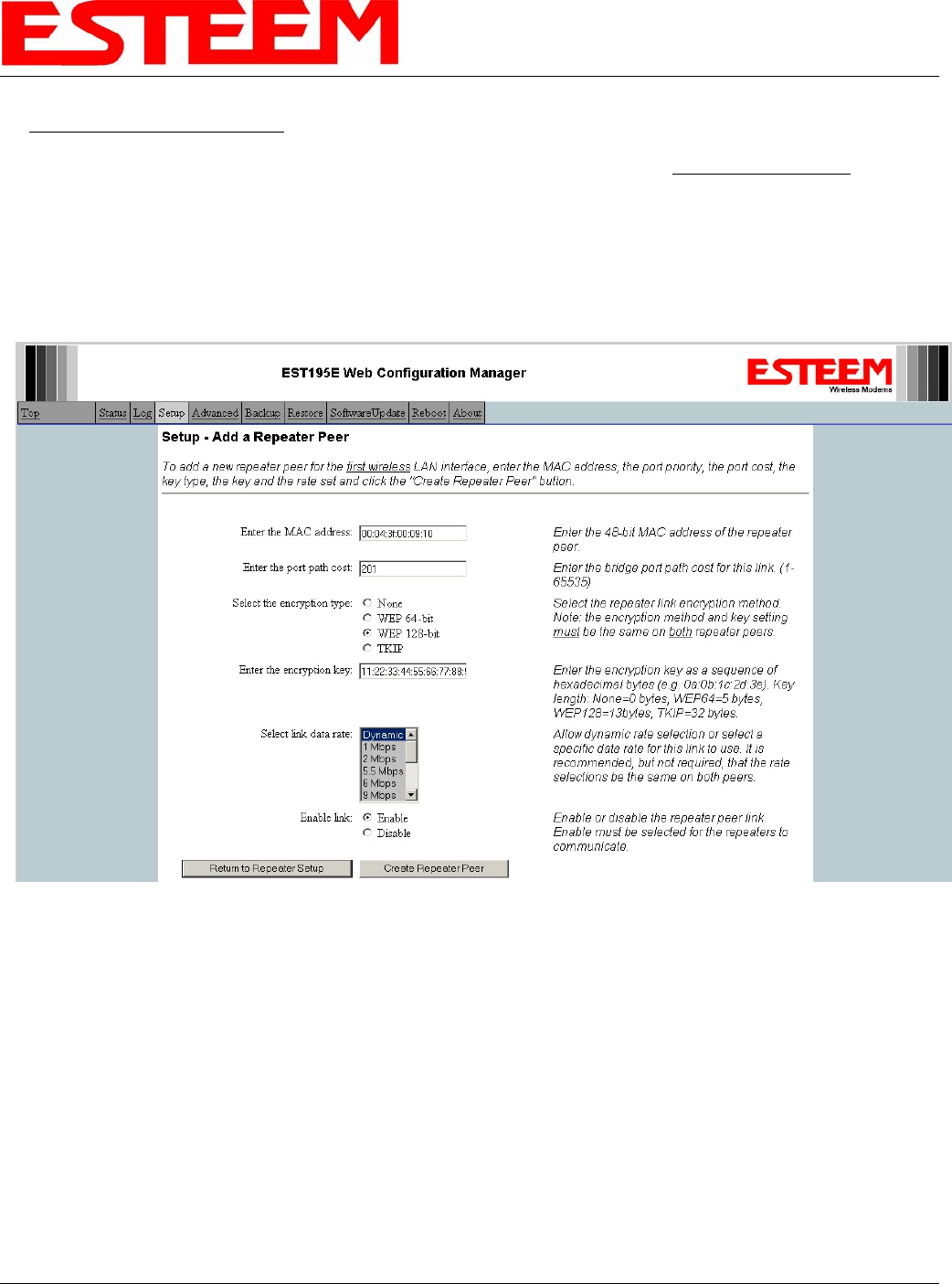

Figure 17: Second (Backup) Repeater Link
CHAPTER 5
EXAMPLE CONFIGURATIONS
Revised: 16 Jun 06 5-12 EST P/N AA107P
Figure 18 displays the complete repeater peer list with both repeater peer entries. Set Enable repeater capability to Yes and to
both repeater paths. This Access Point Router 195Ep is also the primary data path for all Ethernet traffic on the network and
will also need to be configured as the Root Bridge. Press the Next button to continue.
Figure 18: Completed Repeater Peer List
13. Figure 19 will be displayed. If no further changes are necessary to the modem, you can commit the changes that will then be
saved and the modem rebooted.
Figure 19: Commit Changes
CHAPTER 5
EXAMPLE CONFIGURATIONS
Revised: 16 Jun 06 5-13 EST P/N AA107P
Example 2 – Stand Alone Repeater (Access Point Bridge with Repeater Enabled)
Review the example diagram, Figure 1, and locate the 195Ep marked as Example #2. This ESTeem is being used by two other
Model 195Ep’s as a repeater but is not connected to an Ethernet network. This modem should be configured for Access Point
Bridge mode.
1. Access the ESTeem Web page using your computer’s Web Browser as per instructions in Chapter 4. Select Setup from the
menu items. From the Select Mode of Operation pull down box , select AP Bridge (Figure 20) and push the Next button below
the pull down box.

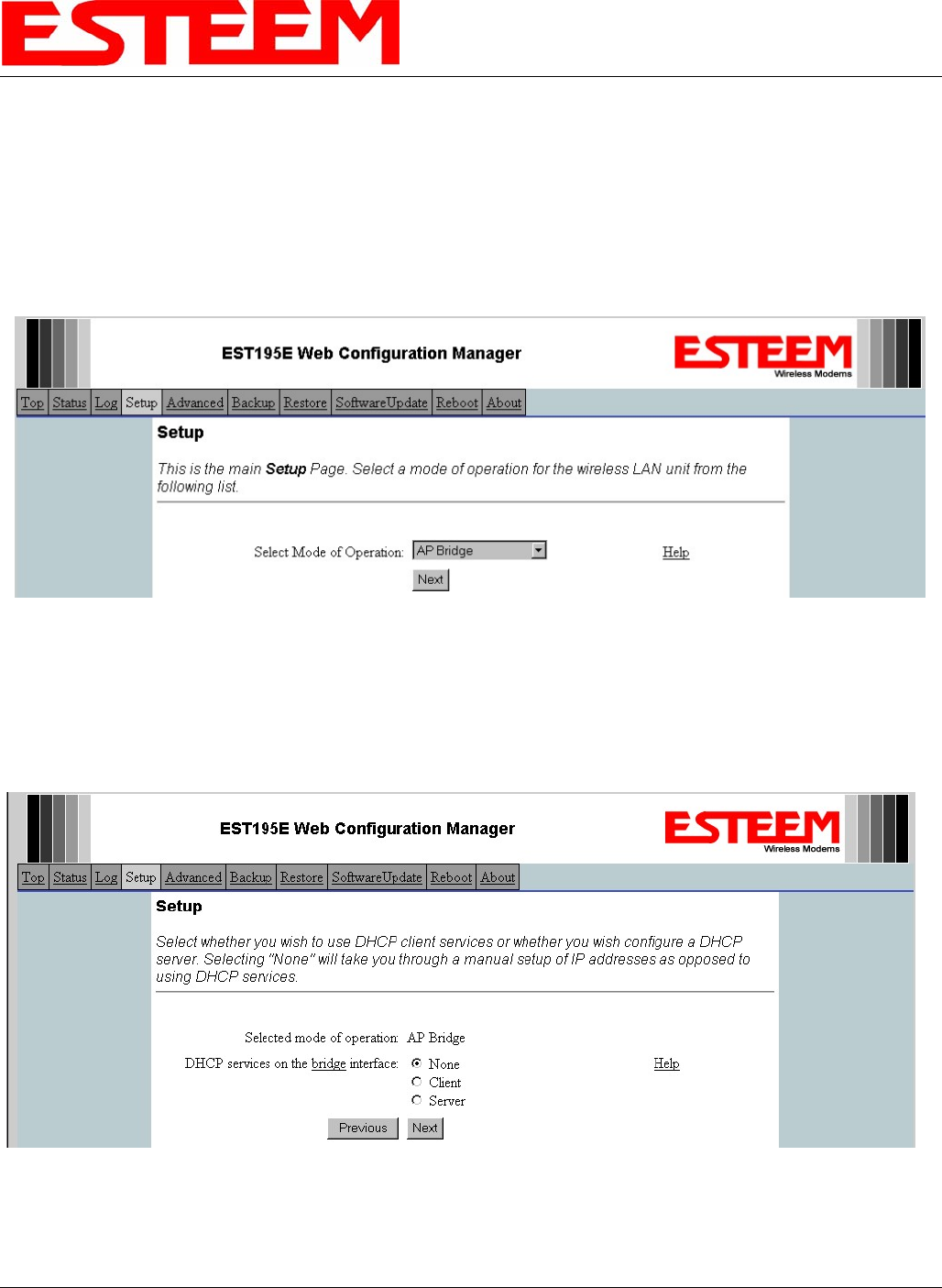

Figure 20: Access Point Bridge
2. Select if you want to use client or server Dynamic Host Configuration Protocol (DHCP) for the 195Ep. If you want to enter a
static IP address for the Model 195Ep, select Off and press the Next button. For our example, we have fixed IP addresses and
will select Off. Reference Figure 21.
Figure 21: DHCP Configuration
