Before You Begin
• The ESTeem Model 195Eg wireless Ethernet radio modem is compatible with many different applications.
The most common application is to bridge two or more Ethernet devices or networks. This guide will
demonstrate the basic configuration and testing of a pair of 195Eg’s. For a more detailed information, please
see the ESTeem Model 195Eg User’s Manual.
• This guide assumes you have a working knowledge of Ethernet networking, TCP/IP protocol and how to
identify and set the TCP/IP address on your computer.
• The 195Eg can be configured using any current web browser software such as Internet Explorer, Netscape or
Mozilla.
• The following procedure will provide an initial communication link between two or more Model 195’s for
testing purposes. All the example commands listed in this guide can be adjusted to fit your communication
network. Please consult the ESTeem Model 195Eg User’s Manual for more details.
Unpack Contents
Each node in your ESTeem Model 195Eg’s network may have different hardware components based upon the
final installation location (i.e Outdoor, Indoor, Point-to-point or Muti-Point). Antenna types, cable lengths, power
supplies may be different, but the following items will be required for basic setup:

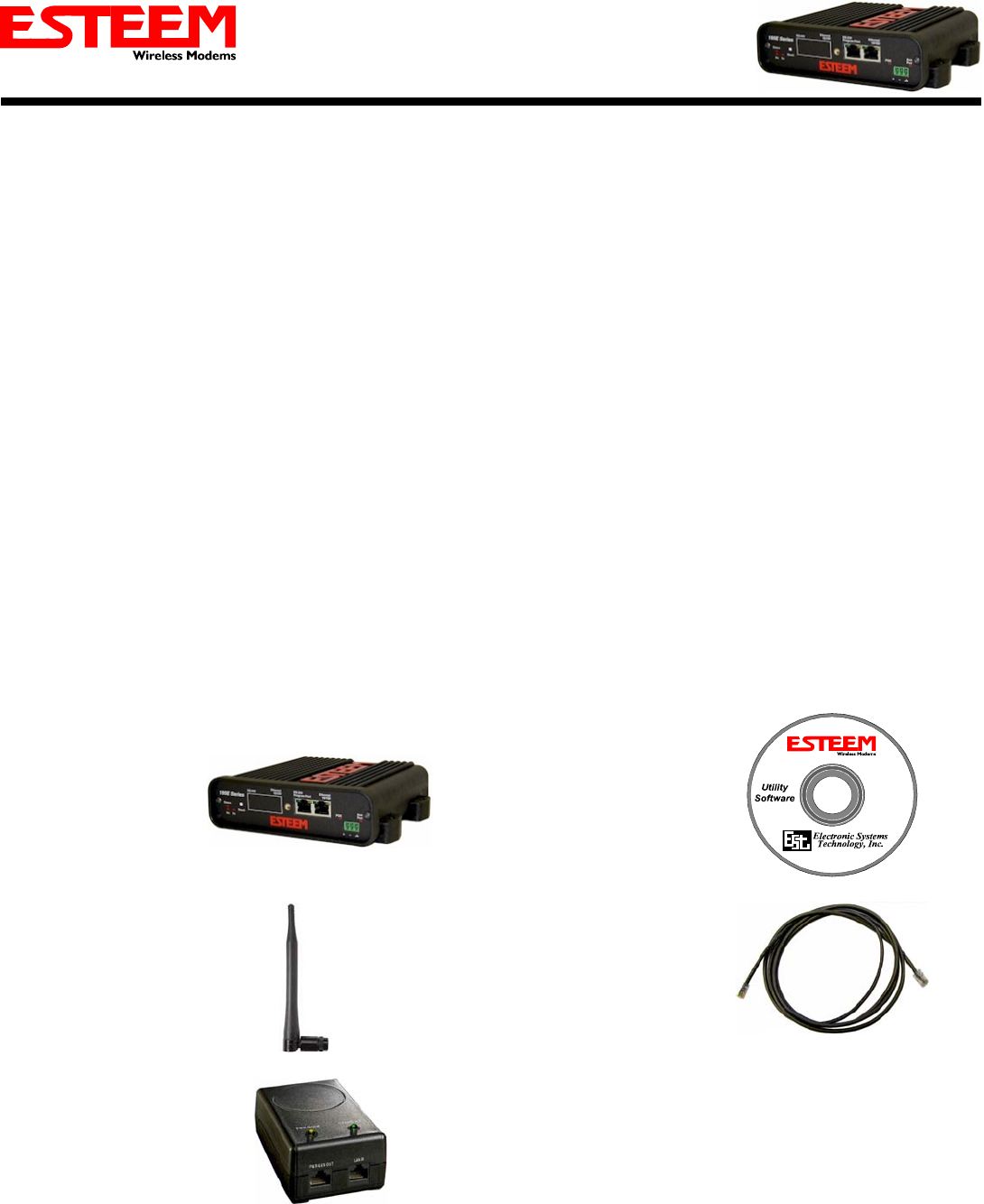

Model 195Eg
AA109 Resource Disk
Antenna
(AA01S Displayed)
(2) Ethernet Cables
Power Supply
(AA175 Displayed)
Note: Your accessory model numbers may vary from the above, but you will need to locate each of above items to
continue configuration.
Getting to Know the ESTeem Model 195Eg
Front Panel Overview
12 VDC Input
(Auxiliary
Connector )
Reset Button
RS-232 Input/Output
(RJ-45 Connector) RJ-45 10/100BaseT
Ethernet Port
Transmit
LED
Receive
LED
Status
LED
Power over
Ethernet LED
Auxiliary
Power LED
Antenna Overview
Antenna Connectors
(TNC Female-RP)
Antenna Port A
(Single Receive Antenna)
Antenna Port B
(Dual Receive Antennas)
2
Begin Programming

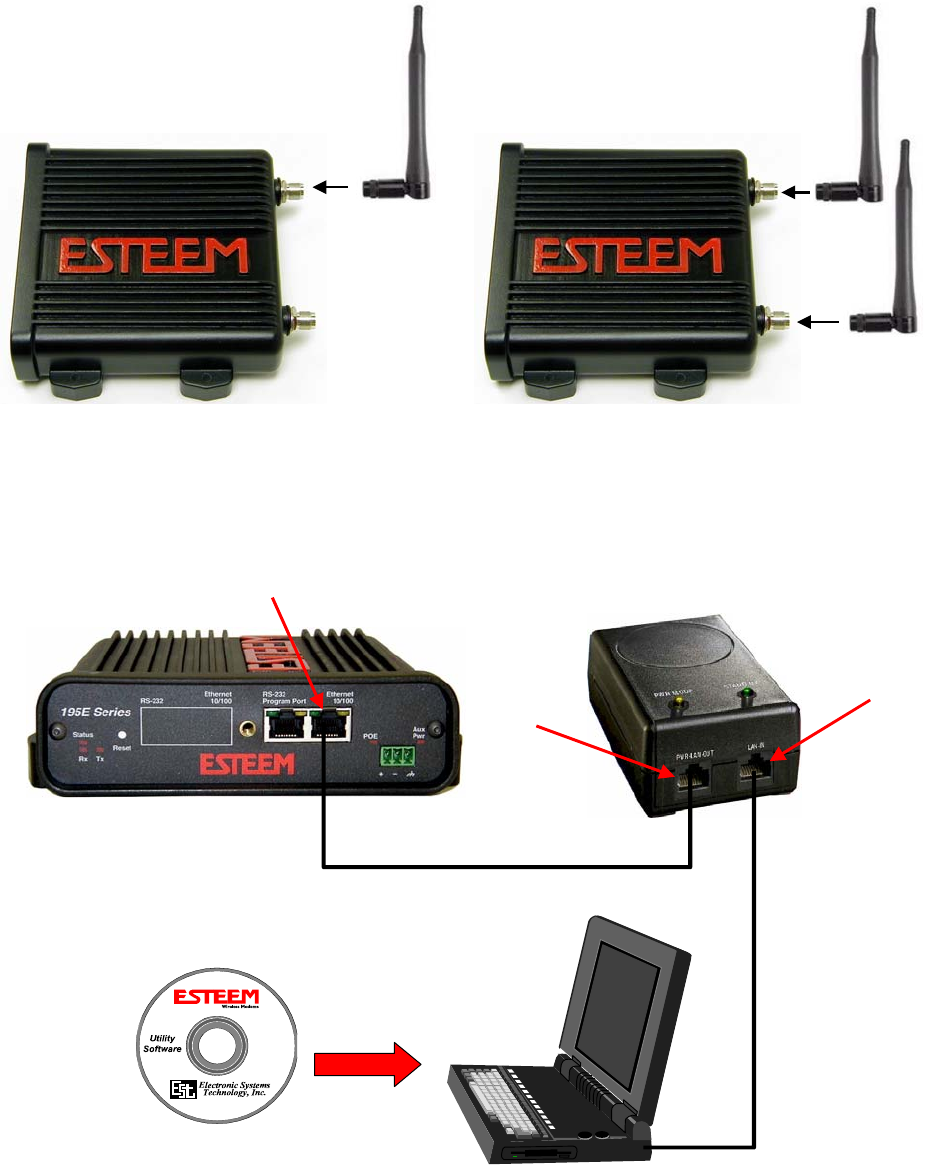

1. Assemble the ESTeem Model 195Eg using the following:
Antenna Connections
Leave
Open
Single Antenna
Configuration Dual Antenna
Configuration
Power and Data Connection
PC with Web
Browser Software
RJ-45 10/100BaseT
Ethernet Port
10/100BaseT
Ethernet Cable
(Patch or Cross Over)
AA175 PoE
Power Supply
LAN In
10/100BaseT
Ethernet Cable
(Patch or Cross Over)
PWR
Data Out
AA109
Resource
Disk
3
2. The Model 195Eg will link to other Model 195Eg’s on the network via the WLAN Media Access Control
(MAC) address found on the bottom of the case. This MAC address is six hexadecimal digits separated by
colons and is configured at the factory. Every MAC address in the world is unique and can not be changed.
Complete the following chart to aid in your configuration:
Name Serial Number IP Address Ethernet MAC WLAN MAC
Example Modem 1 E-14001
172.16.8.101 00:04:3f:00:01:01 00:04:3f:00:01:02
3. Configuration of the Model 195Eg is completed through the product’s internal web server. To access this
configuration page, you will need to enter the 195Eg’s IP address in your web browser. The IP address set at
the factory is Class B (i.e. 172.16.x.x) address and is printed on the Quality Assurance sheet sent with each
195Eg. If the factory default address matches your network configuration, please proceed to Using Setup,
otherwise continue to step 4.
4. Install the ESTeem Discovery Utility. The ESTeem Discovery Utility will allow you to configure the IP
address on the Model 195Eg to match your network. Install the Discovery Utility on your computer by
inserting the Resource Disk in your CD drive.
Note: The ESTeem Resource Disk is stand-alone copy of the ESTeem Web site (Figure 1). Navigation of the
Resource Disk is as simple as using your web browser. All technical documentation, User’s Manuals and the
ESTeem Utility Program is available on the disk.
Place the ESTeem Utility CD in your CD-ROM drive. The CD will auto load the ESTeem main page
Note: If the page does not auto load, open your web browser and set your address line to D:\1_default.html
(Where D: is the drive letter for your CD-ROM drive).

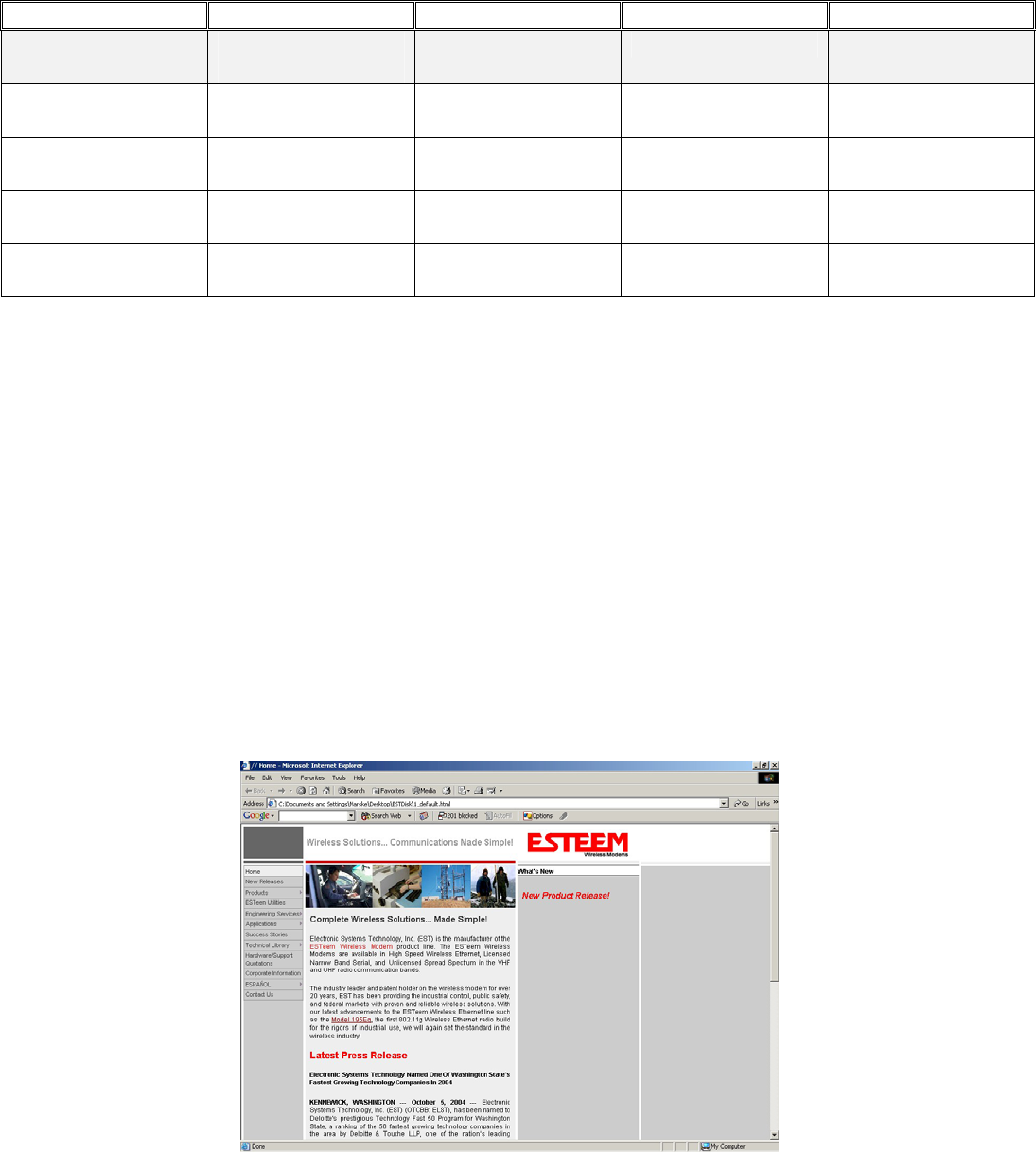

Figure 1 –ESTeem Resource Disk Main Page
4
5
From the Main Page select ESTeem Utilities and click on
Download ESTeem Discovery Utility.
Note: This program is saved in a compressed file format.
Microsoft Windows XP® will open the file directly, but
other operating systems will require a common
compression program such as WinZip available for
download at http://www.winzip.com
Double click on the 195EdiscoverySetup.exe file listed in
the window to install the program.
5. Set IP Address on the 195Eg. Connect the Model
195Eg to your computer either direct to the Ethernet
card or through a HUB/Switch using a CAT-5e
Ethernet cable. The Ethernet port on the 195Eg
supports Auto-Negotiation so either a patch cable or crossover cable will work. Open the ESTeem Discovery
Program and press the Discover Modems button. The Model 195Eg will be displayed in the program by the
Ethernet MAC address and Current IP Address (Figure 3).
Figure 2- ESTeem Utility Download
Note: The SSID and Mode of Operation will be adjusted later in the configuration.
Figure 3 – Discovery Program Main Page
Double-click on the 195Eg you wish to program and the Configure IP Address window will be displayed
(Figure 4). Enter an IP address and Subnet Mask for the 195Eg that matches your network subnet and press
the OK button to save this to the ESTeem. You will receive notification that the Configuration was Successful
and the 195Eg will reboot. Proceed to ESTeem Setup to continue configuration.
Figure 4 – Change IP Address Window
Setup Programming
You should now be ready to configure the Model 195Eg through your web browser. Open the web browser
program and enter the IP address of the ESTeem in the address line and press enter.

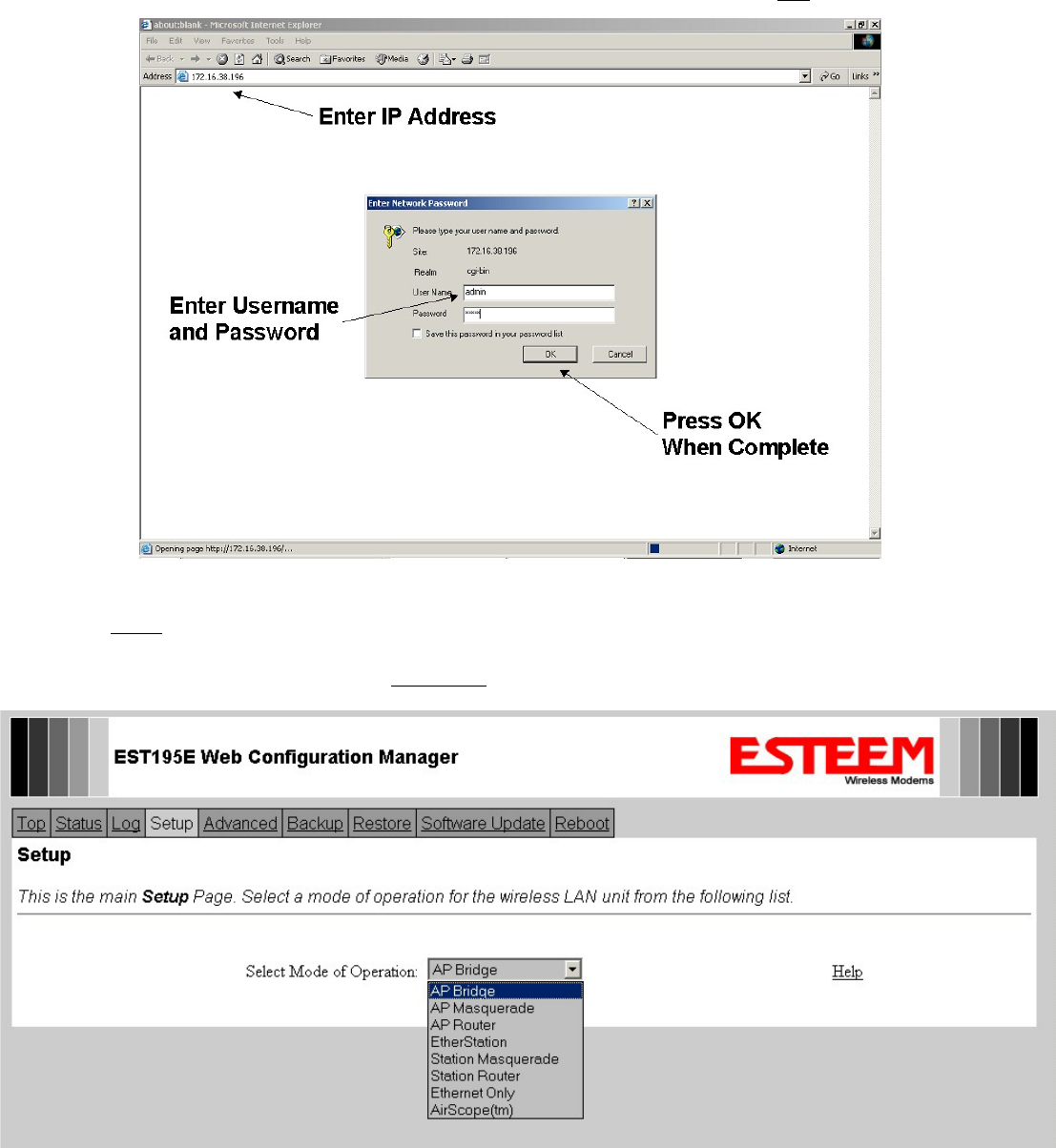

1. When prompted, enter admin for both the username and password and press the OK button.
Step 1 – Sign-In Screen
2. Select Setup on the top menu.
3. Press the drop-down menu and select AP Bridge and press the Next button.
Step 3 – Select AP Bridge
6
4. Set the DHCP services to OFF and press the Next button.
Step 4 – Turn DHCP Off
5. Verify the IP address and netmask for the 195Eg (listed as bridge device) are correct press the Next button.
Step 5 – Verify IP Address
7

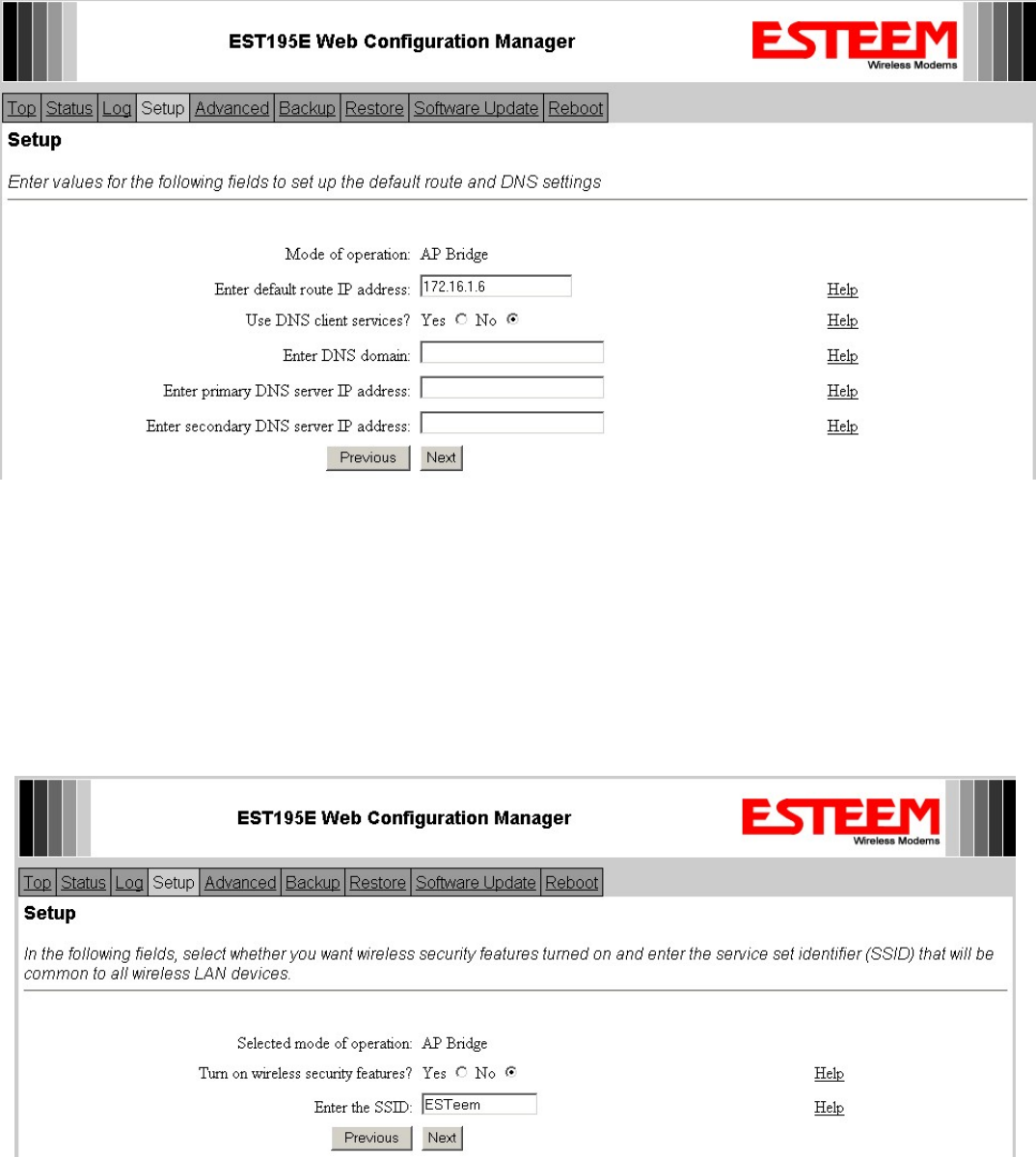

6. Enter in the Gateway address in the default route IP address block and any DNS information for the server. If
this is not know or on a network without a Gateway, leave these items at factory default.
Step 6 – Enter Gateway Address
7. All 195Eg modems in the network must be have the exact same Service Set Identification (SSID). The default
SSID is ESTeem and we will use this for demonstration. Enter the SSID as listed above and turn off the
wireless security features to client devices by selecting the NO radial. Press the Next button to continue.
Note: It is recommended that security be used in all wireless applications. This procedure will forgo the security
configuration for brevity. Please see the example applications and the security appendix for further information.
Step 7 – Enter SSID
8

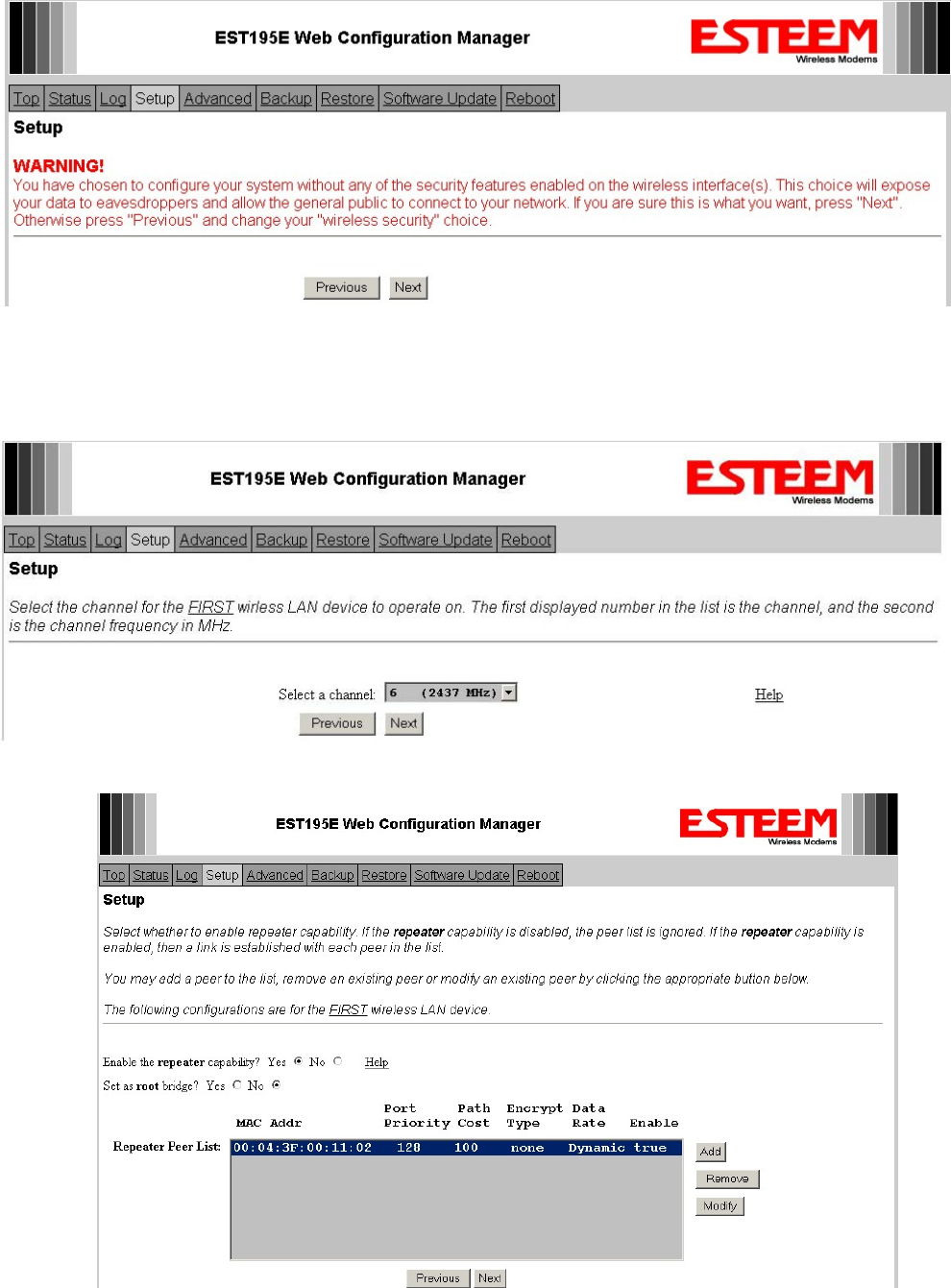

8. A warning that wireless security is not enabled will be displayed. Press the Next button to continue.
Step 8 – Security Warning Screen
9. All Model 195Egs on the network must be on the same radio channel, representing a particular frequency. If a
particular channel has not been assigned for use, leave the 195Eg at a default value of 6 and press the Next
button.
Step 9 – Set Radio Channel
9

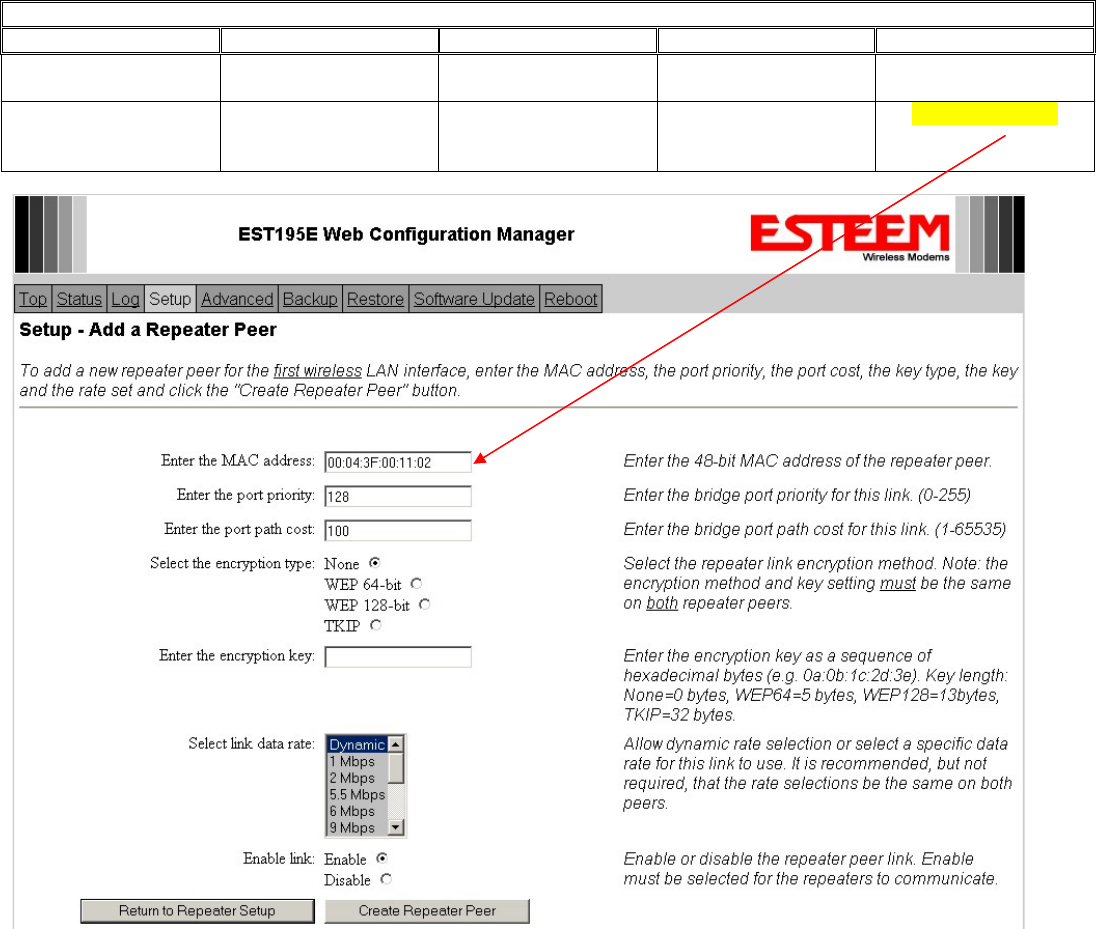

10. Configure the repeater peer list by selecting Enable the repeater capability radial to YES (Above). Press the
Add button to the right of the repeater peer table and, using the chart created in the Begin Programming
section of this guide, enter the Wireless MAC (WLAN MAC) address of the opposite 195Eg (the 195Eg this
unit you are programming will communicate with) in the Peer 1 – MAC Addr field (right). Leave the Priority
and Cost settings at the default values and change the Enable Link radial to Enable and press the Create
Repeater Peer button. Press the Next button.
Example Addresses
Name Serial Number IP Address Ethernet MAC WLAN MAC
195Eg We Are
Programming E-14096
172.16.48.189 00:04:3f:00:01:01 00:04:3f:00:01:02
Opposite 195Eg We
Will Create Wireless
Link
E-14034
172.16.38.114 00:04:3F:00:0B:00
00:04:3F:00:11:02
Step 10 – Configure Peer Table
11. Press the Commit Changes button and the modem will save all the changes made and reboot. The reboot time
is approximately 1 minute to be ready for operation.
12. Complete all steps in this Setup Programming section for the other Model 195Eg’s you will be testing before
moving on the Testing Communication section.
10
Testing Communication Link
After you have configured at least two of the Model 195Eg wireless Ethernet modems for operation, you can
verify communication with each the following steps:
11
Status Light – The quickest source of link status is to
view the Status Light on the face of the 195Eg. If the
Status light is solid, the Model 195Eg has a
connection to another Model 195Eg listed in the Peer
Table.
Status Screen/Peer Table – To view further
information on the status of the communication link
(such as connection speed, signal strength and last
update time) you can open the Status Screen from the Web Interface. After press the Status tab at the top of the
screen the Status: Summary will be displayed showing the status of all ports and memory in the 195Eg. Under the
Wireless Status heading click on the View Peer Table (Figure 5). The Peer Table will list all other 802.11b or
802.11g wireless activity seen by the 195Eg and how it is classified.
Status LED
Solid Red on Link

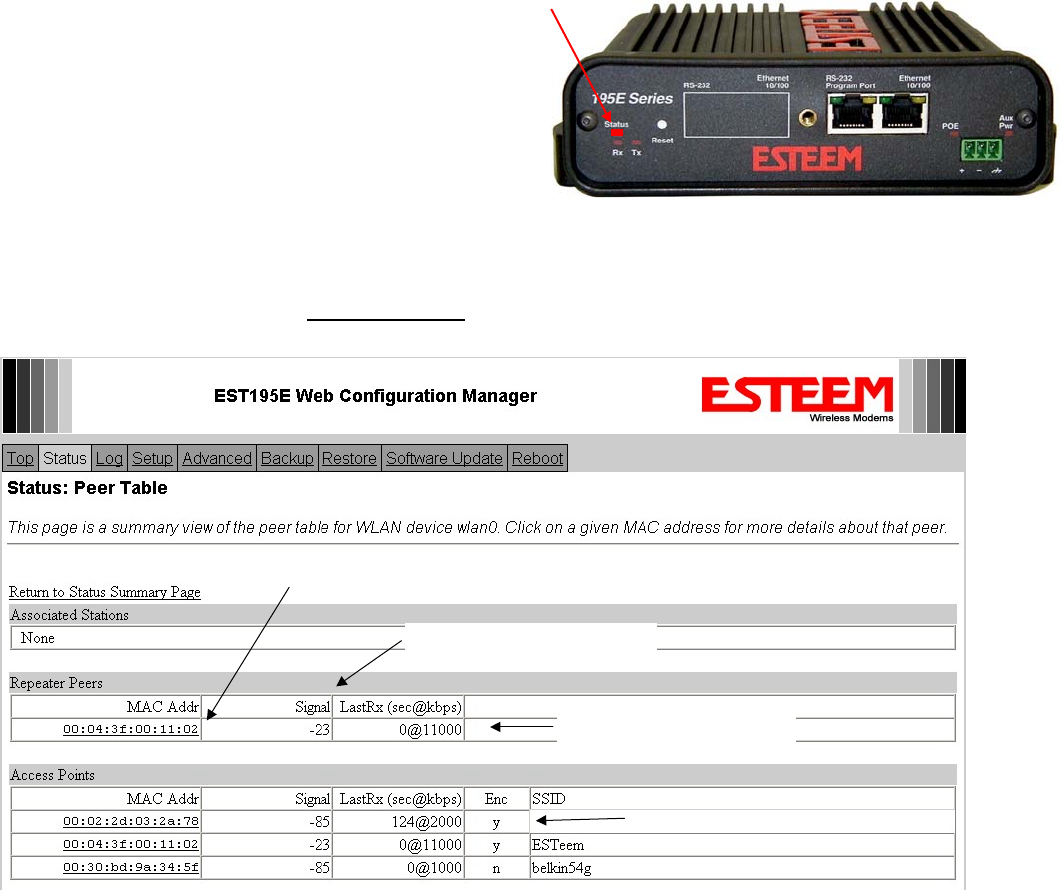

Find the opposite 195Eg in the Repeater Peers list and information such as signal strength (in dBm) and
time/speed of last data packet will be displayed.
Opposite Modem’s Wireless MAC
Other Access Points
Signal Strength (dBm)
Last Packet Received
Figure 5 – Repeater Peer Table
Note: The data rate displayed is not necessarily indicative of the RF data rate between the ESTeems. The rate
show in the Repeater Peer table will be the last RF packet, which could consist of either data, repeater beacon or
network probes. For a detailed analysis on the data rate, please consult the ESTeem User’s manual.
Ping Testing – The easiest method for testing the efficiency of data flow between the ESTeems is to conduct a
Ping test to the opposite modem’s IP address. This will test all links in the Ethernet bridge.
Technical Support
User’s Manual and Technical Documentation
http://www.esteem.com
E-Mail Support
Support@esteem.com
Phone Support (8AM to 5PM PST Monday-
Friday)
509-735-9092
