Electronic Systems Technology ESTEEM195EP BASE STATION TRANSMITTER User Manual CHAPTER 2

Electronic Systems Technology BASE STATION TRANSMITTER CHAPTER 2

INTERFACE PORTS

APPENDIX C
INTERFACE PORTS
Revised: 14 Jun 06 APX C-1 EST P/N AA107G
ETHERNET INTERFACE
The ESTeem Model 195Eg’s Ethernet Port is a Full and Half-Duplex Auto-negotiation interface supporting both 10 Mbps and 100
Mbps (10/100BaseT). The Ethernet port is compliant with IEEE 802.3af Power Over Ethernet (PoE) to provide both data and
power over the same CAT-5E grade Ethernet cable. The port is compatible with TIA/EIA-568B cable configuration.
CONFIGURING DHCP SERVER
The ESTeem 195Eg Ethernet port supports both client and server Dynamic Host Configuration Protocol (DHCP). Figure 1 shows
the DHCP host configuration screen that will be shown if DHCP server is selected in the setup screens. Enter the values that
match the DHCP configuration for your network.

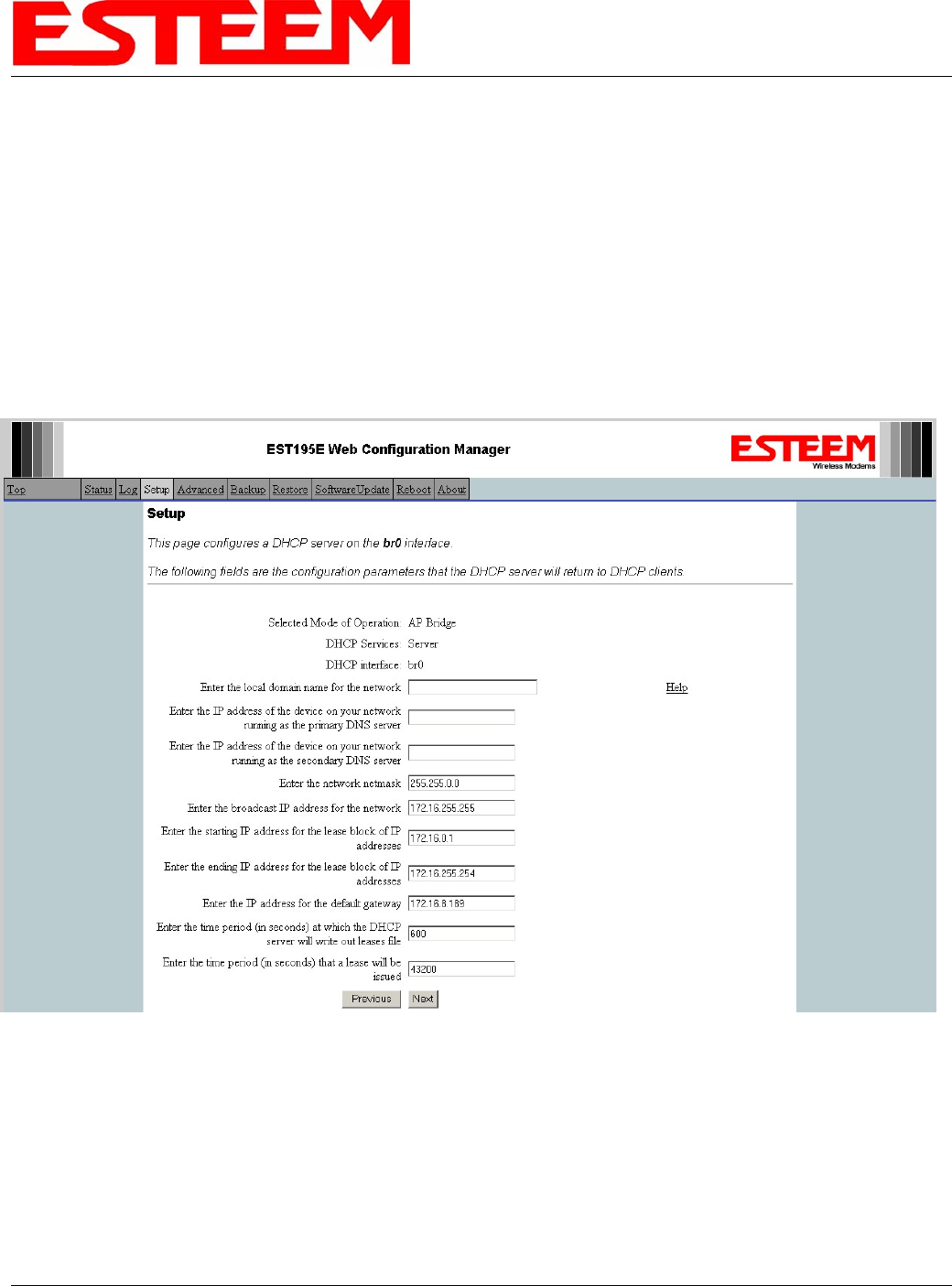

Figure 1: DHCP Server Configuration
APPENDIX C
INTERFACE PORTS
Revised: 14 Jun 06 APX C-2 EST P/N AA107G

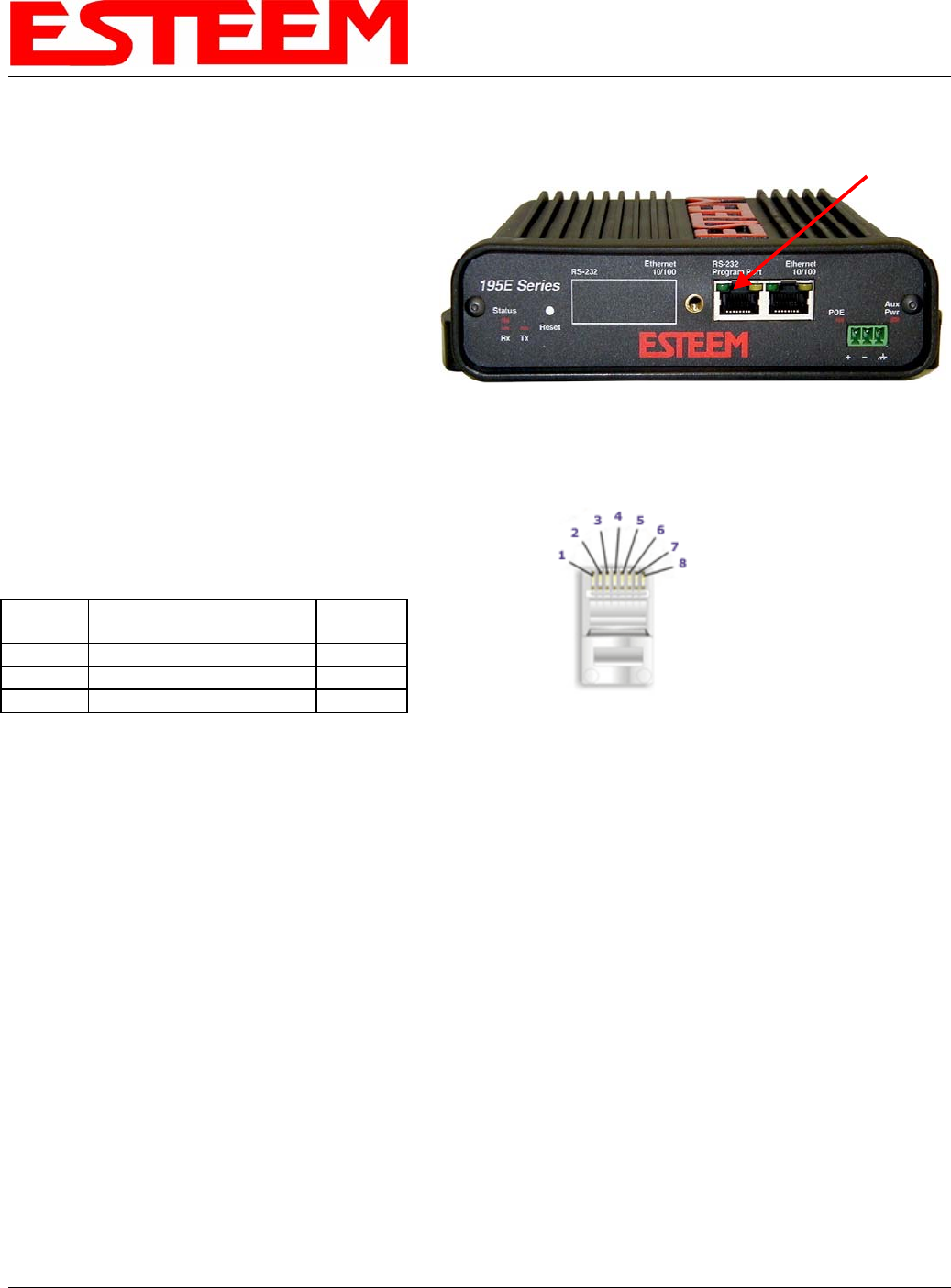

RS-232C PROGRAMMING PORT
CONFIGURATION RS-232
Programming Port
Model 195Eg Serial Port Interface
The ESTeem Model 195Eg has a proprietary RS-232C
interface in a RJ-45 connector on the front panel. To
interface the 195Eg to the serial port on the computer,
you need ESTeem cable AA0621 that combines a
standard Ethernet patch cable to a 9-pin Female adapter.
The serial port on the ESTeem Model 192E can be used
to access the configuration menu in the ESTeem for
system and network configuration. The ESTeem
communications port operates at 38,400 bps, No Parity,
8 Data Bits and 1 Stop Bit (38,400,N,8,1). Configure
your terminal program to match these settings.
RS-232 PROGRAMMING PORT PIN-OUT TABLE
Ethernet Pin-out
ESTeem Model AA0621
RS-232C Port Pin-Out Table
RJ-45
Pin No. Function
DB-9
Pin No.
4 Signal Ground (GND) 5
5 Receive Data (RxD) 2
6 Transmit Data (TxD) 3
