Olympus Medical Systems RU2020 Endoscope Reprocessor User Manual GT9883 0004 fm10
Olympus Medical Systems Corp. Endoscope Reprocessor GT9883 0004 fm10
Contents
Installation Manual 1
INSTRUCTIONS
ENDOSCOPE REPROCESSOR
OER-Elite¥
Labels and Symbols 1
Important Information — Please Read Before
Use 7
Chapter 1 Checking the Package Contents 17
Chapter 2 Nomenclature and Functions 21
Chapter 3 Installation of Accessories 37
Chapter 4 Installation of Equipment 49
Installation Work Check Points 191
For information on how to operate this equipment, please refer to “Instructions - Operation Manual”.
INSTALLATION MANUAL
Contents
i
OER-Elite INSTALLATION MANUAL
Contents
Labels and Symbols .......................................................................................................... 1
Important Information — Please Read Before Use ......................................................... 7
Intended use .......................................................................................................................... 7
Instruction manuals ............................................................................................................... 7
Terms used in these manuals ................................................................................................ 8
Ensuring the safety of reprocessing personnel .................................................................... 11
Equipment compatibility ....................................................................................................... 12
Signal words ........................................................................................................................ 12
Warnings and cautions ........................................................................................................ 12
Outline of Functions ........................................................................................................ 14
Chapter 1 Checking the Package Contents ....................................... 17

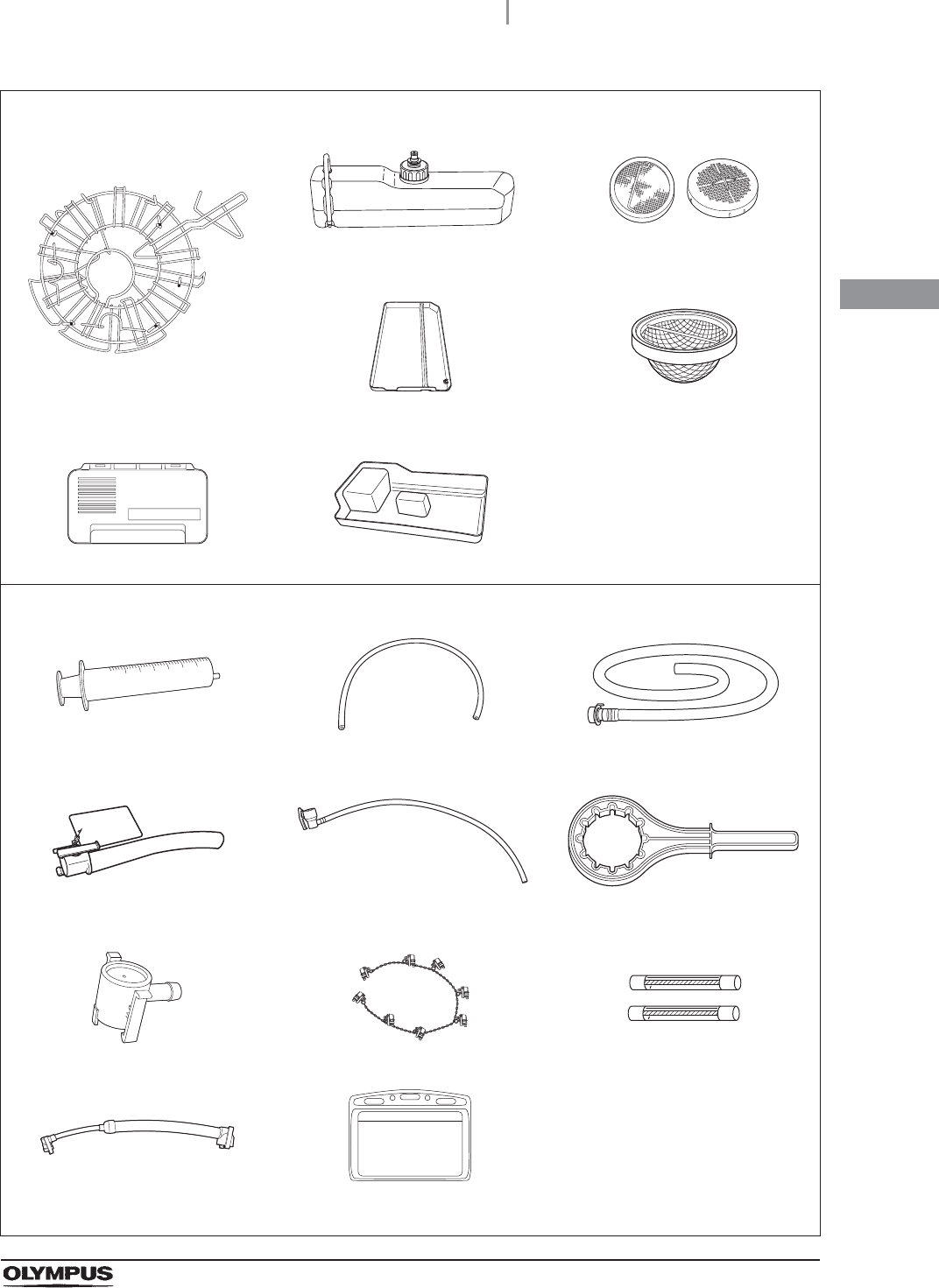

1.1 Checking the package contents ............................................................................ 17
Chapter 2 Nomenclature and Functions ............................................ 21
2.1 Front panel .............................................................................................................. 21
2.2 Top panel ................................................................................................................. 22
2.3 Inside ....................................................................................................................... 23
2.4 Rear panel ............................................................................................................... 24
2.5 Side panel ................................................................................................................ 25
2.6 Reprocessing basin ............................................................................................... 26
2.7 Control panels ........................................................................................................ 28

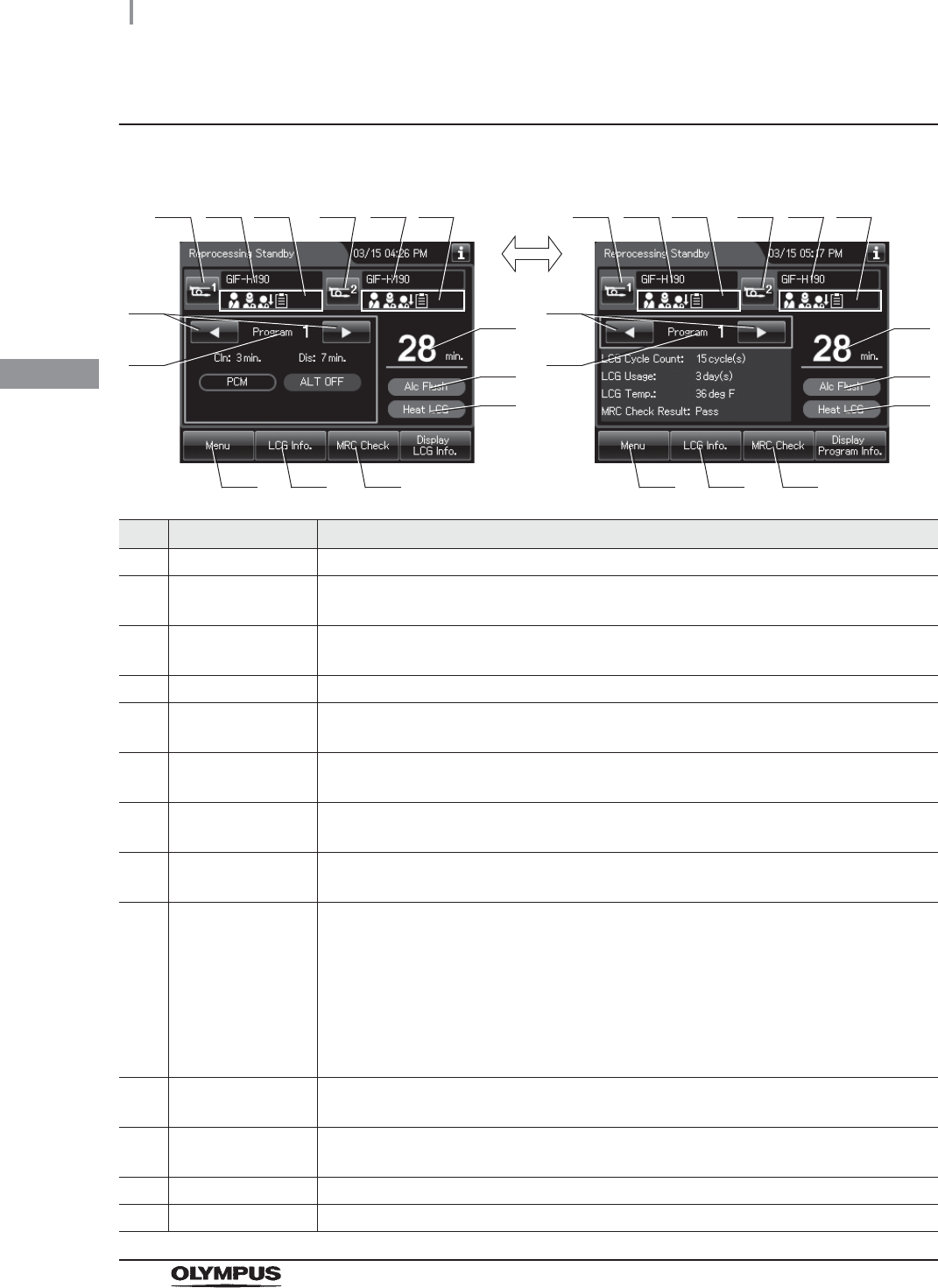

Touch screen – Menu Screen .............................................................................................. 29
Touch screen – Reprocessing standby screen .................................................................... 30
Touch screen – Reprocessing process screen .................................................................... 32
2.8 Consumable accessories (Optional) .................................................................... 33
Chapter 3 Installation of Accessories ................................................ 37
3.1 Installation of accessories workflow below ......................................................... 37
3.2 Installation of the grommets ................................................................................. 38
3.3 Installation of the buckling guard ......................................................................... 39
3.4 Inspection of the mesh filters ............................................................................... 40
3.5 Inspection of the retaining rack ............................................................................ 41
3.6 Installation of the washing case (MAJ-2121) ....................................................... 42
3.7 Installation of the stylus pen holder ..................................................................... 43
Required items .................................................................................................................... 43
Installing the stylus pen holder ............................................................................................ 43
3.8 Inspecting the accessory holder .......................................................................... 44
ii
Contents
OER-Elite INSTALLATION MANUAL
3.9 Storing other accessories ...................................................................................... 44
3.10 Installation of the optional accessories ............................................................... 45

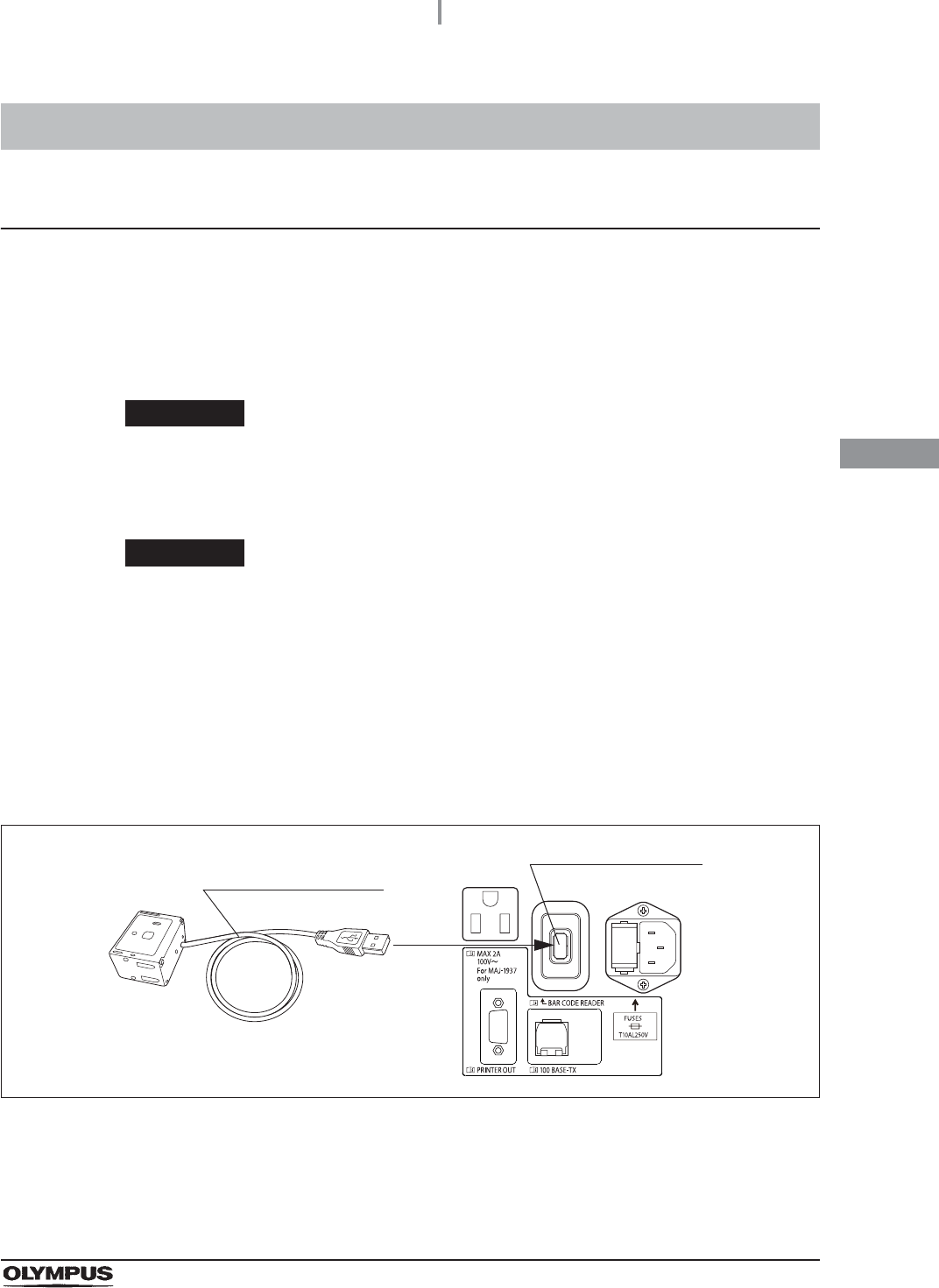

Connection of the bar code reader (MAJ-2130) .................................................................. 45
Installation of the printer set (MAJ-2144) ............................................................................. 46
Chapter 4 Installation of Equipment ................................................... 49
4.1 General flow of installation of the equipment ...................................................... 49
4.2 Installation workflow .............................................................................................. 52
4.3 Installation conditions ............................................................................................ 54
Installation condition ............................................................................................................ 54
Checking the installation position ........................................................................................ 57
4.4 Connection of the water supply hose ................................................................... 58
4.5 Connection of the drain hose ................................................................................ 60
4.6 Connection of the power supply ........................................................................... 64
4.7 Confirmation of the power supply ........................................................................ 66
4.8 Inspection of the RFID function ............................................................................ 69
4.9 Setting the date and time ....................................................................................... 74
4.10 Installation of the gas filters (MAJ-822) ................................................................ 79
Required items .................................................................................................................... 79
Attachment of the gas filter case to the lid ........................................................................... 80
Attachment of the gas filter case to the disinfectant solution tank ....................................... 83
4.11 Installation of the air filter (MAJ-823) .................................................................... 90
Required items .................................................................................................................... 90
Installing the air filter ............................................................................................................ 91
4.12 Inspection of air leakage from the air filter connectors ...................................... 96
4.13 Installation of the water tray .................................................................................. 99
4.14 Installation of the water filter (MAJ-824 or MAJ-2318) ...................................... 100
Required items .................................................................................................................. 101
Attachment of the water filter ............................................................................................. 101
4.15 Correction of equipment tilt ................................................................................ 113
Adjustment if water level is not located within even one of the three ranges ..................... 117
Correcting the tilt ................................................................................................................ 118
4.16 Inspecting the detergent/alcohol inner tray ....................................................... 121
4.17 Inspecting the alcohol tank ................................................................................. 122
4.18 Addition of alcohol ............................................................................................... 123
4.19 Installation of the detergent tank ........................................................................ 126
Required items .................................................................................................................. 127
Installing the detergent tank .............................................................................................. 127
4.20 Setup of the disinfectant solution ....................................................................... 134
Required items .................................................................................................................. 136
Setup of the disinfectant solution ....................................................................................... 136
Contents
iii
OER-Elite INSTALLATION MANUAL
4.21 Self disinfection and check the operation ......................................................... 145
Self-disinfection and check the operation workflow ........................................................... 146
Required items .................................................................................................................. 146
Checking the MRC level and entering the check result ..................................................... 147
Performing the self disinfection ......................................................................................... 154
When the “Message 093” is displayed .............................................................................. 159
When the “Message 087” is displayed .............................................................................. 160
4.22 Water line disinfection ......................................................................................... 162
Disinfection of water supply piping workflow ..................................................................... 164
Required items .................................................................................................................. 164
Checking the MRC level and entering the check result ..................................................... 164
Disinfecting the water line .................................................................................................. 172
4.23 Checking the operation of optional accessories .............................................. 180
Checking the operation of the bar code reader (MAJ-2130) ............................................. 180
Checking the operation of the printer (MAJ-1937) ............................................................. 186
Installation Work Check Points ........................................................... 191
Installation work check points ...................................................................................... 191
iv
Contents
OER-Elite INSTALLATION MANUAL
Labels and Symbols
1
OER-Elite INSTALLATION MANUAL
The meaning(s) of the symbol(s) shown on the component packaging, the back cover of this instruction
manual and/or this equipment are as follows:
Safety-related labels and symbols are attached to the equipment at the locations shown below. If
labels or symbols are missing or illegible, contact Olympus.
Labels and Symbols
Symbol Description
Refer to instructions.
Endoscope reprocessor
Manufacturer
Authorized representative in the European Community
Lot number
Serial number
2
Labels and Symbols
OER-Elite INSTALLATION MANUAL

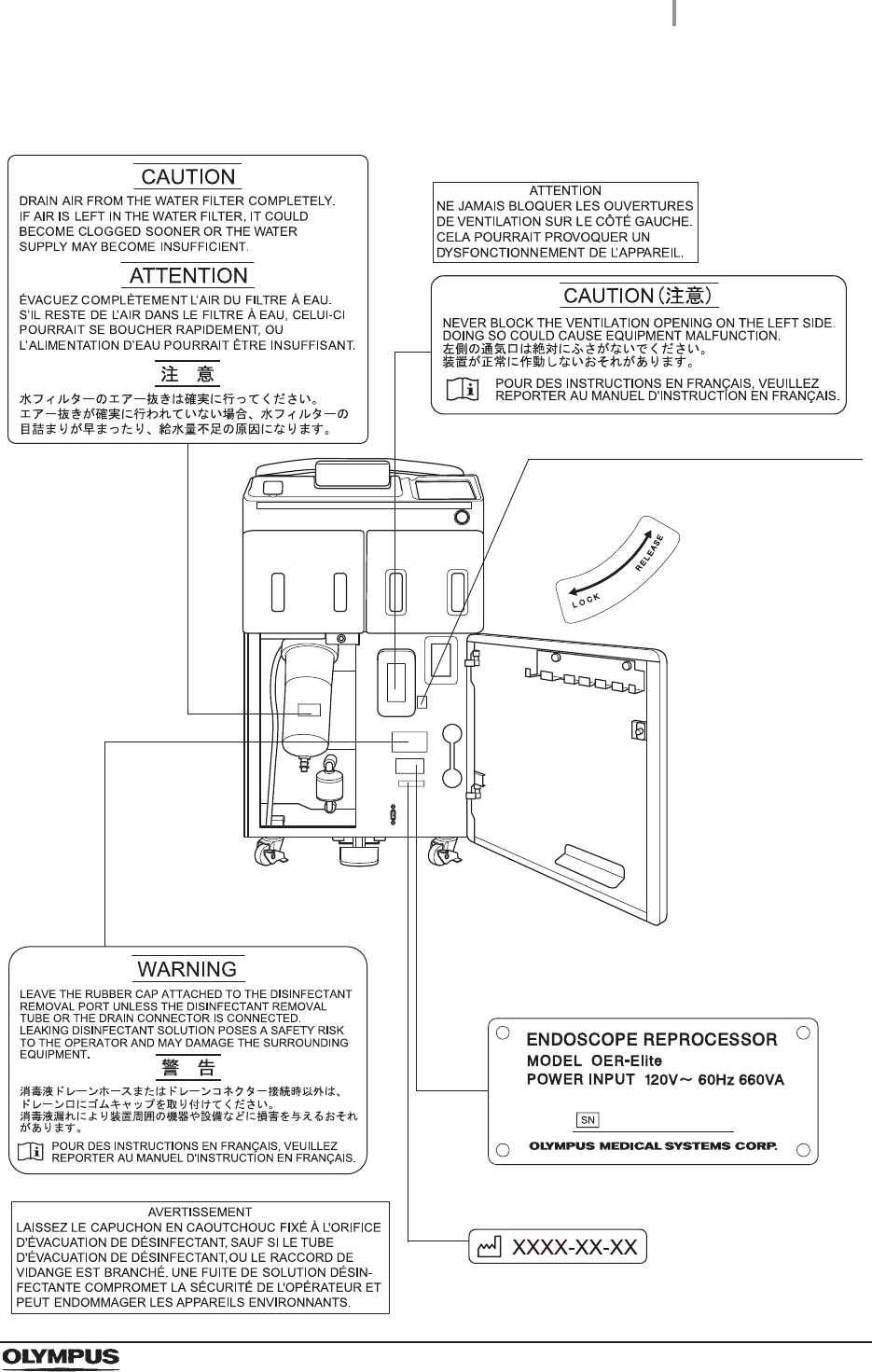

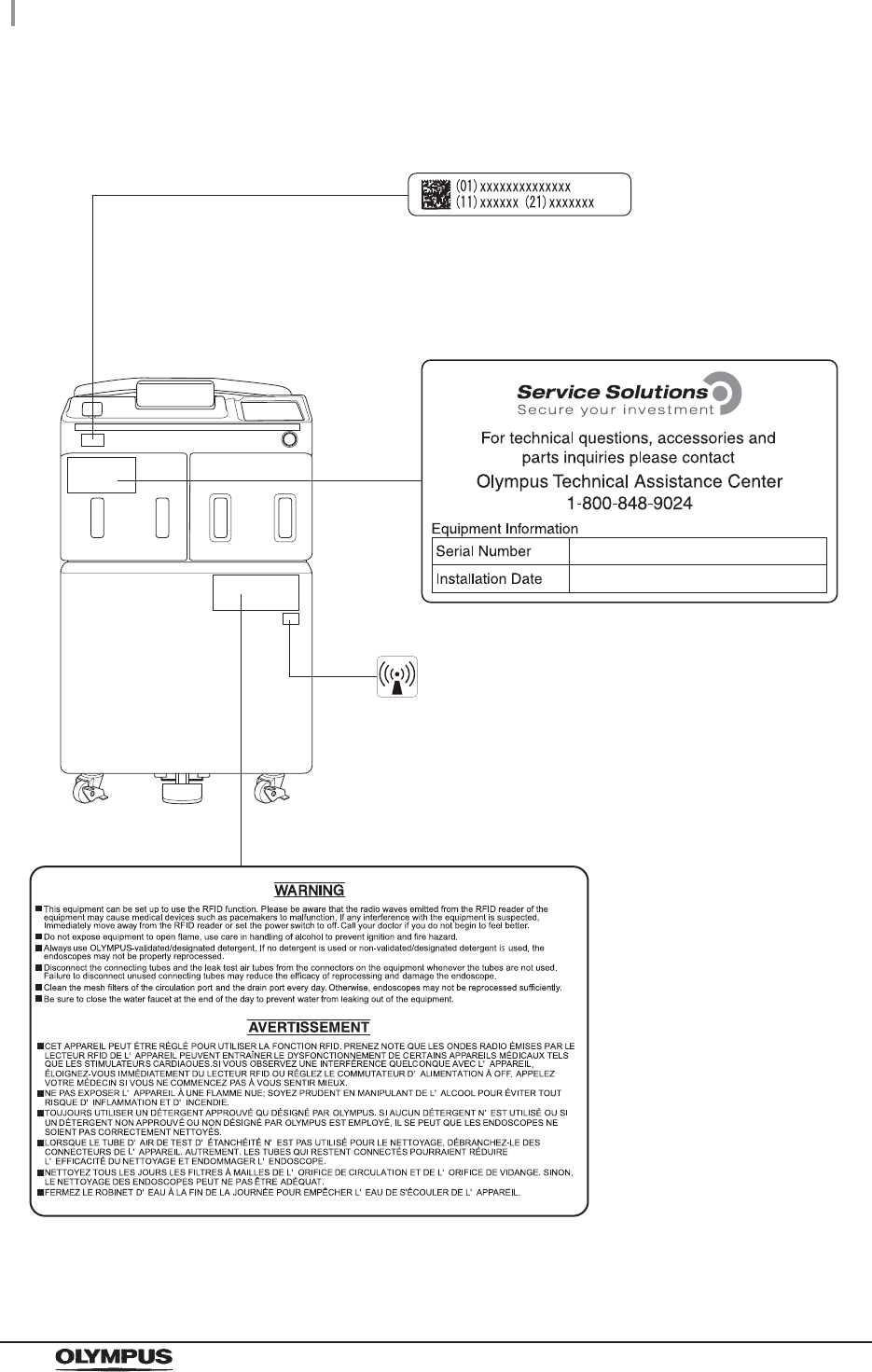

Front panel
RFID marking
UDI label
A label required by some countries’
regulations regarding identification of
medical device also known as Unique
Device Identification (UDI).
Labels and Symbols
3
OER-Elite INSTALLATION MANUAL
Inner side
Rotation direction indicator label
Indicates the rotation direction for locking
and releasing gas filter case (tank).
Rating plate
Shows the product model, power rating,
and serial number.
FRA
FRA
Date of manufacture
4
Labels and Symbols
OER-Elite INSTALLATION MANUAL

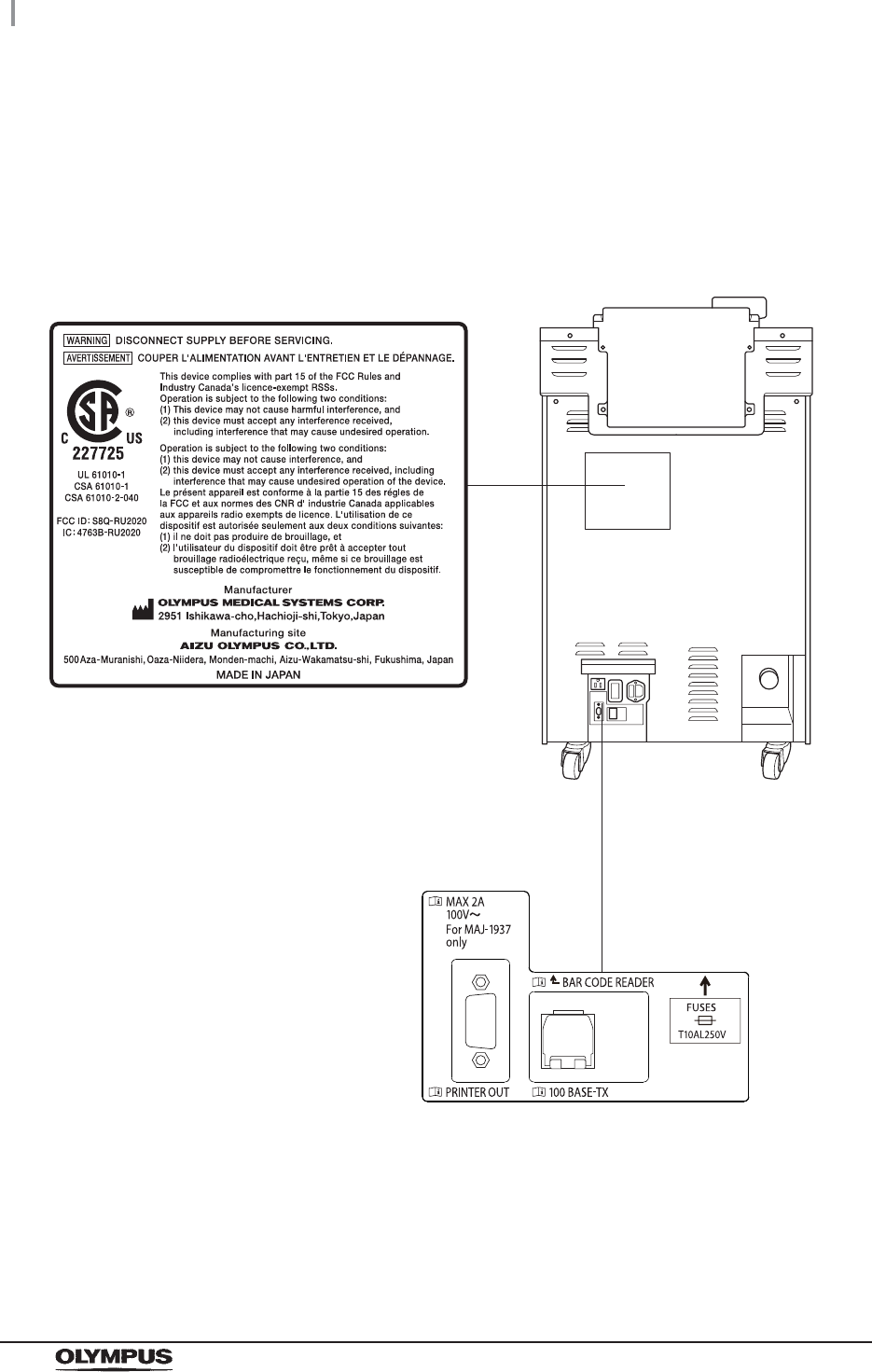

Rear panel
CSA/UL MARKING
Labels and Symbols
5
OER-Elite INSTALLATION MANUAL
Top panel
Rotation direction
indicator label
Indicates the rotation
directions for locking
and releasing gas filter
case (lid).
FRA
FRA
FRA
6
Labels and Symbols
OER-Elite INSTALLATION MANUAL
Reprocessing basin
Fonts displayed on the touch screen
Ricoh bitmap fonts designed by RICOH Company, Ltd. are used.
Important Information — Please Read Before Use
7
OER-Elite INSTALLATION MANUAL
Intended use
The OER-Elite is intended for use in cleaning and high-level disinfection of heat sensitive Olympus
flexible endoscopes, their accessories, and endoscope reprocessor accessories. Safe use requires
detergent and an FDA-cleared high-level disinfectant/sterilant that Olympus has validated to be
efficacious and compatible with the materials of the OER-Elite and Olympus flexible endoscopes, their
accessories, and endoscope reprocessor accessories. Use of a detergent or high-level
disinfectant/sterilant that has not been validated by Olympus may be ineffective and can damage the
OER-Elite components and the endoscopes being reprocessed. Endoscopes must be subject to
cleaning by the user prior to reprocessing; however, use of the OER-Elite enables the user to perform
modified manual cleaning of the endoscope prior to automated cleaning and high-level disinfection in
the OER-Elite.
Instruction manuals
The instructions for this equipment are divided into two volumes: “Instructions-Installation Manual”, and
“Instructions-Operation Manual”.
Instructions regarding the preparation of endoscopes prior to placing them in the OER-Elite are found
in “Instructions-Operation Manual”.
Each of these manuals contains essential information for using this equipment safely and effectively.
The “Instructions-Installation Manual” describes how to install the equipment. The
“Instructions-Operation Manual” describes how to operate and maintain the equipment and describes
modifications to the manual endoscope cleaning process that can save the user time and
inconvenience, if the endoscope is going to be subsequently reprocessed using the OER-Elite.
The “List of Compatible Endoscopes/Connecting Tubes <OER-Elite>” identifies all Olympus model
endoscopes that are compatible with the OER-Elite, plus the specific connecting tube(s) required for
each of these endoscope models.
The descriptions in these manuals assume that all endoscopes are reprocessed in the OER-Elite using
both an Olympus-validated detergent and disinfectant. Contact Olympus to obtain the list of both
Olympus-validated disinfectant solutions and detergents.
Before using this reprocessor, be sure to review all of the above-mentioned manuals, the safety
information provided with Olympus-validated detergents and disinfectants, and the manuals for all
other equipment used in the process. Always use this equipment as instructed. It might cause
unexpected danger if you do not follow the installation and operation manual. Keep these and all
related instruction manuals and documents in a safe and accessible location.
If you have any questions or comments about any information in these manuals, contact Olympus.
Important Information — Please Read Before Use
8
Important Information — Please Read Before Use
OER-Elite INSTALLATION MANUAL
Terms used in these manuals
ALT
Stands for Auto Leak Test.
Air purge
In this operation, air is fed into an endoscope channel to blow out residual fluid. This
operation is usually performed automatically during a process, but it can also be activated
independently. Air purge is also used to drain cleaning fluid or disinfectant solution from
inside the equipment when the operation has stopped due to an error code, etc.
Alcohol
70% ethyl alcohol or 70% isopropyl alcohol.
Alcohol flush
To assist in drying the channels after reprocessing, alcohol is flushed through the
endoscope channels followed by air. This operation can be performed as the last step of
the reprocessing program or as an independent operation.
Automatic processing
When the equipment is stopped by the operator or due to an error, it identifies its status
and executes the optimum operation automatically. For example, if the device stops in the
middle of the disinfection process, it terminates the disinfection process and removes the
disinfectant solution.
Channel blockage monitoring
This function monitors the channel blockage of endoscope’s suction channel due to a
foreign object, etc., during a reprocessing program.
Channel connectivity monitoring
This function monitors the connection status of the connecting tubes during a
reprocessing program.
Channel monitoring
“Channel monitoring” will be used as a generic “Channel connectivity monitoring” and
“Channel blockage monitoring”.
Cleaning fluid
Refers to filtered water with detergent that is used during the cleaning process.
Cleaning process
A series of operations programmed into the equipment that enable it to perform ultrasonic
cleaning and detergent cleaning of endoscopes.
Important Information — Please Read Before Use
9
OER-Elite INSTALLATION MANUAL
Detergent
Olympus-validated detergent. Refer to Section 2.8, “Consumable accessories (Optional)”
for details.
Disinfectant solution
Olympus-validated disinfectant solution. Refer to Section 2.8, “Consumable accessories
(Optional)” for details.
Disinfection process
A series of operations programmed into the equipment that enable it to perform
disinfection of endoscopes.
Error code
A code consisting of [E] and a three-digit number. This code is displayed on the touch
screen if there is a problem with the equipment. When an error code is displayed, check
the troubleshooting guide.
LCG
Stands for Liquid Chemical Germicide. It refers to disinfectant solution displayed on GUI.
Leak test
A test to confirm that an endoscope is free of leaks. This equipment is capable of both the
auto leak test and the manual leak test.
Manual cleaning
Cleaning of an endoscope by hand.
Modified precleaning and manual cleaning
A precleaning and manual cleaning method that simplified due to subsequent use of the
OER-Elite which automates cleaning steps in the process.
MRC
Stands for Minimum Recommended Concentration.
Patient ID
Identify information specific to each patient. It can be recorded in the histories of
reprocessing, etc. For the patient ID input method, refer to Section 3.6, “Entering ID” in
“Instructions-Operation manual”.
Physician ID
Identity information specific to each endoscopist. It can be recorded in the histories of
reprocessing, etc. For the physician ID input method, refer to Section 3.6, “Entering ID” in
“Instructions-Operation manual”.
10
Important Information — Please Read Before Use
OER-Elite INSTALLATION MANUAL
Portable memory
A digital medium for storage.
Precleaning
Cleaning of an endoscope performed after each procedure at the bedside of the
endoscopy room.
Procedure ID
Identify information specific to each procedure of the patient. It can be recorded in the
histories of reprocessing, etc. For the procedure ID input method, refer to Section 3.6,
“Entering ID” in “Instructions-Operation manual”.
Process
Generic term for any operation, including cleaning and disinfection that is performed
automatically by this equipment.
Reprocessing process
A series of operations for ultrasonic cleaning, detergent cleaning, disinfection, rinse, air
purge, and alcohol flush of the outer surface or channels of endoscopes that run in a
specified sequence and for a specified time. Reprocessing programs [1] to [4] can be
selected by the user. Programs [1] to [4] have a fixed cleaning process time and
disinfection process time. They also have different patterns of auto leak test and channel
monitoring respectively.
Scope ID
Identity information specific to each endoscope. It can be recorded in the histories of
reprocessing, etc. For the scope ID input method, refer to Section 3.6, “Entering ID” in
“Instructions-Operation manual”.
Shelf life
The date of expiration of the effectiveness of a detergent or disinfectant before it is
opened.
Test strip
Device used to test if the concentration of disinfectant solution is effective for disinfection.
Refer to Section 2.8, “Consumable accessories (Optional)” for details. (i.e., the minimum
recommended concentration (MRC) specified by the disinfectant manufacturer)
User ID
Identity information specific to each reprocessing operator. It can be recorded in the
histories of reprocessing, etc. For the user ID input method, refer to Section 3.6, “Entering
ID” in “Instructions-Operation manual”.
Important Information — Please Read Before Use
11
OER-Elite INSTALLATION MANUAL
Ensuring the safety of reprocessing personnel
• Disinfectant solution may irritate the mucous membranes in the eyes and respiratory organs.
If disinfectant solution contacts directly on the skin, it may cause irritation or damage.
Therefore, before handling high-level disinfectant solution, and detergent, carefully read the
instructions for use and the material safety data sheet. For further details, contact Olympus.
• During reprocessing, wear appropriate personal protective equipment to prevent contact with
or inhalation of infectious substances or disinfectant. Personal protective equipment includes
eyewear, face mask, moisture-resistant clothing, and chemical-resistant gloves that fit
properly and are long enough so that your skin is not exposed. All personal protective
equipment should be inspected before use and replaced periodically before it is damaged.
• When using disinfectant solution and alcohol, Olympus recommends the use of gas filters and
running this equipment in well-ventilated areas.
Wear a face mask, gloves, and protective clothes to minimize aspiration and skin contact.
Wear goggles for eye protection.
Refer to the following association’s guidelines related to ventilation:
If the person performing the inspection or maintenance exhibits an allergic reaction or
symptoms no matter how slight they should discontinue the task and vacate the room.
• Before handling the detergent or disinfectant, read the MSDS (material safety data sheets)
and learn what measures to take in the event of exposure.
• Operators who exhibit symptoms of an allergic reaction or sensitivity to the reprocessing
chemicals should not operate this equipment.
• This equipment can be set up to use the RFID (Radio Frequency Identification) function. Be
aware that the radio waves emitted from the RFID reader of the equipment may cause
medical devices such as pacemakers to malfunction. If any interference with the equipment is
observed, immediately move away from the RFID reader or set the power switch to OFF. Call
your doctor if you do not begin to feel better.
SGNA (Society of Gastroenterology Nurses and Associates)
ASGE (American Society of Gastroenterological Endoscopy)
APIC (Association for Professionals of Infection Control and Epidemiology)
AORN (Association of Preoperative Registered Nurses)
ASTM (American Society for Testing and Materials)
OSHA (Occupational Safety and Health Administration)
ACGIH (American Conference of Governmental Industrial Hygienists)
NIOSH (National Institute for Occupational Safety and Health)
AIA (American Institute of Architects)
12
Important Information — Please Read Before Use
OER-Elite INSTALLATION MANUAL
Equipment compatibility
Use this equipment in combination with ancillary equipment listed in “System chart” in
“Instructions-Operation Manual”. Using incompatible equipment may interfere with the proper
operation of this equipment and could lead to personal injury and/or equipment damage.
Olympus has not tested the efficacy of cleaning and high-level disinfection on this equipment in
combination with endoscopes that are not listed on the “List of compatible Endoscopes/Connecting
Tubes <OER-Elite>”.
Signal words
The following signal words are used throughout these manuals:
Warnings and cautions
Follow the warnings and cautions given below when handling this equipment. This information is
supplemented by warnings given in each chapter.
WARNING
• Do not insert an EndoTherapy accessory or other object through an opening
including the air vent of the equipment. Also, do not allow any liquid (including
water or disinfectant solution) to flow into an opening. Contact with an electrical part
inside the equipment could cause an electric shock or equipment failure.
• Always remove the tank from the detergent/alcohol drawer before putting detergent
or alcohol in the tank. If detergent or alcohol is spilled on the detergent/alcohol
drawer, it could get inside the equipment and contact an electrical part inside,
causing an electric shock or fire hazard.
Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may result in minor
or moderate injury. It may also be used to alert against unsafe practices or potential
equipment damage.
Indicates additional helpful information.
WARNING
CAUTION
NOTE
Important Information — Please Read Before Use
13
OER-Elite INSTALLATION MANUAL
WARNING
• Do not install this equipment in any place where any of the following are present.
High oxygen concentration
Oxidizing substance such as Nitrous Oxide (N2O)
Flammable anesthetic gas
This equipment is not explosion-proof and may explode or cause a fire under these
conditions.
• Always use the power cord provided with this equipment. Otherwise, equipment
failure or power cord burnout may result. Also, remember that the provided power
cord is for use only with this equipment and should not be used with any other
equipment.
CAUTION
• Do not press any of the switches on the control panel of this equipment with a
pointed or hard object. Otherwise, the switch may be damaged.
• Be sure to turn off the water faucet and the power switch of the equipment at the
end of the day to avoid potential water leaks.
• To avoid malfunctions, do not use this equipment in a dusty environment.
• To avoid electromagnetic interference from other equipment, do not install any
other electrical devices in close proximity to this equipment (aside from ancillary
devices used with this equipment).
• This equipment enables radio communication by RFID and emits RF (radio
frequency:13.56MHz) energy to perform the said intended Functions. It may cause
electromagnetic interference in nearby electronic equipment, and is labeled with
the symbol below. If electromagnetic interference occurs, mitigation measures may
be necessary, such as moving the electronic equipment away, reorienting or
relocating this instrument, or shielding the location. An electromagnetic
interference with other devices may shorten the communications distance of the
designated ID tag and cause signals to become unreadable. Try to take mitigation
measures such as keeping the affecting device away from this equipment.
14
Outline of Functions
OER-Elite INSTALLATION MANUAL
Following functions are available in this device.
Reprocessing
A series of operations that enable the equipment to perform ultrasonic cleaning, detergent
cleaning, disinfection, rinse, air purge, and alcohol flush. A series of operations for ultrasonic
cleaning, detergent cleaning, disinfection, rinse, air purge, and alcohol flush of the outer surface
and channels of endoscopes in a specified sequence and for a specified time. Reprocessing
programs [1] to [4] can be selected by the user. Programs [1] to [4] have a fixed cleaning
process time and disinfection process time. They also have different patterns of auto leak test
and channel monitoring respectively. For details, refer to Chapter 6, “Reprocessing Operations”
in “Instructions-Operation manual”.
Drain LCG
This function drains the disinfectant solution from the disinfectant tank. For details, refer to
Section 8.2, “Replacing the disinfectant solution” in “Instructions-Operation manual”.
Load LCG
This function loads the disinfectant solution by setting a new disinfectant bottle. For details, refer
to Section 8.2, “Replacing the disinfectant solution” in “Instructions-Operation manual”.
Heat LCG
A process for heating disinfectant solution until it reaches the specified temperature. This
process is performed automatically during the reprocessing program. It can also be performed
as an independent operation. For details, refer to Section 7.2, “Heat LCG” in
“Instructions-Operation manual”.
Heat LCG Timer
The function for heating the disinfectant solution until the specified temperature by the specified
time. For details, refer to Section 7.3, “Heat LCG Timer” in “Instructions-Operation manual”.
Mix LCG
This function is mixing the disinfectant solution to the appropriate concentration concentration
and enables accurate concentration check.
Outline of Functions
Outline of Functions
15
OER-Elite INSTALLATION MANUAL
Water line disinfection
This function disinfects the water supply line and other lines inside the equipment. For details,
refer to Section 7.7, “Water line disinfection” in “Instructions-Operation manual”.
Self disinfection and water sampling
This function disinfects the basin and internal piping of the equipment. At the end of the process,
sampling of rinse water can be performed for microbiological surveillance. For details, refer to
Section 7.8, “Self-disinfection and water sampling” in “Instructions-Operation manual”.
Detergent/Alcohol line disinfection
This function disinfects the detergent line and alcohol line of the equipment. For details, refer to
Section 7.9, “Detergent line disinfection” in “Instructions-Operation manual” and Section 7.10,
“Alcohol line disinfection” in “Instructions-Operation manual”.
Auto leak test
The endoscope leak test can be executed automatically by programming it in a user-configured
reprocessing process. It can also be performed as an independent operation. For details, refer
to Section 7.12, “Auto leak test” in “Instructions-Operation manual”.
Manual leak test
Manual inspection for endoscope leakage during immersion of water can be performed as an
independent operation. For details, refer to Section 7.11, “Manual leak test” in
“Instructions-Operation manual”.
Alcohol flush
To assist in drying the channel after reprocessing, alcohol is flushed through the endoscope
channels followed by air. This function performs alcohol flush into the endoscope channels. The
alcohol flush can be executed automatically in a reprocessing process. It can also be performed
as an independent operation. For details, refer to Section 7.14, “Alcohol flush” in
“Instructions-Operation manual”.
Air purge
This function drains the remaining fluid from the basin after an irregularity occurs, or if the
process is stopped before it completes. Air purge also eliminates residual fluid from the
endoscope channels. For details, refer to Section 7.6, “Air purge” in “Instructions-Operation
manual”.
16
Outline of Functions
OER-Elite INSTALLATION MANUAL
Rinse
This function performs the rinsing process if the fluid remains in the basin or in the endoscopes
after an irregularity occurs or the process is stopped midway. For details, refer to Section 7.5,
“Rinse” in “Instructions-Operation manual”.
Leaking scope decontamination
This function decontaminates a leaking endoscope prior to repair. During the decontamination,
positive pressure is applied to the leaking endoscope to avoid fluid invasion and damage to the
endoscope. For details, refer to Section 7.15, “Leaking scope decontamination” in
“Instructions-Operation manual”.
ALT self-check
This function diagnoses the auto leak test function of the device. It is performed automatically at
the end of Load LCG function or as an independent operation. For details, refer to Section 7.13,
“Self-check of auto leak test” in “Instructions-Operation manual”.
1.1 Checking the package contents
17
OER-Elite INSTALLATION MANUAL
Ch.1
Chapter 1 Checking the Package
Contents
Check that the package contains all the items listed below. Inspect each item for damage. If the device
is damaged, a component is missing, or there is any question regarding items, do not use the device
and contact Olympus immediately.
1.1 Checking the package contents
Endoscope reprocessor
Endoscope reprocessor OER-Elite
Accessories for use in installation
Buckling guard (GT970400) Buckling guard retaining screw
(GC783700, 2 pcs)
Grommet (GC784100, 4 pcs)
Wrench (GC748400) Drain hose (GJ853400) Water supply hose (GC416500)
Power cord (RL545000) Water supply plug (GN573800)
18
1.1 Checking the package contents
OER-Elite INSTALLATION MANUAL
Ch.1
Accessories for use in reprocessing
Connecting tube (MAJ-2110, 2 pcs) Connecting tube (MAJ-2111, 2 pcs) Connecting tube (MAJ-2112, 2 pcs)
Connecting tube (MAJ-2113, 2 pcs) Leak test air tube
(MAJ-2127, 2 pcs)
Accessories to be attached to the equipment
Gas filter case (GJ460700) Gas filter (2 pcs) (MAJ-822) Gas filter adapter (splash guard)
(GC949900)
Washing case (MAJ-2121) Air filter (MAJ-823) Water filter (MAJ-824 or MAJ-2318)
Stylus pen holder (RA016500) Hex wrench (GT804300) M4 × 10 mm cap bolt (2 pcs)
Stylus pen (GT944200)
1.1 Checking the package contents
19
OER-Elite INSTALLATION MANUAL
Ch.1
Accessories preattached to the equipment
Retaining rack (GT943000)
Alcohol tank (RU715000) Circulation port mesh filter
(GC574000 and GC693900)
Detergent/alcohol inner tray
(GT647800)
Drain port mesh filter
(GC220100)
Gas filter case (GJ460700) Water tray (GT949200)
Accessories for use in maintenance
Syringe (GT173600) Tube (GC651300) Disinfectant collection hose
(GJ668000)
Disinfectant removal tube
(GJ460200)
Filter tube (GJ460500, 2 pcs) Water filter wrench (GC601300)
Drain connector (GL366300) Connector jig (RU726500) Spare fuse (DB181500, 2 pcs)
Water supply piping disinfection
hose (RU205800)
Card holder (GT271000, 2 pcs)
20
1.1 Checking the package contents
OER-Elite INSTALLATION MANUAL
Ch.1
Scope ID master card (GT970700) User ID master card (GT970600)
Accessory for use in record management
Portable memory (MAJ-1925)
Manuals
Instructions-Installation Manual
(this manual)
Instructions-Operation Manual List of Compatible
Endoscopes/Connecting Tubes
<OER-Elite>
OER-Elite Quick Reference Guide OER-Elite Operation Guide
2.1 Front panel
21
OER-Elite INSTALLATION MANUAL
Ch.2
Chapter 2 Nomenclature and
Functions
2.1 Front panel
No. Nomenclature Description
1 Power switch Press to turn the equipment ON or OFF.
2 Power indicator Lights up when the equipment is ON.
3 Disinfectant bottle drawer Accommodates disinfectant cassette bottles. This door can be opened when
the load LCG function is started.
4 Disinfectant bottle drawer
check windows
Check an inside of bottles in the disinfectant bottle drawer.
5 Casters The two front casters have lock mechanisms. The caster heights can be
adjusted to level the equipment.
6 Foot pedal Step to open the lid. It is locked during the reprocessing process.
7 Front door Push the area marked “PUSH” to open.
8 Alcohol tank check window Checks the amount of alcohol remaining.
9 Detergent tank check window Checks the amount of detergent remaining.
10 Detergent/alcohol drawer Accommodates the specially designed tanks of detergent for cleaning and
alcohol for alcohol flush.
11 Portable memory port Insert the portable memory into this port.
11
9
8
7
6
1
3
2
4
10
5
22
2.2 Top panel
OER-Elite INSTALLATION MANUAL
Ch.2

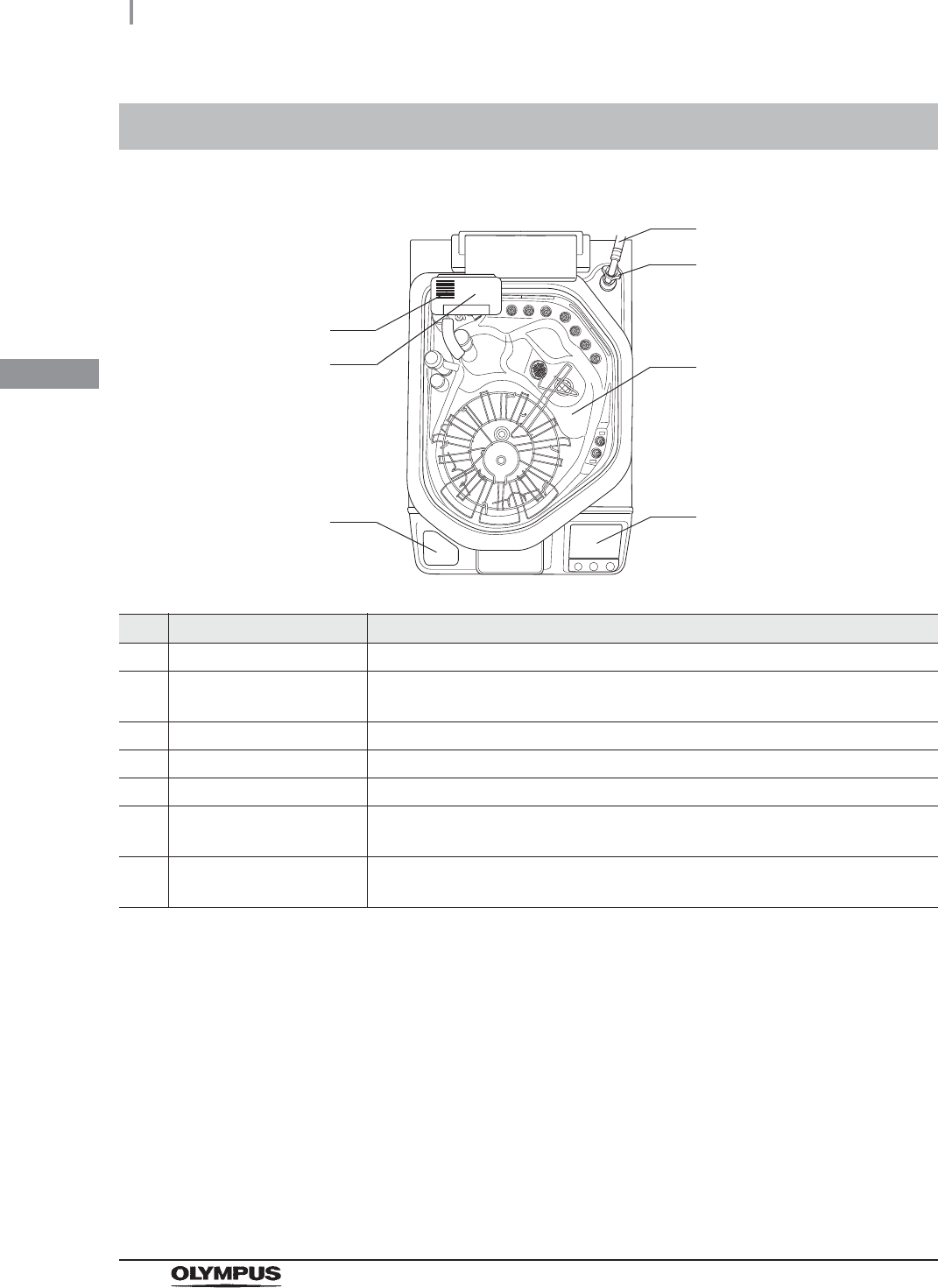

2.2 Top panel
No. Nomenclature Description
1 Water supply hose Supplies water for use in cleaning.
2 Water supply hose
connector
Connect the water supply hose. A mesh filter is built in this connector.
3 Lid Step on the foot pedal to open the lid.
4 Control panel Used for various setup and operation. Refer to Section 2.7, “Control panel”.
5 RFID reader Reads RFID tag for user ID, scope ID, and physician ID.
6 Gas filter case (lid) Accommodates the gas filter for removing the odor and vapor of the disinfectant
solution.
7 Ventilation openings on the
gas filter case
This is the hole for taking and exhausting air into/from the reprocessing basin. Do
not block the ventilation openings on the gas filter case.
1
2
3
5
6
7
4
2.3 Inside
23
OER-Elite INSTALLATION MANUAL
Ch.2

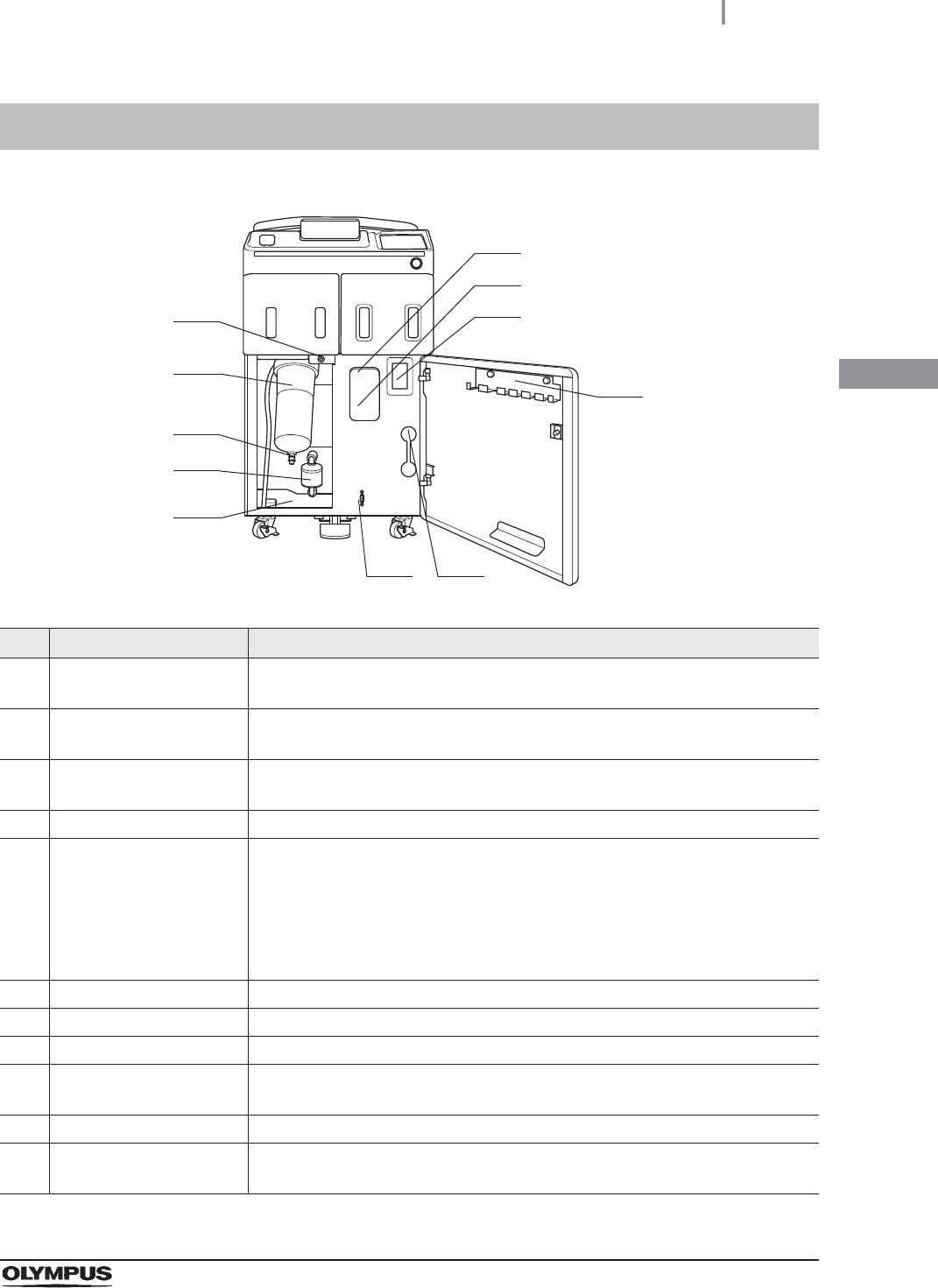

2.3 Inside
No. Nomenclature Description
1 Gas filter case (tank) Accommodates the gas filter for removing the odor and vapor of the disinfectant
solution.
2 Ventilation opening on the
gas filter case
This is the hole for taking and exhausting air into/from the disinfectant solution
tank. Do not block the ventilation openings on the gas filter cases.
3 Disinfectant solution tank
window
Used to check the amount of remaining disinfectant solution.
4 Accessory holder Used to store the connecting tubes, etc.
5 Disinfectant removal port Used to remove the residual disinfectant solution in the tank by using the
disinfectant removal tube.
It is also used to withdraw the amount of disinfectant solution by using the drain
connector for detergent/alcohol piping disinfection.
(Remove the rubber cap and attach the drain connector or the disinfectant
removal tube.)
6 Maintenance terminal Used for connecting ancillary equipment (for trained service personnel only).
7 Water tray Collects water during maintenance such as the water filter replacement.
8 Air filter Accommodates the 0.2-micron air filter.
9 Connector below water
filter housing
For use in draining water from the water filter housing.
10 Water filter (housing) Accommodates the 0.2-micron internal water filter.
11 Connector above water
filter housing
For use in draining water and air from the water filter housing.
1
2
3
4
56
7
8
9
10
11
24
2.4 Rear panel
OER-Elite INSTALLATION MANUAL
Ch.2

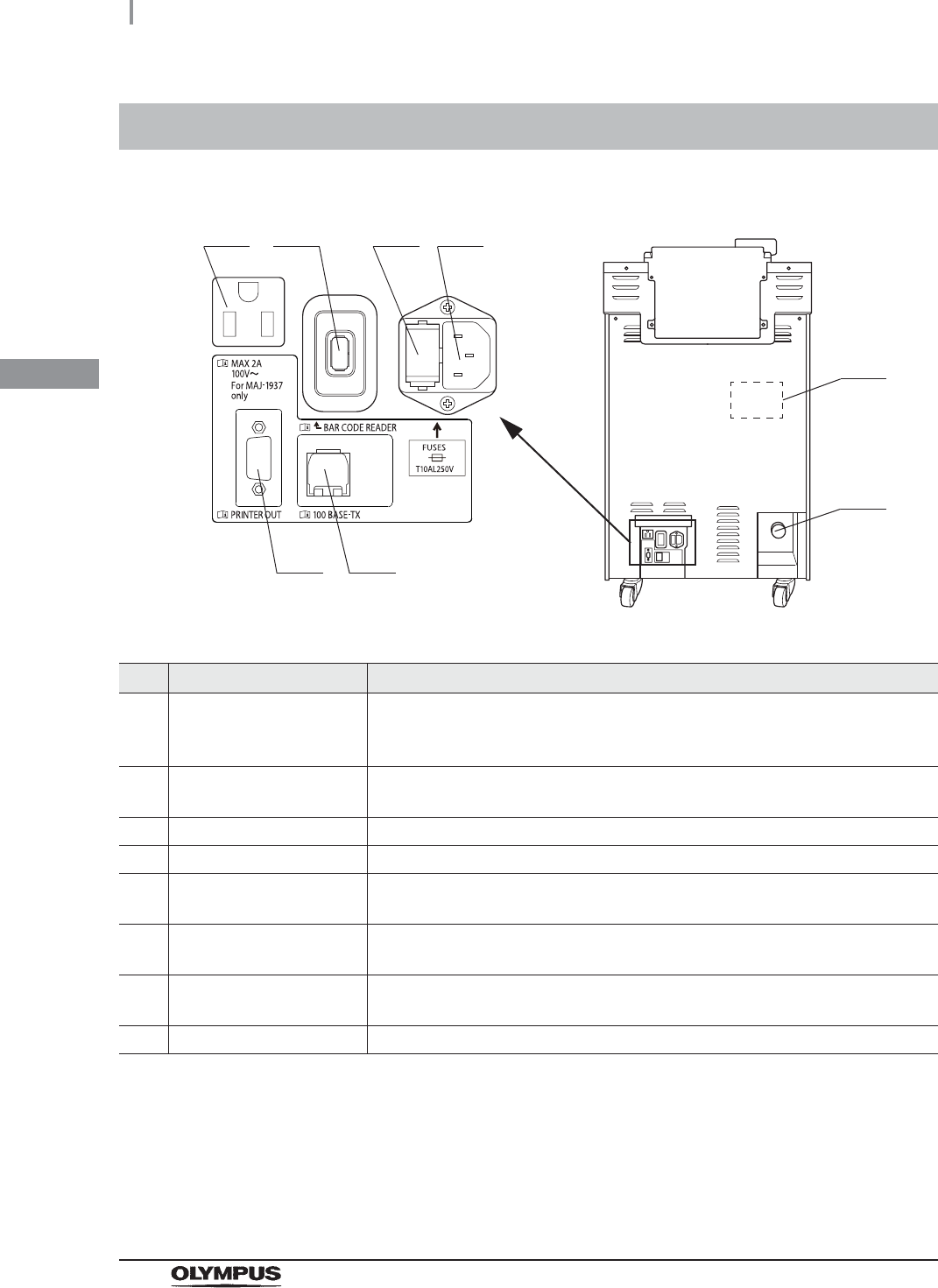

2.4 Rear panel
No. Nomenclature Description
1 Printer outlet Connect the power cord of the printer (MAJ-1937) provided with the optional
printer set (MAJ-2144) to feed power to it. Do not connect any devices other than
the specified printer.
2 Bar code reader port Connect the optional bar code reader (MAJ-2130).
Do not connect any devices other than the specified bar code reader.
3 Fuse (BOX) Protects the equipment from an over-current.
4 Power cord receptacle Connect the power cord.
5 100BASE-TX terminal Used to access the Olympus-designated external devices (for trained service
personnel only).
6 Printer communication port Connects the printer (MAJ-1937) provided with the optional printer set
(MAJ-2144). Do not connect any devices other than the specified printer.
7 Buckling guard attaching
holes
Screw holes used to attach the buckling guard.
8 Drain hose connector Connect the drain hose.
1
7
2 3 4
56
8
2.5 Side panel
25
OER-Elite INSTALLATION MANUAL
Ch.2

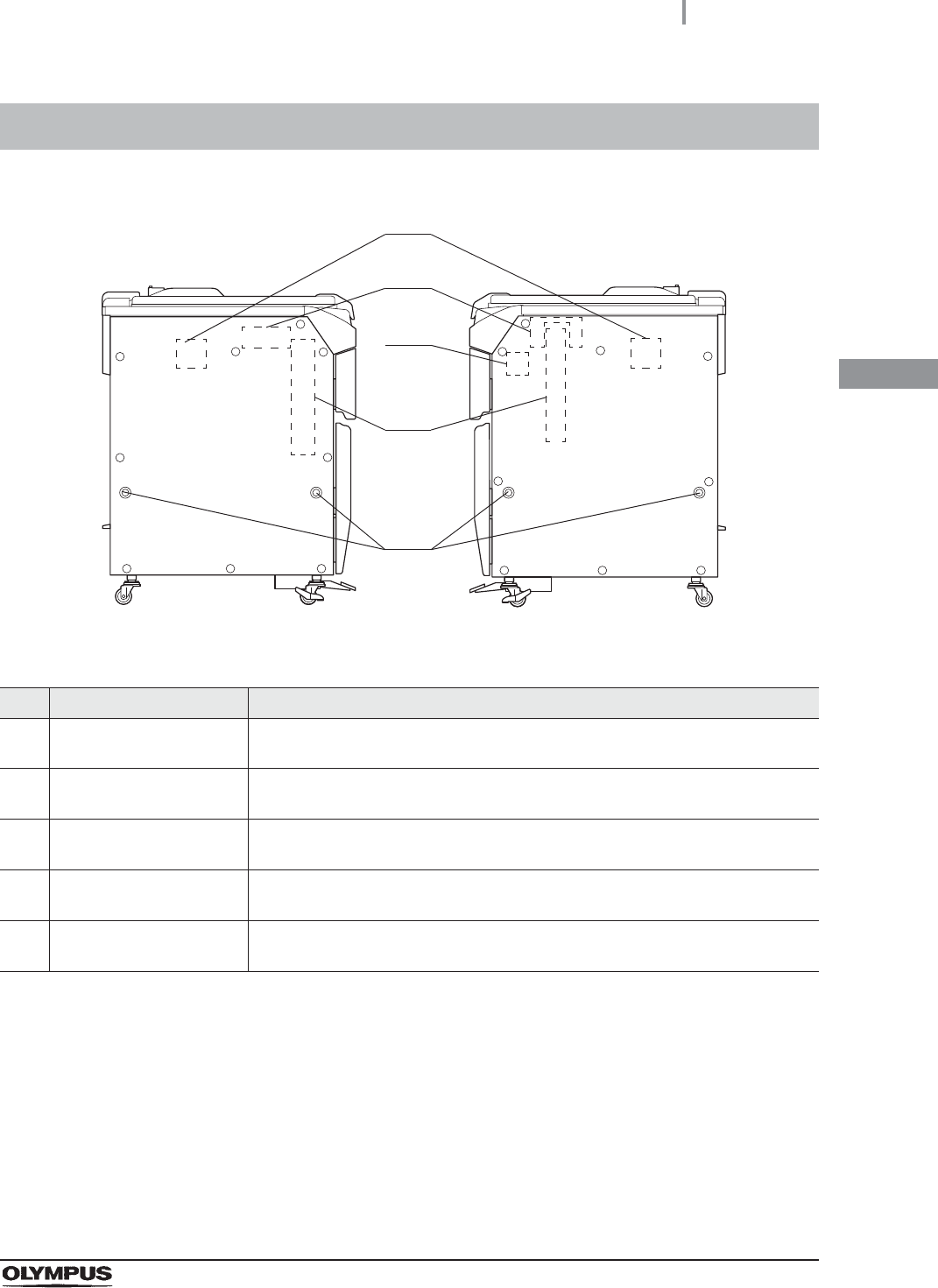

2.5 Side panel
No. Nomenclature Description
1 Bar code reader attaching
holes
Used to attach the optional bar code reader (MAJ-2130).
2 Printer set attaching holes Used to attach the optional printer set (MAJ-2144). The connector hanger cannot
be attached if the printer set is already attached.
3 Stylus pen holder attaching
holes
Used to attach the provided stylus pen holder.
4 Connector hanger
attaching holes
Used to attach the optional connector hanger (MAJ-865). The printer set cannot
be attached if the connector hanger is already attached.
5 Grommet attaching holes
(×4)
Used to attach the grommets.
1
Left Right
2
3
4
5
26
2.6 Reprocessing basin
OER-Elite INSTALLATION MANUAL
Ch.2

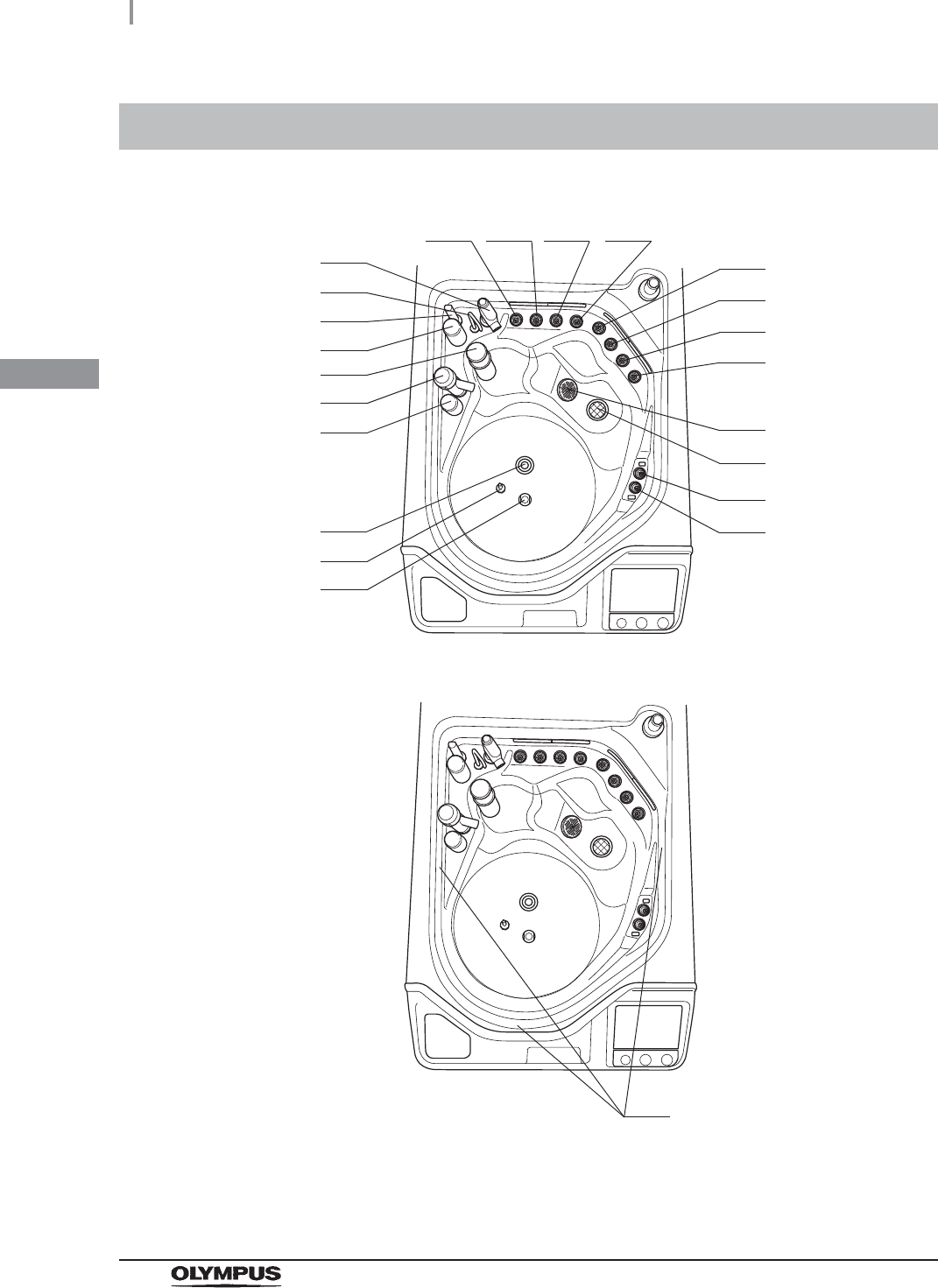

2.6 Reprocessing basin
1 2 3 4
5
6
7
8
11
12
13
14
15
16
17
18
19
20
21
22
23
9
10
2.6 Reprocessing basin
27
OER-Elite INSTALLATION MANUAL
Ch.2
No. Nomenclature Description
1 Connector A2 (Light blue) Connect a connecting tube colored light blue.
This connector is mainly used for second endoscope.
2 Connector B2 (Blue) Connect a connecting tube colored blue.
This connector is mainly used for second endoscope.
3 Connector B1 (Blue) Connect a connecting tube colored blue.
This connector is mainly used for first endoscope.
4 Connector A1 (Light blue) Connect a connecting tube colored light blue.
This connector is mainly used for first endoscope.
5 Connector D2 (Orange) Connect a connecting tube colored orange.
This connector is mainly used for second endoscope.
6 Connector C2 (Green) Connect a connecting tube colored green.
This connector is mainly used for second endoscope.
7 Connector C1 (Green) Connect a connecting tube colored green.
This connector is mainly used for first endoscope.
8 Connector D1 (Orange) Connect a connecting tube colored orange.
This connector is mainly used for first endoscope.
9 Circulation port Aspirates the cleaning fluid or disinfectant solution for circulation during cleaning
or disinfection.
10 Drain port Drains liquid from the reprocessing basin.
11 Leak test connector E2
(Purple)
Connect the leak test air tube that is connected to the second endoscope here.
12 Leak test connector E1
(Purple)
Connect the leak test air tube that is connected to the first endoscope here.
13 Washing case mount Mount for the Washing case that is used to hold the endoscope accessories
including valves for reprocessing.
14 Temperature sensor Monitor the temperature of the fluid in the reprocessing basin.
15 Water supply piping
disinfection connector
Connect the water supply piping disinfection hose here.
16 Fluid level sensor Detects abnormal fluid level in the reprocessing basin.
17 Disinfectant solution
nozzle
Supplies disinfectant solution to the reprocessing basin. Also, used to check if
the disinfectant concentration meets the recommended level by the disinfectant
manufacturer.(Open the cap and insert the chemical indicator (test strip).)
18 Float switch (long) Detects the fluid level in the reprocessing basin to control it.
19 Detergent nozzle Supplies detergent to the reprocessing basin.
20 Float switch (short) Detects the fluid level in the reprocessing basin to control it.
21 Circulation nozzle Supplies the cleaning fluid or disinfectant solution aspirated through the
circulation port for circulation.
22 Water supply/circulation
nozzle
Supplies water for cleaning. Also, supplies the cleaning fluid or disinfectant
solution aspirated through the circulation port for circulation.
23 Water level scale (× 3) Marks for confirming that the equipment is level.
28

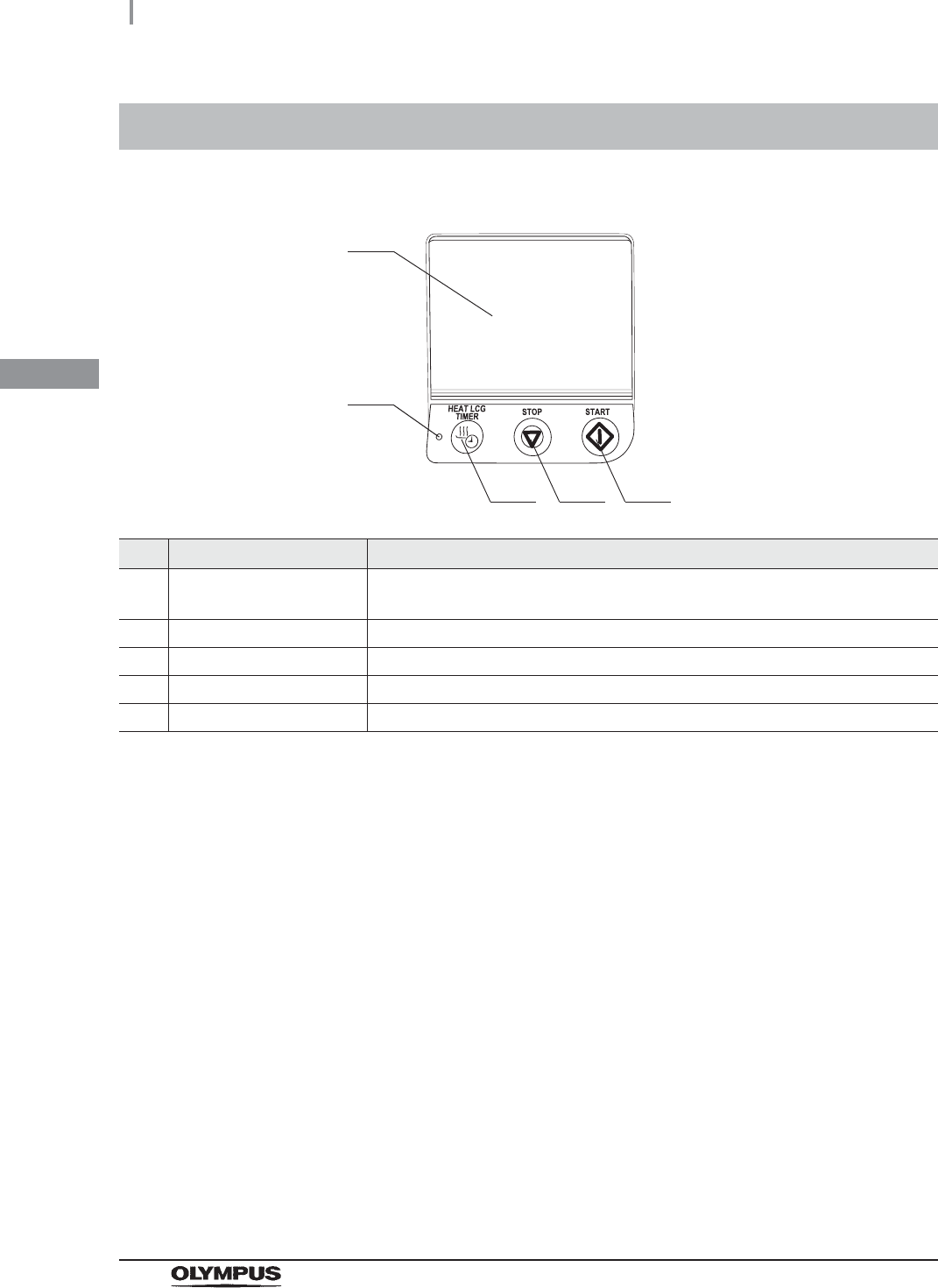

2.7 Control panels
OER-Elite INSTALLATION MANUAL
Ch.2
2.7 Control panels
No. Nomenclature Description
1 Touch screen Used to control and set the equipment. Also, the information and state of the
equipment can be displayed.
2 Heat LCG Timer indicator The indicator lights when the Heat LCG Timer is in progress.
3 Heat LCG Timer button Press this button to active the Heat LCG Timer.
4 Stop button Press this button to stop process.
5 Start button Press this button to start process.
1
3 4 5
2
2.7 Control panels
29
OER-Elite INSTALLATION MANUAL
Ch.2

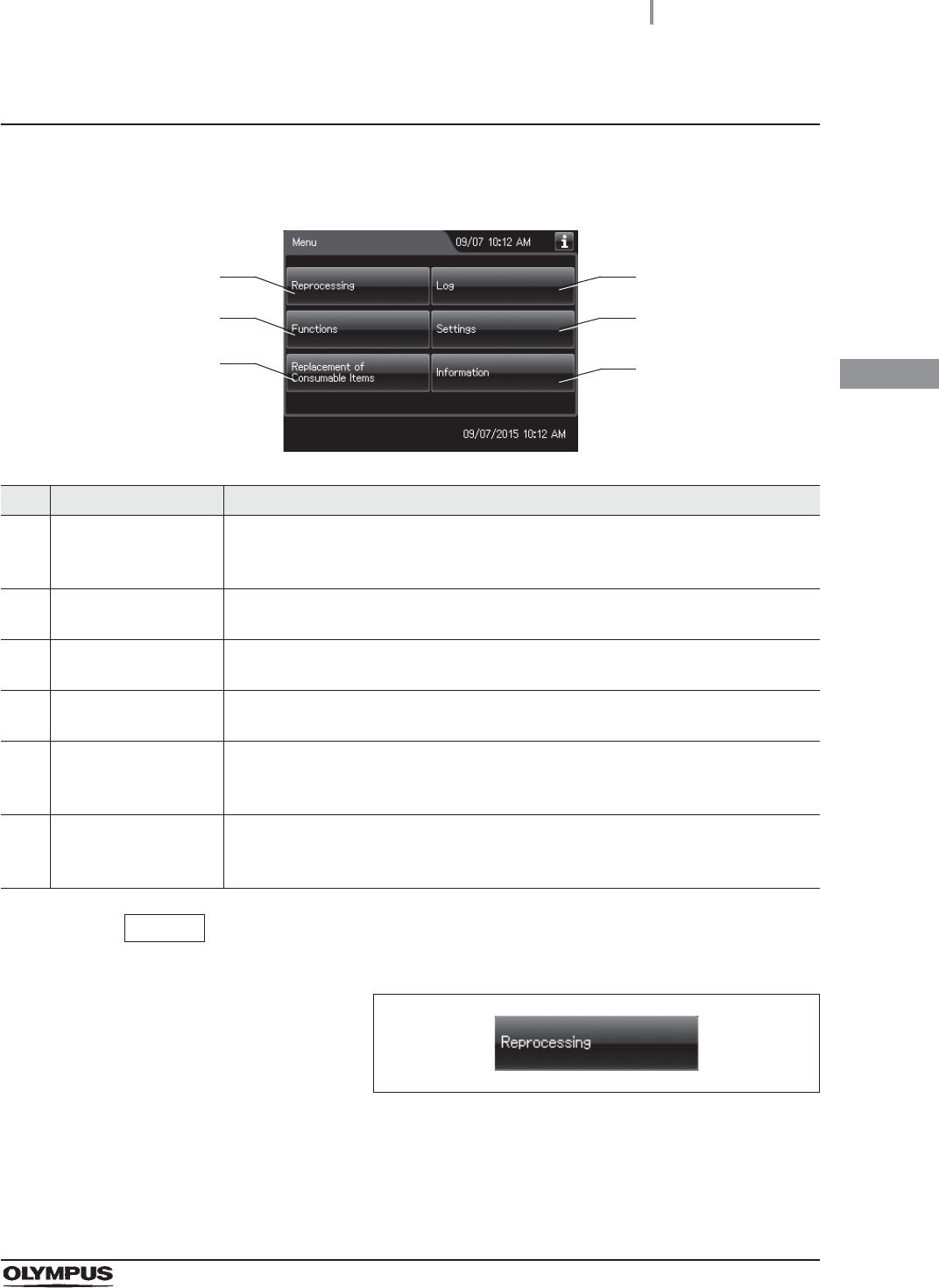

Touch screen – Menu Screen
The menu consists of six buttons according to the classification of the equipment’s Functions into six
categories. Select the desired category here.
NOTE
The operational buttons are expressed by a box with gradation.
Figure 2.1
No. Name Description
1 Reprocessing Press this button to display the Reprocessing Standby screen.
oRefer to Section 6.5, “Basic operation for reprocessing” in “Instructions-Operation
manual”.
2 Log Press this button to go to Log menu.
oRefer to Section 11.1, “Log menu” in “Instructions-Operation manual”.
3 Functions Press this button to go to Function menu.
oRefer to Section 7.1, “Function menu” in “Instructions-Operation manual”.
4 Settings Press this button to go to Setting menu.
oRefer to Section 4.1, “Setting menu” in “Instructions-Operation manual”.
5 Replacement of
Consumable Items
Press this button to go to Replacement of Consumable Items menu.
oRefer to Section 8.1, “Replacement of consumable items menu” in
“Instructions-Operation manual”.
6 Information Press this button to go to Information menu.
oRefer to Chapter 12, “Information Menu Screen” in “Instructions-Operation
manual”.
1
3
5
2
4
6
30
2.7 Control panels
OER-Elite INSTALLATION MANUAL
Ch.2
Touch screen – Reprocessing standby screen
Select the program by pressing the program selection buttons.
No. Nomenclature Description
1 Scope 1 button Goes to the ID information screen associated with the first endoscope.
2 Model number of
scope 1
Displays the model number of the first endoscope. It is blank when the Scope ID is not
entered.
3 ID status of scope 1 Displays the input status of patient ID, physician ID, user ID, and procedure ID
associated with the first scope.
4 Scope 2 button Goes to the ID information screen associated with the second endoscope.
5 Model number of
scope 2
Displays the model number of the second endoscope. It is blank when the Scope ID is
not entered.
6 ID status of scope 2 Displays the input status of patient ID, physician ID, user ID, and procedure ID
associated with the second scope.
7 Program selection
button
Press these buttons to select the reprocessing program.
8 Program number
display
Displays the selected reprocessing program number. For details of the reprocessing
program number, refer to “Reprocessing Program” on the next page.
9 Process time Displays the process time of the selected reprocessing program.
If the scope ID is inputed with one of the following four methods, the reprocessing time
of programs extend 3 minutes.
The scope ID of the endoscope with forceps elevator
The scope ID master card
Input from the software keyboard
Recalling the pre-registerd ID
10 Alcohol flush
indicator
Indicate that the Alcohol Flush is incorporated in the reprocessing program. Alcohol
flush cannot be eliminated from the reprocessing process.
11 Heat LCG indicator Indicate that the Heat LCG is incorporated in the reprocessing program. Heat LCG
cannot be eliminated from the reprocessing process.
12 Menu button Returns to the Menu screen,
13 LCG Info. button Goes to the LCG info. screen.
1
7
810
11
12
2 3 4 5 6
9
13 14
1
7
810
11
12
2 3 4 5 6
9
13 14
2.7 Control panels
31
OER-Elite INSTALLATION MANUAL
Ch.2
14 MRC Check Result
button
Goes to the MRC Check Result entry screen.

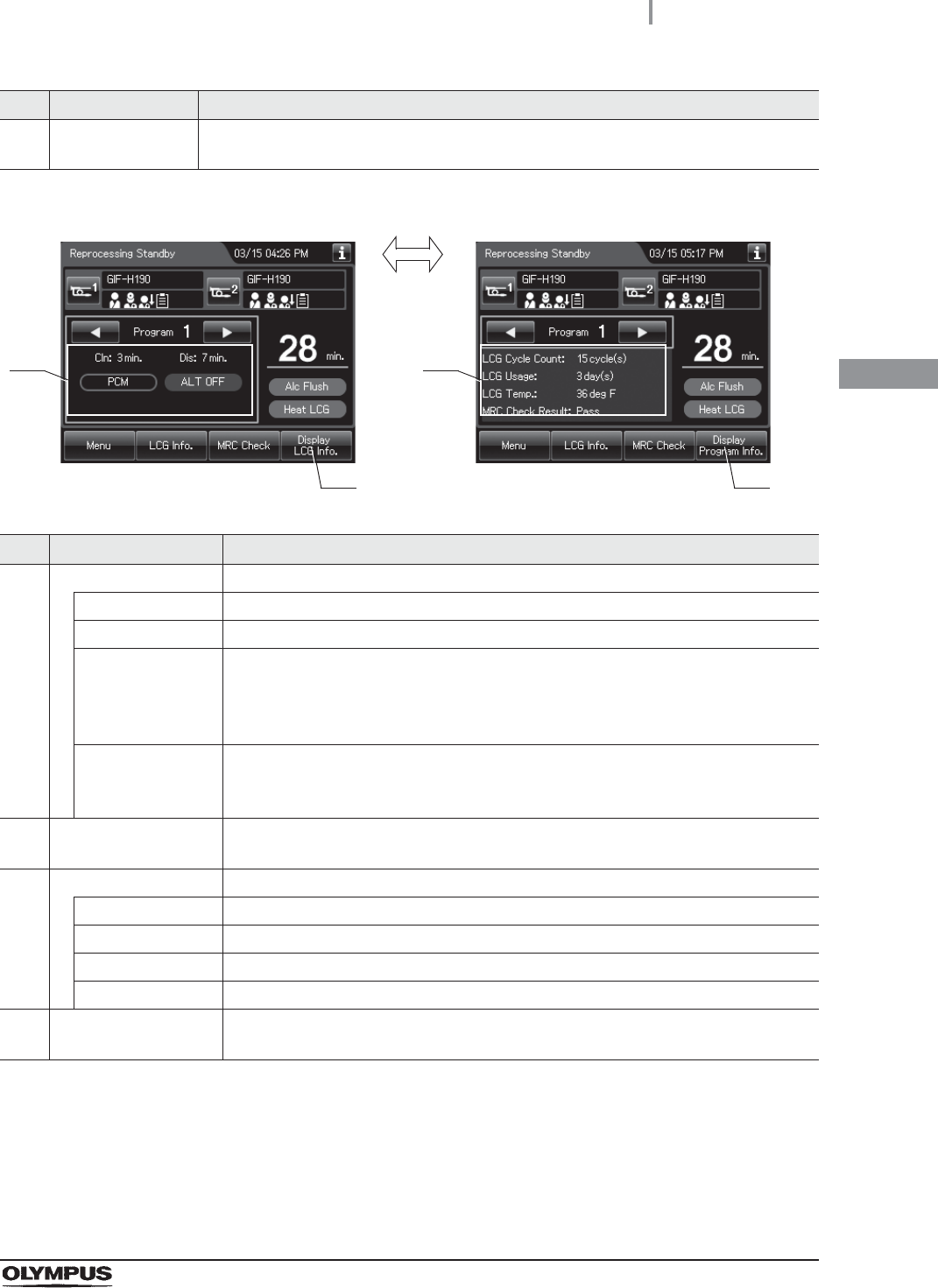

No. Nomenclature Description
1 Program information Displays information about the selected reprocessing program.
Cln. Displays the cleaning time
Dis. Displays the disinfecting time.
Channel Monitor
indicator
If “PCM” is displayed, channel monitor is executed in the cleaning and disinfection
process.
If “FCM” is displayed, channel monitor is executed in the cleaning, disinfection and
rinsing process.
Auto Leak Test
indicator
If “ALT ON” is displayed, auto leak test is incorporated in the reprocessing process.
If “ALT OFF” is displayed, auto leak test is not incorporated in the reprocessing
process.
2 Display LCG Info.
Button
Press to display the disinfectant solution information on the area of No.1.
Refer to No.3.
3 LCG information Displays information about the current disinfectant solution.
LCG Cycle Count Usage count of the disinfectant solution.
LCG Usage Number of days that have elapsed since preparation of the disinfectant solution.
LCG Temp Temperature of disinfectant solution during reprocessing process.
MRC Check Result Input result of MRC check.
4 Display Program Info.
button
Press to display the information of the selected reprocessing program on the area of
No.3. Refer to No.1.
No. Nomenclature Description
1
2 4
3
32
2.7 Control panels
OER-Elite INSTALLATION MANUAL
Ch.2

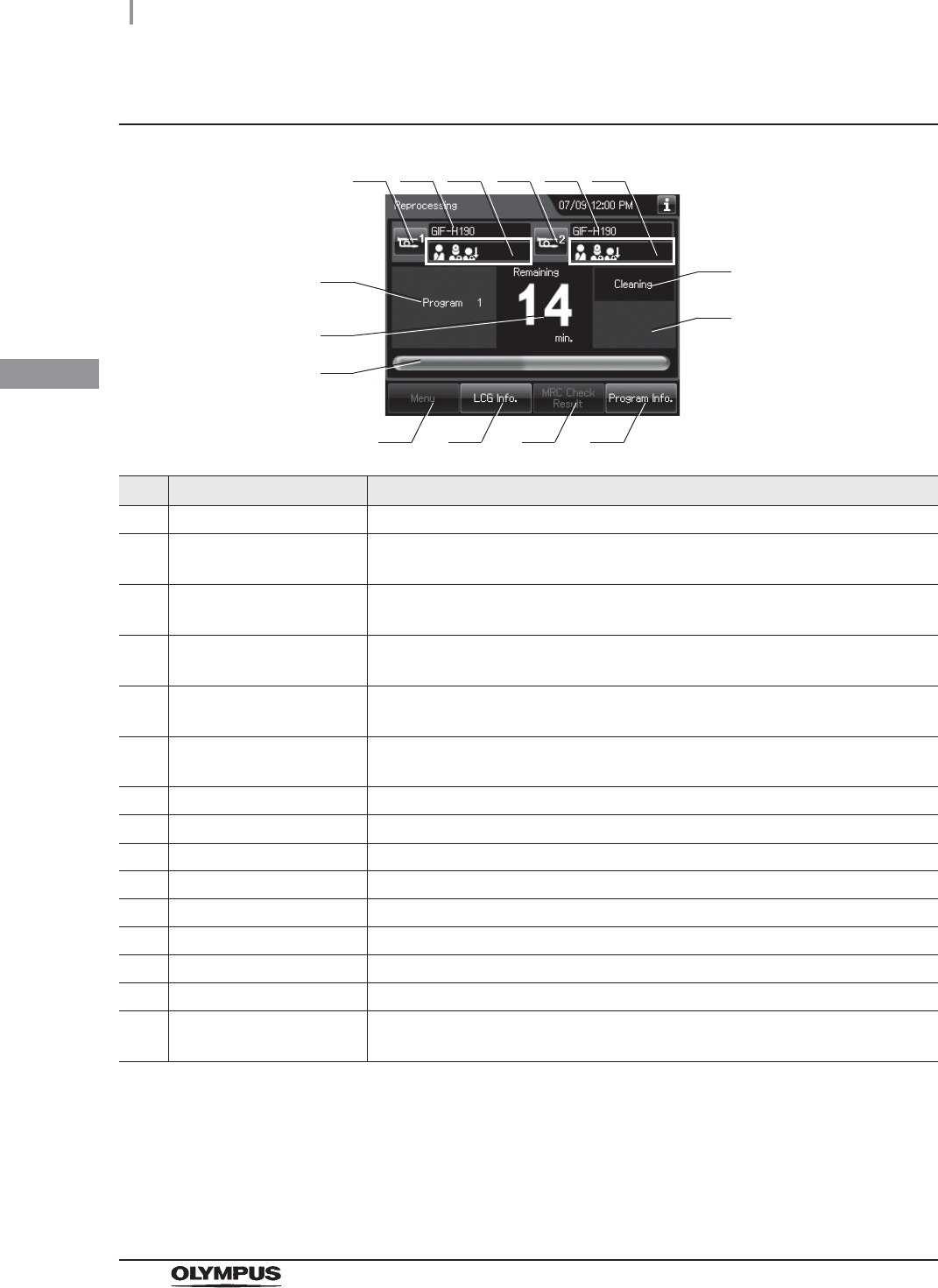

Touch screen – Reprocessing process screen
No. Nomenclature Description
1 Scope 1 button Press this button to display the ID information associated with first endoscope.
2 Model number of scope 1
type
Displays the model number of the first endoscope. It is blank when the scope ID
is not entered.
3 ID status of scope 1 Displays the input status of patient ID, physician ID, user ID, and procedure ID
associated with the first endoscope.
4 Scope 2 button Press this button to display the ID information associated with the second
endoscope.
5 Model number of scope 2 Displays the model number of the second endoscope. It is blank when the scope
ID is not entered.
6 ID status of scope 2 Displays the input status of patient ID, physician ID, user ID, and procedure ID
associated with the second endoscope.
7 Program number Displays the selected reprocessing program number.
8 Remaining time Displays the remaining time of a reprocessing process.
9 Process progress bar Displays progress of the reprocessing process.
10 Current process name Displays the process being executed.
11 Temperature Displays the temperature of fluid in the reprocessing basin.
12 Menu button During the reprocessing process, it cannot be operated with this button.
13 LCG Info. button Press this button to display the LCG Info. screen.
14 MRC Check Result button During the reprocessing process, it cannot be operated with this button.
15 LCG Info./Program
information button
Press this button to display the reprocessing program information about the
selected reprocessing program.
1 2 3 4 5 6
7
8
9
10
12 13 14 15
11
2.8 Consumable accessories (Optional)
33
OER-Elite INSTALLATION MANUAL
Ch.2

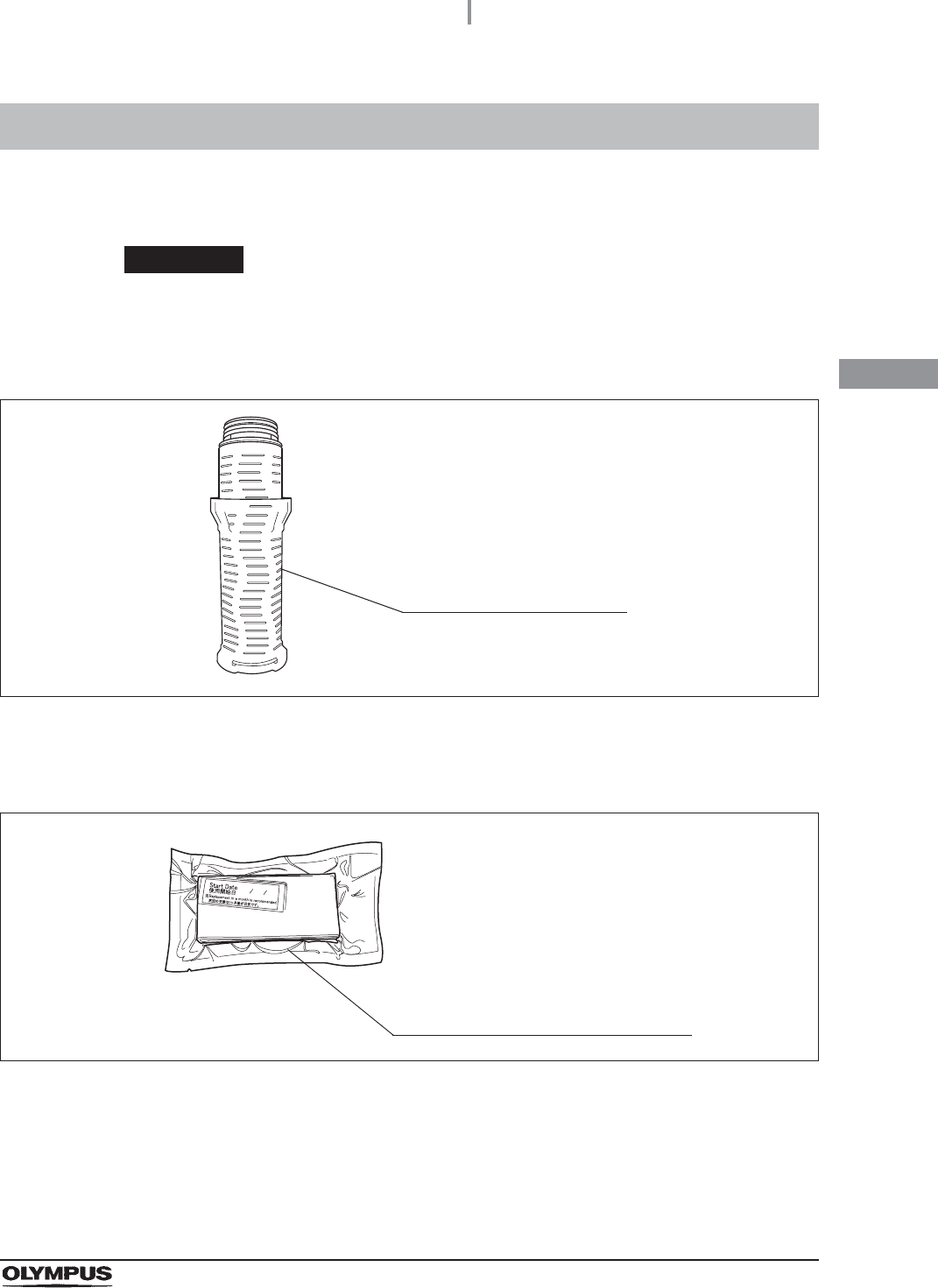

Water filter (MAJ-824 or MAJ-2318)
WARNING
Before using consumable items, be sure to check its expiration date instructed in
the labeling of consumable items. If these items are expired, effectiveness of items
may be compromised.
Figure 2.2

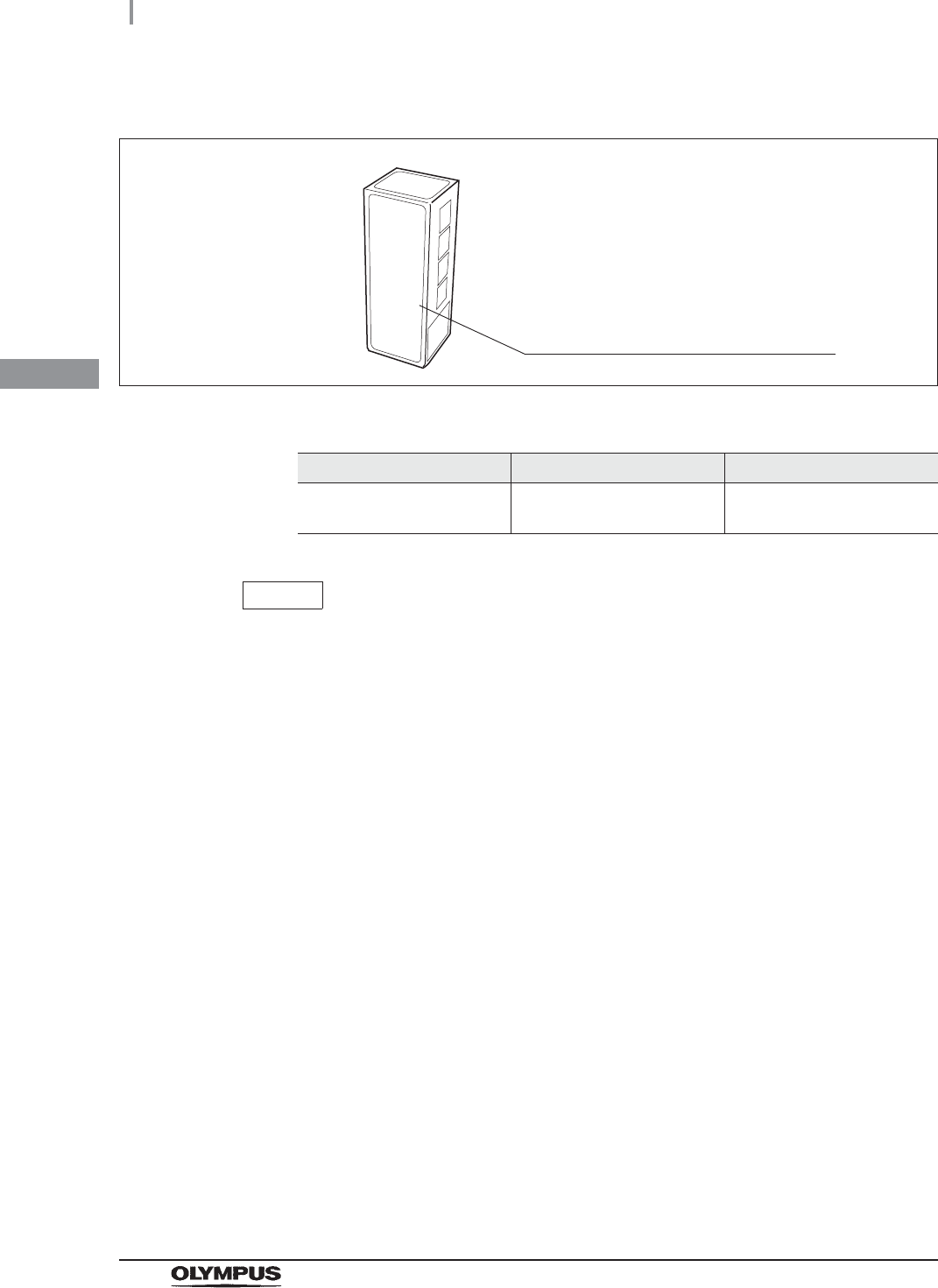

Gas filters (MAJ-822)
Figure 2.3
2.8 Consumable accessories (Optional)
Internal 0.2 micron water filter.
Incorporated in the gas filter cases to
absorb disinfectant odors and vapors.
34
2.8 Consumable accessories (Optional)
OER-Elite INSTALLATION MANUAL
Ch.2
Air filter (MAJ-823)
Figure 2.4
Olympus-validated detergent
Figure 2.5
Table 2.1
NOTE
EndoQuick is distributed by Olympus America, Inc. To obtain EndoQuick listed
above, contact Olympus.
Name Type Manufacturer Remarks
EndoQuick Alkaline detergent
Best Sanitizers, Inc
(154 Mullen Drive,
Walton, KY)
2.8 L disposable tank for
use in OER-Elite
Filters microorganisms and fine
particles in the air fed into the
equipment.
2.8 Consumable accessories (Optional)
35
OER-Elite INSTALLATION MANUAL
Ch.2

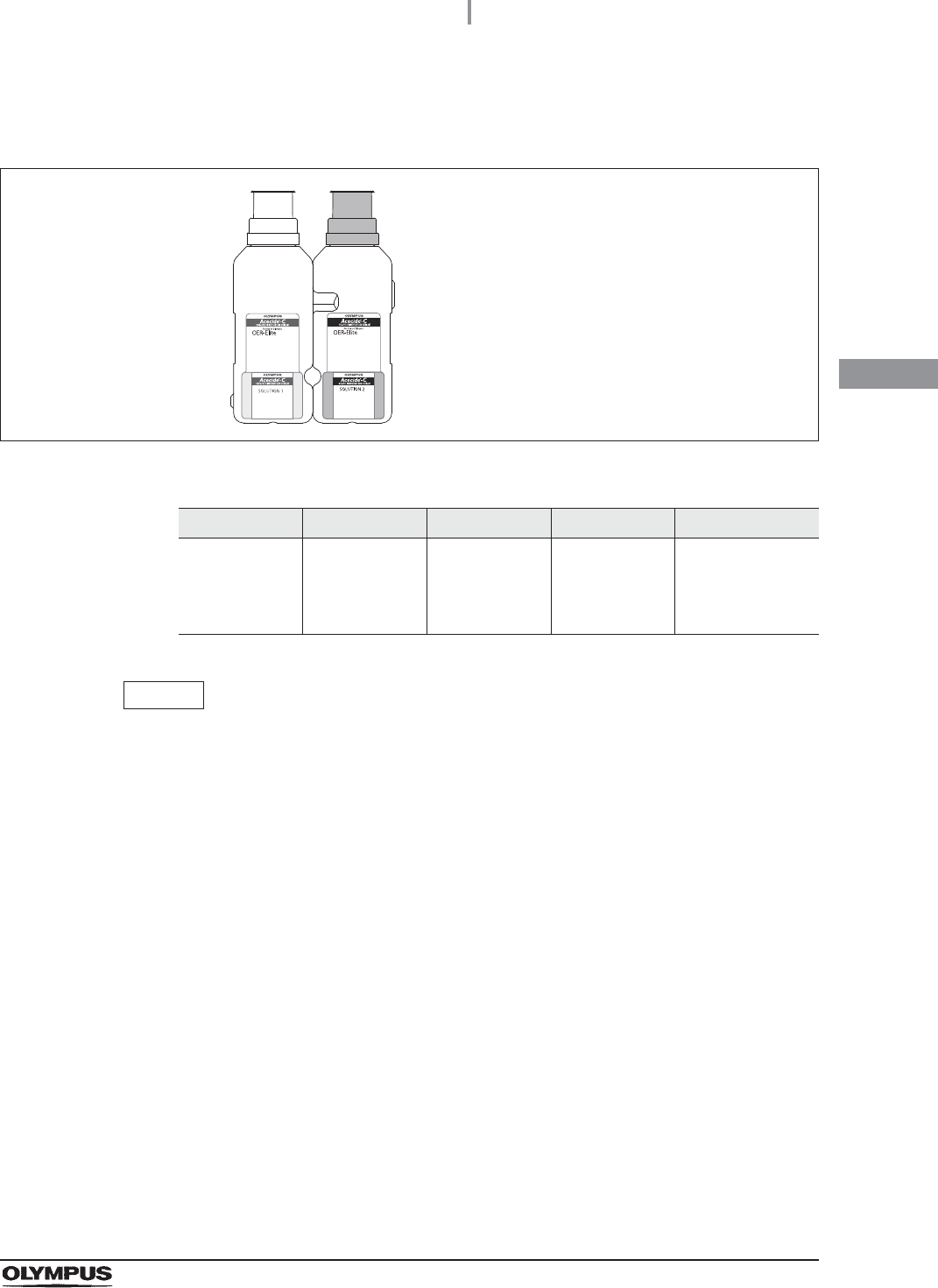

Olympus-validated concentrated disinfectant solution
(1,065 ml cassette bottles)
Figure 2.6
Tabl e 2 .2
NOTE
Acecide-C is distributed by Olympus America, Inc. To obtain Acecide-C listed
above, contact Olympus.
Name Type Manufacturer Remarks 510(k) number
Acecide-C Peracetic Acid
(PAA)
Best Sanitizers,
Inc. (154 Mullen
Drive, Walton,
KY)
1,065 ml
cassette bottles
For use in
OER-Elite
K091210
36
2.8 Consumable accessories (Optional)
OER-Elite INSTALLATION MANUAL
Ch.2
Chemical indicator (test strip)
Figure 2.7
Table 2.3
NOTE
ACECIDE test strips is distributed by Olympus America, Inc. To obtain ACECIDE
test strips listed above, contact Olympus.
Name Manufacturer 510(k) number
ACECIDE test strips Best Sanitizers, Inc. (154
Mullen Drive, Walton, KY) K091210
FDA-cleared Chemical indicator (test strip)
used to determine if Olympus-validated
disinfectant meets the minimum
recommended concentration.
3.1 Installation of accessories workflow below
37
OER-Elite INSTALLATION MANUAL
Ch.3
Chapter 3 Installation of Accessories
Set up the equipment and ancillary equipment as required while referring to the “System chart” in the
“Instructions-Operation Manual”. Also, refer to the instruction manual for the ancillary equipment and
follow the instructions below to install and connect the equipment and ancillary equipment.
See the installation of accessories workflow below.
3.1 Installation of accessories workflow below
1Install the grommets.
Section 3.2 on page 38
2Install the bucking guard.
Section 3.3 on page 39
3Inspect the mesh filter.
Section 3.4 on page 40
4Inspect the retaining rack.
Section 3.5 on page 41
5Install the washing case (MAJ-2121).
Section 3.6 on page 42
6Install the stylus pen holder.
Section 3.7 on page 43
7Inspect the accessory holder.
Section 3.8 on page 44
38

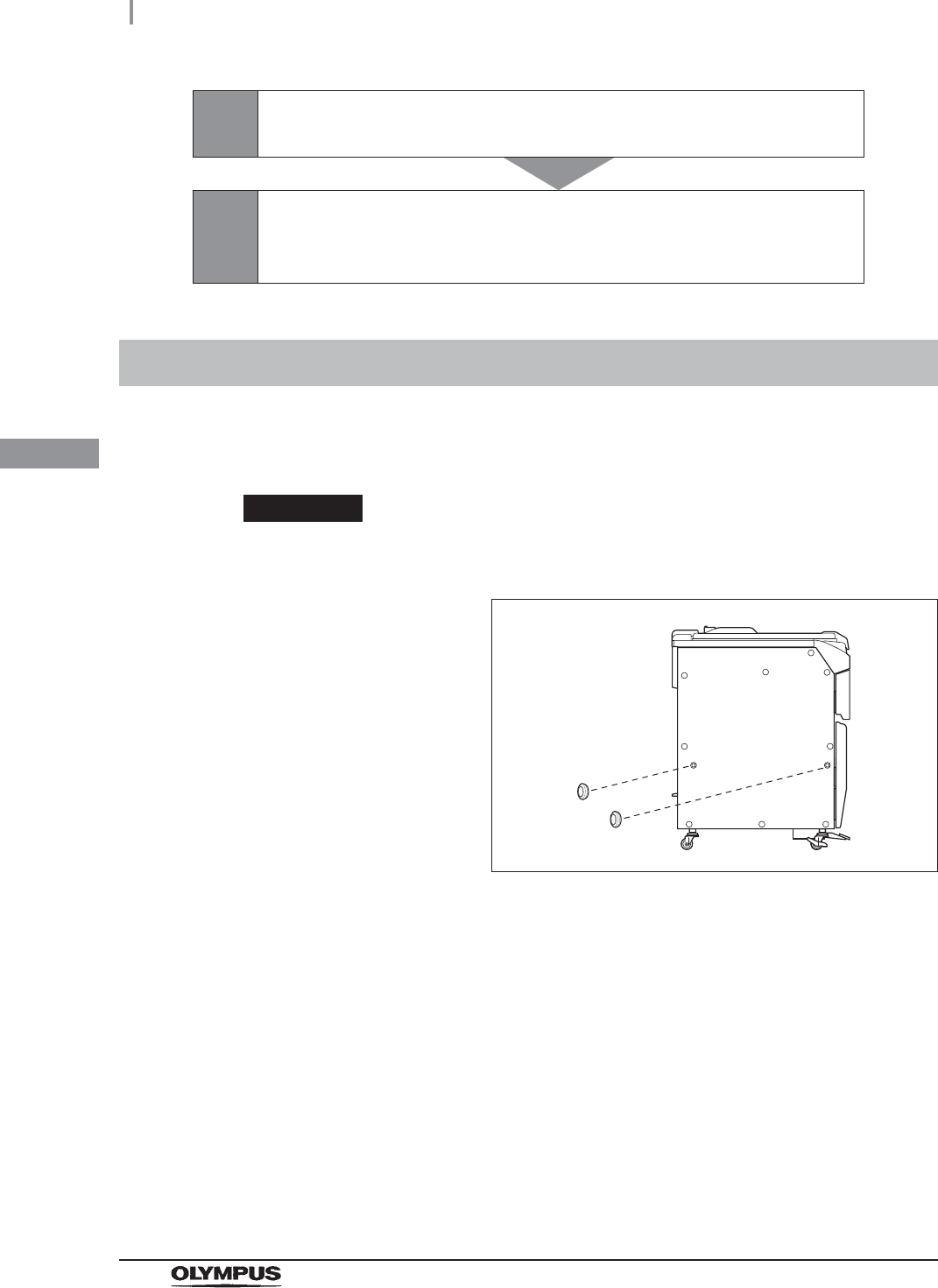

3.2 Installation of the grommets
OER-Elite INSTALLATION MANUAL
Ch.3 Insert two grommets into the grommet attaching holes on each sides of the reprocessor (four
grommets in total).
CAUTION
Be sure to attach the grommets. Otherwise, fluid may penetrate the grommet
attaching holes and cause equipment damage.
Figure 3.1
8Store other accessories.
Section 3.9 on page 44
9
Connect the optional accessories.
• Install the optional bar code reader (MAJ-2130)on page 45
• Install the optional printer set (MAJ-2144)on page 46

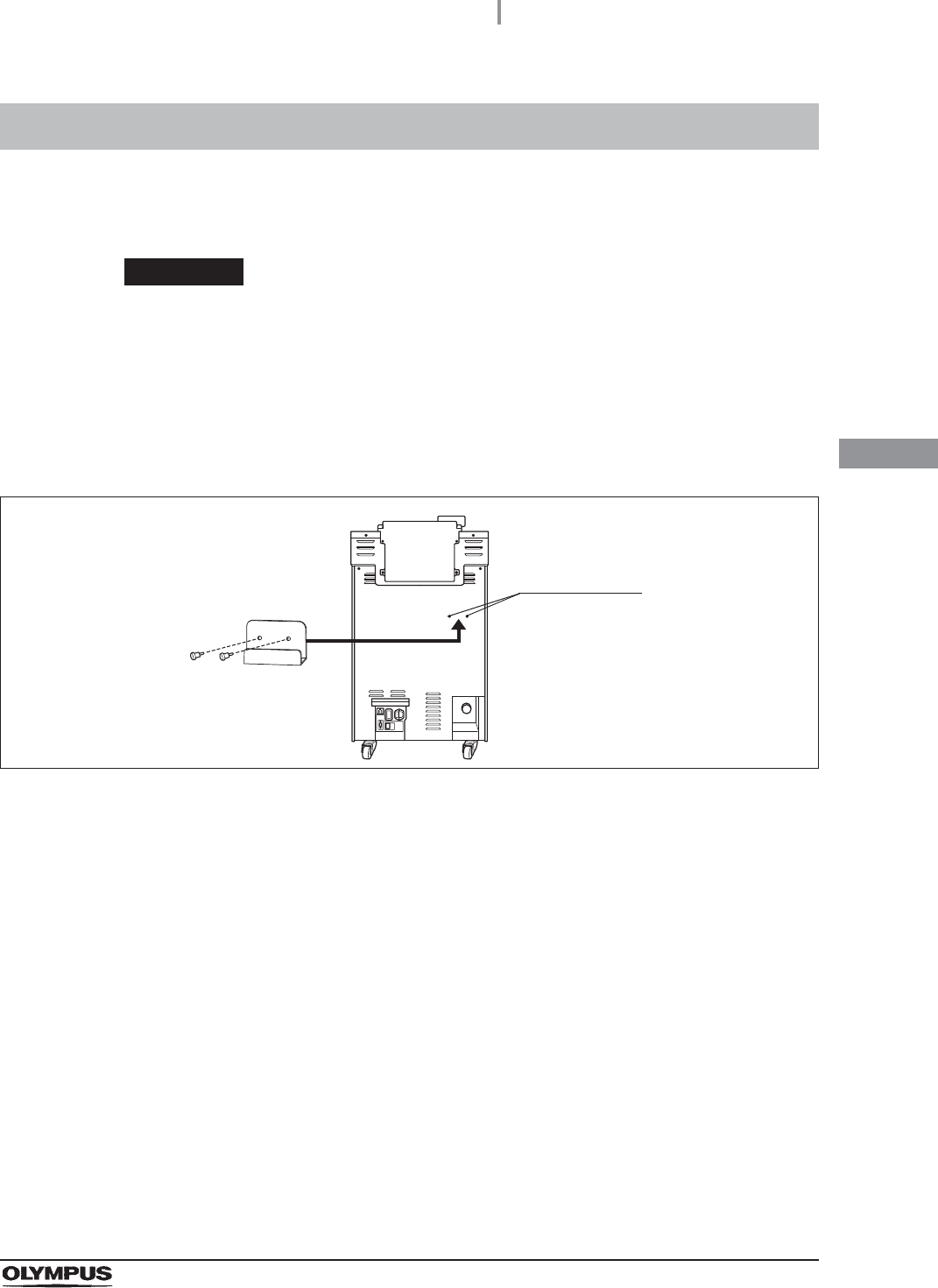

3.2 Installation of the grommets
3.3 Installation of the buckling guard
39
OER-Elite INSTALLATION MANUAL
Ch.3
The buckling guard helps maintain proper drainage by preventing the drain hose from being crushed if
the instrument is pushed too close to a wall, etc.
CAUTION
Be sure to securely attach the buckling guard using the buckling guard retaining
screws. If the screws are not properly attached, the buckling guard may become
detached, allowing the drain hose and power cord to be pinched against the wall
and causing problems such as water discharge failure.
Align the holes on the buckling guard with the screw holes threaded on the rear panel and attach using
the three buckling guard retaining screws.
Figure 3.2
3.3 Installation of the buckling guard
Bucking guard
40
3.4 Inspection of the mesh filters
OER-Elite INSTALLATION MANUAL
Ch.3
The mesh filters are used to prevent the penetration of debris into the equipment and endoscope
channels.
CAUTION
• If the mesh filters have been removed, be sure to put them back in their original
positions before using the equipment. If you forget to attach the mesh filters, the
pump may malfunction and/or foreign objects may clog the endoscope channels
including the nozzle.
• After removing any of the mesh filters, be sure to reinstall them in their original
locations before using the equipment. Otherwise, debris may clog the endoscope
channels and nozzles or the pumps may fail.
• If a mesh filter is dropped or impacted in any way, ensure that it is not damaged.
Damaged mesh filters may not perform adequately.
• Two-type mesh filters are installed on the outer and inner sides of the circulation
port. Be sure to remove, inspect, and clean both of them.
3.4 Inspection of the mesh filters

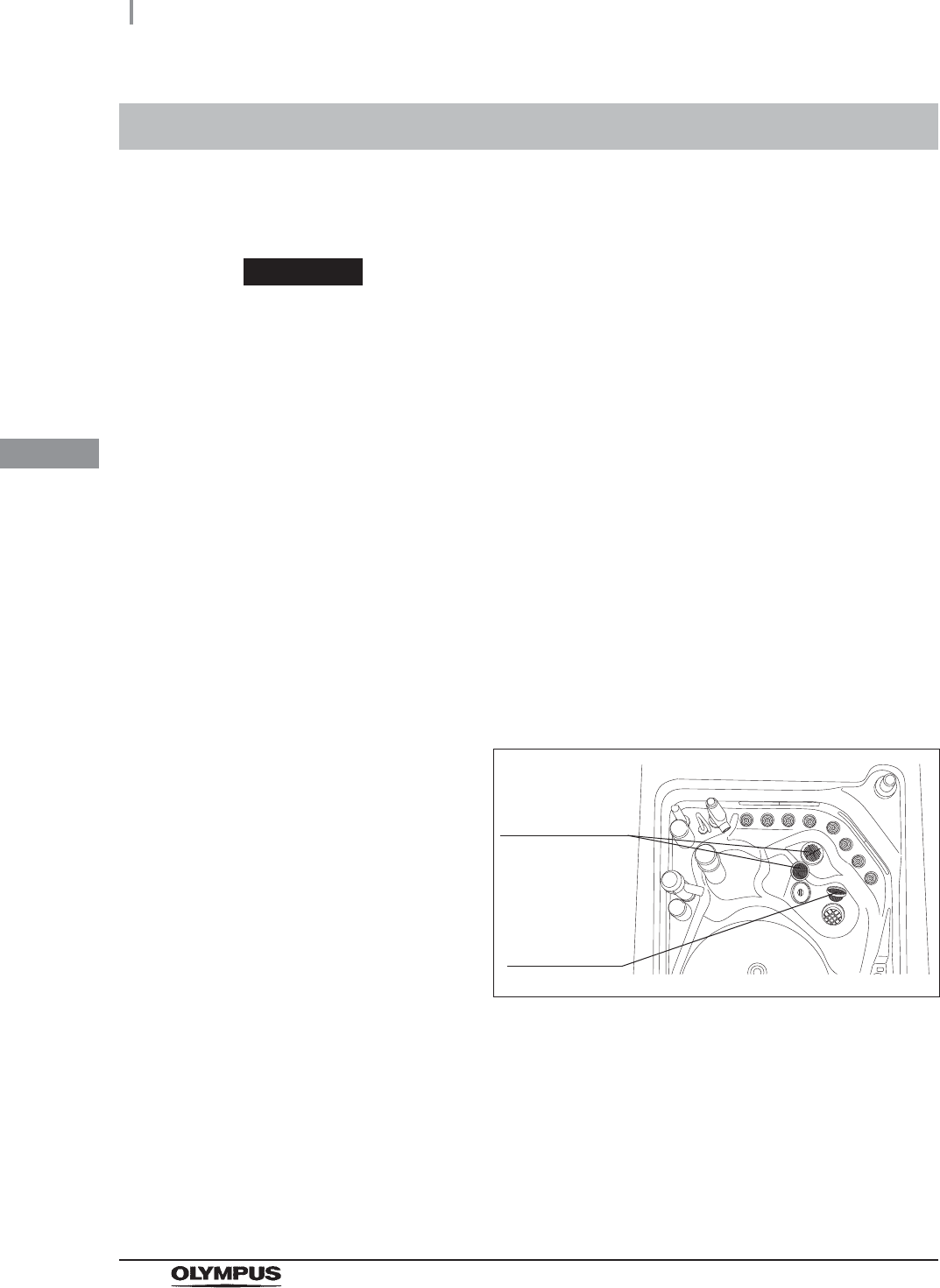

1Step on the foot pedal to open the lid.
2Check that the drain port mesh filter and two circulation port mesh filters are attached
inside the reprocessing basin.
Figure 3.3
Drain port
mesh filter
Circulation port
mesh filters

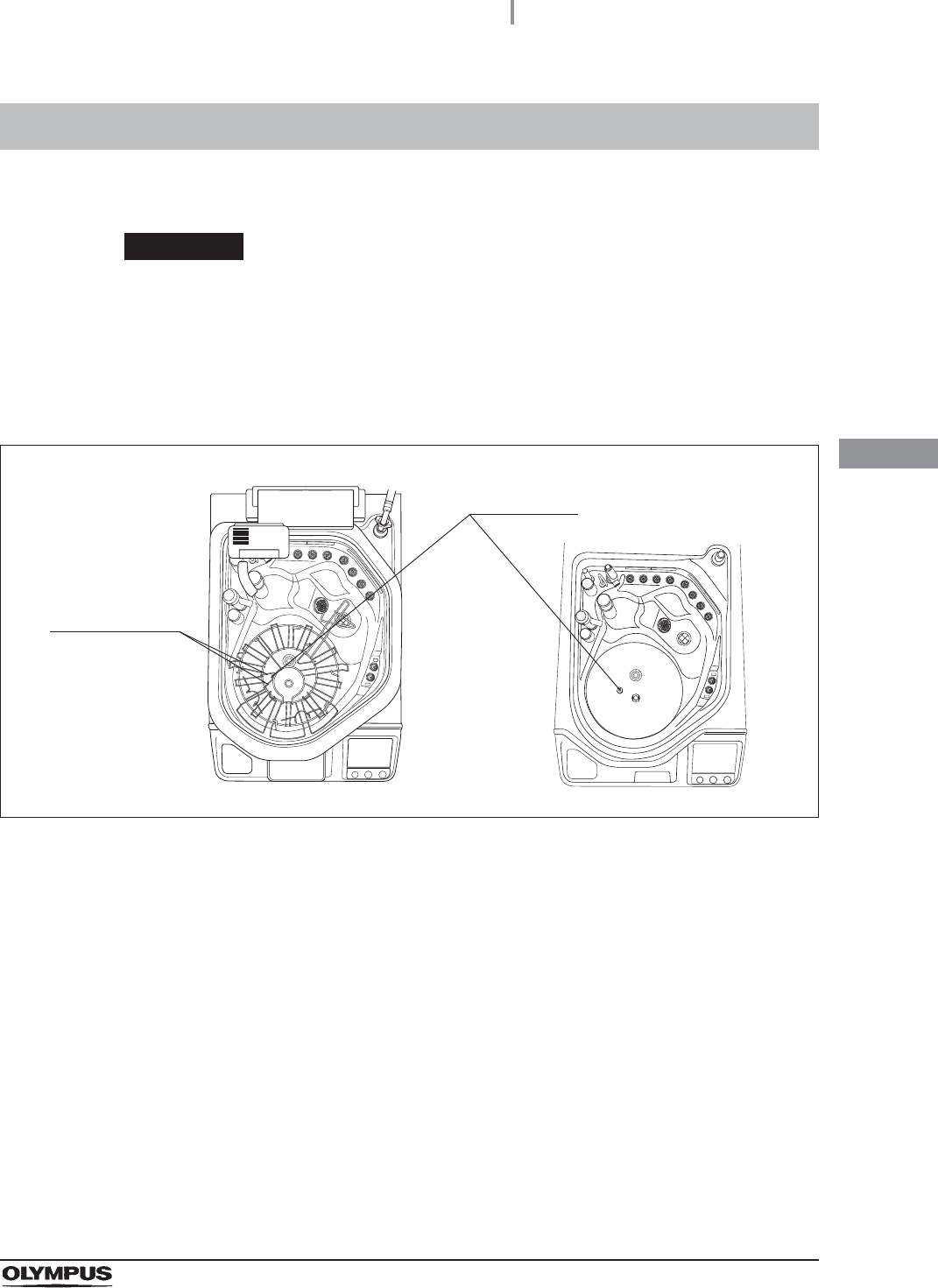

3.5 Inspection of the retaining rack
41
OER-Elite INSTALLATION MANUAL
Ch.3
The retaining rack is used to hold the endoscopes in the specified position for reprocessing.
WARNING
Attach the retaining rack correctly. If the retaining rack is not attached properly, the
washing case and endoscopes cannot be set properly and the endoscopes may
not be adequately reprocessed.
Make sure the retaining rack is attached properly to the reprocessing basin and that the ring of the
retaining rack fits onto the projection on the temperature sensor.
Figure 3.4
3.5 Inspection of the retaining rack
Temperature
sensor
Ring of
retaining rack
42
3.6 Installation of the washing case (MAJ-2121)
OER-Elite INSTALLATION MANUAL
Ch.3
The washing case is used to hold the endoscope valves in the specified position for reprocessing.
WARNING
• Do not use the washing case if any abnormality is found with it. If an abnormal
washing case is used, the reprocessing may become insufficient.
• Be sure to attach the washing case properly. Otherwise, endoscope reprocessing
may not be effective.
• Place the washing case in the washing case holder of the retaining rack, washing
case protrusion to fit on the cutout of washing case holder and ensure that it is
centered on the washing case mount of the reprocessing basin. Otherwise the
reprocessing may become insufficient.
Figure 3.5
3.6 Installation of the washing case (MAJ-2121)
Washing case
mount Washing case protrusion
Cutout of
Washing case
holder
Washing case
holder
Washing case mount

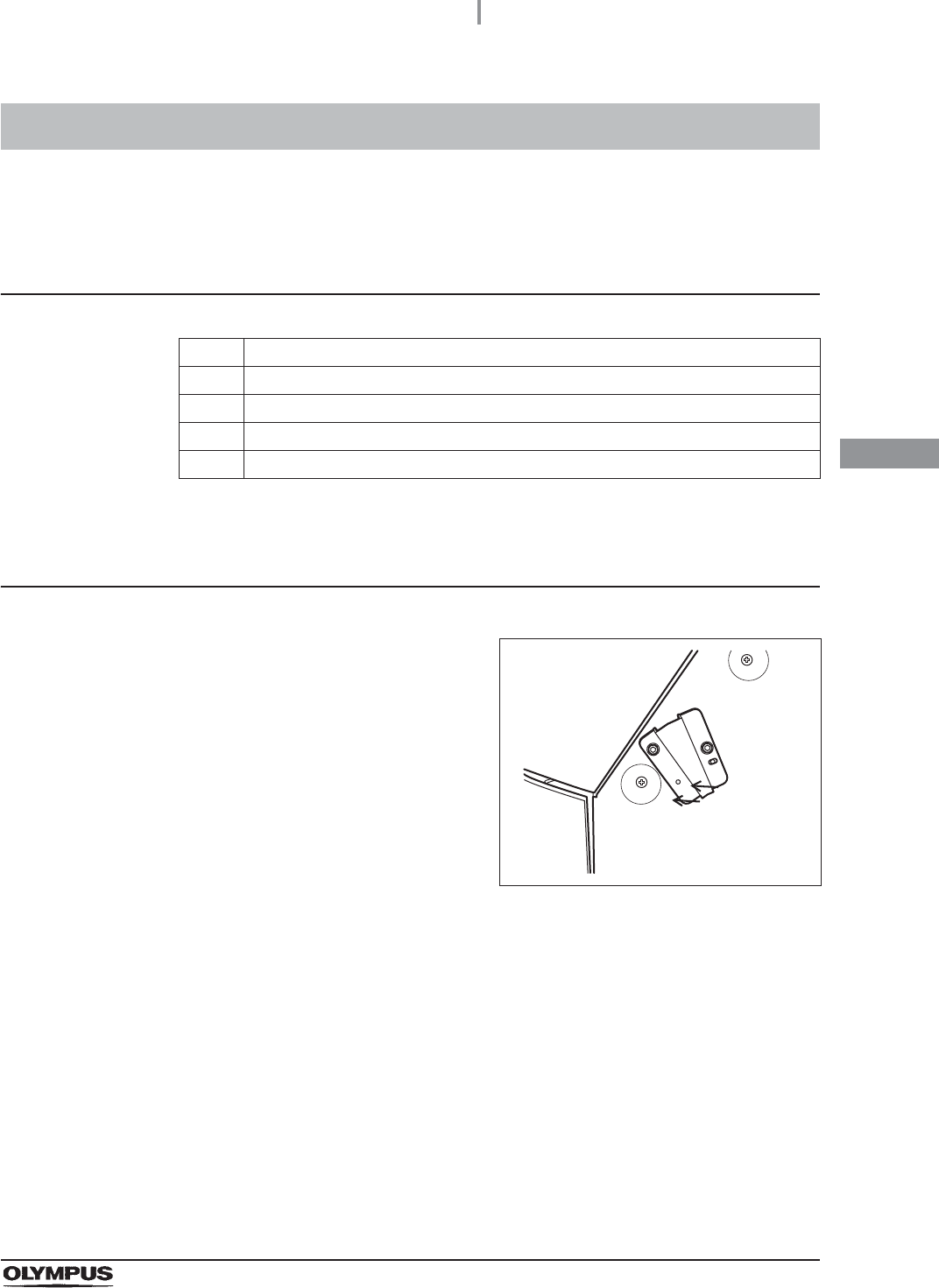

3.7 Installation of the stylus pen holder
43
OER-Elite INSTALLATION MANUAL
Ch.3
The stylus pen offered is used to operate the touch screen of the OER-Elite.
Required items
Tabl e 3 .1
Installing the stylus pen holder
3.7 Installation of the stylus pen holder
Check Required items
M4 × 10 mm cap bolt
Hex wrench (GT804300)
Stylus pen holder (RA016500)
Stylus pen (GT944200)
1Align the two holes on the stylus pen holder
with the screw holes on the right side panel of
the equipment and secure it with two M4 ×
10 mm cap bolts using the provided hex
wrench.
Figure 3.6
2Place the stylus pen in to the stylus holder.
44

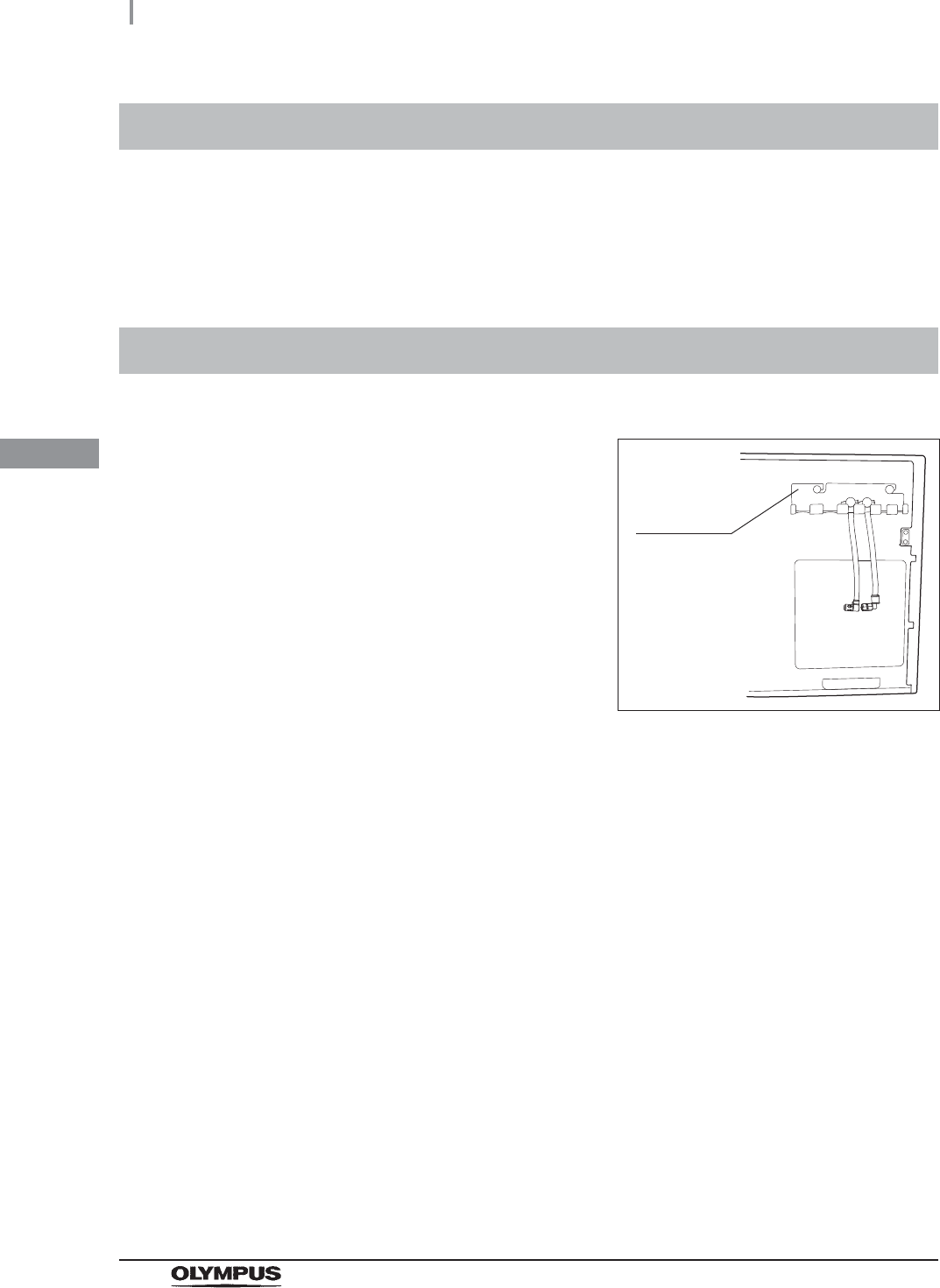

3.8 Inspecting the accessory holder
OER-Elite INSTALLATION MANUAL
Ch.3
Check if the accessory holder is attached securely with two screws to the inner side of the front door as
shown in Figure 3.7. Check by turning the screws clockwise with your hands, and tighten them if they
are loose.
3.8 Inspecting the accessory holder
3.9 Storing other accessories
1Accessories such as the connecting tubes can
be hung on the accessory holder on the inner
side of the front door. After reprocessing the
accessories ensure that they are completely
dry before storing them.
Figure 3.7
2Put the scope ID master card and user ID master card in the card holders and attach
the card holder below the accessory holder on the inner side of the front door.
3Less frequently used accessories should be dried completely and then stored
together in a place not exposed to dust or direct sunlight.
Accessory
holder
3.10 Installation of the optional accessories
45
OER-Elite INSTALLATION MANUAL
Ch.3
Connection of the bar code reader (MAJ-2130)
If the optional bar code reader (MAJ-2130) is connected to the equipment, the patient ID can be
entered by the bar code reader. For details, refer to “Entering the patient ID by the optional bar code”
in Section 3.6, “Entering ID” in “Instructions-Operation Manual”.
To install the bar code reader (MAJ-2130), refer to Chapter 3, “Installation and Connection” in
“MAJ-2130 Instruction Manual”.
WARNING
• Do not stare into beam. It may cause damage to the eyes.
• Do not irradiate people’s eyes with beam. It may cause damage to the eyes.
CAUTION
• Do not connect any other equipment with the bar code reader port except the bar
code reader itself (MAJ-2130). Otherwise, the bar codes may not be scanned
correctly. Also, equipment failure or burnout may result.
• The communication cable should not be sharply bent, pulled, twisted, or crushed.
Cable damage can result, and bar codes may not be properly scanned.
Connecting diagram
Figure 3.8
3.10 Installation of the optional accessories
Bar code reader
Bar code reader port
Communication cable
46
3.10 Installation of the optional accessories
OER-Elite INSTALLATION MANUAL
Ch.3
Installation of the printer set (MAJ-2144)
If the optional printer set (MAJ-2144) is connected to the equipment, the history of each process can
printed. For details, refer to the instruction manual Section 6.10, “Printing of the reprocessing records”
in “Instructions-Operation Manual”.
To install the printer set (MAJ-2144), refer to Chapter 3, “Installation of the printer” in “MAJ-2144
Instruction Manual”.
WARNING
Do not bend the AC power cord forcibly, or place heavy objectives on the AC power
cord. Doing so may damage the AC power cord and cause a fire or an electric
shock. If the AC power cord is damaged, discontinue using it and contact Olympus.
CAUTION
• Do not connect any other power cord and any equipment the printer power outlet
except the printer (MAJ-1937) AC power cord. Connecting anything other than the
specified power cord may result in failure or burnout of the equipment.
• Do not connect any other cable to the printer communication port except the
interface cable intended to be used with printer (MAJ-1937). Connecting except the
specified cable may result in failure or burnout of the equipment.
• The interface cable should not be sharply bent, pulled, twisted, or crushed. Cable
damage can result, and printer may not be properly communicated.
3.10 Installation of the optional accessories
47
OER-Elite INSTALLATION MANUAL
Ch.3

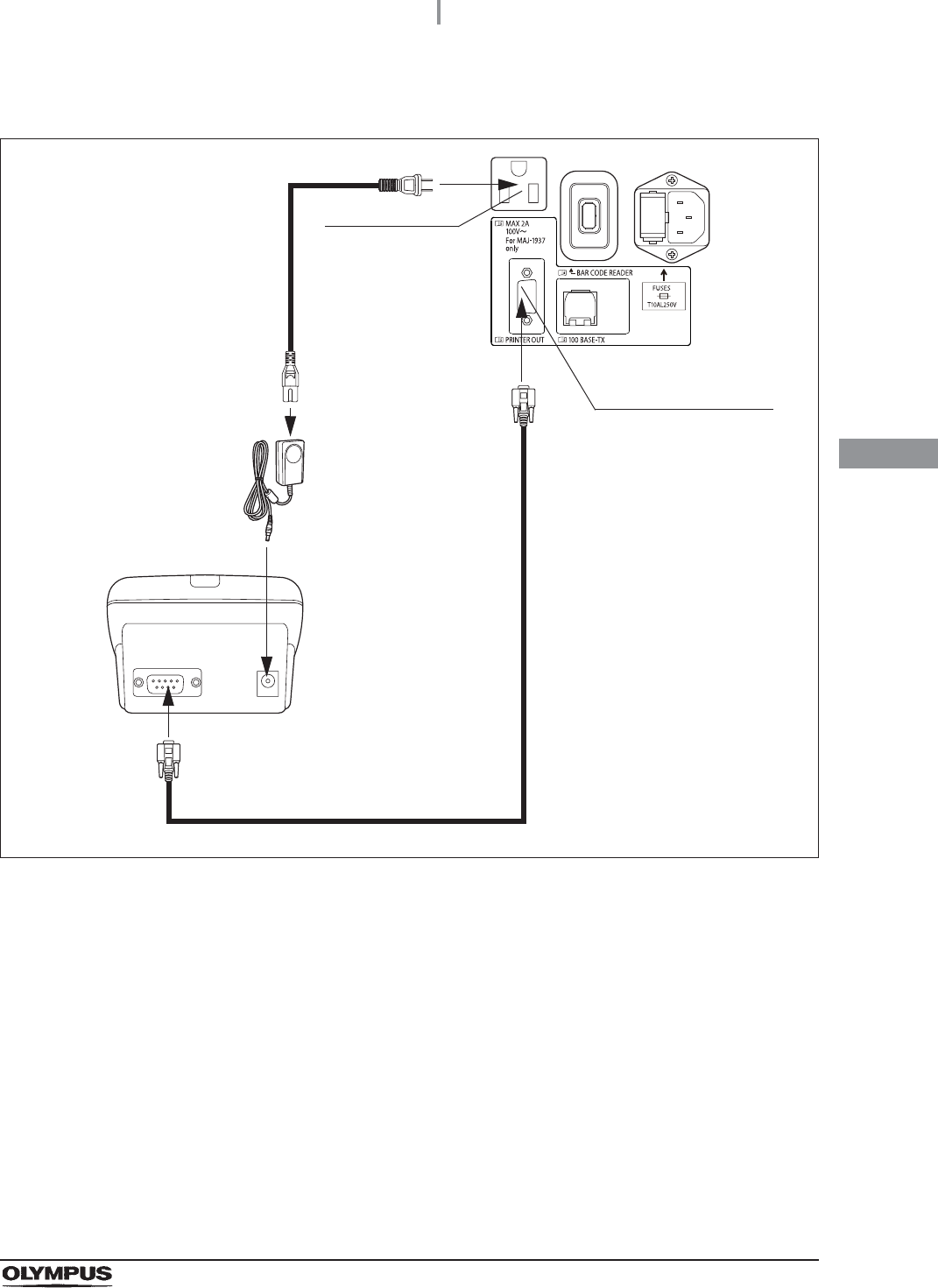

Connecting diagram
Figure 3.9
Printer
MAJ-1937
Interface cable
Printer
communication port
Printer outlet
AC power
cord
(RU6517)
attached to
printer
AC adapter
(RU6518)
attached to
printer
48
3.10 Installation of the optional accessories
OER-Elite INSTALLATION MANUAL
Ch.3
4.1 General flow of installation of the equipment
49
OER-Elite INSTALLATION MANUAL
Ch.4
Chapter 4 Installation of Equipment
Connect the water supply hose, drain hose and power cord to the equipment, and set up the required
chemicals (disinfectant, detergent etc.).
Be sure to clean the reprocessor before installation, since dust could accumulate on or in the machine
under certain storage or transport conditions. Check that the external surface, bottom surface, and
casters of the equipment are clean before installation.
WARNING
• Make sure to connect the power cord plug to the hospital-grade wall mains power
outlet of your medical facility. Plug the power cord directly into a hospital-grade,
wall mains power outlet and do not use a multiple outlet. This equipment must be
grounded; otherwise, an electric shock or a fire may result.
• Do not allow the power cord plug to get wet. A wet plug could cause an electric
shock.
• To prevent an electric shock, do not touch the power cord plug or directly touch the
power source with wet hands.
• When using disinfectant solution and alcohol, Olympus recommends the use of gas
filters and running this equipment in well-ventilated areas.
Wear a face mask, gloves, and protective clothes to minimize aspiration and
skin contact.
Wear goggles for eye protection.
Refer to the following association’s guidelines related to ventilation:
If the person operating the equipment exhibits an allergic reaction or symptoms no
matter how slight they should discontinue the task they are performing and vacate
the room.
4.1 General flow of installation of the equipment
SGNA (Society of Gastroenterology Nurses and Associates)
ASGE (American Society of Gastroenterological Endoscopy)
APIC (Association for Professionals of Infection Control and Epidemiology)
AORN (Association of Preoperative Registered Nurses)
ASTM (American Society for Testing and Materials)
OSHA (Occupational Safety and Health Administration)
ACGIH (American Conference of Governmental Industrial Hygienists)
NIOSH (National Institute for Occupational Safety and Health)
AIA (American Institute of Architects)
50
4.1 General flow of installation of the equipment
OER-Elite INSTALLATION MANUAL
Ch.4
WARNING
• Do not push the rear end of equipment against a wall after connecting the power
cord plug. The power cord may break and result in an electric shock or a fire.
• Make sure that the hospital-grade, wall mains power outlet of your medical facility
meets the power specifications required by this unit. Insufficient capacity could
result in a fire or activation of the facility’s circuit breakers, which will turn off the
power to all other equipment connected to the same power source.
• Use the power cord plug supplied with the equipment. Using a different power cord
plug may result in equipment malfunction or power cord burnout. Additionally, do
not use the supplied power cord plug on any other equipment as it is specified to be
used only with this equipment.
CAUTION
• To prevent fluid leakage, do not attempt to extend the water supply hose and drain
hoses.
• To prevent fluid leakage or damage, do not bend the water supply hose and drain
hose or apply external force to them.
• To prevent discharge failure, cut off any excess drain hose and coil in such a
manner as to prevent it from bending or kinking.
• To prevent discharge failure, always leave the drain hose tip open to the air inside
the floor drain (the hose tip should not be immersed in liquid and the inside of the
floor drain should be open to the air).
• If the water supply capacity drops below the minimum required flow rate and
pressure levels, the equipment may stop with an error, the process time may be
prolonged. When the water supply capacity pressure and flow rate is low, improve
the water supply by installing a booster pump, etc.
• If the water supply pressure (shut-off pressure) exceeds 0.5 MPa, contact Olympus
to request pressure reducing materials.
• Do not supply water with a temperature over 28qC (82qF), as this can cause the
equipment or endoscope to deteriorate.
• Although the reprocessor incorporates a water filter, it may still fail or the water filter
use life may be reduced if the water contains a large amount of debris and
sediment. If this is the case, contact Olympus to have a strainer installed in the
water supply piping.
4.1 General flow of installation of the equipment
51
OER-Elite INSTALLATION MANUAL
Ch.4
CAUTION
• The disinfectant solution’s waste fluid should be treated in accordance with the
instructions supplied with the disinfectant solution. It is recommended the waste
fluid be treated and drained or disposed of according to local wastewater standards
defined by law, or to temporarily collect and store the waste fluid and have it treated
by a waste disposal firm.
• Do not install the equipment in a place exposed to direct sunlight or where the
temperature exceeds 40qC (104qF). Otherwise, the equipment may malfunction or
the disinfectant solution may not last as long.
• Do not place objects on or apply excessive force to the equipment. Doing so could
damage or deform the lid.
• Before installing the equipment, ventilate the room. Otherwise, the ancillary
equipment may malfunction.
• Do not install equipment in a way that would make it difficult to disconnect the
power cord plug from the wall mains power outlet. Otherwise, power shutdown by
disconnecting the power cord plug cannot be performed in case of malfunction or
failure of the equipment.
• Before installing the equipment, be sure to check that the installation meets the
conditions provided in Section 4.3, “Installation conditions”. If not, water leaks,
malfunction, or failure of the equipment may result.
52
4.2 Installation workflow
OER-Elite INSTALLATION MANUAL
Ch.4
See the installation workflow below.
4.2 Installation workflow
1Install the equipment.
Section 4.3 on page 54
2Connect the water supply hose.
Section 4.4 on page 58
3Connect the drain hose.
Section 4.5 on page 60
4Connect the power supply cord.
Section 4.6 on page 64
5Confirm the power supply.
Section 4.7 on page 66
6Inspect the RFID function.
Section 4.8 on page 69
7Set the date and the time.
Section 4.9 on page 74
8Install the gas filters.
Section 4.10 on page 79
9Install the air filter.
Section 4.11 on page 90
10 Inspect air leakage from the air filter connectors.
Section 4.12 on page 96
4.2 Installation workflow
53
OER-Elite INSTALLATION MANUAL
Ch.4
11 Install the water filter.
Section 4.14 on page 100
12 Correct equipment tilt.
Section 4.15 on page 113
13 Inspect the detergent/alcohol inner tray.
Section 4.16 on page 121
14 Inspect the alcohol tank.
Section 4.17 on page 122
15 Addition of alcohol.
Section 4.18 on page 123
16 Install of the detergent tank.
Section 4.19 on page 126
17 Set up the disinfectant solution.
Section 4.20 on page 134
18 Check the functions.
Section 4.21 on page 145
19 Disinfect the water supply piping.
Section 4.22 on page 162
20 Check the functions of the optional accessories.
Section 4.23 on page 180
54
4.3 Installation conditions
OER-Elite INSTALLATION MANUAL
Ch.4
To ensure safe use of this equipment, be sure to observe the following conditions.
Installation condition
Installation location conditions
• The floor should be able to support a weight of 200 kg (440 lb) (50 kg per caster).
• The provided water supply hose (3 m/9.8 ft) and drain hose (3 m/9.8 ft) should be able to
reach the water faucet and floor drain.
• The power cord (3.5 m/11.5 ft) should be able to reach the power outlet.
• The equipment should not be exposed to direct sunlight.
• The location should be clean and free of dirt or dust.
• The ambient temperature should be between 10qC (50qF) and 40qC (104qF).
• The elevation above sea level should not exceed 3,000 m (9,842 ft)
• The equipment should be used indoors.
• When using the disinfectant solution, and alcohol, Olympus recommends the use of gas filters
and running this equipment in well-ventilated areas.
Wear a face mask, gloves, and protective clothes to minimize aspiration and skin contact.
Wear goggles for eye protection.
Refer to the following association’s guidelines related to ventilation:
If the person performing the inspection or maintenance exhibits an allergic reaction or
symptoms no matter how slight they should discontinue the task and vacate the room.
4.3 Installation conditions
SGNA (Society of Gastroenterology Nurses and Associates)
ASGE (American Society of Gastroenterological Endoscopy)
APIC (Association for Professionals of Infection Control and Epidemiology)
AORN (Association of Preoperative Registered Nurses)
ASTM (American Society for Testing and Materials)
OSHA (Occupational Safety and Health Administration)
ACGIH (American Conference of Governmental Industrial Hygienists)
NIOSH (National Institute for Occupational Safety and Health)
AIA (American Institute of Architects)
4.3 Installation conditions
55
OER-Elite INSTALLATION MANUAL
Ch.4
Water supply conditions
• Potable water, softened water, or pure water can be used.
• The water hardness should not exceed 400 ppm. The recommended water hardness is
150 ppm1 or lower.
• The water supply quantity at water supply/circulation nozzle on the reprocessing basin should
be 6 liters per minute (1.6 gallon per minute) or more when the water faucet is fully open. The
recommended water supply quantity is 18 liters per minute (4.8 gallons per minute) or more.
NOTE
The process time is extended if the water supply amount is lower than 18 liters per
minute.
• The water supply pressure should be between 0.1 and 0.5 MPa (Include water hammer).
• The water temperature should be between 5qC (41qF) and 28qC (82qF).
• The water should not contain rust, dirt, or other foreign matter.
Drain conditions
• The top of the drain hose should be no higher than 60 cm. A floor drain is recommended.
• The diameter of the drain piping of the facility should be 36 mm (1.4 in) or more (a 100 mm
(3.9 in) pipe is desirable).
• The drain capacity of the floor drain should be 50 liters per minute (13.3 gallons per minute)
or more (this capacity should be maintained until all of the fluids in the reprocessing basin are
drained).
• The floor drain should be connected to a waste fluid treatment or pooling facility.
• The specification of drain above is for one unit of the equipment. When using more than one
unit in your facility, a larger size of floor drain will be required.
Power supply conditions
• Power supply capacity should be enough for the equipment rating (120 V AC, 5.5 A, 60 Hz,
voltage fluctuations within ±10%, frequency fluctuations within ±1 Hz).
• The power outlet should be a hospital-grade, wall mains power outlet (3-conductor,
grounded).
*1 The recommended value is in reference to AAMI TIR34: 2014 “Water for
the reprocessing of medical devices”.
56
4.3 Installation conditions
OER-Elite INSTALLATION MANUAL
Ch.4
Equipment dimensions and minimum wall clearances
Figure 4.1
Connector
hanger
500 mm
(19.7 in)
Top
Buckling
guard
Max.
projection
774 mm
(30.5 in)
42 mm
(1.6 in)
28 mm
(1.1 in)
273 mm
(10.7 in)
1423 to 1723 mm
(56.0 to 67.8 in)
Front
Connector hanger
945 mm
(37.2 in)
Right
side
Lid 1582 mm
(62.2 in)
Buckling
guard
165 mm
(6.4 in)
Rear Drain hose
connector
92 mm
(3.6 in)
67 mm
(2.6 in)
180 mm
(7.0 in)
Power cord
(3.5 m) (11.5 ft) Top
Min. rear clearance 50 mm (1.9 in)
(Projection of buckling guard)
Drain hose
(3 m) (9.8 ft)
Water supply hose
(3 m) (9.8 ft)
Min. side clearances 30 mm (1.2 in)
(50 mm (1.9 in) when connector
hanger is installed
120 mm (4.7 in) when bar code
reader is installed
190 mm (7.1 in) when printer set is
installed)
800 mm
(31.5 in)
88 mm
(3.5 in)
156 mm
(6.2 in)
Bar code
reader
Printer
set
Power cord
connector
1172 mm
(46.1 in)
Bar code reader
4.3 Installation conditions
57
OER-Elite INSTALLATION MANUAL
Ch.4
Checking the installation position
1Place the equipment on a flat, level floor surface.
NOTE
The tilt of the equipment will be corrected in Section 4.15, “Correction of equipment
tilt”.
2Open the front door and press the foot pedal to open the lid. Make sure that the door
and the cover do not come into contact with other equipment or with the walls.
58
4.4 Connection of the water supply hose
OER-Elite INSTALLATION MANUAL
Ch.4
The water supply plug of this equipment is designed to be connected to an ordinary tap water faucet
with 3/4” GHT (garden hose thread), or the Olympus Pre-Filter Assembly (MF01-0033PL). If a different
type of the water faucet is used, have a plumber enable a safe and secure connection.
4.4 Connection of the water supply hose
1Make sure that there is a packing inside of the
water supply plug.
Figure 4.2
2Fit the water supply plug onto the water faucet
and turn it clockwise to tighten with the
provided wrench. The pitch of the thread of the
water supply plug is “3/4” garden hose thread
(GHT).
Figure 4.3
3While pushing a finger against the lock lever on
the water supply socket, pull the sleeve down
toward the hose and fit the socket onto the
water supply plug. Release the lock lever
ensuring that it hooks onto the outer ring of the
plug as pictured in Figure 4.4.
Figure 4.4
Packing
(1)
(3)
(2)
4.4 Connection of the water supply hose
59
OER-Elite INSTALLATION MANUAL
Ch.4

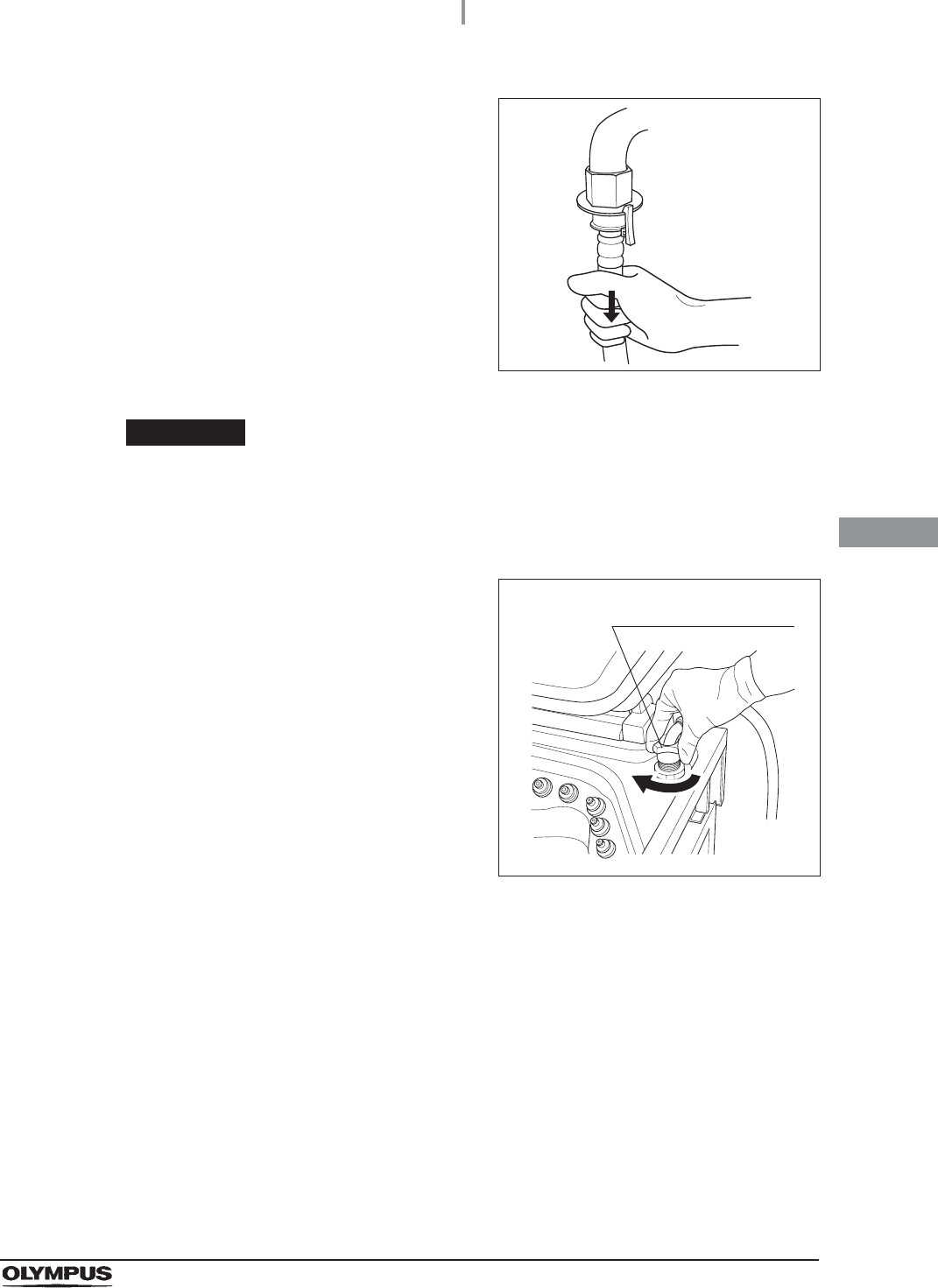

4After confirming that the lock lever is engaged,
pull the hose lightly to make sure the
connection is tight.
Figure 4.5
CAUTION
Connect the connection ring on the equipment end of the water supply hose to the
water supply hose connection port by tightening securely. An insecure connection
may lead to a risk of a water leak.
5Align the connection ring on the equipment end
of the water supply hose with the water supply
hose connector on the rear right of the
reprocessing basin so the hose does not hinder
the opening and shutting of the lid, and turn the
connection ring clockwise to tighten.
Figure 4.6
6Open the water faucet slowly while checking to make sure that water does not leak
from the hose connection area. If water leaks, close the water faucet and reconnect
the water supply hose.
Connection ring on the
equipment end
60

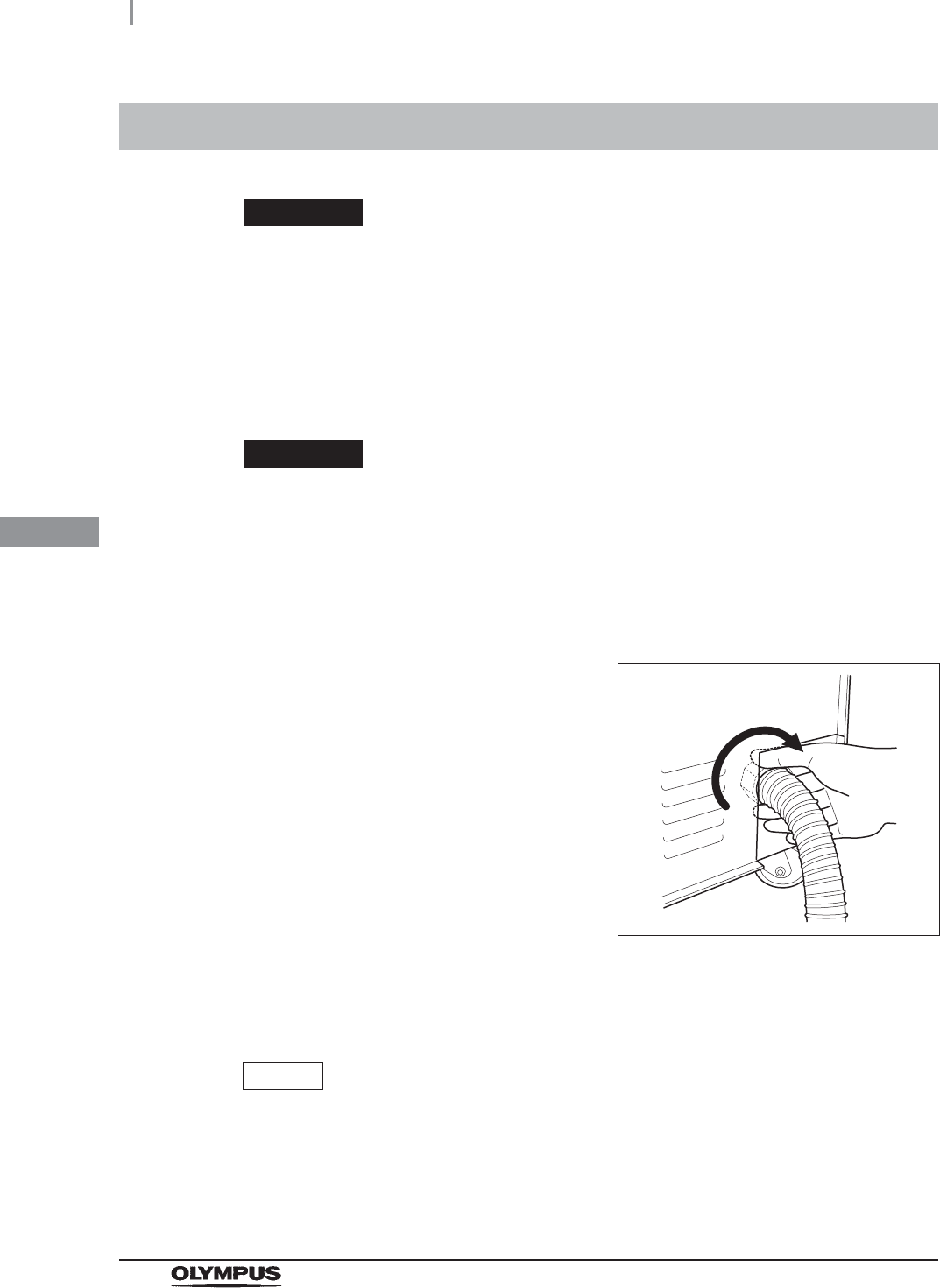

4.5 Connection of the drain hose
OER-Elite INSTALLATION MANUAL
Ch.4
WARNING
• Do not bend the drain hose or position it in such a way that it kinks and obstructs
access to the floor drain hole. Otherwise, discharge will be incomplete and the
endoscope may not be properly cleaned and disinfected.
• Connect the connection ring of the drain hose to the drain hose connection port on
the rear (bottom right) of the equipment by tightening securely. An insecure
connection may lead to a risk of a solution leak.
CAUTION
• Fix the other end of the drain hose firmly inside the facility’s floor drain hole.
Otherwise, the drain hose may come out of the hole due to the discharge pressure
resulting in fluid overflow.
• Install the drain hose so that its maximum height is 60 cm (23 in) or less.
Otherwise, discharge failure may cause the equipment to malfunction.
NOTE
If the drain hose is too long, cut it to an appropriate length.
4.5 Connection of the drain hose
1Align the connection ring of the drain hose with
the drain hose connector on the rear (bottom
right) of the equipment and turn the ring
clockwise to tighten it.
Figure 4.7
2Insert the other end of the drain hose into the drain hole on the floor and secure it so
that it does not come out of the drain hole during discharge.
