Users Manual 4

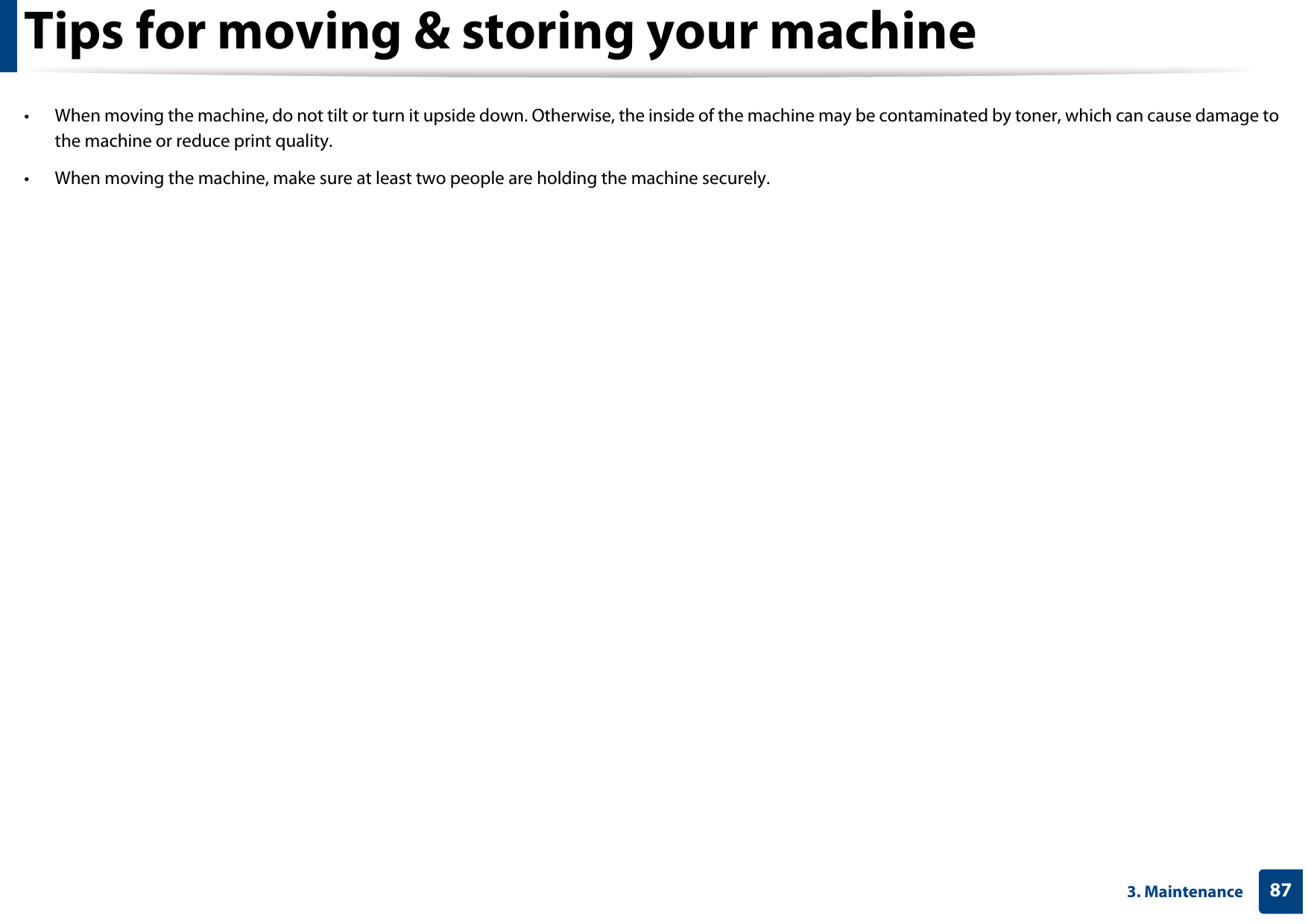

873. MaintenanceTips for moving & storing your machine• When moving the machine, do not tilt or turn it upside down. Otherwise, the inside of the machine may be contaminated by toner, which can cause damage to the machine or reduce print quality.• When moving the machine, make sure at least two people are holding the machine securely.

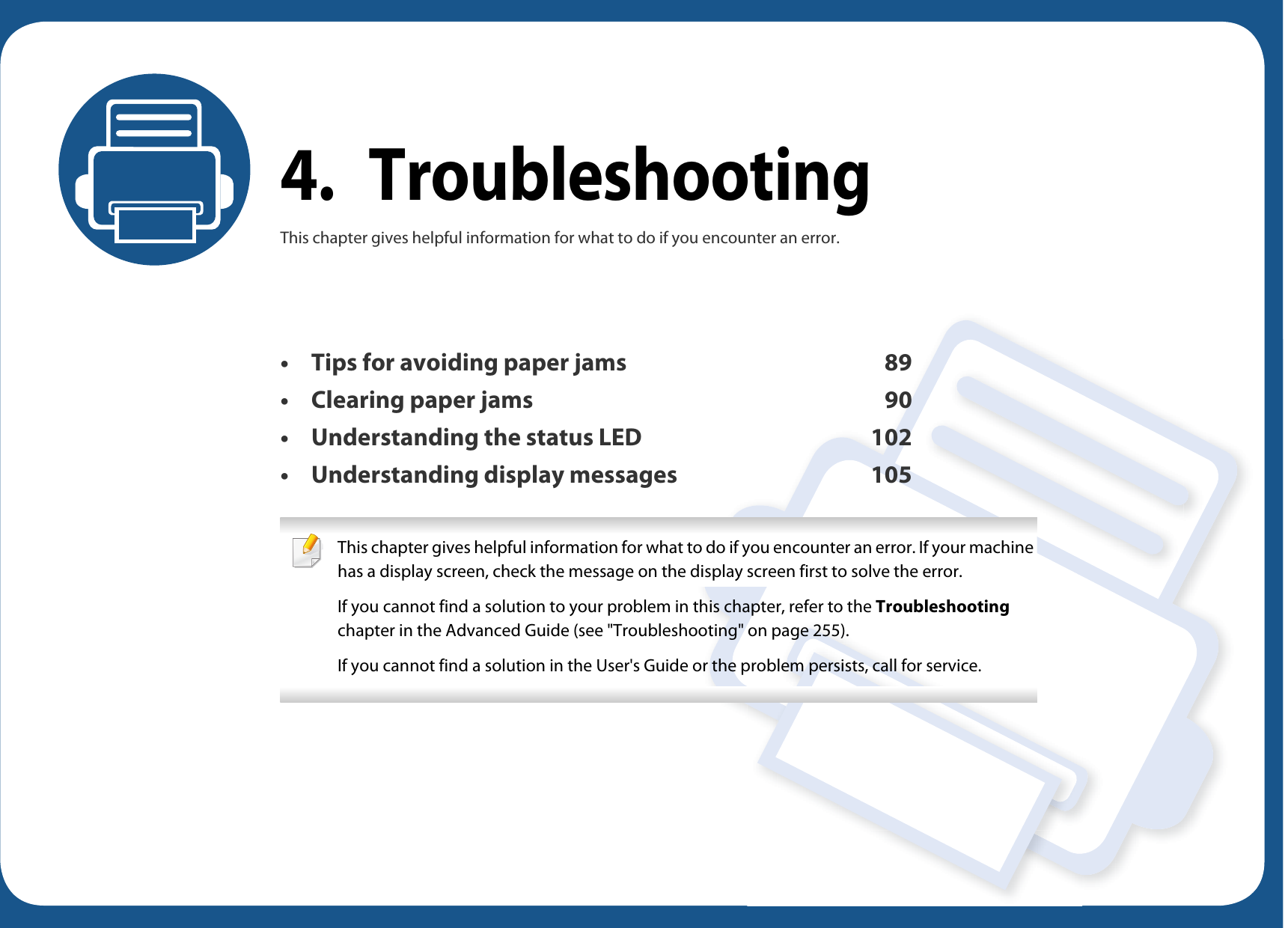

4. TroubleshootingThis chapter gives helpful information for what to do if you encounter an error.• Tips for avoiding paper jams 89• Clearing paper jams 90• Understanding the status LED 102• Understanding display messages 105 This chapter gives helpful information for what to do if you encounter an error. If your machine has a display screen, check the message on the display screen first to solve the error.If you cannot find a solution to your problem in this chapter, refer to the Troubleshooting chapter in the Advanced Guide (see "Troubleshooting" on page 255).If you cannot find a solution in the User's Guide or the problem persists, call for service.

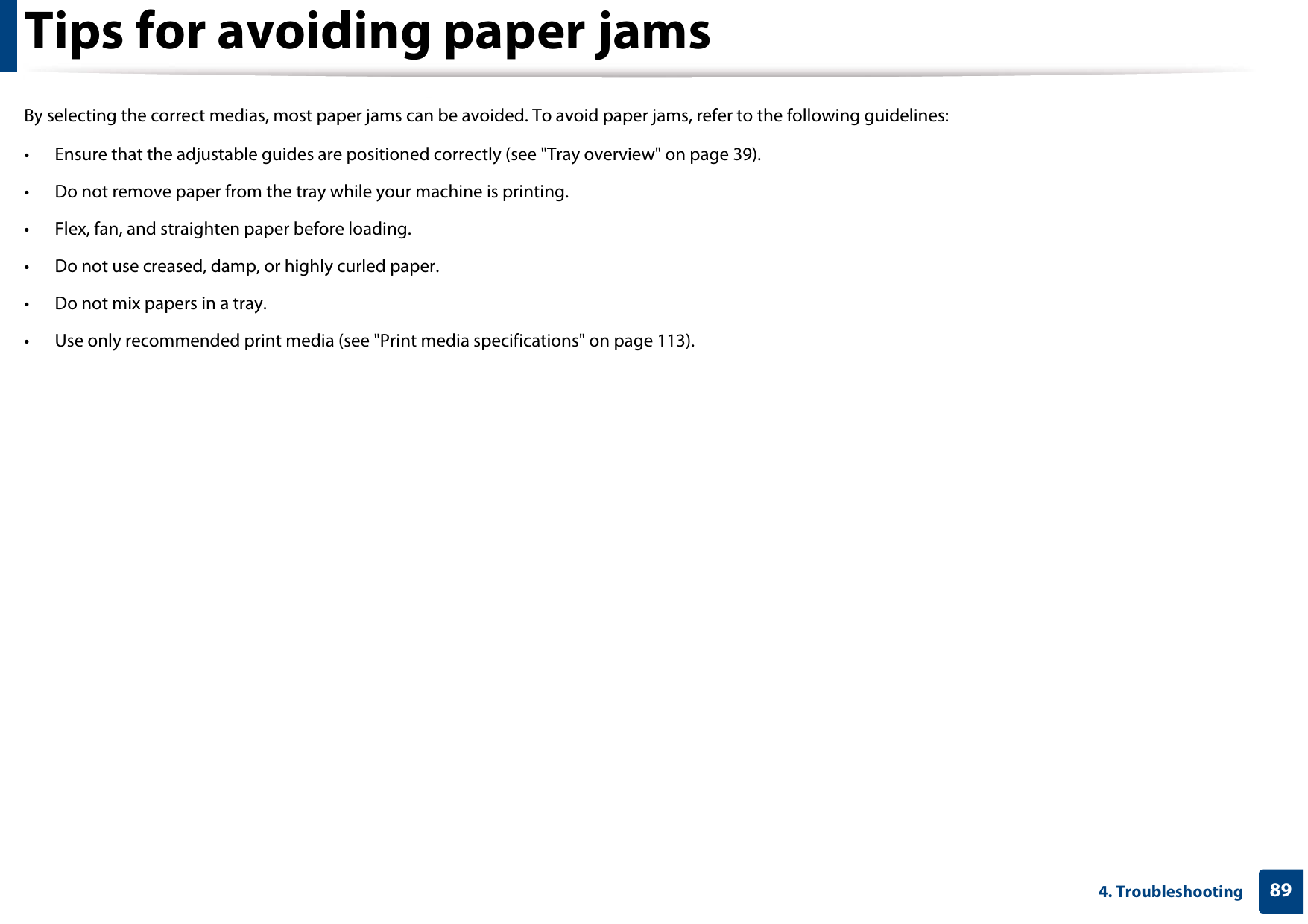

894. TroubleshootingTips for avoiding paper jamsBy selecting the correct medias, most paper jams can be avoided. To avoid paper jams, refer to the following guidelines:• Ensure that the adjustable guides are positioned correctly (see "Tray overview" on page 39).• Do not remove paper from the tray while your machine is printing.• Flex, fan, and straighten paper before loading. • Do not use creased, damp, or highly curled paper.• Do not mix papers in a tray.• Use only recommended print media (see "Print media specifications" on page 113).

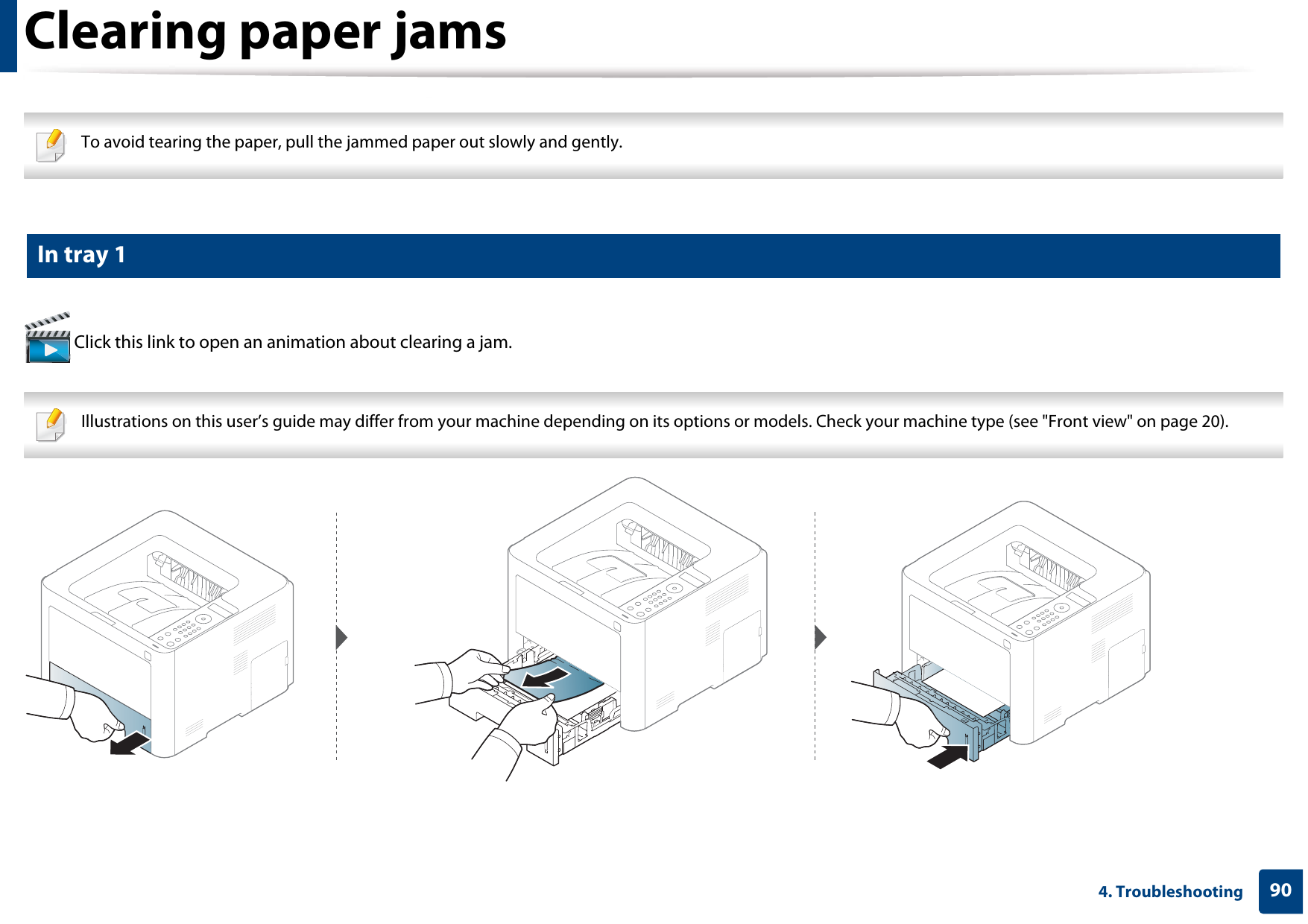

904. TroubleshootingClearing paper jams To avoid tearing the paper, pull the jammed paper out slowly and gently. 1 In tray 1 Click this link to open an animation about clearing a jam. Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 20).

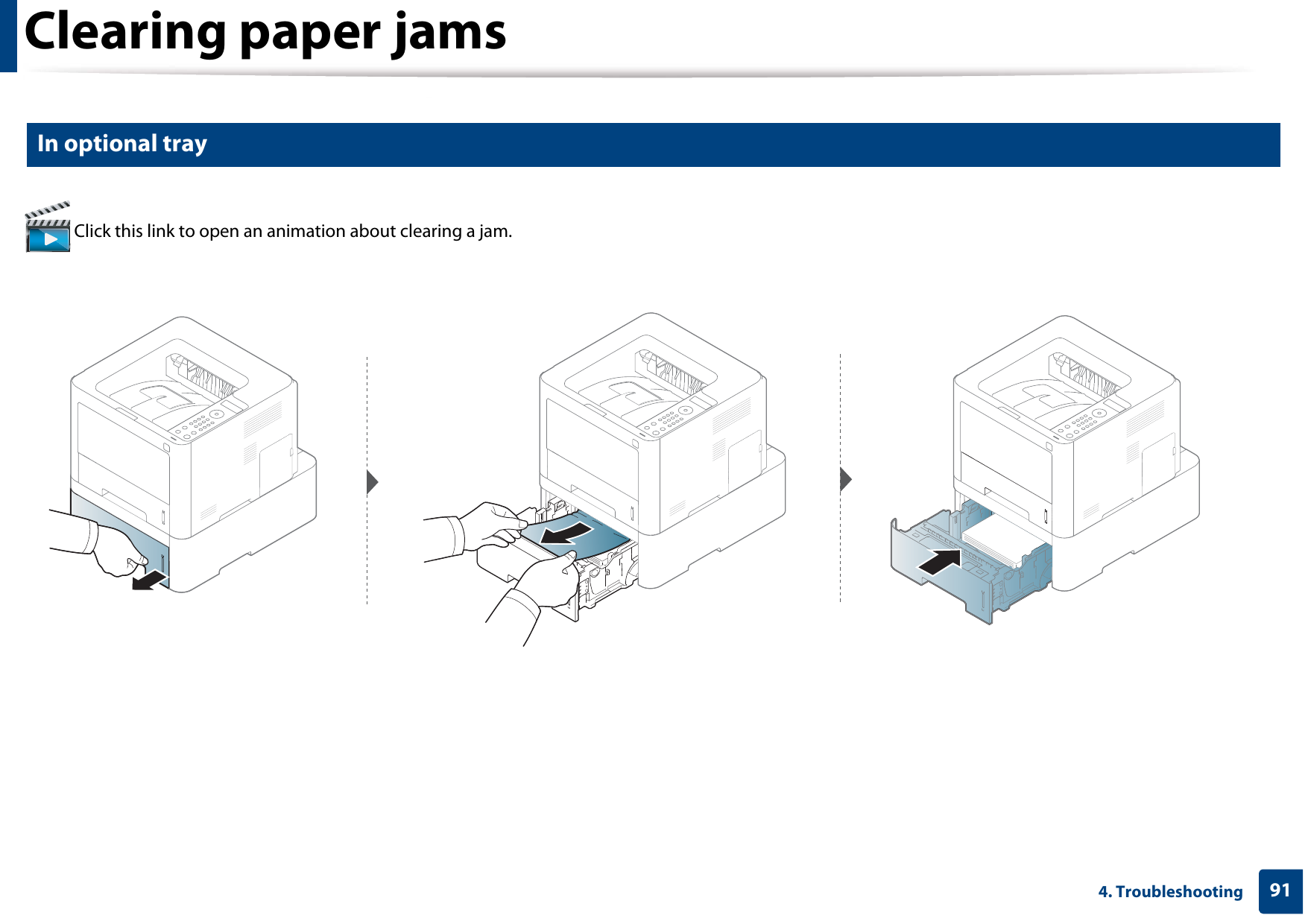

Clearing paper jams914. Troubleshooting2 In optional tray Click this link to open an animation about clearing a jam.

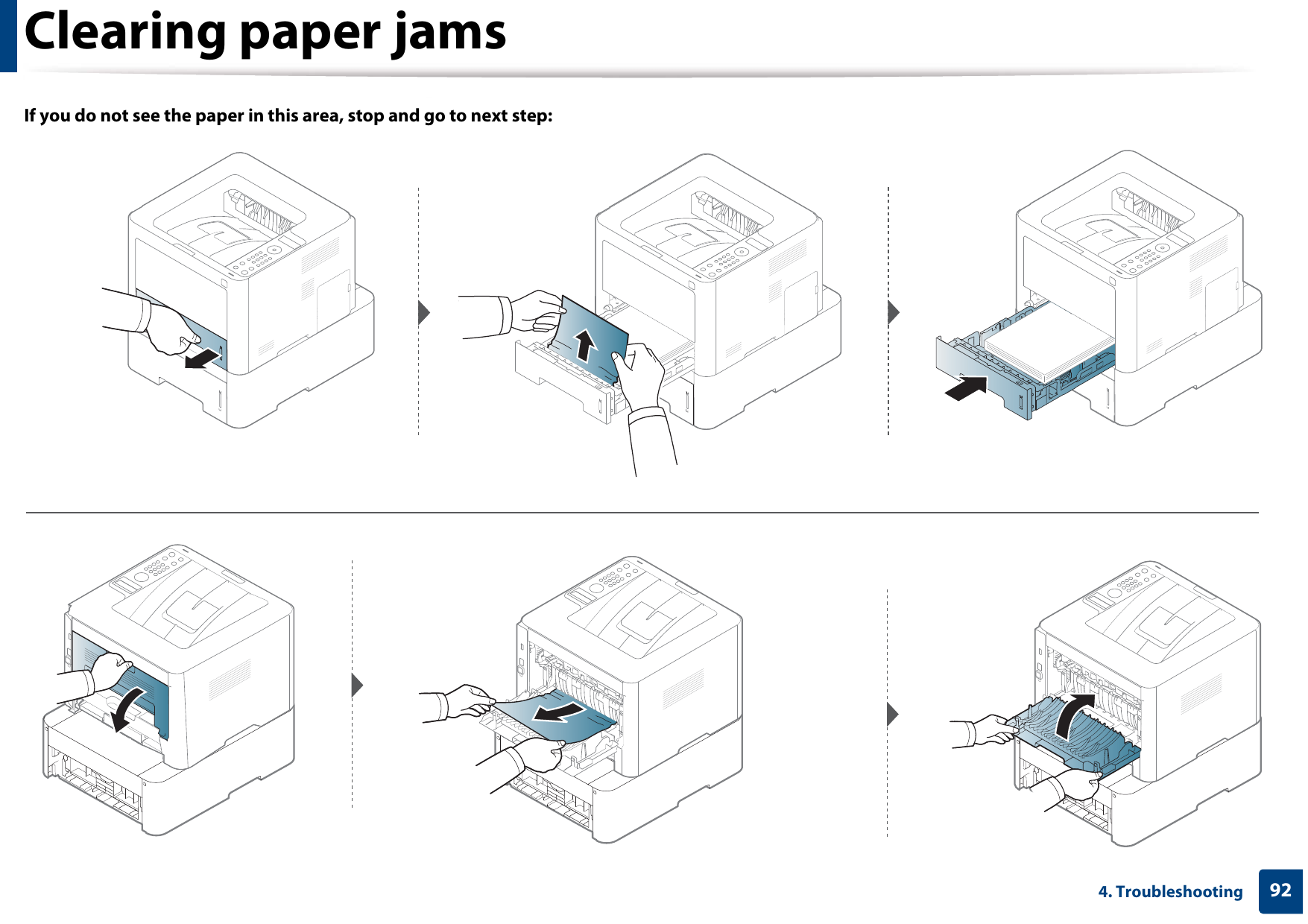

Clearing paper jams924. TroubleshootingIf you do not see the paper in this area, stop and go to next step:

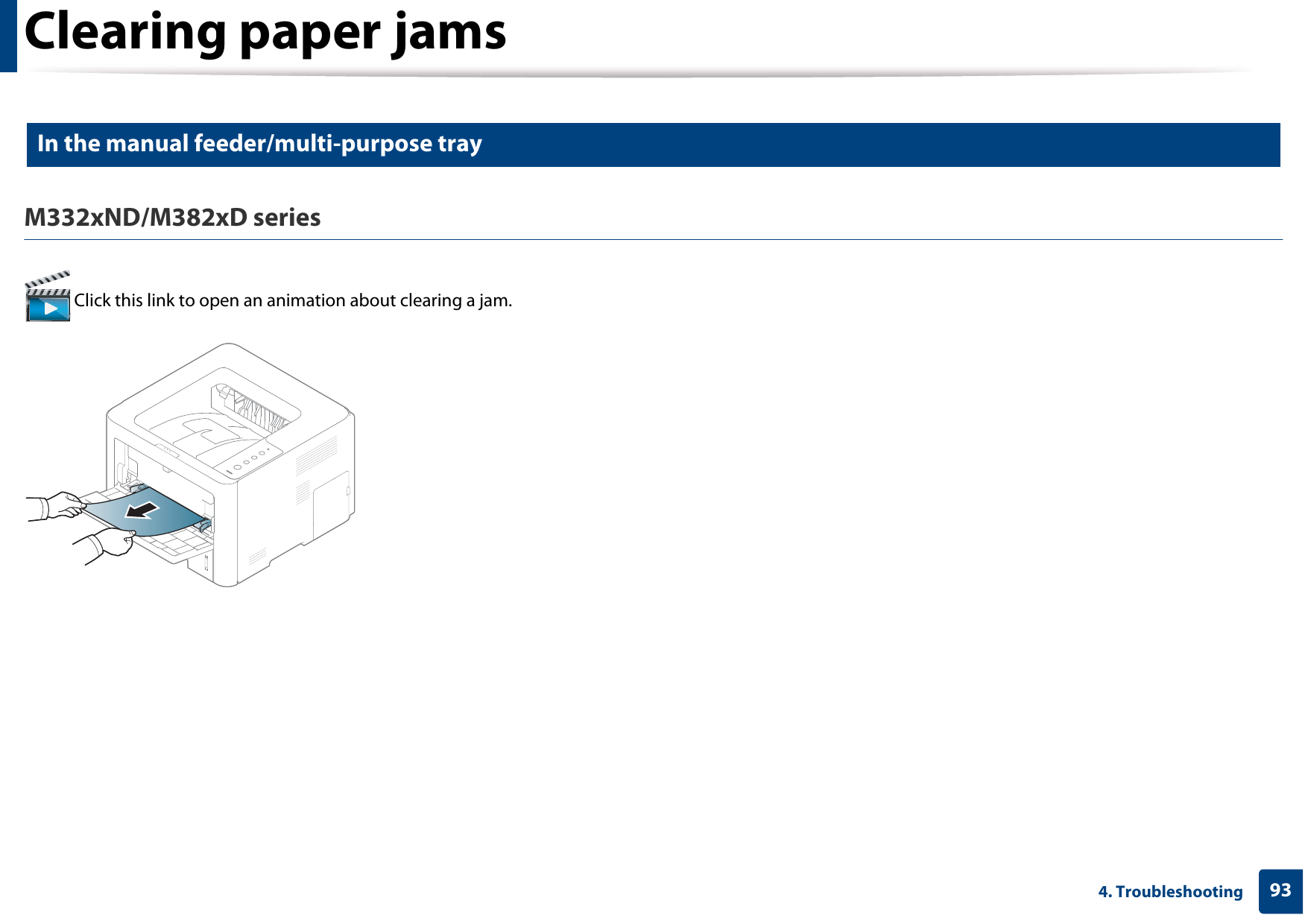

Clearing paper jams934. Troubleshooting3 In the manual feeder/multi-purpose tray M332xND/M382xD series Click this link to open an animation about clearing a jam.

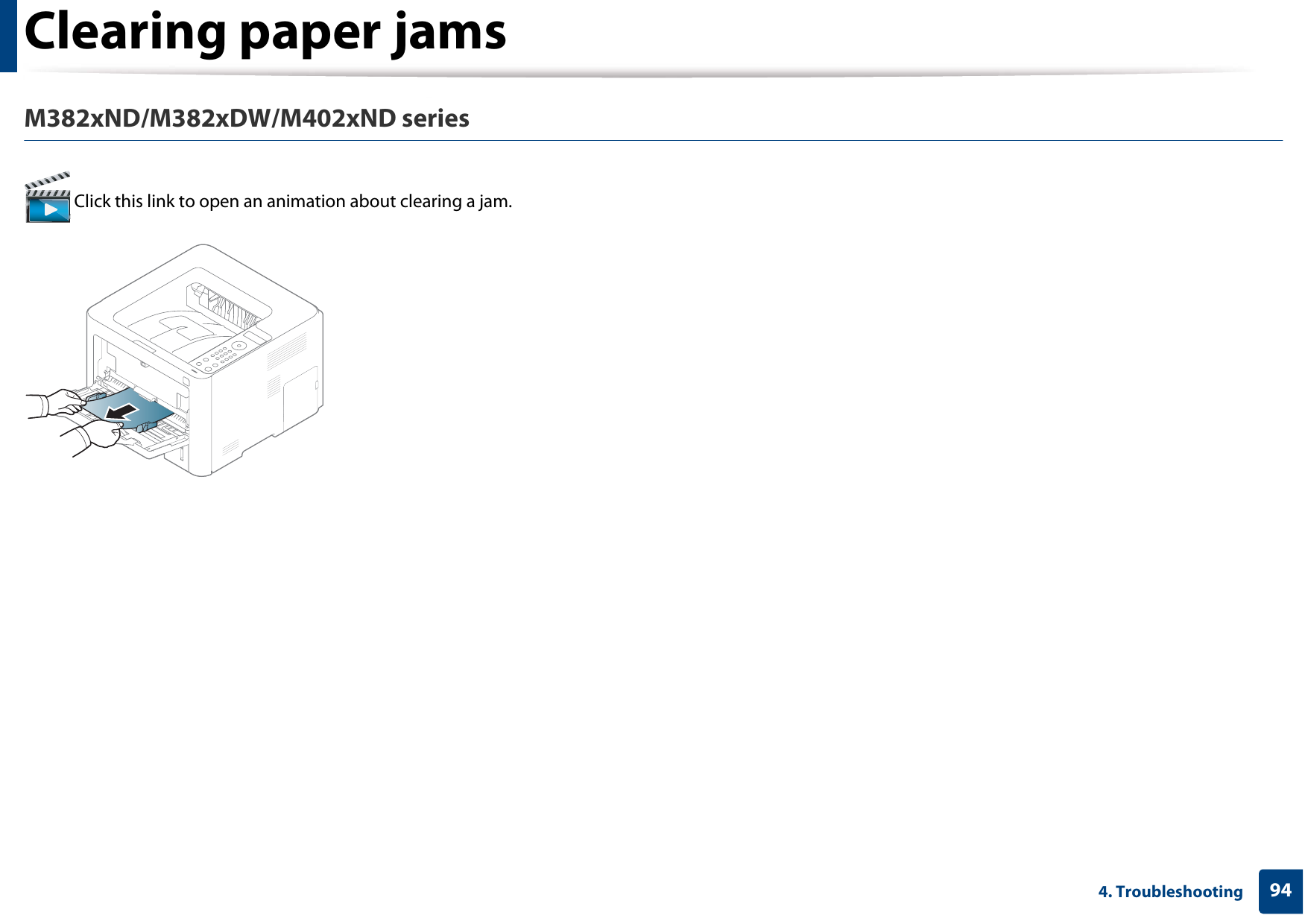

Clearing paper jams944. TroubleshootingM382xND/M382xDW/M402xND series Click this link to open an animation about clearing a jam.

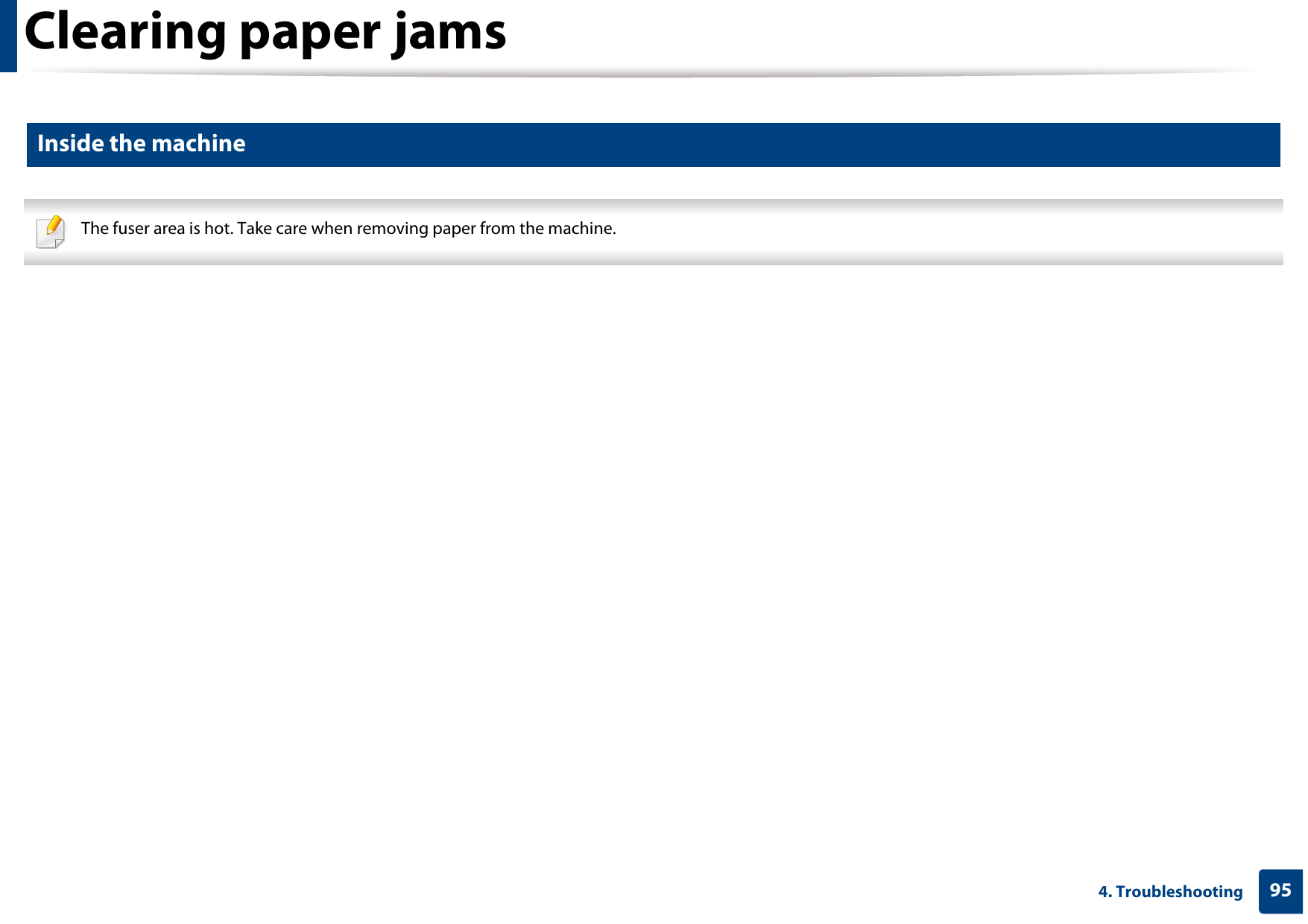

Clearing paper jams954. Troubleshooting4 Inside the machine The fuser area is hot. Take care when removing paper from the machine.

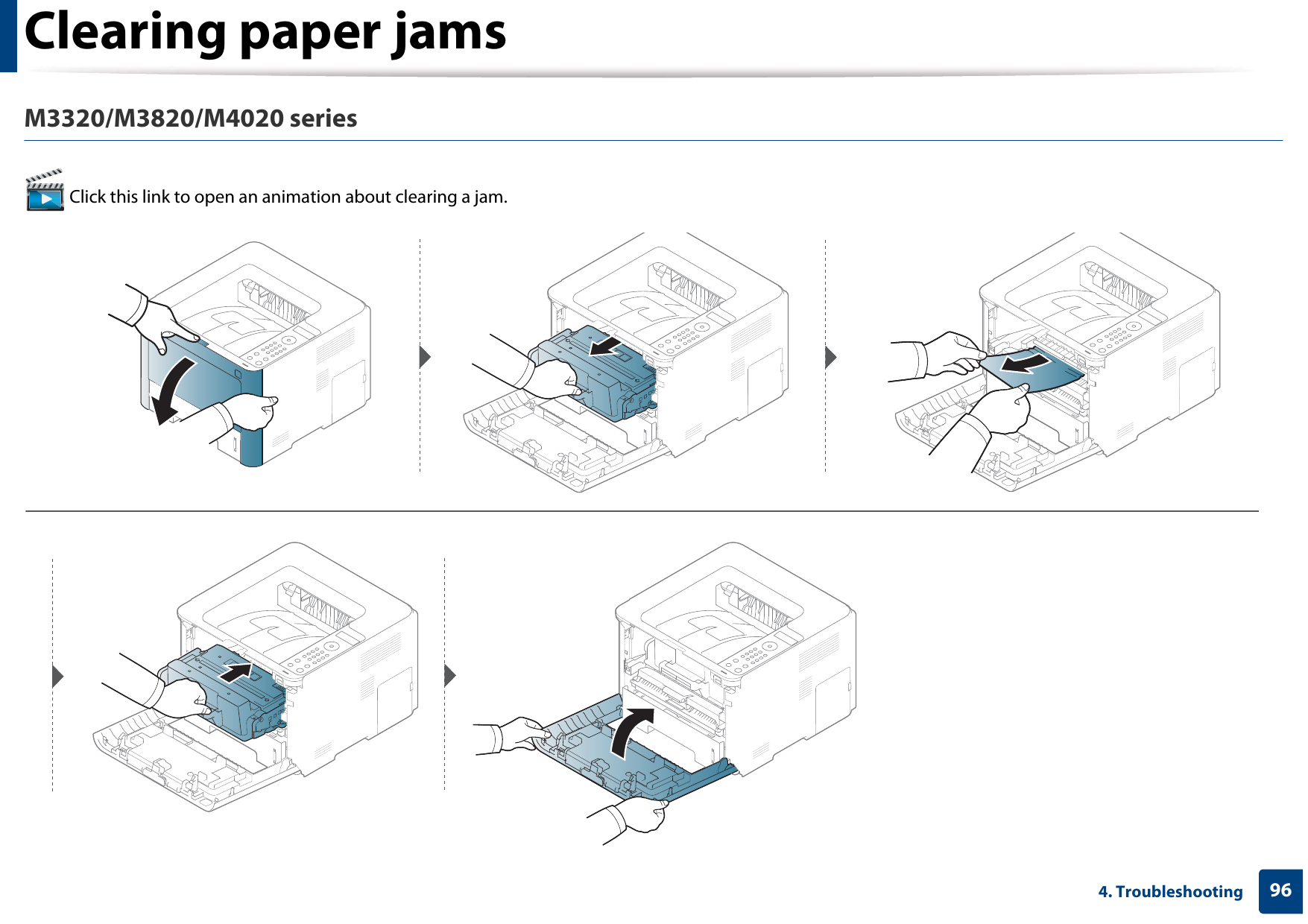

Clearing paper jams964. TroubleshootingM3320/M3820/M4020 series Click this link to open an animation about clearing a jam.

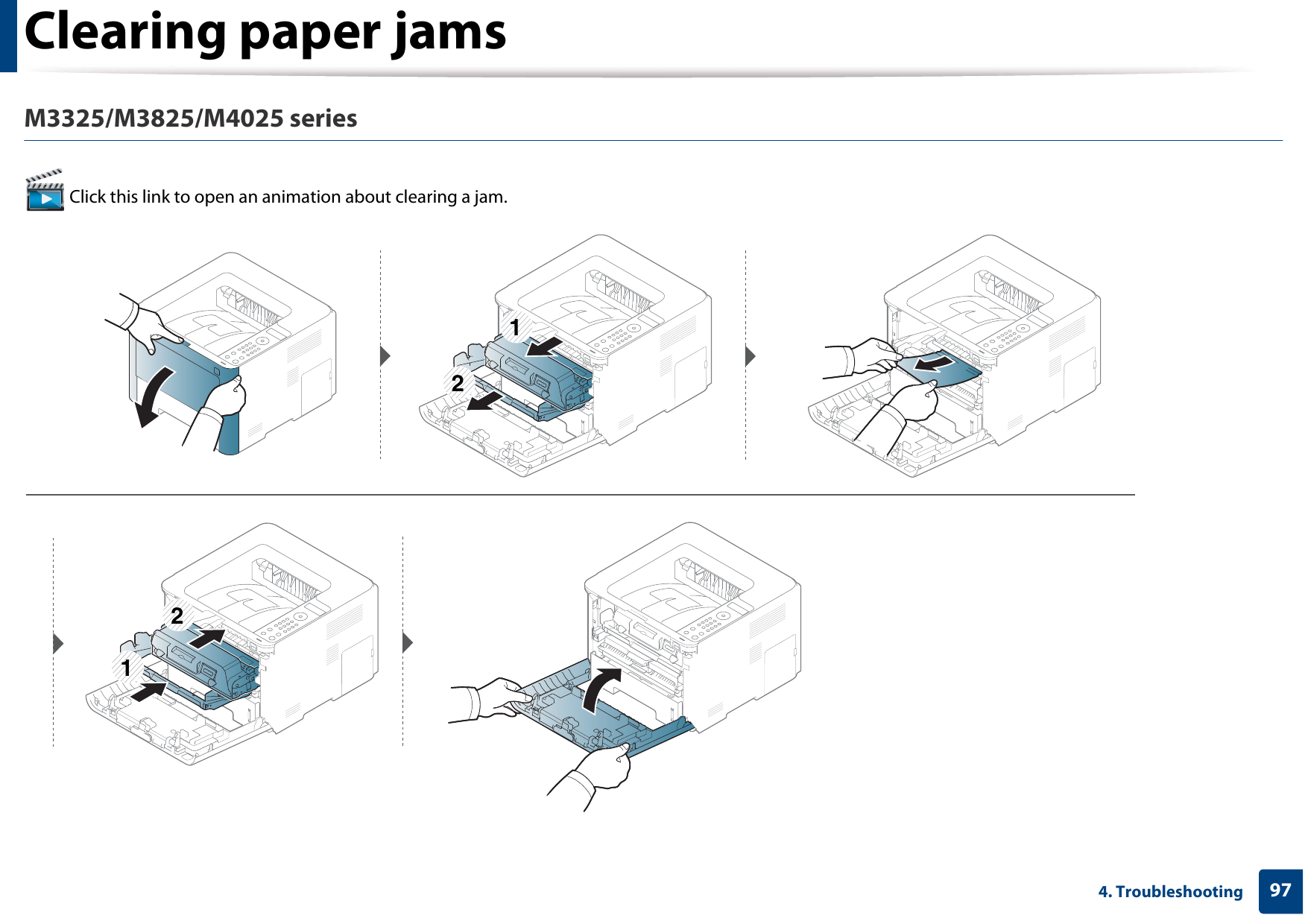

Clearing paper jams974. TroubleshootingM3325/M3825/M4025 series Click this link to open an animation about clearing a jam.1221

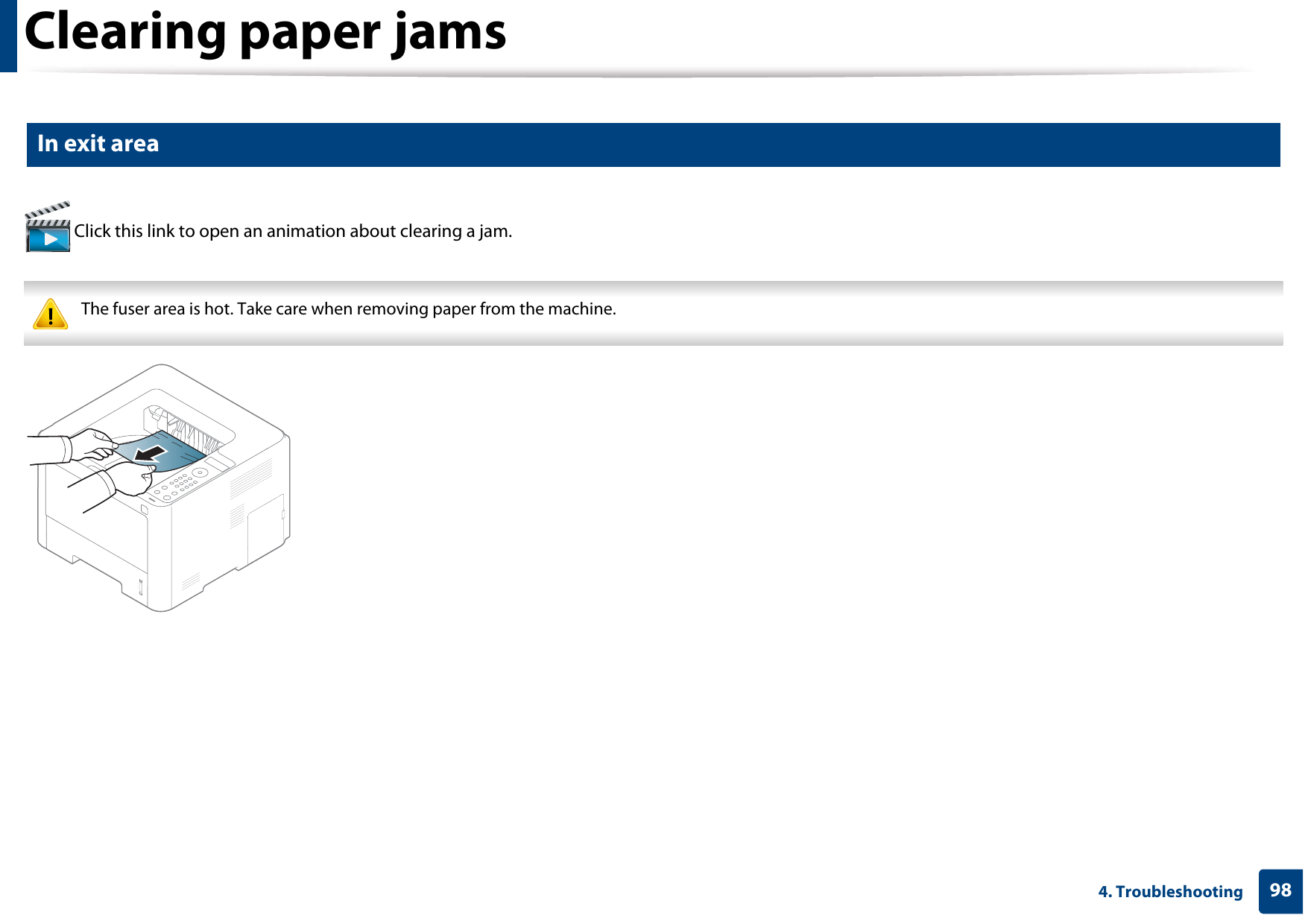

Clearing paper jams984. Troubleshooting5 In exit area Click this link to open an animation about clearing a jam. The fuser area is hot. Take care when removing paper from the machine.
Clearing paper jams994. TroubleshootingIf you do not see the paper in this area, stop and go to next step:

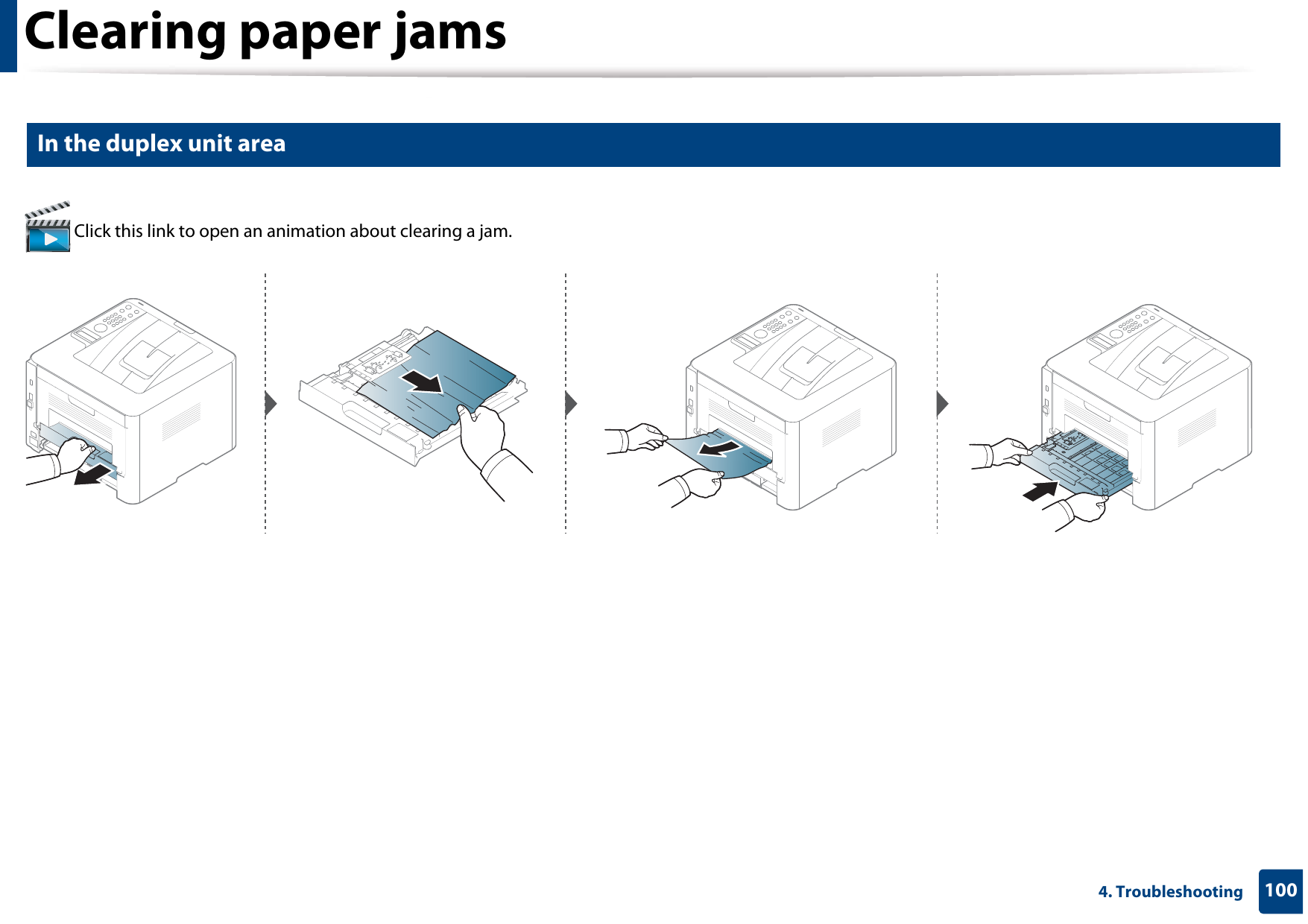

Clearing paper jams1004. Troubleshooting6 In the duplex unit area Click this link to open an animation about clearing a jam.

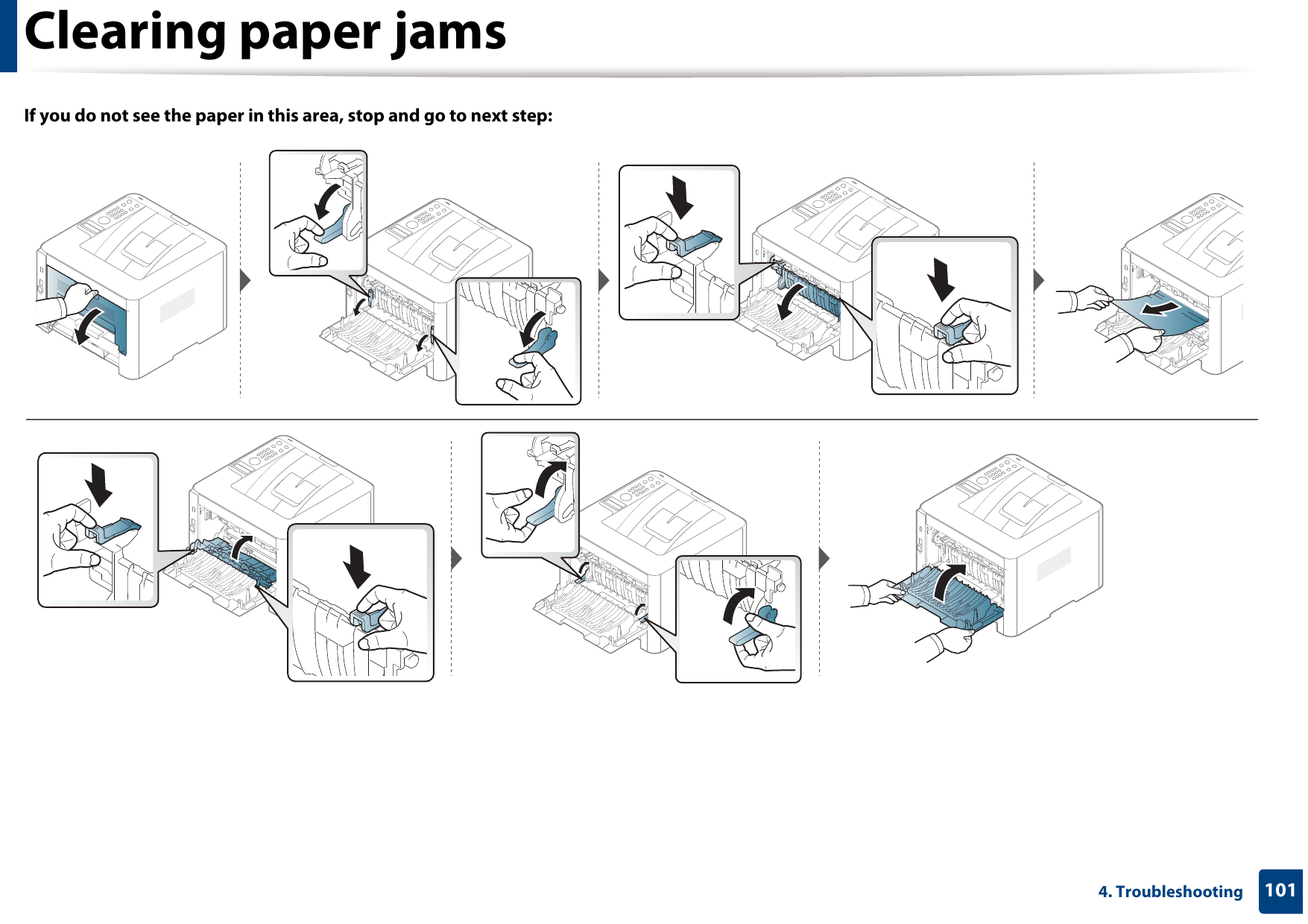

Clearing paper jams1014. TroubleshootingIf you do not see the paper in this area, stop and go to next step:

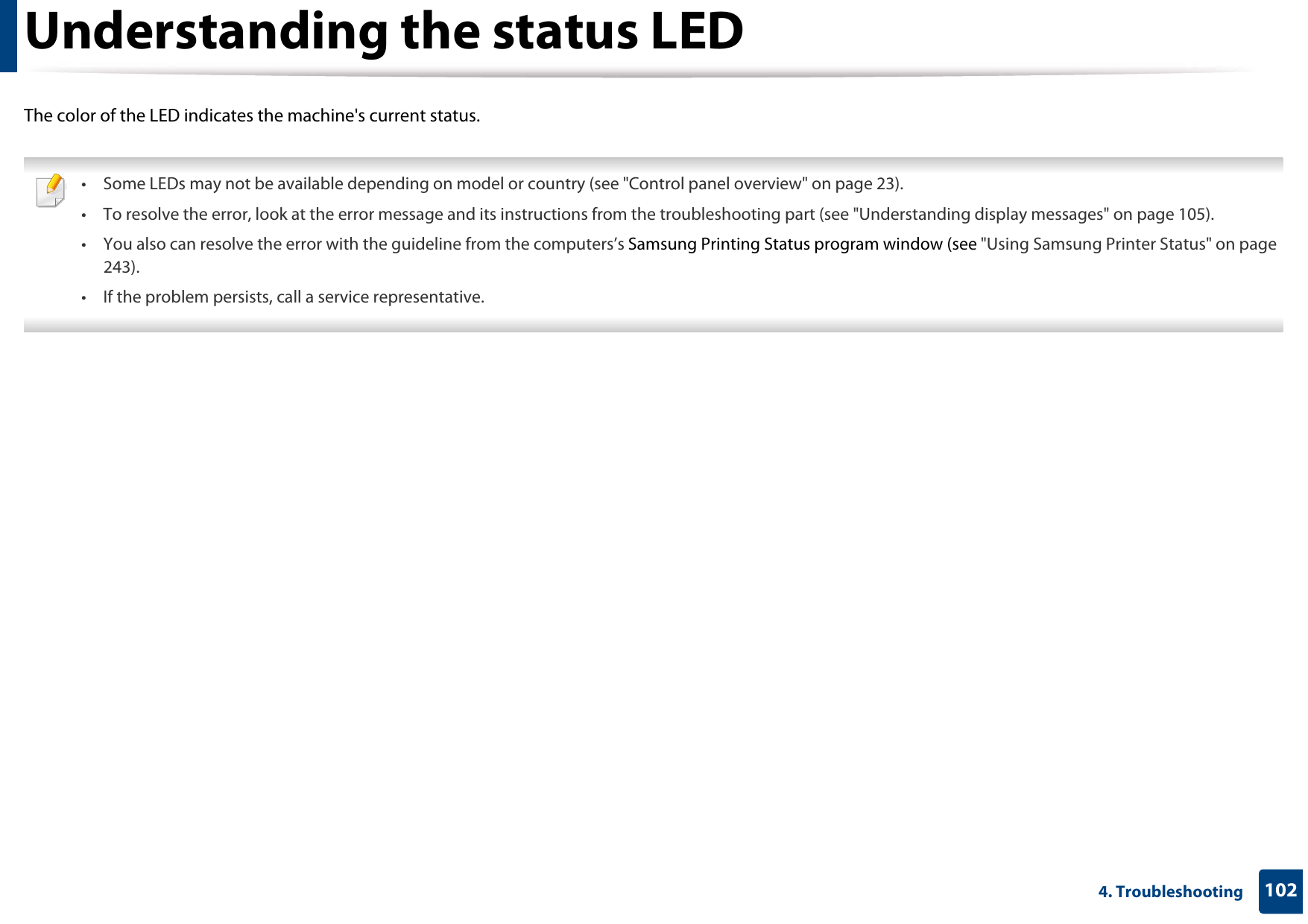

1024. TroubleshootingUnderstanding the status LEDThe color of the LED indicates the machine's current status. • Some LEDs may not be available depending on model or country (see "Control panel overview" on page 23).• To resolve the error, look at the error message and its instructions from the troubleshooting part (see "Understanding display messages" on page 105).• You also can resolve the error with the guideline from the computers’s Samsung Printing Status program window (see "Using Samsung Printer Status" on page 243).• If the problem persists, call a service representative.

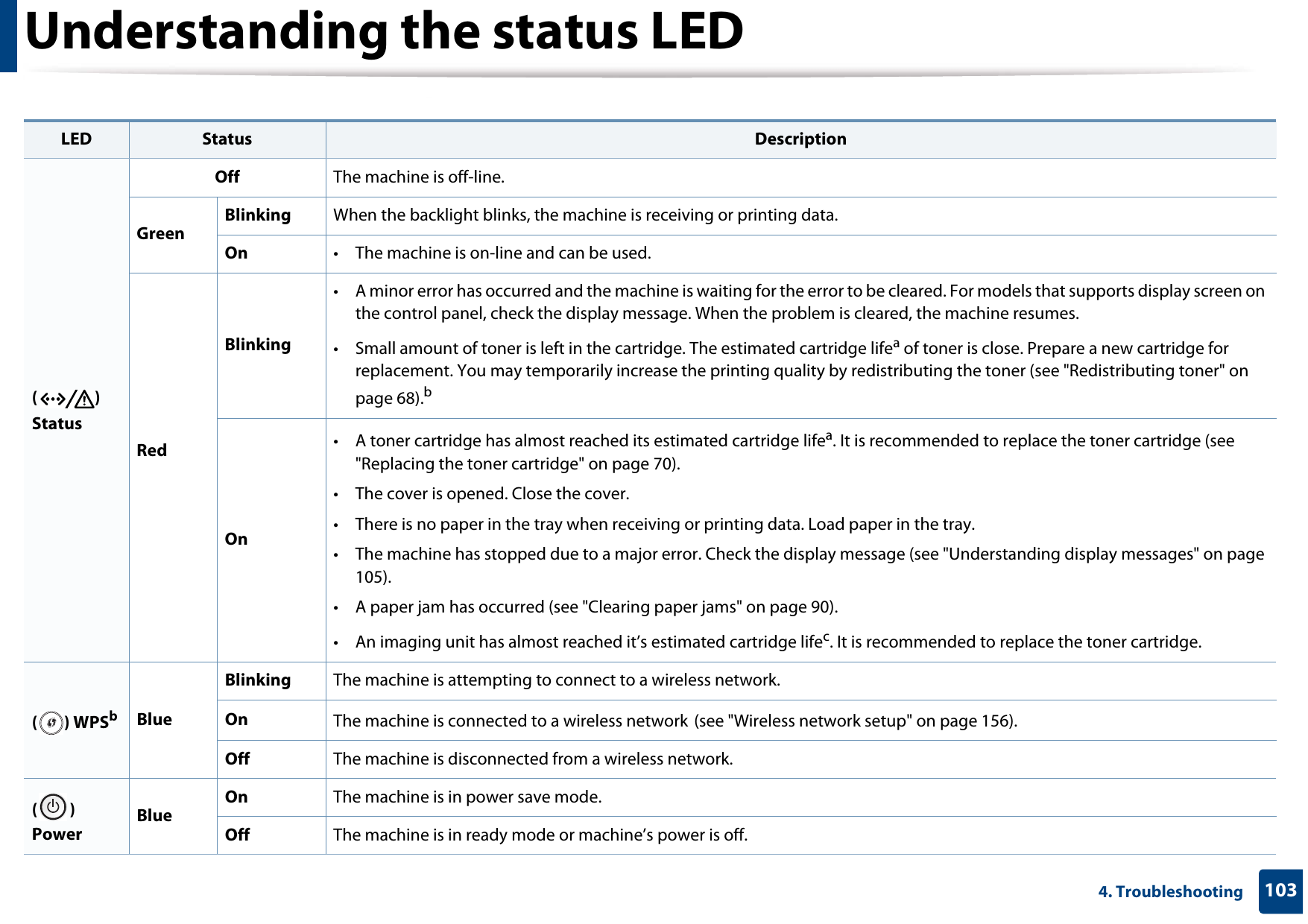

Understanding the status LED1034. Troubleshooting LED Status Description() StatusOff The machine is off-line.GreenBlinking When the backlight blinks, the machine is receiving or printing data.On • The machine is on-line and can be used.RedBlinking• A minor error has occurred and the machine is waiting for the error to be cleared. For models that supports display screen on the control panel, check the display message. When the problem is cleared, the machine resumes.• Small amount of toner is left in the cartridge. The estimated cartridge lifea of toner is close. Prepare a new cartridge for replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 68).bOn• A toner cartridge has almost reached its estimated cartridge lifea. It is recommended to replace the toner cartridge (see "Replacing the toner cartridge" on page 70).• The cover is opened. Close the cover.• There is no paper in the tray when receiving or printing data. Load paper in the tray. • The machine has stopped due to a major error. Check the display message (see "Understanding display messages" on page 105). • A paper jam has occurred (see "Clearing paper jams" on page 90).• An imaging unit has almost reached it’s estimated cartridge lifec. It is recommended to replace the toner cartridge.() WPSbBlueBlinking The machine is attempting to connect to a wireless network.On The machine is connected to a wireless network (see "Wireless network setup" on page 156).Off The machine is disconnected from a wireless network.() Power BlueOn The machine is in power save mode.Off The machine is in ready mode or machine’s power is off.

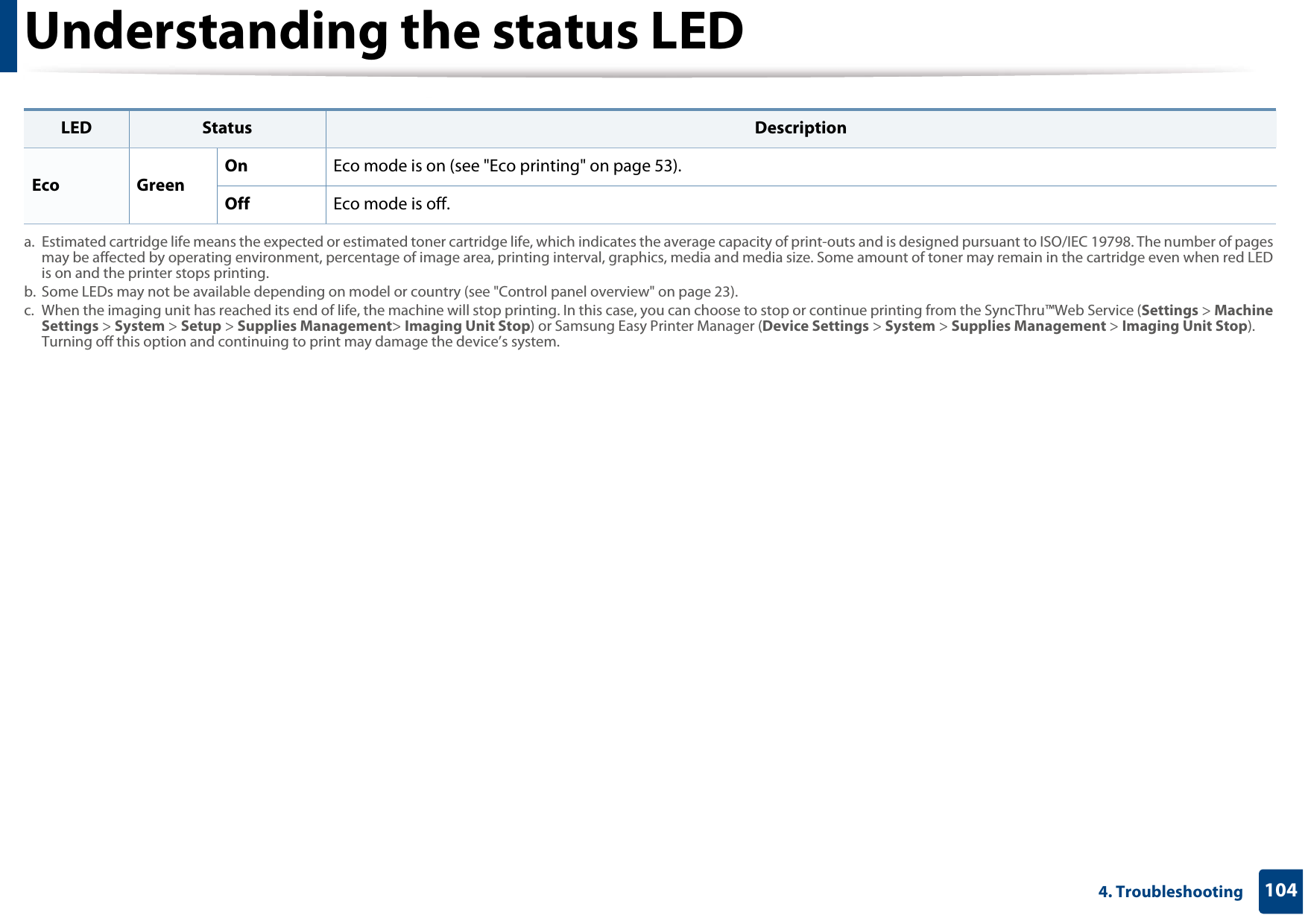

Understanding the status LED1044. Troubleshooting Eco GreenOn Eco mode is on (see "Eco printing" on page 53).Off Eco mode is off. a. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19798. The number of pages may be affected by operating environment, percentage of image area, printing interval, graphics, media and media size. Some amount of toner may remain in the cartridge even when red LED is on and the printer stops printing.b. Some LEDs may not be available depending on model or country (see "Control panel overview" on page 23).c. When the imaging unit has reached its end of life, the machine will stop printing. In this case, you can choose to stop or continue printing from the SyncThru™Web Service (Settings > Machine Settings > System > Setup > Supplies Management> Imaging Unit Stop) or Samsung Easy Printer Manager (Device Settings > System > Supplies Management > Imaging Unit Stop). Turning off this option and continuing to print may damage the device’s system.LED Status Description

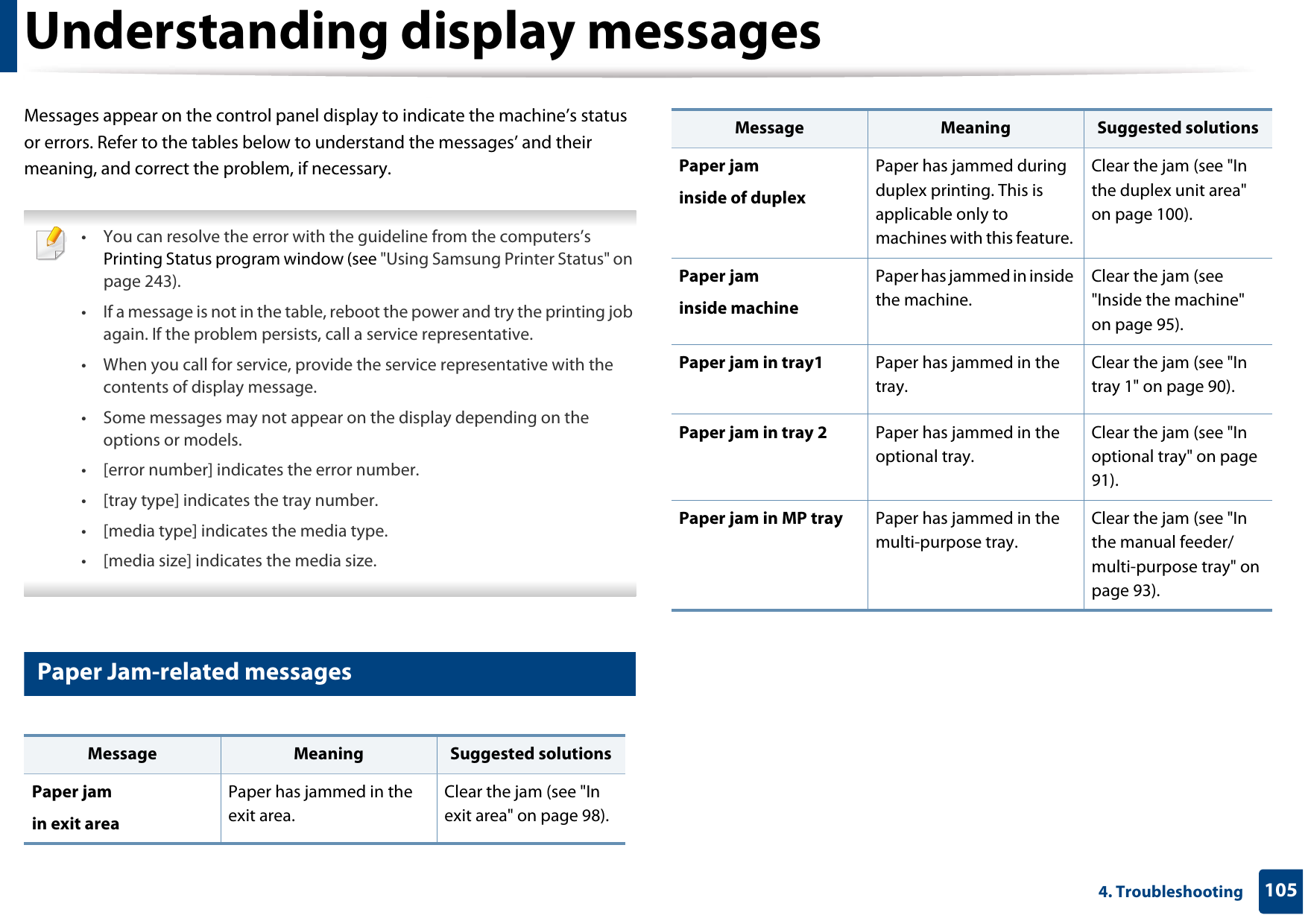

1054. TroubleshootingUnderstanding display messagesMessages appear on the control panel display to indicate the machine’s status or errors. Refer to the tables below to understand the messages’ and their meaning, and correct the problem, if necessary. • You can resolve the error with the guideline from the computers’s Printing Status program window (see "Using Samsung Printer Status" on page 243).• If a message is not in the table, reboot the power and try the printing job again. If the problem persists, call a service representative.• When you call for service, provide the service representative with the contents of display message.• Some messages may not appear on the display depending on the options or models.• [error number] indicates the error number. • [tray type] indicates the tray number. • [media type] indicates the media type.• [media size] indicates the media size. 7 Paper Jam-related messagesMessage Meaning Suggested solutionsPaper jam in exit areaPaper has jammed in the exit area.Clear the jam (see "In exit area" on page 98).Paper jam inside of duplexPaper has jammed during duplex printing. This is applicable only to machines with this feature. Clear the jam (see "In the duplex unit area" on page 100).Paper jaminside machinePaper has jammed in inside the machine.Clear the jam (see "Inside the machine" on page 95).Paper jam in tray1 Paper has jammed in the tray.Clear the jam (see "In tray 1" on page 90).Paper jam in tray 2 Paper has jammed in the optional tray.Clear the jam (see "In optional tray" on page 91).Paper jam in MP tray Paper has jammed in the multi-purpose tray.Clear the jam (see "In the manual feeder/multi-purpose tray" on page 93).Message Meaning Suggested solutions

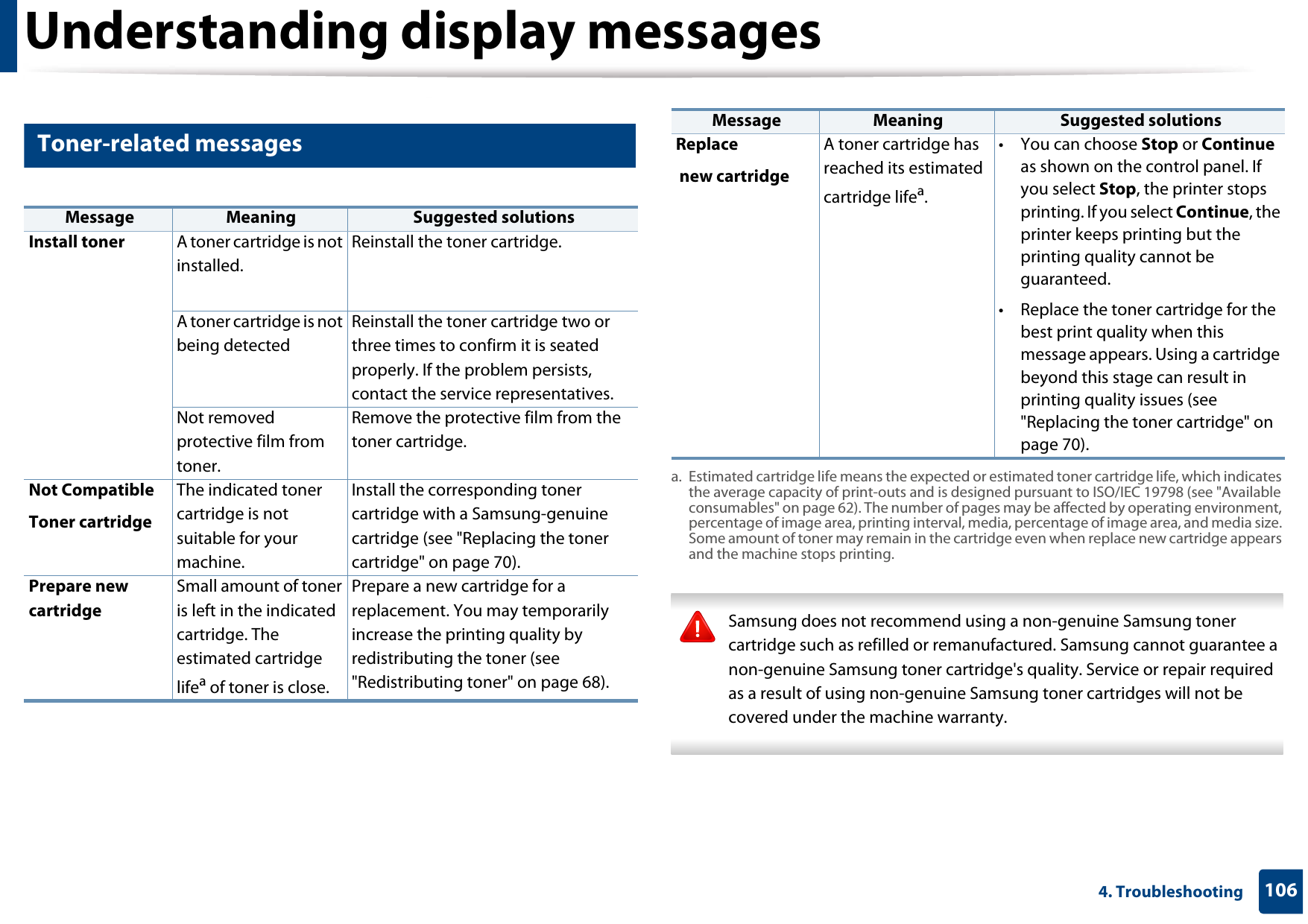

Understanding display messages1064. Troubleshooting8 Toner-related messages Samsung does not recommend using a non-genuine Samsung toner cartridge such as refilled or remanufactured. Samsung cannot guarantee a non-genuine Samsung toner cartridge's quality. Service or repair required as a result of using non-genuine Samsung toner cartridges will not be covered under the machine warranty. Message Meaning Suggested solutionsInstall toner A toner cartridge is not installed.Reinstall the toner cartridge.A toner cartridge is not being detectedReinstall the toner cartridge two or three times to confirm it is seated properly. If the problem persists, contact the service representatives.Not removed protective film from toner.Remove the protective film from the toner cartridge.Not CompatibleToner cartridgeThe indicated toner cartridge is not suitable for your machine.Install the corresponding toner cartridge with a Samsung-genuine cartridge (see "Replacing the toner cartridge" on page 70).Prepare new cartridgeSmall amount of toner is left in the indicated cartridge. The estimated cartridge lifea of toner is close.Prepare a new cartridge for a replacement. You may temporarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 68).Replace new cartridgeA toner cartridge has reached its estimated cartridge lifea. • You can choose Stop or Continue as shown on the control panel. If you select Stop, the printer stops printing. If you select Continue, the printer keeps printing but the printing quality cannot be guaranteed.• Replace the toner cartridge for the best print quality when this message appears. Using a cartridge beyond this stage can result in printing quality issues (see "Replacing the toner cartridge" on page 70).a. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 19798 (see "Available consumables" on page 62). The number of pages may be affected by operating environment, percentage of image area, printing interval, media, percentage of image area, and media size. Some amount of toner may remain in the cartridge even when replace new cartridge appears and the machine stops printing.Message Meaning Suggested solutions

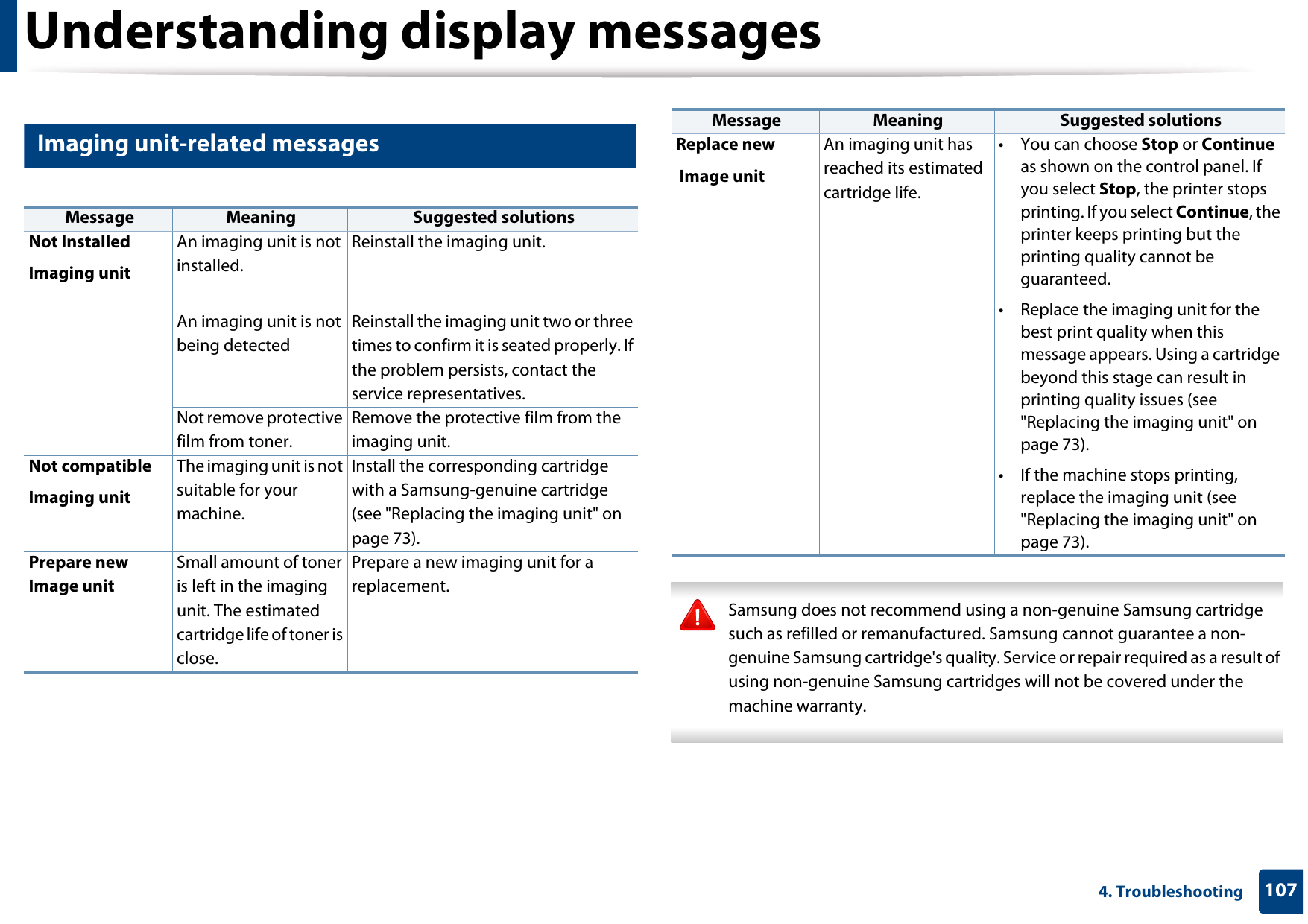

Understanding display messages1074. Troubleshooting9 Imaging unit-related messages Samsung does not recommend using a non-genuine Samsung cartridge such as refilled or remanufactured. Samsung cannot guarantee a non-genuine Samsung cartridge's quality. Service or repair required as a result of using non-genuine Samsung cartridges will not be covered under the machine warranty. Message Meaning Suggested solutionsNot InstalledImaging unitAn imaging unit is not installed.Reinstall the imaging unit.An imaging unit is not being detectedReinstall the imaging unit two or three times to confirm it is seated properly. If the problem persists, contact the service representatives.Not remove protective film from toner.Remove the protective film from the imaging unit.Not compatibleImaging unitThe imaging unit is not suitable for your machine.Install the corresponding cartridge with a Samsung-genuine cartridge (see "Replacing the imaging unit" on page 73).Prepare new Image unitSmall amount of toner is left in the imaging unit. The estimated cartridge life of toner is close.Prepare a new imaging unit for a replacement. Replace new Image unitAn imaging unit has reached its estimated cartridge life.• You can choose Stop or Continue as shown on the control panel. If you select Stop, the printer stops printing. If you select Continue, the printer keeps printing but the printing quality cannot be guaranteed.• Replace the imaging unit for the best print quality when this message appears. Using a cartridge beyond this stage can result in printing quality issues (see "Replacing the imaging unit" on page 73).• If the machine stops printing, replace the imaging unit (see "Replacing the imaging unit" on page 73).Message Meaning Suggested solutions

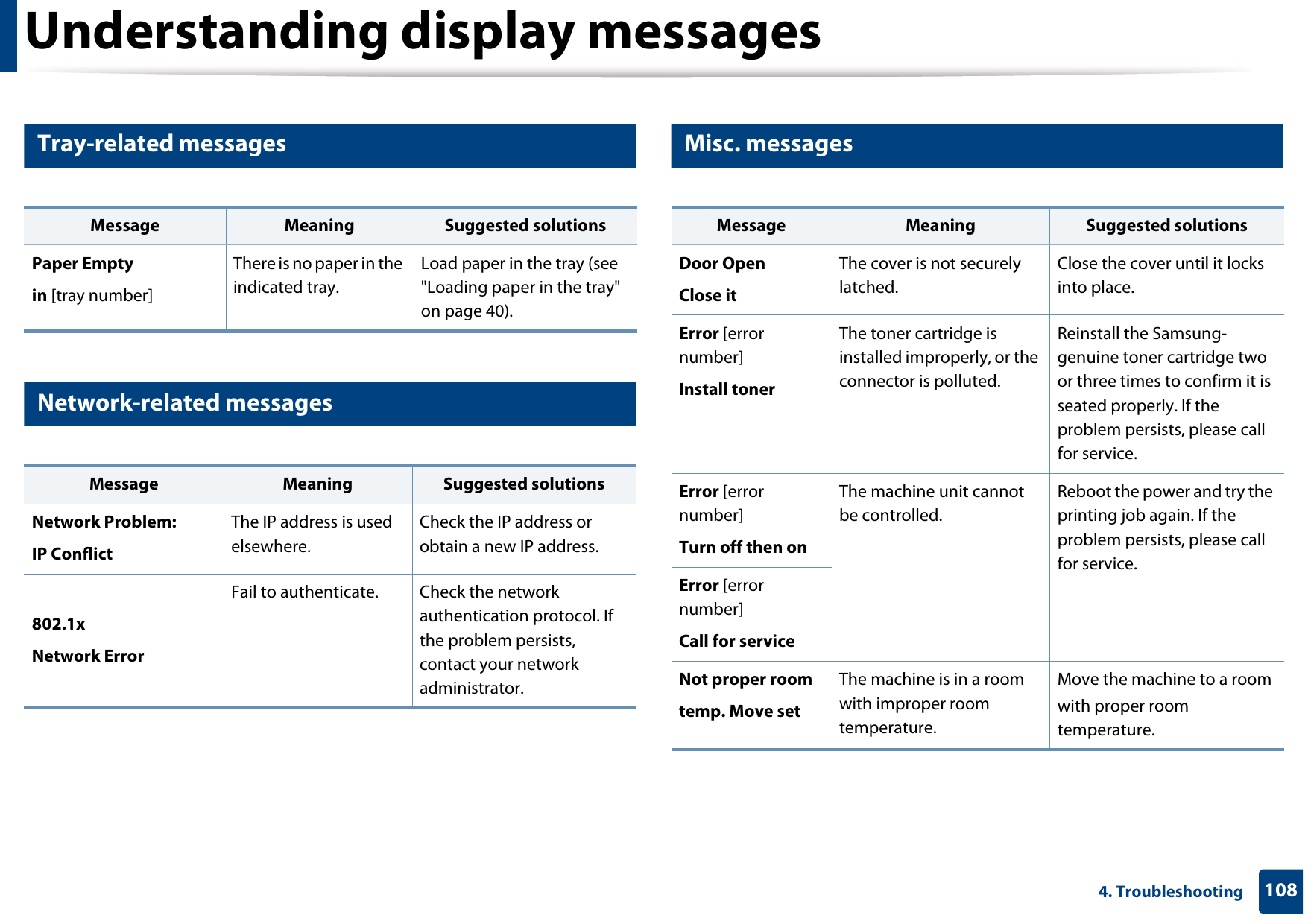

Understanding display messages1084. Troubleshooting10 Tray-related messages11 Network-related messages12 Misc. messagesMessage Meaning Suggested solutionsPaper Emptyin [tray number] There is no paper in the indicated tray.Load paper in the tray (see "Loading paper in the tray" on page 40).Message Meaning Suggested solutionsNetwork Problem:IP ConflictThe IP address is used elsewhere. Check the IP address or obtain a new IP address.802.1x Network ErrorFail to authenticate. Check the network authentication protocol. If the problem persists, contact your network administrator.Message Meaning Suggested solutionsDoor OpenClose itThe cover is not securely latched.Close the cover until it locks into place. Error [error number]Install tonerThe toner cartridge is installed improperly, or the connector is polluted.Reinstall the Samsung-genuine toner cartridge two or three times to confirm it is seated properly. If the problem persists, please call for service. Error [error number]Turn off then onThe machine unit cannot be controlled.Reboot the power and try the printing job again. If the problem persists, please call for service. Error [error number]Call for serviceNot proper roomtemp. Move setThe machine is in a room with improper room temperature. Move the machine to a room with proper room temperature.

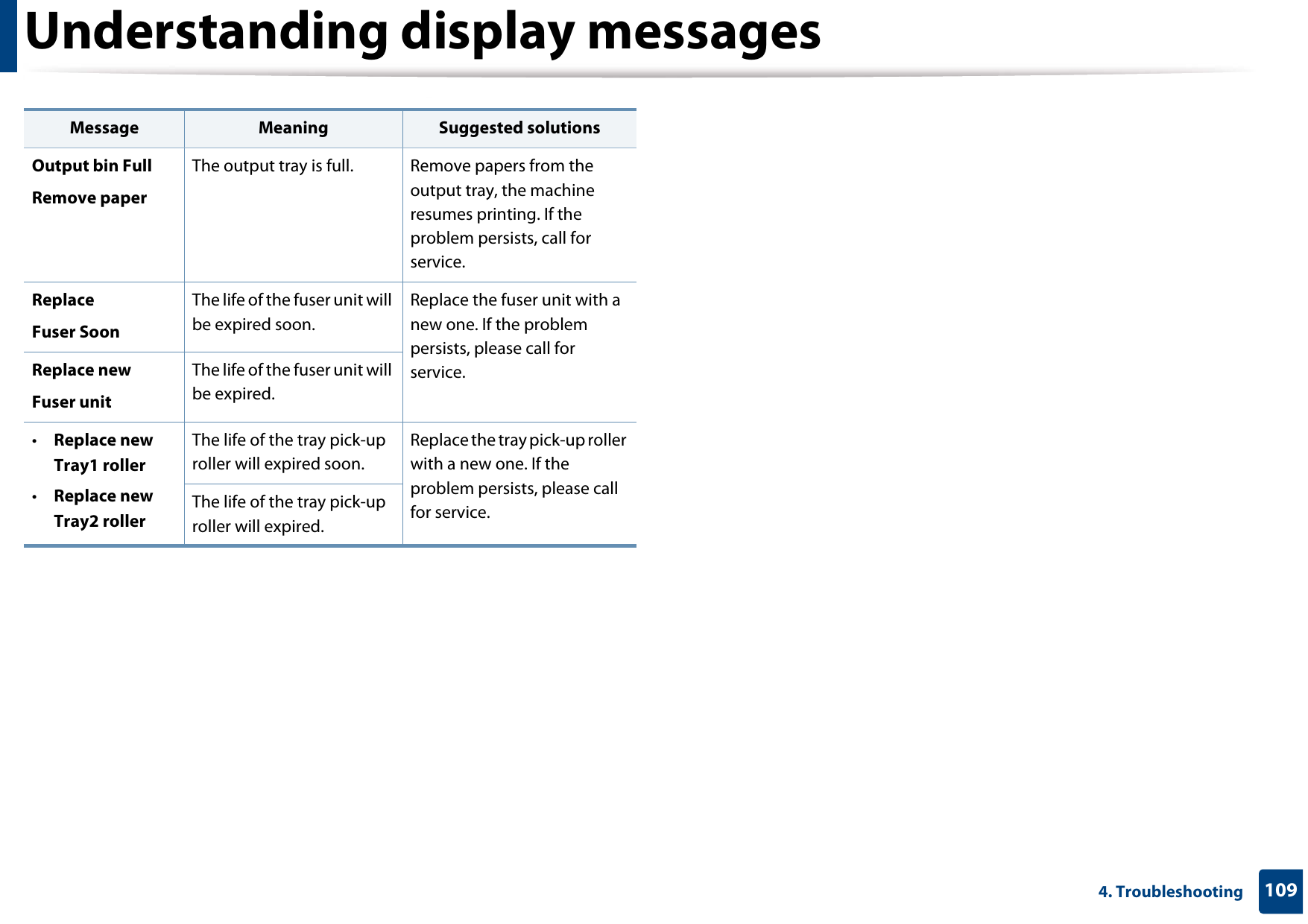

Understanding display messages1094. TroubleshootingOutput bin FullRemove paperThe output tray is full. Remove papers from the output tray, the machine resumes printing. If the problem persists, call for service.Replace Fuser SoonThe life of the fuser unit will be expired soon.Replace the fuser unit with a new one. If the problem persists, please call for service. Replace newFuser unitThe life of the fuser unit will be expired.•Replace newTray1 roller•Replace newTray2 rollerThe life of the tray pick-up roller will expired soon.Replace the tray pick-up roller with a new one. If the problem persists, please call for service. The life of the tray pick-up roller will expired.Message Meaning Suggested solutions

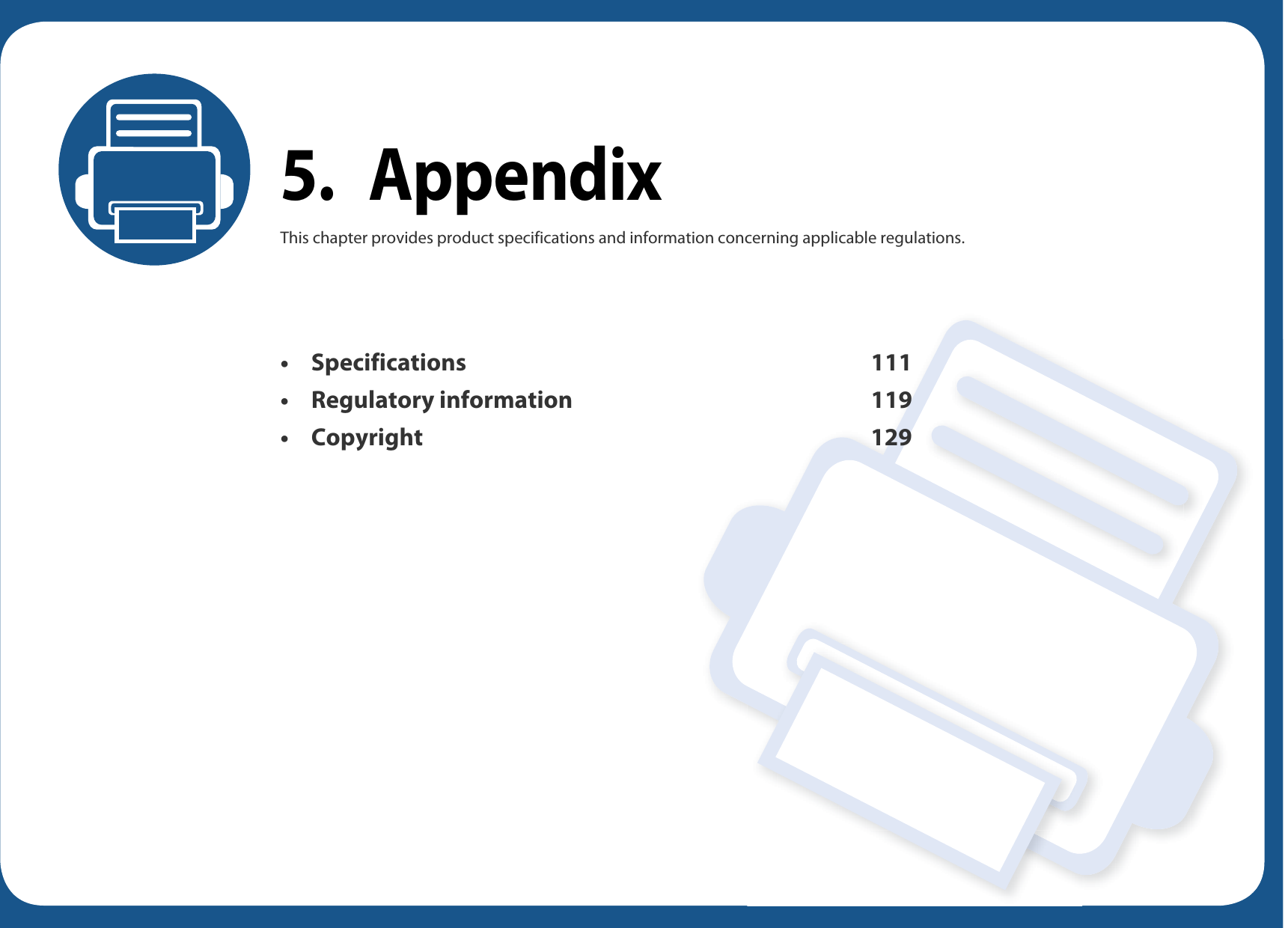

5. AppendixThis chapter provides product specifications and information concerning applicable regulations.• Specifications 111• Regulatory information 119• Copyright 129

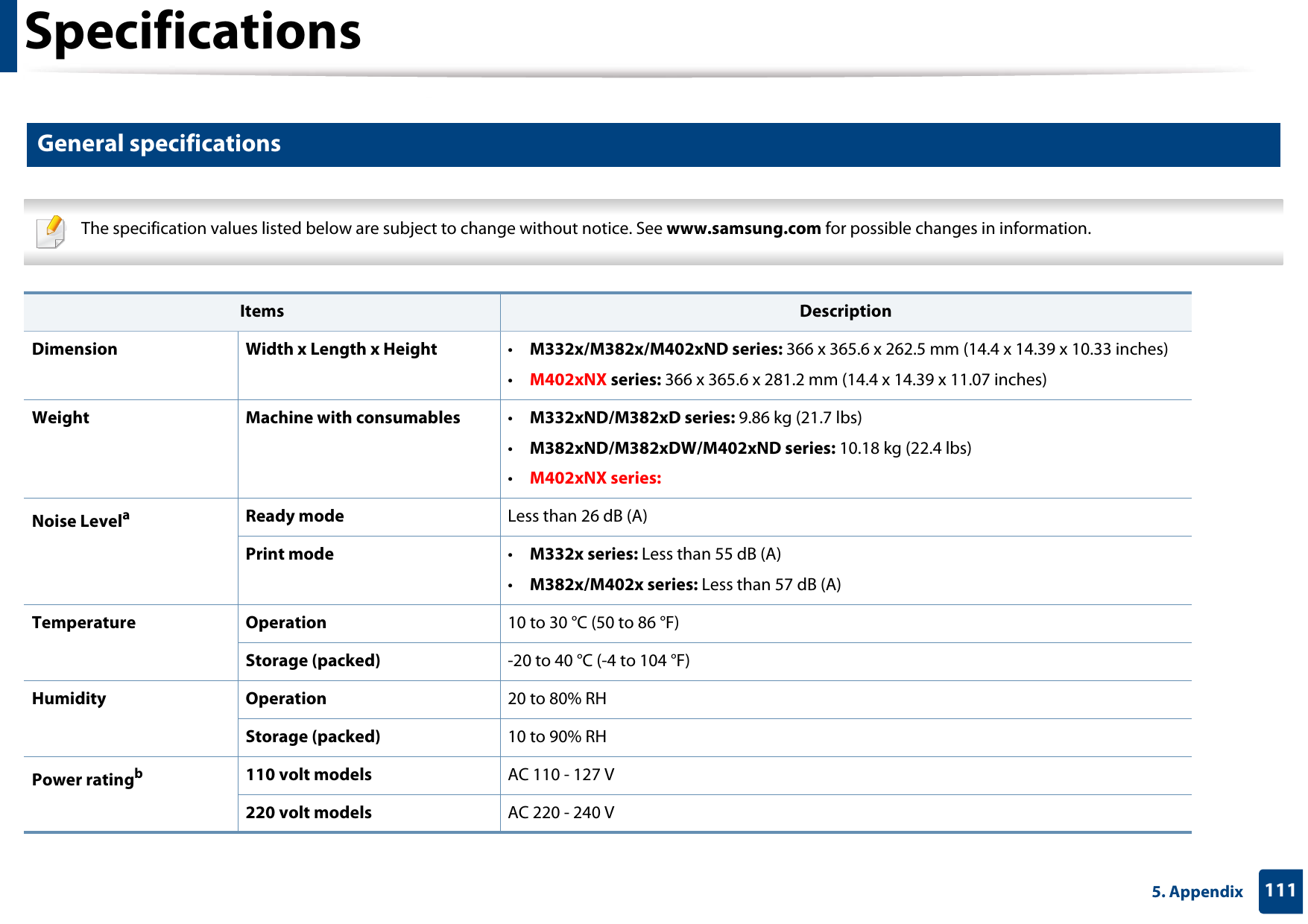

1115. AppendixSpecifications1 General specifications The specification values listed below are subject to change without notice. See www.samsung.com for possible changes in information. Items DescriptionDimension Width x Length x Height •M332x/M382x/M402xND series: 366 x 365.6 x 262.5 mm (14.4 x 14.39 x 10.33 inches) •M402xNX series: 366 x 365.6 x 281.2 mm (14.4 x 14.39 x 11.07 inches) Weight Machine with consumables •M332xND/M382xD series: 9.86 kg (21.7 lbs)•M382xND/M382xDW/M402xND series: 10.18 kg (22.4 lbs)•M402xNX series: Noise LevelaReady mode Less than 26 dB (A)Print mode •M332x series: Less than 55 dB (A)•M382x/M402x series: Less than 57 dB (A)Temperature Operation 10 to 30 °C (50 to 86 °F)Storage (packed) -20 to 40 °C (-4 to 104 °F)Humidity Operation 20 to 80% RHStorage (packed) 10 to 90% RHPower ratingb110 volt models AC 110 - 127 V220 volt models AC 220 - 240 V

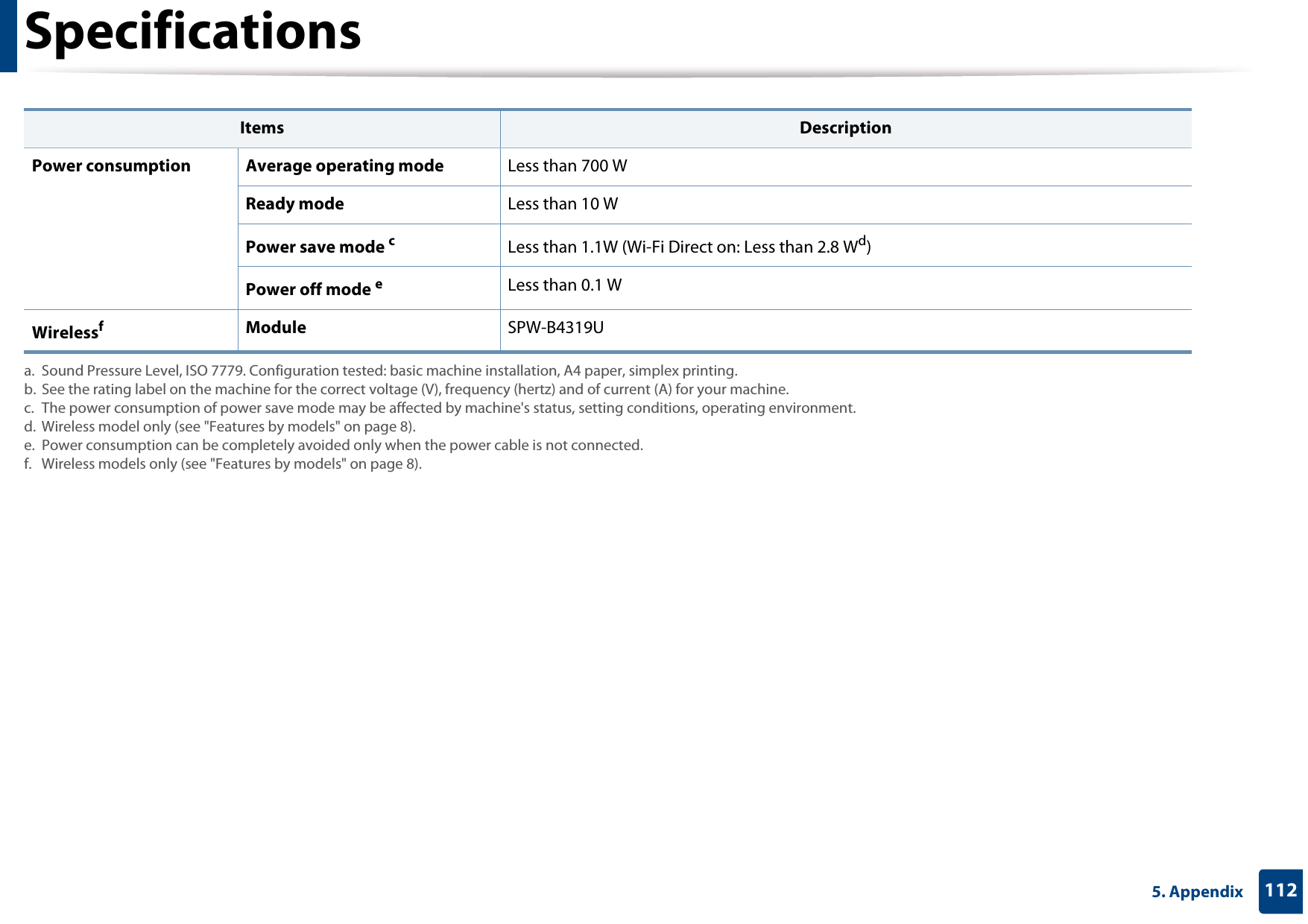

Specifications1125. Appendix Power consumption Average operating mode Less than 700 WReady mode Less than 10 WPower save mode cLess than 1.1W (Wi-Fi Direct on: Less than 2.8 Wd)Power off mode eLess than 0.1 WWirelessfModule SPW-B4319Ua. Sound Pressure Level, ISO 7779. Configuration tested: basic machine installation, A4 paper, simplex printing.b. See the rating label on the machine for the correct voltage (V), frequency (hertz) and of current (A) for your machine.c. The power consumption of power save mode may be affected by machine's status, setting conditions, operating environment.d. Wireless model only (see "Features by models" on page 8).e. Power consumption can be completely avoided only when the power cable is not connected.f. Wireless models only (see "Features by models" on page 8).Items Description

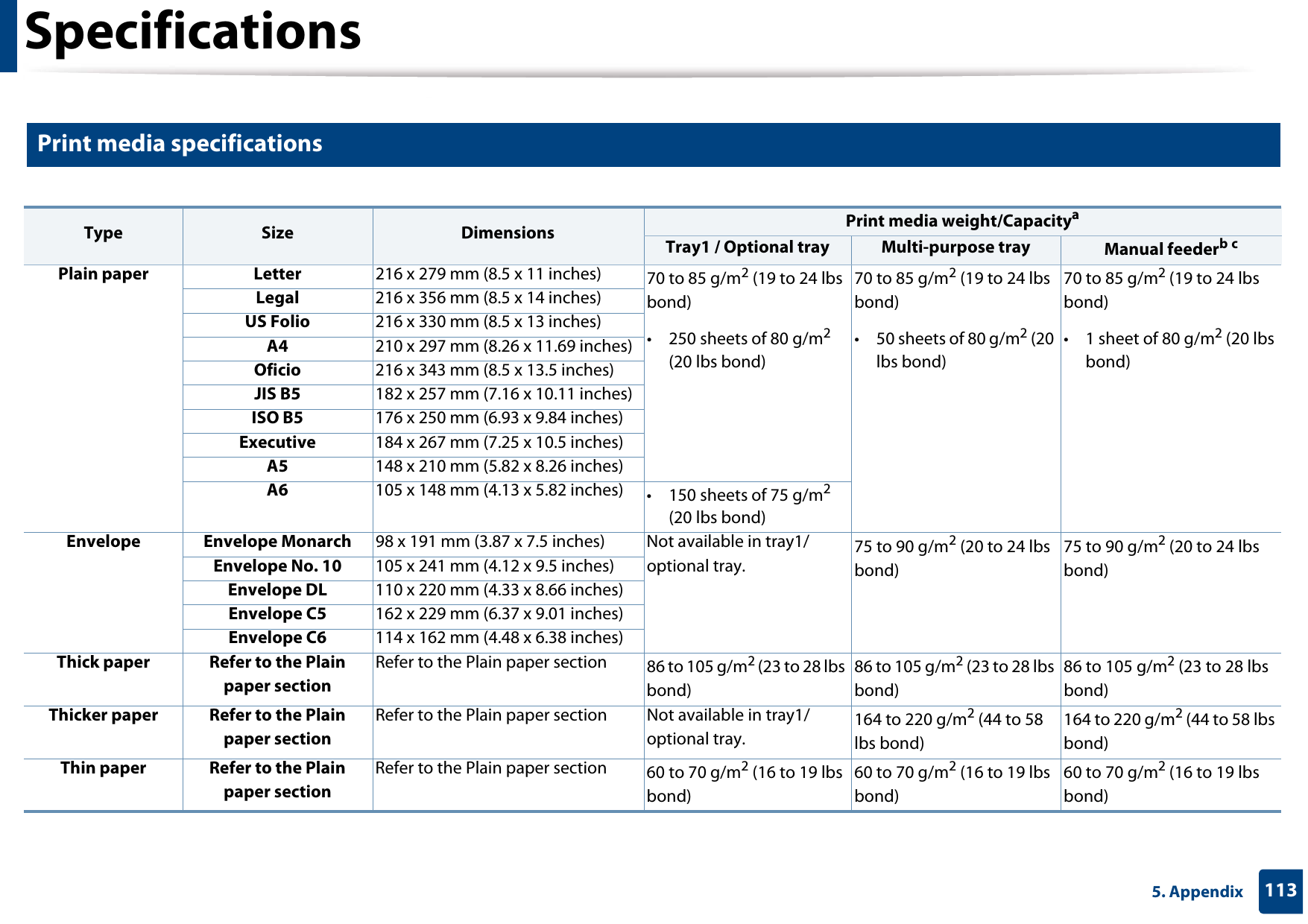

Specifications1135. Appendix2 Print media specifications Type Size Dimensions Print media weight/CapacityaTray1 / Optional tray Multi-purpose tray Manual feederb cPlain paper Letter 216 x 279 mm (8.5 x 11 inches) 70 to 85 g/m2 (19 to 24 lbs bond) • 250 sheets of 80 g/m2 (20 lbs bond)70 to 85 g/m2 (19 to 24 lbs bond)• 50 sheets of 80 g/m2 (20 lbs bond)70 to 85 g/m2 (19 to 24 lbs bond)• 1 sheet of 80 g/m2 (20 lbs bond)Legal 216 x 356 mm (8.5 x 14 inches)US Folio 216 x 330 mm (8.5 x 13 inches)A4 210 x 297 mm (8.26 x 11.69 inches)Oficio 216 x 343 mm (8.5 x 13.5 inches)JIS B5 182 x 257 mm (7.16 x 10.11 inches)ISO B5 176 x 250 mm (6.93 x 9.84 inches) Executive 184 x 267 mm (7.25 x 10.5 inches)A5 148 x 210 mm (5.82 x 8.26 inches)A6 105 x 148 mm (4.13 x 5.82 inches) • 150 sheets of 75 g/m2 (20 lbs bond)Envelope Envelope Monarch 98 x 191 mm (3.87 x 7.5 inches) Not available in tray1/optional tray.75 to 90 g/m2 (20 to 24 lbs bond)75 to 90 g/m2 (20 to 24 lbs bond)Envelope No. 10 105 x 241 mm (4.12 x 9.5 inches)Envelope DL 110 x 220 mm (4.33 x 8.66 inches)Envelope C5 162 x 229 mm (6.37 x 9.01 inches)Envelope C6 114 x 162 mm (4.48 x 6.38 inches)Thick paper Refer to the Plain paper section Refer to the Plain paper section 86 to 105 g/m2 (23 to 28 lbs bond)86 to 105 g/m2 (23 to 28 lbs bond)86 to 105 g/m2 (23 to 28 lbs bond)Thicker paper Refer to the Plain paper section Refer to the Plain paper section Not available in tray1/optional tray.164 to 220 g/m2 (44 to 58 lbs bond)164 to 220 g/m2 (44 to 58 lbs bond)Thin paper Refer to the Plain paper section Refer to the Plain paper section 60 to 70 g/m2 (16 to 19 lbs bond)60 to 70 g/m2 (16 to 19 lbs bond)60 to 70 g/m2 (16 to 19 lbs bond)

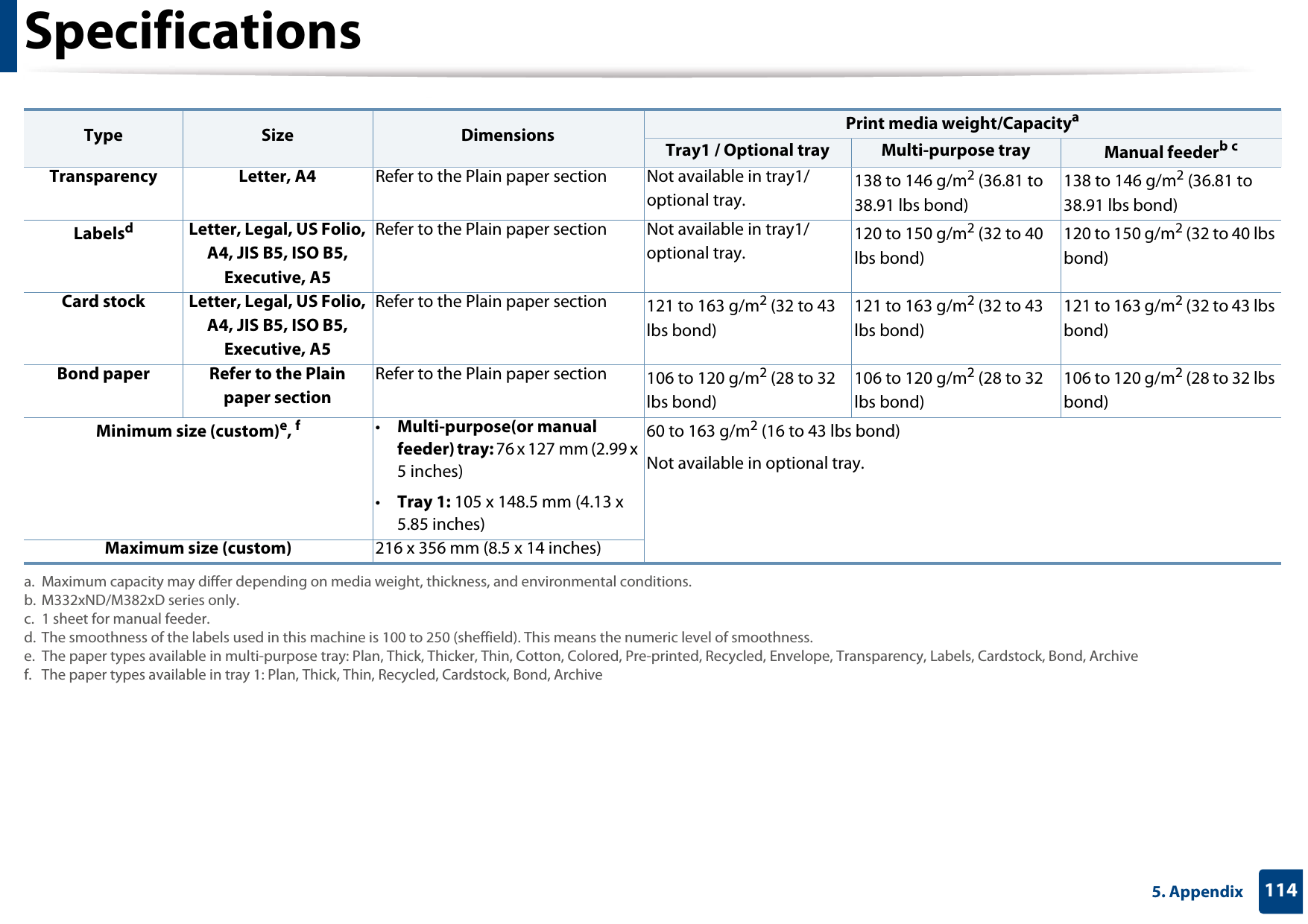

Specifications1145. Appendix Transparency Letter, A4 Refer to the Plain paper section Not available in tray1/optional tray.138 to 146 g/m2 (36.81 to 38.91 lbs bond)138 to 146 g/m2 (36.81 to 38.91 lbs bond)LabelsdLetter, Legal, US Folio, A4, JIS B5, ISO B5, Executive, A5Refer to the Plain paper section Not available in tray1/optional tray.120 to 150 g/m2 (32 to 40 lbs bond)120 to 150 g/m2 (32 to 40 lbs bond)Card stock Letter, Legal, US Folio, A4, JIS B5, ISO B5, Executive, A5Refer to the Plain paper section 121 to 163 g/m2 (32 to 43 lbs bond)121 to 163 g/m2 (32 to 43 lbs bond)121 to 163 g/m2 (32 to 43 lbs bond)Bond paper Refer to the Plain paper section Refer to the Plain paper section 106 to 120 g/m2 (28 to 32 lbs bond)106 to 120 g/m2 (28 to 32 lbs bond)106 to 120 g/m2 (28 to 32 lbs bond)Minimum size (custom)e, f•Multi-purpose(or manual feeder) tray: 76 x 127 mm (2.99 x 5 inches)•Tray 1: 105 x 148.5 mm (4.13 x 5.85 inches)60 to 163 g/m2 (16 to 43 lbs bond) Not available in optional tray.Maximum size (custom) 216 x 356 mm (8.5 x 14 inches)a. Maximum capacity may differ depending on media weight, thickness, and environmental conditions. b. M332xND/M382xD series only.c. 1 sheet for manual feeder.d. The smoothness of the labels used in this machine is 100 to 250 (sheffield). This means the numeric level of smoothness.e. The paper types available in multi-purpose tray: Plan, Thick, Thicker, Thin, Cotton, Colored, Pre-printed, Recycled, Envelope, Transparency, Labels, Cardstock, Bond, Archivef. The paper types available in tray 1: Plan, Thick, Thin, Recycled, Cardstock, Bond, ArchiveType Size Dimensions Print media weight/CapacityaTray1 / Optional tray Multi-purpose tray Manual feederb c

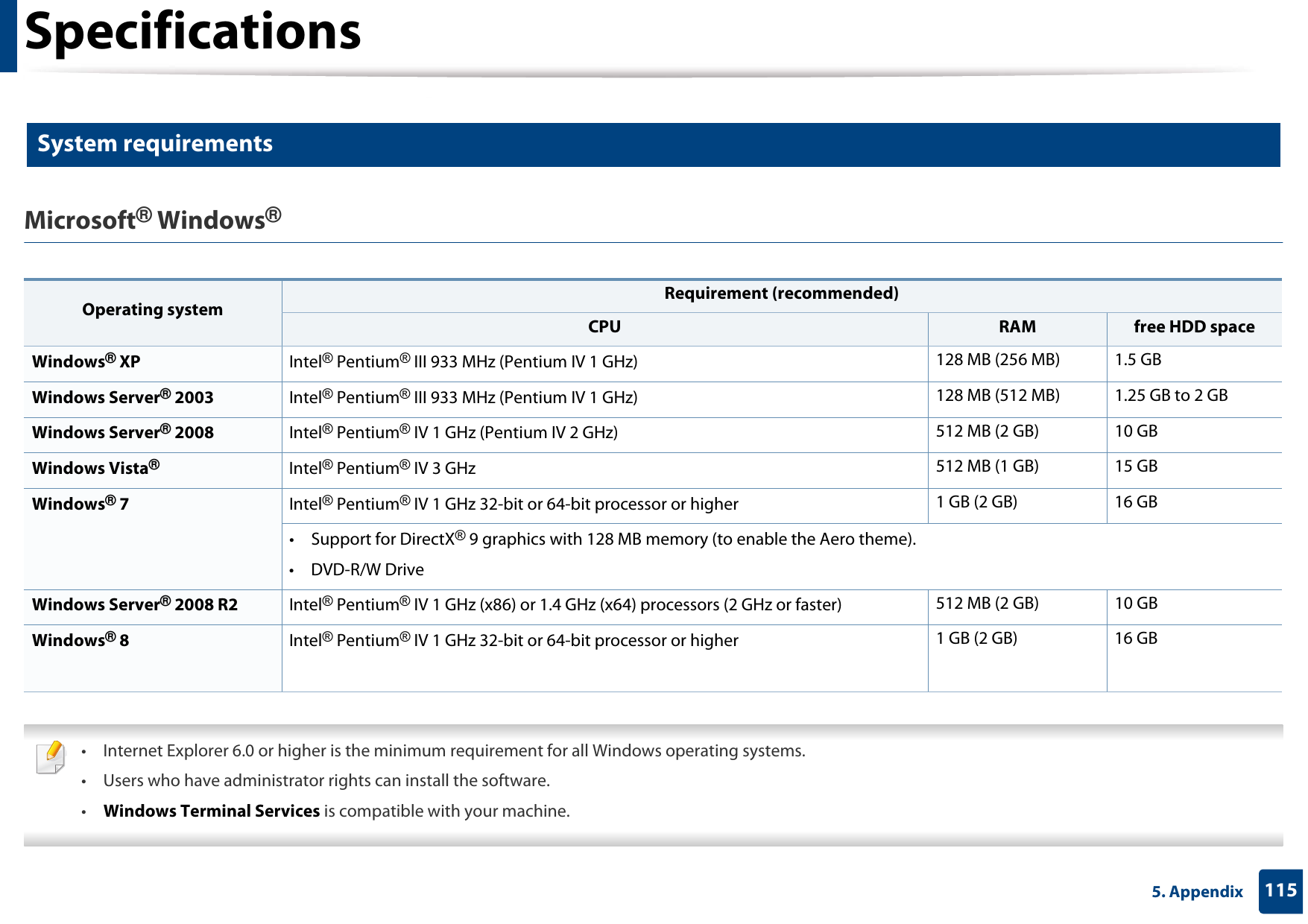

Specifications1155. Appendix3 System requirementsMicrosoft® Windows® • Internet Explorer 6.0 or higher is the minimum requirement for all Windows operating systems.• Users who have administrator rights can install the software.•Windows Terminal Services is compatible with your machine. Operating system Requirement (recommended)CPU RAM free HDD spaceWindows® XP Intel® Pentium® III 933 MHz (Pentium IV 1 GHz) 128 MB (256 MB) 1.5 GBWindows Server® 2003 Intel® Pentium® III 933 MHz (Pentium IV 1 GHz) 128 MB (512 MB) 1.25 GB to 2 GBWindows Server® 2008 Intel® Pentium® IV 1 GHz (Pentium IV 2 GHz) 512 MB (2 GB) 10 GBWindows Vista®Intel® Pentium® IV 3 GHz 512 MB (1 GB) 15 GBWindows® 7 Intel® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher 1 GB (2 GB) 16 GB• Support for DirectX® 9 graphics with 128 MB memory (to enable the Aero theme).•DVD-R/W DriveWindows Server® 2008 R2 Intel® Pentium® IV 1 GHz (x86) or 1.4 GHz (x64) processors (2 GHz or faster) 512 MB (2 GB) 10 GBWindows® 8 Intel® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher 1 GB (2 GB) 16 GB

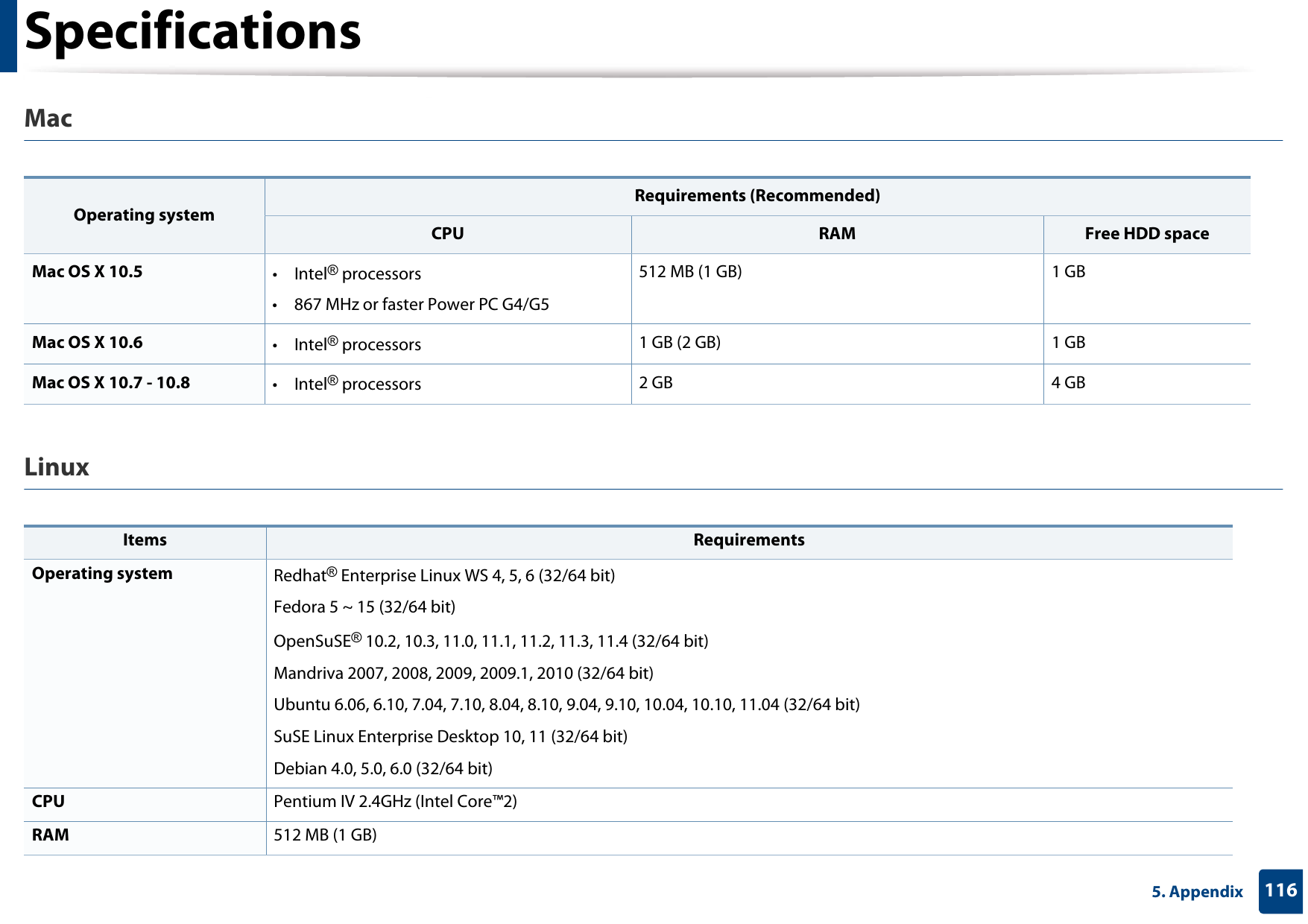

Specifications1165. AppendixMac Linux Operating systemRequirements (Recommended)CPU RAM Free HDD spaceMac OS X 10.5 •Intel® processors• 867 MHz or faster Power PC G4/G5512 MB (1 GB) 1 GBMac OS X 10.6 •Intel® processors 1 GB (2 GB) 1 GBMac OS X 10.7 - 10.8 •Intel® processors 2 GB 4 GBItems RequirementsOperating system Redhat® Enterprise Linux WS 4, 5, 6 (32/64 bit)Fedora 5 ~ 15 (32/64 bit)OpenSuSE® 10.2, 10.3, 11.0, 11.1, 11.2, 11.3, 11.4 (32/64 bit)Mandriva 2007, 2008, 2009, 2009.1, 2010 (32/64 bit)Ubuntu 6.06, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10, 10.04, 10.10, 11.04 (32/64 bit)SuSE Linux Enterprise Desktop 10, 11 (32/64 bit)Debian 4.0, 5.0, 6.0 (32/64 bit)CPU Pentium IV 2.4GHz (Intel Core™2)RAM 512 MB (1 GB)

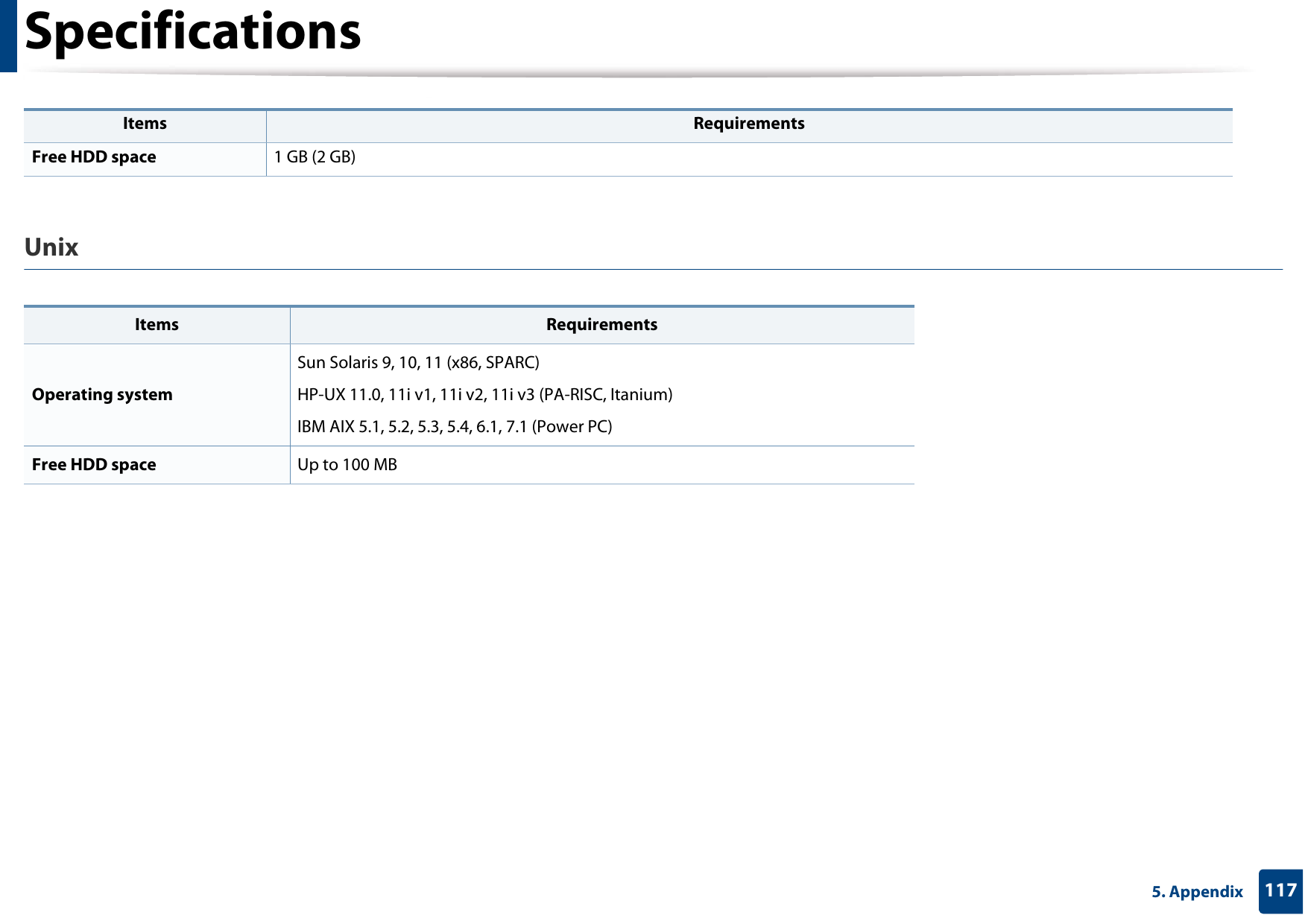

Specifications1175. Appendix UnixFree HDD space 1 GB (2 GB)Items RequirementsOperating systemSun Solaris 9, 10, 11 (x86, SPARC) HP-UX 11.0, 11i v1, 11i v2, 11i v3 (PA-RISC, Itanium) IBM AIX 5.1, 5.2, 5.3, 5.4, 6.1, 7.1 (Power PC)Free HDD space Up to 100 MBItems Requirements

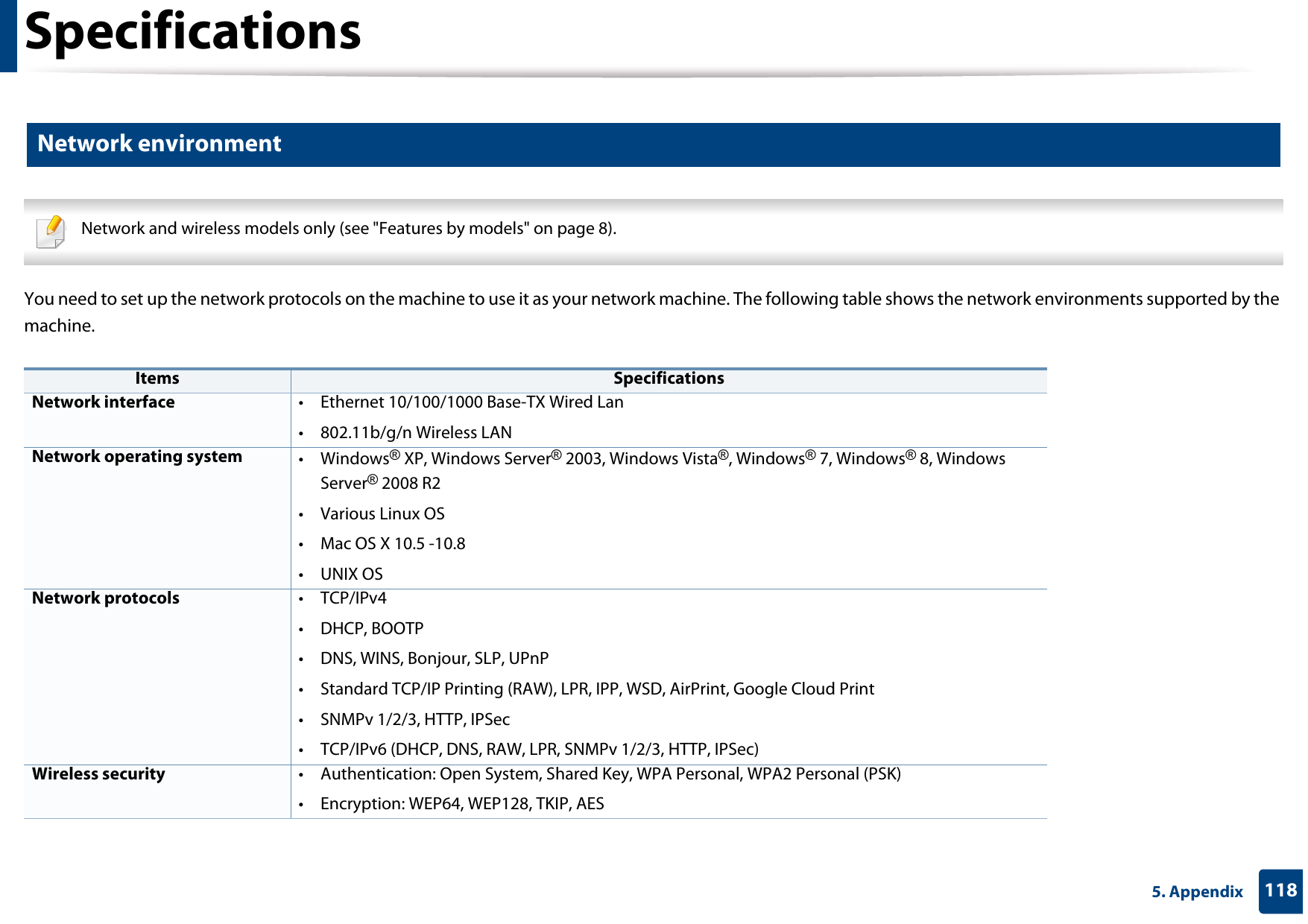

Specifications1185. Appendix4 Network environment Network and wireless models only (see "Features by models" on page 8). You need to set up the network protocols on the machine to use it as your network machine. The following table shows the network environments supported by the machine. Items SpecificationsNetwork interface • Ethernet 10/100/1000 Base-TX Wired Lan•802.11b/g/n Wireless LANNetwork operating system •Windows® XP, Windows Server® 2003, Windows Vista®, Windows® 7, Windows® 8, Windows Server® 2008 R2•Various Linux OS• Mac OS X 10.5 -10.8•UNIX OSNetwork protocols •TCP/IPv4• DHCP, BOOTP• DNS, WINS, Bonjour, SLP, UPnP• Standard TCP/IP Printing (RAW), LPR, IPP, WSD, AirPrint, Google Cloud Print• SNMPv 1/2/3, HTTP, IPSec• TCP/IPv6 (DHCP, DNS, RAW, LPR, SNMPv 1/2/3, HTTP, IPSec)Wireless security • Authentication: Open System, Shared Key, WPA Personal, WPA2 Personal (PSK)• Encryption: WEP64, WEP128, TKIP, AES
1195. AppendixRegulatory informationThis machine is designed for a normal work environment and certified with several regulatory statements.5 Laser safety statementThe printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 60825-1 : 2007.Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to laser radiation above a Class I level during normal operation, user maintenance or prescribed service condition.Warning Never operate or service the printer with the protective cover removed from laser/scanner assembly. The reflected beam, although invisible, can damage your eyes.When using this product, these basic safety precautions should always be followed to reduce risk of fire, electric shock, and injury to persons:

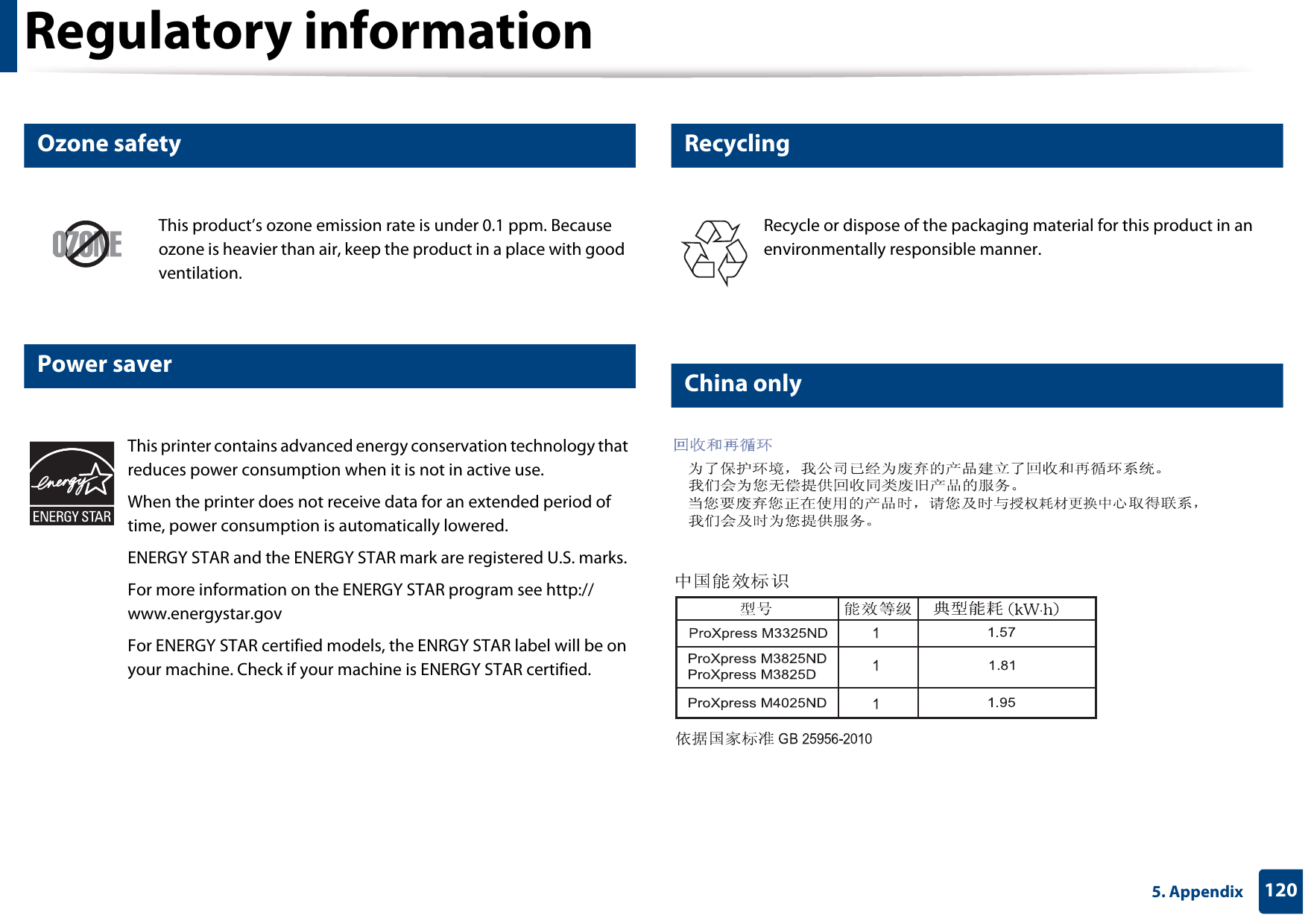

Regulatory information1205. Appendix6 Ozone safety7 Power saver8 Recycling9 China onlyThis product’s ozone emission rate is under 0.1 ppm. Because ozone is heavier than air, keep the product in a place with good ventilation.This printer contains advanced energy conservation technology that reduces power consumption when it is not in active use.When the printer does not receive data for an extended period of time, power consumption is automatically lowered. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. For more information on the ENERGY STAR program see http://www.energystar.govFor ENERGY STAR certified models, the ENRGY STAR label will be on your machine. Check if your machine is ENERGY STAR certified.Recycle or dispose of the packaging material for this product in an environmentally responsible manner.

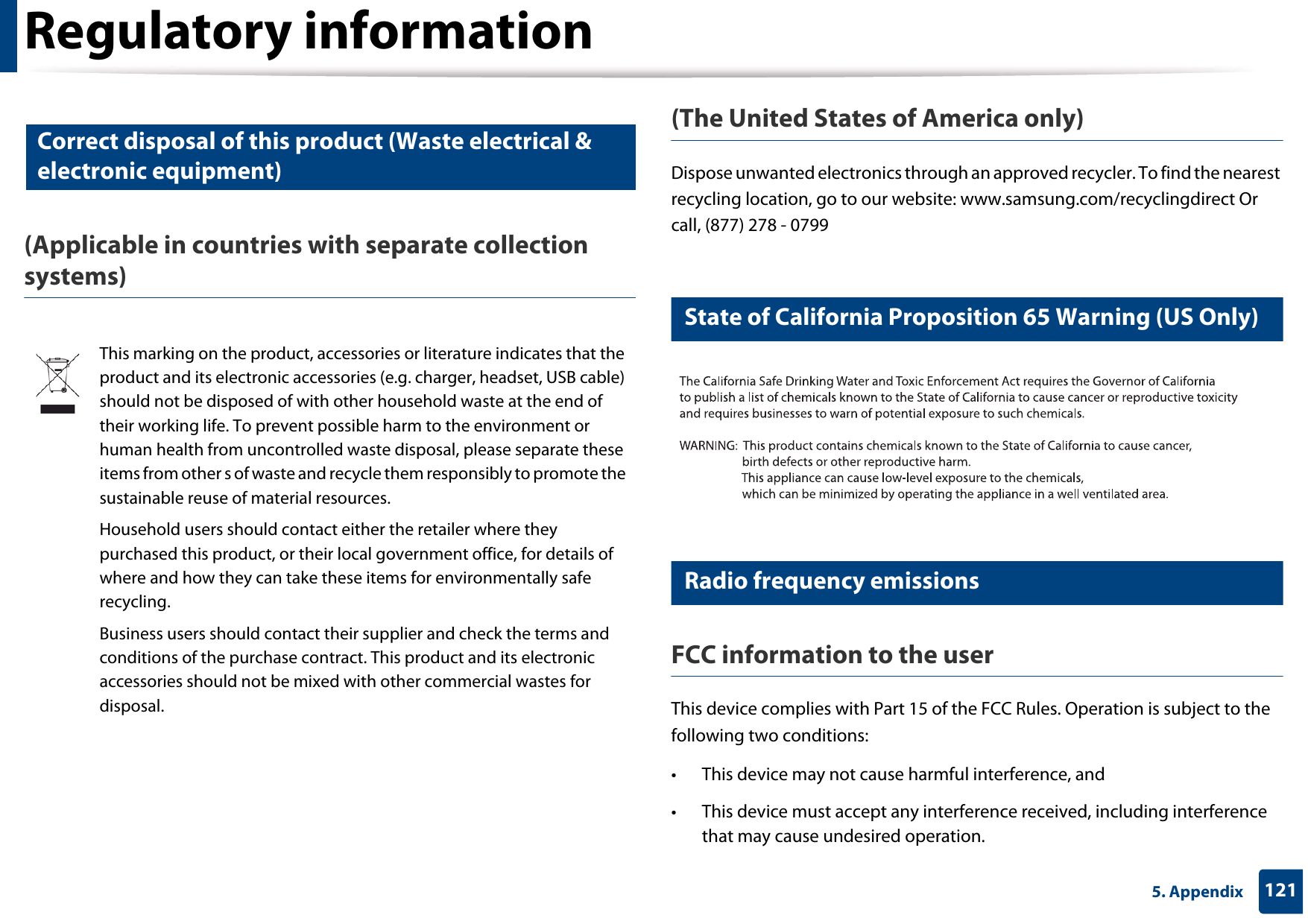

Regulatory information1215. Appendix10 Correct disposal of this product (Waste electrical & electronic equipment)(Applicable in countries with separate collection systems)(The United States of America only)Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect Or call, (877) 278 - 079911 State of California Proposition 65 Warning (US Only)12 Radio frequency emissionsFCC information to the userThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and• This device must accept any interference received, including interference that may cause undesired operation.This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other s of waste and recycle them responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

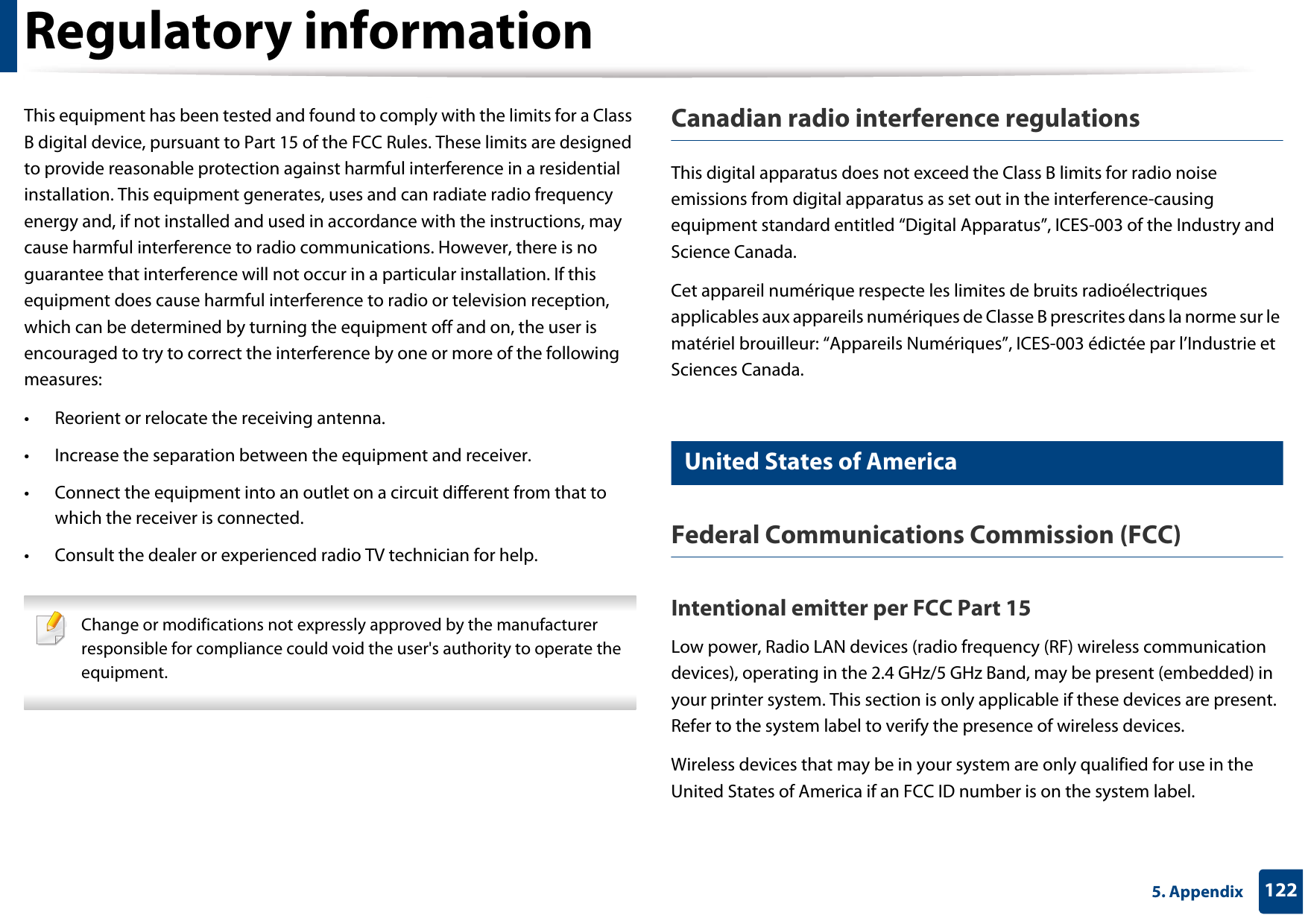

Regulatory information1225. AppendixThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or experienced radio TV technician for help. Change or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment. Canadian radio interference regulationsThis digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.13 United States of AmericaFederal Communications Commission (FCC)Intentional emitter per FCC Part 15Low power, Radio LAN devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label.
