User Manual 2 of 7
Including 1-Zone Controller into Z-Wave®
Network:
NOTES:
• If using a non-Leviton Programmer/Remote, refer to the
Programmer/Remote instruction sheet for Including a device.
• 1-zone controllers included into a Z-Wave® network must be updated
after you have included all other devices.
• If using the VRCPG's Install Checklist feature, go directly to Step C.
A) If using a Leviton Z-Wave® Programmer/Remote, Cat. No. VRCPG,
press the Menu button and scroll down to System Setup. Press
the center button to select System Setup Menu. Choose Advanced
Settings. Press the center button to select Network. Press the center
button to <Include Node>.
B) If using VRCPG Programmer/Remote, you will be prompted to place
1-zone controller into programming mode.
C) To access Program mode, engage the air-gap
switch by gently pressing the top of the push
pad until the bottom lifts completely out of the
frame and a click is heard (refer to figure).
Wait 5 seconds and then press the push pad
back into the frame and hold push pad until
the LED turns Amber. Release the push pad
and the LED should blink Amber. You are now
in Programming mode.
NOTE: If the LED on the 1-zone controller
turns solid Red while including, there has
been a communication error.
D) While standing close to the 1-zone controller
(approximately 2-5 ft.), press the center
button on the Programmer/Remote to
<Include> device in the network. NOTE: Only
one device may be included at any time.
E) The VRCPG Programmer/Remote will assign a Home ID, Node ID
and Name for this device.
NOTE: This information will be stored in the Programmer/Remote to
be used for future reference.
NOTE: You may name or edit the node of this device at this time.
F) The 1-zone controller is now installed in the network.
WARNINGS AND CAUTIONS:
• ON/OFF LED and Brightness level LED for 2-way status reporting.
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult a qualified electrician.
• Vizia RF +TM VRCZ1 1-Zone Dimming Controller does not control the load, but provides 3-way or 4-way applications to operate with Vizia RF +TM dimmer.
WARNINGS AND CAUTIONS:
• Recommended minimum wall box depth is 2-1/2".
• No traveler wires are needed. Remote controls via radio frequency (RF) technology.
• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.
• Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL.
1-Zone Dimming Controller/
Virtual Matching Dimmer Remote
Cat. No. VRCZ1
120VAC, 60Hz

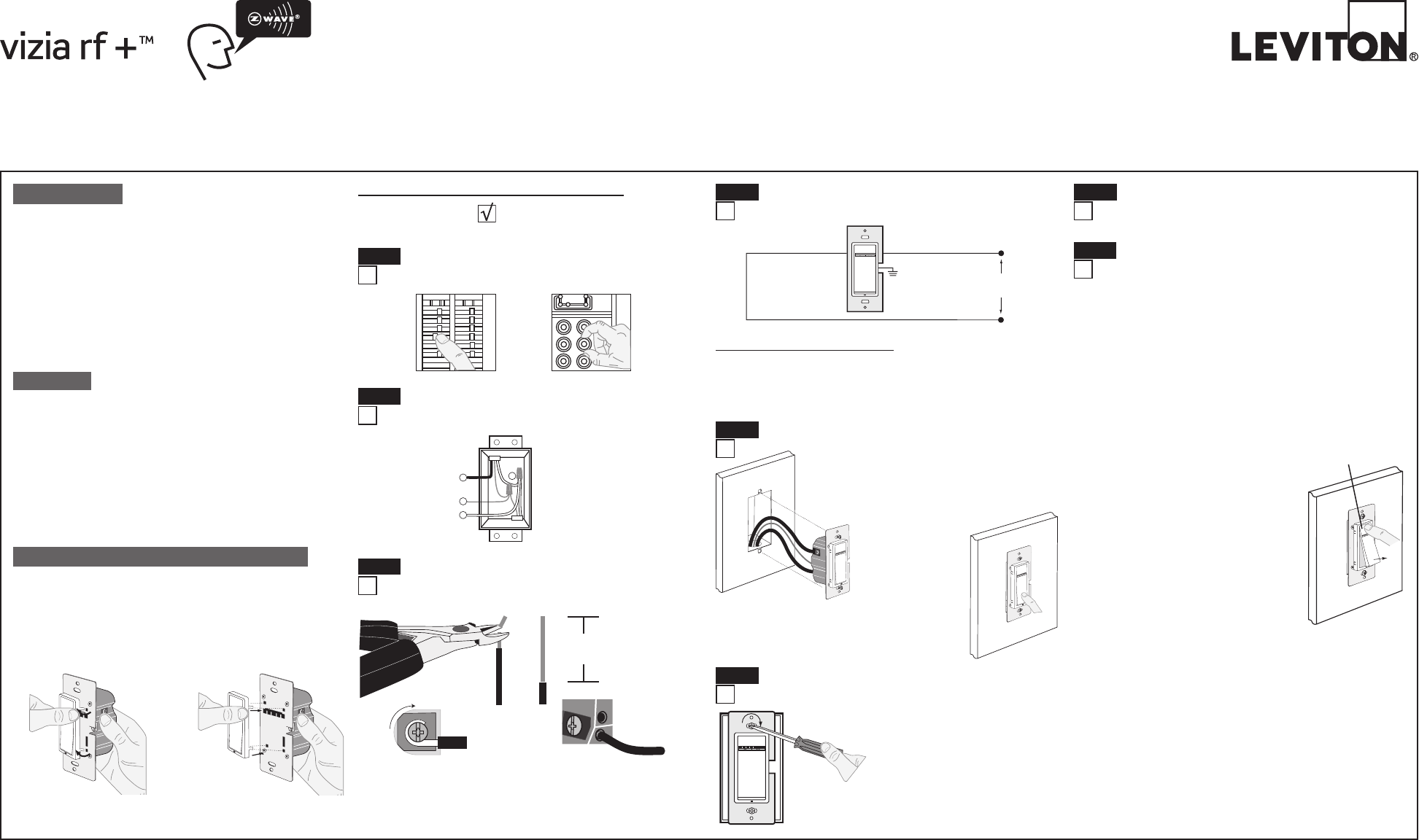

INSTALLATION INSTRUCTIONS
DI-000-VRCZ1-02A-X2
Changing the color of your 1-Zone Controller:
Your device may include color options. To change color of the face,
proceed as follows:
Push in
side at tab
to release
INSTALLING YOUR 1-ZONE CONTROLLER
NOTE: Use check boxes when Steps are completed.
WIRING 1-ZONE CONTROLLER:
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot wall box wire to terminal screw marked "BK".
• Line Neutral wall box wire to terminal screw marked "WH".
• Proceed to Step 5.
Step 8
Wiring Application:
Hot (Bla c k )
Neutral (White)
BK WH
Green
Ground
Line
120 V A C , 60H z
1-Zone Controller
Step 4
Testing your 1-Zone Controller prior to mounting
in wall box:
• Position all wires to provide room in
outlet wall box for device.
• Ensure that the word “TOP” is facing up
on device strap.
• Partially screw in mounting screws in
wall box mounting holes.
NOTE: Dress wires
with a bend as
shown in diagram
in order to relieve
stress when
mounting device.
• Restore power at circuit breaker or fuse.
• LED should turn ON.
If LED does not turn ON, refer to the
TROUBLESHOOTING section.
Step 5
/./&&
/./&&
/./&&
/./&&
/./&&
/./&&
/./&&/./&&
/./&&
/./&&
/./&&
/./&&
WARNING: TO AVOID FIRE SHOCK OR DEATH; TURN
OFF POWER at circuit breaker or fuse and test that power is
off before wiring!
Step 1
Step 3 Preparing and connecting wires:
This 1-zone controller can be wired using side wire terminal
screws or through backwire openings. Choose appropriate wire
stripping specifications accordingly.
• Make sure that the ends of the wires from the wall box are
straight (cut if necessary).
5/8"
(1.6 cm) Strip Gage
(measure bare
wire here)
Cut
(if necessary)
Side Wire Connection
Side wire terminals accept #14
AWG solid wire copper only.
Back Wire (either hole may be used)
Back wire openings use #14-12 AWG
solid wire copper only.
2
3
1
2
1. Line (Hot)
2. Neutral
3. Ground
Identifying your wiring application (most common):
NOTE: If the wiring in your wall box does not resemble this
configuration, consult a qualified electrician.
Step 2
INTRODUCTION
Leviton’s Vizia RF +TM components are designed to communicate
with each other via Radio Frequency (RF) to provide remote control
of your lighting. Using RF technology allows Leviton to provide the
greatest signal integrity possible. Each module in Leviton’s Vizia RF +TM
component line is a Z-Wave® enabled device. In a Z-Wave® network,
each device is designed to act as a router. These routers will re-transmit
the RF signal from one device to another until the intended device is
reached. This ensures that the signal is received by its intended device
by routing the signal around obstacles and radio dead spots. The 1-Zone
Dimming Controller/Virtual Matching Dimmer Remote is compatible with
any Z-Wave® enabled network, regardless of the manufacturer and can
also be used with other devices displaying the Z-Wave® logo.
• This is a Z-Wave® Controller
• 3-way or 4-way control without traveler wires
• Controls dimming of remote load
• ON/OFF LED and Brightness level LED
• Two way communication
• RF reliability
• Ease of installation – No new wiring
• Compatible with other Z-Wave® enabled devices
FEATURES
Tools needed to install your 1-Zone Controller
Slotted/Phillips Screwdriver Electrical Tape Pliers
Pencil Cutters Ruler
Line up tabs
and press in
sides one at a
time to attach
Gently press top
of push pad
Restore Power:
Restore power at circuit breaker or fuse.
Installation is complete.
Step 7
1-Zone Controller Mounting:
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE.
Installation may now be completed by
tightening mounting screws into wall box.
Attach wallplate.
Step 6
Excluding 1-Zone Controller from
Z-Wave® Network:
Including 1-Zone Controller into
Z-Wave® Network:
Factory Default:
If your 1-zone controller is not responding, or you are unable to control it
after you have tried to Include/Exclude it multiple times, it may be necessary
to reset the 1-zone controller to its original factory settings. To accomplish
this, proceed as follows:
• On the 1-zone controller, engage the air-gap switch by gently pressing
the top of the push pad until the bottom lifts completely out of the frame
and a click is heard (refer to figure). Wait 5
seconds and then press the push pad back into
the frame and hold push pad until the locator LED
turns Amber and then turns Red. Release the
push pad. The 1-zone controller is now reset.
Once the controller is reset, it will be necessary to
Re-Include it to a network before it can be used.
CAUTION: SETTING A DEVICE TO A FACTORY
DEFAULT DOES NOT EXCLUDE THAT DEVICE
FROM A NETWORK. THE EXCLUSION
PROCEDURE MUST STILL BE FOLLOWED TO
REMOVE THE DEVICE FROM THE PRIMARY
PROGRAMMER REMOTE’S INFORMATION
TABLE. FAILURE TO DO SO MAY RESULT IN
SYSTEM THAT IS SLOW TO RESPOND, OR MAY
FAIL TO RESPOND TO SOME DEVICES.
DI-000-VRCZ1-02A-X2
LIMITED 5 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement,
at its option, if within such five year period the product is returned prepaid, with proof of purchase date, and a description of the problem to Leviton Manufacturing Co., Inc., Att: Quality Assurance Department, 59-25 Little Neck Parkway, Little Neck, New York 11362-2591. This warranty excludes and there is disclaimed liability
for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused, opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or
implied warranties of any kind, including merchantability and fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness for a particular purpose, is limited to five years. Leviton is not liable for incidental,
indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
Step 8 cont'd
Programmer/Remote
Cat. No. VRCPG
NOTE: Programmer/Remote must be in
close proximity to 1-zone controller when
including in the network.
For additional information, contact Leviton’s
Techline at 1-800-824-3005 or visit Leviton’s
website at www.ViziaRF+.com
Protected under U.S. Patent Number 6,388,399 and patents pending and
licensed under U.S. Patents Numbers 5,905,442, and 5,982,103
This equipment has been tested and found to comply with the limits for
a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment OFF and ON, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving Antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/tv technician for help.
FCC COMPLIANCE STATEMENT
A) If using a Leviton Z-Wave® Programmer/Remote, Cat. No. VRCPG,
press the Menu button and scroll down to System Setup. Press
the center button to select System Setup Menu. Choose Advanced
Settings. Press the center button to select Network. Scroll down and
press the center button to <Exclude Node>.
B) If using VRCPG Programmer/Remote, you will be prompted to place
1-zone controller into programming mode.
C) To access Program mode, engage the air-gap switch by gently
pressing the top of the push pad until the bottom lifts completely out
of the frame and a click is heard (refer to figure). Wait 5 seconds
and then press the push pad back into the frame and hold push
pad until the LED turns Amber. Release the push pad and the LED
should blink Amber. You are now in Programming mode.
NOTE: If the LED on the 1-zone controller turns solid Red while
excluding, there has been a communication error.
D) While standing close to the 1-zone controller (approximately 2-5 ft.),
press the center button on the Programmer/Remote to <Exclude>
device from the network.
Step 9
TROUBLESHOOTING
• Locator LED on controller does not turn ON
- Circuit breaker or fuse has tripped.
- If 1-zone controller is powered up and LED does not turn ON,
check wiring.
• Zone controller does not operate lights
- Check association.
- Ensure that controller was properly updated.
OPERATION
DIM/BRIGHT Bar
BRIGHTEN:
Press the right half of the DIM/BRIGHT Bar
– Lights brighten to desired level.
DIM:
Press the left half of the DIM/BRIGHT Bar
– Lights dim to desired level.
If there is a power outage, when the power is
restored, the lights will return to the last setting
before the power interruption.
Cleaning: Clean with a damp cloth. DO NOT
use chemical cleaners.
Virtual Matching Remote Application:
Push Pad (Default settings)
Turn ON from OFF position:
Tap – Lights turn ON, LED turns OFF.
Turn OFF from ON position:
Tap – Lights turn OFF, LED turns ON. Push
Pad
LED
DIM/
BRIGHT
Bar
LED
Brightness
Display
Device Association:
After inclusion process, you must associate the devices to
the controllers. Refer to the Primary Programmer/Controller
instruction sheet for complete details.
Step 10
NOTE: One (1) Z-Wave® device can be associated to multiple programmer/
remotes (up to five (5) programmer/remotes maximum).
NOTE: If using a non-Leviton Programmer/Remote, refer to the
Programmer/Remote instruction sheet for Associating a device.
NOTE: Only one Vizia RF +TM dimmer can be associated to the 1-zone
controller.
Gently press top
of push pad
Definition of Mode
LED Options: Sets the time period in seconds the Locator LED and
Brightness display will stay on before extinguishing.
NOTE: The switch will exit program mode after 3 minutes of inactivity.
Program Mode
To enter programming mode:
Press and hold the push pad and then the right half of the DIM/BRIGHT
bar
(
^
)
for 5 seconds until the Locator LED starts and the leftmost LED
(LED 1) begin to blink.
The Locator LED will blink once per second to indicate Program Mode,
LED Options. To change LED Options settings use the DIM/BRIGHT bar to
move the LED to the desired preset setting according to the chart below. By
tapping the push pad, this setting will automatically be saved and the device
will exit programming mode.
ADVANCED PROGRAMMING FEATURES
Active
Active
Active
Active
Turns off 5 seconds after use
Turns off 5 seconds after use
Active
Active
Turns off 5 seconds after use
LOCATOR LED TIMEOUT
1
2
3
4
5
6
7
LED
Turns off 5 seconds after use
Turns off 5 seconds after use
LED Bar active
LED Bar turns off 5 seconds after use
LED Bar turns off 5 seconds after use
LED BRIGHTNESS DISPLAY OPTIONS
G) After all devices are included into the network, the controller must
be updated to allow proper network function. To update controller
proceed as follows:
• If using a non-Leviton Programmer/Remote, refer to the
Programmer/Remote instruction sheet for updating controller.
• If using Leviton Z-Wave® Programmer/Remote, Cat. No. VRCPG,
press the Menu button and scroll down
to System Setup. Press the center
button to select System Setup Menu.
Choose Advanced Settings. Press the
center button to select Network. Press
the center button to select Update
"cntrl". When prompted press push pad
on the 1-zone dimming controller.
• Wait until the VRCPG Programmer/
Remote confirms completion. Update is
done.
NOTE: If using the VRCPG's Install Checklist
feature, after all devices are included, go to
Update Controllers step.
NOTE: If the 1-zone controller has been
successfully Included in the network and
the user tries to Include it again without first
excluding it from the network, the controller
will retain the first node ID it had received and
ignore the second.
Cat. No. VRCPG
1 ON
2 ON
3 ON
4 ON
OFF
OFF
OFF
OFF
Menu
Button
Center
Button
DOCUMENTATION
LEVITON INSTRUCTION SHEET/MANUAL
SPECIFICATIONS
H2D 3/14/08
Helvetica
DI-000-VRCZ1-02A-X2
Black
N/A
Final fold size:
40 Lb. o f fse t
2.3" X 4.25"
Overall size:
14" X 8.5"
Paper size:

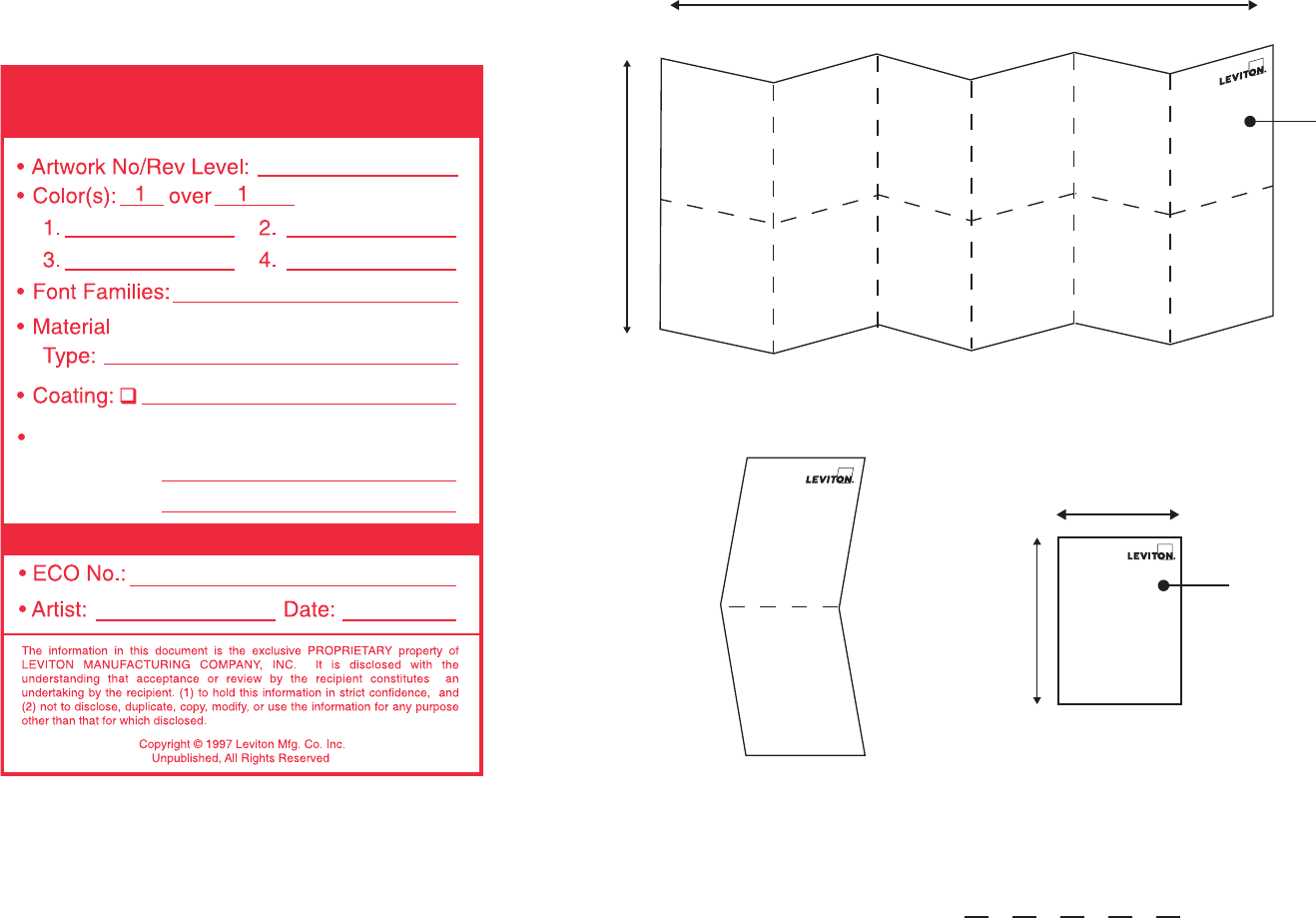

FOLD SCHEME
8.5"
14"
2.3"
4.25"
FINAL
Fold Line
Part No.
(This panel)
Part No.
(This panel)
