User Manual 4
Preparing and connecting wires:
This receptacle can be wired using side wire terminal screws or
through backwire openings. Choose appropriate wire stripping
specications accordingly.
WARNING: TO AVOID FIRE SHOCK OR DEATH; TURN
OFF POWER at circuit breaker or fuse and test that power is off
before wiring!
Identifying your wiring application (most common):
NOTE: If the wiring in your wall box does not resemble any of
these congurations, consult a qualied electrician.
WARNINGS AND CAUTIONS:
• To be installed and/or used in accordance with electrical codes and regulations.
• If you are unsure about any part of these instructions, consult an electrician.
• To ensure that there is adequate room for wires, we recommend using at a minimum 3-1/2 inch deep wallboxes. For single-gang applications, this would be at a
minimum an 18-cubic inch wallbox.
WARNINGS AND CAUTIONS:
• Disconnect power at circuit breaker or fuse when servicing, installing or removing xture.
• Maximum wire length cannot exceed 300 ft (90 m).
• Use this device with copper or copper clad wire only.
Duplex Receptacle (Top Controlled)
Scene Capable Receptacle
Cat. No. VRR15-1L - 15A - 125VAC, 60Hz
Incandescent-1800W – Magnetic Low-Voltage-1800VA (1440W)
Electronic Low-Voltage-1800W – Fluorescent-1800VA – Supplemental-1/2 HP

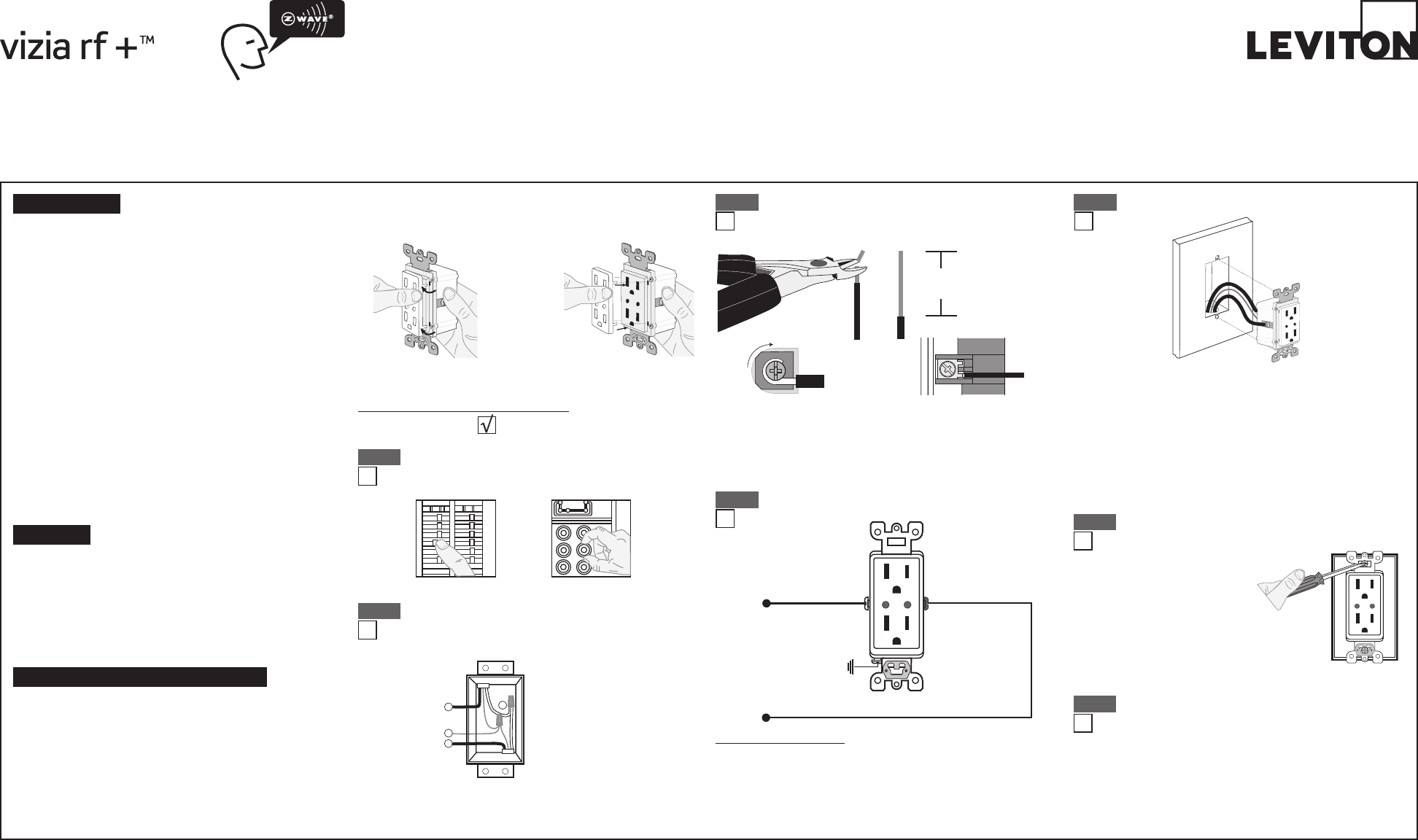

INSTALLATION INSTRUCTIONS
DI-000-VRR15-02A
Tools needed to install your Receptacle
Slotted/Phillips Screwdriver Electrical Tape Pliers
Pencil Cutters Ruler
Changing the color of your Receptacle:
Your Receptacle includes three color options. The Receptacle ships with the
White frame attached. To change color of frame, proceed as follows:
INSTALLING YOUR RECEPTACLE
NOTE: Use check boxes when Steps are completed.
ONOFF
ONOFF
ONOFF
ONOFF
ONOFF
ONOFF
ONOFFONOFF
ONOFF
ONOFF
ONOFF
ONOFF
Step 1
2
4
3
1
Single Pole
1. Line (Hot)
2. Neutral
3. Ground
Step 2
Single Pole Wiring Application:
Step 3
• Make sure that the ends of the wires from the wall box are
straight (cut if necessary).
• Remove insulation from each wire in the wall box as shown.
5/8"
(1.6 cm) Strip Gage
(measure bare
wire here)
Cut
(if necessary)
Side Wire Connection
Side wire terminals accept #14-12
AWG solid copper wire only.
Back Wire (either hole may be used)
Back wire openings accept #14-12
AWG solid copper wire only.
WIRING RECEPTACLE:
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot wall box wire to terminal screw marked "LINE".
• Line Neutral wall box wire to terminal screw marked "NEUTRAL".
• Proceed to Step 5.
Leviton’s Vizia RF +™ Z-Wave
®
components are designed to communicate
with each other via Radio Frequency (RF) to provide remote control of
your lighting. Using RF technology allows Leviton to provide the greatest
signal integrity possible. Each module in Leviton’s Vizia RF +™ component
line is a Z-Wave
®
enabled device. In a Z-Wave
®
network, each device is
designed to act as a router. These routers will re-transmit the RF signal
from one device to another until the intended device is reached. This
ensures that the signal is received by its intended device by routing
the signal around obstacles and radio dead spots. The Scene Capable
Electronic Receptacle is compatible with most Z-Wave
®
enabled networks,
from different manufacturers and can also be used with other devices
displaying the Z-Wave
®
logo.
CAUTION:
Remember to exercise good common sense when using the Timer features
of your Remote – especially when scheduling unattended devices. There
can be some unexpected consequences if not used with care. For example,
an empty coffee pot can be remotely turned on. If that should happen,
your coffee pot could be damaged from overheating. If an electric heater
is turned on by remote control while clothing is draped over it, a re could
result. DO NOT USE the remote for the control of high power heating
appliances such as portable heaters.
• Receptacle ON/OFF
• Scene Capable
• ON/OFF LED
• Two way communication
• RF reliability
• Ease of installation – No new wiring
• Compatible with other Z-Wave® enabled devices
FEATURES
INTRODUCTION Testing your Receptacle prior to mounting in
wall box:
Receptacle Mounting:
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE.
• Restore power at circuit breaker or fuse.
• Locator light should turn ON.
If locator light does not turn ON, refer to the TROUBLESHOOTING
section.
Step 5
• Position all wires to provide room in outlet wall box for device.
• Partially screw in mounting screws in wall box mounting holes.
NOTE: Dress wires with a bend as shown in diagram in order to
relieve stress when mounting device.
Step 6
Restore Power:
Restore power at circuit breaker or fuse.
Installation is complete.
Step 7
Neutral (Silver) Line (Black)
Green
Ground
CONTROLLED
Push in side
at tab to release
Line up tabs and
press in sides one at a time
to attach
Step 4
CONTROLLED
Installation may now be completed by tightening
mounting screws into wall box. Attach wallplate.

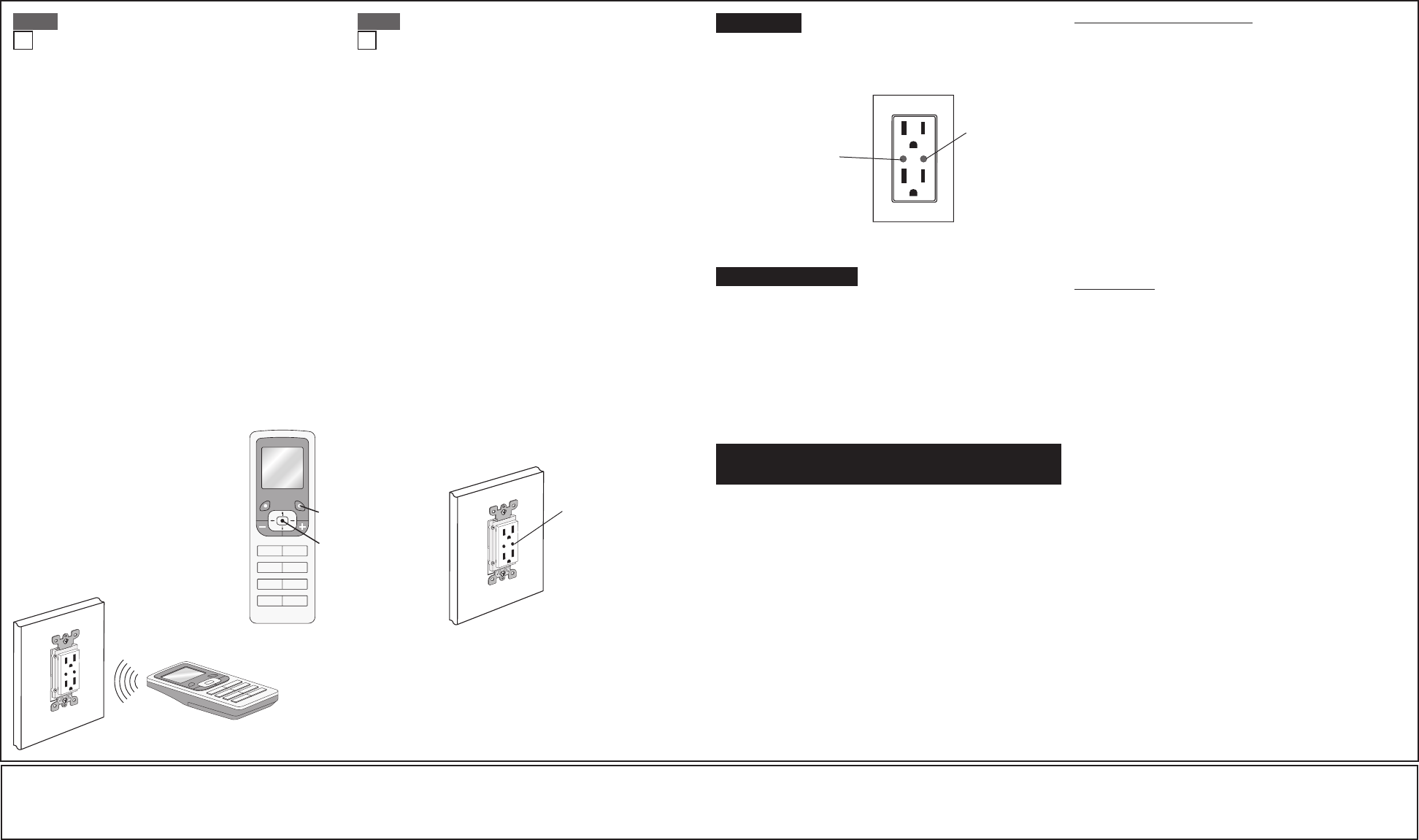

Excluding Receptacle from Z-Wave® Network:Including Receptacle into Z-Wave® Network:
DI-000-VRR15-02A
LIMITED 5 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement,
at its option, if within such five year period the product is returned prepaid, with proof of purchase date, and a description of the problem to Leviton Manufacturing Co., Inc., Att: Quality Assurance Department, 201 North Service Road, Melville, New York 11747. This warranty excludes and there is disclaimed liability for labor
for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused, opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or implied
warranties of any kind, including merchantability and fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness for a particular purpose, is limited to five years. Leviton is not liable for incidental,
indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
Programmer/Controller
Cat. No. VRCPG
NOTE: Programmer/Controller must be in close
proximity to receptacle when including in the network.
For additional information, contact Leviton’s
Techline at 1-800-824-3005 or visit Leviton’s
website at www.ViziaRFplus.com
Protected under U.S. Patent Number 6,388,399 and patents pending
and licensed under U.S. Patents Numbers 5,905,442, and 5,982,103
CONTROLLED
Programming
button
Locator
Light
NOTE: The locator light will illuminate when receptacle is connected.
If there is a power outage, when the power is restored, the lights will return
to the last setting before the power interruption.
Cleaning: Clean with a damp cloth. DO NOT use chemical cleaners.
OPERATION
TROUBLESHOOTING
• Receptaclehasnopower
- Receptacle has a bad connection.
- Wires not secured rmly under terminal screws of receptacle.
• LocatorLEDdoesnotturnON
- Circuit breaker or fuse has tripped.
- Neutral connection is not wired.
- Press progarmming button.
Step 9
NOTE: It is very important to accurately Exclude devices from the network
when moving or removing a device from a Z-Wave® network. This ensures
that all information has been removed from your Primary.
A) If using a Leviton Z-Wave® Programmer/Controller, Cat. No. VRCPG,
press the Menu button and scroll down to System. Press the center
button to select. Choose Advanced. Press the center button to select
Advanced Install. Scroll down to exclude.
B) While standing close to the receptacle (approximately 1 foot), press the
center button to <Exclude> device from the network.
C) While the Programmer/Controller is in the Exclusion mode and the
locator LED is ON press the button. The Programmer/Controller will
verify Exclusion and the locator LED will turn OFF.
If the receptacle is ashing Amber while in the Exclusion mode, the
Programmer/Controller is still trying to communicate with the receptacle.
Wait until the device stops ashing, then press the receptacle program
button.
Factory Default:
If your receptacle is not responding, or you are unable to control it after you
have tried to Include/Exclude it multiple times, it may be necessary to reset
the receptacle to its original factory settings. To accomplish this, proceed as
follows:
• On the receptacle, press and hold the program button until the locator
LED turns Amber and then ashes Red. The receptacle is now reset.
Once the receptacle is reset, it will be necessary to Re-Include it to a
network before it can be used.
CAUTION: SETTING A DEVICE TO A FACTORY DEFAULT DOES
NOT EXCLUDE THAT DEVICE FROM A NETWORK. THE EXCLUSION
PROCEDURE MUST STILL BE FOLLOWED TO REMOVE THE DEVICE
FROM THE PRIMARY CONTROLLER’S INFORMATION TABLE. FAILURE
TO DO SO MAY RESULT IN SYSTEM THAT IS SLOW TO RESPOND, OR
MAY FAIL TO RESPOND TO SOME DEVICES.
Step 8
NOTES:
• Receptacle will be included as a switch
• If using a non-Leviton Programmer/Controller, refer to the
Programmer/Controller instruction sheet for Including a device.
• If using VRCPG install checklist go directly to step B.
A) If using a Leviton Z-Wave® Programmer/Controller, Cat. No. VRCPG,
press the Menu button and scroll down to System. Press the center
button to select System Menu. Choose Advanced. Press the center
button to select Advance Install.
B) While standing close to the receptacle (approximately 1 foot), press
the center button to <Include> device in the network.
NOTE: Only one device may be included at a time. DO NOT put
multiple devices into the Inclusion mode at any time.
C) While the Programmer/Controller is in the Inclusion mode and
the Locator LED is ON on the receptacle, press the button on the
receptacle. The Programmer/Controller will verify inclusion.
If the receptacle is ashing Amber while in the Inclusion mode,
the Programmer/Controller is still trying to communicate with the
receptacle. Wait until the device stops ashing, then press the
receptacle program button.
NOTE: If the Locator LED on the receptacle turns solid Red
while including, there has been a communication error. Refer to
Troubleshooting section.
D) The Primary Programmer/Controller will assign a node ID number
(Name) for this device.
NOTE: This ID number (Name) will be stored in the controller to be
used for future reference.
NOTE: You may name or edit your device at this time.
E) The receptacle is now installed in the network.
NOTE: If the receptacle has been
successfully Included in the network and
the user tries to Include it again without rst
excluding it from the network, the receptacle
will retain the rst node ID it had received
and ignore the second.
1 ON
2 ON
3 ON
4 ON
OFF
OFF
OFF
OFF
Programmer/Controller
Cat. No. VRCPG
Menu
Button
Center
Button
Gently press
Programming button
© 2009 Leviton Mfg. Co., Inc.
FCC COMPLIANCE STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject
to following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation of the device.
This equipment has been tested and found to comply with the limits for
a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment OFF and ON, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving Antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/tv technician for help.
FCC CAUTION
Any changes or modications not expressly approved by Leviton
Manufacturing Co., Inc., could void the user's authority to operate the
equipment.
ARTWORK PRINT SPECIFICATIONS
FOLD SCHEME / BINDERY DIAGRAM
PART NUMBER REV DESCRIPTION
Line Screen:
Angle:
Resolution:
Offset Flexo
Other
Body Material:
Bindery
Thickness:
Trim
Perfect Bind
Die cut Saddle Stitch
Drill
Fold
The information in this document is the exclusive PROPRIETARY property of LEVITON MANUFACTURING COMPANY, INC. It is disclosed
with the understanding that acceptance or review by the recipient constitues an undertaking by the recipient. (1) to hold this information in strict
confidence, and (2) not to disclose, duplicate, copy, modify or use the information for any pupose other than that for which disclosed.
© 2009 Leviton Mfg. Co., Inc.
Unpublished, All Rights Reserved
PlantApprovals:
ARN: Pilot Rev:ECO Number:
Artwork Release Date:
Artwork Print Specification Sheet Rev A04.eps
PMCQA
Artist:
Notes:
Other
Cust Other
S & A
Mktg Eng
FOR LEVITON USE ONLY
SPECIFICATIONS :
PROCESS :
MANUAL INTERIORS / BINDERY / FOLD SCHEME :
COMMENTS :
For manuals - designates cover specifications
Dimensions:
Material:
Thickness:
Finish:
:
Spot
CMYK
1:
4:
3:
2:
Color(s): over
1:
4:
3:
2:
Fonts:
Spot
CMYK
1:
4:
3:
2:
Color(s): over
1:
4:
3:
2:
Fonts:
Fold Line
Die Cut Punch/Drill Hole
Glue
Kiss Cut Cellophane
Fold Line
Perforate
Die Cut
Die Line Key:
2.3"
4.25"
14.0"
8.5"
Part No.
(This panel) Part No.
(This panel)
DI-000-VRR15-02A
8.5" x 14"
40 lb. Black Helvetica
1 1
Instruction sheet
08 J. Tang
H. Sanchez
A. Steele
B. Hamlitsch
P. Patel
A. Mancuso
R. Demera
V. LoNigro
1631
11/17/09
