WARNINGS AND CAUTIONS:

• To be installed and/or used in accordance with appropriate electrical codes and regulations.

• If you are unsure about any part of these instructions, consult a qualified electrician.

• To avoid overheating and possible damage to this device and other equipment, do not install to control a receptacle, fluorescent lighting, a motor- or a transformer operated appliance.

• Use with magnetic low voltage transformers, incandescent, or 120V halogen fixtures only. Use a Leviton electronic low voltage dimmer to control electronic (solid state) low voltage

• When magnetic low voltage circuits are operated at a dim level, with all lamps inoperative, excess current may flow through the transformer. To avoid possible

transformer failure due to overcurrent, use a transformer that incorporates thermal protection or a fuse at the primary windings.

• Vizia RF +TM dimmers are not compatible with standard 3-way or 4-way switches. They must be used with compatible Vizia +TM or Vizia RF +TM controllers for multi-location dimming.

WARNINGS AND CAUTIONS:

• Use only one (1) Vizia RF +™ Magnetic Low Voltage Dimmer in a multi-location circuit with up to 9 coordinating remotes (without LEDs) or up to 4 matching remotes

• Recommended minimum wall box depth is 2-1/2".

• Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft.

• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.

• Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL.

120VAC, 60Hz

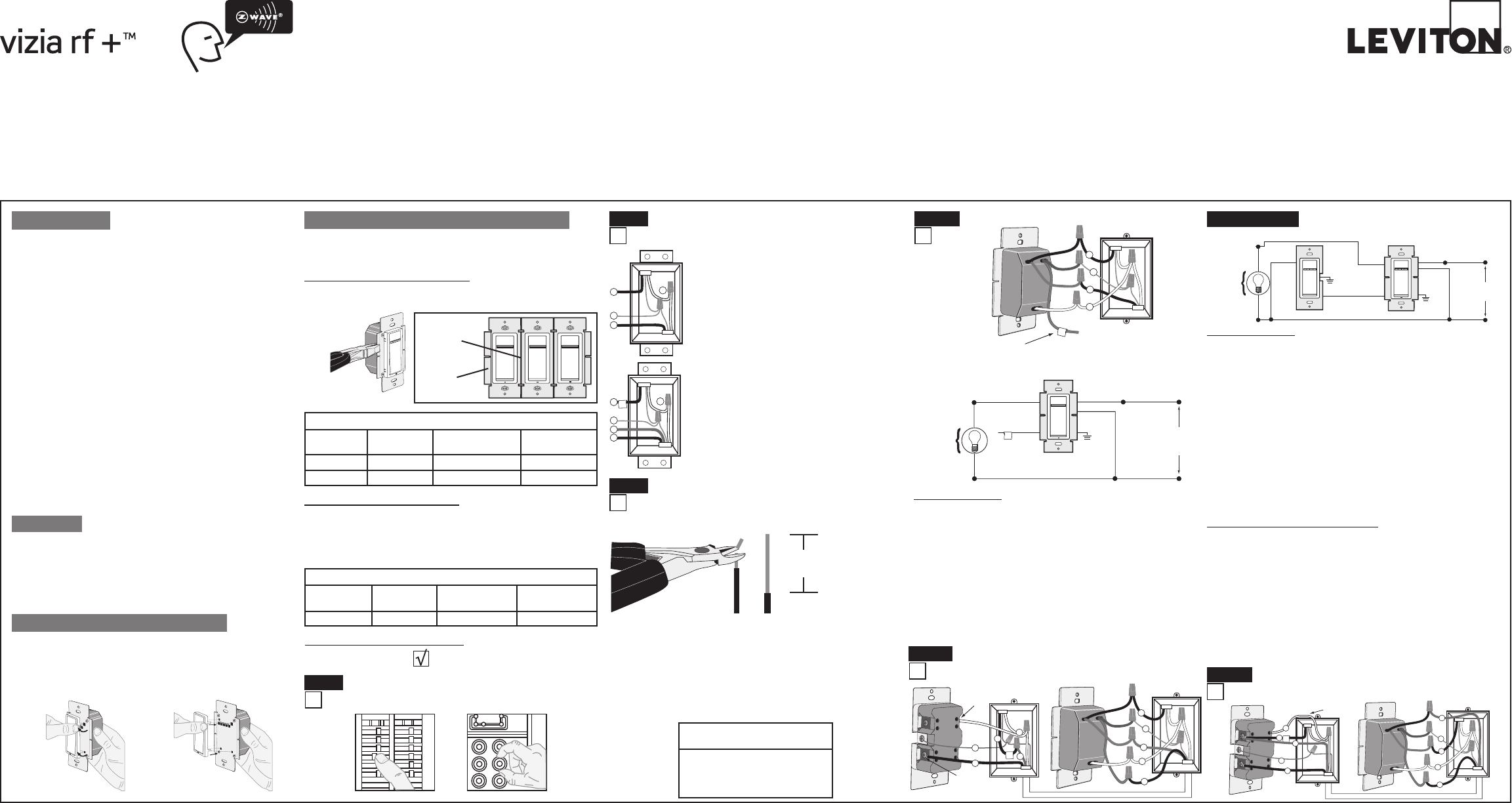

INSTALLATION INSTRUCTIONS

IMPORTANT : For 3-Way

applications, note that one of the

screw terminals from the old switch

being removed will usually be a

different color (Black) or labeled

Common. Tag that wire with electrical

tape and identify as the common

(Line or Load) in both the dimmer

• Pull off pre-cut insulation from dimmer leads.

• Make sure that the ends of the wires from the wall box are straight

(cut if necessary).

• Remove insulation from each wire in the wall box as shown.

• For Single-Pole Application, go to Step 4a.

• For 3-Way Coordinating Remote (no LEDs) Application, go to

Slotted/Phillips Screwdriver Electrical Tape Pliers

Pencil Cutters Ruler

In multi-dimmer installations, the reduction of the dimmer’s capacity

is required. Refer to the chart for maximum load per dimmer.

If installing Dimmer in a single device application, proceed with the

INSTALLING YOUR DIMMER section. If installing Dimmer in a

multi-device application, proceed as follows:

Push in side at

tab to release

WARNING: TO AVOID FIRE SHOCK OR DEATH; TURN

OFF POWER at circuit breaker or fuse and test that power

is off before wiring!

of these configurations, consult a qualified electrician.

as portable heaters. This device will not control lighting that is

used with electronic low-voltage and high frequency power supply

transformers, nor high pressure discharge lamps (HID lighting). This

includes mercury-vapor, sodium vapor and metal halide lamps.

• Soft fade ON/OFF

• Scene capable

• ON/OFF LED and Brightness level LED

• Two way communication

• RF reliability

• Ease of installation – No new wiring

LOW-VOLTAGE TRANSFORMER.

• Green or bare copper wire in wall box to Green dimmer lead.

• Line Hot wall box wire to Black dimmer lead.

• Load wall box wire to Red dimmer lead.

• Line Neutral wall box wire to White dimmer lead.

• Yellow/Red dimmer lead should have Red insulation label affixed.

NOTE: If insulating label is not affixed to Yellow/Red dimmer lead,

use electrical tape to cover.

• Proceed to Step 5.

Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement, at its option, if within such five year period the product is returned prepaid, with proof

of purchase date, and a description of the problem to Leviton Manufacturing Co., Inc., Att: Quality Assurance Department, 59-25 Little Neck Parkway, Little Neck, New York 11362-2591. This warranty excludes and there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused,

opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or implied warranties of any kind, including merchantability and fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness

for a particular purpose, is limited to five years. Leviton is not liable for incidental, indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.

If you continue to hold, the lights will DIM to

minimum level and then turn OFF.

light level that the lights will turn ON to using the

DIM/BRIGHT Bar.

If there is a power outage, when the power is

restored, the lights will return to the last setting

before the power interruption.

- Neutral not wired to Dimmer (White wire).

source ONLY.

the network when moving or removing a device from a Z-Wave®

network. This ensures that all information has been removed from your

Primary Programmer/Controller's information table and is not counted on

to be part of the mesh network.

wall box for device.

facing up on device strap.

Definition of LEDs

Leftmost LED = LED 1

Rightmost LED = LED 7

If your dimmer is not responding, or you are unable to control it after

you have tried to Include/Exclude it multiple times, it may be necessary

to reset the dimmer to its original factory settings. To accomplish this,

proceed as follows:

• On the dimmer, engage the air-gap switch (refer to Operation

and hold push pad until the locator LED turns Amber and then turns

Red. The dimmer is now reset. Once the dimmer is reset, it will be

necessary to Re-Include it to a network before it can be used.

NOTE: Only one device may be

If the dimmer is flashing Amber while in the Inclusion mode, the

NOTE: If the Locator LED on the dimmer turns solid Red while

NOTE: This ID number (Name) will be stored in the controller to be

Installation is complete.

• If using a non-Leviton Programmer/Controller, refer to the

• If using VRCPG's install checklist go directly to step B.

connection. The matching remote must be installed in a wall box with
