WARNINGS AND CAUTIONS:
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult a qualified electrician.
• Vizia RF +™ electronic switches are not compatible with standard 3-way or 4-way switches. They must be used with compatible Vizia +™ or Vizia RF +™ controllers.
• Recommended minimum wall box depth is 2-1/2".
WARNINGS AND CAUTIONS:
• Use only one (1) Vizia RF +™ Scene Capable Switch in a multi-location circuit with up to 9 coordinating remotes (without LEDs) or up to 4 matching remotes
(with LEDs). The remote(s) will turn the load on (“at the level selected” for dimmers only) at the control.
• Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft (90 m).
• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.
• Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL.
Single Pole (One location) or 3-Way (Multi-location)
Scene Capable Electronic Switch
Cat. No. VRS15-1L, (Lighted) - 120VAC, 60Hz
Incandescent-1800W – Magnetic Low-Voltage-1800VA (1440W)
Electronic Low-Voltage-1800W – Fluorescent-1800VA – Supplemental-1/2 HP

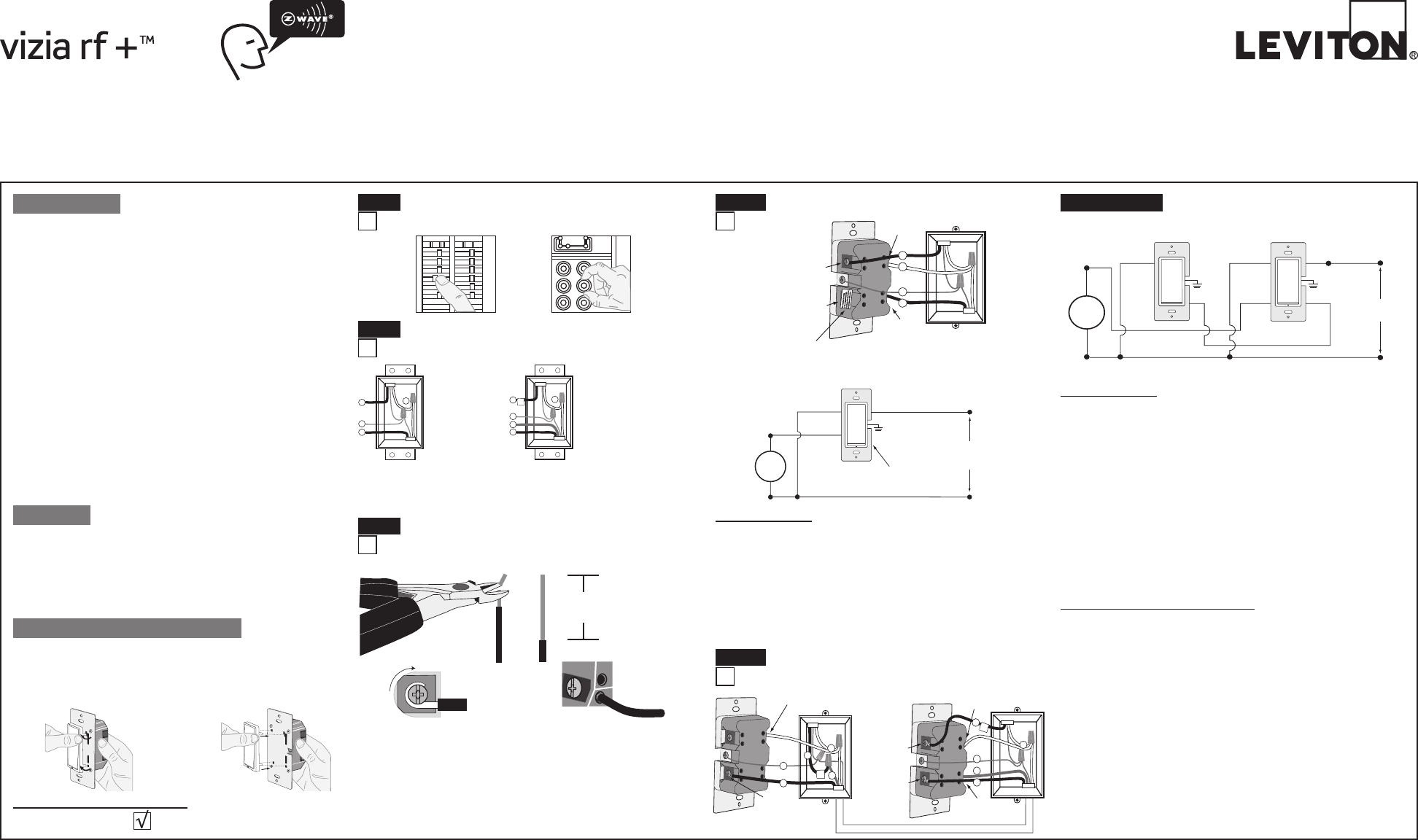

INSTALLATION INSTRUCTIONS DI-000-VRS15-02A-X3
Tools needed to install your Switch
Slotted/Phillips Screwdriver Electrical Tape Pliers
Pencil Cutters Ruler
Line up tabs and
press in sides one
at a time to attach
Push in
side at tab
to release
Changing the color of your Switch:
Your switch includes three color options. The switch ships with the White
frame attached. To change color of frame, proceed as follows:
INSTALLING YOUR SWITCH
NOTE: Use check boxes when Steps are completed.
/./&&
/./&&
/./&&
/./&&
/./&&
/./&&
/./&&/./&&
/./&&
/./&&
/./&&
/./&&
WARNING: TO AVOID FIRE SHOCK OR DEATH; TURN
OFF POWER at circuit breaker or fuse and test that power is off
before wiring!
Step 1
2
4
3
1
Single Pole
1. Line (Hot)
2. Neutral
3. Ground
4. Load
2
4
1
5
3
3-Way
1. Line or Load
(see
important instruction)
2. Neutral
3. Ground
4. First Traveler – note color
5. Second Traveler – note
color
Identifying your wiring application (most common):
NOTE: If the wiring in your wall box does not resemble any of
these configurations, consult a qualified electrician.
Step 2
IMPORTANT : For 3-Way applications, note that one of the screw terminals
from the old switch being removed will usually be a different color (Black)
or labeled Common. Tag that wire with electrical tape and identify as the
common (Line or Load) in both the switch wall box and remote wall box.
BK
RD
YL/RD
Terminal
Screw marked
Black (BK)
Terminal
Screw marked
Red (RD)
Terminal
Screw marked
Yellow/Red
(YL/RD)
Terminal Label:
Use Terminal for 3-Way or More Applications Only.
For Single-Pole Applications, Do Not Remove ThisLabel.
4
3
2
Terminal
Screw marked
White (WH)
1
Single Pole Wiring Application:
Step 4a
Step 3 Preparing and connecting wires:
This switch can be wired using side wire terminal screws or
through backwire openings. Choose appropriate wire stripping
specifications accordingly.
• Make sure that the ends of the wires from the wall box are
straight (cut if necessary).
• Remove insulation from each wire in the wall box as shown.
• For Single-Pole Application, go to Step 4a.
• For 3-Way Coordinating Remote (no LEDs) Application, go to Step 4b.
5/8"
(1.6 cm) Strip Gage
(measure bare
wire here)
Cut
(if necessary)
Side Wire Connection
Side wire terminals accept #14
AWG solid wire copper only.
Back Wire (either hole may be used)
Back wire openings use #14-12 AWG
solid wire copper only.
Hot (Bla c k )
Neutral (White)
Load
Swit c h
BK
Bla c k
White
RD
Green
Ground
YL/RD
Line
120 V A C , 60H z
Use T erminal f or 3- W a y o r
More Applications On l y .
For Single- P ole Applications ,
Do Not Rem o ve This Label .
WH
WIRING SWITCH:
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot wall box wire to terminal screw marked "BK".
• Load wall box wire to terminal screw marked "RD".
• Line Neutral wall box wire to terminal screw marked "WH".
• Switch terminal screw marked "YL/RD" should have Red insulation
label affixed.
NOTE: If insulating label is not affixed to terminal screw marked
"YL/RD", use electrical tape to cover.
• Proceed to Step 5.
Leviton’s Vizia RF +™ Z-Wave
®
components are designed to communicate
with each other via Radio Frequency (RF) to provide remote control of
your lighting. Using RF technology allows Leviton to provide the greatest
signal integrity possible. Each module in Leviton’s Vizia RF +™ component
line is a Z-Wave
®
enabled device. In a Z-Wave
®
network, each device is
designed to act as a router. These routers will re-transmit the RF signal
from one device to another until the intended device is reached. This
ensures that the signal is received by its intended device by routing
the signal around obstacles and radio dead spots. The Scene Capable
Electronic Switch is compatible with any Z-Wave
®
enabled network,
regardless of the manufacturer and can also be used with other devices
displaying the Z-Wave
®
logo.
CAUTION:
Remember to exercise good common sense when using the Timer
features of your Remote – especially when scheduling unattended devices.
There can be some unexpected consequences if not used with care. For
example, an empty coffee pot can be remotely turned on. If that should
happen, your coffee pot could be damaged from overheating. If an electric
heater is turned on by remote control while clothing is draped over it, a
fire could result. DO NOT USE the remote for the control of high power
heating appliances such as portable heaters. This device will not control
lighting that is used with electronic low-voltage and high frequency power
supply transformers, nor high pressure discharge lamps (HID lighting).
This includes mercury-vapor, sodium vapor and metal halide lamps.
• Switch ON/OFF
• Scene Capable
• ON/OFF LED
• Two way communication
• RF reliability
• Ease of installation – No new wiring
• Compatible with other Z-Wave® enabled devices
FEATURES
INTRODUCTION
BK
RD
WH
YL/RD
BK
RD
YL/RD
3
2
1
4
Terminal
Screw marked White (WH)
Terminal
Screw marked
Yellow/Red
(YL/RD)
5
Coordinating Remote Switch
4
3
1
5
Terminal
Screw marked
Red (RD)
Terminal
Screw marked
White (WH)
2
Terminal
Screw marked
Black (BK)
Terminal
Screw marked
Yellow/Red
(YL/RD)
Hot (Black)
Neutral (White)
Vizia + Remote (no LED)
YL/RD YL/RD
RD
WH
RD
BK
Black
BKWH
White
Line
120VAC, 60Hz
Green
Ground
Green
Ground
(unused)
(unused)
Load
Switch
3-Way Wiring with Coordinating Remote
(no LED) Application:
Step 4b
Step 4b cont’d
WIRING SWITCH:
Connect wires per WIRING DIAGRAM as follows:
NOTE: The switch must be installed in a wall box that has a Line Hot
connection.
NOTE: Maximum wire length from switch to all installed remotes cannot
exceed 300 ft (90 m).
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot (common) wall box wire identified (tagged) when removing old
switch to terminal screw marked "BK".
• First Traveler wall box wire to terminal screw marked "RD"
(note wire color).
• Remove Red insulating label from terminal screw marked "YL/RD".
• Second Traveler wall box wire to terminal screw marked "YL/RD"
(note wire color). This traveler from the switch must go to the terminal
screw on the remote marked "YL/RD".
• Line Neutral wall box wire to terminal screw marked "WH".
WIRING COORDINATING REMOTE:
Connect wires per WIRING DIAGRAM as follows:
NOTE: "BK" and "RD" terminals on coordinating remote are unused.
Tighten both screws.
NOTE: Maximum wire length from switch to last remote is 300 ft (90 m).
• Green or bare copper wire in wall box to Green terminal screw.
• Load wall box wire identified (tagged) when removing old switch to First
Traveler (note color as above).
• Second Traveler wall box wire (note color as above) to terminal screw
marked "YL/RD". This traveler from the remote must go to the terminal
screw on the switch marked "YL/RD".
• Remove White insulating label from terminal screw marked "WH".
• Line Neutral wall box wire to terminal screw marked "WH".
• Proceed to Step 5.
DI-000-VRS15-02A-X3
• Restore power at circuit breaker or fuse.
• Press pad until locator light is OFF. Lights
should turn ON.
If lights do not turn ON, refer to the
TROUBLESHOOTING section.
LIMITED 5 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement,
at its option, if within such five year period the product is returned prepaid, with proof of purchase date, and a description of the problem to Leviton Manufacturing Co., Inc., Att: Quality Assurance Department, 59-25 Little Neck Parkway, Little Neck, New York 11362-2591. This warranty excludes and there is disclaimed liability
for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused, opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or
implied warranties of any kind, including merchantability and fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness for a particular purpose, is limited to five years. Leviton is not liable for incidental,
indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
Testing your Switch prior to mounting in wall box:
Step 5
Programmer/Controller
Cat. No. VRCPG
NOTE: Programmer/Controller must be in close
proximity to switch when including in the network.
For additional information, contact Leviton’s
Techline at 1-800-824-3005 or visit Leviton’s
website at www.ViziaRF+.com
Protected under U.S. Patent Number 6,388,399 and patents pending
and licensed under U.S. Patents Numbers 5,905,442, and 5,982,103
This equipment has been tested and found to comply with the limits for a Class B Digital
Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment OFF and ON, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving Antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/tv technician for help.
FCC COMPLIANCE STATEMENT
Push Pad
Locator
Light
NOTE: The locator light will illuminate when the load is
in the OFF position to facilitate access in the dark.
Push Pad (Default settings)
Turn ON from OFF position:
Tap – Lights turn ON.
Turn OFF from ON position:
Tap – Lights turn OFF.
If there is a power outage, when the power is restored,
the lights will return to the last setting before the power interruption.
Cleaning: Clean with a damp cloth. DO NOT use chemical cleaners.
OPERATION
TROUBLESHOOTING
• Lights Flickering
- Lamp has a bad connection.
- Wires not secured firmly under terminal screws of switch and/or remote.
• Light does not turn ON and Locator LED does not turn ON
- Circuit breaker or fuse has tripped.
- Lamp is burned out.
- Lamp Neutral connection is not wired.
• Remote does not operate lights
- Ensure that total wire length does not exceed 300 ft (90 m).
Step 9 Excluding Switch from Z-Wave® Network:
NOTE: It is very important to accurately Exclude devices from
the network when moving or removing a device from a Z-Wave
®
network. This ensures that all information has been removed from your Primary
Programmer/Controller's information table and is not counted on to be part of
the mesh network.
A) If using a Leviton Z-Wave
®
Programmer/Controller, Cat. No. VRCPG, press
the Menu button and scroll down to System Setup. Press the center button
to select System Setup Menu.
Choose Advanced Settings.
Press the
center button to select Network.
B) While standing close to the switch (approximately 1 foot), press the center
button to <Exclude> device from the network.
C)
While the Programmer/Controller is in the Exclusion mode and the locator
LED is ON on the Dimmer, press the push pad to turn on the switch. The
Programmer/Controller will verify Exclusion and the locator LED will turn OFF.
If the switch is flashing Amber while in the Exclusion mode, the
Programmer/Controller is still trying to communicate with the switch. Wait
until the device stops flashing, then press the push pad.
Factory Default:
If your switch is not responding, or you are unable to control it after you have
tried to Include/Exclude it multiple times, it may be necessary to reset the switch
to its original factory settings. To accomplish this, proceed as follows:
• On the switch, engage the air-gap switch by gently
pressing the top of the push pad until the bottom lifts
completely out of the frame and a click is heard (refer
to figure). Wait 5 seconds and then press the push pad
back into the frame and hold push pad until the locator
LED turns Amber and then flashes Red. The switch is
now reset. Once the switch is reset, it will be necessary
to Re-Include it to a network before it can be used.
CAUTION: SETTING A DEVICE TO A FACTORY
DEFAULT DOES NOT EXCLUDE THAT DEVICE FROM
A NETWORK. THE EXCLUSION PROCEDURE MUST
STILL BE FOLLOWED TO REMOVE THE DEVICE FROM
THE PRIMARY CONTROLLER’S INFORMATION TABLE.
FAILURE TO DO SO MAY RESULT IN SYSTEM THAT IS
SLOW TO RESPOND, OR MAY FAIL TO RESPOND TO
SOME DEVICES.
Step 8 Including Switch into Z-Wave® Network:
NOTES:
• If using a non-Leviton Programmer/Controller, refer to the
Programmer/Controller instruction sheet for Including a device.
• If using VRCPG install checklist go directly to step B.
A)
If using a Leviton Z-Wave® Programmer/Controller, Cat. No. VRCPG,
press the Menu button and scroll down to System Setup. Press the
center button to select System Setup Menu. Choose Advanced Settings.
Press the center button to select Network.
B) While standing close to the switch
(approximately 1 foot), press the center button
to <Include> device in the network.
NOTE: Only one device may be included at
a time. DO NOT put multiple devices into the
Inclusion mode at any time.
C) While the Programmer/Controller is in the
Inclusion mode and the Locator LED is ON on
the switch, press the push pad to turn on the
switch. The Programmer/Controller will verify
inclusion and the Locator LED will turn OFF.
If the switch is flashing Amber while in the
Inclusion mode, the Programmer/Controller is
still trying to communicate with the switch. Wait
until the device stops flashing, then press the
push pad.
NOTE: If the Locator LED on the switch turns
solid Red while including, there has been a
communication error. Refer to Troubleshooting
section.
1 ON
2 ON
3 ON
4 ON
OFF
OFF
OFF
OFF
Programmer/Controller
Cat. No. VRCPG
Menu
Button
Center
Button
• Position all wires to provide room in outlet
wall box for device.
• Ensure that the word “TOP” is facing up on
device strap.
• Partially screw in mounting screws in wall
box mounting holes.
NOTE: Dress wires with a bend as shown
in diagram in order to relieve stress when
mounting device.
Switch Mounting:
TURN OFF POWER AT
CIRCUIT BREAKER OR FUSE.
Step 6
Installation may now be completed by tightening
mounting screws into wall box. Attach wallplate.
Restore Power:
Restore power at circuit breaker or fuse.
Installation is complete.
Step 7
Step 4c 3-Way Wiring with Matching Remote
(w/LEDs) Application:
1
BK WH
RD
YL/RD
Additional
Neutral Wire
Terminal
Screw
marked
Black (BK)
Terminal
Screw
marked
Yellow/Red
(YL/RD)
BK
RD
YL/RD
4
3
5
Terminal
Screw marked
Red (RD)
Matching Remote Switch
4
3
1
2
5
2
Hot (Black)
Neutral (White)
Load
Switch
Matching Switch
Remote (with LEDs)
YL/RD YL/RD
RD
BK
Black
White
Line
120VAC, 60Hz
Green
Ground
Green
Ground
WH BK WH
Gently press top
of push pad
NOTE: The switch must be installed in a wall box that has a Load
connection. The matching remote must be installed in a wall box with
a Line Hot connection and a Neutral connection. A Neutral wire to the
matching remote needs to be added as shown.
If you are unsure about any part of these instructions, consult a qualified
electrician.
NOTE: Maximum wire length from switch to all installed remotes cannot
exceed 300 ft (90 m).
WIRING MATCHING REMOTE (wall box with line hot
connection):
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot (common) wall box wire identified (tagged) when removing
old switch and First Traveler to Remote terminal marked BK.
• Second Traveler wall box wire from switch to remote terminal screw
marked "YL/RD" (note wire color). This traveler from the remote must
go to Yellow/Red switch terminal screw.
• Line Neutral wall box to remote terminal screw marked "WH".
WIRING SWITCH (wall box with load connection):
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Load wall box wire identified (tagged) when removing old switch to
Red terminal screw.
• First Traveler Line Hot to Black terminal screw.
• Remove Red insulating label from Yellow/Red terminal screw.
• Second Traveler wall box wire (note color as above) to Yellow/Red
terminal screw. This traveler from the switch must go to the terminal
screw on the remote marked "YL/RD".
• Line neutral wall box wire to White terminal screw.
• Proceed to Step 5.
D) The Primary Programmer/Controller will assign a node ID number
(Name) for this device.
NOTE: This ID number (Name) will be stored in the controller to be
used for future reference.
NOTE: You may name or edit your device at this time.
E) The switch is now installed in the network.
NOTE: If the switch has been successfully Included in the network and the
user tries to Include it again without first excluding it from the network, the
switch will retain the first node ID it had received and ignore the second.
Step 8 cont’d
2008 © Leviton Mfg. Co., Inc.
ADVANCED PROGRAMMING FEATURES
Locator LED Locator LED Option Setting
Default Active
First toggle Turns off 5 seconds after use
Definition of Mode
LED Option: Sets the Locator LED timeout to 5 seconds after use.
To enter programming mode press and hold the push pad for 10 seconds
until the locator LED begins to blink. Upon holding the push pad the LED
Option will automatically be changed.
DOCUMENTATION
LEVITON INSTRUCTION SHEET/MANUAL
SPECIFICATIONS
HSZ 01.30.08
Helvetica
DI-000-VRS15-02A-X3
Black
N/A
Final fold size:
40 Lb. o ffset
2.3" X 4.25"
Overall size:
14" X 8.5"
Paper size:
FOLD SCHEME
8.5"
14"
Cat No.
Cat No.
2.3"
4.25"
FINAL
Fold Line
