Host 1 user manual 1 of 4
Version 1.00
Revision A
January 2009
User Guide
Spectra Precision®
Focus® 4 Total Station
2 Spectra Precision Focus 4 Total Station User Guide
Corporate Office
Spectra Precision
10355 Westmoor Drive
Suite #100
Westminster, CO 80021
USA
+1-720-587-4700 Phone
888-477-7516 (Toll free in USA)
www.spectraprecision.com
Legal Notices
Copyright and Trademarks
© 2006-2009, Nikon-Trimble Co. Limited. All rights reserved. All
trademarks are the property of their respective owners.
Spectra Precision, the Spectra Precision logo, Focus, and the Focus logo
are trademarks or registered trademarks of Spectra Precision, registered
in the United States and in other countries.
The Bluetooth word mark and logos are owned by the Bluetooth SIG,
Inc. and any use of such marks by Nikon-Trimble Co. Limited is under
license.
All other trademarks are the property of their respective owners.
Release Notice
This is the January 2009 release (Revision A) of the Spectra Precision
Focus 4 Total Station User Guide. It applies to version 1.00 of the Focus 4
Total Station.
Manufacturer
Nikon-Trimble Co., Ltd.
Technoport Mituiseimei Bldg.
16-2, Minamikamata 2-chome, Ota-ku
Tokyo 144-0035 Japan
Product Limited Warranty Information
For applicable product Limited Warranty information, please refer to the
Limited Warranty Card included with this Spectra Precision product, or
consult your Spectra Precision Authorized Distribution Partner.
Notices
Class B Statement – Notice to Users. This equipment has been tested
and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communication.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and the receiver.
– Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Changes and modifications not expressly approved by the manufacturer
or registrant of this equipment can void your authority to operate this
equipment under Federal Communications Commission rules.
CWARNING - This equipment has been certified to comply with the
limits for a Class B personal computer and peripherals, pursuant to
Subpart B of Part 15 of FCC Rules. Only peripherals (computer
input/output devices, terminals, printers, etc.) certified to comply with
the Class B limits may be attached to this equipment. Operation with
non-certified personal computer and/or peripherals is likely to result in
interference to radio and TV reception. The connection of a non-
shielded equipment interface cable to this equipment will invalidate
the FCC Certification of this device and may cause interference levels
which exceed the limits established by the FCC for this equipment.
You are cautioned that changes or modifications not expressly
approved by the party responsible for compliance could void your
authority to operate the equipment.
Canada
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus as set out in the radio interference
regulations of the Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numériques de Classe B
prescrites dans le règlement sur le brouillage radioélectrique édicté par
le Ministère des Communications du Canada.
Europe
This product has been tested and found to comply with the
requirements for a Class B device pursuant to European
Council Directive 89/336/EEC on EMC, thereby satisfying the
requirements for CE Marking and sale within the European Economic
Area (EEA). These requirements are designed to provide reasonable
protection against harmful interference when the equipment is operated
in a residential or commercial environment.
Representative in Europe
Trimble GmbH
Am Prime Parc 11
65478 Raunheim, Germany
Australia and New Zealand
This product conforms with the regulatory requirements of the
Australian Communications Authority (ACA) EMC framework,
thus satisfying the requirements for C-Tick Marking and sale
within Australia and New Zealand.
Taiwan Battery Recycling Requirements
The product contains a removable Ni-MH battery.
Taiwanese regulations require that waste batteries are
recycled.
⎧ᢂᚾ╫
Notice to Our European Union Customers
For product recycling instructions and more information, please go to
www.spectraprecision.com/ev.shtm.
Recycling in Europe: To recycle Spectra Precision WEEE (Waste
Electrical and Electronic Equipment, products that run on
electrical power.), Call +31 497 53 24 30, and ask for the "WEEE
Associate". Or, mail a request for recycling instructions to:
Spectra Precision Europe BV
c/o Menlo Worldwide Logistics
Meerheide 45
5521 DZ Eersel, NL
Declaration of Conformity
We, Spectra Precision Limited
10355 Westmoor Drive
Suite #100
Westminster, CO 80021
United States of America
+1-720-587-4700
declare under sole responsibility that the product:
Focus 4 Total Station
complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
Spectra Precision Focus 4 Total Station User Guide 3
Notices for optional Bluetooth unit
USA
FCC Part 15 Subpart/RSS-210, OET bulletin 65 supplement C satisfied.
CCAUTION - Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate the equipment
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Canada
RSS-210 Low Power Device
Operation is subject to the following two conditions: (1) This device may
not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
European Union countries, Iceland, Norway,
Liechtenstein, Turkey, and Switzerland
EN300 328v1.7.1, EN50360 satisfied
Hereby, Nikon-Trimble Co., Ltd., declares that this instrument is in
compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Declaration of Conformity available at http://www.nikon-trimble.com/
RF exposure compliance
– To comply with FCC/IC RF exposure compliance requirements, a
separation distance of at least 20 cm must be maintained between the
antenna of this device and all persons.
– This transmitter must not be co-located with or operate in
conjunction with any other antenna or transmitter.
4 Spectra Precision Focus 4 Total Station User Guide
Spectra Precision Focus 4 Total Station User Guide 5
Safety
For your safety read the safety and warnings section and this manual carefully and
thoroughly before using the Spectra Precision® Focus®4 total station.
Although Spectra Precision products are designed for maximum safety, using them
incorrectly or disregarding the instructions can cause personal injury or property
damage.
You should also read the documentation for any other equipment that you use with a
Spectra Precision Focus 4 total station.
Note – Always keep this user guide near the instrument for easy reference.
Warnings and Cautions
The following conventions are used to indicate safety instructions:
CWARNING – Warnings alert you to situations that could cause death or serious injury.
CCAUTION – Cautions alert you to situations that could cause injury or property damage.
Always read and follow the instructions carefully.
Rechargeable Lithium-ion (Li-ion) batteries
CWARNING – Do not damage the rechargeable Lithium-ion battery. A damaged battery
can cause an explosion or fire, and can result in personal injury and/or property damage.
To prevent injury or damage:
– Do not use or charge the battery if it appears to be damaged. Signs of damage include,
but are not limited to, discoloration, warping, and leaking battery fluid.
– Do not expose the battery to fire, high temperature, or direct sunlight.
– Do not immerse the battery in water.
– Do not use or store the battery inside a vehicle during hot weather.
– Do not drop or puncture the battery.
– Do not open the battery or short-circuit its contacts.
CWARNING – Avoid contact with the rechargeable Lithium-ion battery if it appears to be
leaking. Battery fluid is corrosive, and contact with it can result in personal injury and/or
property damage.
To prevent injury or damage:
– If the battery leaks, avoid contact with the battery fluid.
– If battery fluid gets into your eyes, immediately rinse your eyes with clean water and
seek medical attention. Do not rub your eyes!
– If battery fluid gets onto your skin or clothing, immediately use clean water to wash off
the battery fluid.
Safety
6 Spectra Precision Focus 4 Total Station User Guide
CWARNING – Charge and use the rechargeable Lithium-ion battery only in strict
accordance with the instructions. Charging or using the battery in unauthorized
equipment can cause an explosion or fire, and can result in personal injury and/or
equipment damage.
To prevent injury or damage:
– Do not charge or use the battery if it appears to be damaged or leaking.
– Charge the Lithium-ion battery only in a product that is specified to charge it. Be sure to
follow all instructions that are provided with the battery charger.
– Discontinue charging a battery that gives off extreme heat or a burning odor.
– Use the battery only in equipment that is specified to use it.
– Use the battery only for its intended use and according to the instructions in the product
documentation.
Warnings
Before using the instrument, read the following warnings and follow the instructions
that they provide.
CWARNING – Never look at the sun through the telescope. If you do, you may damage or
lose your eyesight.
CWARNING – The Focus 4 total station is not designed to be explosion-proof. Do not use
the instrument in coal mines, in areas contaminated with coal dust, or near other
flammable substances.
CWARNING – Never disassemble, modify, or repair the instrument yourself. If you do, you
may receive electric shocks or burns, or the instrument may catch fire. You may also impair
the accuracy of the instrument.
CWARNING – Use only the specified battery charger and AC adapter that are supplied
with the instrument. Do not use any other charger or adapter as this may cause the
battery pack to catch fire or rupture.
CWARNING – Do not cover the battery charger and AC adapter while the battery pack is
being recharged. The charger must be able to dissipate heat adequately. Coverings such
as blankets or clothing can cause the charger to overheat.
CWARNING – Avoid recharging the battery pack in humid or dusty places, in direct
sunlight, or near heat sources. Do not recharge the battery pack when it is wet. If you do,
you may receive electric shocks or burns, or the battery pack may overheat or catch fire.
CWARNING – Although the battery pack has an auto-reset circuit breaker, you should take
care not to short circuit the contacts. Short circuits can cause the battery pack to catch fire
or burn you.
Spectra Precision Focus 4 Total Station User Guide 7
Safety
CWARNING – Never burn or heat the battery. Doing so may cause the battery to leak or
rupture. A leaking or ruptured battery can cause serious injury.
CWARNING – Before storing the battery pack or battery charger, cover the contact points
with insulation tape. If you do not cover the contact points, the battery pack or charger
may short circuit, causing fire, burns, or damage to the instrument.
CWARNING – The battery is not waterproof on its own. Do not get the battery wet when it
is removed from the instrument. If water seeps into the battery, it may cause a fire or
burns.
Cautions
Before using the instrument, read the following cautions and follow the instructions
that they provide:
CCAUTION – Use of controls, adjustments, or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
CCAUTION – The tops of the tripod ferrules are very sharp. When handling or carrying the
tripod, take care to avoid injuring yourself on the ferrules.
CCAUTION – Before carrying the tripod or the instrument in the carry case, check the
shoulder strap and its clasp. If the strap is damaged or the clasp is not securely fastened,
the carry case may fall, causing personal injury or instrument damage. The shoulder strap
is available as an optional extra.
CCAUTION – Before setting up the tripod, make sure that no-one’s hands or feet are
underneath it. When the legs of the tripod are being driven into the ground, they could
pierce hands or feet.
CCAUTION – After mounting the instrument on the tripod, securely fasten the thumb
screws on the tripod legs. If the thumb screws are not securely fastened, the tripod may
collapse, causing personal injury or instrument damage.
CCAUTION – After mounting the instrument on the tripod, securely fasten the clamp screw
on the tripod. If the clamp screw is not securely fastened, the instrument may fall off the
tripod, causing personal injury or instrument damage.
CCAUTION – Securely fasten the tribrach clamp knob. If the knob is not securely fastened,
the tribrach may come loose or fall off when you lift the instrument, causing personal
injury or instrument damage.
Safety
8 Spectra Precision Focus 4 Total Station User Guide
CCAUTION – Do not stack objects on the plastic carry case, or use it as a stool. The plastic
carry case is unstable and its surface is slippery. Stacking or sitting on the plastic carry case
may cause personal injury or instrument damage.
CCAUTION – The system in the instrument may stop functioning in order to avoid any
errors in measurements when the instrument detects strong electromagnetic wave(s). If
this happens, turn off the instrument and remove the source of the electromagnetic
wave(s). Then turn on the instrument to resume the work.
Laser safety
The Focus 4 is a Class 2 laser instrument, in accordance with IEC60825-1, Am2 (2001):
Safety of Laser Products.
To counteract hazards, it is essential for all users to pay careful attention to the safety
precautions and control measures specified in the standard IEC60825-1, (2001-08),
particularly EN60825-1:1994, A11:1996, and A2:2001, as this refers to the hazard
distance that is defined in this User Guide.
Note – The hazard distance is the distance from the laser at which beam irradiance or
radiant exposure equals the maximum permissible value to which personnel may be
exposed without being exposed to health risks.
CWARNING – Only qualified and trained persons should be assigned to install, adjust, and
operate the laser equipment.
CWARNING – Precautions should be taken to ensure that persons do not look directly, with
or without an optical instrument, into the beam.
CWARNING – Wherever practicable, the laser beam path should be located well above or
below eye level.
Spectra Precision Focus 4 Total Station User Guide 9
Safety
Specifications for laser emission
Conforming standards

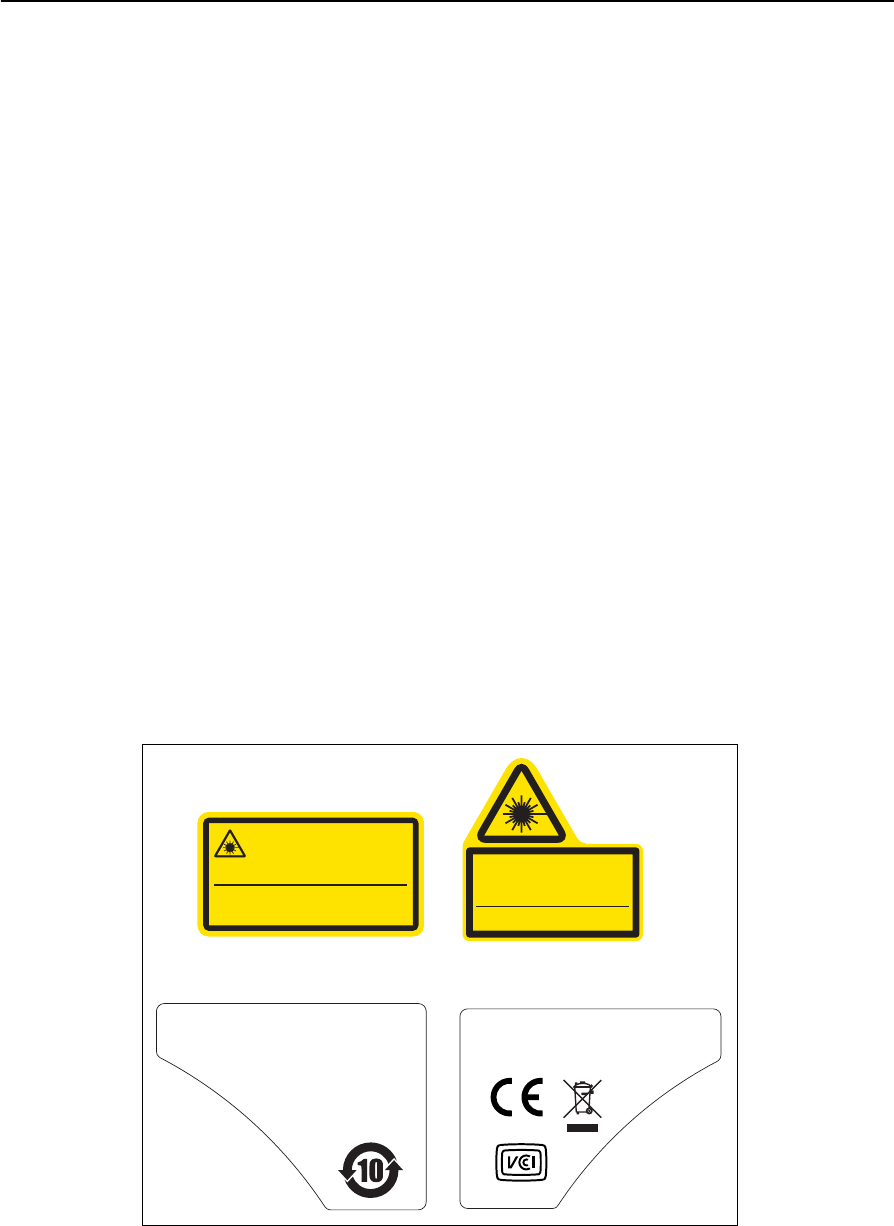

Labels
Laser pointer
Wave length 630-680 nm
Output power CW: Po ≤ 1.0 mW
Distance meter
Wave lenght 850-890 nm
Output power Pulse: Po ≤ 6.4 mW
Pulse width < 5 ns
Laser plummet (option)
Wave length 635 nm
Output power CW: Po < 1.0 mW
EU EN60825-1/Am.2 : 2001 (IEC60825-1/Am.2 : 2001)
Laser pointer: Class 2
Distance meter: Class 1
Laser plummet: Class 2 (Option)
USA FDA21CFR Part 1040 Sec.1040.10 and 1040.11
Except for deviations pursuant to Laser Notice No.50, dated June 24, 2007.
Complies with 21 CFR 1040 . 10 and 1040 . 11
except for deviations pursuant to
Laser Notice No . 50 , dated June 24 , 2007
MADE IN JAPAN
Technoport Mitsuiseimei Bldg.
16
-
2,Minamikamata 2
-
chome,
Ota
-
ku, Tokyo 144
-
0035 Japan
NIKON
-
TRIMBLE CO.,LTD.
Po
<
1.0mW CW Ё=635nm
IEC 60825
-
1 ,2001
LASER RADIATION
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
Po
Ƀ
1mW CW Ё=630
-
690nm
Class 2 Laser Product
Do not stare into beam
Laser Radiation
IEC60825-1:2001
This device complies with Part 15 of the FCC Rules .
Operation is subject to the following two conditions :
1 this device may not cause harmful interference , and
2 this device must accept any interference received ,
including interference that may cause undesired operation.
Laser pointer Laser plummet (option)
Safety
10 Spectra Precision Focus 4 Total Station User Guide
Spectra Precision Focus 4 Total Station User Guide 11
Contents
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Rechargeable Lithium-ion (Li-ion) batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Laser safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Specifications for laser emission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Conforming standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

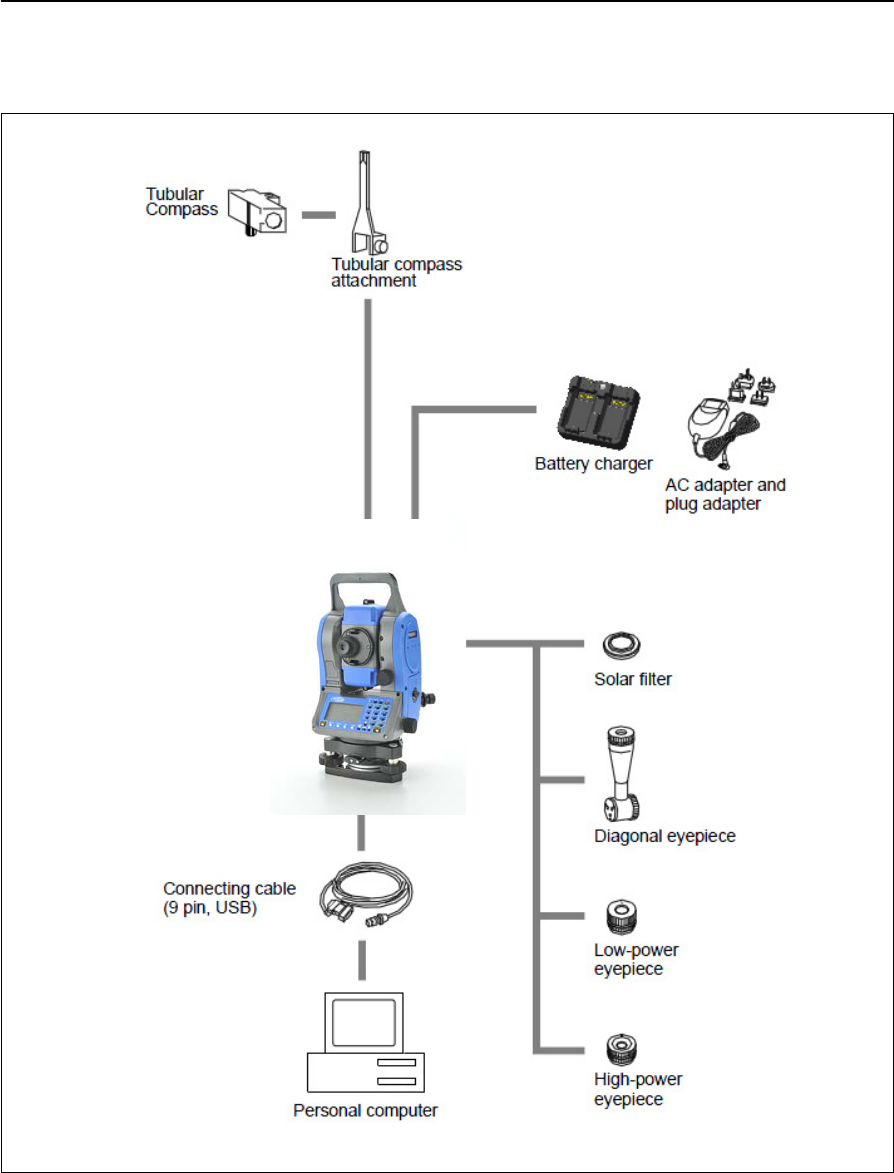

System diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Care and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Environmental conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Adjusting and tightening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Related information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2 Setting up the Instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

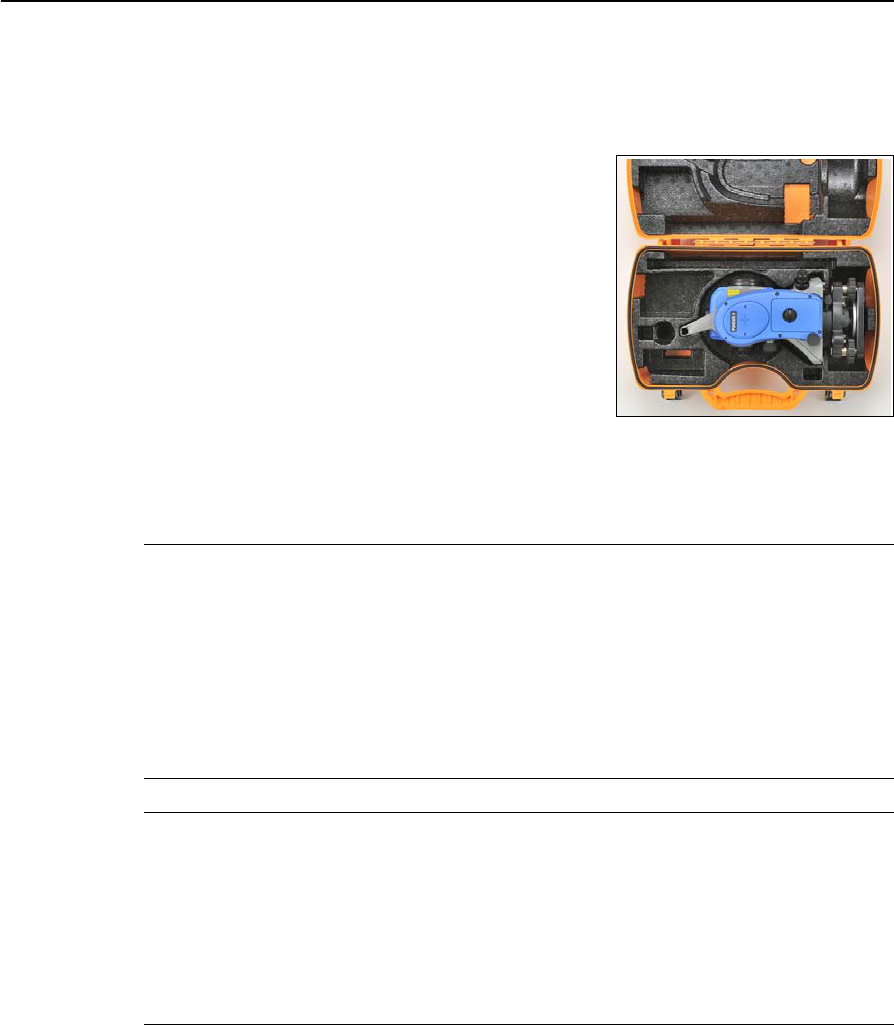

Unpacking and repacking the instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

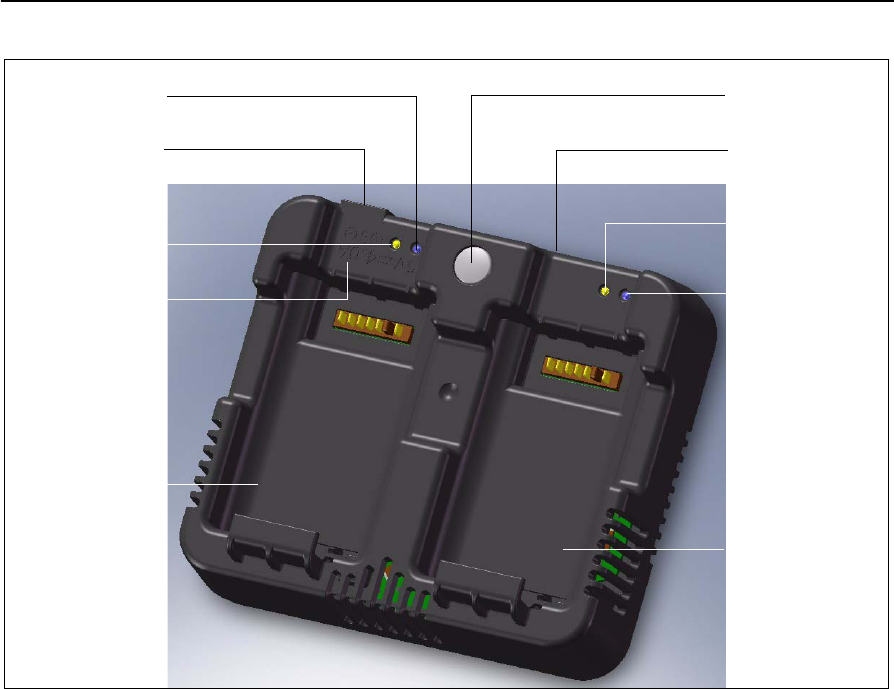

Charging the battery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Applying power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Charging the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Conditioning / calibrating a battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

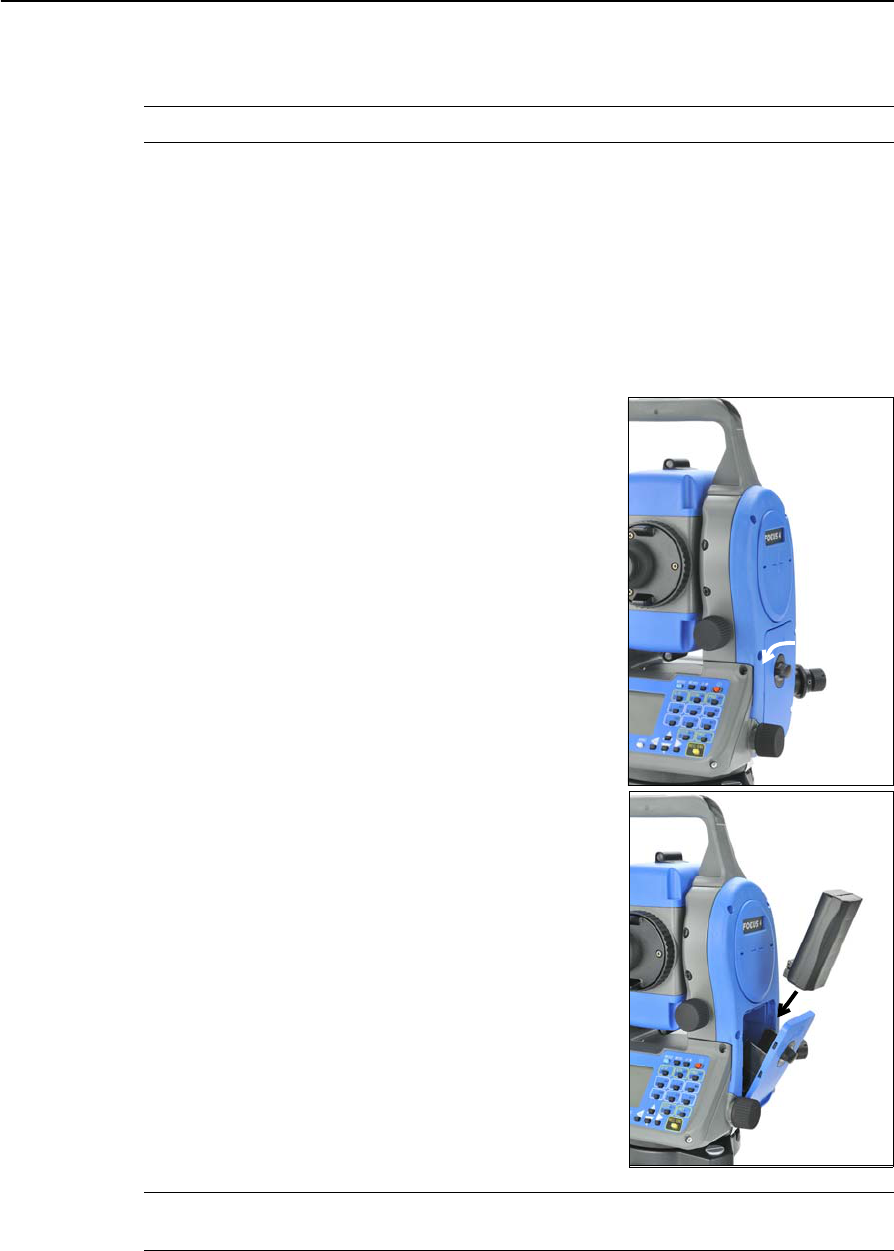

Detaching the battery pack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Attaching the battery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Setting up the tripod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Centering the instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Centering with the optical plummet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Centering with the laser plummet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Centering with a plumb bob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

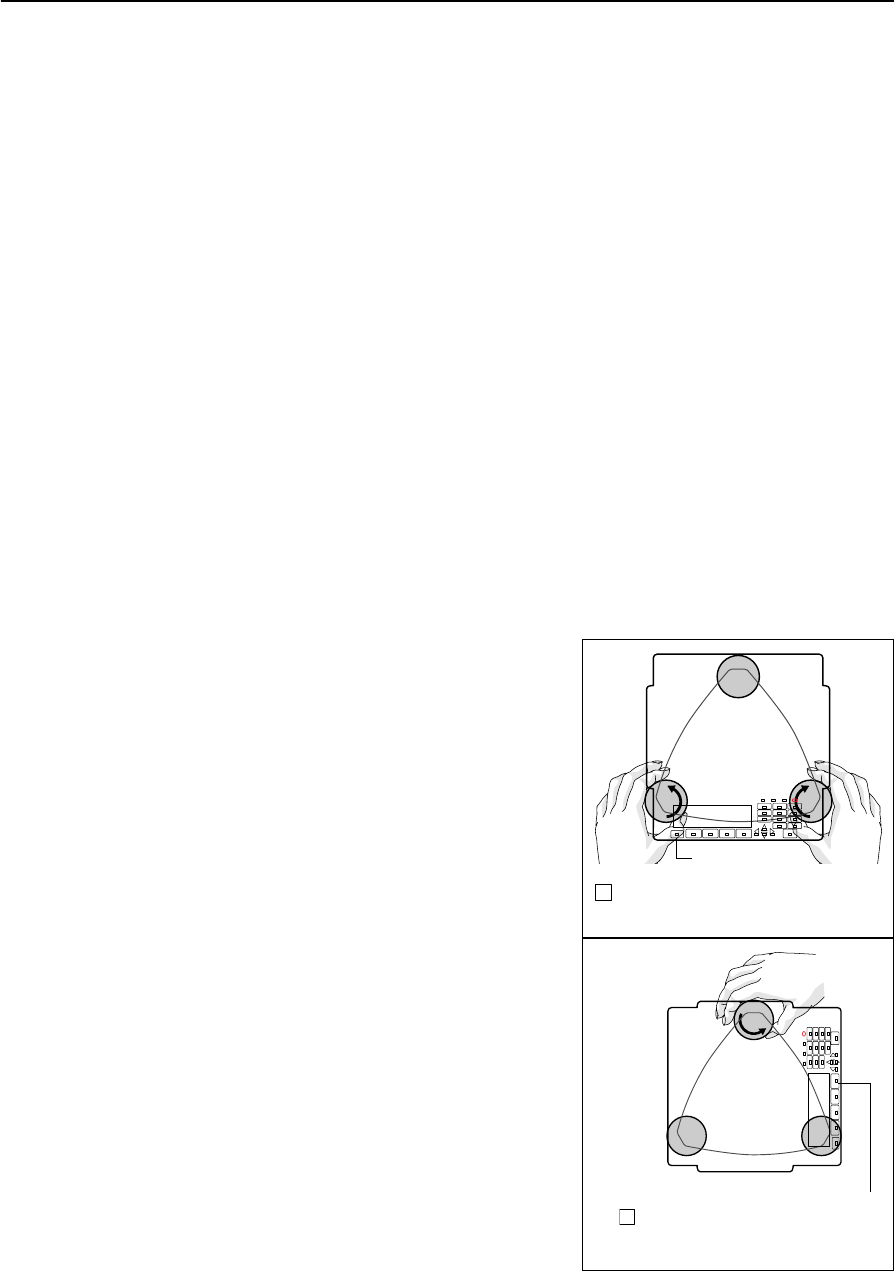

Leveling the instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

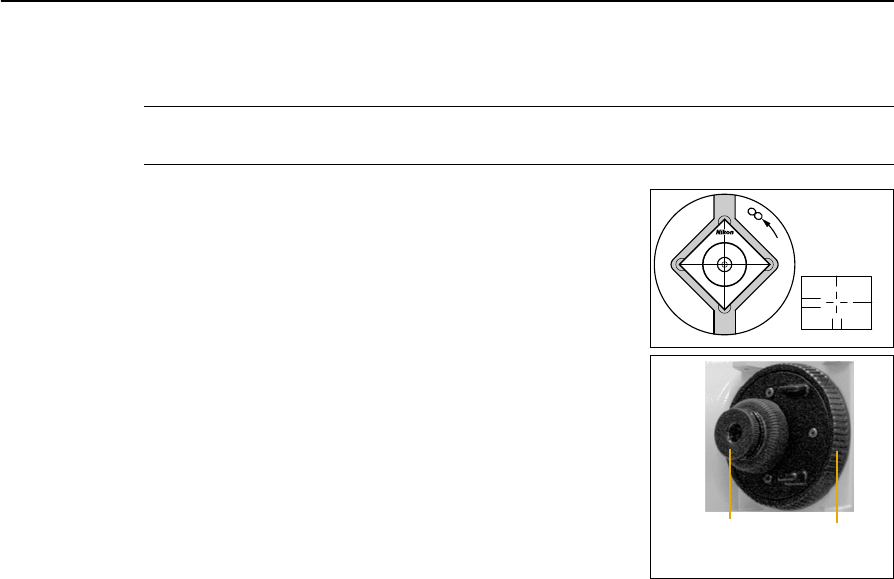

Focusing the telescope. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Setting the measurement mode and preparing the target . . . . . . . . . . . . . . . . . . . . . . . 33
Measurement with a prism. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Measurement in reflectorless (N-Prism) mode . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Viewing and changing the measurement settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Target field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

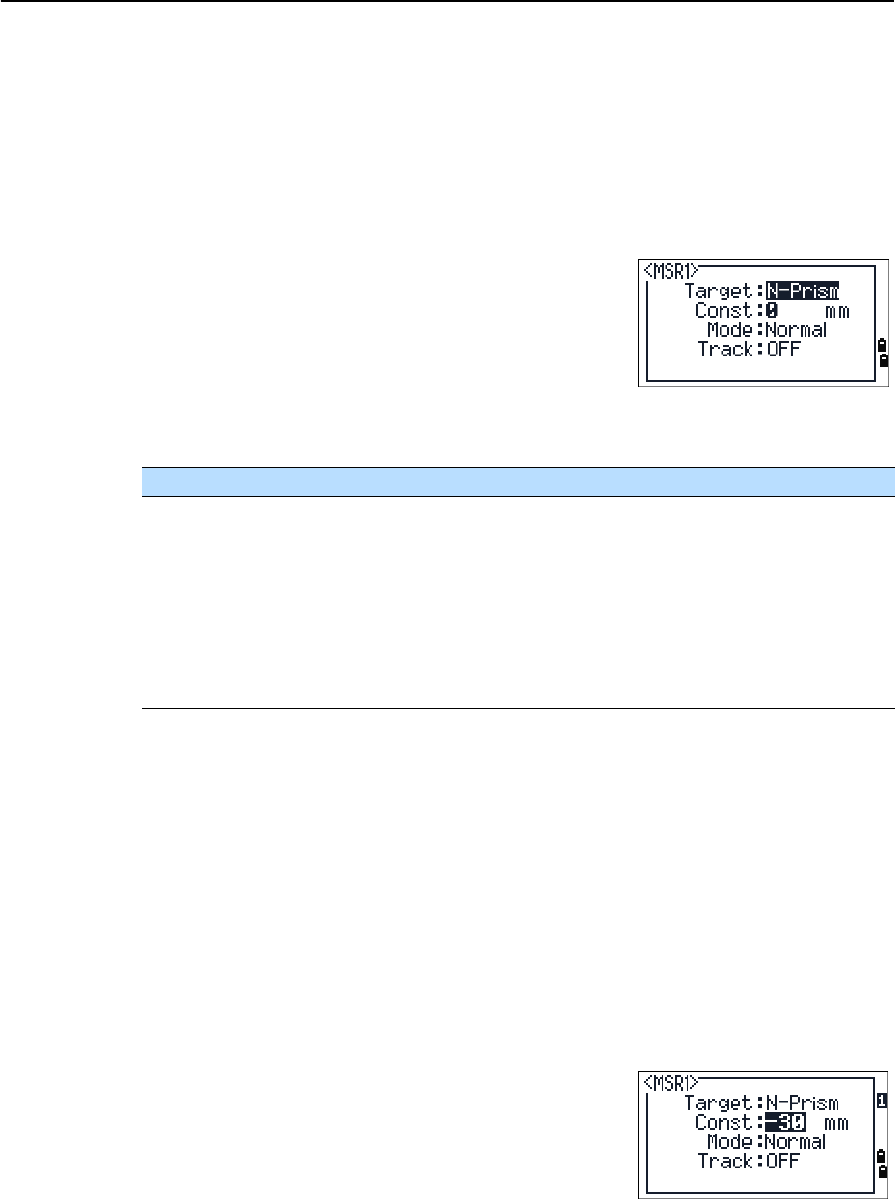

Prism constant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Contents
12 Spectra Precision Focus 4 Total Station User Guide
3 Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Parts of the instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Instrument keyboard and display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Instrument keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Status bar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
LCD backlight, laser pointer, beep sound, and contrast adjustment . . . . . . . . . . . . . 43
[DSP] button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
[MODE] button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
[HOT] key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Bubble indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Laser plummet (option). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Turning on the instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Turning off the instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Sleep mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Regional configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
List available jobs or data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Entering data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Entering a point name or number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Entering a code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Advanced feature: Searching for a code using the first character . . . . . . . . . . . . . . . . . . . 54
Entering values in feet and inches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Creating or opening a job . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Creating a new job . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Creating a control job . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Measuring distances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Sighting a prism reflector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Taking a distance measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Viewing and changing the measurement settings . . . . . . . . . . . . . . . . . . . . . . . . 57
4 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
HA reset and angle operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Setting the horizontal angle to 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Entering the horizontal angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Station setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Baseline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Known. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Resection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Advanced feature: Viewing and deleting a measurement in resection. . . . . . . . . . . . . . . . 67
Base XYZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Remote BM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
BS Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Stakeout menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
S-O to Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
L-O from Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Spectra Precision Focus 4 Total Station User Guide 13
Contents
L-O from Arc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
XYZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Advanced feature: Specifying a layout list by inputting points by range . . . . . . . . . . . . . . 75
Programs menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Remote distance measurement (RDM) - overview . . . . . . . . . . . . . . . . . . . . . . . . 76
RDM (Radial) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
RDM (Cont) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
REM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Cogo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Advanced feature: Entering a range of points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Advanced feature: Entering angle and distance offsets . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Recording measurement data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Switching between display screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
5 Menu Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Job . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Opening an existing job . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Creating a new job . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Deleting a job . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Setting the control job. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Displaying job information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Settings (basic job settings). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Coordinate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Power saving. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100
Recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100
Other settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102
Viewing records. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102
Deleting records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104
Editing raw records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106
Searching records. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .109
Entering coordinates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111
Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112
Downloading coordinate data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112
Uploading coordinate data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113
Advanced feature: Editing the data order for upload . . . . . . . . . . . . . . . . . . . . . . . . . . 114
1sec-Key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115
[MSR] button settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115
[DSP] button settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
Contents
14 Spectra Precision Focus 4 Total Station User Guide
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
6 Checking and Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Adjusting the electronic level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Checking and adjusting the circular level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Checking and adjusting the optical/laser plummet. . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Zero point errors of vertical scale and horizontal angle corrections . . . . . . . . . . . . . . . . .119
Checking the calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119
Adjusting the calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120
The instrument constant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121
Checking the laser pointer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122
7 Transferring Coordinate Data . . . . . . . . . . . . . . . . . . . . . . . . 123
Transferring coordinate data to the total station . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124
Record format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124
Data example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125
Transferring coordinate data from the total station . . . . . . . . . . . . . . . . . . . . . . . . . . .125
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125
Data examples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .125
A Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Main body. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128
Telescope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128
Measurement range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128
Distance measurement precision. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129
Measurement intervals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129
Angle measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129
Tilt sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130
Tangent screws . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130
Tribrach. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130
Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130
Optical plummet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130
Optical laser plummet (option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130
Display and keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130
Connections in the base of instrument . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .131
Battery pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .131
Environmental performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .131
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .131
Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .131
Environmental protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .132
Standard components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .132
External device connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .132
Spectra Precision Focus 4 Total Station User Guide 15
Contents
B Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Cogo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136
Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136
Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137
Job manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137
Stakeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138
Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139
Recording data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139
Searching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .140
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141
Station setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .141
System error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142
Contents
16 Spectra Precision Focus 4 Total Station User Guide
CHAPTER
1
Spectra Precision Focus 4 Total Station User Guide 17
Introduction 1
In this chapter:
QSystem diagram
QCare and maintenance
QRelated information
This user guide describes the unique capabilities
and features available in the Spectra Precision®
Focus® 4 total station.
The software for the Focus 4 total station makes
it easy for you to learn to operate one model of
instrument and, with little additional training, to
apply that knowledge to other models.
Before using the instrument, read this user guide
carefully. In particular, pay attention to the
warnings and cautions that appear in the Safety
section, see Safety, page 5.
Your comments and suggestions about the
Focus 4 total station are welcome. Please contact
us at the address given in the front of this
manual.
In addition, your feedback about the supporting
documentation helps us to improve it with each
revision. Email your comments to
sales@spectraprecision.com.
1 Introduction
18 Spectra Precision Focus 4 Total Station User Guide
System diagram
The system diagram shows the hardware that is used with the Focus 4 total station.
Note – You must use the Spectra Precision Focus 4 total station with tribrach W30 or W30b.
Focus 4
Spectra Precision Focus 4 Total Station User Guide 19
Introduction 1
Care and maintenance
Before using the instrument, read and follow the following maintenance instructions.
The Focus 4 total station is a precision instrument that you should store, use, and
clean in an appropriate way.
CCAUTION – The battery pack contains a Lithium-ion battery. When disposing of the
battery pack, follow the laws or rules of your municipal waste system. For more
information on the safety warnings associated with the Lithium-ion battery, see
Rechargeable Lithium-ion (Li-ion) batteries, page 5.
CCAUTION – Store the battery pack with the battery pack discharged.
Environmental conditions
•Do not leave the instrument in direct sunlight or in a closed vehicle for
prolonged periods. Overheating the instrument may reduce its efficiency.
•If the total station has been used in wet conditions, immediately wipe off any
moisture and dry the instrument completely before returning it to the carry
case. The Focus 4 total station contains sensitive electronic assemblies which
have been well protected against dust and moisture. However, if dust or
moisture gets into it, severe damage could result.
•Sudden changes in temperature may cloud the lenses and drastically reduce the
measurable distance, or cause an electrical system failure. If there has been a
sudden change in temperature, leave the instrument in a closed carry case in a
warm location until the temperature of the instrument returns to room
temperature.
Storage
•Do not store the total station in hot or humid locations. In particular, you must
store the battery pack in a dry location at a temperature of less than 30 °C
(86 °F). High temperature or excessive humidity can cause mold to grow on the
lenses. It can also cause the electronic assemblies to deteriorate, and so lead to
instrument failure.
•Store the battery pack with the battery discharged.
•When storing the instrument in areas subject to extremely low temperatures,
leave the carry case open.
•If the tribrach will not be used for an extended period, lock down the tribrach
clamp knob and tighten its safety screw.
•The carry case is designed to be watertight, but you should not leave it exposed
to rain for an extended period. If exposure to rain is unavoidable, make sure that
the carry case is placed with the Spectra Precision nameplate facing upward.
1 Introduction
20 Spectra Precision Focus 4 Total Station User Guide
Cleaning
•Do not use organic solvents such as ether or print thinner to clean the
non-metallic parts of the instrument, such as the keyboard, or the painted or
printed surfaces. Doing so could result in discoloration of the surface or in
peeling of printed characters. Clean these parts only with a soft cloth or tissue
that is lightly moistened with water or a mild detergent.
•To clean the optical lenses, lightly wipe them with a soft cloth or a lens tissue
that is moistened with alcohol.
Adjusting and tightening
•When adjusting the leveling screws, stay as close as possible to the center of
each screw’s range. The center is indicated by a line on the screw.
•The reticle plate cover has been correctly mounted. Do not release it or subject
it to excessive force, for example in an attempt to make it watertight.
•Before attaching the battery pack, make sure that the contact surfaces on the
battery and Focus 4 total station are clean.
•Securely press the cap that covers the data output/external power input
connector terminal. The instrument is only watertight if the cap is attached
securely or when the data output/external power input connector is used.
•The Focus 4 total station is not watertight when the data output/external power
input connector is used.
•Static electricity from the human body, discharged through the data
output/external power input connector, can damage the instrument. Before
handling the instrument, touch any other conductive material once in order to
remove static electricity.
•Be careful not to pinch your finger between the telescope and trunnion of the
instrument.

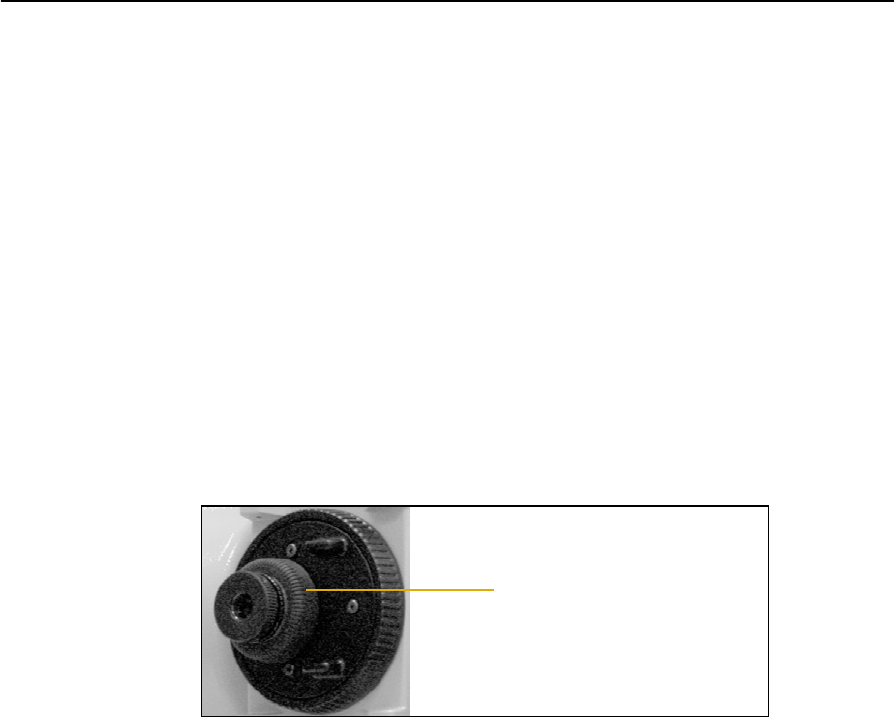

Reticle plate cover
Spectra Precision Focus 4 Total Station User Guide 21
Introduction 1
Related information
•Contact your local Spectra Precision dealer for more information about the
support agreement contracts for software and firmware, and an extended
warranty program for hardware.
•Consider a Spectra Precision training course to help you use your total station to
its fullest potential. For more information, go to the Spectra Precision website at
www.spectraprecision.com.
Alternatively, send an email to support@spectraprecision.com.
1 Introduction
22 Spectra Precision Focus 4 Total Station User Guide
CHAPTER
2
Spectra Precision Focus 4 Total Station User Guide 23
Setting up the Instrument 2
In this chapter:
QUnpacking and repacking the
instrument
QCharging the battery pack
QDetaching the battery pack
QAttaching the battery pack
QSetting up the tripod
QCentering the instrument
QLeveling the instrument
QFocusing the telescope
QSetting the measurement mode
and preparing the target
QViewing and changing the
measurement settings
This chapter explains how to prepare the Focus 4
total station before you use it in the field.
2 Setting up the Instrument
24 Spectra Precision Focus 4 Total Station User Guide
Unpacking and repacking the instrument
Note – Handle the Focus 4 total station carefully to protect it from shocks and excessive
vibration.
To unpack the instrument, grip the carry handle and
carefully remove the instrument from the carry case.
To replace the instrument in the carry case, place it
as shown in the figure.
Charging the battery pack
Before charging the battery pack, read the following warnings, cautions, and notes.
CWARNING – Do not damage the rechargeable Lithium-ion battery. A damaged battery
can cause an explosion or fire, and can result in personal injury and/or property damage.
To prevent injury or damage:
– Do not use or charge the battery if it appears to be damaged. Signs of damage include,
but are not limited to, discoloration, warping, and leaking battery fluid.
– Do not expose the battery to fire, high temperature, or direct sunlight.
– Do not immerse the battery in water.
– Do not use or store the battery inside a vehicle during hot weather.
– Do not drop or puncture the battery.
– Do not open the battery or short-circuit its contacts.
CWARNING – Avoid contact with the rechargeable Lithium-ion battery if it appears to be
leaking. Battery fluid is corrosive, and contact with it can result in personal injury and/or
property damage.
To prevent injury or damage:
– If the battery leaks, avoid contact with the battery fluid.
– If battery fluid gets into your eyes, immediately rinse your eyes with clean water and
seek medical attention. Do not rub your eyes!
– If battery fluid gets onto your skin or clothing, immediately use clean water to wash off
the battery fluid.
Spectra Precision Focus 4 Total Station User Guide 25
Setting up the Instrument 2
CWARNING – Charge and use the rechargeable Lithium-ion battery only in strict
accordance with the instructions. Charging or using the battery in unauthorized
equipment can cause an explosion or fire, and can result in personal injury and/or
equipment damage.
To prevent injury or damage:
– Do not charge or use the battery if it appears to be damaged or leaking.
– Charge the Lithium-ion battery only in a product that is specified to charge it. Be sure to
follow all instructions that are provided with the battery charger.
– Discontinue charging a battery that gives off extreme heat or a burning odor.
– Use the battery only in equipment that is specified to use it.
– Use the battery only for its intended use and according to the instructions in the product
documentation.
CWARNING – To charge the battery pack, use only the battery charger and AC adapter
that are supplied with the instrument. Do not use any other charger or you may cause the
battery pack to catch fire or rupture. The enclosed battery pack cannot be used with other
chargers.
CWARNING – Do not cover the battery charger and AC adapter while the battery pack is
being recharged. The charger must be able to dissipate heat adequately. Coverings such
as blankets or clothing can cause the charger to overheat.
CWARNING – Avoid recharging the battery pack in humid or dusty places, in direct
sunlight, or near heat sources. Do not recharge the battery pack when it is wet. If you do,
you may receive electric shocks or burns, or the battery pack may overheat or catch fire.
CWARNING – Although the battery pack has an auto-reset circuit breaker, you should take
care not to short circuit the contacts. Short circuits can cause the battery pack to catch fire
or burn you.
CWARNING – Never burn or heat the battery. Doing so may cause the battery to leak or
rupture. A leaking or ruptured battery can cause serious injury.
CWARNING – Before storing the battery pack or battery charger, cover the contact points
with insulation tape. If you do not cover the contact points, the battery pack or charger
may short circuit, causing fire, burns, or damage to the instrument.
CWARNING – The battery is not waterproof on its own. Do not get the battery wet when it
is removed from the instrument. If water seeps into the battery, it may cause a fire or
burns.
2 Setting up the Instrument
26 Spectra Precision Focus 4 Total Station User Guide
Applying power
Plug in the charger to the supplied AC adapter to turn the unit on. The power input
must be 5 V with at least 4 A of current capability. Each battery may take up to 2 A
while charging.
Charging the battery
Slide a battery into either battery slot to begin charging. The adjacent charge indicator
will illuminate yellow when charging is in progress. The charge indicator will change to
green when charging is complete.
Take note of the following:
•Charger slots are completely independent so a battery may be inserted
regardless of what is occurring in the other battery slot.
•Charging may take 2-4 hours if the battery was normally discharged.
•Charging may take up to 5 hours with a completely drained battery which has
been stored for several months without use.
•If the charge indicator(s) are blinking, there is a problem with the battery or with
the charger.
Battery slot 2
Charge light (2)
“Calibration on”
light (2)
Battery slot 1
“Calibration on”
light (1)
Charge light (1)
Calibration button
Top edge of case
5 V, 4 A
Power jack
Spectra Precision Focus 4 Total Station User Guide 27
Setting up the Instrument 2
• Lithium-ion batteries should not be charged above 40 °C to 45 °C (104 °F to
113 °F). A blinking charge light may mean that the batteries are too hot for
charging. Charging will resume after the batteries cool down.
Conditioning / calibrating a battery
You must calibrate the battery (“condition”) once every 6 months or more often if
required. Calibration ensures that the reported remaining battery charge is accurate.
To start calibrating a battery, hold down the calibration button on the unit and then
insert a battery. Only the battery that was inserted while the button is pressed begins
calibration.
During battery calibration, the battery will be charged, discharged completely, and
then recharged again. Calibration should complete in approximately 17 hours. Do not
cover the charger vents during a calibration cycle.
•The blue calibration indicator light(s) blink slowly (on 1.5 sec, off 2 sec) while
calibration is in progress. The charge light(s) may be on or off during the
calibration cycle if the case temperature does not get too high.
•When a calibration cycle is completed, the calibration light stops blinking but
remains on until the corresponding battery is removed.
•Case temperature:
–The temperature of the bottom case may continue to climb to
approximately 43 °C before temperature regulation is enabled to keep the
case from becoming warmer. As the battery voltage drops, the case cools
down and the automatic temperature limiting is no longer necessary. This
minimizes the time required to discharge a battery.
–If the case temperature continues to become too hot internally, even after
temperature regulation is enabled, there is a secondary failsafe that aborts
the calibration completely. If an abort occurs, the calibration light(s) blink
rapidly and battery charging is re-enabled.
2 Setting up the Instrument
28 Spectra Precision Focus 4 Total Station User Guide
Detaching the battery pack
CCAUTION – Avoid touching the contacts on the battery pack.
1. If the instrument is turned on, press [PWR] to turn it off.
2. Turn the battery box release knob counterclockwise, open the battery box cover
and then pull the battery pack out of the battery box.
Attaching the battery pack
1. Clear any dust or other foreign particles from the battery contacts.
2. Turn the battery box release knob
counterclockwise and then open the battery
box cover.
3. Put the battery pack into the battery box.
Connect the battery pack at the bottom with
the connecting direction faced inside.
4. Close the battery box cover and then turn the
knob clockwise until you hear a click sound.
CCAUTION – If the battery pack is not attached securely, this could adversely affect the
watertightness of the instrument.
Spectra Precision Focus 4 Total Station User Guide 29
Setting up the Instrument 2
Setting up the tripod
CCAUTION – The tips of the tripod ferrules are very sharp. When handling or carrying the
tripod, take care to avoid injuring yourself on the ferrules.
Note – Do not carry the instrument while it is attached to a tripod.
1. Open the tripod legs far enough for the instrument to be stable.
2. Locate the tripod directly over the station point. To check the position of the
tripod, look through the center hole in the tripod head.
3. Firmly press the tripod ferrules into the ground.
4. Level the top surface of the tripod head.
5. Securely fasten the thumb screws on the tripod legs.
6. Place the instrument on the tripod head.
7. Insert the tripod mounting screw into the center hole of the base plate of the
instrument.
8. Tighten the tripod mounting screw.
Centering the instrument
When you center the instrument, you align its central axis precisely over the station
point. To center the instrument, you can use the optical plummet, the laser plummet,
or a plumb bob. The plumb bob is sold separately.
Centering with the optical plummet
Note – For high accuracy, check and adjust the optical plummet before you center the
instrument.
1. Set up the instrument on the tripod. See above.

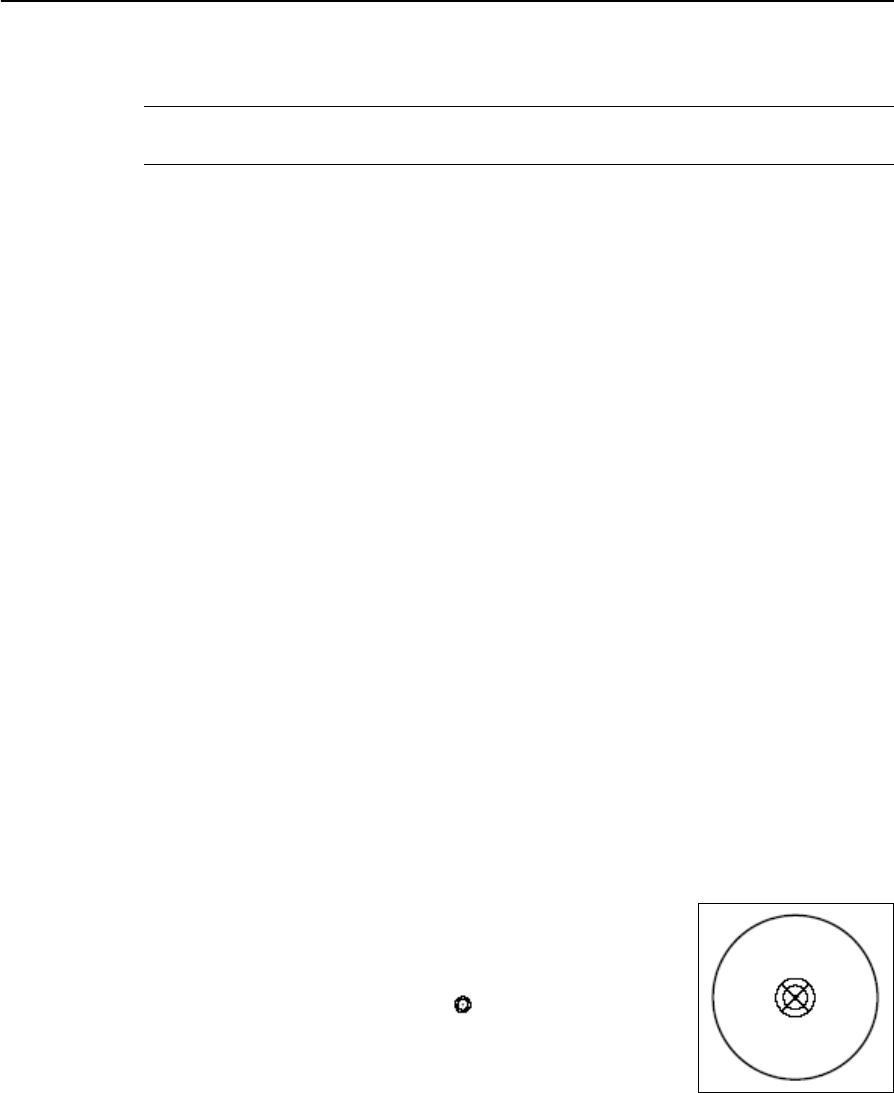

2. Look through the optical plummet and align the reticle
with the station point. To do this, turn the leveling
screws until the center mark of the reticle is directly
over the image of the station point.
3. While supporting the tripod head with one hand, loosen
the tripod leg clamps and adjust the lengths of the legs
until the air bubble is in the center of the circular level.
4. Tighten the tripod leg clamps.
5. Use the electronic level to level the instrument. See also Leveling the
instrument, page 31.
2 Setting up the Instrument
30 Spectra Precision Focus 4 Total Station User Guide
6. Look through the optical plummet to make sure that the image of the station
point is still in the center of the reticle mark.
7. If the station point is off-center, do one of the following:
–If the station point is slightly off-center, loosen the tripod mounting screw
and then center the instrument on the tripod. Use only direct movement to
center the instrument. Do not rotate it.
When the instrument is centered, tighten the mounting screw.
–If there is major displacement of the station point, repeat this procedure
starting with Step 2.
Centering with the laser plummet
CCAUTION – Do not look at the laser directly.
Note – For high accuracy, check and adjust the laser plummet before you center the
instrument.
1. Set up the instrument on the tripod. See page 29.
2. Turn on the laser plummet.
3. Align the laser pointer to the station point. To do this, turn the leveling screws
until the laser pointer is over the station point.
4. While supporting the tripod head with one hand, loosen the tripod leg clamps
and adjust the lengths or the legs until the air bubble is the center of the circular
level.
5. Tighten the tripod leg clamps.
6. Use the electronic level to level the instrument. See Leveling the instrument,
page 31.
7. Check that the laser pointer is over the station point.
8. If the station point is off-center, do one of the following:
–If the station point is slightly off-center, loosen the tripod mounting screw
and then center the instrument on the tripod. Use only direct movement to
center the instrument. Do not rotate it.
When the instrument is centered, tighten the mounting screw.
–If there is major displacement of the station point, repeat this procedure
starting with Step 2.
Spectra Precision Focus 4 Total Station User Guide 31
Setting up the Instrument 2
Centering with a plumb bob
1. Set up the instrument on the tripod. See page 29.
2. Hang the plumb line on the hook of the tripod mounting screw.
3. Adjust the length of the plumb line so that the tip of the plumb bob is at the
height of the station point.
4. Loosen the tripod mounting screw slightly.
5. Using both hands to support the outer side of the tribrach, carefully slide the
instrument about on the tripod head until the tip of the plumb bob is positioned
over the exact center of the station point.
Note – To confirm that the instrument is precisely aligned, check its position from two
directions at right-angles to each other.
Leveling the instrument
When you level the instrument, use the electronic level to you make the vertical axis of
the instrument exactly vertical. During leveling, always set the instrument in the Face 1
direction. See Figure 3.1, page 38.
To level the instrument:
1. Move the bubble into the circle on the
circular level and then turn on the power.
2. Rotate the alidade until the bottom edge of
the keyboard panel is parallel to the two of
the leveling screws (B and C).
3. Use leveling screws B and C to move the
bubble into the center of the electronic
level.
4. Rotate the alidade approximately 90°.
5. Use leveling screw A to move the bubble
into the center of the electronic level.
6. Repeat Step 1 through Step 5 to center the
bubble in both positions.
7. Rotate the alidade 180°.
8. If the bubble in the electronic level
remains centered, the instrument is level.
If the bubble moves off center, adjust the
electronic level. For detailed instructions,
see Adjusting the electronic level,
page 118.
B C
A
1
A
BC
Bottom edge
of the keyboard
panel
CB
A
2
Bottom edge
of the keyboard
panel
2 Setting up the Instrument
32 Spectra Precision Focus 4 Total Station User Guide
Focusing the telescope
CWARNING – Never look at the sun through the telescope. If you do, you may damage or
lose your eyesight.
When you sight the instrument, you aim the telescope at
the target, bring the target image into focus, and align the
image with the center cross-hairs of the reticle.
To sight the instrument:
1. Adjust the diopter:
a. Aim the telescope at a blank area, such as the
sky or a piece of paper.
b. Looking through the eyepiece, rotate the
diopter ring until the reticle cross-hairs are in
sharp focus.
2. Eliminate parallax:
a. Aim the telescope at the target image.
b. Rotate the focusing ring until the target image is in sharp focus on the
reticle cross-hairs.
c. Move your eye vertically and laterally to check whether the target image
moves relative to the reticle cross-hairs.
–If the target image does not move, there is no parallax.
–If the target image does move, rotate the telescope focusing ring and repeat
Step 2c.
3. Rotate the tangent screw. The final turn of the tangent screw should be in a
clockwise direction, to align the target accurately on the center cross-hairs.
Center
crosshairs
Diopter ring Telescope
focusing ring
Spectra Precision Focus 4 Total Station User Guide 33
Setting up the Instrument 2
Setting the measurement mode and preparing the target
The Focus 4 total station has two measurement modes: Prism mode (Prism) and
Reflectorless mode (N-Prism). To change the mode at any time from any observation
screen, hold down [MSR1] or [MSR2].
Set the measurement mode depending on the target that you want to measure, as
shown here.
In some cases, you can measure to another target that is not appropriate to the set
measurement mode.
Note – The Focus 4 total station is Laser Class 1 in the measurement function, and Laser
Class 2 in the Laser Pointer function. Do not sight the prism when the Laser Pointer is on.
Measurement with a prism
As the Focus 4 total station is extremely sensitive, multiple reflections on the prism
surface can sometimes cause a significant loss in accuracy.
To maintain the accuracy of your measurements:

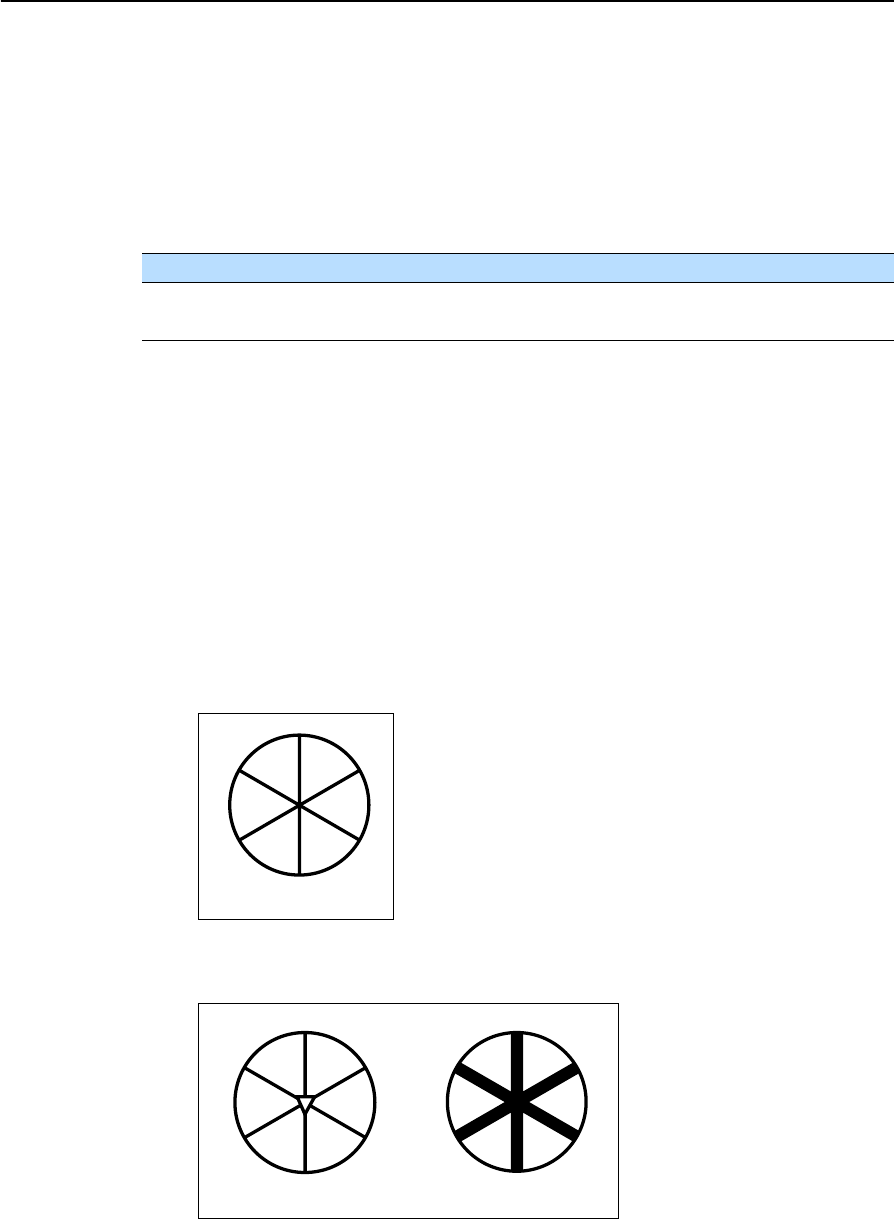

•Use a prism with thin edges.
Do not use a prism with scratches, a dirty surface, a chipped center, or thick
edges.
Target Target settings
Prism, reflector sheet Prism mode
Other, reflective materials Reflectorless mode
Thin edges
Chipped center Thick edges
2 Setting up the Instrument
34 Spectra Precision Focus 4 Total Station User Guide

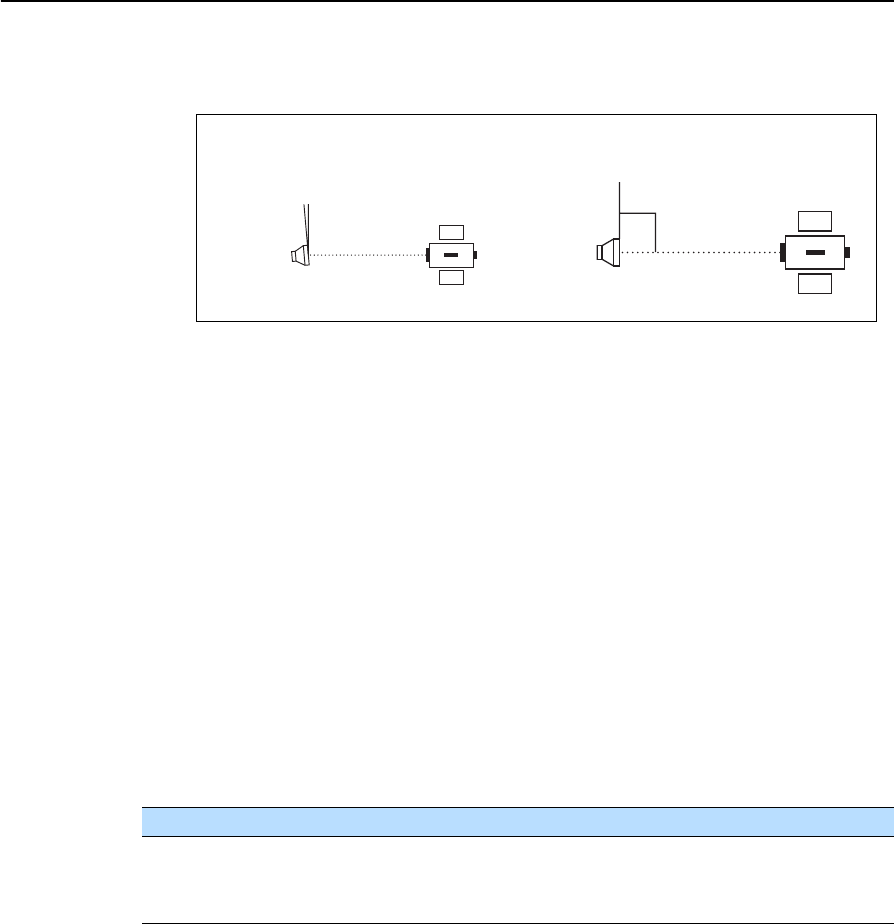

•When measuring a short distance, incline the prism slightly so that the EDM
can ignore unnecessary reflections on the prism surface, as shown below.
•Hold the prism securely in place and do not move while taking measurements.
In Prism mode, to avoid false measurements on objects other than the prism or
reflector-sheet, targets that are less reflective than the prism or reflector sheet are not
measured. Even if you start a measurement, measured values are not displayed. To
measure less reflective objects, use the N-Prism (Reflectorless) mode.
Measurement in reflectorless (N-Prism) mode
The Focus 4 total station enables reflectorless measurements up to 300 m (984 feet).
The intensity of the reflection from the target determines the distance the Focus 4
total station can measure in this mode. The color and condition of the target surface
also affect the measurable distance, even if the targeted objects are the same. Some
less-reflective targets may not be measured.
The following table describes some examples of targets and approximate measuring
distances:
Measurable distances may be shorter or measurement intervals may be longer if either
of the following conditions apply:
•the angle of the laser against the target is small
•the surface of the target is wet
In direct sunlight, the measurable distance may be shorter. In this case, try to throw a
shadow on the target.
Targets with completely flat surfaces, such as mirrors, cannot be measured unless the
beam and the target are perpendicular to each other.
Target You can measure approximately...
Traffic signs, reflectors 500 meters (1640 feet)
Paper (white), veneer (new) 300 meters (990 feet)
wall (brightly painted), brick 100 to 200 meters (330 to 660 feet)
Not completely square to
the sighting axis
Completely square to
the sighting axis
✓✕
Spectra Precision Focus 4 Total Station User Guide 35
Setting up the Instrument 2
Make sure there are no obstacles between the instrument and the target when taking
measurements. When you need to take measurements across a road or a place where
vehicles or other objects are frequently moving, take several measurements to a target
for the best result.
Viewing and changing the measurement settings
Hold down [MSR1] or [MSR2] for one second.
•To move the cursor between the fields, press [^]
or [v].
•To change the value in the selected field, press [<]
or [>].
The available values are:
Target field
If the measurement is started with the Target field set to Prism mode, there is a dash in
front of the prism constant, for example –18 mm.
If the measurement is started with the Target field set to N-Prism (Reflectorless) mode,
there is square bracket in front of the prism constant, for example ]18 mm.
The displayed symbol will continuously move from left to right over the prism
constant in the display.
Prism constant
The factory default of the prism constant value of the
Focus 4 total station is -30 mm.
Change the prism constant to match the constant
value of the prism you are using.
Once you have set up the instrument, you can turn on the Focus 4 total station, change
the instrument settings, and start a job. See also page 37.
Field Values
Target Prism mode
N-Prism mode
Constant (prism
constant)
-999 mm through 999 mm
Mode Precise
Normal
Track Track (continuous MSR) ON
Track (continuous MSR) OFF
2 Setting up the Instrument
36 Spectra Precision Focus 4 Total Station User Guide
