Chapter 6: Installation Connecting Cat5e Ethernet cable
Page 6-56

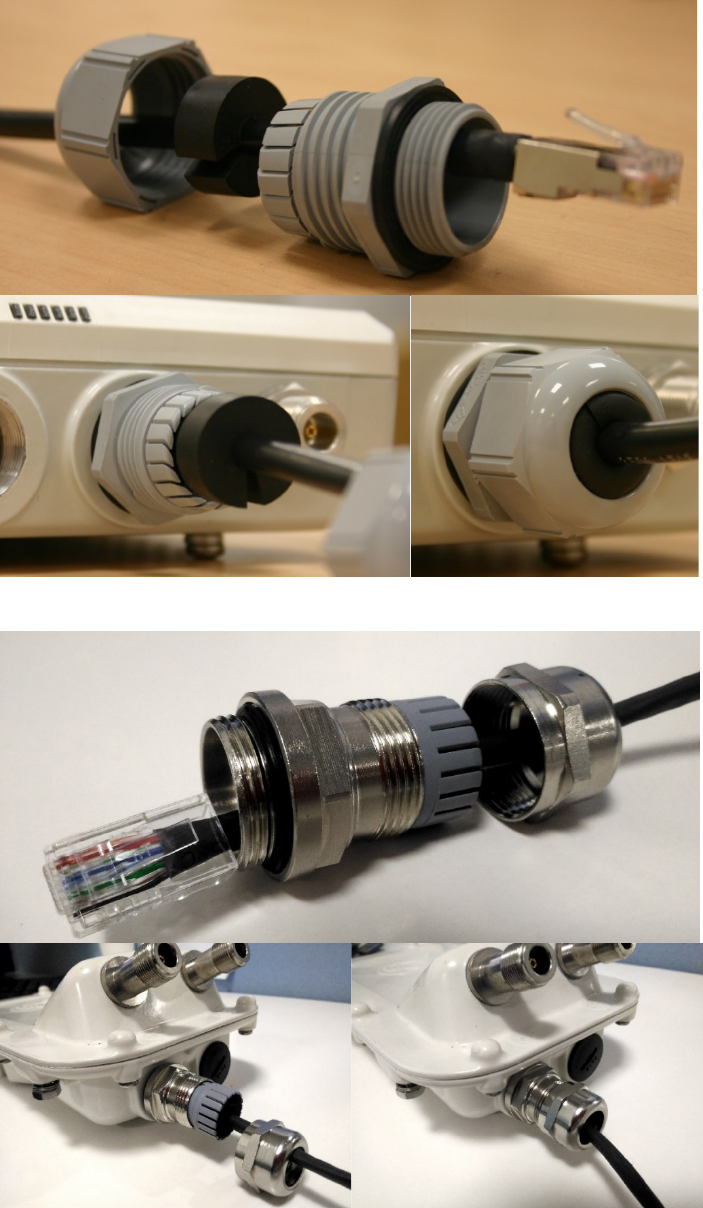

Figure 120 Ethernet cable gland for PMP/PTP 450 Series
Figure 121 Ethernet cable gland for PMP/PTP 450i Series
Chapter 6: Installation Connecting Cat5e Ethernet cable
Page 6-57
Disconnecting an RJ45 and gland from a unit
To disconnect the Ethernet cable and gland from a unit, proceed as follows:
1
Hold the Ethernet cable and remove the gland back shell.
2
Use a small flathead screwdriver (0.2”/5mm wide or greater) to gently release the black
plastic watertight bushing from the compression fins, being careful not to damage the
bushing.
3
Unscrew the gland body from the AP, making sure that the Ethernet cable is not rotating
while disengaging the gland body from the AP housing.
4
Use a small screwdriver to depress the RJ45 locking clip.
5
Unplug the RJ45 cable.
6
Remove the gland from the cable, if necessary.
Chapter 6: Installation Installing ODU
Page 6-58
Installing ODU
Installing a 450 Platform Family AP
To install a 450 Platform Family AP, perform the following steps.
Procedure 5 Installing an AP
1
Begin with the AP in the powered-down state.
2
Choose the best mounting location for your particular application. Modules need not
be mounted next to each other. They can be distributed throughout a given site.
However, the 60° offset must be maintained. Mounting can be done with supplied
clamps.
See Installing external antennas to a connectorized ODU on page 6-23 for connecting
an external antenna to PMP 450i Series, PMP 450 Series, PMP 450i Series AP 900 MHz
and PMP 450 Series SM
See Installing an integrated ODU on page 6-51
3
Align the AP as follows:
a. Move the module to where the link will be unobstructed by the radio horizon and
no objects penetrate the Fresnel zone.
b. Use a local map, compass, and/or GPS device as needed to determine the
direction that one or more APs require to each cover the intended 60
°
sector.
c. Apply the appropriate degree of downward tilt.
d. Ensure that the nearest and furthest SMs that must register to this AP are within
the beam coverage area.
4
Adjust the azimuth to achieve visual alignment, lock the AP in the proper direction
and downward tilt.
5
Attach the cables to the AP (See Powering the AP/SM/BH for test configuration on
Page 5-17)
6
Waterproof the cables (See section Attaching and weatherproofing an N type
connector on page 6-69).
Chapter 6: Installation Installing ODU
Page 6-59
Installing a 450 Platform Family SM
Installing a 450 Platform Family SM consists of two procedures:
• Physically installing the SM on a residence or other location and performing a coarse
alignment using the alignment tool or alignment tone.
• Verifying the AP to SM link and finalizing alignment using review of power level, link tests, and
review of registration and session counts.
Procedure 6 Installing an SM
1
Choose the best mounting location for the SM based on section ODU and external
antenna location on page 3-10.
2
Use stainless steel hose clamps or equivalent fasteners to lock the SM into position.
See Installing external antennas to a connectorized ODU on page 6-23 for
connecting external antenna
See Installing an integrated ODU on page 6-51
3
Remove the base cover of the SM.
4
Terminate the UV outside grade Category 5 Ethernet cable with an RJ-45 connector,
and connect the cable to the SM.
5
Wrap a drip loop in the cable.
6
For Connectorized Models, Install the external antenna according to the
manufacturer’s instructions.
7
For Connectorized Models, connect the SM’s N-type antenna connectors to the
external antenna, ensuring that the polarity matches between the SM cable labeling
and the antenna port labels.
Connectorized SM Antenna Cable Label
Antenna Connection
A Vertical
B Horizontal
8
For Connectorized Models, weatherproof the N-type antenna connectors following
section Attaching and weatherproofing an N type connector on page 6-69.
9
Wrap an AWG 10 (or 6mm2) copper wire around the Ground post of the SM
10
Securely connect the copper wire to the grounding system (Protective Earth)
according to applicable regulations.
11
Install a surge suppressor as described in the section Mount the Surge Suppressor
on page 6-10.
12
Connect the power supply to a power source.
13
Connect the Ethernet output from the Data port of the power supply to the Ethernet
port of your laptop.
Chapter 6: Installation Installing ODU
Page 6-60
14
Connect the drop cable from ODU to the Data+power port of the power suppy.
15
Launch your web browser. In the URL address bar, enter
169.254.1.1
. then press
Enter.
16
If the browser in laptop fails to access the interface of the SM, follow the procedure
Radio recovery mode on page 1-27
17
Log in as admin on the ODU. Configure a password for the admin account and log
off.
18
Log back into the SM as admin or root, using the password that you configured.
19
For coarse alignment of the SM, use the Alignment Tool located at
Tools
,
Alignment
Tool
.
Optionally, connect a headset to the AUX/SYNC port on the SM and listen to the
alignment tone, which indicates greater SM receive signal power by pitch. By
adjusting the SM’s position until the highest frequency pitch is obtained operators
and installers can be confident that the SM is properly positioned. For information
on device GUI tools available for alignment, see sections Using the Alignment Tool,
Using the Link Capacity Test tool, and Using AP Evaluation tool below.
20
When the highest power is achieved, lock the SM mounting bracket in place.
21
Log off of the SM web interface.
22
Disconnect the Ethernet cable from your laptop.
23
Replace the base cover of the SM.
24
Connect the Ethernet cable to the computer that the subscriber will be using.
Installing a 450 Platform Family BHM
To install a 450 Platform Family BHM, perform the following steps.
Procedure 7 Installing a BHM
1
Choose the best mounting location for your particular application.
2
Align the BHM as follows:
a. Move the module to where the link will be unobstructed by the radio horizon
and no objects penetrate the Fresnel zone.
b. Use a local map, compass, and/or GPS device as needed to determine the
direction to the BHS.
c. Apply the appropriate degree of downward or upward tilt.
d. Ensure that the BHS is within the beam coverage area.
Chapter 6: Installation Installing ODU
Page 6-61
3
Using stainless steel hose clamps or equivalent fasteners, lock the BHM into
position.
See Installing external antennas to a connectorized ODU on page 6-23 for
connecting external antenna
4
If this BHM will not be connected to a CMM, optionally connect a cable to a GPS
timing source and then to the SYNC port of the BHM.
5
Either connect the BHM’s Aux to the CMM or connect the DC power converter to the
BHM and then to an AC power source.
RESULT: When power is applied to a module or the unit is reset on the web-based
interface, the module requires approximately 25 seconds to boot. During this
interval, self-tests and other diagnostics are being performed.
6
Access
Configuration > General
page of the BHM for Synchronization configuration.
7

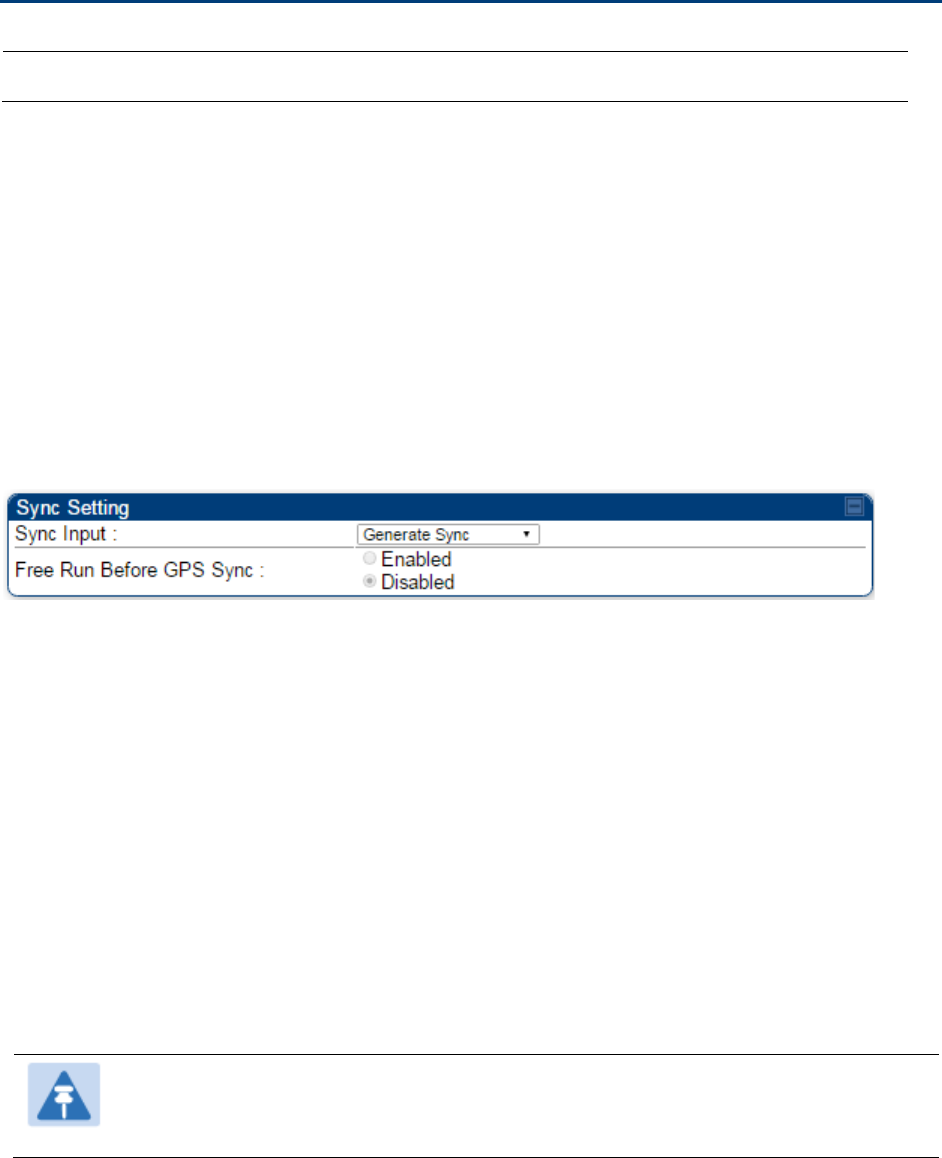

If a CMM4 is connected, set the
Sync Input
parameter to the AutoSync or Autosync
+ Free Run selection.
Installing a 450 platform BHS
To install a PTP 450 platform Series BHS, perform the following steps.
Procedure 8 Installing a BHS
1
Choose the best mounting location for the BHS.
2
Terminate the UV outside grade Category 5 Ethernet cable with an RJ-45 connector,
and connect the cable to the BHS. (See Powering the AP/SM/BH for test
configuration on Page 5-17)
3
Use stainless steel hose clamps or equivalent fasteners to lock the BHS into
position.
4
Install a surge suppressor as described in the section Mount the Surge Suppressor
on page 6-10
5
For coarse alignment of the BHS, use the Audible Alignment Tone feature as
follows:
a. At the BHS, connect the RJ-45 connector of the Alignment Tool Headset to the
Aux port via an alignment tone adapter as shown in Figure 186 on page 8-20.
b. Listen to the alignment tone for pitch, which indicates greater signal power
(RSSI/dBm) by higher pitch.
Adjust the module slightly until you hear the highest pitch and highest volume
6
When you have achieved the best signal (highest pitch, loudest volume), lock the
BHS in place with the mounting hardware
Chapter 6: Installation Installing ODU
Page 6-62
Configuring the Link
See Configuring remote access on page 7-197.
Monitoring the Link
See Monitoring the Link on page 7-198.
Chapter 6: Installation Installing the AC Power Injector
Page 6-63
Installing the AC Power Injector
Caution
As the PSU is not waterproof, locate it away from sources of moisture, either in the
equipment building or in a ventilated moisture-proof enclosure. Do not locate the PSU
in a position where it may exceed its temperature rating.
Caution
Do not plug any device other than a PMP/PTP 450i Series ODU into the ODU port of
the PSU. Other devices may be damaged due to the non-standard techniques
employed to inject DC power into the Ethernet connection between the PSU and the
ODU.
Do not plug any device other than a Cambium 450 Platform PSU into the PSU port of
the ODU. Plugging any other device into the PSU port of the ODU may damage the
ODU and device.
Installing the AC Power Injector
Follow this procedure to install the AC Power Injector:
1
Form a drip loop on the PSU end of the LPU to PSU drop cable. The drip loop ensures that
any moisture that runs down the cable cannot enter the PSU.
2

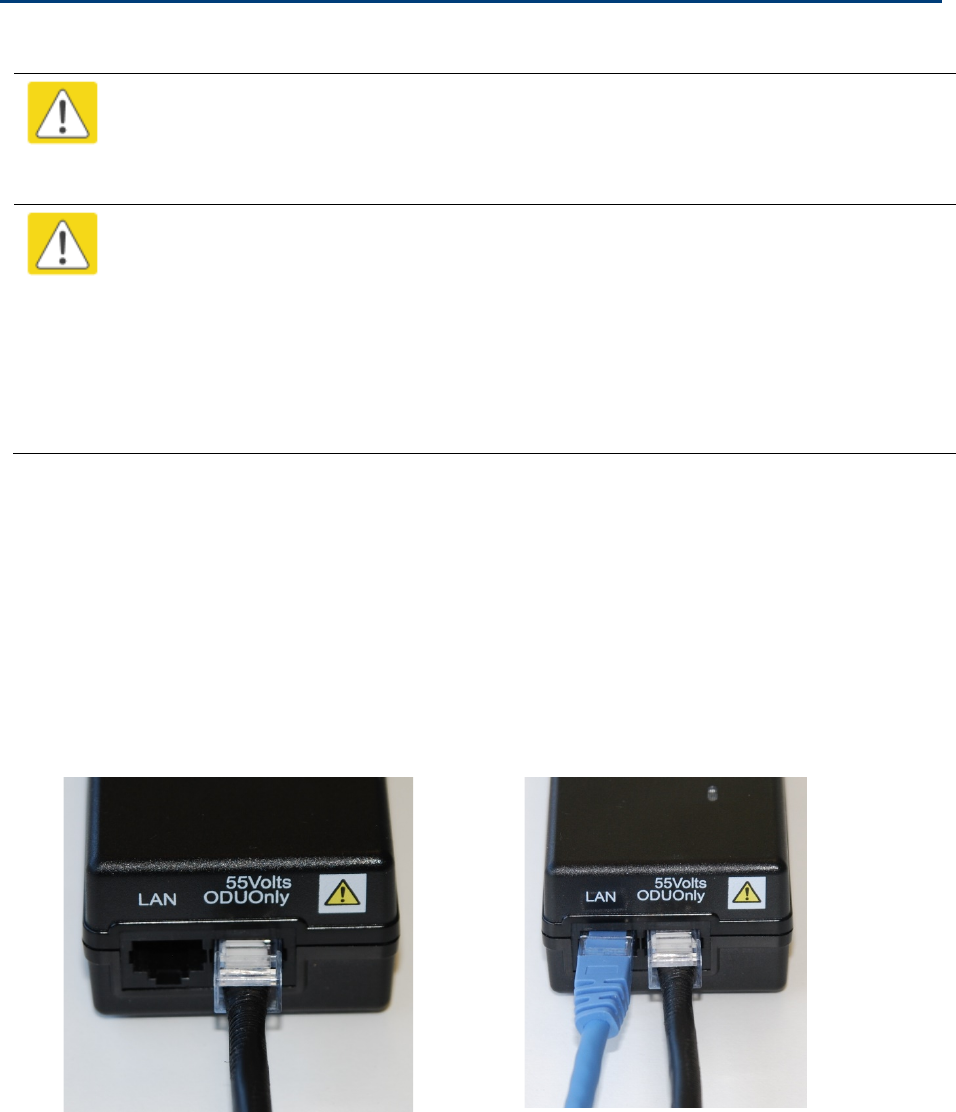

(a) Place the AC Power Injector on a horizontal surface. Plug the LPU to PSU drop cable into
the PSU port labeled ODU. (b) When the system is ready for network connection, connect the
network Cat5e cable to the LAN port of the PSU:
(a)
(b)
Chapter 6: Installation Installing CMM4
Page 6-64
Installing CMM4
Note
For instructions on CMM3 (CMMmicro) or CMM4 installation, including the outdoor
temperature range in which it is acceptable to install the unit, tools required,
mounting and cabling instructions, and connectivity verification, please see the
PMP Synchronization Solutions User Guide located on the Cambium website.
The Cluster Management Module 4 (CMM4) provides power, sync, and network connectivity for up
to eight APs, backhauls, and Ethernet terrestrial feeds in a variety of configurations. The CMM4
provides
• Sync over Power over Ethernet and integrated surge suppression on the controller board for
up to 8 APs or BHs. Both a custom 30 VDC power scheme and a custom 56 VDC power scheme
are available. Neither is the same as the later IEEE Standard 802.3af, and neither is compatible
with it.
• Managed switching using a hardened EtherWAN switch (1090CKHH models). The CMM4 ships
with a 14-port EtherWAN switch and is also available without a switch. The CMM4 originally
shipped with a 9-port EtherWAN switch.
• Surge suppression on the controller board for the incoming 30V DC and 56V DC power lines
and GPS coax cable.
• Auto-negotiation on the Ethernet ports. Ports will auto-negotiate to match inputs that are either
100Base-T or 10Base-T, and either full duplex or half duplex, when the connected device is set
to auto-negotiate. Alternatively, these parameters are settable.
• An always-on NTP (Network Time Protocol) server that can provide date and time to any radio
that can reach the CMM’s management IP address.
• CNUT can be used to upgrade the CMM-4 software.
450 Series and 450i Series can use the CMM4’s EtherWan switch for their network connectivity.
Note
The 56 V of a CMM4 needs to go through the adapter cable (part number
N000045L001A) as shown in Figure 36 on page 2-52.
A CMM4 56V power adapter cable can be prepared by swapping pins 5 and 7. See
CMM4 56 V power adapter cable pinout on page 2-52 for power adapter cable
pinout.
Chapter 6: Installation Supplemental installation information
Page 6-65
Supplemental installation information
This section contains detailed installation procedures that are not included in the above topics,
such as how to strip cables, create grounding points and weatherproof connectors.
Stripping drop cable

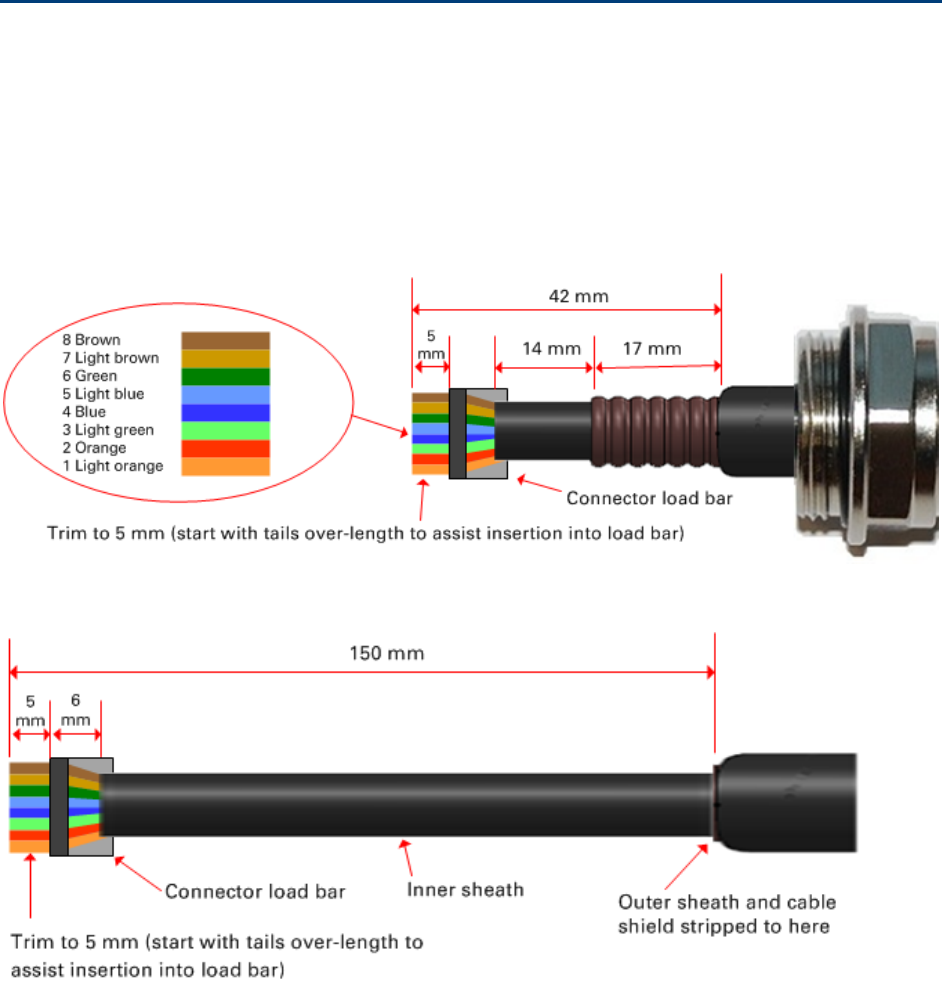

When preparing the drop cable for connection to the 450 Platform Family ODU or LPU, use the
following measurements:
When preparing the drop cable for connection to the 450 Platform PSU (without a cable gland), use
the following measurements:
Chapter 6: Installation Supplemental installation information
Page 6-66
Creating a drop cable grounding point

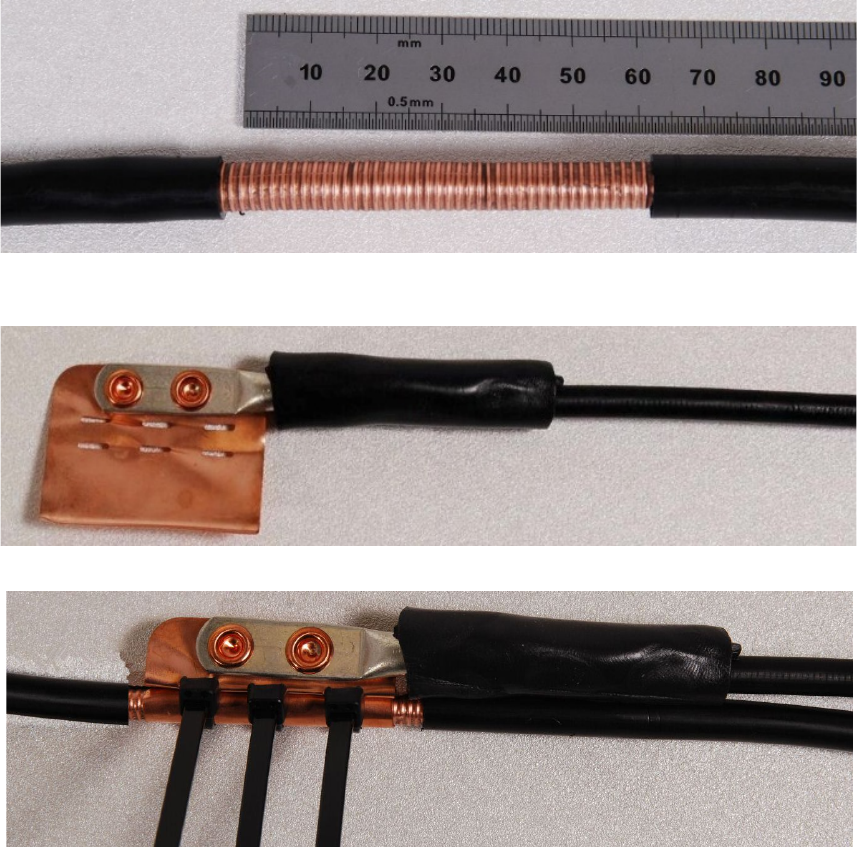

Use this procedure to connect the screen of the main drop cable to the metal of the supporting
structure using the cable grounding kit (Cambium part number 01010419001).
To identify suitable grounding points, refer to Hazardous locations on page 3-15.
1
Remove 60
mm (2.5 inches) of the drop cable outer sheath.
2
Cut 38mm (1.5 inches) of rubber tape (
self-amalgamating) and fit to the ground cable lug.
Wrap the tape completely around the lug and cable.
3
Fold the ground wire strap around the drop cable screen and fit cable ties.
Chapter 6: Installation Supplemental installation information
Page 6-67
4
Tighten the cable ties
with pliers. Cut the surplus from the cable ties.
5
Cut a 38mm (1.5 inches) section of self
-amalgamating tape and wrap it completely around the
joint between the drop and ground cables.
6
Use the remainder of the self
-amalgamating tape to wrap the complete assembly. Press the
tape edges together so that there are no gaps.
Chapter 6: Installation Supplemental installation information
Page 6-68

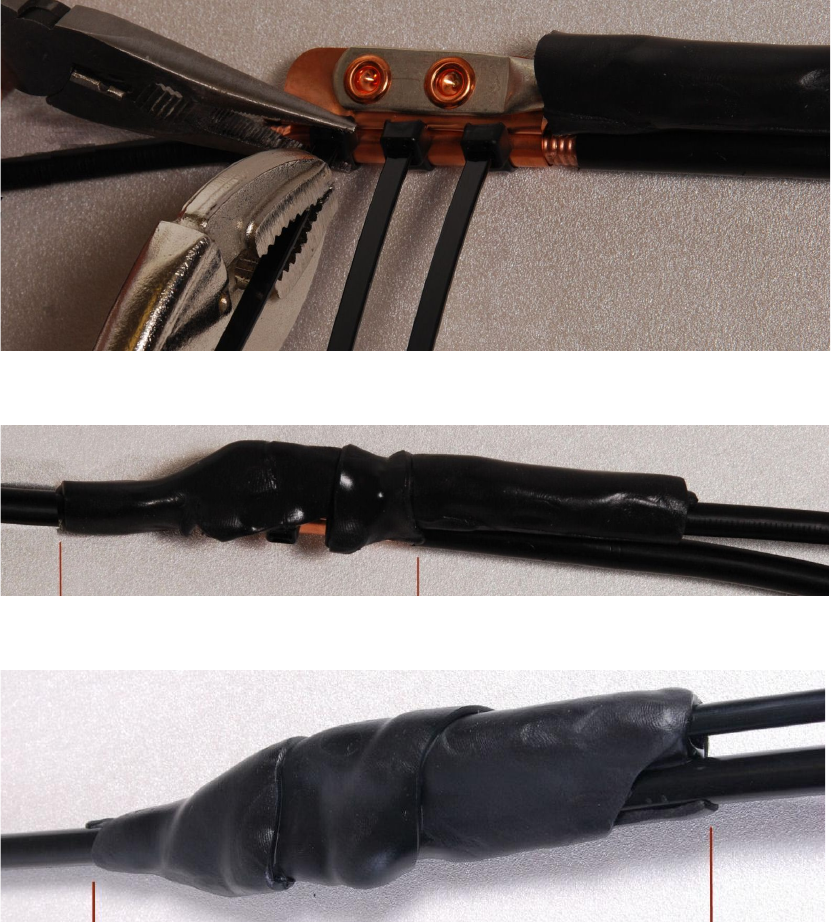

7
Wrap a layer of
PVC tape from bottom to top, starting from 25 mm (1 inch) below and
finishing 25
mm (1 inch) above the edge of the self-amalgamating tape, overlapping at half
width.
8

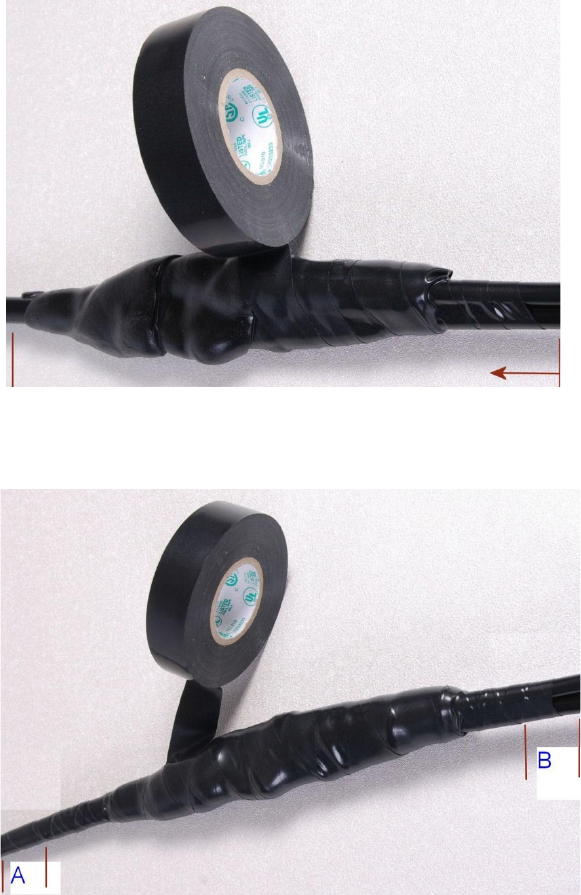

Repeat with a further
four layers of PVC tape, always overlapping at half width. Wrap the
layers in alternate directions (top to bottom, then bottom to top). The edges of each layer
should be 25mm (1 inch) above (A) and 25
mm (1 inch) below (B) the previous layer.
9
Prepare the metal grounding point of the supporting structure to provide a good electrical
contact with the grounding cable
clamp. Remove paint, grease or dirt, if present. Apply anti-
oxidant compound liberally between the two
metals.
10
Clamp the bottom lug of the grounding cable to the supporting structure using site approved
methods.
Use a two-hole lug secured with fasteners in both holes. This provides better
protection than a single
-hole lug.
Chapter 6: Installation Supplemental installation information
Page 6-69
Attaching and weatherproofing an N type connector
The following procedure should be used to weatherproof the N type connectors fitted to the
connectorized ODU (AP/SM/BH) and antenna. This procedure must be followed to ensure that
there is no moisture ingress at the radio ports. Failure to properly seal N-type antenna connectors
can result in poor link performance or complete loss of radio communication.
Note
Cambium recommends to assemble the antenna, attach the ODU and cabling, and to
seal the RF connections before installing the unit at the deployment site.
Note
N type connectors should be tightened using a torque wrench, set to 15 lb in or 1.7
Nm. If a torque wrench is not available, N type connectors may be finger tightened.
Use this procedure to weatherproof the N type connectors fitted to the connectorized ODU and
external antenna (if recommended by the antenna manufacturer).

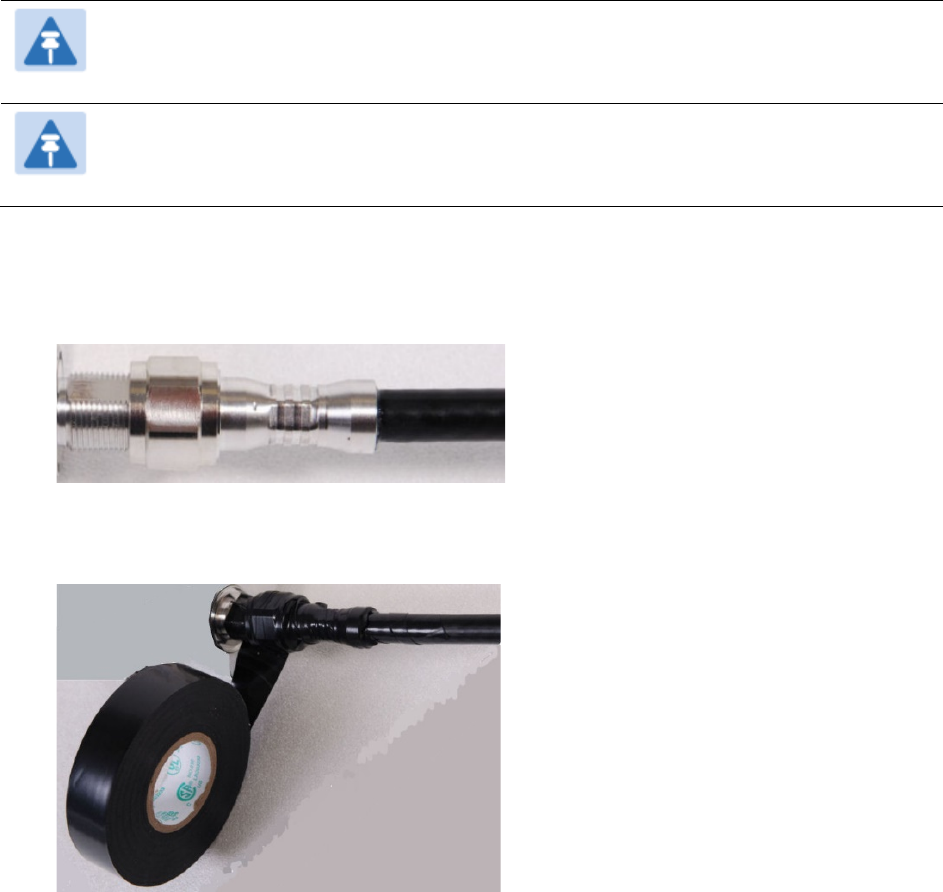

1
Ensure the connection is tight. A torque wrench should be used if available:
2
Wrap the connection with a layer of 19 mm (0.75 inch) PVC tape, starting 25 mm (1 inch)
below the connector body. Overlap the tape to half-width and extend the wrapping to the
body of the LPU. Avoid making creases or wrinkles:
Chapter 6: Installation Supplemental installation information
Page 6-70
3
Smooth the tape edges:
4

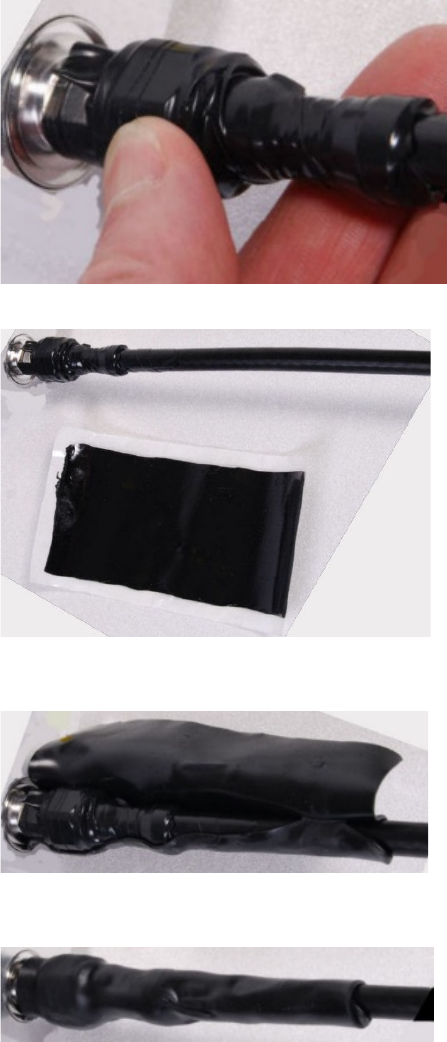

Cut a 125mm (5 inches) length of rubber tape (self-amalgamating):
5
Expand the width of the tape by stretching it so that it will wrap completely around the
connector and cable:
6
Press the tape edges together so that there are no gaps. The tape should extend 25 mm
(1 inch) beyond the PVC tape:
Chapter 6: Installation Supplemental installation information
Page 6-71
7

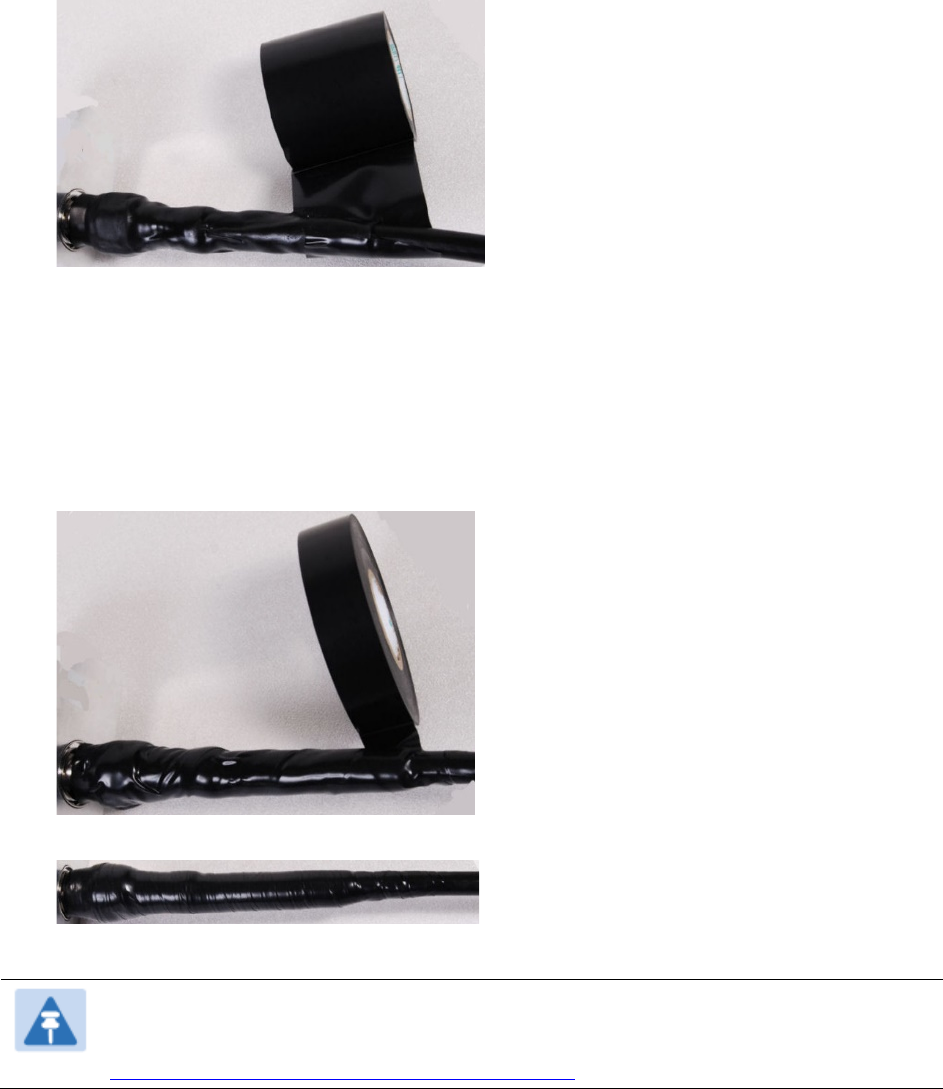

Wrap a layer of 50 mm (2 inch) PVC tape from bottom to top, starting from 25 mm (1 inch)
below the edge of the self-amalgamating tape, overlapping at half width.
8
Repeat with a further four layers of 19 mm (0.75 inch) PVC tape, always overlapping at half
width. Wrap the layers in alternate directions:
• Second layer: top to bottom.
• Third layer: bottom to top.
• Fourth layer: top to bottom.
• Fifth layer: bottom to top.
The bottom edge of each layer should be 25 mm (1 inch) below the previous layer.
9
Check the completed weatherproof connection:
Note
A video of this procedure can be found at:
https://www.youtube.com/watch?v=a-twPfCVq4A
Page 7-1
Chapter 7: Configuration
This chapter describes how to use the web interface to configure the 450 Platform link. This
chapter contains the following topics:
• Preparing for configuration on page 7-2
• Connecting to the unit on page 7-3
• Using the web interface on page 7-5
• Quick link setup on page 7-12
• Configuring IP and Ethernet interfaces on page 7-23
• Upgrading the software version and using CNUT on page 7-66
• General configuration on page 7-70
• Configuring Unit Settings page on page 7-93
• Setting up time and date on page 7-97
• Configuring synchronization on page 7-99
• Configuring security on page 7-101
• Configuring radio parameters on page 7-128
• Setting up SNMP agent on page 7-182
• Configuring syslog on page 7-191
• Configuring remote access on page 7-197
• Monitoring the Link on page 7-198
• Configuring quality of service on page 7-201
• Installation Color Code on page 7-214
• Zero Touch Configuration Using DHCP Option 66 on page 7-215
• Configuring Radio via config file on page 7-221
• Configuring a RADIUS server on page 7-229
Chapter 7: Configuration Preparing for configuration
Page 7-2
Preparing for configuration
This section describes the checks to be performed before proceeding with unit configuration and
antenna alignment.
Safety precautions
All national and local safety standards must be followed while configuring the units and aligning
the antennas.
Warning
Ensure that personnel are not exposed to unsafe levels of RF energy. The units start to
radiate RF energy as soon as they are powered up. Respect the safety standards
defined in Compliance with safety standards on page 4-22, in particular the minimum
separation distances.
Observe the following guidelines:
• Never work in front of the antenna when the ODU is powered.
• Always power down the PSU before connecting or disconnecting the drop cable
from the PSU, ODU or LPU.
Regulatory compliance
All applicable radio regulations must be followed while configuring the units and aligning the
antennas. For more information, refer to Compliance with radio regulations on page 4-33.
Caution
If the system designer has provided a list of channels to be barred for TDWR radar
avoidance, the affected channels must be barred before the units are allowed to
radiate on site, otherwise the regulations will be infringed.
Attention
Si le concepteur du système a fourni une liste de canaux à interdire pour éviter les
radars TDWR, les cannaux concernées doivent être interdits avant que les unités sont
autorisées à émettre sur le site, sinon la réglementation peut être enfreinte.
Chapter 7: Configuration Connecting to the unit
Page 7-3
Connecting to the unit
This section describes how to connect the unit to a management PC and power it up.
Configuring the management PC
Use this procedure to configure the local management PC to communicate with the 450 Platform
ODU.
Procedure 9 Configuring the management PC
1
Select
Properties
for the Ethernet port. In Windows 7 this is found in
Control Panel
> Network and Internet > Network Connections > Local Area Connection
.
2

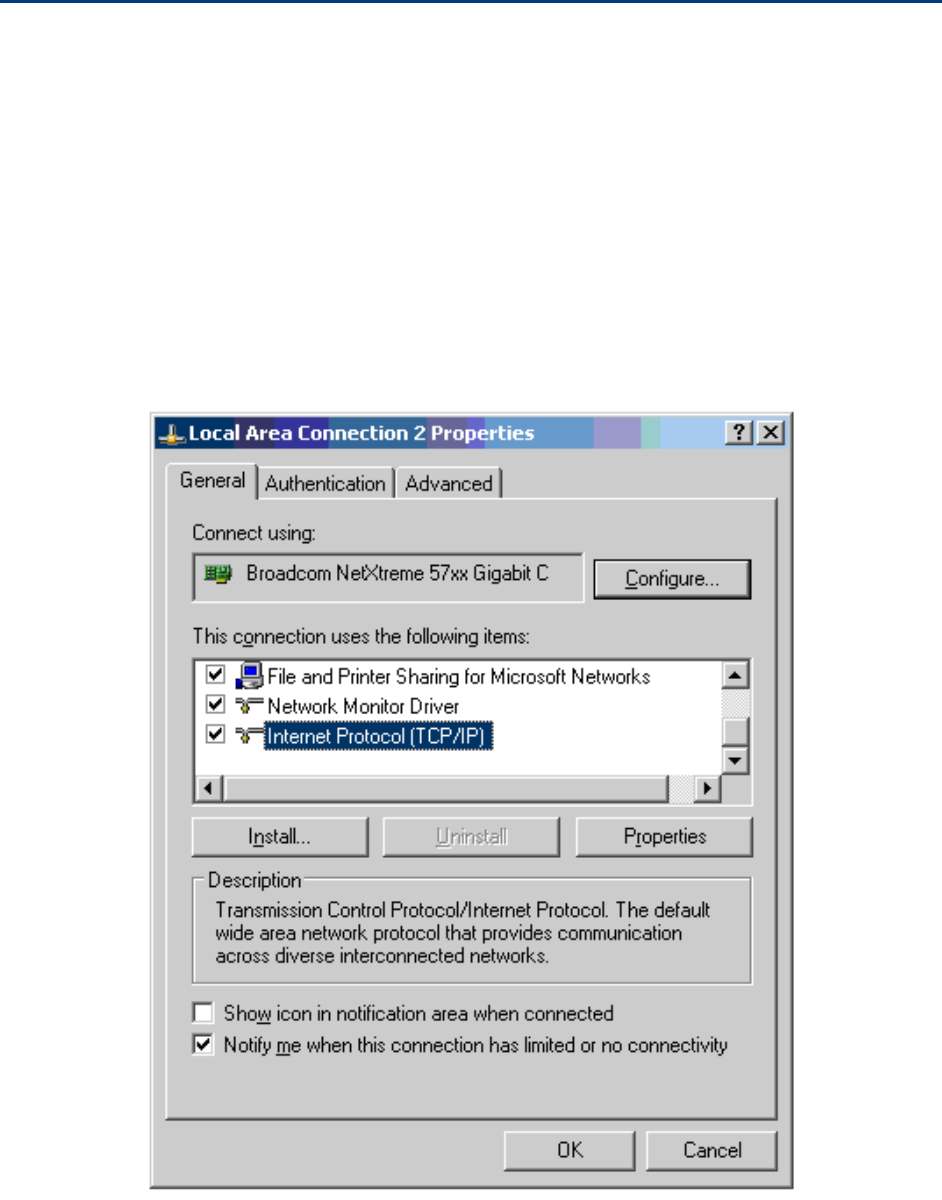

Select
Internet Protocol (TCP/IP)
:
3
Click
Properties
.
Chapter 7: Configuration Connecting to the unit
Page 7-4
4

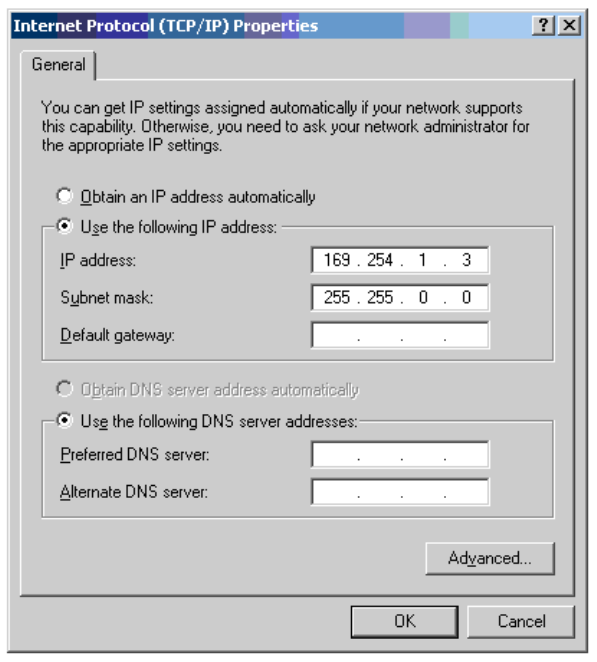

Enter an IP address that is valid for the 169.254.X.X network, avoiding 169.254.0.0
and 169.254.1.1. A good example is 169.254.1.3:
5
Enter a subnet mask of 255.255.0.0. Leave the default gateway blank.
Connecting to the PC and powering up
Use this procedure to connect a management PC and power up the 450 platform ODU.
Procedure 10 Connecting to the PC and powering up
1
Check that the ODU and PSU are correctly connected.
2
Connect the PC Ethernet port to the LAN port of the PSU using a standard (not
crossed) Ethernet cable.
3
Apply mains or battery power to the PSU. The green Power LED should illuminate
continuously.
4
After about several seconds, check that the orange Ethernet LED starts with 10 slow
flashes.
5
Check that the Ethernet LED then illuminates continuously.
Chapter 7: Configuration Using the web interface
Page 7-5
Using the web interface
This section describes how to log into the 450 Platform Family web interface and use its menus.
Logging into the web interface
Use this procedure to log into the web interface as a system administrator.
Procedure 11 Logging into the web interface
1
Start the web browser from the management PC.
2
Type the IP address of the unit into the address bar. The factory default IP addres
s is
169.254.1.1
. Press ENTER. The web interface menu and System Summary page are
displayed
:
Chapter 7: Configuration Using the web interface
Page 7-6

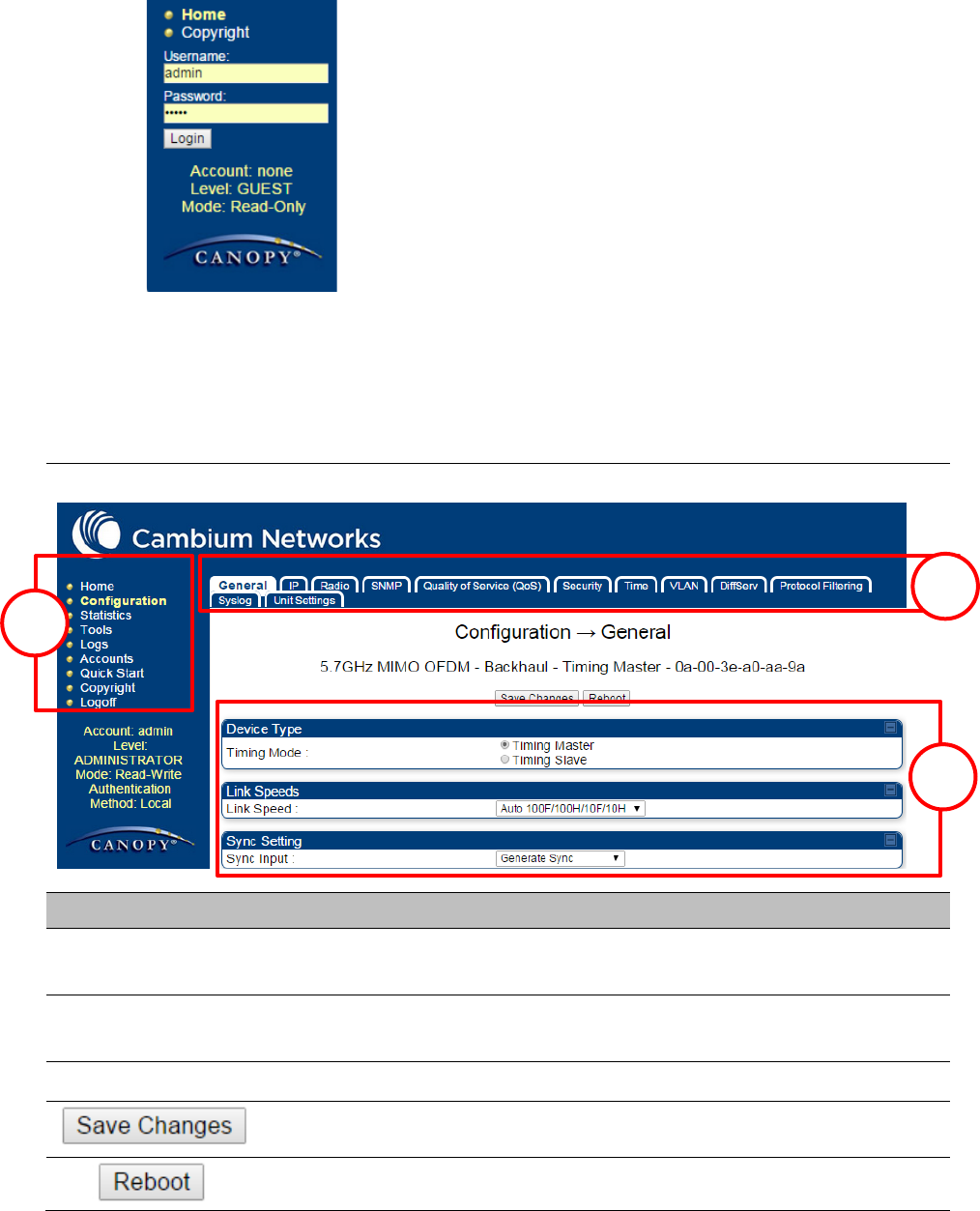

3
On left hand side of home page, t
he login information is displayed:
4
Enter Username (
factory default username is admin) and Password (factory default password
is
admin) and click
Login
.
Web GUI
Field Name
Description
Main Manu Click an option in side navigation bar (area marked as “1”). Multiple
options in sub-navigation bars appear
Menu Option Click top sub-navigation bar to choose one configuration page (area
marked as “2”)
Parameter To configure the parameters (e.g. area marked as “3”)
Press "Save Changes" to confirm and save the changes
To reboot the ODU
1
1
2
3
Chapter 7: Configuration Using the web interface
Page 7-7
Using the menu options
Use the menu navigation bar in the left panel to navigate to each web page. Some of the menu
options are only displayed for specific system configurations. Use Table 101 to locate information
about using each web page.
Table 101 Menu options and web pages
Main
menu
Menu options
Applicable
module
Description
All Viewing General Status on page 9-2
AP, BHM Viewing Session Status on page 9-20
All Interpreting messages in the Event
Log on page 9-29
AP, BHM Viewing the Network Interface on
page 9-32
All Viewing the Layer 2 Neighbors on
page 9-33
All General configuration on page 7-70
All Configuring IP and Ethernet interfaces
on page 7-23
All
Configuring radio parameters on page
7-129
All
Setting up SNMP agent on page 7-182
All Configuring cnMaestroTM
Connectivity on page 7-223
All
Configuring quality of service on page
7-201
All Configuring security on page 7-101
AP, BHM Setting up time and date
Time page of 450 Platform Family -
AP/BHM on page 7-97
Event Log
Network Interface
General
IP
Radio
SNMP
Quality of Service (QoS)
Security
Time
Layer 2 Neighbors
Session Status
General Status
cnMaestro
Chapter 7: Configuration Using the web interface
Page 7-8
Main
menu
Menu options
Applicable
module
Description
All VLAN configuration for PMP on page
7-45
VLAN configuration for PTP on page
7-55
All
IPv4 and IPv6 Prioritization on page 7-
62
All
Filtering protocols and ports on page
7-63
All
Configuring syslog on page 7-191
All Configuring Ping Watchdog on page
7-270
All
Configuring Unit Settings page on
page 7-93
All Viewing the Scheduler statistics on
page 9-34
AP, BHM Viewing list of Registration Failures
statistics on page 9-36
All Interpreting Bridge Control Block
statistics on page 9-21
All Interpreting Bridging Table statistics
on page 9-38
All Interpreting Ethernet statistics on
page 9-39
All Interpreting RF Control Block statistics
on page 9-42
All Interpreting VLAN statistics on page
9-2
All Interpreting Data VC statistics on page
9-3
AP, SM Interpreting MIR/Burst statistics on
page 9-6
AP, BHM Interpreting Throughput statistics on
page 9-7
SM Interpreting Filter statistics on page 9-
14
VLAN
DiffServ
Protocol Filtering
Syslog
Unit Setting
Scheduler
Registration Failures
Bridge Control Block
Bridging Table
Ethernet
Radio
VLAN
Data VC
Throughput
Filter
Ping Watchdog
MIR/Burst
Chapter 7: Configuration Using the web interface
Page 7-9
Main
menu
Menu options
Applicable
module
Description
SM Viewing ARP statistics on page 9-15
All Interpreting Overload statistics on
page 9-11
All Interpreting syslog statistics on page
9-27
SM Interpreting Translation Table
statistics on page 9-38
SM Interpreting DHCP Relay statistics on
page 9-13
SM Viewing NAT statistics on page 9-15
SM Viewing NAT DHCP Statistics on page
9-17
AP Interpreting Pass Through Statistics
on page 9-24
AP Interpreting Sync Status statistics on
page 9-18
SM Interpreting PPPoE Statistics for
Customer Activities on page 9-19
All Interpreting SNMPv3 Statistics on
page 9-25
Interpreting Frame Utilization
statistics on page 9-25
All Using the Link Capacity Test tool on
page 8-22
All Spectrum Analyzer tool on page 8-3
All Remote Spectrum Analyzer tool on
page 8-12
SM, BHS Using AP Evaluation tool on page 8-32
Using BHM Evaluation tool on page 8-
36
AP Using the Subscriber Configuration
tool on page 8-45
AP, BHM Using the OFDM Frame Calculator
tool on page 8-40
ARP
Overload
Syslog Statistics
Link Capacity Test
Spectrum Analyzer
Remote Spectrum Analyzer
OFDM Frame Calculator
AP/BHM Evaluation
Translation Table
DHCP Relay
NAT Stats
NAT DHCP
Sync Status
PPPoE
SNMPv3 Statistics
Pass Through Statistics
Frame Utilization
Subscriber Configuration
Chapter 7: Configuration Using the web interface
Page 7-10
Main
menu
Menu options
Applicable
module
Description
SM Using BER Results tool on page 8-51
SM, BHS Using the Alignment Tool on page 8-
15
AP Using the Link Status tool on page 8-
46
AP Using the Sessions tool on page 8-52
All Using the Ping Test tool on page 8-53
Changing a User Setting on page 7-
103
Adding a User for Access to a module
on page 7-102
Deleting a User from Access to a
module on page 7-103
Users account on page 7-104
AP, BHM Quick link setup on page 7-12
AP, BHM Quick link setup on page 7-12
AP, BHM Quick link setup on page 7-12
AP, BHM Quick link setup on page 7-12
AP, BHM Quick link setup on page 7-12
AP, BHM Quick link setup on page 7-12
SM
SM
SM
Link Status
Sessions
Change User Setting
Add user
Delete User
User
BER results
Alignment Tool
Quick Start
Synchronization
LAN IP Address
Region Settings
Radio Carrier Frequency
Review and Save Configuration
Quick Status
Spectrum Results (PDA)
Information
Ping Test
Chapter 7: Configuration Using the web interface
Page 7-11
Main
menu
Menu options
Applicable
module
Description
SM The PDA web-page includes 320 x 240
pixel formatted displays of
information important to installation
and alignment for installers using
legacy PDA devices. All device web
pages are compatible with touch
devices such as smart phones and
tablets.
SM
All The Copyright web-page displays
pertinent device copyright
information.
All
Copyright Notices
BHM Evaluation
AIM
Chapter 7: Configuration Quick link setup
Page 7-12
Quick link setup
This section describes how to use the Quick Start Wizard to complete the essential system
configuration tasks that must be performed on a PMP/PTP configuration.
Note
If the IP address of the AP or BHM is not known, See Radio recovery mode on page 1-
27.
Initiating Quick Start Wizard
Applicable products PMP: AP PTP: BHM
To start with Quick Start Wizard: after logging into the web management interface click the Quick
Start button on the left side of main menu bar. The AP/BHM responds by opening the Quick Start
page.

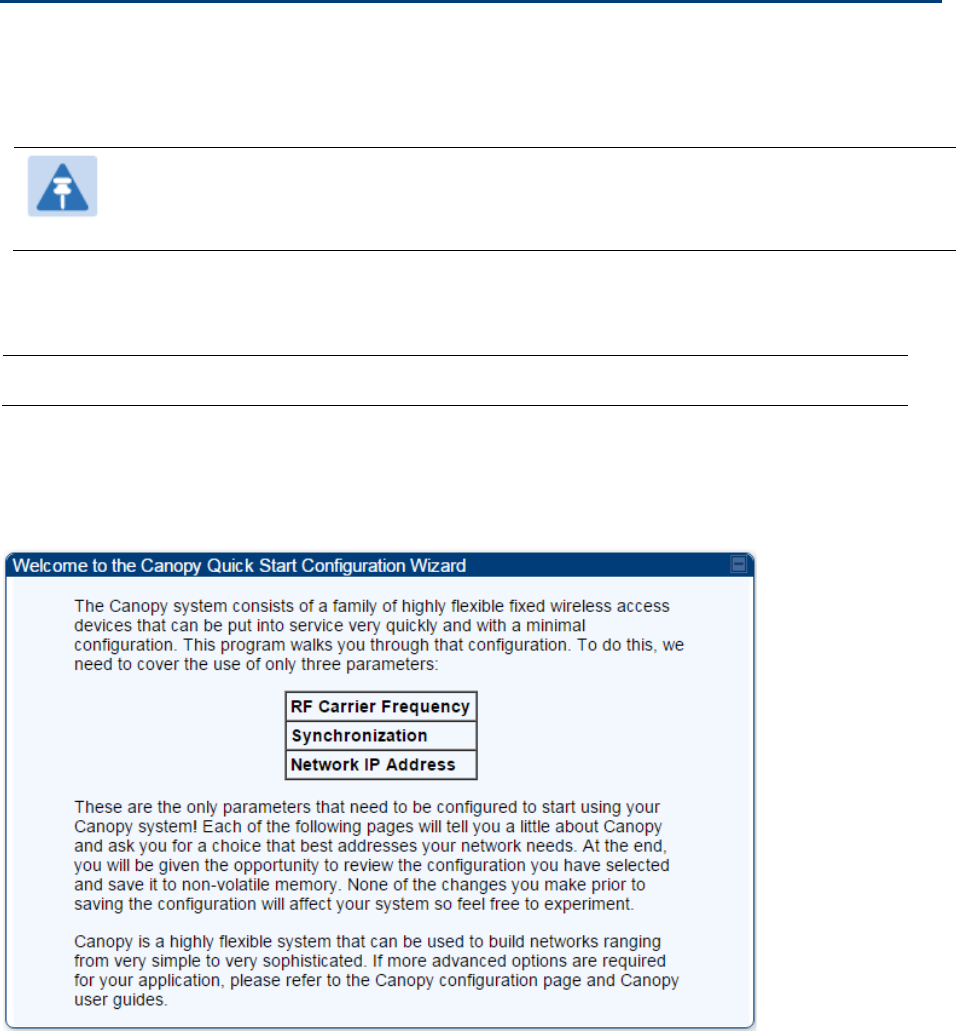

Figure 122 Disarm Installation page (top and bottom of page shown)
Quick Start is a wizard that helps you to perform a basic configuration that places an AP/BHM into
service. Only the following parameters must be configured:
• Region Code
• RF Carrier Frequency
• Synchronization
• LAN (Network) IP Address
Chapter 7: Configuration Quick link setup
Page 7-13
In each Quick Start page, you can
• specify the settings to satisfy the requirements of the network.
• review the configuration selected.
• save the configuration to non-volatile memory.
Procedure 12 Quick start wizard
1
At the bottom of the Quick Start tab, click the
Go To Next Page
button.
2
From the pull-down menu, select the region in which the AP will operate.

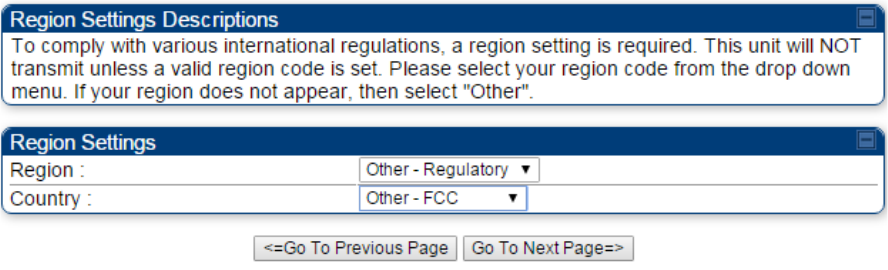

Figure 123
Regional Settings tab of AP/BHM
3
Click the
Go To Next Page
button.
Chapter 7: Configuration Quick link setup
Page 7-14
4
From the pull-down menu, select a frequency for the test.

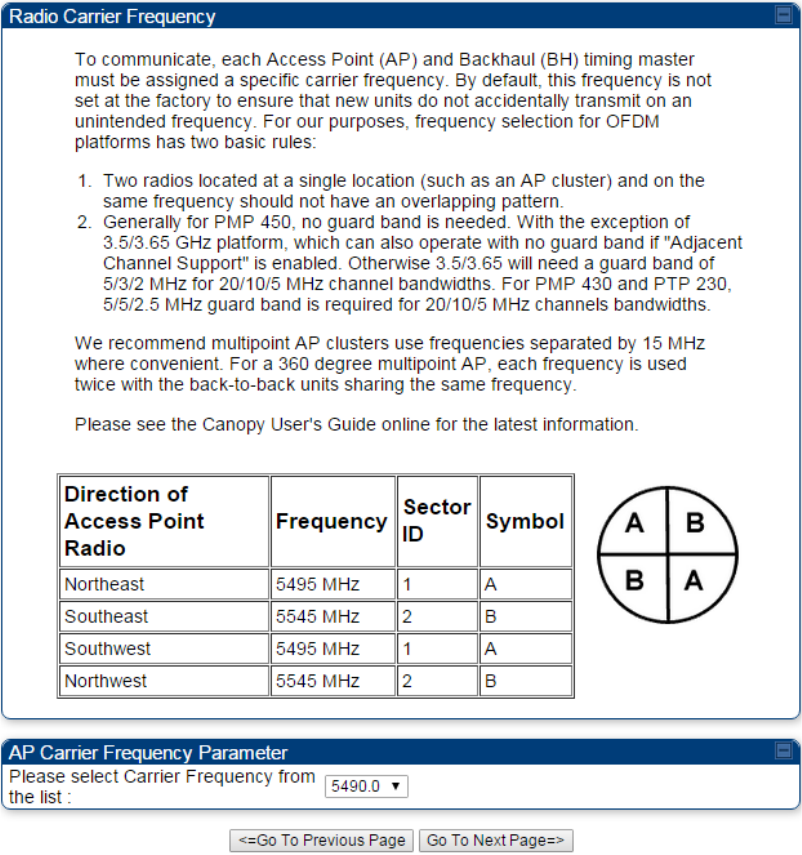

Figure 124
Radio Carrier Frequency tab of AP/BHM
5
Click the
Go To Next Page
button.
Chapter 7: Configuration Quick link setup
Page 7-15
6
At the bottom of this tab, select
Generate Sync Signal
.

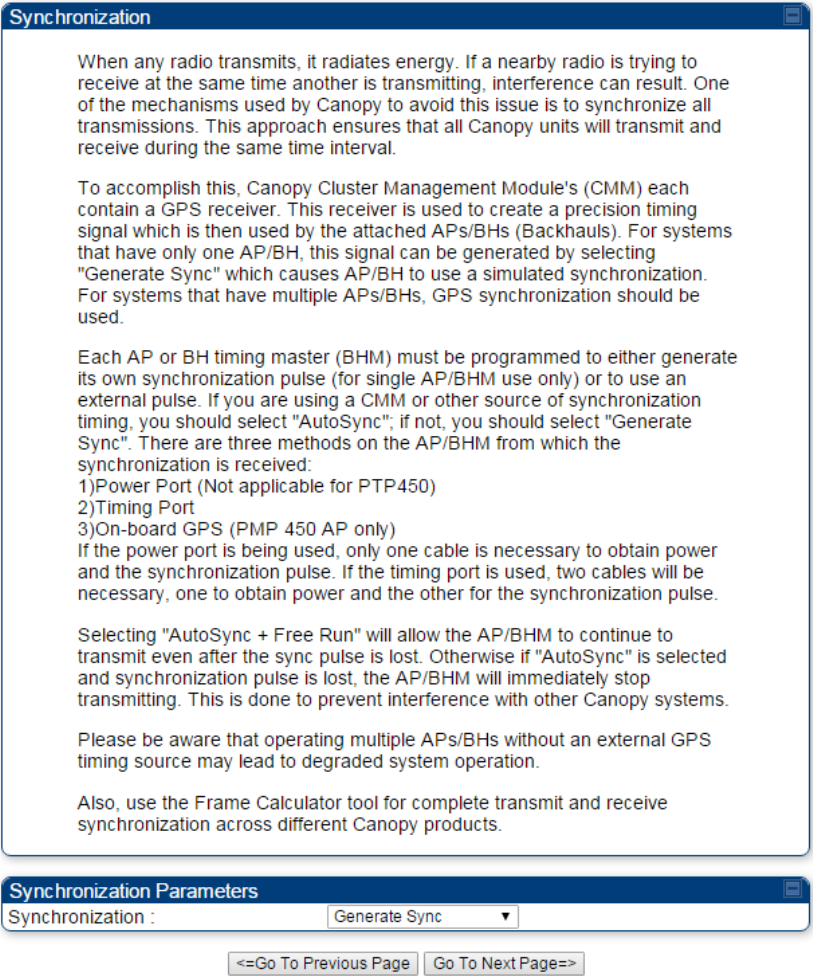

Figure 125
Synchronization tab of AP/BHM
7
Click the
Go To Next Page
button.
Chapter 7: Configuration Quick link setup
Page 7-16
8
At the bottom of the IP address configuration tab, either
• specify an
IP Address
, a
Subnet Mask
, and a
Gateway IP Address
for management of the
AP and leave the
DHCP state
set to
Disabled
.
• set the
DHCP state
to
Enabled
to have the IP address, subnet mask, and gateway IP
address automatically configured by a domain name server (DNS).

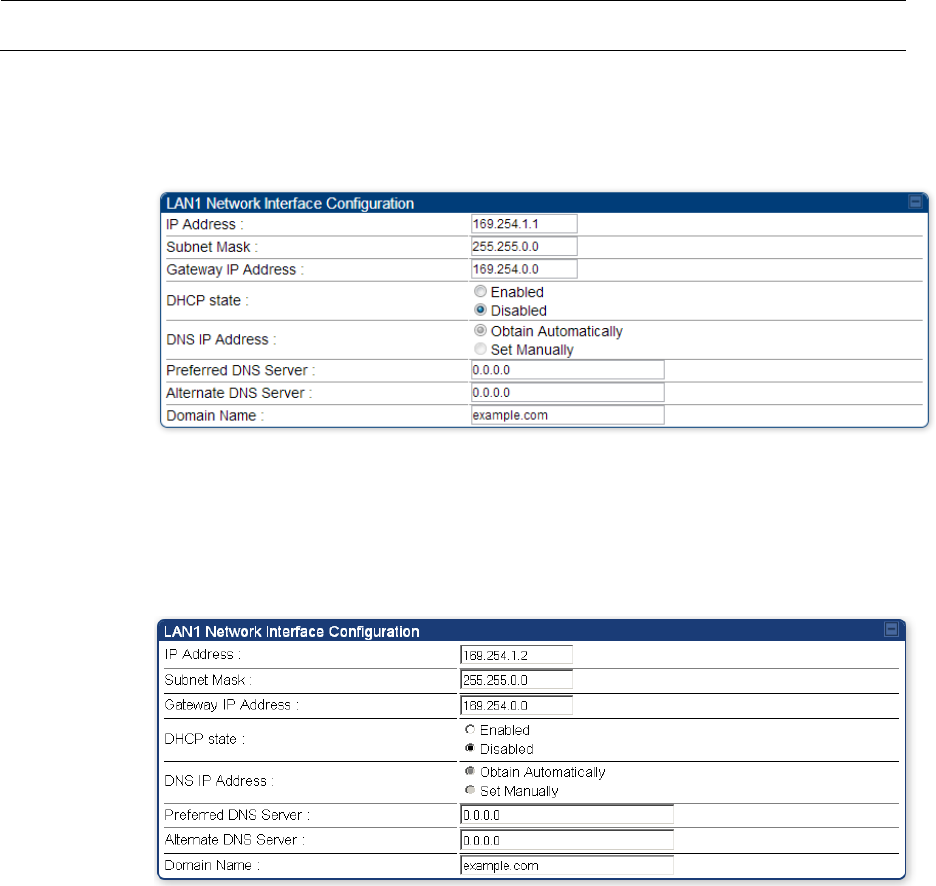

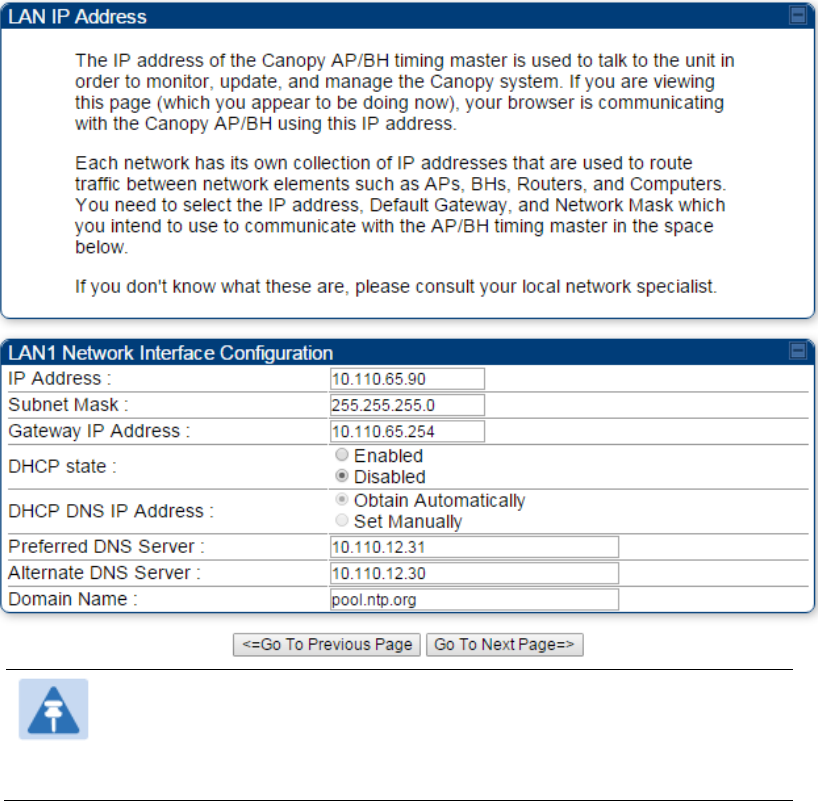

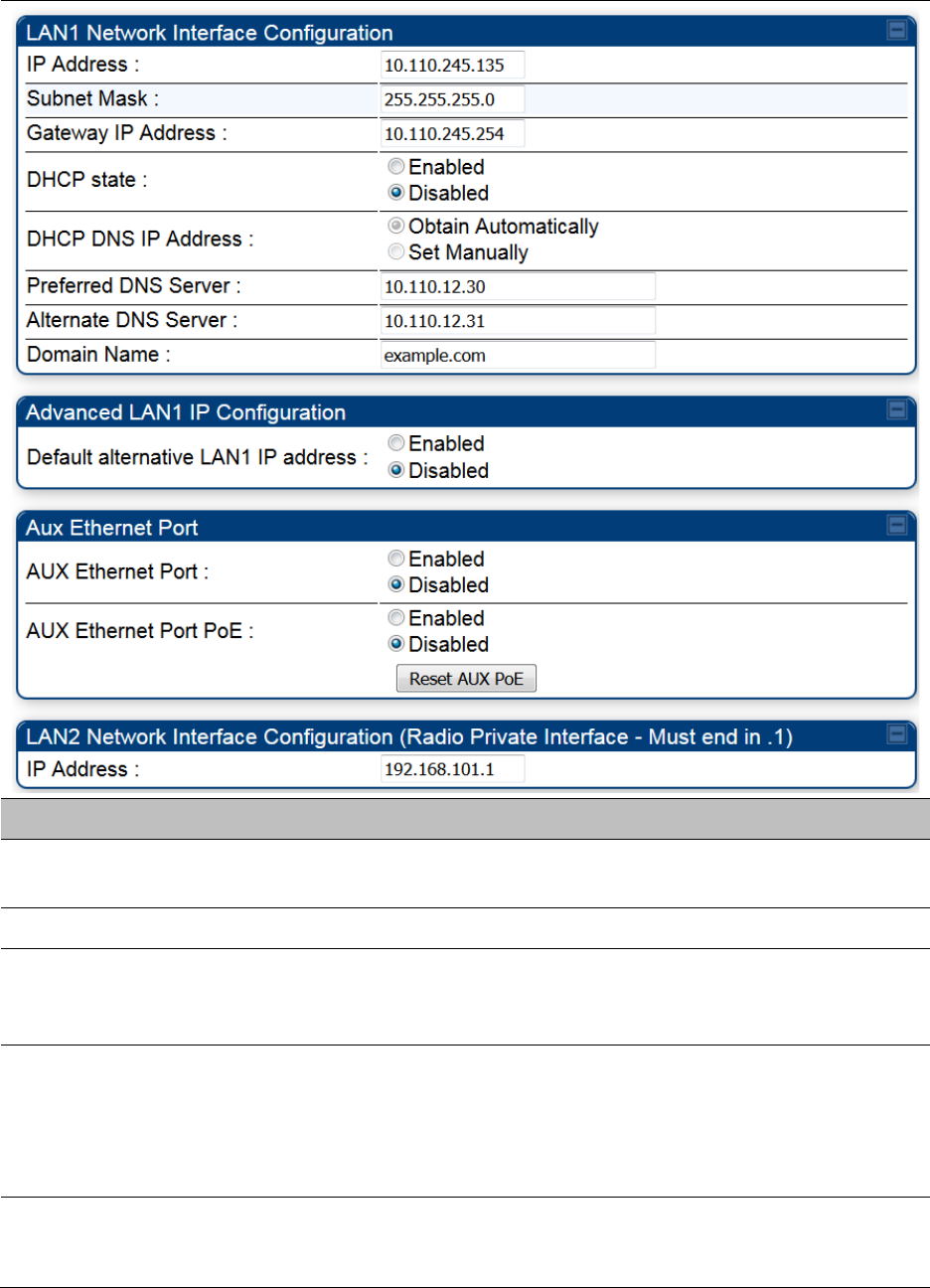

Figure 126
LAN IP Address tab of the AP/BHM
Note
Cambium encourages you to experiment with the interface. Unless you
save a configuration and reboot the AP after you save the configuration,
none of the changes are affected.
9
Click the
Go To Next Page =>
button.
Chapter 7: Configuration Quick link setup
Page 7-17
10
Ensure that the initial parameters for the AP are set as you intended.

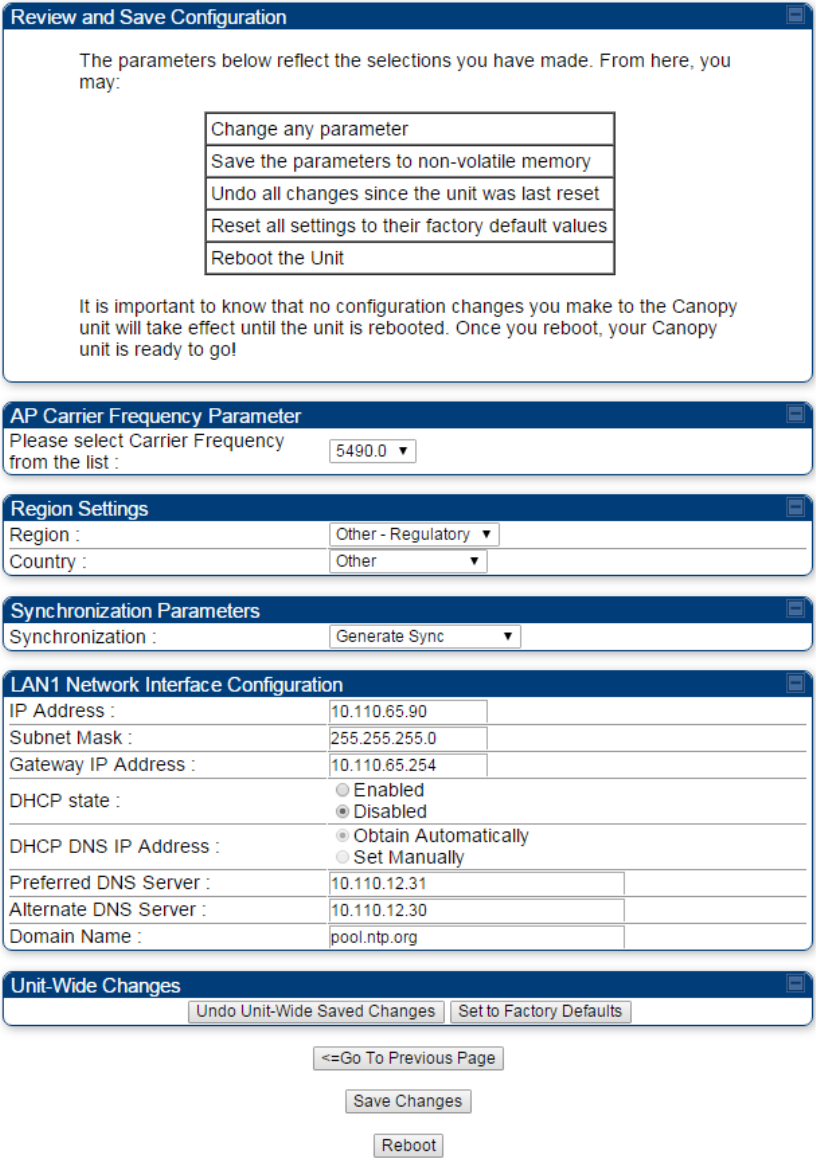

Figure 127
Review and Save Configuration tab of the AP/BHM
11
Click the
Save Changes
button.
12
Click the
Reboot
button.
RESULT:
The AP responds with the message
Reboot Has Been Initiated…
Chapter 7: Configuration Quick link setup
Page 7-18
13
Wait until the indicator LEDs are not red.
14
Trigger your browser to refresh the page until the AP redisplays the General Status tab.
15
Wait until the red indicator LEDs are not lit.
Configuring time settings
Applicable products PMP : AP PTP: BHM
To proceed with the test setup, click the Configuration link on the left side of the General Status
page. When the AP responds by opening the Configuration page to the General page, click the
Time tab.

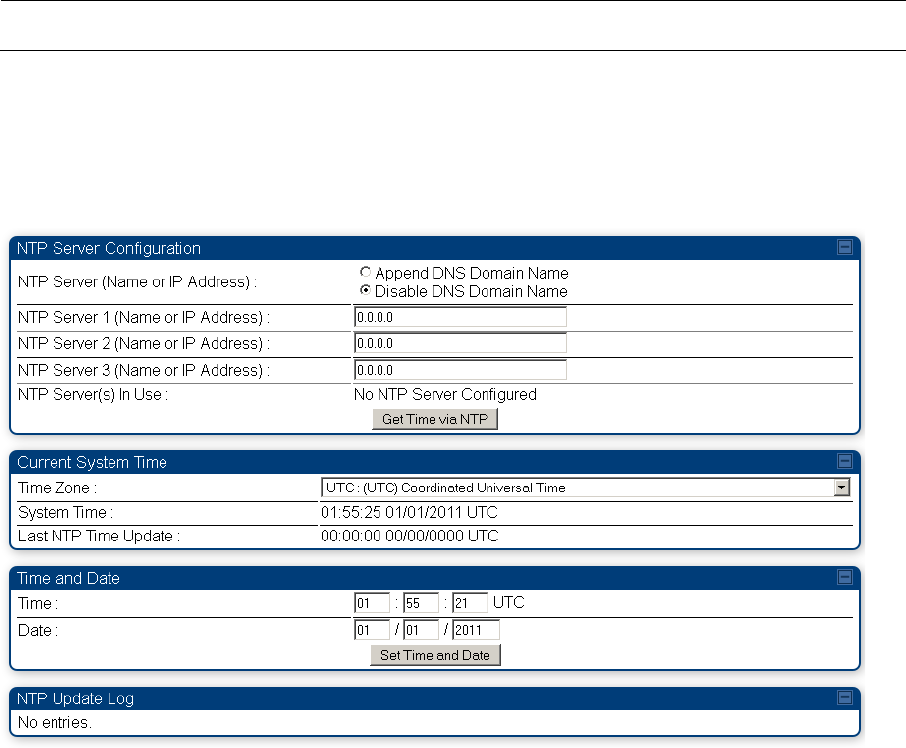

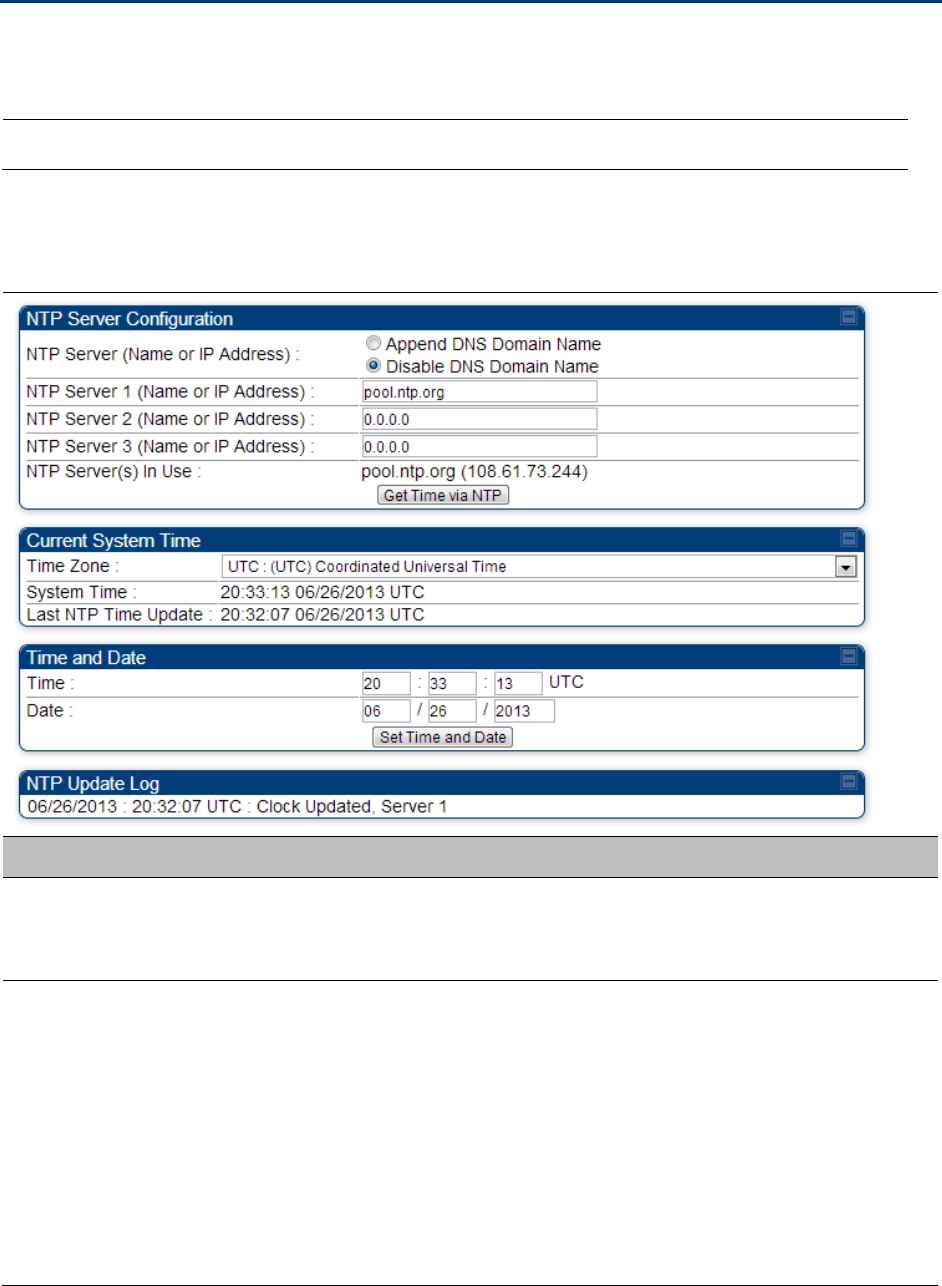

Figure 128 Time tab of the AP/BHM
To have each log in the AP/BHM correlated to a meaningful time and date, either a reliable network
element must pass time and date to the AP/BHM or you must set the time and date whenever a
power cycle of the AP/BHM has occurred. A network element passes time and date in any of the
following scenarios:
• A connected CMM4 passes time and date (GPS time and date, if received).
• A separate NTP server is addressable from the AP/BHM.
If the AP/BHM should obtain time and date from a CMM4, or a separate NTP server, enter the IP
address of the CMM4 or NTP server on this tab. To force the AP/BHM to obtain time and date
before the first (or next) 15-minute interval query of the NTP server, click Get Time through NTP.
Chapter 7: Configuration Quick link setup
Page 7-19
If you enter a time and date, the format for entry is
Figure 129 Time and date entry formats
Time :
hh
/
mm
/
ss
Date :
MM
/
dd
/
yyyy
where
hh
represents the two-digit hour in the range 00 to 24
mm
represents the two-digit minute
ss
represents the two-digit second
MM
represents the two-digit month
dd
represents the two-digit day
yyyy
represents the four-digit year
Proceed with the time setup as follows.
Procedure 13 Entering AP/BHM time setup information
1 Enter the appropriate information in the format shown above.
2 Then click the
Set Time and Date
button.
Note
The time displayed at the top of this page is static unless your browser
is set to automatically refresh
Powering the SM/BHS for test
Procedure 14 Powering the SM/BHS for test
1
In one hand, securely hold the top (larger shell) of the SM/BHS. With the other hand,
depress the lever in the back of the base cover (smaller shell). Remove the base
cover.
2
Plug one end of a CAT 5 Ethernet cable into the SM PSU port
3
Plug the other end of the Ethernet cable into the jack in the pig tail that hangs from
the power supply
4
Roughly aim the SM/BHS toward the AP/BHM
5 Plug the power supply into an electrical outlet
Warning
From this point until you remove power from the AP/BHM, stay at
least as far from the AP/BHM as the minimum separation distance
specified in Calculated distances and power compliance margins.
6 Repeat the foregoing steps for each SM/BHS that you wish to include in the test.
Chapter 7: Configuration Quick link setup
Page 7-20
Viewing the Session Status of the AP/BHM to determine test
registration
Once the SMs/BHS under test are powered on, return to the computing device to determine if the
SM/BHS units have registered to the AP/BHM.
Note
In order for accurate power level readings to be displayed, traffic must be present on
the radio link.
The Session Status tab provides information about each SM/BHS that has registered to
the AP/BHM. This information is useful for managing and troubleshooting a system.
All information that you have entered in the Site Name field of the SM/BHS displays in the Session
Status tab of the linked AP/BHM.
The Session Status tab also includes the current active values on each SM( or BHS) (LUID) for MIR,
and VLAN, as well as the source of these values (representing the SM/BHS itself, Authentication
Server, or the AP/BHM and cap, if any—for example, APCAP as shown above).. As an SM/BHS
registers to the AP/BHM, the configuration source that this page displays for the associated LUID
may change. After registration, however, the displayed source is stable and can be trusted.
Idle subscribers may be included or removed from the session status display by enabling or
disabling, respectively, the Show Idle Sessions parameter. Enabling or disabling this parameter
only affects the GUI display of subscribers, not the registration status.
The SessionStatus.xml hyperlink allows user to export session status page from web management
interface of AP/BHM. The session status page will be exported in xml file.
Chapter 7: Configuration Quick link setup
Page 7-21

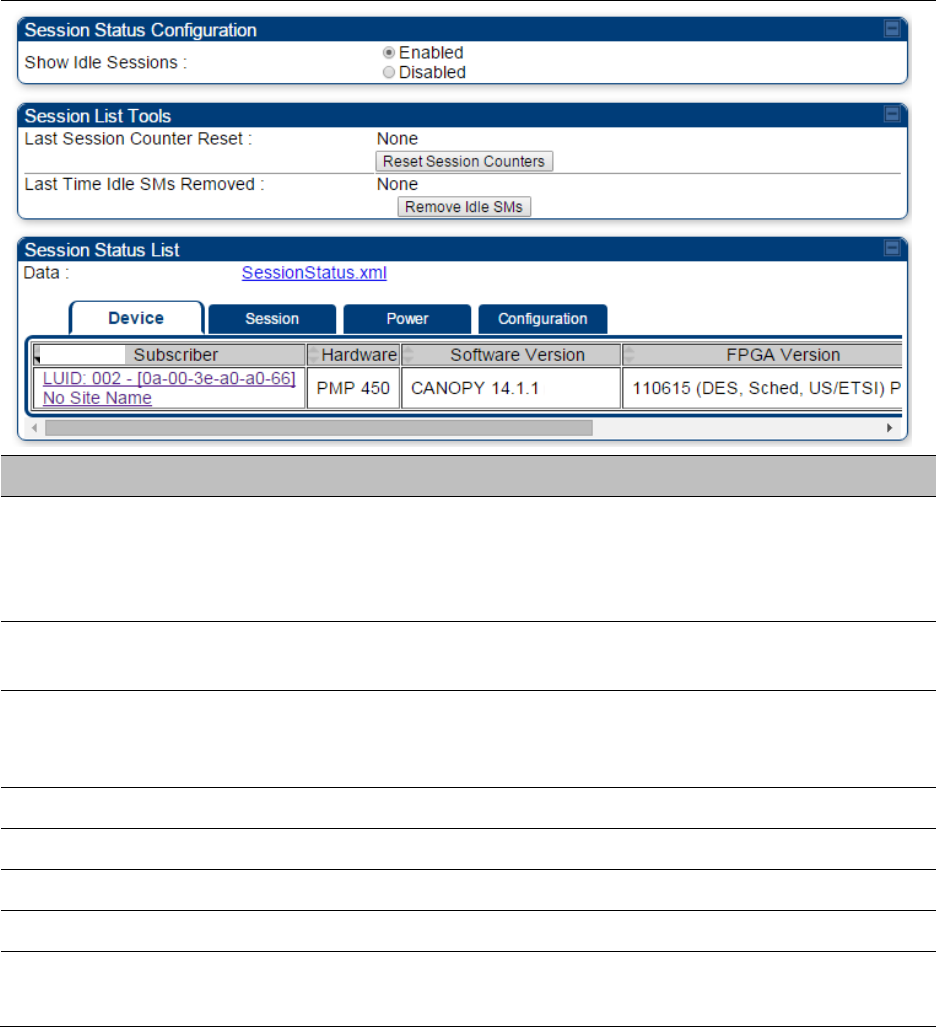

Procedure 15 Viewing the AP Session Status page
1
On the AP web management GUI, navigate to
Home
,
Session Status
:

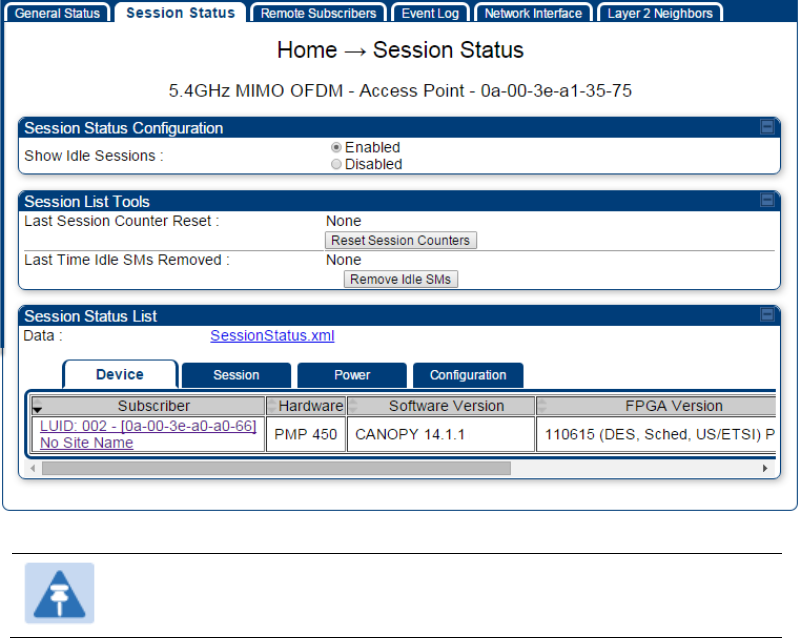

Figure 130
Session Status tab of AP
Note
Session status page for BHM is same as AP.
2
Verify that for each SM (or BHS) MAC address (printed on the SM/BHS housing) the
AP/BHM has established a registered session by verifying the “State” status of each
entry.
The Session Status page of the AP/BHM is explained in Table 102.
Chapter 7: Configuration Quick link setup
Page 7-22
Table 102 Session Status Attributes – AP
Attribute
Meaning
Show Idle Sessions Idle subscribers may be included or removed from the session status
display by enabling or disabling, respectively, the
Show Idle Sessions
parameter. Enabling or disabling this parameter only affects the GUI
display of subscribers, not the registration status.
Last Session Counter
Reset
This field displays date and time stamp of last session counter reset.
Last Time Idle SMs
Removed
This field displays date and time stamp of last Idle SMs Removed. On
click of “Remove Idle SMs” button, all the SMs which are in Idle state
are flushed out.
Data See Exporting Session Status page of AP/BHM on page 7-212
Device tab See Device tab on page 9-20
Session tab See Session tab on page 9-21
Power tab See Power tab on page 9-23
Configuration tab See
Configuration tab on page 9-25
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-23
Configuring IP and Ethernet interfaces
This task consists of the following sections:
• Configuring the IP interface on page 7-24
• Auxiliary port on page 7-27
• NAT, DHCP Server, DHCP Client and DMZ on page 7-28
• IP interface with NAT disabled on page 7-33
• IP interface with NAT enabled on page
• NAT tab with NAT disabled on page 7-36
• NAT tab with NAT enabled on page 7-39
• NAT DNS Considerations on page 7-44
• DHCP – BHS on page 7-45
• VLAN configuration for PMP on page 7-45
• VLAN page of AP on page 7-48
• VLAN page of SM on page 7-51
• VLAN Membership tab of SM on page 7-55
• VLAN configuration for PTP on page 7-55
• NAT Port Mapping tab - SM on page 7-44
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-24
Configuring the IP interface
The IP interface allows users to connect to the 450 Platform Family web interface, either from a
locally connected computer or from a management network.
Applicable products
PMP :
AP SM
PTP:
BHM BMS
To configure the IP interface, follow these instructions:
Procedure 16 Configuring the AP/BHM IP interface
1 Select menu option
Configuration
>
IP
. The LAN configuration page is displayed:
2 Update IP Address, Subnet Mask and Gateway IP Address to meet network
requirements (as specified by the network administrator).
3 Review the other IP interface attributes and update them, if necessary (see Table 103 IP
interface attributes).
4 Click
Save
. “Reboot Required” message is displayed:
5 Click
Reboot
.
The IP page of AP/SM/BHM/BHS is explained in Table 103.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-25
Table 103 IP interface attributes
Attribute
Meaning
IP Address Internet Protocol (IP) address. This address is used by family of Internet
protocols to uniquely identify this unit on a network.
Subnet Mask Defines the address range of the connected IP network.
Gateway IP Address The IP address of a computer on the current network that acts as a
gateway. A gateway acts as an entrance and exit to packets from and to
other networks.
DHCP state If
Enabled
is selected, the DHCP server automatically assigns the IP
configuration (IP address, subnet mask, and gateway IP address) and the
values of those individual parameters (above) are not used. The setting
of this DHCP state parameter is also viewable (read only), in the Network
Interface tab of the Home page.
DNS IP Address Canopy devices allow for configuration of a preferred and alternate DNS
server IP address either automatically or manually. Devices must set
DNS server IP address manually when DHCP is disabled for the
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-26
management interface of the device. DNS servers may be configured
automatically from the DHCP response when DHCP is enabled for the
management interface of the device. Optionally devices may be
configured to set the DNS server IP address manually when DHCP is
enabled for the management interface. The default DNS IP addresses are
0.0.0.0 when configured manually.
Preferred DNS
Server
The first address used for DNS resolution.
Alternate DNS
Server
If the Preferred DNS server cannot be reached, the Alternate DNS Server
is used.
Domain Name The operator’s management domain name may be configured for DNS.
The domain name configuration can be used for configuration of the
servers in the operator’s network. The default domain name is
example.com, and is only used if configured as such.
Advanced LAN1 IP
Configuration –
Default alternate
LAN1 IP address
Hardcoded default alternate IP address (169.254.1.1) that is available
only when connected to the Ethernet port. When enabled, user can
configure a second IP address for the bridge which is other than the
hardcoded IP address (169.254.1.1).
AUX Ethernet Port –
AUX Ethernet Port
Enabled: Data is enabled for Auxiliary port
Disabled: Data is disabled for Auxiliary port
AUX Ethernet Port –
AUX Ethernet Port
PoE
Enabled: PoE out is enable for Auxiliary port
Disabled: PoE out is disabled for Auxiliary port
LAN2 Network
Interface
Configuration (Radio
Private Interface) – IP
Address
It is recommended not to change this parameter from the default
AP/BHM private IP address of 192.168.101.1. A /24 CIDR subnet is used to
communicate with each of the SMs/BHS that are registered. The AP/BHM
uses a combination of the private IP and the LUID (logical unit ID) of the
SM/BHS.
It is only displayed for AP and BHM.
Table 104
SM/BHS
private IP and LUID
SM/BHS
LUID
Private IP
First SM/BHS registered 2 192.168.101.2
Second SM/BHS registered 3 192.168.101.3
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-27
Auxiliary port
An additional Ethernet port labeled “Aux” for Auxiliary port is implemented for downstream
traffic. This feature is supported only for PTP/PMP 450i ODUs.
To enable the Aux port, follow these instructions:
Procedure 17 Enabling Aux port interface

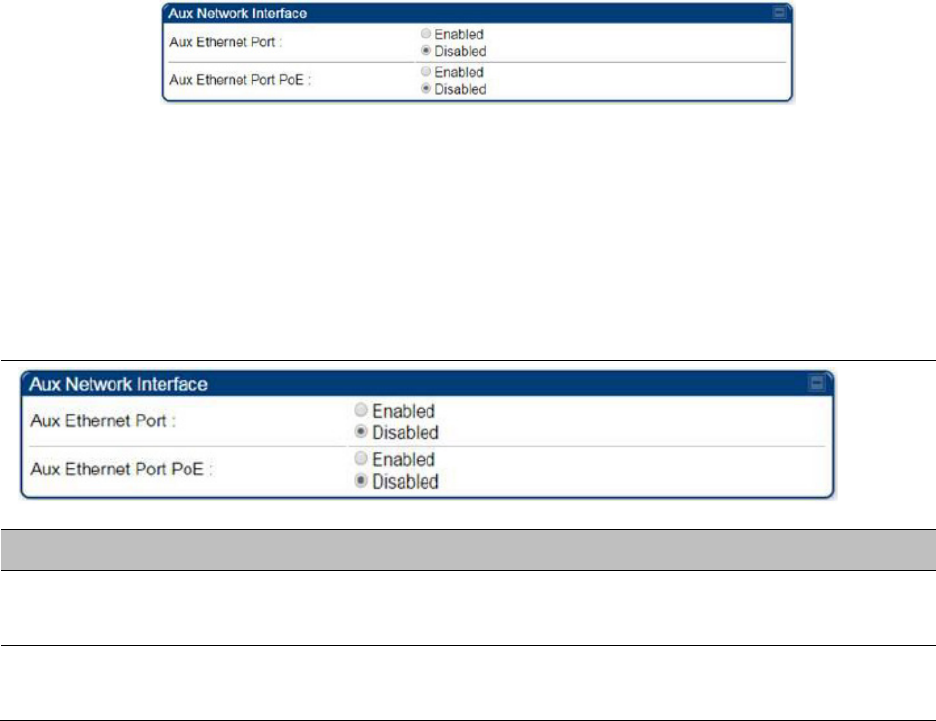

1 Select menu option
Configuration > IP > Aux Network Interface
tab.:
2 Click Enable button of Aux Ethernet Port parameter to enable Aux Ethernet port
3 Click Enable button of Aux Ethernet Port PoE parameter to enable Aux port PoE out.
4 Click
Save
. “Reboot Required” message is displayed.
5 Click
Reboot
.
Table 105 Aux port attributes
Attribute
Meaning
Aux Ethernet Port Enabled: Data is enabled for Auxiliary port
Disabled: Data is disabled for Auxiliary port
Aux Ethernet Port
PoE
Enabled: PoE out is enable for Auxiliary port
Disabled: PoE out is disabled for Auxiliary port
By disabling this feature, the data at the Auxiliary port will be disabled.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-28
NAT, DHCP Server, DHCP Client and DMZ
Applicable products
PMP :
SM
The system provides NAT (Network Address Translation) for SMs in the following combinations of
NAT and DHCP (Dynamic Host Configuration Protocol):
• NAT Disabled
• NAT with DHCP Client (DHCP selected as the Connection Type of the WAN interface) and DHCP
Server
• NAT with DHCP Client(DHCP selected as the Connection Type of the WAN interface)
• NAT with DHCP Server
• NAT without DHCP
NAT
NAT isolates devices connected to the Ethernet or wired side of a SM from being seen directly
from the wireless side of the SM. With NAT enabled, the SM has an IP address for transport traffic
(separate from its address for management), terminates transport traffic and allows you to assign
a range of IP addresses to devices that are connected to the Ethernet or wired side of the SM.
In the Cambium system, NAT supports many protocols, including HTTP, ICMP (Internet Control
Message Protocols), and FTP (File Transfer Protocol). For virtual private network (VPN)
implementation, L2TP over IPSec (Level 2 Tunneling Protocol over IP Security) and PPTP (Point to
Point Tunneling Protocol) are supported.
Note
When NAT is enabled, a reduction in throughput is introduced in the system (due to
processing overhead).
DHCP
DHCP enables a device to be assigned a new IP address and TCP/IP parameters, including a default
gateway, whenever the device reboots. Thus DHCP reduces configuration time, conserves IP
addresses, and allows modules to be moved to a different network within the Cambium system.
In conjunction with the NAT features, each SM provides the following:
• A DHCP server that assigns IP addresses to computers connected to the SM by Ethernet
protocol.
• A DHCP client that receives an IP address for the SM from a network DHCP server.
DMZ
In conjunction with the NAT features, a DMZ (Demilitarized Zone) allows the allotment of one IP
address behind the SM for a device to logically exist outside the firewall and receive network
traffic. The first three octets of this IP address must be identical to the first three octets of the NAT
private IP address.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-29
• A DHCP server that assigns IP addresses to computers connected to the SM by Ethernet
protocol.
• A DHCP client that receives an IP address for the SM from a network DHCP server.
NAT Disabled

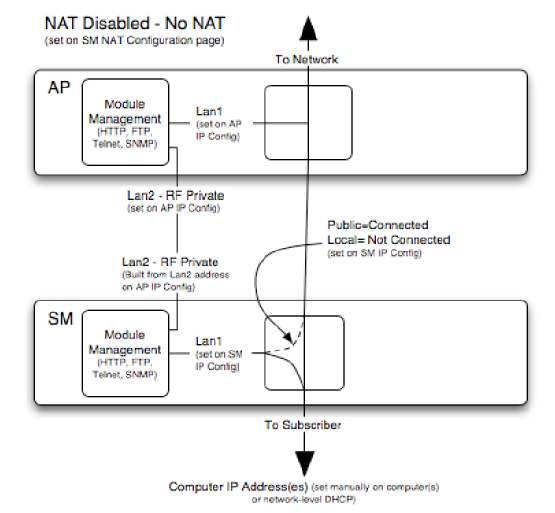

The NAT Disabled implementation is illustrated in Figure 131.
Figure 131 NAT disabled implementation

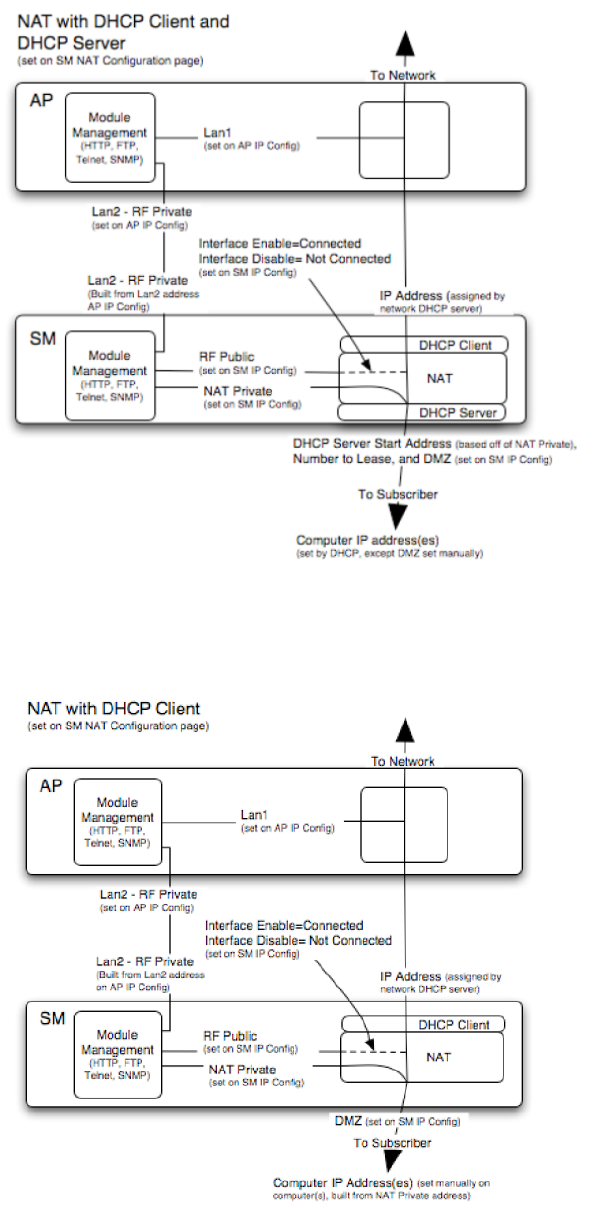

NAT with DHCP Client and DHCP Server
The NAT with DHCP Client and DHCP server is illustrated in Figure 132.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-30
Figure 132 NAT with DHCP client and DHCP server implementation
NAT with DHCP Client
Figure 133 NAT with DHCP client implementation
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-31
NAT with DHCP Server
Figure 134 NAT with DHCP server implementation
NAT without DHCP
Figure 135 NAT without DHCP implementation
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-32
NAT and VPNs
VPN technology provides the benefits of a private network during communication over a public
network. One typical use of a VPN is to connect employees remotely (who are at home or in a
different city), with their corporate network through a public Internet. Any of several VPN
implementation schemes is possible. By design, NAT translates or changes addresses, and thus
interferes with a VPN that is not specifically supported by a given NAT implementation.
With NAT enabled, SM supports L2TP over IPSec (Level 2 Tunneling Protocol over IP Security)
VPNs and PPTP (Point to Point Tunneling Protocol) VPNs. With NAT disabled, SM supports all
types of VPNs.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-33
IP interface with NAT disabled - SM

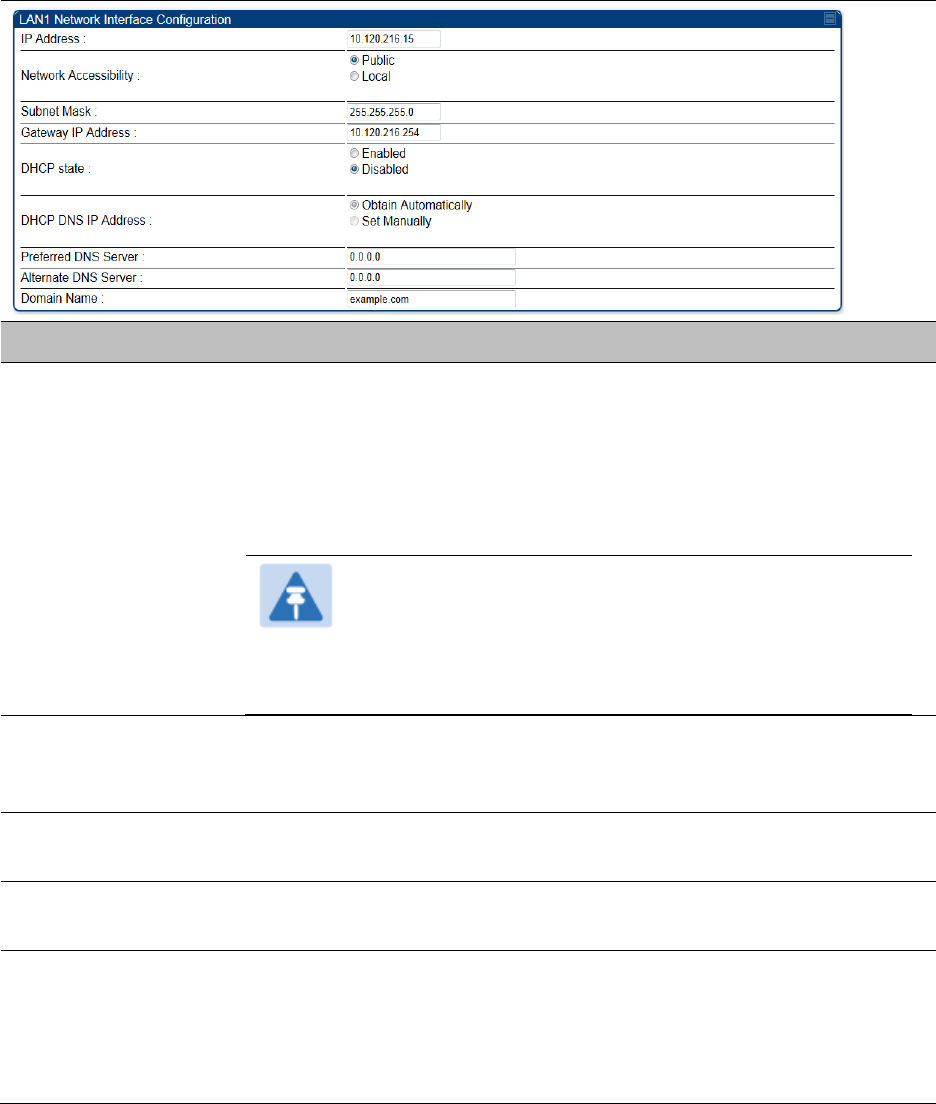

The IP page of SM with NAT disabled is explained in Table 106.

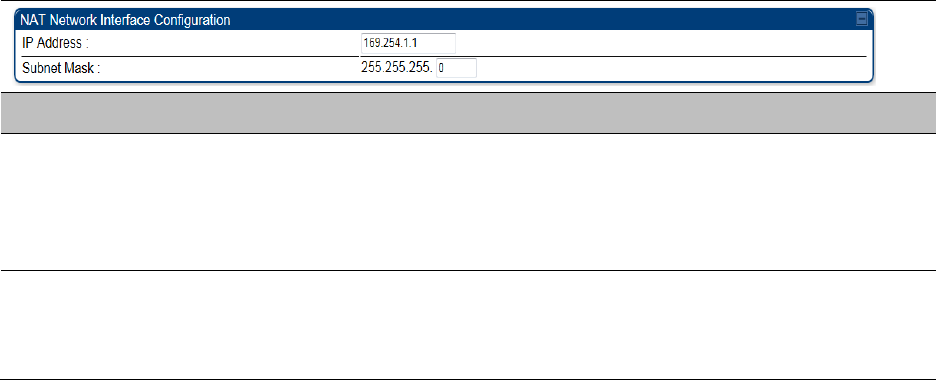

Table 106 IP attributes - SM with NAT disabled
Attribute
Meaning
IP Address
Enter the non-routable IP address to associate with the Ethernet
connection on this SM. (The default IP address from the factory is
169.254.1.1.) If you forget this parameter, you must both:
• physically access the module.
• use recovery mode to access the module configuration parameters
at 169.254.1.1. See Radio recovery mode on page 1-27
Note
Note or print the IP settings from this page. Ensure that
you can readily associate these IP settings both with the
module and with the other data that you store about the
module.
Network
Accessibility
Specify whether the IP address of the SM must be visible to only a
device connected to the SM by Ethernet (
Local
) or be visible to the
AP/BHM as well (
Public
).
Subnet Mask Enter an appropriate subnet mask for the SM to communicate on the
network. The default subnet mask is 255.255.0.0.
Gateway IP Address Enter the appropriate gateway for the SM to communicate with the
network. The default gateway is 169.254.0.0.
DHCP state
If you select
Enabled
, the DHCP server automatically assigns the IP
configuration (IP address, subnet mask, and gateway IP address) and the
values of those individual parameters (above) are not used. The setting
of this DHCP state parameter is also viewable, but not settable, in the
Network Interface tab of the Home page.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-34
In this tab, DHCP State is settable only if the
Network Accessibility
parameter in the IP tab is set to
Public
. This parameter is also settable in
the NAT tab of the Configuration web page, but only when NAT is
enabled.
If the
DHCP state
parameter is set to
Enabled
in the
Configuration > IP
sub-menu of the SM/BHS, do not check the
BootpClient
option for
Packet
Filter Types
in its Protocol Filtering tab, because doing so can block the
DHCP request. (Filters apply to all packets that leave the SM via its RF
interface, including those that the SM itself generates.) If you want to
keep DHCP enabled and avoid the blocking scenario, select the
Bootp
Server
option instead. This will result in responses being appropriately
filtered and discarded.
DHCP DNS IP
Address
Canopy devices allow for configuration of a preferred and alternate DNS
server IP address either automatically or manually. Devices must set
DNS server IP address manually when DHCP is disabled for the
management interface of the device. DNS servers may be configured
automatically from the DHCP response when DHCP is enabled for the
management interface of the device. Optionally devices may be
configured to set the DNS server IP address manually when DHCP is
enabled for the management interface. The default DNS IP addresses are
0.0.0.0 when configured manually.
Preferred DNS
Server
The first DNS server used for DNS resolution.
Alternate DNS
Server
The second DNS server used for DNS resolution.
Domain Name The operator’s management domain name may be configured for DNS.
The domain name configuration can be used for configuration of the
servers in the operator’s network. The default domain name is
example.com, and is only used if configured as such.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-35
IP interface with NAT enabled - SM
The IP page of SM with NAT enabled is explained in Table 107.
Table 107 IP attributes - SM with NAT enabled
Attribute
Meaning
IP Address
Assign an IP address for SM/BHS management through Ethernet access
to the SM/BHS. Set only the first three bytes. The last byte is
permanently set to 1. This address becomes the base for the range of
DHCP-assigned addresses.
Subnet Mask
Assign a subnet mask of 255.255.255.0 or a more restrictive subnet
mask. Set only the last byte of this subnet mask. Each of the first three
bytes is permanently set to 255.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-36
NAT tab with NAT disabled - SM
The NAT tab of SM with NAT disabled is explained in Table 108.

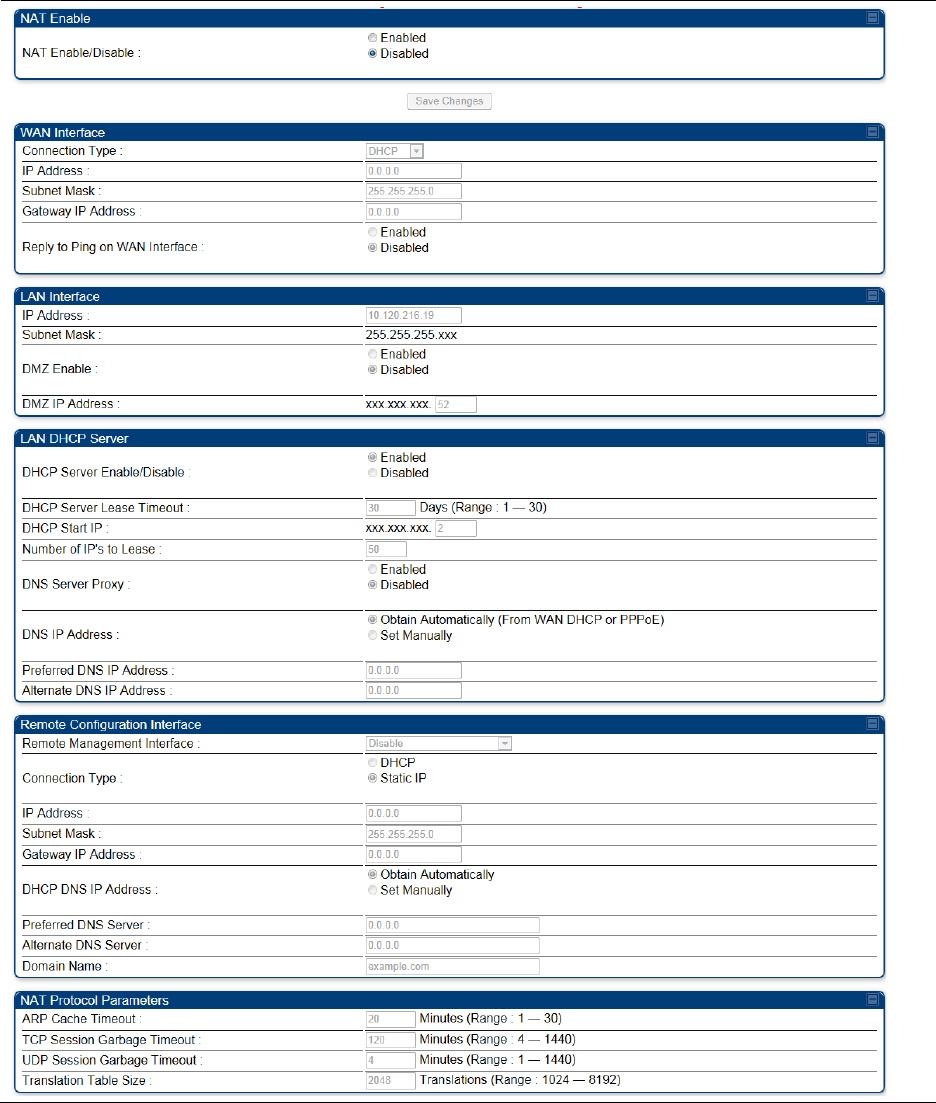

Table 108 NAT attributes - SM with NAT disabled
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-37
Attribute
Meaning
NAT Enable/Disable This parameter enables or disables the Network Address Translation
(NAT) feature for the SM. NAT isolates devices connected to the Ethernet
or wired side of a SM from being seen directly from the wireless side of
the SM. With NAT enabled, the SM has an IP address for transport traffic
separate from its address for management, terminates transport traffic,
and allows you to assign a range of IP addresses to devices that are
connected to the Ethernet or wired side of the SM.
When NAT is enabled, VLANs are not supported on the wired side of
that SM. You can enable NAT in SMs within a sector where VLAN is
enabled in the AP/BHM, but this may constrain network design.
IP Address This field displays the IP address for the SM. DHCP Server will not
automatically assign this address when NAT is disabled.
Subnet Mask This field displays the subnet mask for the SM. DHCP Server will not
automatically assign this address when NAT is disabled.
Gateway IP Address This field displays the gateway IP address for the SM. DHCP Server will
not automatically assign this address when NAT is disabled.
ARP Cache Timeout If a router upstream has an ARP cache of longer duration (as some use
30 minutes), enter a value of longer duration than the router ARP cache.
The default value of this field is 20 minutes.
TCP Session
Garbage Timeout
Where a large network exists behind the SM, you can set this parameter
to lower than the default value of 120 minutes. This action makes
additional resources available for greater traffic than the default value
accommodates.
UDP Session
Garbage Timeout
You may adjust this parameter in the range of 1 to 1440 minutes, based
on network performance. The default value of this parameter is 4
minutes.
Translation Table
Size
Total number of minutes that have elapsed since the last packet transfer
between the connected device and the SM/BHS.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-38
Note
When NAT is disabled, the following parameters are not required to be configurable:
WAN Inter face
> Connection Type, IP Address, Subnet Mask, Gateway IP address
LAN Interface
> IP Address
LAN DHCP Server
> DHCP Server Enable/Disable, DHCP Server Lease Timeout,
Number of IP’s to Lease, DNS Server Proxy, DNS IP Address, Preferred DNS IP
address, Alternate DNS IP address
Remote Management Interface
> Remote Management Interface, IP address, Subnet
Mask, DHCP DNS IP Address, Preferred DNS Server, Alternate DNS Server, Domain
Name
NAT Protocol Parameters
> ARP Cache Timeout, TCP Session Garbage Timeout, UDP
Session Garbage Timeout, Translation Table Size
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-39
NAT tab with NAT enabled - SM
The NAT tab of SM with NAT enabled is explained in Table 109.

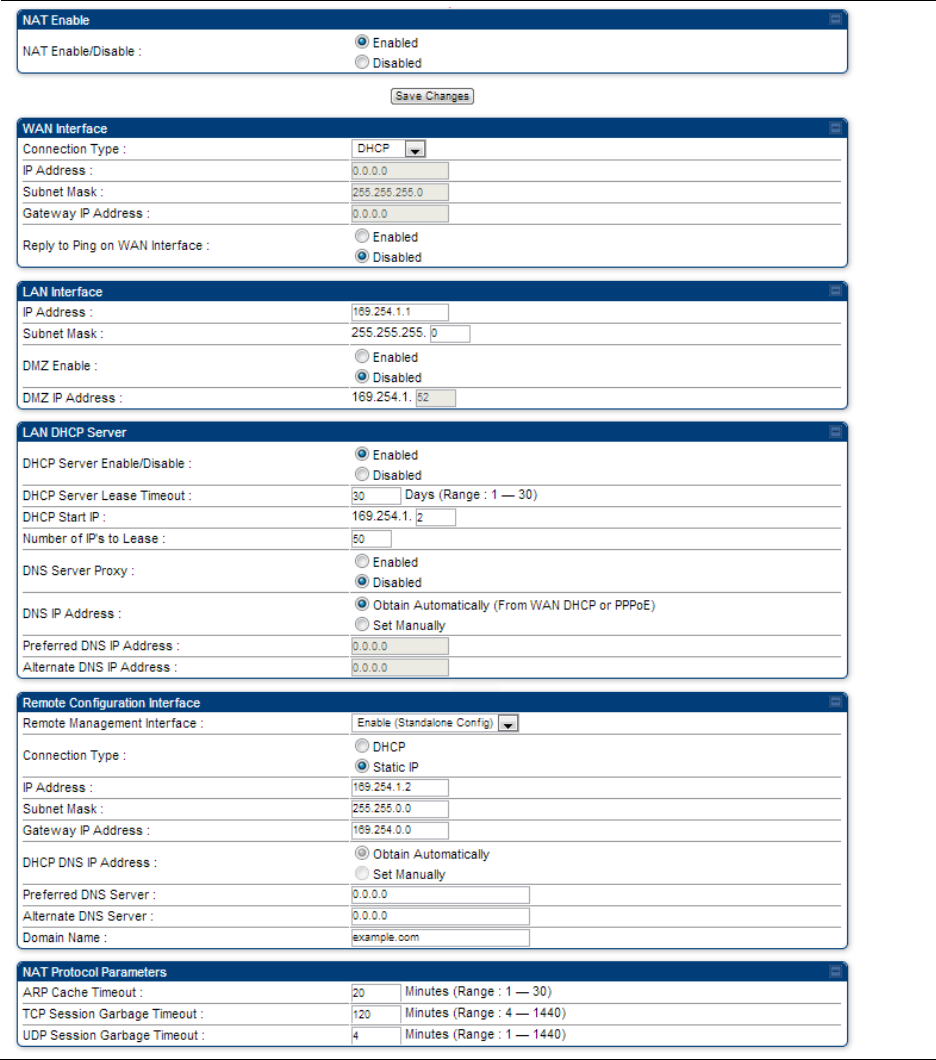

Table 109 NAT attributes - SM with NAT enabled
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-40
Attribute
Meaning
NAT Enable/Disable This parameter enables or disabled the Network Address Translation
(NAT) feature for the SM. NAT isolates devices connected to the Ethernet
or wired side of a SM from being seen directly from the wireless side of
the SM. With NAT enabled, the SM has an IP address for transport traffic
separate from its address for management, terminates transport traffic,
and allows you to assign a range of IP addresses to devices that are
connected to the Ethernet or wired side of the SM.
When NAT is enabled, VLANs are not supported on the wired side of
that SM. You can enable NAT in SMs within a sector where VLAN is
enabled in the AP, but this may constrain network design.
WAN Interface The WAN interface is the RF-side address for transport traffic.
Connection Type
This parameter may be set to
Static IP
—when this is the selection, all three parameters (
IP Address
,
Subnet Mask
, and
Gateway IP Address
) must be properly populated.
DHCP
—when this is the selection, the information from the DHCP server
configures the interface.
PPPoE
—when this is the selection, the information from the PPPoE
server configures the interface.
Subnet Mask If
Static IP
is set as the
Connection Type
of the WAN interface, then this
parameter configures the subnet mask of the SM for RF transport traffic.
Gateway IP Address If
Static IP
is set as the
Connection Type
of the WAN interface, then this
parameter configures the gateway IP address for the SM for RF transport
traffic.
Reply to Ping on
WAN Interface
By default, the radio interface does not respond to pings. If you use a
management system (such as WM) that will occasionally ping the SM,
set this parameter to
Enabled
.
LAN Interface The LAN interface is both the management access through the Ethernet
port and the Ethernet-side address for transport traffic. When NAT is
enabled, this interface is redundantly shown as the
NAT Network
Interface Configuration
on the IP tab of the Configuration web page in
the SM.
IP Address Assign an IP address for SM/BHS management through Ethernet access
to the SM. This address becomes the base for the range of DHCP-
assigned addresses.
Subnet Mask Assign a subnet mask of 255.255.255.0 or a more restrictive subnet
mask. Set only the last byte of this subnet mask. Each of the first three
bytes is permanently set to 255.
DMZ Enable Either enable or disable DMZ for this SM/BHS.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-41
DMZ IP Address If you enable DMZ in the parameter above, set the last byte of the DMZ
host IP address to use for this SM when DMZ is enabled. Only one such
address is allowed. The first three bytes are identical to those of the NAT
private IP address. Ensure that the device that receives network traffic
behind this SM is assigned this address. The system provides a warning
if you enter an address within the range that DHCP can assign.
DHCP Server This is the server (in the SM) that provides an IP address to the device
connected to the Ethernet port of the SM.
DHCP Server
Enable/Disable
Select either
Enabled
or
Disabled
.
Enable
to:
• Allow this SM to assign IP addresses, subnet masks, and gateway IP
addresses to attached devices.
• Assign a start address for DHCP.
• Designate how many IP addresses may be temporarily used (leased).
Disable
to:
• Restrict SM/BHS from assigning addresses to attached devices.
DHCP Server Lease
Timeout
Based on network performance, enter the number of days between
when the DHCP server assigns an IP address and when that address
expires. The range of values for this parameter is 1 to 30 days. The
default value is 30 days.
DHCP Start IP If you enable DHCP Server below, set the last byte of the starting IP
address that the DHCP server assigns. The first three bytes are identical
to those of the NAT private IP address.
Number of IPs to
Lease
Enter how many IP addresses the DHCP server is allowed to assign. The
default value is 50 addresses.
DNS Server Proxy This parameter enables or disables advertisement of the SM/BHS as the
DNS server. On initial boot up of a SM with the NAT WAN interface
configured as DHCP or PPPoE, the SM module will not have DNS
information immediately. With
DNS Server Proxy
disabled, the clients
will renew their lease about every minute until the SM has the DNS
information to give out. At this point the SM will go to the full configured
lease time period which is 30 days by default. With
DNS Server Proxy
enabled, the SM will give out full term leases with its NAT LAN IP as the
DNS server.
DNS IP Address
Select either:
Obtain Automatically
to allow the system to set the IP address of the
DNS server
or
Set Manually
to enable yourself to set both a preferred and an alternate
DNS IP address.
Preferred DNS IP
Address
Enter the preferred DNS IP address to use when the
DNS IP Address
parameter is set to
Set Manually
.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-42
Alternate DNS IP
Address
Enter the DNS IP address to use when the
DNS IP Address
parameter is
set to
Set Manually
and no response is received from the preferred DNS
IP address.
Remote
Management
Interface
To offer greater flexibility in IP address management, the NAT-enabled
SM’s configured WAN Interface IP address may now be used as the
device Remote Management Interface (unless the SM’s PPPoE client is
set to Enabled)
Disable
: When this interface is set to “Disable”, the SM is not directly
accessible by IP address. Management access is only possible through
either the LAN (Ethernet) interface or a link from an AP web page into
the WAN (RF-side) interface.
Enable (Standalone Config)
: When this interface is set to “Enable
(Standalone Config)”, to manage the SM/BHS the device must be
accessed by the IP addressing information provided in the Remote
Configuration Interface section.
Note
When configuring PPPoE over the link, use this configuration
option (PPPo
E traffic is routed via the IP addressing specified
in section Remote Configuration Interface).
Enable (Use WAN Interface)
: When this interface is set to “Enable (Use
WAN Interface)”, the Remote Configuration Interface information is
greyed out, and the SM is managed via the IP addressing specified in
section WAN Interface).
Note
When using this configuration, the ports defined in section
Configuration, Port Configuration are consumed by the
device. For example, if
FTP Port
is configured as 21 by the
SM, an FTP server situated below the SM must use a port
other than 21. This also applies to DMZ devices; any ports
specified in section Configuration, Port Configuration will not
be translated through the NAT, they is consumed by the
device’s network stack for management.
Connection Type
This parameter can be set to:
Static IP
—when this is the selection, all three parameters (
IP Address
,
Subnet Mask
, and
Gateway IP Address
) must be properly populated.
DHCP
—when this is the selection, the information from the DHCP server
configures the interface.
IP Address
If
Static IP
is set as the
Connection Type
of the WAN interface, then this
parameter configures the IP address of the SM for RF management
traffic.
Subnet Mask
If
Static IP
is set as the
Connection Type
of the WAN interface, then this
parameter configures the subnet mask of the SM for RF management
traffic.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-43
Gateway IP Address
If
Static IP
is set as the
Connection Type
of the WAN interface, then this
parameter configures the gateway IP address for the SM for RF
management traffic.
Note or print the IP settings from this page. Ensure that you can readily
associate these IP settings both with the module and with the other data
that you store about the module.
DHCP DNS IP
Address
Select either:
Obtain Automatically
to allow the system to set the IP address of the
DNS server.
or
Set Manually
to enable yourself to set both a preferred and an alternate
DNS IP address.
Preferred DNS
Server
Enter the preferred DNS IP address to use when the
DNS IP Address
parameter is set to
Set Manually
.
Alternate DNS
Server
Enter the DNS IP address to use when the
DNS IP Address
parameter is
set to
Set Manually
and no response is received from the preferred DNS
IP address.
Domain Name Domain Name to use for management DNS configuration. This domain
name may be concatenated to DNS names used configured for the
remote configuration interface.
ARP Cache Timeout If a router upstream has an ARP cache of longer duration (as some use
30 minutes), enter a value of longer duration than the router ARP cache.
The default value of this field is 20 (minutes).
TCP Session
Garbage Timeout
Where a large network exists behind the SM, you can set this parameter
to lower than the default value of 120 (minutes). This action makes
additional resources available for greater traffic than the default value
accommodates.
UDP Session
Garbage Timeout
You may adjust this parameter in the range of 1 to 1440 minutes, based
on network performance. The default value of this parameter is 4
(minutes).
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-44
NAT DNS Considerations - SM
SM DNS behavior is different depending on the accessibility of the SM. When NAT is enabled the
DNS configuration that is discussed in this document is tied to the RF Remote Configuration
Interface, which must be enabled to utilize DNS Client functionality. Note that the WAN DNS
settings when NAT is enabled are unchanged with the addition of the management DNS feature
discussed in this document.
Table 110 SM DNS Options with NAT Enabled
NAT
Configuration
Management Interface
Accessibility
DHCP Status
DNS Status
NAT Enabled
RF Remote
Management Interface
Disabled
N/A DNS Disabled
RF Remote
Management Interface
Enabled
DHCP Disabled DNS Static Configuration
DHCP Enabled DNS from DHCP or DNS
Static Configuration
NAT Port Mapping tab - SM
The NAT Port Mapping tab of the SM is explained in Table 111.

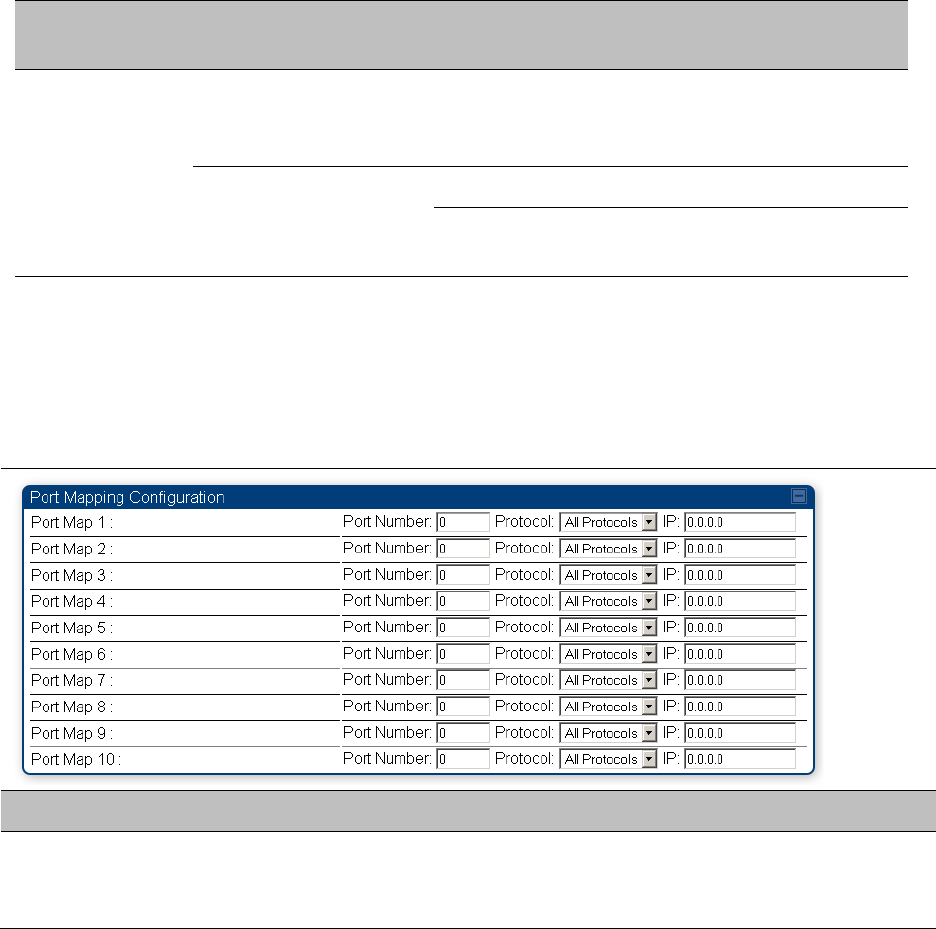

Table 111 NAT Port Mapping attributes - SM
Attribute
Meaning
Port Map 1 to 10 Separate parameters allow you to distinguish NAT ports from each other
by assigning a unique combination of port number, protocol for traffic
through the port, and IP address for access to the port
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-45
DHCP – BHS
Applicable products
PTP:
BHM
DHCP enables a device to be assigned a new IP address and TCP/IP parameters, including a default
gateway, whenever the device reboots. Thus DHCP reduces configuration time, conserves IP
addresses, and allows modules to be moved to a different network within the Cambium system.
In conjunction with the NAT features, each BHS provides:
• A DHCP server that assigns IP addresses to computers connected to the BHS by Ethernet
protocol.
• A DHCP client that receives an IP address for the BHS from a network DHCP server.
Reconnecting to the management PC
If the IP Address, Subnet Mask and Gateway IP Address of the unit have been updated to meet
network requirements, then reconfigure the local management PC to use an IP address that is valid
for the network. See Configuring the management PC on page 7-3.
Once the unit reboots, log in using the new IP address. See Logging into the web interface on page
7-5.
VLAN configuration for PMP
Applicable products
PMP :
AP SM
VLAN Remarking
VLAN Remarking feature allows the user to change the VLAN ID and priority of both upstream
and downstream packets at the Ethernet Interface. The remarking configuration is available for:
1. VLAN ID re-marking
2. 802.1p priority re-marking
Note
For Q-in-Q VLAN tagged frame, re-marking is performed on the outer tag.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-46
VLAN ID Remarking
SM supports the ability to re-mark the VLAN ID on both upstream and downstream VLAN frames
at the Ethernet interface. For instance, a configuration can be added to re-mark VLAN ID ‘x’ to
VLAN ID ‘y’ as shown in Table 112. AP does not support VLAN ID remarking.
Table 112 VLAN Remarking Example
VLAN frame direction
Remarking
Upstream
SM receives VLAN ID ‘x’ frame at the Ethernet interface, checks the
configuration and re-marks to VLAN ID ‘y’. So VLAN ID ‘y’ frame
comes out of AP’s Ethernet interface. When SM re-marks, a
dynamic entry in VLAN membership table for ‘y’ is added to allow
reception of VLAN ID ‘y’ downstream packet.
Downstream
AP receives VLAN ID ‘y’ frame at the Ethernet interface and sends to
SM. SM accepts the frame as it has an entry in the membership
table and re-marks to VLAN ID ‘x’. This reverse re- marking is
necessary because the downstream devices do not know of re-
marking and are expecting VLAN ‘x’ frames. This remarking is done
just before sending the packet out on Ethernet interface.
802.1P Remarking
AP/BHM and SM/BHS allow re-marking of 802.1p priority bits for the frames received at the
Ethernet interface. Priority bits are not re-marked for the packets sent out of Ethernet interface
(reverse direction).
Configuration must be added at SM/BHS for upstream frames and at AP/BHM for downstream
frames.
VLAN Priority Bits configuration
VLAN Priority Bits Configuration feature allows the user to configure the three 802.1p bits upon
assigning VLAN to an ingress packet. The priority bits configuration is available for:
• Default Port VID
• Provider VID
• MAC Address mapped Port VID
• Management VID
Default Port VID
This VID is used for untagged frames and will correspond to the Q-Tag for 802.1Q frames (if
VLAN
Port Type is Q), or the C-Tag for 802.1ad frames (if the VLAN Port Type is QinQ).
The priority bits used in the Q-tag/C-tag are configurable.
The configuration can be:
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-47
• Promote IPv4/IPv6 priority – The priority in the IP header is copied to the Q-tag/C-tag.
• Define priority – Specify the priority in the range of 0 to 7. This value is used as priority in the
Q-tag/C-tag.
MAC Address Mapped VID
If a packet arrives at the SM/BHS that is sourced from a device whose MAC address is in the
table, then the corresponding VID is used for that frame’s Q-tag (Q port) or C-tag (QinQ port).
The priority bits used in the Q-tag/C-tag are configurable similar to default port VID.
Provider VID
The provider VID is used for the S-tag. The priority bits used in the S-tag are configurable
similar to default port VID. Provider VID has an extra priority configuration:
• Copy inner tag 802.1p priority – The priority in the C-tag is copied to the S-tag.
Management VID
This VID is used to communicate with AP/BHM and SM/BHS for management purposes. The
priority bits used in the Q-tag are configurable similar to default port VID.
Use AP’s Management VID for ICC connected SM
This feature allows the SM to use the AP’s management VLAN ID when the SM is registered to
the AP via ICC. This feature is useful for the customer who uses a different management VID for
the SM and AP and Zero Touch feature is enabled for configuration. This parameter may be
accessed via the Configuration > VLAN page on the AP’s web management interface.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-48

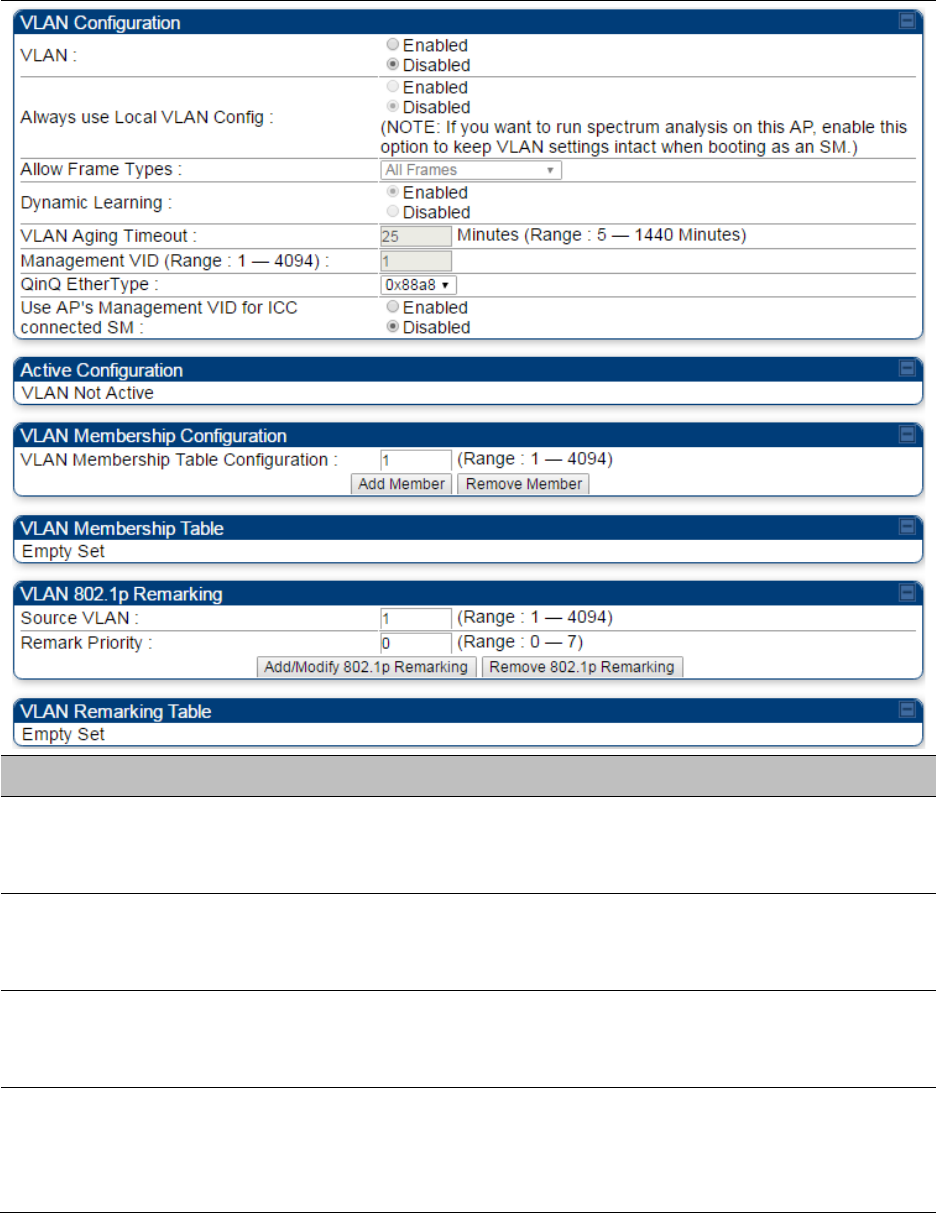

VLAN page of AP
The VLAN tab of the AP/BHM is explained in Table 113.

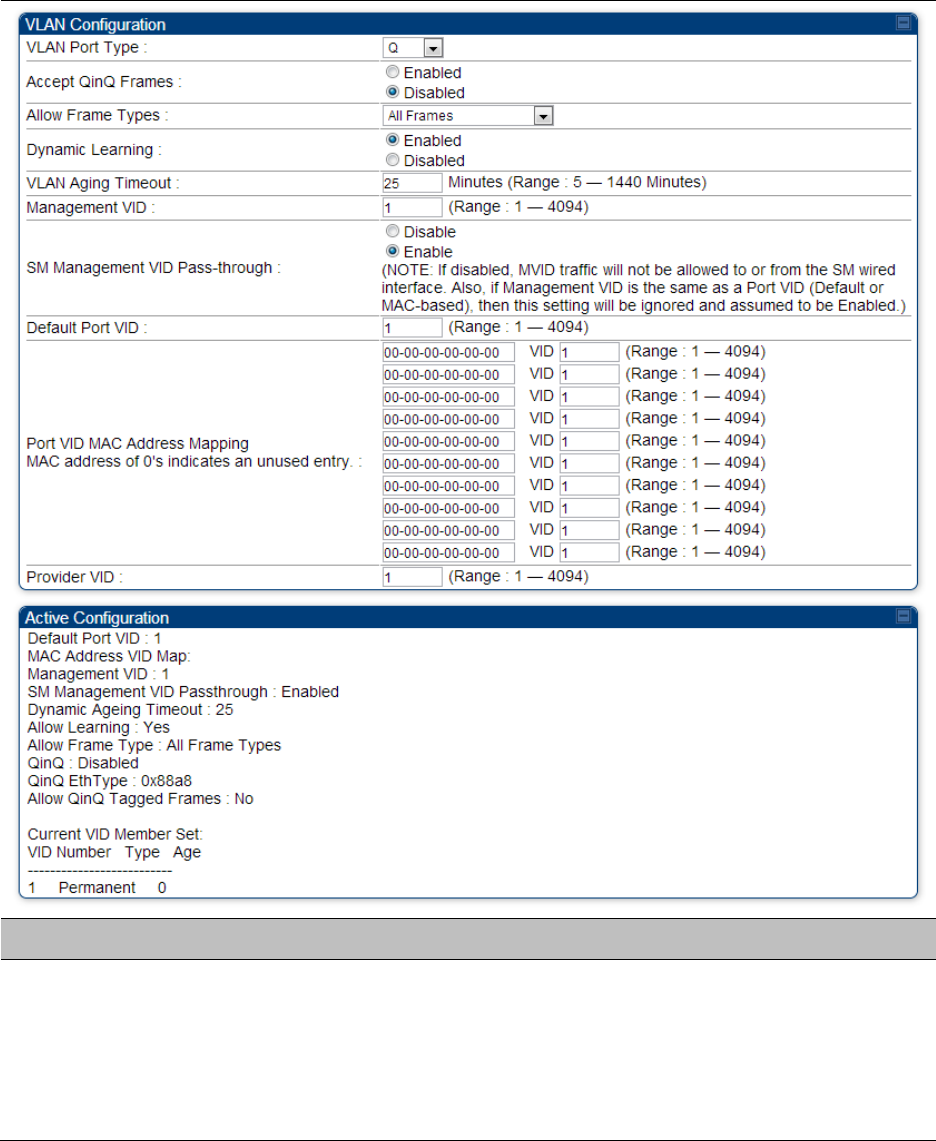

Table 113 AP/BHM VLAN tab attributes
Attribute
Meaning
VLAN Specify whether VLAN functionality for the AP and all linked SMs must
(
Enabled
) or may not (
Disabled
) be allowed. The default value is
Disabled
.
Always use Local
VLAN Config
Enable this option before you reboot this AP as a SM to use it to perform
spectrum analysis. Once the spectrum analysis completes, disable this
option before you reboot the module as an AP,
Allow Frame Types Select the type of arriving frames that the AP must tag, using the VID
that is stored in the
Untagged Ingress VID
parameter. The default value
is
All Frames
.
Dynamic Learning Specify whether the AP must (
Enabled
) or not (
Disabled
) add the VLAN
IDs (VIDs) of upstream frames to the VID table. (The AP passes frames
with VIDs that are stored in the table both upstream and downstream.).
The default value is
Enabled
.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-49
VLAN Aging Timeout Specify how long the AP must keep dynamically learned VIDs. The range
of values is 5 to 1440 (minutes). The default value is 25 (minutes).
Note
VIDs that you enter for the Management VID and VLAN
Membership parameters do not time out.
Management VID Enter the VID that the operator wishes to use to communicate with the
module manager. The range of values is 1 to 4095. The default value is
1
.
QinQ EtherType Modules can be configured with 802.1ad Q-in-Q DVLAN (Double-VLAN)
tagging which is a way for an operator to put an 802.1Q VLAN inside of
an 802.1ad VLAN. A nested VLAN, which is the original 802.1Q tag and a
new second 802.1ad tag, allows for bridging of VLAN traffic across a
network and segregates the broadcast domains of 802.1Q VLANs. Q-in-Q
can be used with PPPoE and/or NAT.
The 802.1ad standard defines the S-VLAN as the Service Provider VLAN
and the C-VLAN as the customer VLAN. The radio software does 2 layer
Q-in-Q whereby the C-VLAN is the 802.1Q tag and the S-VLAN is the
second layer Q tag as shown below:
Table 114
Q-in-Q Ethernet frame
Ethernet
Header
S-VLAN
EthType 0x88a8
C-
VLAN EthType
0x8100
IP
Data EthType
0x0800
The 802.1ad S-VLAN is the outer VLAN that is configurable on the
Configuration > VLAN
web page of the AP. The Q-in-Q EtherType
parameter is configured with a default EtherType of 0x88a8 in addition
to four alternate EtherTypes that can be configured to aid in
interoperability with existing networks that use a different EtherType
than the default.
The C-VLAN is the inner VLAN tag, which is the same as 802.1Q. As a top
level concept, this operates on the outermost tag at any given time,
either “pushing” a tag on or “popping” a tag off. This means packets
will at most transition from an 802.1Q frame to an 801.ad frame (with a
tag “pushed” on) or an untagged 802.1 frame (with the tag “popped”
off. Similarly, for an 802.1ad frame, this can only transition from an
802.1ad frame to an 802.1Q frame (with the tag “popped” off) since the
radio software only supports 2 levels of tags
Use AP's
Management VID for
ICC connected SM
This field allows the SM to use the AP’s management VLAN ID when the
SM is registered to the AP via ICC.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-50
VLAN Not Active When VLAN is enabled in the AP, the Active Configuration block
provides the following details as read-only information in this tab. In the
Cambium fixed wireless broadband IP network, each device of any type
is automatically a permanent member of VID 1. This facilitates
deployment of devices that have VLAN enabled with those that do not.
VLAN Membership
Table Configuration
For each VLAN in which you want the AP to be a member, enter the
VLAN ID and then click the
Add Member
button. Similarly, for any VLAN
in which you want the AP to no longer be a member, enter the VLAN ID
and then click the
Remove Member
button.
VLAN Membership
table
This field lists the VLANs that an AP is a member of. As the user adds a
number between 1 and 4094, this number is populated here.
Source VLAN
(Range: 1-4094)
Enter the VID for which the operator wishes to remark the 802.1p priority
for the downstream packets. The range of values is 1 to 4094. The
default value is 1.
Remark Priority
(Range 0-7)
This is the priority you can assign to the VLAN Tagged packet. Priority of
0 is the highest.
VLAN Remarking
table
As the user enters a VLAN and a Remarking priority, this information is
added in this table.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-51

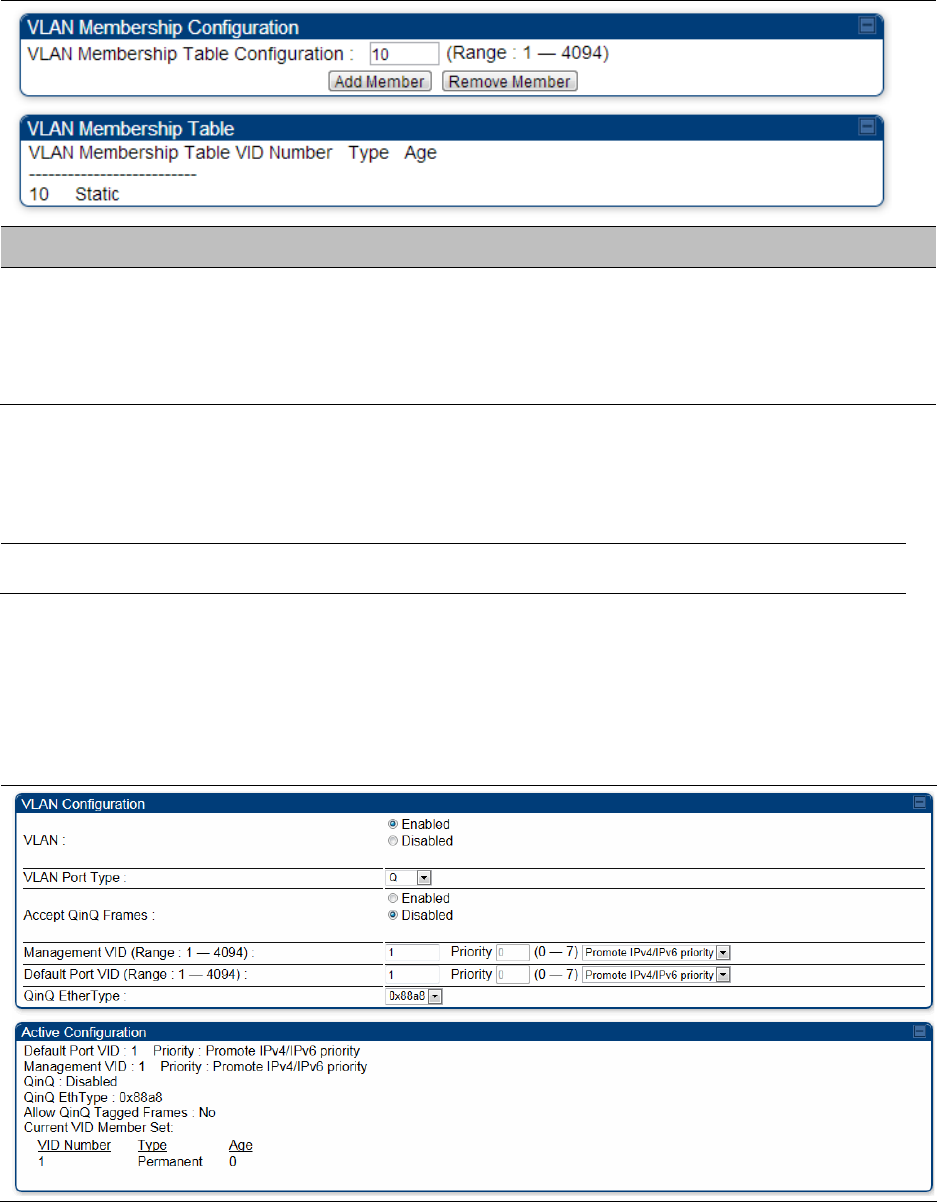

VLAN page of SM
The VLAN tab of SM/BHS is explained in Table 115.
Table 115 SM VLAN attributes
Attribute
Meaning
VLAN Port Type By default this is Q, indicating that it is to operate in the existing manner.
The other option is Q-in-Q, which indicates that it must be adding and
removing the S-Tag, and adding a C-Tag if necessary for untagged
packets. The VLAN Port type corresponds to the Ethernet port of the
SM/BHS. Currently, the internal management interfaces will always
operate as Q ports.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-52
Accept QinQ Frames This option is valid for the Q-in-Q port so that the user may force
blocking of existing 802.1ad Q-in-Q frames. This way, only untagged or
single tagged packets will come in and out of the Ethernet interface. If a
Q-in-Q frame is about ingress or egress the Ethernet interface and this is
disabled, it is dropped and a filter entry will show up on the VLAN
Statistics page as DVLAN Egress or DVLAN Ingress.
Allow Frame Types Select the type of arriving frames that the SM must tag, using the VID
that is stored in the
Untagged Ingress VID
parameter. The default value
is
All Frames
.
Tagged Frames Only
: The SM only tags incoming VLAN-tagged frames
Untagged Frames Only
: The SM will only tag incoming untagged frames
Dynamic Learning Specify whether the SM must (
Enable
) or not (
Disable
) add the VIDs of
upstream frames (that enter the SM through the wired Ethernet
interface) to the VID table. The default value is
Enable
.
VLAN Aging Timeout Specify how long the SM/BHS must keep dynamically learned VIDs. The
range of values is 5 to 1440 (minutes). The default value is 25 (minutes).
Note
VIDs that you enter for the Untagged Ingress VID and
Management VID parameters do not time out.
Management VID Enter the VID that the SM/BHS must share with the AP/BHM. The range
of values is 1 to 4095. The default value is
1
.
SM Management
VID Pass-through
Specify whether to allow the SM/BHS (
Enabled
) or the AP/RADIUS
(
Disabled
) to control the VLAN settings of this SM. The default value is
Enabled
.
When VLAN is enabled in the AP to whom this SM is registered, the
Active Configuration block provides the following details as read-only
information in this tab. In the Cambium fixed wireless broadband IP
network, each device of any type is automatically a permanent member
of VID 1. This facilitates deployment of devices that have VLAN enabled
with those that do not.
If disabled, MVID traffic is not allowed to or from the SM wired interface.
Also, if Management VID is the same as a Port VID (Default or MAC-
based), then this setting is ignored and assumed to be Enabled.
Default Port VID This is the VID that is used for untagged frames and will correspond to
the Q-Tag for 802.1Q frames (if VLAN Port Type is Q), or the C-Tag for
802.1ad frames (if the VLAN Port Type is Q-in- Q).
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-53
Port VID MAC
Address Mapping
These parameters allow operators to place specific devices onto
different VLANs (802.1Q tag or 802.1ad C-tag) based on the source
MAC address of the packet. If the MAC address entry is 00-00-00-00-00-
00 then that entry is not used. If a packet arrives at the SM that is
sourced from a device whose MAC address is in the table, then the
corresponding VID is used for that frame’s Q-tag (Q port) or C-tag (Q-
in-Q port). If there is no match, then the Default Port VID is used. This
table is also used in the downstream direction for removal of the tag
based on the destination MAC address so that an untagged (for Q port)
or Q-Tagged (for Q-in-Q port) frame is delivered to the end device. You
may use wildcards for the non-OUI (Organizationally Unique Identifier)
portion of the MAC address, which is the last 3 bytes. MAC addresses
contain 6 bytes, the first 3 of which are the OUI of the vendor that
manufactured the device and the last 3 are unique to that vendor OUI.
If you want to cover all devices from a known vendor’s OUI, you have
to specify 0xFF for the remaining 3 bytes. So, for example, if you
wanted all devices from a specific vendor with an OUI of 00-95-5b
(which is a Netgear OUI) to be on the same VID of 800, you have to
specify an entry with MAC address 00-95-5b-ff-ff-ff. Then, any device
underneath of the SM with MAC addresses starting with 00-95-5b is put
on VLAN 800.
Provider VID The provider VID is used for the S-tag. It is only used if the
Port Type
is
Q-in-Q
and will always be used for the S-tag. If an existing 802.1Q
frame arrives, the
Provider VID
is what is used for adding and
removing of the outer S-tag. If an untagged frame arrives to a Q-in-Q
port, then the
Provider VID
is the S-tag and the
Default Port VID
(or
Port
VID MAC Address Mapping
, if valid) is used for the C-tag.
Active Configuration,
Default Port VID
This is the value of the parameter of the same name, configured above.
Active Configuration,
MAC Address VID
Map
This is the listing of the MAC address VIDs configured in
Port VID MAC
Address Mapping
.
Active Configuration,
Management VID
This is the value of the parameter of the same name, configured above.
Active Configuration,
SM Management
VID Pass-Through
This is the value of the parameter of the same name, configured above.
Active Configuration,
Dynamic Aging
Timeout
This is the value of the
VLAN Aging Timeout
parameter configured
above.
Active Configuration,
Allow Learning
Yes
is displayed if the value of the
Dynamic Learning
parameter above is
Enabled
. No is displayed if the value of
Dynamic Learning
is
Disabled
.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-54
Active Configuration,
Allow Frame Type
This displays the selection that was made from the drop-down list at the
Allow Frame Types
parameter above.
Active Configuration,
QinQ
This is set to
Enabled
if
VLAN Port Type is
set to
QinQ
,
and is set to
Disabled
if
VLAN Port Type
is set to
Q
.
Active Configuration,
QinQ EthType
This is the value of the QinQ EtherType configured in the AP.
Active Configuration,
Allow QinQ Tagged
Frames
This is the value of
Accept QinQ Frames
, configured above.
Active Configuration,
Current VID Member
Set, VID Number
This column lists the ID numbers of the VLANs in which this module is a
member, whether through assignment or through dynamic learning.
Active Configuration,
Current VID Member
Set, Type
For each VID number in the first column, the entry in this column
correlates the way in which the module became and continues to be a
member:
Permanent
—This indicates that the module was assigned the VID
number through direct configuration by the operator.
Dynamic
—This indicates that the module adopted the VID number
through enabled dynamic learning, when a tagged packet from a SM
behind it in the network or from a customer equipment that is behind the
SM in this case, was read.
Active Configuration,
Current VID Member
Set, Age
For each VID number in the first column of the table, the entry in this
column reflects whether or when the VID number will time out:
Permanent
type - Number never times out and this is indicated by the
digit 0.
Dynamic
type -
Age
reflects what is configured in the
VLAN Aging
Timeout
parameter in the
Configuration
=>
VLAN
tab of the AP or
reflects a fewer number of minutes that represents the difference
between what was configured and what has elapsed since the VID was
learned. Each minute, the Age decreases by one until, at zero, the AP
deletes the learned VID, but can it again from packets sent by elements
that are beneath it in the network.
Note
Values in this Active Configuration block can differ from
attempted values in configurations:
The AP can override the value that the SM has configured
for
SM Management VID Pass-Through.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-55
VLAN Membership tab of SM
The Configuration > VLAN > VLAN Membership tab is explained in Table 116.
Table 116 SM VLAN Membership attributes
Attribute
Meaning
VLAN Membership
Table Configuration
For each VLAN in which you want the AP to be a member, enter the
VLAN ID and then click the
Add Member
button. Similarly, for any VLAN
in which you want the AP to no longer be a member, enter the VLAN ID
and then click the
Remove Member
button.
VLAN configuration for PTP
Applicable products
PTP:
BHM BMS
VLAN page of BHM
The VLAN tab of BHS is explained in Table 117.
Table 117 BHM VLAN page attributs
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-56
Attribute
Meaning
VLAN Specify whether VLAN functionality for the BHM and all linked BHS must
be (
Enabled
) or may not (
Disabled
) be allowed. The default value is
Disabled
.
VLAN Port Type By default this is Q, indicating that it is to operate in the existing manner.
The other option is Q-in-Q, which indicates that it must be adding and
removing the S-Tag, and adding a C-Tag if necessary for untagged
packets. The VLAN Port type corresponds to the Ethernet port of the
BHS. Currently, the internal management interfaces will always operate
as Q ports.
Accept QinQ Frames This option is valid for the Q-in-Q port so that the user may force
blocking of existing 802.1ad Q-in-Q frames. This way, only untagged or
single tagged packets will come in and out of the Ethernet interface. If a
Q-in-Q frame is about ingress or egress the Ethernet interface and this is
disabled, it is dropped and a filter entry will show up on the VLAN
Statistics page as DVLAN Egress or DVLAN Ingress.
Management VID
(Range 1-4094)
Enter the VID that the BHS must share with the BHM. The range of
values is 1 to 4095. The default value is
1
.
Default Port VID
(Range 1-4094)
This is the VID that is used for untagged frames and corresponds to the
Q-Tag for 802.1Q frames (if VLAN Port Type is Q), or the C-Tag for
802.1ad frames (if the VLAN Port Type is Q-in- Q).
QinQ Ether Type Modules can be configured with 802.1ad Q-in-Q DVLAN (Double-VLAN)
tagging which is a way for an operator to put an 802.1Q VLAN inside of
an 802.1ad VLAN. A nested VLAN, which is the original 802.1Q tag and a
new second 802.1ad tag, allows for bridging of VLAN traffic across a
network and segregates the broadcast domains of 802.1Q VLANs. Q-in-Q
can be used with PPPoE and/or NAT.
The 802.1ad standard defines the S-VLAN as the Service Provider VLAN
and the C-VLAN as the customer VLAN. The radio software does 2 layer
Q-in-Q whereby the C-VLAN is the 802.1Q tag and the S-VLAN is the
second layer Q tag as shown below:
Ethernet
Header
S-VLAN EthType
0x88a8
C-VLAN
EthType 0x8100
IP Data EthType
0x0800
The 802.1ad S-VLAN is the outer VLAN that is configurable on the
Configuration > VLAN
web page of the BHM. The Q-in-Q EtherType
parameter is configured with a default EtherType of 0x88a8 in addition
to four alternate EtherTypes that can be configured to aid in
interoperability with existing networks that use a different EtherType
than the default.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-57
The C-VLAN is the inner VLAN tag, which is the same as 802.1Q. As a top
level concept, this operates on the outermost tag at any given time,
either “pushing” a tag on or “popping” a tag off. This means packets
will at most transition from an 802.1Q frame to an 801.ad frame (with a
tag “pushed” on) or an untagged 802.1 frame (with the tag “popped”
off. Similarly, for an 802.1ad frame, this can only transition from an
802.1ad frame to an 802.1Q frame (with the tag “popped” off) since the
radio software only supports 2 levels of tags.
VLAN Not Active When VLAN is enabled in the BHM, the Active Configuration block
provides the following details as read-only information in this tab. In the
Cambium fixed wireless broadband IP network, each device of any type
is automatically a permanent member of VID 1. This facilitates
deployment of devices that have VLAN enabled with those that do not.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-58

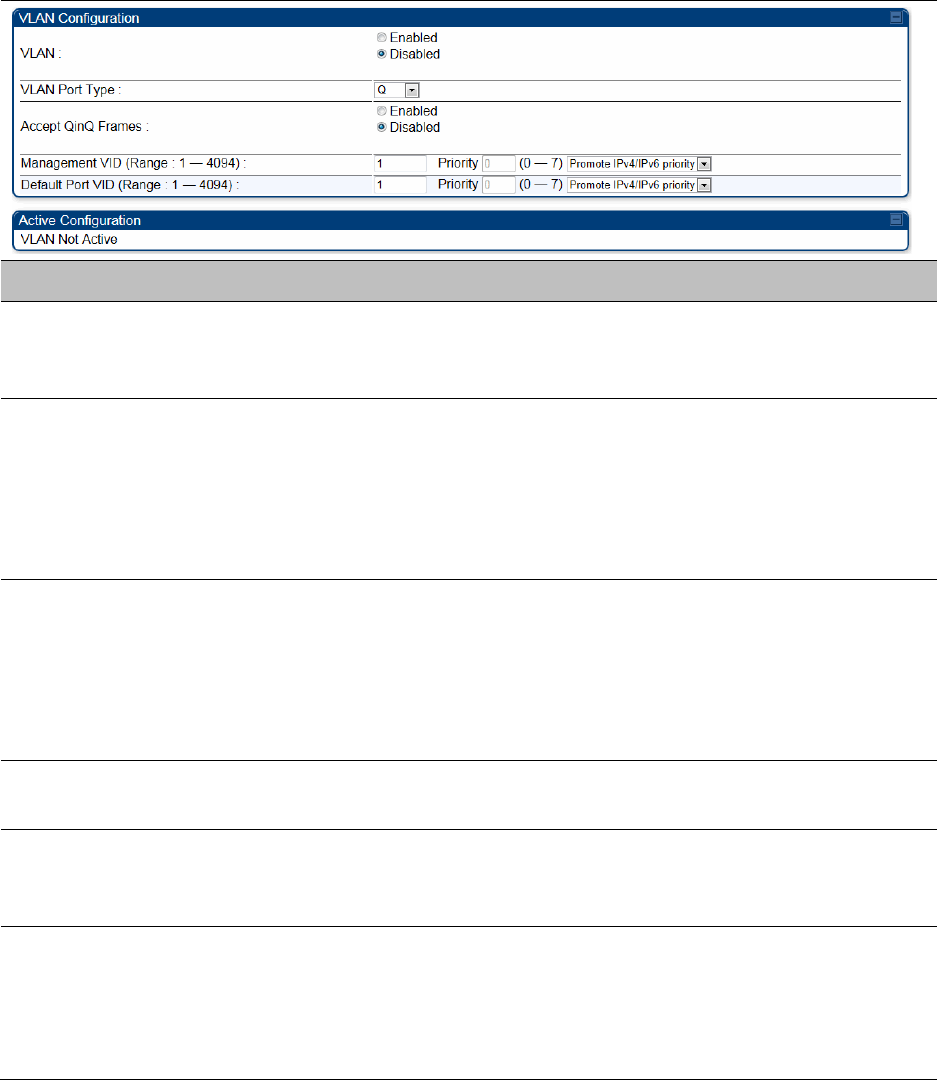

VLAN page of BHS
The VLAN tab of BHS is explained in Table 118.
Table 118 BHS VLAN page attributes
Attribute
Meaning
VLAN Specify whether VLAN functionality for the BHM and all linked BHS must
be (Enabled) or may not (Disabled) be allowed. The default value is
Disabled.
VLAN Port Type By default this is Q, indicating that it is to operate in the existing manner.
The other option is Q-in-Q, which indicates that it must be adding and
removing the S-Tag, and adding a C-Tag if necessary for untagged
packets. The VLAN Port type corresponds to the Ethernet port of the
BHS. Currently, the internal management interfaces will always operate
as Q ports.
Accept QinQ Frames This option is valid for the Q-in-Q port so that the user may force
blocking of existing 802.1ad Q-in-Q frames. This way, only untagged or
single tagged packets will come in and out of the Ethernet interface. If a
Q-in-Q frame is about ingress or egress the Ethernet interface and this is
disabled, it is dropped and a filter entry will show up on the VLAN
Statistics page as DVLAN Egress or DVLAN Ingress.
Management VID
(Range 1-4094)
Enter the VID that the BHS must share with the BHM. The range of
values is 1 to 4095. The default value is 1.
Default Port VID
(Range 1-4094)
This is the VID that is used for untagged frames and corresponds to the
Q-Tag for 802.1Q frames (if VLAN Port Type is Q), or the C-Tag for
802.1ad frames (if the VLAN Port Type is Q-in- Q).
VLAN Not Active When VLAN is enabled in the BHM, the Active Configuration block
provides the following details as read-only information in this tab. In the
Cambium fixed wireless broadband IP network, each device of any type
is automatically a permanent member of VID 1. This facilitates
deployment of devices that have VLAN enabled with those that do not.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-59
PPPoE page of SM
Applicable products
PMP :
SM
Point-to-Point Protocol over Ethernet (PPPoE) is a protocol that encapsulates PPP frames inside
Ethernet frames (at Ethernet speeds). Benefits to the network operator may include
• Access control
• Service monitoring
• Generation of statistics about activities of the customer
• Re-use of infrastructure and operational practices by operators who already use PPP for other
networks
PPPoE options are configurable for the SM only, and the AP indicates whether or not PPPoE is
enabled for a specific subscriber.
When PPPoE is enabled, once the RF session comes up between the SM and the AP, the SM will
immediately attempt to connect to the PPPoE Server. You can monitor the status of this by viewing
the PPPoE Session Log in the Logs section (Administrator only). Every time the RF session comes
up, the SM will check the status of the link and if it is down, the SM will attempt to redial the link if
necessary depending on the Timer Type. Also, on the Configuration page, the user may ‘Connect’
or ‘Disconnect’ the session manually. This can be used to override the session to force a manual
disconnect and/or reconnect if there is a problem with the session.
In order to enable PPPoE, NAT MUST be enabled on the SM and Translation Bridging MUST be
disabled on the AP. These items is strictly enforced for you when you are trying to enable PPPoE.
A message will indicate any prerequisites not being met. Also, the NAT Public IP DHCP client
cannot be enabled, because the NAT Public IP is received through the IPCP process of the PPPoE
discovery stages.
The pre-requisites are:
• NAT MUST be enabled on the SM
o NAT DHCP Client is disabled automatically. The NAT public IP is received from the PPPoE
Server.
o NAT Public Network Interface Configuration will not be used and must be left to defaults.
Also NAT Public IP DHCP is disabled if it is enabled.
• Translation Bridging MUST be DISABLED on the AP
o This will only be determined if the SM is in session since the SM won’t know the AP
configuration otherwise. If the SM is not in session, PPPoE can be enabled but if the SM
goes into session to a Translation Bridge-enabled AP, then PPPoE will not be enabled.
The PPPoE configuration parameters are explained in Table 119.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-60
Table 119 SM PPPoE attributes
Attribute
Meaning
Access Concentrator An optional entry to set a specific access concentrator to connect to for
the PPPoE session. If this is blank, the SM will accept the first access
concentrator which matches the service name (if specified). This is
limited to 32 characters.
Service Name An optional entry to set a specific service name to connect to for the
PPPoE session. If this is left blank the SM will accept the first service
option that comes back from the access concentrator specified above, if
any. This is limited to 32 characters.
Authentication Type
None
means that no PPPoE authentication is implemented
CHAP/PAP
means that CHAP authentication is attempted first, then PAP
authentication. The same password is used for both types.
User Name This is the CHAP/PAP user name that is used if CHAP/PAP authentication
is selected. If
None
is selected for authentication then this field is
unused. This is limited to 32 characters.
Password This is the CHAP/PAP password that is used if PAP authentication is
selected. If
None
is selected for authentication then this field is unused.
This is limited to 32 characters.
MTU
Use MTU Received from PPPoE Server
causes the SM to use the MRU of
the PPPoE server received in LCP as the MTU for the PPPoE link.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-61
Use User Defined MTU
allows the operator to specify an MTU value to
use to override any MTU that may be determined in the LCP phase of
PPPoE session setup. If this is selected, the user is able to enter an MTU
value up to 1492. However, if the MTU determined in LCP negotiations is
less than this user-specified value, the SM will use the smaller value as
its MTU for the PPPoE link.
Timer Type
Keep Alive
is the default timer type. This timer will enable a keepalive
that will check the status of the link periodically. The user can set a
keepalive period. If no data is seen from the PPPoE server for that
period, the link is taken down and a reconnection attempt is started. For
marginal links, the keep alive timer can be useful so that the session will
stay alive over periodic dropouts. The keepalive timer must be set such
that the session can outlast any session drop. Some PPPoE servers will
have a session check timer of their own so that the timeouts of the
server and the SM are in sync, to ensure one side does not drop the
session prematurely.
Idle Timeout
enables an idle timer that checks the usage of the link from
the customer side. If there is no data seen from the customer for the idle
timeout period, the PPPoE session is dropped. Once data starts flowing
from the customer again, the session is started up again. This timer is
useful for users who may not be using the connection frequently. If the
session is idle for long periods of time, this timer will allow the
resources used by the session to be returned to the server. Once the
connection is used again by the customer, the link is reestablished
automatically.
Timer Period The length in seconds of the PPPoE keepalive timer.
TCP MSS Clamping
If this is enabled, then the SM will alter TCP SYN and SYN-ACK packets
by changing the Maximum Segment Size to be compatible with the
current MTU of the PPPoE link. This way, the user does not have to
worry about MTU on the client side for TCP packets. The MSS is set to
the current MTU – 40 (20 bytes for IP headers and 20 bytes for TCP
headers). This will cause the application on the client side to not send
any TCP packets larger than the MTU. If the network is exhibiting large
packet loss, try enabling this option. This may not be an option on the
PPPoE server itself. The SM will NOT reassemble IP fragments, so if the
MTUs are incorrect on the end stations, then MSS clamping will solve
the problem for TCP connections.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-62
IP4 and IPv6
Applicable products
PMP :
AP SM
PTP:
BHM BMS
IPv4 and IPv6 Prioritization
450 Platform Family provides operators the ability to prioritize IPv6 traffic in addition to IPv4
traffic. IPv6/IPv4 prioritization can be configured by selecting a CodePoint and the
corresponding priority from the GUI of the AP/BHM and the IPv6/IPv4 packet is set up
accordingly. There is no GUI option for selecting IPv6 or IPv4 priority. Once the priority is set, it
is set for IPv4 and IPv6 packets.
Configuring IPv4 and IPv6 Priority
IPv4 and IPv6 prioritization is set using the DiffServ tab on the AP/BHM and SM/BHS (located at
Configuration > DiffServ). A priority set to a specific CodePoint will apply to both IPv4 and IPv6
traffic.

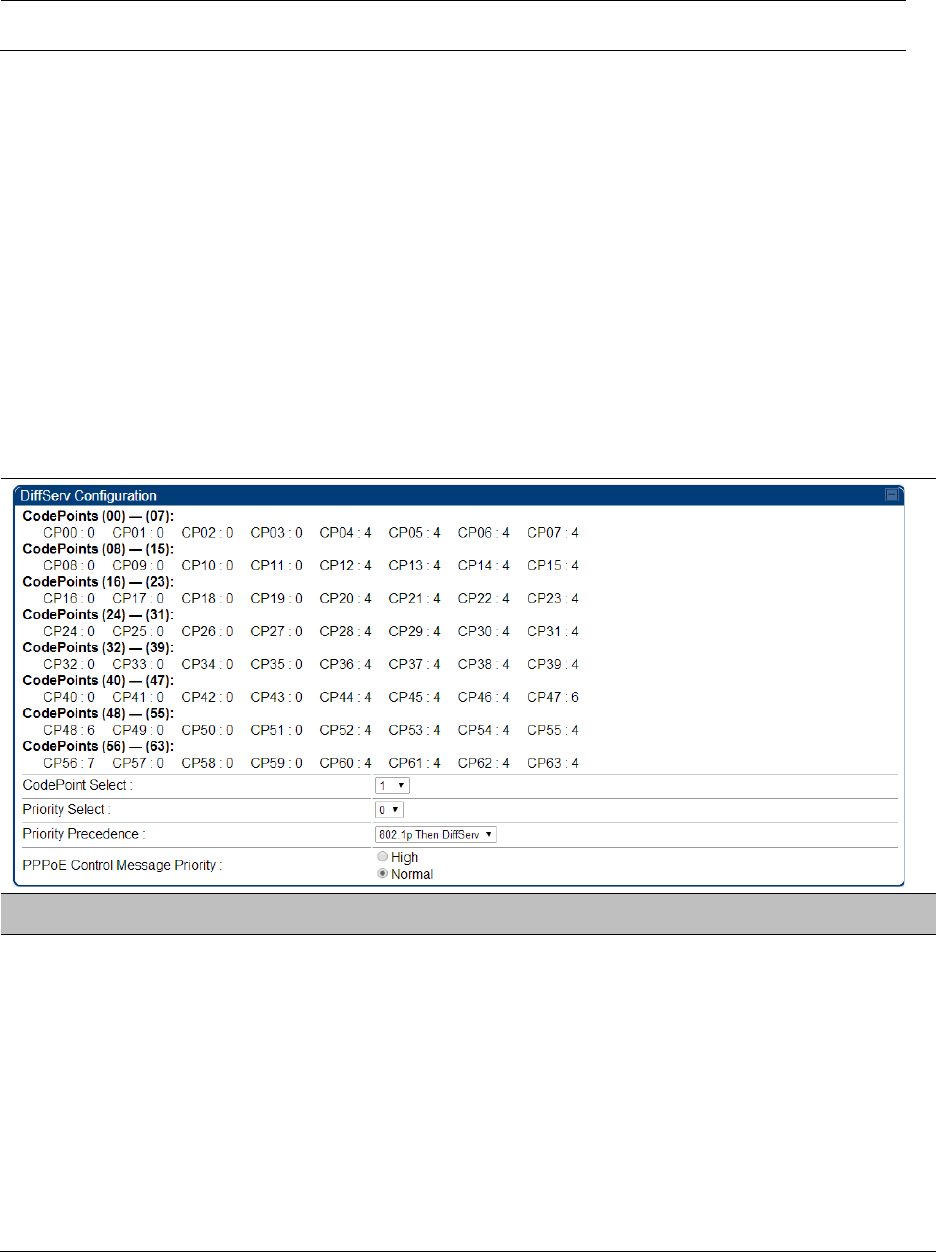

Table 120 DiffServ attributes – AP/BHM
Attribute
Meaning
CodePoint 1 through
CodePoint 47
CodePoint 49
through CodePoint
55
CodePoint 57
through CodePoint
63
Priorities of 0 through 3 map to the low-priority channel; 4 through 7 to
the high- priority channel. The mappings are the same as 802.1p VLAN
priorities.
Consistent with RFC 2474
CodePoint 0 is predefined to a fixed priority value of 0 (low-priority
channel).
CodePoint 48 is predefined to a fixed priority value of 6 (high-priority
channel). CodePoint 56 is predefined to a fixed priority value of 7 (high-
priority channel).
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-63
Operator cannot change any of these three fixed priority values. Among
the settable parameters, the priority values (and therefore the handling
of packets in the high or low priority channel) are set in the AP/BHM for
all downlinks within the sector and in the SM/BHS for each uplink.
CodePoint Select This represents the CodePoint Selection to be modified via Priority
Select
Priority Select The priority setting input for the CodePoint selected in CodePoint Select
Priority Precedence Allows operator to decide if 802.1p or DiffServ priority bits must be used
first when making priority decisions.
PPPoE Control
Message Priority
Operators may configure the AP/BHM to utilize the high priority channel
for PPPoE control messages. Configuring the AP/BHM in this fashion can
benefit the continuity of PPPoE connections when there are issues with
PPPoE sessions being dropped in the network. This prioritization may be
configured in the DiffServ tab in the Configuration menu of the AP/BHM.
IPv4 and IPv6 Filtering
The operator can filter (block) specified IPv6 protocols including IPv4 and ports from leaving the
AP/BHM and SM/BHS and entering the network. This protects the network from both intended and
inadvertent packet loading or probing by network users. By keeping the specified protocols or
ports off the network, this feature also provides a level of protection to users from each other.
Configuring IPv4 and IPv6 Filtering
IPv6 filters are set using the Protocol Filtering tab on the AP/BHM and SM/BHS (at Configuration >
Protocol Filtering). Once a filter is set for a packet type, those packets will not be sent over the RF
interface depending on “Filter Direction” setting.
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-64

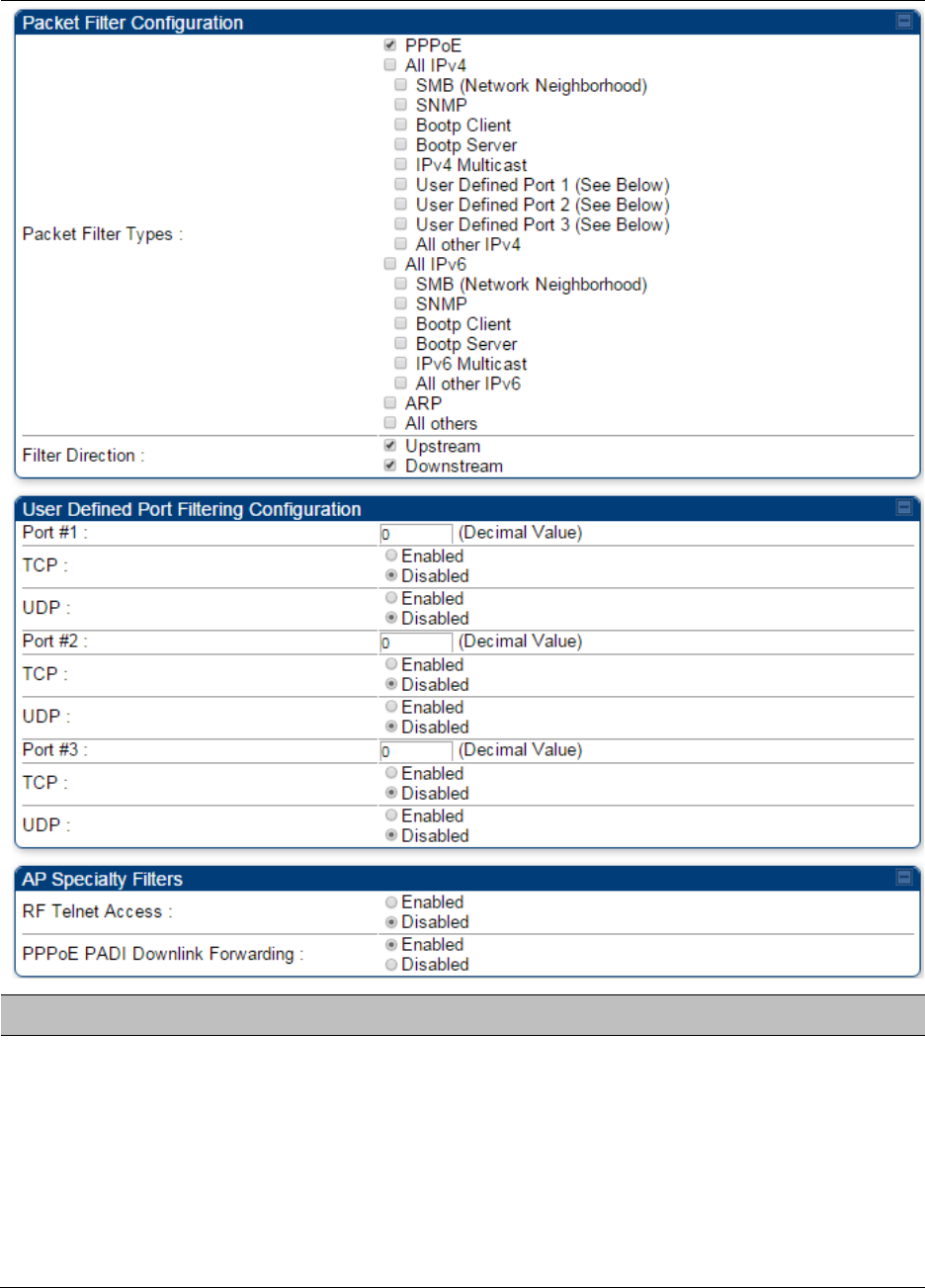

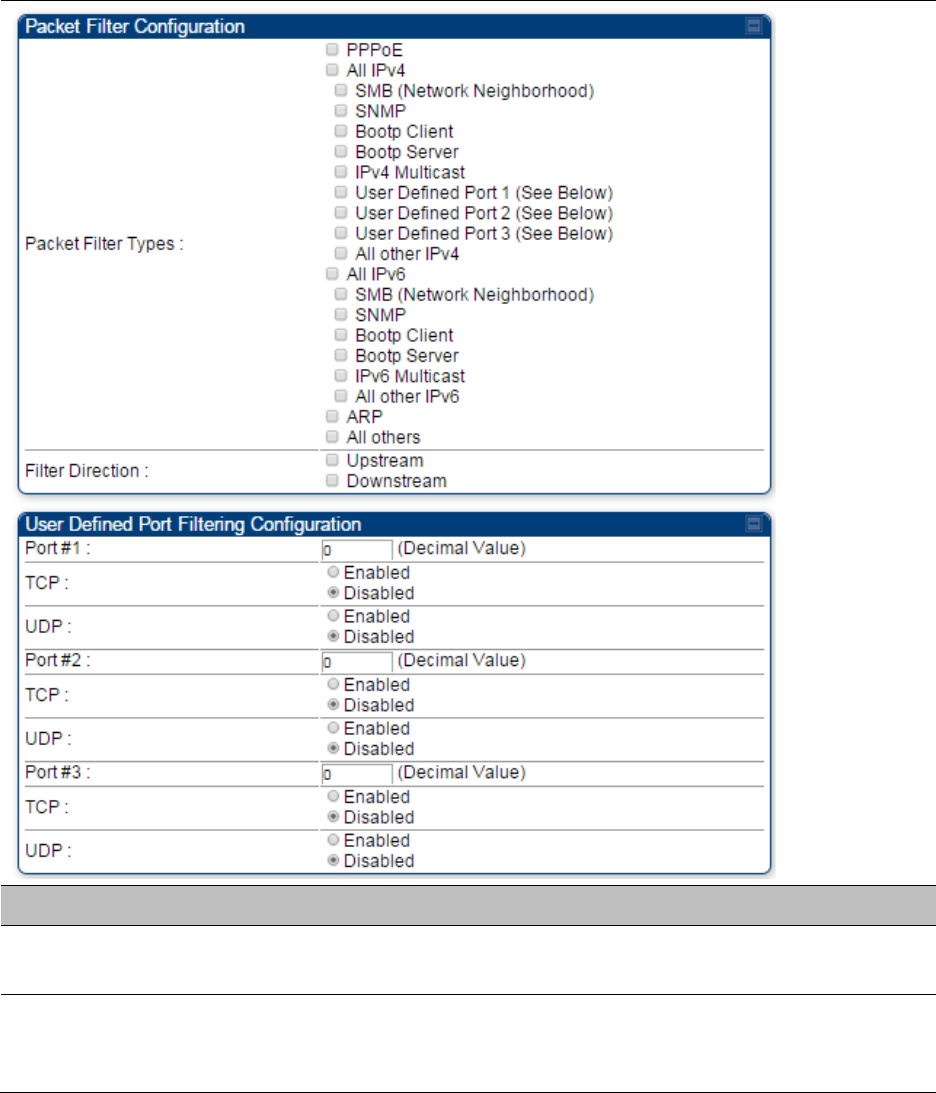

Table 121 Packet Filter Configuration attributes
Attribute
Meaning
Packet Filter Types
For any box selected, the Protocol and Port Filtering feature blocks the
associated protocol type.
To filter packets in any of the user-defined ports, you must do all of the
following:
• Check the box for
User Defined Port
n
(See Below)
in the
Packet
Filter Types
section of this tab.
• Provide a port number at
Port #
n
. in the
User Defined Port Filtering
Configuration section of this tab
Chapter 7: Configuration Configuring IP and Ethernet interfaces
Page 7-65
• Enable
TCP
and/or
UDP
by clicking the associated radio button
Filter Direction Operators may choose to filter upstream (uplink) RF packets or
downstream (downlink) RF packets.
User Defined Port
Filtering
Configuration
You can specify ports for which to block subscriber access, regardless of
whether NAT is enabled.
Chapter 7: Configuration Upgrading the software version and using CNUT
Page 7-66
Upgrading the software version and using CNUT
This section consists of the following procedures:
• Checking the installed software version on page 7-66
• Upgrading to a new software version on page 7-66
Caution
If the link is operational, ensure that the remote end of the link is upgraded first using
the wireless connection, and then the local end can be upgraded. Otherwise, the
remote end may not be accessible.
Use CNUT 4.11.2 or later version and always refer to the software release notes before
upgrading system software. The release notes are available at:
https://support.cambiumnetworks.com/files/pmp450
https://support.cambiumnetworks.com/files/ptp450
Checking the installed software version
To check the installed software version, follow these instructions:
Procedure 18 Checking the installed software version
1 Click on
General
tab under
Home
menu.

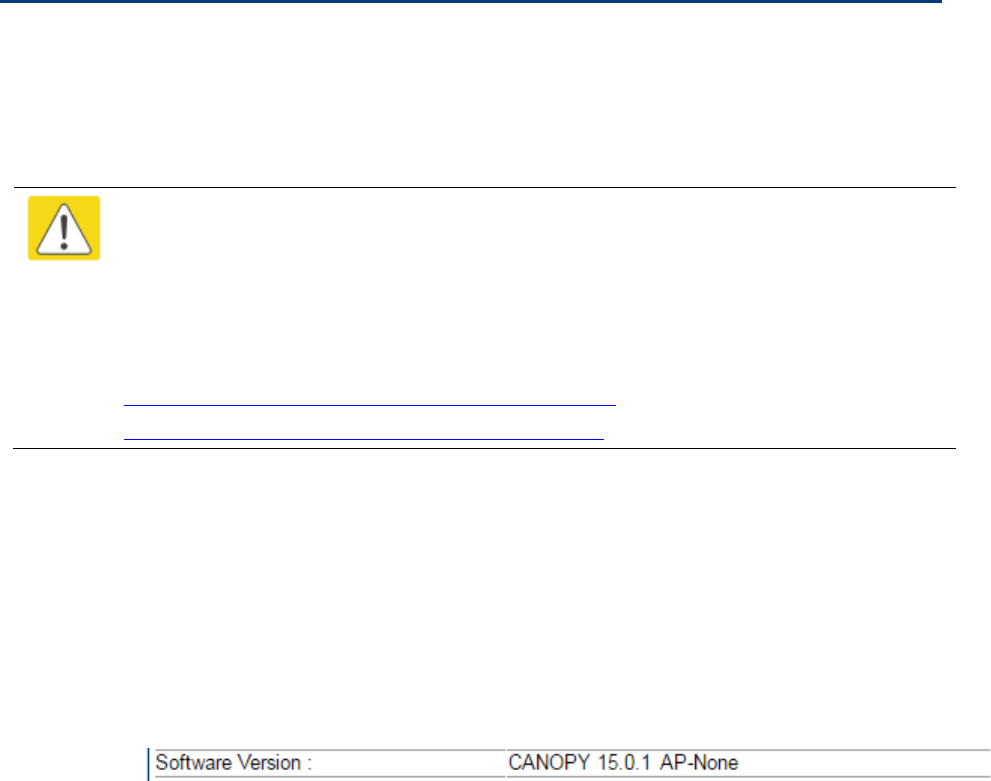

2 Note the installed Software Version (under Device Information):
PMP/PTP 450/450i/450m
3 Go to the support website (see Contacting Cambium Networks on page 1) and find Point-
to-Multipoint software updates. Check that the latest 450 Platform Family software
version is the same as the installed Software Version.
4 To upgrade software to the latest version, see Upgrading to a new software version on
page 7-66.
Upgrading to a new software version
All 450 platform modules are upgraded using the Canopy Network Updater Tool. The Canopy
Network Updater Tool (CNUT) manages and automates the software upgrade process for a
Canopy radio, or CMM4 (but not its 14-port switch) across the network. This eliminates the need
for an administrator to visit each radio in the network (or each AP/BHM while using the
Autoupdate feature) to upgrade the modules.
Chapter 7: Configuration Upgrading the software version and using CNUT
Page 7-67
Note
Please ensure that you have the most up-to-date version of CNUT by browsing to the
Customer Support Web Page located:
http://www.cambiumnetworks.com/support/management-tools/cnut
This section includes an example of updating a single unit before deployment. System-wide
upgrading procedures may be found in the CNUT Online Help manual, which can be found on the
Cambium support website (see Contacting Cambium Networks on page 1).
CNUT functions
The Canopy Network Updater tool has the following functions:
• Automatically discovers all network elements
• Executes a UDP command that initiates and terminates the Auto-update mode within
APs/BHMs. This command is both secure and convenient:
o For security, the AP/BHM accepts this command from only the IP address that you specify
in the Configuration page of the AP/BHM.
o For convenience, Network Updater automatically sets this Configuration parameter in the
APs/BHMs to the IP address of the Network Updater server when the server performs any
of the update commands.
• CNUT supports HTTP and HTTPS
• Allows you to choose the following among updating:
o Your entire network.
o Only elements that you select.
o Only network branches that you select.
• Provides a Script Engine that you can use with any script that:
o You define.
o Cambium supplies.
• Configurability of any of the following to be the file server for image files:
o The AP/BHM, for traditional file serving via UDP commands and monitoring via UDP
messaging
o CNUT HTTP/HTTPS Server, for upgrading via SNMP commands and monitoring via SNMP
messaging. This also supports an option to either set the image order specifically for this
file server or to allow the AP to determine the order.
o Local TFTP Server, for traditional file serving via UDP commands and monitoring via UDP
messaging. This supports setting the number of simultaneous image transfers per AP/BHM
• The capability to launch a test of connectivity and operational status of the local HTTP, HTTPS
and TFTP file servers
• An interface that supports efficient specification of the proper IP address for the local file
server(s) where Network Updater resides on a multi-homed computer
• An md5 checksum calculator utility for identifying corruption of downloaded image files before
Network Updater is set to apply them.
Chapter 7: Configuration Upgrading the software version and using CNUT
Page 7-68
Network element groups
With the Canopy Network Updater Tool, you can identify element groups composed of network
elements that you select. Identifying these element groups does the following:
• Organizes the display of elements (for example, by region or by AP/BHM cluster).
• Allows to:
o Perform an operation on all elements in the group simultaneously.
o Set group-level defaults for ftp password access and SNMP Community String (defaults
that can be overridden in an individual element when necessary).
Network layers
A typical network contains multiple layers of elements, with each layer farther from the Point of
Presence. For example, SMs (or BHS) are behind an AP/BHM and thus, in this context, at a lower
layer than the AP/BHM. Correctly portraying these layers in Network Updater is essential so that
Network Updater can perform radio and AP/BHM cluster upgrades in an appropriate order.
Script engine
Script Engine is the capability in Network Updater that executes any user-defined script against
any network element or element group. This capability is useful for network management,
especially for scripts that you repetitively execute across your network.
The Autodiscovery capability in Network Updater finds all of your network elements.
This comprehensive discovery:
• Ensures that, when you intend to execute a script against all elements, the script is indeed
executed against all elements.
• Maintains master lists of elements (element groups) against which you selectively execute
scripts.
The following scripts are included with CNUT:
• Gather Customer Support Information
• Set Access Point Authentication Mode
• Set Autoupdate Address on APs/BHMs
• Set SNMP Accessibility
• Reset Unit
Chapter 7: Configuration Upgrading the software version and using CNUT
Page 7-69
Software dependencies for CNUT
CNUT functionality requires
• one of the following operating systems
o Windows® 2000
o Windows Server 2003
o Windows 7 and Windows 8
o Windows XP or XP Professional
o Red Hat Enterprise Linux (32-bit) Version 4 or 5
• Java™ Runtime Version 2.0 or later (installed by the CNUT installation tool)
CNUT download
CNUT can be downloaded together with each system release that supports CNUT. Software for
these system releases is available from http://www.cambiumnetworks.com/support/management-
tools/cnut/, as either:
• A .zip file for use without the CNUT application.
• A .pkg file that the CNUT application can open.
Upgrading a module prior to deployment
To upgrade to a new software version, follow this:
Procedure 19 Upgrading a module prior to deployment
1
Go to the support website (see Contacting Cambium Networks on page 1) and find Point-
to-Multipoint software updates. Download and save the required software image.
2
Start CNUT
3
If you don’t start up with a blank new network file in CNUT, then open a new network file
with the
New Network Archive
operation (located at
File >
New Network
).
4
Enter a new network element to the empty network tree5-10 using the
Add Elements to
Network Root
operation (located at
Edit >
Add Elements to Network Root
).
5
In the
Add Elements
dialogue, select a type of
Access Point
or
Subscriber Module
and
enter the IP address of
169.254.1.1
.
6
Make sure that the proper Installation Package is active with the
Package Manager
dialogue (located at
Update > Manage Packages
).
7
To verify connectivity with the radio, perform a
Refresh
,
Discover Entire Network
operation (located at
View >
Refresh/Discover Entire Network
). You must see the details
columns for the new element filled in with ESN and software version information.
8
Initiate the upgrade of the radio using
Update Entire Network Root
operation (located at
Update >
Update Entire Network Root
). When this operation finishes, the radio is done
being upgraded.
Chapter 7: Configuration General configuration
Page 7-70
General configuration
The Configuration > General page of the AP/BMH or BHM/BHS contains many of the configurable
parameters that define how the ratio’s operate in sector or backhaul.
Applicable products
PMP :
AP SM
PTP:
BHM BMS
PMP 450m and PMP/PTP 450i Series
General page - PMP 450i AP
The General page of AP is explained in Table 122.

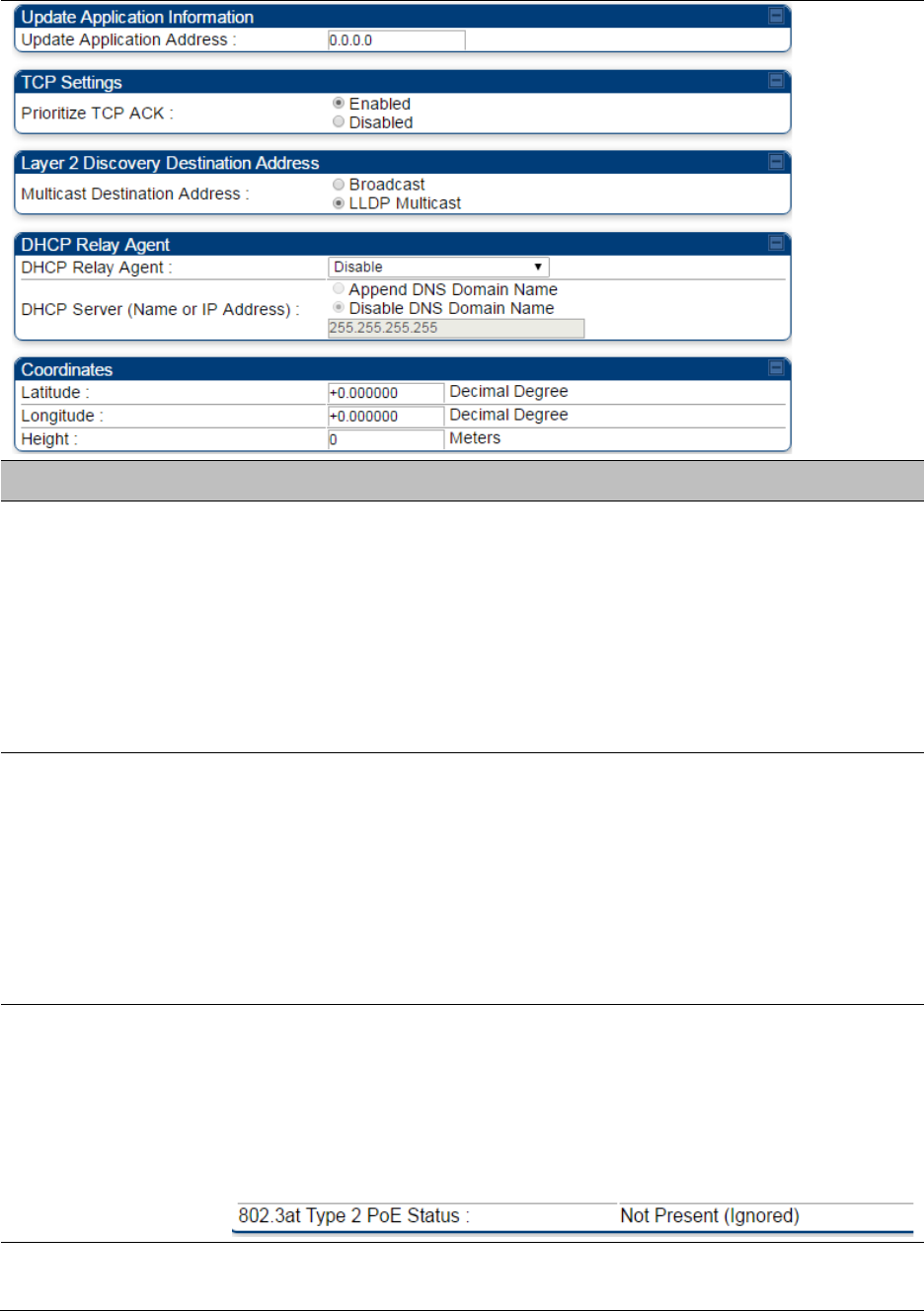

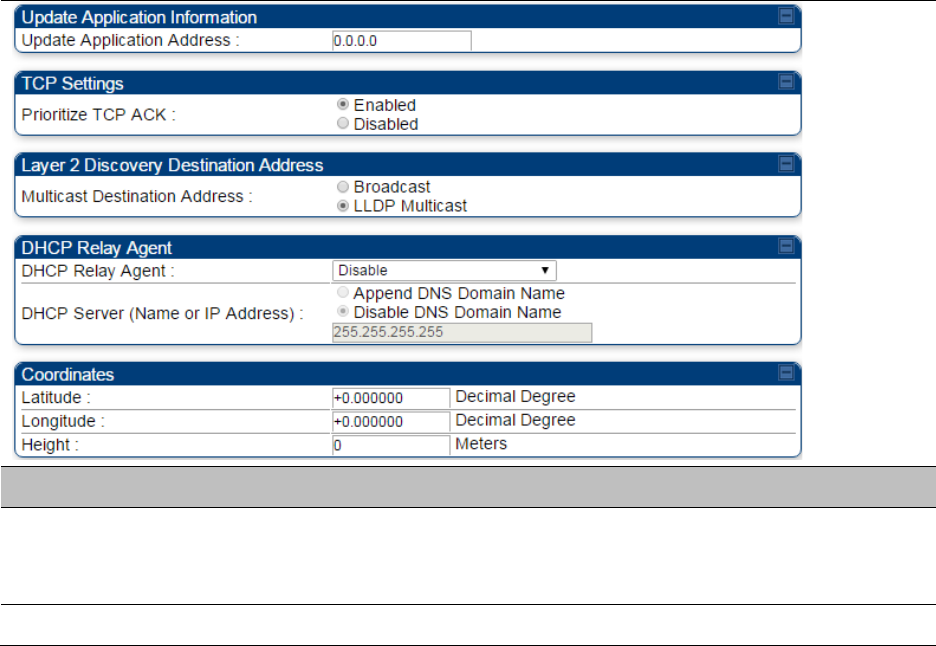

Table 122 General page attributes – PMP 450i AP
Chapter 7: Configuration General configuration
Page 7-71
Attribute
Meaning
Ethernet Port
Selection
Ethernet Port selection is applicable to the 450m platform only with two
choices in the drop-down list:
• Main: A selection of main indicates that link connectivity and power
to the 450m is provided through the RF45 connection on the Main
port of the AP
• SFP: A selection of SFP indicates that link connectivity will be
provided through the SFP port on the 450m
Power continues to be provided via the RJ45 Main port
Link Speeds
From the drop-down list of options, select the type of link speed for the
Ethernet connection. The Auto settings allow the two ends of the link to
automatically negotiate with each other the best possible speed, and
check whether the Ethernet traffic is full duplex or half duplex.
However, some Ethernet links work best when either:
• both ends are set to the same forced selection
• both ends are set to auto-negotiate and both have capability in least
one common speed and traffic type combination.
802.3at Type 2 PoE
Status and
PoE Classification
(PMP 450i Series
only)
When the PoE Classification functionality is enabled and if Type 2 power
is not present, the PAs do not power up and draw too much power.
By default, the PoE Classification feature is disabled and the PAs will
power up regardless of the classification presented by the power source.
This is supported only on 450i series devices.
PoE Classification configuration status also can be check under home >
General > Device Information tab:
Configuration
Source
See Setting the Configuration Source on page 7-206.
Chapter 7: Configuration General configuration
Page 7-72
Sync Input See Configuring synchronization on page 7-99
Device Type
Standard
: The Autosync mechanism will source GPS synchronization
from the AP’s RJ-11 port, the AP’s power port, or from the device on-
board GPS module.
Remote
: The Autosync mechanism will source GPS synchronization
from the AP’s RJ-11 port or from the device on-board GPS module.
Region From the drop-down list, select the region in which the radio is
operating.
Country From the drop-down list, select the country in which the radio is
operating.
Unlike selections in other parameters, your
Country
selection requires a
Save Changes
and a
Reboot
cycle before it will force the context-
sensitive GUI to display related options (for example,
Alternate
Frequency Carrier
1 and 2
in the
Configuration
>
Radio
tab).
PMP 450i Series ODUs shipped to the United States is locked to a Region
Code setting of “United States”. Units shipped to regions other than the
United States must be configured with the corresponding Region Code
to comply with local regulatory requirements.
Country Code settings affect the radios in the following ways:
• Maximum transmit power limiting (based on radio transmitter power
plus configured antenna gain)
• DFS operation is enabled based on the configured region code, if
applicable
For more information on how transmit power limiting and DFS is
implemented for each country, see the PMP 450 Planning Guide.
Webpage Auto
Update
Enter the frequency (in seconds) for the web browser to automatically
refresh the web-based interface. The default setting is 0. The 0 setting
causes the web-based interface to never be automatically refreshed.
Bridge Entry
Timeout
Specify the appropriate bridge timeout for correct network operation
with the existing network infrastructure. The Bridge Entry Timeout must
be a longer period than the ARP (Address Resolution Protocol) cache
timeout of the router that feeds the network.
Caution
An inappropriately low Bridge Entry Timeout setting may
lead to temporary loss of communication with some end
users.
Translation Bridging Optionally, you can configure the AP to change the source MAC address
in every packet it receives from its SMs to the MAC address of the SM
that bridged the packet, before forwarding the packet toward the public
network. If you do, then:
Chapter 7: Configuration General configuration
Page 7-73
Not more than 128 IP devices at any time are valid to send data to the AP
from behind the SM.
SM populates the Translation Table tab of its Statistics web page,
displaying the MAC address and IP address of all the valid connected
devices.
Each entry in the Translation Table is associated with the number of
minutes that have elapsed since the last packet transfer between the
connected device and the SM.
If 128 are connected and another attempts to connect:
If no Translation Table entry is older than 255 minutes, the attempt is
ignored.
If an entry is older than 255 minutes, the oldest entry is removed and the
attempt is successful.
the Send Untranslated ARP parameter in the General tab of the
Configuration page can be:
Disabled, so that the AP overwrites the MAC address in Address
Resolution Protocol (ARP) packets before forwarding them.
Enabled, so that the AP forwards ARP packets regardless of whether it
has overwritten the MAC address.
When this feature is disabled, the setting of the
Send Untranslated ARP
parameter has no effect, because all packets are forwarded untranslated
(with the source MAC address intact).
Send Untranslated
ARP
If the
Translation Bridging
parameter is set to
Enabled
, then the
Send
Untranslated ARP
parameter can be:
Disabled -
so that the AP will overwrite the MAC address in Address
Resolution Protocol (ARP) packets before forwarding them.
Enabled -
so that the AP will forward ARP packets regardless of whether
it has overwritten the MAC address.
If the
Translation Bridging
parameter is set to
Disabled
, then the
Send
Untranslated ARP
parameter has no effect.
SM Isolation
Prevent or allow SM-to-SM communication by selecting from the
following drop-down menu items:
Disable SM Isolation
(the default selection). This allows full
communication between SMs.
Block SM Packets from being forwarded
. This prevents both
multicast/broadcast and unicast SM-to-SM communication.
Block and Forward SM Packets to Backbone
. This not only prevents
multicast/broadcast and unicast SM-to-SM communication but also
sends the packets, which otherwise are handled SM to SM, through the
Ethernet port of the AP.
Chapter 7: Configuration General configuration
Page 7-74
Forward Unknown
Unicast Packets
Enabled
: All unknown Unicast packets (no entry in the AP’s bridge table)
received via the AP’s Ethernet LAN interface are forwarded to registered
SMs. If the target device is situated beneath a particular SM, when the
device responds the SM and AP will learn and add the device to their
bridge tables so that subsequent packets to that device is bridged to the
proper SM.
Disabled
: All unknown Unicast packets (no entry in the AP’s bridge table)
received via the AP’s Ethernet LAN interface are discarded at the AP.
Update Application
Address
Enter the address of the server to access for software updates on this AP
and registered SMs.
Prioritize TCP ACK To reduce the likelihood of TCP acknowledgement packets being
dropped, set this parameter to
Enabled
. This can improve throughput
that the end user perceives during transient periods of congestion on the
link that is carrying acknowledgements. This parameter, when enabled,
can be particularly useful when running bi-direction FTP sessions over
the link. If a link is primarily used for video surveillance, it is
recommended to set this parameter to
Disable
.
Multicast Destination
Address
Using Link Layer Discovery Protocol (LLDP), a module exchanges
multicast addresses with the device to which it is wired on the Ethernet
interface. Although some switches (CMM4, for example) do not pass
LLDP addresses upward in the network, a radio can pass it as the value
of the
Multicast Destination Address
parameter value in the connected
device that has it populated.
DHCP Relay Agent The AP may act as a DHCP relay for SMs and CPEs underneath it. The AP
will make use of the DHCP Option 82 (DHCP Relay Agent Information)
from RFC 3046 when performing relay functions. The AP offers two
types of DHCP relay functionality:
Full Relay Information
. Configuring the DHCP Full Relay Operation will
take broadcast DHCP packets and send them to a Unicast server in
unicast mode. This way the DHCP requests and replies can be routed like
any other UDP packet.
Only Insert Option 82
. This option leaves the DHCP request on its
broadcast domain as opposed to DHCP Full Relay Operation which will
turn it into a unicast packet.
In order to accommodate setting up pools or classes for different VLANs,
the Option 82 field will include information to tell the server what VLAN
the client is on.
DHCP Server (Name
or IP Address)
The DHCP relay server may be either a DNS name or a static IP address
in dotted decimal notation. Additionally the management DNS domain
name may be toggled such that the name of the DHCP relay server only
needs to be specified and the DNS domain name is automatically
appended to that name. The default DHCP relay server addresses is
255.255.255.255 with the appending of the DNS domain name disabled.
Chapter 7: Configuration General configuration
Page 7-75
Latitude
Longitude
Height
Physical radio location data may be configured via the
Latitude
,
Longitude
and
Height
fields.
Latitude and Longitude is measured in Decimal Degree while the Height
is calculated in Meters.
General page - PMP 450m AP
The General page of AP is explained in Table 123.

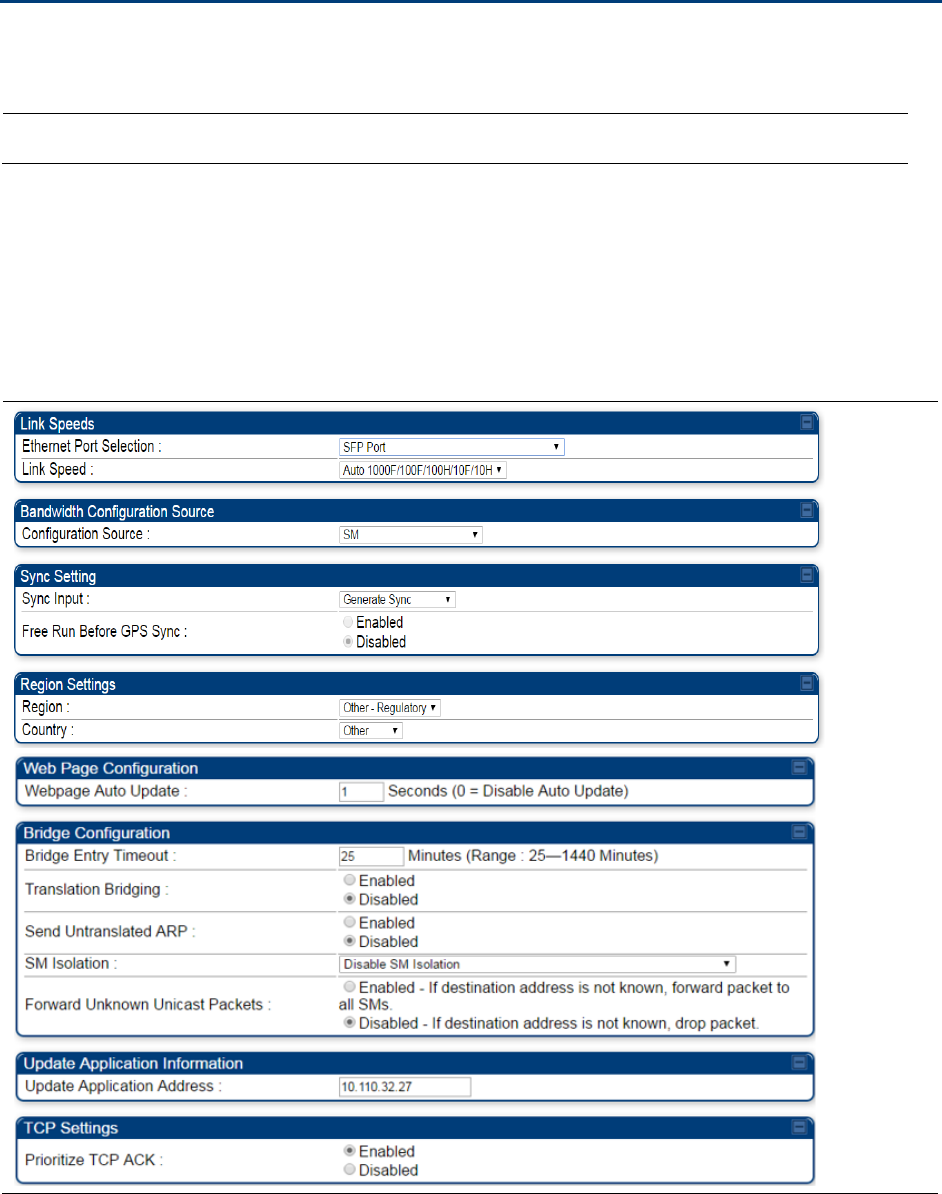

Table 123 General page attributes –PMP 450m AP
Chapter 7: Configuration General configuration
Page 7-76
Attribute
Meaning
Trial Mode This parameters allows to enable or disable Trial mode for radios with a
Limited key. Once the trial key is applied, the 30-day trial can be enabled
or disabled at any time.
For information about remaining attributes, refer Table 122.
Chapter 7: Configuration General configuration
Page 7-77
General page - PMP 450i SM
The General page of PMP 450i SM is explained in Table 124. The General page of PMP 450 SM
looks the same as PMP 450i SM.

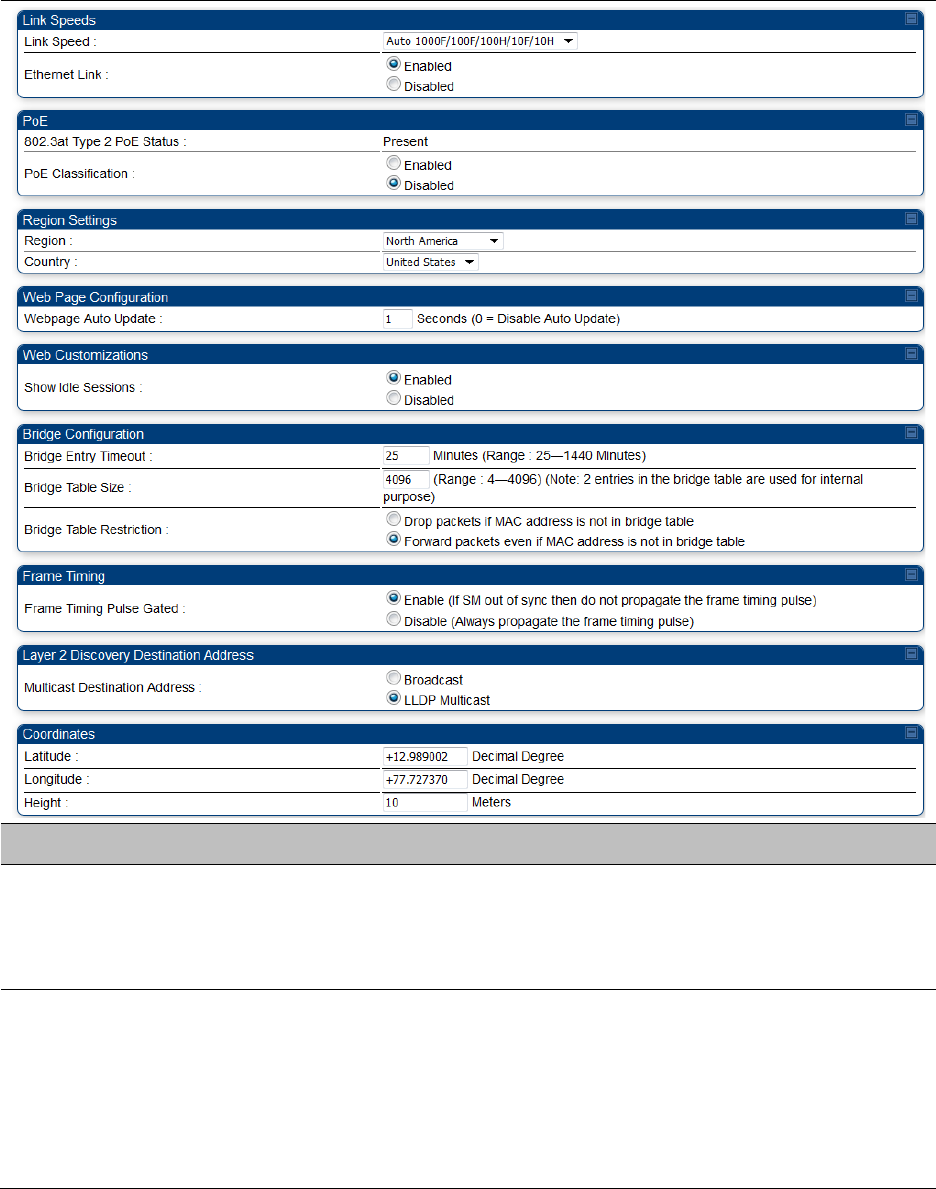

Table 124 General page attributes – PMP 450i SM
Attribute
Meaning
Link Speeds From the drop-down list of options, select the type of link speed for the
Ethernet connection. The default for this parameter is that all speeds are
selected. The recommended setting is a single speed selection for all
APs and SMs in the operator network.
802.3at Type 2 PoE
Status and
PoE Classification
When the PoE Classification functionality is enabled and if Type 2 power
is not present, the Pas do not power up and draw too much power.
By default, the PoE Classification feature is disabled and the Pas will
power up regardless of the classification presented by the power source.
This is supported only on 450i series ODUs.
PoE Classification configuration status also can be check under home >
General > Device Information tab:
Chapter 7: Configuration General configuration
Page 7-78
Ethernet Link
Enable/Disable
Specify whether to enable or disable Ethernet/802.3 connectivity on the
wired port of the SM. This parameter has no effect on the wireless link.
When you select
Enable
, this feature allows traffic on the Ethernet/802.3
port. This is the factory default state of the port. When you select
Disable
, this feature prevents traffic on the port. Typical cases of when
you may want to select
Disable
include:
The subscriber is delinquent with payment(s).
You suspect that the subscriber is sending or flooding undesired
broadcast packets into the network, such as when
• a virus is present in the subscriber’s computing device.
• the subscriber’s home router is improperly configured.
Region This parameter allows you to set the region in which the radio will
operate.
The SM radio automatically inherits the Region type of the master. This
behavior ignores the value of the
Region
parameter in the SM, even
when the value is
None
. Nevertheless, since future system software
releases may read the value in order to configure some other region-
sensitive feature(s), this parameter must be always set to the value that
corresponds to the local region.
Country
This parameter allows you to set the country in which the radio will
operate.
The SM radio automatically inherits the Country Code type of the
master. This behavior ignores the value of the
Country
parameter in the
SM, even when the value is
None
. Nevertheless, since future system
software releases may read the value in order to configure some other
region-sensitive feature(s), this parameter must be always set to the
value that corresponds to the local region.
PMP/PTP 450i Series ODU shipped to the United States is locked to a
Region Code setting of “United States”. Units shipped to regions other
than the United States must be configured with the corresponding
Region Code to comply with local regulatory requirements.
Webpage Auto
Update
See Table 122 General page attributes – PMP 450i AP on page 7-70
Show Idle Sessions This parameter allows to enable or disable displaying idle sessions.
Bridge Entry
Timeout
Specify the appropriate bridge timeout for correct network operation
with the existing network infrastructure. Timeout occurs when the AP
encounters no activity with the SM (whose MAC address is the bridge
entry) within the interval that this parameter specifies. The Bridge Entry
Timeout must be a longer period than the ARP (Address Resolution
Protocol) cache timeout of the router that feeds the network.
Chapter 7: Configuration General configuration
Page 7-79
Caution
This parameter governs the timeout interval, even if a
router in the system has a longer timeout interval. The
default value of this field is 25 (minutes).
An inappropriately low Bridge Entry Timeout setting may
lead to temporary loss of communication with some end
users.
Bridge Table Size This parameter allows to restrict devices to connect to the SM. It is
configurable from 4 to 4096.
Note
Configure
Bridge Table Restriction parameter
to
Drop packets
if MAC address is not in bridge table
option to restrict the
number of devices configured from connecting to SM.
Bridge Table
Restriction
This parameter allows to either allow or restrict devices to connect to
SM using the following options:
• Drop packets if MAC address is not in bridge table: Select this option
to restrict communication from devices not listed in bridge table.
• Forward packets even if MAC address is not in bridge table: Select
this option to allow communication from any device.
Frame Timing Pulse
Gated
If this SM extends the sync pulse to a BH master or an AP, select either
Enable
—If this SM loses sync from the AP, then do not propagate a sync
pulse to the BH timing master or other AP. This setting prevents
interference in the event that the SM loses sync.
Disable
—If this SM loses sync from the AP, then propagate the sync
pulse to the BH timing master or other AP.
Multicast Destination
Address
Using Link Layer Discovery Protocol (LLDP), a module exchanges
multicast addresses with the device to which it is wired on the Ethernet
interface. Although some switches (CMM4, for example) do not pass
LLDP addresses upward in the network, a radio can pass it as the value
of the
Multicast Destination Address
parameter value in the connected
device that has it populated.
Coordinates Physical radio location data may be configured via the
Latitude
,
Longitude
and
Height
fields.
Chapter 7: Configuration General configuration
Page 7-80
General page - PTP 450i BHM
The General page of BHM is explained in Table 125. The General page of PTP 450 BHM looks the
same as PTP 450i BHM.

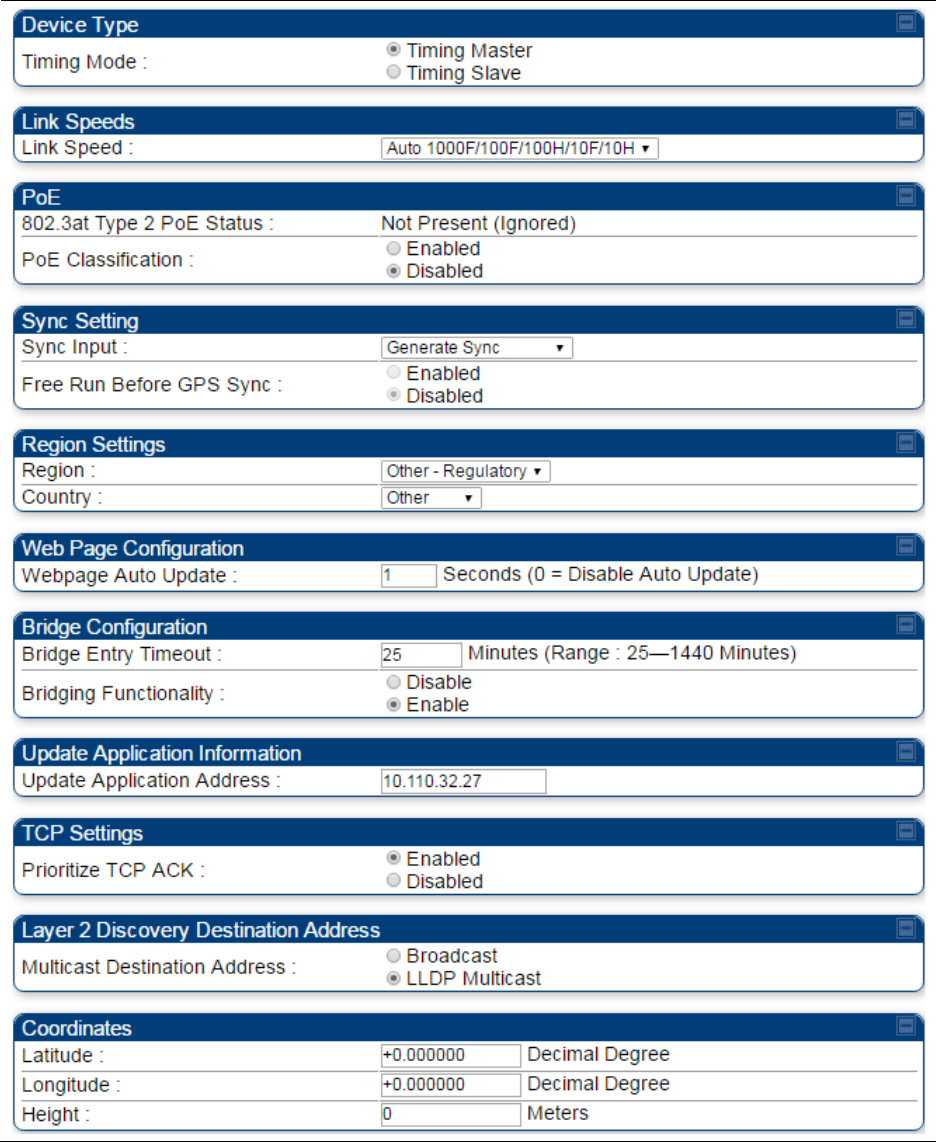

Table 125 General page attributes – PTP 450i BHM
Chapter 7: Configuration General configuration
Page 7-81
Attribute
Meaning
Timing Mode Allows the user to choose the mode between Timing Master and
Timing Slave.
Link Speed See Table 122 General page attributes – PMP 450i AP on page 7-70
802.3at Type 2 PoE
Status and
PoE Classification
When the PoE Classification functionality is enabled and if Type 2
power is not present, the PAs do not power up and draw too much
power.
By default, the PoE Classification feature is disabled and the PAs will
power up regardless of the classification presented by the power
source.
This is supported only on 450i Series ODUs.
PoE Classification configuration status also can be check under home
> General > Device Information tab:
Sync Input See Configuring synchronization
on page 7-99
Region
See Table 122 General page attributes – PMP 450i AP on page 7-70
Country
Webpage Auto Update
Bridge Entry Timeout
Bridging Functionality Select whether you want bridge table filtering active (
Enable
) or not
(
Disable
) on this BH.
Disable:
allows user to use redundant BHs without causing network
addressing problems. Through a spanning tree protocol, this reduces
the convergence time from 25 minutes to few seconds. However, you
must disable bridge table filtering as only a deliberate part of your
overall network design since disabling it allows unwanted traffic
across the wireless interface.
Enable
: Allows user to enable bridge functionality.
Note
Specify the appropriate bridge timeout for correct
network operation with the existing network
infrastructure. The Bridge Entry Timeout must be a
longer period than the ARP (Address Resolution
Protocol) cache timeout of the router that feeds the
network.
Prioritize TCP ACK
See Table 122 General page attributes – PMP 450i AP on page 7-70
Multicast Destination
Address
Chapter 7: Configuration General configuration
Page 7-82
Latitude
Longitude
Height
General page - PTP 450i BHS
The General page of PTP 450i BHS is explained in Table 126. The General page of PTP 450 BHS
looks the same as PTP 450i BHS.

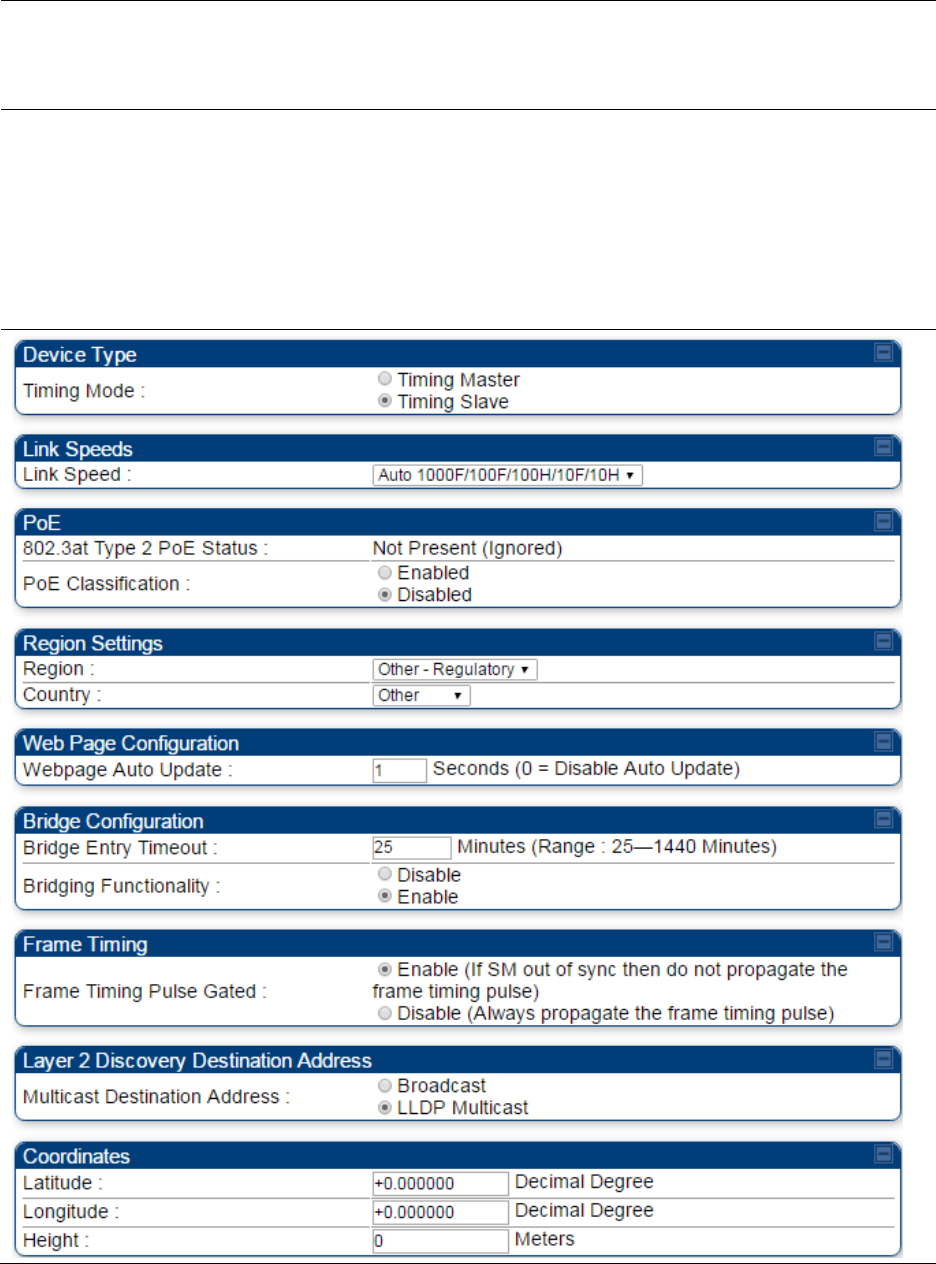

Table 126 General page attributes – PTP 450i BHS
Chapter 7: Configuration General configuration
Page 7-83
Attribute
Meaning
Timing Mode Allows the user to choose the mode between Timing Master and Timing
Slave.
Link Speed From the drop-down list of options, select the type of link speed for the
Ethernet connection. The default for this parameter is that all speeds are
selected. The recommended setting is a single speed selection for all
BHMs and BHSs in the operator network.
802.3at Type 2 PoE
Status and
PoE Classification
When the PoE Classification functionality is enabled and if Type 2 power
is not present, the PAs do not power up and draw too much power.
By default, the PoE Classification feature is disabled and the PAs will
power up regardless of the classification presented by the power source.
This is supported only on 450i Series ODUs.
PoE Classification configuration status also can be check under home >
General > Device Information tab:
Region This parameter allows you to set the region in which the radio will
operate.
The BHS radio automatically inherits the Region type of the master. This
behavior ignores the value of the
Region
parameter in the BHS, even
when the value is
None
. Nevertheless, since future system software
releases may read the value in order to configure some other region-
sensitive feature(s), this parameter must be always set to the value that
corresponds to the local region.
Country
This parameter allows you to set the country in which the radio will
operate.
The BHS radio automatically inherits the Country Code type of the
master. This behavior ignores the value of the
Country
parameter in the
BHS, even when the value is
None
. Nevertheless, since future system
software releases may read the value in order to configure some other
region-sensitive feature(s), this parameter must be always set to the
value that corresponds to the local region.
PMP/PTP 450i Series ODU shipped to the United States is locked to a
Region Code setting of “United States”. Units shipped to regions other
than the United States must be configured with the corresponding
Region Code to comply with local regulatory requirements.
Webpage Auto
Update
See Table 122 General page attributes – PMP 450i AP on page 7-70
Bridge Entry
Timeout
Specify the appropriate bridge timeout for correct network operation
with the existing network infrastructure. Timeout occurs when the BHM
encounters no activity with the BHS (whose MAC address is the bridge
entry) within the interval that this parameter specifies. The Bridge Entry
Timeout must be a longer period than the ARP (Address Resolution
Protocol) cache timeout of the router that feeds the network.
Chapter 7: Configuration General configuration
Page 7-84
Caution
This parameter governs the timeout interval, even if a
router in the system has a longer timeout interval. The
default value of this field is 25 (minutes).
An inappropriately low Bridge Entry Timeout setting may
lead to temporary loss of communication with some end
users.
Bridging
Functionality
See Table 122 General page attributes – PMP 450i AP on page 7-70
Frame Timing Pulse
Gated
If this BHS extends the sync pulse to a BH master or an BHM, select
either
Enable
—If this BHS loses sync from the BHM, then do not propagate a
sync pulse to the BH timing master or other BHM. This setting prevents
interference in the event that the BHS loses sync.
Disable
—If this BHS loses sync from the BHM, then propagate the sync
pulse to the BH timing master or other BHM.
Multicast Destination
Address
See Table 122 General page attributes – PMP 450i AP on page 7-70
Latitude
Longitude
Height
See Table 122 General page attributes – PMP 450i AP on page 7-70
Chapter 7: Configuration General configuration
Page 7-85
General page - PMP 450b SM
The General page of PMP 450b SM is explained in Table 127. The General page of PMP 450b SM
looks the same as PMP 450i SM.

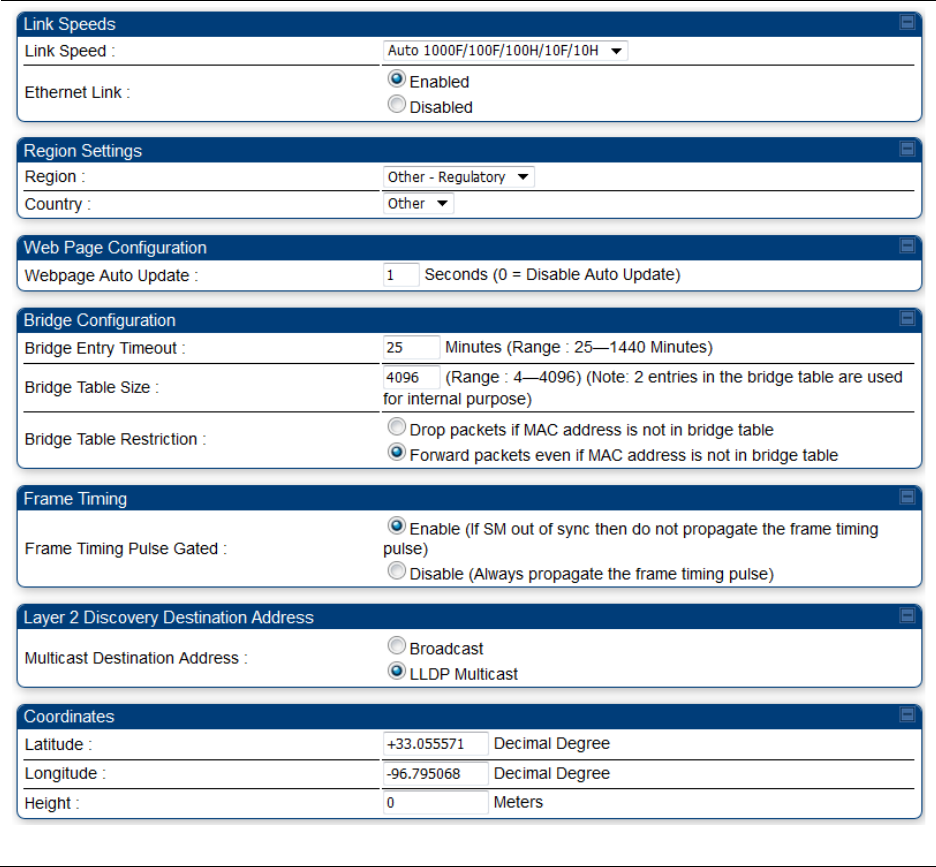

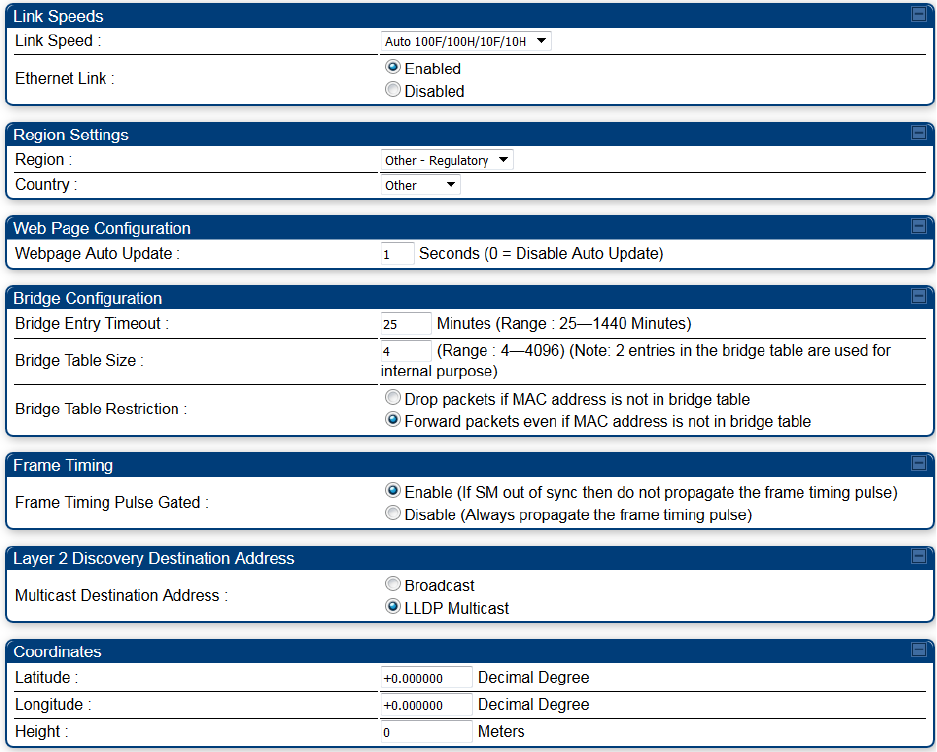

Table 127 General page attributes – PMP 450b SM
Chapter 7: Configuration General configuration
Page 7-86
Attribute
Meaning
Link Speed From the drop-down list of options, select the type of link speed for the
Ethernet connection. The default for this parameter is that all speeds are
selected. The recommended setting is a single speed selection for all
APs and SMs in the operator network.
Ethernet Link
Enabled/Disbaled
Specify whether to enable or disable Ethernet/802.3 connectivity on the
wired port of the SM. This parameter has no effect on the wireless link.
When you select
Enable
, this feature allows traffic on the Ethernet/802.3
port. This is the factory default state of the port. When you select
Disable
, this feature prevents traffic on the port. Typical cases of when
you may want to select
Disable
include:
The subscriber is delinquent with payment(s).
You suspect that the subscriber is sending or flooding undesired
broadcast packets into the network, such as when
• a virus is present in the subscriber’s computing device.
the subscriber’s home router is improperly configured.
Region This parameter allows you to set the region in which the radio will
operate.
The SM radio automatically inherits the Region type of the master. This
behavior ignores the value of the
Region
parameter in the SM, even
when the value is
None
. Nevertheless, since future system software
releases may read the value in order to configure some other region-
sensitive feature(s), this parameter must be always set to the value that
corresponds to the local region.
Country This parameter allows you to set the country in which the radio will
operate.
The SM radio automatically inherits the Country Code type of the
master. This behavior ignores the value of the
Country
parameter in the
SM, even when the value is
None
. Nevertheless, since future system
software releases may read the value in order to configure some other
region-sensitive feature(s), this parameter must be always set to the
value that corresponds to the local region.
PMP/PTP 450i Series ODU shipped to the United States is locked to a
Region Code setting of “United States”. Units shipped to regions other
than the United States must be configured with the corresponding
Region Code to comply with local regulatory requirements.
Webpage Auto
Update
Enter the frequency (in seconds) for the web browser to automatically
refresh the web-based interface. The default setting is 0. The 0 setting
causes the web-based interface to never be automatically refreshed.
Chapter 7: Configuration General configuration
Page 7-87
Bridge Entry
Timeout
Specify the appropriate bridge timeout for correct network operation
with the existing network infrastructure. Timeout occurs when the AP
encounters no activity with the SM (whose MAC address is the bridge
entry) within the interval that this parameter specifies. The Bridge Entry
Timeout must be a longer period than the ARP (Address Resolution
Protocol) cache timeout of the router that feeds the network.
Caution
This parameter governs the timeout interval, even if a
router in the system has a longer timeout interval. The
default value of this field is 25 (minutes).
An inappropriately low Bridge Entry Timeout setting may
lead to temporary loss of communication with some end
users.
Bridge Table Size This parameter allows to restrict devices to connect to the SM. It is
configurable from 4 to 4096.
Note
Configure
Bridge Table Restriction parameter
to
Drop packets
if MAC address is not in bridge table
option to restrict the
number of devices configured from connecting to SM.
Bridge Table
Restriction
This parameter allows to either allow or restrict devices to connect to
SM using the following options:
• Drop packets if MAC address is not in bridge table: Select this option
to restrict communication from devices not listed in bridge table.
Forward packets even if MAC address is not in bridge table: Select this
option to allow communication from any device.
Frame Timing Pulse
Gated
If this SM extends the sync pulse to a BH master or an AP, select either
Enable
—If this SM loses sync from the AP, then do not propagate a sync
pulse to the BH timing master or other AP. This setting prevents
interference in the event that the SM loses sync.
Disable
—If this SM loses sync from the AP, then propagate the sync
pulse to the BH timing master or other AP.
Multicast Destination
Address
Using Link Layer Discovery Protocol (LLDP), a module exchanges
multicast addresses with the device to which it is wired on the Ethernet
interface. Although some switches (CMM4, for example) do not pass
LLDP addresses upward in the network, a radio can pass it as the value
of the
Multicast Destination Address
parameter value in the connected
device that has it populated.
Chapter 7: Configuration General configuration
Page 7-88
Latitude
Longitude
Height
Physical radio location data may be configured via the
Latitude
,
Longitude
and
Height
fields.
Latitude and Longitude is measured in Decimal Degree while the Height
is calculated in Meters.
PMP/PTP 450 Series
Note
Refer Table 122 and Table 124 for PMP 450 AP/SM General page parameters details.
Chapter 7: Configuration General configuration
Page 7-89
General page - PMP 450 AP

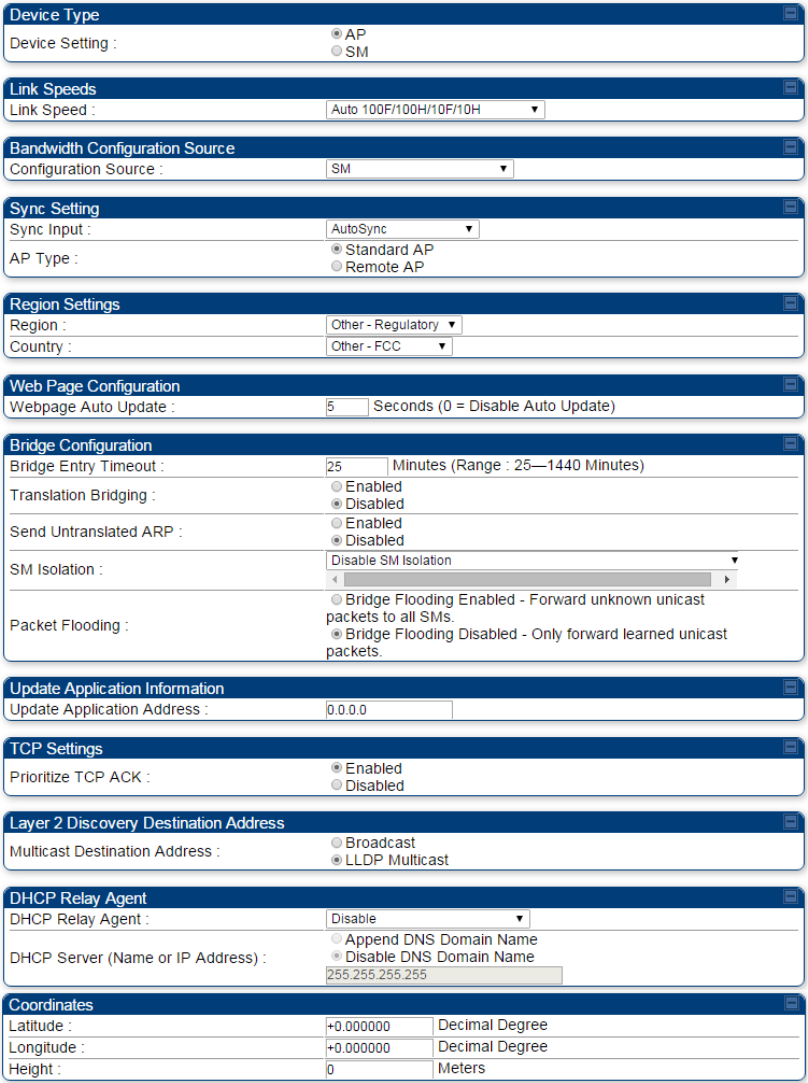

Figure 136 General page attributes - PMP 450 AP
Chapter 7: Configuration General configuration
Page 7-90
General page - PMP 450 SM
Figure 137 General page attributes - PMP 450 SM
Chapter 7: Configuration General configuration
Page 7-91
General page – PTP 450 BHM

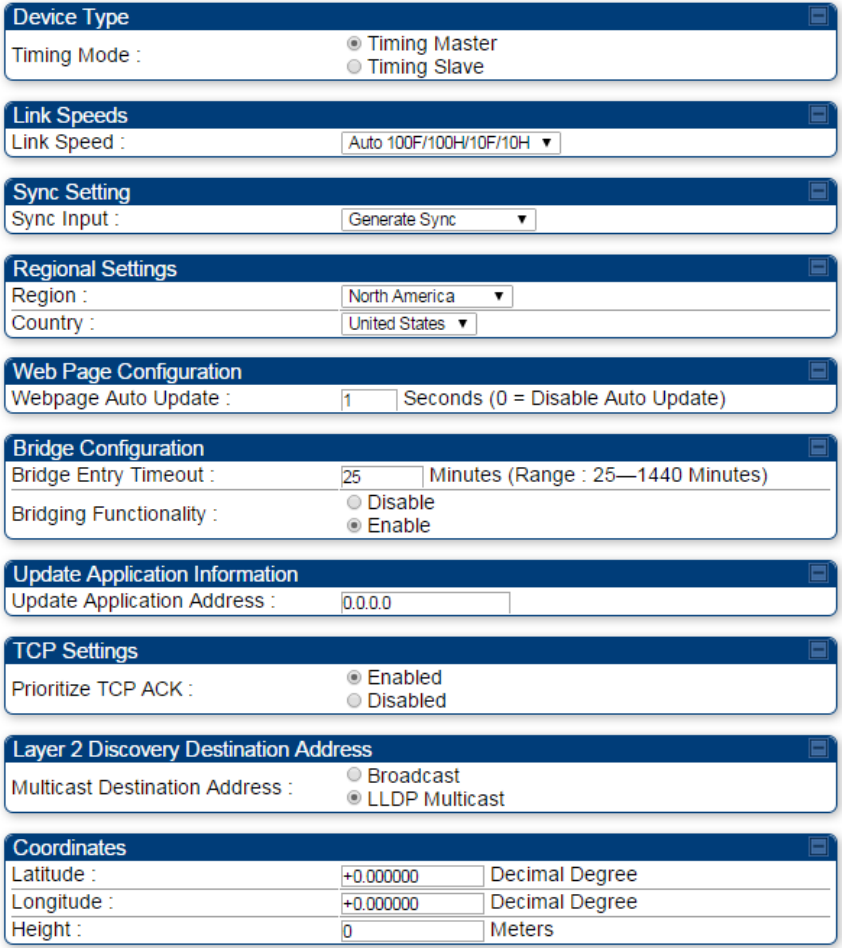

Figure 138 General page attributes - PTP 450 BHM
Chapter 7: Configuration General configuration
Page 7-92
General page – PTP 450 BHS

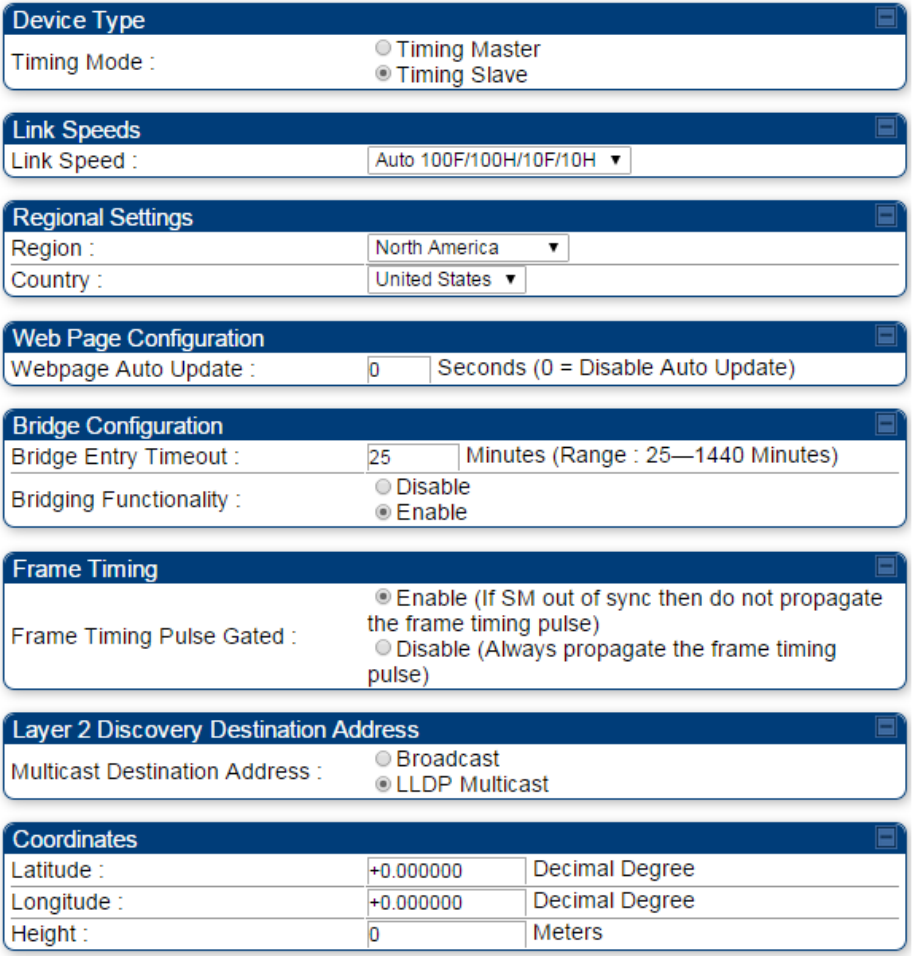

Figure 139 General page attributes - PTP 450 BHS
Chapter 7: Configuration Configuring Unit Settings page
Page 7-93
Configuring Unit Settings page
Applicable products
PMP :
AP SM
PTP:
BHM BMS
The Unit Settings page of the 450 Platform Family contains following options:
• Unit-Wide Changes
• Download Configuration File
• Upload and Apply Configuration File (for AP and BHM)
• LED Panel Settings (for SM and BHS)
Note
LED Panel setting is applicable for SM and BHS only.
Upload and Apply Configuration File attributes are not supported for SM and BHS.
The 450 Platform Family also supports import and export of configuration from the
AP/BHM/SM/BHS as a text file. The configuration file is in JSON format. The logged in user must
be an ADMINISTRATOR in order to export or import the configuration file.
The exported configuration file contains the complete configuration including all the default
values. To keep a backup of the current configuration, the file can be saved as-is and imported
later.
The configuration file supports encrypted password. The exported configuration file will contain
encrypted password. The import of configuration can have either encrypted or plain text password
in Configuration fie. A new tab Encrypt the Password is added under Encrypted Password tab to
generate encrypted password for a given password.
The Import and Export procedure of configuration file is described in Import and Export of config
file on page 7-221.
LED Panel Mode has options select Revised mode and Legacy mode. The Legacy mode configures
the radio to operate with standard LED behavior.
Chapter 7: Configuration Configuring Unit Settings page
Page 7-94
Unit Settings page of 450 Platform Family - AP/BHM
The Unit Setting page of AP/BHM is explained in Table 128.

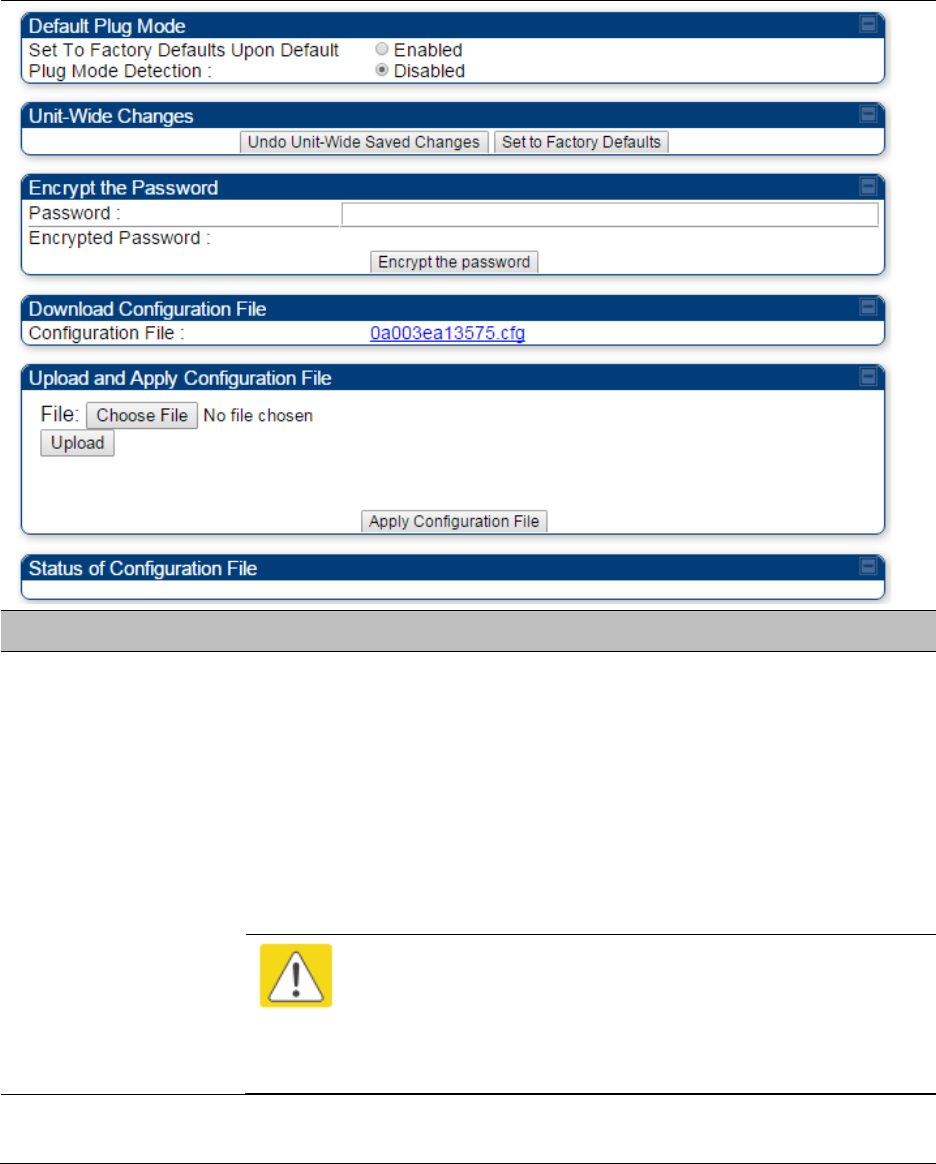

Table 128 Unit Settings attributes – 450 Platform Family AP/BHM
Attribute
Meaning
Set to Factory
Defaults Upon
Default Mode
Detection
If
Enabled
is checked, then the default mode functions is enabled. When
the module is rebooted with Default mode enabled, it can be accessed at
the IP address 169.254.1.1 and no password, and all parameter values
are reset to defaults. A subscriber, technician, or other person who gains
physical access to the module and uses an override cannot see or learn
the settings that were previously configured in it.
If
Disabled
is checked, then the default mode functions is disabled.
See Radio recovery mode on page 1-27
Caution
When
Set to Factory Defaults Upon Default Mode
is set to
Enable
, the radio does not select all of the frequencies for
Radio Frequency Scan Selection List. It needs to be selected
manually.
Undo Unit-Wide
Saved Changes
When you click this button, any changes that you made in any tab but
did not commit by a reboot of the module are undone.
Chapter 7: Configuration Configuring Unit Settings page
Page 7-95
Set to Factory
Defaults
When you click this button, all configurable parameters on all tabs are
reset to the factory settings.
Note
This can be reverted by selecting "Undo Unit-Wide Saved
Changes", before rebooting the radio, though this is not
recommended.
Password This allows to provide encrypted password for a given password. On
click of ‘Encrypt the password’ button, the Encrypted Password field will
display encrypted value of entered plain text password in ‘Password’
field.
Configuration File This allows to download the configuration file of the radio. This
configuration file contains the complete configuration including all the
default values. The configuration file is highlighted as downloadable link
and the naming convention is “<mac address of AP>.cfg”.
Apply Configuration
File
This allows to import and apply configuration to the AP.
Chose File
: Select the file to upload the configuration. The configuration
file is named as “<file name>.cfg”.
Upload
: Import the configuration to the AP.
Apply Configuration File
: Apply the imported configuration file to the AP.
The imported configuration file may either contain a full device
configuration or a partial device configuration. If a partial configuration
file is imported, only the items contained in the file will be updated, the
rest of the device configuration parameters will remain the same.
Operators may also include a special flag in the configure file to instruct
the device to first revert to factory defaults then to apply the imported
configuration.
Status of
Configuration file
This section shows the results of the upload.
Chapter 7: Configuration Configuring Unit Settings page
Page 7-96

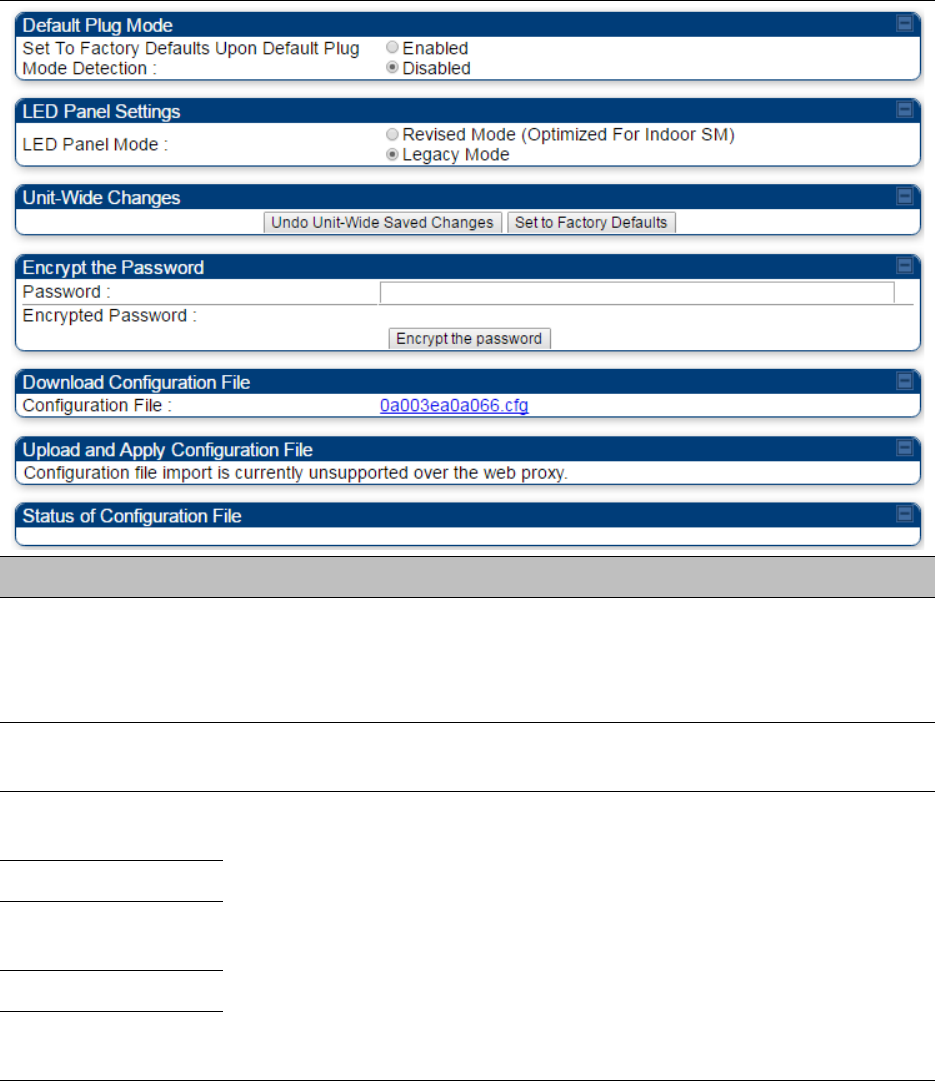

Unit Settings page of PMP/PTP 450i SM/BHS
The Unit Settings page of PMP/PTP 450i SM/BHS is explained in Table 129.
Table 129 SM Unit Settings attributes
Attribute
Meaning
Set to Factory
Defaults Upon
Default Plug
Detection
See Table 128 Unit Settings attributes – 450 Platform Family AP/BHM on
page 7-94
LED Panel Settings Legacy Mode configures the radio to operate with standard LED
behavior.
Undo Unit-Wide
Saved Changes
See Table 128 Unit Settings attributes – 450 Platform Family AP/BHM on
page 7-94
Password
Set to Factory
Defaults
Configuration File
Status of
Configuration file
Chapter 7: Configuration Setting up time and date
Page 7-97
Setting up time and date
Time page of 450 Platform Family - AP/BHM
Applicable products
PMP :
AP
PTP:
BHM
The Time page of 450 Platform Family AP/BHM is explained in Table 130.
Table 130 450 Platform Family - AP/BHM Time attributes
Attribute
Meaning
NTP Server (Name
or IP Address)
The management DNS domain name may be toggled such that the
name of the NTP server only needs to be specified and the DNS domain
name is automatically appended to that name.
NTP Server 1 (Name
or IP Address)
NTP Server 2 (Name
or IP Address)
NTP Server 3 (Name
or IP Address)
To have each log in the AP/BHM correlated to a meaningful time and
date, either a reliable network element must pass time and date to the
AP/BHM or must set the time and date whenever a power cycle of the
AP/BHM has occurred. A network element passes time and date in any of
the following scenarios:
• A connected CMM4 passes time and date (GPS time and date, if
received).
• A connected CMM4 passes the time and date (GPS time and date, if
received), but only if both the CMMr is operating on CMMr Release
2.1 or later release. (These releases include NTP server functionality.)
Chapter 7: Configuration Setting up time and date
Page 7-98
• A separate NTP server (including APs/BHMs receiving NTP data) is
addressable from the AP/BHM.
If the AP/BHM needs to obtain time and date from a CMM4, or a separate
NTP server, enter the IP address or DNS name of the CMM4 or NTP
server on this tab. To force the AP/BHM to obtain time and date before
the first (or next) 15-minute interval query of the NTP server, click
Get
Time via NTP
.
The polling of the NTP servers is done in a sequential fashion, and the
polling status of each server is displayed in the NTP Update Log section
of the Time Configuration page. An entry of 0.0.0.0 in any of the NTP
Server fields indicates an unused server configuration.
NTP Server(s) in Use Lists the IP addresses of servers used for NTP retrieval.
Time Zone The Time Zone option may be used to offset the received NTP time to
match the operator’s local time zone. When set on the AP/BHM, the
offset is set for the entire sector SMs (or BHS) are notified of the current
Time Zone upon initial registration). If a Time Zone change is applied,
the SMs(or BHS) is notified of the change in a best effort fashion,
meaning some SMs//BHSs may not pick up the change until the next re-
registration. Time Zone changes are noted in the Event Log of the
AP/BHM and SM/BHS.
System Time The current time used by the system.
Last NTP Time
Update
The last time that the system time was set via NTP.
Time This field may be used to manually set the system time of the radio.
Date This field may be used to manually set the system date of the radio.
NTP Update Log This field shows NTP clock update log. It includes NTP clock update Date
and Time stamp along with server name.
Chapter 7: Configuration Configuring synchronization
Page 7-99
Configuring synchronization
Applicable products
PMP :
AP
PTP:
BHM
This section describe synchronization options for PMP and PTP configuration.
This Sync Input parameter can be configured under Sync Setting tab of Configure > General page
(see General configuration on page 7-70).
PMP/PTP 450i Series has following synchronization options:
• AutoSync
• AutoSync + Free Run
• Generate Sync
• Free Run Before GPS Sync
Figure 140 Sync Setting configuration
AutoSync
For PTP, the BHM automatically receives sync from one of the following sources:
• GPS Sync over Timing Port (UGPS, co-located AP GPS sync output, or “Remote ” Device feed
from a registered SM’s GPS sync output)
• GPS Sync over Power Port (CMM4)
Upon AP/BM power on, the AP/BHM does not transmit until a valid synchronization pulse is
received from one of the sources above. If there is a loss of GPS synchronization pulse, within two
seconds the AP/BHM automatically attempts to source GPS signaling from another source.
In case of PMP, when there are synchronization sources on both the timing port and the power
port, the power port GPS source is chosen first.
If no valid GPS signal is received, the AP/BHM ceases transmission and SM/BHS registration is lost
until a valid GPS signal is received again on the AP or BHM.
Note
After an AP reboot, the sync acquisition takes a little longer than it had on 450i
(anywhere from 40 seconds to 120 seconds difference).
Chapter 7: Configuration Configuring synchronization
Page 7-100
AutoSync + Free Run
This mode operates similarly to mode “AutoSync”, but if a previously received synchronization
signal is lost and no GPS signaling alternative is achieved, the AP/BHM automatically changes to
synchronization mode “Generate Sync”. While SM registration ins maintained, in this mode there
is no synchronization of APs/BHMs that can “hear” each other; the AP/BHM will only generate a
sync signal for the local AP/BHM and its associated SMs/BHS. Once a valid GPS signal is obtained
again, the AP/BHM automatically switches to receiving synchronization via the GPS source and
SM/BHS registration is maintained.
When the Sync Input field is set to Autosync or Autosync + Free Run, other options become
available to be set e.g. UGPS Power and other fields. This is true on APs and BHMs.
Note
In mode AutoSync + Free Run, if a GPS signal is never achieved initially, the system
will not switch to “Free Run” mode, and SMs/BHS will not register to the AP/BHM. A
valid GPS signal must be present initially for the AP to switch into “Free Run” mode
(and to begin self-generating a synchronization pulse).
Also, When an AP/BHM is operating in “Free Run” mode, over a short time it will no
longer be synchronized with co-located or nearby APs/BHMs (within radio range).
Due to this lack of transmit and receive synchronization across APs/BHMs or across
systems, performance while in “Free Run” mode may be degraded until the
APs/BHMs operating in “Free Run” mode regain a external GPS synchronization
source. Careful attention is required to ensure that all systems are properly receiving
an external GPS synchronization pulse, and please consider “Free Run” mode as an
emergency option.
Generate Sync (factory default)
This option may be used when the AP/BHM is not receiving GPS synchronization pulses from
either a CMM4 or UGPS module, and there are no other APs/BHMs active within the link range.
Using this option will not synchronize transmission of APs/BHMs that can “hear” each other; it will
only generate a sync signal for the local AP/BHM and its associated SMs/BHS.
Note
When an AP/BHM has its "Regional Code" set to "None", The radio will not provide
valid Sync Pulse Information.
There is a RED warning that the radio will not transmit, but the user might expect to
see a valid sync if the radio is connected to a working CMM4 or UGPS.
Chapter 7: Configuration Configuring security
Page 7-101
Configuring security
Perform this task to configure the 450 Platform system in accordance with the network operator’s
security policy. Choose from the following procedures:
• Managing module access by password on page 7-102: to configure the unit access password
and access level
• Isolating from the internet on page 7-105: to ensure that APs are properly secured from
external networks
• Encrypting radio transmissions on page 7-105: to configure the unit to operate with AES or
DES wireless link security
• Requiring SM Authentication on page 7-106: to set up the AP to require SMs to authenticate
via the AP, WM, or RADIUS server
• Filtering protocols and ports on page 7-107: to filter (block) specified protocols and ports from
leaving the system
• Encrypting downlink broadcasts on page 7-110: to encrypt downlink broadcast transmissions
• Isolating SMs on page 7-110: to prevent SMs in the same sector from directly communicating
with each other
• Filtering management through Ethernet on page 7-111: to prevent management access to the
SM via the radio’s Ethernet port
• Allowing management only from specified IP addresses on page 7-111: to only allow radio
management interface access from specified IP addresses
• Restricting radio Telnet access over the RF interface on page 7-111: to restrict Telnet access to
the AP
• Configuring SNMP Access on page 7-114
• Configuring Security on page 7-116
Chapter 7: Configuration Configuring security
Page 7-102
Managing module access by password
Applicable products
PMP :
AP SM
PTP:
BHM BMS
See Managing module access by passwords on page 3-43.
Adding a User for Access to a module
The Account > Add User page allows to create a new user for accessing 450 Platform Family -
AP/SM/BHM/BHS. The Add User page is explained in Table 131.
Table 131 Add User page of account page - AP/ SM/BH
Attribute
Meaning
User Name User Account name.
Level Select appropriate level for new account. It can be INSTALLER,
ADMINISTRATOR or TECHNICIAN. See Managing module access by
passwords on page 3-43.
New Password Assign the password for new user account
Confirm Password This new password must be confirmed in the “
Confirm Password
” field.
User Mode User Mode is used to create an account which are mainly used for
viewing the configurations.
The local and remote Read-Only user account can be created by
“Admin”, “Installer” or “Tech” logins. To create a Read-Only user, the
“read-only” check box needs to be checked.
Note
The Read-Only user cannot perform any service impacting operations like creating
read-only accounts, editing and viewing read-only user accounts, changes in login
page, read-only user login, Telnet access, SNMP, RADIUS and upgrade/downgrade.
Chapter 7: Configuration Configuring security
Page 7-103

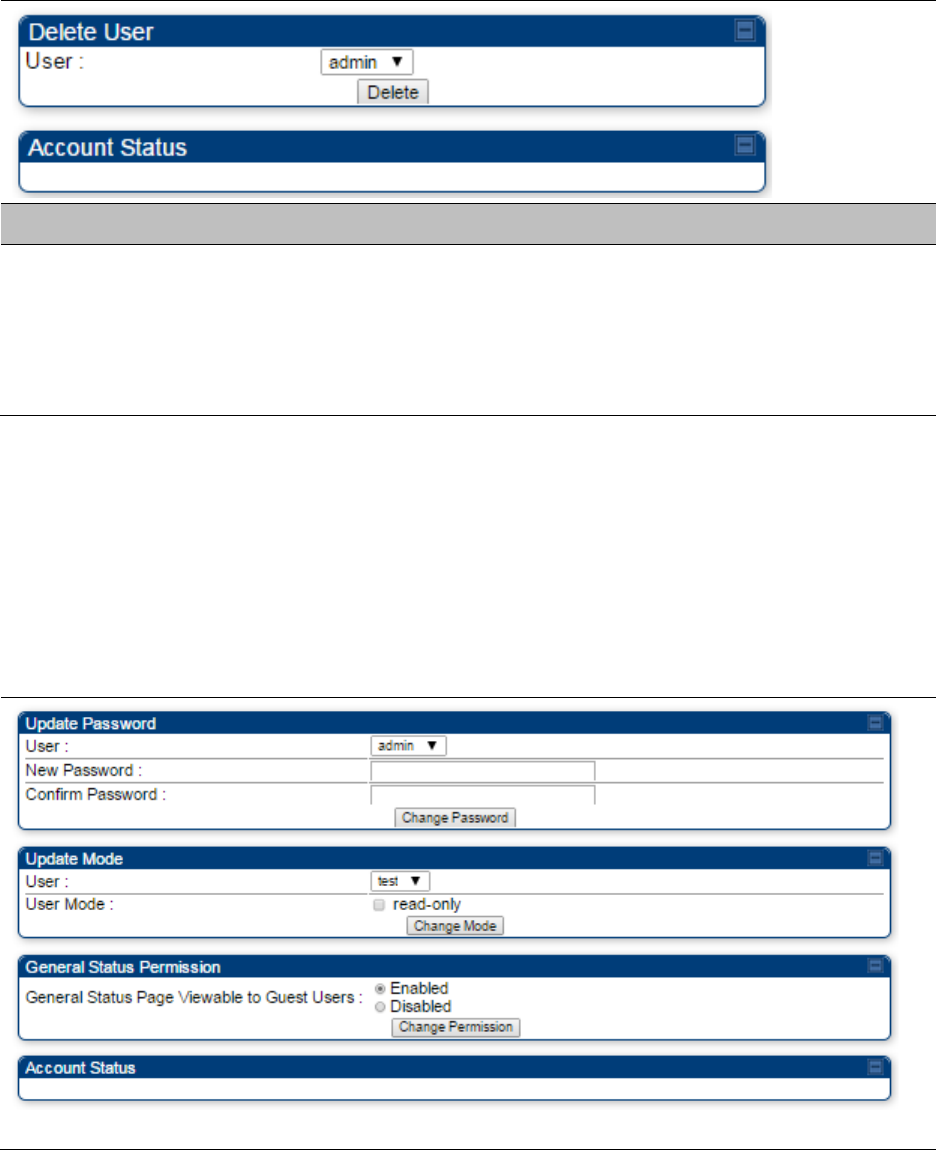

Deleting a User from Access to a module
The Account > Delete User page provides a drop down list of configured users from which to
select the user you want to delete. The Delele User page is explained in Table 132.
Table 132 Delete User page - 450 Platform Family - AP/ SM/BH
Attribute
Meaning
User Select a user from drop down list which has to be deleted and click
Delete
button.
Accounts that cannot be deleted are
• the current user's own account.
• the last remaining account of ADMINISTRATOR level.
Changing a User Setting
The Account > Change User Setting page allows to update password, mode update and general
status permission for a user.
From the factory default state, configure passwords for both the root and admin account at the
ADMINISTRATOR permission level, using Update Password tab of Change Users Setting page.
The Change User Setting page is explained in Table 133.
Table 133 Change User Setting page - 450 Platform Family AP/ SM/BH
Chapter 7: Configuration Configuring security
Page 7-104
Attribute
Meaning
Update Password
tab
This tab provides a drop down list of configured users from which a user
is selected to change password.
Update Mode
tab
This tab facilitates to convert a configured user to a Read-Only user.
General Status
Permission
tab
This tab enables and disables visibility of
General Status Page
for all
Guest user.
To display of Radio data on SMs/BHS main Login page for Guest login, it
can be enabled or disabled in Security tab of Configuration page.

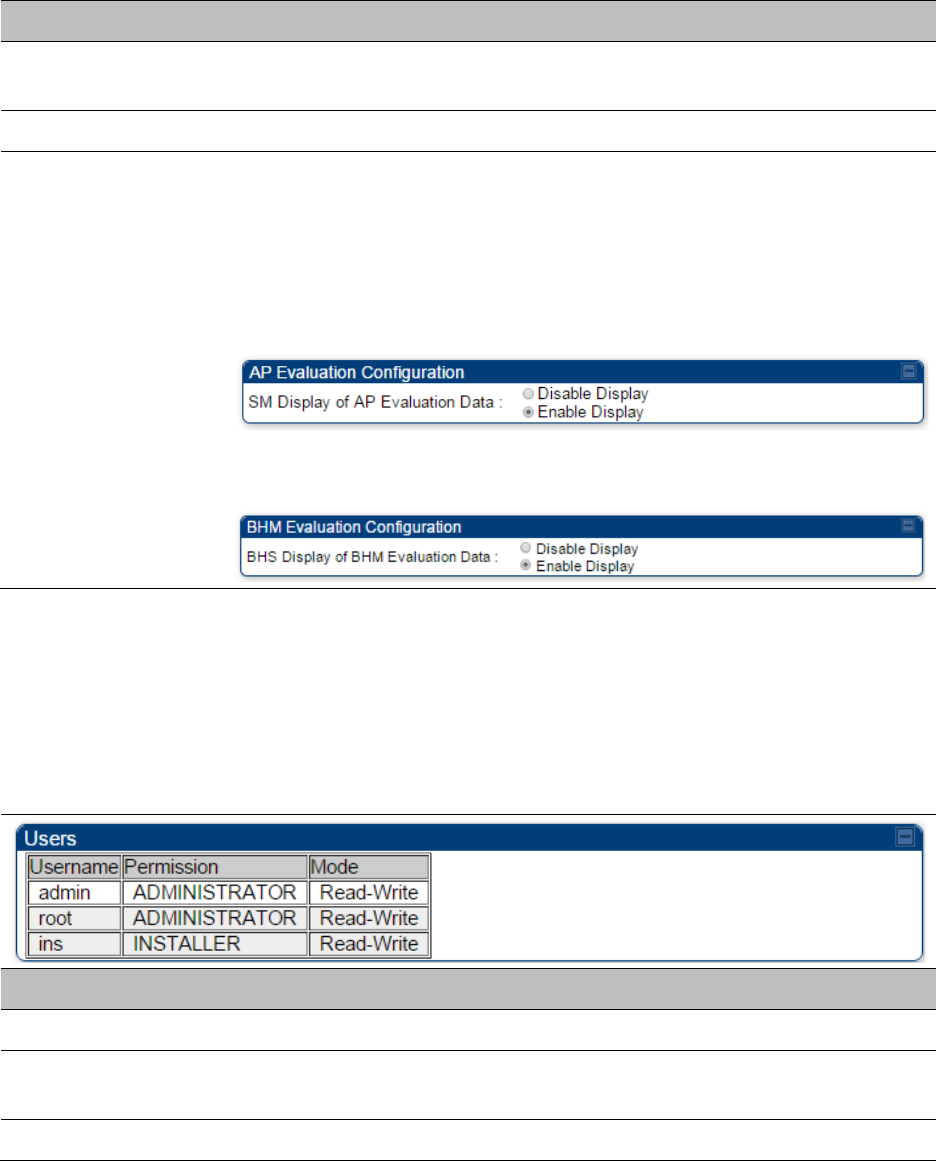

Figure 141
AP
Evaluation Configuration parameter of
Security tab for
PMP
Figure 142
BHM
Evaluation Configuration parameter of
Security tab for
PTP
Users account
The Account > Users page allows to view all configured users account for accessing the module.
The Users page is explained in Table 134.
Table 134 User page –450 Platform Family AP/SM/BH
Attribute
Meaning
Username
User access account name
Permission
Permission of configured user – INSTALLER, ADMINISTRATOR or
TECHNICIAN
Mode
This field indicate access mode of user – Read-Write or Read-Only.
Chapter 7: Configuration Configuring security
Page 7-105
Overriding Forgotten IP Addresses or Passwords on AP and SM
See Radio recovery mode on page 1-27
Isolating from the internet – APs/BHMs
Applicable products
PMP :
AP
PTP:
BHM
See Isolating AP/BHM from the Internet on page 3-41.
Encrypting radio transmissions
Applicable products
PMP :
AP SM
PTP:
BHM BMS
See Encrypting radio transmissions on page 3-41.
Chapter 7: Configuration Configuring security
Page 7-106
Requiring SM Authentication
Applicable products
PMP :
AP SM
Through the use of a shared AP key, or an external RADIUS (Remote Authentication Dial In User
Service) server, it enhances network security by requiring SMs to authenticate when they register.
For descriptions of each of the configurable security parameters on the AP, see Configuring
Security on page 7-116. For descriptions of each of the configurable security parameters on the
SM, see Security on page 7-121.
Operators may use the AP’s Authentication Mode field to select from among the following
authentication modes:
• Disabled—the AP requires no SMs to authenticate (factory default setting).
• Authentication Server —the AP requires any SM that attempts registration to be authenticated
in Wireless Manager before registration
• AP PreShared Key - The AP acts as the authentication server to its SMs and will make use of a
user-configurable pre-shared authentication key. The operator enters this key on both the AP
and all SMs desired to register to that AP. There is also an option of leaving the AP and SMs at
their default setting of using the “Default Key”. Due to the nature of the authentication
operation, if you want to set a specific authentication key, then you MUST configure the key on
all of the SMs and reboot them BEFORE enabling the key and option on the AP. Otherwise, if
you configure the AP first, none of the SMs is able to register.
• RADIUS AAA - When RADIUS AAA is selected, up to 3 Authentication Server (RADIUS Server)
IP addresses and Shared Secrets can be configured. The IP address(s) configured here must
match the IP address(s) of the RADIUS server(s). The shared secret(s) configured here must
match the shared secret(s) configured in the RADIUS server(s). Servers 2 and 3 are meant for
backup and reliability, not for splitting the database. If Server 1 doesn’t respond, Server 2 is
tried, and then server 3. If Server 1 rejects authentication, the SM is denied entry to the
network, and does not progress trying the other servers.
For more information on configuring the PMP 450 Platform network to utilize a RADIUS server,
see Configuring a RADIUS server on page 7-229.
Chapter 7: Configuration Configuring security
Page 7-107
Filtering protocols and ports
Applicable products
PMP :
AP SM
PTP:
BHM BMS
The filtering protocols and ports allows to configure filters for specified protocols and ports from
leaving the AP/SM/BHM/BHS and entering the network. See Filtering protocols and ports on page
3-44.
Protocol filtering page of 450 Platform Family AP/BHM
The Protocol Filtering page of 450 Platform Family - AP/BHM is explained in Table 135.
Table 135 AP/BHM Protocol Filtering attributes
Chapter 7: Configuration Configuring security
Page 7-108
Attribute
Meaning
Packet Filter Types
For any box selected, the Protocol and Port Filtering feature blocks the
associated protocol type.
To filter packets in any of the user-defined ports, must do all of the
following:
Check the box for
User Defined Port
n
(See Below)
in the
Packet Filter
Types
section of this tab.
In the
User Defined Port Filtering Configuration
section of this tab:
• provide a port number at
Port #
n
.
• enable
TCP
and/or
UDP
by clicking the associated radio button
Filter Direction Operators may choose to filter upstream (uplink) RF packets or
downstream (downlink) RF packets.
User Defined Port
Filtering
Configuration
You can specify ports for which to block subscriber access, regardless of
whether NAT is enabled.
RF Telnet Access RF Telnet Access restricts Telnet access to the AP/BHM from a device
situated below a network SM/BHS (downstream from the AP/BHM). This
is a security enhancement to restrict RF-interface sourced AP access
specifically to the LAN1 IP address and LAN2 IP address (Radio Private
Address, typically 192.168.101.[LUID]). This restriction disallows
unauthorized users from running Telnet commands on the AP/BHM that
can change AP/BHM configuration or modifying network-critical
components such as routing and ARP tables.
PPPoE PADI
Downlink
Forwarding
Enabled
: the AP/BHM allows downstream and upstream transmission of
PPPoE PADI packets. By default, PPPoE PADI Downlink Forwarding is set
to “Enabled”.
Disabled
: the AP/BHM disallows PPPoE PADI packets from entering the
Ethernet interface and exiting the RF interface (downstream to the
SM/BHS). PPPoE PADI packets are still allowed to enter the AP’s RF
interface and exit the AP’s /BHM’s Ethernet interface (upstream).
Chapter 7: Configuration Configuring security
Page 7-109
Protocol filtering page of SM/BHS
The Protocol Filtering page of SM/BHS is explained in Table 136.
Table 136 SM/BHS Protocol Filtering attributes
Attribute
Meaning
Packet Filter
Configuration
tab
See Table 135 AP/BHM Protocol Filtering attributes on page 7-107
User Defined Port
Filtering
Configuration
tab
See Table 135 AP/BHM Protocol Filtering attributes on page 7-107

Navigation menu
