Users Manual - Part 5
Chapter 7: Configuration Configuring security
Page 7-110

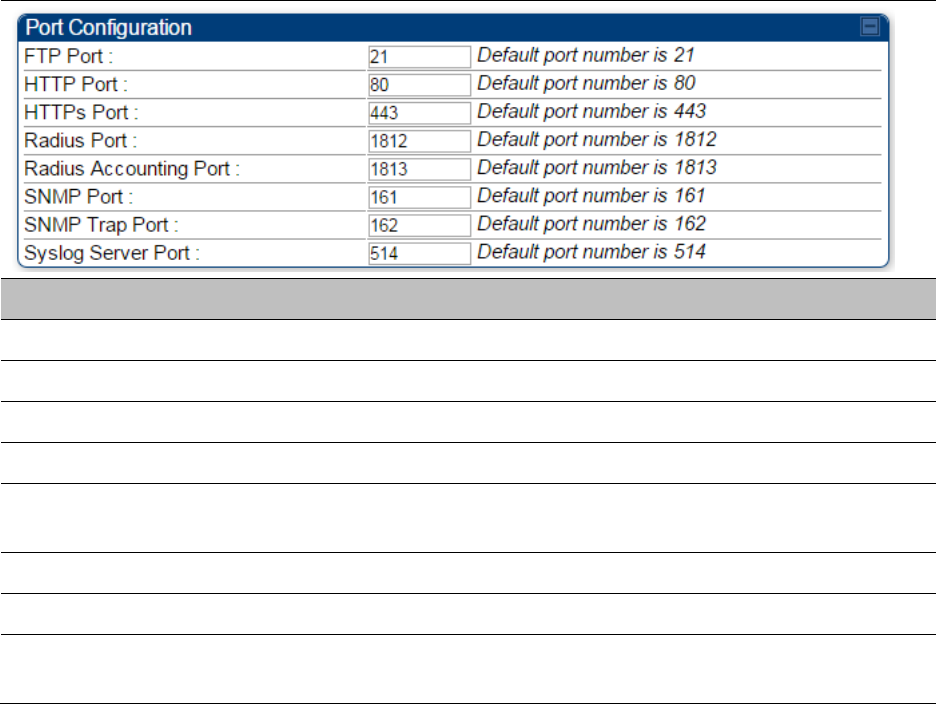

Port configuration
450 Platform Family ODUs support access to various communication protocols and only the ports
required for these protocols are available for access by external entities. Operators may change
the port numbers for these protocols via the radio GUI or SNMP.
The Port Configuration page of the AP/SM/BHM/BHS is explained in Table 137.
Table 137 Port Configuration attributes – AP/SM/BHM/BMS
Attribute
Meaning
FTP Port The listen port on the device used for FTP communication.
HTTP Port The listen port on the device used for HTTP communication.
HTTPS Port The listen port on the device used for HTTPS communication
Radius Port The destination port used by the device for RADIUS communication.
Radius Accounting
Port
The destination port used by the device for RADIUS accounting
communication.
SNMP Port The listen port on the device used for SNMP communication.
SNMP Trap Port The destination port used by the device to which SNMP traps are sent.
Syslog Server Port The destination port used by the device to which Syslog messaging is
sent.
Encrypting downlink broadcasts
See Encrypting downlink broadcasts on page 3-48.
Isolating SMs
See Isolating SMs in PMP on page 3-48.
Chapter 7: Configuration Configuring security
Page 7-111
Filtering management through Ethernet
See Filtering management through Ethernet on page 3-48.

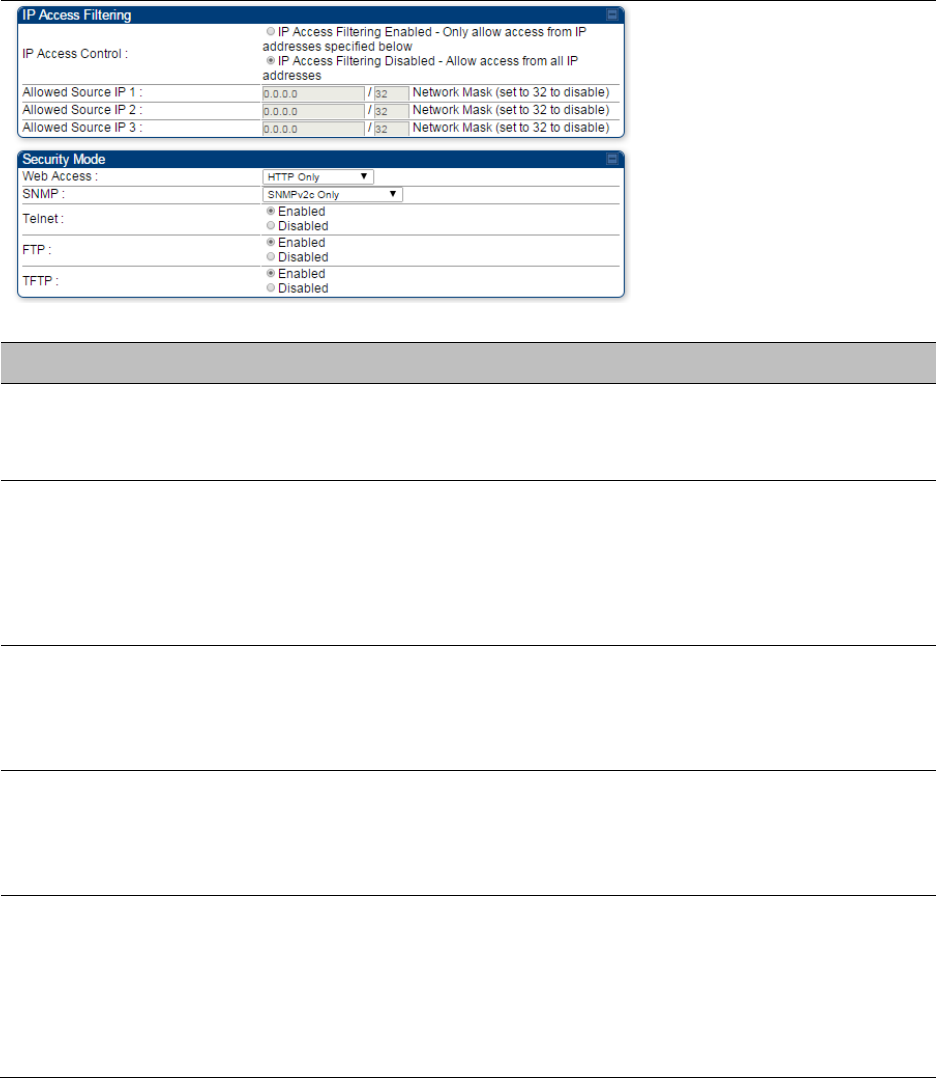

Allowing management only from specified IP addresses
See Allowing management from only specified IP addresses on page 3-49.
Restricting radio Telnet access over the RF interface
RF Telnet Access restricts Telnet access to the AP from a device situated below a network SM
(downstream from the AP). This is a security enhancement to restrict RF-interface sourced AP
access specifically to the LAN1 IP address and LAN2 IP address (Radio Private Address, typically
192.168.101. [LUID]). This restriction disallows unauthorized users from running Telnet commands
on the AP that can change AP configuration or modifying network-critical components such as
routing and ARP tables.
The RF Telnet Access may be configured via the AP GUI or via SNMP commands, and RF Telnet
Access is set to “Enabled” by default. Once RF Telnet Access is set to “Disabled”, if there is a
Telnet session attempt to the AP originating from a device situated below the SM (or any
downstream device), the attempt is dropped. This also includes Telnet session attempts originated
from the SM’s management interface (if a user has initiated a Telnet session to a SM and attempts
to Telnet from the SM to the AP). In addition, if there are any active Telnet connections to the AP
originating from a device situated below the SM (or any downstream device), the connection is
dropped. This behavior must be considered if system administrators use Telnet downstream from
an AP (from a registered SM) to modify system parameters.
Setting RF Telnet Access to “Disabled” does not affect devices situated above the AP from
accessing the AP via Telnet, including servers running the CNUT (Canopy Network Updater tool)
application. Also, setting RF Telnet Access to “Disabled” does not affect any Telnet access into
upstream devices (situated above or adjacent to the AP) through the AP (see Figure 143).

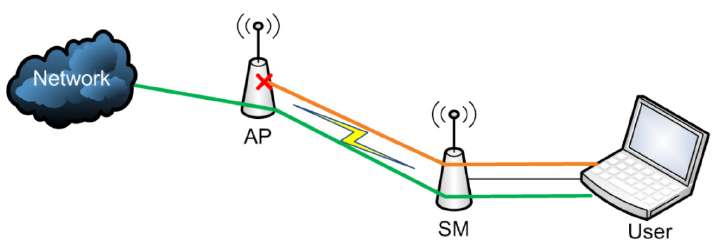

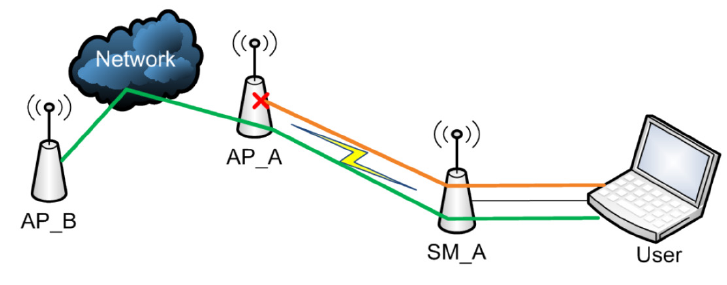

The figure below depicts a user attempting two telnet sessions. One is targeted for the AP (orange)
and one is targeted for the network upstream from the AP (green). If RF Telnet Access is set to
“Disabled” (factory default setting), the Telnet attempt from the user to the AP is blocked, but the
attempt from the user to Network is allowed to pass through the Cambium network.
Figure 143 RF Telnet Access Restrictions (orange) and Flow through (green)
Chapter 7: Configuration Configuring security
Page 7-112
Key Security Considerations when using the RF Telnet Access Feature
To ensure that the network is fully protected from unauthorized AP Telnet sessions, the following
topics must be considered:
Securing AP Clusters
When working with a cluster of AP units, to eliminate potential security holes allowing Telnet
access, ensure that the RF Telnet Access parameter is set to “Disabled” for every AP in the cluster.
In addition, since users situated below the AP are able to pass Telnet sessions up through the SM
and AP to the upstream network (while AP RF Telnet Access is set to “Disabled”), ensure that all
CMM4 or other networking equipment is secured with strong passwords. Otherwise, users may
Telnet to the CMM4 or other networking equipment, and subsequently access network APs (see
Figure 144) via their Ethernet interfaces (since RF Telnet Access only prevents Telnet sessions
originating from the AP’s wireless interface).
Figure 144 RF Telnet Access Restriction (orange) and Potential Security Hole (green)
As a common practice, AP administrator usernames and passwords must be secured with strong,
non-default passwords.
Restricting AP RF Telnet Access
AP Telnet access via the RF interface may be configured in two ways – the AP GUI and SNMP.
Controlling RF Telnet Access via the AP GUI
To restrict all Telnet access to the AP via the RF interface from downstream devices, follow these
instructions using the AP GUI:
Procedure 20 Restricting RF Telnet access
1
Log into the AP GUI using administrator credentials
2
On the AP GUI, navigate to
Configuration
>
Protocol Filtering
Chapter 7: Configuration Configuring security
Page 7-113
3

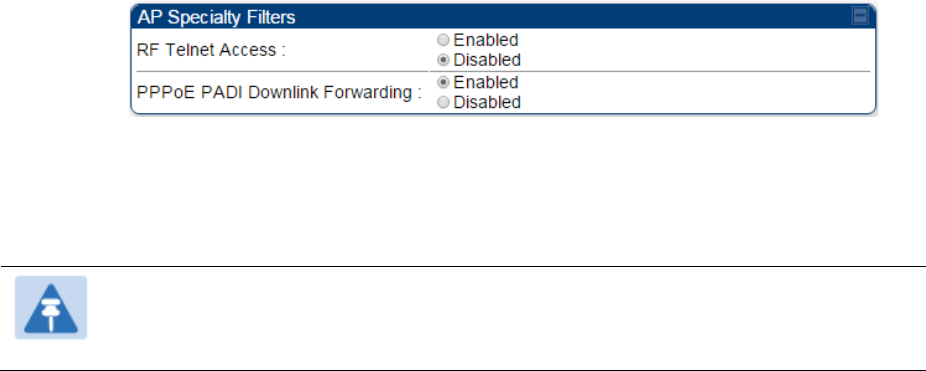

Under GUI heading “Telnet Access over RF Interface”, set
RF Telnet Access
to
Disabled
4
Click the
Save
button
5
Once the
Save
button is clicked, all RF Telnet Access to the AP from devices situated
below the AP is blocked.
Note
The factory default setting for RF Telnet Access is disabled and PPPoE PADI
Downlink Forwarding is enabled.
Chapter 7: Configuration Configuring security
Page 7-114
Configuring SNMP Access
The SNMPv3 interface provides a more secure method to perform SNMP operations. This
standard provides services for authentication, data integrity and message encryption over SNMP.
Refer to Planning for SNMPv3 operation on page 3-42 for details.
Note
The factory default setting for SNMP is “SNMPv2c Only”.

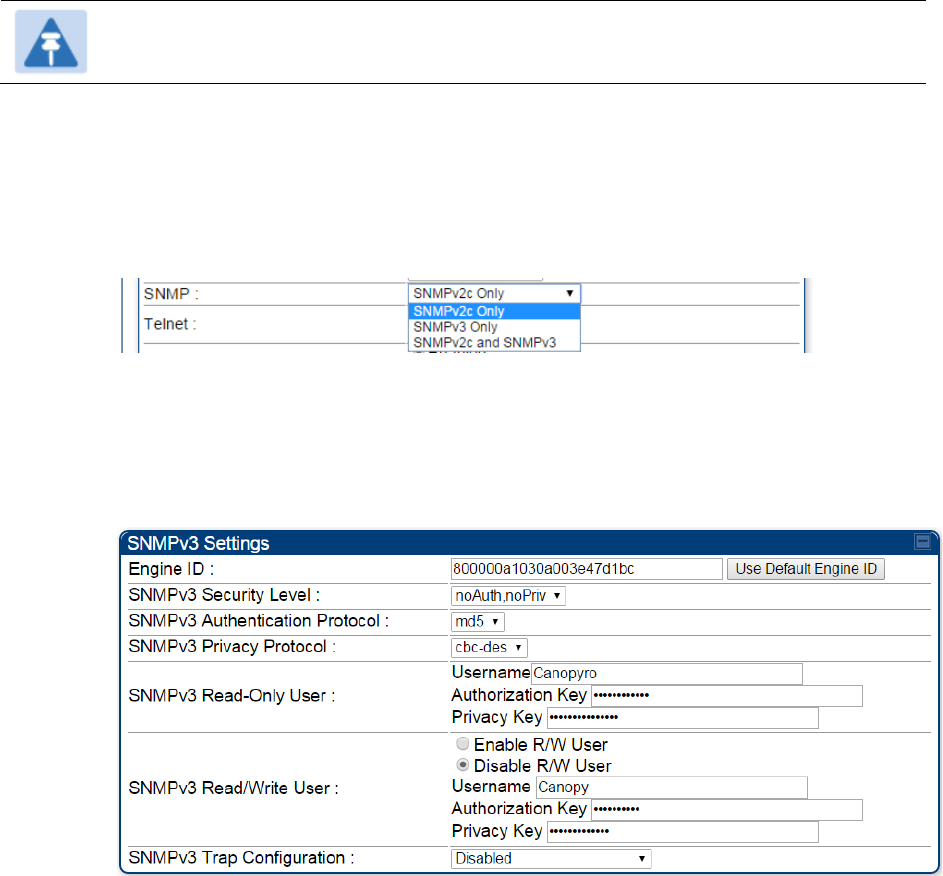

Procedure 21 Configuring SNMPv3
1
Log into the AP GUI using administrator credentials
2
On the AP/SM GUI, navigate to
Configuration
>
Security Page
3
Under GUI heading “Security Mode”, set
SNMP
to
SNMPv3 Only
4
Click the
Save Changes
button
5
Go to
Configuration
>
SNMP Page
6

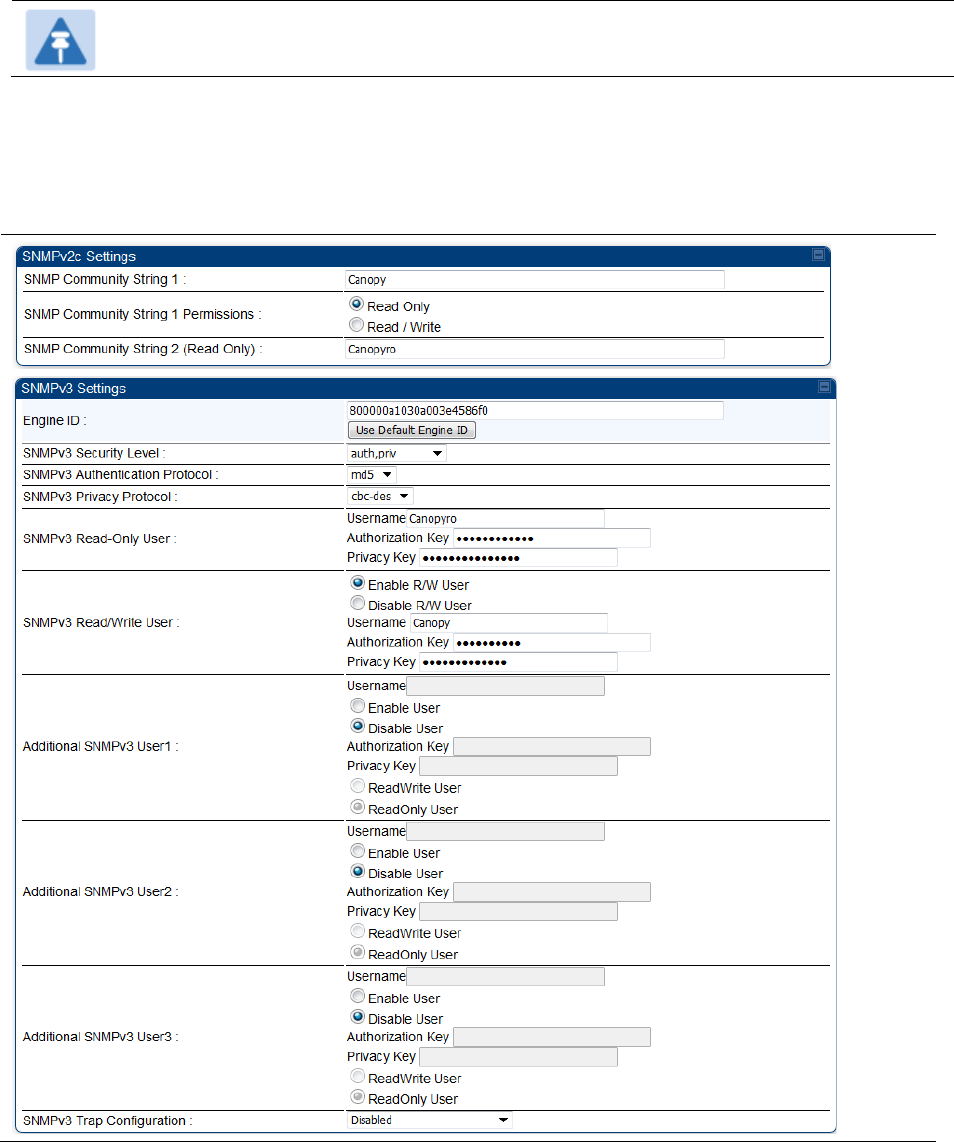

Under GUI heading “SNMPv3 setting”, set
Engine ID, SNMPv3 Security Level, SNMPv3
Authentication Protocol, SNMPv3 Privacy Protocol, SNMPv3 Read-Only User, SNMPv3
Read/Write User, SNMPv3 Trap Configuration
parameters:
Engine ID :
Each radio (AP/SM/BHM/BHS) has a distinct SNMP authoritative engine identified by a
unique Engine ID. While the Engine ID is configurable to the operator it is expected that
the operator follow the guidelines of the SNMPEngineID defined in the SNMP-
FRAMEWORK-MIB (RFC 3411). The default Engine ID is the MAC address of the device.
SNMPv3 security level, Authentication and Privacy Protocol
The authentication allows authentication of SNMPv3 user and privacy allows for
encryption of SNMPv3 message. 450 Platform Family supports MD5 authentication and
CBC-DES privacy protocols.
Chapter 7: Configuration Configuring security
Page 7-115
SNMPv3 Read-Only and Read/Write User
The user can defined by configurable attributes. The attributes and default values are:
• Read-only user
o Username = Canopyro
o Authentication Password = authCanopyro
o Privacy Password = privacyCanopyro
• Read-write user (by default read-write user is disabled)
o Username = Canopy
o Authentication Password = authCanopy
o Privacy Password = privacyCanopy
SNMPv3 Trap Configuration
The traps may be sent from radios in SNMPv3 format based on parameter settings. It
can be configured for Disabled, Enabled for Read-Only User, Enable for Read/Write
User.
Chapter 7: Configuration Configuring security
Page 7-117

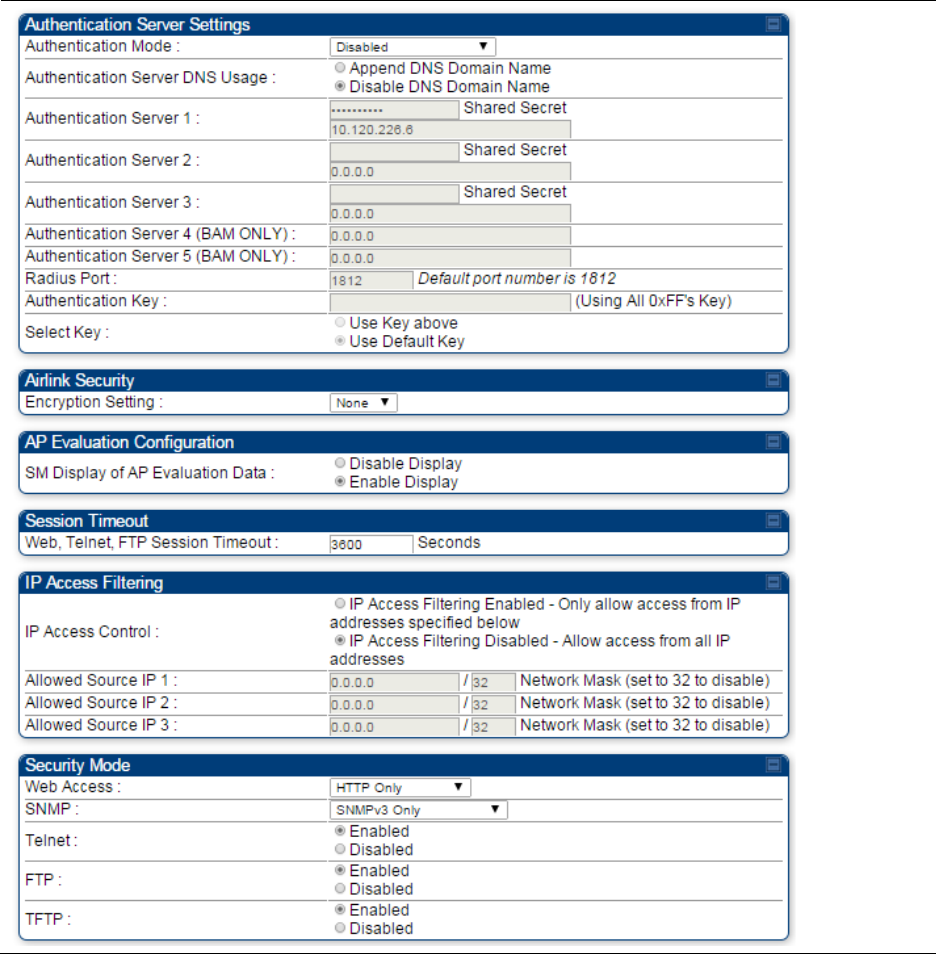

Attribute
Meaning
Authentication Mode Operators may use this field to select from among the following
authentication modes:
Disabled
—the AP/BHM requires no SMs/BHS to authenticate. (Factory
default).
Authentication Server
—the AP/BHM requires any SM/BHS that attempts
registration to be authenticated in Wireless Manager before registration.
AP PreShared Key
- The AP/BHM acts as the authentication server to its
SMs/BHS and will make use of a user-configurable pre-shared
authentication key. The operator enters this key on both the AP/BHM and
all SMs/BHS desired to register to that AP/BHM. There is also an option
of leaving the AP/BHM and SMs/BHS at their default setting of using the
“Default Key”. Due to the nature of the authentication operation, if you
want to set a specific authentication key, then you MUST configure the
key on all of the SMs/BHS and reboot them BEFORE enabling the key
and option on the AP/BHM. Otherwise, if you configure the AP/BHM first,
none of the SMs/BHS is able to register.
RADIUS AAA
- When RADIUS AAA is selected, up to 3 Authentication
Server (RADIUS Server) IP addresses and Shared Secrets can be
configured. The IP address(s) configured here must match the IP
address(s) of the RADIUS server(s). The shared secret(s) configured
here must match the shared secret(s) configured in the RADIUS
server(s). Servers 2 and 3 are meant for backup and reliability, not for
splitting the database. If Server 1 doesn’t respond, Server 2 is tried, and
then server 3. If Server 1 rejects authentication, the SM is denied entry
to the network, and does not progress trying the other servers.
Note
This parameter is applicable to BHM.
Chapter 7: Configuration Configuring security
Page 7-118
Authentication
Server DNS Usage
The management DNS domain name may be toggled such that the
name of the authentication server only needs to be specified and the
DNS domain name is automatically appended to that name.
Note
This parameter is applicable to BHM.
Authentication
Server 1 to 5
Enter the IP address or server name of the authentication server
(RADIUS or WM) and the Shared Secret configured in the authentication
server. When
Authentication Mode RADIUS AAA
is selected, the default
value of
Shared Secret
is “CanopySharedSecret”. The
Shared Secret
may consist of up to 32 ASCII characters.
Note
This parameter is applicable to BHM.
Radius Port This field allows the operator to configure a custom port for RADIUS
server communication. The default value is 1812.
Note
This parameter is applicable to BHM.
Authentication Key The authentication key is a 32-character hexadecimal string used when
Authentication Mode
is set to
AP PreShared Key
. By default, this key is
set to 0xFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF.
Note
This parameter is applicable to BHM.
Select Key
This option allows operators to choose which authentication key is used:
Use Key above
means that the key specified in
Authentication Key
is
used for authentication
Use Default Key
means that a default key (based off of the SM’s MAC
address) is used for authentication
Note
This parameter is applicable to BHM.
Dynamic
Authorization
Extensions for
RADIUS
Enable CoA and Disconnect Message
: Allows to control configuration
parameters of SM using RADIUS CoA and Disconnect Message feature.
Disable CoA and Disconnect Message
: Disables RADIUS CoA and
Disconnect Message feature.
To enable CoA and Disconnect feature, the Authentication Mode should
be set to RADIUS AAA.
Bypass
Authentication for
ICC SMs
Enabled
: SM authentication is disabled when SM connects via ICC
(Installation Color Code).
Disabled
: SM authentication is enabled.

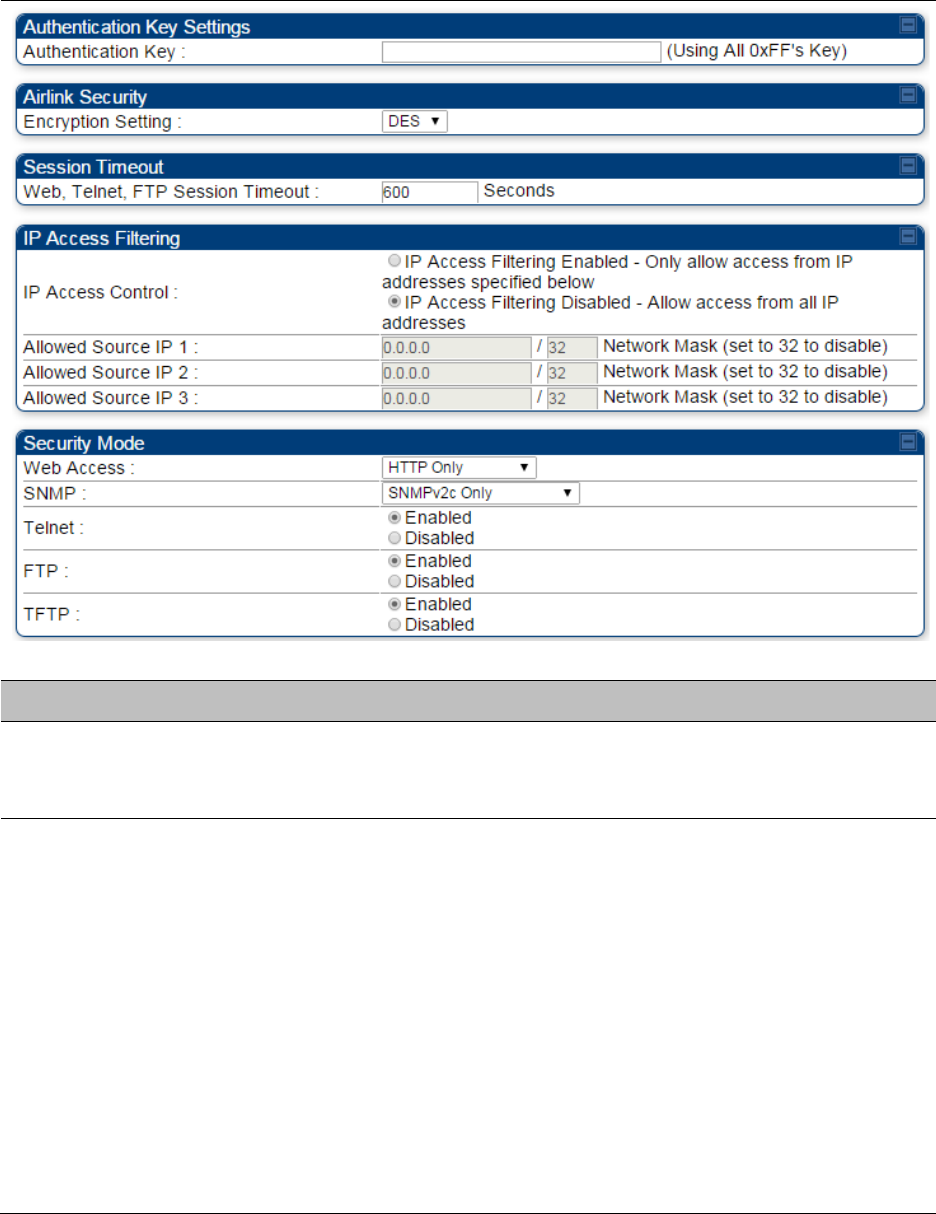

Encryption Setting Specify the type of airlink security to apply to this AP. The encryption
setting must match the encryption setting of the SMs.
Chapter 7: Configuration Configuring security
Page 7-119
None
provides no encryption on the air link.
DES
(Data Encryption Standard): An over-the-air link encryption option
that uses secret 56-bit keys and 8 parity bits. DES performs a series of bit
permutations, substitutions, and recombination operations on blocks of
data. DES encryption does not affect the performance or throughput of
the system.
AES
(Advanced Encryption Standard)
:
An over-the-air link encryption
option that uses the Rijndael algorithm and 128-bit keys to establish a
higher level of security than DES. AES products are certified as
compliant with the Federal Information Processing Standards (FIPS 197)
in the U.S.A.
Note
This parameter is applicable to BHM.
SM Display of AP
Evaluation Data
Or
BHS Display of BHM
Evaluation Data

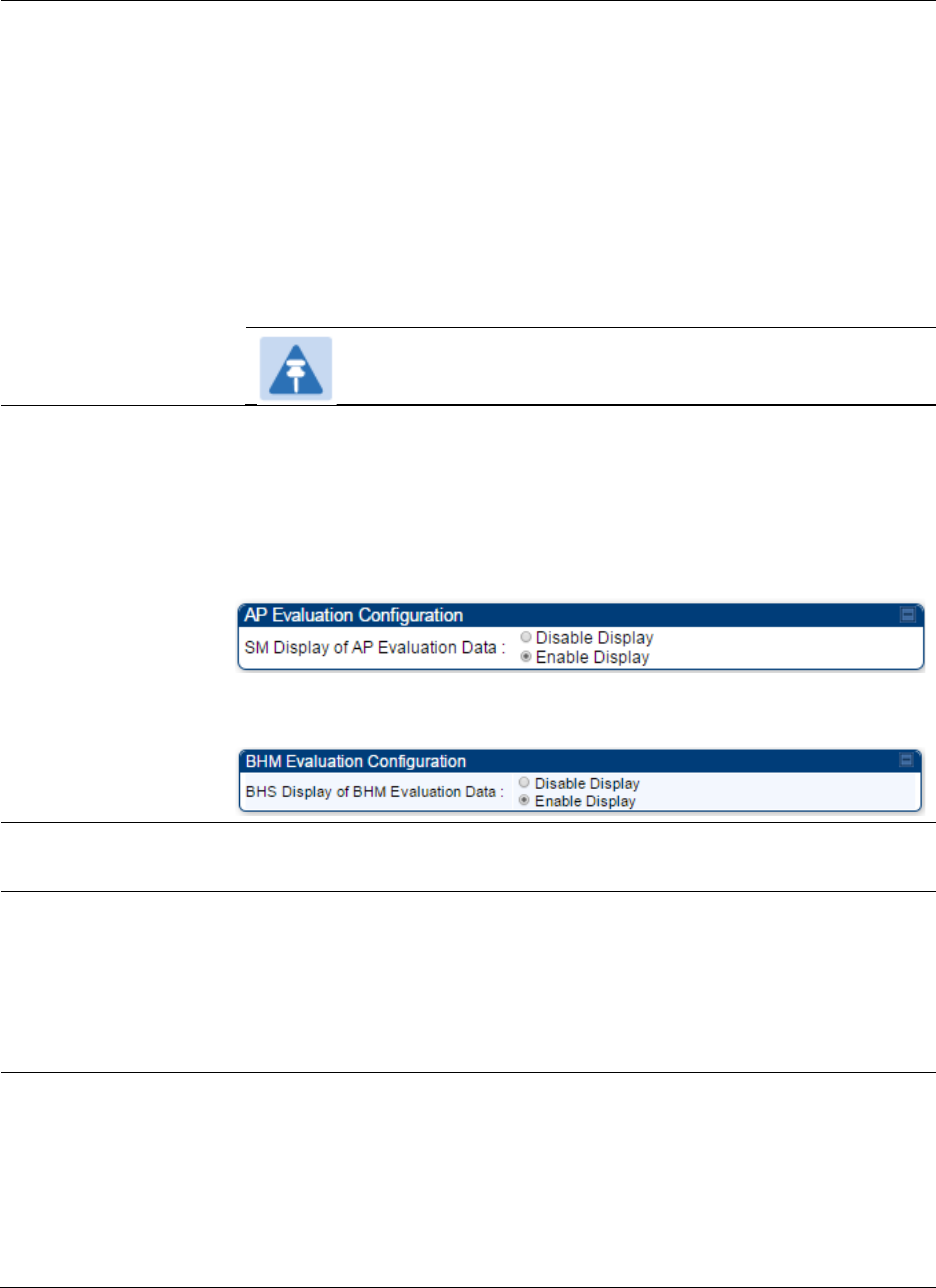

Allows operators to suppress the display of data about this AP/BHM on
the AP/BHM Evaluation tab of the Tools page in all SMs/BHS that
register. The factory default setting for SM Display of AP Evaluation Data
or BHS Display of BHM Evaluation Data is enabled display.
PMP 450/450i Series – SM display of AP Evaluation Data parameter
PTP 450/450i Series – BHS display of BHM Evaluation Data parameter
Web, Telnet, FTP
Session Timeout
Enter the expiry in seconds for remote management sessions via
HTTP
,
telnet
, or
ftp
access to the AP/BHM.
IP Access Control You can permit access to the AP/BHM from any IP address (
IP Access
Filtering Disabled
) or limit it to access from only one, two, or three IP
addresses that you specify (
IP Access Filtering Enabled
). If you select
IP
Access Filtering Enabled
, then you must populate at least one of the
three
Allowed Source IP
parameters or have no access permitted from
any IP address
Allowed Source IP 1
to 3
If you selected
IP Access Filtering Enabled
for the
IP Access Control
parameter, then you must populate at least one of the three
Allowed
Source IP
parameters or have no access permitted to the AP from any IP
address. You may populate as many as all three.
If you selected
IP Access Filtering Disabled
for the
IP Access Control
parameter, then no entries in this parameter are read, and access from
all IP addresses is permitted.
Chapter 7: Configuration Configuring security
Page 7-120
Web Access The Radio supports secured and non-secured web access protocols.
Select suitable web access from drop down list:
•
HTTP Only
– provides non-secured web access. The radio to be
accessed via http://<IP of Radio>.
•
HTTPS Only
– provides a secured web access. The radio to be
accessed via https://<IP of Radio>.
•
HTTP and HTTPS
– If enabled, the radio can be accessed via both
http and https.
SNMP This option allows to configure SNMP agent communication version. It
can be selected from drop down list :
•
SNMPv2c Only
– Enables SNMP v2 community protocol.
•
SNMPv3 Only
– Enables SNMP v3 protocol. It is a secured
communication protocol.
•
SNMPv2c and SNMPv3
– It enables both the protocols.
Telnet This option allows to
Enable
and
Disable
Telnet access to the Radio.
FTP This option allows to
Enable
and
Disable
FTP access to the Radio.
TFTP This option allows to
Enable
and
Disable
TFTP access to the Radio.
Chapter 7: Configuration Configuring security
Page 7-122
Attribute
Meaning

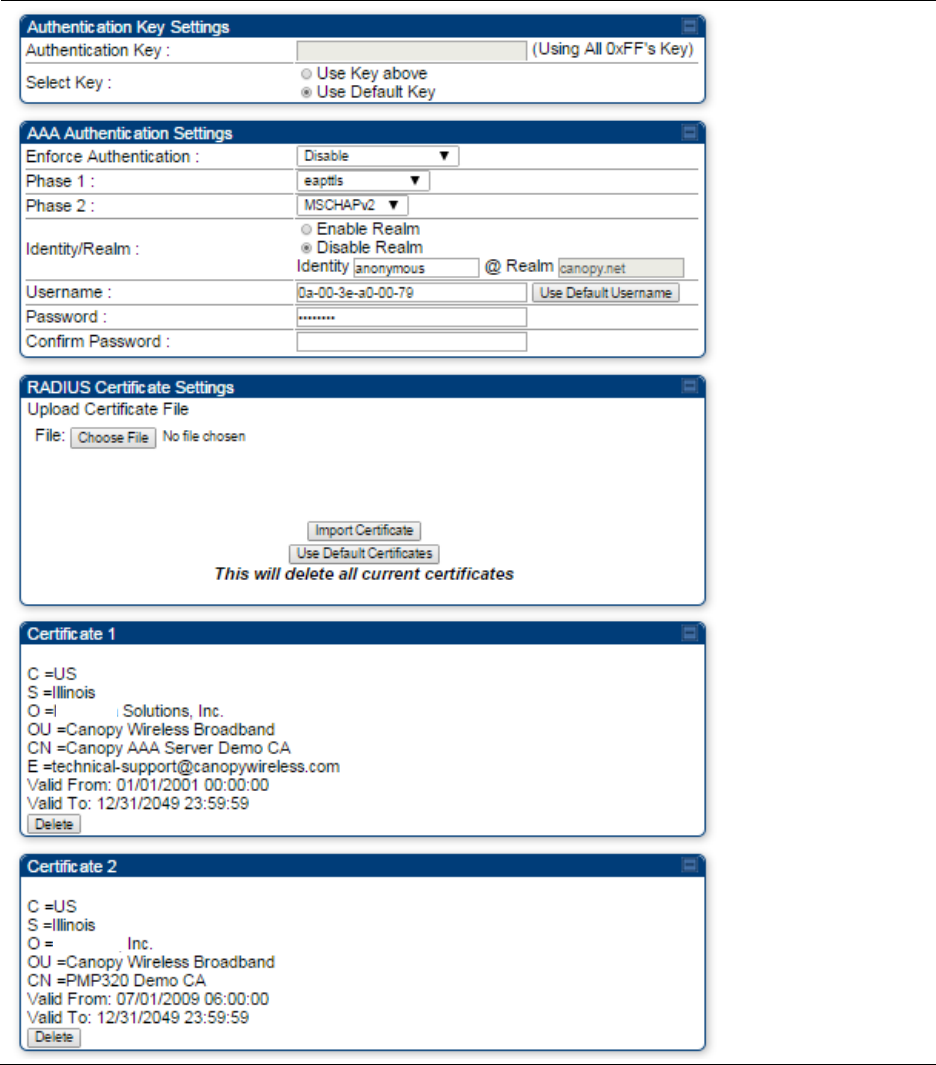

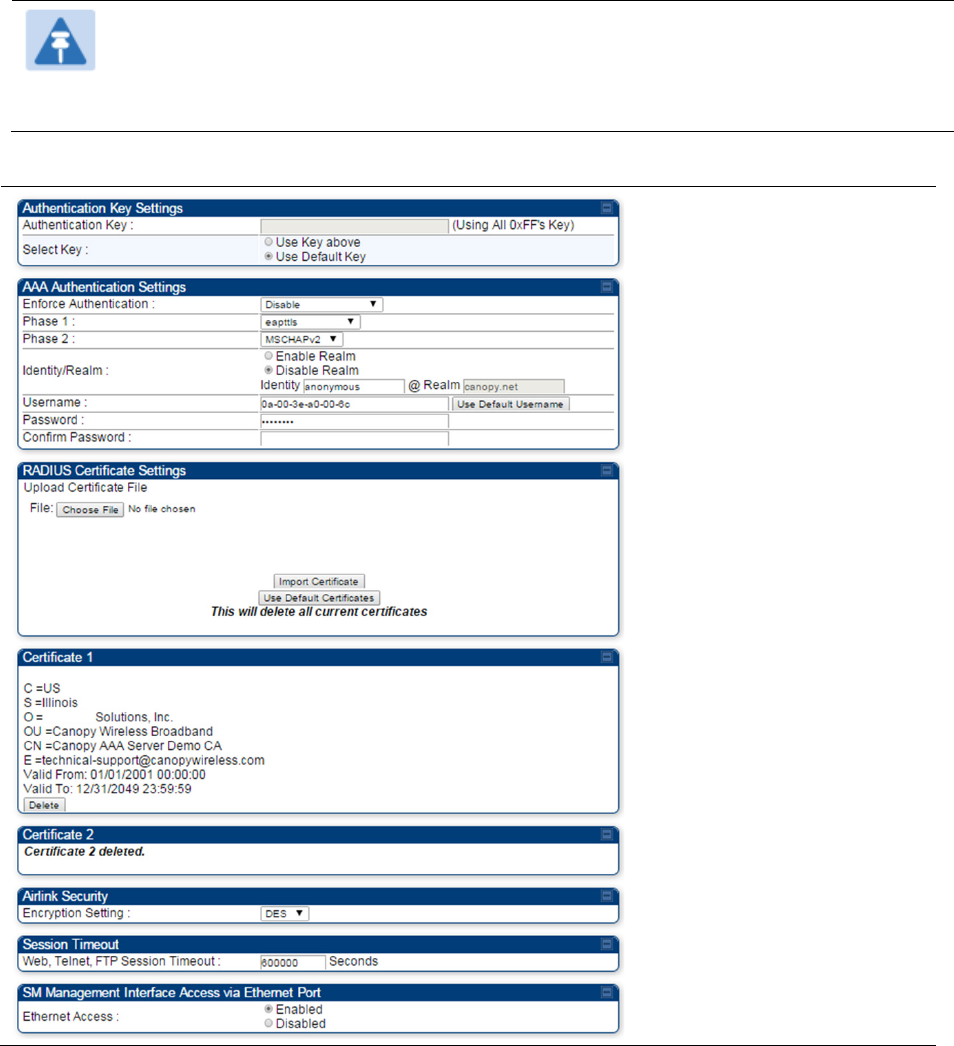

Authentication Key Only if the AP to which this SM will register requires authentication,
specify the key that the SM will use when authenticating. For alpha
characters in this hex key, use only upper case.
Select Key
The
Use Default Key
selection specifies the predetermined key for
authentication in Wireless Manager
The
Use Key above
selection specifies the 32-digit hexadecimal key that
is permanently stored on both the SM and the WM

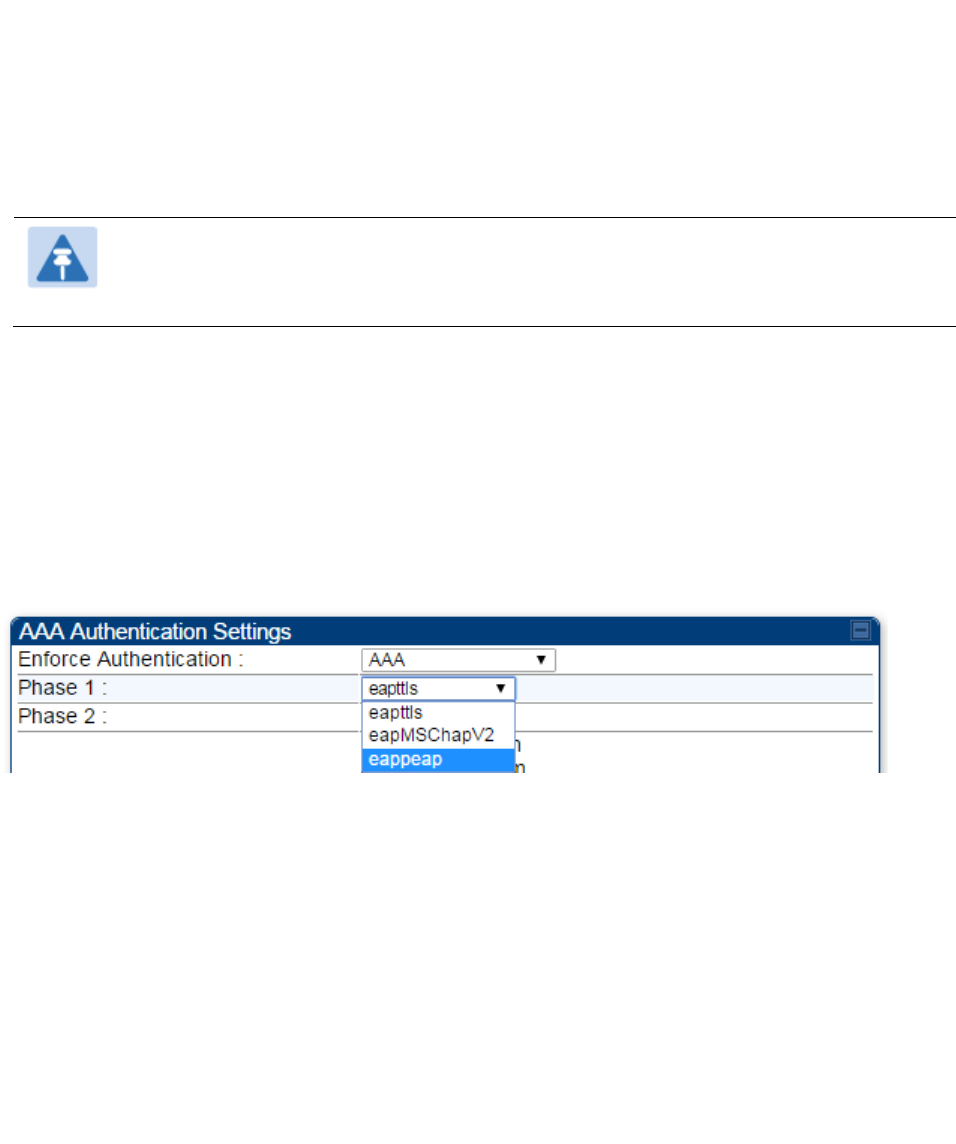

Enforce
Authentication
The SM may enforce authentication types of
AAA
and
AP Pre-
sharedKey
. The SM will not finish the registration process if the AP is not
using the configured authentication method (and the SM locks out the
AP for 15 minutes).
Phase 1 The protocols supported for the
Phase 1
(Outside Identity) phase of
authentication are
EAPTTLS (Extensible Authentication Protocol
Tunneled Transport Layer
Security) or MSCHAPv2 (Microsoft
Challenge-Handshake Authentication Protocol version 2).
Chapter 7: Configuration Configuring security
Page 7-123
Phase 2 Select the desired
Phase 2
(Inside Identity) authentication protocol from
the
Phase 2
options
of
PAP
(Password Authentication Protocol),
CHAP
(Challenge Handshake
Authentication
Protocol), and
MSCHAP
(
Microsoft’s version of CHAP, version 2 is used). The protocol
must
be
consistent with the authentication protocol configured on the RADIUS
server.
Identity/Realm If Realms are being used, select
Enable Realm
and configure an outer
identity in the
Identity
field and a Realm in the
Realm
field. These must
match the Phase 1/Outer Identity and
Realm
configured in the RADIUS
server. The default
Identity
is “anonymous”. The
Identity
can be
up
to
128 non-special (no diacritical markings) alphanumeric characters. The
default
Realm
is
“canopy.net”. The
Realm
can also be up to 128 non-
special alphanumeric
characters.
Configure an outer Identity in the
Username
field. This must match the
Phase
1/Outer
Identity username configured in the RADIUS server. The
default Phase 1/Outer
Identity
Username
is “anonymous”. The
Username
can be up to 128 non-special (no
diacritical
markings)
alphanumeric
characters.
Username Enter a
Username
for the SM. This must match the username
configured for the SM on
the
RADIUS server. The default
Username
is
the SM’s MAC address. The
Username
can be up
to
128 non-special
(no diacritical markings) alphanumeric
characters.
Password Enter the desired password for the SM in the
Password
and
Confirm
Password
fields.
The
Password
must match the password configured
for the SM on the RADIUS server.
The
default
Password
is “password”.
The
Password
can be up to 128 non-special (no
diacritical
markings)
alphanumeric
characters

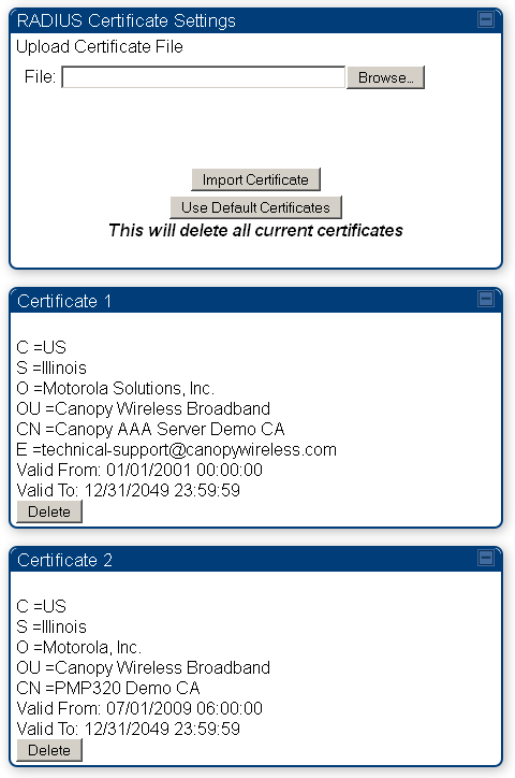

Upload Certificate
File
To upload a certificate manually to a SM, first load it in a known place
on your PC
or
network
drive, then click on a
Delete
button on one of
the Certificate description blocks to delete a certificate to provide space
for your certificate. Click on
Choose File,
browse to
the
location of the
certificate, and click the
Import Certificate
button, and then reboot the
radio to use the new certificate.
When a certificate is in use, after the SM successfully registers to an
AP, an indication of
In
Use
will appear in the description block of the
certificate being
used.
The public certificates installed on the SMs are used with the private
certificate on the
RADIUS
server to provide a public/private key
encryption
system.
Up to 2 certificates can be resident on a SM. An installed certificate can
be deleted
by
clicking the
Delete
button in the certificate’s description
block on the Configuration >
Security
tab. To restore the 2 default
certificates, click the
Use Default Certificates
button in
the
RADIUS
Certificate Settings
parameter block and reboot the
radio.
Chapter 7: Configuration Configuring security
Page 7-124

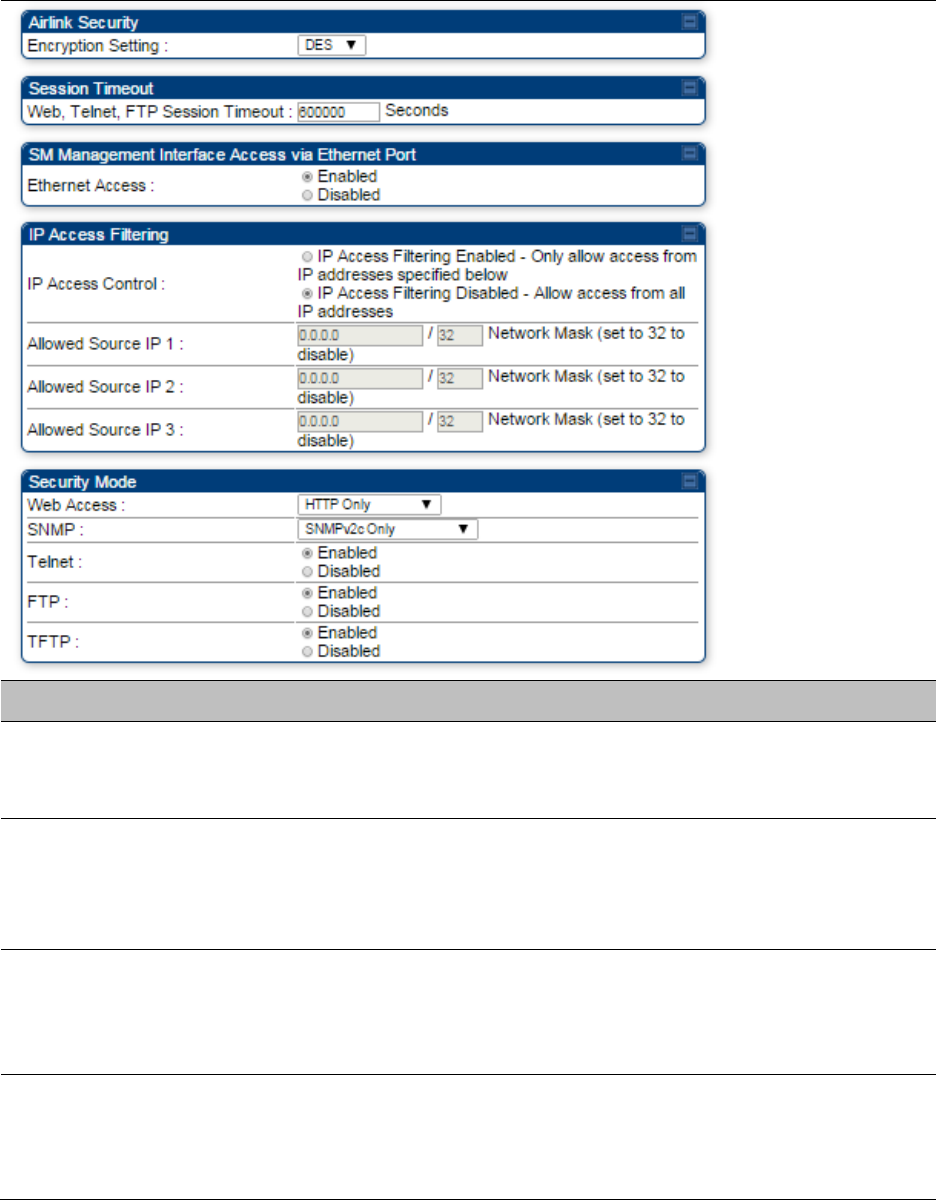

Encryption Setting Specify the type of airlink security to apply to this SM. The encryption
setting must match the encryption setting of the AP.
None
provides no encryption on the air link.
DES
(Data Encryption Standard): An over-the-air link encryption option
that uses secret 56-bit keys and 8 parity bits. DES performs a series of bit
permutations, substitutions, and recombination operations on blocks of
data. DES encryption does not affect the performance or throughput of
the system.
AES
(Advanced Encryption Standard)
:
An over-the-air link encryption
option that uses the Rijndael algorithm and 128-bit keys to establish a
higher level of security than DES. AES products are certified as
compliant with the Federal Information Processing Standards (FIPS 197)
in the U.S.A.
Web, Telnet, FTP
Session Timeout
Enter the expiry in seconds for remote management sessions via HTTP,
telnet, or FTP access to the SM.
Ethernet Access
If you want to prevent any device that is connected to the Ethernet port
of the SM from accessing the management interface of the SM, select
Ethernet Access Disabled
. This selection disables access through this
port to via HTTP (the GUI), SNMP, telnet, FTP, and TFTP. With this
selection, management access is available through only the RF interface
via either an IP address (if
Network Accessibility
is set to
Public
on the

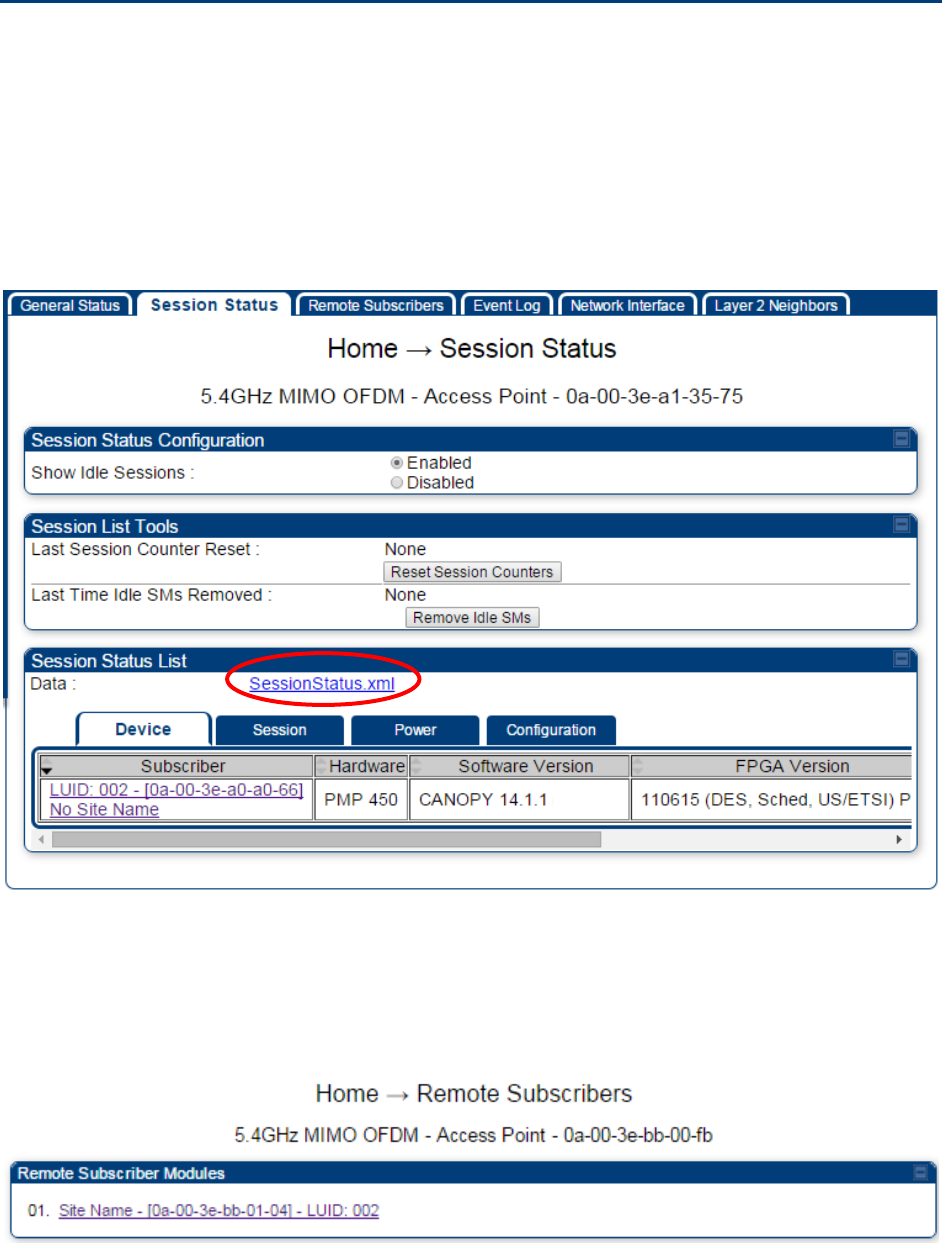

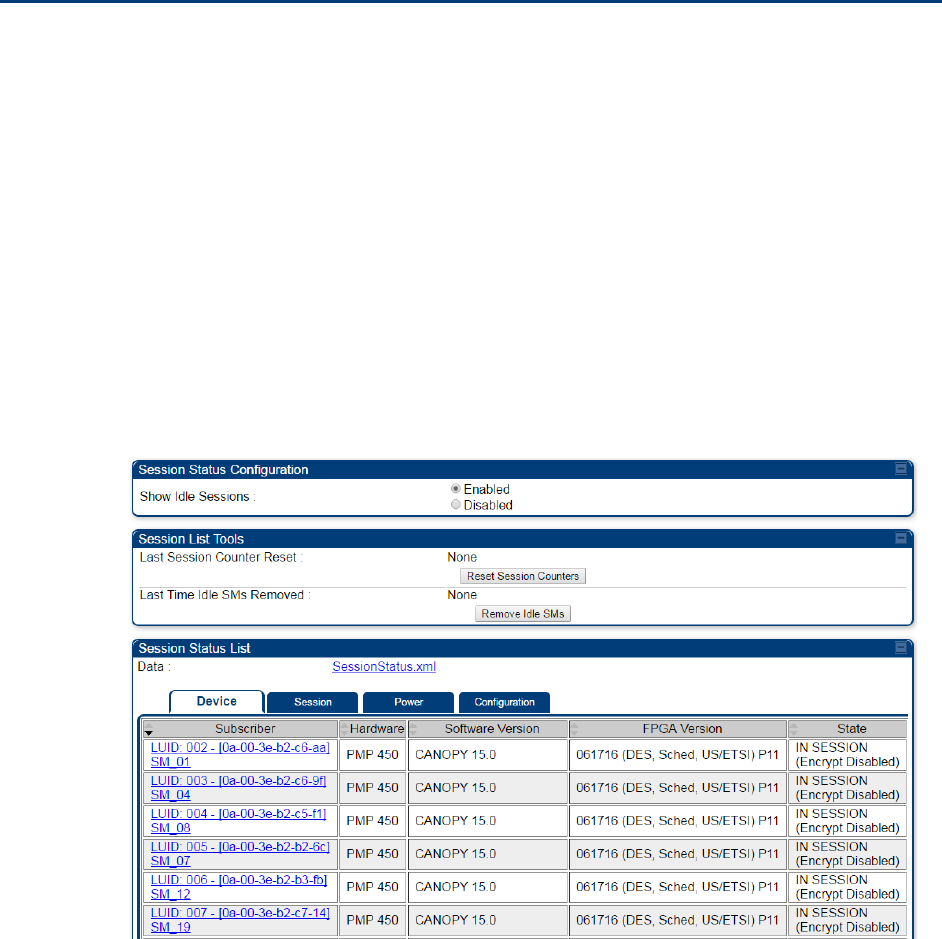

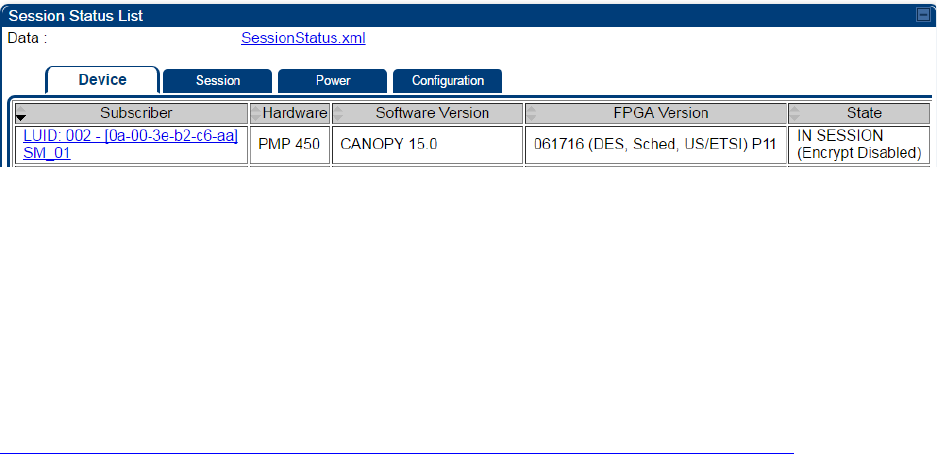

SM) or the Session Status or Remote Subscribers tab of the AP.
Note
This setting does not prevent a device connected to the
Ethernet port from accessing the management interface of
other SMs in the network. To prevent this, use the IP Access
Filtering Enabled selection in the IP Access Control
parameter of the SMs in the network. See IP Access Control
below.
If you want to allow management access through the Ethernet port,
select
Ethernet Access Enabled
. This is the factory default setting for this
parameter.
IP Access Control You can permit access to the SM from any IP address (
IP Access Filtering
Disabled
) or limit it to access from only one, two, or three IP addresses
that you specify (
IP Access Filtering Enabled
). If you select
IP Access
Filtering Enabled
, then you must populate at least one of the three
Allowed Source IP
parameters or have no access permitted from any IP
address
Allowed Source IP 1
to 3
If you selected
IP Access Filtering Enabled
for the
IP Access Control
parameter, then you must populate at least one of the three
Allowed
Source IP
parameters or have no access permitted to the SM from any IP
address. You may populate as many as all three.
Chapter 7: Configuration Configuring security
Page 7-125
If you selected
IP Access Filtering Disabled
for the
IP Access Control
parameter, then no entries in this parameter are read, and access from
all IP addresses is permitted.
A subnet mask may be defined for each entry to allow for filtering
control based on a range of IP addresses.
Web Access The Radio supports secured and non-secured web access protocols.
Select suitable web access from drop down list:
•
HTTP Only
– provides non-secured web access. The radio to be
accessed via http://<IP of Radio>.
•
HTTPS Only
– provides a secured web access. The radio to be
accessed via https://<IP of Radio>.
•
HTTP and HTTPS
– If enabled, the radio can be accessed via both
http and https.
SNMP This option allows to configure SNMP agent communication version. It
can be selected from drop down list :
•
SNMPv2c Only
– Enables SNMP v2 community protocol.
•
SNMPv3 Only
– Enables SNMP v3 protocol. It is secured
communication protocol.
•
SNMPv2c and SNMPv3
– It enables both the protocols.
Telnet This option allows to
Enable
and
Disable
Telnet access to the Radio.
FTP This option allows to
Enable
and
Disable
FTP access to the Radio.
TFTP This option allows to
Enable
and
Disable
TFTP access to the Radio.

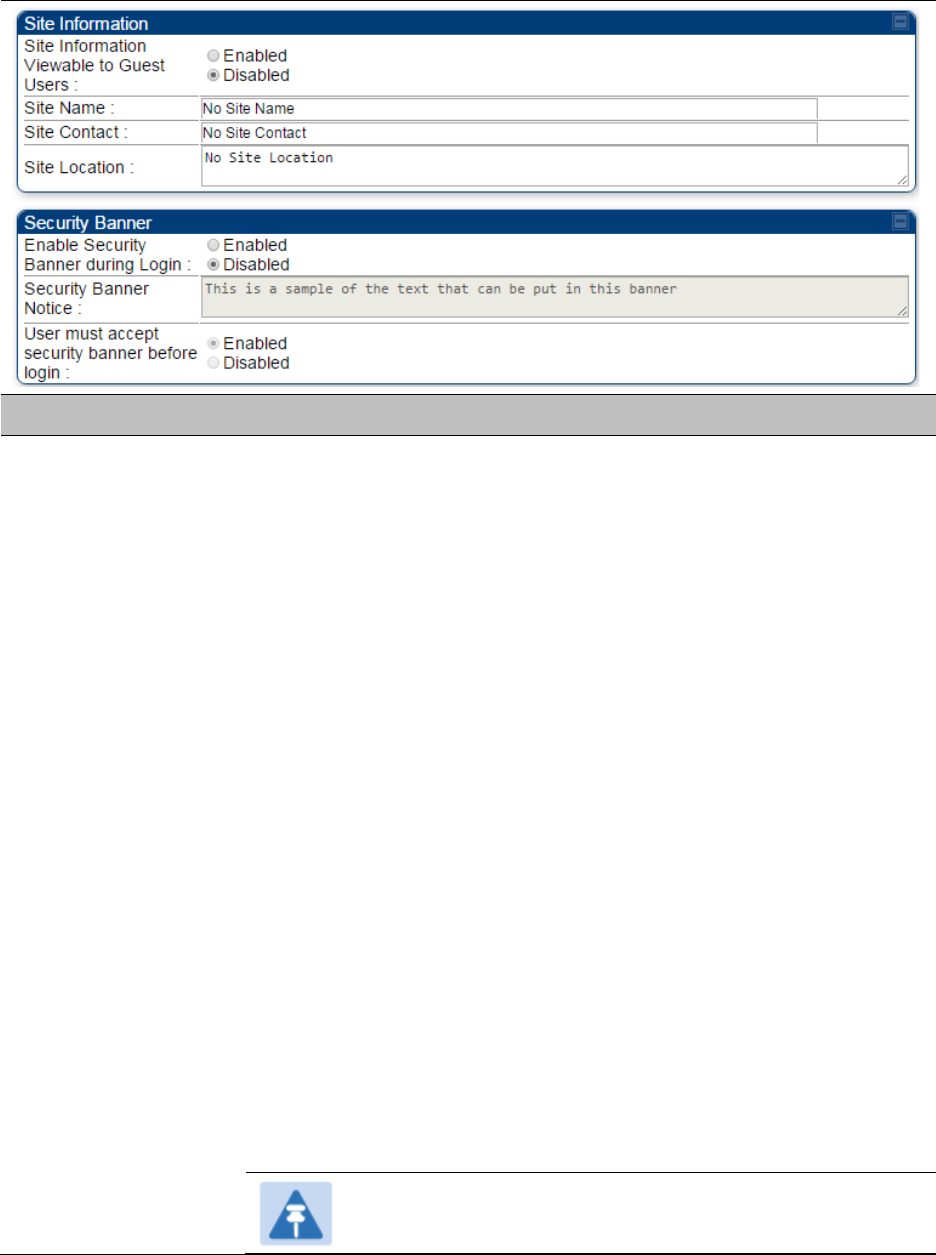

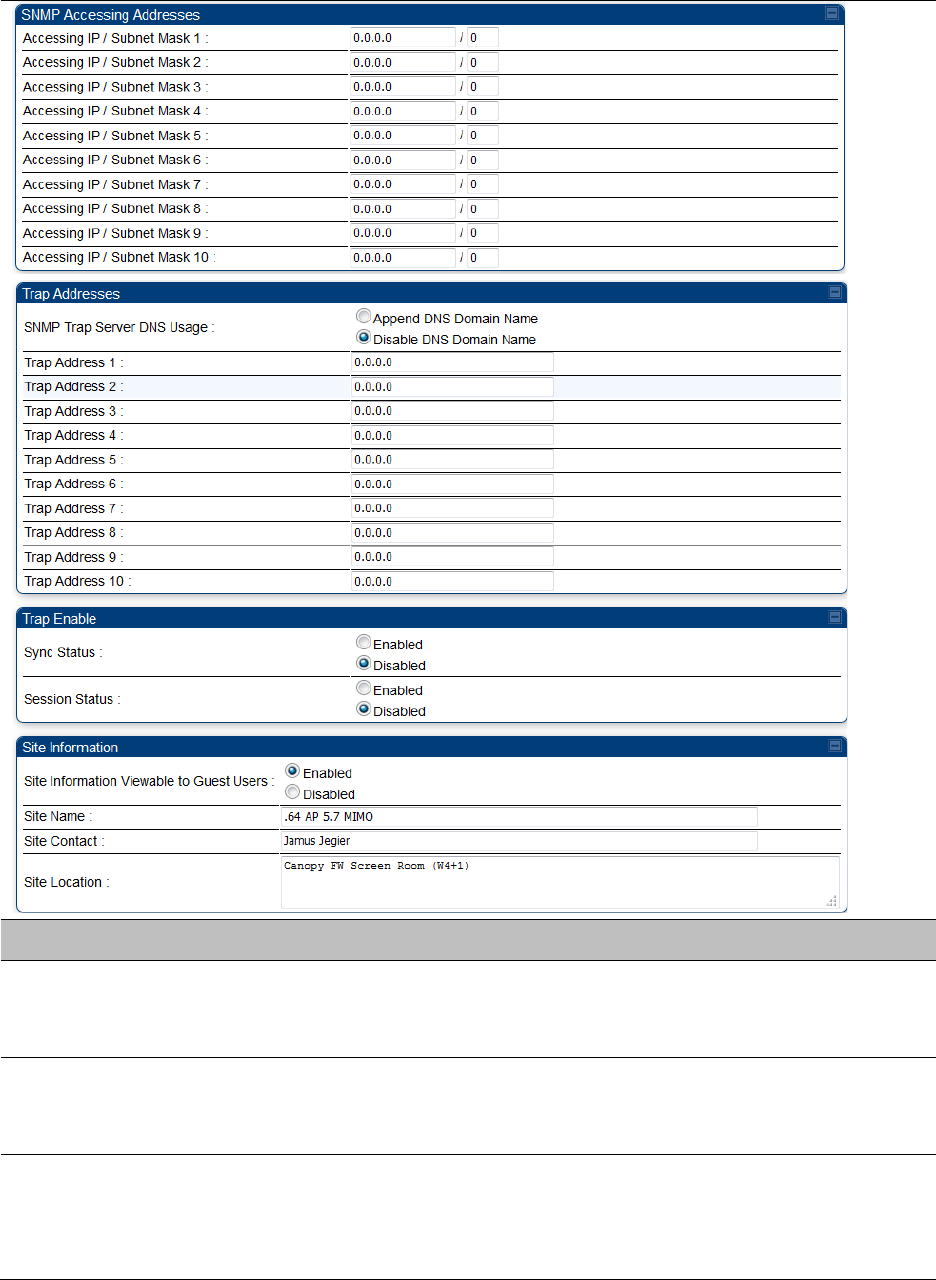

Site Name Specify a string to associate with the physical module.
Site Contact Enter contact information for the module administrator.
Site Location Enter information about the physical location of the module.
Enable Security
Banner during Login
Enable
: The Security Banner Notice will be displayed before login.
Disable
: The Security Banner Notice will not be displayed before login.
Security Banner
Notice
User can enter ASCII (0-9a-zA-Z newline, line-feed are allowed) text up-to
1300 characters.
User must accept
security banner
before login
Enable
: login area (username and password) will be disabled unless user
accepts the security banner.
Disable
: User can’t login to radio without accepting security banner.
Chapter 7: Configuration Configuring security
Page 7-126
Security page –450 Platform Family BHS
The Security page of 450 Platform Family BHS is explained in Table 140.
Table 140 Security attributes - 450 Platform Family BHS
Attribute
Meaning
Authentication Key Only if the BHM to which this BHS registers requires an authentication,
specify the key that the BHS will use when authenticating. For alpha
characters in this hex key, use only upper case.
Encryption Setting Specify the type of airlink security to apply to this BHS. The encryption
setting must match the encryption setting of the BHM.
None
provides no encryption on the air link.
DES
(Data Encryption Standard): An over-the-air link encryption option
that uses secret 56-bit keys and 8 parity bits. DES performs a series of bit
permutations, substitutions, and recombination operations on blocks of
data. DES encryption does not affect the performance or throughput of
the system. It is factory default setting.
AES
(Advanced Encryption Standard)
:
An over-the-air link encryption
option that uses the Rijndael algorithm and 128-bit keys to establish a
higher level of security than DES. AES products are certified as
compliant with the Federal Information Processing Standards (FIPS 197)
in the U.S.A.
Chapter 7: Configuration Configuring security
Page 7-127
Web, Telnet, FTP
Session Timeout
Enter the expiry in seconds for remote management sessions via HTTP,
telnet, or FTP access to the BHS.
IP Access Control You can permit access to the BHS from any IP address (
IP Access
Filtering Disabled
) or limit it to access from only one, two, or three IP
addresses that you specify (
IP Access Filtering Enabled
). If you select
IP
Access Filtering Enabled
, then you must populate at least one of the
three
Allowed Source IP
parameters or have no access permitted from
any IP address
Allowed Source IP 1
to 3
If you selected
IP Access Filtering Enabled
for the
IP Access Control
parameter, then you must populate at least one of the three
Allowed
Source IP
parameters or have no access permitted to the BHS from any
IP address. You may populate as many as all three.
If you selected
IP Access Filtering Disabled
for the
IP Access Control
parameter, then no entries in this parameter are read, and access from
all IP addresses is permitted.
A subnet mask may be defined for each entry to allow for filtering
control based on a range of IP addresses.
Web Access The Radio supports secured and non-secured web access protocols.
Select suitable web access from drop down list:
•
HTTP Only
– provides non-secured web access. The radio to be
accessed via http://<IP of Radio>.
•
HTTPS Only
– provides a secured web access. The radio to be
accessed via https://<IP of Radio>.
•
HTTP and HTTPS
– If enabled, the radio can be accessed via both
http and https.
SNMP This option allows to configure SNMP agent communication version. It
can be selected from drop down list :
•
SNMPv2c Only
– Enables SNMP v2 community protocol.
•
SNMPv3 Only
– Enables SNMP v3 protocol. It is secured
communication protocol.
•
SNMPv2c and SNMPv3
– It enables both the protocols.
Telnet This option allows to
Enable
and
Disable
Telnet access to the Radio.
FTP This option allows to
Enable
and
Disable
FTP access to the Radio.
TFTP This option allows to
Enable
and
Disable
TFTP access to the Radio.
Chapter 7: Configuration Configuring radio parameters
Page 7-128
Configuring radio parameters
• PMP 450m Series – configuring radio on page 7-129
• PMP/PTP 450i Series – configuring radio on page 7-129
• PMP 450b Series - configuring radio on page 7-153
• PMP/PTP 450 Series – configuring radio on page 7-157

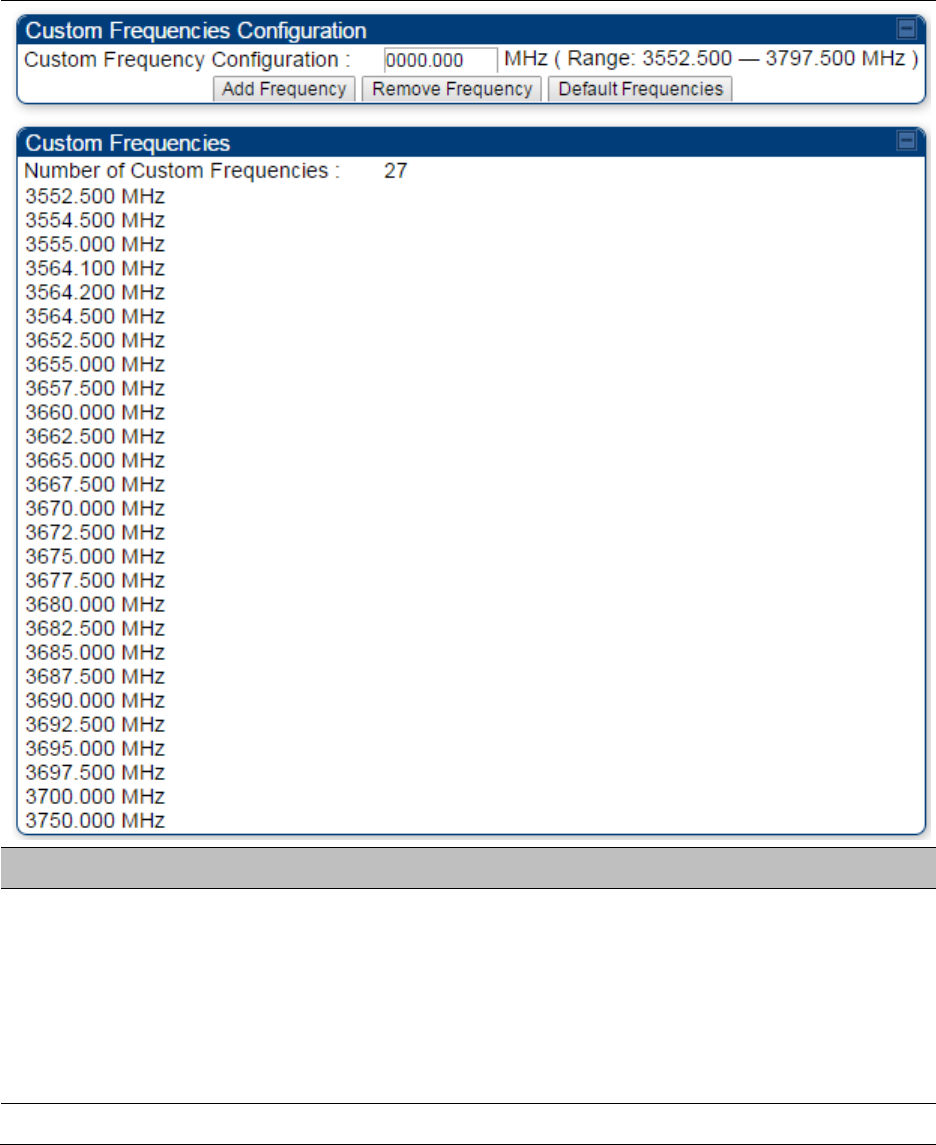

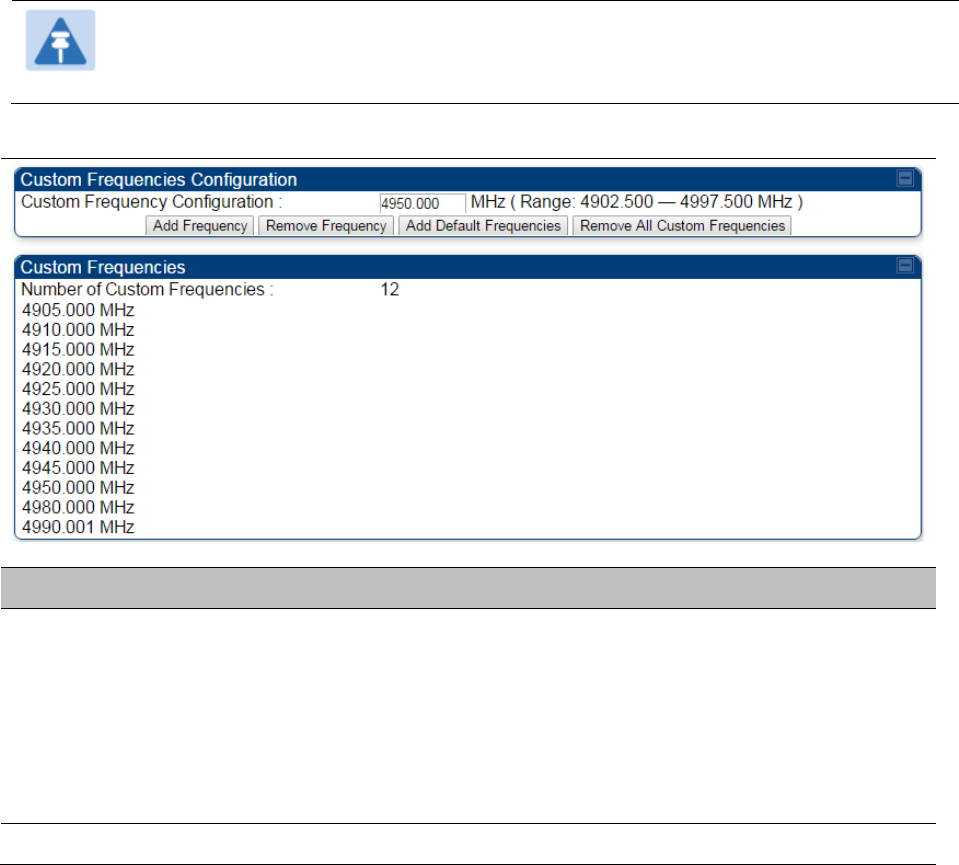

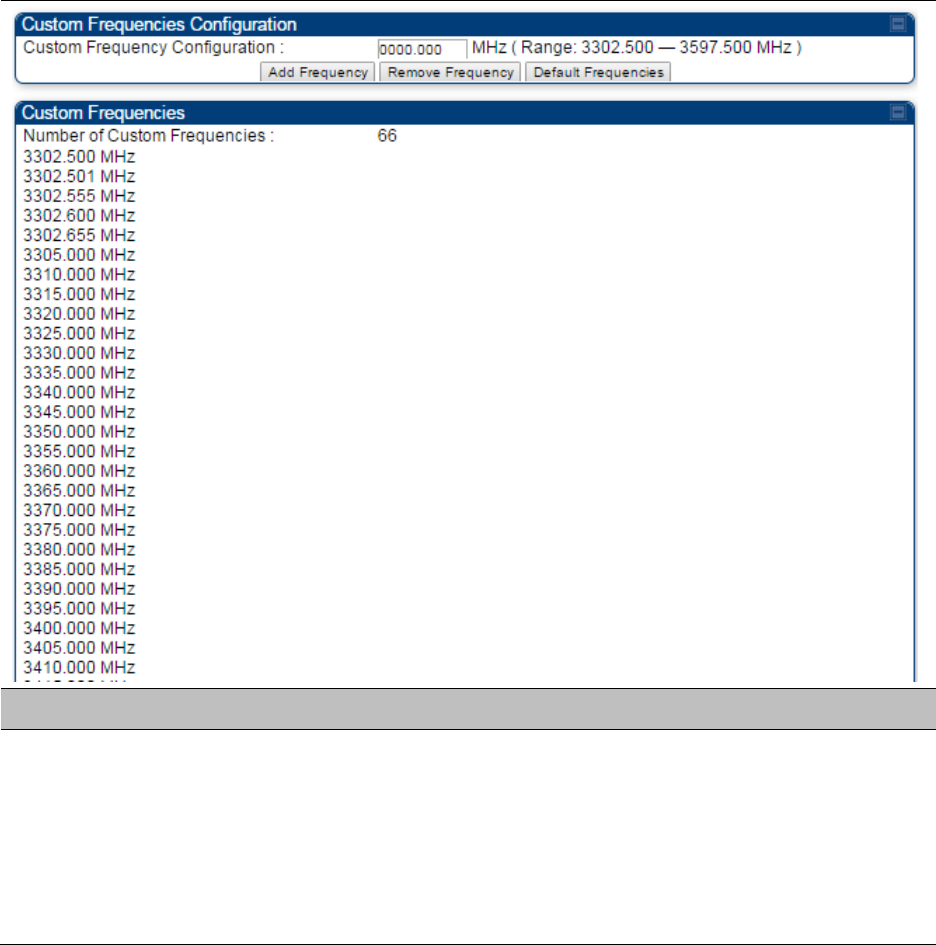

• Custom Frequencies page on page 7-174
• DFS for 5 GHz Radios on page 7-177
• MIMO-A mode of operation on page 7-179
• Improved PPS performance of 450 Platform Family on page 7-181
Chapter 7: Configuration Configuring radio parameters
Page 7-129
PMP 450m Series – configuring radio

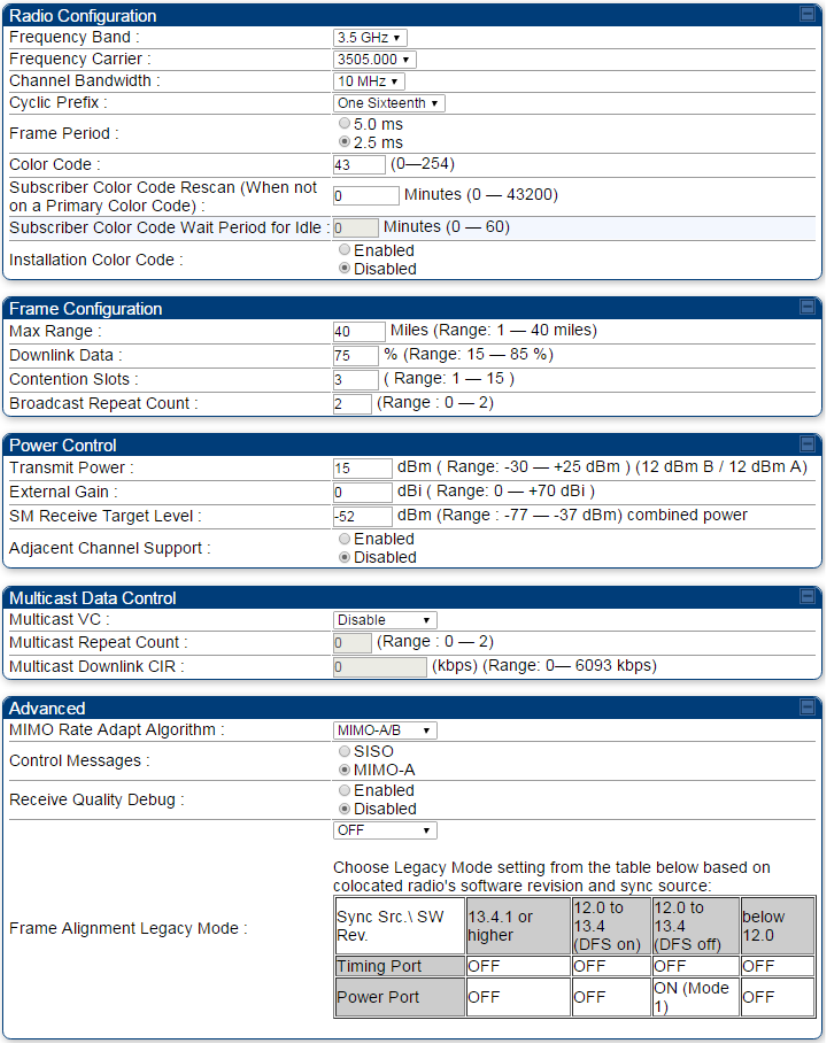

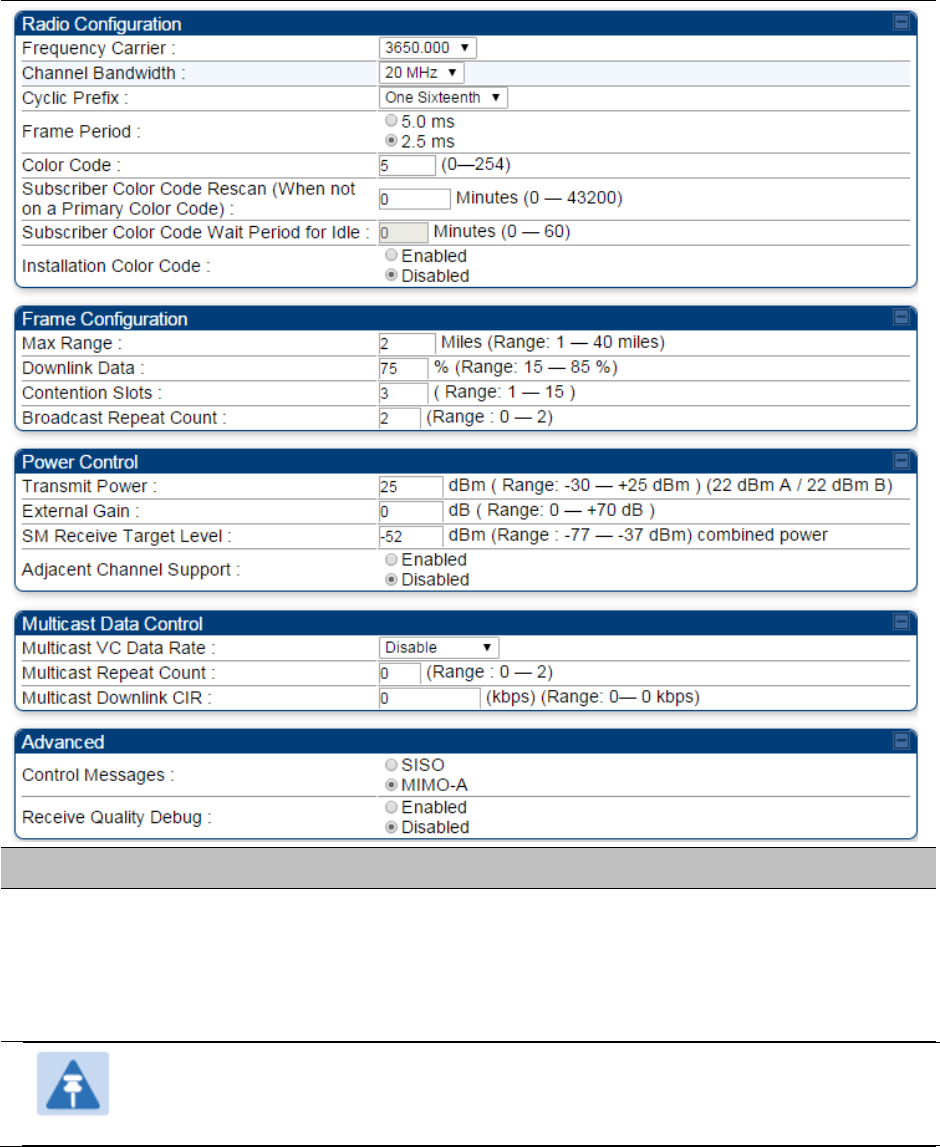

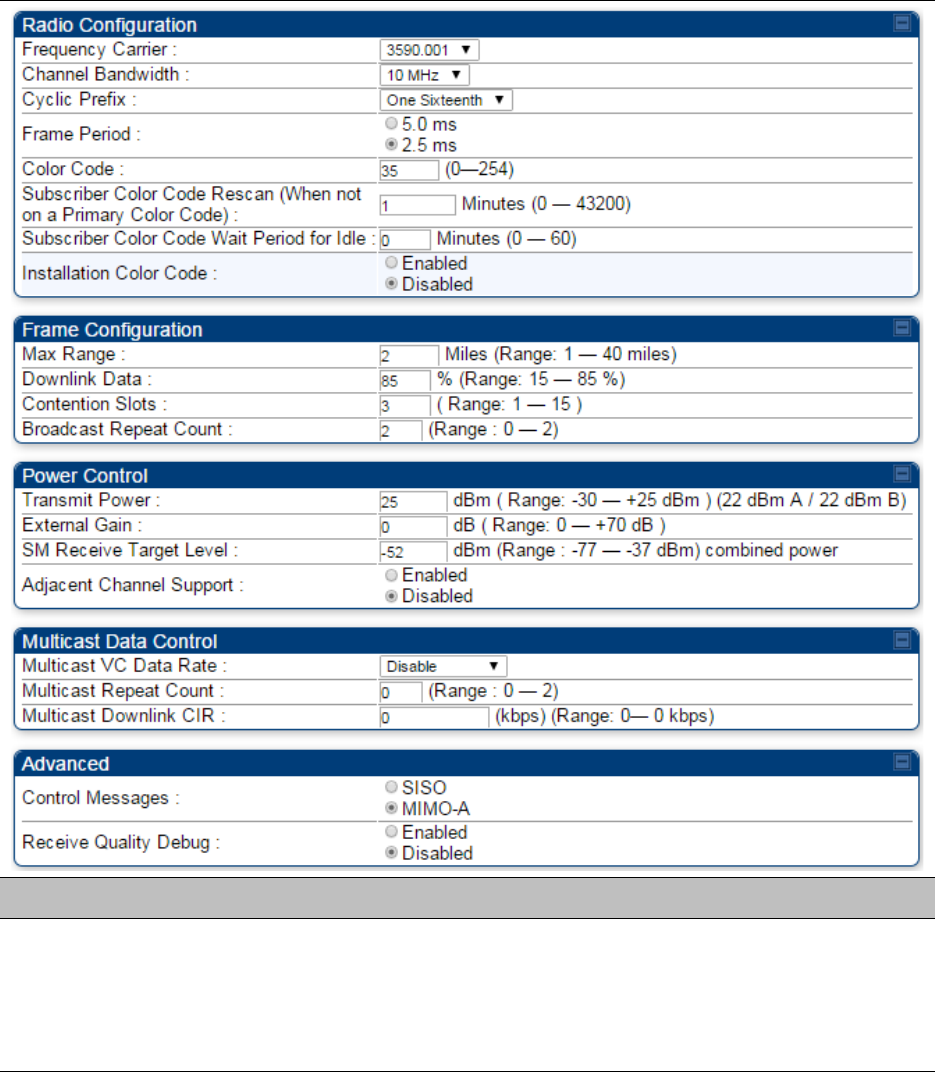

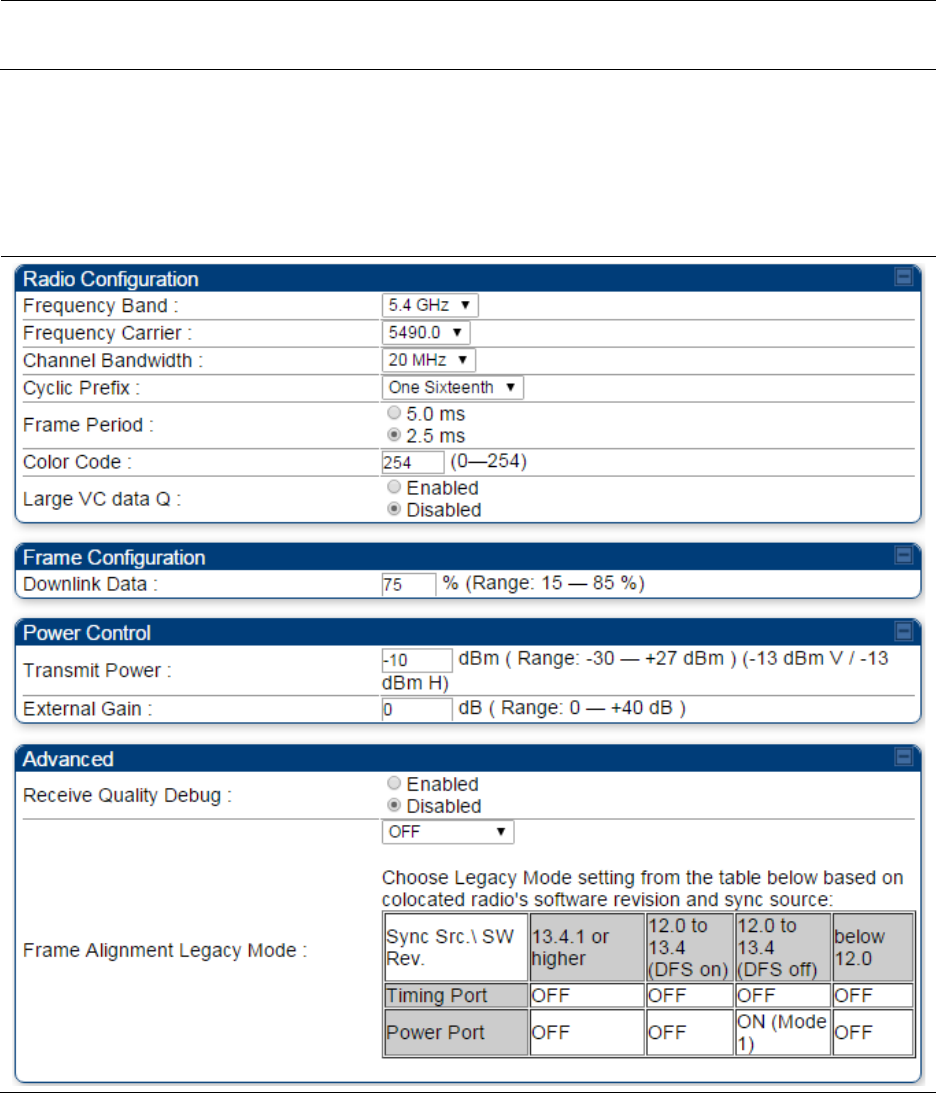

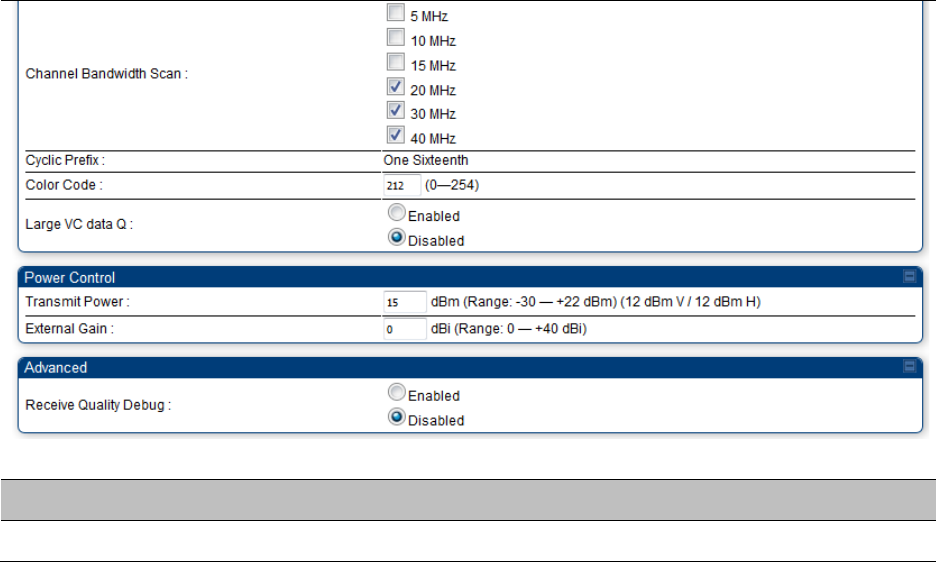

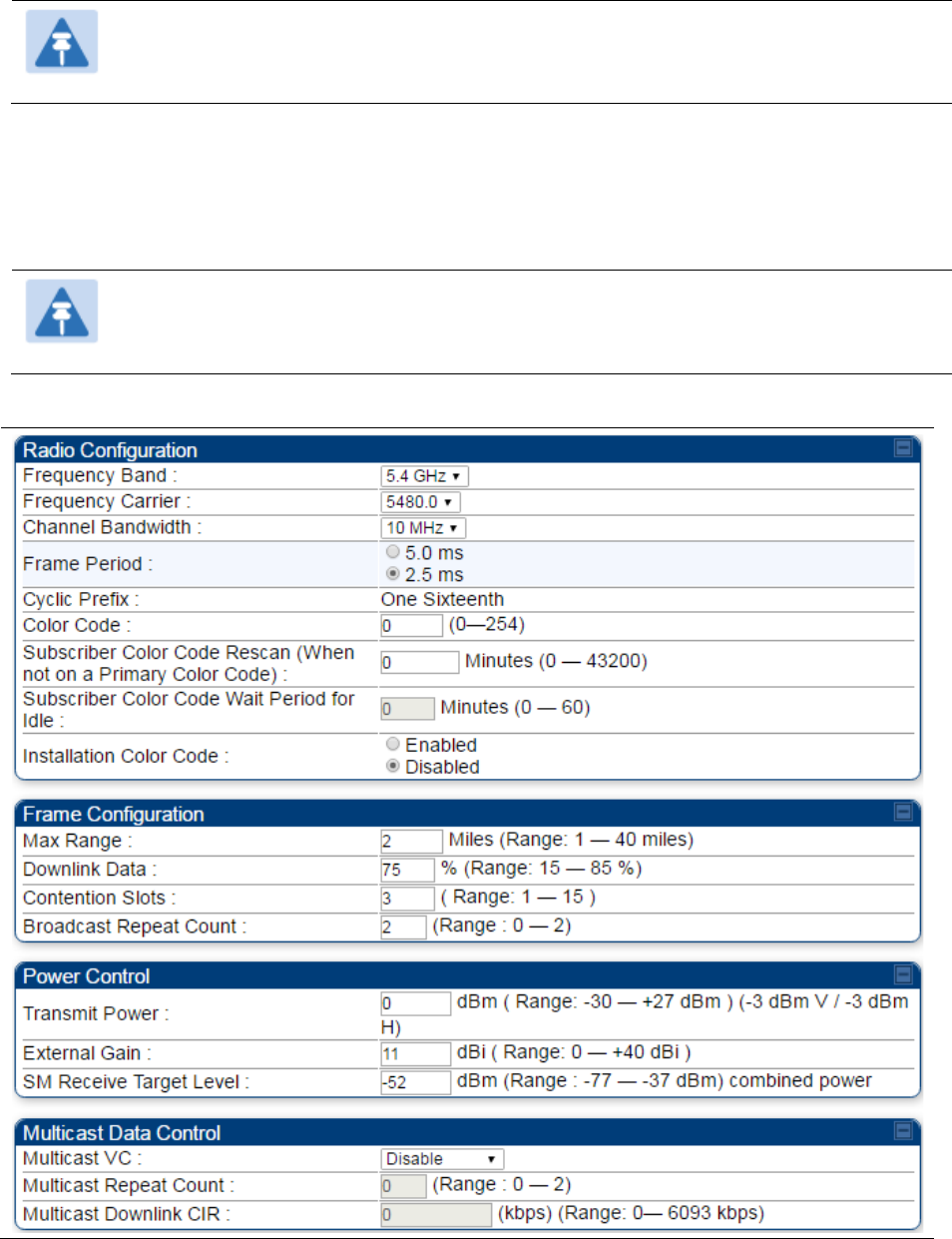

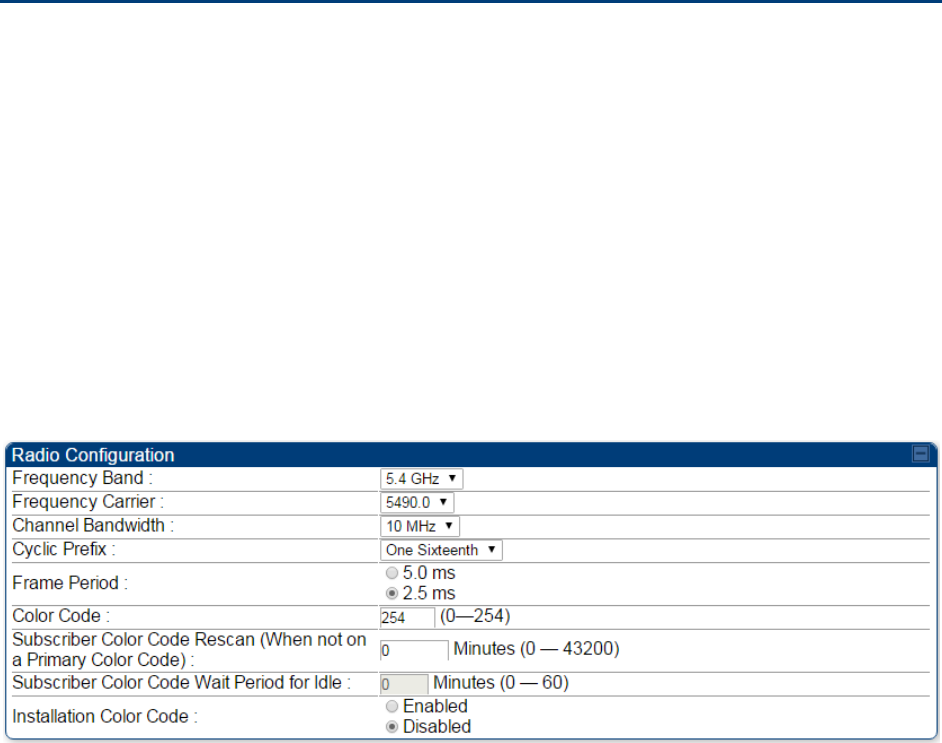

Radio page - PMP 450m AP 5 GHz
The Radio tab of the PMP 450m AP contains some of the configurable parameters that define how
an AP operates.
Note
Only the frequencies available for your region and the selected Channel bandwidth are
displayed.
Table 141 PMP 450m AP Radio attributes - 5 GHz
Chapter 7: Configuration Configuring radio parameters
Page 7-130
Attribute
Meaning
Frequency Band Select the desired operating frequency band.
Frequency Carrier Specify the frequency for the module to transmit. The default for this
parameter is
None
. For a list of channels in the band, see the drop-down
list on the radio GUI.
Channel Bandwidth The channel size used by the radio for RF transmission. The setting for
the channel bandwidth must match between the AP and the SM. The
supported Channel Bandwidths are 5
MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz, and 40 MHz.
Note for PMP 450m:
5 ms frame size is not available in 30 MHz and 40 MHz
channel bandwidths.
Note:
40 MHz is not supported on PMP 450 AP, but is
supported on PMP 450 SMs.
Frame Period Select the Frame Period of the radio. The supported Frame Periods are:
5 ms and 2.5 ms.
Cyclic Prefix OFDM technology uses a cyclic prefix, where a portion of the end of a
symbol (slot) is repeated at the beginning of the symbol to allow multi-
pathing to settle before receiving the desired data. A 1/16 cyclic prefix
means that for every 16 bits of throughput data transmitted, an
additional bit is used.
Color Code
Specify a value from 0 to 254. For registration to occur, the color code of
the SM and the AP must match. Color code is not a security feature.
Instead, color code is a management feature, typically for assigning each
sector a different color code.
Color code allows you to force a SM to register to only a specific AP,
even where the SM can communicate with multiple APs. The default
setting for the color code value is 0. This value matches only the color
code of 0 (not all 255 color codes).
Subscriber Color
Code Rescan (When
not on a Primary
Color Code)
This timer may be utilized to initiate SM rescans in order to register to an
AP configured with the SM‘s primary color code.
The time (in minutes) for a subscriber to rescan (if this AP is not
configured with the SM‘s primary color code). This timer will only fire
once – if the
Subscriber Color Code Wait Period for Idle
timer is
configured with a nonzero value and the
Subscriber Color Code Rescan
expires, the
Subscriber Color Code Wait Period for Idle
is started. If the
Subscriber Color Code Wait Period for Idle
timer is configured with a
zero value and the
Subscriber Color Code Rescan
timer expires, the SM
will immediately go into rescan mode
Chapter 7: Configuration Configuring radio parameters
Page 7-131
Subscriber Color
Code Wait Period for
Idle
The time (in minutes) for a subscriber to rescan while idle (if this AP is
not configured with the SM’s primary color code). This timer will fire
periodic events. The fired event determines if any RF unicast traffic
(either inbound or outbound) has occurred since the last event. If the
results of the event determine that no RF unicast traffic has occurred
(SM is idle), then the subscriber will rescan.
Installation Color
Code
With this feature enabled on the AP and SM, operators may install and
remotely configure SMs without having to configure matching color
codes between the modules. While the SM is accessible for
configuration from above the AP (for remote provisioning) and below
the SM (for local site provisioning), no user data is passed over the radio
link. When using the Installation Color Code feature, ensure that the SM
is configured with the factory default Color Code configuration (Color
Code 1 is “0”, Color Code 2-10 set to “0” and “Disable”). The status of
the Installation Color Code can be viewed on the AP Eval web GUI page,
and when the SM is registered using the Installation Color Code the
message “SM is registered via ICC – Bridging Disabled!” is displayed in
red on every SM GUI page. The Installation Color Code parameter is
configurable without a radio reboot for both the AP and SM. If a SM is
registered via Installation Color Code and the feature is then disabled,
operators will need to reboot the SM or force it to reregister (i.e. using
Rescan APs functionality on the AP Eval page).
Max Range
Enter a number of miles (or kilometers divided by 1.61, then rounded to
an integer) for the furthest distance from which a SM is allowed to
register to this AP. Do not set the distance to any greater number of
miles. A greater distance
• does not increase the power of transmission from the AP.
• can reduce aggregate throughput.
For example, with a 20 MHz channel and 2.5 ms frame, every additional
2.24 miles reduces the data air time by one symbol (around 1% of the
frame).
Regardless of this distance, the SM must meet the minimum
requirements for an acceptable link. The parameters have to be selected
so that there is no overlap between one AP transmitting and another AP
receiving. A co-location tool is provided to help with selecting sets of
parameters that allow co-location.
The default value of this parameter is 2 miles (3.2 km).
Downlink Data
Specify the percentage of the aggregate throughput for the downlink
(frames transmitted from the AP to the subscriber). For example, if the
aggregate (uplink and downlink total) throughput on the AP is 90 Mb,
then 75% specified for this parameter allocates 67.5 Mb for the downlink
and 22.5 Mb for the uplink. The default for this parameter is 75%. This
parameter must be set in the range of 15% - 85%, otherwise the invalid
input will not be accepted and the previously-entered valid setting is
used.
Chapter 7: Configuration Configuring radio parameters
Page 7-132
Note
In order to prevent self-interference, the frame configuration
needs to align which includes Downlink Data, Max Range
and Contention slots. For DFS regions, the maximum
Downlink % for a 5.4 GHz radio is 75% only.
Contention Slots
(a.k.a. Control Slots)
This field indicates the number of (reserved) Contention slots configured
by the operator. The SM uses reserved Contention slots and unused data
slots for bandwidth requests. See Contention slots on page 7-178.
Broadcast Repeat
Count
For PMP systems broadcast packets are not acknowledged. So they are
sent at the lowest modulation rate 1X. This setting adds an automatic
retransmission to broadcast packets to give SMs that have poor signal a
higher chance to get the packet.
EIRP This field indicates the combined power level at which the AP will
transmit, based on the Country Code. It also includes the antenna gain
and array gain.
SM Receive Target
Level
Each SM’s Transmitter Output Power is automatically set by the AP. The
AP monitors the received power from each SM, and adjusts each SM’s
Transmitter Output Power so that the received power at the AP from that
SM is not greater what is set in this field. This value represents the
transmitted and received power (combined power) perceived on the SM.

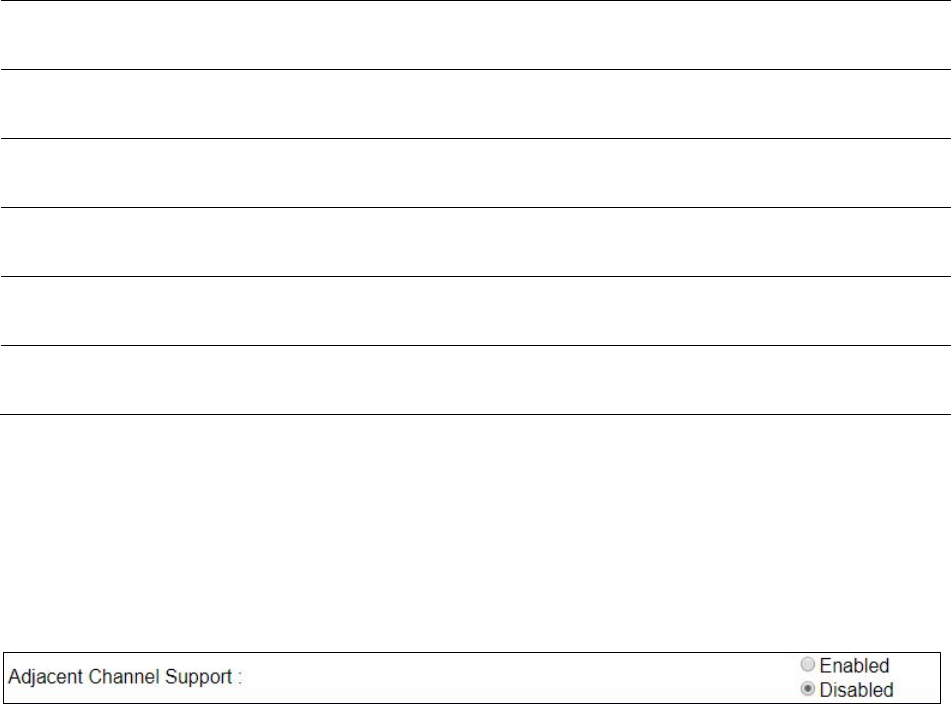

Adjacent Channel
Support
For some frequency bands and products, this setting is needed if AP is
operating on adjacent channels with zero guard band.
Receive Quality
Debug To aid in link performance monitoring, the AP and SM now report the
number of fragments received per modulation (i.e. QPSK, 16-QAM, 64-
QAM and 256-QAM) and per channel (polarization).
Note
Due to CPU load, this will slightly degrade packet per second
processing.
Near Field Operation This parameter is enabled by the Near Field Operation control. This is
only available when the EIRP is set to 22 dBm or below.
When Near Field Operation is enabled, the Near Field Range is used to
apply compensation to the unit’s calibration to support operation in the
near field.
PMP 430 SM
Registration
This field allows to control PMP 430 SMs. It allows to configure whether
PMP 430 SMs are registered to AP or not. By default, it is enabled and
PMP 430 SM registrations are accepted.
When this field is set to disabled, PMP 430 SM’s registrations fail with
reject reason 8. This will cause SMs to lock out the AP for 15 minutes.
Note
This option is not displayed if the Frame Period is set to
5 ms.
Chapter 7: Configuration Configuring radio parameters
Page 7-133
PMP 450/430 Legacy
Mode
This setting allows the AP to communicate with SMs on Legacy versions
of software (450 SM earlier than 13.2, 430 SM earlier than 13.4.1). This is
not recommended to be left enabled as it degrades performance. SMs
should then be upgraded to the same version as the AP.
Receive Quality
Debug
To aid in link performance monitoring, the AP and SM now report the
number of fragments received per modulation (i.e. QPSK, 16-QAM, 64-
QAM) and per channel (polarization).
Note
Due to CPU load, this will slightly degrade packet per second
processing.
Chapter 7: Configuration Configuring radio parameters
Page 7-135
Note

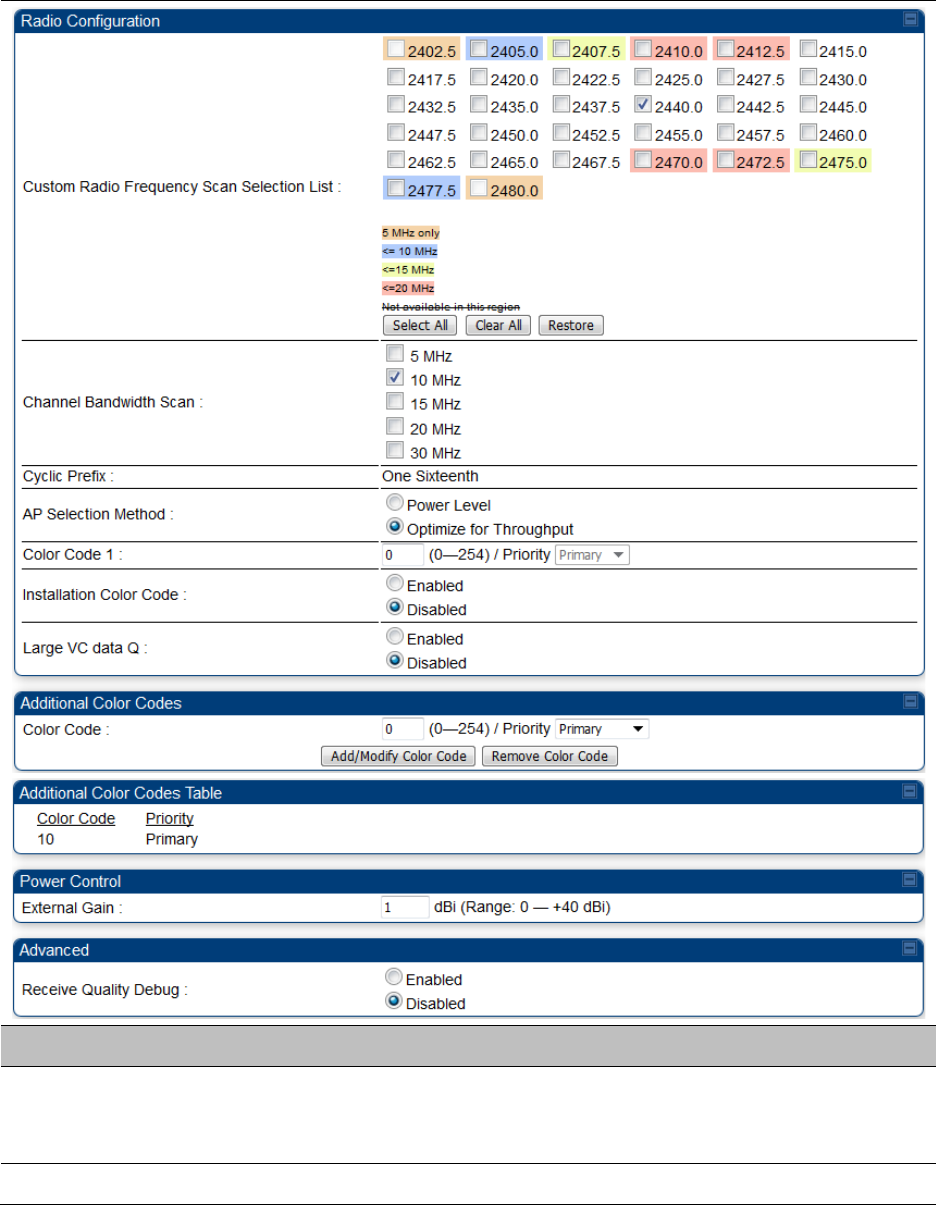

Refer Table 143 PMP 450i SM Radio attributes – 5 GHz on page 7-141 for parameter
details

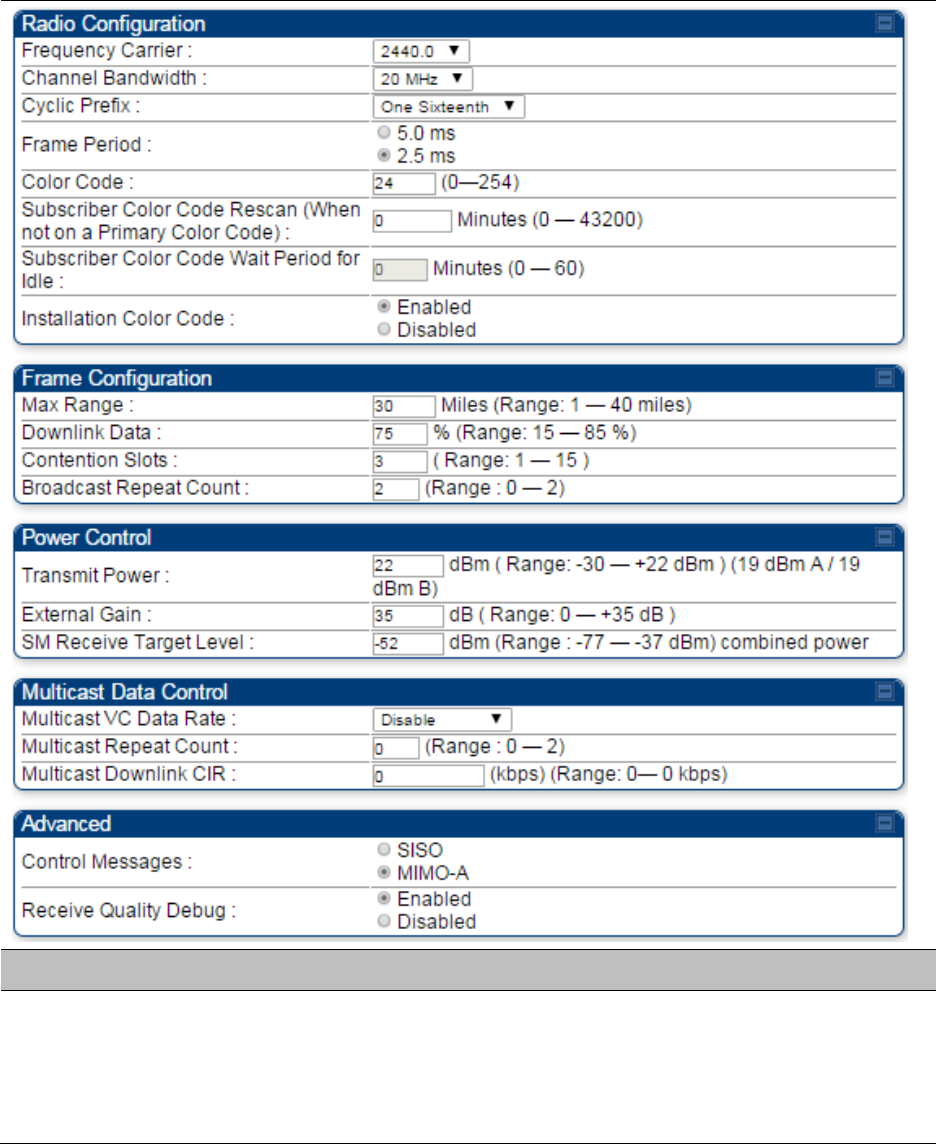

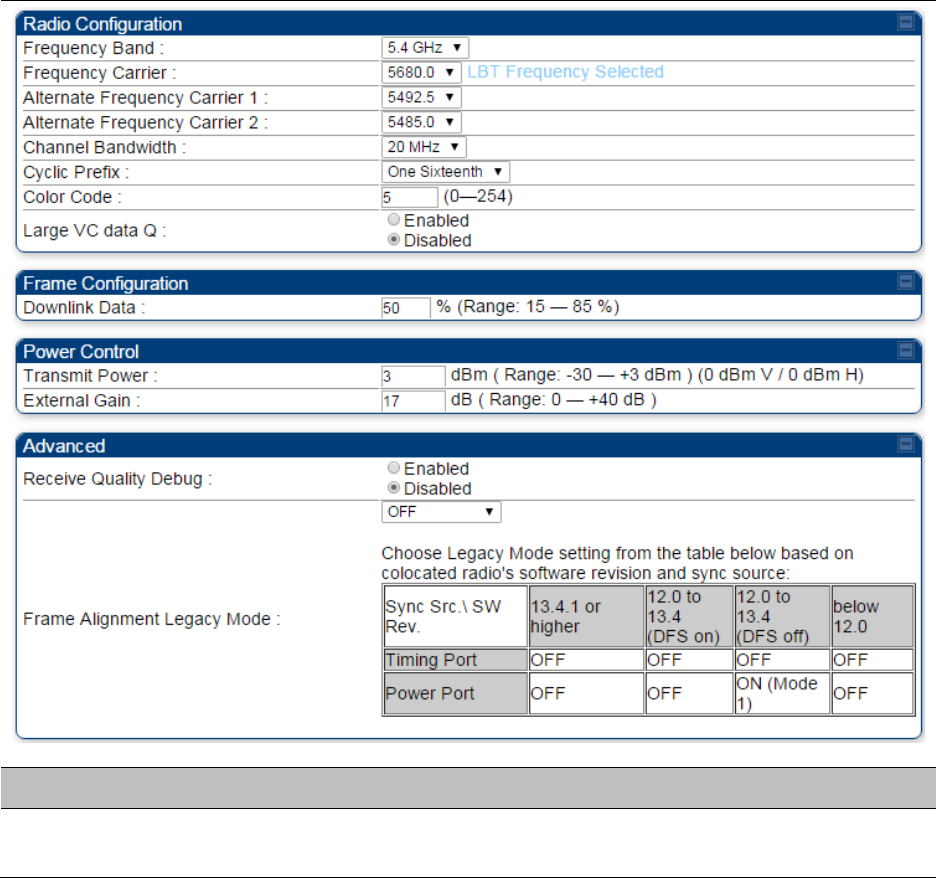

Radio page - PMP 450i AP 5 GHz
The Radio tab of the PMP 450i AP contains some of the configurable parameters that define how
an AP operates.
Note
Only the frequencies available for your region and the selected Channel bandwidth are
displayed.
Table 142 PMP 450i AP Radio attributes - 5 GHz
Chapter 7: Configuration Configuring radio parameters
Page 7-136
Attribute
Meaning
Frequency Band See Table 141 PMP 450m AP Radio attributes - 5 GHz on page 7-129
Frequency Carrier
Alternate Frequency
Carrier 1 and 2
These parameters are displayed based on Regional Settings. Refer
Country on page 7-72
Channel Bandwidth
See Table 141 PMP 450m AP Radio attributes - 5 GHz on page 7-129
Cyclic Prefix
Frame Period
Color Code
Subscriber Color
Code Rescan (When
not on a Primary
Color Code)
Subscriber Color
Code Wait Period for
Idle
Installation Color
Code
Max Range
Downlink Data See Table 141 PMP 450m AP Radio attributes - 5 GHz on page 7-129
Chapter 7: Configuration Configuring radio parameters
Page 7-137
Contention Slots
(a.k.a. Control Slots)
This field indicates the number of (reserved) Contention slots configured
by the operator. The SM uses reserved Contention slots and unused data
slots for bandwidth requests. See Contention slots on page7-178.
Broadcast Repeat
Count
The default is 2 repeats (in addition to the original broadcast packet, for
a total of 3 packets sent for every one needed), and is settable to 1 or 0
repeats (2 or 1 packets for every broadcast).
ARQ (Automatic Repeat reQuest) is not present in downlink broadcast
packets, since it can cause unnecessary uplink traffic from every SM for
each broadcast packet. For successful transport without ARQ, the AP
repeats downlink broadcast packets. The SMs filter out all repeated
broadcast packets and, thus, do not transport further.
The default of 2 repeats is optimum for typical uses of the network as an
internet access system. In applications with heavy download broadcast
such as video distribution, overall throughput is significantly improved
by setting the repeat count to 1 or 0. This avoids flooding the downlink
with repeat broadcast packets.
Transmitter Output
Power
This value represents the combined power of the AP’s two transmitters.
Nations and regions may regulate transmitter output power. For
example
• 900 MHz, 5.4 GHz and 5.8 GHz modules are available as
connectorized radios, which require the operator to adjust power to
ensure regulatory compliance.
The professional installer of the equipment has the responsibility to
• maintain awareness of applicable regulations.
• calculate the permissible transmitter output power for the module.
• confirm that the initial power setting is compliant with national or
regional regulations.
• confirm that the power setting is compliant following any reset of
the module to factory defaults.
External Gain This value needs to correspond to the published gain of the antenna
used to ensure the radio will meet regulatory requirements.
SM Receive Target
Level See Table 141 PMP 450m AP Radio attributes - 5 GHz on page 7-129
Multicast VC Data
Rate
This pull down menu of the Multicast Data Control screen helps in
configuring multicast packets to be transmitted over a dedicated channel
at a configurable rate of 1X, 2X, 4X or 6X. The default value is “Disable”.
If set to the default value, all multicast packets are transmitted over the
Broadcast VC data path. This feature is available only for the PMP 450
Series and is not backward compatible with PMP 430 series of radios.
Chapter 7: Configuration Configuring radio parameters
Page 7-138
Multicast Repeat
Count
This value is the number of packets that are repeated for every multicast
VC packet received on the AP (located under
Radio
tab of
Configuration
).
Multicast (like Broadcast) packets go over a VC that is shared by all SMs,
so there is no guaranteed delivery. The repeat count is an attempt to
improve the odds of the packets getting over the link. If the user has
issues with packets getting dropped, they can use this parameter to
improve the performance at the cost of the overall throughput possible
on that channel. The default value is 0.
Multicast Downlink
CIR
This value is the committed information rate for the multicast downlink
VC (located under the
Radio
tab of
Configuration
). The default value is 0
kbps. The range of this parameter is based on the number of repeat
counts. The higher the repeat count, the lower the range for the
multicast downlink CIR.

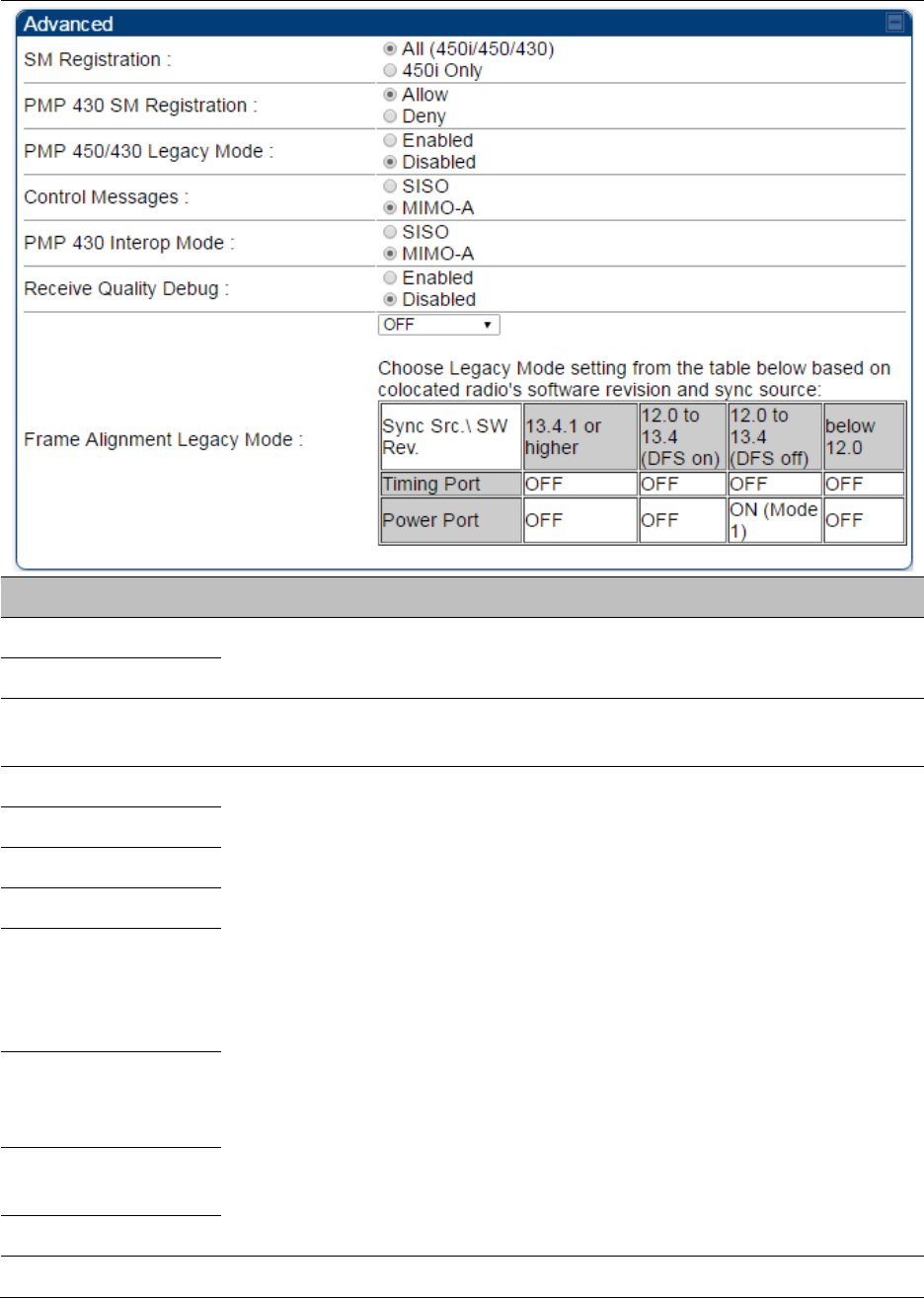

SM Registration All This field allows to control registration of all type 450 Platform Family
SM including 430 Series SM(450i/450/430) or 450i Series SM only.
PMP 430 SM
Registration
This field allows to control PMP 430 SMs. It allows to configure whether
PMP 430 SMs are registered to AP or not. By default, it is enabled and
PMP 430 SM registrations are accepted.
When this field is set to disabled, PMP 430 SM’s registrations fail with
reject reason 8. This will cause SMs to lock out the AP for 15 minutes.
Note
This option is not displayed if the Frame Period is set to
5 ms. This option applies only to PMP 450/450i/450m
Series APs - 5 GHz.
Control Message Controls whether the control messages are sent in MIMO-B or MIMO-A
mode. MIMO-A is recommended. However, if an AP on 13.2 is
attempting to connect to an SM on 13.1.3 or before, changing to MIMO-
B may aid in getting the SM registered.
PMP 450/430 Legacy
mode
See Table 141 PMP 450m AP Radio attributes - 5 GHz on page 7-129
PMP 430 Interop
Mode
For n-1 compatibility, In SISO mode this forces the AP to only send
Control and Beacons over one of the RF paths.
Receive Quality
Debug
To aid in link performance monitoring, the AP and SM now report the
number of fragments received per modulation (i.e. QPSK, 16-QAM, 64-
QAM) and per channel (polarization).
Note
Due to CPU load, this will slightly degrade packet per second
processing.
Frame Alignment
Legacy Mode
Mode
Behavior (non-900 MHz
radios)
Behavior (FSK 900 MHz
radios)
Chapter 7: Configuration Configuring radio parameters
Page 7-139
OFF
By default frame start is
aligned with devices
with Timing Port
synchronization
If the synchronization
source changes (due to
Autosync or otherwise)
the radio will
dynamically adjust its
frame start to maintain
alignment with the
default frame start
timing
By default frame start is
aligned with FSK 900
MHz devices with
Timing Port
synchronization
If the synchronization
source changes (due to
Autosync or otherwise)
the radio will
dynamically adjust its
frame start to maintain
alignment with the
default frame start
timing
ON
(Mode 1)
The radio will align with
devices running
software versions from
12.0 to 13.4.
The radio will align with
FSK 900 MHz devices
running software
versions from 12.0 to
13.4.
ON
(Mode 2) N/A
The radio will align with
FSK 900 MHz devices
with software versions
11.2 or older.
Chapter 7: Configuration Configuring radio parameters
Page 7-140

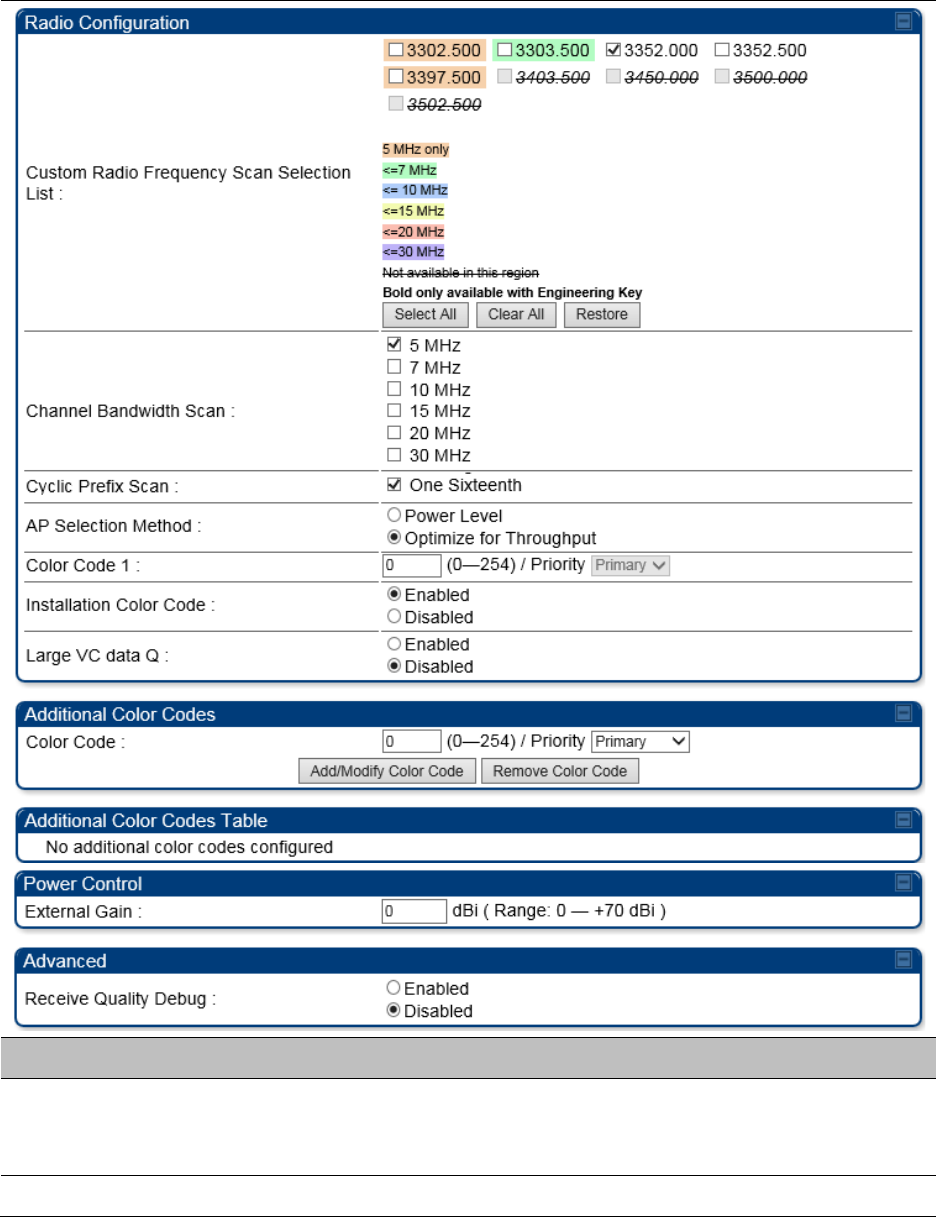

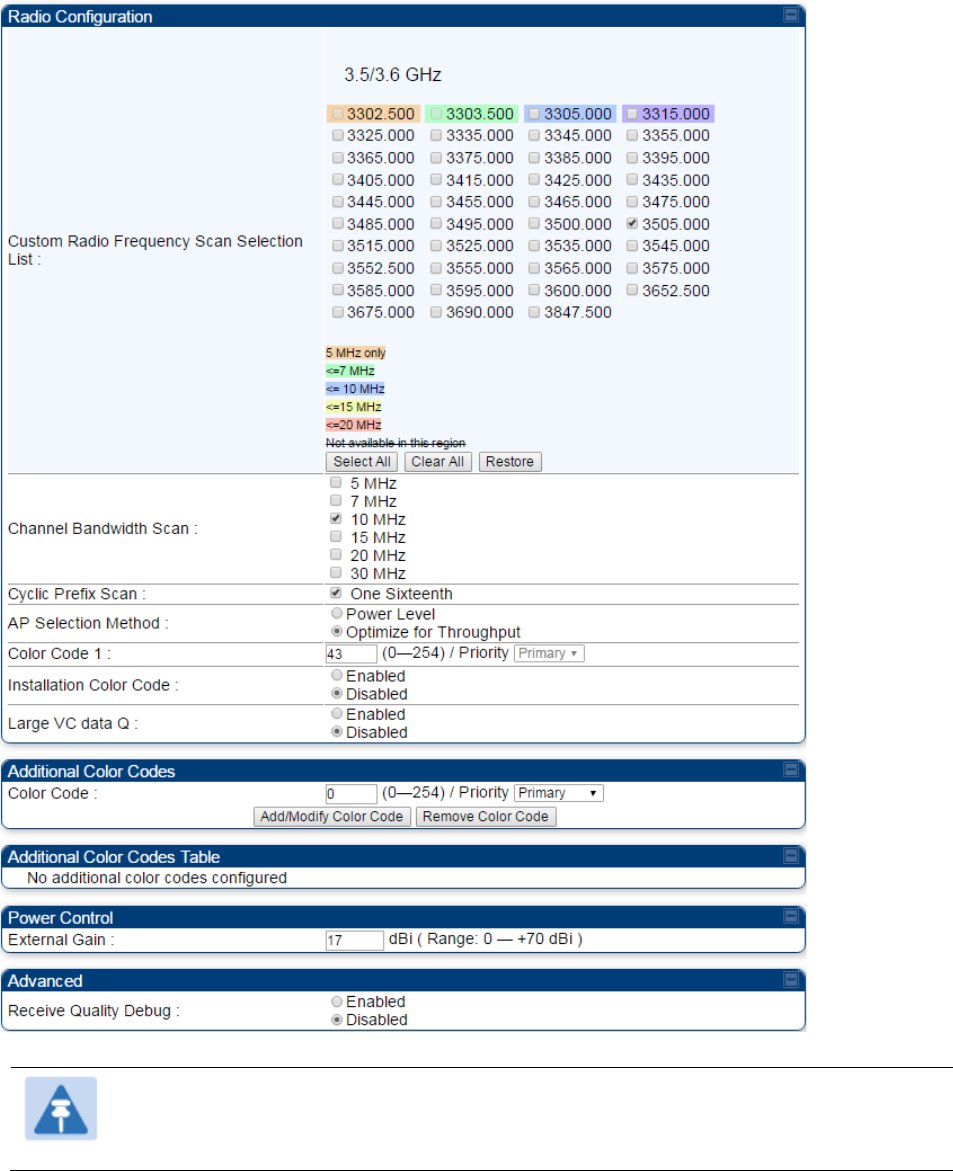

Radio page - PMP 450i SM 3 GHz

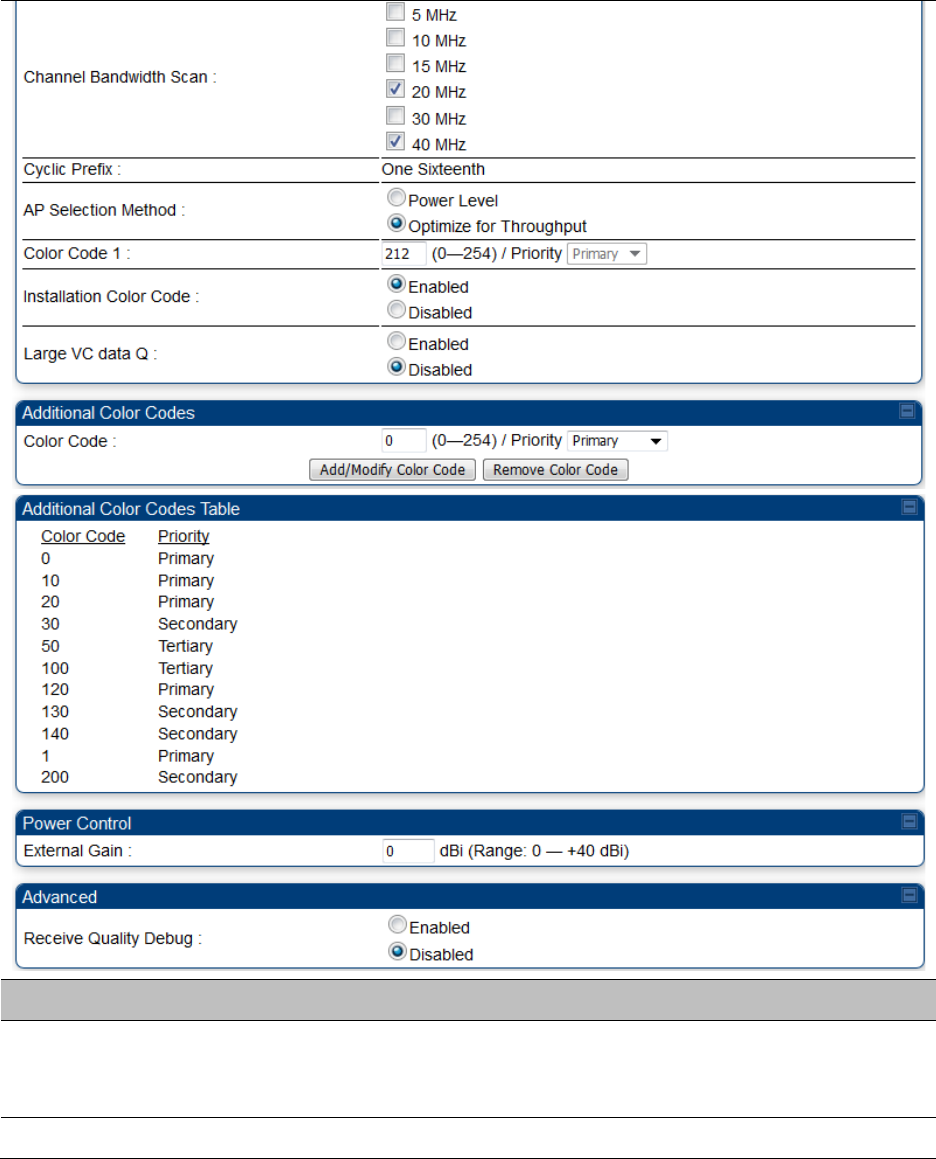

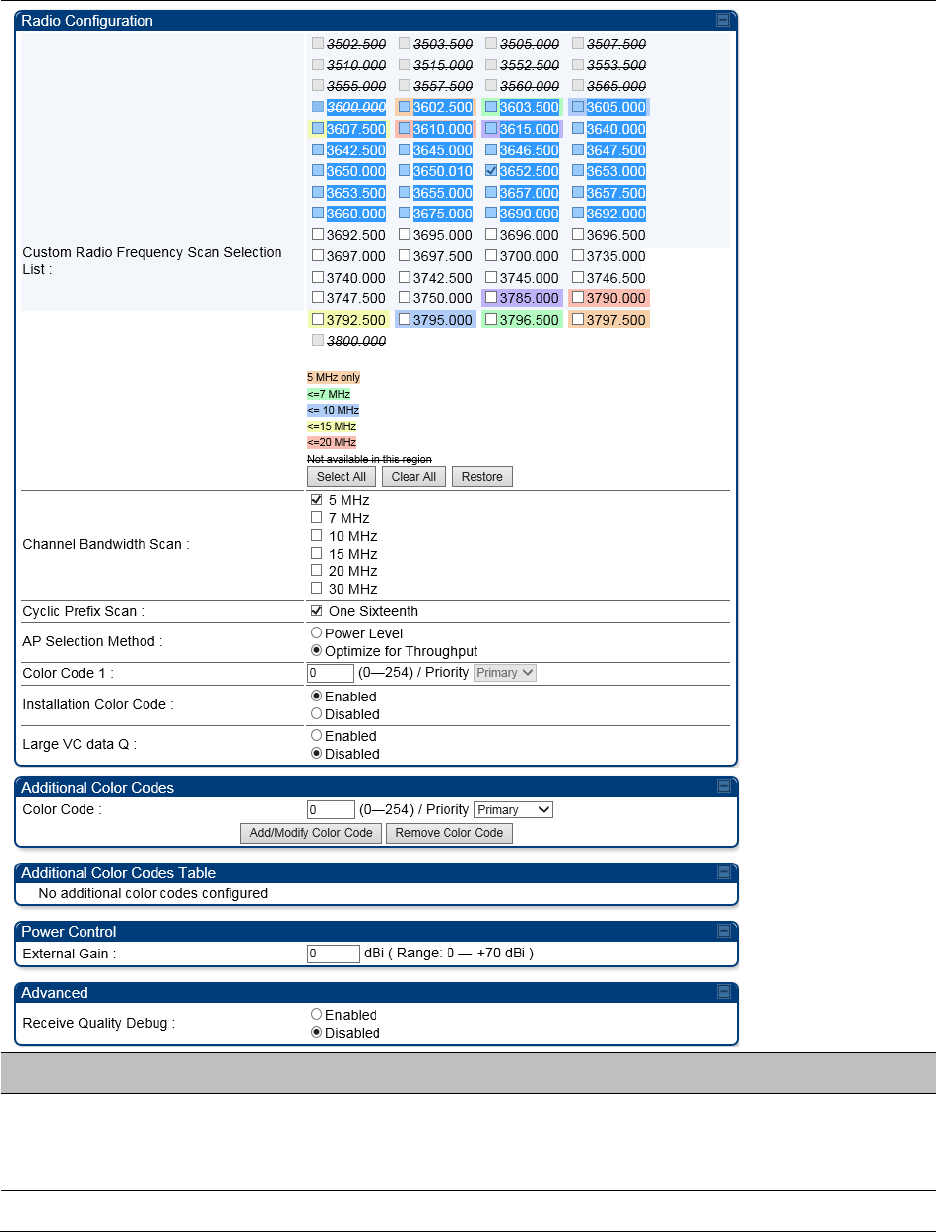

The Radio tab of the PMP 450i SM 3 GHz is shown in Figure 146.
Figure 146 PMP 450i SM Radio attributes - 3 GHz
Note
Refer Table 143 PMP 450i SM Radio attributes – 5 GHz on page 7-141 for parameter
details
Chapter 7: Configuration Configuring radio parameters
Page 7-142
Chapter 7: Configuration Configuring radio parameters
Page 7-143

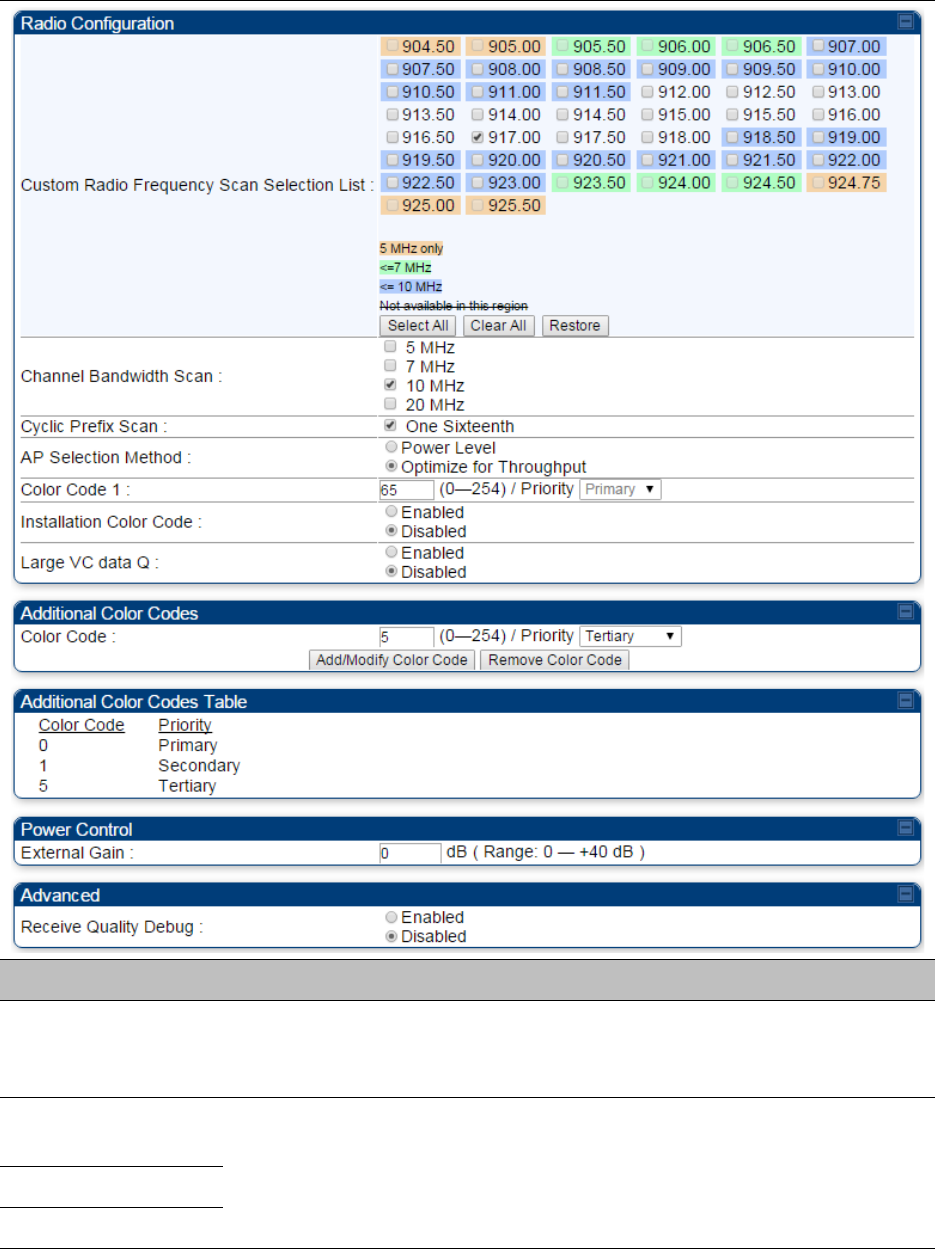

Attribute
Meaning

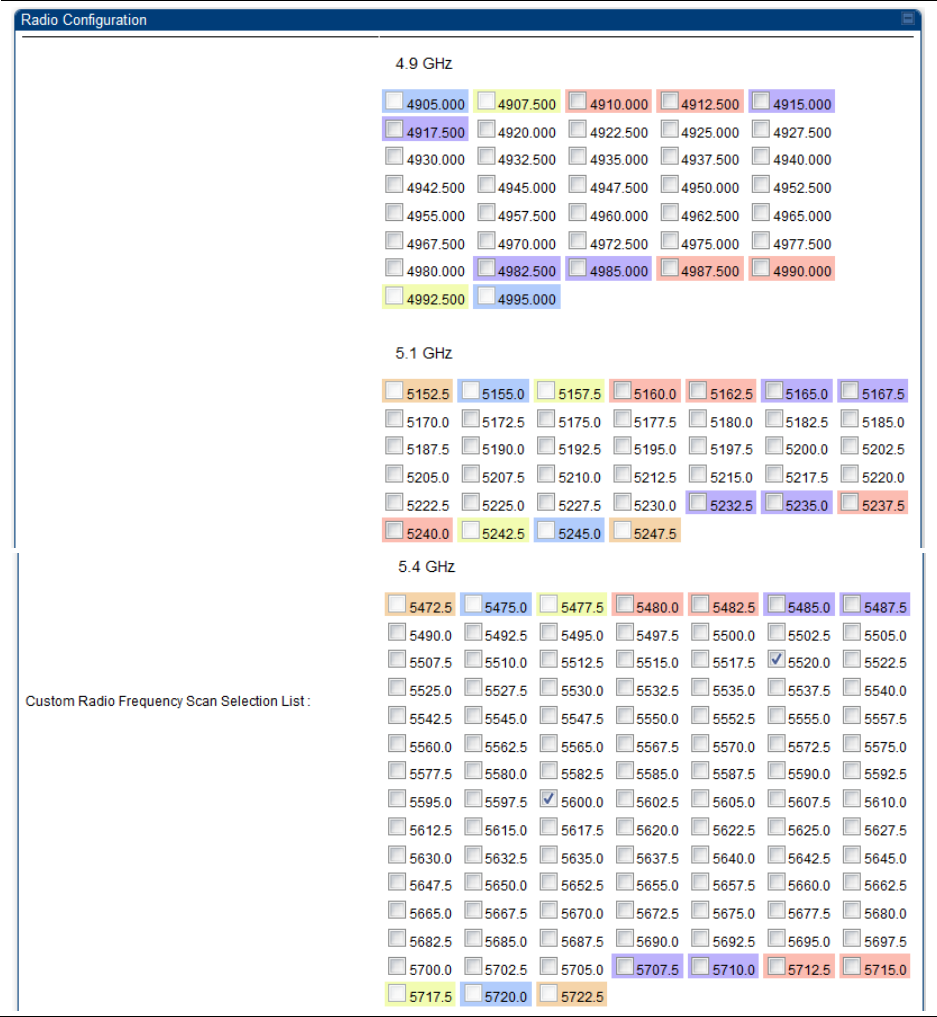

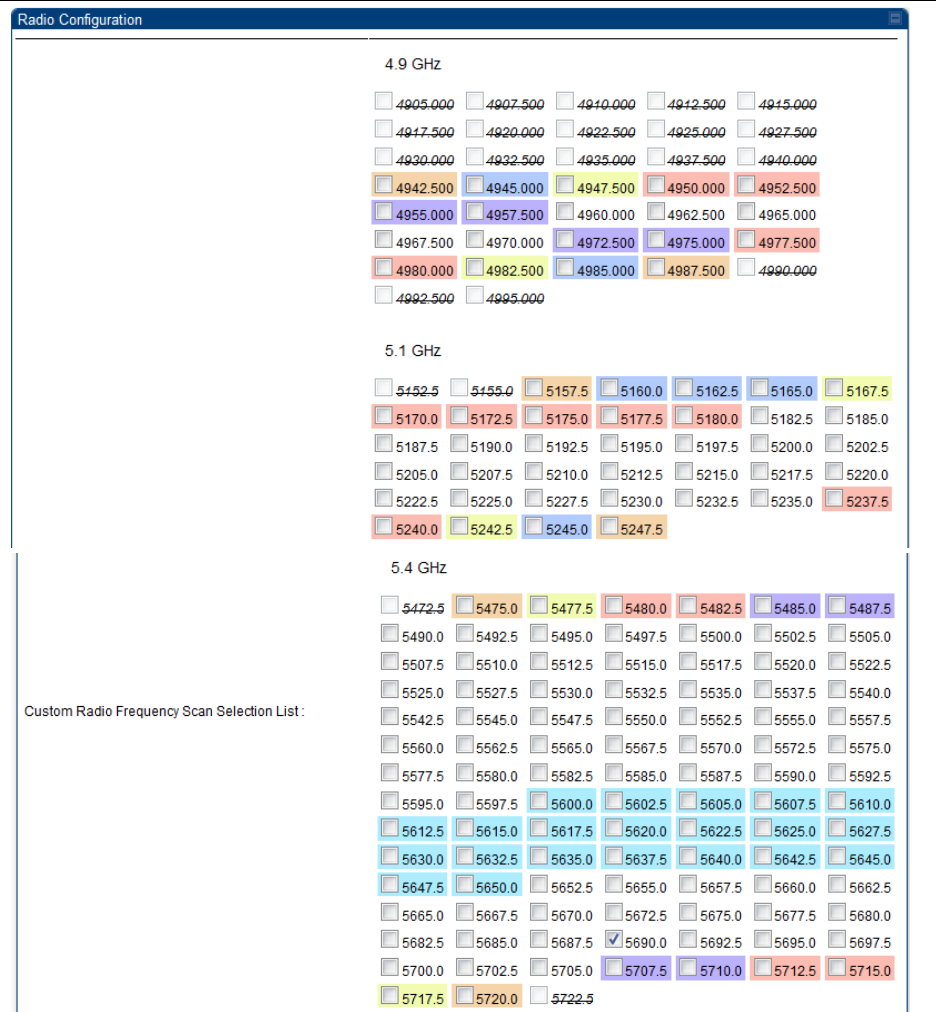

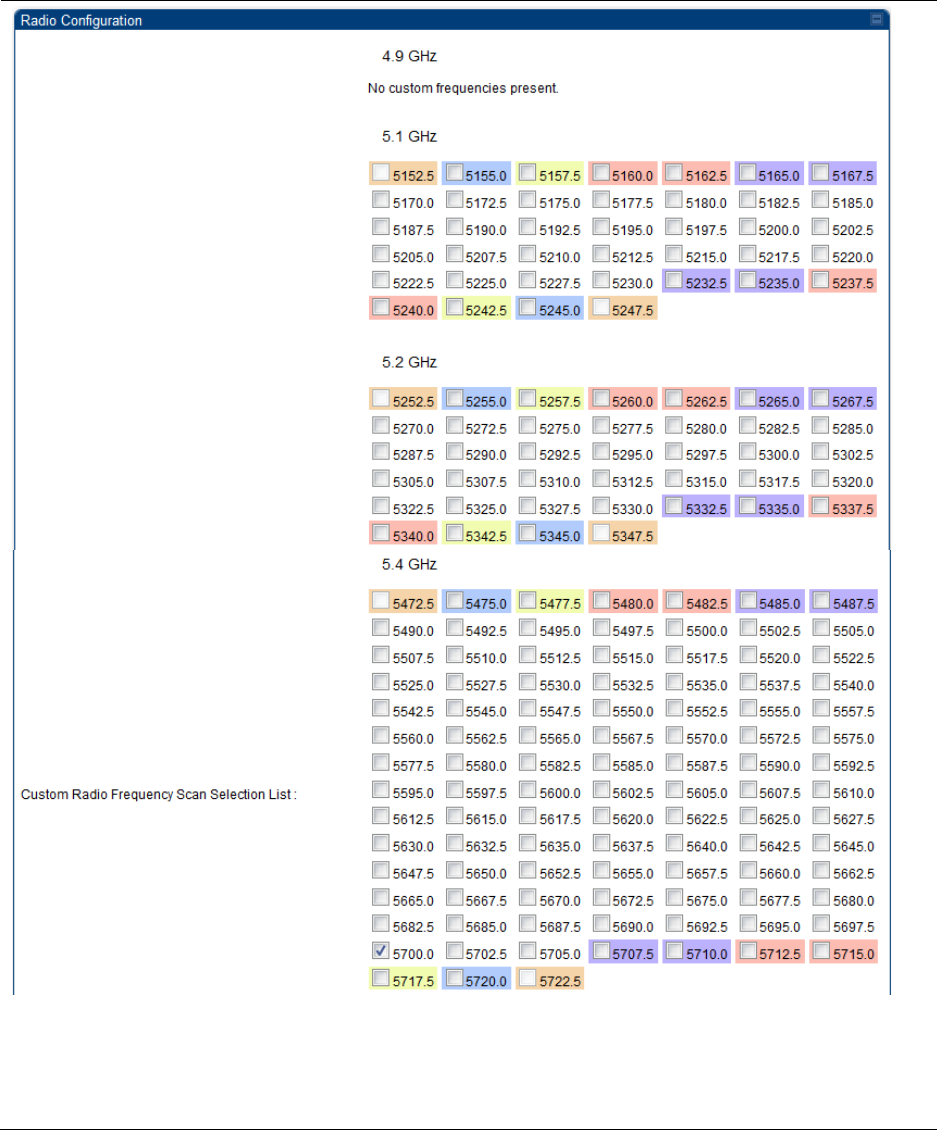

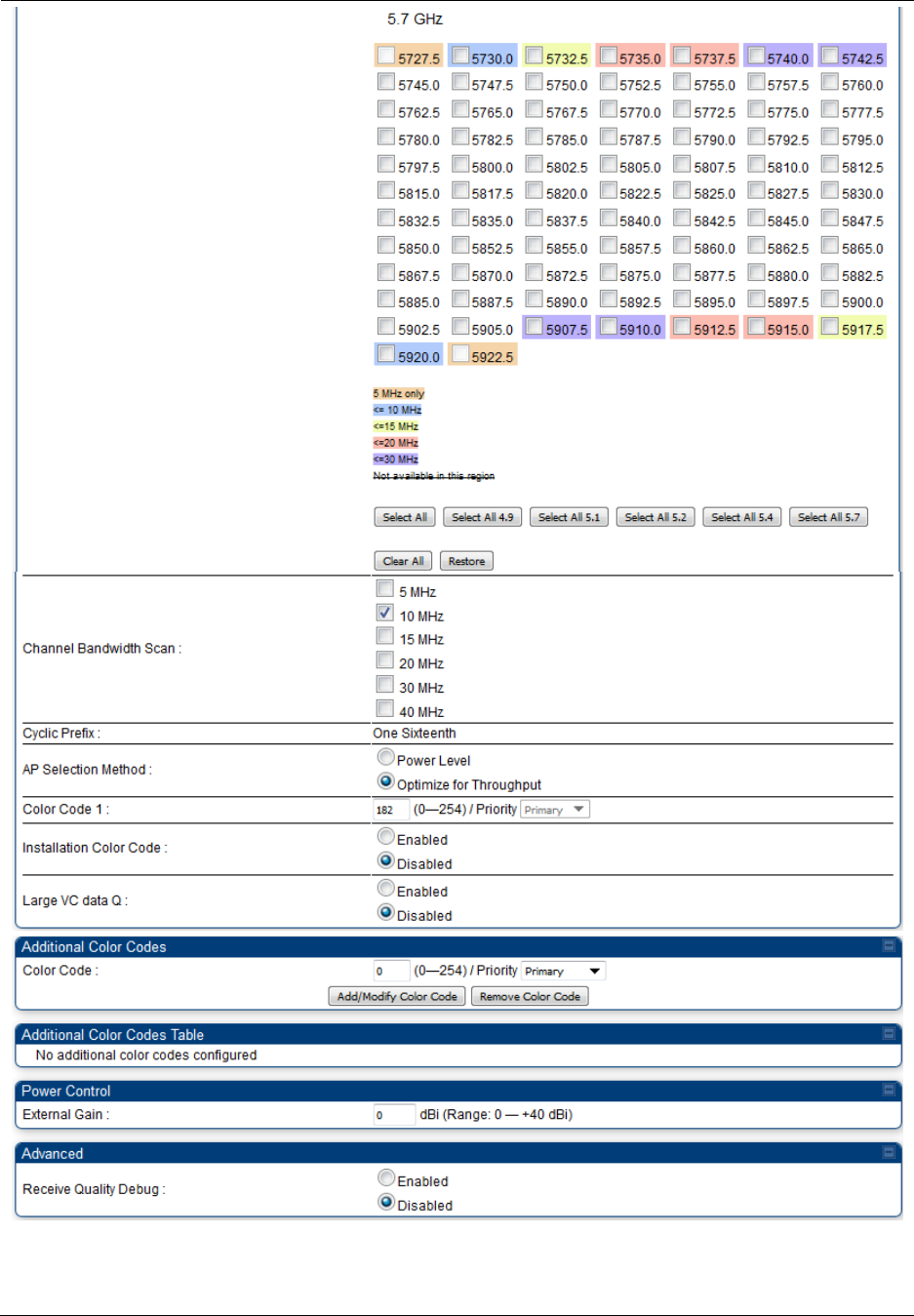

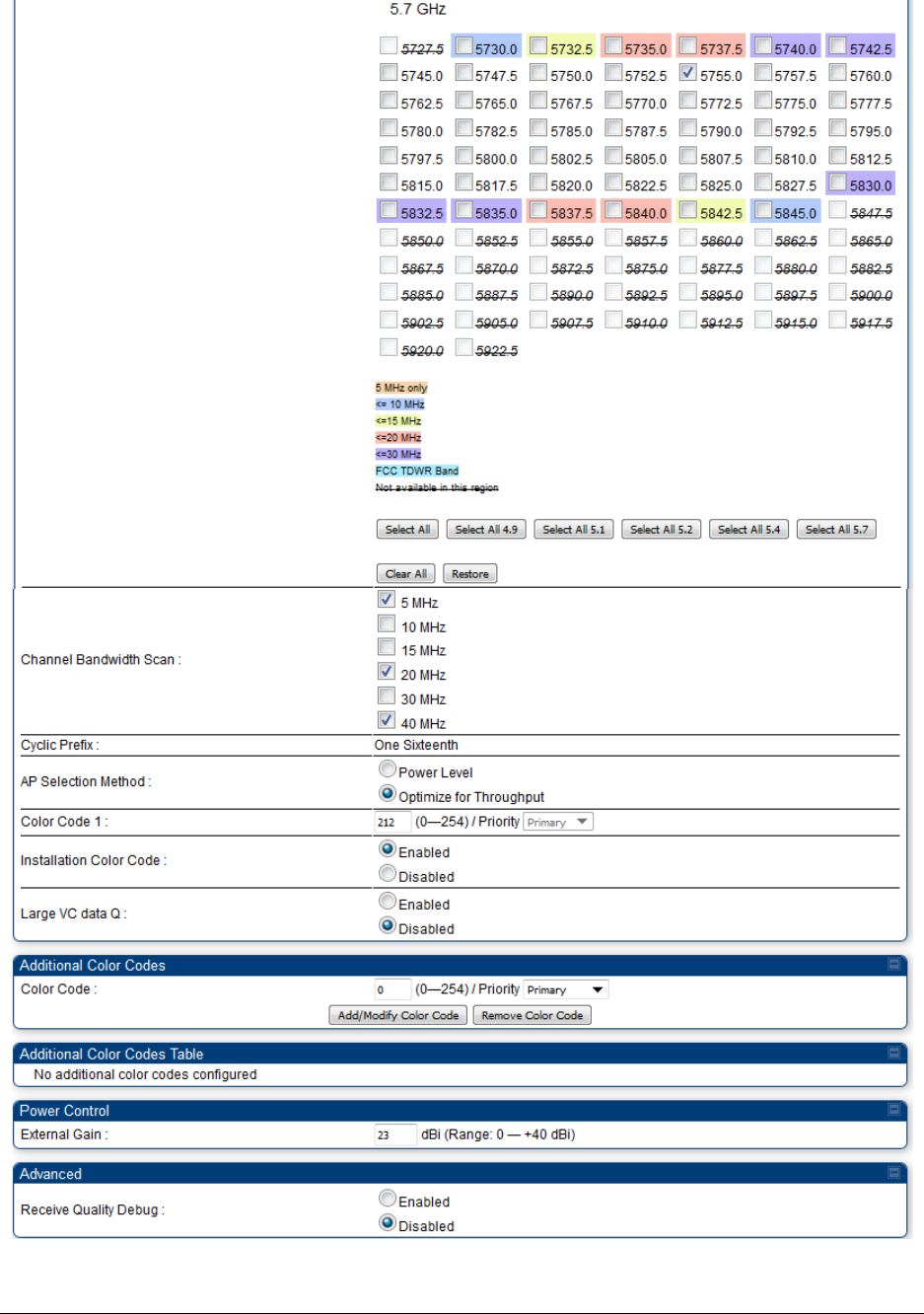

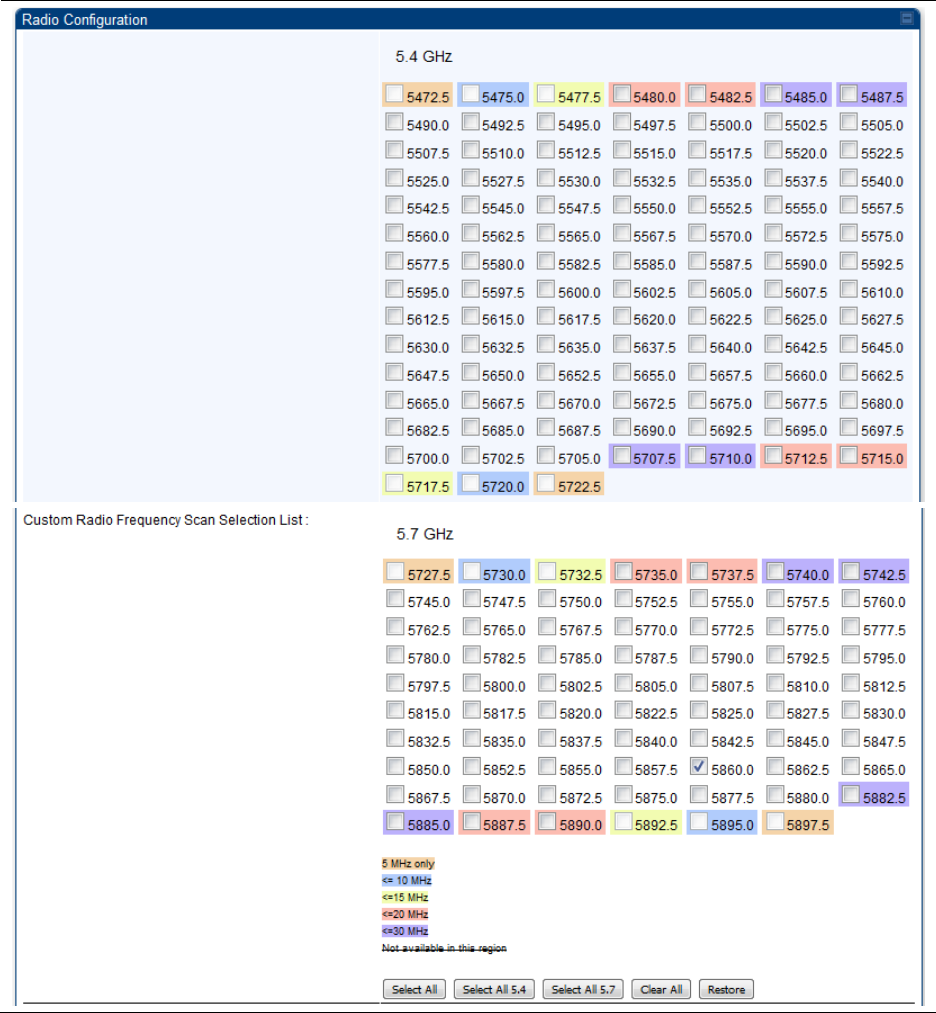

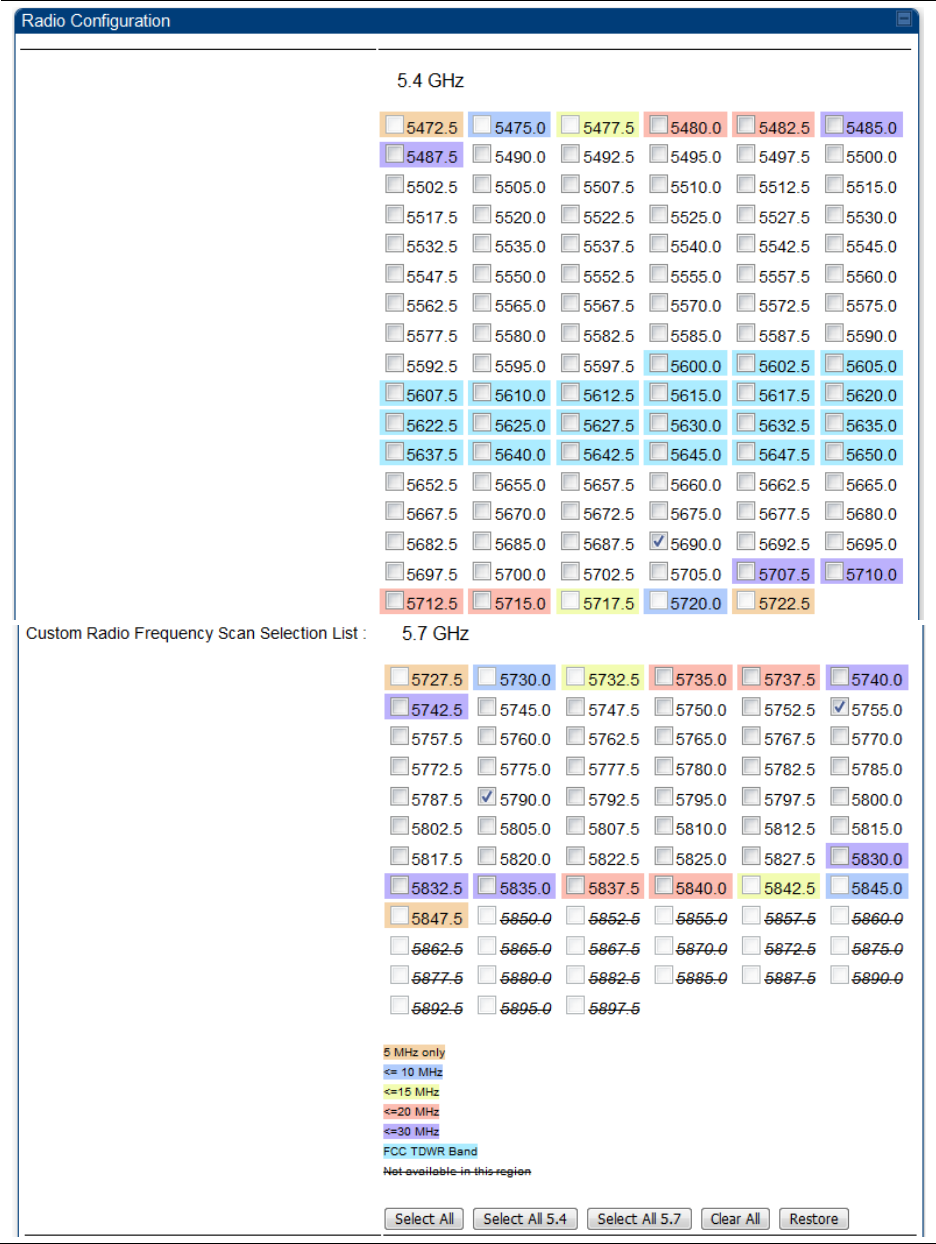

Custom Radio
Frequency Scan
Selection List
Check the frequencies that SM has to scan for AP transmissions. See
Radio Frequency Scan Selection List on page 7-171.
Channel Bandwidth
Scan
The channel size used by the radio for RF transmission.
Note
Selecting multiple channel bandwidths will increase
registration and re-registration times
.
Cyclic Prefix Scan The cyclic prefix for which AP scanning is executed.
AP Selection Method Operators may configure the method by which a scanning SM selects an
AP. By default, AP Selection Method is set to “Optimize for Throughput”,
which has been the mode of operation in releases prior to 12.0.3.1.
Power Level
: AP selection based solely on power level
Note
For operation with a PMP 450m AP, select the Power Level
option
or
Optimize for Throughput
: AP selection based on throughput optimization
– the selection decision is based on power level (which affects the
modulation state), channel bandwidth (which affects throughput) and
number of SM registrations to the AP (which affects system contention
performance).
Color Code 1 Color code allows you to force the SM to register to only a specific AP,
even where the SM can communicate with multiple APs. For registration
to occur, the color code of the SM and the AP must match. Specify a
value from 0 to 254.
Color code is not a security feature. Instead, color code is a management
feature, typically for assigning each sector a different color code.
The default setting for the color code value is 0. This value matches only
the color code of 0 (not all 255 color codes).
SMs may be configured with up to 20 color codes. These color codes can
be tagged as
Primary
,
Secondary
, or
Tertiary
, or
Disable
. When the SM
is scanning for APs, it will first attempt to register to an AP that matches
one of the SM’s primary color codes. Failing that, the SM will continue
scanning and attempt to register to an AP that matches one of the SM’s
secondary color codes. Failing that, the SM will continue scanning and
attempt to register to an AP that matches one of the SM’s tertiary color
codes. This is all done in the scanning mode of the SM and will repeat
until a registration has occurred.
Chapter 7: Configuration Configuring radio parameters
Page 7-144
Color codes in the same priority group are treated equally. For example,
all APs matching one of the SM’s primary color codes are analyzed
equally. Likewise, this evaluation is done for the secondary and tertiary
groups in order. The analysis for selecting an AP within a priority group
is based on various inputs, including signal strength and number of SMs
already registered to each AP.
The first color code in the configuration is the pre-Release 9.5 color code.
Thus, it is always a primary color code for legacy reasons.
The color codes can be disabled, with the exception of the first color
code.
Installation Color
Code
With this feature enabled on the AP and SM, operators may install and
remotely configure SMs without having to configure matching color
codes between the modules. When using the Installation Color Code
feature, ensure that the SM is configured with the factory default Color
Code configuration (Color Code 1 is “0”, Color Code 2-10 set to “0” and
“Disable”). The status of the Installation Color Code can be viewed on
the AP Eval web GUI page, and when the SM is registered using the
Installation Color Code the message “SM is registered via ICC – Bridging
Disabled!” is displayed in red on every SM GUI page. The Installation
Color Code parameter is configurable without a radio reboot for both the
AP and SM.
External Gain This value represents the antenna gain.
For ODUs with integrated antenna, this is set at the correct value in the
factory.
For Connectorized ODUs with external antenna, the user must set this
value to the overall antenna gain, including any RF cable loss between
the ODU and the antenna.
Large VC data Queue SM and BH have a configurable option used to prevent packet loss in the
uplink due to bursting IP traffic. This is designed for IP burst traffic
particular to video surveillance applications.
Receive Quality
Debug
To aid in link performance monitoring, the AP and SM now report the
number of fragments received per modulation (i.e. QPSK, 16-QAM, 64-
QAM) and per channel (polarization).
Note
Due to CPU load, this will slightly degrade packet per
second processing.
Note
The frequencies that a user can select are controlled by the country or a region and the
Channel Bandwidth selected. There can be a case where a user adds a custom
frequency (from the Custom Frequencies page on page 7-174) and cannot see it in the
pull down menu.
Chapter 7: Configuration Configuring radio parameters
Page 7-146
Attribute
Meaning
Frequency Carrier Specify the frequency for the module to transmit. The default for this
parameter is
None
. For a list of channels in the band, see the drop-
down list on the radio GUI.
Channel Bandwidth The channel size used by the radio for RF transmission. The setting
for the channel bandwidth must match between the AP and the SM.
The supported Channel Bandwidths are 5, 7, 10 and 20 MHz.
Cyclic Prefix
See Table 141 PMP 450m AP Radio attributes - 5 GHz on page 7-129.
Frame Period
Color Code
Subscriber Color Code
Rescan (When not on a
Primary Color Code)
Subscriber Color Code
Wait Period for Idle
Installation Color Code
Max Range
See Table 141 PMP 450m AP Radio attributes - 5 GHz on page 7-129.
Downlink Data
Contention Slots
(a.k.a. Control Slots)
Broadcast Repeat Count
Transmitter Output
Power See Table 142 PMP 450i AP Radio attributes - 5 GHz
on page 7-135.
External Gain
SM Receive Target Level
See Table 141 PMP 450m AP Radio attributes - 5 GHz on page 7-129
Multicast VC Data Rate
Multicast Repeat Count
Multicast Downlink CIR
Control Message
Receive Quality Debug
Pager Reject Filter In 900 MHz, Pager Reject filter is placed on the AP to block Pager
signals which could cause interference to the whole band. The Pager
signals typically operate in the 928-930 frequency range. When the
filter is enabled, the signals of 920 MHz and above are attenuated
which enables better reception of signals in the rest of the band. Note
that the AP/SM should not be configured on the frequencies of 920
MHz and above when this filter is enabled.
Chapter 7: Configuration Configuring radio parameters
Page 7-147
Frame Alignment
Legacy Mode See Table 142 PMP 450i AP Radio attributes - 5 GHz
on page 7-135.
Radio page - PTP 450i BHM 5 GHz
The Radio page of PTP 450i BHM is explained in Table 145.
Table 145 PTP 450i BHM Radio page attributes – 5 GHz
Chapter 7: Configuration Configuring radio parameters
Page 7-148
Attribute
Meaning
Frequency Band Select the operating frequency band of the radio. The supported bands
are 4.9 GHz, 5.4 GHz and 5.7 GHz.
Frequency Carrier Specify the frequency for the module to transmit. The default for this
parameter is
None
. For a list of channels in the band, see the drop-down
list on the radio GUI.
Channel Bandwidth The channel size used by the radio for RF transmission. The setting for
the channel bandwidth must match between the BHM and the BHS.
Cyclic Prefix OFDM technology uses a cyclic prefix, where a portion of the end of a
symbol (slot) is repeated at the beginning of the symbol to allow multi-
pathing to settle before receiving the desired data. A 1/16 cyclic prefix
means that for every 16 bits of throughput data transmitted, an
additional bit is used.
Frame Period Select the Frame Period of the radio. The supported Frame Periods are: 5
ms and 2.5 ms.
Color Code Specify a value from 0 to 254. For registration to occur, the color code of
the BHM and the BHS must match. Color code is not a security feature.
Instead, color code is a management feature, typically for assigning each
link a different color code.
Color code allows you to force a BHS to register to only a specific BHM.
The default setting for the color code value is 0. This value matches
only the color code of 0 (not all 255 color codes).
Large VC data Q
Enable
Large VC Q for applications that burst data high rates. Large Qs
may decrease effective throughput for TCP application.
Disable
Large VC Q if application need not handle bursts of data. Large
Qs may decrease effective throughput for TCP application.
Downlink Data
Specify the percentage of the aggregate throughput for the downlink
(frames transmitted from the BHM to the subscriber). For example, if the
aggregate (uplink and downlink total) throughput on the BHM is 132
Mbps, then 75% specified for this parameter allocates 99 Mbps for the
downlink and 33 Mbps for the uplink. The default for this parameter is
50%. This parameter must be set in the range of 15% - 85%, otherwise
the invalid input will not be accepted and the previously-entered valid
setting is used.
Note
In order to prevent self-interference, the frame
configuration needs to align. This includes Downlink Data,
Max Range and Contention slots.
Transmit Power
This value represents the combined power of the BHM’s two
transmitters.
Nations and regions may regulate transmit power. For example
Chapter 7: Configuration Configuring radio parameters
Page 7-149
• PTP 450i Series modules are available as connectorized radios,
which require the operator to adjust power to ensure regulatory
compliance.
The professional installer of the equipment has the responsibility to:
• Maintain awareness of applicable regulations.
• Calculate the permissible transmitter output power for the module.
• Confirm that the initial power setting is compliant with national or
regional regulations.
Confirm that the power setting is compliant following any reset of the
module to factory defaults.
External Gain This value needs to correspond to the published gain of the antenna
used to ensure the radio will meet regulatory requirements.
Receive Quality
Debug
To aid in link performance monitoring, the BHM and BHS now report the
number of fragments received per modulation (i.e. QPSK, 16-QAM, 64-
QAM and 256-QAM) and per channel (polarization).
Note
Due to CPU load, this slightly degrades the packet during
per second processing.
Frame Alignment
Legacy Mode See Table 142 PMP 450i AP Radio attributes - 5 GHz
on page 7-135.
Chapter 7: Configuration Configuring radio parameters
Page 7-151
Attribute
Meaning
Custom Radio
Frequency Scan
Selection List
Check any frequency that you want the BHS to scan for BHM
transmissions. See Radio Frequency Scan Selection List on page 7-171.
Channel Bandwidth
Scan
The channel size used by the radio for RF transmission.
Note
Selecting multiple channel bandwidths will increase
registration and re-registration times
.
Chapter 7: Configuration Configuring radio parameters
Page 7-152
Cyclic Prefix Scan The cyclic prefix for which BHM scanning is executed.
Color Code Color code allows to force the BHS to register to only a specific BHM,
even where the BHS can communicate with multiple BHMs. For
registration to occur, the color code of the BHS and the BHM must
match. Specify a value from 0 to 254.
The color codes can be disabled, with the exception of the first color
code.
Large VC data Q BHM and BHS have a configurable option used to prevent packet loss in
the uplink due to bursting IP traffic. This is designed for IP burst traffic
particular to video surveillance applications.
Transmit Power Refer Table 145 PTP 450i BHM Radio page attributes – 5 GHz on page 7-
147
External Gain
Receive Quality
Debug
Chapter 7: Configuration Configuring radio parameters
Page 7-154
Chapter 7: Configuration Configuring radio parameters
Page 7-155
Attribute
Meaning
Custom Radio
Frequency Scan
Selection List
Check the frequencies that SM has to scan for AP transmissions. See
Radio Frequency Scan Selection List on page 7-171.
Channel Bandwidth
Scan
The channel size used by the radio for RF transmission.
Note
Selecting multiple channel bandwidths will increase
registration and re-registration times
.
Cyclic Prefix Scan The cyclic prefix for which AP scanning is executed.
AP Selection Method Operators may configure the method by which a scanning SM selects an
AP. By default, AP Selection Method is set to “Optimize for Throughput”,
which has been the mode of operation in releases prior to 12.0.3.1.
Power Level
: AP selection based solely on power level
Note
For operation with a PMP 450m AP, select the Power Level
option
or
Optimize for Throughput
: AP selection based on throughput optimization
– the selection decision is based on power level (which affects the
modulation state), channel bandwidth (which affects throughput) and
number of SM registrations to the AP (which affects system contention
performance).
Color Code 1 Color code allows you to force the SM to register to only a specific AP,
even where the SM can communicate with multiple APs. For registration
to occur, the color code of the SM and the AP must match. Specify a
value from 0 to 254.
Color code is not a security feature. Instead, color code is a management
feature, typically for assigning each sector a different color code.
The default setting for the color code value is 0. This value matches only
the color code of 0 (not all 255 color codes).
SMs may be configured with up to 20 color codes. These color codes can
be tagged as
Primary
,
Secondary
, or
Tertiary
, or
Disable
. When the SM
is scanning for APs, it will first attempt to register to an AP that matches
one of the SM’s primary color codes. Failing that, the SM will continue
scanning and attempt to register to an AP that matches one of the SM’s
secondary color codes. Failing that, the SM will continue scanning and
attempt to register to an AP that matches one of the SM’s tertiary color
codes. This is all done in the scanning mode of the SM and will repeat
until a registration has occurred.
Chapter 7: Configuration Configuring radio parameters
Page 7-156
Color codes in the same priority group are treated equally. For example,
all APs matching one of the SM’s primary color codes are analyzed
equally. Likewise, this evaluation is done for the secondary and tertiary
groups in order. The analysis for selecting an AP within a priority group
is based on various inputs, including signal strength and number of SMs
already registered to each AP.
The first color code in the configuration is the pre-Release 9.5 color code.
Thus, it is always a primary color code for legacy reasons.
The color codes can be disabled, with the exception of the first color
code.
Installation Color
Code
With this feature enabled on the AP and SM, operators may install and
remotely configure SMs without having to configure matching color
codes between the modules. When using the Installation Color Code
feature, ensure that the SM is configured with the factory default Color
Code configuration (Color Code 1 is “0”, Color Code 2-10 set to “0” and
“Disable”). The status of the Installation Color Code can be viewed on
the AP Eval web GUI page, and when the SM is registered using the
Installation Color Code the message “SM is registered via ICC – Bridging
Disabled!” is displayed in red on every SM GUI page. The Installation
Color Code parameter is configurable without a radio reboot for both the
AP and SM.
External Gain This value represents the antenna gain.
For ODUs with integrated antenna, this is set at the correct value in the
factory.
For Connectorized ODUs with external antenna, the user must set this
value to the overall antenna gain, including any RF cable loss between
the ODU and the antenna.
Large VC data Queue SM and BH have a configurable option used to prevent packet loss in the
uplink due to bursting IP traffic. This is designed for IP burst traffic
particular to video surveillance applications.
Receive Quality
Debug
To aid in link performance monitoring, the AP and SM now report the
number of fragments received per modulation (i.e. QPSK, 16-QAM, 64-
QAM) and per channel (polarization).
Note
Due to CPU load, this will slightly degrade packet per
second processing.
Note
The frequencies that a user can select are controlled by the country or a region and the
Channel Bandwidth selected. There can be a case where a user adds a custom
frequency (from the Custom Frequencies page on page 7-174) and cannot see it in the
pull down menu.
Chapter 7: Configuration Configuring radio parameters
Page 7-158
Attribute
Meaning
Radio Configuration,
Frame Configuration,
Power Control,
Multicast Data Control
and Advance tab
See Table 142 PMP 450i AP Radio attributes - 5 GHz on page 7-135.
PMP 430 SM Registration
See Table 142 PMP 450i AP Radio attributes - 5 GHz on page 7-135.
PMP 450/430 Legacy
Mode
Control Messages
PMP 430 Interop Mode
Receive Quality Debug
Frame Alignment Legacy
Mode
Chapter 7: Configuration Configuring radio parameters
Page 7-159
Radio page - PMP 450 AP 3.65 GHz
Table 149 PMP 450 AP Radio attributes - 3.65 GHz
Attribute
Meaning
Radio Configuration,
Frame Configuration,
Power Control,
Multicast Data Control
and Advance tab
See Table 142 PMP 450i AP Radio attributes - 5
GHz
on page 7-135.
Note
When the Channel bandwidth is updated from 20 MHz to 30 MHz not more than
59 subscriber can be registered.
Chapter 7: Configuration Configuring radio parameters
Page 7-160
Radio page - PMP 450 AP 3.5 GHz
Table 150 PMP 450 AP Radio attributes - 3.5 GHz
Attribute
Meaning
Radio Configuration,
Frame Configuration,
Power Control,
Multicast Data Control
and Advance tab
See Table 142 PMP 450i AP Radio attributes - 5
GHz
on page 7-135.
Chapter 7: Configuration Configuring radio parameters
Page 7-161
Radio page - PMP 450 AP 2.4 GHz
Table 151 PMP 450 AP Radio attributes - 2.4 GHz
Attribute
Meaning
Radio Configuration,
Frame Configuration,
Power Control,
Multicast Data Control
and Advance tab
See Table 142 PMP 450i AP Radio attributes - 5
GHz on page 7-135.
Chapter 7: Configuration Configuring radio parameters
Page 7-162
Radio page - PMP 450 SM 5 GHz
Table 152 PMP 450 SM Radio attributes – 5 GHz
Chapter 7: Configuration Configuring radio parameters
Page 7-163
Attribute
Meaning
Custom Radio
Frequency Scan
Selection List
Check the frequencies that SM has to scan for AP transmissions. See
Radio Frequency Scan Selection List on page 7-171.
See Table 142 PMP 450i AP Radio attributes - 5
GHz on page 7-135.
Chapter 7: Configuration Configuring radio parameters
Page 7-164
Radio page - PMP 450 SM 3.65 GHz
Table 153 PMP 450 SM Radio attributes – 3.65 GHz
Attribute
Meaning
Custom Radio
Frequency Scan
Selection List
Check the frequencies that SM has to scan for AP transmissions. See
Radio Frequency Scan Selection List on page 7-171.
See Table 142 PMP 450i AP Radio attributes - 5
GHz on page 7-135.
Chapter 7: Configuration Configuring radio parameters
Page 7-165
Radio page - PMP 450 SM 3.5 GHz
Table 154 PMP 450 SM Radio attributes – 3.5 GHz
Attribute
Meaning
Custom Radio
Frequency Scan
Selection List
Check the frequencies that SM has to scan for AP transmissions. See
Radio Frequency Scan Selection List on page 7-171.
See Table 142 PMP 450i AP Radio attributes - 5
GHz on page 7-135.
Chapter 7: Configuration Configuring radio parameters
Page 7-166
Radio page - PMP 450 SM 2.4 GHz
Table 155 PMP 450 SM Radio attributes – 2.4 GHz
Attribute
Meaning
Custom Radio
Frequency Scan
Selection List
Check the frequencies that SM has to scan for AP transmissions. See
Radio Frequency Scan Selection List on page 7-171.
See Table 142 PMP 450i AP Radio attributes - 5
GHz on page 7-135.
Chapter 7: Configuration Configuring radio parameters
Page 7-167

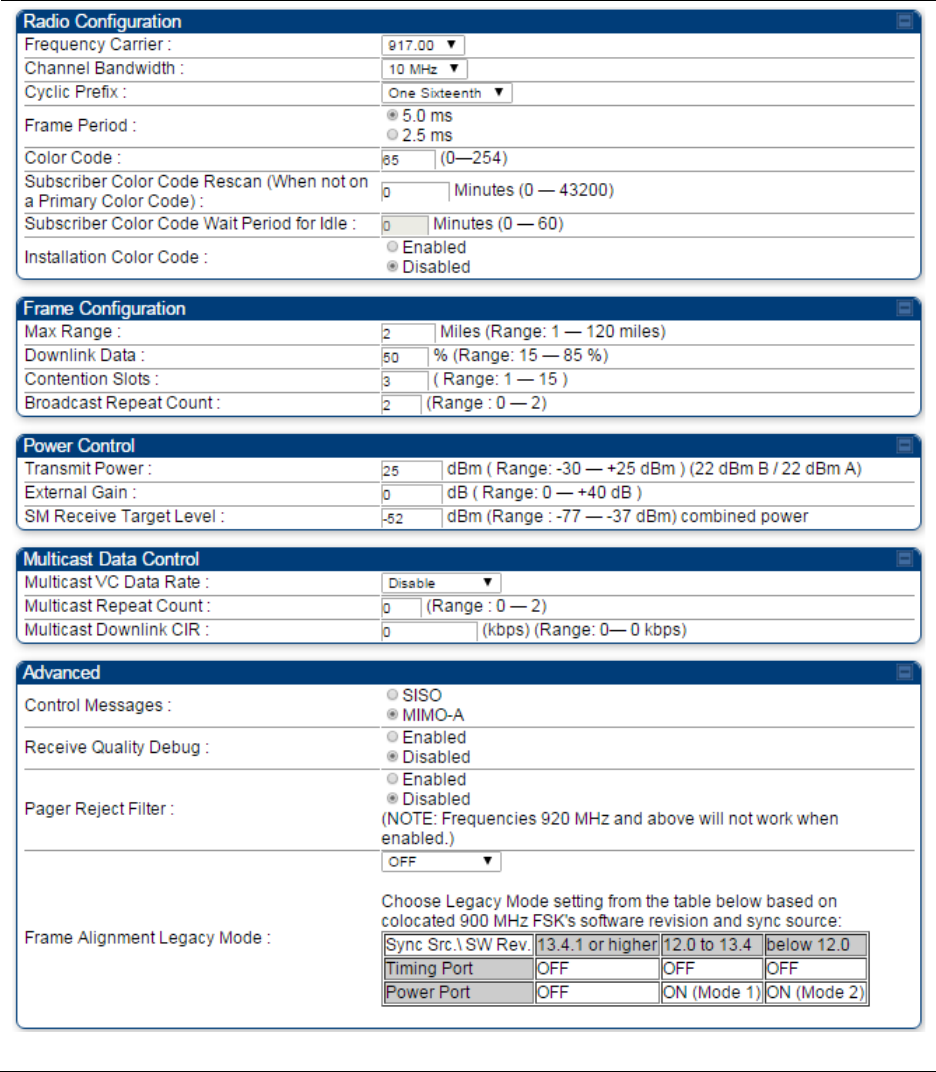

Radio page - PMP 450 SM 900 MHz
Table 156 PMP 450 SM Radio attributes –900 MHz
Attribute
Meaning
Custom Radio
Frequency Scan
Selection List
See Table 142 PMP 450i AP Radio attributes - 5
GHz on page 7-135.
Channel Bandwidth
Scan
See Table 142 PMP 450i AP Radio attributes - 5
GHz on page 7-135.
Cyclic Prefix Scan
AP Selection Method
Chapter 7: Configuration Configuring radio parameters
Page 7-168
Color Code 1
Installation Color
Code
Large VC data Queue
Color Code
External Gain See Table 142 PMP 450i AP Radio attributes - 5 GHz
on page 7-135
Receive Quality
Debug
See Table 142 PMP 450i AP Radio attributes - 5
GHz on page 7-135.
Note
The frequencies that a user can select are controlled by the country or a region and the
Channel Bandwidth selected. There can be a case where a user adds a custom
frequency (from the Custom Frequencies page on page 7-174) and cannot see it in the
pull down menu.
Chapter 7: Configuration Configuring radio parameters
Page 7-170
Radio page - PTP 450 BHS 5 GHz
Table 158 PTP 450 BHM Radio attributes –5 GHz
Chapter 7: Configuration Configuring radio parameters
Page 7-171
Attribute
Meaning
Refer Table 146 PTP 450i BHS Radio attributes – 5 GHz on page 7-150 for all parameters details.
Radio Frequency Scan Selection List
The SM or BHS scans complete spectrum as per Full Spectrum Band Scan feature. SMs or BHS
first boot into the smallest selected channel bandwidth (10 MHz, if selected) and scan all selected
frequencies across both the 5.4 GHz and 5.7 GHz frequency bands.
After this scan, if a wider channel bandwidth is selected (20 MHz), the SM/BHS automatically
changes to 20 MHz channel bandwidth and then scans for APs/BHSs. After the SM/BHS finishes
this final scan it will evaluate the best AP/BHM with which to register. If required for registration,
the SM/BHS changes its channel bandwidth back to 10 MHz to match the best AP/BHM.
The SM/BHS will attempt to connect to an AP/BHM based on power level (which affects the
modulation state), channel bandwidth (which affects throughput) and number of SM/BHS
registrations to the AP/BHM (which affects system contention performance).
If it is desired to prioritize a certain AP/BHM over other available APs/BHMs, operators may use the
Color Code Priority feature on the SM/BHS. Utilization of the Color Code feature on the AP/BHM is
recommended to further constrain the AP selection.
If the SM does not find any suitable APs/BHMs for registration after scanning all channel
bandwidths, the SM restarts the scanning process beginning with the smallest configured channel
bandwidth.
Selecting multiple frequencies and multiple channel bandwidths impacts the SM/BHS scanning
time. The biggest consumption of time is in the changing of the SM/BHS channel bandwidth
setting.
The worst case scanning time is approximately two minutes after boot up (SM/BHS with all
frequencies and channel bandwidths selected and registering to an AP/BHM at 10 MHz). If only one
channel bandwidth is selected the time to scan all the available frequencies and register to an
AP/BHM is approximately one minute after boot up.
Chapter 7: Configuration Configuring radio parameters
Page 7-172
Other scanning features such as Color Code, Installation Color Code, and RADIUS authentication
are unaffected by the Full Band Scan feature.
Dedicated Multicast Virtual Circuit (VC)
A Multicast VC allows to configure multicast packets to be transmitted over a dedicated channel at
a configurable rate of 1X, 2X, 4X or 8X. This feature is available only for the PMP 450 and PMP 450i
and is not backward compatible with PMP 430 series of radios.
To configure Multicast VC, the AP must have this enabled. This can be enabled in the “Multicast
Data Control” section (under Configuration > Radio page). The default value is “Disable”. If set to
the default value, all multicast packets are transmitted over the Broadcast VC data path. To enable,
select the data rate that is desired for the Multicast VC Data Rate parameter and click Save
Changes button. The radio requires no reboot after any changes to this parameter.
The multicast VC allows three different parameters to be configured on the AP. These can be
changed on the fly and are saved on the flash memory.
Note
If the Multicast VC Data Rate is set to a modulation that the radio is not currently
capable of or operates in non-permitted channel conditions, multicast data is sent but
not received.
Ex: If Multicast VC Data Rate is set to 6x and the channel conditions only permit 4x
mode of operation, then multicast data is sent at 6x modulation but the SM will not
receive the data.
Note
The PMP 450 AP supports up to 119 VCs (instead of 238 VCs) when configured for 30
MHz channel bandwidth or 5 ms Frame Period. This limitation is not applicable for
PMP 450i/450m Series.
Note
• Actual Multicast CIR honored by the AP = Configured Multicast CIR/ (Multicast
Repeat Count + 1).
• Increasing the Multicast data rate has no impact on the Unicast data rate.
• For multicast and unicast traffic mix scenario examples, see Table 159.
Table 159 Example for mix of multicast and unicast traffic scenarios
Repeat
Count
Multicast Data
Rate (Mbps)
Unicast Data
Rate (Mbps)
Aggregate DL Data
Rate (Mbps)
0 10 40 50
1 5 40 45
2 3.33 40 43.33
Chapter 7: Configuration Configuring radio parameters
Page 7-173
The statistics have been added to the Data VC page (under Statistics > Data VC). The table displays
the multicast row on the PMP 450 Platform Family AP. The SM displays the multicast row if it is a
PMP 450 Platform Family.

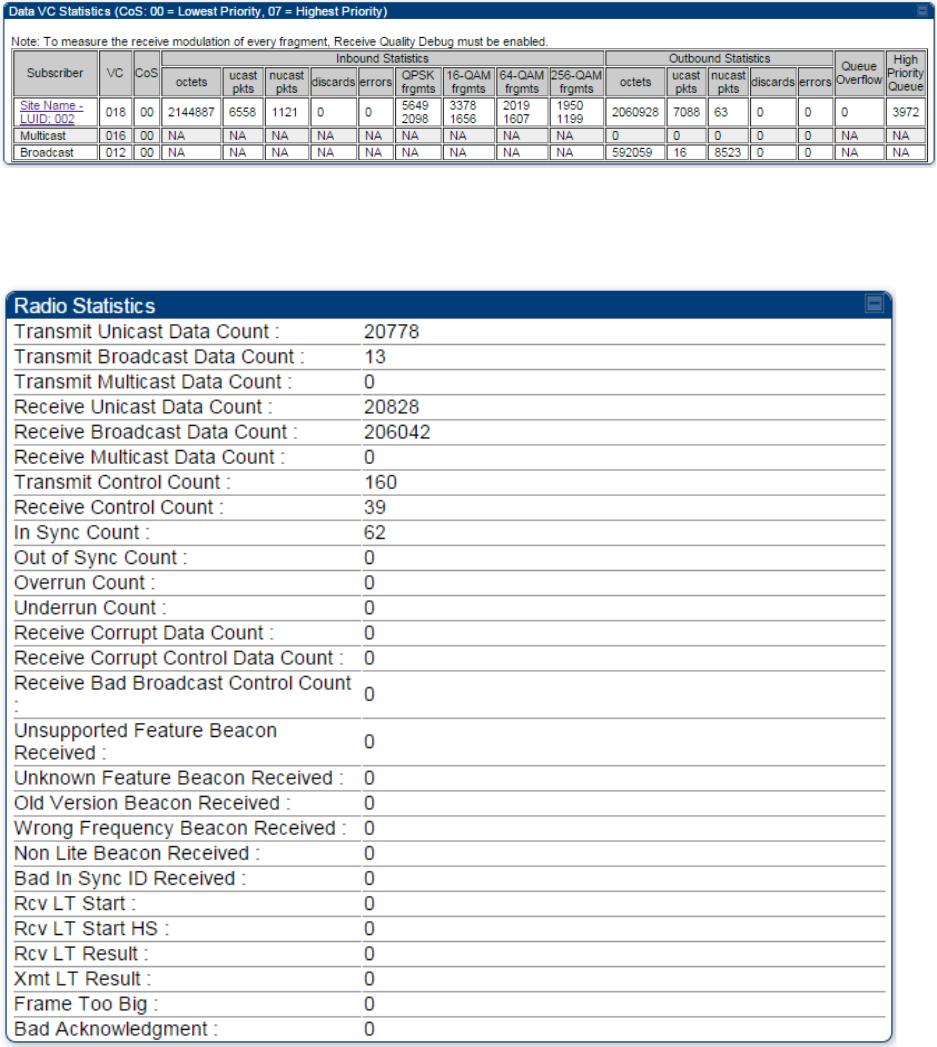

Figure 147 Multicast VC statistics
The AP and SM display Transmit and Receive Multicast Data Count (under the Statistics >
Scheduler page), as shown in Figure 148.
Figure 148 Multicast scheduler statistics
Chapter 7: Configuration Configuring radio parameters
Page 7-174
Custom Frequencies page
In addition to the Radio tab, AP/SM/BH has another tab called Custom Frequencies as shown in
Table 160.
The custom frequency tab allows to configure custom frequency at 1 KHz raster. It means that the
custom frequencies can be at granularity of 1 KHz e.g. 4910.123 MHz, 4922.333 MHz, 4933.421 MHz
etc.
Note
Ensure that a customer frequency exists before using SNMP to set the radio to a
Custom Frequency.
Table 160 450 Platform Family AP/SM/BH Custom Frequencies page – 5 GHz
Attribute
Meaning
Custom Frequency
Configuration
Custom frequencies with a channel raster of 1 KHz can be added from
the available range by keying in the frequency and then clicking the
Add
Frequency
button. Click
Remove Frequency
button to delete a specific
frequency keyed in the text box.
Click
Default Frequencies
button to add a pre-defined list of frequencies
that can be used in this band. This list can be reduced or increased by
manually removing or adding other custom frequencies.
Custom Frequencies Displays the complete list of user configured custom frequencies.
Chapter 7: Configuration Configuring radio parameters
Page 7-175
Table 161 PMP/PTP 450 SM/BH Custom Frequencies page – 3.65 GHz
Attribute
Meaning
Custom Frequency
Configuration
Custom frequencies with a channel raster of 1 KHz can be added from
the available range by keying in the frequency and then clicking the
Add
Frequency
button. Click
Remove Frequency
button to delete a specific
frequency keyed in the text box.
Click
Default Frequencies
button to add a pre-defined list of frequencies
that can be used in this band. This list can be reduced or increased by
manually removing or adding other custom frequencies.
Custom Frequencies Displays the complete list of user configured custom frequencies.
Chapter 7: Configuration Configuring radio parameters
Page 7-176
Table 162 PMP/PTP 450 SM/BH Custom Frequencies page – 3.5 GHz
Attribute
Meaning
Custom Frequency
Configuration
Custom frequencies with a channel raster of 1 KHz can be added from
the available range by keying in the frequency and then clicking the
Add
Frequency
button. Click
Remove Frequency
button to delete a specific
frequency keyed in the text box.
Click
Default Frequencies
button to add a pre-defined list of frequencies
that can be used in this band. This list can be reduced or increased by
manually removing or adding other custom frequencies.
Chapter 7: Configuration Configuring radio parameters
Page 7-177
DFS for 5 GHz Radios
Dynamic Frequency Selection (DFS) is a requirement in several countries and regions for 5 GHz
unlicensed systems to detect radar systems and avoid co-channel operation. DFS and other
regulatory requirements drive the settings for the following parameters, as discussed in this
section:
• Country Code
• Primary Frequency
• Alternate 1 and Alternate 2 Frequencies
• External Antenna Gain
On the AP, the Home > DFS Status page shows current DFS status of all three frequencies and a
DFS log of past DFS events.

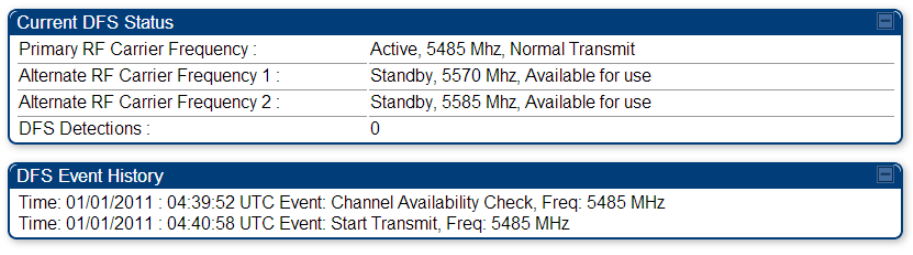

Figure 149 AP DFS Status
DFS operation
The ODUs use region-specific DFS based on the Country Code selected on the module’s
Configuration, General page. By directing installers and technicians to set the Country Code
correctly, the operator gains confidence the module is operating according to national or regional
regulations without having to deal with the details for each region.
The details of DFS operation for each Country Code, including whether DFS is active on the AP,
SM, and which DFS regulations apply is shown in Table 261 on page 10-48.
Chapter 7: Configuration Configuring radio parameters
Page 7-178
Contention slots
The SM uses reserved Contention slots and unused data slots for bandwidth requests.
Uplink Data Slots are used first for data. If they are not needed for data in a given frame, the
remaining data slots can be used by the SMs for bandwidth requests. This allows SMs in sectors
with a small number of Contention slots configured to still successfully transmit bandwidth
requests using unused data slots.
A higher number of Contention slots give higher probability that a SM’s bandwidth request is
correctly received when the system is heavily loaded, but with the tradeoff that sector capacity is
reduced, so there is less capacity to handle the request. The sector capacity reduction is about 200
kbps for each Contention slot configured in a 20 MHz channel at QPSK MIMO-A modulation. The
reduction in sector capacity is proportionally higher at MIMO-B modulations (2 times at QPSK
MIMO-B, 4 times at 16 QAM MIMO-B, 6 times at 64 QAM MIMO-B and 8 times at 256 QAM MIMO-
B). If very few reserved Contention slots are specified, then latency increases in high traffic
periods. If too many are specified, then the maximum capacity is unnecessarily reduced.
The suggested Contention slot settings as a function of the number of active SMs in the sector are
shown in the table below.
Table 163 Contention slots and number of SMs
Number of SMs
Recommended Number of Contention slots
1 to 10 3
11 to 50 4
51 to 150 6
151 and above 8
In a typical cluster, each AP must be set to the same number of Contention slots to assure proper
timing in the send and receive cycles. However, where high incidence of small packets exists, as in
a sector that serves several VoIP streams, additional Contention slots may provide better results.
For APs in a cluster of mismatched Contention slots setting, or where PMP 450/450i Series is
collocated with radios using different technologies, like PMP 430 or FSK, in the same frequency
band, use the frame calculator. To download the PMP 450 Contention Slots Paper, see
http://www.cambiumnetworks.com/solution-papers/pmp-450-contention-slots.
For co-location of radios with mismatched configuration parameters, see the co-location tool
available here:
https://support.cambiumnetworks.com/files/colocationtool/
Chapter 7: Configuration Configuring radio parameters
Page 7-179
MIMO-A mode of operation
450 Platform Family supports MIMO-B mode using the following modulation levels: QPSK, 16-
QAM, 64-QAM and 256-QAM. System Release 13.2 introduces MIMO-A mode of operation using
the same modulation levels as the MIMO-B mode. With MIMO-B, the radio sends different streams
of data over the two antennas whereas with MIMO-A, the radio uses a scheme that tries to
optimize coverage by transmitting the same data over both antennas. This redundancy improves
the signal to noise ratio at the receiver making it more robust, at the cost of throughput.
In addition to introducing MIMO-A modes, improvements have been made to the existing rate
adapt algorithm to switch between MIMO-A and MIMO-B seamlessly without any intervention or
added configuration by the operator. The various modulation levels used by the 450 Platform
Family are shown in Table 164.
Table 164 450 Platform Family Modulation levels
Rate
MIMO-B
MIMO-A
QPSK 2X MIMO-B 1X MIMO-A
16-QAM 4X MIMO-B 2X MIMO-A
64-QAM 6X MIMO-B 3X MIMO-A
265-QAM 8X MIMO-B 4X MIMO-A
System Performance
For System Performance details of all the 450 Platform Family ODUs, refer to the tools listed below:
• Link Capacity Planner for PMP/PTP 450 and 450i:
https://support.cambiumnetworks.com/files/capacityplanner/
• LINKPlanner for PMP/PTP 450/450i and PMP 450m:
https://support.cambiumnetworks.com/files/linkplanner/
Chapter 7: Configuration Configuring radio parameters
Page 7-180
Table 165 Co-channel Interference per (CCI) MCS
MCS of Victim
MCS of Interferer
Channel BW (MHz)
CCI
1X (QPSK SISO) 6X (64-QAM MIMO-B) 5, 7, 10, 15, 20, 30,
or 40
10 dB
2X (16-QAM SISO) 6X (64-QAM MIMO-B) 5, 7, 10, 15, 20, 30,
or 40
17 dB
3X (64-QAM SISO) 6X (64-QAM MIMO-B) 5, 7, 10, 15, 20, 30,
or 40
25 dB
1X (QPSK MIMO-A) 6X (64-QAM MIMO-B) 5, 7, 10, 15, 20, 30,
or 40
7 dB
2X (16-QAM MIMO-A) 6X (64-QAM MIMO-B) 5, 7, 10, 15, 20, 30,
or 40
14 dB
3X (64-QAM MIMO-A) 6X (64-QAM MIMO-B) 5, 7, 10, 15, 20, 30,
or 40
22 dB
4X (256-QAM MIMO-A) 6X (64-QAM MIMO-B) 5, 7, 10, 15, 20, 30,
or 40
30 dB
2X (QPSK MIMO-B) 6X (64-QAM MIMO-B) 5, 7, 10, 15, 20, 30,
or 40
10 dB
4X (16-QAM MIMO-B) 6X (64-QAM MIMO-B) 5, 7, 10, 15, 20, 30,
or 40
17 dB
6X (64-QAM MIMO-B) 6X (64-QAM MIMO-B) 5, 7, 10, 15, 20, 30,
or 40
25 dB
8X (256-QAM MIMO-B) 6X (64-QAM MIMO-B) 5, 7, 10, 15, 20, 30,
or 40
33 dB
Table 166 Adjacent Channel Interference (ACI) per MCS
MCS of Victim
MCS of Interferer
Channel BW (MHz)
ACI
Guard Band
1X (QPSK SISO) 6X (64-QAM MIMO-B) 5, 7, 10, 15, 20, 30,
or 40 -16 dB None
2X (16-QAM SISO) 6X (64-QAM MIMO-B) 5, 7, 10, 15, 20, 30,
or 40 -16 dB None
3X (64-QAM SISO) 6X (64-QAM MIMO-B) 5, 7, 10, 15, 20, 30,
or 40 -16 dB None
1X (QPSK MIMO-A) 6X (64-QAM MIMO-B) 5, 7, 10, 15, 20, 30,
or 40 -13 dB None
2X (16-QAM MIMO-A) 6X (64-QAM MIMO-B) 5, 7, 10, 15, 20, 30,
or 40 -13 dB None
Chapter 7: Configuration Configuring radio parameters
Page 7-181
3X (64-QAM MIMO-A) 6X (64-QAM MIMO-B) 5, 7, 10, 15, 20, 30,
or 40 -13 dB None
4X (256-QAM MIMO-A) 6X (64-QAM MIMO-B) 5, 7, 10, 15, 20, 30,
or 40 -10 dB None
2X (QPSK MIMO-B) 6X (64-QAM MIMO-B) 5, 7, 10, 15, 20, 30,
or 40 -16 dB None
4X (16-QAM MIMO-B) 6X (64-QAM MIMO-B) 5, 7, 10, 15, 20, 30,
or 40 -16 dB None
6X (64-QAM MIMO-B) 6X (64-QAM MIMO-B) 5, 7, 10, 15, 20, 30,
or 40 -16 dB None
8X (256-QAM MIMO-B) 6X (64-QAM MIMO-B) 5, 7, 10, 15, 20, 30,
or 40 -10 dB None
Guard Band
When synchronized, no Guard Bands are needed for the 450* and 450i Series.
* For PMP 450 AP (3.6 GHz) and 450 platform APs with 450b SM (5 GHz) connected, Configuration ->
Radio -> Power Control -> Adjacent Channel Support must be enabled.
Improved PPS performance of 450 Platform Family
The 450m, 450i, and 450b Series provides improved packets per second (PPS) performance
compared to 450 Series.
Through hardware and software enhancements, the PPS performance of the PMP 450i Series AP
and PMP 450b SM has been improved to 40k packets/second, measured through a standard
RFC2544 test using 64 bytes packets. With this enhancement, operators are able to provide higher
bandwidth including better VoIP and video services to end customers using existing SM
deployments.
PMP 450m supports 100k packets/second.
Chapter 7: Configuration Setting up SNMP agent
Page 7-182
Setting up SNMP agent
Operators may use SNMP commands to set configuration parameters and retrieve data from the
AP and SM modules. Also, if enabled, when an event occurs, the SNMP agent on the 450 Platform
Family sends a trap to whatever SNMP trap receivers configured in the management network.
• SNMPv2c
• SNMPv3
Chapter 7: Configuration Setting up SNMP agent
Page 7-183
Configuring SM/BHS’s IP over-the-air access
To access the SM/BHS management interface from a device situated above the AP, the SM/BHS’s
Network Accessibility parameter (under the web GUI at Configuration > IP) may be set to Public.

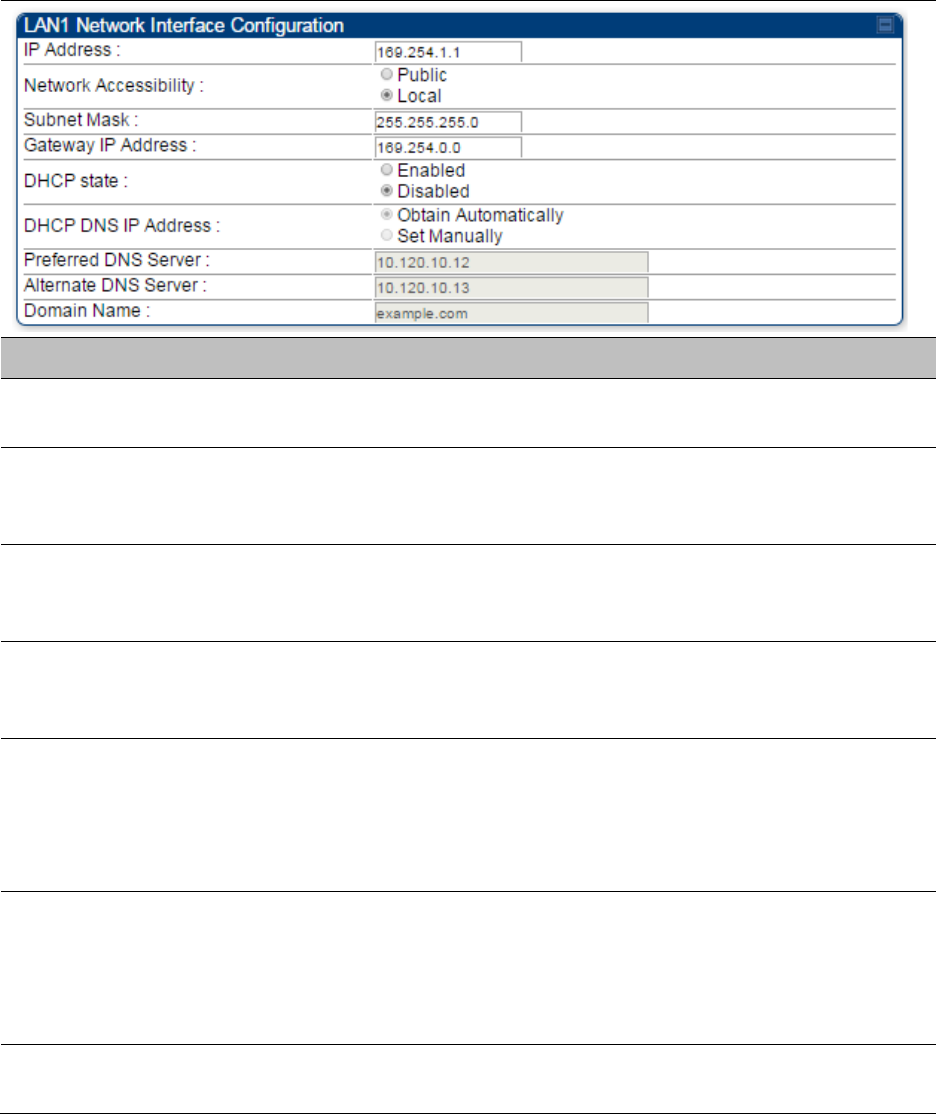

Table 167 LAN1 Network Interface Configuration tab of IP page attributes
Attribute
Meaning
IP Address Internet Protocol (IP) address. This address is used by family of Internet
protocols to uniquely identify this unit on a network.
Network
Accessibility
Specify whether the IP address of the SM/BHS must be visible to only a
device connected to the SM/BHS by Ethernet (
Local
) or be visible to the
AP/BHM as well (
Public
).
Subnet Mask
If
Static IP
is set as the
Connection Type
of the WAN interface, then this
parameter configures the subnet mask of the SM/BHS for RF
management traffic.
Gateway IP Address
If
Static IP
is set as the
Connection Type
of the WAN interface, then this
parameter configures the gateway IP address for the SM/BHS for RF
management traffic.
DHCP state
If
Enabled
is selected, the DHCP server automatically assigns the IP
configuration (IP address, subnet mask, and gateway IP address) and the
values of those individual parameters (above) are not used. The setting
of this DHCP state parameter is also viewable (read only), in the Network
Interface tab of the Home page.
DNS IP Address
Canopy devices allow for configuration of a preferred and alternate DNS
server IP address either automatically or manually. Devices must set
DNS server IP address manually when DHCP is disabled for the
management interface of the device. The default DNS IP addresses are
0.0.0.0 when configured manually.
Preferred DNS
Server The first address used for DNS resolution.
Chapter 7: Configuration Setting up SNMP agent
Page 7-184
Alternate DNS
Server
If the Preferred DNS server cannot be reached, the Alternate DNS Server
is used.
Domain Name
The operator’s management domain name may be configured for DNS.
The domain name configuration can be used for configuration of the
servers in the operator’s network. The default domain name is
example.com, and is only used if configured as such.
Chapter 7: Configuration Setting up SNMP agent
Page 7-186
Attribute
Meaning
SNMP Community
String 1
Specify a control string that can allow a Network Management Station
(NMS) to access SNMP information. No spaces are allowed in this string.
The default string is
Canopy
.
SNMP Community
String 1 Permissions
You can designate the
SNMP Community String 1
to be the password
for WM, for example, to have
Read / Write
access to the module via
SNMP or for all SNMP access to the module to be
Read Only
.
SNMP Community
String 2 (Read Only)
Specify an additional control string that can allow a Network
Management Station (NMS) to read SNMP information. No spaces are
allowed in this string. The default string is
Canopyro
. This password will
never authenticate a user or an NMS to read/write access.
Chapter 7: Configuration Setting up SNMP agent
Page 7-187
The
Community String
value is clear text and is readable by a packet
monitor. Additional security derives from the configuration of the
Accessing Subnet
,
Trap Address
, and
Permission
parameters.
Engine ID The Engine ID may be between 5 and 32 hex characters. The hex
character input is driven by RFC 3411 recommendations on the Engine
ID. The default Engine ID is the MAC address of the device
SNMPv3 Security
Level
Specify security model where users are defined and authenticated
before granting access to any SNMP service. Each device can configure
the security level of SNMPv3 to No authentication/No privacy,
Authentication/No privacy, or Authentication/Privacy.
SNMPv3
Authentication
Protocol
Currently, the SNMPv3 authentication protocol
MD5
is supported.
SNMPv3 Privacy
Protocol
Currently, the SNMPv3 privacy protocol
CBC-DES
is supported.
SNMPv3 Read-Only
User
This field allows for a read-only user per devices. The default values for
the Read-Only users is:
• Username = Canopyro
• Authentication Password = authCanopyro
• Privacy Password = privacyCanopyro
SNMPv3 Read/Write
User
Read-write user by default is disabled. The default values for the
Read/Write users is :
• Username = Canopy
• Authentication Password = authCanopy
• Privacy Password = privacyCanopy
Additional SNMP v3
User 1
This field allows to configure the Additional SNMP v3 User 1. The
configurations include:
• Enable/Disable User: These fields allow to enable or disable the user
using the Enable User or Disable User radio buttons.
• Authorizaton Key: This field allows to configure an authorization key
for the user.
• Privacy Key: This field allows to configure a privacy key for the user.
Note:
Set SNMP v3 Security Level field to :auth,priv to enable the
Authorization Key and Privacy Key fields.
Enabled User can be set with following privacy settings:
• ReadWrite User
• ReadOnly User
Chapter 7: Configuration Setting up SNMP agent
Page 7-188
Additional SNMP v3
User 2
This field allows to configure the Additional SNMP v3 User 2.
The configurations include:
• Enable/Disable User: These fields allow to enable or disable the user
using the Enable User or Disable User radio buttons.
• Authorizaton Key: This field allows to configure an authorization key
for the user.
• Privacy Key: This field allows to configure a privacy key for the user.
Set SNMP v3 Security Level field to :auth,priv to enable the
Authorization Key and Privacy Key fields.
Enabled User can be set with following Privacy settings:
• ReadWrite User
• ReadOnly User
Additional SNMP v3
User 3
This field allows to configure the Additional SNMP v3 User 3.
The configurations include:
• Enable/Disable User: These fields allow to enable or disable the user
using the Enable User or Disable User radio buttons.
• Authorizaton Key: This field allows to configure an authorization key
for the user.
• Privacy Key: This field allows to configure a privacy key for the user.
Set SNMP v3 Security Level field to :auth,priv to enable the
Authorization Key and Privacy Key fields.
Enabled User can be set with following Privacy settings:
• ReadWrite User
• ReadOnly User
SNMPv3 Trap
Configuration
When enabling transmission of SNMPv3 traps the read-only or read-
write user credentials must be used and selected properly in order for
the SNMP manager to correctly interpret the traps. By default
transmission of SNMPv3 traps is disabled and all traps sent from the
radios are in SNMPv2c format.
Accessing IP /
Subnet Mask 1 to 10
Specify the addresses that are allowed to send SNMP requests to this
AP. The NMS has an address that is among these addresses (this
subnet). You must enter both
• The network IP address in the form xxx.xxx.xxx.xxx
• The CIDR (Classless Interdomain Routing) prefix length in the form
/xx
For example:
• the /16 in 198.32.0.0/16 specifies a subnet mask of 255.255.0.0 (the
first 16 bits in the address range are identical among all members of
the subnet).
Chapter 7: Configuration Setting up SNMP agent
Page 7-189
• 192.168.102.0 specifies that any device whose IP address is in the
range 192.168.102.0 to 192.168.102.254 can send SNMP requests to
the AP, presuming that the device supplies the correct
Community
String
value.
The default treatment is to allow all networks access. For more
information on CIDR, execute an Internet search on “Classless
Interdomain Routing.” You are allowed to specify as many as 10
different accessing IP address, subnet mask combinations.
RECOMMENDATION:
The subscriber can access the SM/BHS by changing the subscriber
device to the accessing subnet. This hazard exists because the
Community String
and
Accessing Subnet
are both visible parameters.
To avoid this hazard, configure the SM/BHS to filter (block) SNMP
requests.
SNMP Trap Server
DNS Usage
The management DNS domain name may be toggled such that the
name of the trap server only needs to be specified and the DNS domain
name is automatically appended to that name. The default SNMP trap
server addresses for all 10 available servers is 0.0.0.0 with the appending
of the DNS domain name disabled.
Trap Address 1 to 10 Specify ten or fewer IP addresses (xxx.xxx.xxx.xxx) or DNS names to
which SNMP traps must be sent. Traps inform Wireless Manager or an
NMS that something has occurred. For example, trap information is sent
• after a reboot of the module.
• when an NMS attempts to access agent information but either
• supplied an inappropriate community string or SNMP version
number.
• is associated with a subnet to which access is disallowed.
Trap Enable, Sync
Status
If the sync status traps (sync lost and sync regained) have to be sent to
Wireless Manager or an NMS, select
Enabled
. If these traps have to be
suppressed, select
Disabled
.
Trap Enable, Session
Status
If you want session status traps sent to Wireless Manager or an NMS,
select
Enabled
.
Site Information
Viewable to Guest
Users
Operators can enable or disable site information from appearing when a
user is in GUEST account mode.
Site Name Specify a string to associate with the physical module. This parameter is
written into the sysName SNMP MIB-II object and can be polled by
Wireless Manager or an NMS. The buffer size for this field is 128
characters.
Site Contact Enter contact information for the module administrator. This parameter
is written into the sysContact SNMP MIB-II object and can be polled by
Wireless Manager or an NMS. The buffer size for this field is 128
characters.
Chapter 7: Configuration Setting up SNMP agent
Page 7-190
Site Location Enter information about the physical location of the module. This
parameter is written into the sysLocation SNMP MIB-II object and can be
polled by Wireless Manager or an NMS. The buffer size for this field is
128 characters.
Chapter 7: Configuration Configuring syslog
Page 7-192
Syslog event logging
Following events are logged in syslog as explained in Table 169.
Table 169 Syslog parameters
Attribute
Meaning
Timestamp All syslog messages captured from the radio have a timestamp.
Configuration
Changes
This includes any device setting that has changed and includes the old
or new parameter value, including the device reboots.
User Login and
Logout Syslog records each user login and logout, with username.
Add or Delete of user
accounts through
GUI and SNMP
Syslog captures any user accounts that are added or deleted.
Spectrum Analysis Syslog records a message every time Spectrum Analysis runs.
Note
Since the AP/BHM must be set to a SM/BHS for Spectrum
Analysis, syslog messages are not reported from the radio
until the scan is done and the radio mode is switched back
to AP/BHM.
Link Test Syslog records a message every time a Link Test is run.
Clear Statistics Syslog sends a message when Statistics are cleared. This is done
individually for each statistics page that is cleared.
SM Register or De-
register Syslog records a message when a SM registers or deregisters.
BHS Connect or
Disconnect Syslog records a message when a BHS connects or disconnects.
Configuring system logging
To configure system logging, select the menu option Configuration > Syslog.
Syslog page of AP/BHM
The Syslog Configuration page for AP/BHM is shown in Table 170.
Chapter 7: Configuration Configuring syslog
Page 7-193

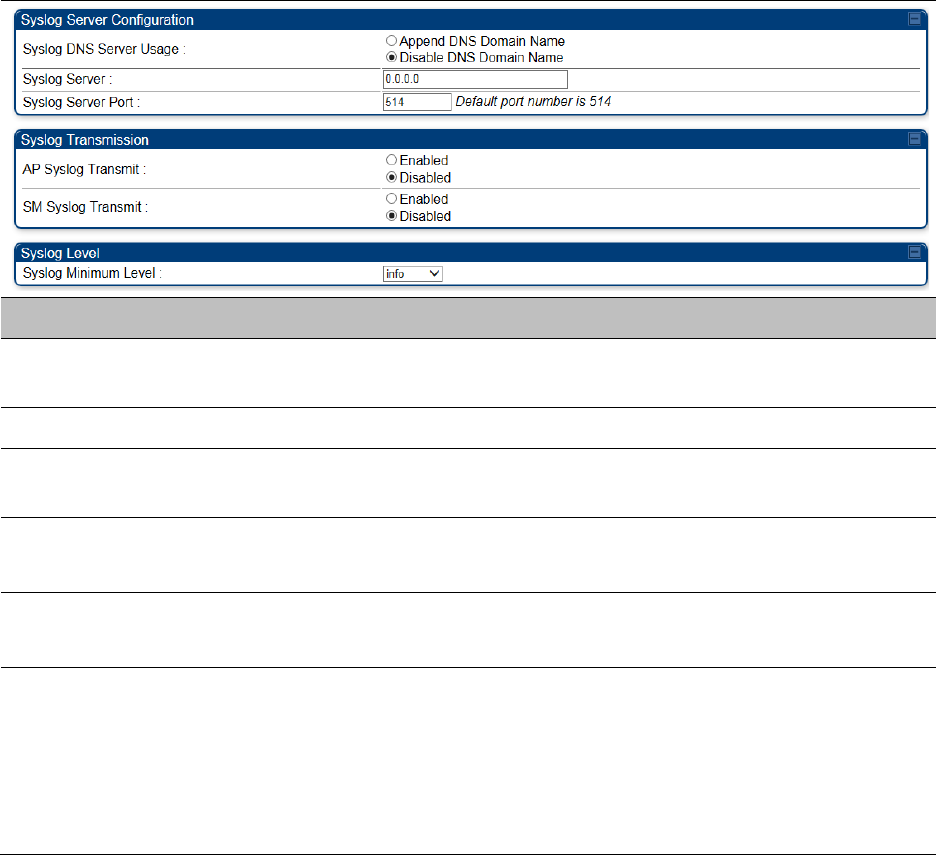

Table 170 Syslog Configuration attributes - AP
Attribute
Meaning
Syslog DNS Server Usage
To configure the AP/BHM to append or not append the DNS server
name to the syslog server name.
Syslog Server The dotted decimal or DNS name of the syslog server address.
Syslog Server Port The syslog server port (default 514) to which syslog messaging is
sent.
AP Syslog Transmit
Or BHM Syslog Transmit When enabled, syslog messages are sent from the AP/BHM.
SM Syslog Transmit
Or BHS Syslog Transmit
When enabled, syslog messages are sent from all the registered
SMs/BHS, unless they are individually set to override this.
Syslog Minimum Level
This provides a selection for the minimum syslog message severity
that is sent to the syslog server. Values range from fatal (highest
severity and least verbose) to info (lowest severity, maximum
verbosity).
For example: If the Syslog Minimum Level is set to notice, then only
messages with severity notice and above are sent.
Syslog page of SM
To configure system logging, select the menu option Configuration > Syslog. The Syslog
Configuration page is shown in Table 171.
Chapter 7: Configuration Configuring syslog
Page 7-194

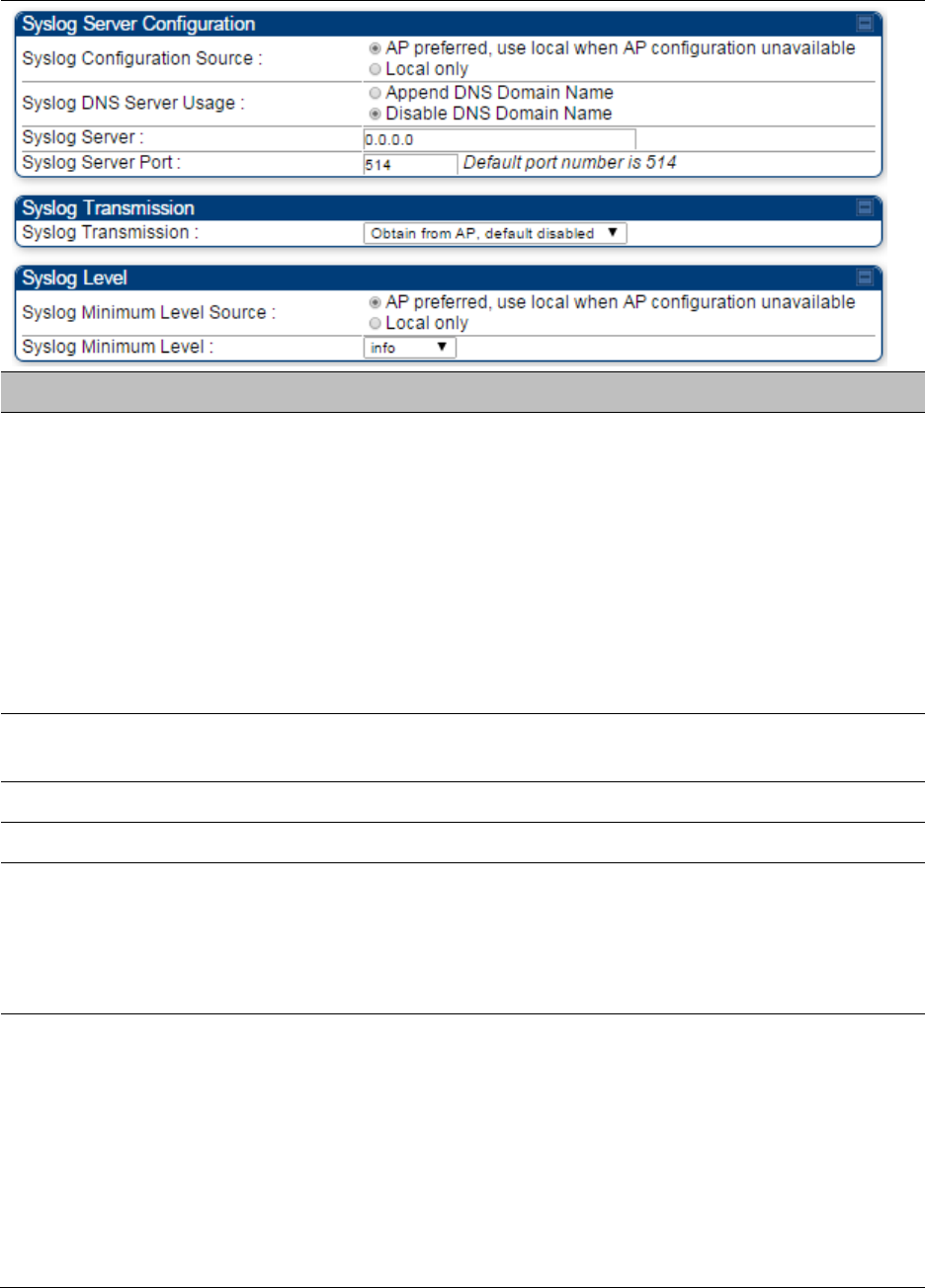

Table 171 Syslog Configuration attributes - SM
Attribute
Meaning
Syslog Configuration
Source
This control determines whether the SM will attempt to use the syslog
server definition from the AP, or whether it will use a local server
definition.
When set to
AP preferred, use local when AP configuration unavailable
,
and if the SM can register with an AP, then it uses the syslog server
defined on that AP. If the SM cannot register then it will syslog to its
locally defined syslog server through its wired connection, if any.
When set to
Local only
the SM ignores the AP’s definition of the syslog
server and allows the syslog server to be configured individually for
each SM.
Syslog DNS Server
Usage
To configure the SM to append or not the DNS server name to the
syslog server name.
Syslog Server The dotted decimal or DNS name of the syslog server address.
Syslog Server Port The syslog server port (default 514) to which syslog messaging is sent.
Syslog Transmission Controls the SMs ability to transmit syslog messages. When set to
“Learn from AP” the AP will control whether this SM transmits syslog
messages. When set to “enable” or “disable” the SM will control
whether it sends syslog messages. This allows an operator to override
the AP settings for individual SMs in a sector.
Syslog Minimum
Level Source
This control determines whether the SM attempts to use the minimum
syslog level defined by the AP, or whether it uses a local defined value
using the “Syslog Minimum Level” parameter.
When set to “AP preferred, use local when AP configuration
unavailable”, and if the SM can register with an AP, then it uses the
Syslog Minimum Level defined on that AP. If the SM cannot register
then it uses its own Syslog Minimum Level setting.
When set to “Local only” the SM will always use its own Syslog
Minimum Level setting and ignores the AP’s setting.
Chapter 7: Configuration Configuring syslog
Page 7-195
Syslog Minimum
Level
This provides a selection for the minimum syslog message severity that
is sent to the syslog server. Values range from fatal (highest severity and
least verbose) to info (lowest severity, maximum verbosity).
For example: If the Syslog Minimum Level is set to notice, then only
messages with severity notice and above are sent.
Syslog page of BHS
The Syslog Configuration page is shown in Table 172.

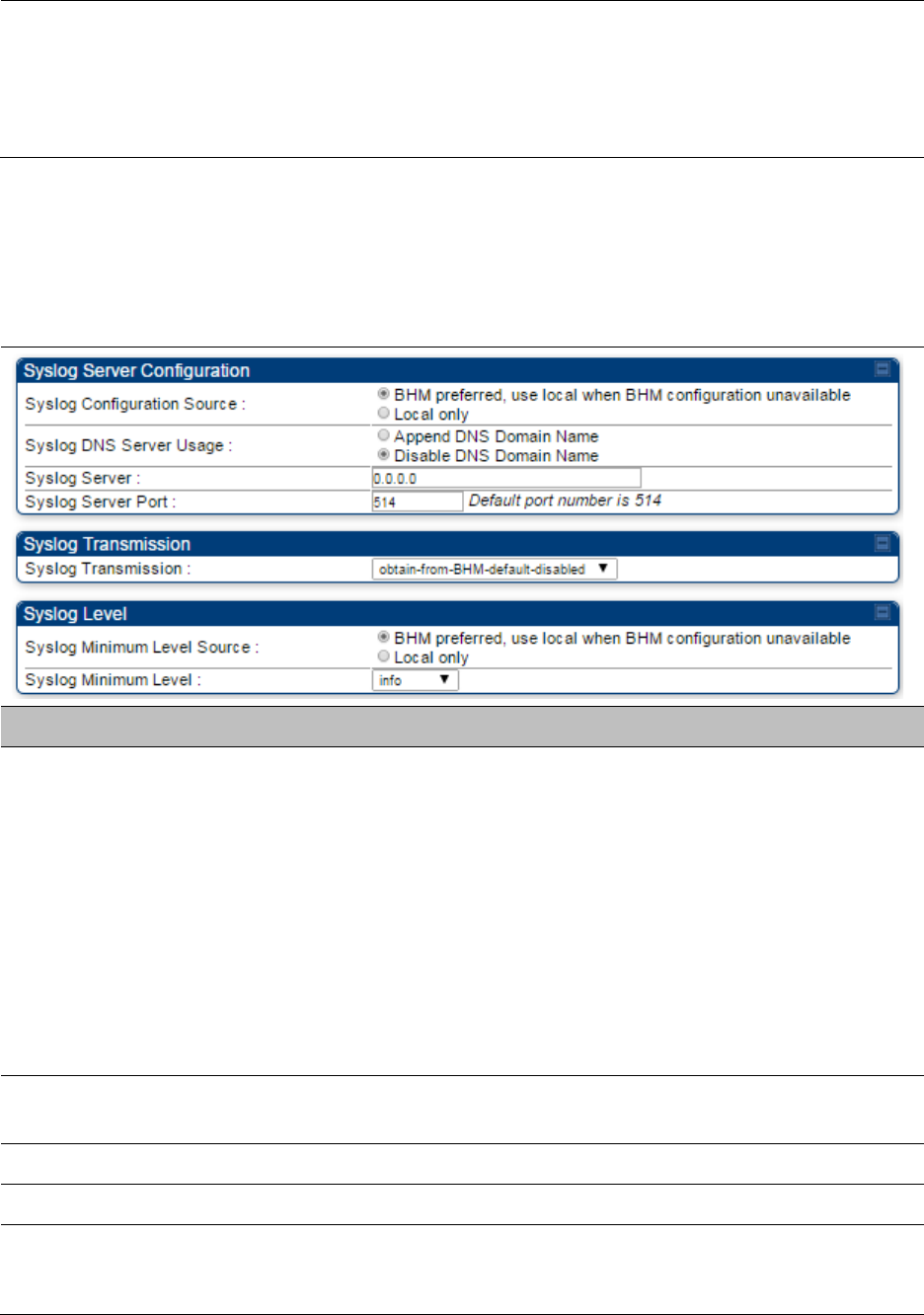

Table 172 Syslog Configuration attributes - BHS
Attribute
Meaning
Syslog Configuration
Source
This control determines whether the BHS will attempt to use the syslog
server definition from the BHM, or whether it will use a local server
definition.
• When set to
BHM preferred, use local when BHM configuration
unavailable
, and if the BHS can register with a BHM, then it uses the
syslog server defined on that BHM. If the BHS cannot register then it
will syslog to its locally defined syslog server through its wired
connection, if any.
• When set to
Local only
the BHS ignores the BHM’s definition of the
syslog server and allows the syslog server to be configured
individually for each BHS.
Syslog DNS Server
Usage
To configure the BHS to append or not to append the DNS server name
to the syslog server name.
Syslog Server The dotted decimal or DNS name of the syslog server address.
Syslog Server Port The syslog server port (default 514) to which syslog messaging is sent.
Syslog Transmission Controls the BHSs ability to transmit syslog messages. When set to
Learn from BHM
the BHM will control whether this BHS transmits
syslog messages. When set to enable or disable the BHS will control
Chapter 7: Configuration Configuring syslog
Page 7-196
whether it sends syslog messages. This allows an operator to override
the BHM settings for individual BHSs in a sector.
Syslog Minimum
Level Source
This control determines whether the BHS attempts to use the minimum
syslog level defined by the BHM, or whether it uses a local defined value
using the
Syslog Minimum Level
parameter.
• When set to
BHM preferred, use local when BHM configuration
unavailable
, and if the BHS can register with a BHM, then it uses the
Syslog Minimum Level defined on that BHM. If the BHS cannot
register then it uses its own Syslog Minimum Level setting.
When set to
Local only
the BHS will always use its own Syslog
Minimum Level setting and ignores the BHM’s setting.
Syslog Minimum
Level
This provides a selection for the minimum syslog message severity that
is sent to the syslog server. Values range from fatal (highest severity and
least verbose) to info (lowest severity, maximum verbosity).
For example: If the Syslog Minimum Level is set to notice, then only
messages with severity notice and above are sent.
Chapter 7: Configuration Configuring remote access
Page 7-197
Configuring remote access
Accessing SM/BHS over-the-air by Web Proxy
The SM/BHS may be accessed via the AP/BHM management GUI by navigating to Home > Session
Status (or Home > Remote Subscribers for AP only) and clicking on the SM’s hyperlink.
For example, to access one of the SMs, click LUID: 002 – [0a-00-3e-37-b9-fd], as shown in Figure
150.
Figure 150 AP Session Status page
The SessionStatus.xml hyper link allows user to export all displayed SM data in Session Status
table into an xml file.
To access any one of the SMs, click 450 Platform Family - SM hyperlink, as shown in Figure 151.
Figure 151 AP Remote Subscribers page
Chapter 7: Configuration Monitoring the Link
Page 7-198

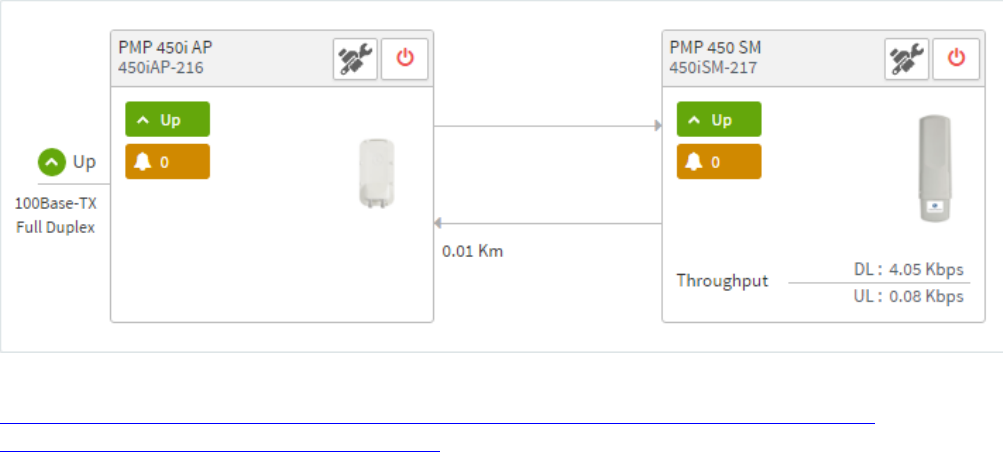

Monitoring the Link
Link monitoring procedure
After configuring the link, either an operator in the network office or the SM/BHS INSTALLER user
in the field (if read access to the AP/BHM is available to the INSTALLER) must perform the
following procedure. Who is authorized and able to do this depends on local operator password
policy, management VLAN setup and operational practices.
To monitor the link for performance, follow these instructions:
Procedure 22 Monitoring the AP-SM link
1
Access the web interface of the AP/BHM
2
In the left-side menu of the AP/BHM interface, select
Home
.
3
Click the
Session Status
tab.
Figure 152
Session Status page
4
The
Device
tab of Session Status List display all displayed SMs – MAC address,
PMP/PTP Hardware, Software Version, FPGA Version and State
Chapter 7: Configuration Monitoring the Link
Page 7-199
5
Click
Session Count
tab of Session Status List to display values for
Session Count
,
Reg
Count
, and
Re-Reg Count
.
•
Session Count
: This field displays how many sessions the SM/BHS has had with
the AP/BHM. Typically, this is the sum of Reg Count and Re-Reg Count. However,
the result of internal calculation may display here as a value that slightly differs
from the sum.
•
Reg Count
: When a SM/BHS makes a Registration Request, the AP/BHM checks its
local session database to see whether it was registered earlier. If the AP/BHM
concludes that the SM/BHS is not currently in session database and it is valid
Registration Request, then the request increments the value of this field.
•
Re-Reg Count
: When a SM/BHS makes a Registration Request, the AP/BHM checks
its local session database to see whether it was registered earlier. If the AP/BHM
concludes that the SM/BHS is currently in session database, then the request
increments the value of this field.
• Typically, a Re-Reg is the case where both
o SM/BHS attempts to reregister for having lost communication with the
AP/BHM.
o AP/BHM has not yet observed the link to the SM/BHS as being down.
See Session tab on page 9-21
6
Click
Power
tab of Session Status list to display Downlink Rate, AP Rx Power (dBm),
Signal Strength Radio (dB) for Uplink and Signal to Noise Radio (dB) for Uplink.
See Power tab on page 9-23
7
Click
Configuration
tab of Session Status list to get QoS configuration details:
• Sustained Data Rate (kbps)
• Burst Allocation (kbit)
• Max Burst Rate (kbit)
• Low Priority CIR (kbps)
See
Configuration tab on page 9-25
8
Briefly monitor these values, occasionally refreshing this page by clicking another tab
and then the Session Status tab again.
9
If these values are low (for example, 1, 1, and 0, respectively, meaning that
the SM/BHS registered and started a stable session once) and are not changing:
• Consider the installation successful.
• Monitor these values from the network office over the next several hours and days.
If these values are greater than 1, 1, and 0, or they increase while you are monitoring
them, troubleshoot the link. (For example, Use
Receive Power Level
for aiming and
then use Link Tests to confirm alignment).
Refer Viewing Session Status on page 9-20 for more details.
Chapter 7: Configuration Monitoring the Link
Page 7-200
Exporting Session Status page of AP/BHM
The SessionStatus.xml hyper link allows user to export all displayed SMs or BHS data in Session
Status table into an xml file.
Figure 153 Exporting Session Status page of PMP 450m AP
In case of PMP, if the session status page does not list any SM, the SessionStatus.xml will still be
visible but the file would be empty. The file will contain data from all of the 5 different tables.
Export from command line
The scripts users can also get this file from command line, you have to authenticate successfully in
order to download the file.
Wget
http://169.254.1.1/SessionStatus.xml?CanopyUsername=test&CanopyPassword=test
Chapter 7: Configuration Configuring quality of service
Page 7-201
Configuring quality of service
Maximum Information Rate (MIR) Parameters
Point-to-multipoint links use the following MIR parameters for bandwidth management:
• Sustained Uplink Data Rate (kbps)
• Uplink Burst Allocation (kb)
• Sustained Downlink Data Rate (kbps)
• Downlink Burst Allocation (kb)
• Max Burst Downlink Data Rate (kbps)
• Max Burst Uplink Data Rate (kbps)
Set each of these parameters per AP or per SM independently.
Note
You can refer below whitepaper for 450 Platform Family Max Burst MIR:
http://www.cambiumnetworks.com/resources/pmp-450-maxburst/
Token Bucket Algorithm
The software uses a token bucket algorithm that has the following features:
• Stores credits (tokens) for the SM to spend on bandwidth for reception or transmission.
• Drains tokens during reception or transmission.
• Refills with tokens at the sustained rate set by the network operator.
For each token, the SM can send toward the network in the uplink (or the AP can send toward the
SM in the downlink) an equivalent number of kilobits. Two buckets determine the permitted
throughput: one in the SM for uplink and one in the AP for downlink.
The applicable set of Uplink Burst Allocation and Downlink Burst Allocation parameters determine
the number of tokens that can fill each bucket. When the SM transmits (or the AP transmits) a
packet, the equivalent number of tokens is removed from the uplink (or downlink) bucket.
Except when full, the bucket is continuously being refilled with tokens at rates that the applicable
set of Sustained Uplink Data Rate and Sustained Downlink Data Rate parameters specify. The
bucket often drains at a rate that is much faster than the sustained data rate but can refill at only
the sustained data rate. Thus, the effects of the allocation and rate parameters on packet delay are
as follows:
• The burst allocation affects how many kilobits are processed before packet delay is imposed.
• The sustained data rate affects the packet delay that is imposed.
Chapter 7: Configuration Configuring quality of service
Page 7-202
MIR Data Entry Checking
Uplink and downlink MIR is enforced as shown in Figure 154.
Note
In these figures, entry refers to the setting in the data rate parameter, not the burst
allocation parameter.
Figure 154 Uplink and downlink rate caps adjusted to apply aggregate cap
For example, in the SM, if you set the Sustained Uplink Data Rate parameter to 2,000 kbps and the
Sustained Downlink Data Rate parameter to 10,000 kbps, then the uplink and downlink MIR that is
enforced for the SM can be calculated as shown in Figure 155.
Figure 155 Uplink and downlink rate cap adjustment example
`
In this example case, the derived 1,167-kbps uplink and 5,833-kbps downlink MIR sum to the fixed
7,000-kbps aggregate cap of the SM.
Committed Information Rate (CIR)
The Committed Information Rate (CIR) capability feature enables the service provider to guarantee
to any subscriber that bandwidth will never decrease to below a specified minimum unless CIR is
oversubscribed or RF conditions are degraded. CIR is oversubscribed when there is not enough
available bandwidth to support CIR configuration for all subscribers. In this condition, SMs which
are configured with a nonzero CIR will all operate at the maximum data rate supported by the link
(subject to Maximum Information Rate and Burst Rate/Allocations). SMs which are configured with
a CIR of 0 kbps will not transmit until CIR-configured SMs have completed transmission. CIR may
be configured independently for high priority traffic and for low priority traffic.
CIR parameters may be configured in the following ways:
• Web-based management GUI
• SNMP
• Authentication Server (RADIUS) - when an SM successfully registers and authenticates, CIR
information is retrieved from the RADIUS server.
uplink cap enforced =
uplink entry x aggregate cap for the SM
uplink entry + downlink entry
downlink cap enforced =
downlink entry x aggregate cap for the SM
uplink entry + downlink entry
uplink cap enforced =
2,000 kbps x 7,000 kbps
2,000 kbps + 10,000 kbps
= 1,167 kbps
downlink cap enforced =
10,000 kbps x 7,000 kbps
2,000 kbps + 10,000 kbps
= 5,833 kbps
Chapter 7: Configuration Configuring quality of service
Page 7-203
Active CIR configuration can be verified via the AP’s Home > Session Status page.
Bandwidth from the SM Perspective
In the SM, normal web browsing, e-mail, small file transfers and short streaming video are rarely
rate limited with practical bandwidth management (QoS) settings. When the SM processes large
downloads such as software upgrades and long streaming video or a series of medium-size
downloads, the bucket rapidly drains, the burst limit is reached, and some packets are delayed.
The subscriber experience is more affected in cases where the traffic is more latency sensitive.
Interaction of Burst Allocation and Sustained Data Rate
Settings
If the Burst Allocation is set to 1200 kb and the Sustained Data Rate is set to 128 kbps, a data burst
of 1000 kb is transmitted at full speed because the Burst Allocation is set high enough. After the
burst, the bucket experiences a significant refill at the Sustained Data Rate. This configuration uses
the advantage of the settable Burst Allocation.
If both the Burst Allocation and the Sustained Data Rate are set to 128 kb, a burst is limited to the
Burst Allocation value. This configuration does not take advantage of the settable Burst Allocation.
If the Burst Allocation is set to 128 kb and the Sustained Data Rate is set to 256 kbps, the actual
rate is the burst allocation (but in kbps). As above, this configuration does not take advantage of
the settable Burst Allocation.
High-priority Bandwidth
To support low-latency traffic such as VoIP (Voice over IP) or video, the system implements a high-
priority channel. This channel does not affect the inherent latencies in the system but allows high-
priority traffic to be immediately served. The high-priority pipe separates low-latency traffic from
traffic that is latency tolerant, such as standard web traffic and file downloads.
The number of channels available on the AP is reduced by the number of SMs configured for the
high-priority channel (each SM operating with high-priority enabled uses two channels (virtual
circuits) instead of one).
A module prioritizes traffic by
• reading the Low Latency bit (Bit 3) in the Ipv4 Type of Service (ToS) byte in a received packet.
Bit 3 is set by a device outside the system.
• reading the 802.1p field of the 802.1Q header in a received packet, where VLAN is enabled on
the module.
• comparing the 6-bit Differentiated Services Code Point (DSCP) field in the ToS byte of a
received packet to a corresponding value in the Diffserv tab of the Configuration page of the
module. A packet contains no flag that indicates whether the encoding is for the Low Latency
bit or the DSCP field. For this reason, you must ensure that all elements in your trusted
domain, including routers and endpoints, set and read the ToS byte with the same scheme.
Modules monitor ToS bytes with DSCP fields, but with the following differences:
• The 6-bit length of the field allows it to specify one of 64 service differentiations.
Chapter 7: Configuration Configuring quality of service
Page 7-204
• These correlate to 64 individual (CodePoint) parameters in the Diffserv tab of the Configuration
page.
• Per RFC 2474, 3 of these 64 are preset and cannot be changed. (See
http://www.faqs.org/rfcs/rfc1902.html.)
• For any or all of the remaining 61 CodePoint parameters, you can specify a value of
o 0 through 3 for low-priority handling.
o 4 through 7 for high-priority handling.
Note
Ensure that your Differentiated Services domain boundary nodes mark any entering
packet, as needed, so that it specifies the appropriate Code Point for that traffic and
domain. This prevents theft of service level.
An example of the Diffserv page in the Configuration menu and parameter descriptions are
provided under DiffServ attributes – AP/BHM on page 7-62. This tab and its rules are identical from
module type to module type. However, any of the 61 configurable Code Points can be set to a
different value from module to module, thus defining unique per-hop behavior for some traffic.
This tab in the AP sets the priorities for the various packets in the downstream (sent from the
public network). This tab in the SM sets the priorities for the various packets in the upstream (sent
to the public network).
Typically, some SMs attach to older devices that use the ToS byte as originally formatted, and
others to newer devices that use the DSCP field. The default values in the Diffserv page allow your
modules to prioritize traffic from the older devices roughly the same as they traditionally have.
However, these default values may result in more high-priority traffic as DSCP fields from the
newer devices are read and handled. So, after making changes in the Diffserv page, carefully
monitor the high-priority channel for high packet rates
• in SMs that you have identified as those to initially set and watch.
• across your network when you have broadly implemented Code Point values, such as via
SNMP.
Chapter 7: Configuration Configuring quality of service
Page 7-205
Traffic Scheduling
The characteristics of traffic scheduling in a sector are summarized in Table 173.
Table 173 Characteristics of traffic scheduling
Category
Factor
Treatment
Throughput Aggregate throughput, less additional
overhead 132 Mbps
Latency Number of frames required for the
scheduling process 1
Round-trip latency ≈ 6 ms
AP broadcast the download schedule No
High-priority
Channel
Allocation for uplink high-priority traffic
on amount of high-priority traffic
Dynamic, based on amount of high-
priority traffic
Allocation for downlink high-priority traffic
on amount of high-priority traffic
Dynamic, based on amount of high-
priority traffic
Order of transmission
CIR high-priority
CIR low-priority
Other high-priority
Other low-priority
Caution
Power requirements affect the recommended maximums for power cord length
feeding the CMM4. See the dedicated user guide that supports the CMM that you are
deploying.
Packets that have a priority of 4 to 7 in either the DSCP or a VLAN 802.1p tag are automatically sent
on the high-priority channel, but only where the high-priority channel is enabled.
Chapter 7: Configuration Configuring quality of service
Page 7-206
Setting the Configuration Source
The AP includes a Configuration Source parameter, which sets where SMs that register to the AP
are controlled for MIR, CIR, VLAN, and the high-priority channel as follows. The Configuration
Source parameter affects the source of:
• all MIR settings:
o Sustained Uplink Data Rate
o Uplink Burst Allocation
o Max Burst Uplink Data Rate
o Sustained Downlink Data Rate
o Downlink Burst Allocation
o Max Burst Downlink Data Rate
• all CIR settings:
o Low Priority Uplink CIR
o Low Priority Downlink CIR
o Hi Priority Uplink CIR
o Hi Priority Downlink CIR
• all SM VLAN settings
o Dynamic Learning
o Allow Only Tagged Frames
o VLAN Aging Timeout
o Untagged Ingress VID
o Management VID
o VLAN Membership
• the Hi Priority Channel setting
Table 174 Recommended combined settings for typical operations
Most operators who
use…
must set this
parameter…
in this web page/tab…
in the AP to…
no authentication
server
Authentication Mode
Configuration/ Security
Disabled
Configuration Source
Configuration/ General
SM
Wireless Manager
(Authentication
Server)
Authentication Mode
Configuration/ Security
Authentication Server
Configuration Source
Configuration/ General
Authentication Server
RADIUS AAA server
Authentication Mode
Configuration/ Security
RADIUS AAA
Configuration Source
Configuration/ General
Authentication Server
Chapter 7: Configuration Configuring quality of service
Page 7-207
Table 175 Where feature values are obtained for a SM with authentication required
Configuration
Source Setting
in the AP
Values are obtained from
MIR Values
VLAN Values
High Priority Channel
State
Authentication
Server
Authentication
Server
Authentication
Server
Authentication
Server
SM SM SM SM
Authentication
Server+SM
Authentication
Server
Authentication
Server, then SM
Authentication
Server, then SM
Note
HPC represents the Hi Priority Channel (enable or disable).
Where Authentication Server, then SM is the indication, parameters for which
Authentication Server does not send values are obtained from the SM. This is the case
where the Authentication Server is operating on an Authentication Server release that
did not support the feature. This is also the case where the feature enable/disable flag
in Authentication Server is set to disabled. The values are those previously set or, if
none ever were, then the default values.
Where Authentication Server is the indication, values in the SM are disregarded.
Where SM is the indication, values that Authentication Server sends for the SM are
disregarded.
For any SM whose Authentication Mode parameter is not set to ‘Authentication Required’, the
listed settings are derived as shown in Table 176.
Table 176 MIR, VLAN, HPC, and CIR Configuration Sources, Authentication Disabled
Configuration
Source Setting
in the AP
Values are obtained from
MIR Values
VLAN Values
High Priority
Channel State
CIR Values
Authentication
Server
AP AP AP AP
SM SM SM SM SM
Authentication
Server+SM
SM SM SM SM
Chapter 7: Configuration Configuring quality of service
Page 7-208
Configuring Quality of Service (QoS)
Quality of Service (QoS) page of AP
The QoS page of AP is explained in Table 177.

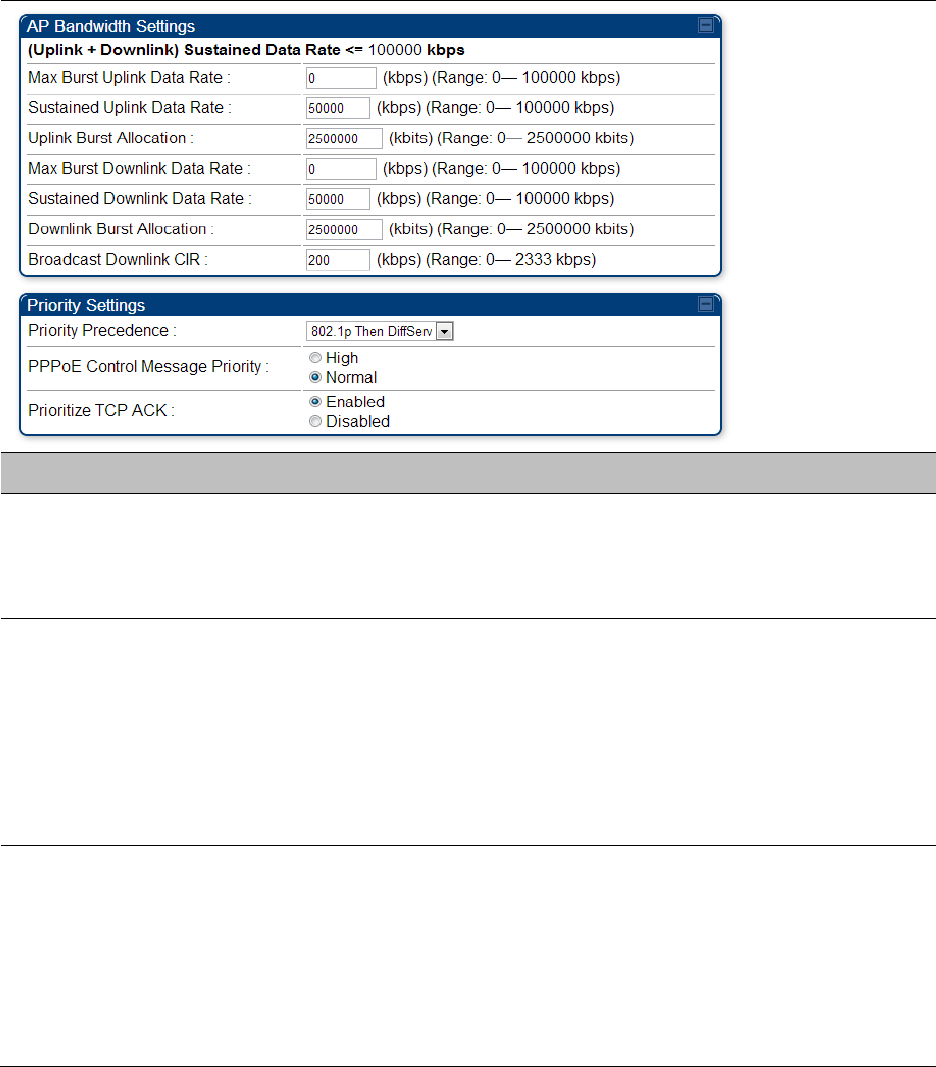

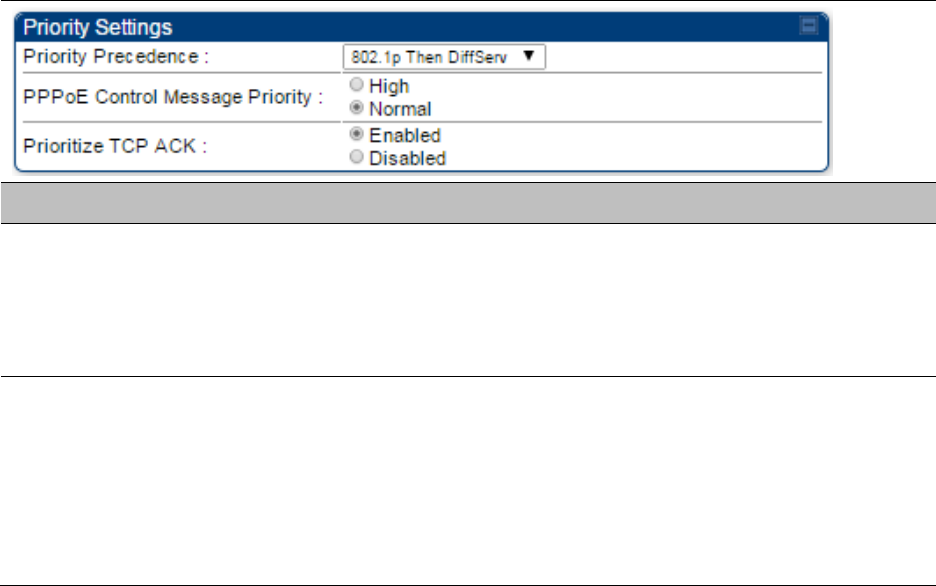

Table 177 QoS page attributes - AP
Attribute
Meaning
Max Burst Uplink
Data Rate
These parameters allow operators to specify the data rate at which a SM
is allowed to transmit (until burst allocation limit is reached) before
being recharged at the
Sustained Uplink Data Rate
with credits to transit
more. When set to 0 (default), the burst rate is unlimited.
Sustained Uplink
Data Rate
Specify the rate that each SM registered to this AP is replenished with
credits for transmission. This default imposes no restriction on the
uplink. See
• Maximum Information Rate (MIR) Parameters on page 7-201
• Interaction of Burst Allocation and Sustained Data Rate Settings on
page 7-203
• Configuration Source on page 7-71
Uplink Burst
Allocation
Specify the maximum amount of data to allow each SM to transmit
before being recharged at the
Sustained Uplink Data Rate
with credits to
transmit more. See Maximum Information Rate (MIR) Parameters on
page 7-201
• Interaction of Burst Allocation and Sustained Data Rate Settings on
page 7-203
• Configuration Source on page 7-71
Chapter 7: Configuration Configuring quality of service
Page 7-209
Max Burst Downlink
Data Rate
These parameters allow operators to specify the data rate at which a SM
is allowed to transmit (until burst allocation limit is reached) before
being recharged at the
Sustained Downlink Data Rate
with credits to
transit more. When set to 0 (default), the burst rate is unlimited.
Sustained Downlink
Data Rate
Specify the rate at which the AP is replenished with credits (tokens) for
transmission to each of the SMs in its sector. This default imposes no
restriction on the uplink. See Maximum Information Rate (MIR)
Parameters on page 7-201
• Interaction of Burst Allocation and Sustained Data Rate Settings on
page 7-203
• Configuration Source on page 7-71
Downlink Burst
Allocation
Specify the maximum amount of data to allow the AP to transmit to any
registered SM before the AP is replenished with transmission credits at
the
Sustained Downlink Data Rate
. See
• Maximum Information Rate (MIR) Parameters on page 7-201
• Interaction of Burst Allocation and Sustained Data Rate Settings on
page 7-203
• Configuration Source on page 7-71
Broadcast Downlink
CIR
Broadcast Downlink CIR
(Committed Information Rate, a minimum)
supports system designs where downlink broadcast is desired to have
higher priority than other traffic. For many other system designs,
especially typical internet access networks, leave the Broadcast
Downlink CIR at the default.
Broadcast Downlink CIR is closely related to the Broadcast Repeat Count
parameter, which is settable in the Radio tab of the Configuration page
in the AP: when the Broadcast Repeat Count is changed, the total of
available bandwidth is also changed, since packets are being sent one,
two, or three times, according to the setting in the Broadcast Repeat
Count parameter.
Priority Precedence Allows operator to decide if 802.1p or DiffServ priority bits must be used
first when making priority decisions.
PPPoE Control
Message Priority
Operators may configure the SM to utilize the high priority channel for
PPPoE control messages. Configuring the SM in this fashion can benefit
the continuity of PPPoE connections when there are issues with PPPoE
sessions being dropped in the network. This prioritization may be
configured in the DiffServ tab in the Configuration menu of the SM.
Prioritize TCP ACK To reduce the likelihood of TCP acknowledgement packets being
dropped, set this parameter to
Enabled
. This can improve throughput
that the end user perceives during transient periods of congestion on the
link that is carrying acknowledgements.
Chapter 7: Configuration Configuring quality of service
Page 7-210
Quality of Service (QoS) page of SM
The QoS page of SM is explained in Table 178.

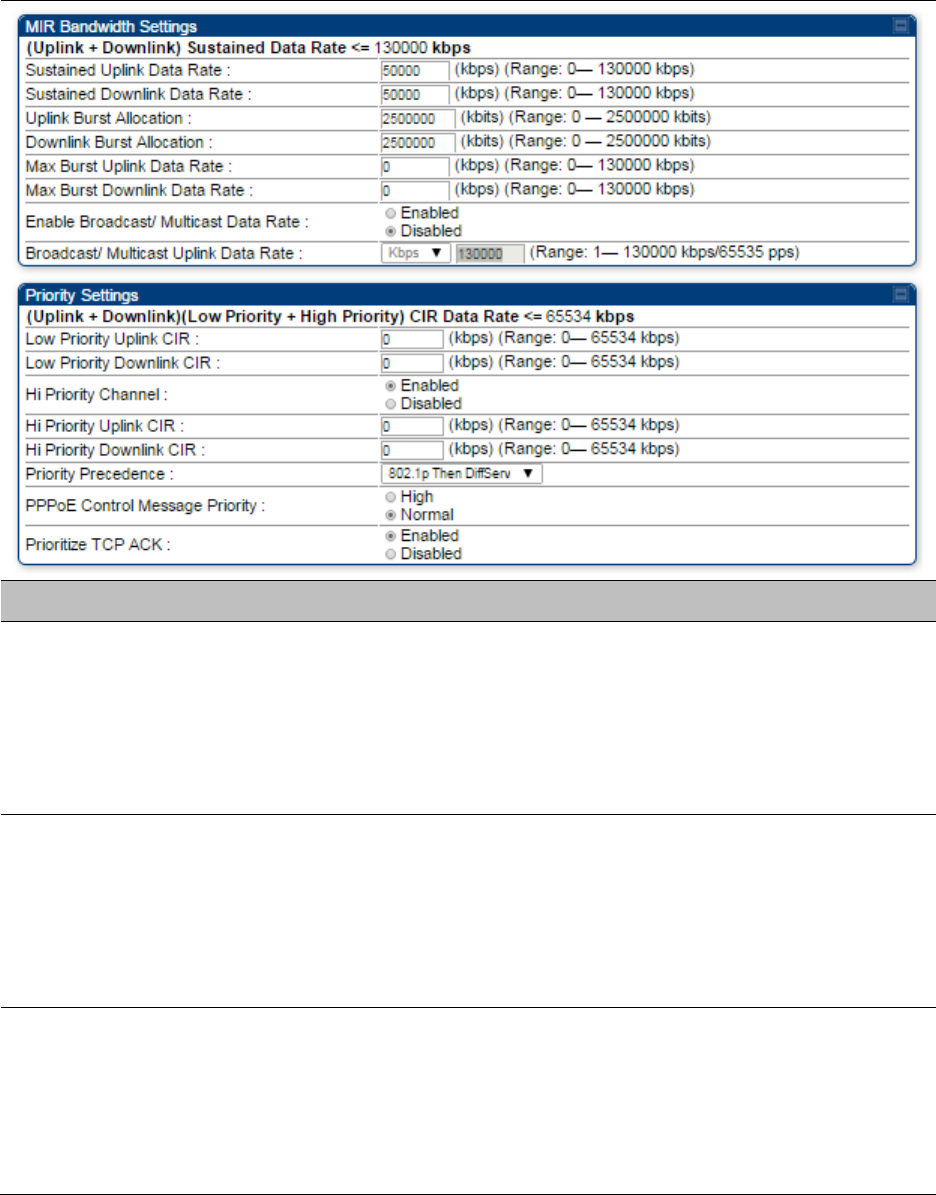

Table 178 QoS page attributes - SM
Attribute
Meaning
Sustained Uplink
Data Rate
Specify the rate that this SM is replenished with credits for transmission.
This default imposes no restriction on the uplink. See Maximum
Information Rate (MIR) Parameters on page 7-201
• Interaction of Burst Allocation and Sustained Data Rate Settings on
page 7-203
• Configuration Source on page 7-71
Sustained Downlink
Data Rate
Specify the rate at which the AP is replenished with credits (tokens) for
transmission to this SM. This default imposes no restriction on the
uplink. See Maximum Information Rate (MIR) Parameters on Page 7-201
• Interaction of Burst Allocation and Sustained Data Rate Settings on
page 7-203
• Configuration Source on page 7-71
Uplink Burst
Allocation
Specify the maximum amount of data to allow this SM to transmit
before being recharged at the
Sustained Uplink Data Rate
with credits to
transmit more. See Maximum Information Rate (MIR) Parameters on
page 7-201
• Interaction of Burst Allocation and Sustained Data Rate Settings on
page 7-203
Chapter 7: Configuration Configuring quality of service
Page 7-211
• Configuration Source on page 7-71
Downlink Burst
Allocation
Specify the maximum amount of data to allow the AP to transmit to this
SM before the AP is replenished at the
Sustained Downlink Data Rate
with transmission credits. See Maximum Information Rate (MIR)
Parameters on page 7-201
• Interaction of Burst Allocation and Sustained Data Rate Settings on
page 7-203
• Configuration Source on page 7-71
Max Burst Uplink
Data Rate
These parameters allow operators to specify the data rate at which a SM
is allowed to transmit (until burst allocation limit is reached) before
being recharged at the
Sustained Uplink Data Rate
with credits to transit
more. When set to 0 (default), the burst rate is unlimited.
Max Burst Downlink
Data Rate
These parameters allow operators to specify the data rate at which a SM
is allowed to transmit (until burst allocation limit is reached) before
being recharged at the
Sustained Downlink Data Rate
with credits to
transit more. When set to 0 (default), the burst rate is unlimited.
Enable Broadcast /
Multicast Data Rate
This parameter allows the operator to specify if Broadcast and Multicast
data is rate-limited. This data rate can be entered in Kbps or PPS
(Packets Per Second).
Broadcast / Multicast
Data Rate
This parameter allows the operator to specify a data rate at which
Broadcast and Multicast traffic is sent via the radio link.
Low Priority Uplink
CIR
This field indicates the minimum rate at which low priority traffic is sent
over the uplink (unless CIR is oversubscribed or RF link quality is
degraded).
• Committed Information Rate (CIR) on page 7-202
• Setting the Configuration Source on page 7-206
Low Priority
Downlink CIR
This field indicates the minimum rate at which low priority traffic is sent
over the downlink (unless CIR is oversubscribed or RF link quality is
degraded).
• Committed Information Rate (CIR) on page 7-202
• Setting the Configuration Source on page 7-206
Hi Priority Channel
See
• High-priority Bandwidth on page 7-203
• Configuration Source on page 7-71
Hi Priority Uplink CIR This field indicates the minimum rate at which high priority traffic is sent
over the uplink (unless CIR is oversubscribed or RF link quality is
degraded).
• Committed Information Rate (CIR) on page 7-202
• Setting the Configuration Source on page 7-206
Chapter 7: Configuration Configuring quality of service
Page 7-212
Hi Priority Downlink
CIR
This field indicates the minimum rate at which high priority traffic is sent
over the downlink (unless CIR is oversubscribed or RF link quality is
degraded).
• Committed Information Rate (CIR) on page 7-202
• Setting the Configuration Source on page 7-206
Priority Precedence Allows operator to decide if 802.1p or DiffServ priority bits must be used
first when making priority decisions.
PPPoE Control
Message Priority
Operators may configure the SM to utilize the high priority channel for
PPPoE control messages. Configuring the SM in this fashion can benefit
the continuity of PPPoE connections when there are issues with PPPoE
sessions being dropped in the network. This prioritization may be
configured in the DiffServ tab in the Configuration menu of the SM.
Prioritize TCP ACK To reduce the likelihood of TCP acknowledgement packets being
dropped, set this parameter to Enabled. This can improve throughput
that the end user perceives during transient periods of congestion on the
link that is carrying acknowledgements. This parameter, when enabled,
can be particularly useful when running bi-direction FTP sessions over
the link. If a link is primarily used for video surveillance, it is
recommended to configure this parameter to
Disabled
.
Quality of Service (QoS) page of BHM
The QoS page of BHM is explained in Table 179.

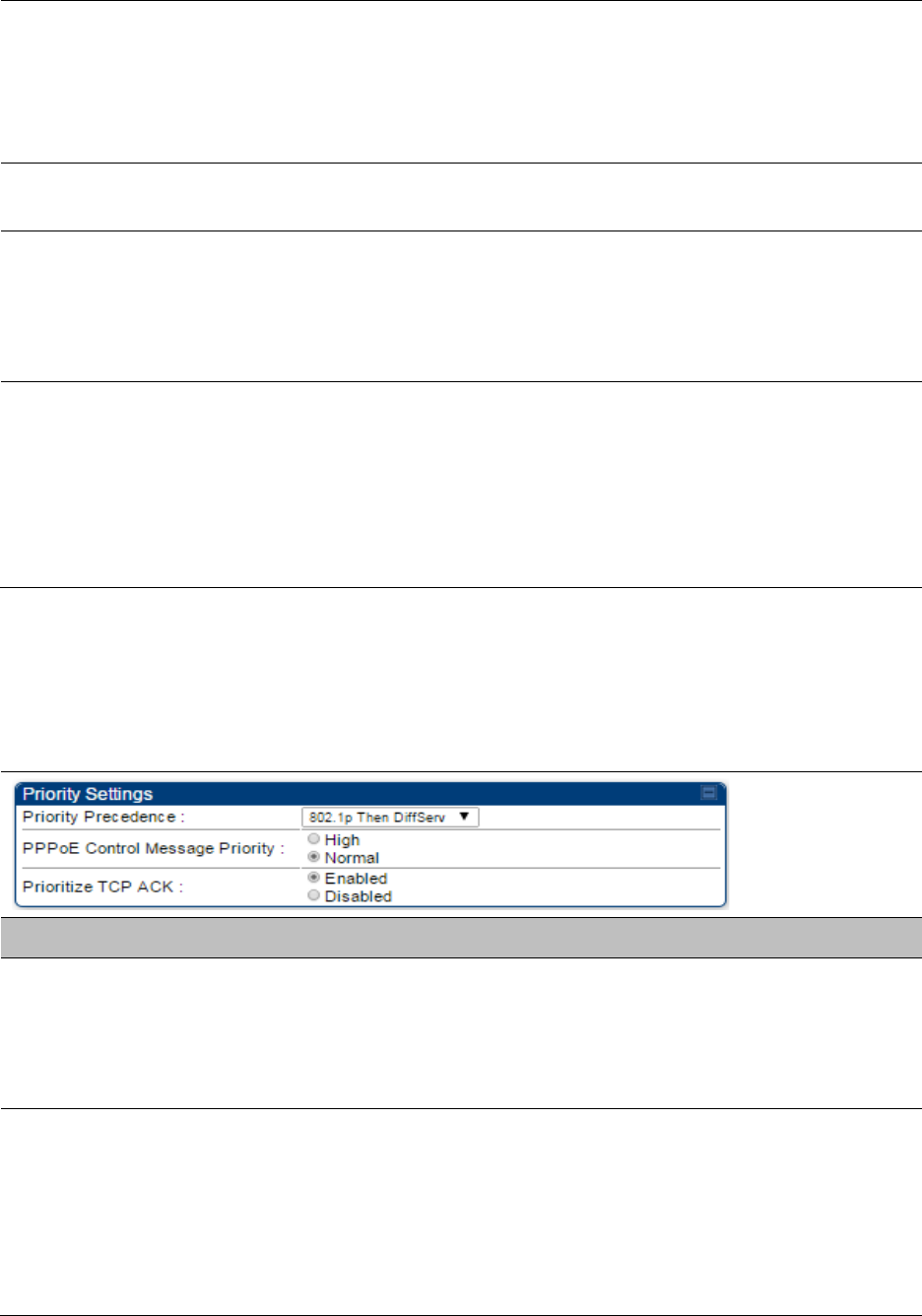

Table 179 QoS page attributes - BHM
Attribute
Meaning
PPPoE Control
Message Priority
Operators may configure the BHM to utilize the high priority channel for
PPPoE control messages. Configuring the BHM in this fashion can
benefit the continuity of PPPoE connections when there are issues with
PPPoE sessions being dropped in the network. This prioritization may be
configured in the DiffServ tab in the Configuration menu of the BHS.
Prioritize TCP ACK To reduce the likelihood of TCP acknowledgement packets being
dropped, set this parameter to Enabled. This can improve throughput
that the end user perceives during transient periods of congestion on the
link that is carrying acknowledgements. This parameter, when enabled,
can be particularly useful when running bi-direction FTP sessions over
the link. If a link is primarily used for video surveillance, it is
recommended to configure this parameter to
Disabled
.
Chapter 7: Configuration Configuring quality of service
Page 7-213
Quality of Service (QoS) page of BHS
The QoS page of BHS is explained in Table 180.
Table 180 QoS page attributes - BHS
Attribute
Meaning
PPPoE Control
Message Priority
Operators may configure the BHS to utilize the high priority channel for
PPPoE control messages. Configuring the BHS in this fashion can benefit
the continuity of PPPoE connections when there are issues with PPPoE
sessions being dropped in the network. This prioritization may be
configured in the DiffServ tab in the Configuration menu of the BHS.
Prioritize TCP ACK To reduce the likelihood of TCP acknowledgement packets being
dropped, set this parameter to Enabled. This can improve throughput
that the end user perceives during transient periods of congestion on the
link that is carrying acknowledgements. This parameter, when enabled,
can be particularly useful when running bi-direction FTP sessions over
the link. If a link is primarily used for video surveillance, it is
recommended to configure this parameter to
Disabled
.
Chapter 7: Configuration Installation Color Code
Page 7-214
Installation Color Code
With this feature enabled on the AP and SM, operators may install and remotely configure SMs
without having to configure matching color codes between the modules. While the SM is
accessible for configuration from above the AP (for remote provisioning) and below the SM (for
local site provisioning), no user data is passed over the radio link. When using the Installation
Color Code feature, ensure that the SM is configured with the factory default Color Code
configuration (Color Code 1 is “0”, Color Code 2-10 set to “0” and “Disable”). The status of the
Installation Color Code can be viewed on the AP Eval web GUI page, and when the SM is
registered using the Installation Color Code the message “SM is registered via ICC – Bridging
Disabled!” is displayed in red on every SM GUI page. The Installation Color Code parameter is
configurable without a radio reboot for both the AP and SM. If an SM is registered via Installation
Color Code and the feature is then disabled, operators will need to reboot the SM or force it to
reregister (i.e. using the Rescan APs functionality on the AP Eval page).
Figure 156 Installation Color Code of AP
Chapter 7: Configuration Zero Touch Configuration Using DHCP Option 66
Page 7-215
Zero Touch Configuration Using DHCP Option 66
This feature allows an SM to get its configuration via DHCP option 66. This can be used for the
initial configuration of an SM as well as managing the configuration of SMs on an ongoing basis.
Here is how it works in brief:
• When the SM boots up, if it is set to use DHCP client, it will send out a DHCP Discover packet
which includes a request for DHCP Option 66.
• In case of a brand new SM out of the box, the DHCP Discover packet is sent out if the SM
connects to an AP using Installation Color Code (ICC), even though DHCP client is not enabled
in factory default config.
• An appropriately configured DHCP server will respond with a DHCP Offer and include a URL in
response to the Option 66 request. The URL should point to the configuration file.
• The device will download the configuration file and apply it. The device will reboot
automatically if needed. (Note: this requires “rebootIfRequired” flag to be added to the config
file. See Creating a Golden config file on page 7-216.
Configuration Steps
Procedure 23 Zero Touch Configuration steps
1
Create the golden config file(s)
2
Host it on an TFTP/FTP/HTTP/HTTPS server
3
Configure the DHCP server to return the URL of the golden config file in option 66
When the SM boots up, it will get the URL for the golden config from the DHCP server via option
66, download it and apply it.
If all the SMs are configured exactly the same, then you can create just new golden config file that
can be used with all SMs.
If the SMs are not configured the same, see if it is possible to group the SMs such that SMs with
the same configuration are served by the same DHCP pool. User can then create multiple golden
config files and configure the DHCP server to use the appropriate config file for each pool.
User can also create one config file per SM. This provides the most flexibility, but is practical only
if you have a software tool/script to generate the config files for each MAC address. The files
should be named <mac>.cfg where <mac> is the MAC address of the SM, and stored in the same
directory on the file server. The DHCP server should be configured to return the directory name
ending with a ‘/’ in option 66. The SM will automatically add “<mac>.cfg” to the path and get its
config file.
Chapter 7: Configuration Zero Touch Configuration Using DHCP Option 66
Page 7-216
If some configuration is unique per SM, but rest of the configuration is common, the SMs can be
staged with the unique part, and use option 66 to manage the common part. For example, if each
SM needs to have its coordinates set, don’t include the coordinates in the golden config file.
Instead, configure the coordinates for each SM manually. Manage the rest of the configuration
using DHCP option 66.
Creating a Golden config file
The easiest way to create the golden config file is to configure an SM, export its configuration and
edit it. To export the configuration file from the GUI of the SM, go to “Configuration > Unit
Settings” tab, go to the “Download Configuration File” section and click on the “<mac>.cfg” link.
This will give you a text file in JSON format. You can edit this file in a text editor but it’s easier to
use a JSON editor like https://www.jsoneditoronline.org/.
Strip down the config file to remove sections and entries that don’t care about, and keep only the
items that require changes. If there are many required changes, it can easily get confusing. To
identify the exact items changes, first reset the SM to factory default, export the config file, make
the necessary changes, export a second config file, then use a tool like WinMerge
(http://winmerge.org/) to identify the differences.
The config file contains the following informational entries at the top level.
“cfgUtcTimestamp”: “cfgUtcTimestamp”,
“swVersion”: “CANOPY 15.1 SM-AES”,
“cfgFileString”: “Canopy configuration file”,
“srcMacAddress”: “0a-00-3e-a2-c2-74”,
“deviceType”: “5.4/5.7GHz MIMO OFDM - Subscriber Module”,
“cfgFileVersion”: “1.0”
The “cfgUtcTimestamp”, “swVersion”, “srcMacAddress” and “deviceType” lines can be deleted.
Do not delete the “cfgFileString” and “cfgFileVersion” entries.
Next, create an object named “configFileParameters” at the top level. Under that, add a parameter
called “rebootIfRequired” and set it to true. This tells the SM to reboot automatically if a reboot is
needed to apply the new configuration.
A sample configuration file that has been edited for use via DHCP option 66 is given below.
{
“userParameters”: {
“smNetworkConfig”: {
“networkAccess”: 1
},
“location”: {
“siteName”: “Test site”
},
“smRadioConfig”: {
Chapter 7: Configuration Zero Touch Configuration Using DHCP Option 66
Page 7-217
“frequencyScanList”: [
5475000,
5480000
],
“colorCodeList”: [
{
“colorCode”: 42,
“priority”: 1
}
]
},
“networkConfig”: {
“lanDhcpState”: 1
}
},
“cfgFileVersion”: “1.0”,
“cfgFileString”: “Canopy configuration file”,
“configFileParameters”: {
“rebootIfRequired”: true
}
}
When configuration is imported, only the items that exist in the configuration file are modified.
Parameters that are not in the imported file are not changed. If user wish to revert those settings to
their factory default values, please add a “setToDefaults” item under “configFileParameters”
section with a value of true.
“cfgFileVersion”: “1.0”,
“cfgFileString”: “Canopy configuration file”,
“configFileParameters”: {
“rebootIfRequired”: true,
“setToDefaults”: true
}
In case, the SM needs to fetch the configuration file on each boot up even when not connecting to
AP via ICC, set “Network Accessibility” to “Public” and “DHCP State” to “Enabled” in the
“Configuration > IP” page before exporting the configuration.
Hosting the config file
Copy the golden configuration file to an FTP, TFTP, HTTP or HTTPS server. This location can be
password protected; you just have to include the user name and password in the URL.
DHCP server configuration
Configure DHCP server to return the full URL to the golden config file as the value of DHCP option
66.
Chapter 7: Configuration Zero Touch Configuration Using DHCP Option 66
Page 7-218
The following example explains how to make the change for Windows Server 2008. Adapt it to
your specific DHCP server.
Procedure 24 DHCP server configuration
1
Click “Start > Administrative Tools > DHCP”
2
If you have multiple “Scopes” defined, identify the correct “Scope” that will serve IP
addresses for the SMs
3

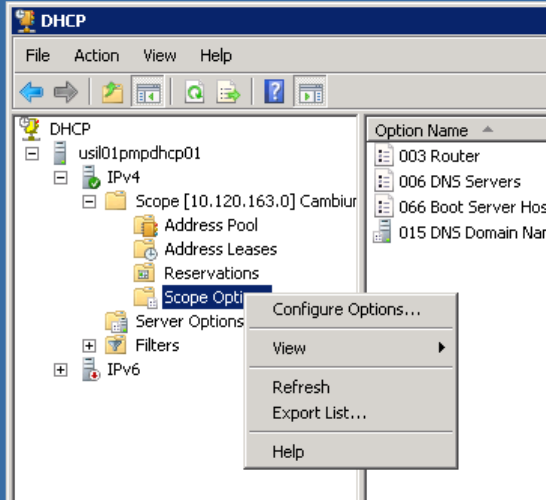

Right click on “Scope Option” under the correct “Scope” and select “Configure
Options”
Chapter 7: Configuration Zero Touch Configuration Using DHCP Option 66
Page 7-219

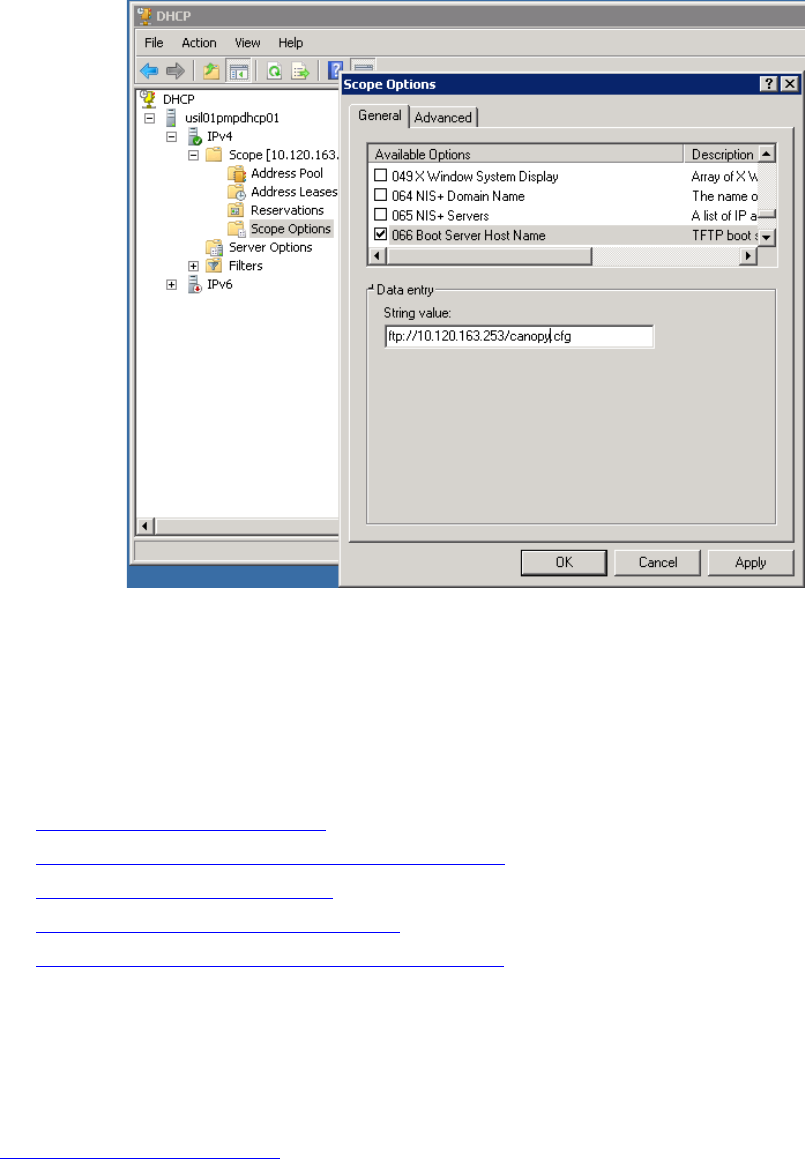

4
In the “Scope Options” dialog, scroll down to “066 Boot Server Host Name”, select the
checkbox and enter the full URL to the golden config file as the “String value”. Then
click “OK”.
5
In the DHCP snap-in window, right click and “Refresh” to see the DHCP option 66 in the
list of DHCP options
Supported URL Formats
FTP, TFTP, HTTP and HTTPS URLs are supported. Some examples are given below.
• ftp://10.120.163.253/canopy.cfg
• ftp://admin:admin123@10.120.163.253/canopy.cfg (login as admin with password admin123)
• tftp://10.120.163.253/canopy.cfg
• http://10.120.163.253/golden-config.cfg
• https://10.120.163.253/smconfig/golden-config.cfg
User can also specify the URL pointing to a directory and not a specific file. Terminate the URL
with a ‘/’ to indicate that it is a directory and not a file. Use this format when each SM has its own
individual config file. The directory should contain files named “<mac>.cfg”, one for each SM.
For example:
ftp://10.120.163.253/smconfig/
Chapter 7: Configuration Zero Touch Configuration Using DHCP Option 66
Page 7-220
In this case, the SM will append “<mac>.cfg” to the path and try to get that file. For example, if the
SM’s MAC address is 0a-00-3e-a2-c2-74, it will request for
ftp://10.120.163.253/smconfig/0a003ea2c274.cfg. This mechanism can be used to serve individual
config file for each SM.
Troubleshooting
1
Ensure that the___14 SM is running 13.3 or newer version of software.
2
If the SM has factory default config, confirm ICC is enabled on the AP, so the SM can
connect to it.
3
If the SM is connecting to the AP using a color code other than ICC, make sure the SM
has “Network Accessibility” set to “Public” and “DHCP State” set to “Enabled” in the
“Configuration > IP” page.
4
Make sure the golden config file does not turn off “Network Accessibility” or “DHCP
State”. If it does, the SM will no longer request the config file when it is rebooted.
5
Check the event log of the SM to see the status of the configuration file import
including any errors that prevented it from importing the file.
6
Capture the DHCP Offer packet from the DHCP server to the SM and verify that Option
66 has the expected URL.
Chapter 7: Configuration Configuring Radio via config file
Page 7-221
Configuring Radio via config file
The 450 Platform Family supports export and import of a configuration file from the AP or SM as a
text file. The configuration file is in JSON format.
To export or import the configuration file, the logged in user needs to be an ADMINISTRATOR and
it must not be a “read-only” account.
The exported configuration file contains the complete configuration including all the default
values. To keep a backup of the current configuration, the file can be saved as-is and imported
later.
While importing a configuration file, it can be either imported the full configuration or a sparse
configuration containing only the items that need to be changed. If a sparse configuration file is
imported, only the items in the file will be imported. Other configuration will remain unchanged.
There could also be used a special flag in the configuration file to tell the device to apply the
configuration starting from factory default (Refer Special Headers for configuration file on page 7-
222).
Import and Export of config file
The config file import and export is supported in Configuration > Unit Settings page. The
procedure for importing and exporting config file is explained below.

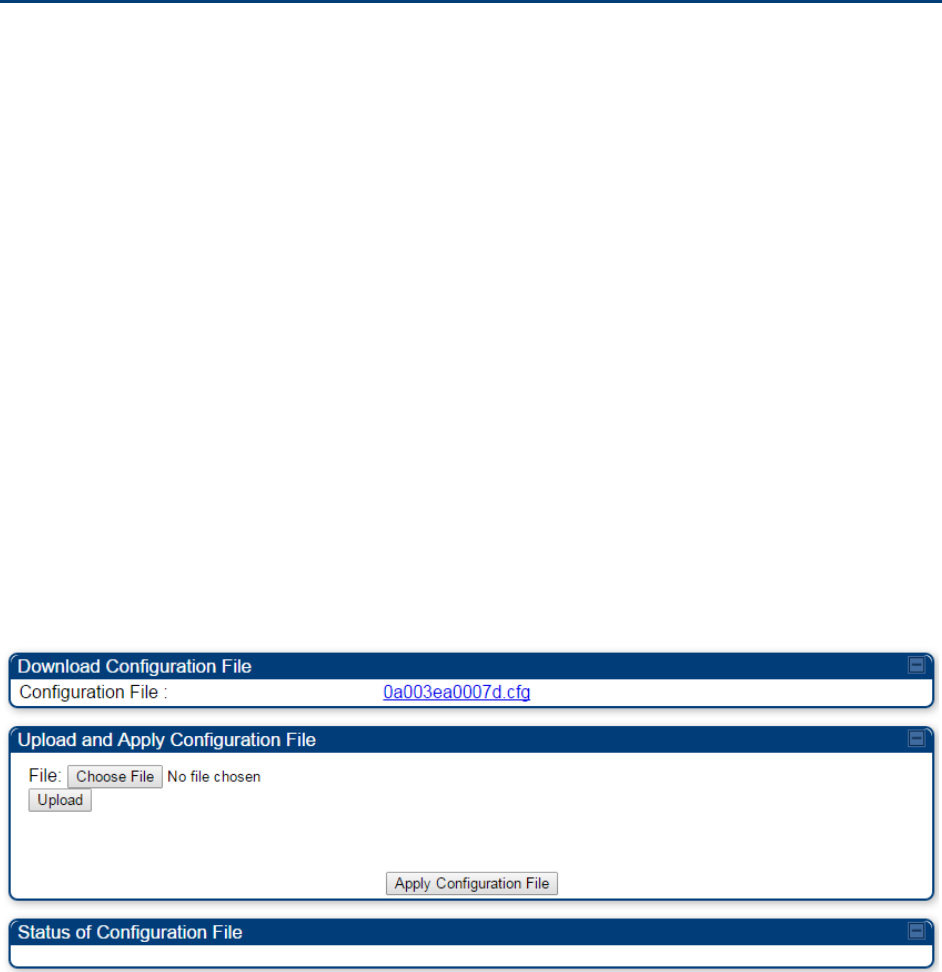

Figure 157 Configuration File upload and download page
The DHCP server configuration procedure is as follows:
Procedure 25 DHCP server configuration
1
Login to the GUI and go to
Configuration
>
Unit Settings.
2
Under Download Configuration File tab, click on the “<mac>.cfg” link, where <mac> is
the MAC address of the device (for example, “01003ea2c274.cfg”).
3
Save the file to the local disk.
The below procedure is to be followed for Importing a config file
Chapter 7: Configuration Configuring Radio via config file
Page 7-222
Procedure 26 Import the configuration from the GUI
1
Login to the GUI and go to Configuration → Unit Settings.
2
Click on “Browse” button under “Upload and Apply Configuration File” tab and select
the configuration file from disk.
3
Click “Upload” followed by “Apply Configuration File” button click.
4
The “Status of Configuration File” section will show the results of the upload.
5
Review it to make sure there are no errors. Then click on “Reboot” to reboot with the
imported configuration
The special headers for config file is explained below:
Procedure 27 Special Headers for configuration file
1
A “configFileParameters” section can be added to the header to control the behavior of
the device when importing configuration.
2
The “
setToDefaults
” when set to “true” tell the device to reset to factory default
configuration and apply the configuration in the file on top of that. So any attribute not
in the configuration file will be set to its factory default value. By default, the
configuration in the file is merged with the existing configuration on the device.
The “r
ebootIfRequired
” flag when set to “true” tell the device to reboot automatically if
needed to apply the configuration change. By default, the device will not reboot
automatically.
{
“cfgFileString”: “Canopy configuration file”,
“cfgFileVersion”: “1.0”,
“configFileParameters”: {
“setToDefaults”:true,
“rebootIfRequired”:true,
}
}
Chapter 7: Configuration Configuring cnMaestroTM Connectivity
Page 7-223
Configuring cnMaestroTM Connectivity
450 Platform Family network can be onboarded, configured and managed using cnMaestro™
Cloud or On Premises Server.
Onboarding
Onboarding can be done in one of several ways:
• Using Cambium ID and Onboarding key
• Using Manufacturer’s Serial Number (Only if it starts with an “M” and is 12 characters long)
• On Premises Zero Touch onboarding of AP/SM using DHCP option 43 and 15
• PMP SM Zero touch onboarding to the cnMaestro server where PMP AP is onboarded.
To configure the PMP devices, enable Remote Management under Configuration->cnMaestro as
shown in Table 181.

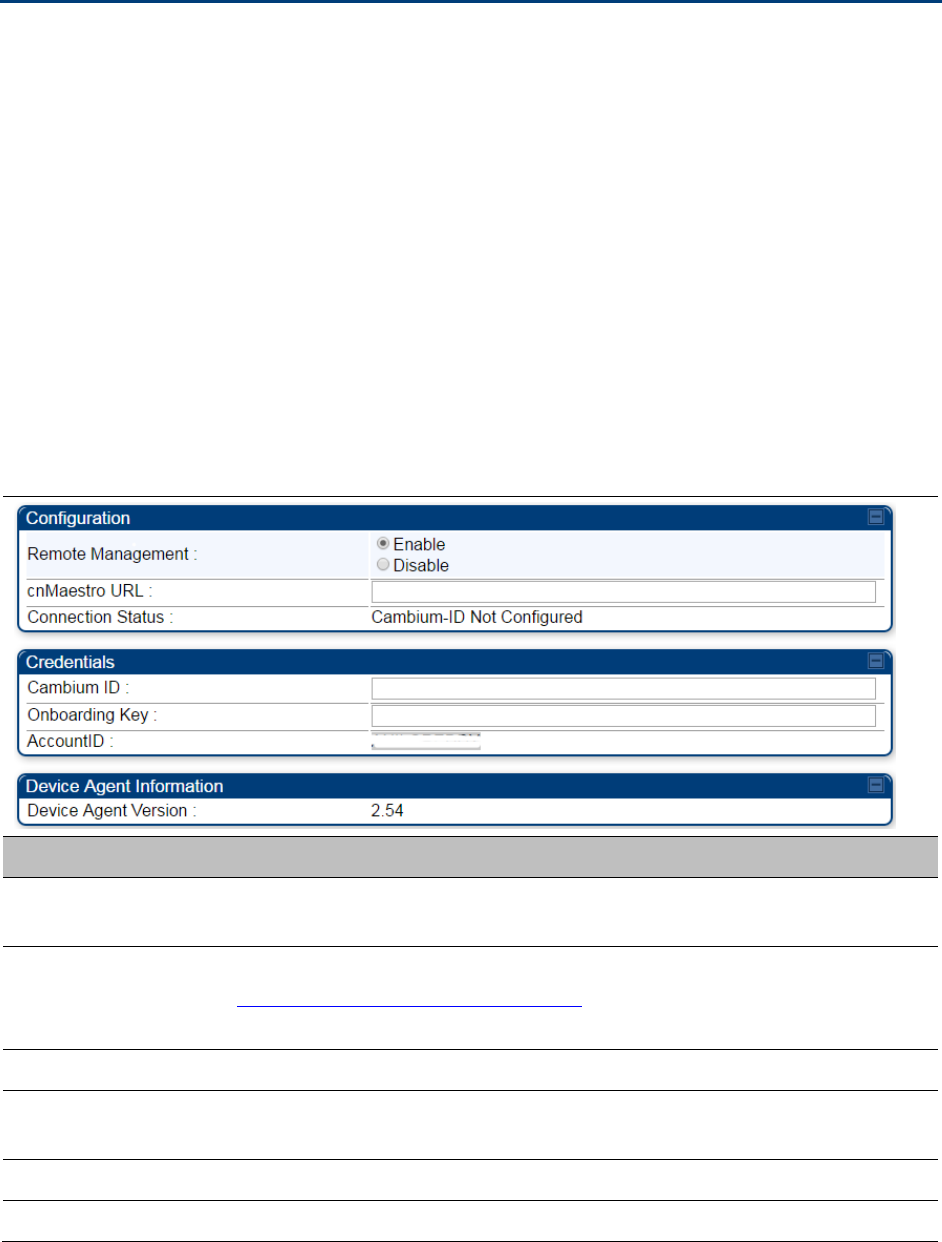

Table 181 Configuring cnMaestro
Attribute
Meaning
Remote
Management
This field enables/disables remote management of 450 Platform Family
products.
cnMaestro URL This field allows to enter cnMaestro URL e.g.
https://cloud.cambiumnetworks.com
Or cnMaestro on premises URL
Connection Status This field indicates cnMaestro connectivity status.
Cambium ID This field allows to enter Cambium ID for onboarding 450 Platform
devices.
Onboarding Key This field allows to enter Onboarding Key for onboarding.
AccountID This field indicates Account ID of the customer.
Chapter 7: Configuration Configuring cnMaestroTM Connectivity
Page 7-224
Device Agent
Version
This field shows device agent version.
Prerequisites for onboarding to cnMaestro™
• Devices types must be PMP 450m Series, PMP/PTP 450 Series, PMP/PTP 450i/450b Series or
PMP 430 Series SMs (interoperability mode only).
• Minimum required software version of 14.2.1. Device software images can be downloaded
from http://support.cambiumnetworks.com or from the On Premises cnMaestro server by
navigating to Operate >Software Update->Manage Images. Select
• Device type to display the available images and then click the download icon as shown in
Figure 158.

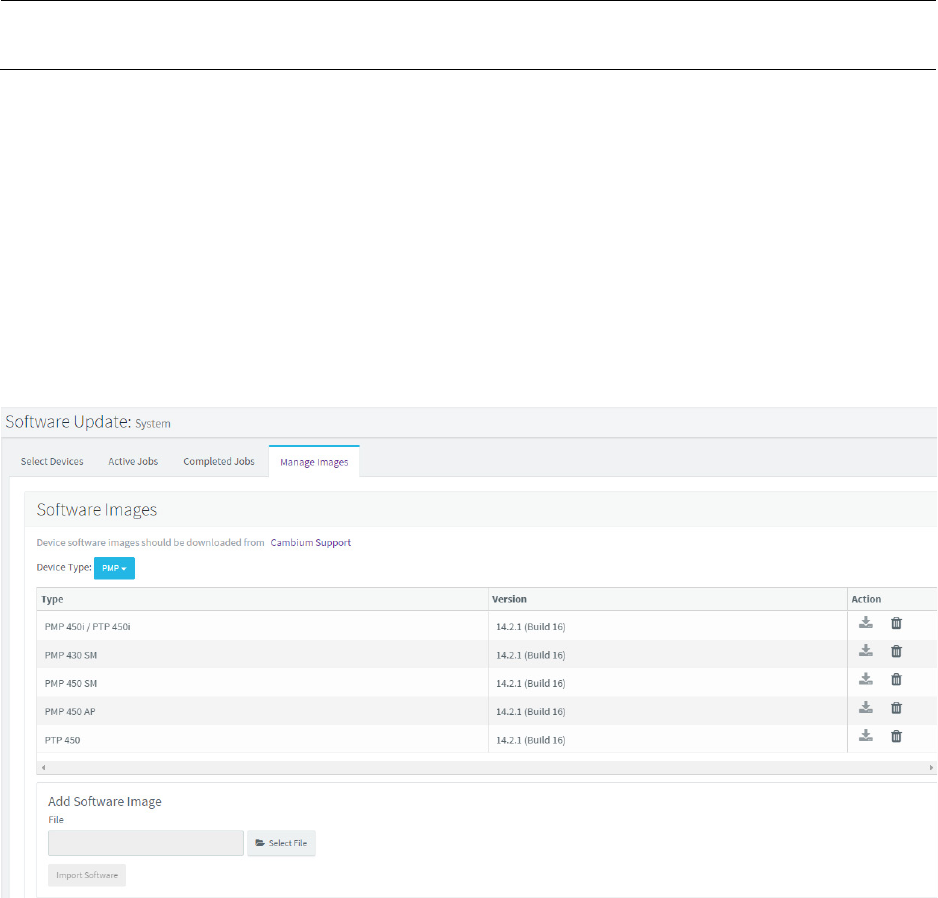

Figure 158 Software Upgrade from cnMaestro™
• IP connectivity between PMP Device and the cnMaestro server is established. Ensure Port 443
is open in the firewall as this port is used for secure communication between the PMP device
and the cnMaestro server through web sockets. In addition, if the PMP device and cnMaestro™
server are on different subnets, proper routes should be established for communication.
• For PMP AP, a valid DNS setting is required so that the AP will be able to resolve the
cnMaestro URL. DNS settings can be verified by performing a DNS lookup under Tools->DNS
Test on the AP as shown in Figure 159.
Chapter 7: Configuration Configuring cnMaestroTM Connectivity
Page 7-225

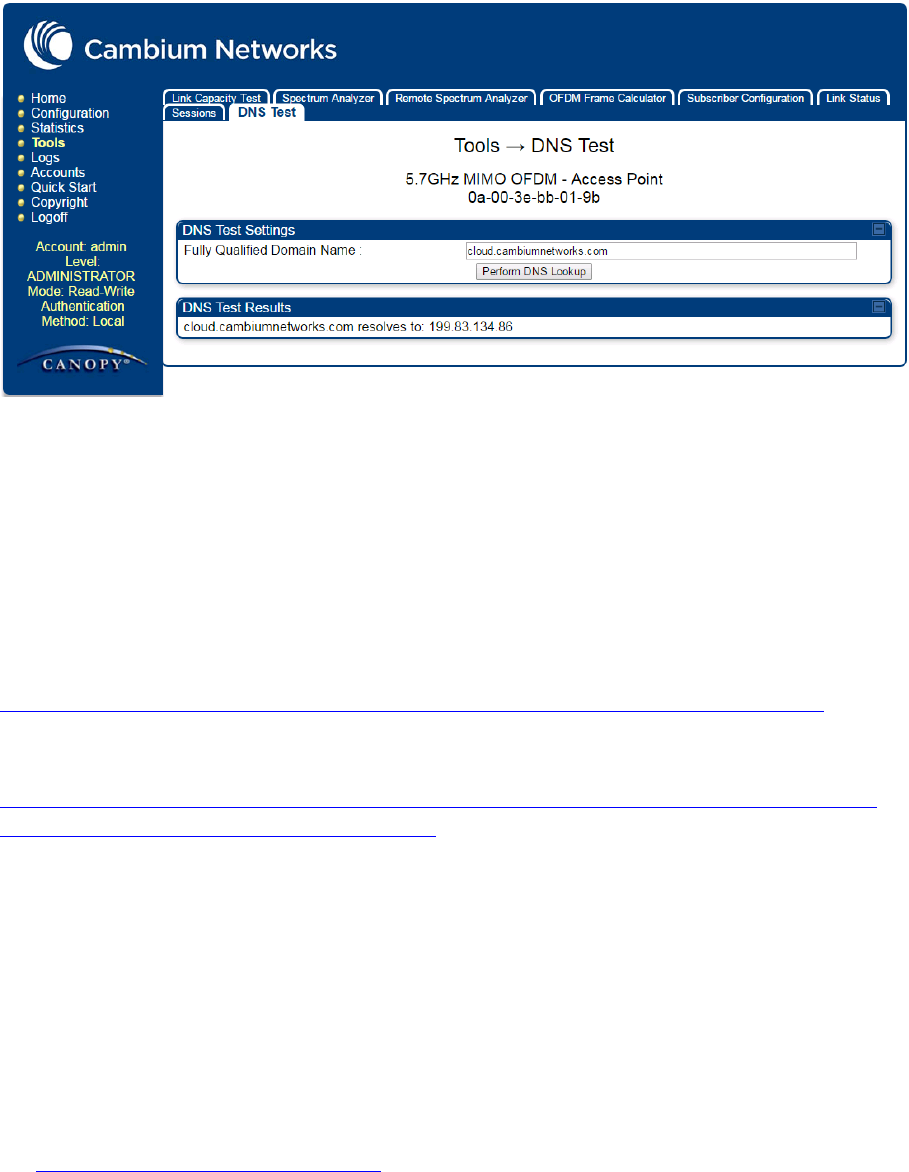

Figure 159 DNS Test for cnMaestro™ connectivity
• If the SM is in Bridge mode, then LAN1 must have public 7-225equest7-225ility with a public IP
assigned and corresponding DNS setting.
• If the SM is in NAT mode, then Remote Management should be enabled with the standalone
configuration option and DNS settings.
Knowledge Based articles for onboarding
For onboarding the devices to cloud server and troubleshooting the onboarding issues in cloud
server please see the following link:
http://community.cambiumnetworks.com/t5/cnMaestro/Device-On-boarding/td-p/51484
For onboarding the devices to on Premises server and configuring the DHCP server options for on
boarding please see the following link:
http://community.cambiumnetworks.com/t5/cnMaestro/Device-Onboarding-and-Linux-DHCP-
Options-for-cnMaestro-On/m-p/55187#U55187
Order of Device Onboarding
The device discovery order is as follows in On Permises cnMaestro™ Server. If any of the options
is not configured, the discovery method will fallback to the next option:
1. Static cnMaestro URL
2. Zero Touch token (on boarding of PMP SMs when the corresponding AP is on boarded)
3. DHCP Option 43
4. DHCP Option 15
5. https://cloud.cambiumnetworks.com
Chapter 7: Configuration Configuring cnMaestroTM Connectivity
Page 7-226
Device Agent Logs
For debugging any onboarding issues please check the device agent logs by navigating to Logs-
>Device Agent Logs on the PMP device GUI as shown in Figure 160. In addition, a tech support
dump can for the PMP device can be obtained from cnMaestro™ by navigating to Monitor->Tools
menu after selecting the particular PMP device in the tree and clicking the tech support file icon.
This can be send to Cambium support for further troubleshooting.
Figure 160 Device Agent Logs
Monitoring Tools for PMP Devices on cnMaestro™
cnMaestro™ as of this release offers several debugging tools for PMP devices. Some examples
are:
• Pictorial view of network hierarchy
• Device status
• Tech support file
• Throughput
• Alarms
• Reboot
• Debug Logs
• Network connectivity – ping and DNS lookup
Chapter 7: Configuration Configuring cnMaestroTM Connectivity
Page 7-227
Figure 161 Example cnMaestro™ screenshot
For more information on these tools please see
http://community.cambiumnetworks.com/t5/cnMaestro/How-to-use-the-cnMaestro-Tools-for-
Troubleshooting-Device-or/m-p/54503#U54503
Zero Touch on boarding of the PMP SMs when the corresponding AP is
on boarded
First a link should be established between the PMP AP and SM either by configuring manually or
using the ICC. Once the AP and SM link is established, the AP must be onboarded to cnMaestro™
using one of several ways detailed above under the Onboarding section. Once the AP is
onboarded to cnMaestro™ Cloud or On premises cnMaestro™server, the SMs under the AP will
automatically onboard to cnMaestro™ using a Zero touch token that is communicated between the
AP and SMs. This is applicable to existing SMs registered to the AP as well as new SMs registering
to the AP for the first time. The SMs appear on the onboarding queue of cnMaestro™ and the
operator must “Approve” the devices in order to manage them.
The following operations for PMP Devices are available on
cnMaestro™
• Monitor the device details in the Dashboard page by navigating to the Monitor >Dashboard
menu and selecting the PMP AP/SM in the tree.
• Monitor notifications related to the PMP AP/SM by navigating to the Monitor >Notifications
Menu and selecting the PMP AP/SM in the tree.
• Monitor device statistics on the statistics page by navigating to the Monitor >Statistics menu
and selecting the PMP AP/SM in the tree, then selecting the PMP AP or PMP SM in the Device
type dropdown.
• Monitor Performance graphs related to the PMP AP/SM by navigating to the Monitor
>Performance menu and selecting the required performance graph (i.e Throughput, SMs,
Modulation) and selecting the PMP AP/SM in the tree.
• Troubleshoot the device on the Troubleshooting page by navigating to the Monitor >Tools
menu and selecting the PMP AP/SM in the tree.
Chapter 7: Configuration Configuring cnMaestroTM Connectivity
Page 7-228
• Configure the devices by navigating to the Configure >Devices menu and selecting the PMP
AP/SM in the tree and selecting the config template that needs to be pushed to the device.
Configuration templates need to be created before the configuration can be pushed to the
device. The template can be created by copying the existing configuration from the view
device configuration link provided in the same page and then modifying the template as
needed and then pushing to the same device or other similar devices. Template needs to be
properly reviewed for IP Address and other critical parameters to avoid stranding SMs
(resulting in a truck roll) by pushing an incorrect configuration. Configuration templates can be
created by navigating to the Configure->Templates page and selecting the PMP device type
while creating the template.
• Once on 14.2.1, PMP devices can be upgraded to future supported versions from cnMaestro™
by navigating to the Operate > Software Update page and selecting the “PMP Sectors” option
from the device type drop down and the version to which the device needs to be upgraded. It
is recommended to upgrade the AP first, then the SMs.
• PMP Device Inventory details can be reviewed by navigating to the Monitor >Inventory page.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-229
Configuring a RADIUS server
Configuring a RADIUS server in a PMP 450 Platform network is optional, but can provide added
security, increase ease of network management and provide usage-based billing data.
Understanding RADIUS for
PMP 450 Platform Family
PMP 450 Platform modules include support for the RADIUS (Remote Authentication Dial In User
Service)
protocol supporting Authentication and Accounting.
RADIUS
Fun
c
tion
s
RADIUS protocol support provides the
following
functions:
• SM Authentication allows only known SMs onto the network (blocking
“rogue”
SMs), and
can be configured to ensure SMs are connecting to a known
network
(preventing SMs from
connecting to “rogue” APs). RADIUS authentication is
used
for SMs,
but
is not used for APs.
• SM Configuration: Configures authenticated SMs with MIR (Maximum Information Rate), CIR
(Committed Information Rate), High Priority, and VLAN (Virtual LAN) parameters from the
RADIUS server when a SM registers to an AP.
•
User Authentication
allows users to configure a separate User authentication server along
with the SM authentication server.
If firmware is upgraded while using this functionality and
no User authentication servers are configured, then AP continues to use the SM authentication
server for User authentication
• SM Accounting provides support for RADIUS accounting messages for usage-based billing.
This accounting includes indications for subscriber session establishment, subscriber session
disconnection, and bandwidth usage per session for each SM that connects to the AP.
• Centralized AP and SM user name and password management allows AP
and
SM
usernames and access levels (Administrator, Installer, Technician) to
be
centrally
administered in the RADIUS server instead of on each radio and tracks
access
events
(logon/logoff) for each username on the RADIUS server. This accounting does not track and
report
specific configuration actions performed on radios or pull statistics such as
bit
counts
from the radios. Such functions require an Element Management
System
(EMS) such as
Cambium Networks Wireless Manager. This accounting is
not
the ability to perform
accounting functions on the subscriber/end
user/customer
account.
•
Framed IP
allows o
perators to use a RADIUS server to assign management IP addressing to
SM modules (framed IP address).
Tested RADIUS Servers
The Canopy RADIUS implementation has been tested and is supported
on
• FreeRADIUS, Version
2.1.8
• Aradial RADIUS, Version
5.1.12
• Microsoft RADIUS (Windows Server 2012 R2 version)
Chapter 7: Configuration Configuring a RADIUS server
Page 7-230
• Cisco ACS, Version 5.7.0.15
Note
Aradial 5.3 has a bug that prevents “remote device login”, so doesn’t support the user
name and password management feature.
Choosing Authentication Mode and Configuring for
Authenti
c
ation Ser
v
er
s - AP
On the AP’s Configuration > Security tab, select the RADIUS AAA Authentication Mode. The
following describes the
other
Authentication Mode options for reference, and then the RADIUS
AAA
option.
•
Disabled
: Requires no authentication. Any SM (except a SM that itself has been configured
to
require
RADIUS authentication by enabling Enforce Authentication as described below) is
allowed to
register
to the
AP.
• Authentication Server: Authentication Server in this instance refers to Wireless Manager in
BAM-only mode. Authentication is
required
for a SM to register to the AP. Only SMs listed
by MAC address in the Wireless Manager database is
allowed to register to the
AP.
• AP Pre-Shared
Key
: Canopy offers a pre-shared key authentication option. In this case, an
identical key
must
be entered in the Authentication Key field on the AP’s Configuration >
Security tab and in the Authentication Key field on each desired SM’s Configuration >
Security
tab.
• RADIUS
AAA
: To support RADIUS authentication of SMs, on the AP’s Configuration >
Security tab
select
RADIUS AAA. Only properly configured SMs with a valid certificate is
allowed to
register
to the
AP.
When RADIUS AAA is selected, up to 3 Authentication Server (RADIUS Server)
IP
addresses
and
Shared Secrets can be configured. The IP address(s) configured here
must
match the IP
address(s) of the RADIUS server(s). The shared secret(s) configured here
must
match the shared
secret(s) configured in the RADIUS server(s). Servers 2 and 3 are meant
for
backup and
reliability, not splitting the database. If Server 1 doesn’t respond, Server 2 is
tried,
and then
server
3. If Server 1 rejects authentication, the SM is denied entry to the network, and does
not
progress trying the other
servers.
The default IP address is 0.0.0.0.
The
default Shared Secret is “CanopySharedSecret”. The
Shared Secret can be up to 32
ASCII
characters (no diacritical marks or ligatures, for
example).
Chapter 7: Configuration Configuring a RADIUS server
Page 7-231
Table 182 Security tab attributes
Chapter 7: Configuration Configuring a RADIUS server
Page 7-232
Attribute
Meaning
Authentication Mode Operators may use this field to select the following authentication
modes:
Disabled
—the AP requires no SMs to authenticate.
Authentication Server
—the AP requires any SM that attempts
registration to be authenticated in Wireless Manager before registration.
AP PreShared Key
- The AP acts as the authentication server to its SMs
and will make use of a user-configurable pre-shared authentication key.
The operator enters this key on both the AP and all SMs desired to
register to that AP. There is also an option of leaving the AP and SMs at
their default setting of using the “Default Key”. Due to the nature of the
authentication operation, if you want to set a specific authentication key,
then you MUST configure the key on all of the SMs and reboot them
BEFORE enabling the key and option on the AP. Otherwise, if you
configure the AP first, none of the SMs is able to register.
RADIUS AAA
- When RADIUS AAA is selected, up to 3 Authentication
Server (RADIUS Server) IP addresses and Shared Secrets can be
configured. The IP address(s) configured here must match the IP
address(s) of the RADIUS server(s). The shared secret(s) configured here
must match the shared secret(s) configured in the RADIUS server(s).
Servers 2 and 3 are meant for backup and reliability, not for splitting the
database. If Server 1 doesn’t respond, Server 2 is tried, and then server
3. If Server 1 rejects authentication, the SM is denied entry to the
network and does not progress trying the other servers.
Authentication
Server DNS Usage
The management DNS domain name may be toggled such that the
name of the authentication server only needs to be specified and the
DNS domain name is automatically appended to that name.
Authentication
Server 1
Enter the IP address or server name of the authentication server
(RADIUS or WM) and the Shared Secret configured in the authentication
server. When
Authentication Mode RADIUS AAA
is selected, the default
value of
Shared Secret
is “CanopySharedSecret”. The
Shared Secret
may consist of up to 32 ASCII characters.
Authentication
Server 2
Authentication
Server 3
Authentication
Server 4 (BAM Only)
Authentication
Server 5 (BAM Only)
Radius Port This field allows the operator to configure a custom port for RADIUS
server communication. The default value is 1812.
Authentication Key The authentication key is a 32-character hexadecimal string used when
Authentication Mode
is set to
AP Pre-Shared Key
. By default, this key is
set to 0xFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-233
Selection Key This option allows operators to choose which authentication key is used:
Use Key above
means that the key specified in
Authentication Key
is
used for authentication
Use Default Key
means that a default key (based off of the SM’s MAC
address) is used for authentication
Encryption Key Specify the type of airlink security to apply to this AP. The encryption
setting must match the encryption setting of the SMs.
None
provides no encryption on the air link.
DES
(Data Encryption Standard): An over-the-air link encryption option
that uses secret 56-bit keys and 8 parity bits. DES performs a series of bit
permutations, substitutions, and recombination operations on blocks of
data. DES encryption does not affect the performance or throughput of
the system.
AES
(Advanced Encryption Standard)
:
An over-the-air link encryption
option that uses the Rijndael algorithm and 128-bit keys to establish a
higher level of security than DES. AES products are certified as
compliant with the Federal Information Processing Standards (FIPS 197)
in the U.S.A.
SM Display of AP
Evaluation Data
You can use this field to suppress the display of data about this AP on
the AP Evaluation tab of the Tools page in all SMs that register.
Web, Telnet, FTP
Session Timeout
Enter the expiry in seconds for remote management sessions via HTTP,
telnet, or ftp access to the AP.
IP Access Control You can permit access to the AP from any IP address (
IP Access Filtering
Disabled
) or limit it to access from only one, two, or three IP addresses
that you specify (
IP Access Filtering Enabled
). If you select
IP Access
Filtering Enabled
, then you must populate at least one of the three
Allowed Source IP
parameters or have no access permitted from any IP
address
Allowed Source IP 1 If you selected
IP Access Filtering Enabled
for the
IP Access Control
parameter, then you must populate at least one of the three
Allowed
Source IP
parameters or have no access permitted to the AP from any IP
address. You may populate as many as all three.
Allowed Source IP 2 If you selected
IP Access Filtering Disabled
for the
IP Access Control
parameter, then no entries in this parameter are read, and access from
all IP addresses is permitted.
Allowed Source IP 3
Web Access The Radio supports secured and non-secured web access protocols.
Select suitable web access from drop down list:
•
HTTP Only
– provides non-secured web access. The radio to be
accessed via http://<IP of Radio>.
•
HTTPS Only
– provides a secured web access. The radio to be
accessed via https1://<IP of Radio>.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-234
•
HTTP and HTTPS
– If enabled, the radio can be accessed via both
http and https.
SNMP This option allows to configure SNMP agent communication version. It
can be selected from drop down list :
•
SNMPv2c Only
– Enables SNMP v2 community protocol.
•
SNMPv3 Only
– Enables SNMP v3 protocol. It is secured
communication protocol.
•
SNMPv2c and SNMPv3
– It enables both the protocols.
Telnet This option allows to
Enable
and
Disable
Telnet access to the Radio.
FTP This option allows to
Enable
and
Disable
FTP access to the Radio.
TFTP This option allows to
Enable
and
Disable
TFTP access to the Radio.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-235
SM Authentication Mode – Require RADIUS or Follow
AP
If it is desired that a SM will only authenticate to an AP that is using RADIUS, on the
SM’s
Configuration Security tab set Enforce Authentication to AAA. With this enabled, SM
does
not
register to an AP that has any Authentication Mode other than RADIUS AAA
selected
.
If it is desired that a SM use the authentication method configured on the AP it is
registering
to,
set Enforce Authentication to Disabled. With Enforce Authentication disabled, a SM will
attempt to register
using
whichever Authentication Mode is configured on the AP it is attempting
to register
to.
Note
Having SMs to use RADIUS by enabling
Enforce Authentication
avoids the security
issue
of
SMs possibly registering to “rogue” APs, which have authentication
disabled.
Table 183 SM Security tab attributes
Chapter 7: Configuration Configuring a RADIUS server
Page 7-236
Attribute
Meaning
Authentication Key
The authentication key is a 32-character hexadecimal string used when
Authentication Mode
is set to
AP PreShared Key
. By default, this key is
set to 0xFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF.
Select Key
This option allows operators to choose which authentication key is used:
Use Key above
means that the key specified in
Authentication Key
is
used for authentication
Use Default Key
means that a default key (based off of the SM’s MAC
address) is used for authentication
Enforce
Authentication
The SM may enforce authentication types of
AAA
and
AP Pre-
sharedKey
. The SM will not finish the registration process if the AP is not
using the configured authentication method (and the SM locks out the
AP for 15 minutes). Enforce Authentication default setting is
Disable.
Phase 1
The protocols supported for the
Phase 1
(Outside Identity) phase of
authentication are
EAPTTLS (Extensible Authentication Protocol
Tunneled Transport Layer
Security) or MSCHAPv2 (Microsoft
Challenge-Handshake Authentication Protocol version 2).
Phase 2
Select the desired
Phase 2
(Inside Identity) authentication protocol from
the
Phase 2
options
of
PAP
(Password Authentication Protocol),
CHAP
(Challenge Handshake
Authentication
Protocol), and
MSCHAP
(
Microsoft’s version of CHAP, version 2 is used). The protocol
must
be
consistent with the authentication protocol configured on the RADIUS
server.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-237
Identity/Realm
If Realms are being used, select
Enable Realm
and configure an outer
identity in the
Identity
field and a Realm in the
Realm
field. These must
match the Phase 1/Outer Identity and
Realm
configured in the RADIUS
server. The default
Identity
is “anonymous”. The
Identity
can be
up
to
128 non-special (no diacritical markings) alphanumeric characters. The
default
Realm
is
“canopy.net”. The
Realm
can also be up to 128 non-
special alphanumeric
characters.
Configure an outer Identity in the
Username
field. This must match the
Phase
1/Outer
Identity username configured in the RADIUS server. The
default Phase 1/Outer
Identity
Username
is “anonymous”. The
Username
can be up to 128 non-special (no
diacritical
markings)
alphanumeric
characters.
Username
Enter a
Username
for the SM. This must match the username
configured for the SM on
the
RADIUS server. The default
Username
is
the SM’s MAC address. The
Username
can be up
to
128 non-special
(no diacritical markings) alphanumeric
characters.
Password Enter the desired password for the SM in the
Password
and
Confirm
Password
fields
.
The
Password
must match the password configured
for the SM on the RADIUS server.
The
default
Password
is “password”.
The
Password
can be up to 128 non-special (no
diacritical
markings)
alphanumeric
characters.
Confirm Password
Upload Certificate
File
To upload a certificate manually to a SM, first load it in a known place
on your PC
or
network
drive, then click on a
Delete
button on one of
the Certificate description blocks to delete a certificate to provide space
for your certificate. Click on
Choose File,
browse to
the
location of the
certificate, and click the
Import Certificate
button, and then reboot the
radio to use the new certificate.
When a certificate is in use, after the SM successfully registers to an
AP, an indication of
In
Use
will appear in the description block of the
certificate being
used.
The public certificates installed on the SMs are used with the private
certificate on the
RADIUS
server to provide a public/private key
encryption
system.
Up to 2 certificates can be resident on a SM. An installed certificate can
be deleted
by
clicking the
Delete
button in the certificate’s description
block on the Configuration >
Security
tab. To restore the 2 default
certificates, click the
Use Default Certificates
button in
the
RADIUS
Certificate Settings
parameter block and reboot the
radio.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-238
Encryption Setting
Specify the type of airlink security to apply to this AP. The encryption
setting must match the encryption setting of the SMs.
None
provides no encryption on the air link.
DES
(Data Encryption Standard): An over-the-air link encryption option
that uses secret 56-bit keys and 8 parity bits. DES performs a series of bit
permutations, substitutions, and recombination operations on blocks of
data. DES encryption does not affect the performance or throughput of
the system.
AES
(Advanced Encryption Standard)
:
An over-the-air link encryption
option that uses the Rijndael algorithm and 128-bit keys to establish a
higher level of security than DES. AES products are certified as
compliant with the Federal Information Processing Standards (FIPS 197)
in the U.S.A.
Web, Telnet, FTP
Session Timeout
Enter the expiry in seconds for remote management sessions via HTTP,
telnet or ftp access to the AP.
Ethernet Access
If you want to prevent any device that is connected to the Ethernet port
of the SM from accessing the management interface of the SM, select
Ethernet Access Disabled
. This selection disables access through this
port to via HTTP (the GUI), SNMP, telnet, FTP, and TFTP. With this
selection, management access is available through only the RF interface
via either an IP address (if
Network Accessibility
is set to
Public
on the
SM) or the Session Status or Remote Subscribers tab of the AP. See
IP
Access Control
below.
If you want to allow management access through the Ethernet port,
select
Ethernet Access Enabled
. This is the factory default setting for this
parameter.
IP Access Control
You can permit access to the AP from any IP address (
IP Access Filtering
Disabled
) or limit it to access from only one, two, or three IP addresses
that you specify (
IP Access Filtering Enabled
). If you select
IP Access
Filtering Enabled
, then you must populate at least one of the three
Allowed Source IP
parameters or have no access permitted from any IP
address
Allowed Source IP 1 If you selected
IP Access Filtering Enabled
for the
IP Access Control
parameter, then you must populate at least one of the three
Allowed
Source IP
parameters or have no access permitted to the AP from any IP
address. You may populate as many as all three.
If you selected
IP Access Filtering Disabled
for the
IP Access Control
parameter, then no entries in this parameter are read, and access from
all IP addresses is permitted.
Allowed Source IP 2
Allowed Source IP 3
Web Access The Radio supports secured and non-secured web access protocols.
Select suitable web access from drop down list:
•
HTTP Only
– provides non-secured web access. The radio to be
accessed via http://<IP of Radio>.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-239
•
HTTPS Only
– provides a secured web access. The radio to be
accessed via https://<IP of Radio>.
•
HTTP and HTTPS
– If enabled, the radio can be accessed via both
http and https.
SNMP This option allows to configure SNMP agent communication version. It
can be selected from drop down list :
•
SNMPv2c Only
– Enables SNMP v2 community protocol.
•
SNMPv3 Only
– Enables SNMP v3 protocol. It is secured
communication protocol.
•
SNMPv2c and SNMPv3
– It enables both the protocols.
Telnet This option allows to
Enable
and
Disable
Telnet access to the Radio.
FTP This option allows to
Enable
and
Disable
FTP access to the Radio.
TFTP This option allows to
Enable
and
Disable
TFTP access to the Radio.
SM - Phase 1 (Outside Identity) parameters and
s
ettin
gs
The protocols supported for the Phase 1 (Outside Identity) phase of authentication
are
eapttls (Extensible Authentication Protocol Tunneled Transport Layer
Security) and
eapMSChapV2
(Extensible Authentication Protocol – Microsoft Challenge-Handshake
Authentication Protocol).
Configure an outer Identity in the Username field. This must match the Phase
1/Outer
Identity
username configured in the RADIUS server. The default Phase 1/Outer
Identity
Username is
“anonymous”. The Username can be up to 128 non-special (no
diacritical
markings)
alphanumeric
characters.
If Realms are being used in the RADIUS system (eapttls only), select
Enable Realm and configure an outer identity in the
Identity
field and a Realm in the Realm field.
These must match the Phase 1/Outer Identity and
Realm
configured in the RADIUS server. The
default Identity is “anonymous”. The Identity can be
up
to
128 non-special (no diacritical markings)
alphanumeric characters. The default Realm
is
“canopy.net”. The Realm can also be up to 128 non-
special alphanumeric
characters.
SM - Phase 2 (Inside Identity) parameters and
s
ettin
gs
If using eapttls for Phase 1 authentication, select the desired Phase 2 (Inside Identity)
authentication protocol from the Phase 2 options
of
PAP (Password Authentication Protocol),
CHAP (Challenge Handshake
Authentication
Protocol), and MSCHAPv2 (Microsoft’s version of
CHAP). The protocol
must
be
consistent with the authentication protocol configured on the
RADIUS
server.
Enter a Username for the SM. This must match the username configured for the
SM on
the
RADIUS server. The default Username is the SM’s MAC address. The Username can
be up
to
128 non-special (no diacritical markings) alphanumeric
characters.
Enter the desired password for the SM in the Password and Confirm Password fields.
The
Password must match the password configured for the SM on the RADIUS server.
The
default
Password is “password”. The Password can be up to 128 non-special (no
diacritical
markings)
alphanumeric
characters.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-240
Handling Certificates
Managing SM Certificates via the SM GUI
The default public Canopy certificates are loaded into SMs upon factory software installation.
The default certificates are not secure and are intended for
use
during lab and field trials as part
of gaining experience with the RADIUS functionalities or as
an
option during debug. For secure
operation, an operator will want to create or procure their
own
certificates. Resetting a SM to its
factory defaults will remove the current certificates and restore the default certificates.
Up to two certificates can be resident on a SM. An installed certificate can be deleted
by
clicking
the Delete button in the certificate’s description block on the Configuration >
Security
tab. To
restore the 2 default certificates, click the Use Default Certificates button in
the
RADIUS
Certificate Settings parameter block and reboot the
radio.
To upload a certificate manually to a SM, first load it in a known place on your PC
or
network
drive, then click on a Delete button on one of the Certificate description blocks to delete a
certificate to provide space for your certificate. Click on Choose File, browse to
the
location of the
certificate, and click the Import Certificate button, and then reboot the radio to use the new
certificate.
When a certificate is in use, after the SM successfully registers to an AP, an indication of In
Use
will appear in the description block of the certificate being
used.
The public certificates installed on the SMs are used with the private certificate on the
RADIUS
server to provide a public/private key encryption
system.
Note
Root certificates of more than one level (Example - a certificate from someone who
received their CA from Verisign) fails. Certificates must be either root or self-signed.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-241
Figure 162 SM Certificate Management

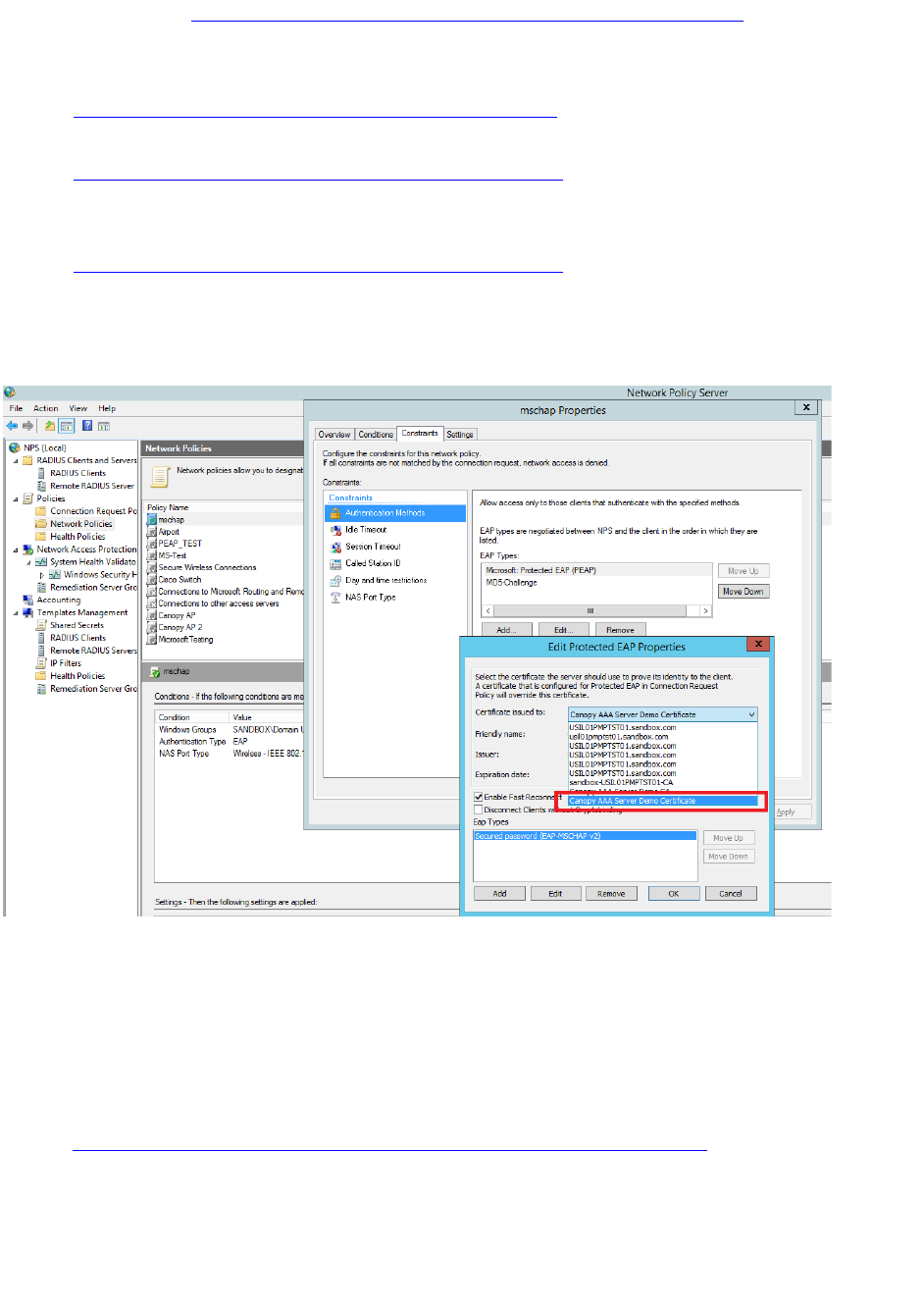

Configuring RADIUS servers for SM authentication
Your RADIUS server must be configured to use the
following:
• EAPTTLS or MSCHAPv2 as the Phase 1/Outer Identity
protocol.
• If Enable Realm is selected on the SM’s Configuration > Security tab, then the
same
Realm
appears there (or access to it).
• The same Phase 2 (Inner Identity) protocol as configured on the SM’s
Configuration
>
Security tab under Phase 2 options.
• The username and password for each SM configured on each SM’s
Configuration
> Security
tab.
• An IP address and NAS shared secret that is the same as the IP address and Shared Secret
configured on the AP’s Configuration > Security tab for
that
RADIUS server.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-242
• A server private certificate, server key, and CA certificate that complement
the
public
certificates distributed to the SMs, as well as the Canopy dictionary file
that
defines Vendor
Specific Attributes (VSAa). Default certificate files and
the
dictionary
file are available from
the software
site:
https://support.cambiumnetworks.com/files/pmp450 after entering your
name,
email address, and either Customer Contract Number or the MAC address of
a
module covered under the 12 month
warranty.
Optionally, operators may configure the RADIUS server response messages (Accept or Reject) so
that the user has information as to why they have been rejected. The AP displays the RADIUS
Authentication Reply message strings in the Session Status list as part of each SM’s information.
The SM will show this string (listed as Authentication Response on the SM GUI) on the main
Status page in the Subscriber Module Stats section.
Note
Aradial AAA servers only support operator-configurable Authentication Accept
responses, not Authentication Reject responses.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-243
Assigning SM management IP addressing via RADIUS
Operators may use a RADIUS AAA server to assign management IP addressing to SM modules
(framed IP address). SMs now interpret attributes Framed-IP-Address, Framed-IP-Netmask, and
Cambium-Canopy-Gateway from RADIUS. The RADIUS dictionary file has been updated to include
the Cambium-Canopy-Gateway attribute and is available on the Cambium Software Support
website.
In order for these attributes to be assigned and used by the SM, the following must be true:
• The system is configured for AAA authentication
• The SM is not configured for DHCP on its management interface. If DHCP is enabled and these
attributes are configured in the RADIUS server, the attributes is ignored by the SM.
• The SM management interface must be configured to be publically accessible. If the SM is
configured to have local accessibility, the management interface will still be assigned the
framed addressing, and the SM iscome publicly accessible via the assigned framed IP
addressing.
• When using these attributes, for the addressing to be implemented by the SM operators must
configure Framed-IP-Address in RADIUS. If Framed-IP-Address is not configured but Framed-
IP-Netmask and/or Cambium-Canopy-Gateway is configured, the attributes is ignored. In the
case where only the Framed-IP-Address is configured, Framed-IP-Netmask defaults to
255.255.0.0 (NAT disabled) / 255.255.255.0 (NAT enabled) and Cambium-Canopy-Gateway
defaults to 0.0.0.0.
Configuring RADIUS server for SM configuration
Canopy Vendor Specific Attributes (VSAs) along with VSA numbers and
other
details are listed
in Table 184. The associated SM GUI page, tab and parameter are listed to aid
cross-referencing
and understanding of the
VSAs.
A RADIUS dictionary file is available from the software
site:
https://support.cambiumnetworks.com/files/pmp450
The RADIUS dictionary file
defines
the VSAs and their values and is usually imported into the
RADIUS server as part of
server
and database
setup.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-244
Note
Beginning with System Release 12.0.2, two RADIUS dictionary files are available on
the Cambium website – “RADIUS Dictionary file – Cambium” and “RADIUS Dictionary
file – Motorola”.
In addition to a renaming of attributes, the Cambium-branded dictionary file contains
two new VSAs for controlling uplink and downlink Maximum Burst Data Rate (these
VSAs are listed below in Table 184).
If you are transitioning from the Motorola-branded dictionary file to the Cambium-
branded dictionary file, ensure that all RADIUS profiles containing Motorola-Canopy
attribute references are updated to include Cambium-Canopy attribute references (for
all applicable VSAs listed in Table 184). Also, ensure that all RADIUS configuration
files reference the new dictionary file (as an alternative, operators may rename the
Cambium-branded dictionary file to the filename currently in use by the RADIUS
server). Once the profiles are updated and the new Cambium-branded dictionary file is
installed on the RADIUS server, restart the RADIUS server to ensure that the new
VSAs and attribute names are enabled.
Table 184 RADIUS Vendor Specific Attributes (VSAs)
Name
Number
Type
Required
Value
MS-MPPE-Send-Key
*
26.311.16
-
Y
-
-
- -
MS-MPPE-Recv-Key
*
26.311.17
-
Y
-
-
-
-
Cambium-Canopy-LPULCIR
26.161.1
integer N
0-65535
kbps
Configuration > Quality of Service > Low Priority Uplink
CIR
0
kbps
32 bits
Cambium-Canopy-LPDLCIR
26.161.2
integer N
0-65535
kbps
Configuration > Quality of Service > Low Priority Downlink
CIR
0
kbps
32 bits
Cambium-Canopy-HPULCIR
26.161.3
integer
N
0-65535
kbps
Configuration > Quality of Service > Hi Priority Uplink
CIR
0
kbps
32 bits
Cambium-Canopy-HPDLCIR
26.161.4
integer
N
0-65535
kbps
Configuration > Quality of Service > Hi Priority Uplink
CIR
0
kbps
32 bits
Cambium-Canopy-HPENABLE
26.161.5
integer
N
0-disable,
1-enable
Configuration > Quality of Service > Hi Priority
Channel
Enable/Disable
0
32 bits
26.161.6
integer
N
0-100000
kbps
Chapter 7: Configuration Configuring a RADIUS server
Page 7-245
Configuration > Quality of Service > Sustained Uplink
Data
Rate
dependent
on
radio
feature
set
32 bits
Cambium-Canopy-ULBL
26.161.7
integer
N
0-2500000
kbps
Configuration > Quality of Service > Uplink Burst
Allocation
dependent
on
radio
feature
set
32 bits
Cambium-Canopy-DLBR
26.161.8
integer N
0-100000
kbps
Configuration > Quality of Service > Sustained Downlink
Data
Rate
dependent
on
radio
feature
set
32 bits
Cambium-Canopy-DLBL
26.161.9
integer
N
0-2500000
kbps
Configuration > Quality of Service > Downlink Burst
Allocation
dependent
on
radio
feature
set
32 bits
Cambium-Canopy-
VLLEARNEN
26.161.14
integer
N
0-disable,
1-enable
Configuration > VLAN > Dynamic
Learning 1
32 bits
Cambium-Canopy-
VLFRAMES
26.161.15 integer
N
0-all, 1-tagged,
2-
untagged
Configuration > VLAN > Allow Frame
Types 0
32 bits
Cambium-Canopy-VLIDSET
26.161.16 integer N
VLAN Membership
(1-4094)
Configuration > VLAN
Membership 0
32 bits
Cambium-Canopy-VLAGETO
26.161.20 integer
N
5 - 1440
minutes
Configuration > VLAN > VLAN Aging
Timeout
25
mins
32 bits
Cambium-Canopy-VLIGVID
26.161.21
integer
N
1 –
4094
Configuration > VLAN > Default Port
VID 1
32 bits
Cambium-Canopy-VLMGVID
26.161.22 integer
N
1 –
4094
Configuration > VLAN > Management
VID 1
32 bits
Cambium-Canopy-
VLSMMGPASS
26.161.23 integer
N
0-disable,
1-enable
Configuration > VLAN > SM Management VID
Pass-through 1
32 bits
Cambium-Canopy-BCASTMIR
26.161.24 integer
N
0-100000 kbps,
0=disabled
Configuration > Quality of Service > Broadcast/Multicast
Uplink
Data Rate
dependent
on
radio
feature
set
32 bits
Cambium-Canopy-Gateway
26.161.25 ipaddr N
-
Configuration > IP > Gateway IP Address
0.0.0.0 -
Chapter 7: Configuration Configuring a RADIUS server
Page 7-246
Cambium-Canopy-ULMB 26.161.26
integer
N
0-100000 kbps
Configuration > Quality of Service > Max Burst Uplink Data
Rate
0 32 bits
Cambium-Canopy-DLMB 26.161.27
integer
N
0-100000 kbps
Configuration > Quality of Service > Max Burst Downlink Data
Rate
0 32 bits
Cambium-Canopy-UserLevel 26.161.50
integer
N
1-Technician,
2-
Installer, 3-
Administrator
Account > Add User >
Level 0
32 bits
Cambium-Canopy-DHCP-
State
26.161.31 integer N 1-Enable
Configuration > IP > DHCP
state
1 32
bits
Cambium-Canopy-
BCASTMIRUNITS
26.161.28
integer
N
Configuration > QoS >
Broadcast Downlink CIR
0
32 bits
Cambium-Canopy-
ConfigFileImportUrl
26.161.29
string
N
Configuration > Unit Settings
0 32 bits
Cambium-Canopy-
ConfigFileExportUrl
26.161.30 string N
Configuration > Unit Settings 0 32 bits
Cambium-Canopy-UserMode 26.161.51 integer N 1=Read-Only 0=Read-
Write
Account > Add User > User
Mode
0 32 bits
(*) Contains key for encrypting packets sent by the NAS to the remote host (for Microsoft Point-
to-Point Encryption Protocol).
Note
VSA
numbering:
26 connotes Vendor Specific Attribute, per RFC
2865
26.311 is Microsoft Vendor Code, per
IANA
Chapter 7: Configuration Configuring a RADIUS server
Page 7-247
Configuring RADIUS server for SM configuration using Zero
Touch feature
The RADIUS VSA (Vendor Specific Attributes) is updated for Zero Touch feature. This feature
enables the ability for a SM to get its configuration via RADIUS VSA. The RADIUS VSA is updated
for an URL which points to the configuration file of SM (see Table 184 for list of VSA).
The RADIUS will push the vendor specific attribute to SM after successful authentication. The VSA
contains URL of config file which will redirect SM to download configuration. If there is any change
in SM confirmation, the SM will reboot automatically after applying the configuration.
The RADIUS VSA attributes concerning Zero Touch are as follows:
VSA Type String
Cambium-Canopy-ConfigFileImportUrl (29) string Maximum Length 127
characters.
Cambium-Canopy-ConfigFileExportUrl (30) string Maximum Length 127
characters.
The updated RADIUS dictionary can be downloaded from below link:
https://support.cambiumnetworks.com/files/pmp450/
Note
The feature is not applicable to the AP.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-248
Using RADIUS for centralized AP and SM user name and
password management
AP – Technician/Installer/Administrator
Authenti
c
ation
To control technician, installer, and administrator access to the AP from a centralized
RADIUS
server:
Procedure 28 Centralized user name and password management for AP
1
Set
Authentication Mode
on the AP’s Configuration > Security tab to
RADIUS AAA
2
Set
User Authentication Mode
on the AP’s Account > User Authentication
tab
(the tab
only appears after the AP is set to RADIUS authentication) to
Remote
or
Remote then
Local
.
•
Local
: The local SM is checked for accounts. No centralized
RADIUS
accounting
(access control)
is
performed.
•
Remote
: Authentication by the centralized RADIUS server
is
required to gain access
to the SM if the SM is registered to an
AP
that has
RADIUS AAA Authentication
Mode
selected. For up to
2
minutes a test pattern is displayed until the server
responds
or
times
out.
•
Remote then Local
: Authentication using the centralized
RADIUS
server is
attempted. If the server sends a reject message, then
the
setting of
Allow Local
Login after Reject from AAA
determines
if
the local user database is checked or
not. If the configured
servers
do
not respond within 2 minutes, then the local user
database
is
used. The successful login method is displayed in the
navigation
column of the SM.
o User administration and authentication separation
On the AP, it is possible to configure up to three User Authentication servers, along with their
Shared Secret. If none of the User Authentication servers are configured, the AP continues to use
SM Authorization servers for User Authentication.
If at least one of the IP addresses is configured, all Authentication, Authorization, and Accounting
requests now follow the newly configured User Authorization server.
To configure separate User Authentication and SM Authentication:
Chapter 7: Configuration Configuring a RADIUS server
Page 7-249
Procedure 29 User administration and authentication separation
1
Go to the AP’s
Account
>
User Authentication And Access Tracking
tab
2
Set
User Authentication Mode
to
Remote
or
Remote then Local
.
3
Set
User Authentication Method
to
EAP-MD5
or
EAP-PEAP-MSCHAPv2
4
Configure the Shared Secrets and IP Addresses of:
User Authentication Server 1
User Authentication Server 2
User Authentication Server 3
Note:
If none of the above User Authentication servers are configured, only SM
authentication will be performed.
5
Under
RADIUS Certificate Settings
, click
Browse
to upload the RADIUS Certificate files.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-250

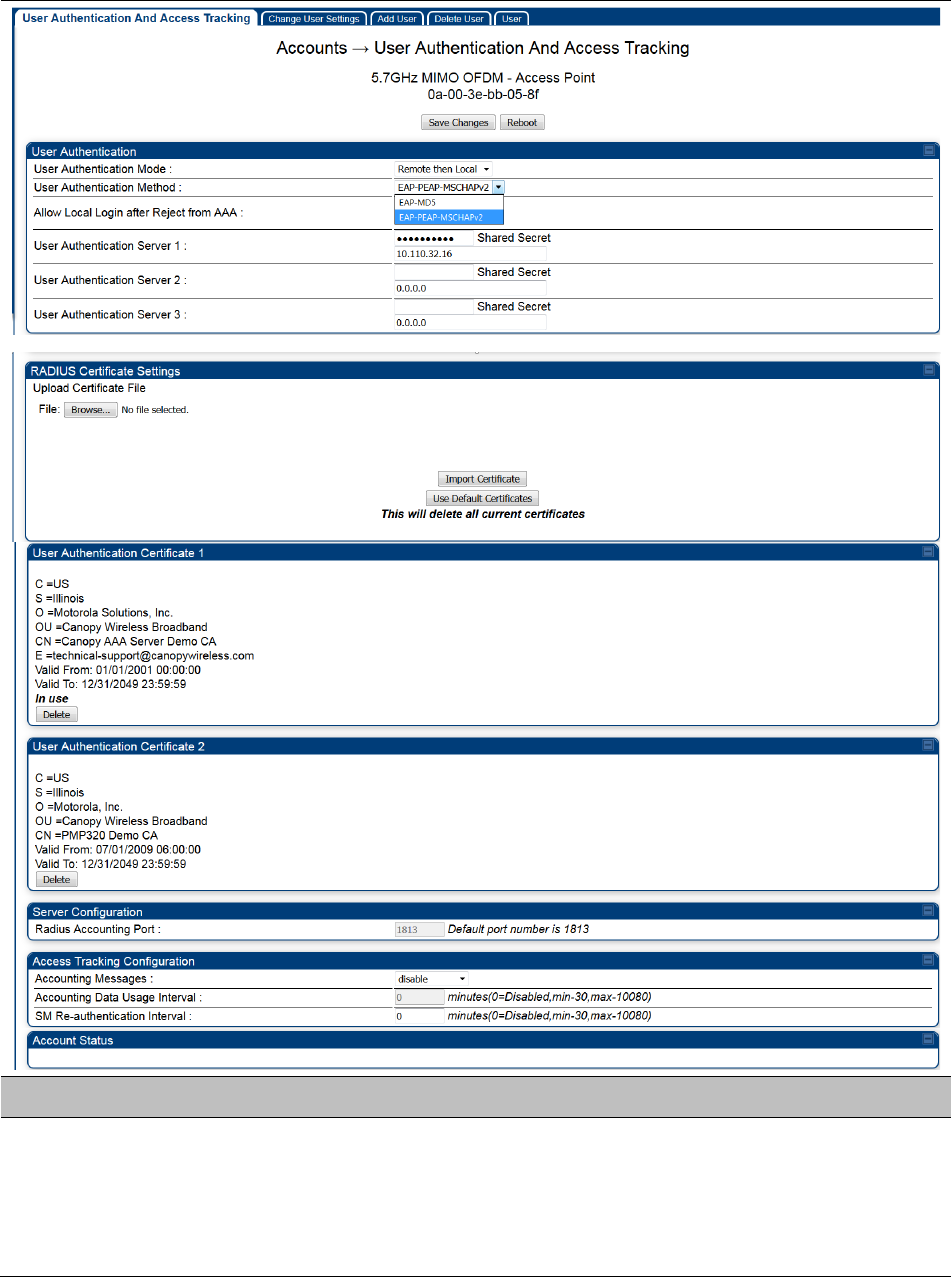

Table 185 AP User Authentication and Access Tracking attributes
Attribute
Meaning
User Authentication
Mode
•
Local
: The local SM is checked for accounts. No centralized
RADIUS
accounting (access control)
is
performed.
•
Remote
: Authentication by the centralized RADIUS server
is
required to gain access to the AP. For up to
2
minutes a test pattern
is displayed until the server responds
or
times
out.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-251
•
Remote then Local
: Authentication using the centralized
RADIUS
server is attempted. If the server sends a reject message, then
the
setting of
Allow Local Login after Reject from AAA
determines
if
the local user database is checked or not. If the configured
servers
do
not respond within 2 minutes, then the local user database
is
used. The successful login method is displayed in the
navigation
column of the AP.
User Authentication
Method
The user authentication method employed by the radios:
• EAP-MD5
• EAP-PEAP-MSCHAPv2
Allow Local Login after
Reject from AAA
If a user authentication is rejected from the AAA server, the user is
allowed to login locally to the radio’s management interface.
User Authentication
Server 1
The IP address and the shared secret key of the User authentication
RADIUS server 1.
User Authentication
Server 2
The IP address and the shared secret key of the User Authentication
Server 2 configured in RADIUS Server.
User Authentication
Server 3
The IP address and the shared secret key of the User Authentication
Server 3 configured in RADIUS Server.
RADIUS Certificate
Settings
Import Cetificate – browse and select the file to be uploaded and click on
“Import Certificate” to import a new certificate.
Use Default Certificates – use the preloaded default certificates.
User Authentication
Certificate 1
Cerificate provided by default for User authentication.
User Authentication
Certificate 2
Cerificate provided by default for User authentication.
Radius Accounting
Port
The destination port on the AAA server used for Radius accounting
communication.
Accounting Messages
disable – no accounting messages are sent to the RADIUS server.
deviceAccess – accounting messages regarding device access are sent
to the RADIUS server (see Table 187).
dataUsage – accounting messages regarding data usage are sent to the
RADIUS server (see Table 187).
All – accounting messages regarding device access and data usage are
sent to the RADIUS server.
Accounting Data
Usage Interval
The interval for which accounting data messages are sent from the radio
to the RADIUS server. If 0 is configured for this parameter, no data
usage messages are sent.
SM Re-authentication
Interval
The interval for which the SM will re-authenticate to the RADIUS server.
Account Status Displays the account status.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-252
SM – Technician/Installer/Administrator
Authenti
c
ation
The centralized user name and password management for SM is same as AP. Follow AP –
Technician/Installer/Administrator Authentication on page 7-248 procedure.
Note
Remote access control is enabled only after the SM registers to an AP that has
Authentication Mode
set to
RADIUS AAA
. Local access control will always be used
before registration and is used after registration if the AP is not configured for
RADIUS.

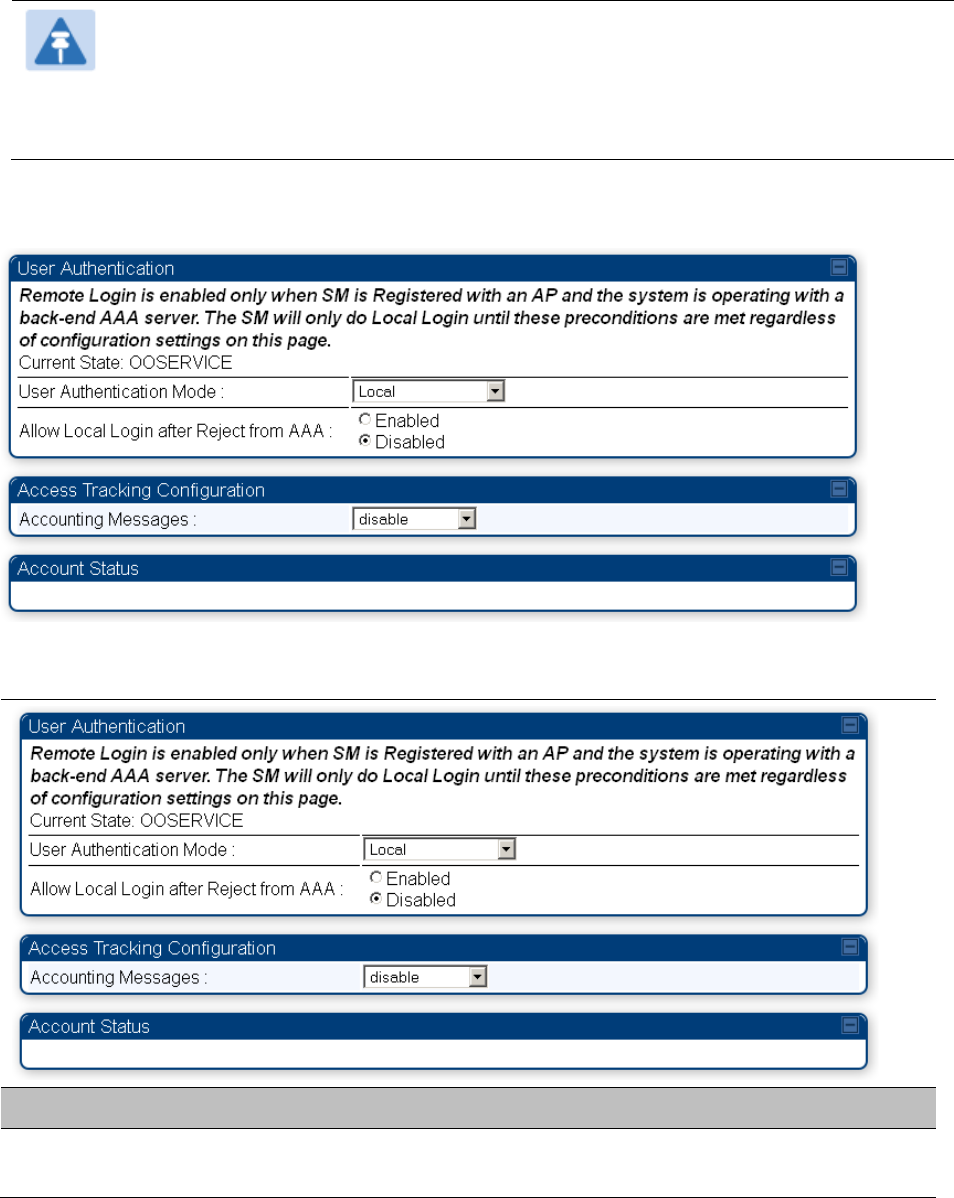

Figure 163 User Authentication and Access Tracking tab of the SM
Table 186 SM User Authentication and Access Tracking attributes
Attribute
Meaning
User Authentication
Mode
•
Local
: The local SM is checked for accounts. No centralized RADIUS
accounting (access control) is performed.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-253
•
Remote
: Authentication by the centralized RADIUS server is required
to gain access to the SM if the SM is registered to an AP that has
RADIUS AAA Authentication Mode
selected. For up to 2 minutes a
test pattern is displayed until the server responds or times out.
•
Remote then Local
: Authentication using the centralized RADIUS
server is attempted. If the server sends a reject message, then the
setting of
Allow Local Login after Reject from AAA
determines if the
local user database is checked or not. If the configured servers do
not respond within 2 minutes, then the local user database is used.
The successful login method is displayed in the navigation column
of the SM.
Allow Local Login
after Reject from
AAA
If a user authentication is rejected from the AAA server, the user is
allowed to login locally to the radio’s management interface. It is
applicable ONLY when the
User Authentication Mode
is set to “
Remote
then Loca
l”.
Note
When the radio User Authentication Mode is set to
“Local” or “Remote”, the Allow Local Login after Reject
from AAA does not any effect.
Accounting
Messages
• disable – no accounting messages are sent to the RADIUS server
• deviceAccess – accounting messages are sent to the RADIUS server
regarding device access (see Table 187).
Access
T
ra
c
kin
g
To track logon and logoff times on individual radios by technicians, installers, and
administrators, on the AP or SM’s Account > User Authentication and Access Tracking tab
under
Accounting (Access Tracking) set Accounting Messages to “deviceAccess”.
Device Access Tracking is enabled separately from User Authentication Mode. A given AP
or
SM
can be configured for both, either, or
neither.
RADIUS Device Data Accounting
PMP 450 Platform systems include support for RADIUS accounting messages for usage-based
billing. This accounting includes indications for subscriber session establishment, subscriber
session disconnection, and bandwidth usage per session for each SM that connects to the AP. The
attributes included in the RADIUS accounting messages are shown in the table below.
Table 187 Device data accounting RADIUS attributes
Sender Message Attribute Value Description
AP Acct-Status-Type 1 - Start
Chapter 7: Configuration Configuring a RADIUS server
Page 7-254
Sender Message Attribute Value Description
Accounting-
Request
Acct-Session-Id
Unique per AP session.
Initial value is SM MAC, and
increments after every start
message sent of an in
session SM.
This message is
sent every time a
SM registers with
an AP, and after
the SM stats are
cleared.
Event-Timestamp UTC time the event
occurred on the AP
AP Accounting-
Request
Acct-Status-Type 2 - Stop This message is
sent every time a
SM becomes
unregistered with
an AP, and when
the SM stats are
cleared.
Acct-Session-Id
Unique per AP session.
Initial value is SM MAC, and
increments after every start
message sent of an in
session SM.
Acct-Input-Octets
Sum of the input octets
received at the SM over
regular data VC and the
high priority data VC (if
enabled). Will not include
broadcast.
Acct-Output-Octets
Sum of the output octets
sent from the SM over
regular data VC and the
high priority data VC (if
enabled).
Acct-Input-
Gigawords
Number of times the Acct-
Input-Octets counter has
wrapped around 2^32 over
the course of the session
Acct-Output-
Gigawords
Number of times the Acct-
Output-Octets counter has
wrapped around 2^32 over
the course of the session
Acct-Input-Packets
Sum of unicast and
multicast packets that are
sent to a particular SM over
the regular data VC and the
high priority data VC (if
enabled). It will not include
broadcast.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-255
Sender Message Attribute Value Description
Acct-Output-
Packets
Sum of unicast and
multicast packets that are
sent from a particular SM
over the regular data VC
and the high priority data
VC (if enabled).
Acct-Session-Time Uptime of the SM session.
Acct-Terminate-
Cause
Reason code for session
termination
AP Accounting-
Request
Acct-Status-Type 3 - Interim-Update This message is
sent periodically
per the operator
configuration on
the AP in seconds.
Interim update
counts are
cumulative over
the course of the
session
Acct-Session-Id
Unique per AP session.
Initial value is SM MAC, and
increments after every start
message sent of an in
session SM.
Acct-Input-Octets
Sum of the input octets sent
to the SM over regular data
VC and the high priority
data VC (if enabled). Will
not include broadcast.
Acct-Output-Octets
Sum of the output octets
set from the SM over
regular data VC and the
high priority data VC (if
enabled).
Acct-Input-
Gigawords
Number of times the Acct-
Input-Octets counter has
wrapped around 2^32 over
the course of the session
Acct-Output-
Gigawords
Number of times the Acct-
Output-Octets counter has
wrapped around 2^32 over
the course of the session
Acct-Session-Time Uptime of the SM session.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-256
Sender Message Attribute Value Description
Acct-Input-Packets
Sum of unicast and
multicast packets that are
sent to a particular SM over
the regular data VC and the
high priority data VC (if
enabled). It will not include
broadcast.
Acct-Output-
Packets
Sum of unicast and
multicast packets that are
sent from a particular SM
over the regular data VC
and the high priority data
VC (if enabled).
The data accounting configuration is located on the AP’s Accounts > User Authentication and
Access Tracking GUI menu, and the AP’s Authentication Mode must be set to Radius AAA for the
menu to appear. The accounting may be configured via the AP GUI as shown in the figures below.
By default accounting messages are not sent and the operator has the choice of configuring to
send only Device Access accounting messages (when a user logs in or out of the radio), only Data
Usage messages, or both. When Data Accounting is enabled, the operator must specify the
interval of when the data accounting messages are sent (0 – disabled, or in the range of 30-10080
minutes). The default interval is 30 minutes.

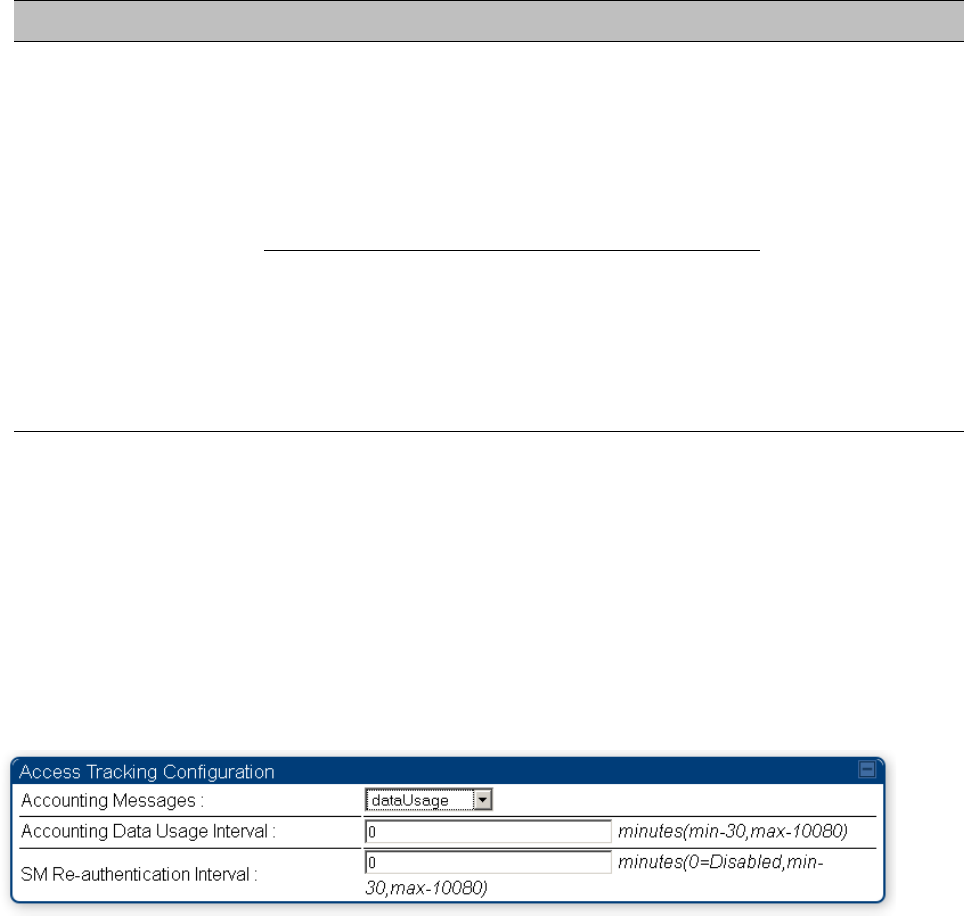

Figure 164 RADIUS accounting messages configuration
The data accounting message data is based on the SM statistics that the AP maintains, and these
statistics may be cleared on the AP by an operator. If an operator clears these messages and data
accounting is enabled, an accounting stop message is sent followed by an accounting start
message to notify the AAA of the change.
If an operator clears the VC statistics on the device through the management GUI, a RADIUS stop
message and data start message is issued for each device affected. The start and stop messages
will only be sent once every 5 minutes, so if an operator clears these statistics multiple times
within 5 minutes, only one set of data stop/start messages is sent. This may result in inaccurate
data accumulation results.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-257
RADIUS Device Re-authentication
PMP 450 Platform systems include support for periodic SM re-authentication in a network without
requiring the SM to re-register (and drop the session). The re-authentication may be configured to
occur in the range of every 30 minutes to weekly.

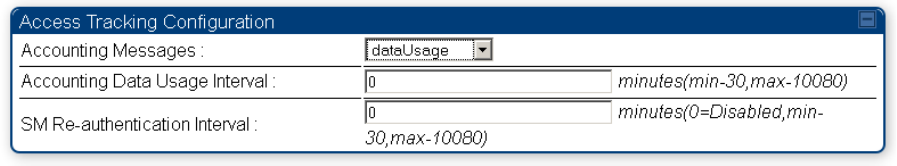

Figure 165 Device re-authentication configuration
The re-authentication interval is only configurable on the AP. When this feature is enabled, each
SM that enters the network will re-authenticate each the interval time has expired without
dropping the session. The response that the SM receives from the AAA server upon re-
authentication is one of the following:
• Success: The SM continues normal operation
• Reject: The SM de-registers and will attempt network entry again after 1 minute and then if
rejected will attempt re-entry every 15 minutes
• Timeout or other error: The SM remains in session and attempt 5 times to re-authenticate with
the RADIUS-REQUEST message. If these attempts fail, then the SM will go out of session and
proceed to re-authenticate after 5 minutes, then every 15 minutes.
Although re-authentication is an independent feature, it was designed to work alongside with the
RADIUS data usage accounting messages. If a user is over their data usage limit the network
operator can reject the user from staying in the network. Operators may configure the RADIUS
‘Reply-Message’ attribute with an applicable message (i.e. “Data Usage Limit Reached”) that is
sent to the subscriber module and displayed on the general page.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-258
RADIUS Change of Authorization and Disconnect Message
Prior to this feature, SM will get configuration parameters from a RADIUS server during
authentication process. This feature allows an administrator to control configuration parameters in
the SM while SM is in session. The configuration changes in SM are done using RADIUS Change
of Authorization method (RFC 3576) on the existing RADIUS authentication framework for AP and
SM. A typical use case could be changing the QOS parameters after a certain amount of
bandwidth usage by a SM.
Figure 166 RADIUS CoA configuration for AP
The RADIUS CoA feature enables initiating a bi-directional communication from the RADIUS
server(s) to the AP and SM.
The AP listens on UDP port 3799 and accepts CoA requests from the configured RADIUS servers.
This CoA request should contain SM MAC address in ‘User-Name’ attribute as identifier and all
other attributes which control the SM config parameters. For security reasons, a timestamp also
needs to be added as ‘Event-Timestamp’ attribute. Hence the time should also be synchronized
between the RADIUS server(s) and the AP to fit within a window of 300 seconds.
Once the configuration changes are applied on the SM, CoA-ACK message is sent back to RADIUS
server. If the validation fails, the AP sends a CoA-NACK response to the RADIUS server with proper
error code.
A Disconnect-Message is sent by the RADIUS server to NAS in order to terminate a user session
on a NAS and discard all associated session context. It is used when the authentication AAA server
wants to disconnect the user after the session has been accepted by the RADIUS.
In response of Disconnect-Request from RADIUS server, the NAS sends a Disconnect-ACK if all
associated session context is discarded, or a Disconnect-NACK, if the NAS is unable to disconnect
the session.
Note
The RADIUS CoA feature will only enabled if Authentication mode is set to RADIUS
AAA.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-259
Microsoft RADIUS support
This feature allows to configure Microsoft RADIUS (Network Policy and Access Services a.k.a
NPS) as Authentication server for SM and User authentication.
• For SM Authentication, SM will user PEAP-MSCHAPv2 since NPS doesn’t support TTLS
protocol.
• For User Authentication, the Canopy software will use EAP-MD5 but the user has to do certain
configuration in order to enable EAP-MD5 on NPS.
Note
All this configuration has been tested on Windows Server 2012 R2 version.
This feature is not supported on hardware board type P9 or lower platforms.
SM Authentication Configuration
There are no new configuration on AP. However SM has to be configured for PEAP authentication
protocol.
1. Go to Configuration > Security page
2. Select “eappeap” for Phase 1 attribute under tab AAA Authentication Settings.
Figure 167 EAPPEAP settings
The Phase 2 will change automatically to MSCHAPv2 on select of Phase 1 attribute as EAP-PEAP.
Other parameters of Phase 2 protocols like PAP/CHAP will be disabled.
o Windows Server Configuration
Import Certificate
The SM certificate has to be imported to Windows Server for certificate authentication.
1. Copy the certificate which is configured in SM under Configuration > Security -> Certificate1
to Windows Server machine.
2. Right click and select ‘Install Certificate’. This will install the certificate and it’s ready for use.
This certificate will be used while configuring PEAP-MSCHAPv2 in NPS.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-260
NPS Configuration (https://technet.microsoft.com/en-us/network/bb545879.aspx)
Following items should be configured in NPS Console:
• RADIUS Client
o https://technet.microsoft.com/en-us/library/cc732929
• Connection Request Policies
o https://technet.microsoft.com/en-us/library/cc730866
o Choose ‘Wireless-Other’ in NAS-Port-Type
• Network Policy
o https://technet.microsoft.com/en-us/library/cc755309
o Choose ‘Wireless-Other’ in NAS-Port-Type.
o While configuring PEAP, select the above imported certificate.
Figure 168 Importing certificate in NPS
User Authentication Configuration
o Enabling EAP-MD5
As mentioned earlier, Microsoft has deprecated the support for MD5 from versions of Windows.
To enable MD5, the following steps to be followed:
1. Follow the instructions:
https://support.microsoft.com/en-us/kb/922574/en-us?wa=wsignin1.0
Optionally, the registry file can be downloaded. It can be installed by double-click it in
Windows Registry.
2. From NPS Console Network Policy > <Policy Name> > Properties > Constrains >
Authentication Method and click Add. Select MD5 and click OK.
Chapter 7: Configuration Configuring a RADIUS server
Page 7-261

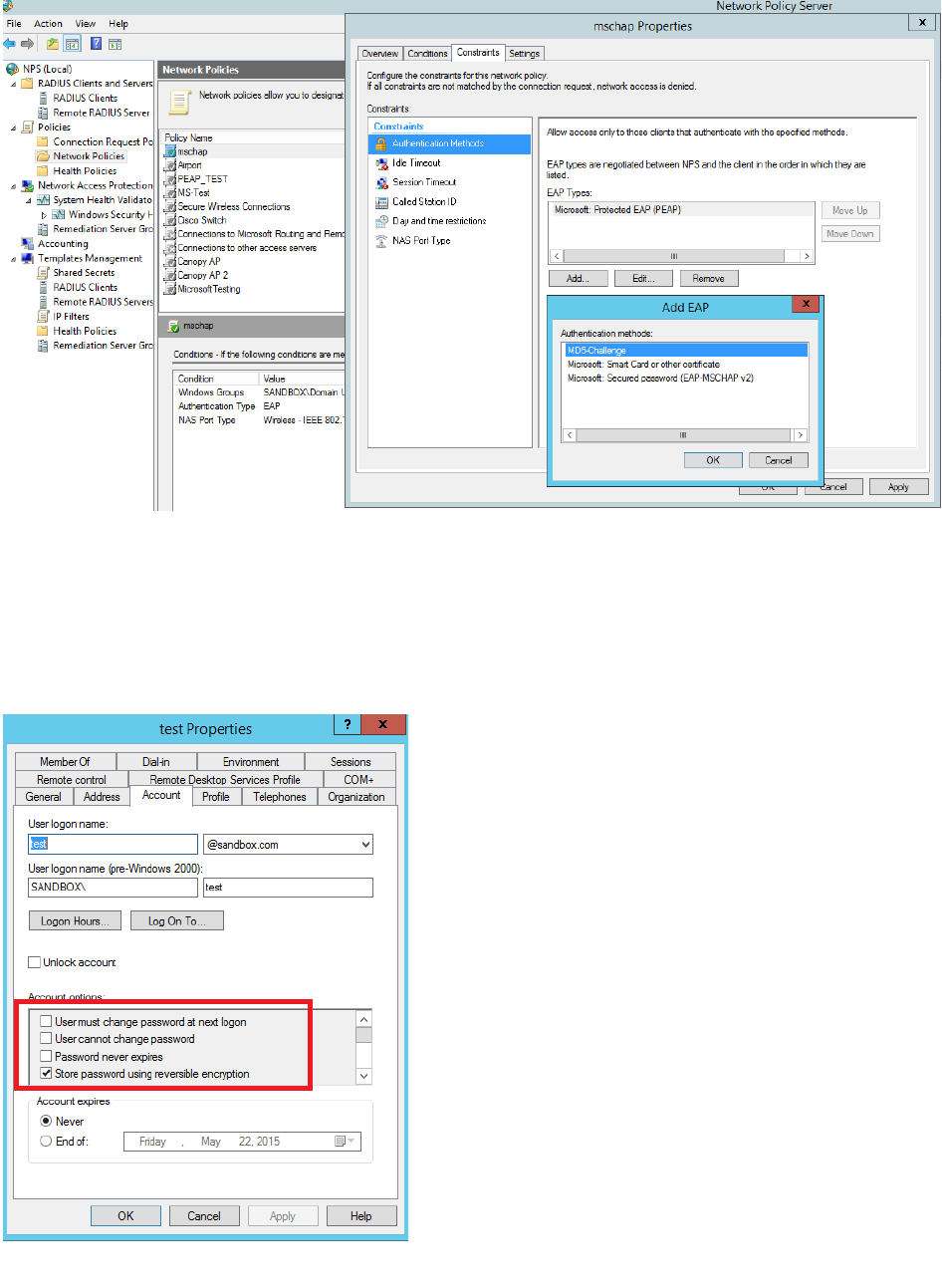

Figure 169 Selecting MD5 from NPS console
o User Configuration in Active Directory
Next open ‘Active Directory Users and Computers’ and create user.
Make sure user property is configured as shown below.
Figure 170 User configuration
Chapter 7: Configuration Configuring a RADIUS server
Page 7-262
o RADIUS VSA Configuration
Before using VSA, the Cambium-Canopy-UserLevel(50) VSA must be configured with some access
level say ADMIN(3).
Follow below link for configuring VSA:
https://technet.microsoft.com/en-us/library/cc731611
The Cambium’s vendor code is 161.

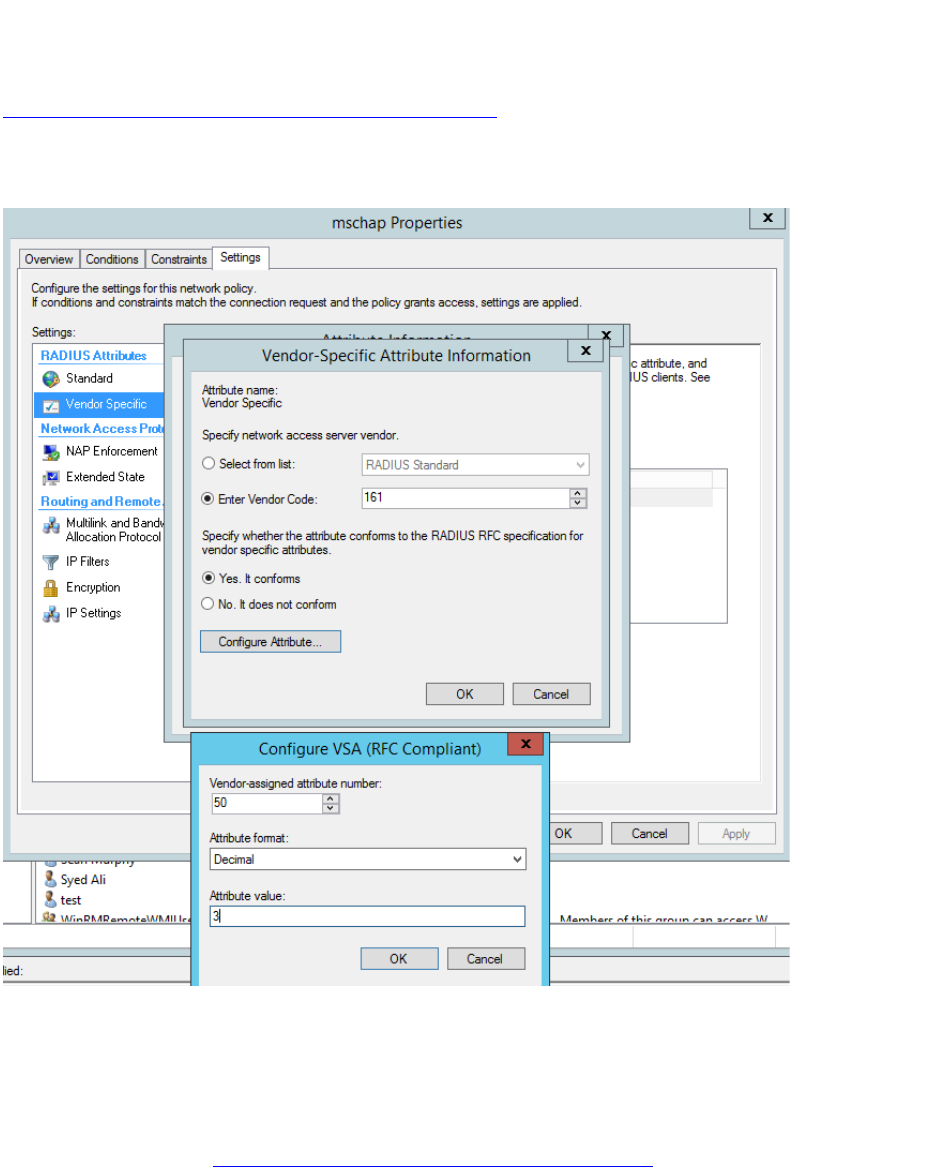

Figure 171 RADIUS VSA configuration
o Accounting
User can enable accounting in NPS under NPS Console > Accounting >
Configure Accounting.
For more details refer https://technet.microsoft.com/library/dd197475
Chapter 7: Configuration Configuring a RADIUS server
Page 7-263
Cisco ACS RADIUS Server Support
This briefly explains how to configure Cisco ACS RADIUS server for PEAP-MSCHAPv2
authentication.
The configuration had been tested on CISCO ACS Version : 5.7.0.15
Adding RADIUS client

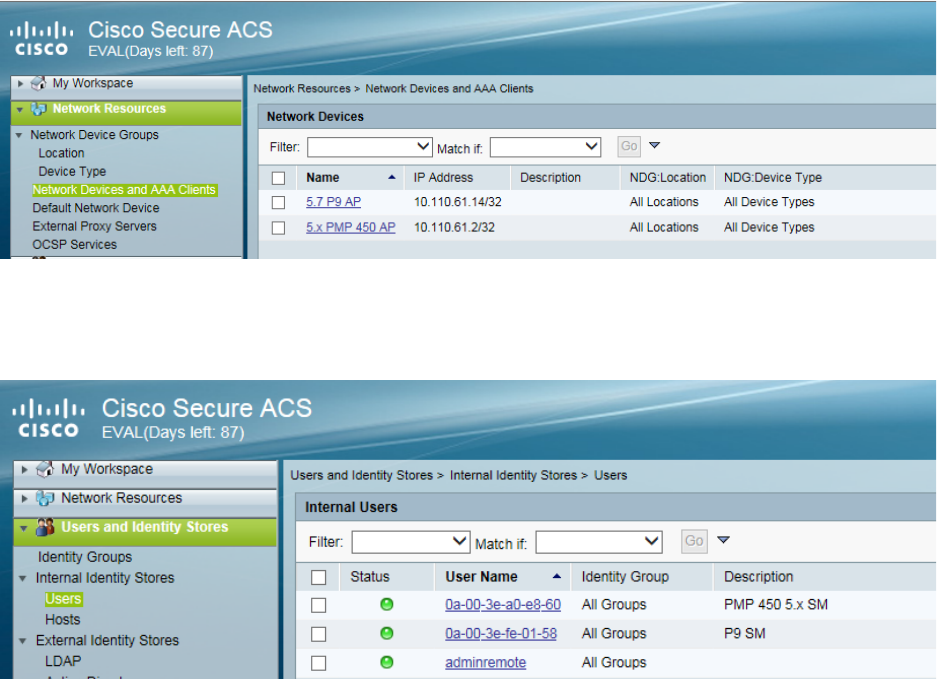

Figure 172 Adding RADIUS client
Creating Users
Figure 173 Creating users
Chapter 7: Configuration Configuring a RADIUS server
Page 7-264
Creating RADIUS instance
Figure 174 Creating RADIUS instance
RADIUS protocols
Figure 175 RADIUS protocols
