3 Installation of the Base Station
3.1 Equipment delivery
When you receive the equipment in its packaging:
–check the condition of the packaging,
–if damaged, make your reservations known to the carrier without delay.
3.1.1 Labels on the equipment and the packaging
Figures given on the examples below are not contractual.
The RBS labels are affixed to the packaging and to the equipment to indicate its contents.

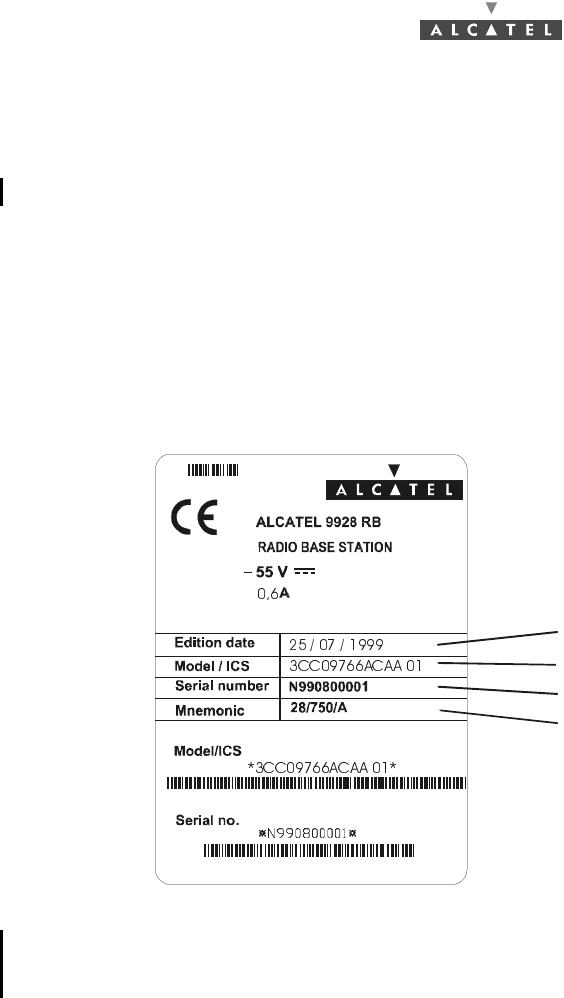

Figure 4 – Example of a label for the RBS unit
The DBS labels are fixed to the packaging to indicate its contents on leaving the factory.These labels
are not affixed to the equipment because the DBS configuration changes in accordance with the site
modifications
`
`
Issue date
Outdoor Unit model / status index
Serial number
Commercial reference
Outdoor unit model -
bar code and plain text
Serial number -
bar code and plain text
32/302 Issue 01 - April 2001 - Draft 04 3CC12424AAAA TQ BJA 01
76
.

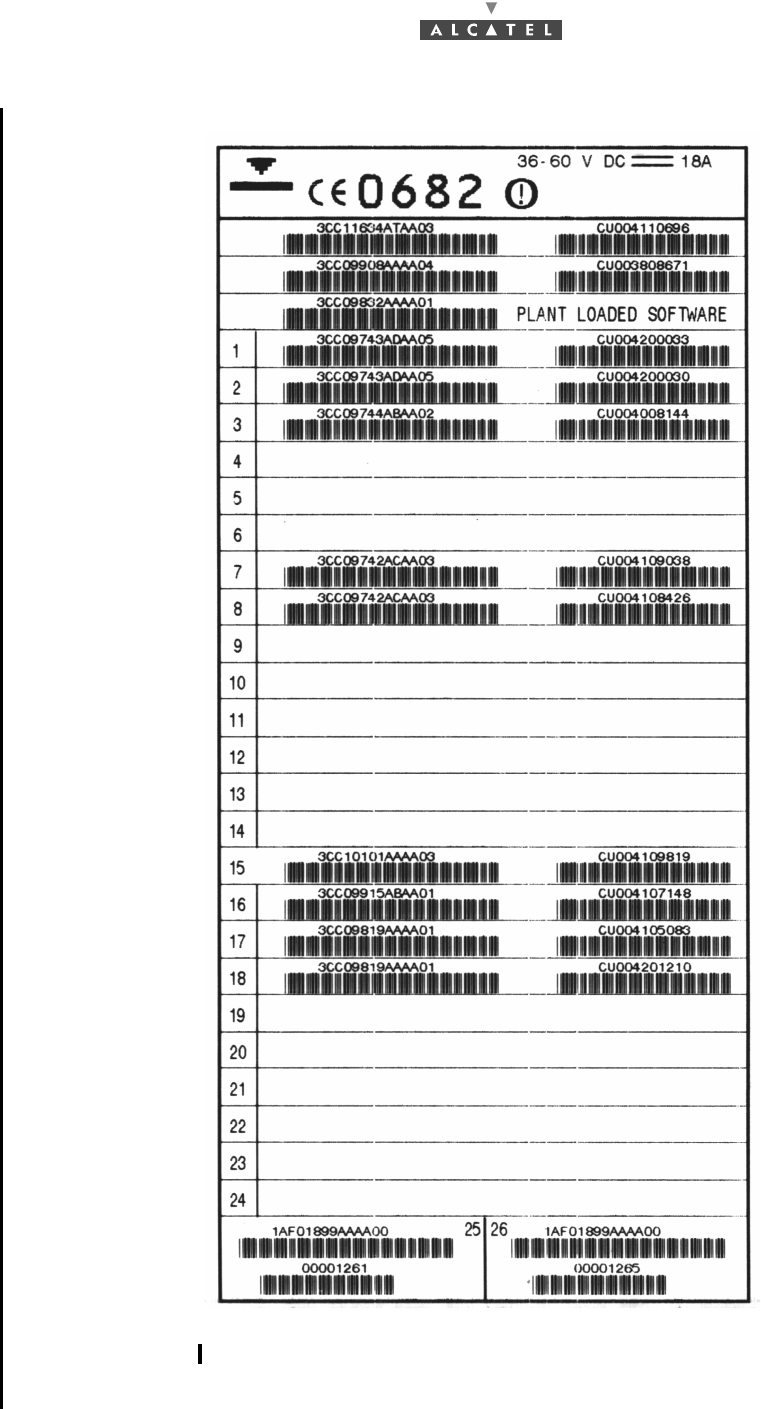

Figure 5 – Example of a label for the DBS chassis
Note: to know the place of the corresponding elements,
refer to § 3.5.6 Place of the board into the rack
3CC12424AAAA TQ BJA 01 Issue 01 - April 2001 - Draft 04 33/302
76
3.1.2 Unpacking
Considerations
You are recommended to:
–unpack the equipment according to the instructions on the packaging, and to the instructions given
below.
–take an inventory and identify any missing items. If the delivery does not match the delivery advice
note, notify ALCATEL within 48 hours of receipt of the equipment.
Unpacking the RBS unit
Figure 6 – Unpacking the RBS unit

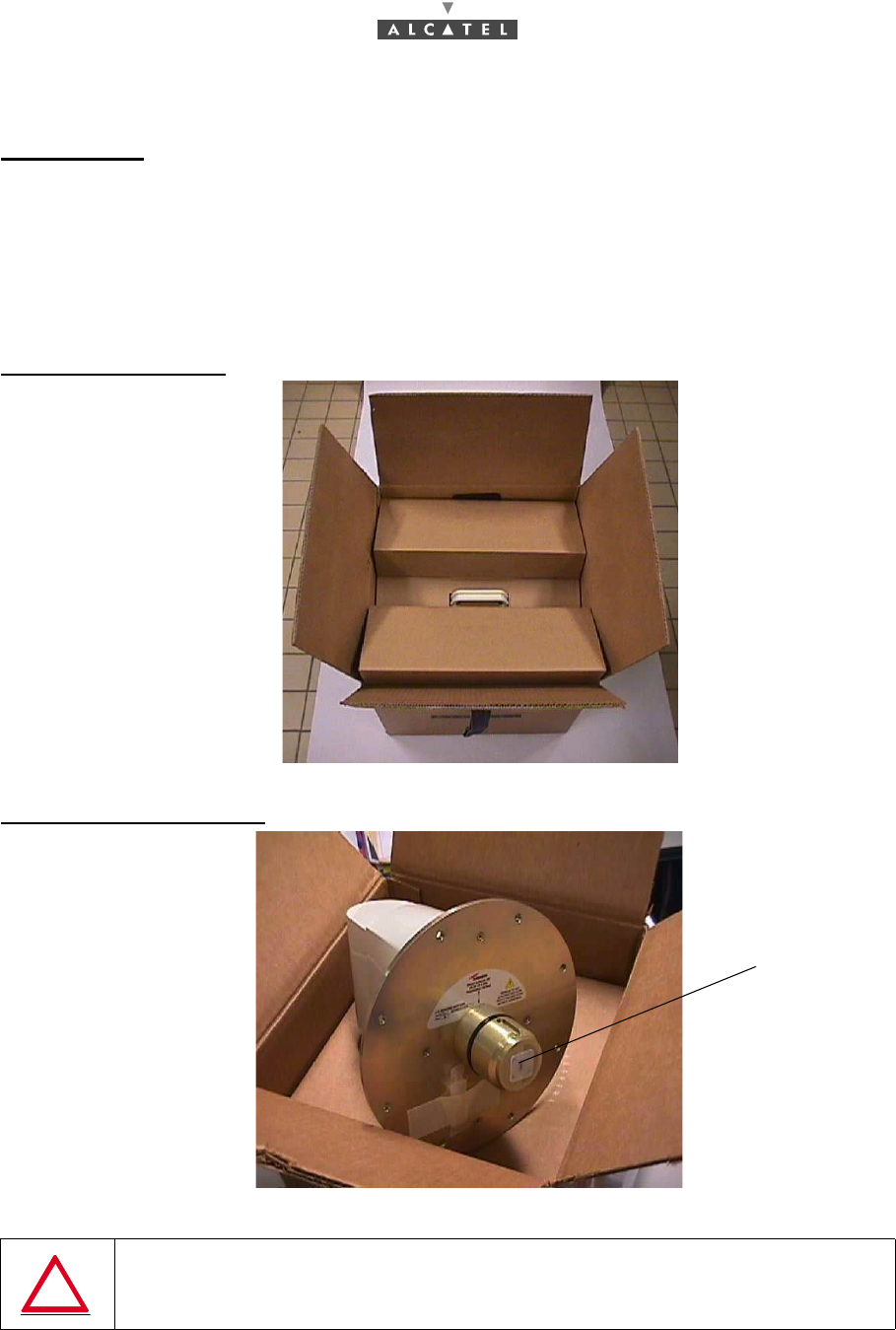

Unpacking the RBS antenna
Figure 7 – Unpacking the RBS antenna
IMPORTANT: DO NOT REMOVE THE TRANSPARENT PLASTIC PROTECTIVE CAP.
Protection cap
34/302 Issue 01 - April 2001 - Draft 04 3CC12424AAAA TQ BJA 01
76
Unpacking the pole-mounting mechanical system
Figure 8 – Unpacking the pole-mounting mechanical system

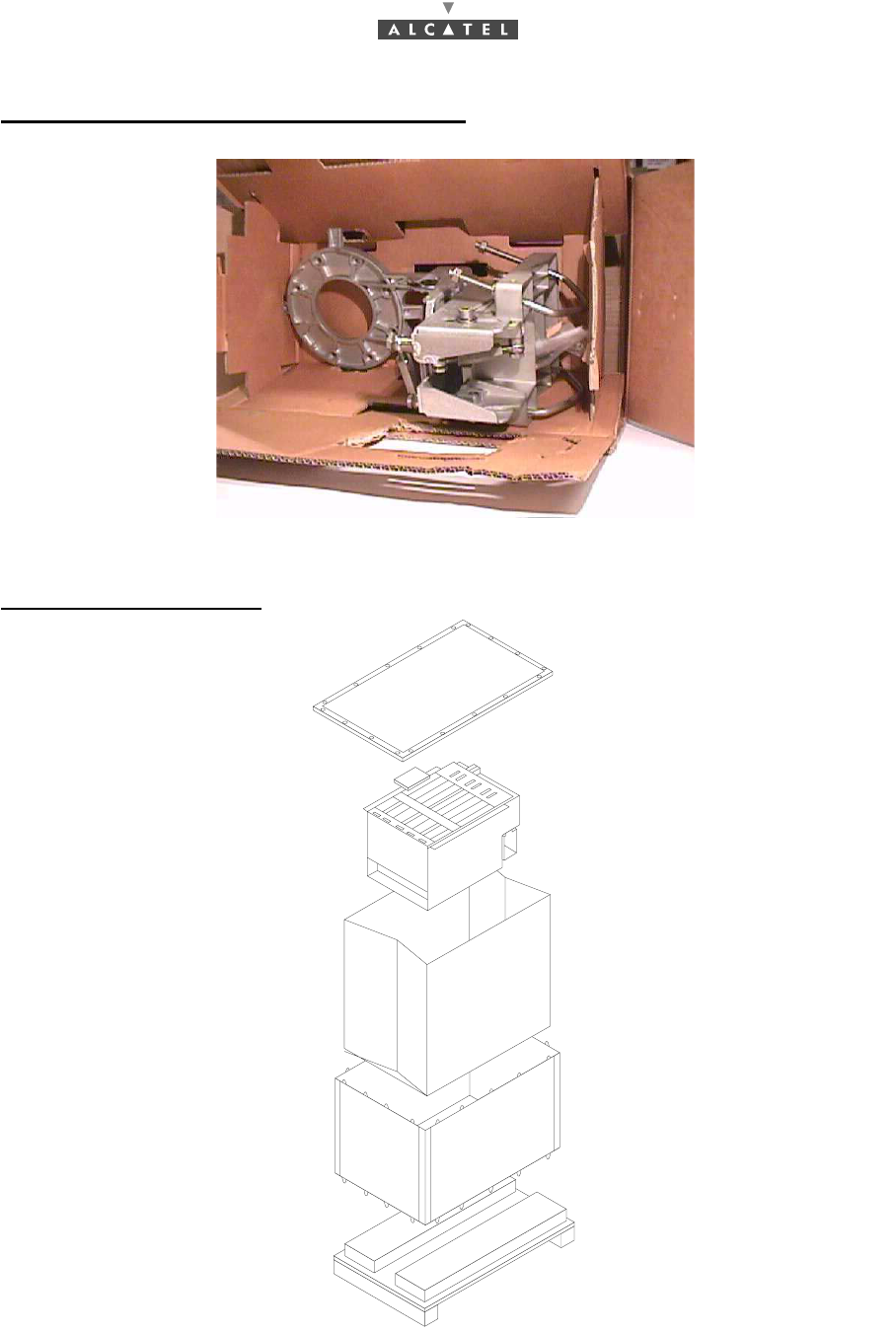

Unpacking the DBS chassis
Figure 9 – Unpacking the DBS chassis
3CC12424AAAA TQ BJA 01 Issue 01 - April 2001 - Draft 04 35/302
76
Unpacking the power supply units

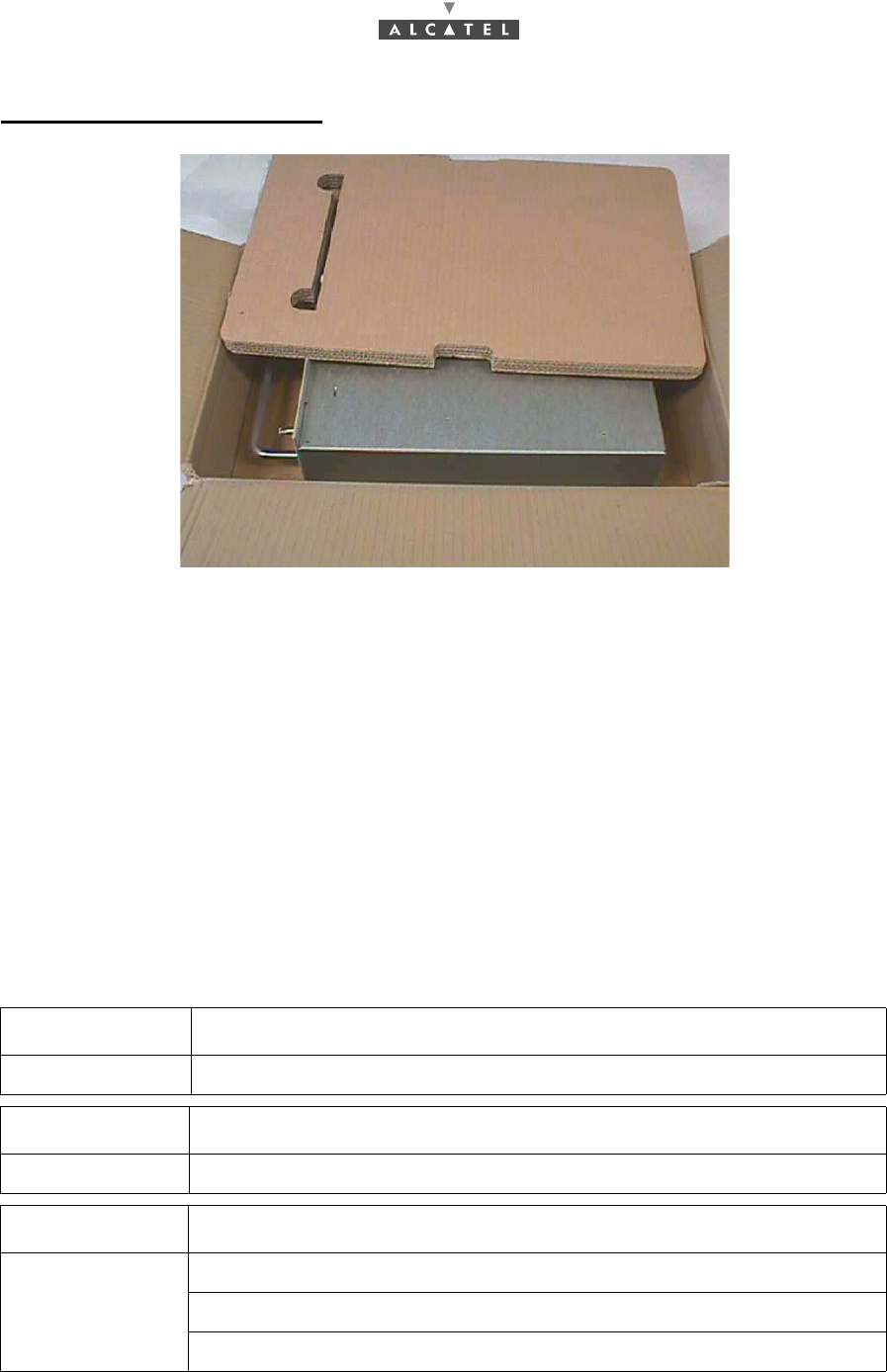

Figure 10 – Unpacking power supply units
3.1.3 Checking the delivered configuration
The following Base Station (7390BS) components are delivered:
–the RBS and its installation hardware: in a cardboard box,
–the RBS antenna: in a cardboard box,
–the pole mounting mechanical system: in a cardboard box,
–the DBS chassis and the installation kit: in a crate/pallet,
–the DC/DC power supply units: in a cardboard box,
–the connection cable between RBS radio and DBS rack: on a reel.
Depending on the delivery site configurations, the delivery may include separate crates containing
standard 19" racks.
3.1.3.1 Content of boxes
EQUIPMENT CONTENTS
RBS 1 RBS assembly
EQUIPMENT CONTENTS
RBS antenna 1 RBS antenna assembly
EQUIPMENT CONTENTS
Pole mounting
1 pre-assembled pole-mounting mechanical system assembly
2 U-bolts and their hardware
grounding lugs and screws ; antenna attachment parts
36/302 Issue 01 - April 2001 - Draft 04 3CC12424AAAA TQ BJA 01
76
3.1.3.2 Storage
If the installation is not to be carried out immediately, the type of packaging will determine the equipment
storage conditions:
–the cardboard boxes should be warehoused indoors, in a well-ventilated and dry space,
–the wooden or laminated crates may be stored outdoors, provided that they are protected from the
rain and direct sunlight.
EQUIPMENT CONTENTS
DBS chassis
1 chassis containing the electronic boards according to the client configuration
cables (for IBS board interface, N panel), in accordance with the site configuration
fiber optic jumpers, in accordance with the site configuration
2 fiber optic cable winding cassettes
1 set of screws to install the rack into the chassis
EQUIPMENT CONTENTS
DC/DC power
supply 2 DC/DC power supply units
EQUIPMENT CONTENTS
Optiona
Standard 19"
rack 1 rack with removable top cover and adjustable feet
3CC12424AAAA TQ BJA 01 Issue 01 - April 2001 - Draft 04 37/302
76
3.2 Installing the equipment
3.2.1 Information required for installation
Appendix 1 – Installation sheet contains a sheet for you to complete, that compiles all the general
information needed for the installation procedure.
3.2.2 Precautions
Installation is designed to meet all requirements concerning electromagnetic compatibility and safety.
The performance of the equipment depends on installation practices (cable installation, ground
connections, etc.) which should be based on best trade practices and which may be degraded if theses
pratices are not respected.
3.2.3 Tools required
The installation team must possess a standard installation toolkit (containing, in particular: drill, drill bits,
soldering iron, cable tie pliers, terminal pliers).
The list of tools required for the mechanical installation of the equipment is given below:
For installation and alignment procedure for an RBS 7390 with a sector antenna, refer to the User
Manual 3CC12087Axxx.
Tool Use
No. 6 Allen wrench (for 8 mm
screw) Antenna alignment
16/17 mm box wrench and flat
wrench Used for pole mounting and for fine adjustment of the
antenna and various tightening operations
16/17 mm Torque wrench Used for pole mounting and various tightening operations
20 mm flat wrench For attaching the "N" coaxial connectors
Compax "Mars Actel OSA3" inser-
tion and extraction tool Wiring the COMPAX (mars actel cad) terminal strips
Essential compass and inclinome-
ter (not supplied) Pointing the antenna
5 mm Allen key (for M6 screw) For mounting the antenna
10 mm flat wrench For fixing the ground terminal
8 mm Allen key (for M10 screw) For tightening the different parts of the pole mounting
Complete antenna pointing tool kit
3CC11782Axxx Pointing the antenna
38/302 Issue 01 - April 2001 - Draft 04 3CC12424AAAA TQ BJA 01
76
Depending on the installations, additional equipment, provided by Alcatel as optional, may prove useful:
To get the commercial codes of these items, please consult Appendix 5 – Correspondence between
commercial codes and industrial codes relating to the BS which gives the connection between industrial
and commercial codes.
3.3 Installation of outdoor equipment
Considerations
–Outdoor equipment installation involves:
•installation of the mechanical system (also called "pole mounting" system) which supports the
RBS and facilitates antenna alignment,
•installation of the RBS assembly and its antenna,
•installation of the connection cable connecting the RBS to the DBS rack.
–Outdoor equipment installation should guarantee a precise and fixed antenna pointing.
–The RBS location and its antenna orientation should arise from a planning analysis in order to op-
timize the sector coverage. These elements must be imperatively known with precision by the ins-
tallation staff.
–Antenna orientation is carried out according to geometric criterion (using compass and inclinome-
ter).
–All the outdoor equipment assemblies are designed for installation without any particular protec-
tion. However, the following recommendations must be respected:
•make sure that the reception metallic structure has a perfect stability,
•do not install the equipment below bird nesting areas,
•do not attach the equipment to chimneys which give off fat deposits, dust and other aerosols
which are liable to be deposited on the equipment,
•do not install the equipment in proximity to sources of heat,
•do not place the equipment in proximity to corrosive gas outputs,
•do not place the equipment below roof run-offs not equipped with guttering (high risk of micro-
wave short-circuit),
•do not attach the equipment to a structure prone to vibrations,
•do not cross the antenna field.
–Two types of installation are possible:
1. installation on a tube or pole, using threaded U-bolts and nuts.
Note: the tube selected should be sufficiently rigid to resist vibrations that may give rise to antenna
misalignment.
2. wall mounting: direct or with mounting plate: see Figure 63 – Direct wall mounting and Figure 64 –
Wall mounting option with mounting plate 9900UXI101 in Appendix A.7.
Tool Use Industrial Code
Crimping tool Sub-D connectors crimping 9900YTB001
3CC12424AAAA TQ BJA 01 Issue 01 - April 2001 - Draft 04 39/302
76
3.3.1 Definition of assemblies
The 7390BS outdoor equipment includes:
–the mechanical mounting and alignment (pole mounting) system,
–the transceiver,
–the sectored antenna.
Figure 11 – Definition of 7390BS outdoor equipment
Sectoral antenna
Tube or pole
RBS/DBS connection
cable
Mechanical
"pole mounting"
system
(9900UXI102)
Transceiver RBS
unit
40/302 Issue 01 - April 2001 - Draft 04 3CC12424AAAA TQ BJA 01
76

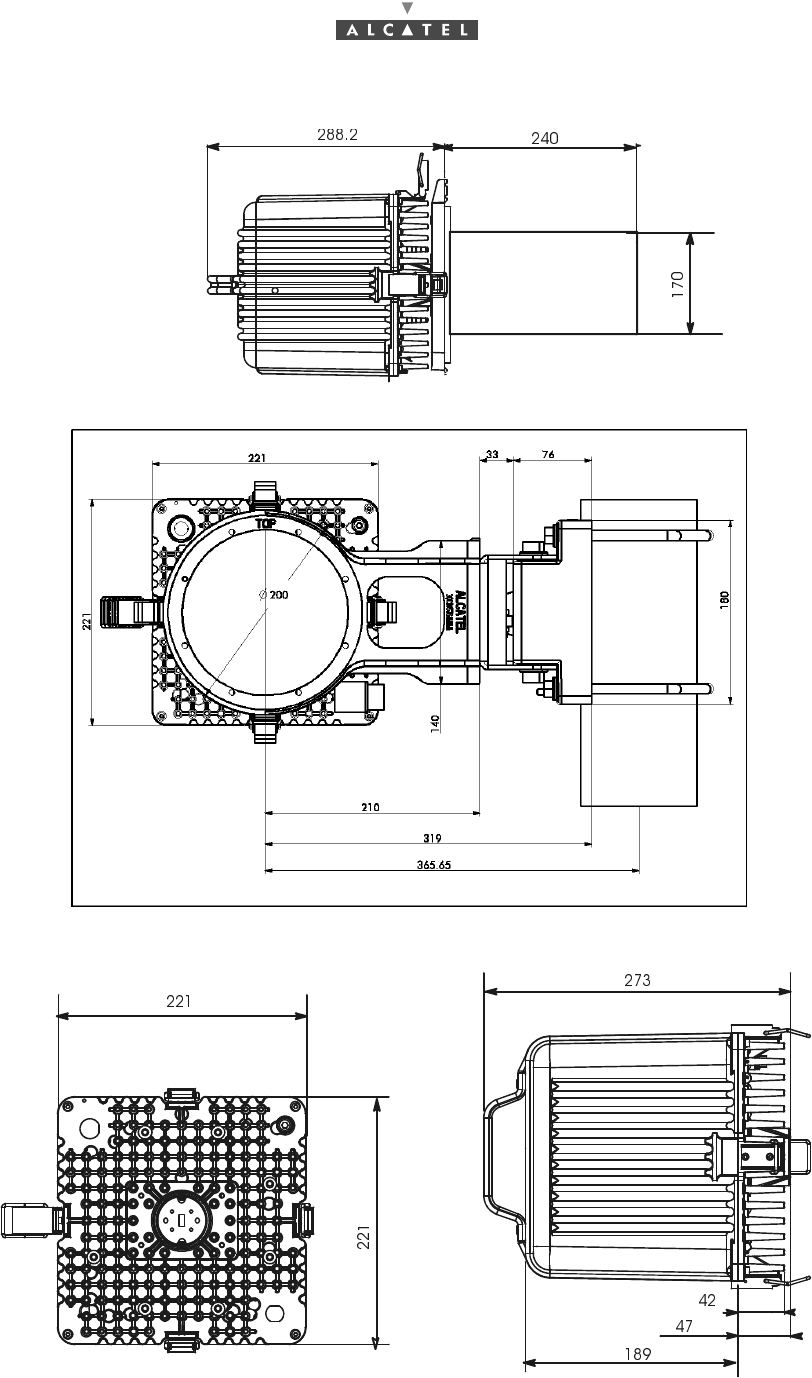

Figure 12 – Dimensions of the RBS cube unit
