This appendix provides the physical, functional, and performance specifications for your
mobile printer. It also contains detailed paper specifications.
Physical Specifications
Dimensions (vertical orientation)
Height: 311 mm (12.25 in.)
Width: 444.5 mm (17.5 in.)
Depth: 166.6 mm (6.5 in.)
Enclosure is injection molded plastic with hinged cover for access to paper loading,
print head and ribbon replacement. Enclosure provides edge for paper to tear off.
Color Night Sky Grey
Weight Not to exceed 8.02 kg (17.7lbs)
Power requirements Automotive, 12 VDC (10.5 – 18 VDC))
110/220 VAC as option
Power consumption Not to exceed 150 Watts
Heat generation Average 65 kcal/h
Interface and connectivity USB2.0 full speed, RS232
and Blue Tooth Class 2 ver1.2 (Standard)
IEEE 802.11b (Option)
Data buffer size 64K bytes
Operating environment -4°F +140 º F (-20 ºC to + 60ºC) DC
-4ºF to +113º F (-20ºC to + 45ºC)AC
10% - 85% Relative Humidity, no condensation
Storage -22ºF + 158ºF (-30ºC to + 70ºC)
05% - 95% Relative Humidity, no condensation
Printer and Paper Specification
B-2
Shock, Vibration, Acceleration Units may be vertically mounted using shock
mounts to a bracket installed in a vehicle;
operated horizontally while located on a
passenger seat in a vehicle, or operated in office
environments.
Vibration resistance (as tested)
Operating Acceleration 0.5G
Frequency 5 to 55HZ
Sweep Time 120 Sec/Cycle
Non-Operating Acceleration 1.5G RMS
Frequency 5 to 55HZ
Sweep Time 120 Sec/Cycle
Impact Resistance Operating 3G (print quality not guaranteed)
Non-operating 10G
Dust Proof, Corrosion Resistance Ingress Protection (IP) rating IP30. No special
protection against fluids or immersion.
Functional Specifications
Print method Impact dot matrix with a 0.2 mm (0.009 in),
24-wire head
Print direction Bidirectional logic-seeking
Character cell Horizontal X vertical
Letter (10 cpi): 36 X 24 dots
Letter (12 cpi): 30 X 24 dots
Draft:: 12 X 24 dots
Printer and Paper Specification
B-3
Paper handling
Single Forms: With the Paper Path Select Lever in the Single Sheet
position, single sheets or forms may be used. The printer
automatically senses that paper has been manually
inserted. When paper is detected, the printer will advance
the form to the first print line.
Continuous forms: With the Paper Path Lever set to the Continuous Form
position, continuous forms may be printed.
Paper is loaded and adjusted via pushbuttons. Forms may
be advanced to tear off feature by operator or by host.
Continuous forms are parked while single sheets are used.
Paper type 1-to 4-part side-glued or paper-stapled fanfolded continuous
forms or single page top-glued forms.
Paper size
Continuous Width: 102–267 mm (4–10.5 in)
Length: 102 mm (4 in) or greater
Cut sheets Width: 102–267 mm (4–10.5 in)
Length: 76–364 mm (3–14.3 in)
Paper thickness Up to 0.35 mm (0.014 inch)
Paper length
By software Programmable in one line or inch increments
By control panel 3, 3.5, 4, 5.5, 6, 7, 8, 8.5, 11 (Letter), 11 2/3 (A4), 12, 14, or
15 inches (Default is 11 inches.)
1 to 126 lines
Number of copies Up to 4, including the original
Command sets Epson EP2
(emulations) IBM 2390+
Printer and Paper Specification
B-4
Character sets
Code Page
19 character sets
CP 437 (USA)
CP 437 (Greek)
CP 850 (Multilingual)
CP 851 (Greek)
CP 852 (East Europe)
CP 853 (Turkish)
CP 855 (Cyrillic)
CP 857 (Turkish)
CP 858 (Multilingual)
CP 860 (Portugal)
CP 862 (Israel)
CP 863 (Canada)
CP 864 (Arabic)
CP 865 (Norway)
CP 866 (Cyrillic)
CP 869 (Greek)
CP 920 (Latin-5)
CP 923 (Latin-9)
USSR GOST
EPSON National Character
15 character sets
USA France Germany
UK Denmark 1 Sweden
Italy Spain 1 Japan
Norway Denmark 2 Spain 2
Latin America Korea Legal
Fonts
Resident 13 fonts available
Draft, Roman, Sans Serif, Courier, Bold, Prestige Elite,
Script, Orator, Gothic, OCR A, OCR B, Roman T
and Sans Serif H
Line spacing 2, 3, 4, 6, 8, or 12 lines per inch.
(1, 2, or 4 lines per centimeter).
Character pitch 10, 12, 15, 17.1 or 20 characters per inch
Characters per line
10 cpi: 80 cpl
12 cpi: 96 cpl
15 cpi: 120 cpl
17.1 cpi: 136 cpl
20 cpi: 160 cpl
cpl = characters per line
Printer and Paper Specification
B-5
Barcodes
IBM: 9 Barcodes available
UPC/A, UPC/E, EAN8, EAN13, CODE39, CODE128
CODABAR (NW7), INTERLEAVED 2 of 5,
INDUSTRIAL 2 of 5
EPSON: 7 Barcodes available
UPC/A, UPC/E, EAN8, EAN13, CODE39, CODE128
INDUSTRIAL 2 of 5
Performance Specifications
Print speed 10 cpi 12 cpi
Draft: 400 cps 480 cps
Letter: 133 cps 160 cps
cpi = characters per inch
cps = characters per second
Line feed speed 60 ms per line at 6 lines per inch
Form feed speed 7 inches per second
Pages per Hours ECMA 132 Letter Test Pattern
Draft Quality 321 pph
Letter Quality 172 pph
Ribbon service life 2 million characters
Printer Life 5 million lines or five years
Print Head Life 400 million impacts
MTBF 15,000 hours (50 hr/week power-on, 5% power on print duty
cycle)
MTTR 0.5 hours
Printer and Paper Specification
B-6
Certification
Safety: Regulation Country
UL 1950-D3 (for 100-120 VAC) United States
CSA C22.2/950 (for 100-120 VAC) Canada
EN 60 950 (for 220-240 VAC) Germany
RFI regulation: Regulation Country
Class B of FCC Part 15B United States
(for 100-120 VAC)
CE mark (for 220-240 VAC) European Union
Printer and Paper Specification
B-7
Paper Specifications
Print Area
Print Area for Continuous Forms
Wc 102 to 267 mm (4 to 10.5 in)
Lc 5.08 to 25.4 mm (0.2 to 1 in)
Printer and Paper Specification
B-8

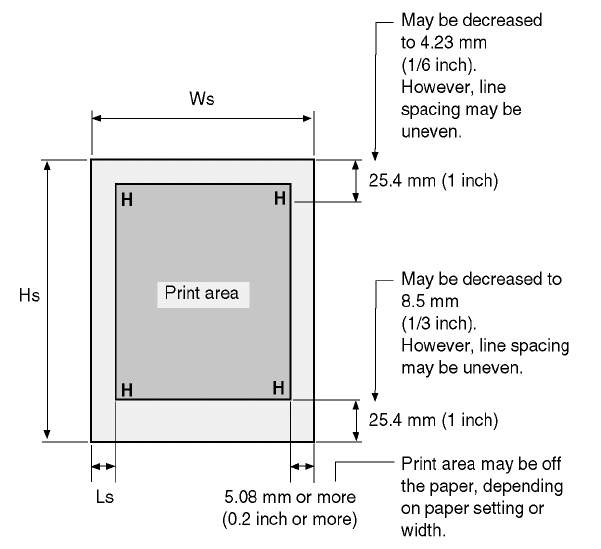

Print Area for Single Sheets
Ws 102 to 267 mm (4 to 10.5 in)
Hs 76 to 364 mm (3 to 14.3 in)
Ls 5.08 to 32 mm (0.2 to 1.26 in
)
Printer and Paper Specification
B-9
Paper Thickness
Paper thickness is given by the weight of the paper in either grams per square meter
(g/m2) or in pounds per bond (lbs/bond). The following table shows the allowable
paper thickness for one-part paper or for each sheet of multipart paper. The total
thickness must not exceed 0.35 mm (0.014 inch).
The weight of carbonless or carbon-backed paper may vary, depending on the paper
manufacturer. When using paper of borderline thickness, test the paper before
running a job.
Type of Paper Number of
Parts
Thickness
One-Part Carbonless Single 47-81 g/m2 (40-70 kg or 12-22 lb)
Two-Part Carbonless Top
40-64 g/m2 (34-55 kg or 11-17 lb)
Bottom 40-81 g/m2 (34-70 kg or 11-22 lb)
Three-Part Carbonless Top 40-64 g/m2 (34-55 kg or 11-17 lb)
Middle 40-64 g/m2 (34-55 kg or 11-17 lb)
Bottom 40-81 g/m2 (34-70 kg or 11-22 lb)
Four-Part Carbonless Top 40-64 g/m2 (34-55 kg or 11-17 lb)
Middle 40-64 g/m2 (34-55 kg or 11-17 lb)
Middle 40-64 g/m2 (34-55 kg or 11-17 lb)
Bottom 40-81 g/m2 (34-70 kg or 11-22 lb)
kg: Weight in kilograms of 1000 sheets of 788 X 1091 mm paper (1.16 g/m2)
lb: Weight in pounds of 500 sheets of 17 X 22 inch paper (3.76 g/m2)
Type of Paper Number of
Parts
Thickness
Two-Part Carbon-Backed Top 40-64 g/m2 (34-55 kg or 11-17 lb)
Bottom 40-81 g/m2 (34-70 kg or 11-22 lb)
Three-Part Carbon-Backed Top 40-64 g/m2 (34-55 kg or 11-17 lb)
Middle 40-64 g/m2 (34-55 kg or 11-17 lb)
Bottom 40-81 g/m2 (34-70 kg or 11-22 lb)
Four-Part Carbon-Backed Top 40-64 g/m2 (34-55 kg or 11-17 lb)
Middle 40-64 g/m2 (34-55 kg or 11-17 lb)
Middle 40-64 g/m2 (34-55 kg or 11-17 lb)
Bottom 40-81 g/m2 (34-70 kg or 11-22 lb)
Carbon-backed Do not use in high humidity environments.
Carbon-interleaved Avoid using single sheets format in carbon-interleaved.
Printer and Paper Specification
B-10
Type of Paper Number of
Parts
Thickness
Two-Part Carbon-
Interleaved
Top 40-64 g/m2 (34-55 kg or 11-17 lb)
Carbon Counted as one sheet
Bottom 40-81 g/m2 (34-70 kg or 11-22 lb)
Three-Part Carbon-Backed Top 40-64 g/m2 (34-55 kg or 11-17 lb)
Carbon Counted as one sheet
Middle 40-64 g/m2 (34-55 kg or 11-17 lb)
Carbon Counted as one sheet
Bottom 40-81 g/m2 (34-70 kg or 11-22 lb)
kg: Weight in kilograms of 1000 sheets of 788 X 1091 mm paper (1.16 g/m2)
lb: Weight in pounds of 500 sheets of 17 X 22 inch paper (3.76 g/m2)
