Acrodyne NW8201E DIGITAL TELEVISION BROADCAST TRANSMITTER User Manual 32 NV8202 26 04 06 01 00

Acrodyne Industries, Inc. DIGITAL TELEVISION BROADCAST TRANSMITTER 32 NV8202 26 04 06 01 00

Users Manual Part 5

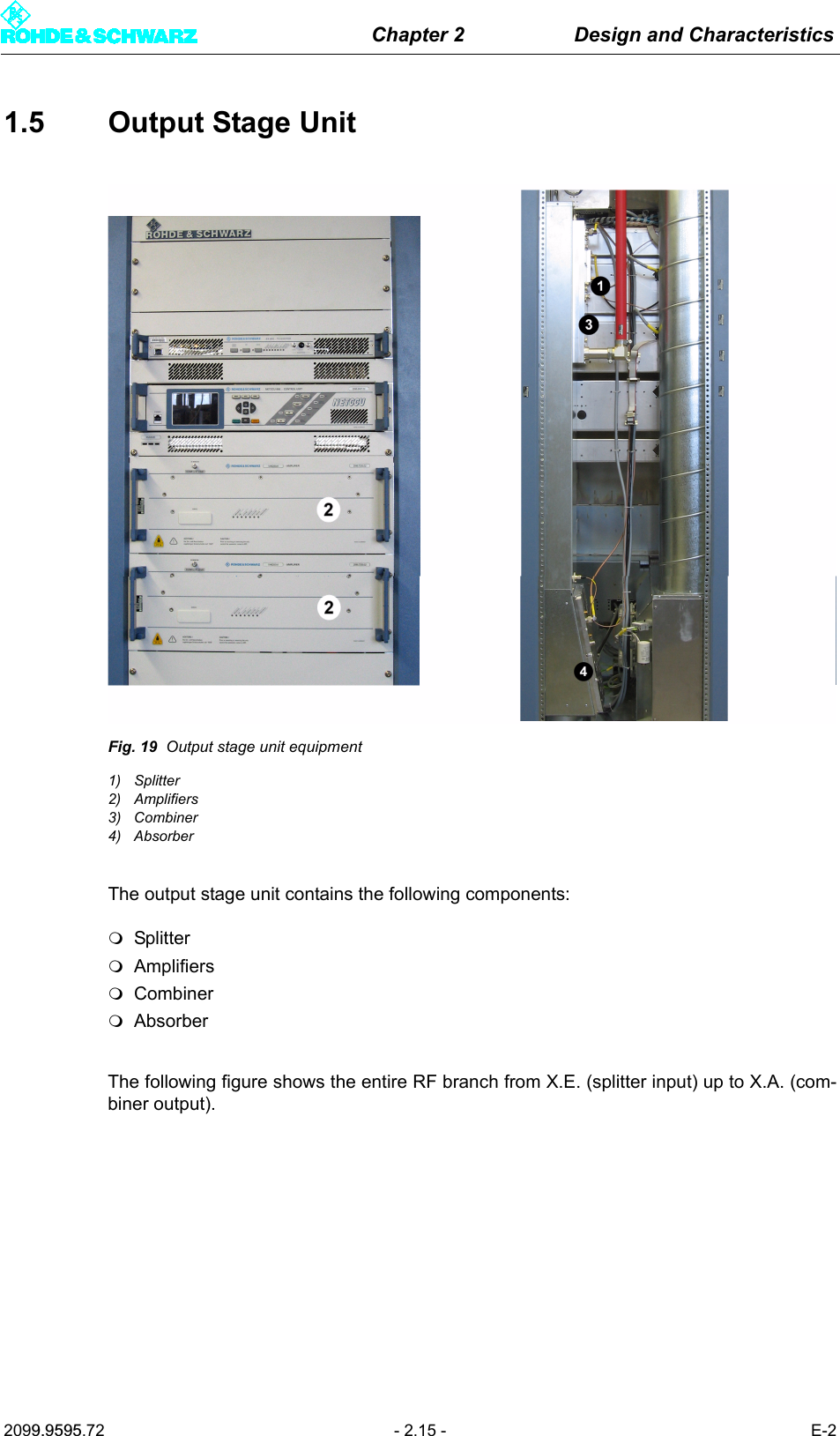

Chapter 2 Design and Characteristics2099.9595.72 - 2.15 - E-21.5 Output Stage UnitFig. 19 Output stage unit equipment1) Splitter2) Amplifiers3) Combiner4) AbsorberThe output stage unit contains the following components:SplitterAmplifiersCombinerAbsorberThe following figure shows the entire RF branch from X.E. (splitter input) up to X.A. (com-biner output).

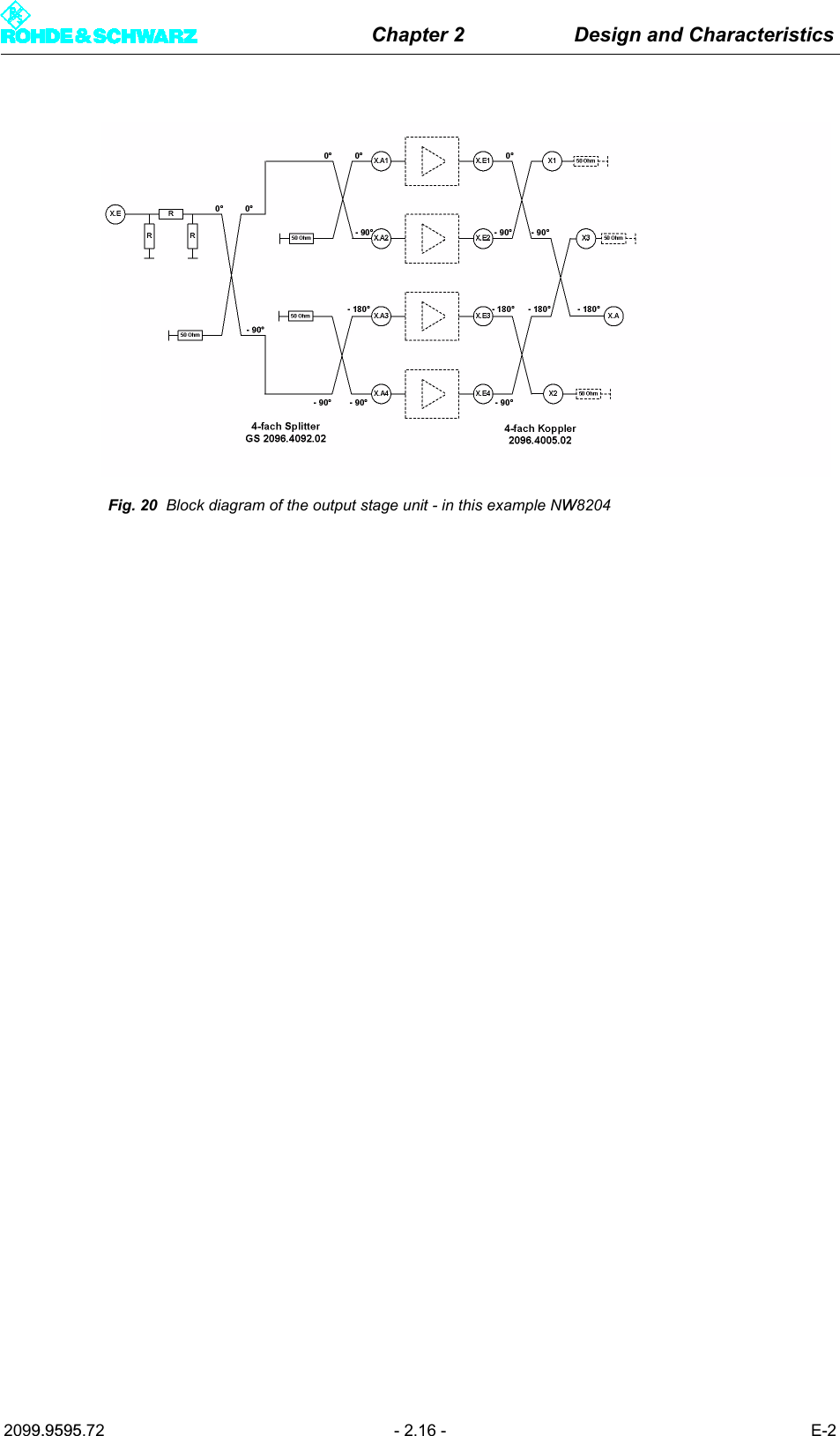

Chapter 2 Design and Characteristics2099.9595.72 - 2.16 - E-2Fig. 20 Block diagram of the output stage unit - in this example NW8204
