Acrodyne NW8201E DIGITAL TELEVISION BROADCAST TRANSMITTER User Manual 32 NV8202 26 04 06 01 00

Acrodyne Industries, Inc. DIGITAL TELEVISION BROADCAST TRANSMITTER 32 NV8202 26 04 06 01 00

Users Manual Part 6

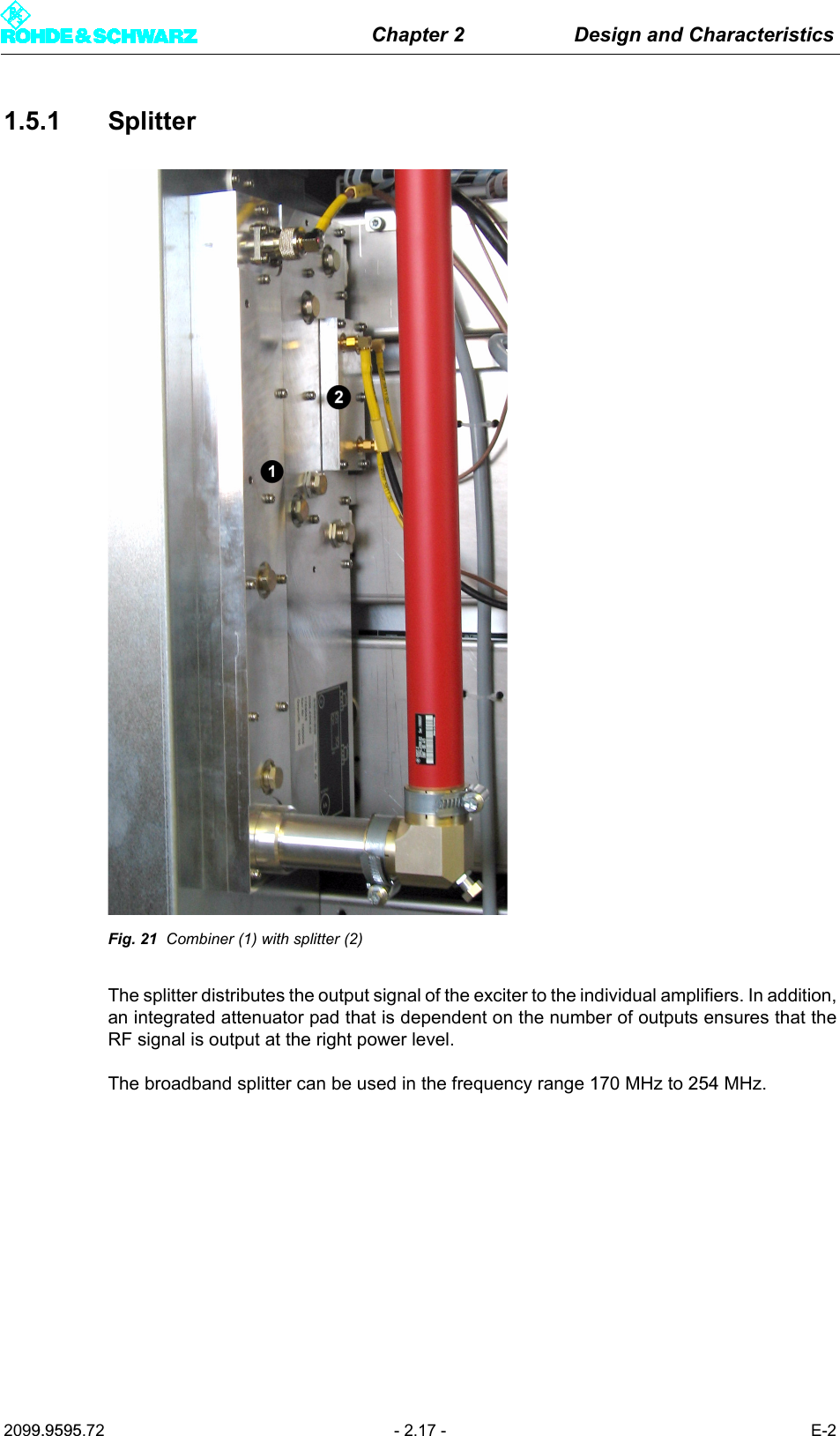

Chapter 2 Design and Characteristics2099.9595.72 - 2.17 - E-21.5.1 SplitterFig. 21 Combiner (1) with splitter (2)The splitter distributes the output signal of the exciter to the individual amplifiers. In addition,an integrated attenuator pad that is dependent on the number of outputs ensures that theRF signal is output at the right power level. The broadband splitter can be used in the frequency range 170 MHz to 254 MHz.
