Acrodyne NW8201E DIGITAL TELEVISION BROADCAST TRANSMITTER User Manual 32 NV8202 26 04 06 01 00

Acrodyne Industries, Inc. DIGITAL TELEVISION BROADCAST TRANSMITTER 32 NV8202 26 04 06 01 00

Users Manual Part 20

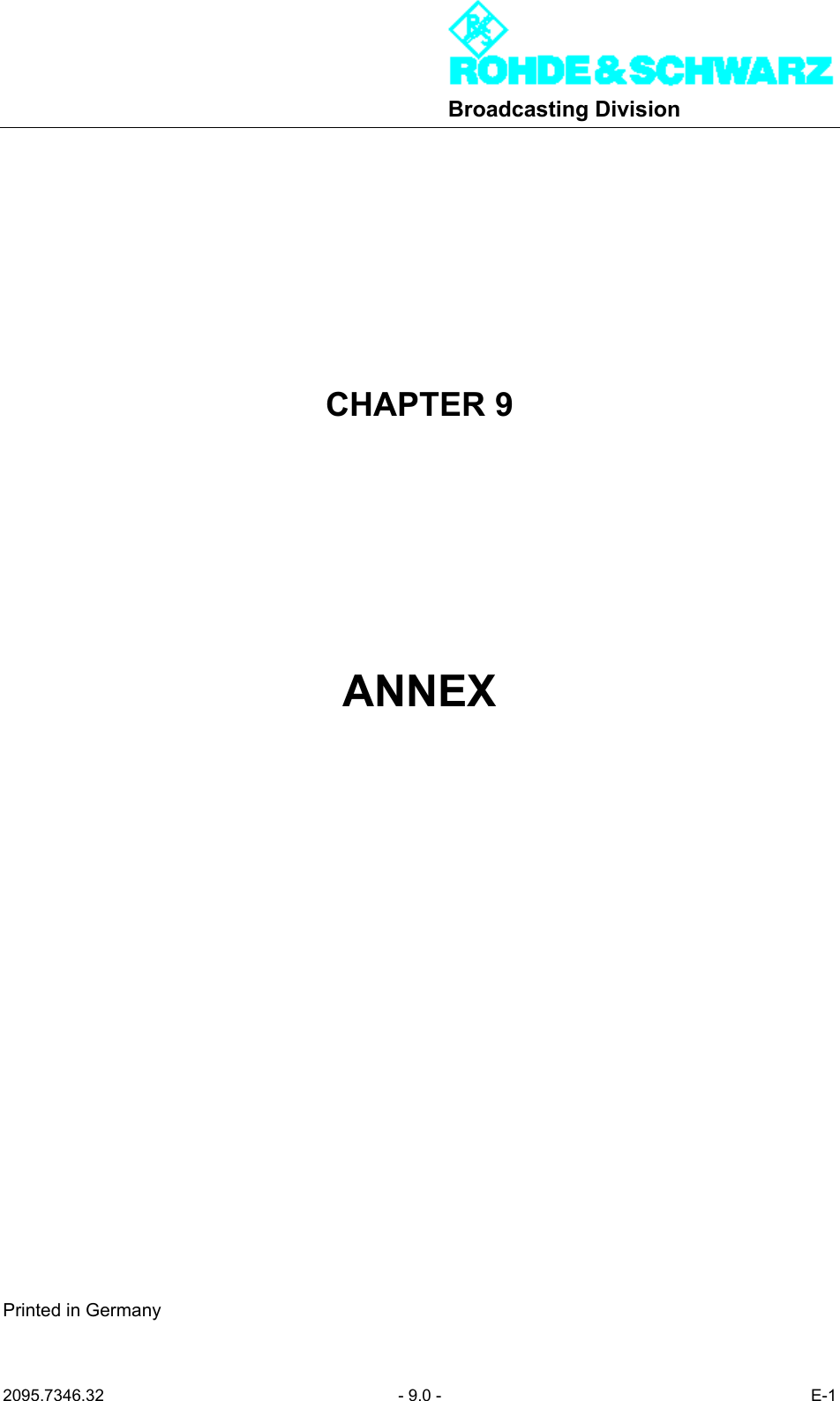

Broadcasting Division2095.7346.32 - 9.0 - E-1CHAPTER 9ANNEXPrinted in Germany

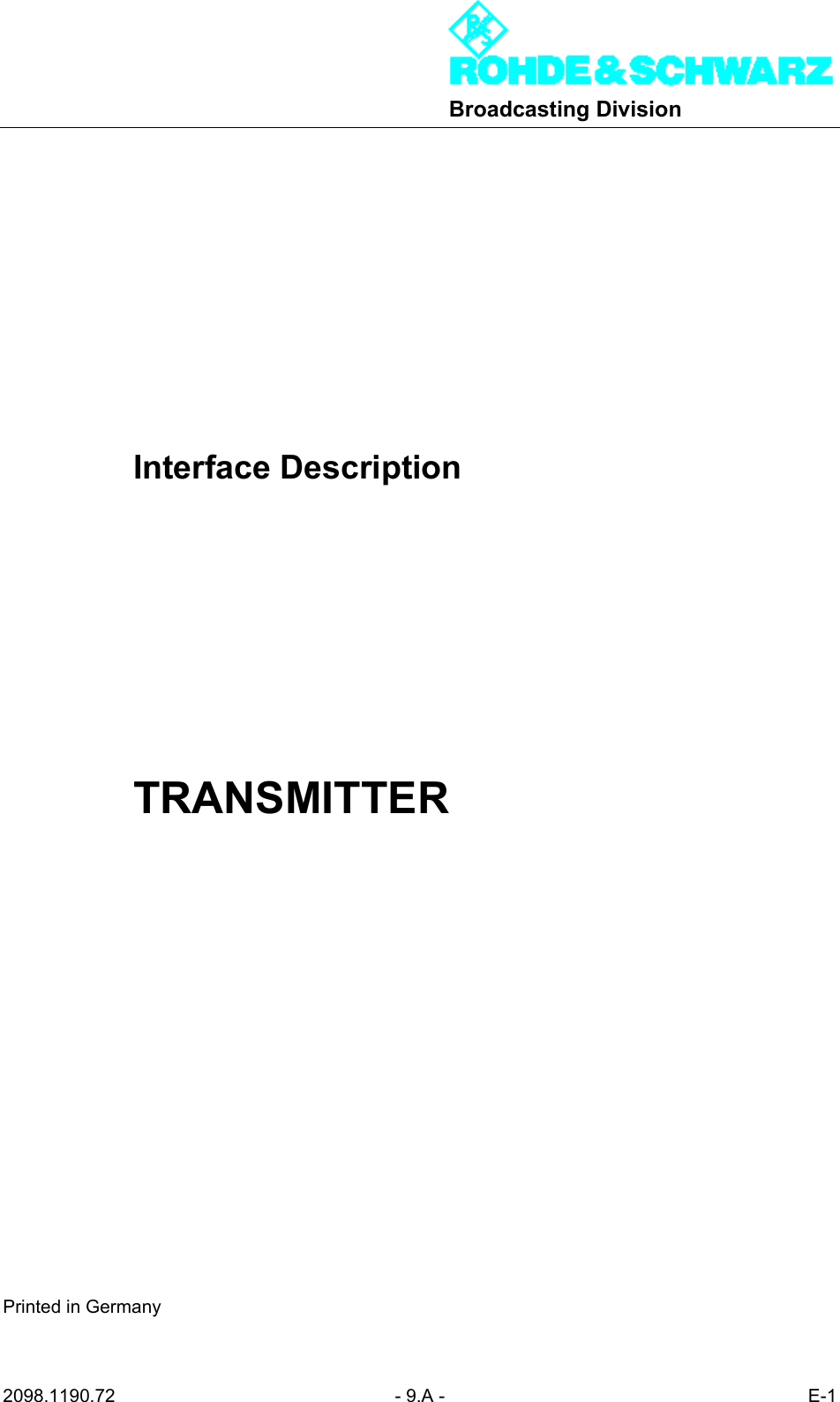

Broadcasting Division2098.1190.72 - 9.A - E-1Interface DescriptionTRANSMITTERPrinted in Germany

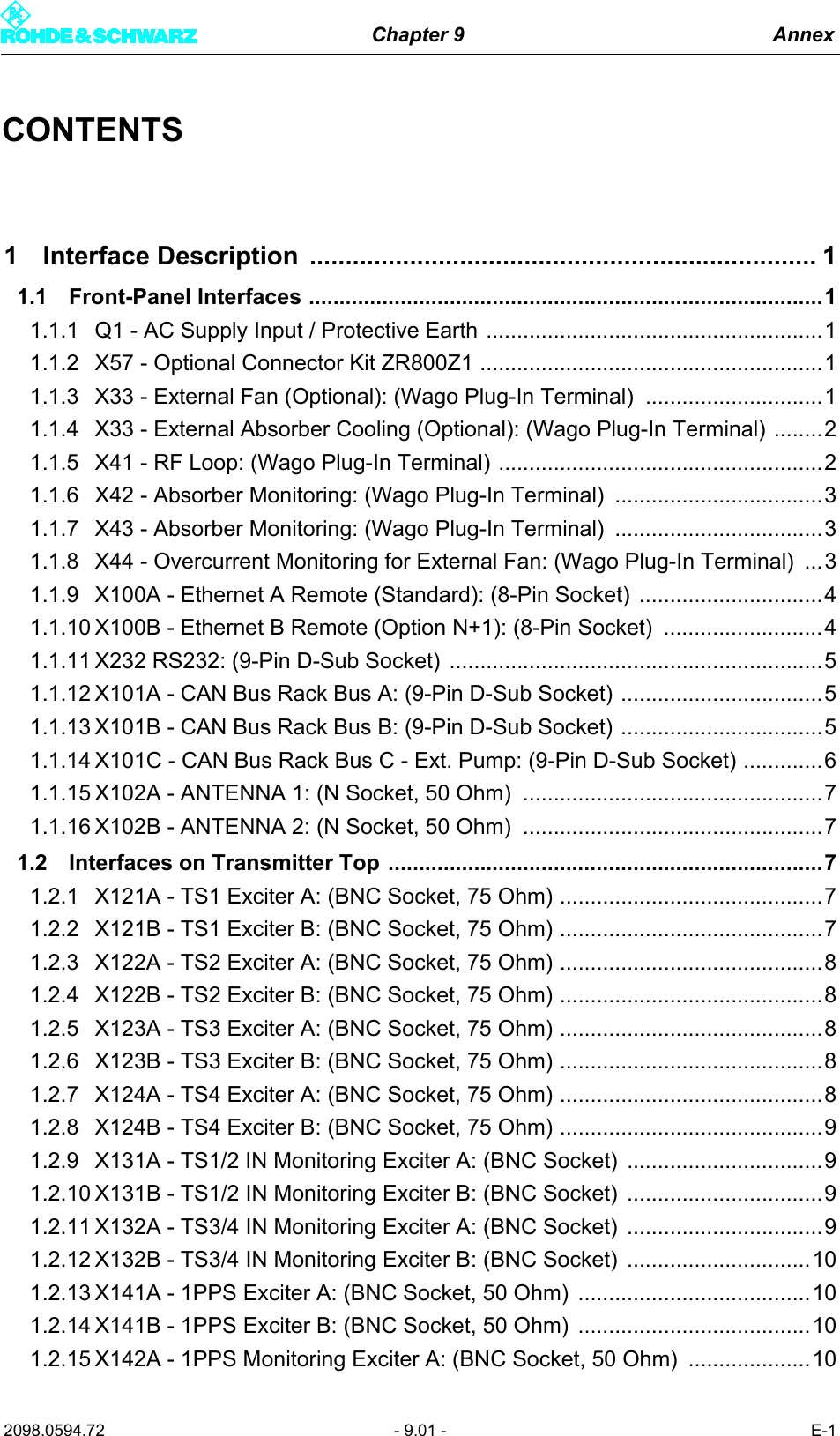

Chapter 9 Annex2098.0594.72 - 9.01 - E-1CONTENTS1 Interface Description ....................................................................... 11.1 Front-Panel Interfaces ....................................................................................11.1.1 Q1 - AC Supply Input / Protective Earth .......................................................11.1.2 X57 - Optional Connector Kit ZR800Z1 ........................................................11.1.3 X33 - External Fan (Optional): (Wago Plug-In Terminal) .............................11.1.4 X33 - External Absorber Cooling (Optional): (Wago Plug-In Terminal) ........21.1.5 X41 - RF Loop: (Wago Plug-In Terminal) .....................................................21.1.6 X42 - Absorber Monitoring: (Wago Plug-In Terminal) ..................................31.1.7 X43 - Absorber Monitoring: (Wago Plug-In Terminal) ..................................31.1.8 X44 - Overcurrent Monitoring for External Fan: (Wago Plug-In Terminal) ...31.1.9 X100A - Ethernet A Remote (Standard): (8-Pin Socket) ..............................41.1.10 X100B - Ethernet B Remote (Option N+1): (8-Pin Socket) ..........................41.1.11 X232 RS232: (9-Pin D-Sub Socket) .............................................................51.1.12 X101A - CAN Bus Rack Bus A: (9-Pin D-Sub Socket) .................................51.1.13 X101B - CAN Bus Rack Bus B: (9-Pin D-Sub Socket) .................................51.1.14 X101C - CAN Bus Rack Bus C - Ext. Pump: (9-Pin D-Sub Socket) .............61.1.15 X102A - ANTENNA 1: (N Socket, 50 Ohm) .................................................71.1.16 X102B - ANTENNA 2: (N Socket, 50 Ohm) .................................................71.2 Interfaces on Transmitter Top .......................................................................71.2.1 X121A - TS1 Exciter A: (BNC Socket, 75 Ohm) ...........................................71.2.2 X121B - TS1 Exciter B: (BNC Socket, 75 Ohm) ...........................................71.2.3 X122A - TS2 Exciter A: (BNC Socket, 75 Ohm) ...........................................81.2.4 X122B - TS2 Exciter B: (BNC Socket, 75 Ohm) ...........................................81.2.5 X123A - TS3 Exciter A: (BNC Socket, 75 Ohm) ...........................................81.2.6 X123B - TS3 Exciter B: (BNC Socket, 75 Ohm) ...........................................81.2.7 X124A - TS4 Exciter A: (BNC Socket, 75 Ohm) ...........................................81.2.8 X124B - TS4 Exciter B: (BNC Socket, 75 Ohm) ...........................................91.2.9 X131A - TS1/2 IN Monitoring Exciter A: (BNC Socket) ................................91.2.10 X131B - TS1/2 IN Monitoring Exciter B: (BNC Socket) ................................91.2.11 X132A - TS3/4 IN Monitoring Exciter A: (BNC Socket) ................................91.2.12 X132B - TS3/4 IN Monitoring Exciter B: (BNC Socket) ..............................101.2.13 X141A - 1PPS Exciter A: (BNC Socket, 50 Ohm) ......................................101.2.14 X141B - 1PPS Exciter B: (BNC Socket, 50 Ohm) ......................................101.2.15 X142A - 1PPS Monitoring Exciter A: (BNC Socket, 50 Ohm) ....................10

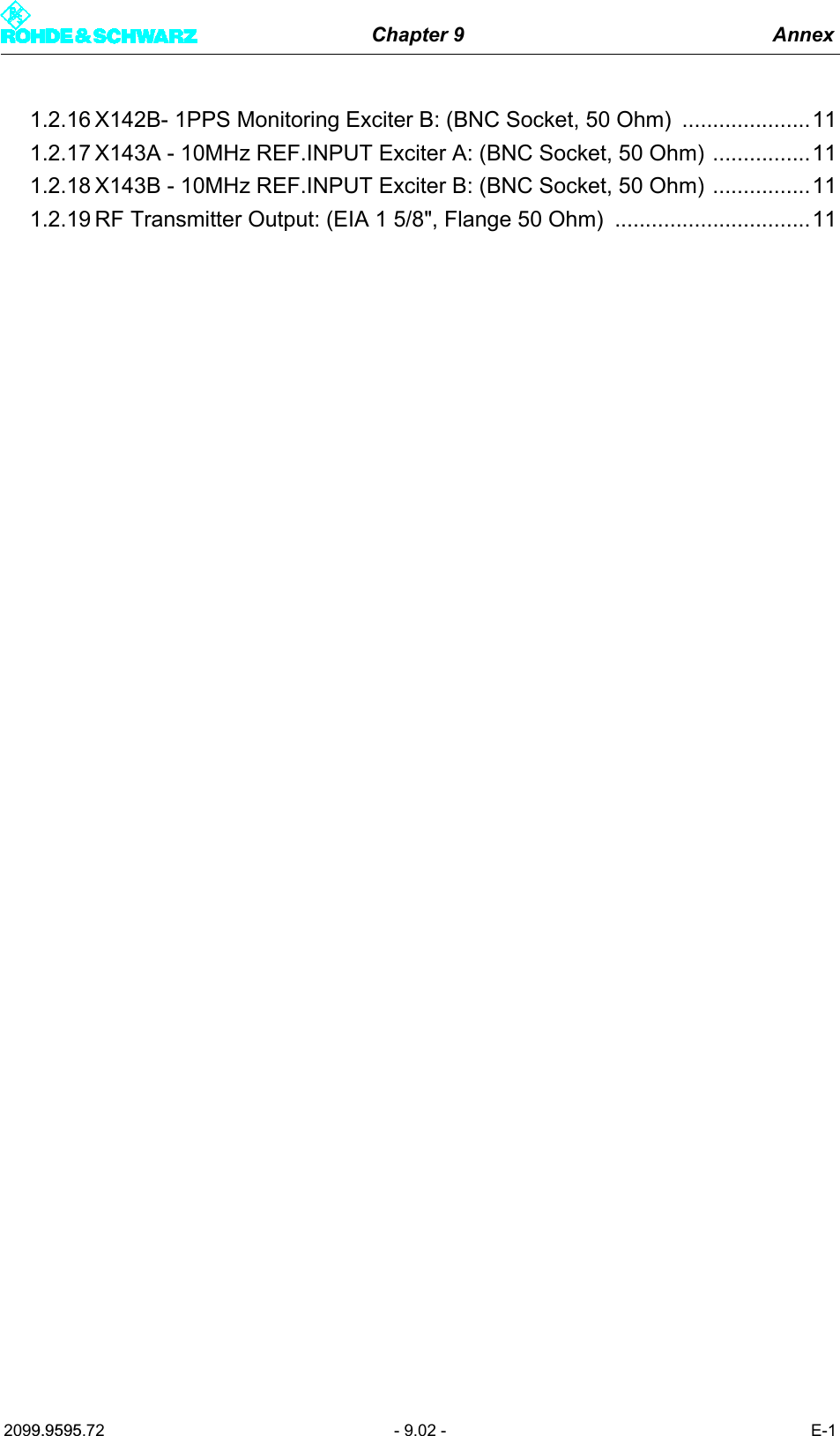

Chapter 9 Annex2099.9595.72 - 9.02 - E-11.2.16 X142B- 1PPS Monitoring Exciter B: (BNC Socket, 50 Ohm) .....................111.2.17 X143A - 10MHz REF.INPUT Exciter A: (BNC Socket, 50 Ohm) ................111.2.18 X143B - 10MHz REF.INPUT Exciter B: (BNC Socket, 50 Ohm) ................111.2.19 RF Transmitter Output: (EIA 1 5/8", Flange 50 Ohm) ................................11

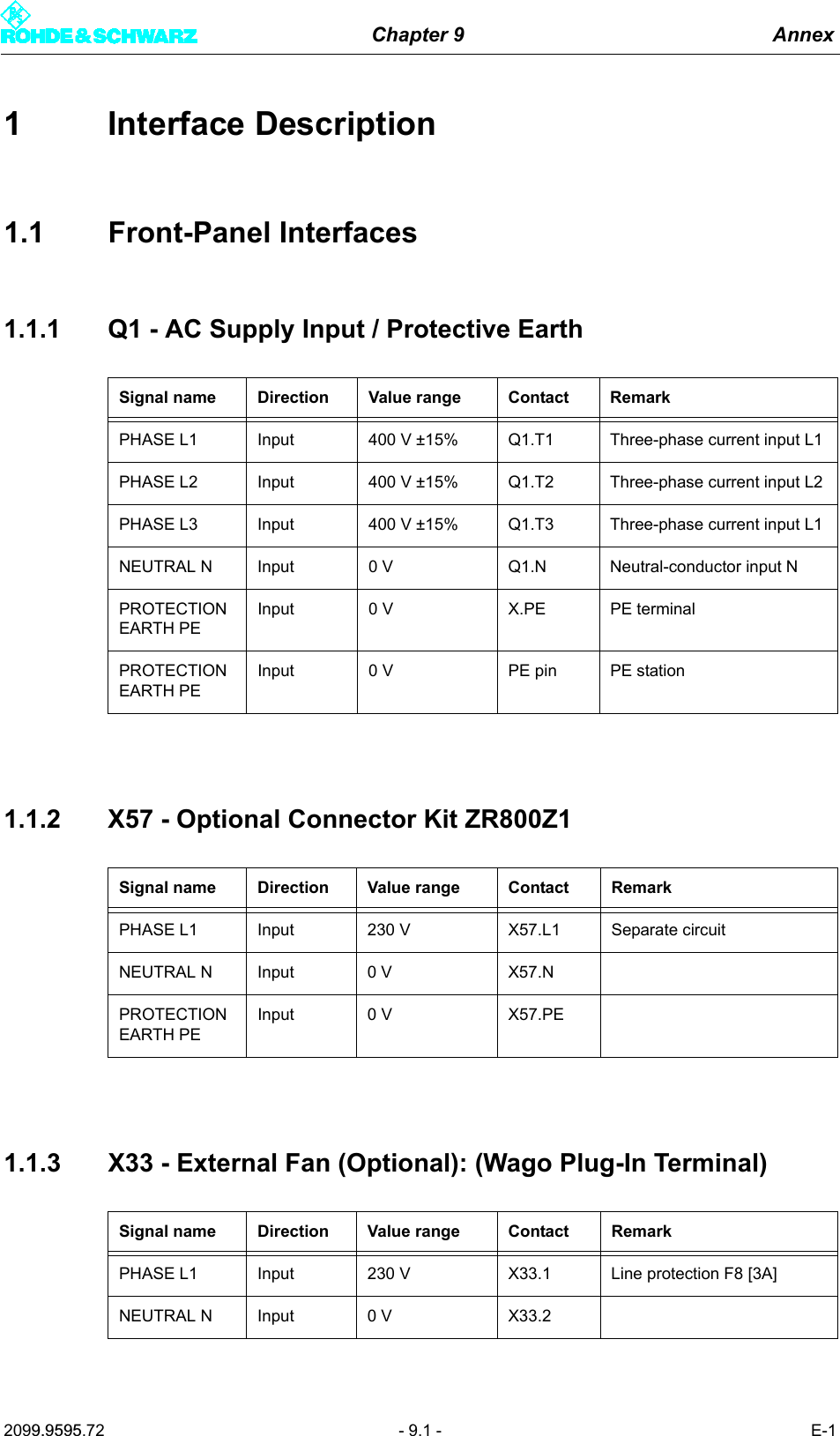

Chapter 9 Annex2099.9595.72 - 9.1 - E-11 Interface Description1.1 Front-Panel Interfaces1.1.1 Q1 - AC Supply Input / Protective Earth1.1.2 X57 - Optional Connector Kit ZR800Z11.1.3 X33 - External Fan (Optional): (Wago Plug-In Terminal)Signal name Direction Value range Contact RemarkPHASE L1 Input 400 V ±15% Q1.T1 Three-phase current input L1PHASE L2 Input 400 V ±15% Q1.T2 Three-phase current input L2PHASE L3 Input 400 V ±15% Q1.T3 Three-phase current input L1NEUTRAL N Input 0 V Q1.N Neutral-conductor input NPROTECTION EARTH PEInput 0 V X.PE PE terminalPROTECTION EARTH PEInput 0 V PE pin PE stationSignal name Direction Value range Contact RemarkPHASE L1 Input 230 V X57.L1 Separate circuitNEUTRAL N Input 0 V X57.NPROTECTION EARTH PEInput 0 V X57.PESignal name Direction Value range Contact RemarkPHASE L1 Input 230 V X33.1 Line protection F8 [3A]NEUTRAL N Input 0 V X33.2

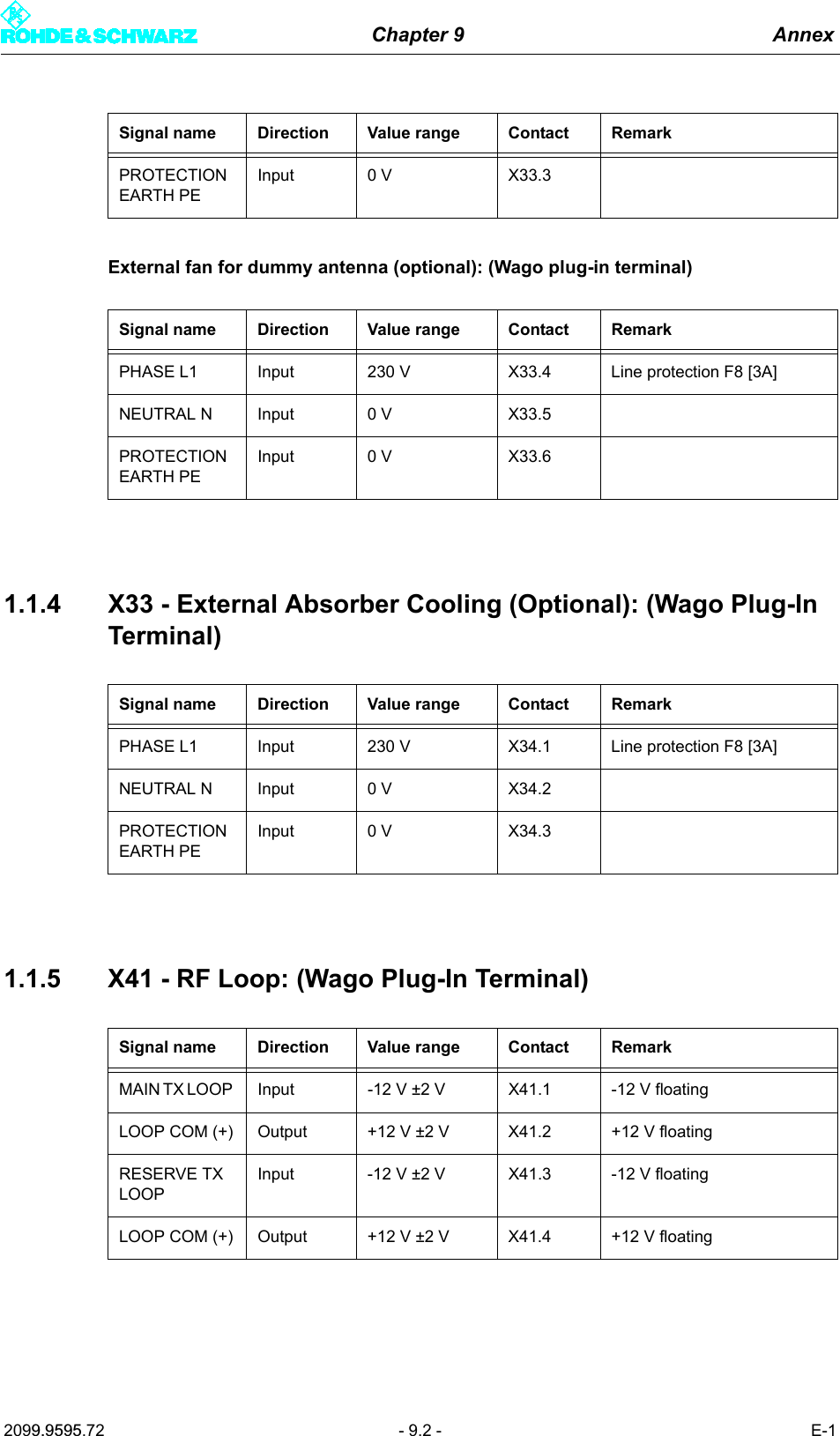

Chapter 9 Annex2099.9595.72 - 9.2 - E-1External fan for dummy antenna (optional): (Wago plug-in terminal)1.1.4 X33 - External Absorber Cooling (Optional): (Wago Plug-In Terminal)1.1.5 X41 - RF Loop: (Wago Plug-In Terminal)PROTECTION EARTH PEInput 0 V X33.3Signal name Direction Value range Contact RemarkPHASE L1 Input 230 V X33.4 Line protection F8 [3A]NEUTRAL N Input 0 V X33.5PROTECTION EARTH PEInput 0 V X33.6Signal name Direction Value range Contact RemarkPHASE L1 Input 230 V X34.1 Line protection F8 [3A]NEUTRAL N Input 0 V X34.2PROTECTION EARTH PEInput 0 V X34.3Signal name Direction Value range Contact RemarkMAIN TX LOOP Input -12 V ±2 V X41.1 -12 V floatingLOOP COM (+) Output +12 V ±2 V X41.2 +12 V floatingRESERVE TX LOOPInput -12 V ±2 V X41.3 -12 V floatingLOOP COM (+) Output +12 V ±2 V X41.4 +12 V floatingSignal name Direction Value range Contact Remark

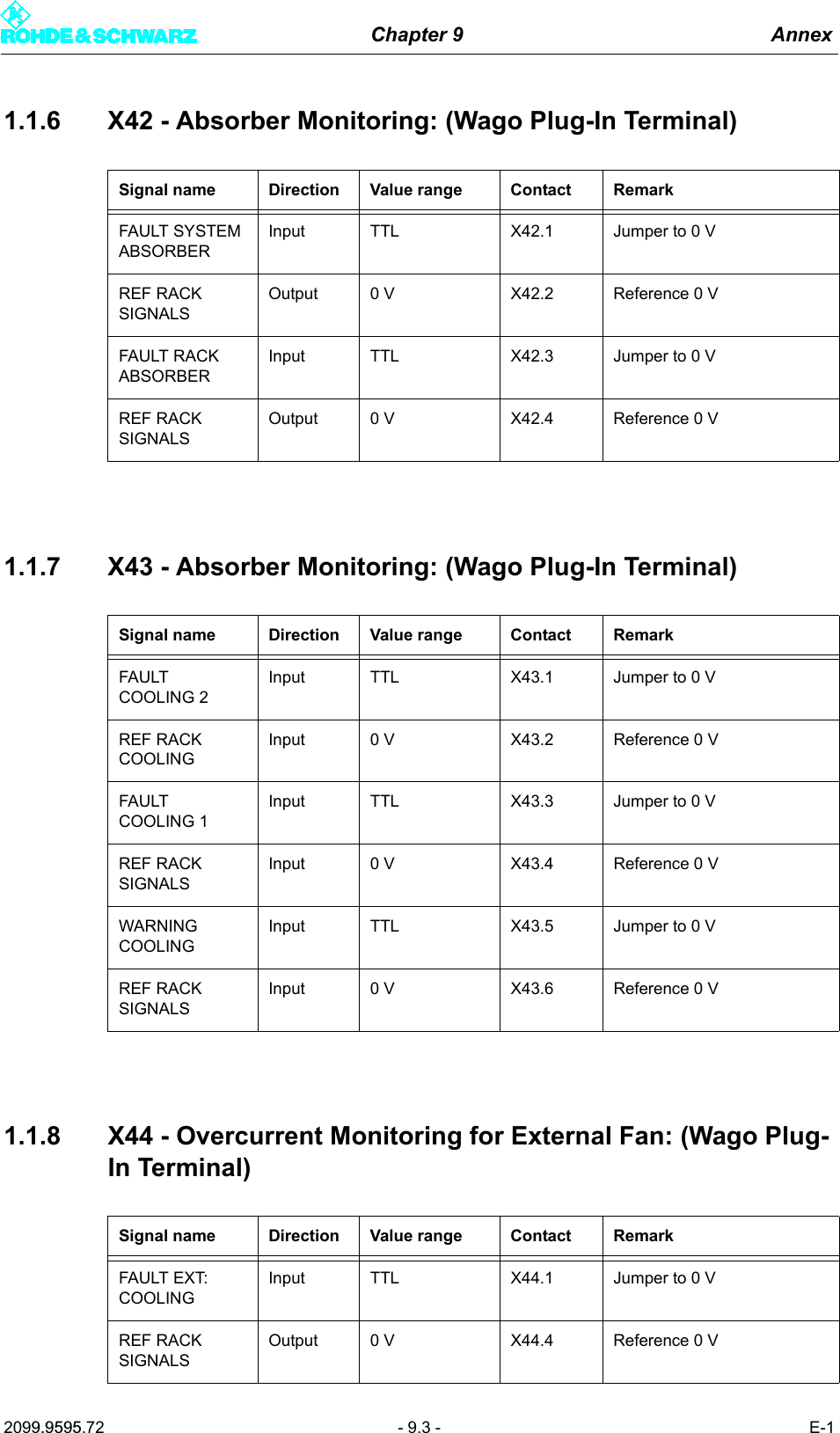

Chapter 9 Annex2099.9595.72 - 9.3 - E-11.1.6 X42 - Absorber Monitoring: (Wago Plug-In Terminal)1.1.7 X43 - Absorber Monitoring: (Wago Plug-In Terminal)1.1.8 X44 - Overcurrent Monitoring for External Fan: (Wago Plug-In Terminal)Signal name Direction Value range Contact RemarkFAULT SYSTEM ABSORBERInput TTL X42.1 Jumper to 0 VREF RACK SIGNALSOutput 0 V X42.2 Reference 0 VFAULT RACK ABSORBERInput TTL X42.3 Jumper to 0 VREF RACK SIGNALSOutput 0 V X42.4 Reference 0 VSignal name Direction Value range Contact RemarkFAULT COOLING 2Input TTL X43.1 Jumper to 0 VREF RACK COOLINGInput 0 V X43.2 Reference 0 VFAULT COOLING 1Input TTL X43.3 Jumper to 0 VREF RACK SIGNALSInput 0 V X43.4 Reference 0 VWARNING COOLINGInput TTL X43.5 Jumper to 0 VREF RACK SIGNALSInput 0 V X43.6 Reference 0 VSignal name Direction Value range Contact RemarkFAULT EXT: COOLINGInput TTL X44.1 Jumper to 0 VREF RACK SIGNALSOutput 0 V X44.4 Reference 0 V

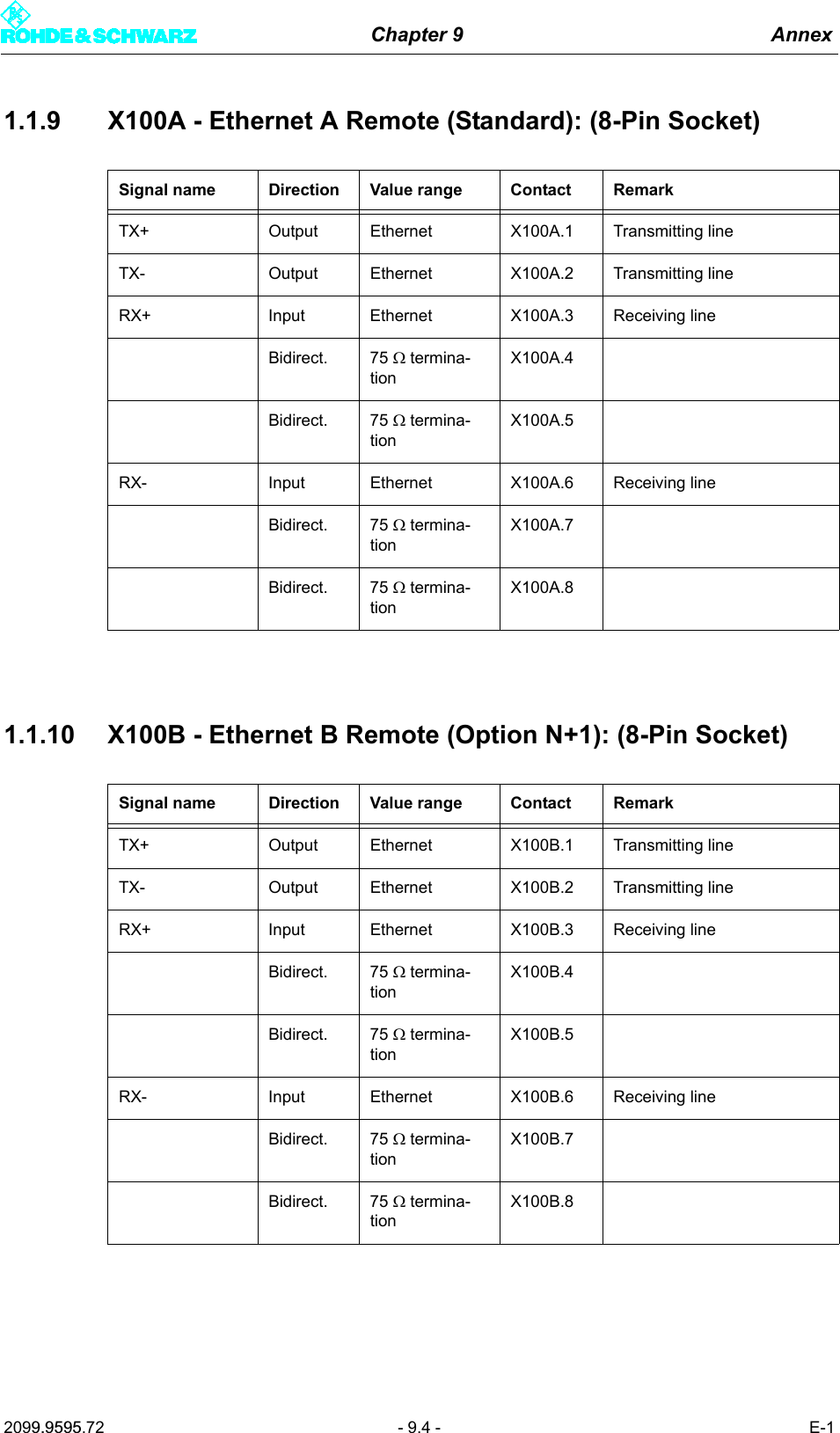

Chapter 9 Annex2099.9595.72 - 9.4 - E-11.1.9 X100A - Ethernet A Remote (Standard): (8-Pin Socket)1.1.10 X100B - Ethernet B Remote (Option N+1): (8-Pin Socket)Signal name Direction Value range Contact RemarkTX+ Output Ethernet X100A.1 Transmitting lineTX- Output Ethernet X100A.2 Transmitting lineRX+ Input Ethernet X100A.3 Receiving lineBidirect. 75 Ω termina-tionX100A.4Bidirect. 75 Ω termina-tionX100A.5RX- Input Ethernet X100A.6 Receiving lineBidirect. 75 Ω termina-tionX100A.7Bidirect. 75 Ω termina-tionX100A.8Signal name Direction Value range Contact RemarkTX+ Output Ethernet X100B.1 Transmitting lineTX- Output Ethernet X100B.2 Transmitting lineRX+ Input Ethernet X100B.3 Receiving lineBidirect. 75 Ω termina-tionX100B.4Bidirect. 75 Ω termina-tionX100B.5RX- Input Ethernet X100B.6 Receiving lineBidirect. 75 Ω termina-tionX100B.7Bidirect. 75 Ω termina-tionX100B.8

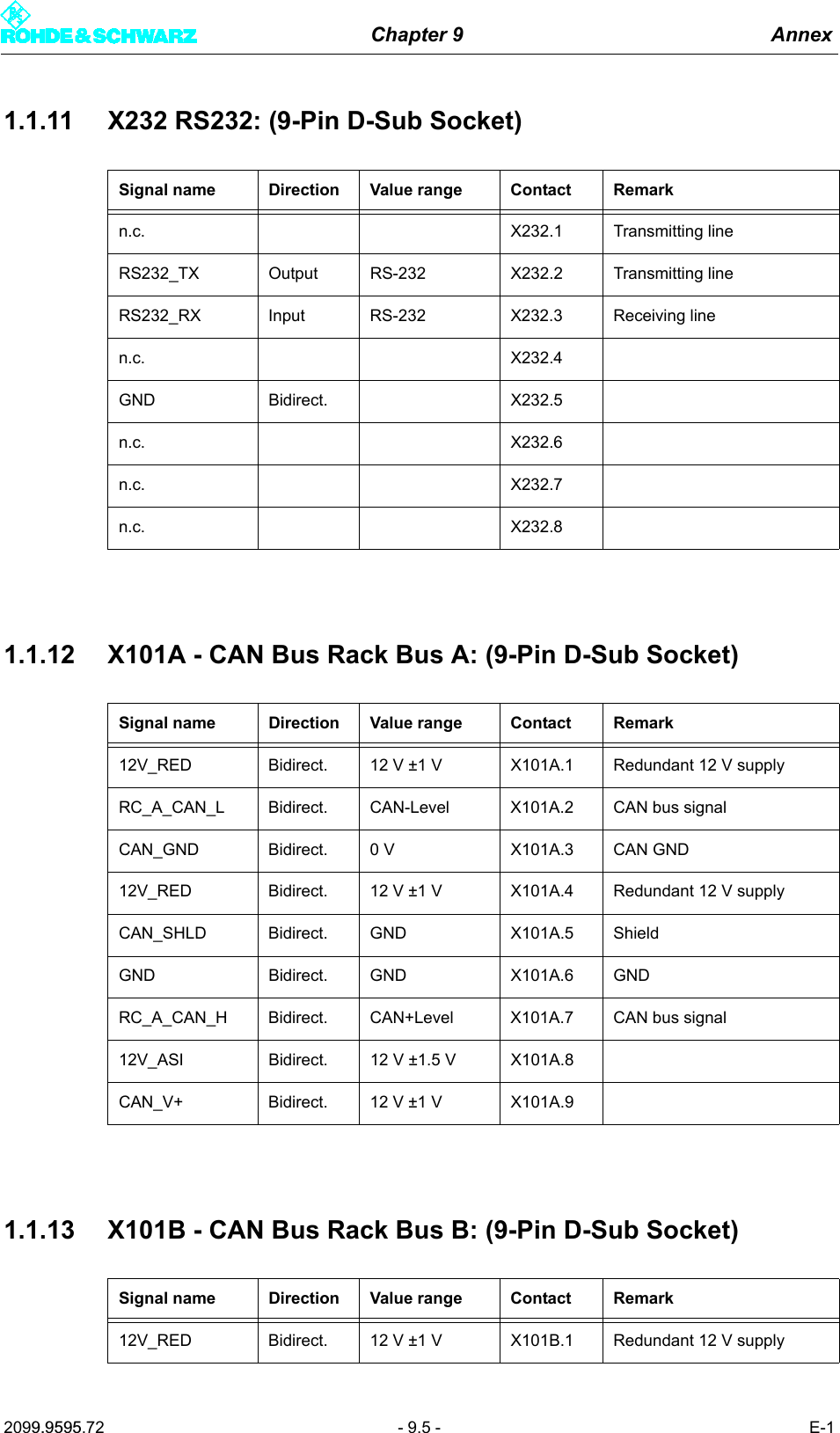

Chapter 9 Annex2099.9595.72 - 9.5 - E-11.1.11 X232 RS232: (9-Pin D-Sub Socket)1.1.12 X101A - CAN Bus Rack Bus A: (9-Pin D-Sub Socket)1.1.13 X101B - CAN Bus Rack Bus B: (9-Pin D-Sub Socket)Signal name Direction Value range Contact Remarkn.c. X232.1 Transmitting lineRS232_TX Output RS-232 X232.2 Transmitting lineRS232_RX Input RS-232 X232.3 Receiving linen.c. X232.4GND Bidirect. X232.5n.c. X232.6n.c. X232.7n.c. X232.8Signal name Direction Value range Contact Remark12V_RED Bidirect. 12 V ±1 V X101A.1 Redundant 12 V supplyRC_A_CAN_L Bidirect. CAN-Level X101A.2 CAN bus signalCAN_GND Bidirect. 0 V X101A.3 CAN GND12V_RED Bidirect. 12 V ±1 V X101A.4 Redundant 12 V supplyCAN_SHLD Bidirect. GND X101A.5 ShieldGND Bidirect. GND X101A.6 GNDRC_A_CAN_H Bidirect. CAN+Level X101A.7 CAN bus signal12V_ASI Bidirect. 12 V ±1.5 V X101A.8CAN_V+ Bidirect. 12 V ±1 V X101A.9Signal name Direction Value range Contact Remark12V_RED Bidirect. 12 V ±1 V X101B.1 Redundant 12 V supply

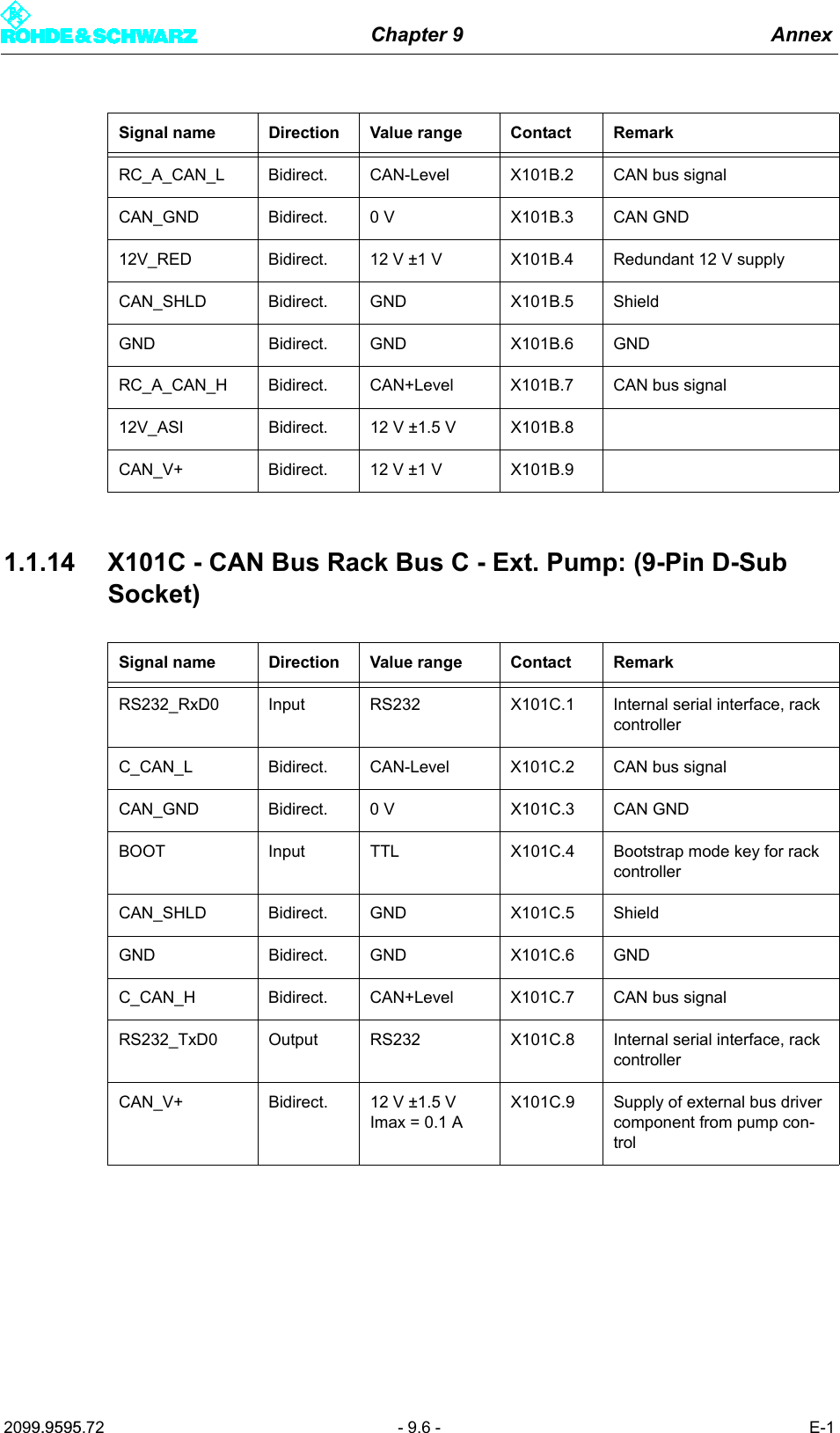

Chapter 9 Annex2099.9595.72 - 9.6 - E-11.1.14 X101C - CAN Bus Rack Bus C - Ext. Pump: (9-Pin D-Sub Socket)RC_A_CAN_L Bidirect. CAN-Level X101B.2 CAN bus signalCAN_GND Bidirect. 0 V X101B.3 CAN GND12V_RED Bidirect. 12 V ±1 V X101B.4 Redundant 12 V supplyCAN_SHLD Bidirect. GND X101B.5 ShieldGND Bidirect. GND X101B.6 GNDRC_A_CAN_H Bidirect. CAN+Level X101B.7 CAN bus signal12V_ASI Bidirect. 12 V ±1.5 V X101B.8CAN_V+ Bidirect. 12 V ±1 V X101B.9Signal name Direction Value range Contact RemarkRS232_RxD0 Input RS232 X101C.1 Internal serial interface, rack controllerC_CAN_L Bidirect. CAN-Level X101C.2 CAN bus signalCAN_GND Bidirect. 0 V X101C.3 CAN GNDBOOT Input TTL X101C.4 Bootstrap mode key for rack controllerCAN_SHLD Bidirect. GND X101C.5 ShieldGND Bidirect. GND X101C.6 GNDC_CAN_H Bidirect. CAN+Level X101C.7 CAN bus signalRS232_TxD0 Output RS232 X101C.8 Internal serial interface, rack controllerCAN_V+ Bidirect. 12 V ±1.5 V Imax = 0.1 AX101C.9 Supply of external bus driver component from pump con-trolSignal name Direction Value range Contact Remark

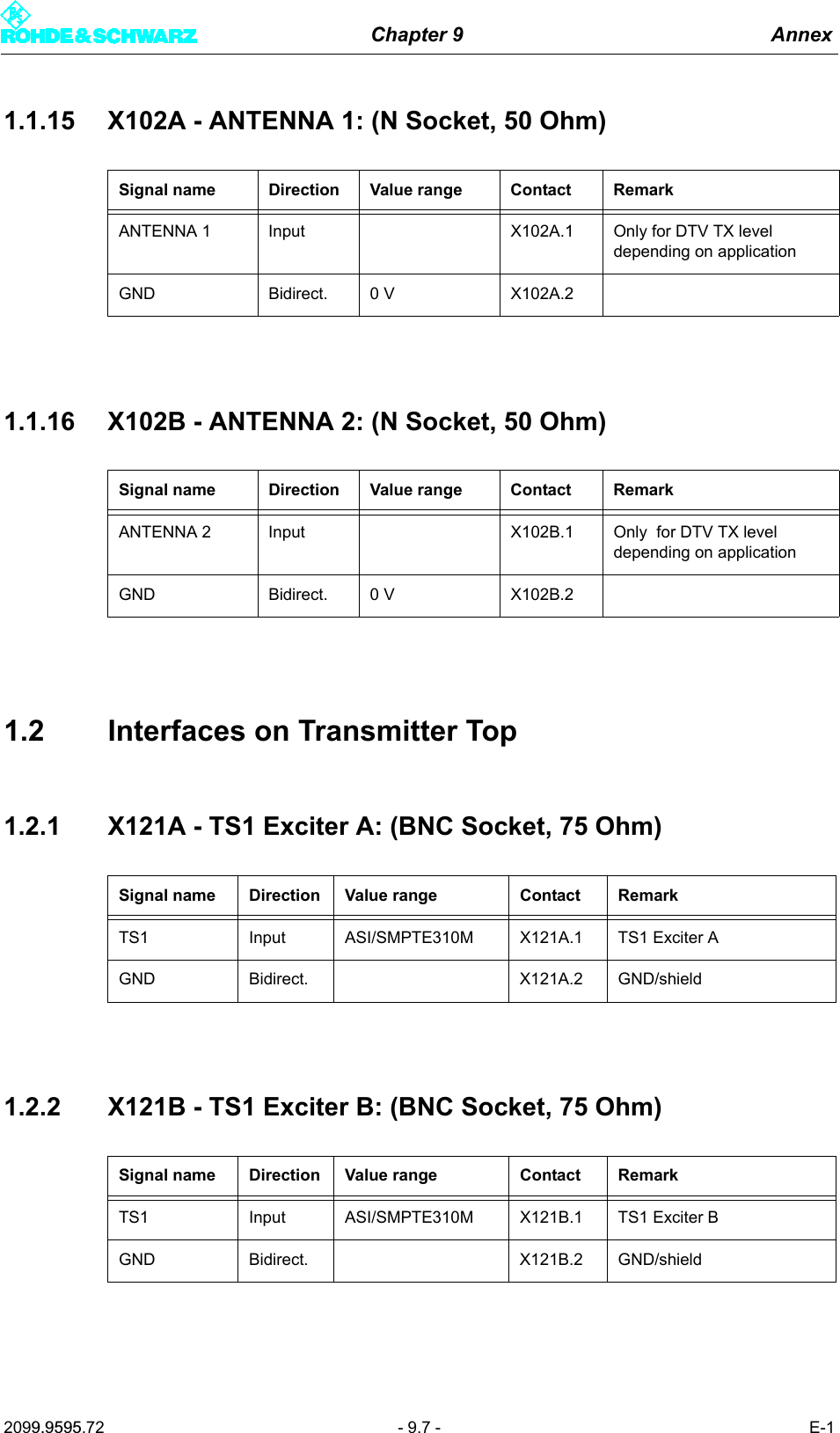

Chapter 9 Annex2099.9595.72 - 9.7 - E-11.1.15 X102A - ANTENNA 1: (N Socket, 50 Ohm)1.1.16 X102B - ANTENNA 2: (N Socket, 50 Ohm)1.2 Interfaces on Transmitter Top1.2.1 X121A - TS1 Exciter A: (BNC Socket, 75 Ohm)1.2.2 X121B - TS1 Exciter B: (BNC Socket, 75 Ohm)Signal name Direction Value range Contact RemarkANTENNA 1 Input X102A.1 Only for DTV TX level depending on applicationGND Bidirect. 0 V X102A.2Signal name Direction Value range Contact RemarkANTENNA 2 Input X102B.1 Only for DTV TX level depending on applicationGND Bidirect. 0 V X102B.2Signal name Direction Value range Contact RemarkTS1 Input ASI/SMPTE310M X121A.1 TS1 Exciter AGND Bidirect. X121A.2 GND/shieldSignal name Direction Value range Contact RemarkTS1 Input ASI/SMPTE310M X121B.1 TS1 Exciter BGND Bidirect. X121B.2 GND/shield

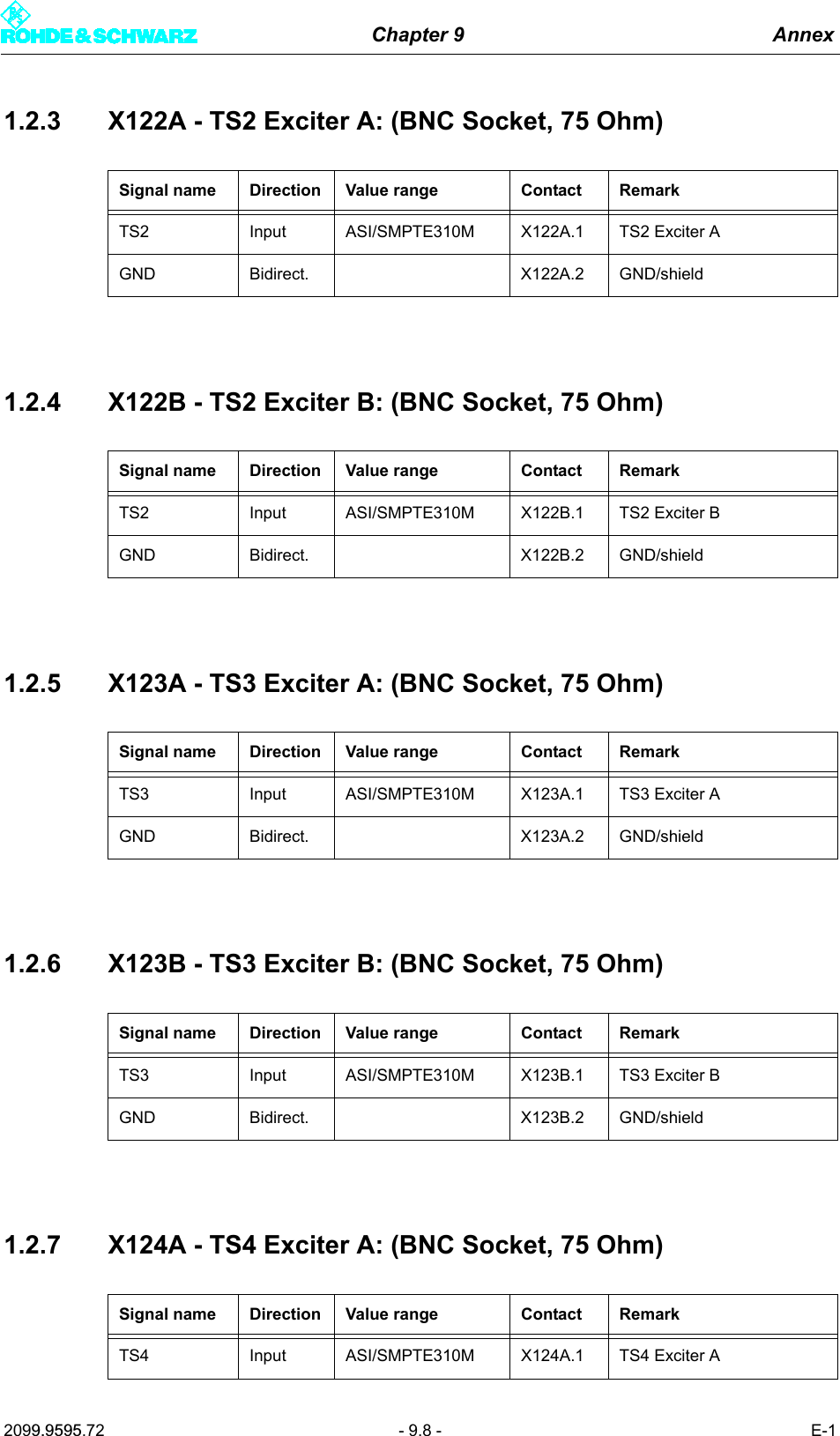

Chapter 9 Annex2099.9595.72 - 9.8 - E-11.2.3 X122A - TS2 Exciter A: (BNC Socket, 75 Ohm)1.2.4 X122B - TS2 Exciter B: (BNC Socket, 75 Ohm)1.2.5 X123A - TS3 Exciter A: (BNC Socket, 75 Ohm)1.2.6 X123B - TS3 Exciter B: (BNC Socket, 75 Ohm)1.2.7 X124A - TS4 Exciter A: (BNC Socket, 75 Ohm)Signal name Direction Value range Contact RemarkTS2 Input ASI/SMPTE310M X122A.1 TS2 Exciter AGND Bidirect. X122A.2 GND/shieldSignal name Direction Value range Contact RemarkTS2 Input ASI/SMPTE310M X122B.1 TS2 Exciter BGND Bidirect. X122B.2 GND/shieldSignal name Direction Value range Contact RemarkTS3 Input ASI/SMPTE310M X123A.1 TS3 Exciter AGND Bidirect. X123A.2 GND/shieldSignal name Direction Value range Contact RemarkTS3 Input ASI/SMPTE310M X123B.1 TS3 Exciter BGND Bidirect. X123B.2 GND/shieldSignal name Direction Value range Contact RemarkTS4 Input ASI/SMPTE310M X124A.1 TS4 Exciter A

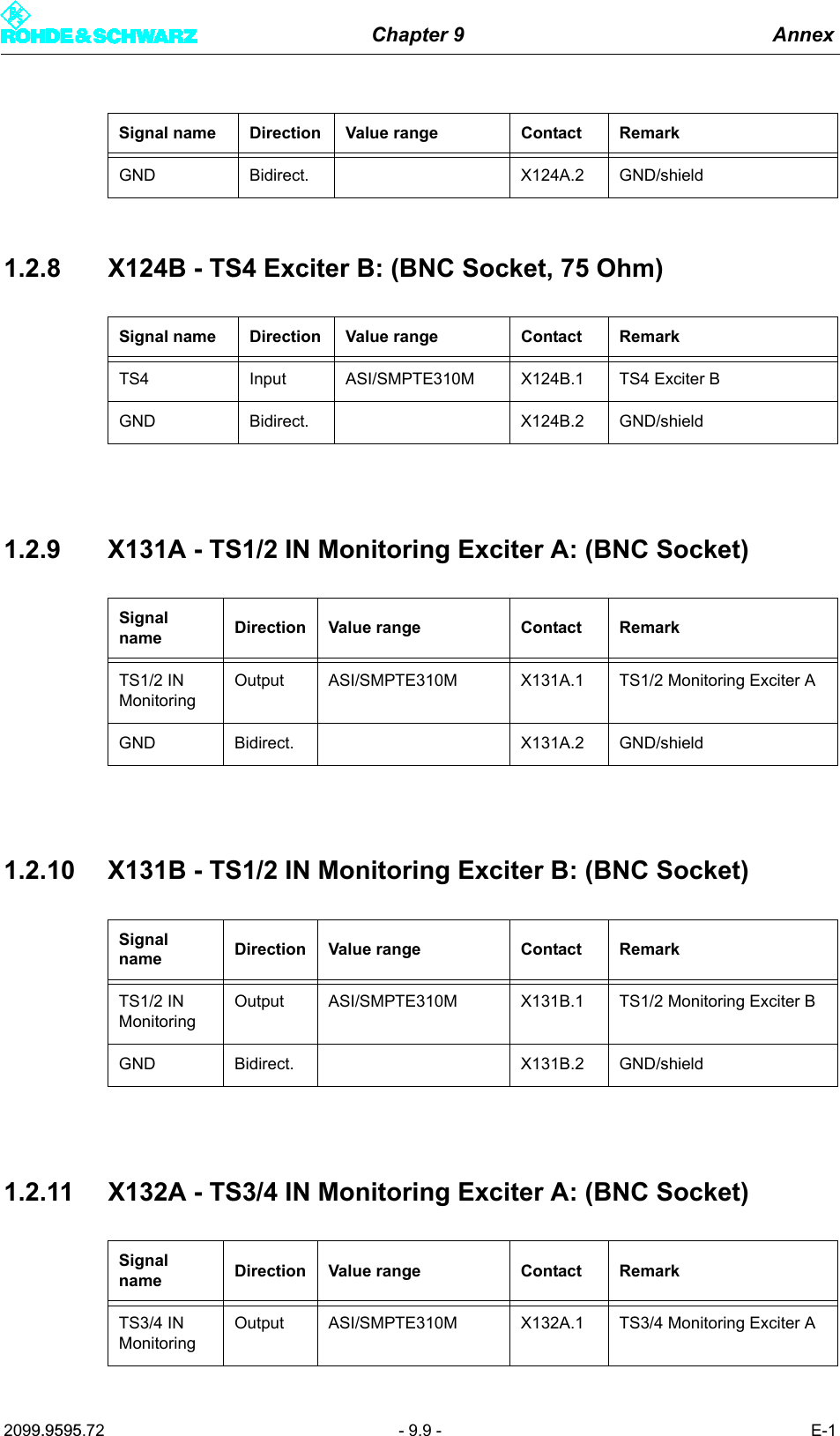

Chapter 9 Annex2099.9595.72 - 9.9 - E-11.2.8 X124B - TS4 Exciter B: (BNC Socket, 75 Ohm)1.2.9 X131A - TS1/2 IN Monitoring Exciter A: (BNC Socket)1.2.10 X131B - TS1/2 IN Monitoring Exciter B: (BNC Socket)1.2.11 X132A - TS3/4 IN Monitoring Exciter A: (BNC Socket)GND Bidirect. X124A.2 GND/shieldSignal name Direction Value range Contact RemarkTS4 Input ASI/SMPTE310M X124B.1 TS4 Exciter BGND Bidirect. X124B.2 GND/shieldSignal name Direction Value range Contact RemarkTS1/2 IN MonitoringOutput ASI/SMPTE310M X131A.1 TS1/2 Monitoring Exciter AGND Bidirect. X131A.2 GND/shieldSignal name Direction Value range Contact RemarkTS1/2 IN MonitoringOutput ASI/SMPTE310M X131B.1 TS1/2 Monitoring Exciter BGND Bidirect. X131B.2 GND/shieldSignal name Direction Value range Contact RemarkTS3/4 IN MonitoringOutput ASI/SMPTE310M X132A.1 TS3/4 Monitoring Exciter ASignal name Direction Value range Contact Remark

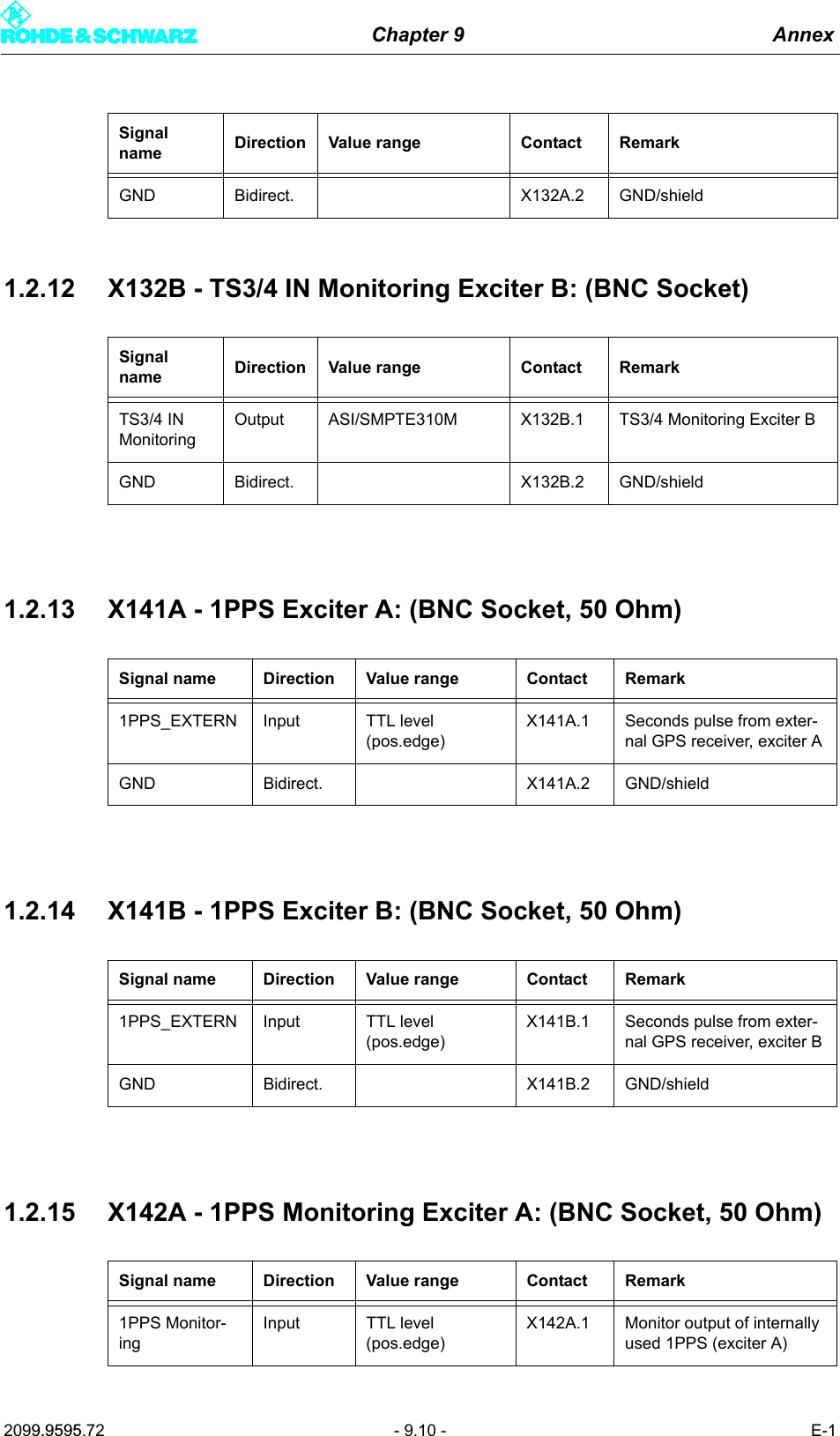

Chapter 9 Annex2099.9595.72 - 9.10 - E-11.2.12 X132B - TS3/4 IN Monitoring Exciter B: (BNC Socket)1.2.13 X141A - 1PPS Exciter A: (BNC Socket, 50 Ohm)1.2.14 X141B - 1PPS Exciter B: (BNC Socket, 50 Ohm)1.2.15 X142A - 1PPS Monitoring Exciter A: (BNC Socket, 50 Ohm)GND Bidirect. X132A.2 GND/shieldSignal name Direction Value range Contact RemarkTS3/4 IN MonitoringOutput ASI/SMPTE310M X132B.1 TS3/4 Monitoring Exciter BGND Bidirect. X132B.2 GND/shieldSignal name Direction Value range Contact Remark1PPS_EXTERN Input TTL level (pos.edge)X141A.1 Seconds pulse from exter-nal GPS receiver, exciter AGND Bidirect. X141A.2 GND/shieldSignal name Direction Value range Contact Remark1PPS_EXTERN Input TTL level (pos.edge)X141B.1 Seconds pulse from exter-nal GPS receiver, exciter BGND Bidirect. X141B.2 GND/shieldSignal name Direction Value range Contact Remark1PPS Monitor-ingInput TTL level (pos.edge)X142A.1 Monitor output of internally used 1PPS (exciter A)Signal name Direction Value range Contact Remark

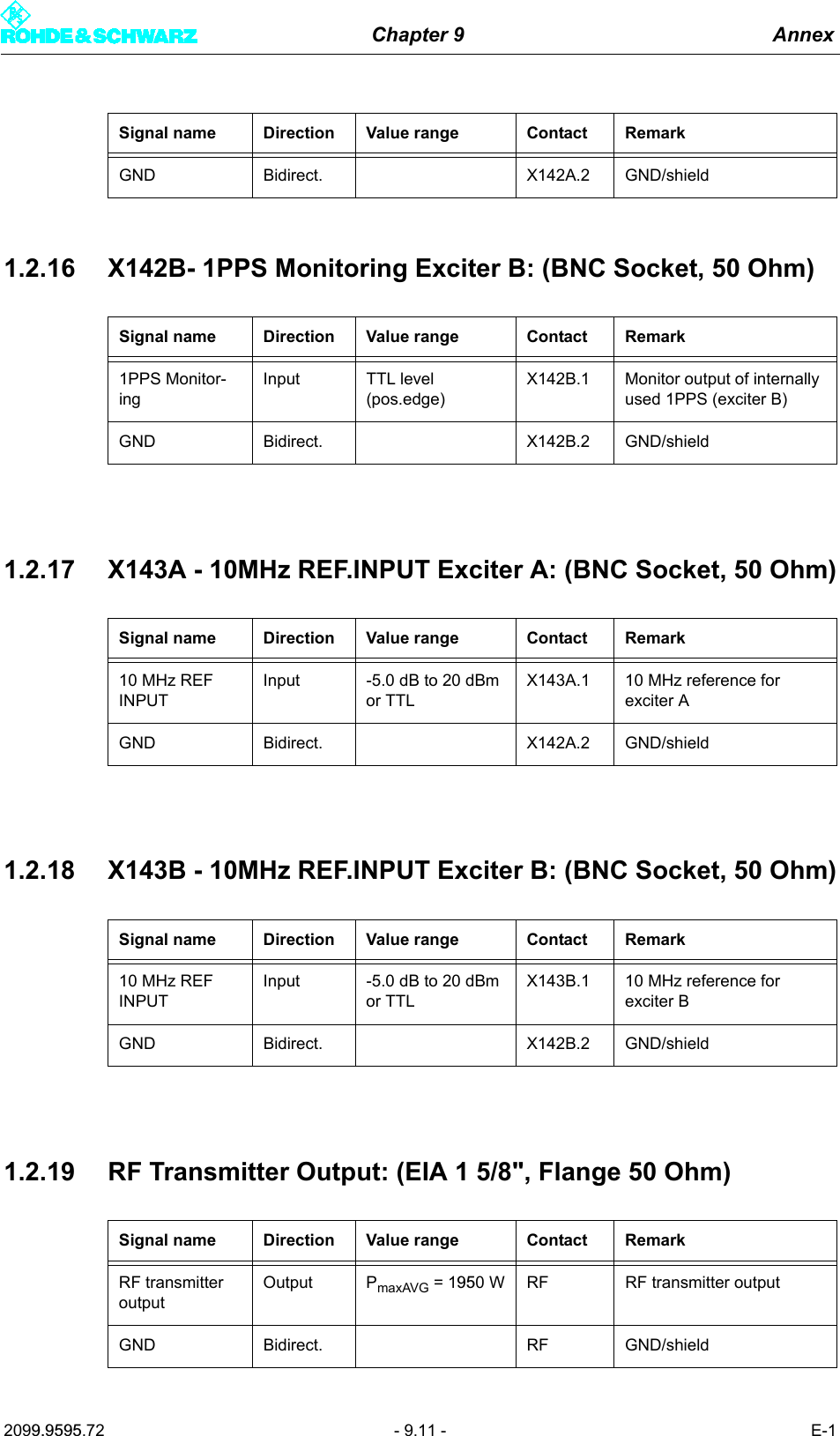

Chapter 9 Annex2099.9595.72 - 9.11 - E-11.2.16 X142B- 1PPS Monitoring Exciter B: (BNC Socket, 50 Ohm)1.2.17 X143A - 10MHz REF.INPUT Exciter A: (BNC Socket, 50 Ohm)1.2.18 X143B - 10MHz REF.INPUT Exciter B: (BNC Socket, 50 Ohm)1.2.19 RF Transmitter Output: (EIA 1 5/8", Flange 50 Ohm)GND Bidirect. X142A.2 GND/shieldSignal name Direction Value range Contact Remark1PPS Monitor-ingInput TTL level (pos.edge)X142B.1 Monitor output of internally used 1PPS (exciter B)GND Bidirect. X142B.2 GND/shieldSignal name Direction Value range Contact Remark10 MHz REF INPUTInput -5.0 dB to 20 dBm or TTLX143A.1 10 MHz reference for exciter AGND Bidirect. X142A.2 GND/shieldSignal name Direction Value range Contact Remark10 MHz REF INPUTInput -5.0 dB to 20 dBm or TTLX143B.1 10 MHz reference for exciter BGND Bidirect. X142B.2 GND/shieldSignal name Direction Value range Contact RemarkRF transmitter outputOutput PmaxAVG = 1950 W RF RF transmitter outputGND Bidirect. RF GND/shieldSignal name Direction Value range Contact Remark

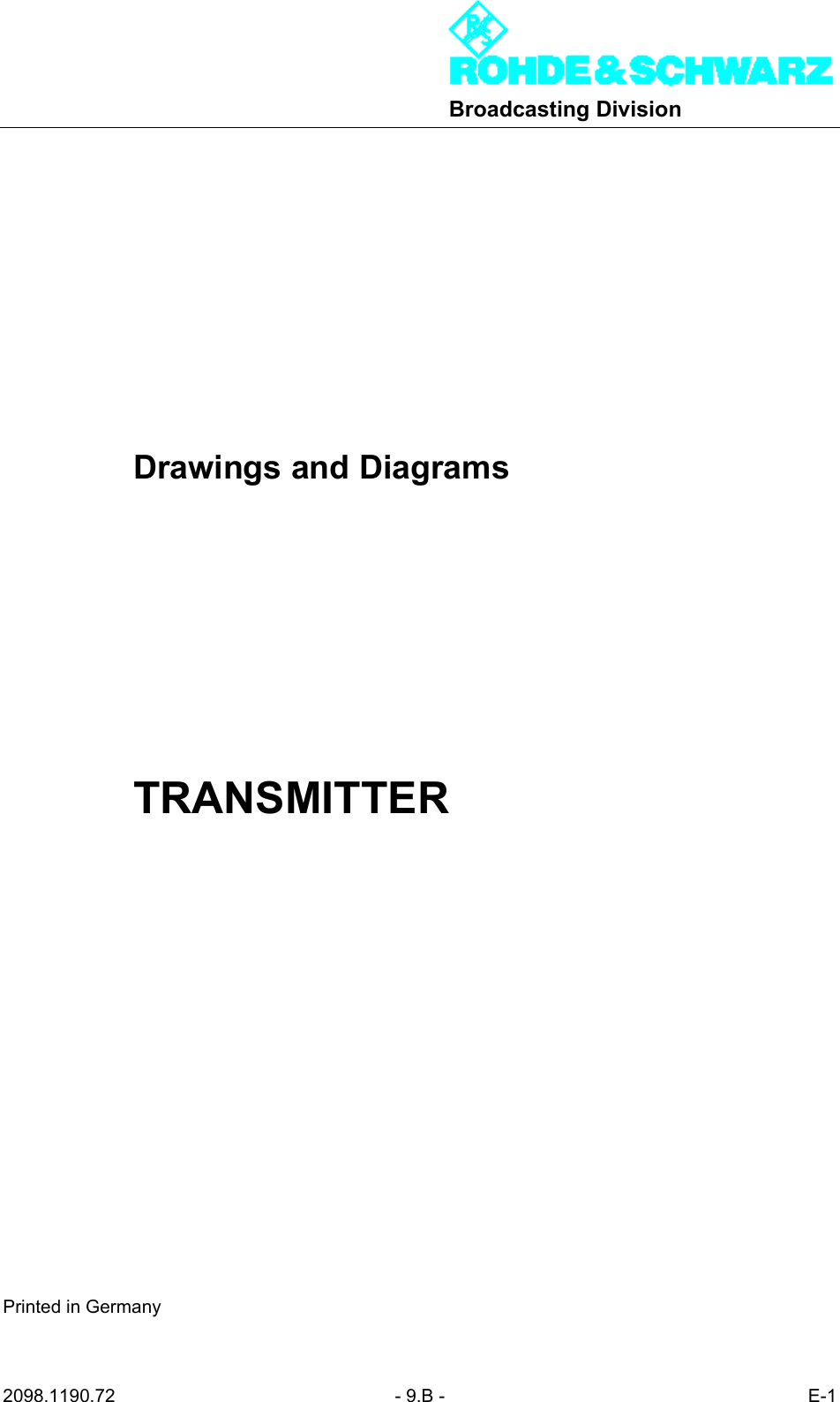

Broadcasting Division2098.1190.72 - 9.B - E-1Drawings and DiagramsTRANSMITTERPrinted in Germany

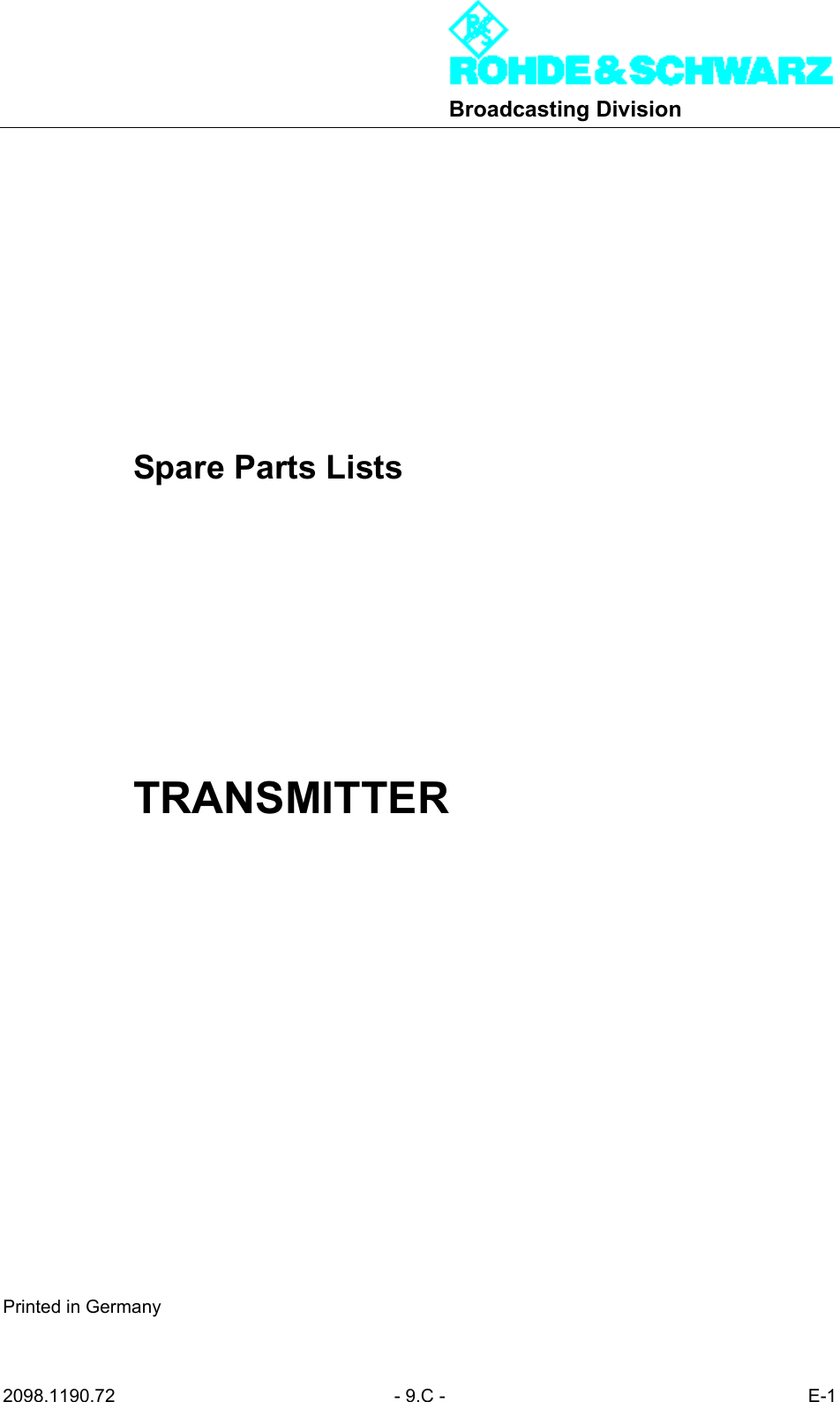

Broadcasting Division2098.1190.72 - 9.C - E-1Spare Parts ListsTRANSMITTERPrinted in Germany
