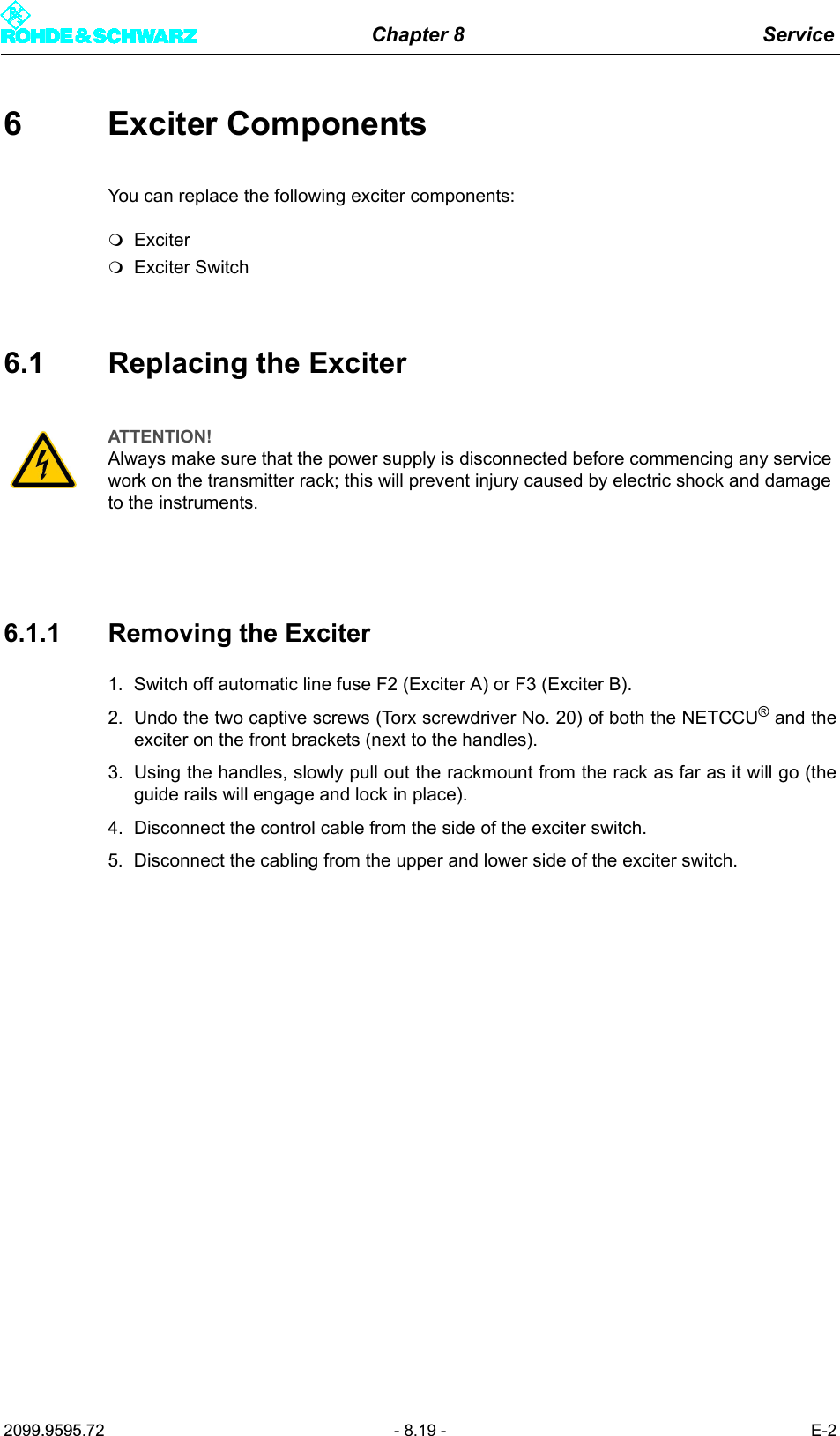

Chapter 8 Service2099.9595.72 - 8.19 - E-26 Exciter ComponentsYou can replace the following exciter components:ExciterExciter Switch6.1 Replacing the Exciter6.1.1 Removing the Exciter1. Switch off automatic line fuse F2 (Exciter A) or F3 (Exciter B).2. Undo the two captive screws (Torx screwdriver No. 20) of both the NETCCU® and theexciter on the front brackets (next to the handles). 3. Using the handles, slowly pull out the rackmount from the rack as far as it will go (theguide rails will engage and lock in place). 4. Disconnect the control cable from the side of the exciter switch. 5. Disconnect the cabling from the upper and lower side of the exciter switch.ATTENTION!Always make sure that the power supply is disconnected before commencing any service work on the transmitter rack; this will prevent injury caused by electric shock and damage to the instruments.

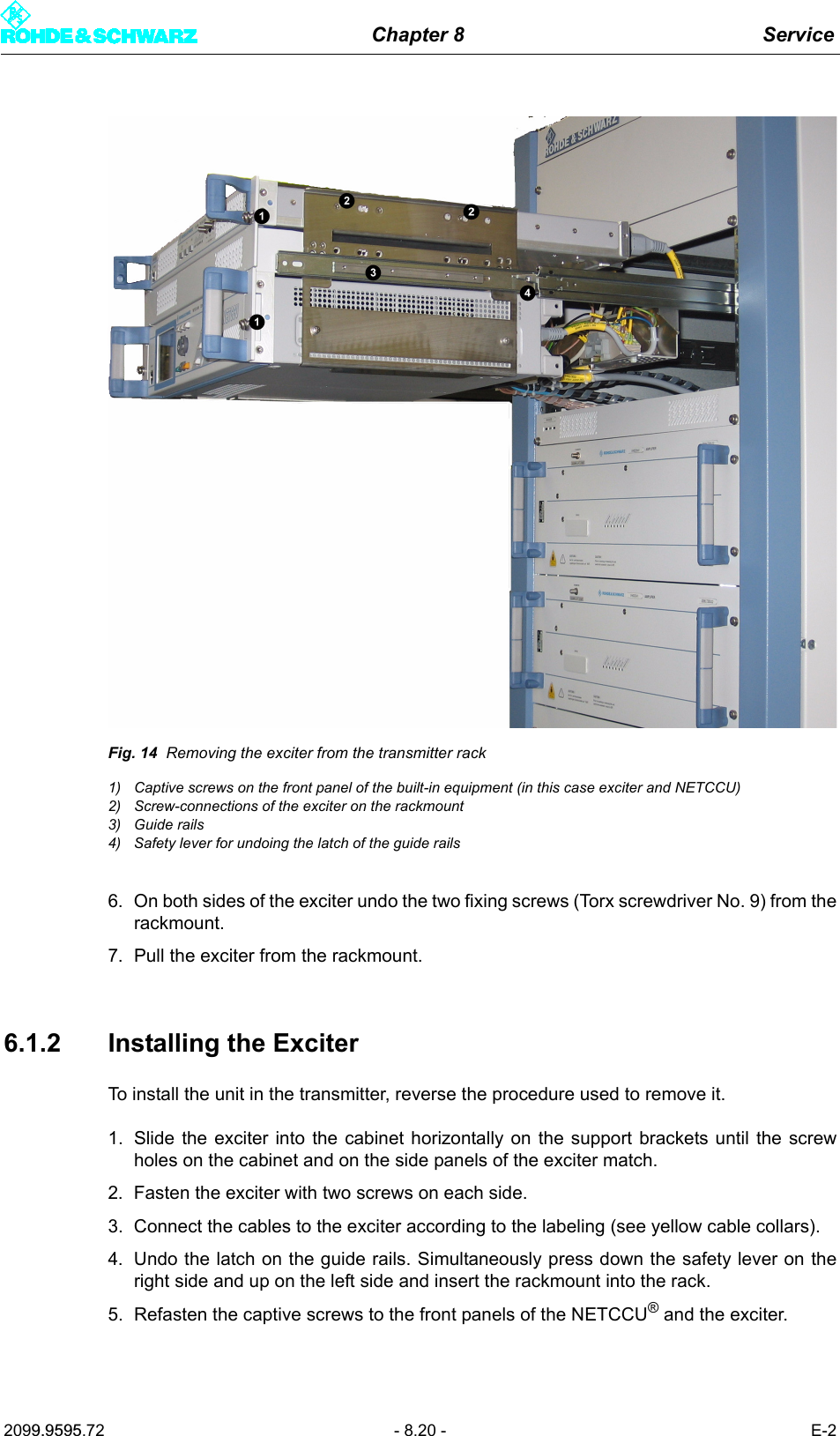

Chapter 8 Service2099.9595.72 - 8.20 - E-2Fig. 14 Removing the exciter from the transmitter rack1) Captive screws on the front panel of the built-in equipment (in this case exciter and NETCCU)2) Screw-connections of the exciter on the rackmount3) Guide rails4) Safety lever for undoing the latch of the guide rails6. On both sides of the exciter undo the two fixing screws (Torx screwdriver No. 9) from therackmount. 7. Pull the exciter from the rackmount.6.1.2 Installing the ExciterTo install the unit in the transmitter, reverse the procedure used to remove it. 1. Slide the exciter into the cabinet horizontally on the support brackets until the screwholes on the cabinet and on the side panels of the exciter match. 2. Fasten the exciter with two screws on each side.3. Connect the cables to the exciter according to the labeling (see yellow cable collars).4. Undo the latch on the guide rails. Simultaneously press down the safety lever on theright side and up on the left side and insert the rackmount into the rack. 5. Refasten the captive screws to the front panels of the NETCCU® and the exciter.

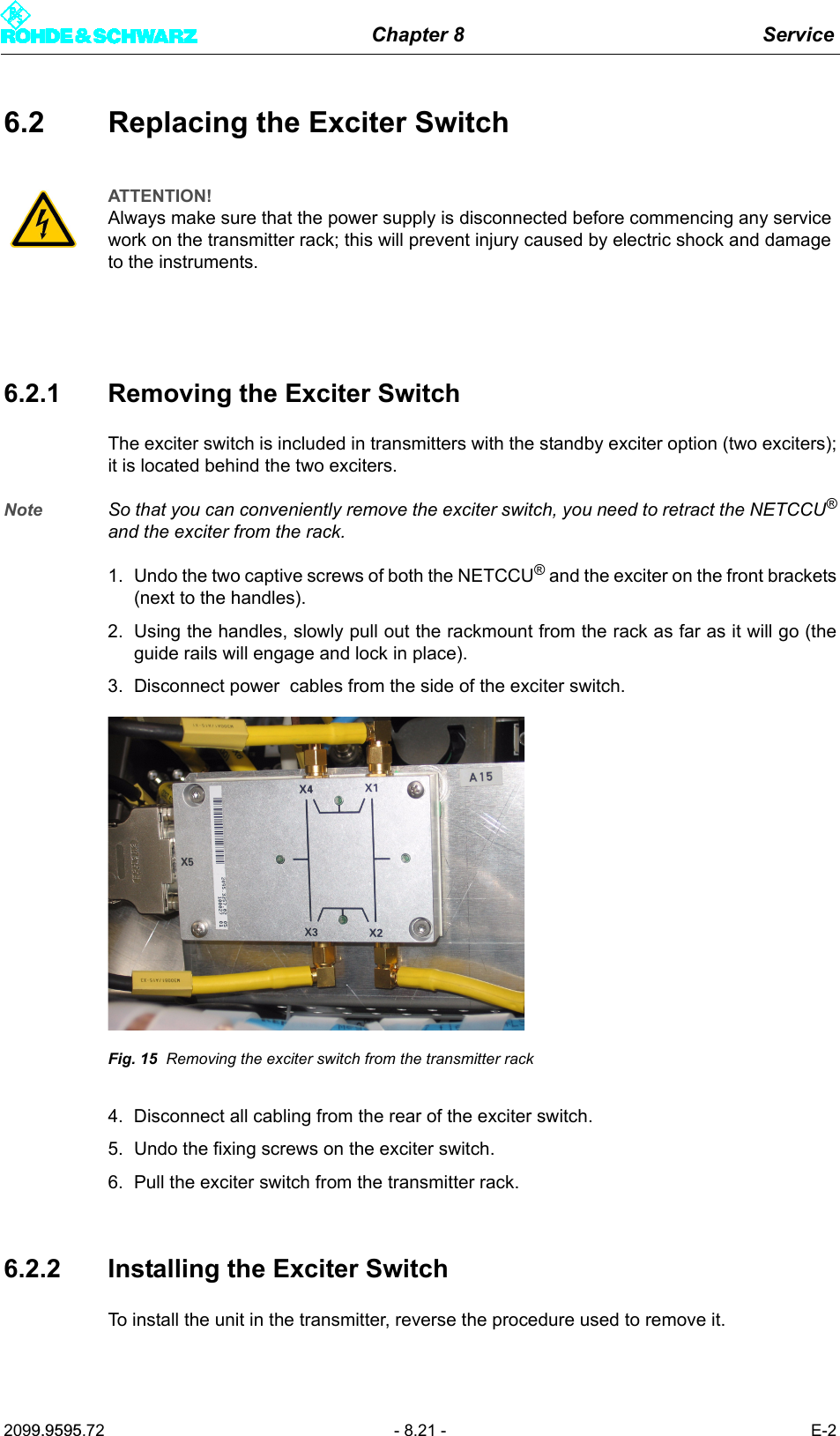

Chapter 8 Service2099.9595.72 - 8.21 - E-26.2 Replacing the Exciter Switch6.2.1 Removing the Exciter SwitchThe exciter switch is included in transmitters with the standby exciter option (two exciters);it is located behind the two exciters.Note So that you can conveniently remove the exciter switch, you need to retract the NETCCU®and the exciter from the rack.1. Undo the two captive screws of both the NETCCU® and the exciter on the front brackets(next to the handles). 2. Using the handles, slowly pull out the rackmount from the rack as far as it will go (theguide rails will engage and lock in place). 3. Disconnect power cables from the side of the exciter switch. Fig. 15 Removing the exciter switch from the transmitter rack4. Disconnect all cabling from the rear of the exciter switch. 5. Undo the fixing screws on the exciter switch. 6. Pull the exciter switch from the transmitter rack.6.2.2 Installing the Exciter SwitchTo install the unit in the transmitter, reverse the procedure used to remove it. ATTENTION!Always make sure that the power supply is disconnected before commencing any service work on the transmitter rack; this will prevent injury caused by electric shock and damage to the instruments.

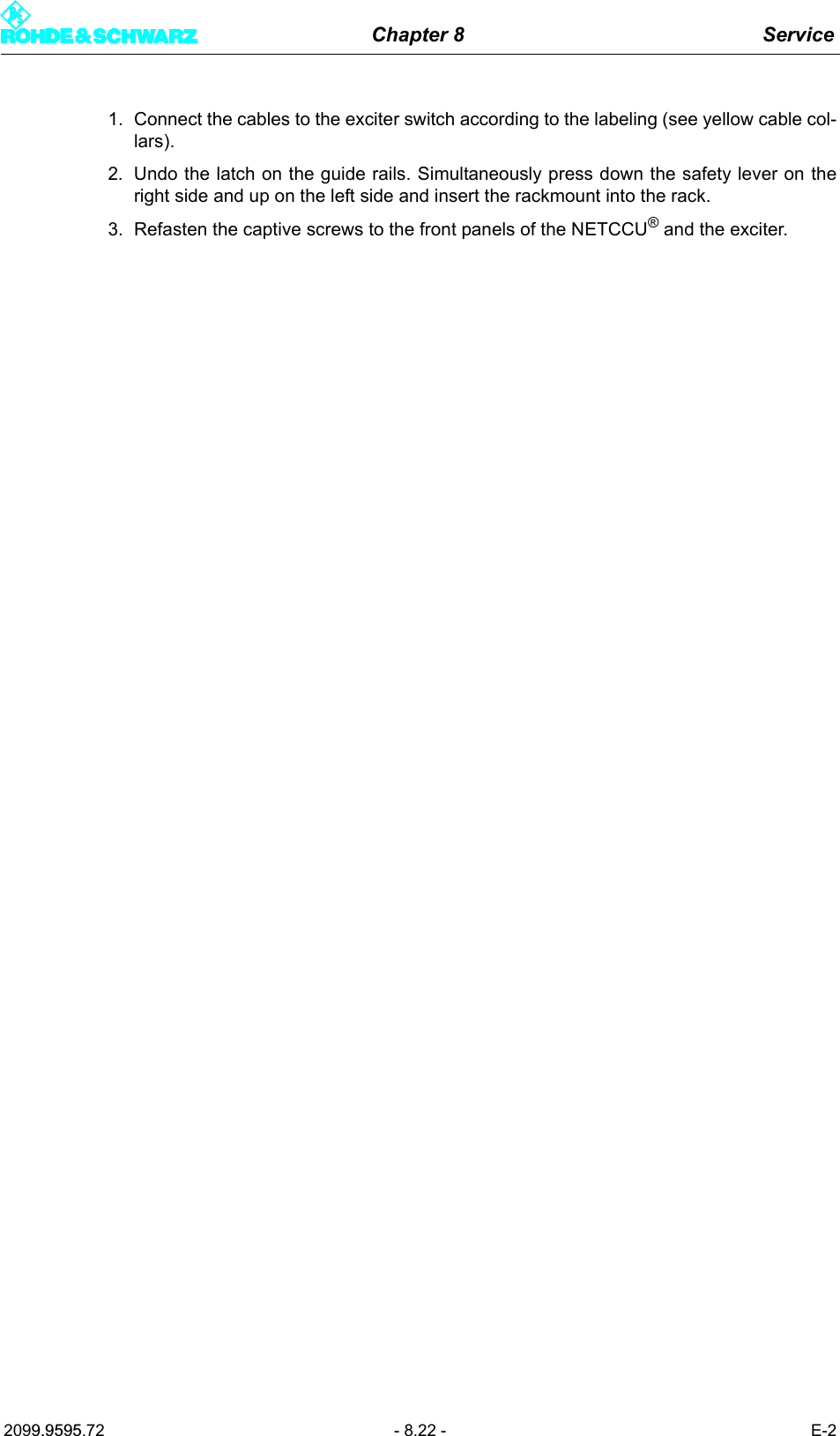

Chapter 8 Service2099.9595.72 - 8.22 - E-21. Connect the cables to the exciter switch according to the labeling (see yellow cable col-lars).2. Undo the latch on the guide rails. Simultaneously press down the safety lever on theright side and up on the left side and insert the rackmount into the rack. 3. Refasten the captive screws to the front panels of the NETCCU® and the exciter.

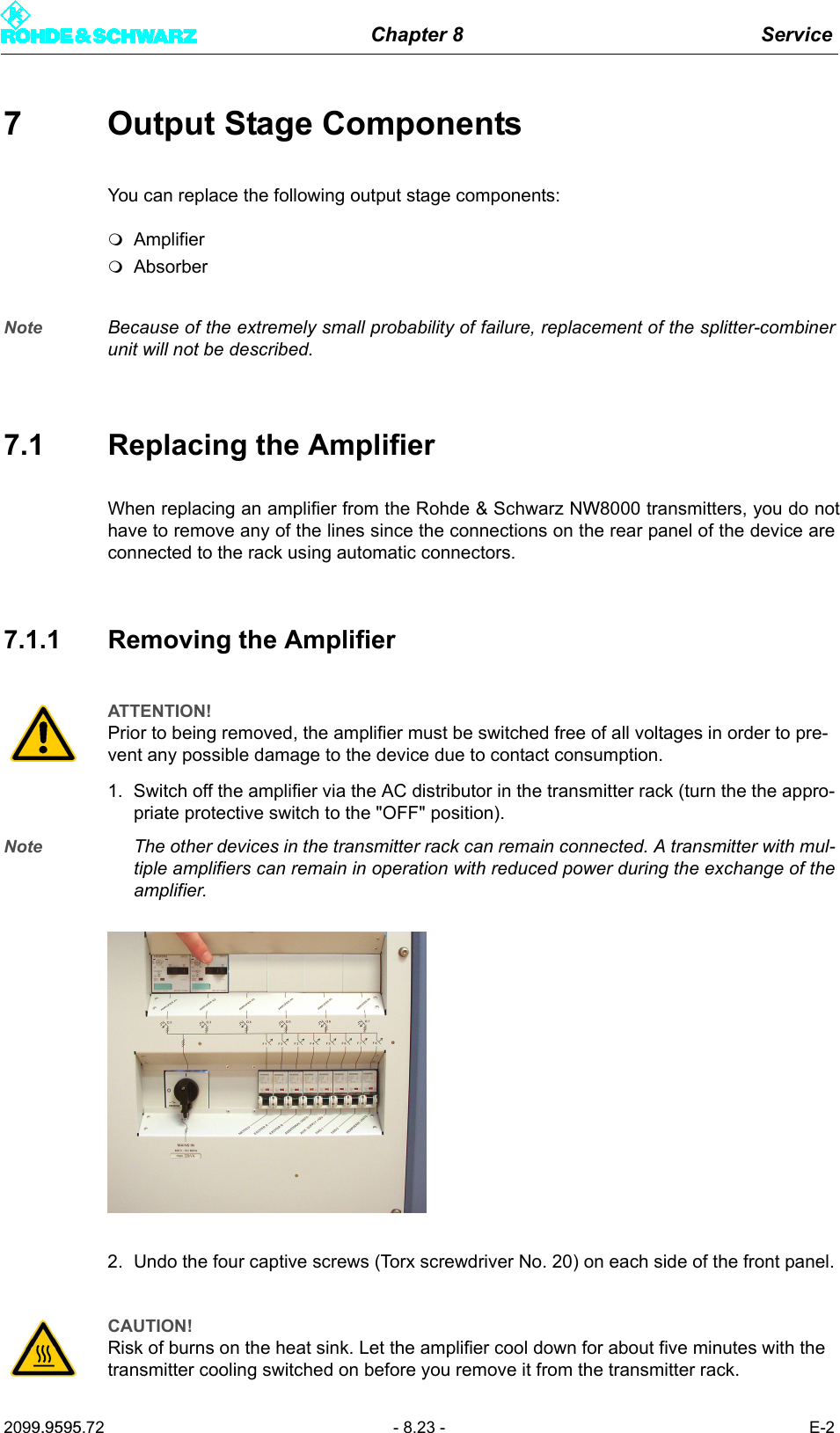

Chapter 8 Service2099.9595.72 - 8.23 - E-27 Output Stage ComponentsYou can replace the following output stage components:AmplifierAbsorberNote Because of the extremely small probability of failure, replacement of the splitter-combinerunit will not be described.7.1 Replacing the AmplifierWhen replacing an amplifier from the Rohde & Schwarz NW8000 transmitters, you do nothave to remove any of the lines since the connections on the rear panel of the device areconnected to the rack using automatic connectors.7.1.1 Removing the Amplifier1. Switch off the amplifier via the AC distributor in the transmitter rack (turn the the appro-priate protective switch to the "OFF" position).Note The other devices in the transmitter rack can remain connected. A transmitter with mul-tiple amplifiers can remain in operation with reduced power during the exchange of theamplifier.2. Undo the four captive screws (Torx screwdriver No. 20) on each side of the front panel.ATTENTION!Prior to being removed, the amplifier must be switched free of all voltages in order to pre-vent any possible damage to the device due to contact consumption.CAUTION!Risk of burns on the heat sink. Let the amplifier cool down for about five minutes with the transmitter cooling switched on before you remove it from the transmitter rack.

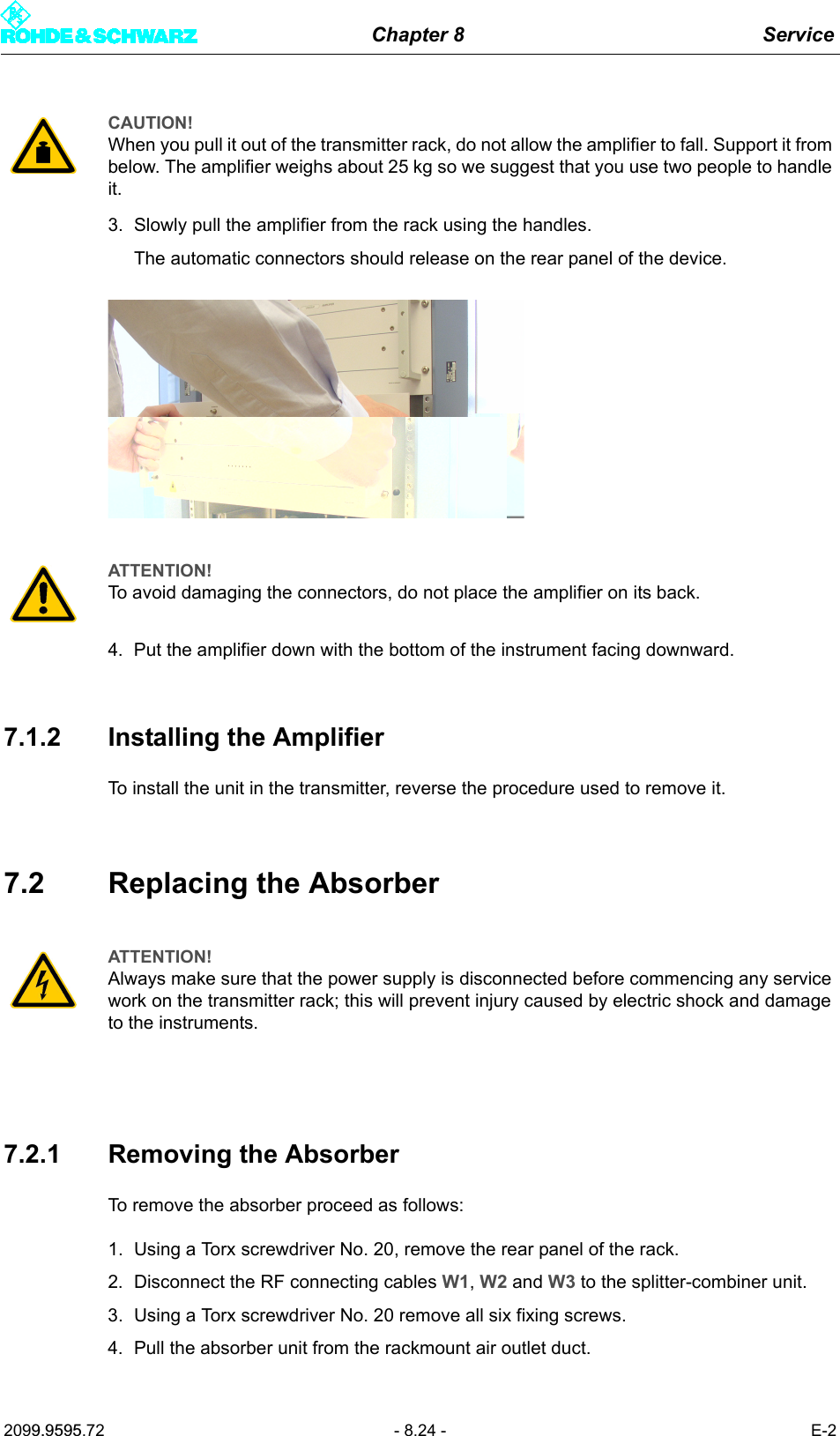

Chapter 8 Service2099.9595.72 - 8.24 - E-23. Slowly pull the amplifier from the rack using the handles.The automatic connectors should release on the rear panel of the device.4. Put the amplifier down with the bottom of the instrument facing downward.7.1.2 Installing the AmplifierTo install the unit in the transmitter, reverse the procedure used to remove it.7.2 Replacing the Absorber7.2.1 Removing the AbsorberTo remove the absorber proceed as follows:1. Using a Torx screwdriver No. 20, remove the rear panel of the rack.2. Disconnect the RF connecting cables W1, W2 and W3 to the splitter-combiner unit.3. Using a Torx screwdriver No. 20 remove all six fixing screws.4. Pull the absorber unit from the rackmount air outlet duct.CAUTION!When you pull it out of the transmitter rack, do not allow the amplifier to fall. Support it from below. The amplifier weighs about 25 kg so we suggest that you use two people to handle it.ATTENTION!To avoid damaging the connectors, do not place the amplifier on its back.ATTENTION!Always make sure that the power supply is disconnected before commencing any service work on the transmitter rack; this will prevent injury caused by electric shock and damage to the instruments.

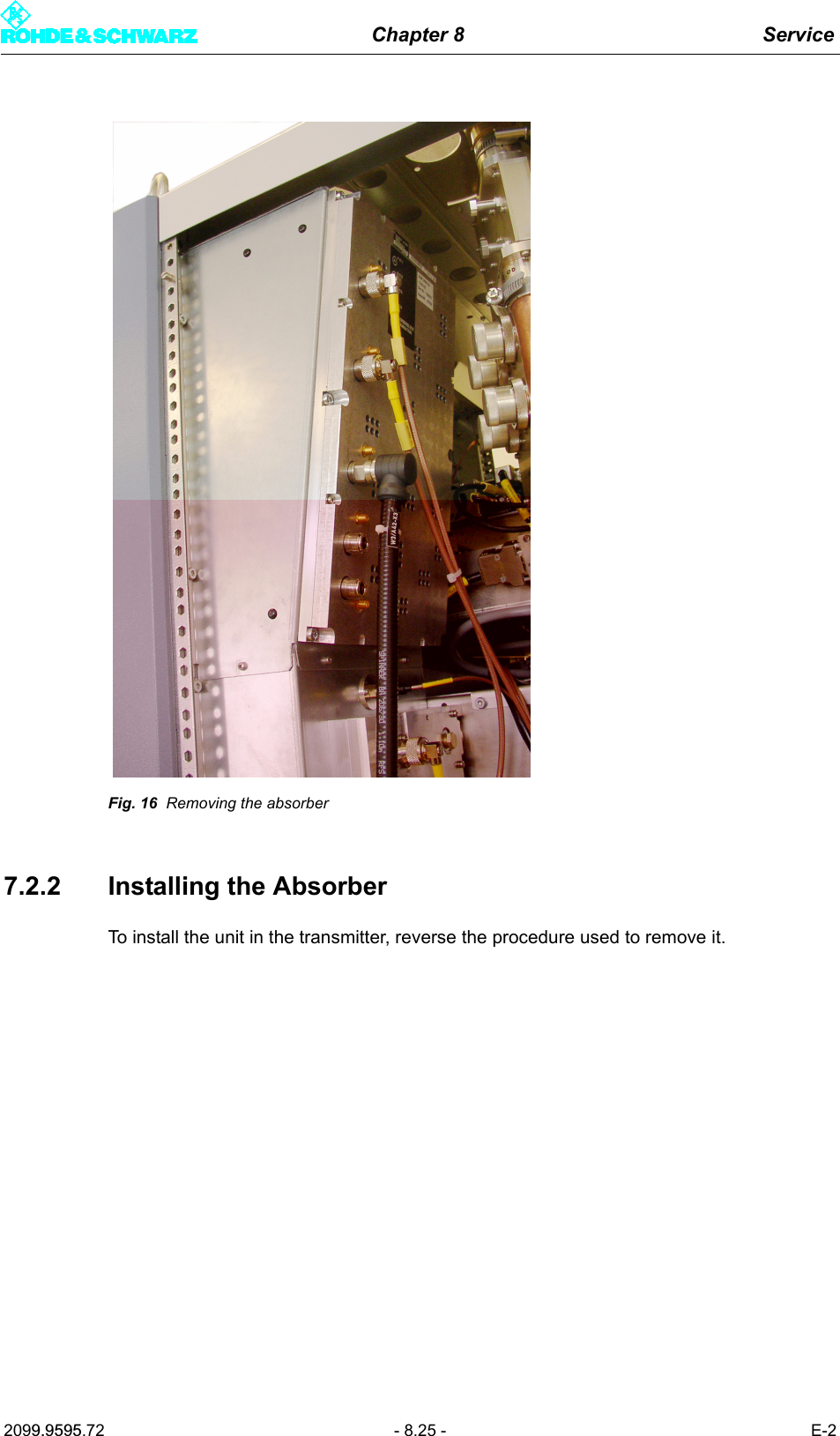

Chapter 8 Service2099.9595.72 - 8.25 - E-2Fig. 16 Removing the absorber7.2.2 Installing the AbsorberTo install the unit in the transmitter, reverse the procedure used to remove it.
