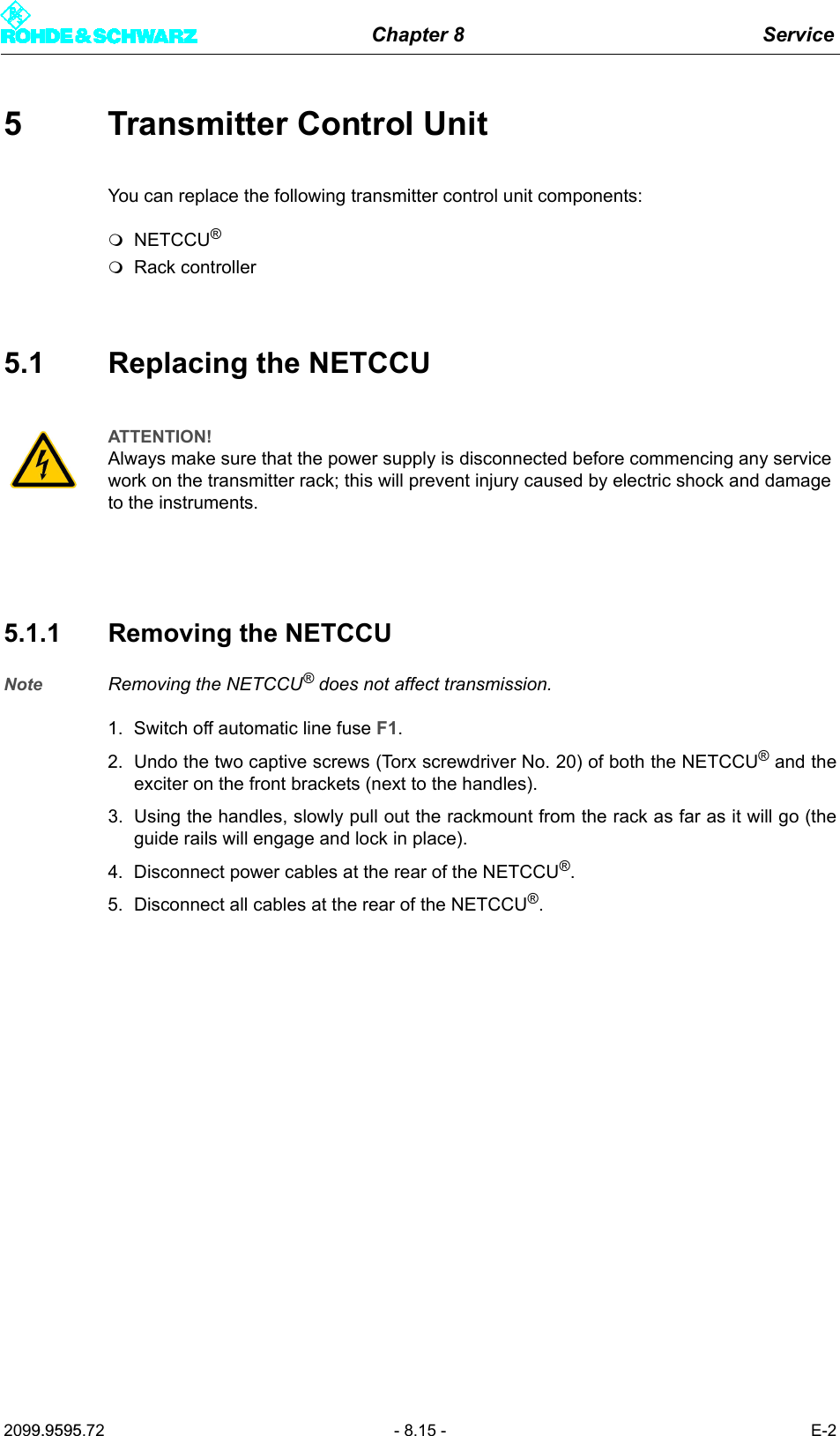

Chapter 8 Service2099.9595.72 - 8.15 - E-25 Transmitter Control UnitYou can replace the following transmitter control unit components:NETCCU®Rack controller5.1 Replacing the NETCCU5.1.1 Removing the NETCCUNote Removing the NETCCU® does not affect transmission. 1. Switch off automatic line fuse F1.2. Undo the two captive screws (Torx screwdriver No. 20) of both the NETCCU® and theexciter on the front brackets (next to the handles). 3. Using the handles, slowly pull out the rackmount from the rack as far as it will go (theguide rails will engage and lock in place). 4. Disconnect power cables at the rear of the NETCCU®. 5. Disconnect all cables at the rear of the NETCCU®. ATTENTION!Always make sure that the power supply is disconnected before commencing any service work on the transmitter rack; this will prevent injury caused by electric shock and damage to the instruments.

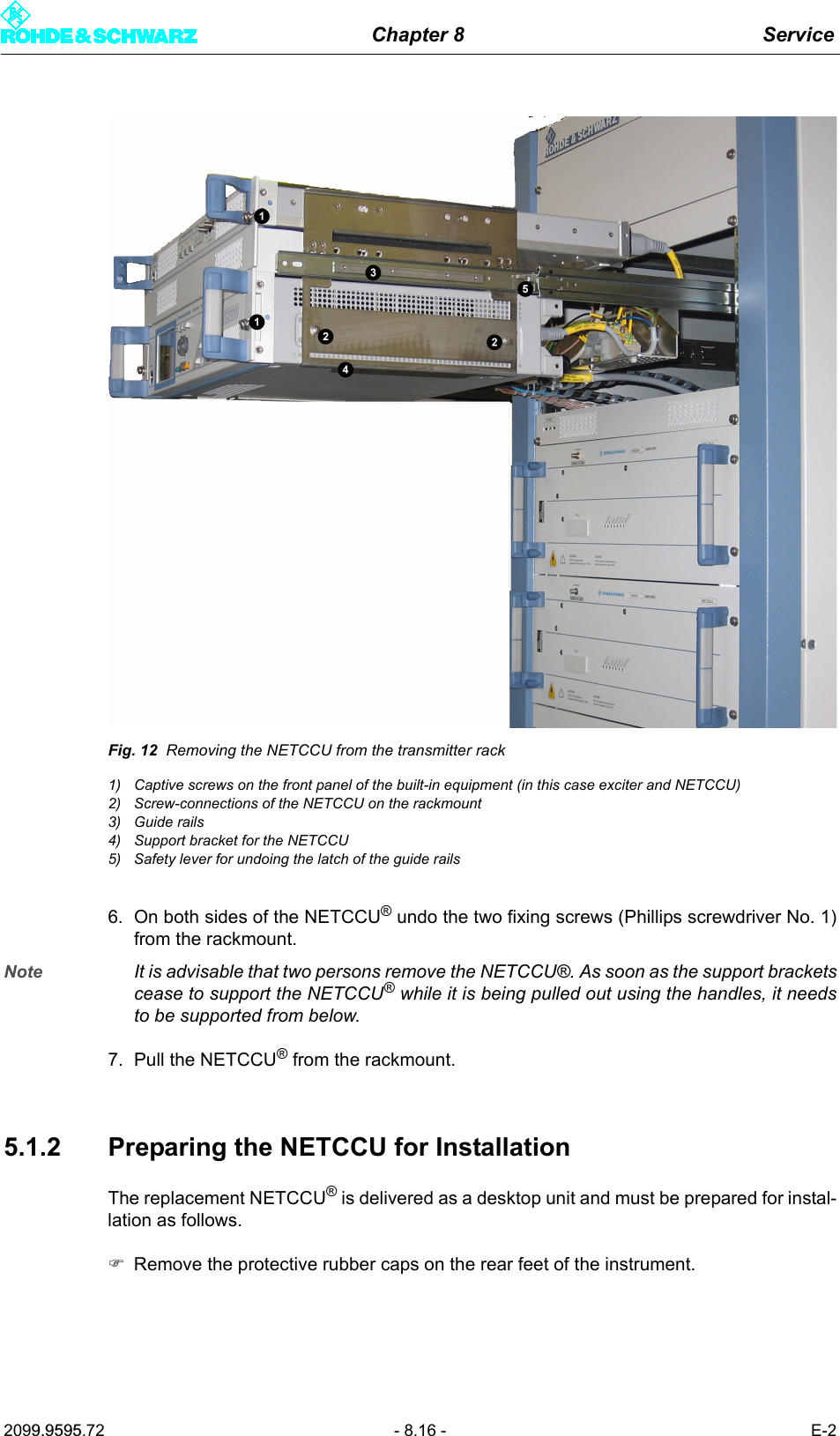

Chapter 8 Service2099.9595.72 - 8.16 - E-2Fig. 12 Removing the NETCCU from the transmitter rack1) Captive screws on the front panel of the built-in equipment (in this case exciter and NETCCU)2) Screw-connections of the NETCCU on the rackmount3) Guide rails4) Support bracket for the NETCCU5) Safety lever for undoing the latch of the guide rails6. On both sides of the NETCCU® undo the two fixing screws (Phillips screwdriver No. 1)from the rackmount. Note It is advisable that two persons remove the NETCCU®. As soon as the support bracketscease to support the NETCCU® while it is being pulled out using the handles, it needsto be supported from below. 7. Pull the NETCCU® from the rackmount.5.1.2 Preparing the NETCCU for InstallationThe replacement NETCCU® is delivered as a desktop unit and must be prepared for instal-lation as follows.)Remove the protective rubber caps on the rear feet of the instrument.

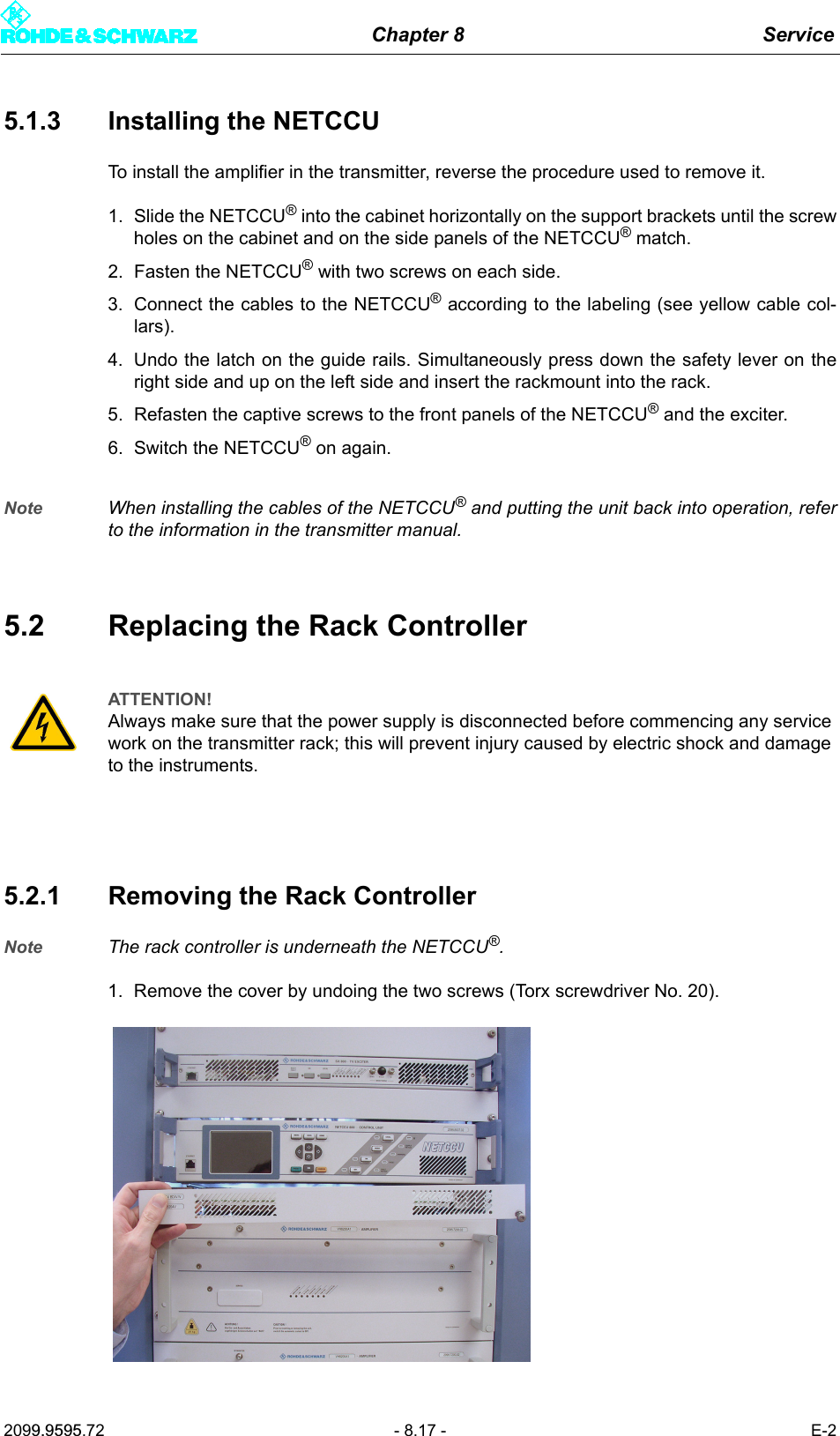

Chapter 8 Service2099.9595.72 - 8.17 - E-25.1.3 Installing the NETCCUTo install the amplifier in the transmitter, reverse the procedure used to remove it. 1. Slide the NETCCU® into the cabinet horizontally on the support brackets until the screwholes on the cabinet and on the side panels of the NETCCU® match. 2. Fasten the NETCCU® with two screws on each side.3. Connect the cables to the NETCCU® according to the labeling (see yellow cable col-lars).4. Undo the latch on the guide rails. Simultaneously press down the safety lever on theright side and up on the left side and insert the rackmount into the rack. 5. Refasten the captive screws to the front panels of the NETCCU® and the exciter. 6. Switch the NETCCU® on again.Note When installing the cables of the NETCCU® and putting the unit back into operation, referto the information in the transmitter manual. 5.2 Replacing the Rack Controller5.2.1 Removing the Rack ControllerNote The rack controller is underneath the NETCCU®.1. Remove the cover by undoing the two screws (Torx screwdriver No. 20).ATTENTION!Always make sure that the power supply is disconnected before commencing any service work on the transmitter rack; this will prevent injury caused by electric shock and damage to the instruments.

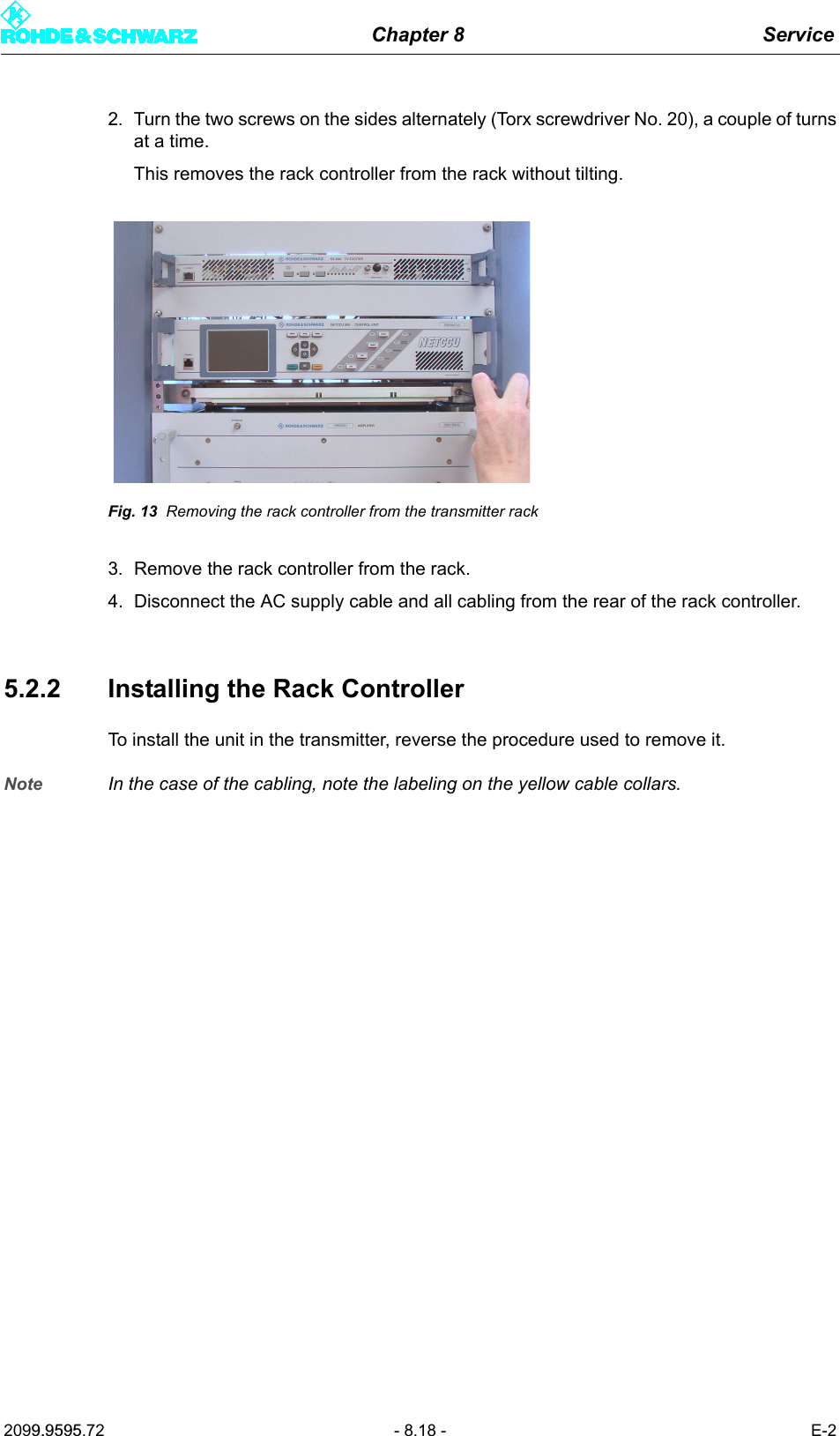

Chapter 8 Service2099.9595.72 - 8.18 - E-22. Turn the two screws on the sides alternately (Torx screwdriver No. 20), a couple of turnsat a time. This removes the rack controller from the rack without tilting.Fig. 13 Removing the rack controller from the transmitter rack3. Remove the rack controller from the rack.4. Disconnect the AC supply cable and all cabling from the rear of the rack controller. 5.2.2 Installing the Rack ControllerTo install the unit in the transmitter, reverse the procedure used to remove it. Note In the case of the cabling, note the labeling on the yellow cable collars.
