CHAPTER 5. OPERATION
Basic operation of the radar
The front panel of the RA51/52/53/54/55 radar has both fixed-function keys as well as
programmable soft keys.
5.1 Powering On and Off
(1) Powering On
Press the "POWER" key. A beep sounds and the unit begins to power up.
Screen contrast and brilliance is set to the same level as when the unit was last powered off.
(2) Powering Off
Press and hold the "POWER" key for more than 3 seconds and the unit will power off.
5.2 Adjusting contrast and brilliance of the screen, and key-backlight

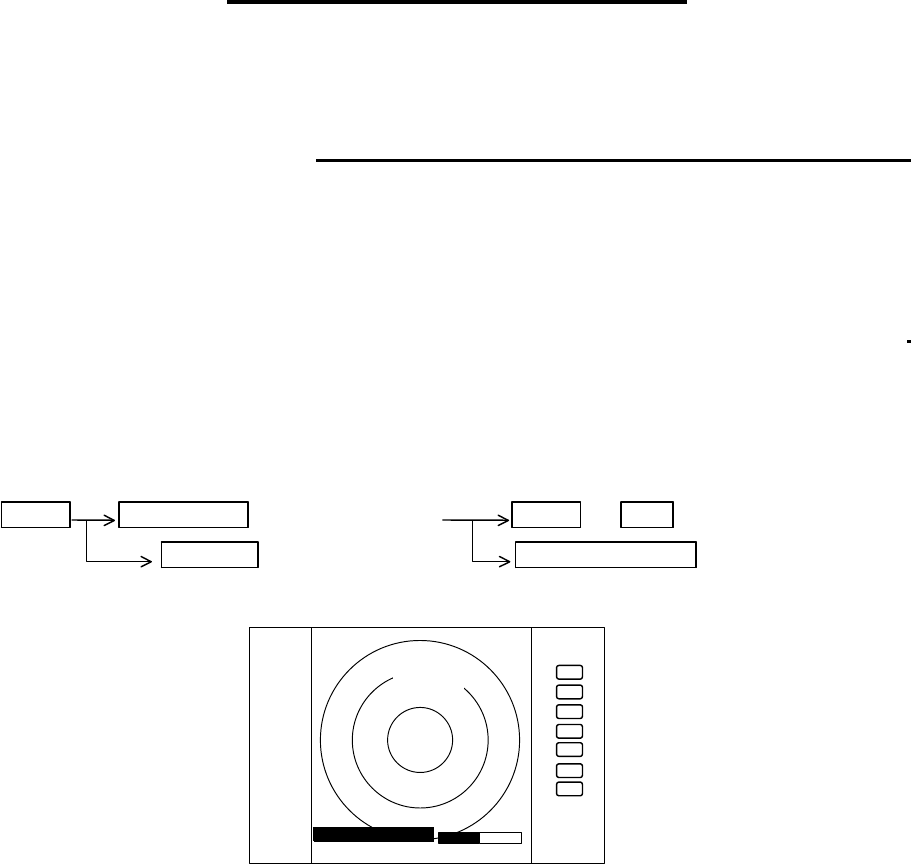

(1) Press the "BRILL" key. A bar indicating brilliance and key-backlight appears on the
screen.
(2) Select the item to adjust with the up-down cursor, and then adjust it with the control knob.
(3) When through adjusting, press either the "BRILL" key or the "ENT" key to exit the
adjustment screen. (Pressing any other key afterwards will access the function of that key.)
BRILL Control knob (Adjustment of brilliance) BRILL or ENT
Up/Down (Selection of key-backlight) Other function key
Move to other functions
.75
.25
HU ST’BY
+
BRILLIANCE
50
BRILLIANCE
